This document discusses secure communication in network systems. It defines network security as activities that protect a network's usability, reliability, integrity and safety. Secure communication ensures confidentiality by encrypting messages so only the recipient can understand them, authentication to verify identities, and message integrity to ensure messages are not altered. It discusses how authentication can be based on what users know (passwords), have (tokens, cards) or are (biometrics). MACs (message authentication codes) using hash functions with a secret key also ensure message integrity and non-repudiation. The document outlines some principles of implementing network security like layering, limiting access, obscurity and simplicity.

1. SECURE
COMMUNICATION
Anita Maharjan
Basanta kadel
Bhoj Raj Kafle
Bijay Raj Paudel

2. INTRODUCTION
 as we know in a network system, it is not possible that single user enjoy the
whole system all alone.
 because networking is used by most sector like
banking,entertainment, commercial,educational,etc.

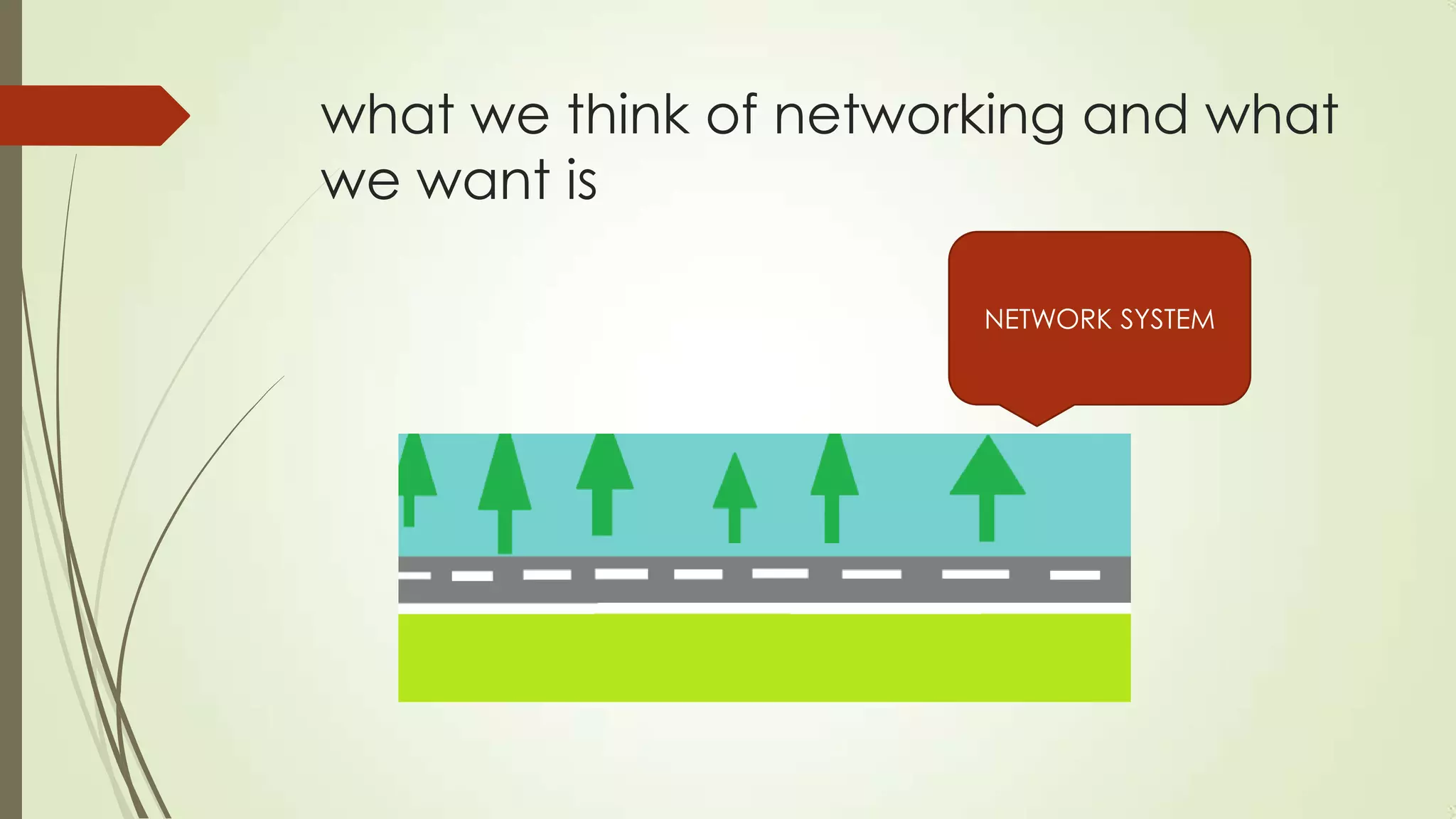

3. what we think of networking and what
we want is
NETWORK SYSTEM

4. BUT ACTUALLY!!
Bankers
entertainer
educator
we Hacker
s!!

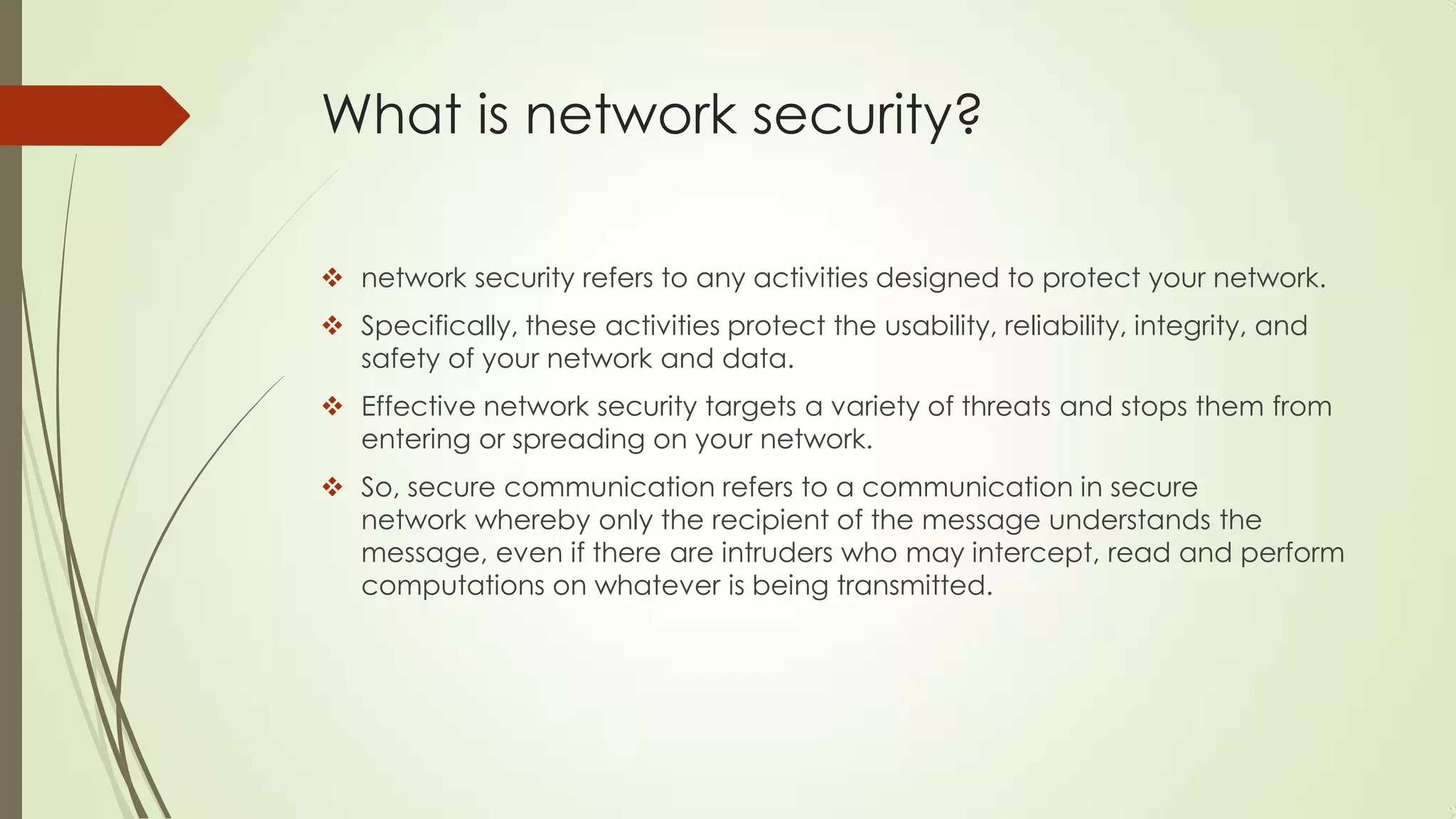

8. What is network security?
 network security refers to any activities designed to protect your network.
 Specifically, these activities protect the usability, reliability, integrity, and
safety of your network and data.
 Effective network security targets a variety of threats and stops them from
entering or spreading on your network.
 So, secure communication refers to a communication in secure
network whereby only the recipient of the message understands the
message, even if there are intruders who may intercept, read and perform
computations on whatever is being transmitted.

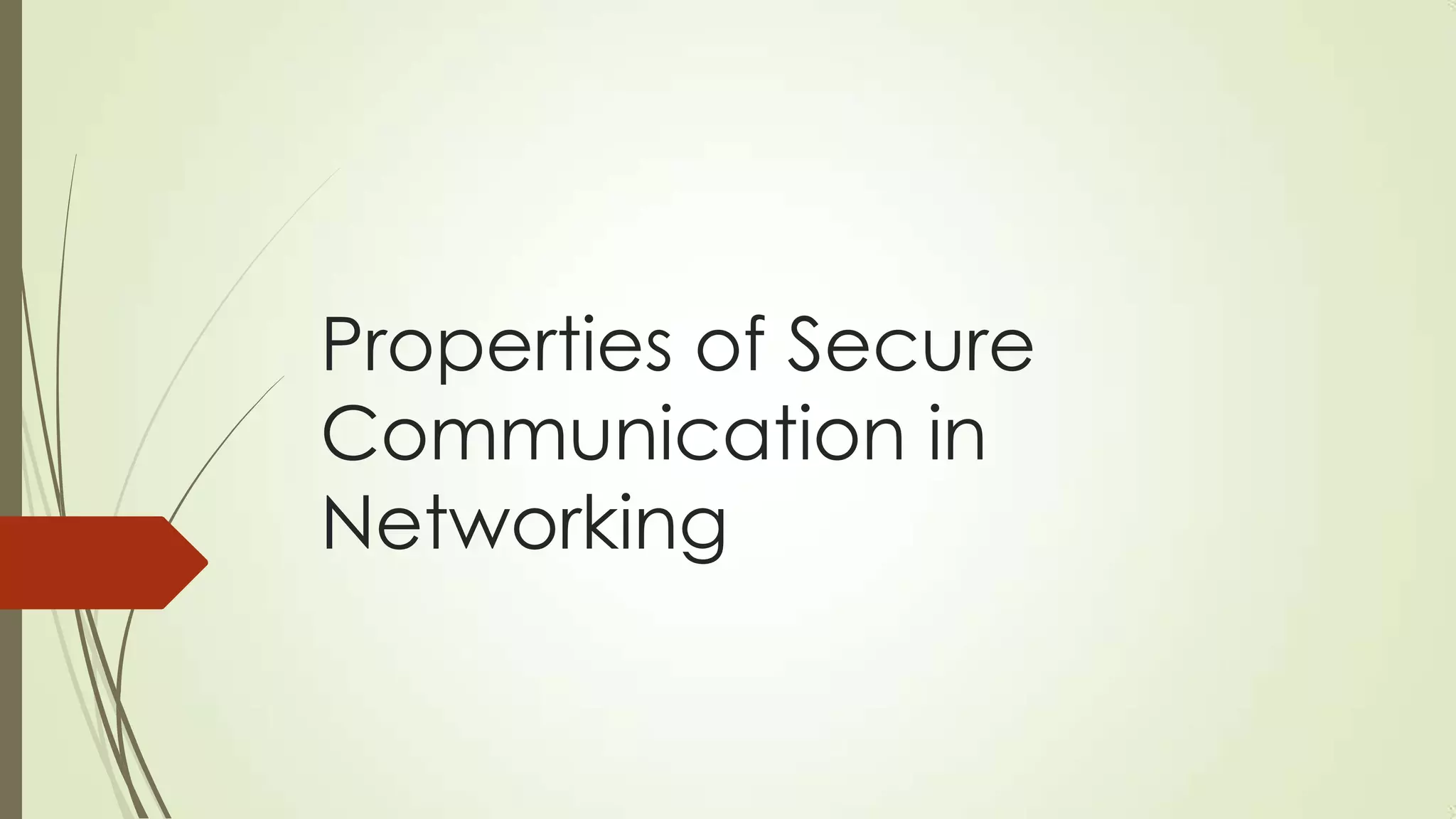

9. Properties of Secure
Communication in
Networking

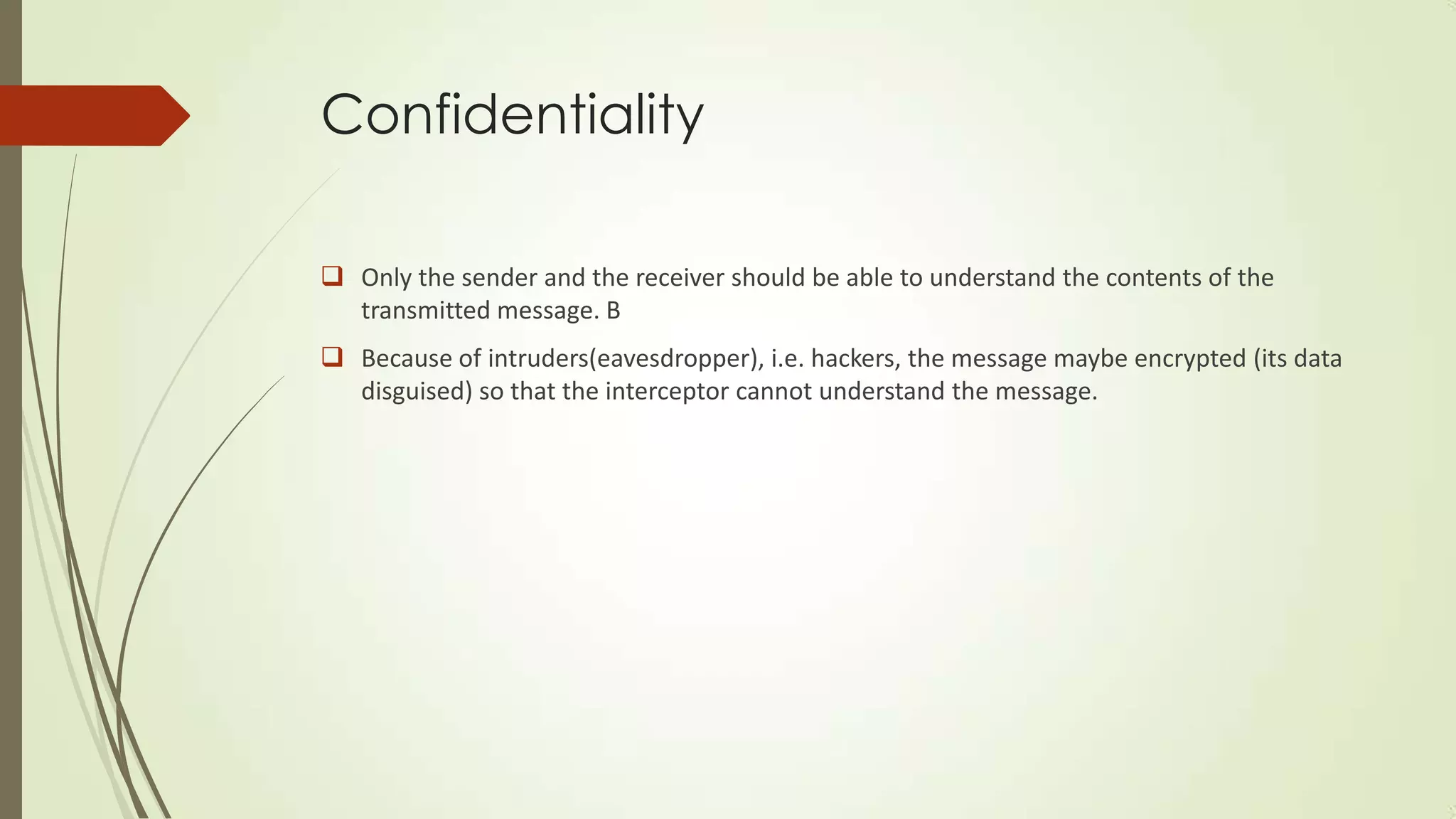

10. Confidentiality
 Only the sender and the receiver should be able to understand the contents of the
transmitted message. B
 Because of intruders(eavesdropper), i.e. hackers, the message maybe encrypted (its data
disguised) so that the interceptor cannot understand the message.

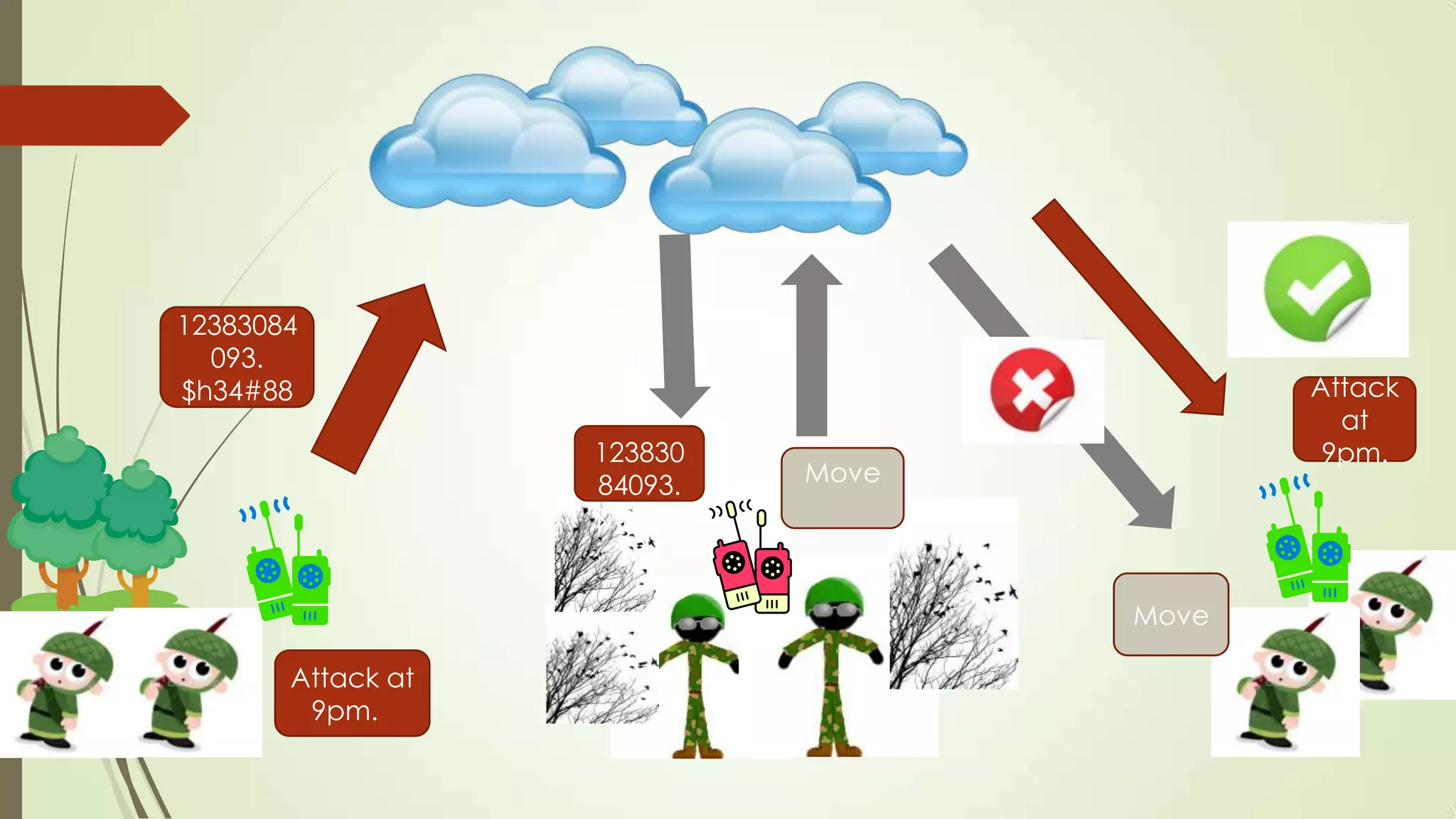

11. Attack at
9pm.
12383084
093.
$h34#88
123830
84093.
$h34#8
8
Attack
at
9pm.
Move
Move

12. Authentication
 Process of providing identity
 Can be classified into three main categories:
 what do you know,
 what do you have and
 what you are

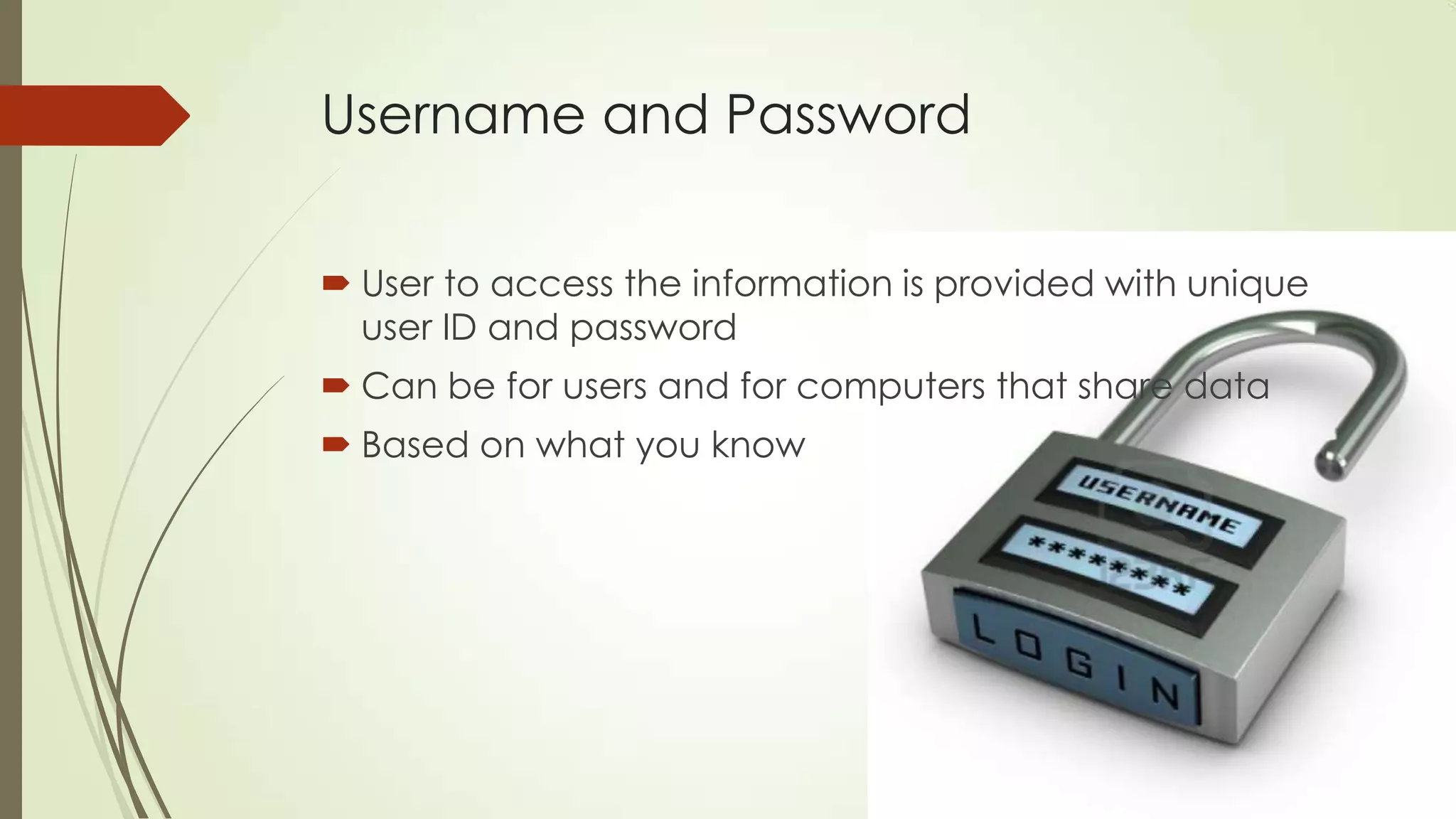

13. Username and Password
 User to access the information is provided with unique
user ID and password
 Can be for users and for computers that share data
 Based on what you know

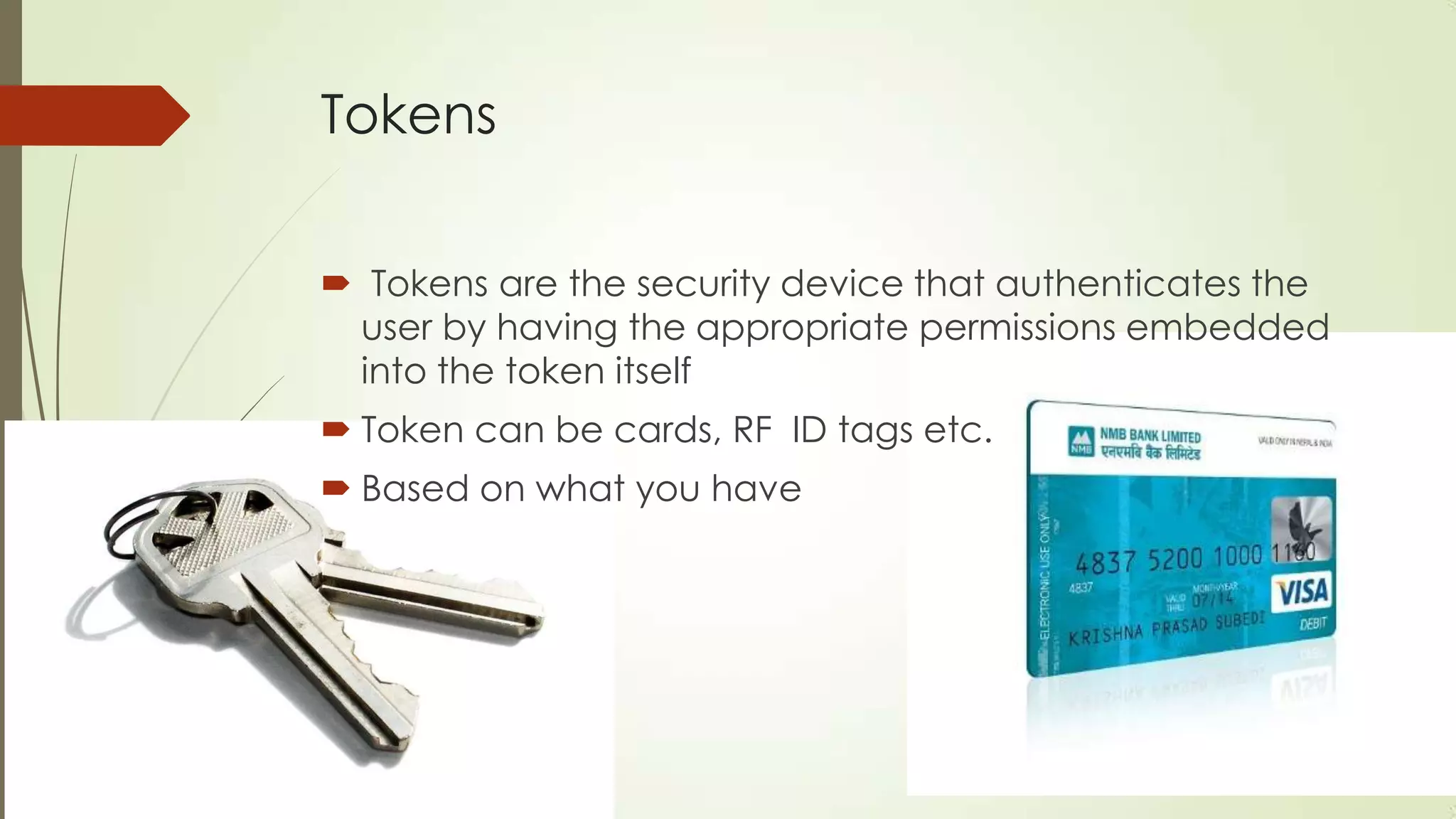

14. Tokens
 Tokens are the security device that authenticates the
user by having the appropriate permissions embedded
into the token itself
 Token can be cards, RF ID tags etc.
 Based on what you have

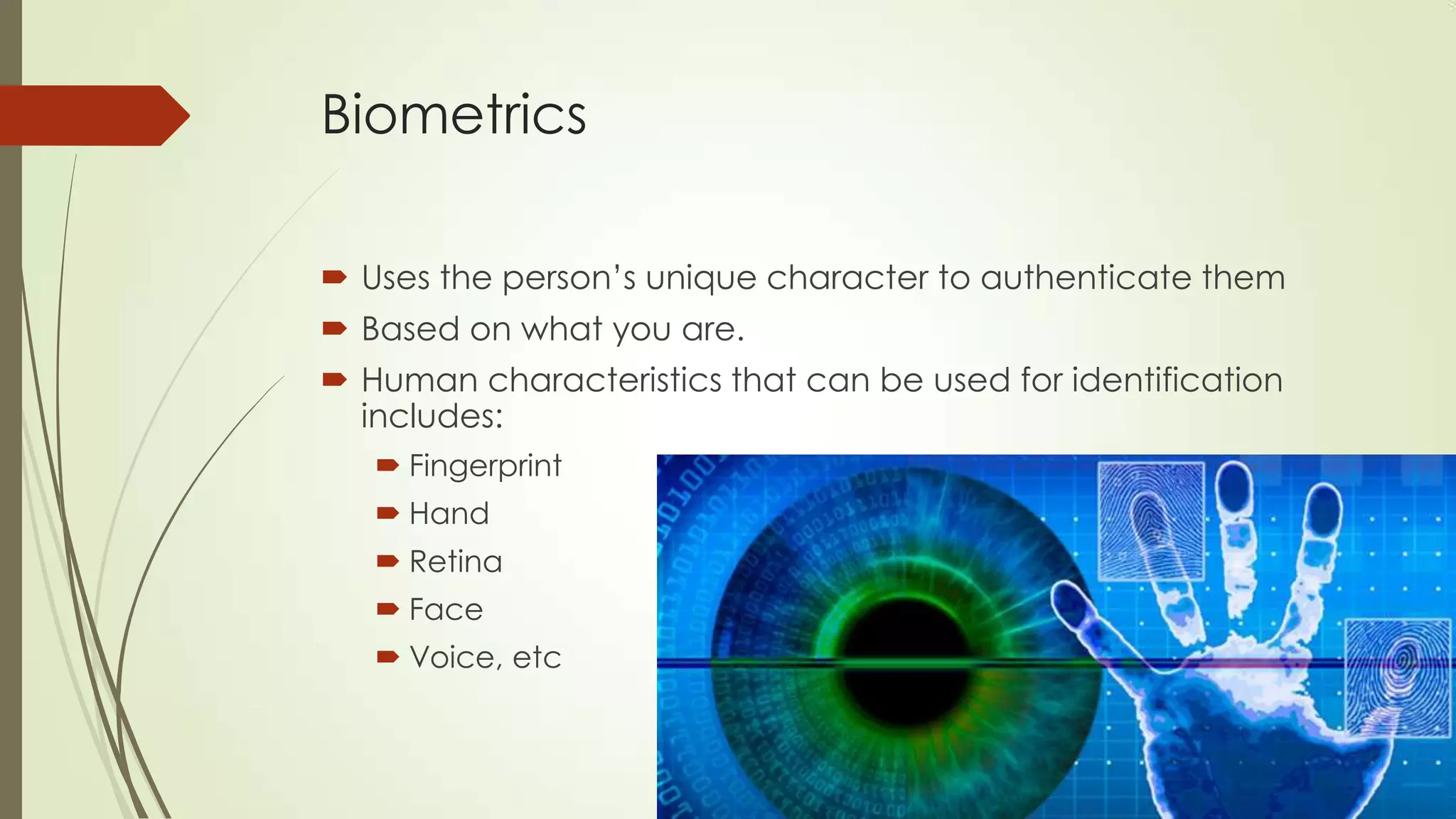

15. Biometrics
 Uses the person’s unique character to authenticate them
 Based on what you are.
 Human characteristics that can be used for identification
includes:
 Fingerprint
 Hand
 Retina
 Face
 Voice, etc

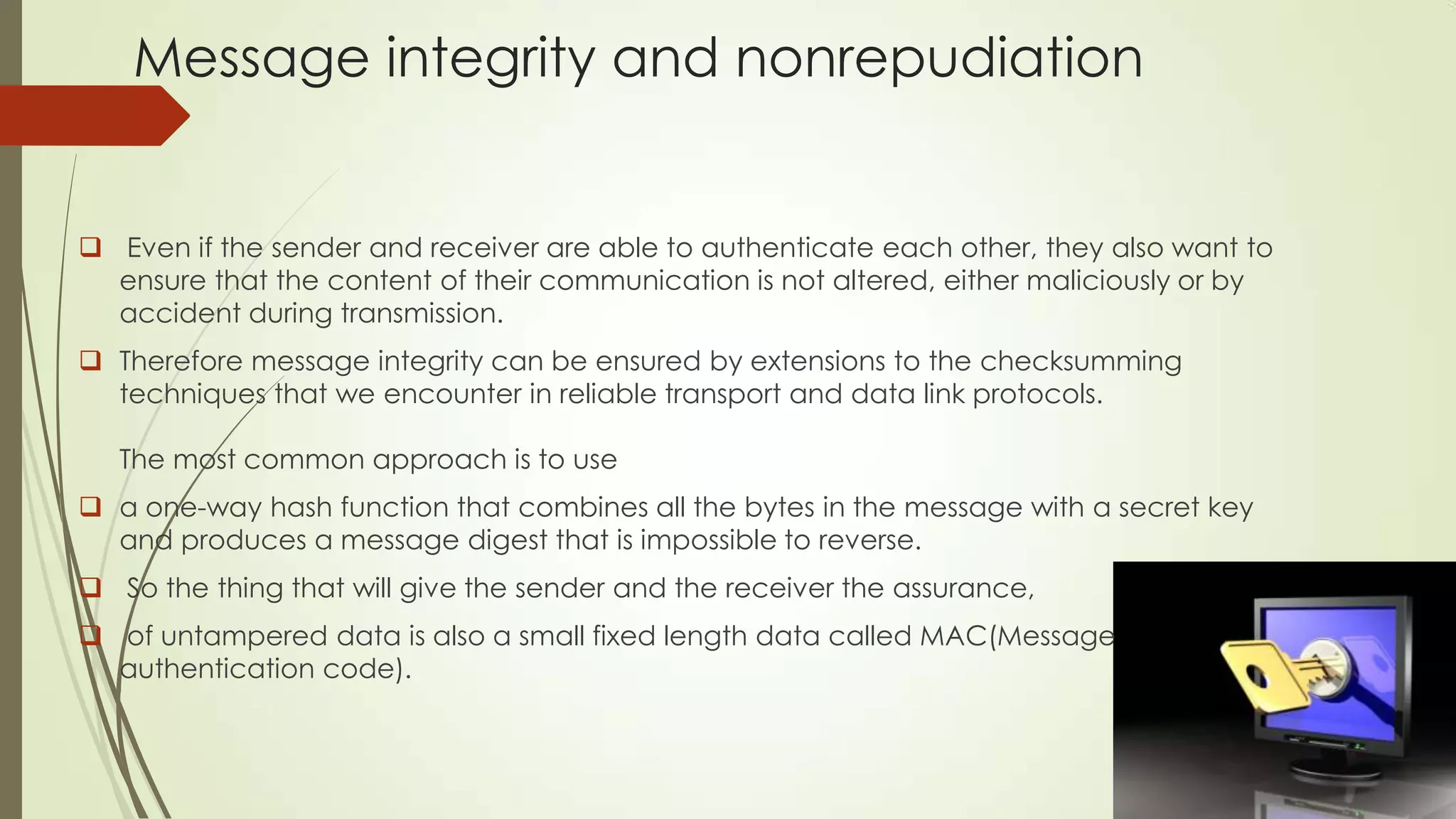

16. Message integrity and nonrepudiation
 Even if the sender and receiver are able to authenticate each other, they also want to
ensure that the content of their communication is not altered, either maliciously or by
accident during transmission.
 Therefore message integrity can be ensured by extensions to the checksumming
techniques that we encounter in reliable transport and data link protocols.
The most common approach is to use
 a one-way hash function that combines all the bytes in the message with a secret key
and produces a message digest that is impossible to reverse.
 So the thing that will give the sender and the receiver the assurance,
 of untampered data is also a small fixed length data called MAC(Message
authentication code).

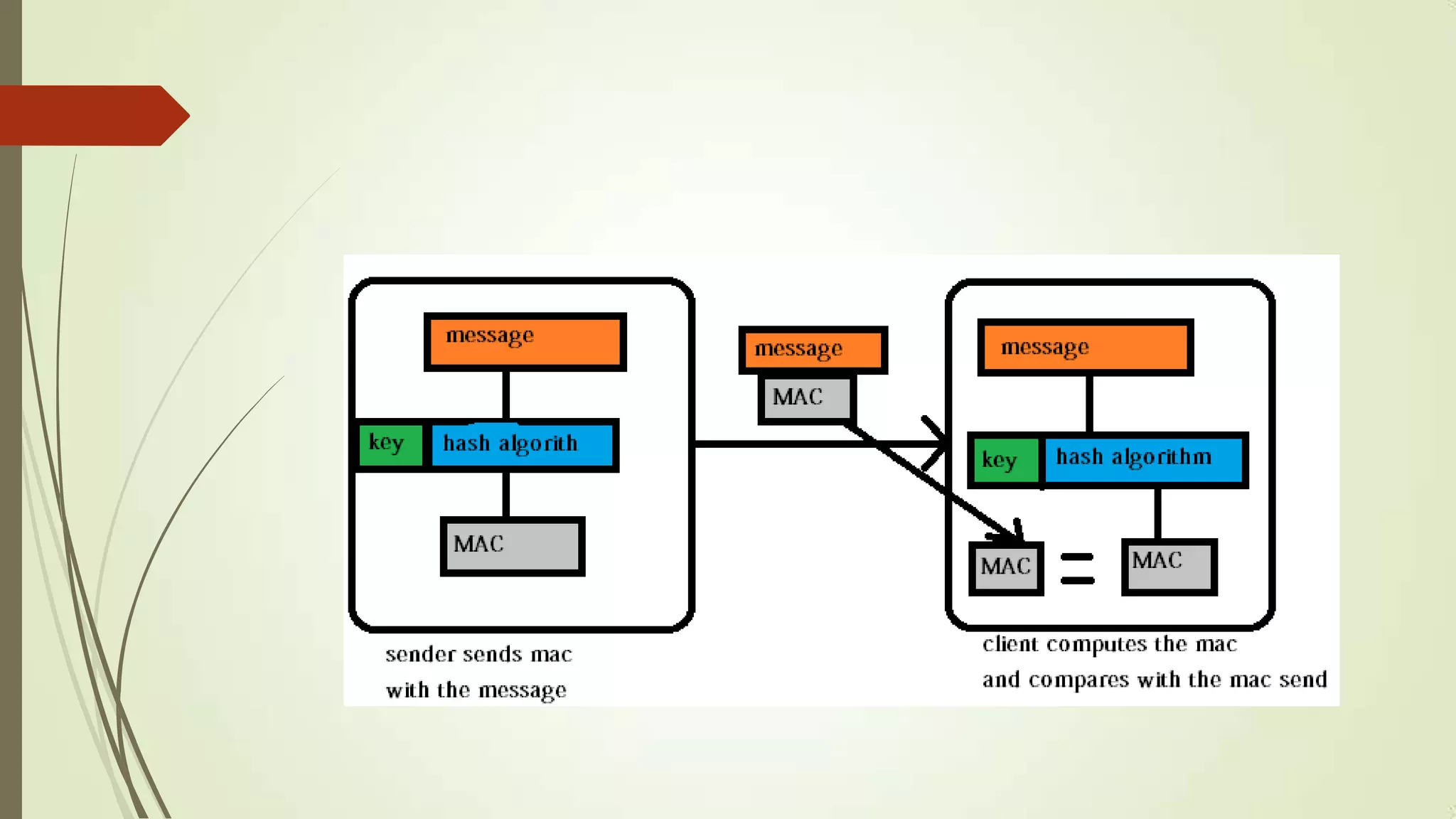

17. How to generate a MAC(Message Authentication Code)?
 Hash function is one of the method, that can be used to generate a message
authentication code.
 This is done with the help of a generating a hash value of secret key & and a message to
be authenticated.
 The message to be authenticated, can be of any length. But the output of the hash
function done on the message, will be of fixed length.
 this generated MAC, will also confirm the authenticity, because only the person that has
the secret key can open that MAC value for verifying the data(as mentioned before the
MAC is generated with the secret key value).
 As mentioned, the sender and the receiver will negotiate a secret key, before beginning
the communication. This is similar to symmetric encryption, where same keys are used to
decrypt at both the ends.

19. 30873.
98
890

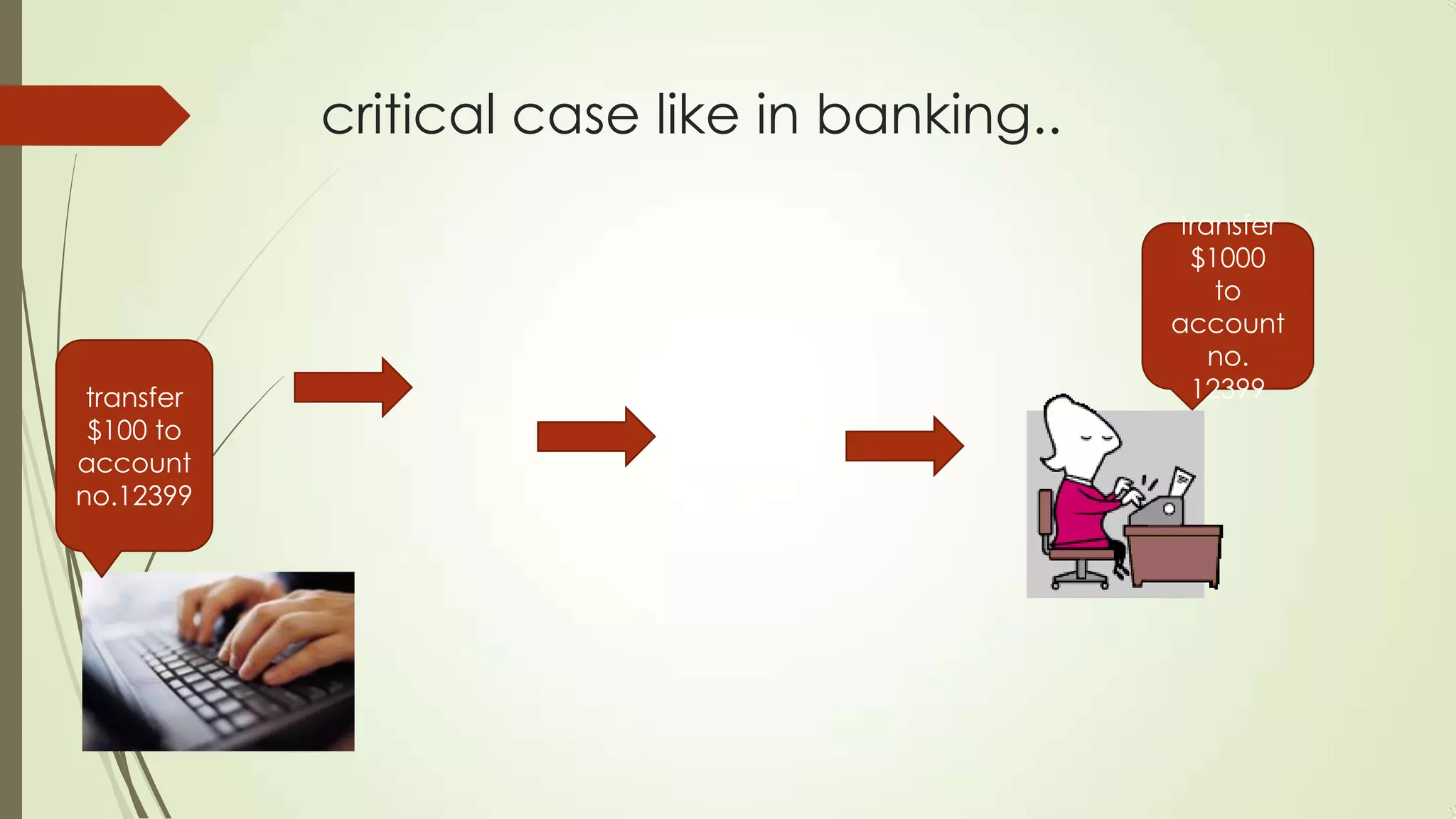

20. critical case like in banking..
transfer
$100 to
account
no.12399
transfer
$1000
to
account
no.
12399

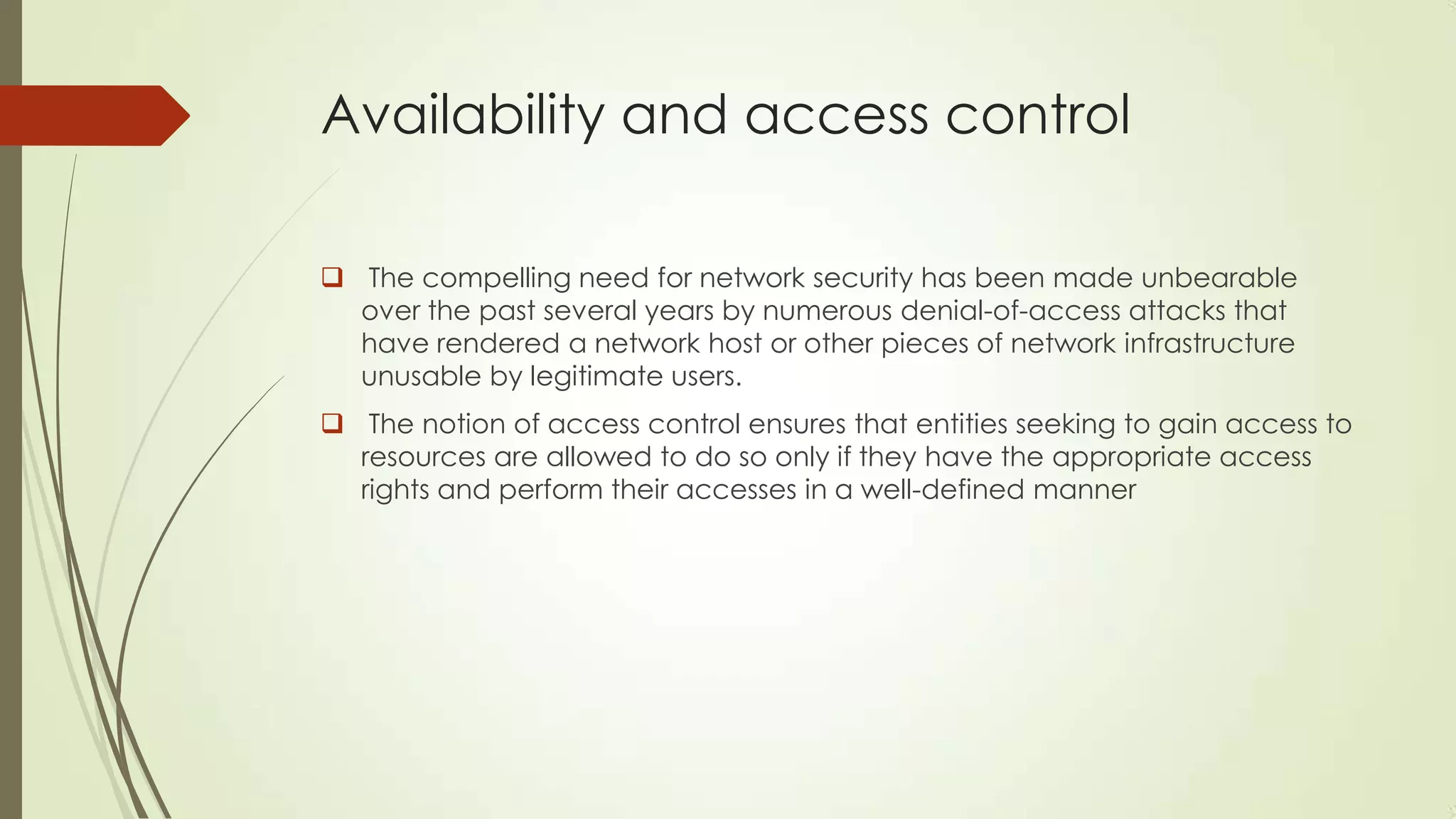

21. Availability and access control
 The compelling need for network security has been made unbearable
over the past several years by numerous denial-of-access attacks that
have rendered a network host or other pieces of network infrastructure
unusable by legitimate users.
 The notion of access control ensures that entities seeking to gain access to
resources are allowed to do so only if they have the appropriate access
rights and perform their accesses in a well-defined manner

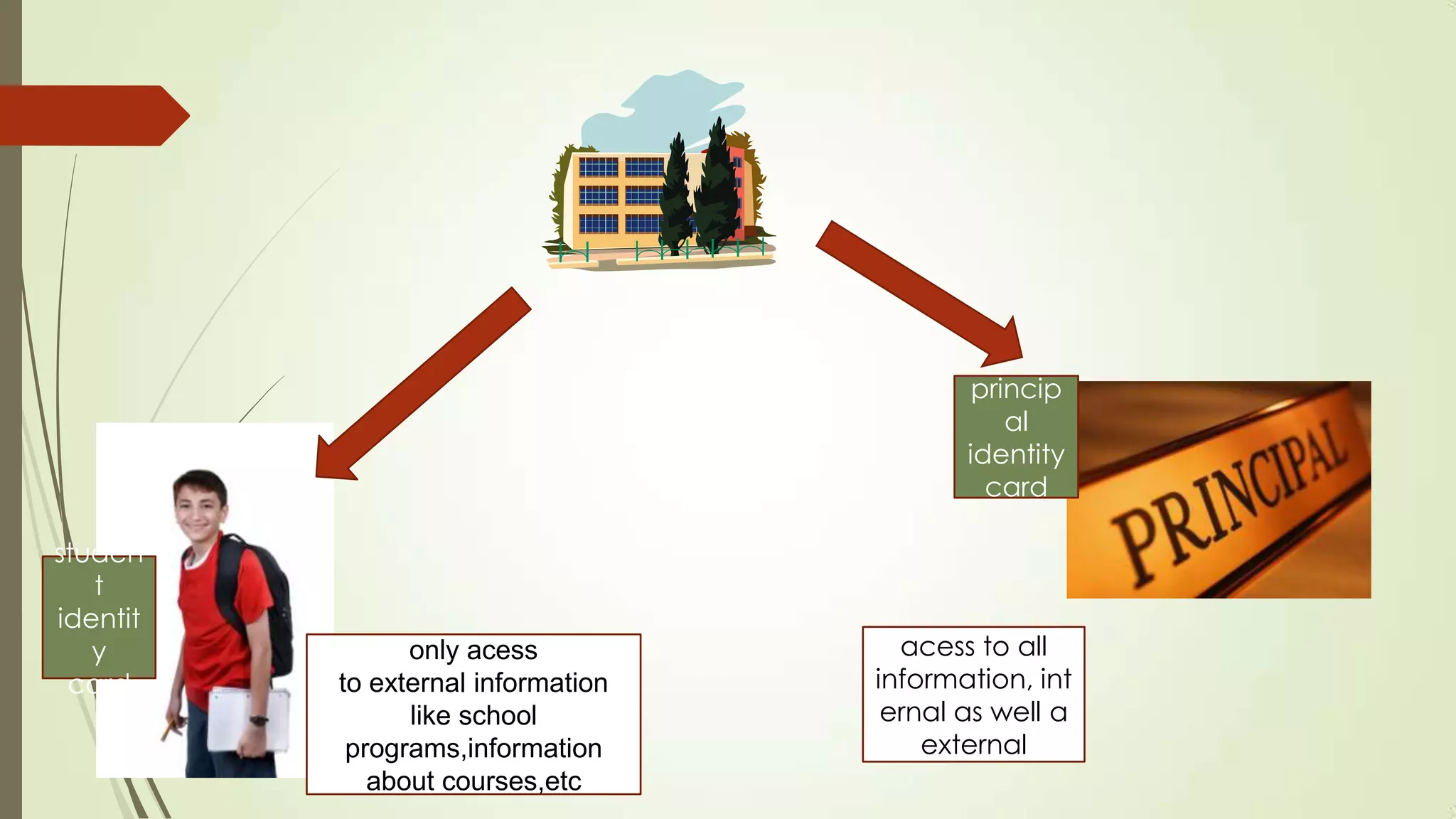

22. studen
t
identit
y
card
only acess
to external information
like school
programs,information
about courses,etc
acess to all
information, int
ernal as well a
external
princip
al
identity
card

23. Network Security
How are the Principles Implemented?

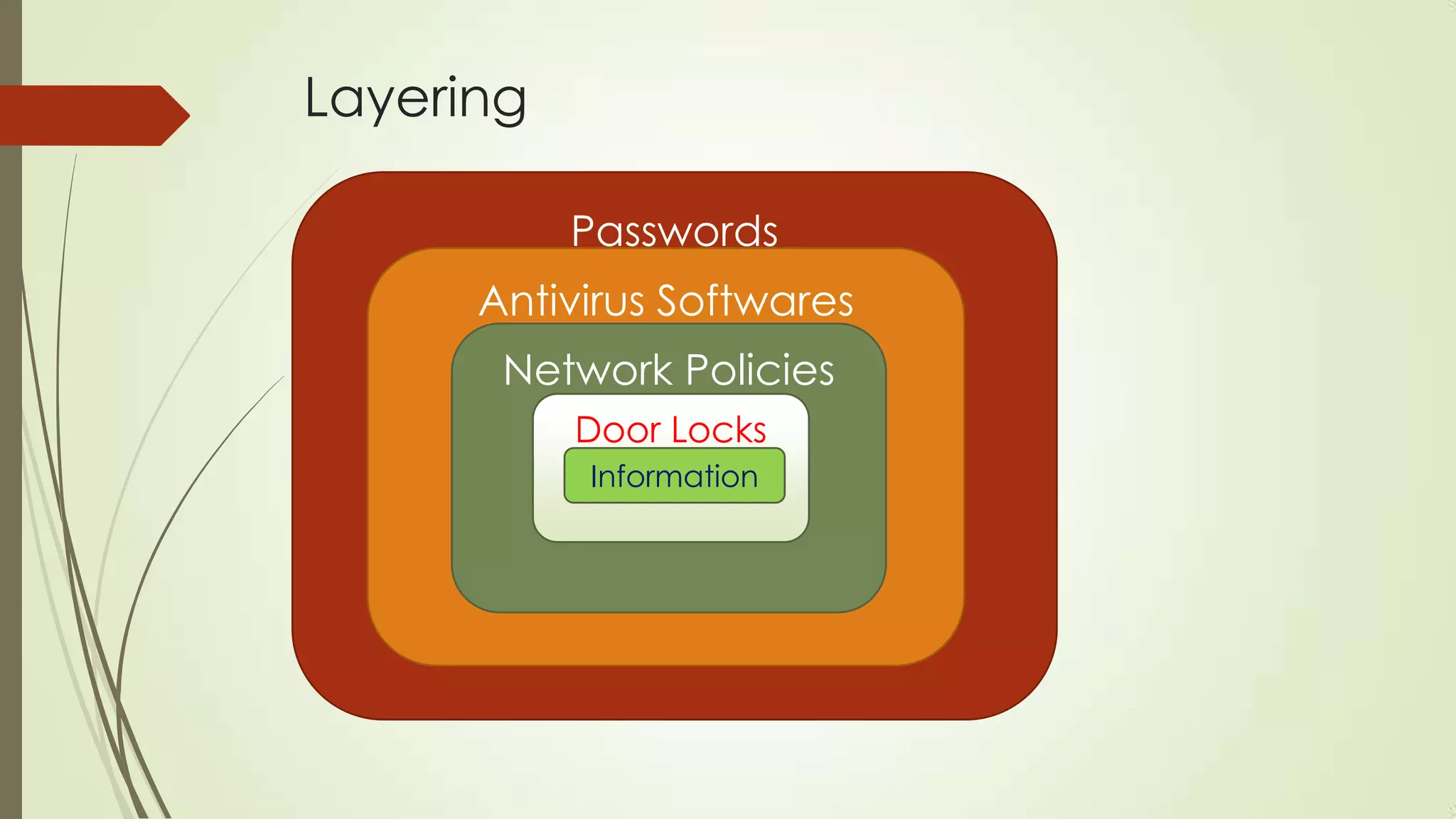

24. Layering
Passwords
Antivirus Softwares
Network Policies
Door Locks
Information

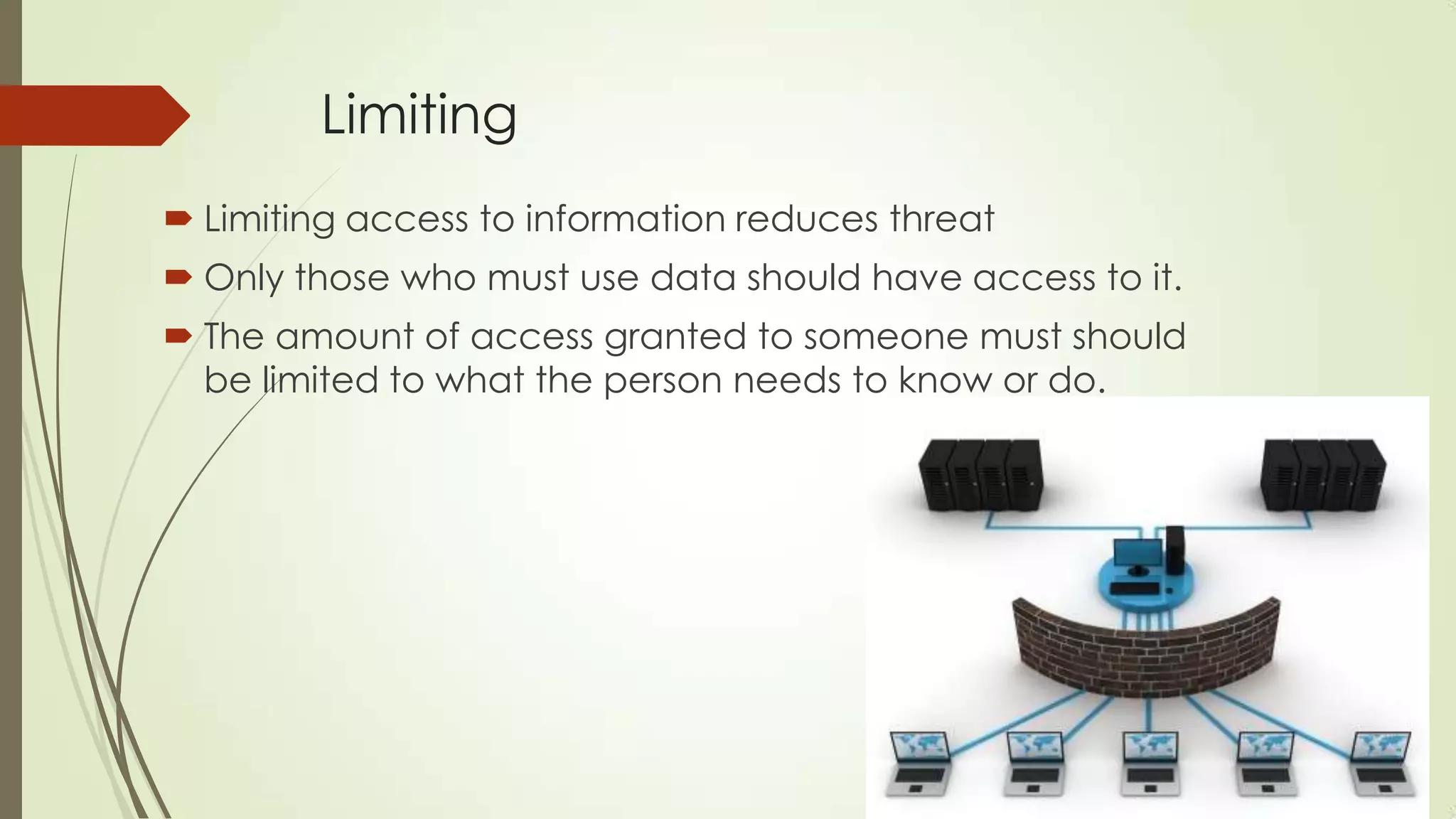

25. Limiting
 Limiting access to information reduces threat
 Only those who must use data should have access to it.
 The amount of access granted to someone must should
be limited to what the person needs to know or do.

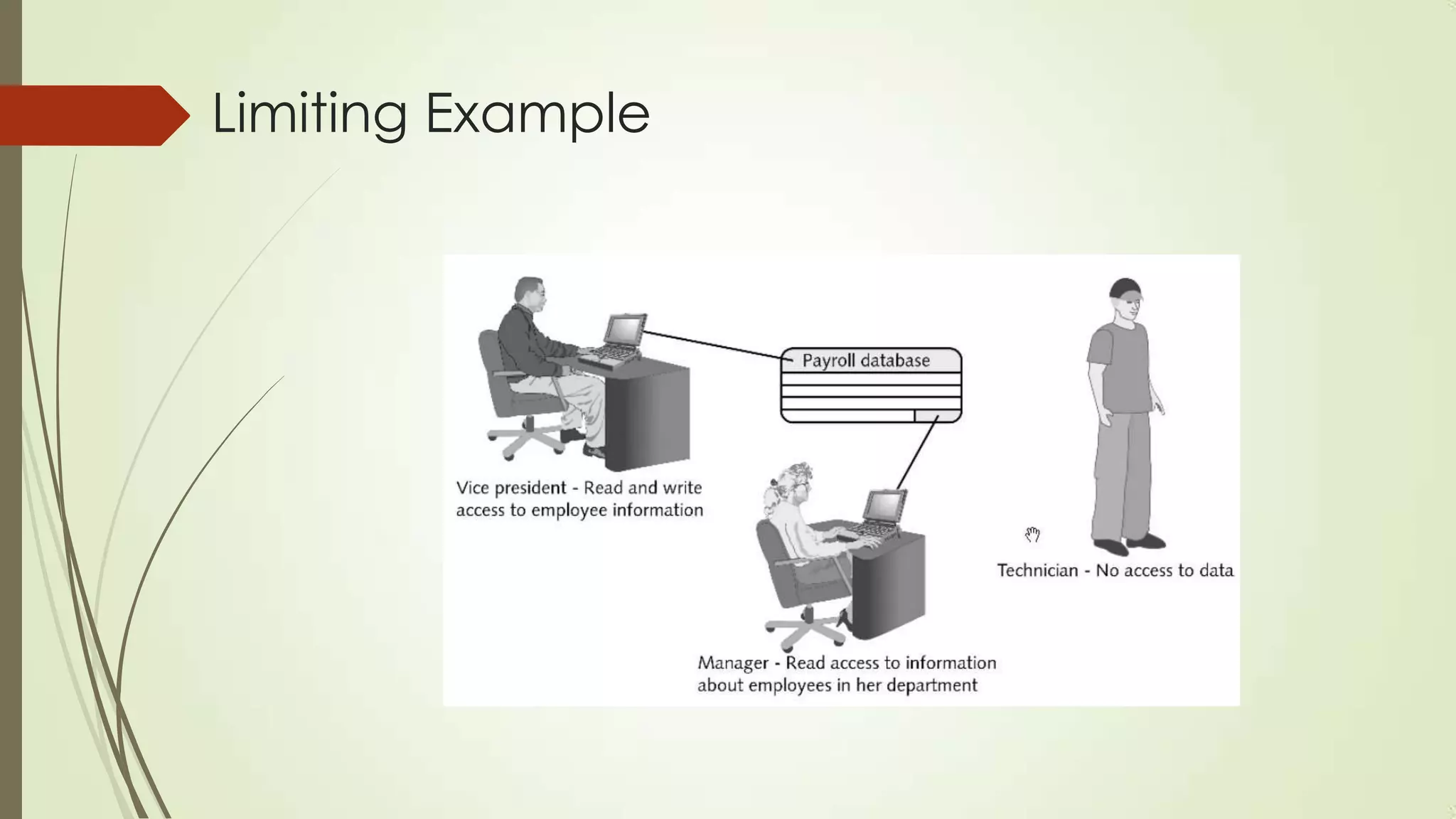

26. Limiting Example

27. Obscurity
 Obscuring what goes on inside a system or organization
and avoiding clear patterns of behavior makes access
from outside difficult.

28. Simplicity
 Complex security system can be difficult to
understand, troubleshoot and feel secure about
 The aim is to make the system simple from inside and
complex from the outside

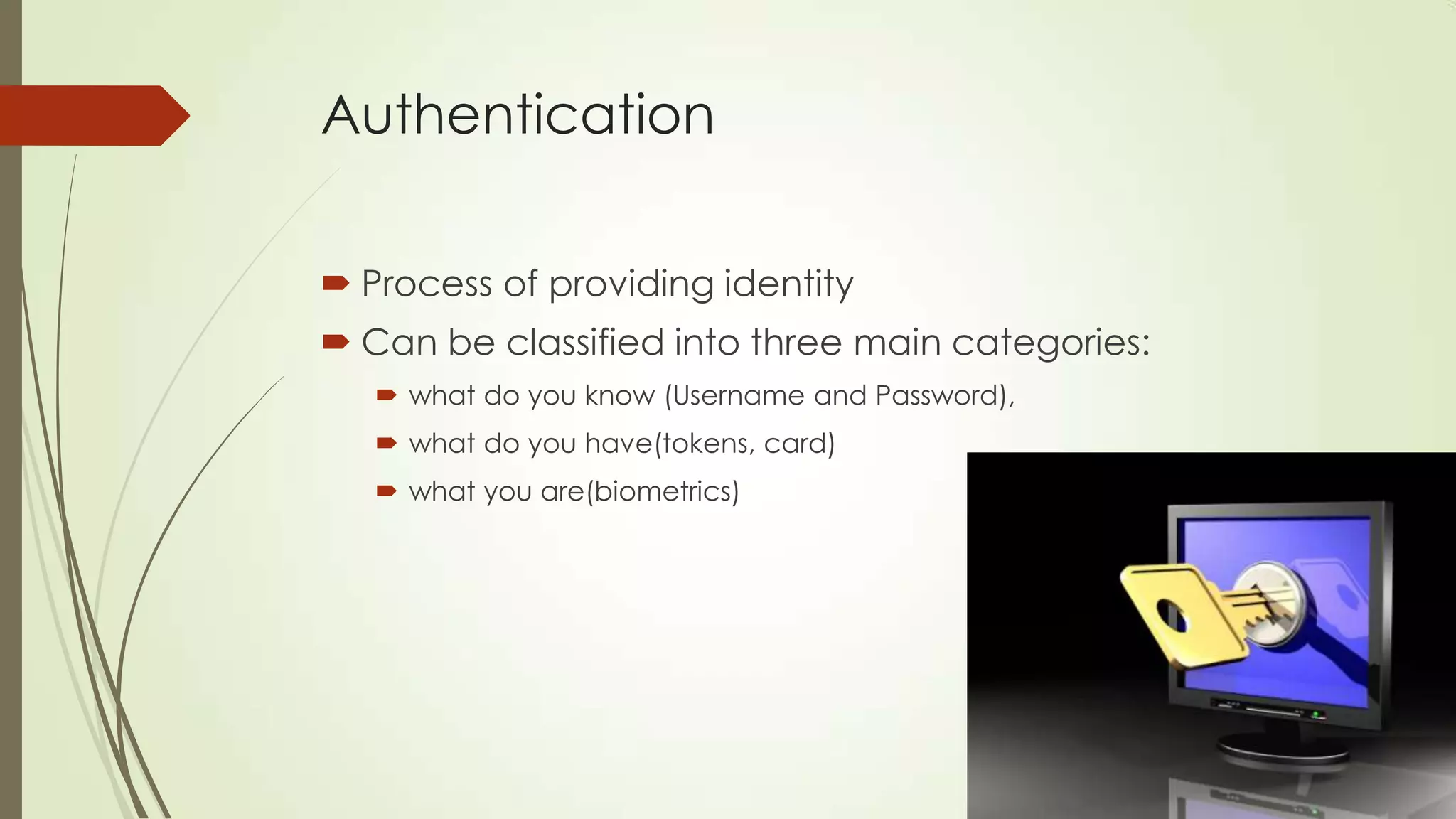

29. Authentication
 Process of providing identity
 Can be classified into three main categories:
 what do you know (Username and Password),
 what do you have(tokens, card)
 what you are(biometrics)

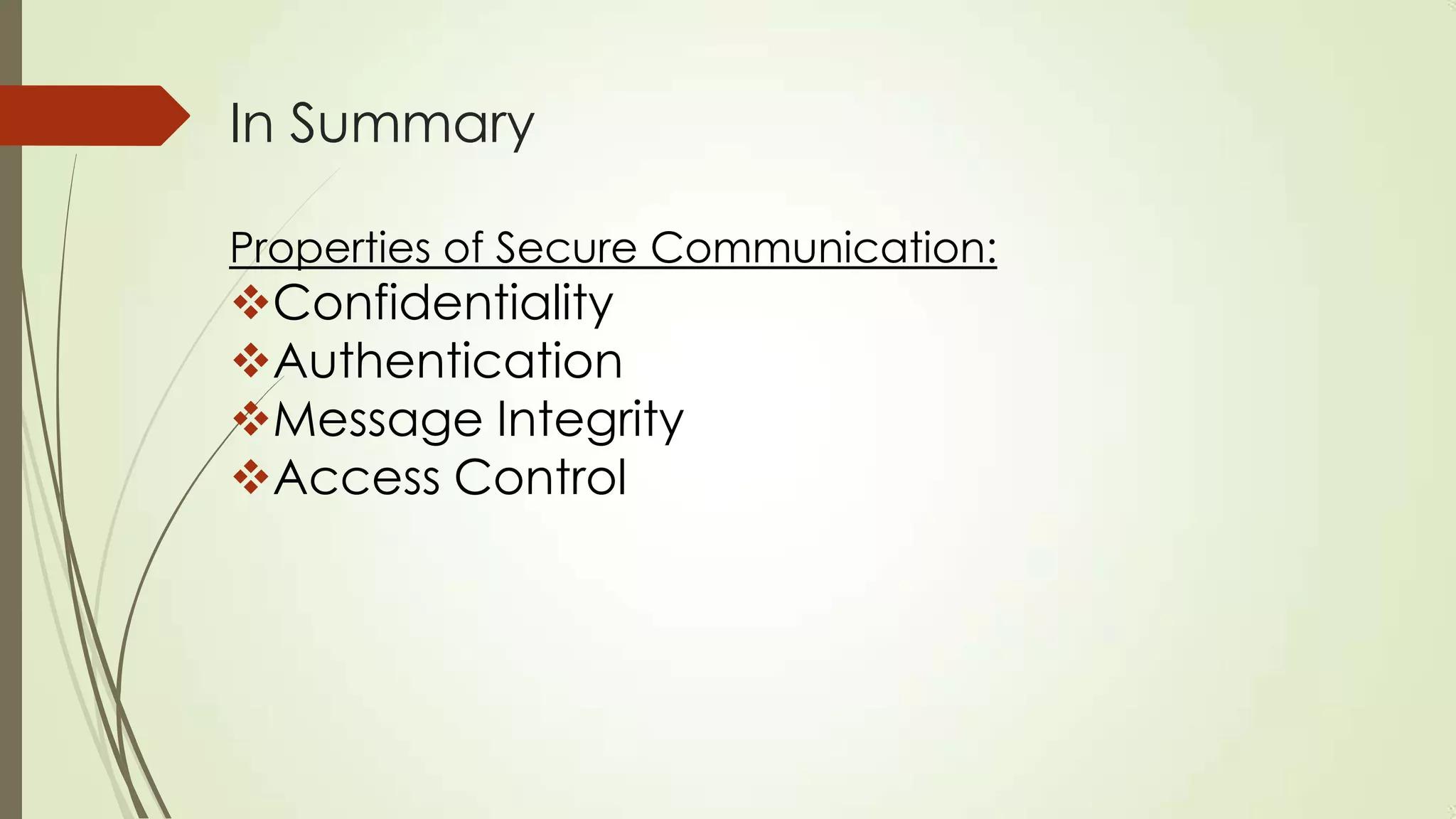

30. In Summary
Properties of Secure Communication:
Confidentiality
Authentication
Message Integrity
Access Control
