The Datavideo ITC-100 Intercom system provides clear communication between production crew members through an 8-channel intercom setup. It features a standard 1U rack design for easy integration into existing systems. Each channel supports talkback functions as well as dual color tally lights to indicate speaker status. Communication can occur between individuals or broadcast to all channels simultaneously from the director. The system helps coordinate camera operators, lighting, and more from a control room during live productions.

1. FEATURES
REAR VIEW
FRONT VIEW
■ Standard 19”/1U rack design
■ Supports 8-Way talkback (standard package includes
4 sets of ITC-100SL with belt-pack accessories)
■ Additional external earphone and microphone interface
■ Dual colour tally light indicator
■ Selectable channel talk, broadcast to all or mute
■ Enables clean and clear communication between the
camera crew and the director
■ Communication distance up to 200m
■ Supplied complete with gooseneck mic and light
Good communication is vital in any production
studio, keeping communication between the
director, camera crew, lighting engineer and control
room is essential to produce a polished end result.
The Datavideo ITC-100 Intercom system provides
8-way talkback and tally indicators. The producer
can talk to an individual channel or to all channels
simultaneously. High S/N ratio makes the
communication crisp and clear.
The ITC-100 is a standard 19”/1U rack design, so
it is easy to integrate into any rack system for using
in the field or studio.

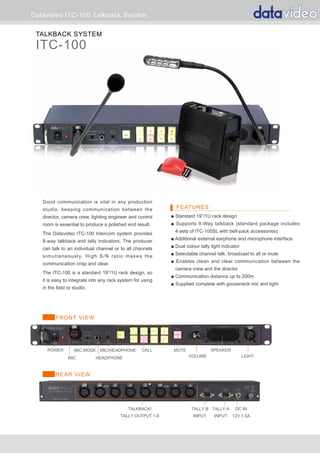

Datavideo ITC-100 Talkback System
ITC-100
TALKBACK SYSTEM
MIC/HEADPHONEMIC MODE
HEADPHONEMIC
POWER CALL MUTE
VOLUME
SPEAKER
LIGHT
TALLY B
INPUT
TALKBACK/
TALLY OUTPUT 1-8
TALLY A
INPUT
DC IN
12V 1.5A

2. ITC-100
ITC-200 E
INTERCOM
+TALLY
INTERCOM
+TALLY
A
B
C
D
SE-3000
FRONT VIEW
REAR VIEW
TO BELTPACK 9-16
CASCADE
OUT
DC IN 12V
TALLY D
INPUT
TALLY C
INPUT
Intercom System
ITC-200E
TALLY LIGHT INDICATOR TD-2
TALKBACK BELTPACK ITC-100SL
REAR VIEW
Intercom belt pack
ITC-100SL
4 x ITC100SL cameraman
unit including carry case
20m 5-Pin Intercom Cable
CB-3
4 x 20m XLR to XLR inter-
com cable
Tally Indicator
Supplied with 4 x camera-
mounted tally lights
Connection TD-1 tally light
with ITC-100 belt pack
1.2m GPI Cable
CB-7TD-2
Gooseneck Microphone/
Gooseneck Light
XLR gooseneck mic &
light
ITC-100 - supplied with 4
headsets.
Microphone Headset
MC-1 MC-2/ LP-1
Call Push Button
Tally Indicator
Talk Button
Headset Volume
5 pin XLR connector provides bi-
directional communication, tally signal
and power in one cable
TD-1 Tally
Indicator
Headset with
microphone
Optional Mobile
phone headset
TD-2 tally light provides the camera
operator and the talent with clear
information

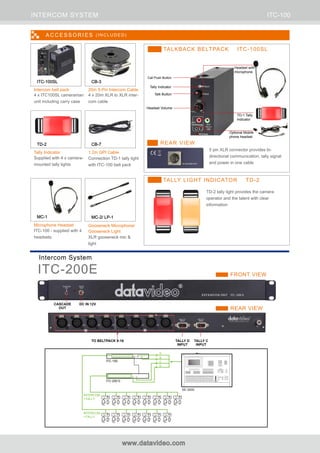

ACCESSORIES ( I NCLUDED)
INTERCOM SYSTEM ITC-100
