This document discusses new innovations from HP in software-defined networking (SDN). It introduces HP's Virtual Application Networks SDN controller, which provides an open and integrated hardware and software SDN solution. The controller supports OpenFlow and HP SDN applications through open APIs. It also notes that HP has expanded its OpenFlow-enabled switch portfolio to include 9 additional switch models, bringing the total to 25 OpenFlow switches and over 15 million OpenFlow ports.

1. New Virtual Application Networks Innovations Advance
Software-defined Network Leadership
Simplifying, Scaling and Automating the Network
© Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

2. Software-defined Network Drivers and Impact
Private cloud 은 2020년이 되면, 2016년이 되면
단순히 원가절감이 50억개의 SDN/OpenFlow 의 시장은
거의 $20억 불 에
목적이 아니다.
장비들이
민첩성이 중요한 무선으로 네트워크에 육박, -확장성과
해택이다. 1 접속할 것이다. 프로그래밍에 따른
요구가 늘어남에 따라
HUMAN MIDDLEWARE DEVICE SECURITY SCALE, PROGRAMMABILITY
1 Gartner G00238288, Five Things That Private Cloud 2Ericsson white
paper, “More Than 50 Billion 3 IDC #235074, “TechnologyAssessment: The
Is Not, 3 August 2012,Thomas J. Bittman Connected Devices,” February 2011 Impact of OpenFlow on Data Center Network
Architectures” June 2012
2 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Gartner does not endorse any vendor, product or service depicted in its research publications, and does not advise technology users to select only those vendors with the highest ratings. Gartner research publications consist of the opinions of Gartner's research
organization and should not be construed as statements of fact. Gartner disclaims all warranties, expressed or implied, with respect to this research, including any warranties of merchantability or fitness for a particular purpose.

3. Open Networking Foundation on SDN
… SDN architecture에서, Control plane과 Data plane은
분리되어야하고, 네트워크 정보와 상태는 논리적으로
중앙집중되어야 하며, 네트워크 인프라는 Application으로
부터 추상화되어야 한다 …
3 © Copyright 2012 Hewlett-Packard Development Company, L.P. Source: opennetworking.org
The information contained herein is subject to change without notice.

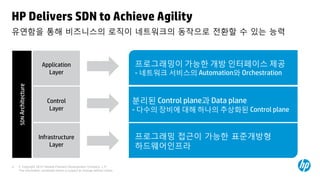

4. HP Delivers SDN to Achieve Agility
유연함을 통해 비즈니스의 로직이 네트워크의 동작으로 전환할 수 있는 능력
Application 프로그래밍이 가능한 개방 인터페이스 제공
Layer - 네트워크 서비스의 Automation와 Orchestration
SDN Architecture
Control 분리된 Control plane과 Data plane
Layer - 다수의 장비에 대해 하나의 추상화된 Control plane
Infrastructure 프로그래밍 접근이 가능한 표준개방형
Layer 하드웨어인프라
4 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

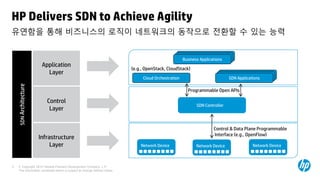

5. HP Delivers SDN to Achieve Agility
유연함을 통해 비즈니스의 로직이 네트워크의 동작으로 전환할 수 있는 능력
Business Applications
Business Applications
Business Applications
Application 프로그래밍이 가능한 개방 인터페이스 제공
(e.g., OpenStack, CloudStack)
Layer - 네트워크 서비스의 Automation와 Orchestration
Network Applications
Network Applications
Cloud Orchestration SDN Applications
SDN Architecture
Programmable Open APIs
Control 분리된 Control plane과 Data plane
SDN Controller
Layer - 다수의 장비에 대해 하나의 추상화된 Control plane
Control & Data Plane Programmable
Infrastructure 프로그래밍 접근이 가능한 표준개방형 Interface (e.g., OpenFlow)
Layer 하드웨어인프라 Network Device
Network Device Network Device
5 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

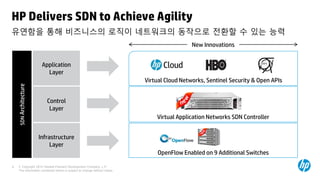

6. HP Delivers SDN to Achieve Agility
유연함을 통해 비즈니스의 로직이 네트워크의 동작으로 전환할 수 있는 능력
New Innovations
Application
Layer
Virtual Cloud Networks, Sentinel Security & Open APIs
SDN Architecture
Control
Layer
Virtual Application Networks SDN Controller
Infrastructure
Layer
OpenFlow Enabled on 9 Additional Switches
6 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

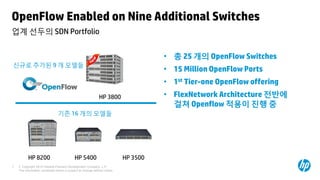

7. OpenFlow Enabled on Nine Additional Switches
업계 선두의 SDN Portfolio
• 총 25 개의 OpenFlow Switches
신규로 추가된 9 개 모델들
• 15 Million OpenFlow Ports
• 1st Tier-one OpenFlow offering
HP 3800 • FlexNetwork Architecture 전반에
걸쳐 Openflow 적용이 진행 중
기존 16 개의 모델들
HP 8200 HP 5400 HP 3500
7 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

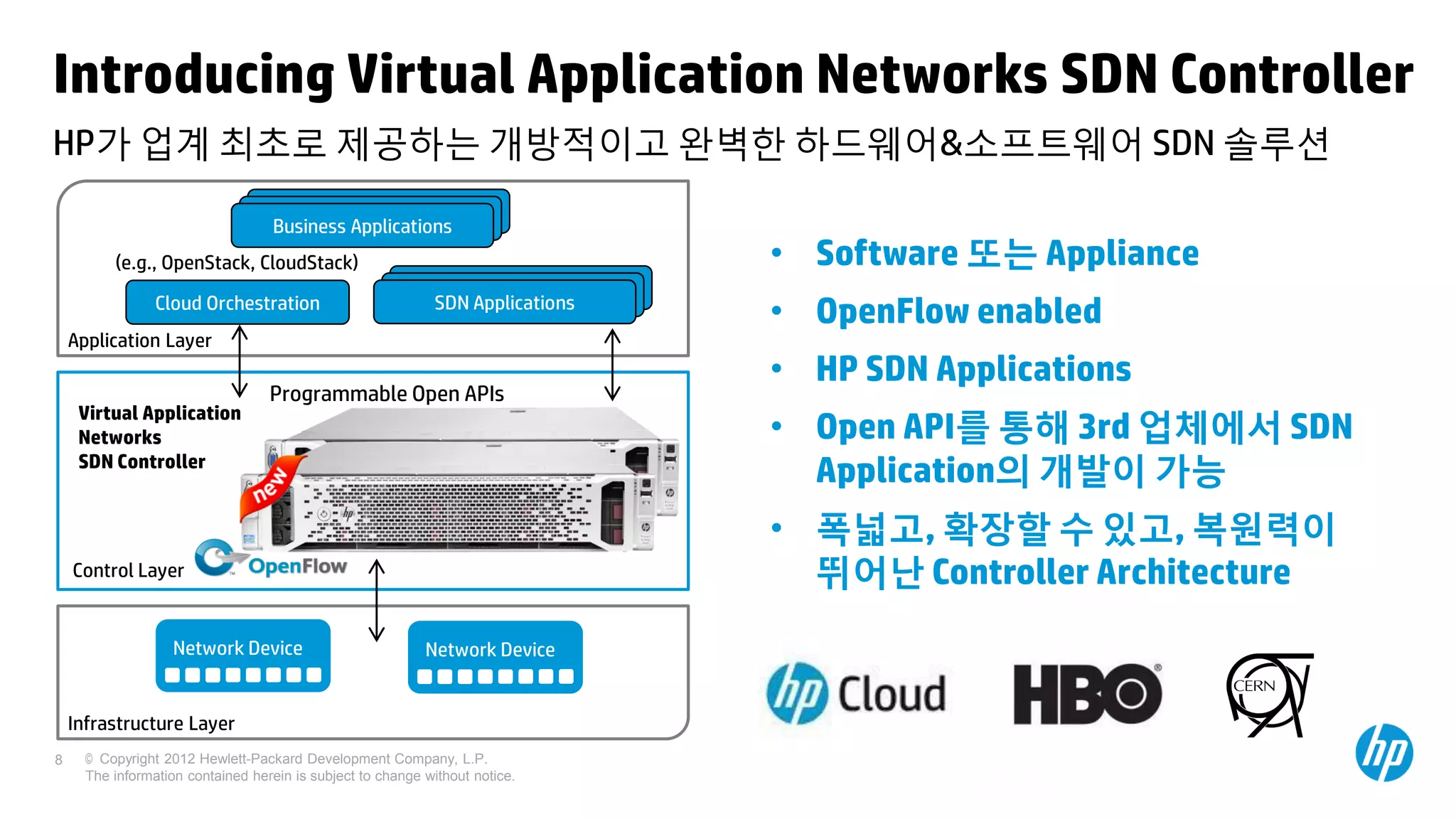

8. Introducing Virtual Application Networks SDN Controller
HP가 업계 최초로 제공하는 개방적이고 완벽한 하드웨어&소프트웨어 SDN 솔루션
Business Applications
Business Applications
Business Applications
(e.g., OpenStack, CloudStack) • Software 또는 Appliance
Network Applications
Network Applications
Cloud Orchestration SDN Applications
• OpenFlow enabled
Application Layer
• HP SDN Applications
Programmable Open APIs
• Open API를 통해 3rd 업체에서 SDN
Virtual Application
Networks
SDN Controller
Application의 개발이 가능
• 폭넓고, 확장할 수 있고, 복원력이
Control Layer 뛰어난 Controller Architecture
Network Device Network Device
Infrastructure Layer
8 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

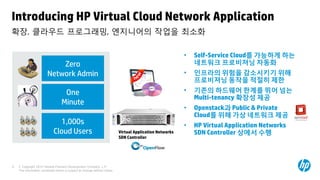

9. Introducing HP Virtual Cloud Network Application
확장, 클라우드 프로그래밍, 엔지니어의 작업을 최소화
• Self-Service Cloud를 가능하게 하는
Zero 네트워크 프로비져닝 자동화
Network Admin • 인프라의 위험을 감소시키기 위해
프로비져닝 동작을 적절히 제한
One • 기존의 하드웨어 한계를 뛰어 넘는
Multi-tenancy 확장성 제공
Minute
• Openstack과 Public & Private
Cloud를 위해 가상 네트워크 제공
1,000s • HP Virtual Application Networks
Cloud Users Virtual Application Networks SDN Controller 상에서 수행
SDN Controller
9 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

10. Sentinel Security Application
네트워크 위협에 대해 실시간으로 보호 제공
• HP TippingPoint DVLabs의 Database를
통해 실시간으로 Treat Chracterization을
Networking 제공
• 전세계에 있는 Botnet, 멀웨어, 스파이웨어
TippingPoint 등 700,000개 이상의 의심스러운 사이트로
부터 네트워크를 보호
• ArcSight 통합을 통해 가시성과 정확도를
Virtual Application Networks 개선
SDN Controller
• Openflow 스위치의 기능을 활용
• HP VAN SDN Controller 상에서 실행
10 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

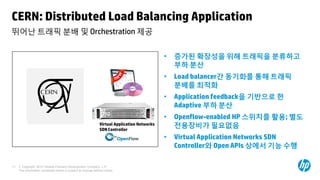

11. CERN: Distributed Load Balancing Application
뛰어난 트래픽 분배 및 Orchestration 제공
• 증가된 확장성을 위해 트래픽을 분류하고
부하 분산
• Load balancer간 동기화를 통해 트래픽
분배를 최적화
• Application feedback을 기반으로 한
Adaptive 부하 분산
• Openflow-enabled HP 스위치를 활용; 별도
Virtual Application Networks
SDN Controller
전용장비가 필요없음
• Virtual Application Networks SDN
Controller와 Open APIs 상에서 기능 수행
11 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

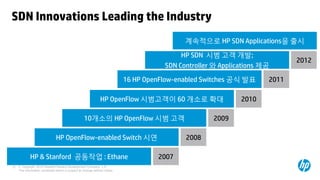

12. SDN Innovations Leading the Industry
계속적으로 HP SDN Applications을 출시
HP SDN 시범 고객 개발;
2012
SDN Controller 와 Applications 제공
16 HP OpenFlow-enabled Switches 공식 발표 2011
HP OpenFlow 시범고객이 60 개소로 확대 2010
10개소의 HP OpenFlow 시범 고객 2009
HP OpenFlow-enabled Switch 시연 2008
HP & Stanford 공동작업 : Ethane 2007
12 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

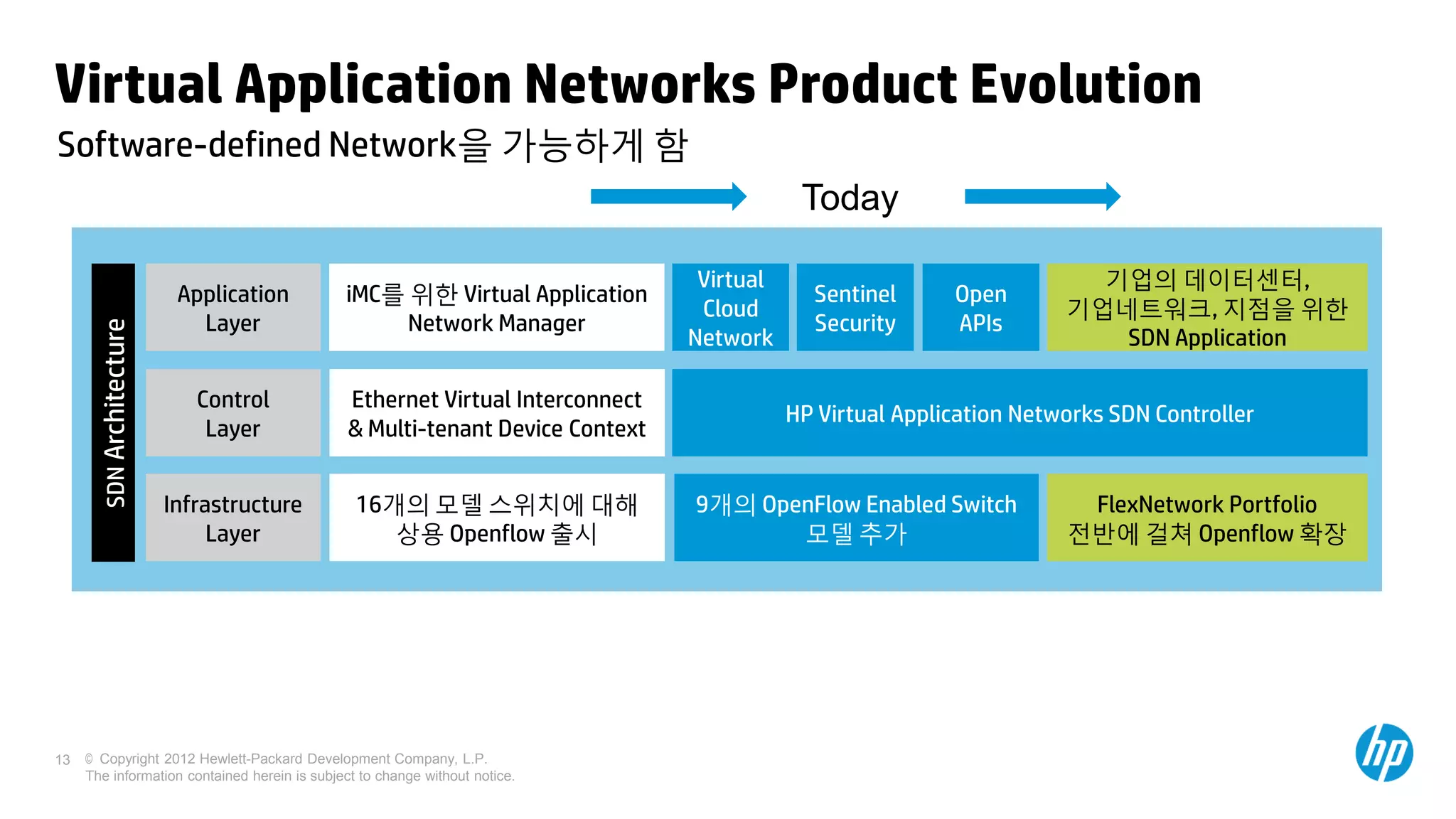

13. Virtual Application Networks Product Evolution
Software-defined Network을 가능하게 함
Today
Virtual 기업의 데이터센터,
Application iMC를 위한 Virtual Application Sentinel Open
Cloud 기업네트워크, 지점을 위한
Layer Network Manager Security APIs
SDN Architecture
Network SDN Application
Control Ethernet Virtual Interconnect
HP Virtual Application Networks SDN Controller
Layer & Multi-tenant Device Context
Infrastructure 16개의 모델 스위치에 대해 9개의 OpenFlow Enabled Switch FlexNetwork Portfolio
Layer 상용 Openflow 출시 모델 추가 전반에 걸쳐 Openflow 확장
13 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

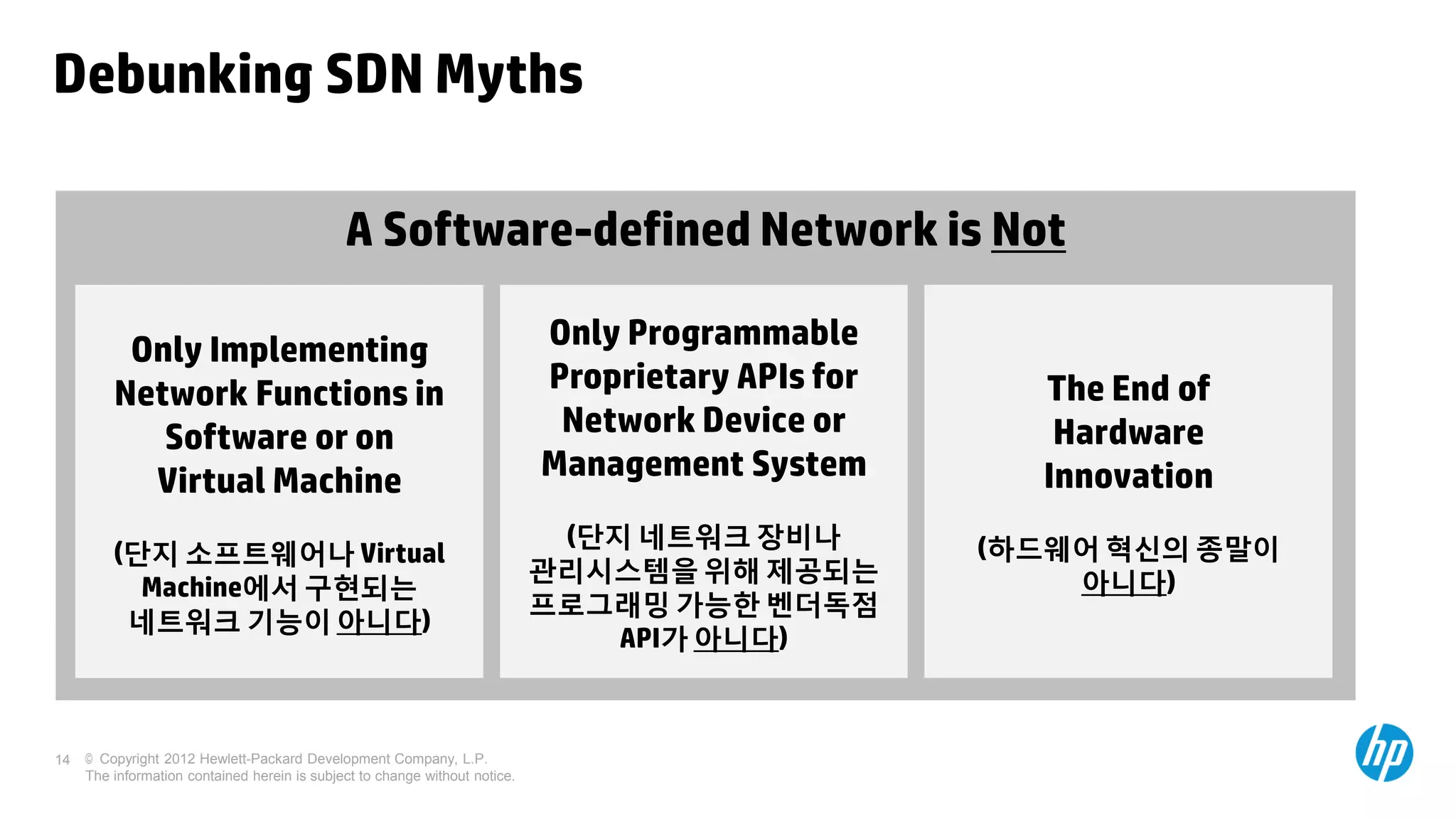

14. Debunking SDN Myths
A Software-defined Network is Not
Only Implementing Only Programmable
Network Functions in Proprietary APIs for The End of
Software or on Network Device or Hardware
Virtual Machine Management System Innovation
(단지 네트워크 장비나 (하드웨어 혁신의 종말이
(단지 소프트웨어나 Virtual
관리시스템을 위해 제공되는 아니다)
Machine에서 구현되는
프로그래밍 가능한 벤더독점
네트워크 기능이 아니다)
API가 아니다)
14 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

15. SDN Application
Use Cases
© Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

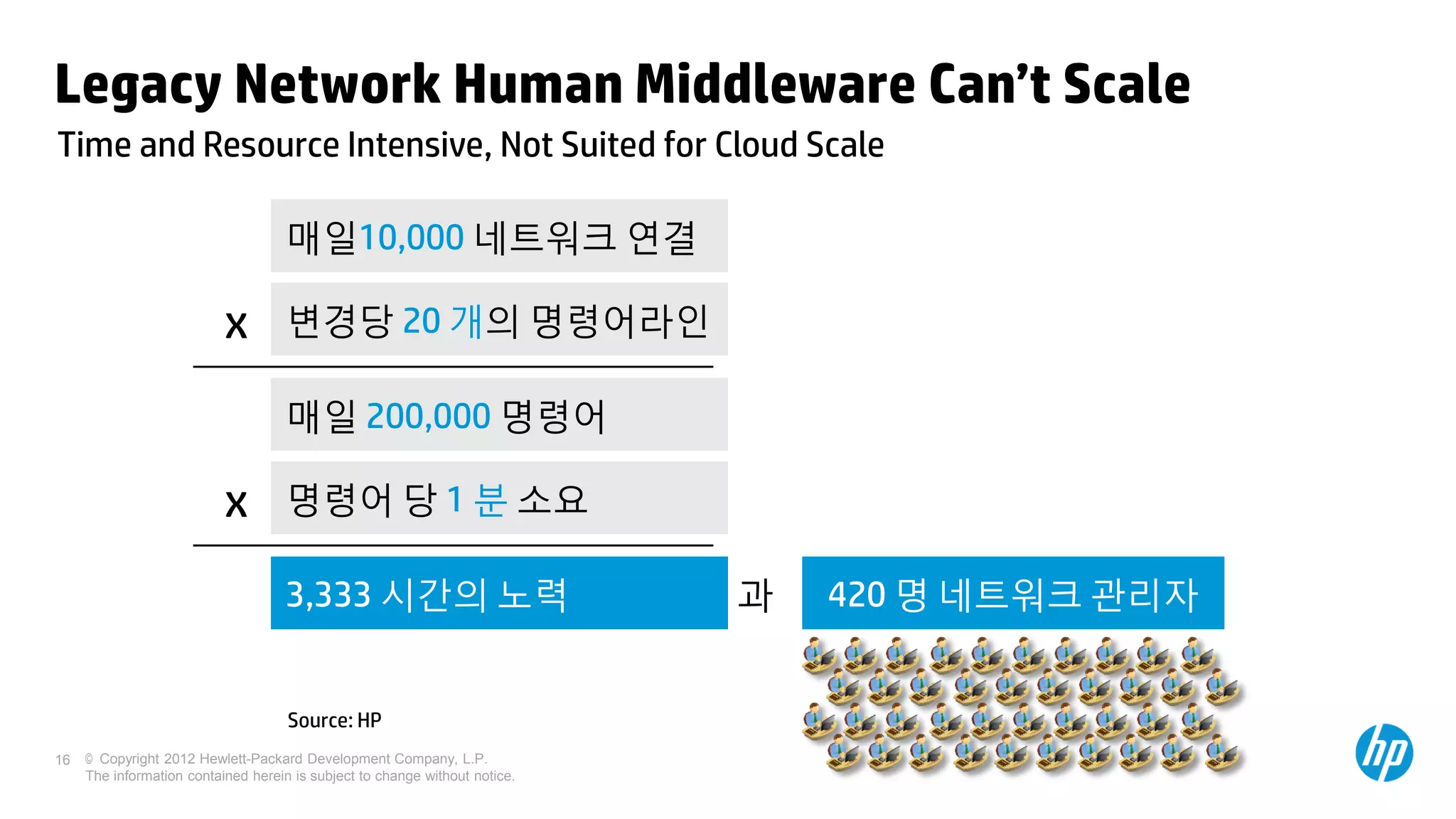

16. Legacy Network Human Middleware Can’t Scale
Time and Resource Intensive, Not Suited for Cloud Scale
매일10,000 네트워크 연결
x 변경당 20 개의 명령어라인
매일 200,000 명령어
x 명령어 당 1 분 소요
3,333 시간의 노력 과 420 명 네트워크 관리자
Source: HP
16 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

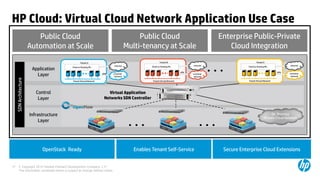

17. HP Cloud: Virtual Cloud Network Application Use Case
Public Cloud Public Cloud Enterprise Public-Private
Automation at Scale Multi-tenancy at Scale Cloud Integration
...
Tenant A Tenant B Tenant X
Internet Fixed or Floating IPs Internet Fixed or Floating IPs Internet
Application Fixed or Floating IPs
VPN VPN
Layer VPN customer
network
customer
network
customer
network
SDN Architecture
Tenant Virtual Network Tenant Virtual Network Tenant Virtual Network
Control Virtual Application
Layer Networks SDN Controller
Infrastructure On Premise
Layer
... ... Private Cloud Network
OpenStack Ready Enables Tenant Self-Service Secure Enterprise Cloud Extensions
17 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

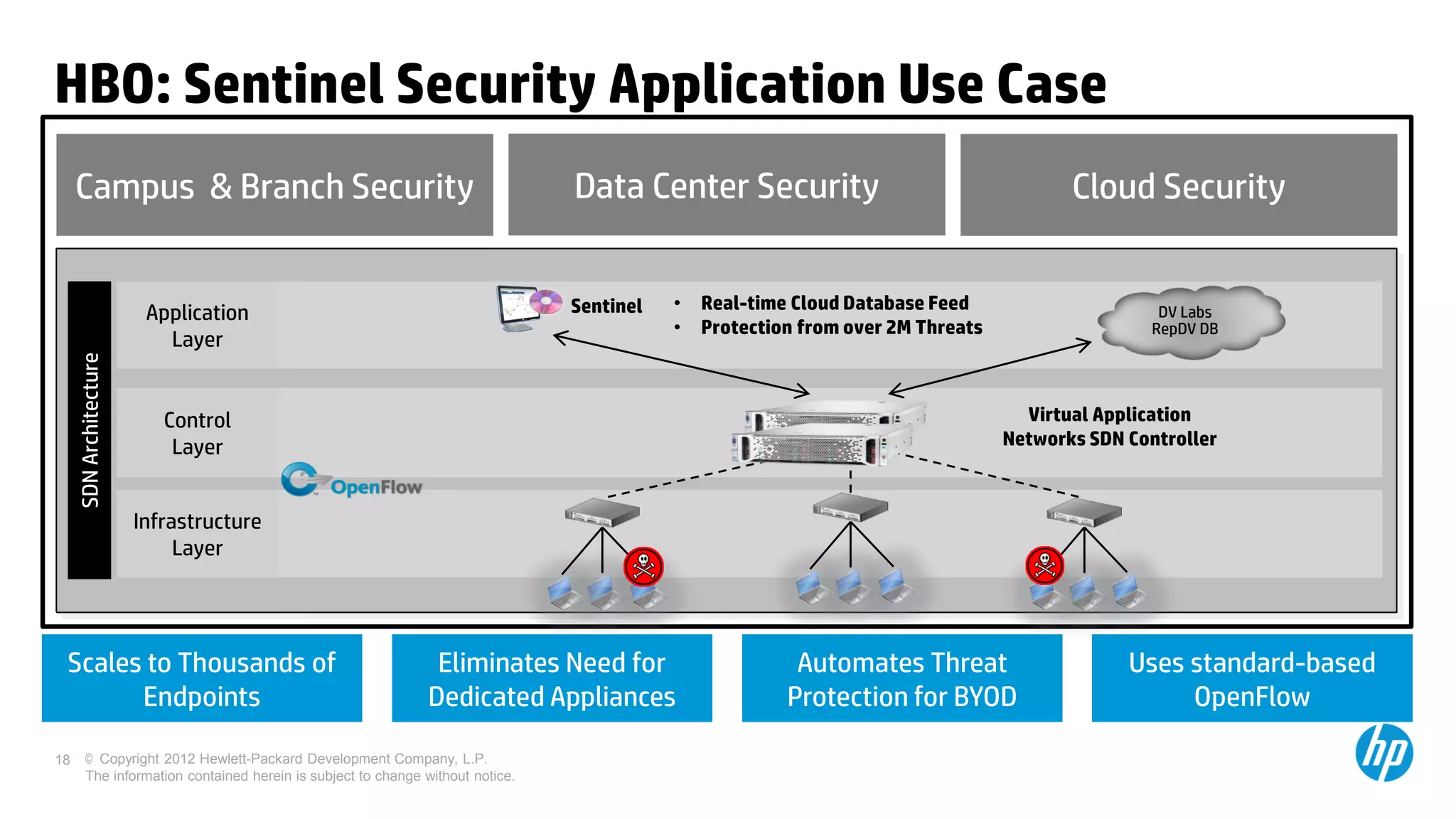

18. HBO: Sentinel Security Application Use Case
Campus & Branch Security Data Center Security Cloud Security
Sentinel • Real-time Cloud Database Feed
Application DV Labs
• Protection from over 2M Threats RepDV DB
Layer
SDN Architecture
Control Virtual Application
Layer Networks SDN Controller
Infrastructure
Layer
Scales to Thousands of Eliminates Need for Automates Threat Uses standard-based
Endpoints Dedicated Appliances Protection for BYOD OpenFlow
18 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

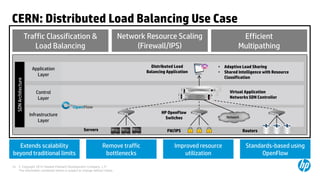

19. CERN: Distributed Load Balancing Use Case
Traffic Classification & Network Resource Scaling Efficient
Load Balancing (Firewall/IPS) Multipathing
Distributed Load • Adaptive Load Sharing
Application
Balancing Application • Shared Intelligence with Resource
Layer
Classification
SDN Architecture
Control Virtual Application
Layer Networks SDN Controller
HP OpenFlow
Infrastructure Network
Switches
Layer
Servers FW/IPS Routers
Extends scalability Remove traffic Improved resource Standards-based using
beyond traditional limits bottlenecks utilization OpenFlow
19 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

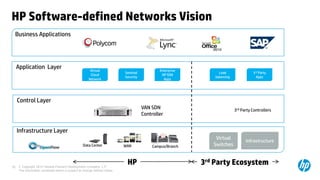

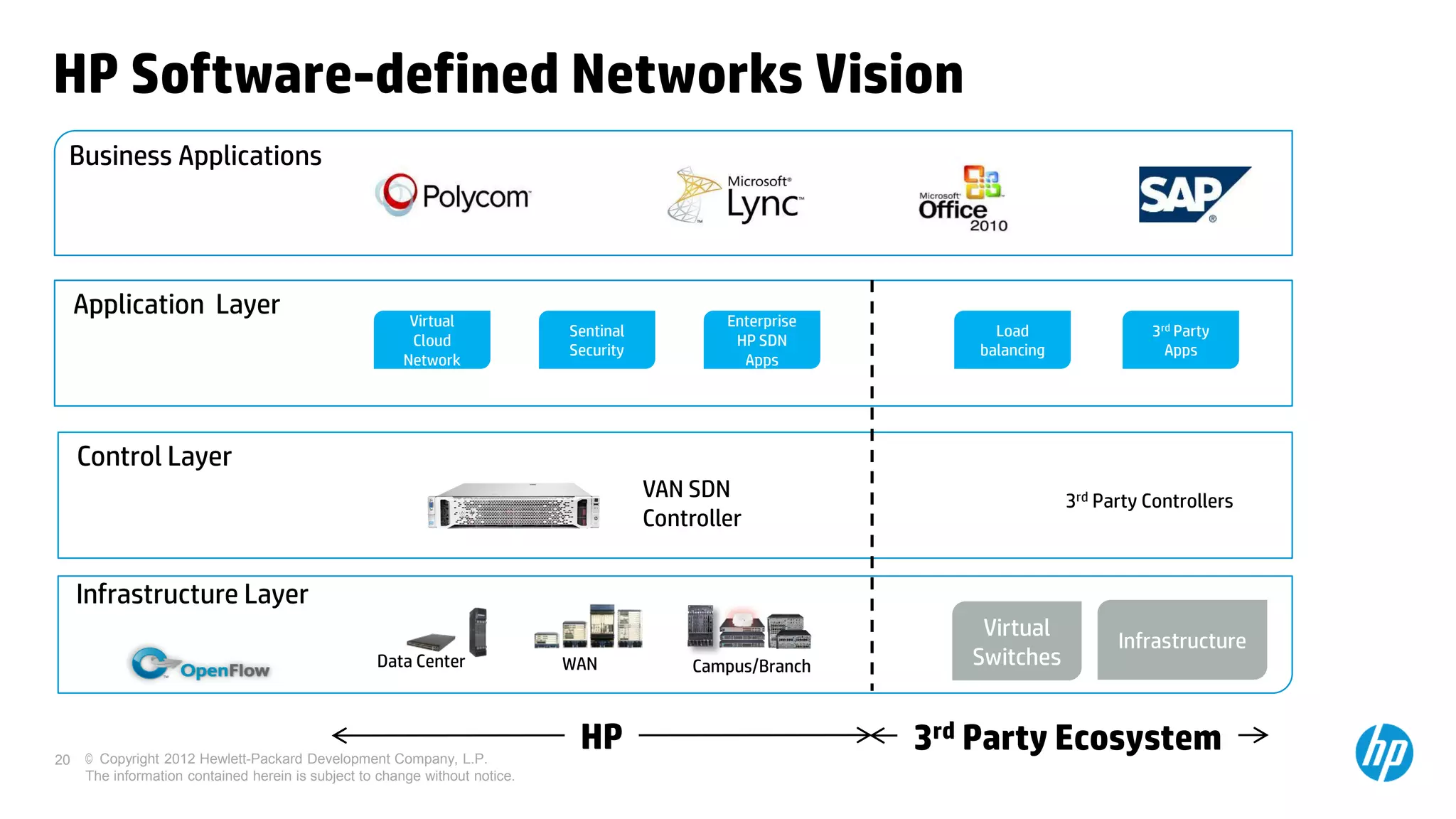

20. HP Software-defined Networks Vision
Business Applications
Deliver open programmable interfaces to
automate orchestration of network services
Application Layer Virtual SDN Controller Enterprise
Sentinal Load 3rd Party
Cloud HP SDN
Security balancing Apps
Network Apps
Control Layer SDN Controller
VAN SDN 3rd Party Controllers
Controller
NetworkOpen standard-based Device
Infrastructure Layer
Device Network programmatic access to
infrastructure Virtual
Switches
Infrastructure
Data Center WAN Campus/Branch
20 © Copyright 2012 Hewlett-Packard Development Company, L.P.
HP 3rd Party Ecosystem
The information contained herein is subject to change without notice.

21. SDN Services
© Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

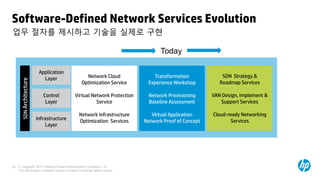

22. Today’s News: Virtual Application Networks Innovations
Software-defined Network의 민첩성을 실현하는 서비스
New Innovations
Application Virtual Cloud Networks,
Network Provisioning
Experience Workshop
Baseline Assessment
Virtual App Network
Layer Sentinel Security & Open APIs
Proof of Concept
SDN Architecture
Transformation
Control Virtual Application
Layer Networks SDN Controller
Infrastructure OpenFlow Enabled on 9
Layer Additional Switches
Products Services
22 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

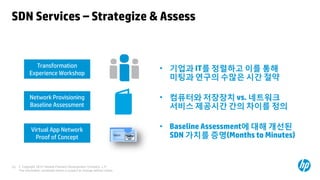

23. SDN Services – Strategize & Assess
Transformation
• 기업과 IT를 정렬하고 이를 통해
Experience Workshop
미팅과 연구의 수많은 시간 절약
Network Provisioning • 컴퓨터와 저장장치 vs. 네트워크
Baseline Assessment 서비스 제공시간 간의 차이를 정의
Virtual App Network • Baseline Assessment에 대해 개선된
Proof of Concept SDN 가치를 증명(Months to Minutes)
23 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

24. Software-Defined Network Services Evolution
업무 절차를 제시하고 기술을 실제로 구현
Today
Application
Layer Network Cloud Transformation SDN Strategy &
SDN Architecture
Optimization Service Experience Workshop Roadmap Services
Control Virtual Network Protection Network Provisioning VAN Design, Implement &
Layer Service Baseline Assessment Support Services
Network Infrastructure Virtual Application Cloud-ready Networking
Infrastructure Optimization Services Network Proof of Concept Services
Layer
24 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

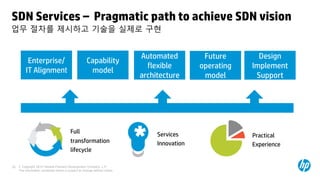

25. SDN Services – Pragmatic path to achieve SDN vision
업무 절차를 제시하고 기술을 실제로 구현
Automated Future Design
Enterprise/ Capability
flexible operating Implement
IT Alignment model
architecture model Support
Full Services Practical
transformation Innovation Experience
lifecycle
25 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

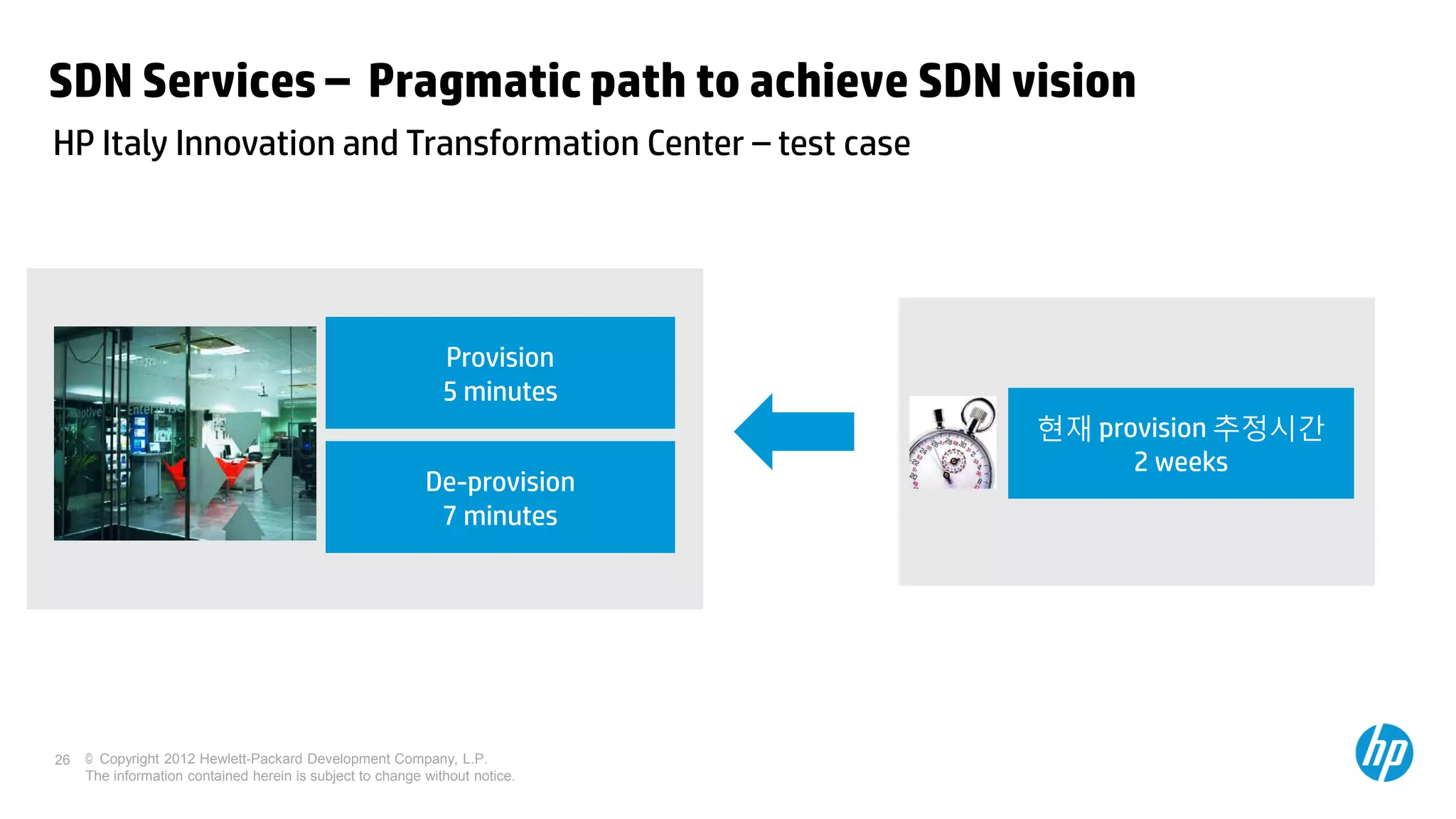

26. SDN Services – Pragmatic path to achieve SDN vision
HP Italy Innovation and Transformation Center – test case
Provision
5 minutes
현재 provision 추정시간
2 weeks
De-provision
7 minutes
26 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

27. Summary
© Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

28. New Innovations Advance SDN Leadership
Virtual Application Network를 통해 민첩함을 제공하는 최초의 End-to-end SDN Solution
Virtual Application Networks 제어부와 전송부가 분리되고 여러 대의 제어부가 하나로 추상화된,
SDN Controller 최초의 완벽한 하드웨어/소프트웨어 솔루션
SDN Applications: Virtual Cloud 확장가능하고, 프로그래밍가능한 Private cloud ;
human 에러를 제거하고, 실시간으로 위협으로 부터 보호하며,
Network & Sentinel Security
특별 용도의 전용장비를 제거
3rd Party Application 통합을 위해 Virtual Application Network SDN Controller 상에서 3rd-party
제공되는 Open APIs application 개발이 가능한, 개방형 프로그래밍 인프라
새롭게 추가된 9종의 OpenFlow
인프라로 개방, 표준기반의 프로그래밍가능한 접근
Enabled Switch
SDN Services SDN 비전 수행을 위해 기존의 사람 중심의 처리 기술을 변환
28 © Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.

29. Thank you
© Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
