1. DATA SHEET
MOTOROLA AIRDEFENSE SERVICES PLATFORM
HOLISTIC NETWORK SERVICES MANAGEMENT FOR WLAN
MOTOROLA
AIRDEFENSE
SERVICES PLATFORM
Wireless connectivity provides unique opportunities to communicate in new and
powerful ways, but it also brings its own set of vulnerabilities, complexities and
management challenges. To get the best out of your wireless without risking its
worst, you need the right set of tools.
Motorola’s AirDefense Services Platform (ADSP) simplifies the management,
monitoring and protection of your WLAN networks. The platform supports four key
functions – security and compliance, network assurance, infrastructure management,
and proximity awareness and analytics – within a modular architecture to maximize
deployment flexibility and minimize the cost of implementation.
The ADSP combines the information collected from your network of sensors
or access points with the analytical power of an intelligent central console to
provide 24/7 network monitoring, automate security, and enable regulatory
compliance, multi-vendor management, remote troubleshooting and proximity-
based services.
FLEXIBLE CUSTOMIZABLE SOLUTIONS FOR EVERY NEED
Maintaining a secure network environment is critical Your organization is unique and so are your business Security & Compliance
to your business. So is the flexibility to adapt to the needs. Motorola’s AirDefense Services Platform Define, monitor and enforce
corporate wireless LAN policies
changing demands of your customers and employees. is modular and can be tailored to your specific and/or regulatory compliance
The AirDefense Services Platform gives you the control requirements. Security and Compliance, Network policies.
and intelligence you need to rollout new applications Assurance, Infrastructure Management, and Proximity Infrastructure Management
and services that empower and engage your users, Awareness and Analytics are seamlessly integrated Simplify and centralize
management of multiple vendor
without risking exposure of sensitive information. to give you a single powerful tool for maximizing your wireless LAN infrastructure
wireless network productivity. deployments with a single console.
Network Assurance
CENTRALIZED Remotely identify and remediate
You want to focus resources on running your business, VENDOR AGNOSTIC network problems that impact
wireless applications and
not on running your network. So we simplified Multi-vendor, multi-technology networks are common proactively optimize network
network administration by creating a single graphical in today’s wireless infrastructure environments. The performance.
user interface and central management console, for AirDefense Services Platform is designed to support Proximity Awareness &
a holistic view and easier control of your wireless any 802.11 a/b/g wireless LAN deployment, so you Analytics
Real-time indoor locationing
network performance. can keep capital costs down and reliability up. and analytics services use your
existing Wi-Fi infrastructure to
enhance customer experience and
build stronger relationships.

2. DATA SHEET
MOTOROLA AIRDEFENSE SERVICES PLATFORM
SECURITY & COMPLIANCE INFRASTRUCTURE MANAGEMENT
Maximizing the productivity of your wireless assets The AirDefense Infrastructure Management solution eases
means maintaining the strongest security posture the management of various infrastructure vendors with
possible. AirDefense security and compliance suite multiple consoles by providing IT staff a centralized, holistic
works seamlessly across your wireless network to view into the network. The solution offers centralized
detect and neutralize rogue devices, enforce policies, configuration, status monitoring, fault monitoring,
prevent intrusion and ensure regulatory compliance. and reporting for multi-vendor WLAN infrastructure
Automated tools for threat mitigation and policy deployments. This solution will enhance the visibility and
enforcement give you the confidence of real-time control of wireless infrastructure for organizations with
response to risks and a more effective security posture. diverse environments consisting of multiple device models
from one or more different infrastructure vendors.
WIRELESS INTRUSION PREVENTION SECURITY
The AirDefense Infrastructure Management suite lets you
(WIRELESS IPS) MODULE
manage the network rather than individual devices with
By analyzing existing and day-zero threats in real-time
inheritance based configuration. So you can spend less time
against historical data, the AirDefense Wireless IPS
less staging and provisioning hardware for new deployments
module can accurately detect wireless vulnerabilities
and hardware changes. With a simplified and unified
and unusual network activity. Context-aware detection,
console to control heterogeneous wireless infrastructure, the
correlation and multi-dimensional detection engines
solution is also a cost-effective and manageable way to help
mean minimal false positive alarms. An extensive threat
organizations migrate to new technology while leveraging
library and customizable policy settings let the system
legacy infrastructure.
respond automatically to more than 200 wireless threats,
reducing the chances of damage to your network.
WLAN MANAGEMENT MODULE
The AirDefense WLAN Management module provides
WIRELESS VULNERABILITY ASSESSMENT
administrators with a single, centralized console for
MODULE
multi-vendor deployments, simplifying management and
The AirDefense Wireless Vulnerability Assessment
providing consistent configuration across the network.
module uses an industry-first, patented technology to
This tool will enhance the visibility and control of the
remotely test wireless security. It allows administrators
wireless infrastructure for organizations with diverse WLAN
to automatically log on to an access point and test for
deployments consisting of multiple vendors and varied
vulnerabilities from the perspective of a wireless hacker.
equipment models.
Motorola sensors conduct wireless penetration testing,
proactively identifying vulnerabilities before they can be
exploited, so you can better manage threats and keep CENTRALIZED MANAGEMENT CONSOLE MODULE
your systems secure. The AirDefense Centralized Management Console (CMC)
module provides administrators and IT staff a single
ADVANCED FORENSICS MODULE FOR holistic view into the wireless network. For large scale
SECURITY & COMPLIANCE deployments which require thousands of sensors and/or
Wireless events tend to be transient by nature, making tens of thousands of managed devices, the CMC provides
analysis of security and performance issues difficult. aggregated views of the data on multiple appliances and
The AirDefense Advanced Forensics module captures a single point for configuration changes. CMC streamlines
a complete record of WLAN performance – 325 data the monitoring of security events, automates management,
points every minute for every identified wireless and speeds time-to-resolution of network issues, thereby
device – giving administrators the ability to rewind and improving productivity.
analyze detailed records of wireless activity in support
of forensics investigations or network performance
troubleshooting.

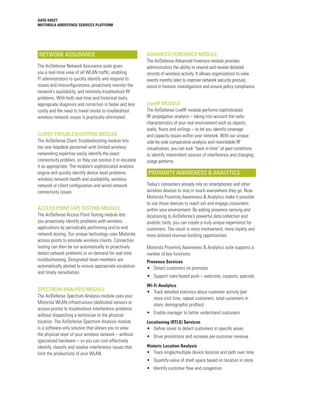

3. DATA SHEET
MOTOROLA AIRDEFENSE SERVICES PLATFORM
NETWORK ASSURANCE ADVANCED FORENSICS MODULE
The AirDefense Advanced Forensics module provides
The AirDefense Network Assurance suite gives administrators the ability to rewind and review detailed
you a real-time view of all WLAN traffic, enabling records of wireless activity. It allows organizations to view
IT administrators to quickly identify and respond to events months later to improve network security posture,
issues and misconfigurations, proactively monitor the assist in forensic investigations and ensure policy compliance.
network’s availability, and remotely troubleshoot RF
problems. With both real-time and historical tools,
appropriate diagnosis and correction is faster and less LiveRF MODULE
costly and the need to travel onsite to troubleshoot The AirDefense LiveRF module performs sophisticated
wireless network issues is practically eliminated. RF propagation analysis – taking into account the radio
characteristics of your real environment such as objects,
walls, floors and ceilings – to let you identify coverage
CLIENT TROUBLESHOOTING MODULE and capacity issues within your network. With our unique
The AirDefense Client Troubleshooting module lets side-by-side comparative analysis and rewindable RF
tier one helpdesk personnel with limited wireless visualization, you can look “back in time” at past conditions
networking expertise easily identify the exact to identify intermittent sources of interference and changing
connectivity problem, so they can resolve it or escalate usage patterns.
it as appropriate. The module’s sophisticated analysis
engine will quickly identify device level problems, PROXIMITY AWARENESS & ANALYTICS
wireless network health and availability, wireless
network or client configuration and wired network Today’s consumers already rely on smartphones and other
connectivity issues. wireless devices to stay in touch everywhere they go. Now
Motorola Proximity Awareness & Analytics make it possible
to use those devices to reach out and engage consumers
ACCESS POINT (AP) TESTING MODULE within your environment. By adding presence sensing and
The AirDefense Access Point Testing module lets locationing to AirDefense’s powerful data collection and
you proactively identify problems with wireless analytic tools, you can create a truly unique experience for
applications by periodically performing end-to-end customers. The result is more involvement, more loyalty and
network testing. Our unique technology uses Motorola more tailored revenue-building opportunities.
access points to emulate wireless clients. Connection
testing can then be run automatically to proactively Motorola Proximity Awareness & Analytics suite supports a
detect network problems or on-demand for real-time number of key functions:
troubleshooting. Designated team members are Presence Services
automatically alerted to ensure appropriate escalation • Detect customers on premises
and timely remediation.
• Support rules-based push – welcome, coupons, specials
Wi-Fi Analytics
SPECTRUM ANALYSIS MODULE • Track detailed statistics about customer activity (per
The AirDefense Spectrum Analysis module uses your store visit time, repeat customers, total customers in
Motorola WLAN infrastructure (dedicated sensors or store, demographic profiles)
access points) to troubleshoot interference problems
without dispatching a technician to the physical • Enable manager to better understand customers
location. The AirDefense Spectrum Analysis module Locationing (RTLS) Services
is a software-only solution that allows you to view • Define zones to detect customers in specific areas
the physical layer of your wireless network – without • Drive promotions and increase per-customer revenue
specialized hardware – so you can cost-effectively
identify, classify and resolve interference issues that Historic Location Analysis
limit the productivity of your WLAN. • Track single/multiple device location and path over time
• Quantify value of shelf space based on location in store
• Identify customer flow and congestion

4. DATA SHEET
MOTOROLA AIRDEFENSE SERVICES PLATFORM
DEFEND AND EXTEND YOUR WIRELESS NETWORK’S VALUE
The AirDefense Services Platform provides you with Assurance function includes analysis tools that that
a complete suite of WLAN security and management allow organizations to proactively optimize wireless
solutions. With AirDefense, you can engage customers, LAN performance as well as remotely troubleshoot RF
build loyalty, satisfy regulatory requirements, provide problems. Finally, combine your powerful AirDefense
24/7 monitoring, simplify network management and analytic and data collection tools with Proximity
remotely troubleshoot network performance. Awareness & Analytics to tailor a more interesting and
engaging experience for your customers – and reap the
Use our Security & Compliance function to prevent revenue benefits you can create.
costly security breaches and lost productivity, while
you meet regulatory security audit requirements. With the AirDefense Services Platform, customers
The Infrastructure Management function, with its have a holistic network service management solution
centralized console, eliminates the need for multiple for their WLAN with a feature set and functionality that
management systems and allows your organization will maximize value and efficiency, improve operations
to monitor WLAN infrastructure across multiple and enhance customer relationships, mitigate risk and
device types and multiple vendors. The Network assure compliance.
AirDefense Services Platform
Proximity
Infrastructure
Security & Compliance Network Assurance Awareness &
Management
Analytics
Wireless IPS WLAN Management Client Presence
Troubleshooting
Wireless Vulnerability Centralized Management Wi-Fi Analytics
Assessment Console AP Testing
Locationing
Advanced Forensics Spectrum Analysis
Historic Location
Advanced Forensics Analysis
LiveRF
For more information on Motorola SYSTEM REQUIREMENTS FOR MOTOROLA SOFTWARE SOLUTIONS
AirDefense Solutions, please visit us An AirDefense server appliance is required to run the
AirDefense Services Platform and all AirDefense modules.
on the web at motorolasolutions.com/ The server appliance is a true plug-and-play system with
a hardened operating system, optimized database, and
wms. application software included.
Current model options include:
• Model 1252
• Model 3652
• Model 4250
Please see each Motorola AirDefense server appliance
specification sheet for model specs.
motorolasolutions.com/wms
Part number G3-22-106B. MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola
Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2011 Motorola Solutions, Inc.
All rights reserved.
