Scorex is a modular blockchain framework that allows developers to easily implement and test new consensus protocols and transactional languages. It addresses issues with monolithic blockchain codebases being difficult to modify. Scorex is implemented in Scala and uses a modular design where components like consensus algorithms and transaction models can be plugged in. This allows for experiments with proof-of-stake protocols, permacoin implementations, and more. Developers can contribute by providing modules, documentation, or identifying bugs. Scorex is open source and aims to enable innovation in distributed ledger technologies.

1. Bitcoin Summer School
Scorex, the Modular Blockchain Framework
Alexander Chepurnoy
(aka kushti)
@chepurnoy
IOHK Research

2. Section 1. „Scorex In General“

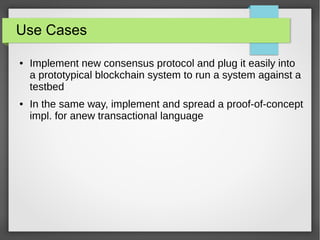

3. Use Cases
● Implement new consensus protocol and plug it easily into
a prototypical blockchain system to run a system against a
testbed
● In the same way, implement and spread a proof-of-concept
impl. for anew transactional language

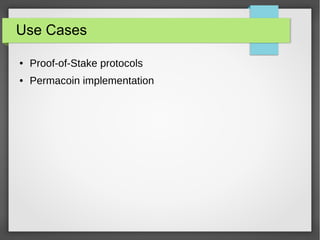

4. Use Cases
● Proof-of-Stake protocols
● Permacoin implementation

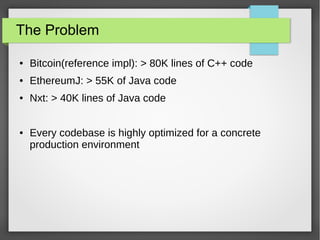

5. The Problem
● Bitcoin(reference impl): > 80K lines of C++ code
● EthereumJ: > 55K of Java code
● Nxt: > 40K lines of Java code
● Every codebase is highly optimized for a concrete
production environment

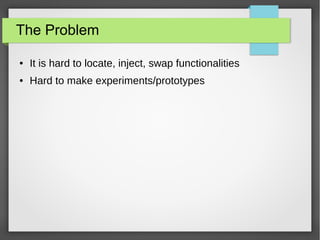

6. The Problem
● It is hard to locate, inject, swap functionalities
● Hard to make experiments/prototypes

7. Scorex in General
● Find fast where to inject
● Modular stacked design
● Externalised cryptography(scrypto)
● One testnet application atm(Lagonaki)

8. Scorex in General, pt 2
● Everything is open-sourced immediately
● CC0 license
● Maintained by IOHK Research

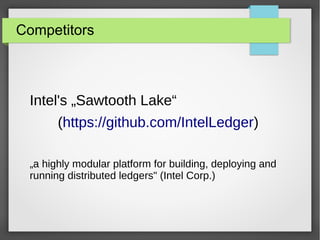

9. Competitors
Intel's „Sawtooth Lake“
(https://github.com/IntelLedger)
„a highly modular platform for building, deploying and
running distributed ledgers" (Intel Corp.)

10. Intel's „Sawtooth Lake“
● Consensus / „transaction family“
● Proof of Elapsed Time (Intel SGX)
● Assets marketplace
● Python
● Apache License 2.0

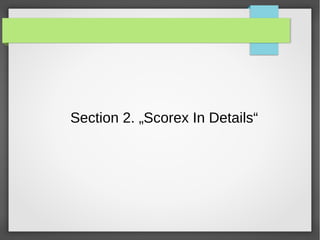

11. Section 2. „Scorex In Details“

12. Scorex is in Scala
● Functional language, strict static typing
● JVM
● Could be enhanced with any JVM language(Java, Clojure,
Kotlin, Groovy, Jython, Frege etc)

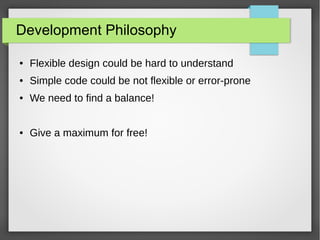

13. Development Philosophy
● Flexible design could be hard to understand
● Simple code could be not flexible or error-prone
● We need to find a balance!
● Give a maximum for free!

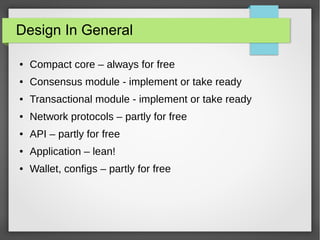

14. Design In General
● Compact core – always for free
● Consensus module - implement or take ready
● Transactional module - implement or take ready
● Network protocols – partly for free
● API – partly for free
● Application – lean!
● Wallet, configs – partly for free

15. A Module
● Writes and reads certain block parts
● Implements corresponding interface

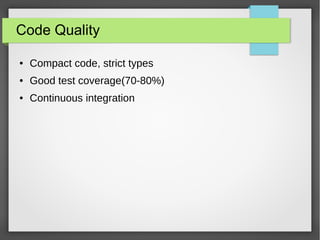

16. Code Quality
● Compact code, strict types
● Good test coverage(70-80%)
● Continuous integration

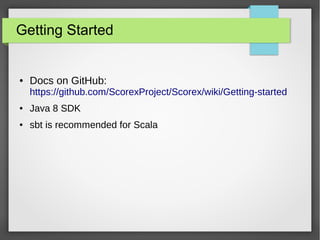

17. Getting Started
● Docs on GitHub:
https://github.com/ScorexProject/Scorex/wiki/Getting-started
● Java 8 SDK
● sbt is recommended for Scala

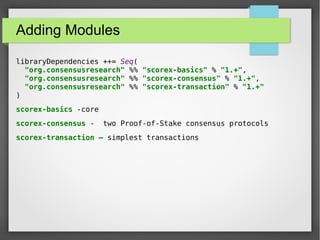

18. Adding Modules
libraryDependencies ++= Seq(
"org.consensusresearch" %% "scorex-basics" % "1.+",
"org.consensusresearch" %% "scorex-consensus" % "1.+",
"org.consensusresearch" %% "scorex-transaction" % "1.+"
)
scorex-basics -core
scorex-consensus - two Proof-of-Stake consensus protocols
scorex-transaction – simplest transactions

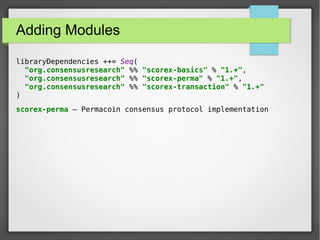

19. Adding Modules
libraryDependencies ++= Seq(
"org.consensusresearch" %% "scorex-basics" % "1.+",
"org.consensusresearch" %% "scorex-perma" % "1.+",
"org.consensusresearch" %% "scorex-transaction" % "1.+"
)
scorex-perma – Permacoin consensus protocol implementation

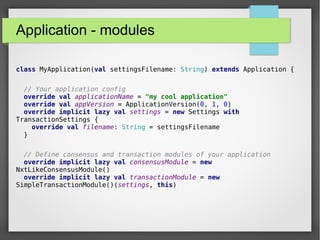

20. Application - modules
class MyApplication(val settingsFilename: String) extends Application {
// Your application config
override val applicationName = "my cool application"
override val appVersion = ApplicationVersion(0, 1, 0)
override implicit lazy val settings = new Settings with
TransactionSettings {
override val filename: String = settingsFilename
}
// Define consensus and transaction modules of your application
override implicit lazy val consensusModule = new
NxtLikeConsensusModule()
override implicit lazy val transactionModule = new
SimpleTransactionModule()(settings, this)

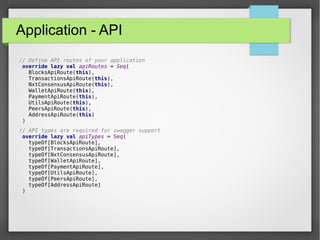

21. Application - API
// Define API routes of your application
override lazy val apiRoutes = Seq(
BlocksApiRoute(this),
TransactionsApiRoute(this),
NxtConsensusApiRoute(this),
WalletApiRoute(this),
PaymentApiRoute(this),
UtilsApiRoute(this),
PeersApiRoute(this),
AddressApiRoute(this)
)
// API types are required for swagger support
override lazy val apiTypes = Seq(
typeOf[BlocksApiRoute],
typeOf[TransactionsApiRoute],
typeOf[NxtConsensusApiRoute],
typeOf[WalletApiRoute],
typeOf[PaymentApiRoute],
typeOf[UtilsApiRoute],
typeOf[PeersApiRoute],
typeOf[AddressApiRoute]
)

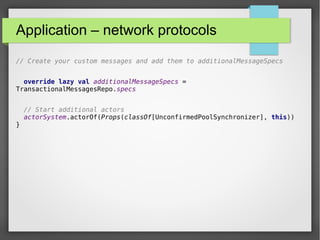

22. Application – network protocols
// Create your custom messages and add them to additionalMessageSpecs
override lazy val additionalMessageSpecs =
TransactionalMessagesRepo.specs
// Start additional actors
actorSystem.actorOf(Props(classOf[UnconfirmedPoolSynchronizer], this))
}

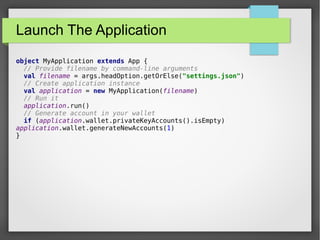

23. Launch The Application
object MyApplication extends App {
// Provide filename by command-line arguments
val filename = args.headOption.getOrElse("settings.json")
// Create application instance
val application = new MyApplication(filename)
// Run it
application.run()
// Generate account in your wallet
if (application.wallet.privateKeyAccounts().isEmpty)
application.wallet.generateNewAccounts(1)
}

24. UI

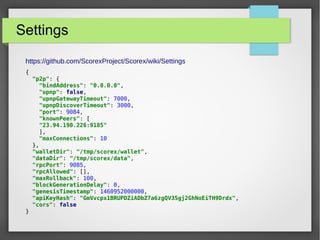

25. Settings
https://github.com/ScorexProject/Scorex/wiki/Settings
{
"p2p": {
"bindAddress": "0.0.0.0",
"upnp": false,
"upnpGatewayTimeout": 7000,
"upnpDiscoverTimeout": 3000,
"port": 9084,
"knownPeers": [
"23.94.190.226:9185"
],
"maxConnections": 10
},
"walletDir": "/tmp/scorex/wallet",
"dataDir": "/tmp/scorex/data",
"rpcPort": 9085,
"rpcAllowed": [],
"maxRollback": 100,
"blockGenerationDelay": 0,
"genesisTimestamp": 1460952000000,
"apiKeyHash": "GmVvcpx1BRUPDZiADbZ7a6zgQV3Sgj2GhNoEiTH9Drdx",
"cors": false
}

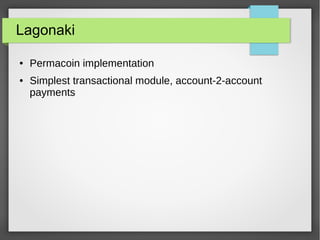

26. Lagonaki
● Permacoin implementation
● Simplest transactional module, account-2-account
payments

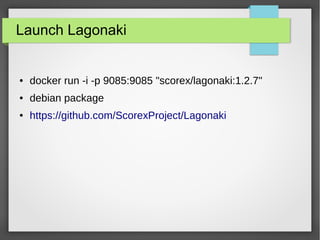

27. Launch Lagonaki
● docker run -i -p 9085:9085 "scorex/lagonaki:1.2.7"
● debian package
● https://github.com/ScorexProject/Lagonaki

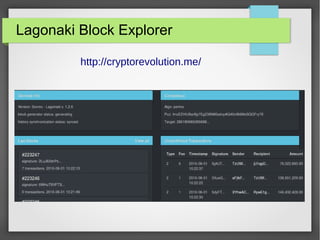

28. Lagonaki Block Explorer
http://cryptorevolution.me/

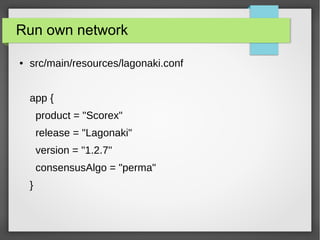

29. Run own network
● src/main/resources/lagonaki.conf
app {
product = "Scorex"
release = "Lagonaki"
version = "1.2.7"
consensusAlgo = "perma"
}

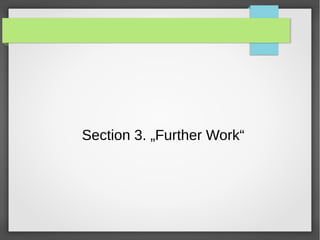

30. Section 3. „Further Work“

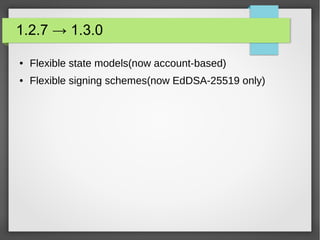

31. 1.2.7 → 1.3.0
● Flexible state models(now account-based)
● Flexible signing schemes(now EdDSA-25519 only)

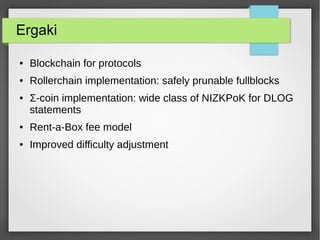

32. Ergaki
● Blockchain for protocols
● Rollerchain implementation: safely prunable fullblocks
● Σ-coin implementation: wide class of NIZKPoK for DLOG
statements
● Rent-a-Box fee model
● Improved difficulty adjustment

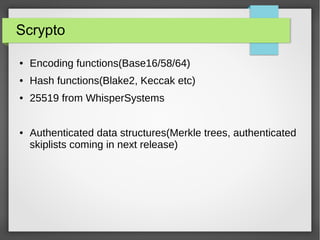

33. Scrypto
● Еncoding functions(Base16/58/64)
● Hash functions(Blake2, Keccak etc)
● 25519 from WhisperSystems
● Authenticated data structures(Merkle trees, authenticated
skiplists coming in next release)

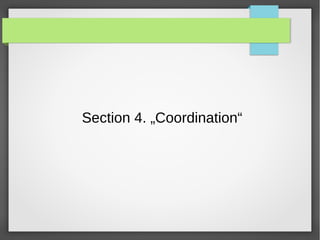

34. Section 4. „Coordination“

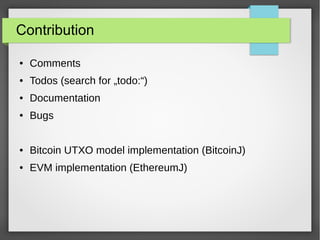

35. Contribution
● Comments
● Todos (search for „todo:“)
● Documentation
● Bugs
● Bitcoin UTXO model implementation (BitcoinJ)
● EVM implementation (EthereumJ)

36. Reach Us
● Maillist https://scorex-dev.groups.io/g/main
● GitHub https://github.com/ScorexProject
● https://iohk.io/team/

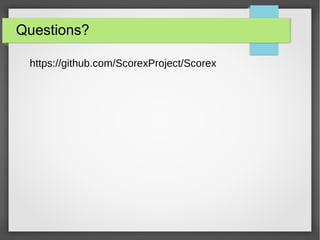

37. Questions?
https://github.com/ScorexProject/Scorex
