1. IBM Blockchain Platform: Technical Introduction
Building and running blockchain applications
using IBM Blockchain Platform
V1.01, 20 May 2019
IBM Blockchain Platform Technical Series
Architectural Good Practices
Modeling Blockchain Applications
What’s New in Technology
Under the Covers
Technical Introduction

2. Key Concepts
Understand the concepts behind
Hyperledger Fabric
Developer tools
Using IBM Blockchain Platform to
implement blockchain applications
Administrator tools
A demo of how to use IBM Blockchain
Platform to simplify operations

3. 3

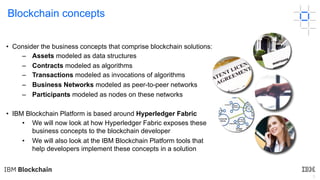

Blockchain concepts
• Consider the business concepts that comprise blockchain solutions:
– Assets modeled as data structures
– Contracts modeled as algorithms
– Transactions modeled as invocations of algorithms
– Business Networks modeled as peer-to-peer networks
– Participants modeled as nodes on these networks
• IBM Blockchain Platform is based around Hyperledger Fabric
• We will now look at how Hyperledger Fabric exposes these
business concepts to the blockchain developer
• We will also look at the IBM Blockchain Platform tools that
help developers implement these concepts in a solution

4. 4

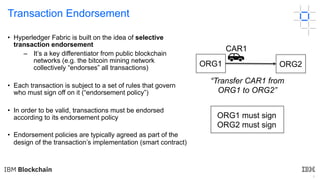

Transaction Endorsement
• Hyperledger Fabric is built on the idea of selective
transaction endorsement
– It’s a key differentiator from public blockchain
networks (e.g. the bitcoin mining network
collectively “endorses” all transactions)
• Each transaction is subject to a set of rules that govern
who must sign off on it (“endorsement policy”)
• In order to be valid, transactions must be endorsed
according to its endorsement policy
• Endorsement policies are typically agreed as part of the
design of the transaction’s implementation (smart contract)
ORG1 ORG2
ORG1 must sign
ORG2 must sign
“Transfer CAR1 from
ORG1 to ORG2”
CAR1

5. 5
Endorsed transactions in the blockchain ledger
# Transaction Initiator Receiver Asset Invoked TX Invoked by Endorsed by
1 Transfer ORG1 ORG2 CAR1 transfer(CAR1, ORG2) ORG1 ORG1, ORG2
2 Transfer ORG2 ORG3 CAR1 transfer(CAR1, ORG3) ORG2 ORG2, ORG3
3 Issue VDA ORG3 CAR2 issue(CAR2, ORG3) VDA VDA, ORG3
4 Scrap ORG3 CAR1 scrap(CAR1) ORG3 ORG3, VDA
5 Update rules VDA updatePolicy(…) VDA VDA, ORG1, ORG2, ORG3
ORG1
ORG2
ORG3
VDA

6. 6

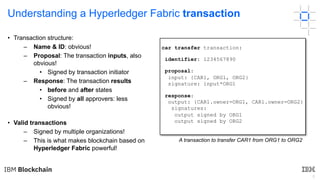

Understanding a Hyperledger Fabric transaction
car transfer transaction:
identifier: 1234567890
proposal:
input: {CAR1, ORG1, ORG2}
signature: input*ORG1
response:
output: {CAR1.owner=ORG1, CAR1.owner=ORG2}
signatures:
output signed by ORG1
output signed by ORG2
A transaction to transfer CAR1 from ORG1 to ORG2
• Transaction structure:
– Name & ID: obvious!
– Proposal: The transaction inputs, also
obvious!
• Signed by transaction initiator
– Response: The transaction results
• before and after states
• Signed by all approvers: less
obvious!
• Valid transactions
– Signed by multiple organizations!
– This is what makes blockchain based on
Hyperledger Fabric powerful!

7. 7
A smart contract generates a transaction response
• Define controlled access to ledger
– c.f. database stored procedures
• Uses transaction proposal (input) from application
– Generates a signed transaction response (output)
– Uses world state to simplify processing
• Contract executed by multiple organizations
– Recall: Valid transactions signed by ALL endorsing ORGS
– e.g. car transfers must be signed by ORG1 && ORG2
– Endorsement policy defines endorsing organizations
car contract:
query(car):
get(car);
return car;
transfer(car, buyer, seller):
get(car);
car.owner = buyer;
put(car);
return car;
update(car, properties):
get(car);
car.colour = properties.colour;
put(car);
return car;
Car endorsement policy:
ORG1 AND ORG2

8. 8
The ledger: an immutable history of transactions
• Most important data structure
– A network can have more than one logical ledger
• Blockchain: history of all transactions
– Sequence of valid & invalid transactions, grouped in blocks
– Hashed and linked using cryptography
– e.g. history of car ownership since manufacture
• World State: current value of all states
– The result of applying all valid transactions, in order
– Simplifies applications because that’s what most frequently
required
– e.g. current details of all cars (owners, colour, registration...)
Ledger components:
blockchain & world state
t1 t2 t3
CAR1:{owner:ORG2}
CAR2:{owner:ORG2}
t4 t5 t6
✓ X
Blockchain
World state
b1 b2
ledger

9. 9

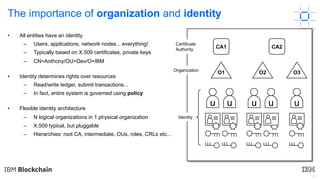

The importance of organization and identity
• All entities have an identity
– Users, applications, network nodes... everything!
– Typically based on X.509 certificates, private keys
– CN=Anthony/OU=Dev/O=IBM
• Identity determines rights over resources
– Read/write ledger, submit transactions...
– In fact, entire system is governed using policy
• Flexible identity architecture
– N logical organizations in 1 physical organization
– X.509 typical, but pluggable
– Hierarchies: root CA, intermediate, OUs, roles, CRLs etc...
Organization
Certificate
Authority
Identity
CA1 CA2
O1
P
u
P
u
O2
P
u
P
u
O3
P
u

10. 10

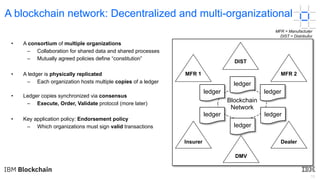

A blockchain network: Decentralized and multi-organizational
• A consortium of multiple organizations
– Collaboration for shared data and shared processes
– Mutually agreed policies define “constitution”
• A ledger is physically replicated
– Each organization hosts multiple copies of a ledger
• Ledger copies synchronized via consensus
– Execute, Order, Validate protocol (more later)
• Key application policy: Endorsement policy
– Which organizations must sign valid transactions
DIST
MFR 2
Blockchain
Network
MFR 1
Insurer
DMV
Dealer
ledger
ledger
ledger
ledger ledger
ledger
MFR = Manufacturer
DIST = Distributor

11. 11

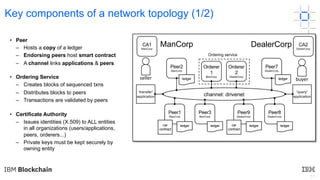

Key components of a network topology (1/2)
• Peer
– Hosts a copy of a ledger
– Endorsing peers host smart contract
– A channel links applications & peers
• Ordering Service
– Creates blocks of sequenced txns
– Distributes blocks to peers
– Transactions are validated by peers
• Certificate Authority
– Issues identities (X.509) to ALL entities
in all organizations (users/applications,
peers, orderers...)
– Private keys must be kept securely by
owning entity
seller buyer
“transfer”
application channel: drivenet
Orderer
1
ManCorp
Peer3
ManCorp
Orderer
2
DealerCorp
Peer8
DealerCorp
Peer9
DealerCorp
Peer7
DealerCorp
Peer1
ManCorp
Peer2
ManCorp
car
contract
car
contract
CA1
ManCorp
Ordering service
“query”
application
CA2
DealerCorp
ledger ledger
ManCorp DealerCorp
ledger ledger
ledger ledger

12. 12

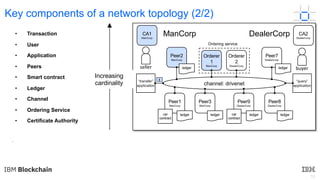

Key components of a network topology (2/2)
• Transaction
• User
• Application
• Peers
• Smart contract
• Ledger
• Channel
• Ordering Service
• Certificate Authority
seller buyer
“transfer”
application channel: drivenet
Orderer
1
ManCorp
Peer3
ManCorp
Orderer
2
DealerCorp
Peer8
DealerCorp
Peer9
DealerCorp
Peer7
DealerCorp
Peer1
ManCorp
Peer2
ManCorp
car
contract
car
contract
CA1
ManCorp
Ordering service
“query”
application
CA2
DealerCorp
ledger ledger
ManCorp DealerCorp
ledger ledger
ledger ledger
.
Increasing
cardinality
t

13. 13

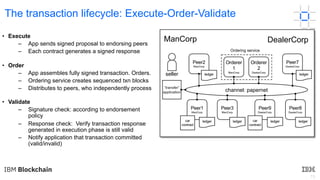

The transaction lifecycle: Execute-Order-Validate
• Execute
– App sends signed proposal to endorsing peers
– Each contract generates a signed response
• Order
– App assembles fully signed transaction. Orders.
– Ordering service creates sequenced txn blocks
– Distributes to peers, who independently process
• Validate
– Signature check: according to endorsement
policy
– Response check: Verify transaction response
generated in execution phase is still valid
– Notify application that transaction committed
(valid/invalid)
ManCorp DealerCorp
seller
“transfer”
application channel: papernet
Peer9
DealerCorp
car
contract
ledger
Peer1
ManCorp
car
contract
ledger
Orderer
1
ManCorp
Orderer
2
DealerCorp
Ordering service
Peer3
ManCorp
ledger
Peer8
DealerCorp
ledger
Peer2
ManCorp
ledger
Peer7
DealerCorp
ledger

14. 14

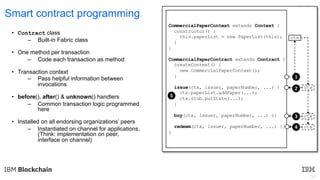

Smart contract programming
• Contract class
– Built-in Fabric class
• One method per transaction
– Code each transaction as method
• Transaction context
– Pass helpful information between
invocations
• before(), after() & unknown() handlers
– Common transaction logic programmed
here
• Installed on all endorsing organizations’ peers
– Instantiated on channel for applications.
(Think: implementation on peer,
interface on channel)
CommercialPaperContext extends Context {
constructor() {
this.paperList = new PaperList(this);
}
}
CommercialPaperContract extends Contract {
createContext() {
new CommercialPaperContext();
}
issue(ctx, issuer, paperNumber, ...) {
ctx.paperList.addPaper(...);
ctx.stub.putState(...);
}
buy(ctx, issuer, paperNumber, ...) {}
redeem(ctx, issuer, paperNumber, ...) {}
}
ctx
ctx
ctx
ctx
1
2
3
4
5

15. 15

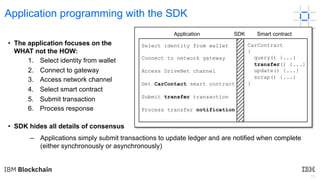

Application programming with the SDK
• The application focuses on the
WHAT not the HOW:
1. Select identity from wallet
2. Connect to gateway
3. Access network channel
4. Select smart contract
5. Submit transaction
6. Process response
• SDK hides all details of consensus
Select identity from wallet
Connect to network gateway
Access DriveNet channel
Get CarContact smart contract
Submit transfer transaction
Process transfer notification
CarContract
{
query() {...}
transfer() {...}
update() {...}
scrap() {...}
}
SDKApplication Smart contract
– Applications simply submit transactions to update ledger and are notified when complete
(either synchronously or asynchronously)

16. © 2018 IBM Corporation
16

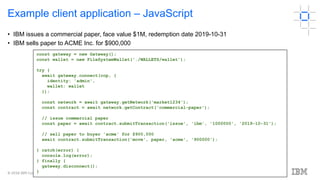

Example client application – JavaScript
• IBM issues a commercial paper, face value $1M, redemption date 2019-10-31
• IBM sells paper to ACME Inc. for $900,000
const gateway = new Gateway();
const wallet = new FileSystemWallet('./WALLETS/wallet');
try {
await gateway.connect(ccp, {
identity: 'admin',
wallet: wallet
});
const network = await gateway.getNetwork('market1234');
const contract = await network.getContract('commercial-paper');
// issue commercial paper
const paper = await contract.submitTransaction('issue', 'ibm', '1000000', '2019-10-31');
// sell paper to buyer 'acme' for $900,000
await contract.submitTransaction('move', paper, 'acme', '900000');
} catch(error) {
console.log(error);
} finally {
gateway.disconnect();
}

17. © 2018 IBM Corporation
17

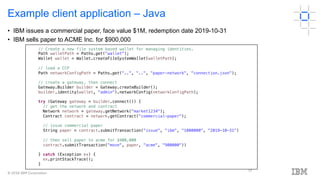

Example client application – Java
// Create a new file system based wallet for managing identities.
Path walletPath = Paths.get("wallet");
Wallet wallet = Wallet.createFileSystemWallet(walletPath);
// load a CCP
Path networkConfigPath = Paths.get("..", "..", "paper-network", "connection.json");
// create a gateway, then connect
Gateway.Builder builder = Gateway.createBuilder();
builder.identity(wallet, "admin").networkConfig(networkConfigPath);
try (Gateway gateway = builder.connect()) {
// get the network and contract
Network network = gateway.getNetwork("market1234");
Contract contract = network.getContract("commercial-paper");
// issue commercial paper
String paper = contract.submitTransaction("issue", "ibm", "1000000", "2019-10-31")
// then sell paper to acme for $900,000
contract.submitTransaction("move", paper, "acme", "900000"))
} catch (Exception ex) {
ex.printStackTrace();
}
• IBM issues a commercial paper, face value $1M, redemption date 2019-10-31
• IBM sells paper to ACME Inc. for $900,000

18. 18

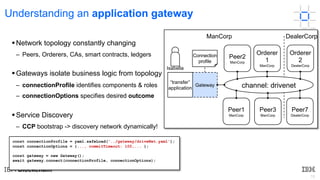

Understanding an application gateway
§Network topology constantly changing
– Peers, Orderers, CAs, smart contracts, ledgers
§Gateways isolate business logic from topology
– connectionProfile identifies components & roles
– connectionOptions specifies desired outcome
§Service Discovery
– CCP bootstrap -> discovery network dynamically!
Gateway
“transfer”
application
Connection
profile
Orderer
1
ManCorp
Orderer
2
DealerCorp
channel: drivenet
ManCorp DealerCorp
Peer2
ManCorp
Peer7
DealerCorp
Isabella
Peer1
ManCorp
Peer3
ManCorp
const connectionProfile = yaml.safeLoad('../gateway/driveNet.yaml');
const connectionOptions = {..., commitTimeout: 100,... };
const gateway = new Gateway();
await gateway.connect(connectionProfile, connectionOptions);

19. 19

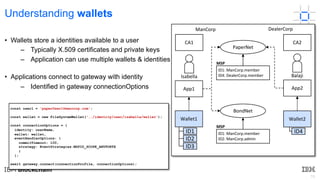

Understanding wallets
• Wallets store a identities available to a user
– Typically X.509 certificates and private keys
– Application can use multiple wallets & identities ...
• Applications connect to gateway with identity
– Identified in gateway connectionOptions
PaperNet
ID1: ManCorp.member
ID4: DealerCorp.member
MSP
BondNet
ID1: ManCorp.member
ID2: ManCorp.admin
MSP
ManCorp
Isabella
CA1
Wallet1
ID1
ID2
ID3
DealerCorp
CA2
Wallet2
ID4
App1 App2
Balaji
const user1 = 'paperUser1@mancorp.com';
const wallet = new FileSystemWallet('../identity/user/isabella/wallet');
const connectionOptions = {
identity: userName,
wallet: wallet,
eventHandlerOptions: {
commitTimeout: 100,
strategy: EventStrategies.MSPID_SCOPE_ANYFORTX
}
};
await gateway.connect(connectionProfile, connectionOptions);

20. 20

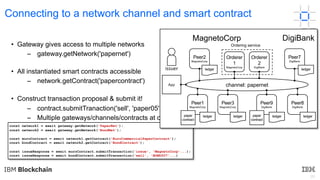

Connecting to a network channel and smart contract
• Gateway gives access to multiple networks
– gateway.getNetwork('papernet')
• All instantiated smart contracts accessible
– network.getContract('papercontract')
• Construct transaction proposal & submit it!
– contract.submitTranaction('sell', 'paper05')
– Multiple gateways/channels/contracts at once!
const network1 = await gateway.getNetwork('PaperNet');
const network2 = await gateway.getNetwork('BondNet');
const euroContract = await network1.getContract('EuroCommercialPaperContract');
const bondContract = await network2.getContract('BondContract');
const issueResponse = await euroContract.submitTransaction('issue', 'MagnetoCorp'...);
const issueResponse = await bondContract.submitTransaction('sell', 'BOND007'...)
MagnetoCorp DigiBank
issuer
App channel: papernet
Peer9
DigiBank
paper
contract
ledger
Peer1
MagnetoCorp
paper
contract
ledger
Orderer
1
MagnetoCorp
Orderer
2
DigiBank
Ordering service
Peer3
MagnetoCorp
ledger
Peer8
DigiBank
ledger
Peer2
MagnetoCorp
ledger
Peer7
DigiBank
ledger

21. 21
Interacting with smart contracts and the ledger
• submitTransaction()
– Adds a fully signed new transaction to the ledger
– SDK manages entire multi-peer, ordering process
– Returns control when E/O/V complete (default)
• evaluateTransaction()
– Executes a transaction, but doesn't order it
– Typically used to query the ledger
– Only needs to interact with one peer
(pluggable handlers can be used for multi-peer query)
MagnetoCorp DigiBank
user
App channel: bond
Peer9
DigiBank
bonds
contract
ledger
Peer1
MagnetoCorp
bonds
contract
ledger
Orderer
1
MagnetoCorp
Orderer
2
DigiBank
Ordering service
Peer3
MagnetoCorp
ledger
Peer8
DigiBank
ledger
Peer2
MagnetoCorp
ledger
Peer7
DigiBank
ledgerbonds.submitTransaction('sell',
'BOND007');
bonds.evaluateTransaction('queryBond',
'BOND007');
1a 1b
1c1d
1e 1f
1
1
2
2a
2

22. 22

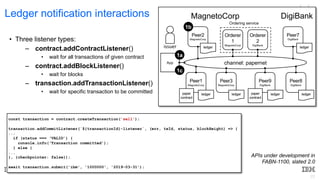

Ledger notification interactions
• Three listener types:
– contract.addContractListener()
• wait for all transactions of given contract
– contract.addBlockListener()
• wait for blocks
– transaction.addTransactionListener()
• wait for specific transaction to be committed
const transaction = contract.createTransaction('sell');
transaction.addCommitListener(`${transactionId}-listener`, (err, txId, status, blockHeight) => {
...
if (status === ‘VALID’) {
console.info(‘Transaction committed’);
} else {
...
}, {checkpointer: false});
await transaction.submit('ibm', '1000000', '2019-03-31’);
MagnetoCorp DigiBank
issuer
App channel: papernet
Peer9
DigiBank
paper
contract
ledger
Peer1
MagnetoCorp
paper
contract
ledger
Orderer
1
MagnetoCorp
Orderer
2
DigiBank
Ordering service
Peer3
MagnetoCorp
ledger
Peer8
DigiBank
ledger
Peer2
MagnetoCorp
ledger
Peer7
DigiBank
ledger
1b
1a
1c
APIs under development in
FABN-1100, slated 2.0

23. 23

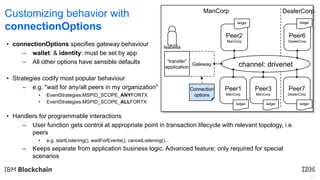

Customizing behavior with
connectionOptions
• connectionOptions specifies gateway behaviour
– wallet: & identity: must be set by app
– All other options have sensible defaults
• Strategies codify most popular behaviour
– e.g. "wait for any/all peers in my organization"
• EventStrategies.MSPID_SCOPE_ANYFORTX
• EventStrategies.MSPID_SCOPE_ALLFORTX
• Handlers for programmable interactions
– User function gets control at appropriate point in transaction lifecycle with relevant topology, i.e.
peers
• e.g. startListening(), waitForEvents(), cancelListening()...
– Keeps separate from application business logic. Advanced feature; only required for special
scenarios
Gateway
“transfer”
application
Connection
options
Peer6
DealerCorp
channel: drivenet
ManCorp DealerCorp
Peer2
ManCorp
Peer7
DealerCorp
Isabella
Peer1
ManCorp
Peer3
ManCorp
ledger ledger ledger
ledger ledger

24. Key Concepts
Understand the concepts behind
Hyperledger Fabric
Developer tools
Using IBM Blockchain Platform to
implement blockchain applications
Administrator tools
A demo of how to use IBM Blockchain
Platform to simplify operations
