Schedule 6 Stability and associated seaworthiness
28 January 201616:10
ii
Contents
1 Stability and associated sea worthiness .................................................................1
1.1 General...............................................................................................................1
1.1.1 A local fishing vessel shall be so designed and constructed to provide
adequate intact stability for the anticipated service conditions. ............................1
1.1.2 Wherever practicable, guidance shall be provided for an approximate
determination of the vessel’s stability by means of the rolling period test
including values of rolling coefficients particular to the vessel ............................1
1.1.3 The freeboard of a decked fishing vessel at the maximum foreseeable
operating displacement shall be:............................................................................1
1.2 Stability criteria..................................................................................................1
1.2.1 The stability of a local decked fishing vessel shall be examined on the
basis of the following criteria: ...............................................................................1
1.2.2 An approximate determination of the righting moment characteristics
may be accepted by the Minister or delegated authority if satisfied that it is
reasonable to employ a particular method to the type of vessel being examined..1
1.2.3 Vessels shall be able to withstand, to the satisfaction of the Minister or
delegated authority, the effect of water on deck, taking account of the seasonal
weather conditions, the sea states in which the vessel will operate, the type of
vessel and its ..........................................................................................................1
1.2.3 mode of operation. .....................................................................................2
1.2.4 The number and type of operating conditions to be considered shall be to
the satisfaction of the Minister or delegated authority and shall include the
following as appropriate: .......................................................................................2
1.2.5 In addition to the specific operating conditions given in 1.2.4, the
Minister or delegated authority shall also be satisfied, that the minimum stability
criteria given in 1.2.1 are met under all other actual operating conditions
including, those which produce the lowest values of the stability parameters
contained in these criteria. .....................................................................................2
1.2.6 Every decked vessel of 12 m in length overall and above shall undergo an
inclining test upon its completion and the actual displacement and position of the
centre of gravity shall be determined for the light ship condition.........................2
1.2.7 Where alterations are made to a decked fishing vessel affecting its light
ship condition and the position of the centre of gravity, the vessel may be re-
inclined, if the Minister or delegated authority considers this necessary and the
stability information revised. .................................................................................2
1.2.8 The inclining test of an individual decked fishing vessel may be omitted
if basic stability data are available from the inclining test of a sister vessel and
that it is demonstrated to the satisfaction of the Minister or the delegated
authority, that reliable stability information for the vessel can be obtained from
such basic data. ......................................................................................................2
28 January 201616:10
iii
1.2.9 Suitable stability information, to the satisfaction of the Minister or
delegated authority, shall be supplied to enable the skipper to assess with ease
and certainty the stability of the vessel under various operating conditions. Such
information may include specific instructions to the skipper warning him of
those operating conditions that could adversely affect either the stability or the
trim of the vessel....................................................................................................2
1.2.10 Where alterations are made to a vessel affecting its stability, revised
stability calculations shall be undertaken to the satisfaction of the Minister or
delegated authority and the stability information for the skipper shall be revised.2
1.3 Buoyancy ...........................................................................................................2
1.3.1 The Minister or delegated authority may require a wooden fishing vessel
without a deck to be fitted with buoyancy chambers to assist floatation in the
event of flooding....................................................................................................2
1.3.2 The Minister or delegated authority shall require all fibreglass fishing
boats of open construction to be fitted with sealed buoyancy chambers of
sufficient volume that the vessel when fully flooded with all normal crew,
fishing gear and engine(s) aboard will remain afloat. The means of testing for
adequate buoyancy shall be in accordance with the provisions of Schedule 8......2

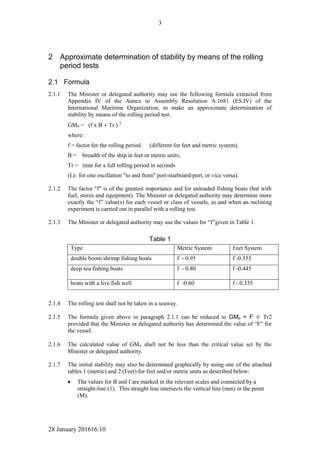

2 Approximate determination of stability by means of the rolling period tests........3
2.1 Formula..............................................................................................................3
2.1.1 The Minister or delegated authority may use the following formula
extracted from Appendix IV of the Annex to Assembly Resolution A.1681
(ES.IV) of the International Maritime Organization, to make an approximate
determination of stability by means of the rolling period test. ..............................3
2.1.2 The factor "f" is of the greatest importance and for unloaded fishing boats
(but with fuel, stores and equipment). The Minister or delegated authority may
determine more exactly the “f” value(s) for each vessel or class of vessels, as and
when an inclining experiment is carried out in parallel with a rolling test............3
2.1.3 The Minister or delegated authority may use the values for “f”given in
Table 1. ..................................................................................................................3
Table 1 ...........................................................................................................3
2.1.4 The rolling test shall not be taken in a seaway. .........................................3
2.1.5 The formula given above in paragraph 2.1.1 can be reduced to GMo = F
÷ Tr2 provided that the Minister or delegated authority has determined the
value of “F” for the vessel. ....................................................................................3
2.1.6 The calculated value of GMo shall not be less than the critical value set
by the Minister or delegated authority...................................................................3
2.1.7 The initial stability may also be determined graphically by using one of
the attached tables 1 (metric) and 2 (Feet) for feet and/or metric units as
described below: ....................................................................................................3
2.2 Table1 ................................................................................................................5
2.3 Table2 ................................................................................................................6

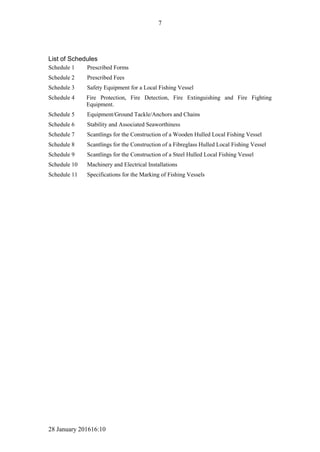

List of Schedules............................................................................................7
28 January 201616:10
1
1 Stability and associated sea worthiness
1.1 General
1.1.1 A local fishing vessel shall be so designed and constructed to provide adequate intact
stability for the anticipated service conditions.
1.1.2 Wherever practicable, guidance shall be provided for an approximate determination
of the vessel’s stability by means of the rolling period test including values of rolling
coefficients particular to the vessel
1.1.3 The freeboard of a decked fishing vessel at the maximum foreseeable operating
displacement shall be:
 compatible with the stability criteria set out in section 2 of this schedule;
 provide a reasonable degree of safety for crew working on deck or in exposed
areas;
 ensure a reasonable degree of safety for the vessel to prevent entry of water into
enclosed spaces having regard to the closing appliances provided and to the
influence of water being shipped and trapped on deck
1.2 Stability criteria
1.2.1 The stability of a local decked fishing vessel shall be examined on the basis of the
following criteria:
 that the area under the righting lever curve (GZ curve) shall not be less than 0.055
m-radians up to 30° angle of heel and not less than 0.090 m-radians up to 40° or
the angle of flooding f if this angle is less than 40°. Additionally, the area under
the righting lever curve (GZ curve), between the angles of heel of 30° and 40° or
between 30° and f, if this angle is less than 40°, shall not be less than 0.030 m-
radians. f is the angle of heel at which openings in the hull, superstructures or
deckhouses which cannot rapidly be closed watertight commence to immerse. In
applying this criterion, small openings through which progressive flooding cannot
take place need not be considered as open;
 the righting lever GZ shall be at least 200 mm at an angle of heel equal to or
greater than 30° and the maximum righting lever GZmax should occur at an angle
of heel preferably exceeding 30° but not less than 25°; and
 the initial metacentric height GM0 shall not be less than 350 mm for single deck
vessels. In vessels with complete superstructure, the metacentric height may be
reduced to the satisfaction of the Minister or delegated authority but in no case
shall it be less than 150 mm.
1.2.2 An approximate determination of the righting moment characteristics may be
accepted by the Minister or delegated authority if satisfied that it is reasonable to
employ a particular method to the type of vessel being examined.
1.2.3 Vessels shall be able to withstand, to the satisfaction of the Minister or delegated
authority, the effect of water on deck, taking account of the seasonal weather
conditions, the sea states in which the vessel will operate, the type of vessel and its
28 January 201616:10
2
mode of operation.
1.2.4 The number and type of operating conditions to be considered shall be to the
satisfaction of the Minister or delegated authority and shall include the following as
appropriate:
 departure for the fishing grounds with full fuel, stores, ice, fishing gear, etc.;
 departure from the fishing grounds with full catch;
 arrival at home port with full catch and 10% stores, fuel, etc.; and
 arrival at home port with 10% stores, fuel, etc. and a minimum catch, which
shall normally be 20% of full catch but may be up to 40% provided the competent
authority is satisfied that operating patterns justify such a value.
1.2.5 In addition to the specific operating conditions given in 1.2.4, the Minister or
delegated authority shall also be satisfied, that the minimum stability criteria given in
1.2.1 are met under all other actual operating conditions including, those which
produce the lowest values of the stability parameters contained in these criteria.
1.2.6 Every decked vessel of 12 m in length overall and above shall undergo an inclining
test upon its completion and the actual displacement and position of the centre of
gravity shall be determined for the light ship condition.
1.2.7 Where alterations are made to a decked fishing vessel affecting its light ship
condition and the position of the centre of gravity, the vessel may be re-inclined, if
the Minister or delegated authority considers this necessary and the stability
information revised.
1.2.8 The inclining test of an individual decked fishing vessel may be omitted if basic
stability data are available from the inclining test of a sister vessel and that it is
demonstrated to the satisfaction of the Minister or the delegated authority, that
reliable stability information for the vessel can be obtained from such basic data.
1.2.9 Suitable stability information, to the satisfaction of the Minister or delegated
authority, shall be supplied to enable the skipper to assess with ease and certainty the
stability of the vessel under various operating conditions. Such information may
include specific instructions to the skipper warning him of those operating conditions
that could adversely affect either the stability or the trim of the vessel.
1.2.10 Where alterations are made to a vessel affecting its stability, revised stability
calculations shall be undertaken to the satisfaction of the Minister or delegated
authority and the stability information for the skipper shall be revised.
1.3 Buoyancy
1.3.1 The Minister or delegated authority may require a wooden fishing vessel without a
deck to be fitted with buoyancy chambers to assist floatation in the event of flooding.
1.3.2 The Minister or delegated authority shall require all fibreglass fishing boats of open
construction to be fitted with sealed buoyancy chambers of sufficient volume that the
vessel when fully flooded with all normal crew, fishing gear and engine(s) aboard
will remain afloat. The means of testing for adequate buoyancy shall be in accordance
with the provisions of Schedule 8.
28 January 201616:10
3
2 Approximate determination of stability by means of the rolling
period tests
2.1 Formula
2.1.1 The Minister or delegated authority may use the following formula extracted from
Appendix IV of the Annex to Assembly Resolution A.1681 (ES.IV) of the
International Maritime Organization, to make an approximate determination of
stability by means of the rolling period test.
GM0 = (f x B ÷ Tr.) 2
where:
f = factor for the rolling period (different for feet and metric system),
B = breadth of the ship in feet or metric units,
Tr = time for a full rolling period in seconds
(I.e. for one oscillation "to and from" port-starboard-port, or vice versa).
2.1.2 The factor "f" is of the greatest importance and for unloaded fishing boats (but with
fuel, stores and equipment). The Minister or delegated authority may determine more
exactly the “f” value(s) for each vessel or class of vessels, as and when an inclining
experiment is carried out in parallel with a rolling test.
2.1.3 The Minister or delegated authority may use the values for “f”given in Table 1.
Table 1
Type Metric System Feet System
double boom shrimp fishing boats f - 0.95 f -0.555
deep sea fishing boats f - 0.80 f -0.445
boats with a live fish well f -0.60 f - 0.335
2.1.4 The rolling test shall not be taken in a seaway.
2.1.5 The formula given above in paragraph 2.1.1 can be reduced to GMo = F ÷ Tr2
provided that the Minister or delegated authority has determined the value of “F” for
the vessel.
2.1.6 The calculated value of GMo shall not be less than the critical value set by the
Minister or delegated authority.
2.1.7 The initial stability may also be determined graphically by using one of the attached
tables 1 (metric) and 2 (Feet) for feet and/or metric units as described below:
 The values for B and f are marked in the relevant scales and connected by a
straight-line (1). This straight line intersects the vertical line (mm) in the point
(M).
28 January 201616:10
4
 A second straight line (2) which connects this point (M) and the point on the Tr
scale corresponding with the determined rolling period, intersects the GM scale at
the requested value.
28 January 201616:10
5
2.2 Table1
28 January 201616:10
6
2.3 Table2
28 January 201616:10
7
List of Schedules
Schedule 1 Prescribed Forms
Schedule 2 Prescribed Fees
Schedule 3 Safety Equipment for a Local Fishing Vessel
Schedule 4 Fire Protection, Fire Detection, Fire Extinguishing and Fire Fighting
Equipment.
Schedule 5 Equipment/Ground Tackle/Anchors and Chains
Schedule 6 Stability and Associated Seaworthiness
Schedule 7 Scantlings for the Construction of a Wooden Hulled Local Fishing Vessel
Schedule 8 Scantlings for the Construction of a Fibreglass Hulled Local Fishing Vessel
Schedule 9 Scantlings for the Construction of a Steel Hulled Local Fishing Vessel
Schedule 10 Machinery and Electrical Installations
Schedule 11 Specifications for the Marking of Fishing Vessels

More Related Content

Similar to Schedule 6

Rules for hull 2014
Rules for hull 2014Rules for hull 2014
Rules for hull 2014
tanalialayubi

Dockmaster training manual
Dockmaster training manualDockmaster training manual
Asmeb30.2 2001
Asmeb30.2 2001Asmeb30.2 2001
Asmeb30.2 2001
Tiago Torres

Nfpa 1140
Nfpa 1140Nfpa 1140
Nfpa 1140
Jianping Wong

Cooperative Station Observations - 1989
Cooperative Station Observations - 1989Cooperative Station Observations - 1989
Cooperative Station Observations - 1989
indiawrm

DNV Liquified Gas Terminal
DNV Liquified Gas TerminalDNV Liquified Gas Terminal
DNV Liquified Gas Terminal
George Teriakidis

Krupp hydraulic hammers hm 1000 1000 marathon service repair manual
Krupp hydraulic hammers hm 1000  1000 marathon service repair manualKrupp hydraulic hammers hm 1000  1000 marathon service repair manual
Krupp hydraulic hammers hm 1000 1000 marathon service repair manual
fjkskmmdmme

Asme b30 2-2011 ok
Asme b30 2-2011 okAsme b30 2-2011 ok
Asme b30 2-2011 ok
SIGPROMAP

Krupp hydraulic hammers hm 1000 1000 marathon service repair manual
Krupp hydraulic hammers hm 1000  1000 marathon service repair manualKrupp hydraulic hammers hm 1000  1000 marathon service repair manual
Krupp hydraulic hammers hm 1000 1000 marathon service repair manual
fhsjejkdmem

Krupp hydraulic hammers hm 1000 1000 marathon service repair manual
Krupp hydraulic hammers hm 1000  1000 marathon service repair manualKrupp hydraulic hammers hm 1000  1000 marathon service repair manual
Krupp hydraulic hammers hm 1000 1000 marathon service repair manual
fjjskedmmemm

Study hydraulic fracturing study inglewood field10102012
Study hydraulic fracturing study inglewood field10102012Study hydraulic fracturing study inglewood field10102012
Study hydraulic fracturing study inglewood field10102012
cr7madrid

Gbr Version 060209 Addendum
Gbr Version 060209 AddendumGbr Version 060209 Addendum
Gbr Version 060209 Addendum
matthromatka

ABS_P2:140 guide foræsafehull dynamic loading approachæ for-dla-guide_1
ABS_P2:140 guide foræsafehull dynamic loading approachæ for-dla-guide_1ABS_P2:140 guide foræsafehull dynamic loading approachæ for-dla-guide_1
ABS_P2:140 guide foræsafehull dynamic loading approachæ for-dla-guide_1
robinking277

ABS_P1 :140 guide foræsafehull rodynamic loading appachæ for-dla-guide
ABS_P1 :140 guide foræsafehull rodynamic loading appachæ for-dla-guideABS_P1 :140 guide foræsafehull rodynamic loading appachæ for-dla-guide
ABS_P1 :140 guide foræsafehull rodynamic loading appachæ for-dla-guide
robinking277

Hermosa Beach - Cost Benefit Analysis 2014
Hermosa Beach - Cost Benefit Analysis 2014Hermosa Beach - Cost Benefit Analysis 2014
Hermosa Beach - Cost Benefit Analysis 2014
StopHermosaBeachOil

Kioti Daedong DK50 Tractor Service Repair Manual.pdf
Kioti Daedong DK50 Tractor Service Repair Manual.pdfKioti Daedong DK50 Tractor Service Repair Manual.pdf
Kioti Daedong DK50 Tractor Service Repair Manual.pdf
km7seyduh7dw

Kioti Daedong DK45 Tractor Service Repair Manual.pdf
Kioti Daedong DK45 Tractor Service Repair Manual.pdfKioti Daedong DK45 Tractor Service Repair Manual.pdf
Kioti Daedong DK45 Tractor Service Repair Manual.pdf
km7seyduh7dw

Kioti daedong dk45 tractor service repair manual
Kioti daedong dk45 tractor service repair manualKioti daedong dk45 tractor service repair manual
Kioti daedong dk45 tractor service repair manual
fjsekdmmme

Kioti daedong dk50 tractor service repair manual
Kioti daedong dk50 tractor service repair manualKioti daedong dk50 tractor service repair manual
Kioti daedong dk50 tractor service repair manual
fjseedcxkmdmme

Kioti Daedong DK45 Tractor Service Repair Manual
Kioti Daedong DK45 Tractor Service Repair ManualKioti Daedong DK45 Tractor Service Repair Manual
Kioti Daedong DK45 Tractor Service Repair Manual
hjsnekmde


Similar to Schedule 6 (20)

Rules for hull 2014
Rules for hull 2014Rules for hull 2014
Rules for hull 2014

Dockmaster training manual
Dockmaster training manualDockmaster training manual
Dockmaster training manual

Asmeb30.2 2001
Asmeb30.2 2001Asmeb30.2 2001
Asmeb30.2 2001

Nfpa 1140
Nfpa 1140Nfpa 1140
Nfpa 1140

Cooperative Station Observations - 1989
Cooperative Station Observations - 1989Cooperative Station Observations - 1989
Cooperative Station Observations - 1989

DNV Liquified Gas Terminal
DNV Liquified Gas TerminalDNV Liquified Gas Terminal
DNV Liquified Gas Terminal

Krupp hydraulic hammers hm 1000 1000 marathon service repair manual
Krupp hydraulic hammers hm 1000  1000 marathon service repair manualKrupp hydraulic hammers hm 1000  1000 marathon service repair manual
Krupp hydraulic hammers hm 1000 1000 marathon service repair manual

Asme b30 2-2011 ok
Asme b30 2-2011 okAsme b30 2-2011 ok
Asme b30 2-2011 ok

Krupp hydraulic hammers hm 1000 1000 marathon service repair manual
Krupp hydraulic hammers hm 1000  1000 marathon service repair manualKrupp hydraulic hammers hm 1000  1000 marathon service repair manual
Krupp hydraulic hammers hm 1000 1000 marathon service repair manual

Krupp hydraulic hammers hm 1000 1000 marathon service repair manual
Krupp hydraulic hammers hm 1000  1000 marathon service repair manualKrupp hydraulic hammers hm 1000  1000 marathon service repair manual
Krupp hydraulic hammers hm 1000 1000 marathon service repair manual

Study hydraulic fracturing study inglewood field10102012
Study hydraulic fracturing study inglewood field10102012Study hydraulic fracturing study inglewood field10102012
Study hydraulic fracturing study inglewood field10102012

Gbr Version 060209 Addendum
Gbr Version 060209 AddendumGbr Version 060209 Addendum
Gbr Version 060209 Addendum

ABS_P2:140 guide foræsafehull dynamic loading approachæ for-dla-guide_1
ABS_P2:140 guide foræsafehull dynamic loading approachæ for-dla-guide_1ABS_P2:140 guide foræsafehull dynamic loading approachæ for-dla-guide_1
ABS_P2:140 guide foræsafehull dynamic loading approachæ for-dla-guide_1

ABS_P1 :140 guide foræsafehull rodynamic loading appachæ for-dla-guide
ABS_P1 :140 guide foræsafehull rodynamic loading appachæ for-dla-guideABS_P1 :140 guide foræsafehull rodynamic loading appachæ for-dla-guide
ABS_P1 :140 guide foræsafehull rodynamic loading appachæ for-dla-guide

Hermosa Beach - Cost Benefit Analysis 2014
Hermosa Beach - Cost Benefit Analysis 2014Hermosa Beach - Cost Benefit Analysis 2014
Hermosa Beach - Cost Benefit Analysis 2014

Kioti Daedong DK50 Tractor Service Repair Manual.pdf
Kioti Daedong DK50 Tractor Service Repair Manual.pdfKioti Daedong DK50 Tractor Service Repair Manual.pdf
Kioti Daedong DK50 Tractor Service Repair Manual.pdf

Kioti Daedong DK45 Tractor Service Repair Manual.pdf
Kioti Daedong DK45 Tractor Service Repair Manual.pdfKioti Daedong DK45 Tractor Service Repair Manual.pdf
Kioti Daedong DK45 Tractor Service Repair Manual.pdf

Kioti daedong dk45 tractor service repair manual
Kioti daedong dk45 tractor service repair manualKioti daedong dk45 tractor service repair manual
Kioti daedong dk45 tractor service repair manual

Kioti daedong dk50 tractor service repair manual
Kioti daedong dk50 tractor service repair manualKioti daedong dk50 tractor service repair manual
Kioti daedong dk50 tractor service repair manual

Kioti Daedong DK45 Tractor Service Repair Manual
Kioti Daedong DK45 Tractor Service Repair ManualKioti Daedong DK45 Tractor Service Repair Manual
Kioti Daedong DK45 Tractor Service Repair Manual


More from Safety for Fishermen

Sea Safety Programmes for Small-Scale Fishing Communities
Sea Safety Programmes for Small-Scale Fishing Communities Sea Safety Programmes for Small-Scale Fishing Communities
Sea Safety Programmes for Small-Scale Fishing Communities
Safety for Fishermen

Final Report of Project
Final Report of ProjectFinal Report of Project
Final Report of Project
Safety for Fishermen

Annex I
Annex IAnnex I
Annex II
Annex IIAnnex II
Annex III
Annex IIIAnnex III
Annex IV
Annex IVAnnex IV
Annex V
Annex VAnnex V
Annex VI
Annex VIAnnex VI
Schedule 1
Schedule 1Schedule 1
Schedule 3
Schedule 3Schedule 3
Schedule 4
Schedule 4Schedule 4
Schedule 5
Schedule 5Schedule 5
Schedule 7
Schedule 7Schedule 7
Schedule 8
Schedule 8Schedule 8
Schedule 9
Schedule 9Schedule 9
Schedule 10
Schedule 10Schedule 10
Schedule 11
Schedule 11Schedule 11
Annex VII
Annex VIIAnnex VII
Annex VIII
Annex VIIIAnnex VIII
Annex IX
Annex IXAnnex IX

More from Safety for Fishermen (20)

Sea Safety Programmes for Small-Scale Fishing Communities
Sea Safety Programmes for Small-Scale Fishing Communities Sea Safety Programmes for Small-Scale Fishing Communities
Sea Safety Programmes for Small-Scale Fishing Communities

Final Report of Project
Final Report of ProjectFinal Report of Project
Final Report of Project

Annex I
Annex IAnnex I
Annex I

Annex II
Annex IIAnnex II
Annex II

Annex III
Annex IIIAnnex III
Annex III

Annex IV
Annex IVAnnex IV
Annex IV

Annex V
Annex VAnnex V
Annex V

Annex VI
Annex VIAnnex VI
Annex VI

Schedule 1
Schedule 1Schedule 1
Schedule 1

Schedule 3
Schedule 3Schedule 3
Schedule 3

Schedule 4
Schedule 4Schedule 4
Schedule 4

Schedule 5
Schedule 5Schedule 5
Schedule 5

Schedule 7
Schedule 7Schedule 7
Schedule 7

Schedule 8
Schedule 8Schedule 8
Schedule 8

Schedule 9
Schedule 9Schedule 9
Schedule 9

Schedule 10
Schedule 10Schedule 10
Schedule 10

Schedule 11
Schedule 11Schedule 11
Schedule 11

Annex VII
Annex VIIAnnex VII
Annex VII

Annex VIII
Annex VIIIAnnex VIII
Annex VIII

Annex IX
Annex IXAnnex IX
Annex IX


Recently uploaded

在线办理(西班牙UPV毕业证书)瓦伦西亚理工大学毕业证毕业完成信一模一样
在线办理(西班牙UPV毕业证书)瓦伦西亚理工大学毕业证毕业完成信一模一样在线办理(西班牙UPV毕业证书)瓦伦西亚理工大学毕业证毕业完成信一模一样
在线办理(西班牙UPV毕业证书)瓦伦西亚理工大学毕业证毕业完成信一模一样
dj1cx4ex

PAS PSDF Mop Up Workshop Presentation 2024 .pptx
PAS PSDF Mop Up Workshop Presentation 2024 .pptxPAS PSDF Mop Up Workshop Presentation 2024 .pptx
PAS PSDF Mop Up Workshop Presentation 2024 .pptx
PAS_Team

PPT Item # 5 - 318 Tuxedo Ave. (sign. review)
PPT Item # 5 - 318 Tuxedo Ave. (sign. review)PPT Item # 5 - 318 Tuxedo Ave. (sign. review)
PPT Item # 5 - 318 Tuxedo Ave. (sign. review)
ahcitycouncil

TRUE BOOK OF LIFE 1.15 OF TRUE JESUS CHRIST
TRUE BOOK OF LIFE 1.15 OF TRUE JESUS CHRISTTRUE BOOK OF LIFE 1.15 OF TRUE JESUS CHRIST
TRUE BOOK OF LIFE 1.15 OF TRUE JESUS CHRIST
Cheong Man Keong

Abiy Berehe - Texas Commission on Environmental Quality Updates
Abiy Berehe - Texas Commission on Environmental Quality UpdatesAbiy Berehe - Texas Commission on Environmental Quality Updates
Abiy Berehe - Texas Commission on Environmental Quality Updates
Texas Alliance of Groundwater Districts

A Guide to AI for Smarter Nonprofits - Dr. Cori Faklaris, UNC Charlotte
A Guide to AI for Smarter Nonprofits - Dr. Cori Faklaris, UNC CharlotteA Guide to AI for Smarter Nonprofits - Dr. Cori Faklaris, UNC Charlotte
A Guide to AI for Smarter Nonprofits - Dr. Cori Faklaris, UNC Charlotte
Cori Faklaris

Bangladesh studies presentation on Liberation War 1971 Indepence-of-Banglades...
Bangladesh studies presentation on Liberation War 1971 Indepence-of-Banglades...Bangladesh studies presentation on Liberation War 1971 Indepence-of-Banglades...
Bangladesh studies presentation on Liberation War 1971 Indepence-of-Banglades...
ssuser05e8f3

2024: The FAR - Federal Acquisition Regulations, Part 40
2024: The FAR - Federal Acquisition Regulations, Part 402024: The FAR - Federal Acquisition Regulations, Part 40
2024: The FAR - Federal Acquisition Regulations, Part 40
JSchaus & Associates

Texas Water Development Board Updates June 2024
Texas Water Development Board Updates June 2024Texas Water Development Board Updates June 2024
Texas Water Development Board Updates June 2024
Texas Alliance of Groundwater Districts

CFYT Rolling Ads Dawson City Yukon Canada
CFYT Rolling Ads Dawson City Yukon CanadaCFYT Rolling Ads Dawson City Yukon Canada
CFYT Rolling Ads Dawson City Yukon Canada
pmenzies

Combined Illegal, Unregulated and Unreported (IUU) Vessel List.
Combined Illegal, Unregulated and Unreported (IUU) Vessel List.Combined Illegal, Unregulated and Unreported (IUU) Vessel List.
Combined Illegal, Unregulated and Unreported (IUU) Vessel List.
Christina Parmionova

A proposed request for information on LIHTC
A proposed request for information on LIHTCA proposed request for information on LIHTC
A proposed request for information on LIHTC
Roger Valdez

Indira awas yojana housing scheme renamed as PMAY
Indira awas yojana housing scheme renamed as PMAYIndira awas yojana housing scheme renamed as PMAY
Indira awas yojana housing scheme renamed as PMAY
narinav14

Milton Keynes Hospital Charity - A guide to leaving a gift in your Will
Milton Keynes Hospital Charity - A guide to leaving a gift in your WillMilton Keynes Hospital Charity - A guide to leaving a gift in your Will
Milton Keynes Hospital Charity - A guide to leaving a gift in your Will
fundraising4

Item #s 8&9 -- Demolition Code Amendment
Item #s 8&9 -- Demolition Code AmendmentItem #s 8&9 -- Demolition Code Amendment
Item #s 8&9 -- Demolition Code Amendment
ahcitycouncil

Circular Economy implementation in the EU
Circular Economy implementation in the EUCircular Economy implementation in the EU
Circular Economy implementation in the EU
HasanHamdan9

Item # 10 -- Historical Presv. Districts
Item # 10 -- Historical Presv. DistrictsItem # 10 -- Historical Presv. Districts
Item # 10 -- Historical Presv. Districts
ahcitycouncil

Awaken new depths - World Ocean Day 2024, June 8th.
Awaken new depths - World Ocean Day 2024, June 8th.Awaken new depths - World Ocean Day 2024, June 8th.
Awaken new depths - World Ocean Day 2024, June 8th.
Christina Parmionova

原版制作(Hope毕业证书)利物浦霍普大学毕业证文凭证书一模一样
原版制作(Hope毕业证书)利物浦霍普大学毕业证文凭证书一模一样原版制作(Hope毕业证书)利物浦霍普大学毕业证文凭证书一模一样
原版制作(Hope毕业证书)利物浦霍普大学毕业证文凭证书一模一样
ii2sh2v

World Food Safety Day 2024- Communication-toolkit.
World Food Safety Day 2024- Communication-toolkit.World Food Safety Day 2024- Communication-toolkit.
World Food Safety Day 2024- Communication-toolkit.
Christina Parmionova


Recently uploaded (20)

在线办理(西班牙UPV毕业证书)瓦伦西亚理工大学毕业证毕业完成信一模一样
在线办理(西班牙UPV毕业证书)瓦伦西亚理工大学毕业证毕业完成信一模一样在线办理(西班牙UPV毕业证书)瓦伦西亚理工大学毕业证毕业完成信一模一样
在线办理(西班牙UPV毕业证书)瓦伦西亚理工大学毕业证毕业完成信一模一样

PAS PSDF Mop Up Workshop Presentation 2024 .pptx
PAS PSDF Mop Up Workshop Presentation 2024 .pptxPAS PSDF Mop Up Workshop Presentation 2024 .pptx
PAS PSDF Mop Up Workshop Presentation 2024 .pptx

PPT Item # 5 - 318 Tuxedo Ave. (sign. review)
PPT Item # 5 - 318 Tuxedo Ave. (sign. review)PPT Item # 5 - 318 Tuxedo Ave. (sign. review)
PPT Item # 5 - 318 Tuxedo Ave. (sign. review)

TRUE BOOK OF LIFE 1.15 OF TRUE JESUS CHRIST
TRUE BOOK OF LIFE 1.15 OF TRUE JESUS CHRISTTRUE BOOK OF LIFE 1.15 OF TRUE JESUS CHRIST
TRUE BOOK OF LIFE 1.15 OF TRUE JESUS CHRIST

Abiy Berehe - Texas Commission on Environmental Quality Updates
Abiy Berehe - Texas Commission on Environmental Quality UpdatesAbiy Berehe - Texas Commission on Environmental Quality Updates
Abiy Berehe - Texas Commission on Environmental Quality Updates

A Guide to AI for Smarter Nonprofits - Dr. Cori Faklaris, UNC Charlotte
A Guide to AI for Smarter Nonprofits - Dr. Cori Faklaris, UNC CharlotteA Guide to AI for Smarter Nonprofits - Dr. Cori Faklaris, UNC Charlotte
A Guide to AI for Smarter Nonprofits - Dr. Cori Faklaris, UNC Charlotte

Bangladesh studies presentation on Liberation War 1971 Indepence-of-Banglades...
Bangladesh studies presentation on Liberation War 1971 Indepence-of-Banglades...Bangladesh studies presentation on Liberation War 1971 Indepence-of-Banglades...
Bangladesh studies presentation on Liberation War 1971 Indepence-of-Banglades...

2024: The FAR - Federal Acquisition Regulations, Part 40
2024: The FAR - Federal Acquisition Regulations, Part 402024: The FAR - Federal Acquisition Regulations, Part 40
2024: The FAR - Federal Acquisition Regulations, Part 40

Texas Water Development Board Updates June 2024
Texas Water Development Board Updates June 2024Texas Water Development Board Updates June 2024
Texas Water Development Board Updates June 2024

CFYT Rolling Ads Dawson City Yukon Canada
CFYT Rolling Ads Dawson City Yukon CanadaCFYT Rolling Ads Dawson City Yukon Canada
CFYT Rolling Ads Dawson City Yukon Canada

Combined Illegal, Unregulated and Unreported (IUU) Vessel List.
Combined Illegal, Unregulated and Unreported (IUU) Vessel List.Combined Illegal, Unregulated and Unreported (IUU) Vessel List.
Combined Illegal, Unregulated and Unreported (IUU) Vessel List.

A proposed request for information on LIHTC
A proposed request for information on LIHTCA proposed request for information on LIHTC
A proposed request for information on LIHTC

Indira awas yojana housing scheme renamed as PMAY
Indira awas yojana housing scheme renamed as PMAYIndira awas yojana housing scheme renamed as PMAY
Indira awas yojana housing scheme renamed as PMAY

Milton Keynes Hospital Charity - A guide to leaving a gift in your Will
Milton Keynes Hospital Charity - A guide to leaving a gift in your WillMilton Keynes Hospital Charity - A guide to leaving a gift in your Will
Milton Keynes Hospital Charity - A guide to leaving a gift in your Will

Item #s 8&9 -- Demolition Code Amendment
Item #s 8&9 -- Demolition Code AmendmentItem #s 8&9 -- Demolition Code Amendment
Item #s 8&9 -- Demolition Code Amendment

Circular Economy implementation in the EU
Circular Economy implementation in the EUCircular Economy implementation in the EU
Circular Economy implementation in the EU

Item # 10 -- Historical Presv. Districts
Item # 10 -- Historical Presv. DistrictsItem # 10 -- Historical Presv. Districts
Item # 10 -- Historical Presv. Districts

Awaken new depths - World Ocean Day 2024, June 8th.
Awaken new depths - World Ocean Day 2024, June 8th.Awaken new depths - World Ocean Day 2024, June 8th.
Awaken new depths - World Ocean Day 2024, June 8th.

原版制作(Hope毕业证书)利物浦霍普大学毕业证文凭证书一模一样
原版制作(Hope毕业证书)利物浦霍普大学毕业证文凭证书一模一样原版制作(Hope毕业证书)利物浦霍普大学毕业证文凭证书一模一样
原版制作(Hope毕业证书)利物浦霍普大学毕业证文凭证书一模一样

World Food Safety Day 2024- Communication-toolkit.
World Food Safety Day 2024- Communication-toolkit.World Food Safety Day 2024- Communication-toolkit.
World Food Safety Day 2024- Communication-toolkit.


Schedule 6

  • 1. 16:1028 January 2016 Standard Specifications for the Construction of a Local Fishing Vessel of less than 24 Metres in Length Overall Country ………… Act…................... Regulation …….. Section…………. Schedule 6 Stability and associated seaworthiness
  • 2. 28 January 201616:10 ii Contents 1 Stability and associated sea worthiness .................................................................1 1.1 General...............................................................................................................1 1.1.1 A local fishing vessel shall be so designed and constructed to provide adequate intact stability for the anticipated service conditions. ............................1 1.1.2 Wherever practicable, guidance shall be provided for an approximate determination of the vessel’s stability by means of the rolling period test including values of rolling coefficients particular to the vessel ............................1 1.1.3 The freeboard of a decked fishing vessel at the maximum foreseeable operating displacement shall be:............................................................................1 1.2 Stability criteria..................................................................................................1 1.2.1 The stability of a local decked fishing vessel shall be examined on the basis of the following criteria: ...............................................................................1 1.2.2 An approximate determination of the righting moment characteristics may be accepted by the Minister or delegated authority if satisfied that it is reasonable to employ a particular method to the type of vessel being examined..1 1.2.3 Vessels shall be able to withstand, to the satisfaction of the Minister or delegated authority, the effect of water on deck, taking account of the seasonal weather conditions, the sea states in which the vessel will operate, the type of vessel and its ..........................................................................................................1 1.2.3 mode of operation. .....................................................................................2 1.2.4 The number and type of operating conditions to be considered shall be to the satisfaction of the Minister or delegated authority and shall include the following as appropriate: .......................................................................................2 1.2.5 In addition to the specific operating conditions given in 1.2.4, the Minister or delegated authority shall also be satisfied, that the minimum stability criteria given in 1.2.1 are met under all other actual operating conditions including, those which produce the lowest values of the stability parameters contained in these criteria. .....................................................................................2 1.2.6 Every decked vessel of 12 m in length overall and above shall undergo an inclining test upon its completion and the actual displacement and position of the centre of gravity shall be determined for the light ship condition.........................2 1.2.7 Where alterations are made to a decked fishing vessel affecting its light ship condition and the position of the centre of gravity, the vessel may be re- inclined, if the Minister or delegated authority considers this necessary and the stability information revised. .................................................................................2 1.2.8 The inclining test of an individual decked fishing vessel may be omitted if basic stability data are available from the inclining test of a sister vessel and that it is demonstrated to the satisfaction of the Minister or the delegated authority, that reliable stability information for the vessel can be obtained from such basic data. ......................................................................................................2
  • 3. 28 January 201616:10 iii 1.2.9 Suitable stability information, to the satisfaction of the Minister or delegated authority, shall be supplied to enable the skipper to assess with ease and certainty the stability of the vessel under various operating conditions. Such information may include specific instructions to the skipper warning him of those operating conditions that could adversely affect either the stability or the trim of the vessel....................................................................................................2 1.2.10 Where alterations are made to a vessel affecting its stability, revised stability calculations shall be undertaken to the satisfaction of the Minister or delegated authority and the stability information for the skipper shall be revised.2 1.3 Buoyancy ...........................................................................................................2 1.3.1 The Minister or delegated authority may require a wooden fishing vessel without a deck to be fitted with buoyancy chambers to assist floatation in the event of flooding....................................................................................................2 1.3.2 The Minister or delegated authority shall require all fibreglass fishing boats of open construction to be fitted with sealed buoyancy chambers of sufficient volume that the vessel when fully flooded with all normal crew, fishing gear and engine(s) aboard will remain afloat. The means of testing for adequate buoyancy shall be in accordance with the provisions of Schedule 8......2 2 Approximate determination of stability by means of the rolling period tests........3 2.1 Formula..............................................................................................................3 2.1.1 The Minister or delegated authority may use the following formula extracted from Appendix IV of the Annex to Assembly Resolution A.1681 (ES.IV) of the International Maritime Organization, to make an approximate determination of stability by means of the rolling period test. ..............................3 2.1.2 The factor "f" is of the greatest importance and for unloaded fishing boats (but with fuel, stores and equipment). The Minister or delegated authority may determine more exactly the “f” value(s) for each vessel or class of vessels, as and when an inclining experiment is carried out in parallel with a rolling test............3 2.1.3 The Minister or delegated authority may use the values for “f”given in Table 1. ..................................................................................................................3 Table 1 ...........................................................................................................3 2.1.4 The rolling test shall not be taken in a seaway. .........................................3 2.1.5 The formula given above in paragraph 2.1.1 can be reduced to GMo = F ÷ Tr2 provided that the Minister or delegated authority has determined the value of “F” for the vessel. ....................................................................................3 2.1.6 The calculated value of GMo shall not be less than the critical value set by the Minister or delegated authority...................................................................3 2.1.7 The initial stability may also be determined graphically by using one of the attached tables 1 (metric) and 2 (Feet) for feet and/or metric units as described below: ....................................................................................................3 2.2 Table1 ................................................................................................................5 2.3 Table2 ................................................................................................................6 List of Schedules............................................................................................7
  • 4. 28 January 201616:10 1 1 Stability and associated sea worthiness 1.1 General 1.1.1 A local fishing vessel shall be so designed and constructed to provide adequate intact stability for the anticipated service conditions. 1.1.2 Wherever practicable, guidance shall be provided for an approximate determination of the vessel’s stability by means of the rolling period test including values of rolling coefficients particular to the vessel 1.1.3 The freeboard of a decked fishing vessel at the maximum foreseeable operating displacement shall be:  compatible with the stability criteria set out in section 2 of this schedule;  provide a reasonable degree of safety for crew working on deck or in exposed areas;  ensure a reasonable degree of safety for the vessel to prevent entry of water into enclosed spaces having regard to the closing appliances provided and to the influence of water being shipped and trapped on deck 1.2 Stability criteria 1.2.1 The stability of a local decked fishing vessel shall be examined on the basis of the following criteria:  that the area under the righting lever curve (GZ curve) shall not be less than 0.055 m-radians up to 30° angle of heel and not less than 0.090 m-radians up to 40° or the angle of flooding f if this angle is less than 40°. Additionally, the area under the righting lever curve (GZ curve), between the angles of heel of 30° and 40° or between 30° and f, if this angle is less than 40°, shall not be less than 0.030 m- radians. f is the angle of heel at which openings in the hull, superstructures or deckhouses which cannot rapidly be closed watertight commence to immerse. In applying this criterion, small openings through which progressive flooding cannot take place need not be considered as open;  the righting lever GZ shall be at least 200 mm at an angle of heel equal to or greater than 30° and the maximum righting lever GZmax should occur at an angle of heel preferably exceeding 30° but not less than 25°; and  the initial metacentric height GM0 shall not be less than 350 mm for single deck vessels. In vessels with complete superstructure, the metacentric height may be reduced to the satisfaction of the Minister or delegated authority but in no case shall it be less than 150 mm. 1.2.2 An approximate determination of the righting moment characteristics may be accepted by the Minister or delegated authority if satisfied that it is reasonable to employ a particular method to the type of vessel being examined. 1.2.3 Vessels shall be able to withstand, to the satisfaction of the Minister or delegated authority, the effect of water on deck, taking account of the seasonal weather conditions, the sea states in which the vessel will operate, the type of vessel and its
  • 5. 28 January 201616:10 2 mode of operation. 1.2.4 The number and type of operating conditions to be considered shall be to the satisfaction of the Minister or delegated authority and shall include the following as appropriate:  departure for the fishing grounds with full fuel, stores, ice, fishing gear, etc.;  departure from the fishing grounds with full catch;  arrival at home port with full catch and 10% stores, fuel, etc.; and  arrival at home port with 10% stores, fuel, etc. and a minimum catch, which shall normally be 20% of full catch but may be up to 40% provided the competent authority is satisfied that operating patterns justify such a value. 1.2.5 In addition to the specific operating conditions given in 1.2.4, the Minister or delegated authority shall also be satisfied, that the minimum stability criteria given in 1.2.1 are met under all other actual operating conditions including, those which produce the lowest values of the stability parameters contained in these criteria. 1.2.6 Every decked vessel of 12 m in length overall and above shall undergo an inclining test upon its completion and the actual displacement and position of the centre of gravity shall be determined for the light ship condition. 1.2.7 Where alterations are made to a decked fishing vessel affecting its light ship condition and the position of the centre of gravity, the vessel may be re-inclined, if the Minister or delegated authority considers this necessary and the stability information revised. 1.2.8 The inclining test of an individual decked fishing vessel may be omitted if basic stability data are available from the inclining test of a sister vessel and that it is demonstrated to the satisfaction of the Minister or the delegated authority, that reliable stability information for the vessel can be obtained from such basic data. 1.2.9 Suitable stability information, to the satisfaction of the Minister or delegated authority, shall be supplied to enable the skipper to assess with ease and certainty the stability of the vessel under various operating conditions. Such information may include specific instructions to the skipper warning him of those operating conditions that could adversely affect either the stability or the trim of the vessel. 1.2.10 Where alterations are made to a vessel affecting its stability, revised stability calculations shall be undertaken to the satisfaction of the Minister or delegated authority and the stability information for the skipper shall be revised. 1.3 Buoyancy 1.3.1 The Minister or delegated authority may require a wooden fishing vessel without a deck to be fitted with buoyancy chambers to assist floatation in the event of flooding. 1.3.2 The Minister or delegated authority shall require all fibreglass fishing boats of open construction to be fitted with sealed buoyancy chambers of sufficient volume that the vessel when fully flooded with all normal crew, fishing gear and engine(s) aboard will remain afloat. The means of testing for adequate buoyancy shall be in accordance with the provisions of Schedule 8.
  • 6. 28 January 201616:10 3 2 Approximate determination of stability by means of the rolling period tests 2.1 Formula 2.1.1 The Minister or delegated authority may use the following formula extracted from Appendix IV of the Annex to Assembly Resolution A.1681 (ES.IV) of the International Maritime Organization, to make an approximate determination of stability by means of the rolling period test. GM0 = (f x B ÷ Tr.) 2 where: f = factor for the rolling period (different for feet and metric system), B = breadth of the ship in feet or metric units, Tr = time for a full rolling period in seconds (I.e. for one oscillation "to and from" port-starboard-port, or vice versa). 2.1.2 The factor "f" is of the greatest importance and for unloaded fishing boats (but with fuel, stores and equipment). The Minister or delegated authority may determine more exactly the “f” value(s) for each vessel or class of vessels, as and when an inclining experiment is carried out in parallel with a rolling test. 2.1.3 The Minister or delegated authority may use the values for “f”given in Table 1. Table 1 Type Metric System Feet System double boom shrimp fishing boats f - 0.95 f -0.555 deep sea fishing boats f - 0.80 f -0.445 boats with a live fish well f -0.60 f - 0.335 2.1.4 The rolling test shall not be taken in a seaway. 2.1.5 The formula given above in paragraph 2.1.1 can be reduced to GMo = F ÷ Tr2 provided that the Minister or delegated authority has determined the value of “F” for the vessel. 2.1.6 The calculated value of GMo shall not be less than the critical value set by the Minister or delegated authority. 2.1.7 The initial stability may also be determined graphically by using one of the attached tables 1 (metric) and 2 (Feet) for feet and/or metric units as described below:  The values for B and f are marked in the relevant scales and connected by a straight-line (1). This straight line intersects the vertical line (mm) in the point (M).
  • 7. 28 January 201616:10 4  A second straight line (2) which connects this point (M) and the point on the Tr scale corresponding with the determined rolling period, intersects the GM scale at the requested value.
  • 10. 28 January 201616:10 7 List of Schedules Schedule 1 Prescribed Forms Schedule 2 Prescribed Fees Schedule 3 Safety Equipment for a Local Fishing Vessel Schedule 4 Fire Protection, Fire Detection, Fire Extinguishing and Fire Fighting Equipment. Schedule 5 Equipment/Ground Tackle/Anchors and Chains Schedule 6 Stability and Associated Seaworthiness Schedule 7 Scantlings for the Construction of a Wooden Hulled Local Fishing Vessel Schedule 8 Scantlings for the Construction of a Fibreglass Hulled Local Fishing Vessel Schedule 9 Scantlings for the Construction of a Steel Hulled Local Fishing Vessel Schedule 10 Machinery and Electrical Installations Schedule 11 Specifications for the Marking of Fishing Vessels
