FEUC Tec 2016 - Desacoplando WorkFlows com RabbitMQ
The document discusses RabbitMQ and message brokers. It provides an overview of RabbitMQ, describing its key features like queues, exchanges, bindings. It discusses different queue types in RabbitMQ like basic, work, topic, fanout. It also discusses how to send and receive messages using RabbitMQ in PHP and C#. Finally, it briefly mentions other message brokers like Azure Service Bus.
More Related Content
![Nginx [engine x] and you (and WordPress)](https://cdn.slidesharecdn.com/ss_thumbnails/nginxenginexandyouandwordpress-150529132927-lva1-app6892-thumbnail.jpg?width=640&height=640&fit=bounds)
![OS in mobile devices [Android]](https://cdn.slidesharecdn.com/ss_thumbnails/osinmobiledevices11-141129052006-conversion-gate02-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to FEUC Tec 2016 - Desacoplando WorkFlows com RabbitMQ
FEUC Tec 2016 - Desacoplando WorkFlows com RabbitMQ
- 1. Desacoplamento de Workflows comRabbitMQ abrandao@stone.com.br "A única maneira de fazer um excelente trabalho é amar o que você faz." (Steve Jobs)
- 2.
- 3. Clientes MundiPagg -40% MarketShare LOJAS DEPARTAMENTO MODA ENTRETENIMENTO ALIMENTOS Temos mais de 1500 lojas em nosso portfólio, algumas delas são as maiores marcas brasileiras e internacionais. ÓLEO TV
- 4. Vamos dominar omundo!!
- 5.
- 6. Relaxa!! D boa,você vai achar a solução!
- 7. { Seja criativo!!:) =)
- 8.

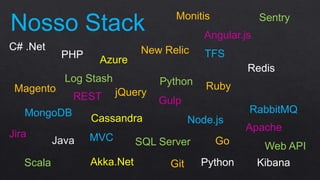

- 10. C# .Net jQuery PHP Magento Angular.js Node.js Gulp Java Ruby SQL Server MongoDB Kibana LogStash Redis RabbitMQ Cassandra Scala Akka.Net Python TFS Git Apache Jira SentryMonitis Python New Relic Azure Nosso Stack MVC REST Web APIGo
- 11.
- 12. Faça parte donosso time! querotrabalhar@stone.com abrandao@stone.com.br "A única maneira de fazer um excelente trabalho é amar o que você faz." (Steve Jobs)
- 13. Faça parte donosso time! abrandao@mundipagg.com { TEMOS VAGAS } "A única maneira de fazer um excelente trabalho é amar o que você faz." (Steve Jobs)
- 14. Alexandre Brandão { Microsoft C#.Net Solution Developer, C++ Linux Developer, C/C++ Embedded Programmer } <contatos> <twitter> @abrandaolustosa </twitter> <skype> abrandao@mundipagg.com </skype> </contatos> Gestor de TI Analista Desenvolvedor Sênior Arquiteto de Sistemas curl -data “experiencia=16_anos&motivacao=inovacao%20e%20pesquisa” https://www.mundipagg.com
- 15.

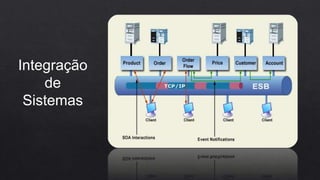

- 16. “Definição” : “Anenterprise service bus (ESB) is a software architecture model used for designing and implementing communication between mutually interacting software applications in a service-oriented architecture (SOA)” { }
- 17.
- 18.

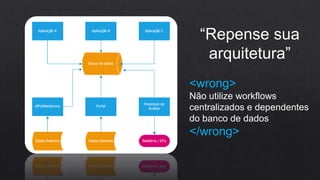

- 19. <wrong> Não utilize workflows centralizadose dependentes do banco de dados </wrong> “Repense sua arquitetura”
- 20.

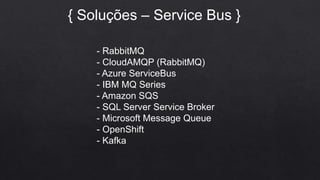

- 21. { Soluções –Service Bus } - RabbitMQ - CloudAMQP (RabbitMQ) - Azure ServiceBus - IBM MQ Series - Amazon SQS - SQL Server Service Broker - Microsoft Message Queue - OpenShift - Kafka
- 22. https://www.rabbitmq.com/ • Robust messagingfor applications • Easy to use • Runs on all major operating systems • Supports a huge number of developer platforms • Open source and commercially supported • Multiplatform for Windows, Linux and Mac OS • Erlang

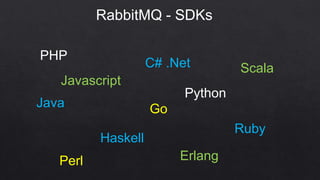

- 23. RabbitMQ - SDKs C#.Net PHP Java Ruby ErlangPerl Javascript Go Python Scala Haskell

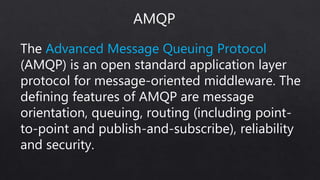

- 24. The Advanced MessageQueuing Protocol (AMQP) is an open standard application layer protocol for message-oriented middleware. The defining features of AMQP are message orientation, queuing, routing (including point- to-point and publish-and-subscribe), reliability and security. AMQP
- 25. To become thestandard protocol for interoperability between all messaging middleware AMQP

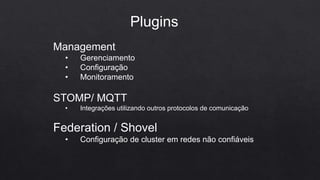

- 26. Plugins Management • Gerenciamento • Configuração •Monitoramento STOMP/ MQTT • Integrações utilizando outros protocolos de comunicação Federation / Shovel • Configuração de cluster em redes não confiáveis
- 27. Características do RabbitMQ •Queue • Consumer • Public/Subscriber • Exchange • Channel • Persitent • Durável / Transiente • Atomicidade • Round-Robin • Acknolodge • Ack/Nack • TTL (Time to Live)

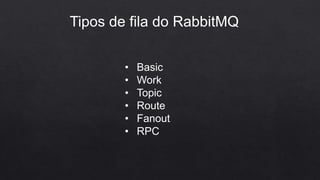

- 28. Tipos de filado RabbitMQ • Basic • Work • Topic • Route • Fanout • RPC
- 29. Basic - RabbitMQ P– Producer C – Consumer Queue in Red The simplest thing that does something
- 30. Work - RabbitMQ Distributingtasks among workers Automatic - Round-Robin

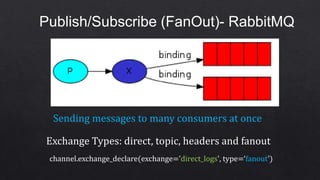

- 31. Publish/Subscribe (FanOut)- RabbitMQ Sendingmessages to many consumers at once Exchange Types: direct, topic, headers and fanout channel.exchange_declare(exchange='direct_logs', type=‘fanout')

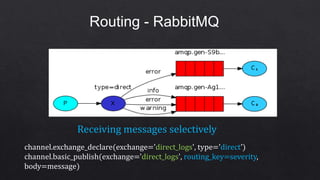

- 32. Routing - RabbitMQ Receivingmessages selectively channel.exchange_declare(exchange='direct_logs', type='direct') channel.basic_publish(exchange='direct_logs', routing_key=severity, body=message)

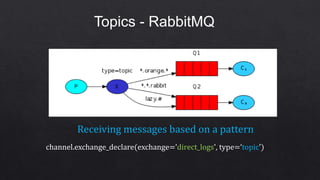

- 33. Topics - RabbitMQ Receivingmessages based on a pattern channel.exchange_declare(exchange='direct_logs', type=‘topic')

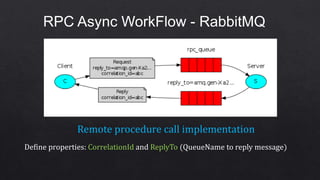

- 34. RPC Async WorkFlow- RabbitMQ Remote procedure call implementation Define properties: CorrelationId and ReplyTo (QueueName to reply message)
- 35. Install Client -RabbitMQ { "require": { "php-amqplib/php-amqplib": "2.5.*" } } $composer install or update Tutorial: https://www.rabbitmq.com/tutorials/
- 36. API de Autorização{ Stack } Repositório de código: • https://github.com/alexandrebl • https://github.com/alexandrebl/IMastersPHPExp2016
- 37. • NoSQL • Cachede dados • Dicionário (Chave/Valor) • Dados em memória • Persistência como opção • Stand Alone • Cluster • Replicação • Redis-cli • Redis Manager • NoSQL • Json Format Data • Dados em disco • Stand Alone • Shard • Replica • Mongo Shell • RoboMongo • MongoChef • PHP Framework • MVC • Open-source • REST API • Event/handle • Console • Composer
- 38. Fluxo da APIde Autorização
- 39. Sending message withPHP require_once __DIR__ . '/vendor/autoload.php'; use PhpAmqpLibConnectionAMQPStreamConnection; use PhpAmqpLibMessageAMQPMessage; $connection = new AMQPStreamConnection( 'localhost', 5672, 'guest', 'guest'); $channel = $connection->channel();

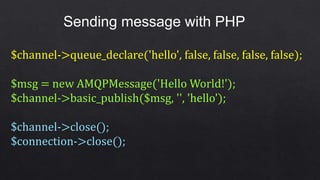

- 40. Sending message withPHP $channel->queue_declare('hello', false, false, false, false); $msg = new AMQPMessage('Hello World!'); $channel->basic_publish($msg, '', 'hello'); $channel->close(); $connection->close();

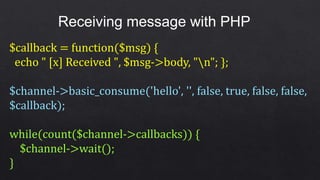

- 41. Receiving message withPHP $callback = function($msg) { echo " [x] Received ", $msg->body, "n"; }; $channel->basic_consume('hello', '', false, true, false, false, $callback); while(count($channel->callbacks)) { $channel->wait(); }

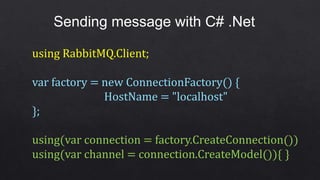

- 42. Sending message withC# .Net using RabbitMQ.Client; var factory = new ConnectionFactory() { HostName = "localhost" }; using(var connection = factory.CreateConnection()) using(var channel = connection.CreateModel()){ }

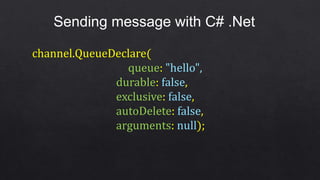

- 43. Sending message withC# .Net channel.QueueDeclare( queue: "hello", durable: false, exclusive: false, autoDelete: false, arguments: null);

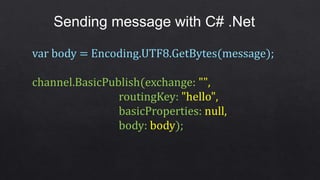

- 44. Sending message withC# .Net var body = Encoding.UTF8.GetBytes(message); channel.BasicPublish(exchange: "", routingKey: "hello", basicProperties: null, body: body);
- 45.

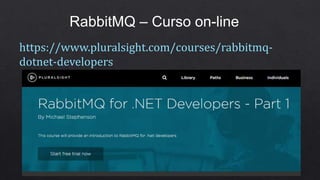

- 46. RabbitMQ – Cursoon-line https://www.pluralsight.com/courses/rabbitmq- dotnet-developers

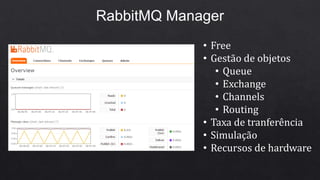

- 47. RabbitMQ Manager • Free •Gestão de objetos • Queue • Exchange • Channels • Routing • Taxa de tranferência • Simulação • Recursos de hardware
- 48. Instalação do RabbitMQManager rabbitmq-plugins enable rabbitmq_management http://server-name:15672/
- 49.

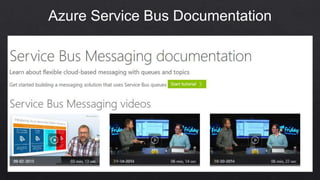

- 50. Azure Service BusDocumentation

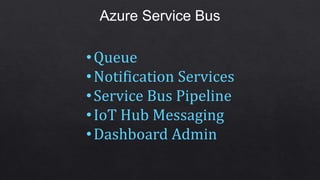

- 51. Azure Service Bus •Queue •NotificationServices •Service Bus Pipeline •IoT Hub Messaging •Dashboard Admin
- 52. Microsoft Azure ServiceBus Manager
- 53. { Seja hoje umapessoa melhor do que você foi ontem }
- 54.
- 55.
- 56.
- 57.
- 58. Alexandre Brandão Twitter: @abrandaolustosa E-mail: abrandao@mundipagg.com Tel:+55 (21) 97367-6161 https://github.com/alexandrebl Obrigado :) Linkedin: abrandaol
- 59. Alexandre Brandão Twitter: @abrandaolustosa E-mail: abrandao@mundipagg.com Tel:+55 (21) 97367-6161 https://github.com/alexandrebl Perguntas? Linkedin: abrandaol
