Event-based and message-passing are two broad categories of architectural patterns for communication between components in distributed systems. Event-based systems use events to trigger callbacks while message-passing systems explicitly send messages between processes. Common messaging systems like ØMQ and Kafka support both synchronous request-reply and asynchronous publish-subscribe interaction through message queues. These message-oriented middleware platforms provide reliability, scalability and loose coupling between producers and consumers.

1. Message-based Architectures
Week 4

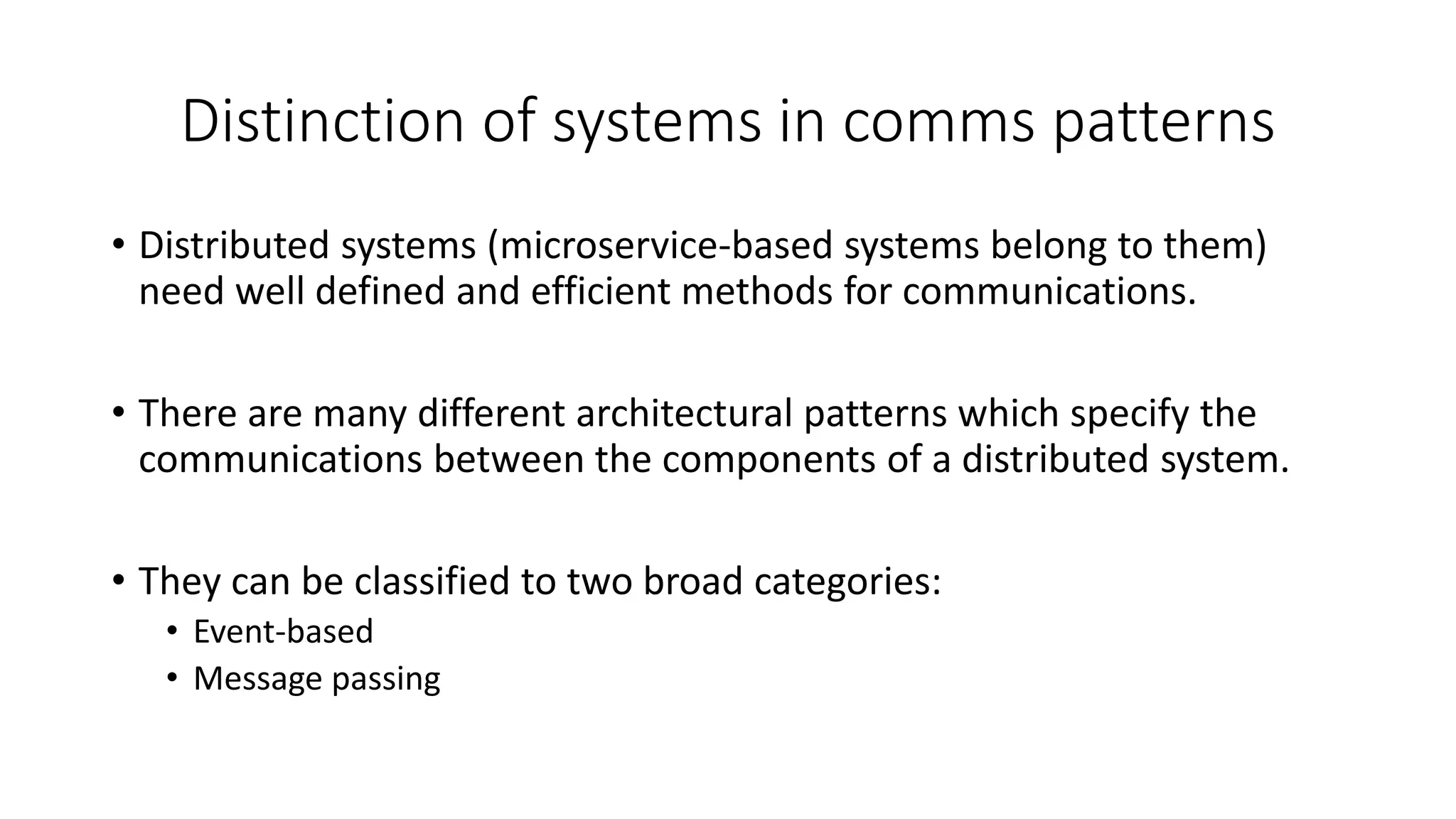

2. Distinction of systems in comms patterns
• Distributed systems (microservice-based systems belong to them)
need well defined and efficient methods for communications.
• There are many different architectural patterns which specify the
communications between the components of a distributed system.
• They can be classified to two broad categories:
• Event-based
• Message passing

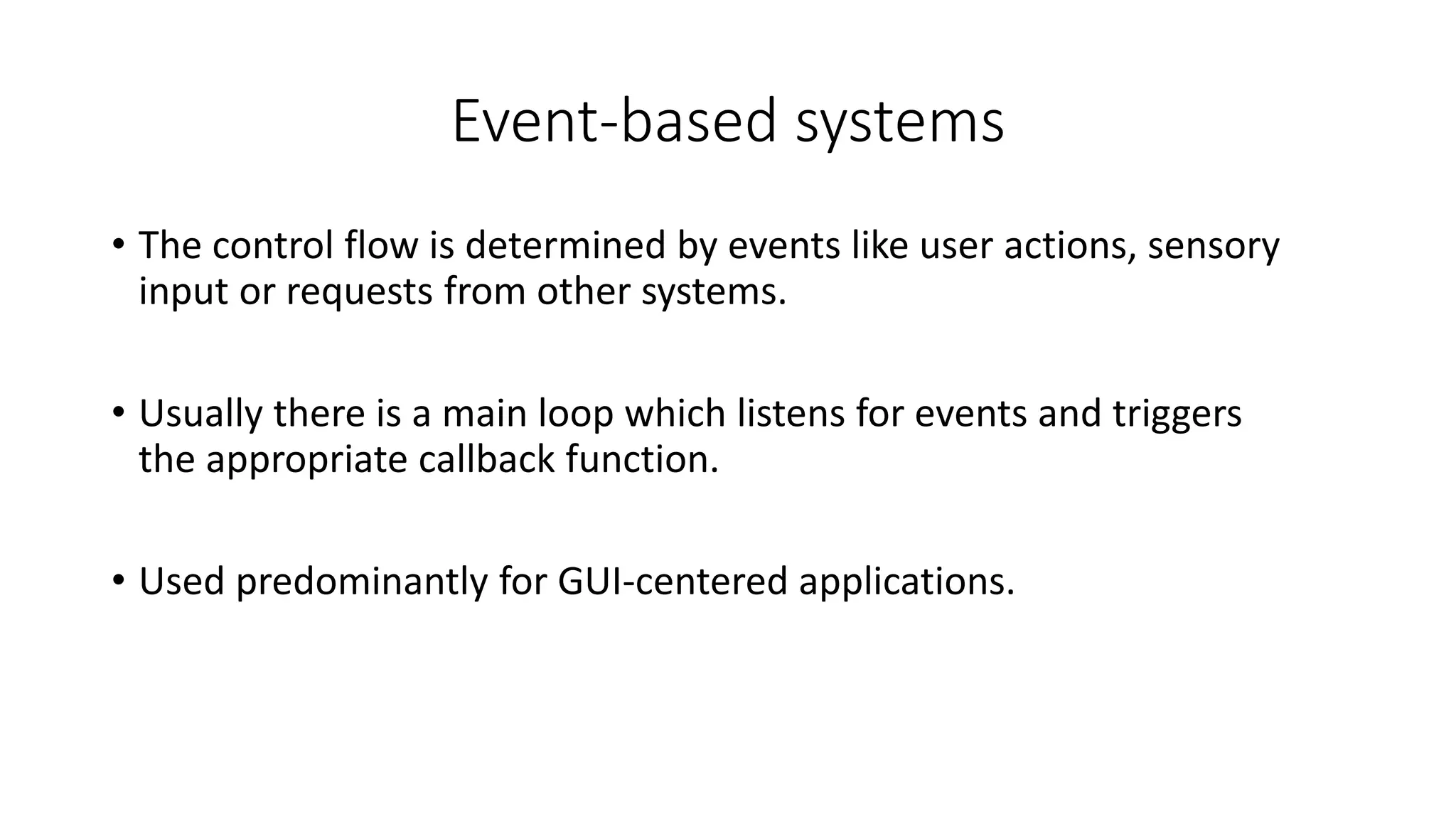

3. Event-based systems
• The control flow is determined by events like user actions, sensory
input or requests from other systems.
• Usually there is a main loop which listens for events and triggers
the appropriate callback function.
• Used predominantly for GUI-centered applications.

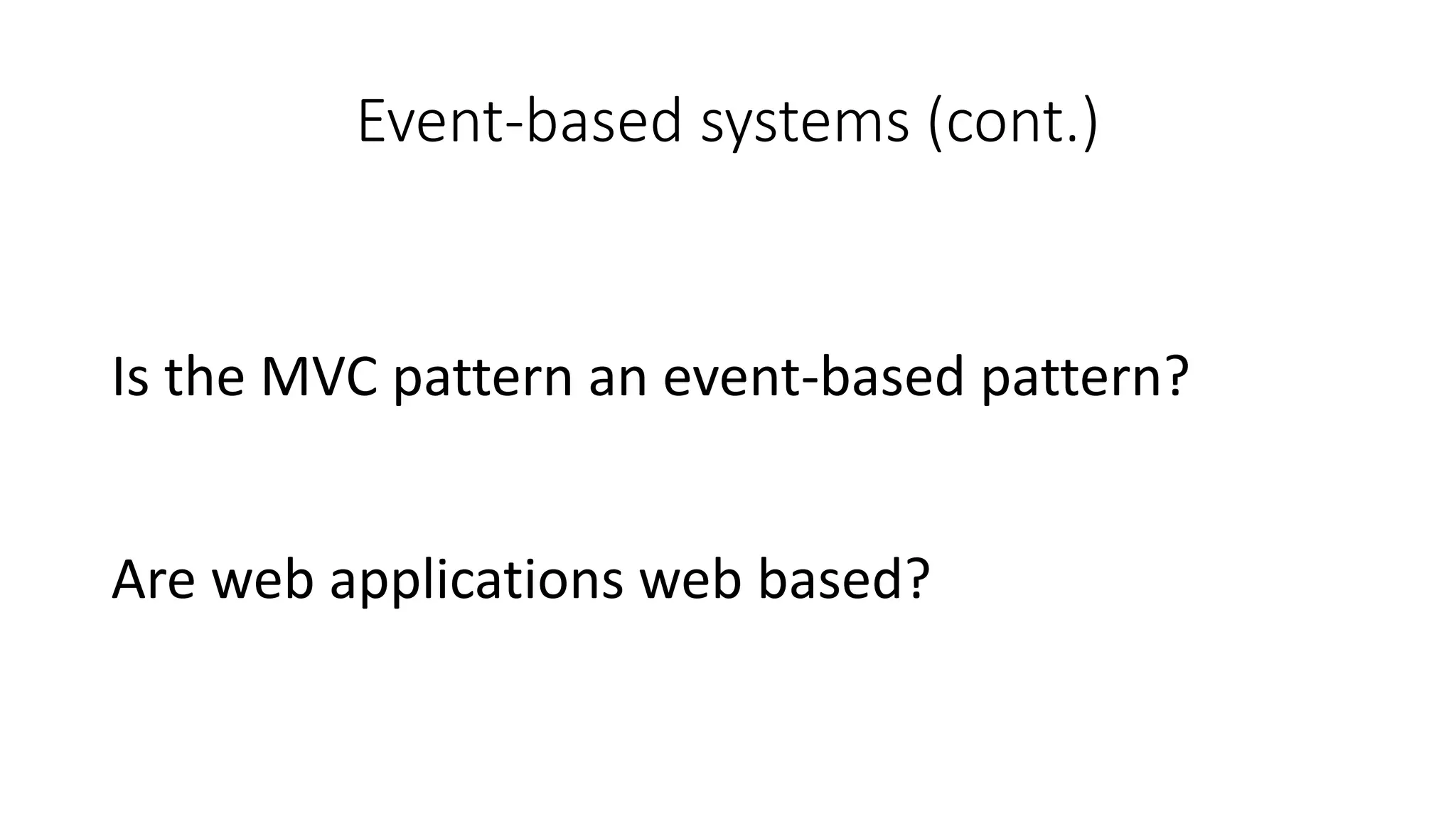

4. Event-based systems (cont.)
Is the MVC pattern an event-based pattern?
Are web applications web based?

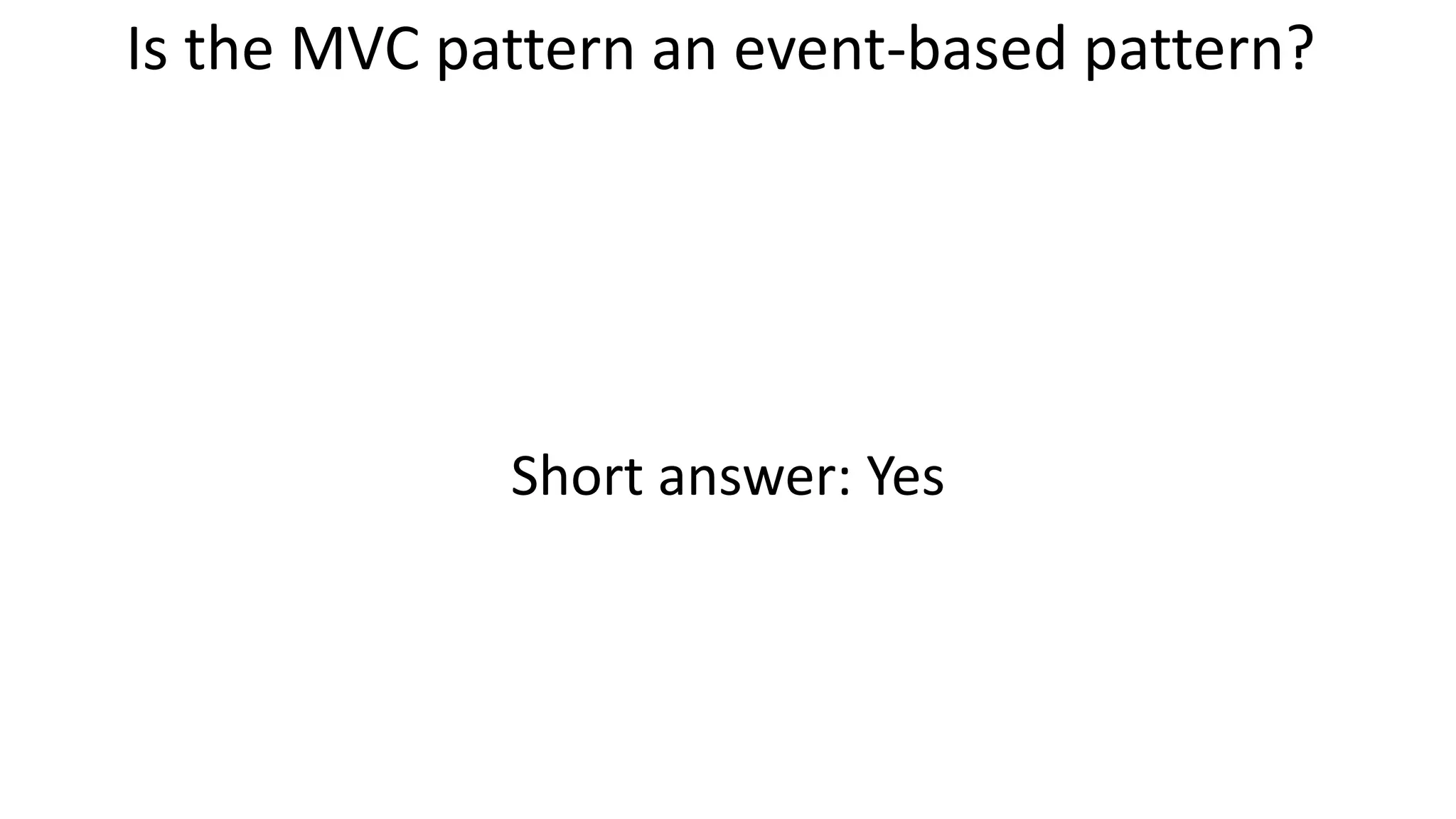

5. Is the MVC pattern an event-based pattern?
Short answer: Yes

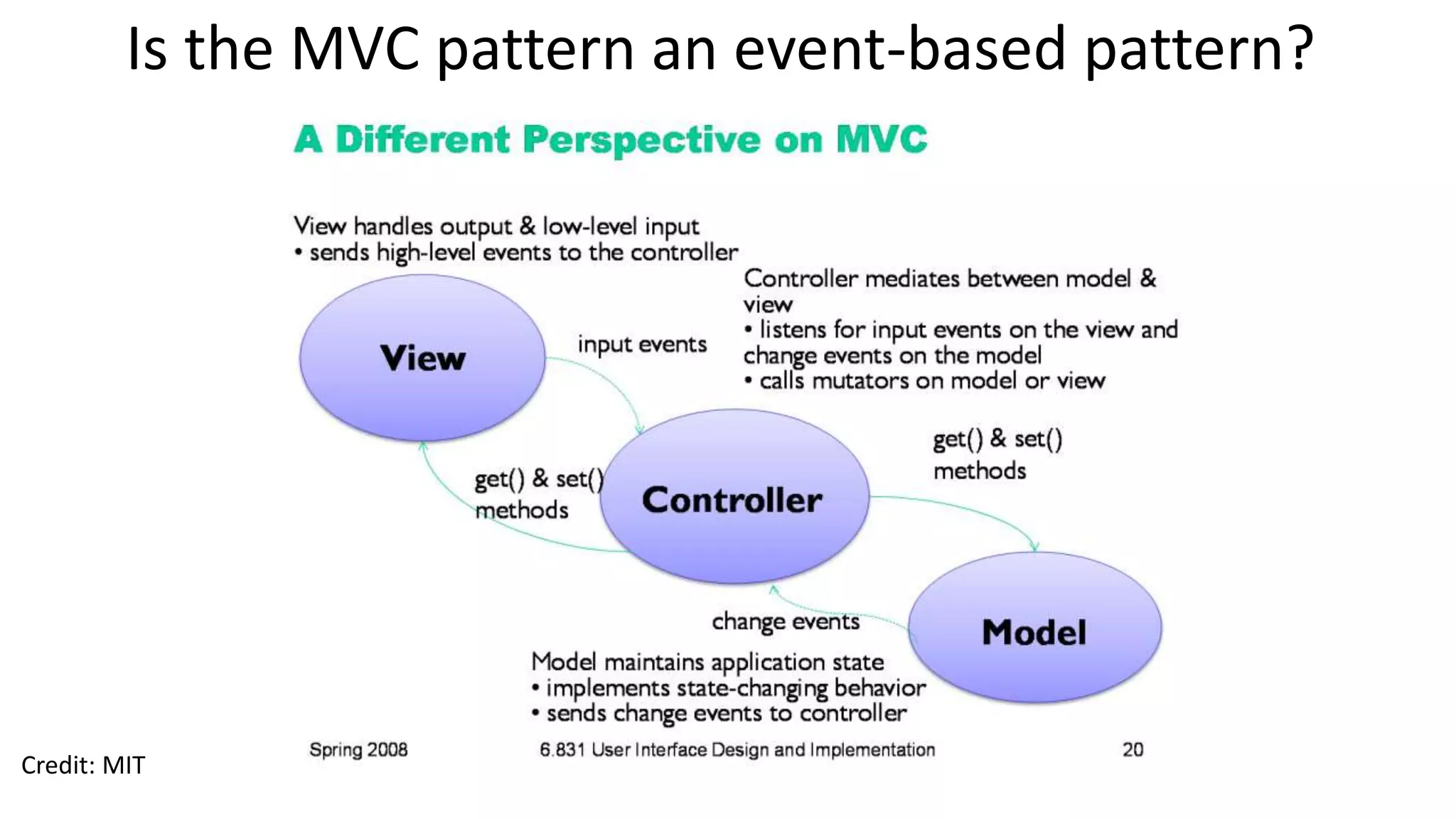

6. Is the MVC pattern an event-based pattern?
Credit: MIT

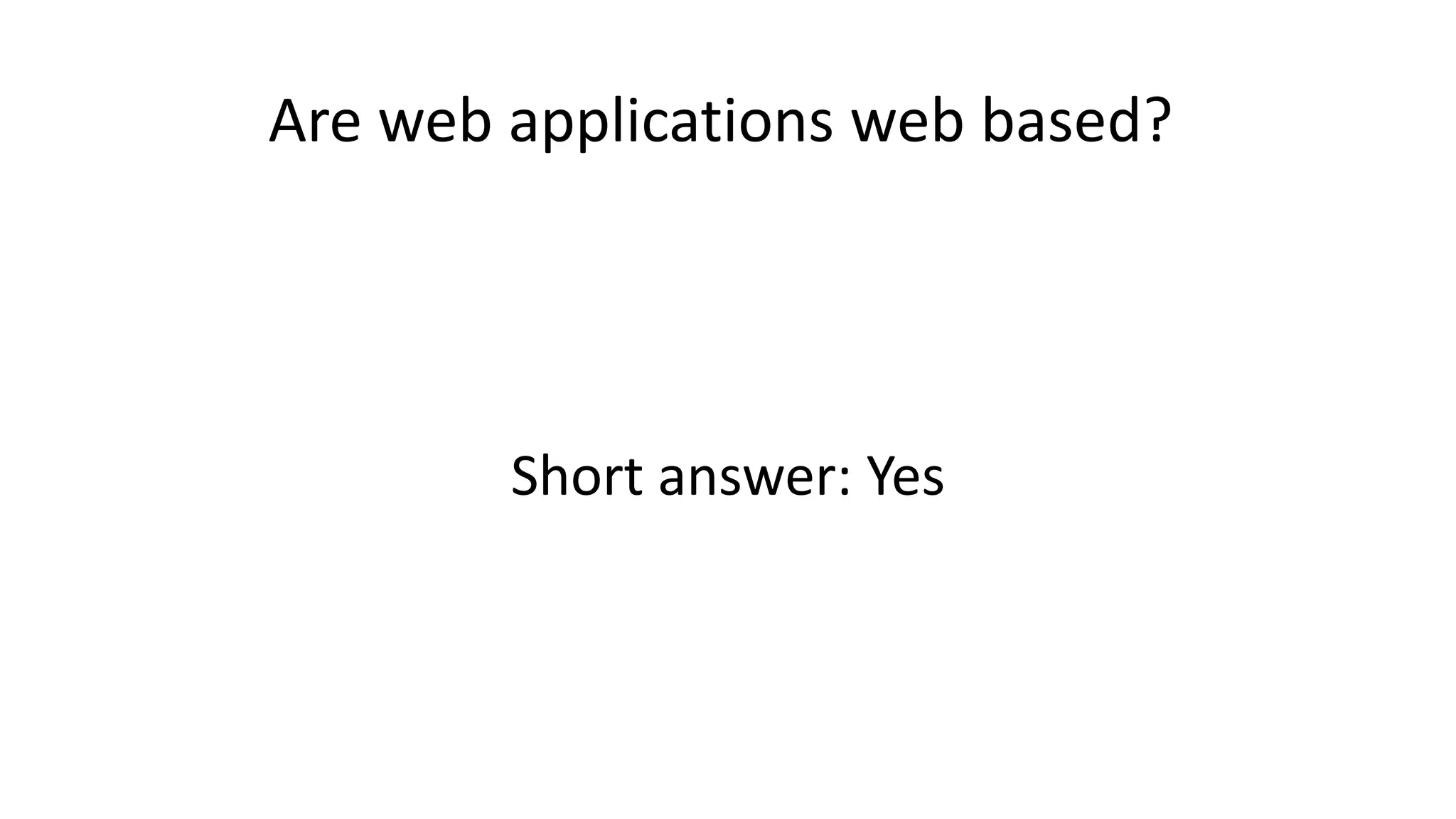

7. Are web applications web based?
Short answer: Yes

8. Are web applications event-based?
Nearly all of them

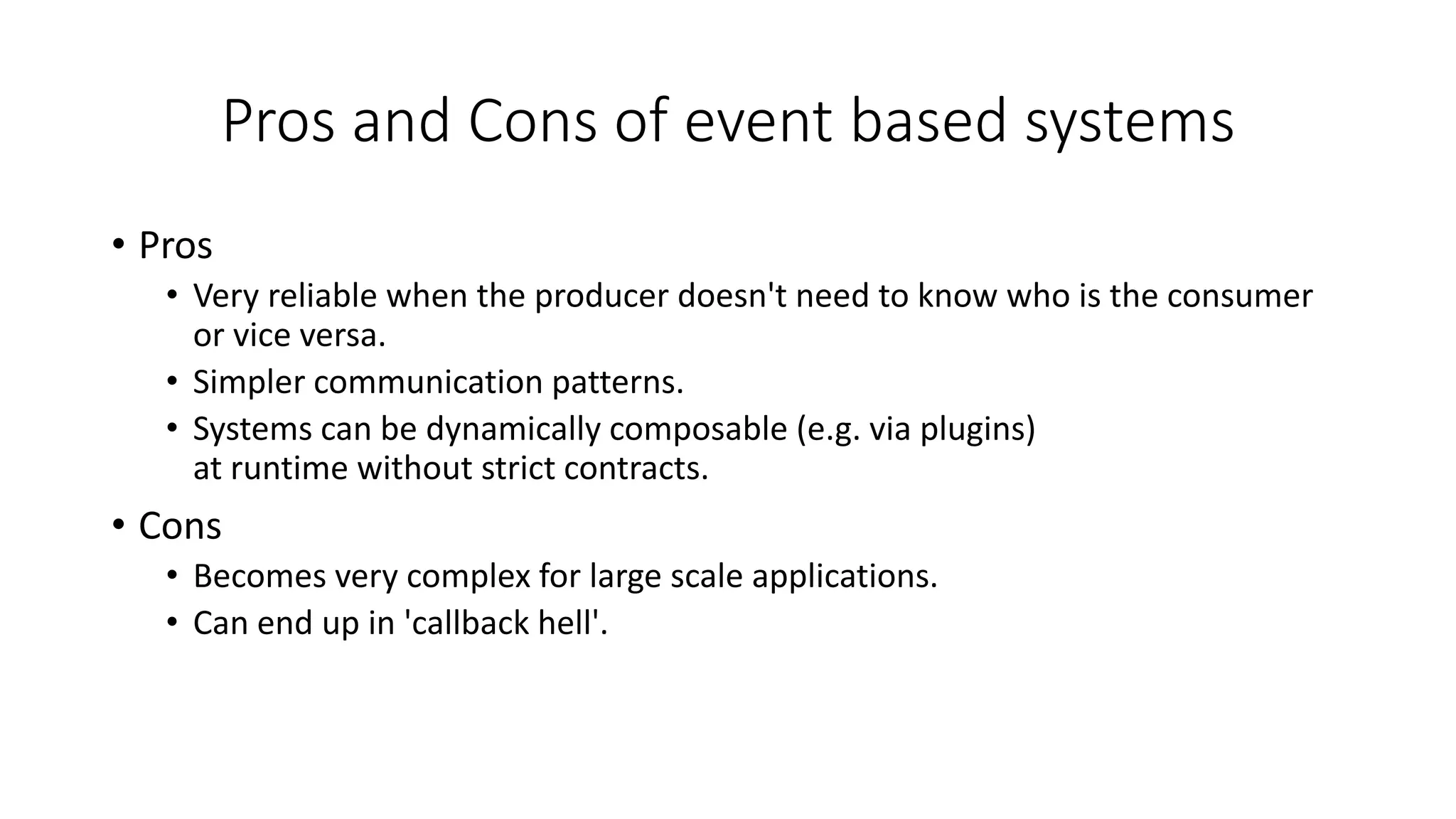

9. Pros and Cons of event based systems
• Pros
• Very reliable when the producer doesn't need to know who is the consumer
or vice versa.
• Simpler communication patterns.
• Systems can be dynamically composable (e.g. via plugins)
at runtime without strict contracts.
• Cons
• Becomes very complex for large scale applications.
• Can end up in 'callback hell'.

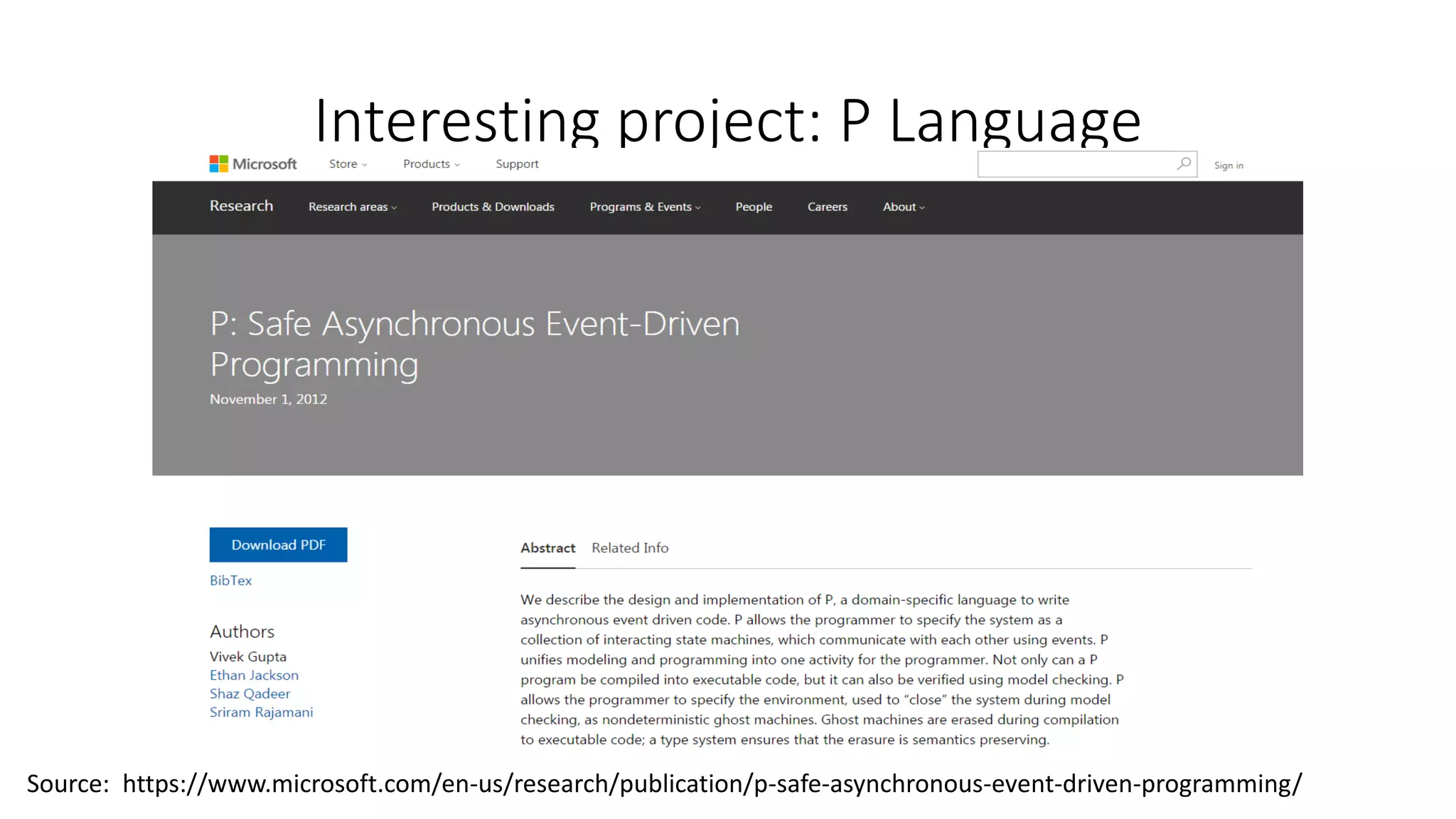

10. Interesting project: P Language
Source: https://www.microsoft.com/en-us/research/publication/p-safe-asynchronous-event-driven-programming/

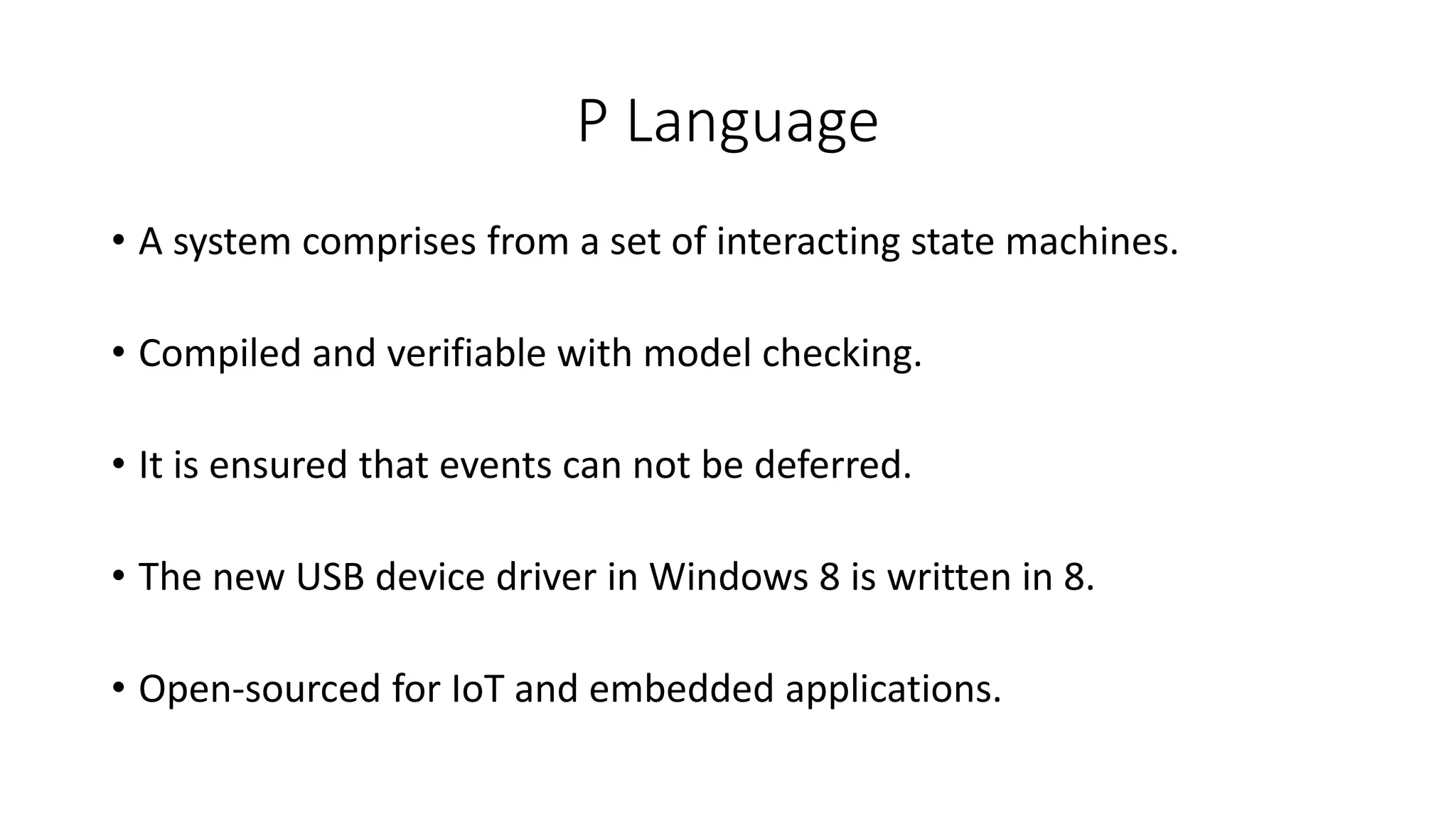

11. P Language
• A system comprises from a set of interacting state machines.
• Compiled and verifiable with model checking.
• It is ensured that events can not be deferred.
• The new USB device driver in Windows 8 is written in 8.
• Open-sourced for IoT and embedded applications.

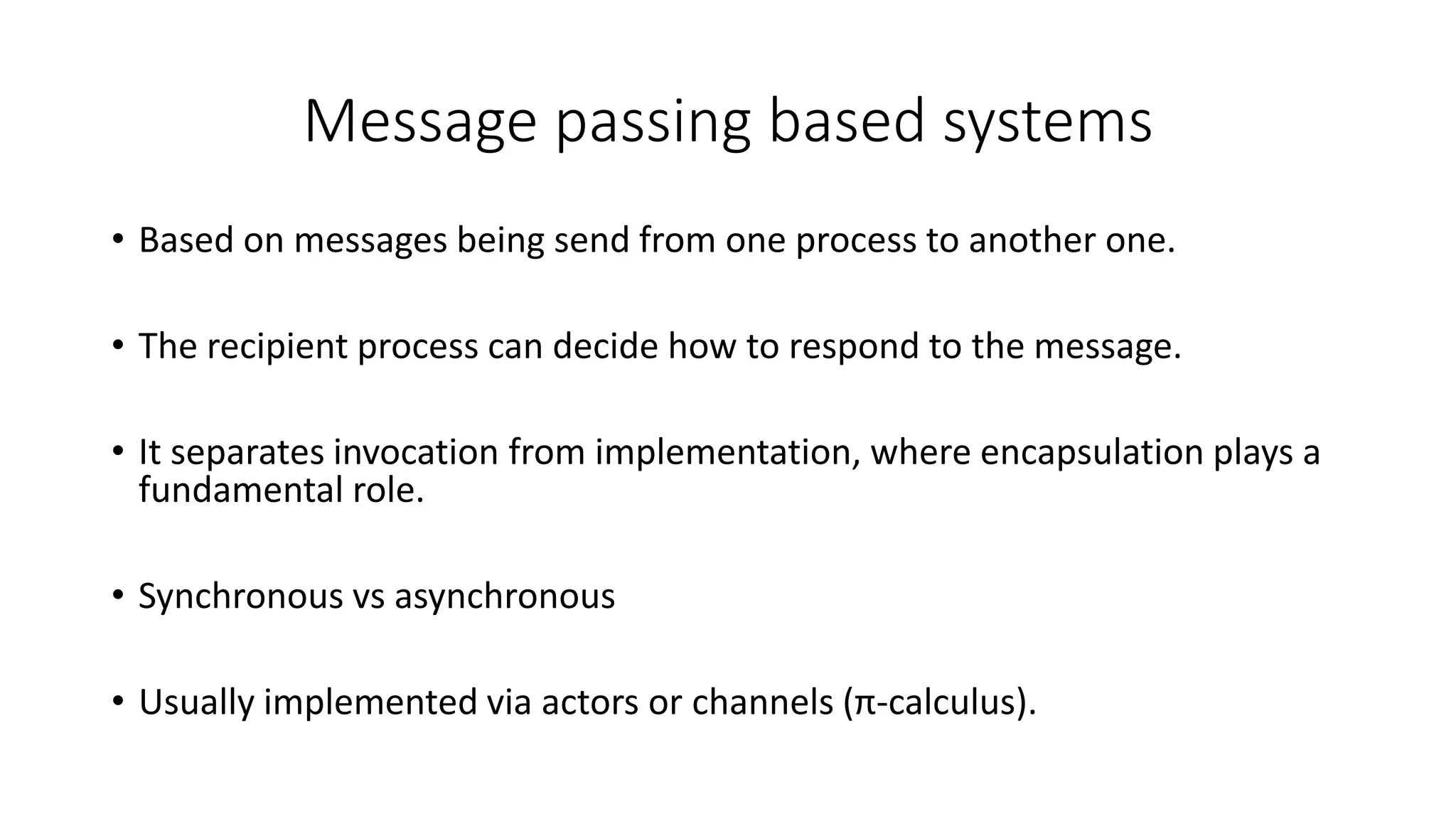

12. Message passing based systems
• Based on messages being send from one process to another one.
• The recipient process can decide how to respond to the message.
• It separates invocation from implementation, where encapsulation plays a
fundamental role.
• Synchronous vs asynchronous
• Usually implemented via actors or channels (π-calculus).

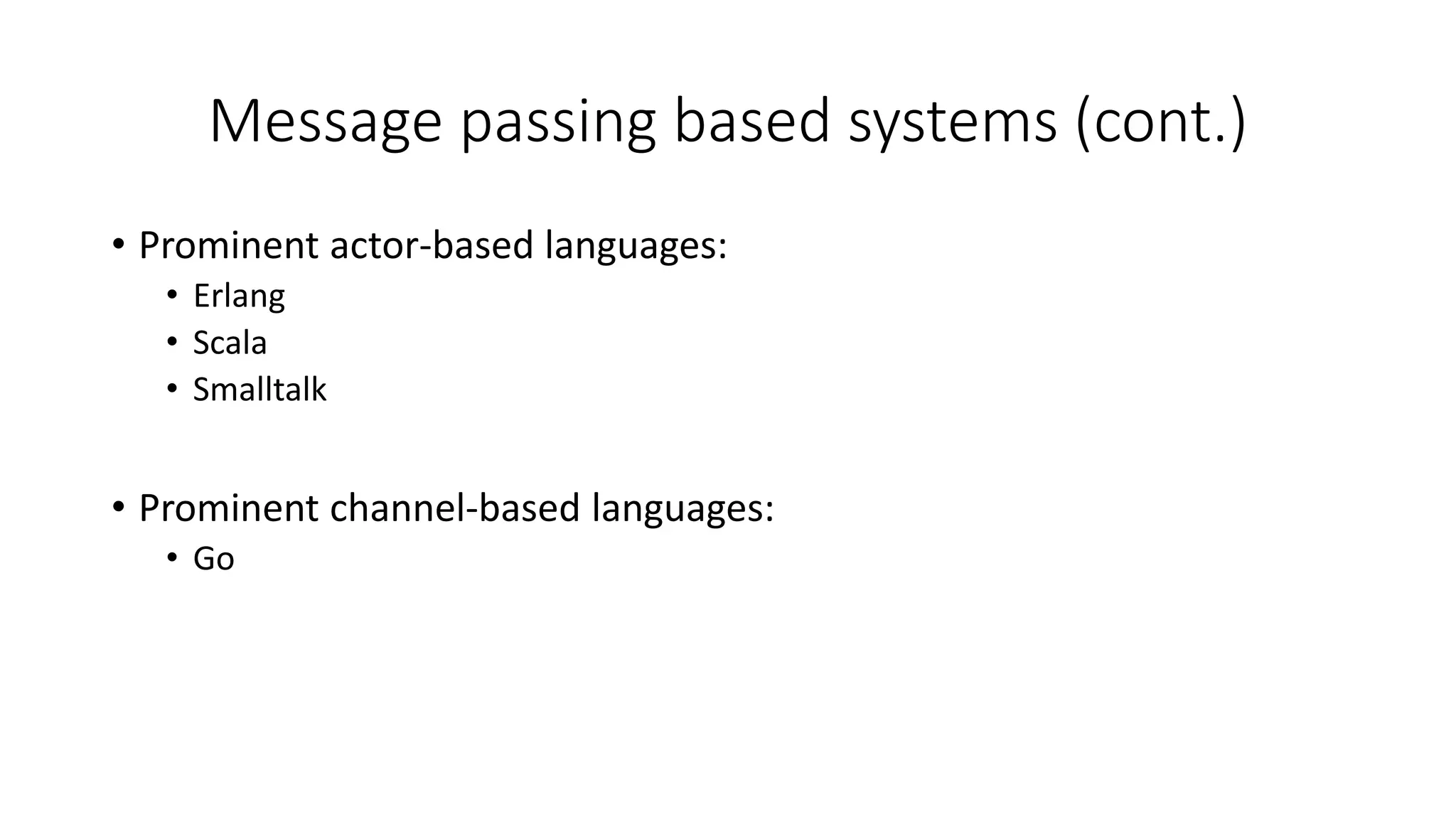

13. Message passing based systems (cont.)
• Prominent actor-based languages:
• Erlang
• Scala
• Smalltalk
• Prominent channel-based languages:
• Go

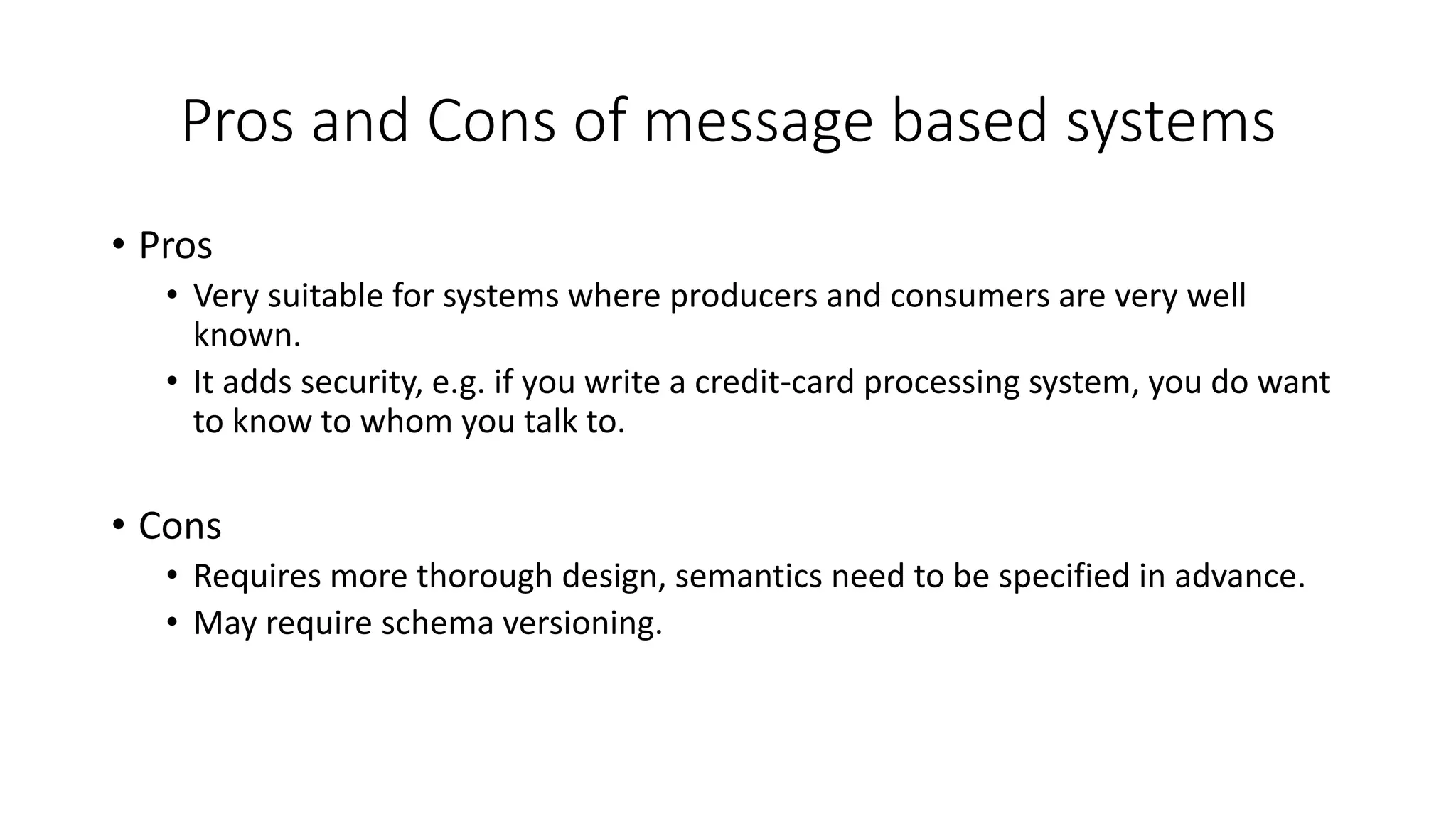

14. Pros and Cons of message based systems
• Pros
• Very suitable for systems where producers and consumers are very well
known.
• It adds security, e.g. if you write a credit-card processing system, you do want
to know to whom you talk to.
• Cons
• Requires more thorough design, semantics need to be specified in advance.
• May require schema versioning.

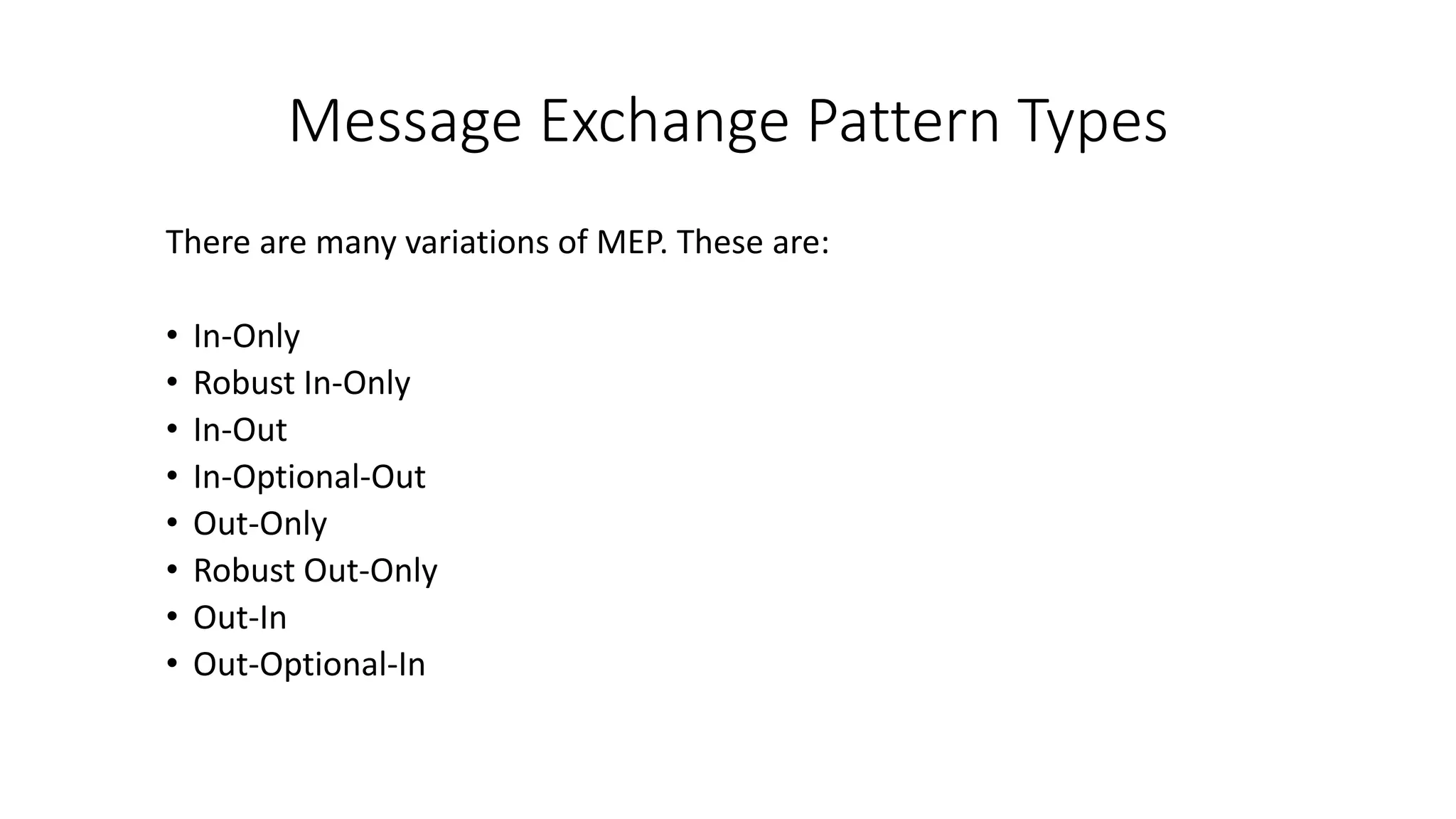

15. Message Exchange Pattern Types
There are many variations of MEP. These are:
• In-Only
• Robust In-Only
• In-Out
• In-Optional-Out
• Out-Only
• Robust Out-Only
• Out-In
• Out-Optional-In

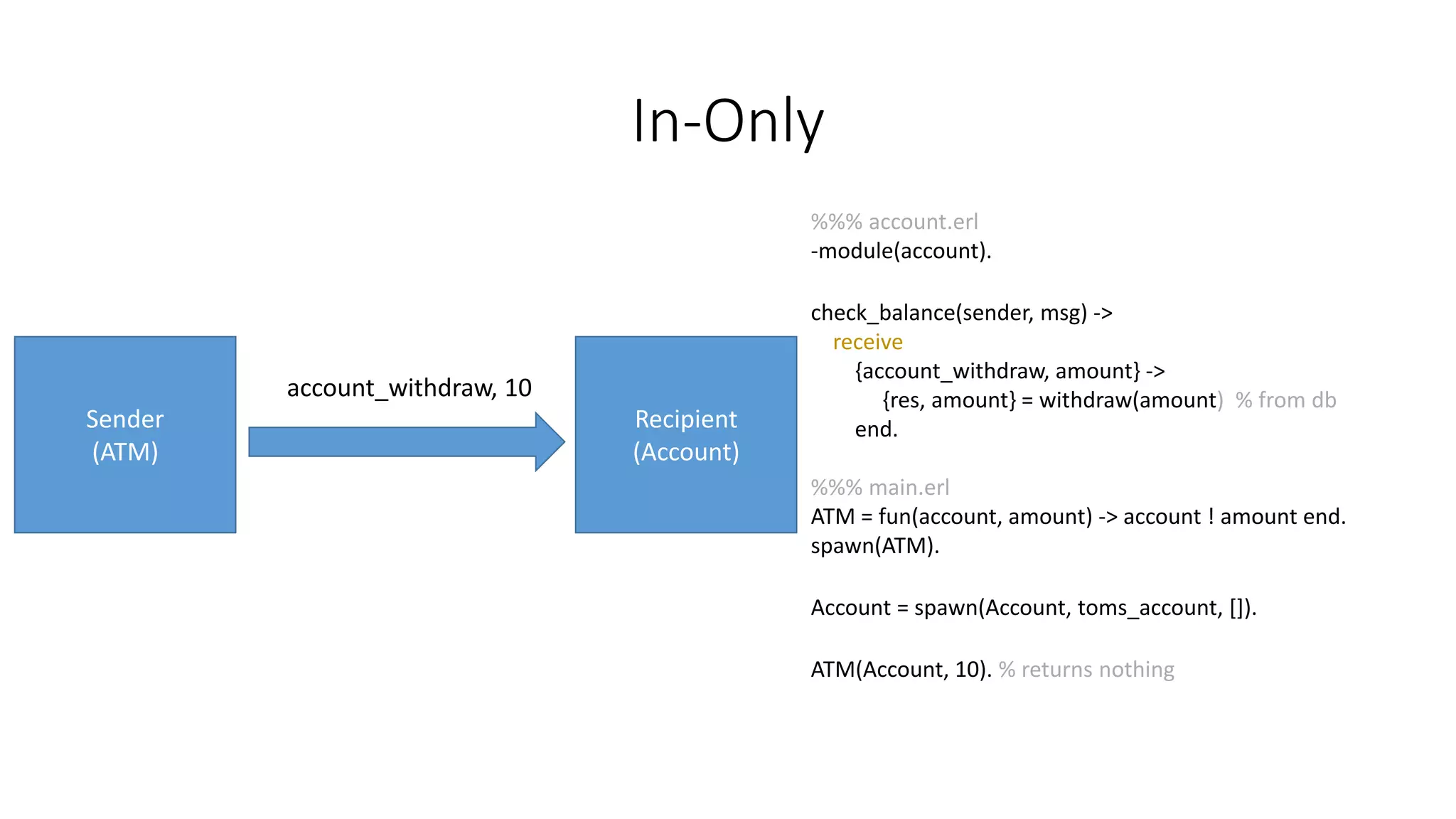

16. In-Only
Sender
(ATM)
Recipient
(Account)
account_withdraw, 10
%%% account.erl
-module(account).
check_balance(sender, msg) ->
receive
{account_withdraw, amount} ->
{res, amount} = withdraw(amount) % from db
end.
%%% main.erl
ATM = fun(account, amount) -> account ! amount end.
spawn(ATM).
Account = spawn(Account, toms_account, []).
ATM(Account, 10). % returns nothing

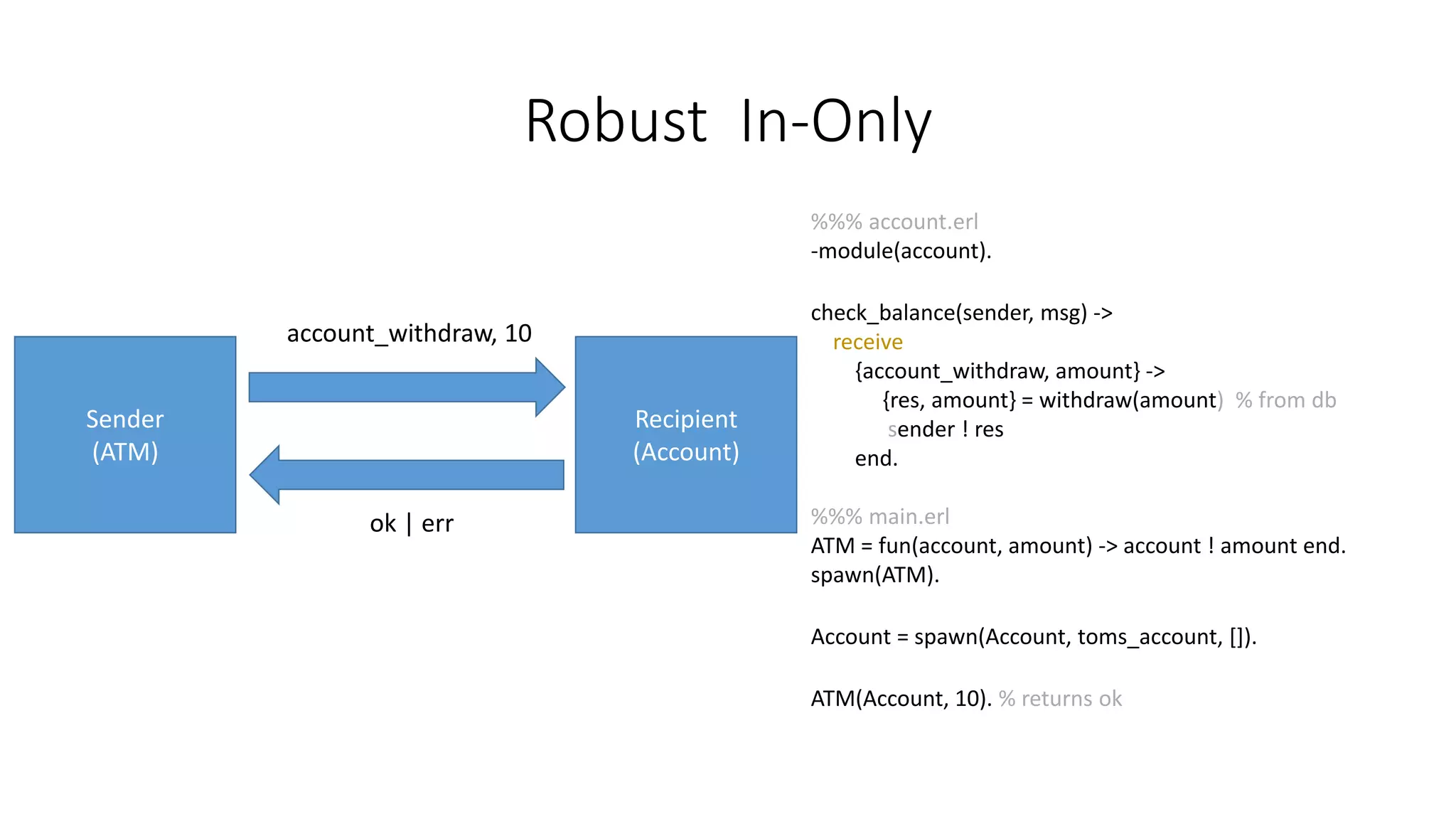

17. Robust In-Only
Sender
(ATM)
Recipient
(Account)
account_withdraw, 10
ok | err
%%% account.erl
-module(account).
check_balance(sender, msg) ->
receive
{account_withdraw, amount} ->
{res, amount} = withdraw(amount) % from db
sender ! res
end.
%%% main.erl
ATM = fun(account, amount) -> account ! amount end.
spawn(ATM).
Account = spawn(Account, toms_account, []).
ATM(Account, 10). % returns ok

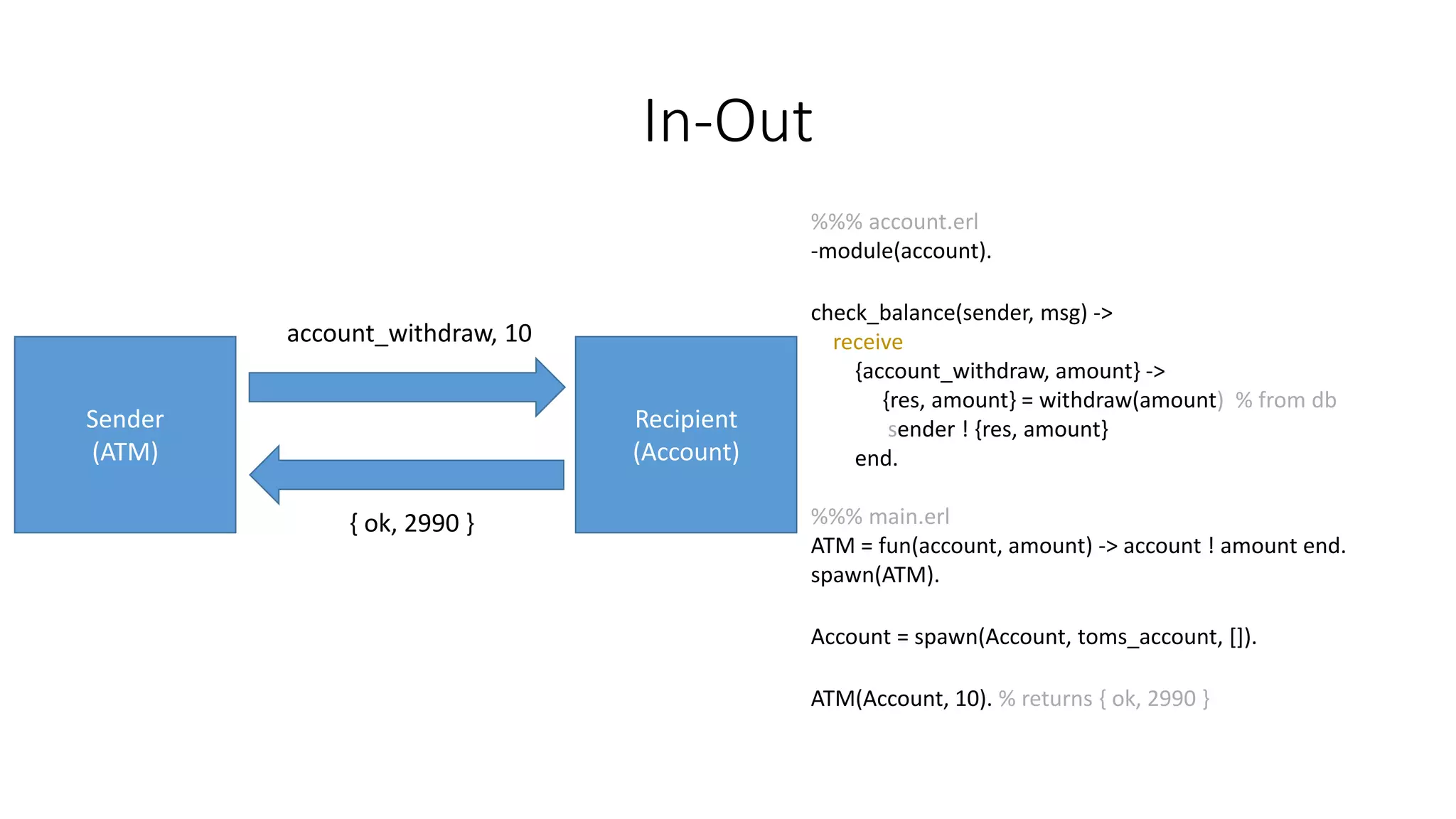

18. In-Out
Sender
(ATM)
Recipient
(Account)
account_withdraw, 10
{ ok, 2990 }
%%% account.erl
-module(account).
check_balance(sender, msg) ->
receive
{account_withdraw, amount} ->
{res, amount} = withdraw(amount) % from db
sender ! {res, amount}
end.
%%% main.erl
ATM = fun(account, amount) -> account ! amount end.
spawn(ATM).
Account = spawn(Account, toms_account, []).
ATM(Account, 10). % returns { ok, 2990 }

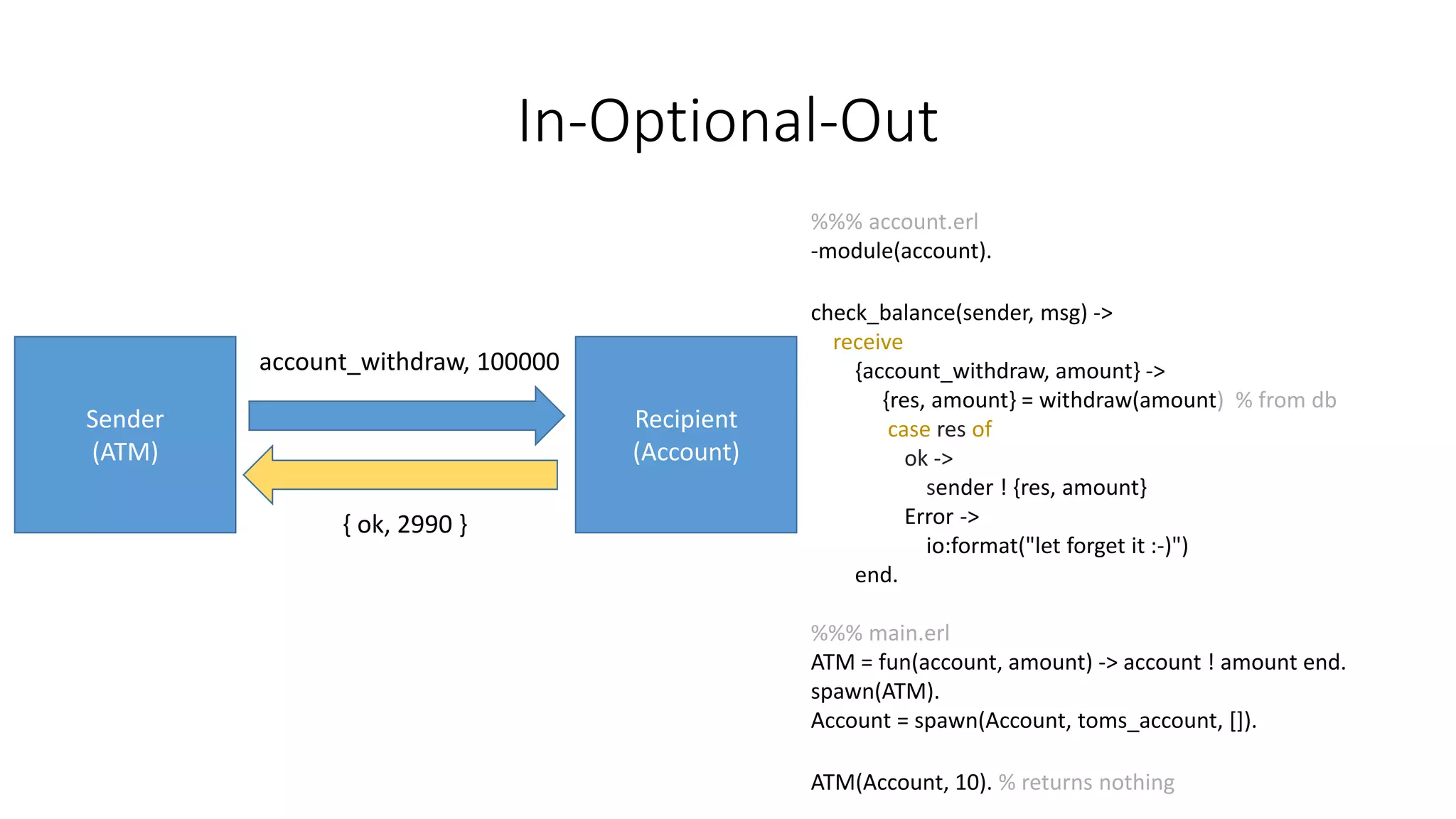

19. In-Optional-Out
Sender
(ATM)
Recipient
(Account)
account_withdraw, 100000
%%% account.erl
-module(account).
check_balance(sender, msg) ->
receive
{account_withdraw, amount} ->
{res, amount} = withdraw(amount) % from db
case res of
ok ->
sender ! {res, amount}
Error ->
io:format("let forget it :-)")
end.
%%% main.erl
ATM = fun(account, amount) -> account ! amount end.
spawn(ATM).
Account = spawn(Account, toms_account, []).
ATM(Account, 10). % returns nothing
{ ok, 2990 }

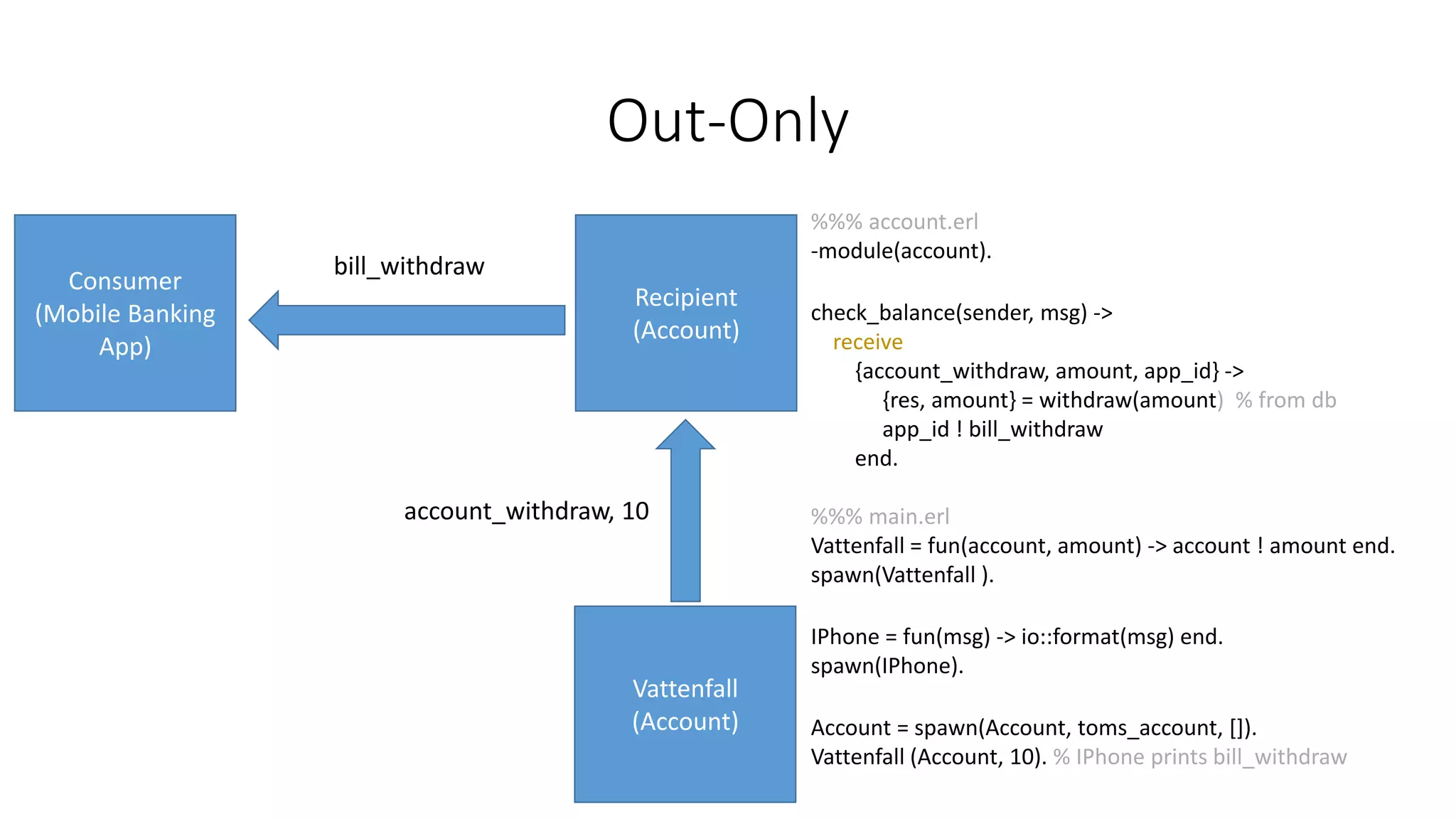

20. Out-Only
Consumer
(Mobile Banking
App)
Recipient
(Account)
bill_withdraw
%%% account.erl
-module(account).
check_balance(sender, msg) ->
receive
{account_withdraw, amount, app_id} ->
{res, amount} = withdraw(amount) % from db
app_id ! bill_withdraw
end.
%%% main.erl
Vattenfall = fun(account, amount) -> account ! amount end.
spawn(Vattenfall ).
IPhone = fun(msg) -> io::format(msg) end.
spawn(IPhone).
Account = spawn(Account, toms_account, []).
Vattenfall (Account, 10). % IPhone prints bill_withdraw
Vattenfall
(Account)
account_withdraw, 10

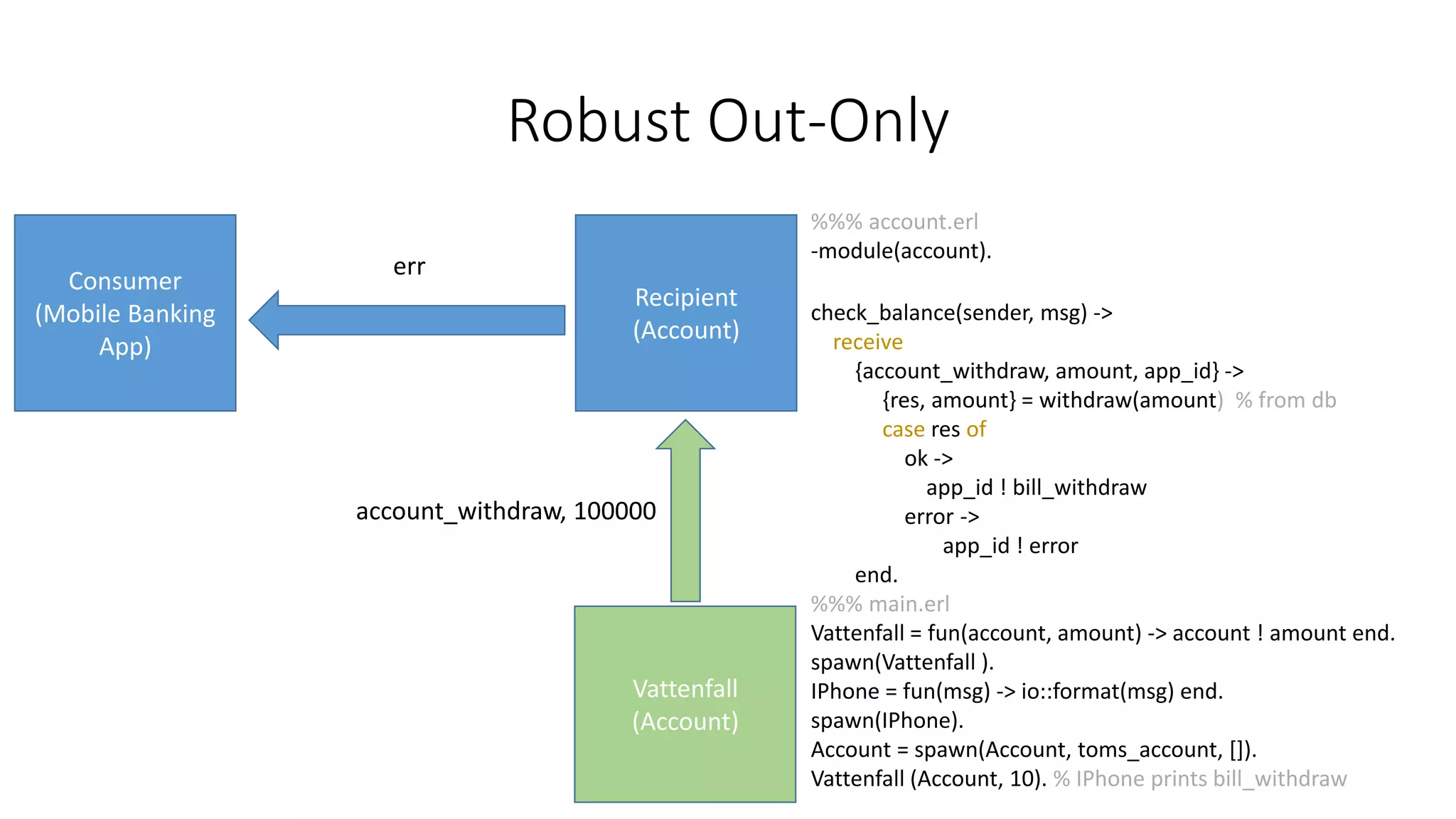

21. Robust Out-Only
Consumer
(Mobile Banking
App)
Recipient
(Account)
err
%%% account.erl
-module(account).
check_balance(sender, msg) ->
receive
{account_withdraw, amount, app_id} ->
{res, amount} = withdraw(amount) % from db
case res of
ok ->
app_id ! bill_withdraw
error ->
app_id ! error
end.
%%% main.erl
Vattenfall = fun(account, amount) -> account ! amount end.
spawn(Vattenfall ).
IPhone = fun(msg) -> io::format(msg) end.
spawn(IPhone).
Account = spawn(Account, toms_account, []).
Vattenfall (Account, 10). % IPhone prints bill_withdraw
Vattenfall
(Account)
account_withdraw, 100000

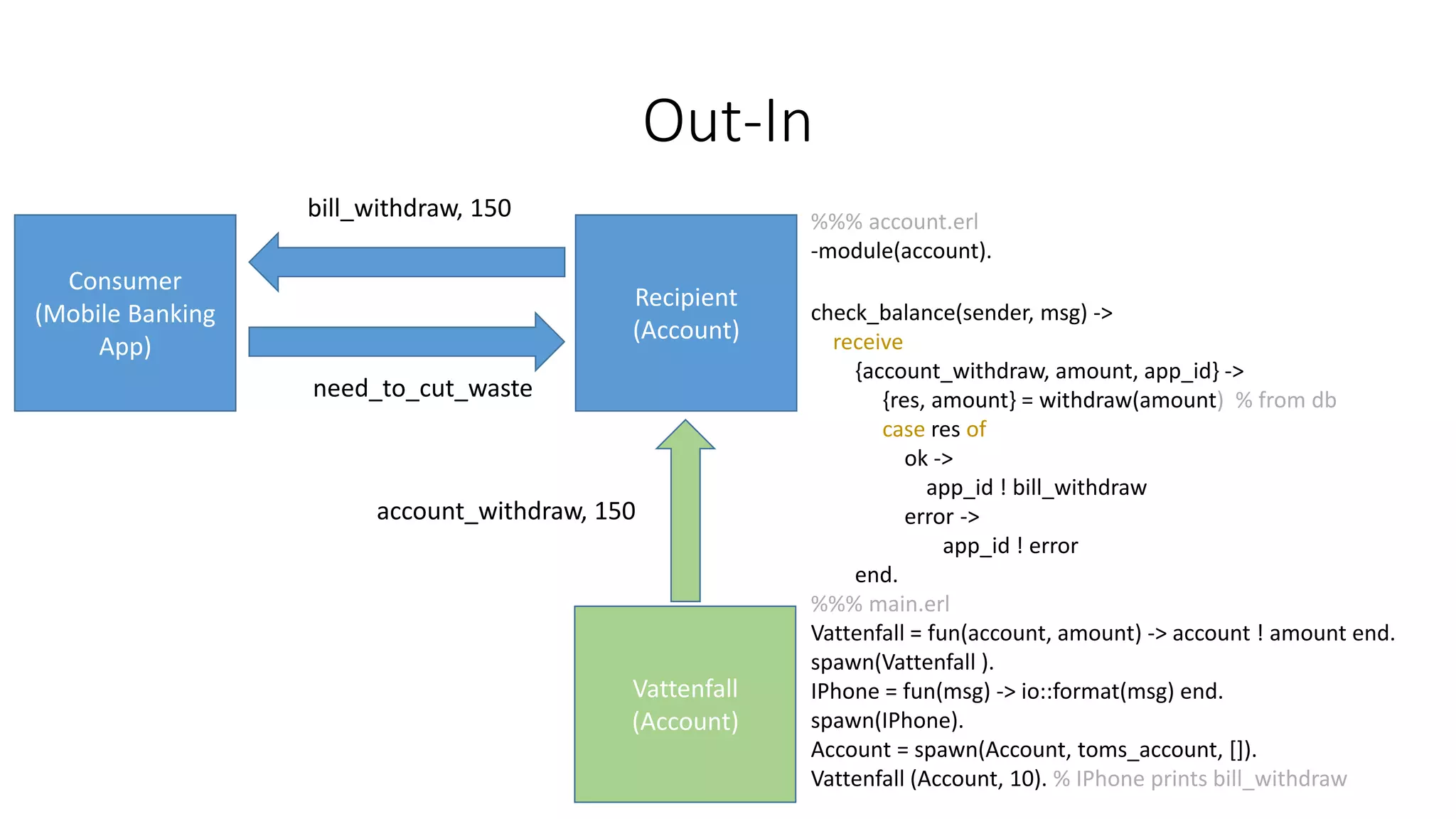

22. Out-In
Consumer
(Mobile Banking
App)
Recipient
(Account)
bill_withdraw, 150 %%% account.erl
-module(account).
check_balance(sender, msg) ->
receive
{account_withdraw, amount, app_id} ->
{res, amount} = withdraw(amount) % from db
case res of
ok ->
app_id ! bill_withdraw
error ->
app_id ! error
end.
%%% main.erl
Vattenfall = fun(account, amount) -> account ! amount end.
spawn(Vattenfall ).
IPhone = fun(msg) -> io::format(msg) end.
spawn(IPhone).
Account = spawn(Account, toms_account, []).
Vattenfall (Account, 10). % IPhone prints bill_withdraw
Vattenfall
(Account)
account_withdraw, 150
need_to_cut_waste

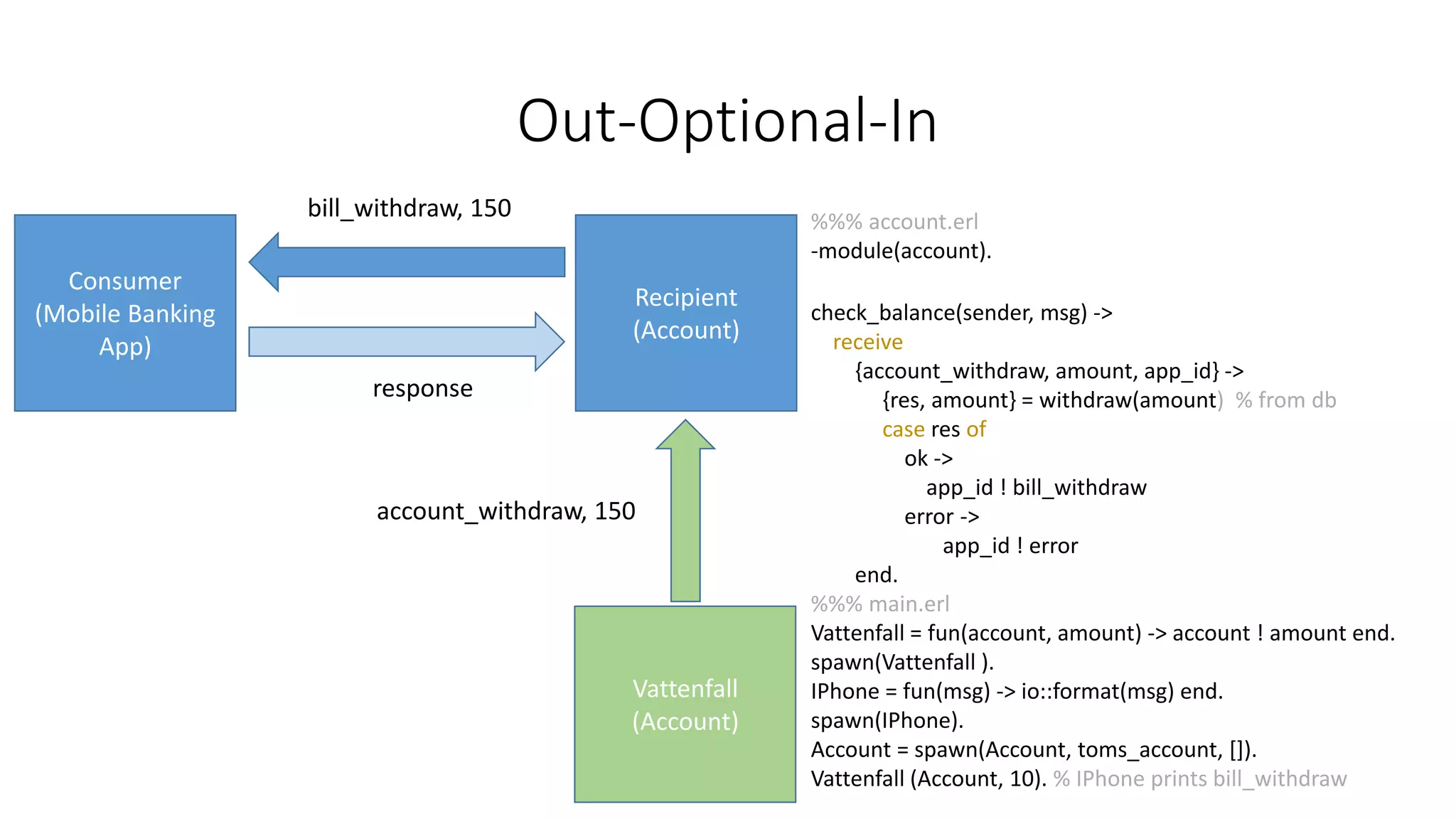

23. Out-Optional-In
Consumer
(Mobile Banking
App)
Recipient
(Account)
bill_withdraw, 150 %%% account.erl
-module(account).
check_balance(sender, msg) ->
receive
{account_withdraw, amount, app_id} ->
{res, amount} = withdraw(amount) % from db
case res of
ok ->
app_id ! bill_withdraw
error ->
app_id ! error
end.
%%% main.erl
Vattenfall = fun(account, amount) -> account ! amount end.
spawn(Vattenfall ).
IPhone = fun(msg) -> io::format(msg) end.
spawn(IPhone).
Account = spawn(Account, toms_account, []).
Vattenfall (Account, 10). % IPhone prints bill_withdraw
Vattenfall
(Account)
account_withdraw, 150
response

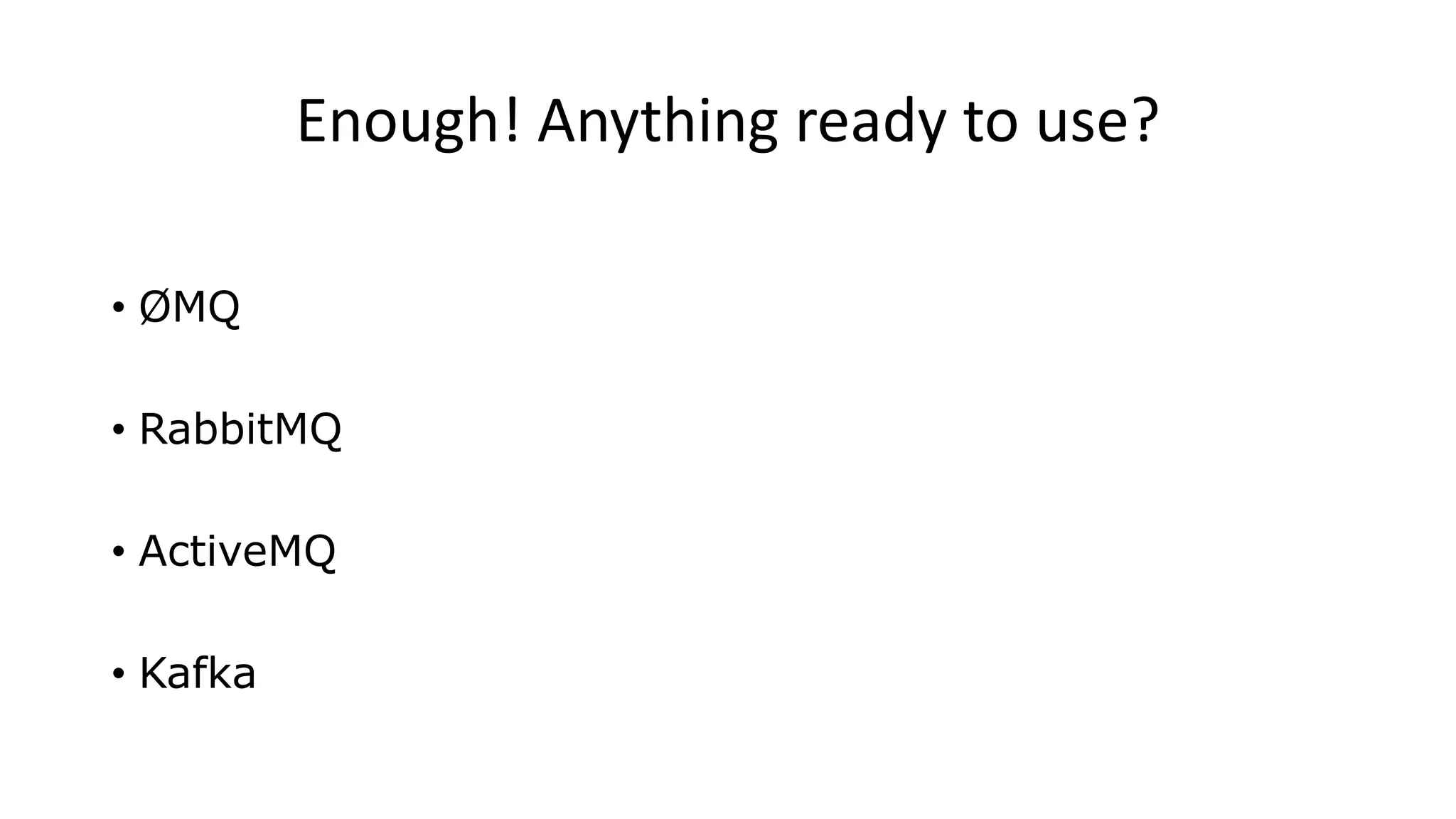

24. Enough! Anything ready to use?
• ØMQ
• RabbitMQ
• ActiveMQ
• Kafka

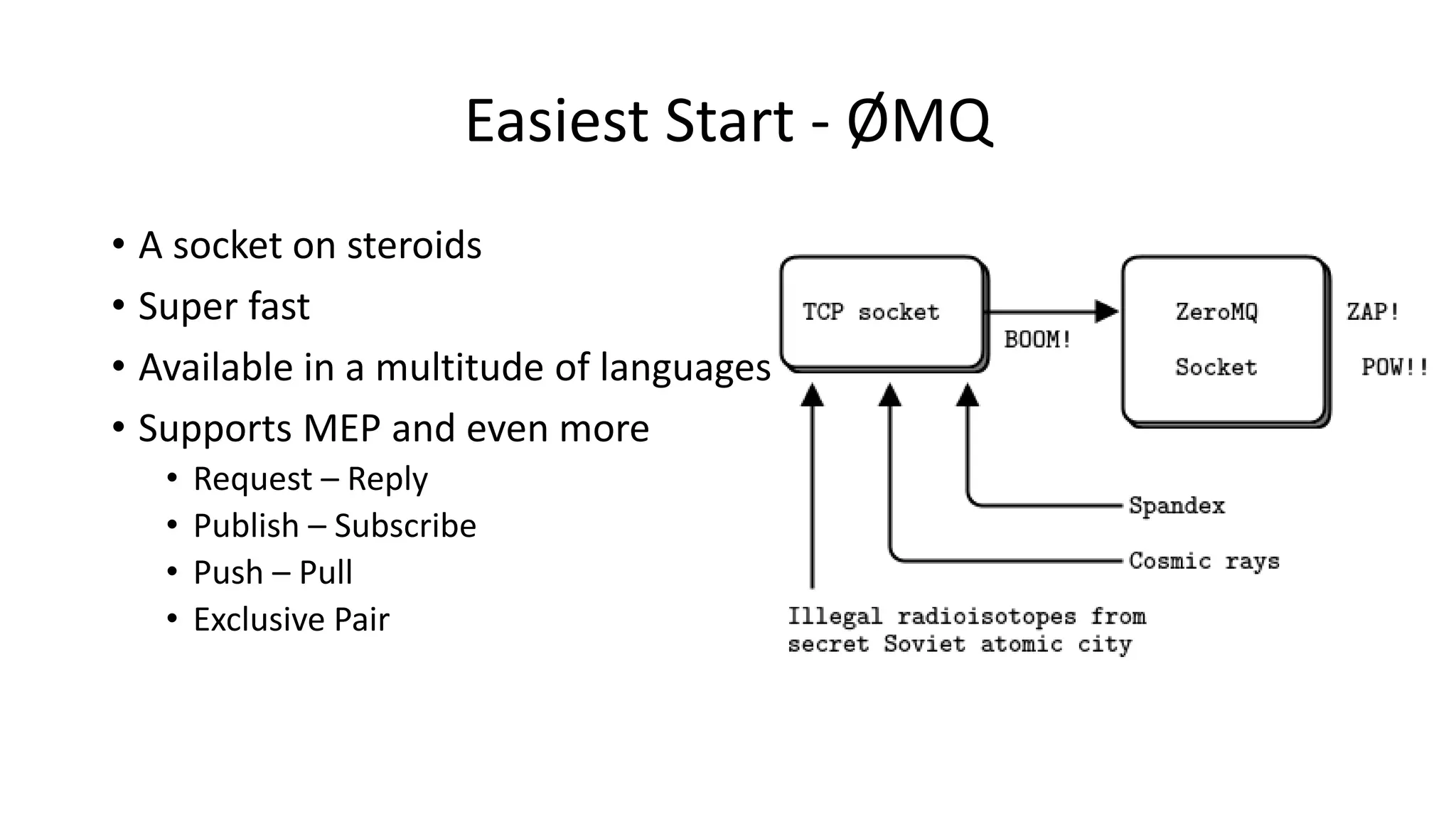

25. Easiest Start - ØMQ
• A socket on steroids
• Super fast
• Available in a multitude of languages
• Supports MEP and even more
• Request – Reply
• Publish – Subscribe
• Push – Pull
• Exclusive Pair

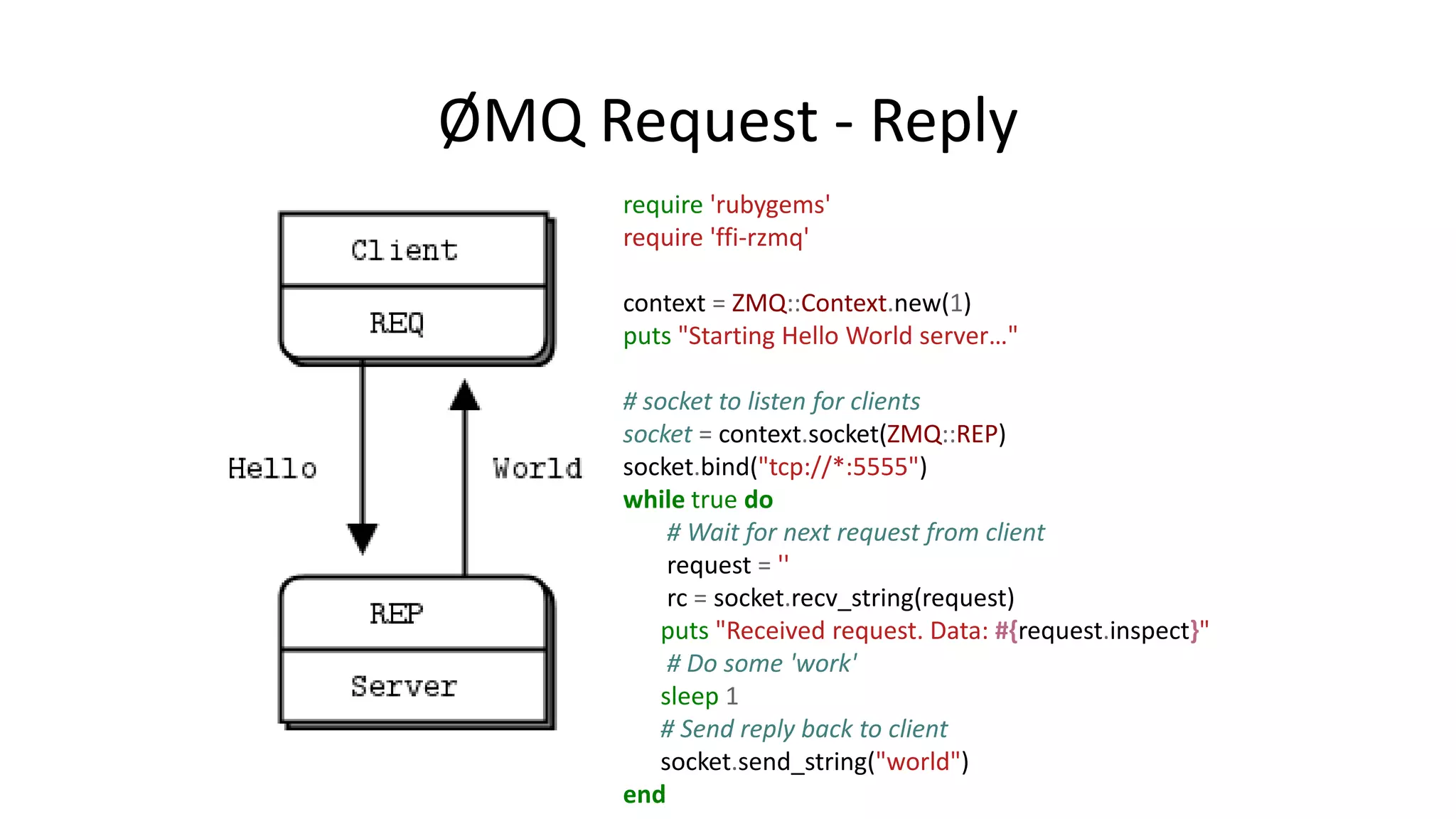

26. ØMQ Request - Reply
require 'rubygems'
require 'ffi-rzmq'
context = ZMQ::Context.new(1)
puts "Starting Hello World server…"
# socket to listen for clients
socket = context.socket(ZMQ::REP)
socket.bind("tcp://*:5555")
while true do
# Wait for next request from client
request = ''
rc = socket.recv_string(request)
puts "Received request. Data: #{request.inspect}"
# Do some 'work'
sleep 1
# Send reply back to client
socket.send_string("world")
end

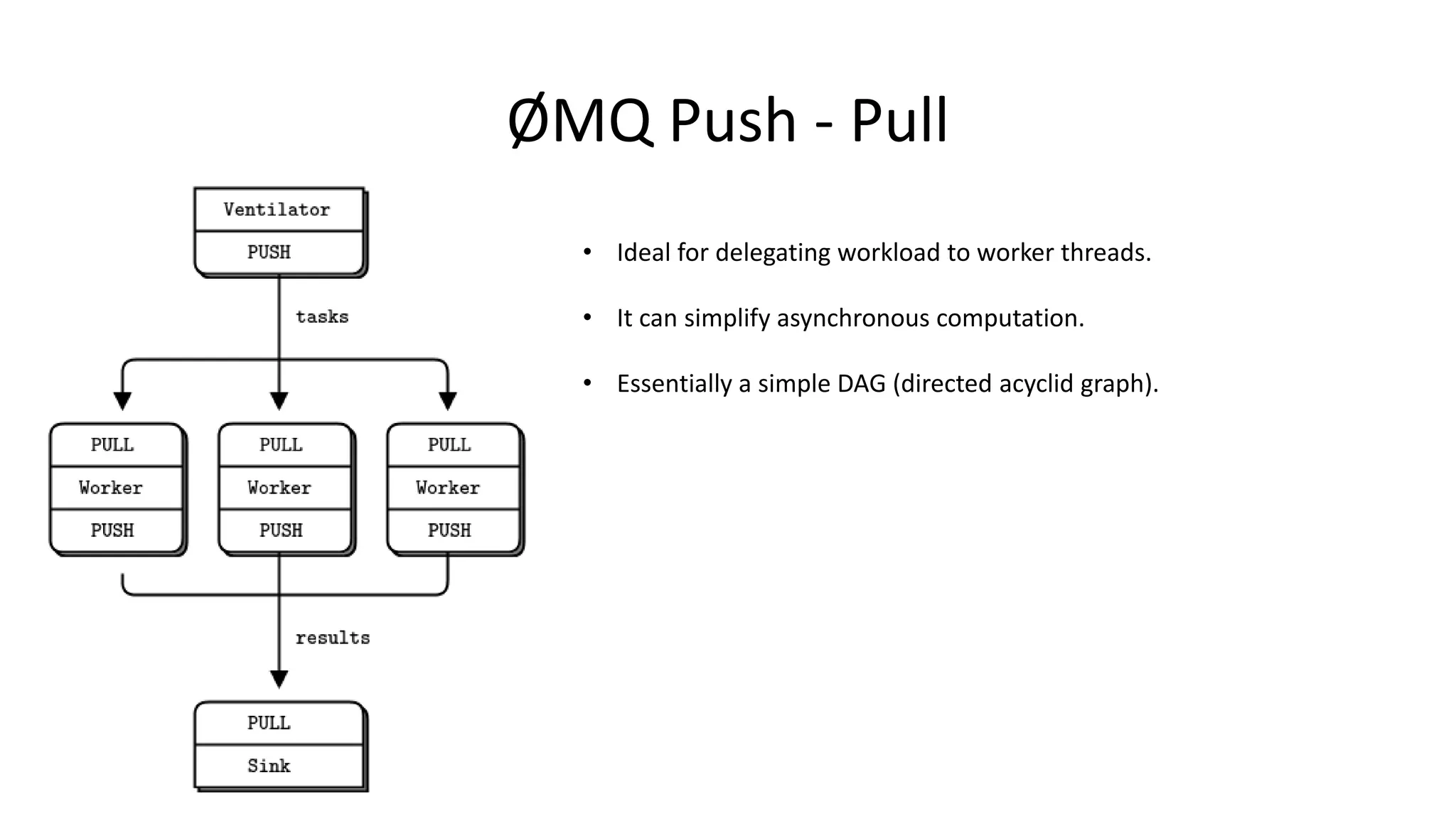

27. ØMQ Push - Pull
• Ideal for delegating workload to worker threads.
• It can simplify asynchronous computation.
• Essentially a simple DAG (directed acyclid graph).

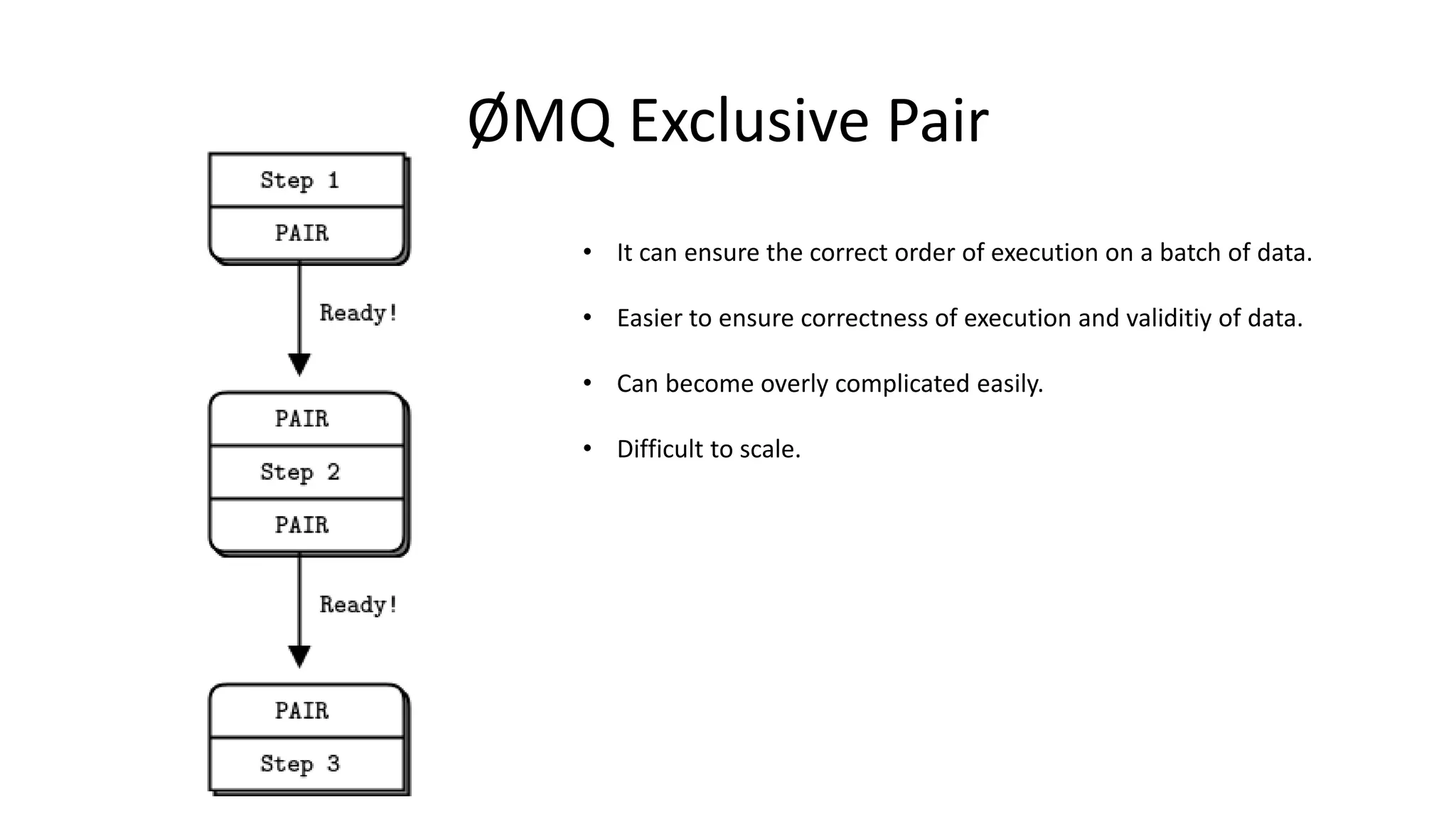

28. ØMQ Exclusive Pair
• It can ensure the correct order of execution on a batch of data.
• Easier to ensure correctness of execution and validitiy of data.
• Can become overly complicated easily.
• Difficult to scale.

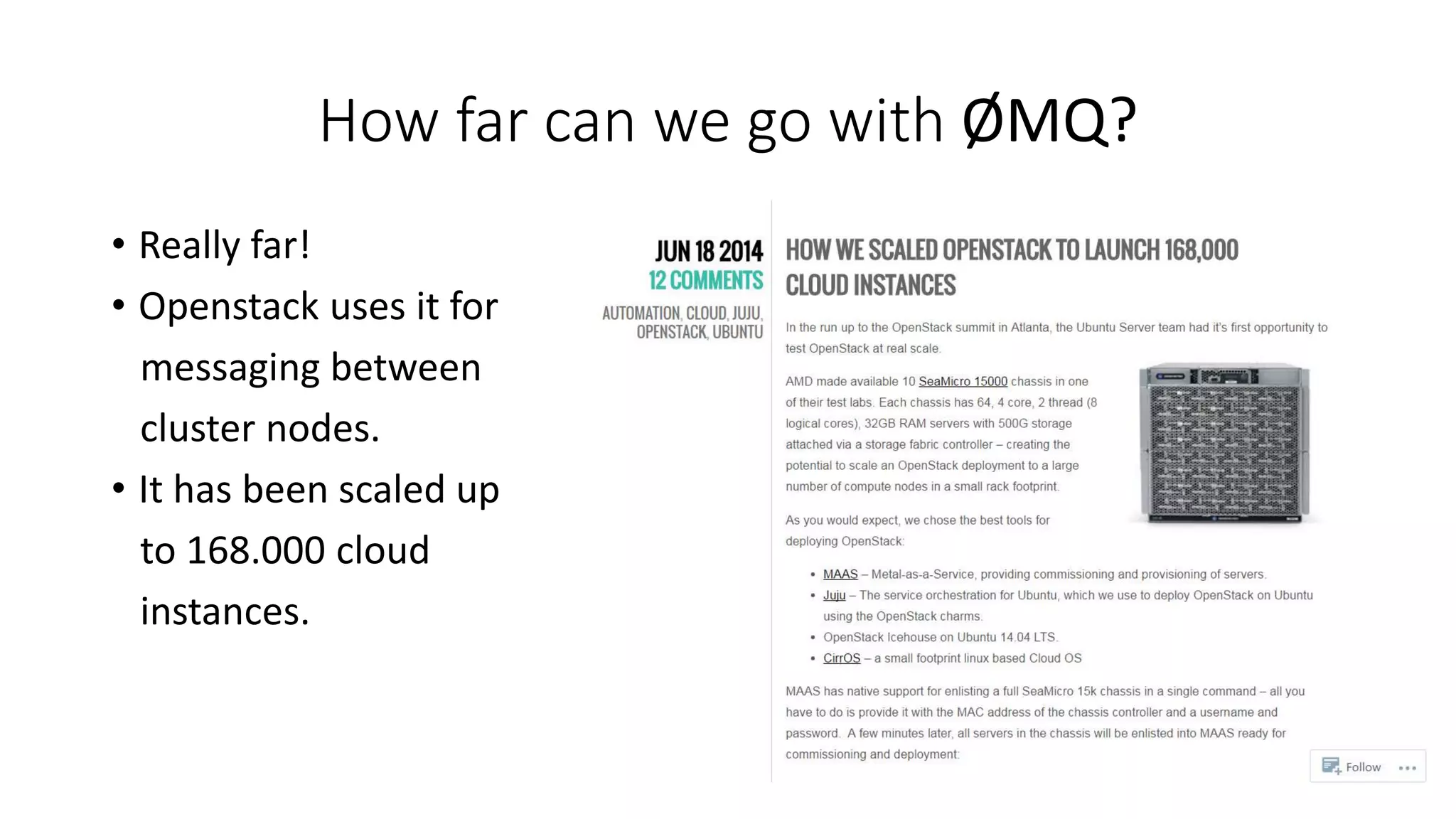

29. How far can we go with ØMQ?
• Really far!
• Openstack uses it for
messaging between
cluster nodes.
• It has been scaled up
to 168.000 cloud
instances.

30. How far can we go with ØMQ? (cont.)

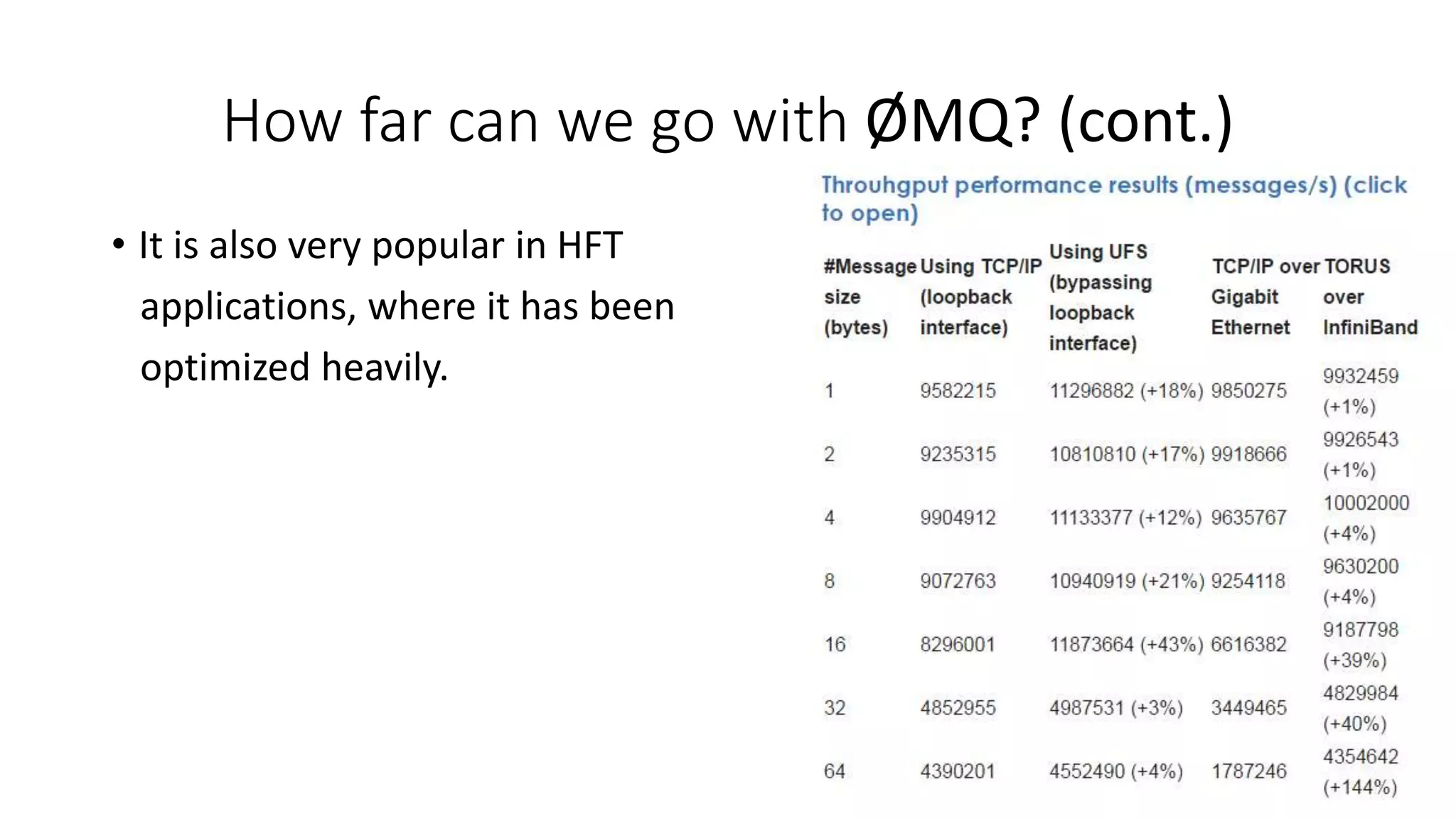

• It is also very popular in HFT
applications, where it has been
optimized heavily.

31. Kafka

32. Not Franz Kafka, Apache Kafka

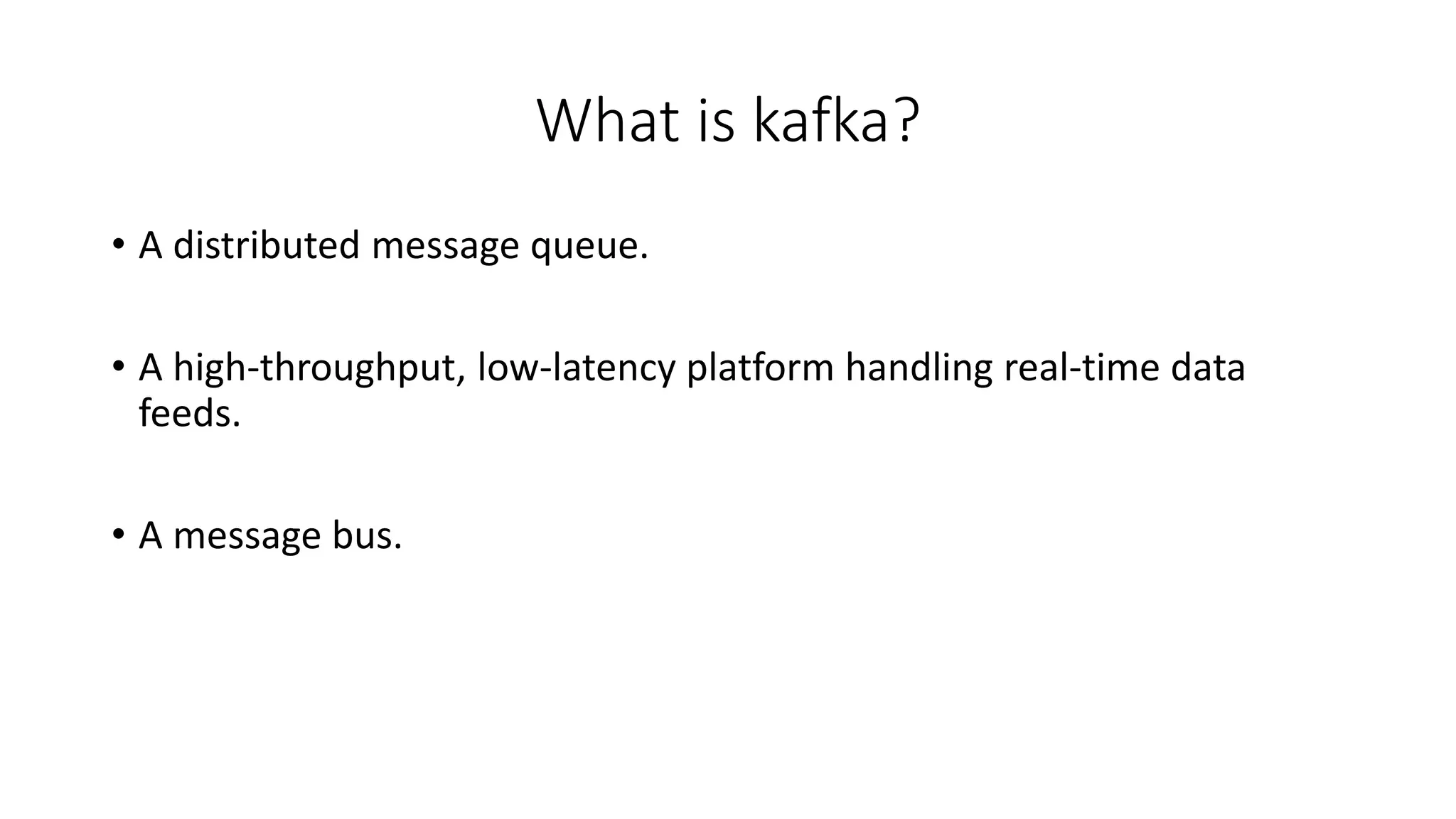

33. What is kafka?
• A distributed message queue.
• A high-throughput, low-latency platform handling real-time data
feeds.
• A message bus.

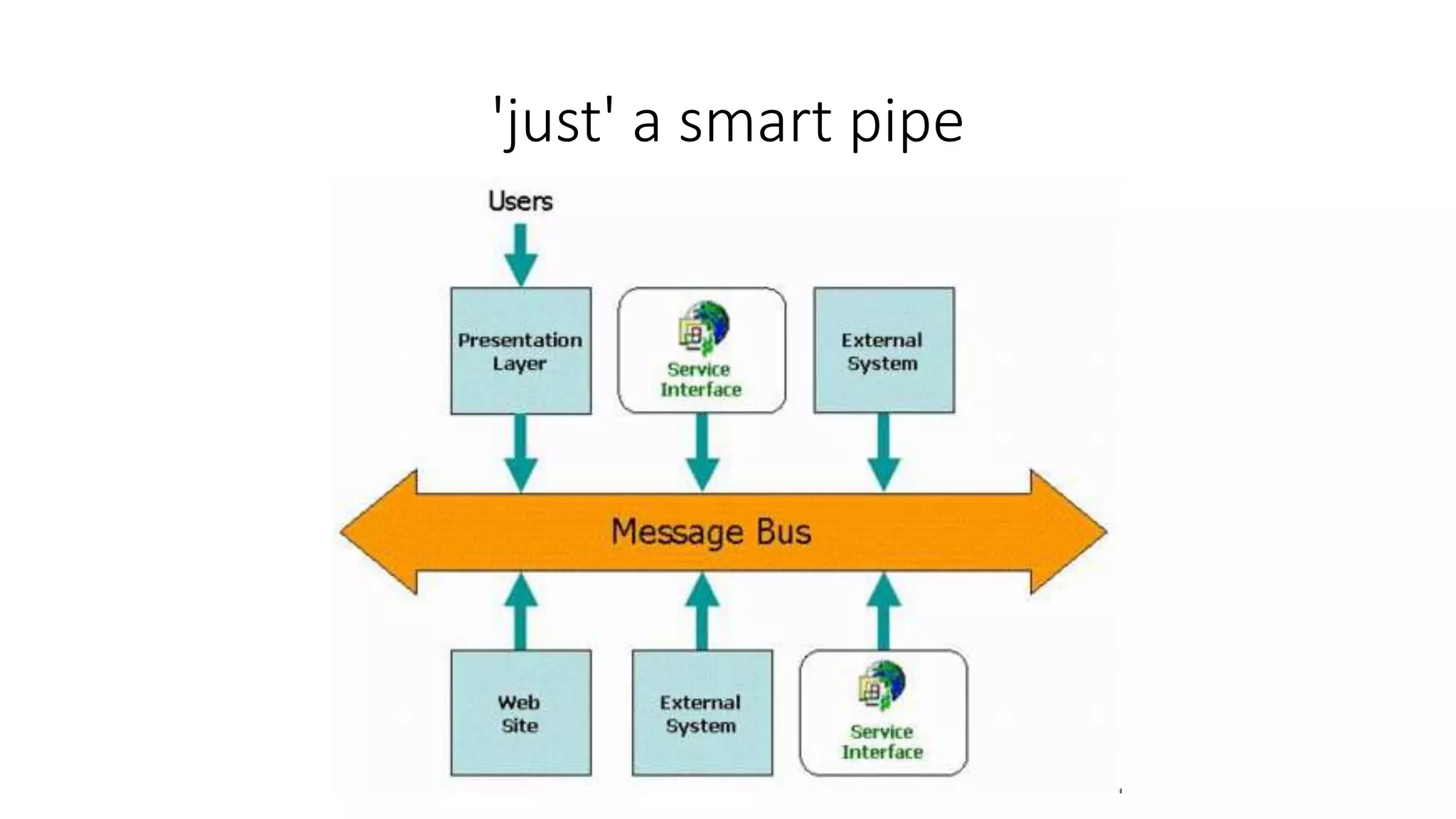

34. Message Bus Pattern

35. 'just' a smart pipe

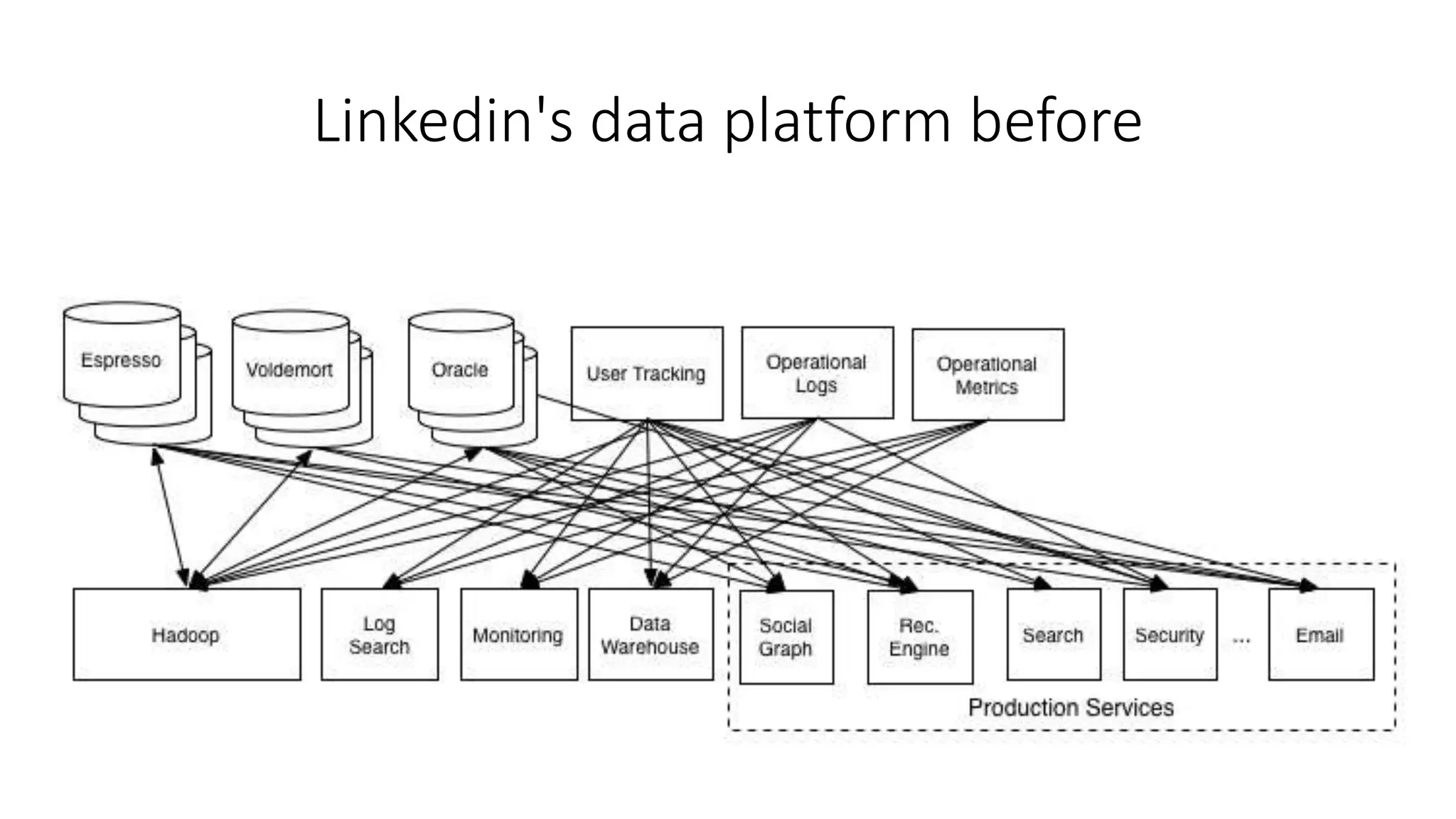

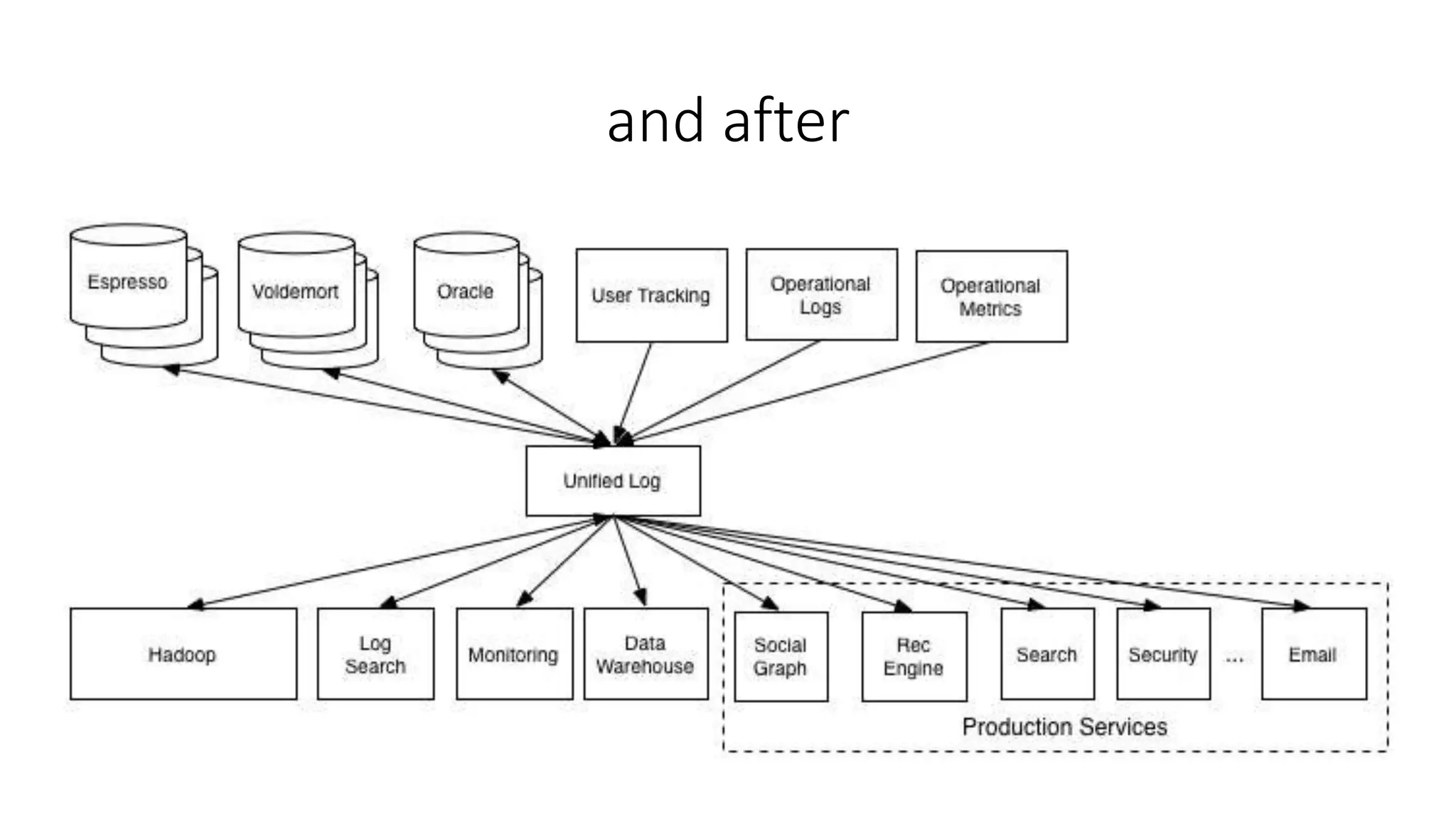

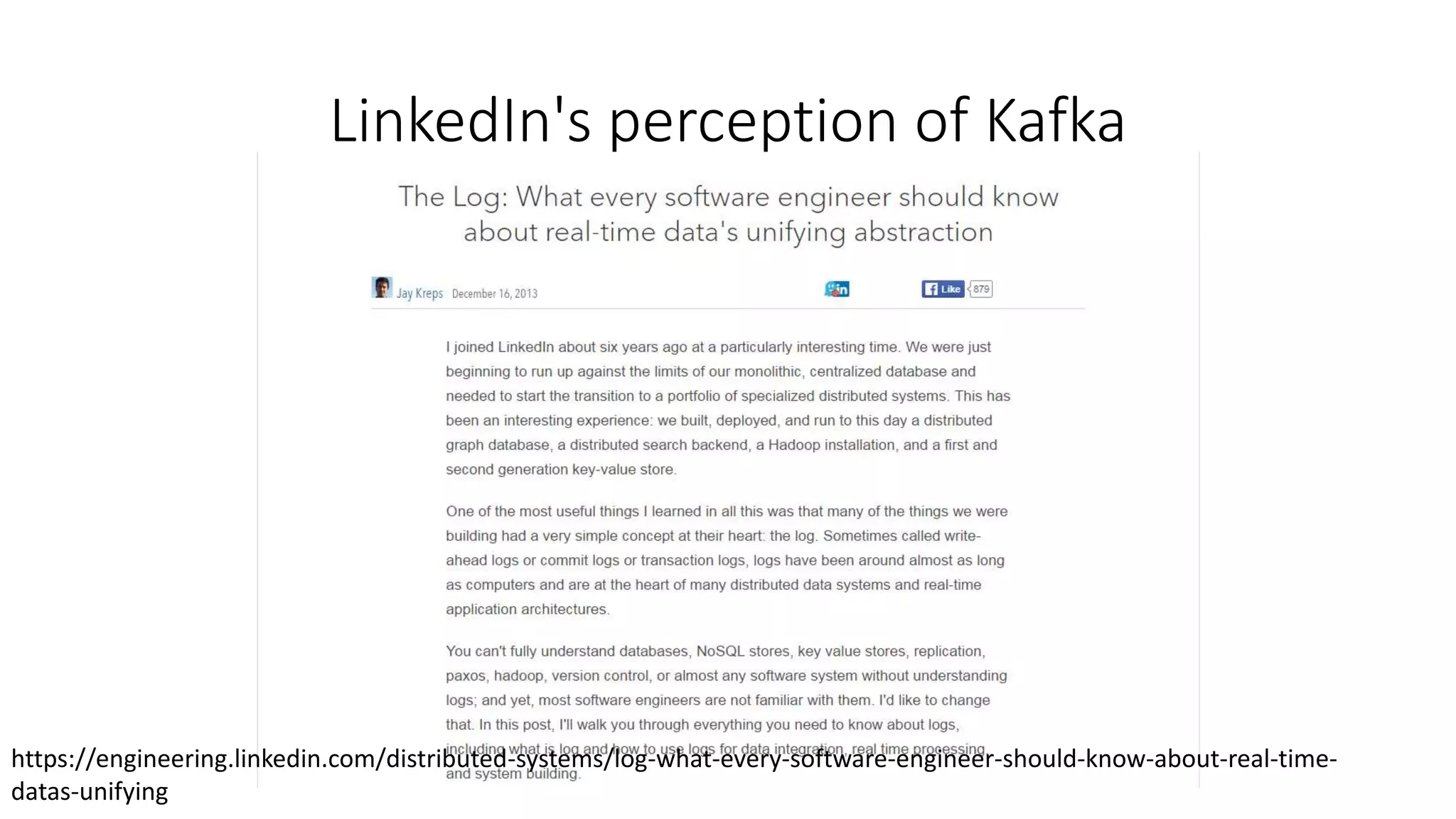

36. LinkedIn's perception of Kafka
https://engineering.linkedin.com/distributed-systems/log-what-every-software-engineer-should-know-about-real-time-
datas-unifying

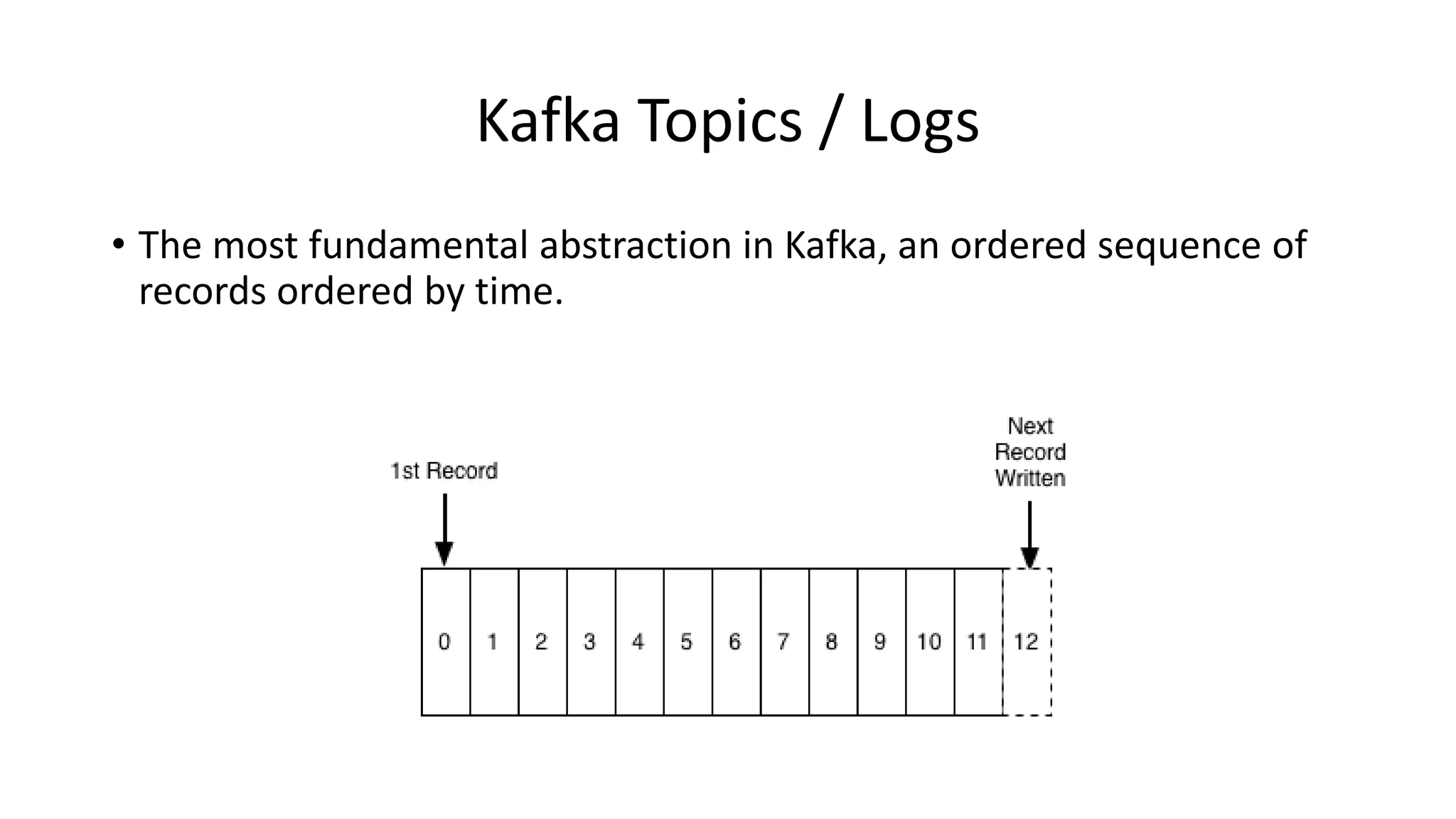

37. Kafka Topics / Logs
• The most fundamental abstraction in Kafka, an ordered sequence of
records ordered by time.

38. Text durch Klicken
hinzufügen

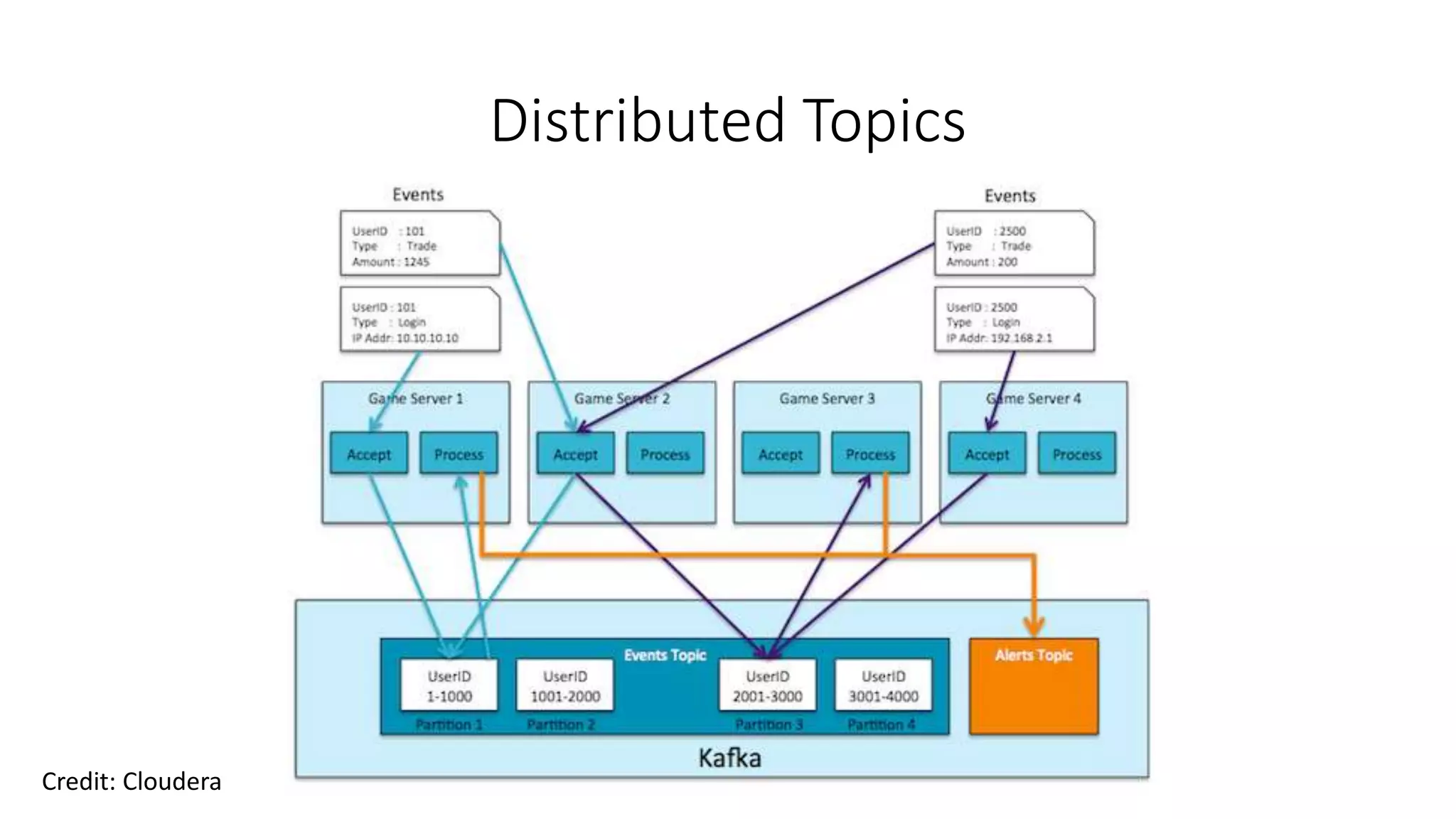

Distributed Topics
Credit: Cloudera

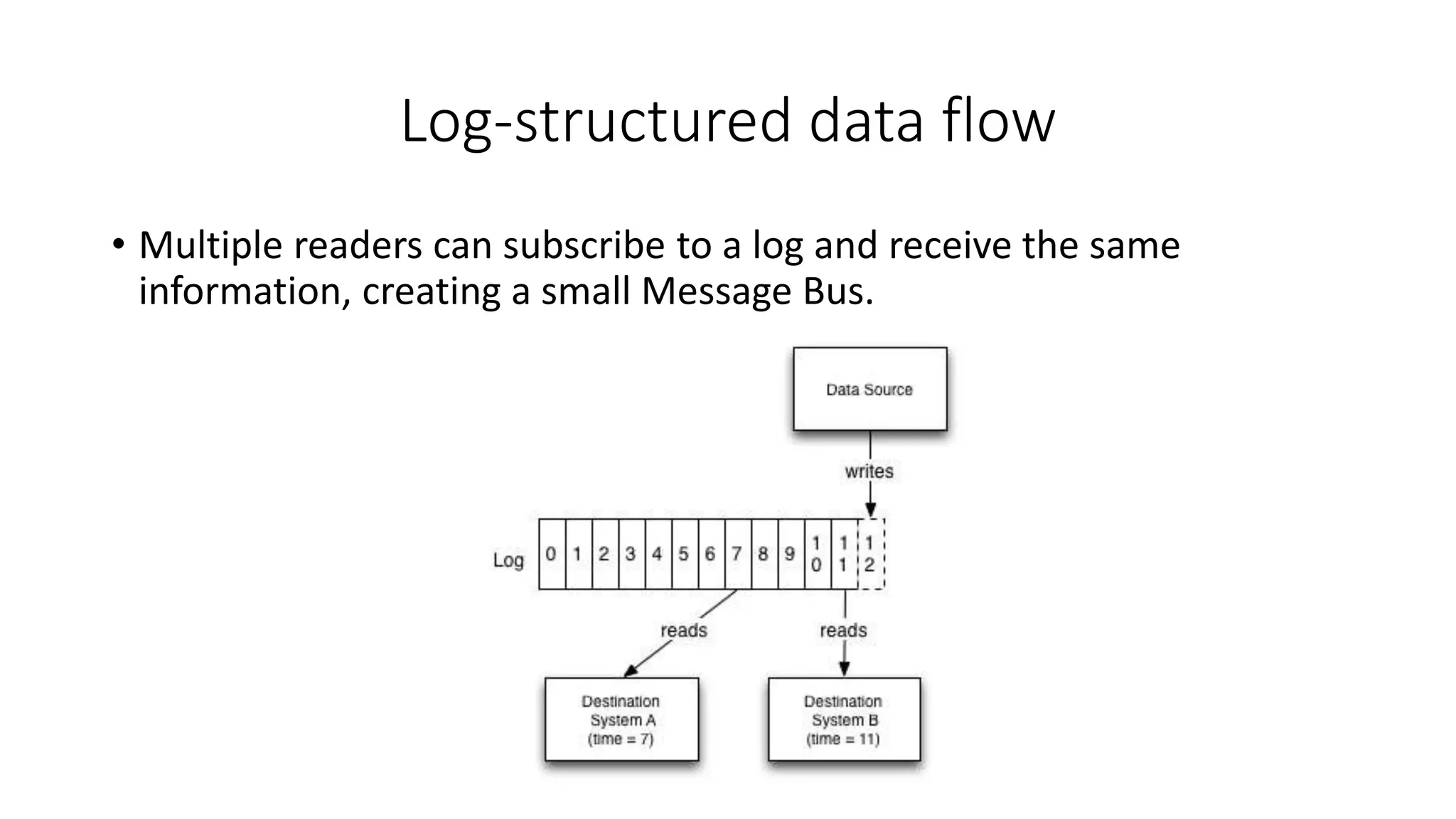

39. Log-structured data flow
• Multiple readers can subscribe to a log and receive the same
information, creating a small Message Bus.

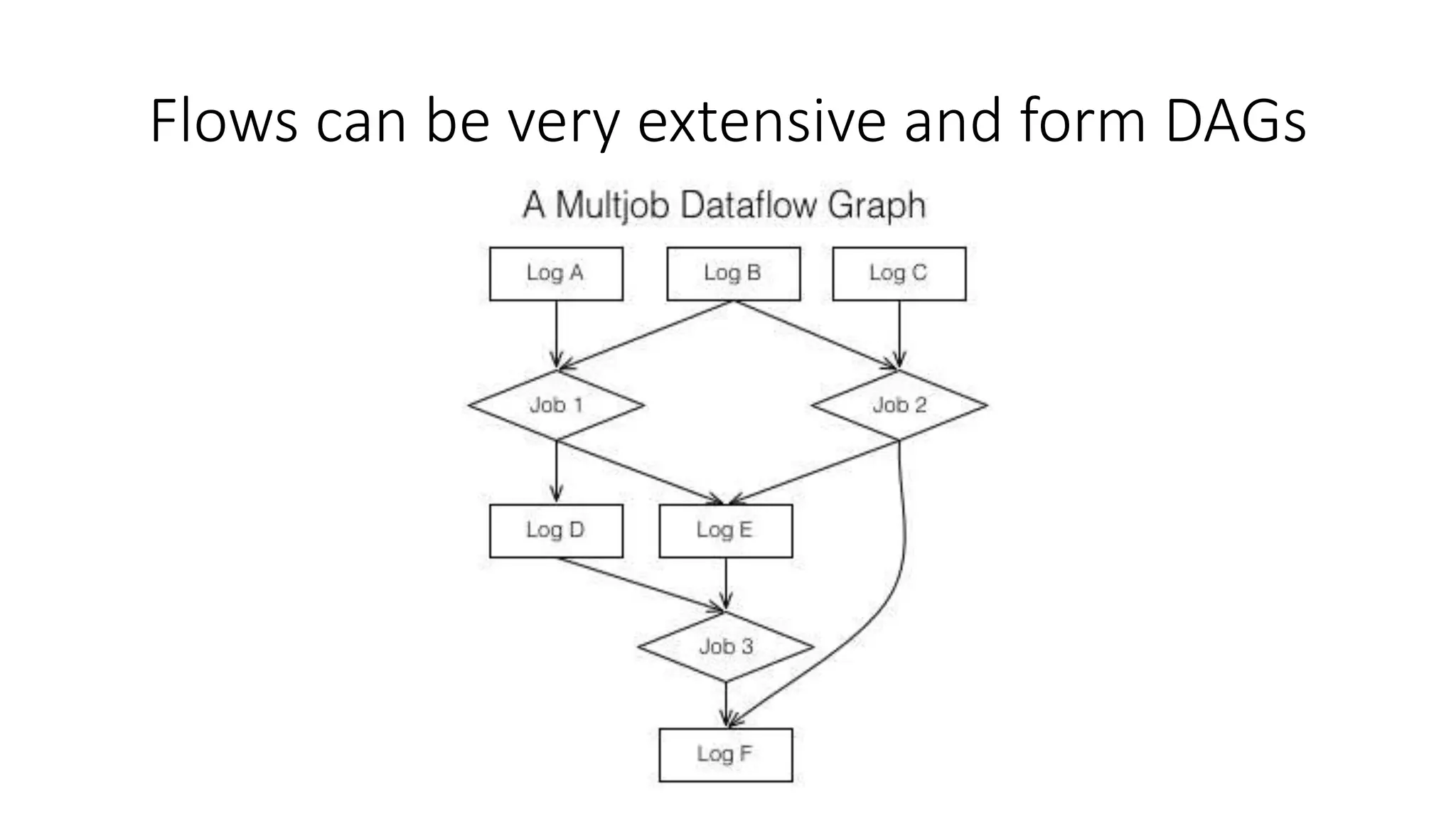

40. Flows can be very extensive and form DAGs

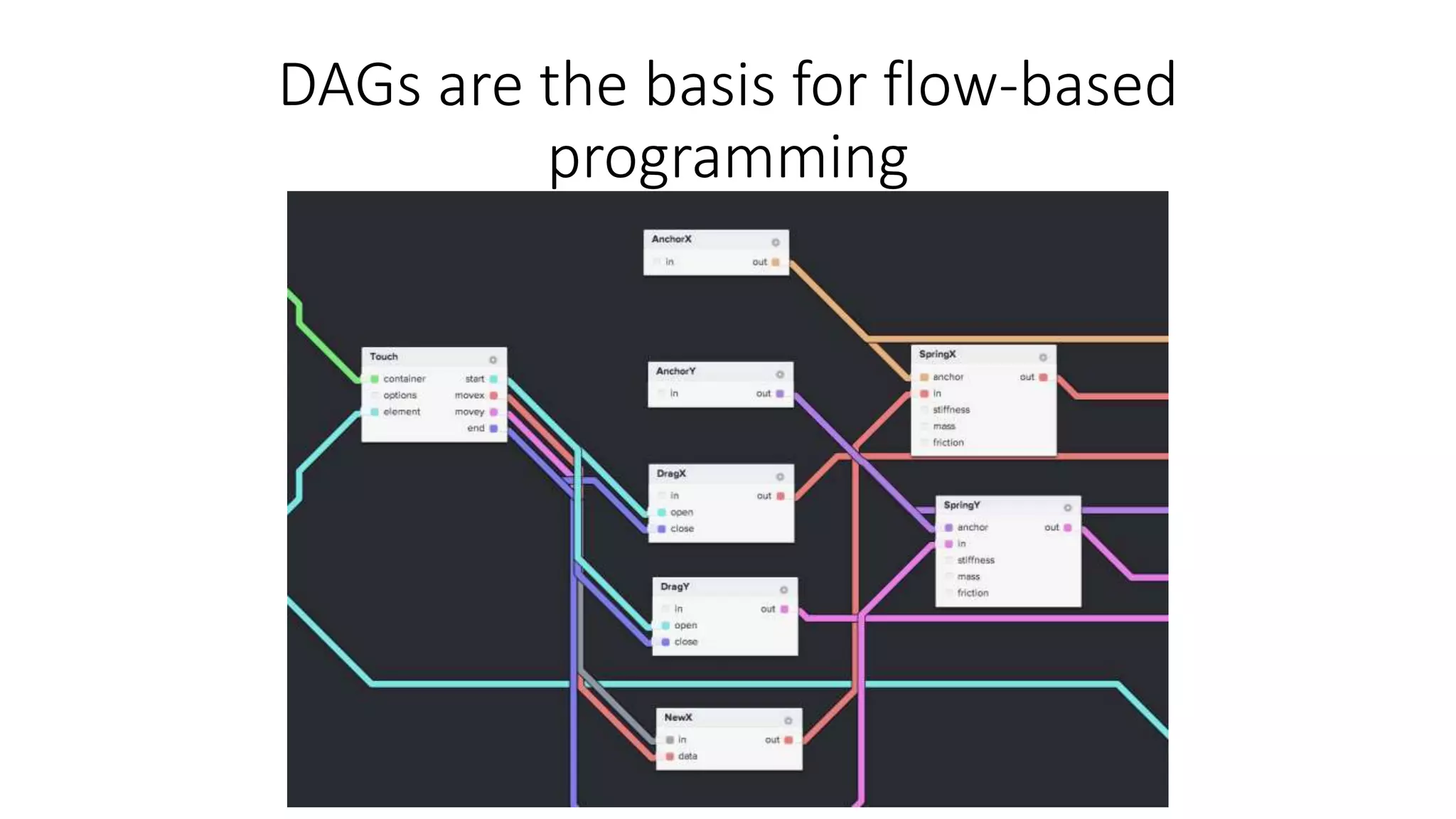

41. DAGs are the basis for flow-based
programming

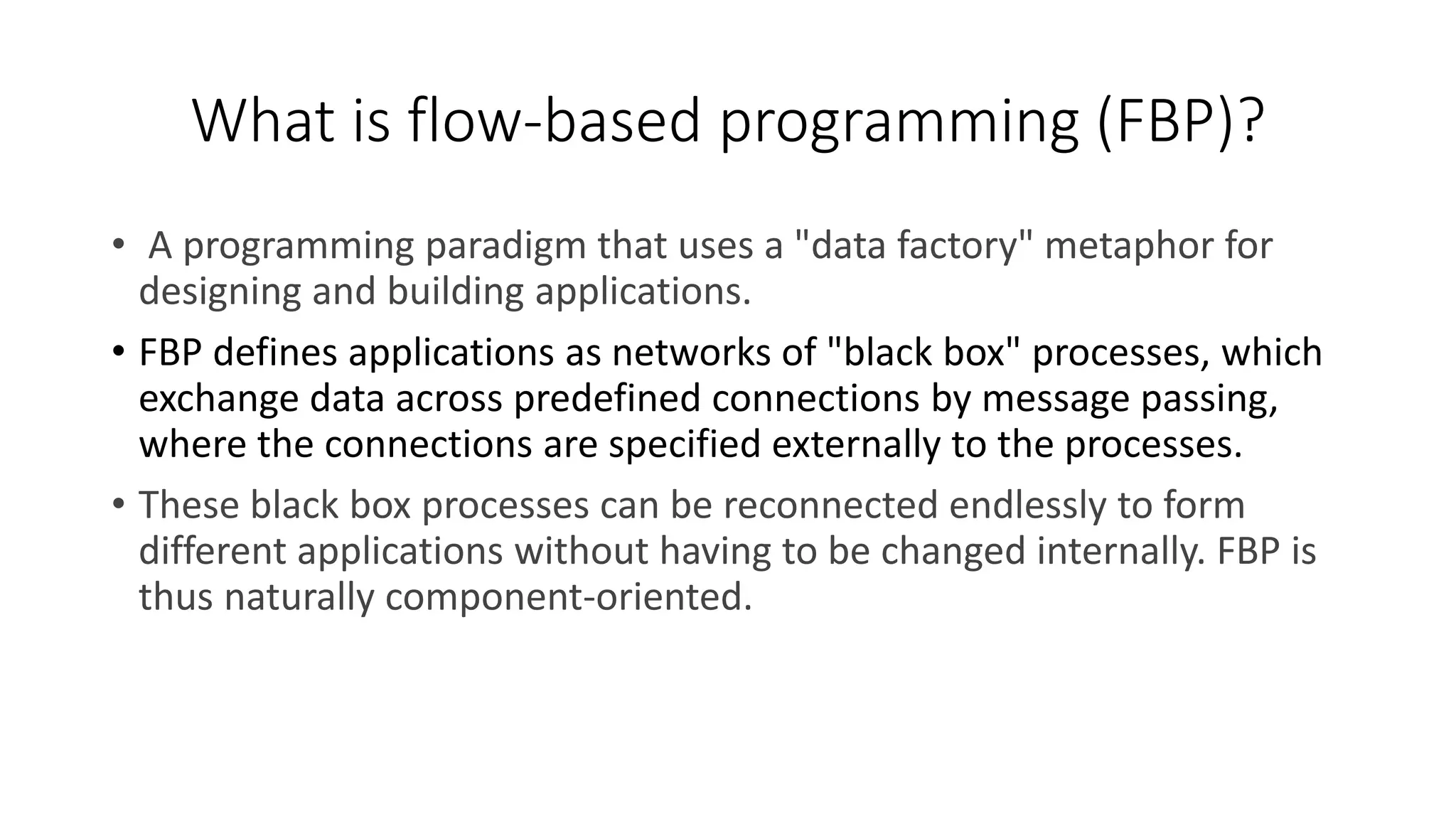

42. What is flow-based programming (FBP)?
• A programming paradigm that uses a "data factory" metaphor for
designing and building applications.
• FBP defines applications as networks of "black box" processes, which
exchange data across predefined connections by message passing,
where the connections are specified externally to the processes.
• These black box processes can be reconnected endlessly to form
different applications without having to be changed internally. FBP is
thus naturally component-oriented.

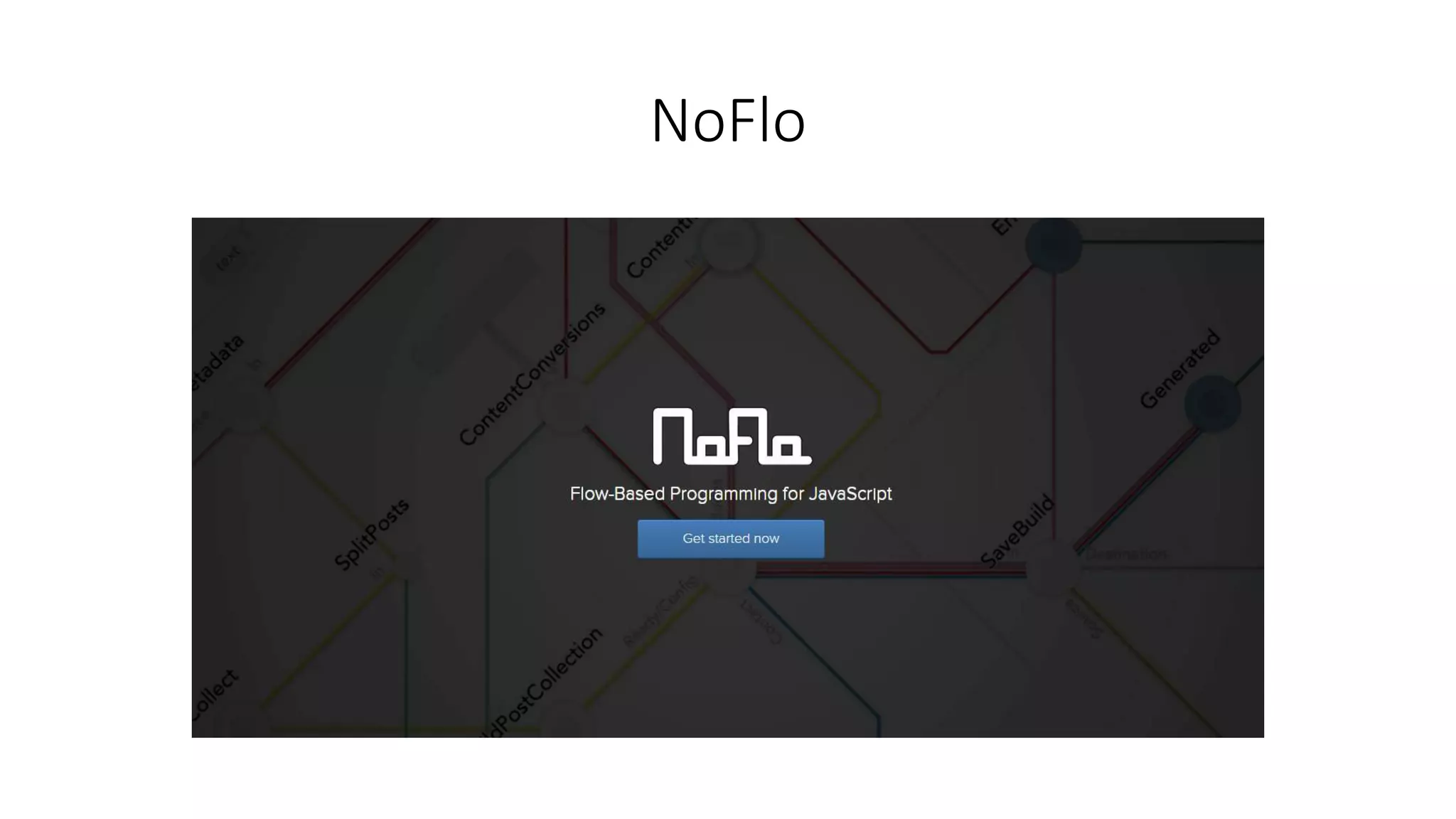

43. NoFlo

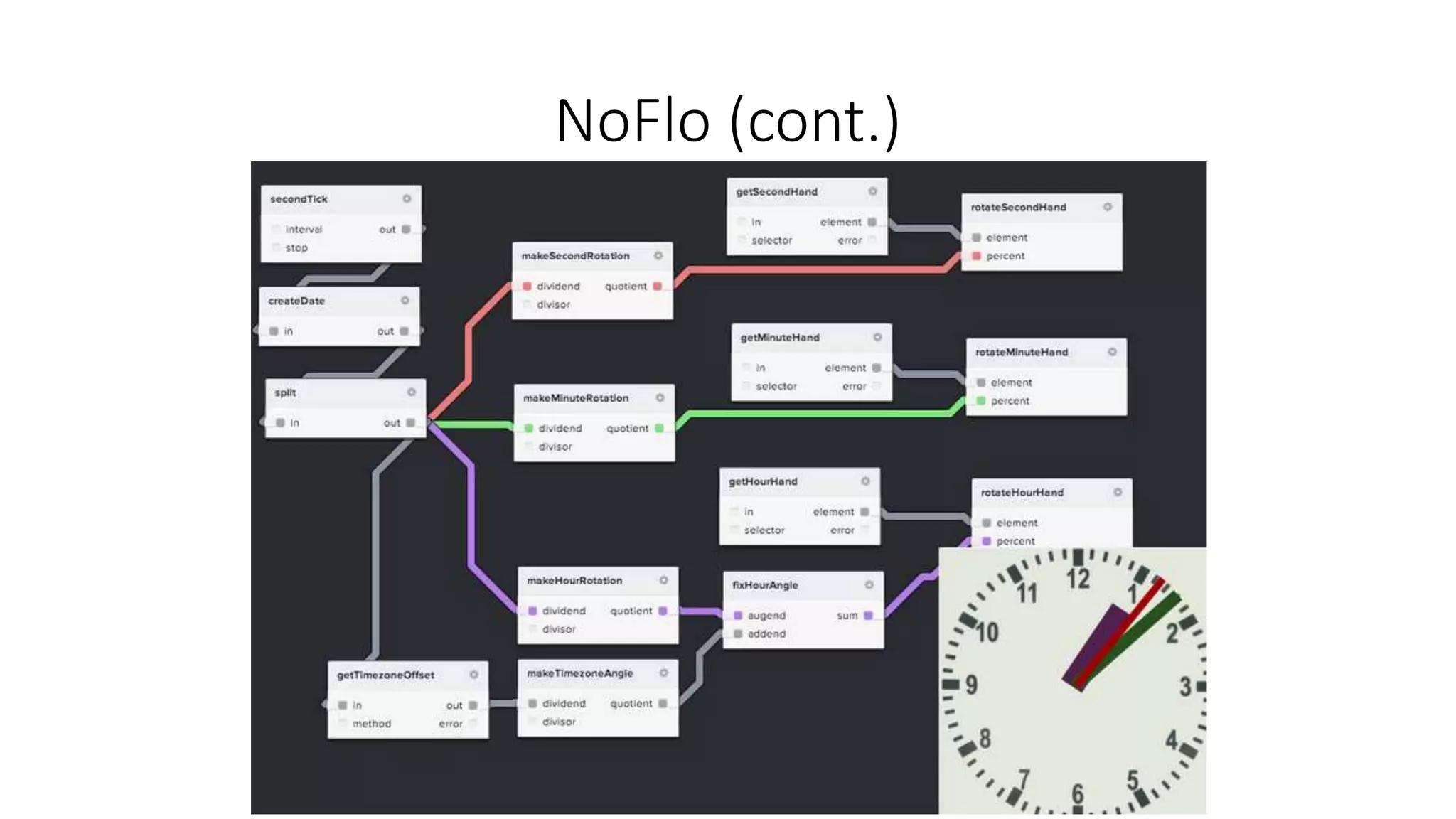

44. NoFlo (cont.)

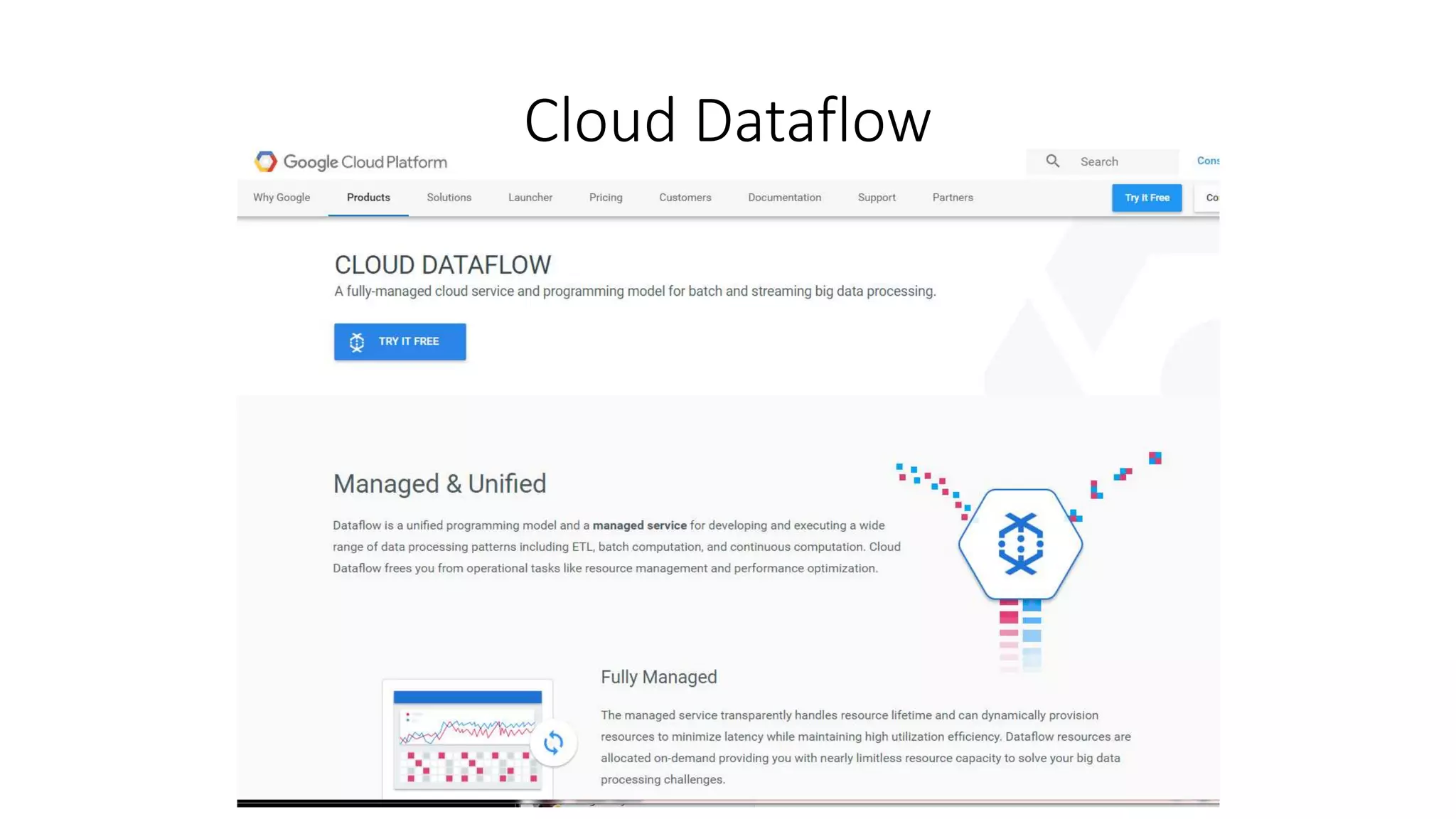

45. Cloud Dataflow

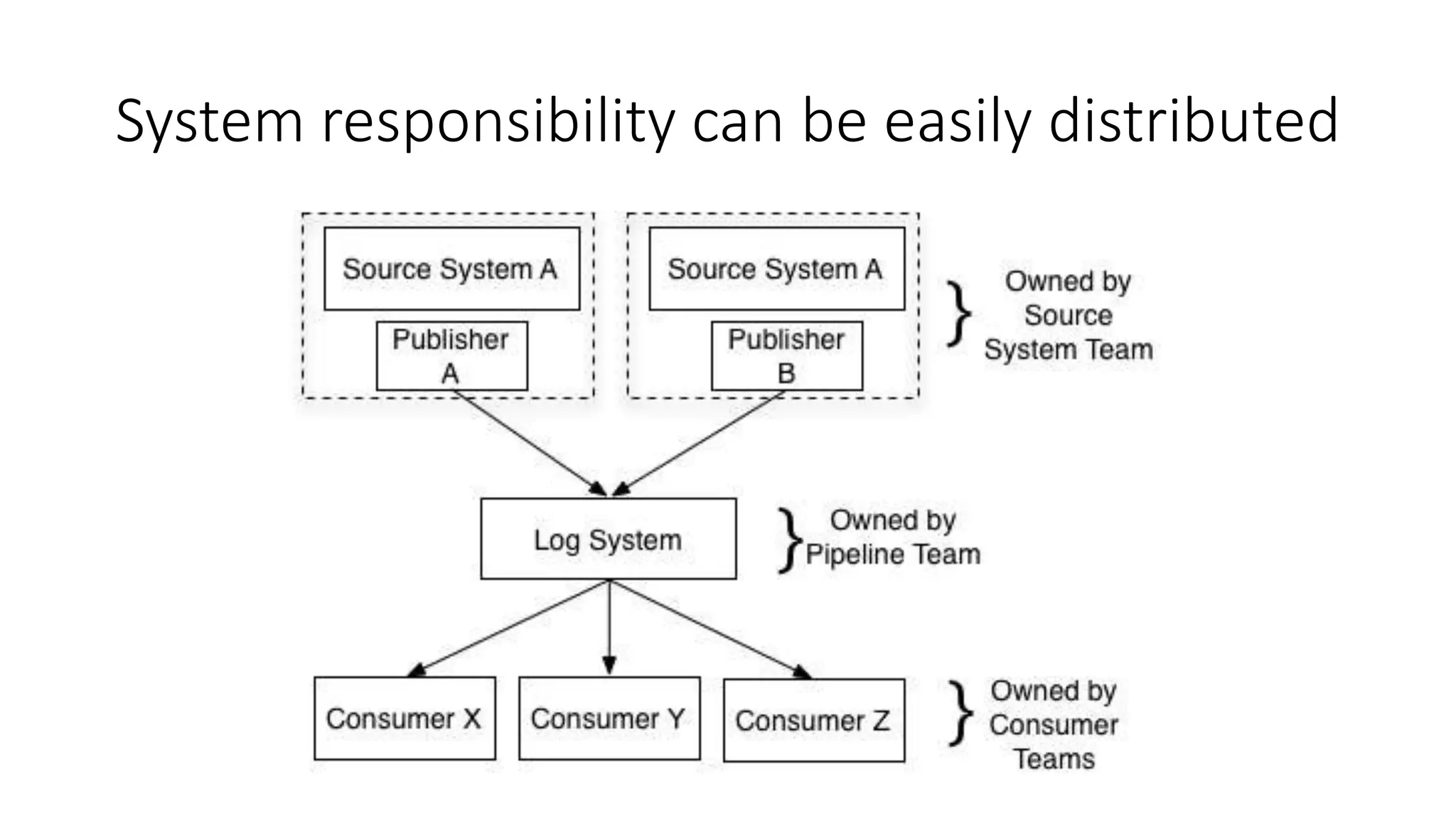

46. System responsibility can be easily distributed

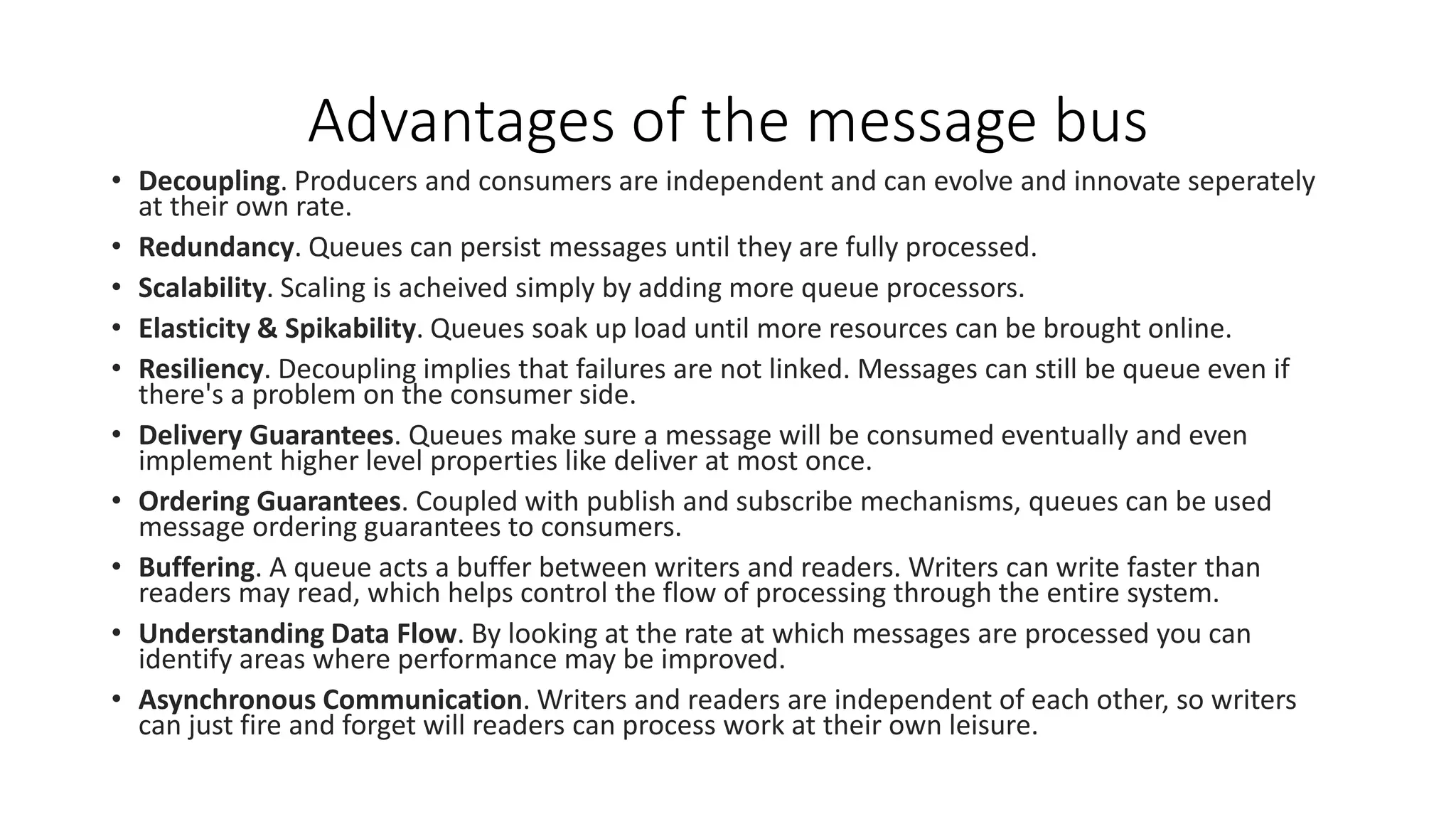

47. Advantages of the message bus
• Decoupling. Producers and consumers are independent and can evolve and innovate seperately
at their own rate.
• Redundancy. Queues can persist messages until they are fully processed.
• Scalability. Scaling is acheived simply by adding more queue processors.
• Elasticity & Spikability. Queues soak up load until more resources can be brought online.
• Resiliency. Decoupling implies that failures are not linked. Messages can still be queue even if
there's a problem on the consumer side.
• Delivery Guarantees. Queues make sure a message will be consumed eventually and even
implement higher level properties like deliver at most once.
• Ordering Guarantees. Coupled with publish and subscribe mechanisms, queues can be used
message ordering guarantees to consumers.
• Buffering. A queue acts a buffer between writers and readers. Writers can write faster than
readers may read, which helps control the flow of processing through the entire system.
• Understanding Data Flow. By looking at the rate at which messages are processed you can
identify areas where performance may be improved.
• Asynchronous Communication. Writers and readers are independent of each other, so writers
can just fire and forget will readers can process work at their own leisure.

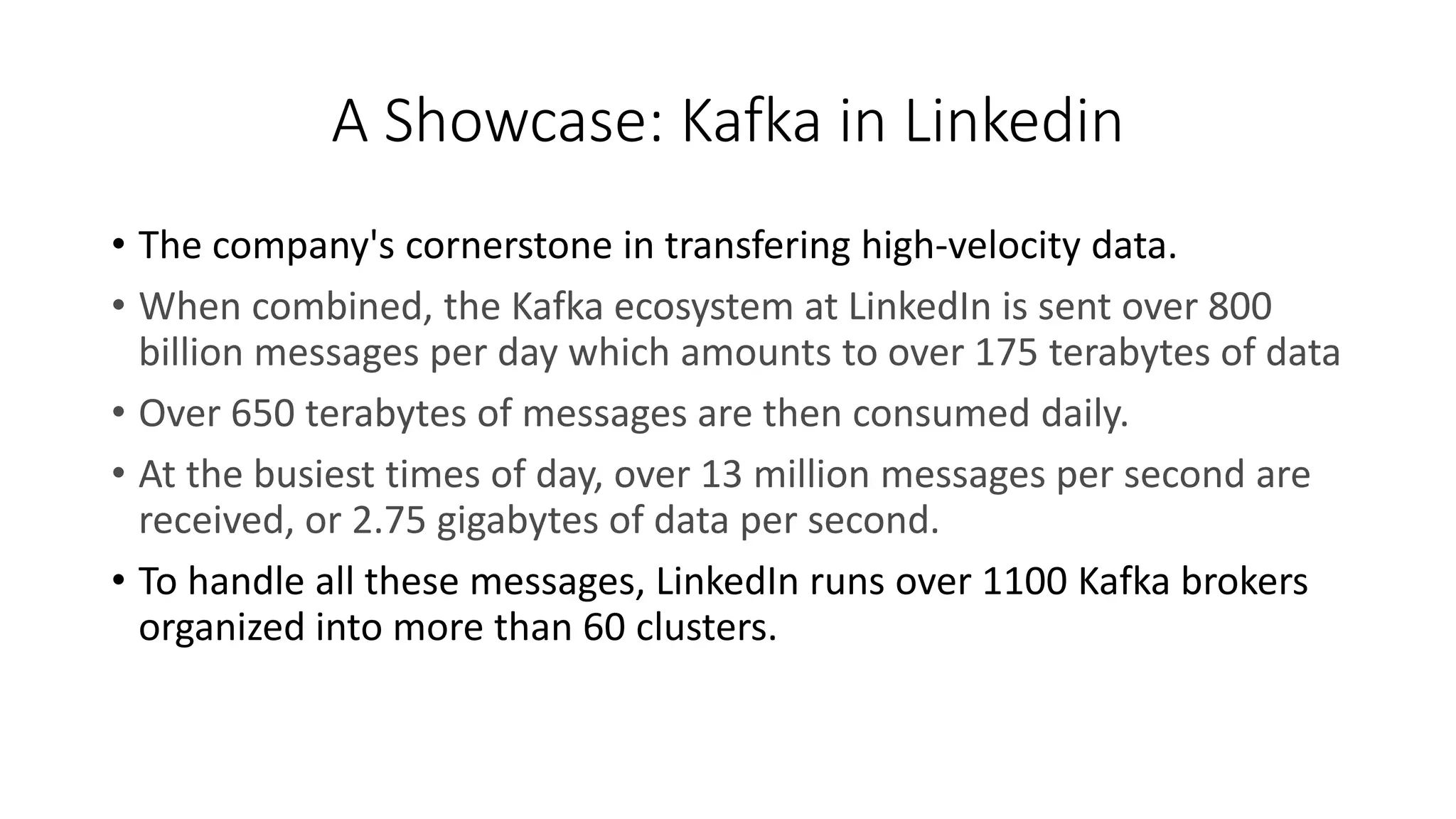

48. A Showcase: Kafka in Linkedin
• The company's cornerstone in transfering high-velocity data.
• When combined, the Kafka ecosystem at LinkedIn is sent over 800
billion messages per day which amounts to over 175 terabytes of data
• Over 650 terabytes of messages are then consumed daily.
• At the busiest times of day, over 13 million messages per second are
received, or 2.75 gigabytes of data per second.
• To handle all these messages, LinkedIn runs over 1100 Kafka brokers
organized into more than 60 clusters.

49. Linkedin's data platform before

50. and after
