1. Tao Xie
University of Illinois
at Urbana-Champaign,USA
taoxie@illinois.edu
SBQS 2013

3. IBM's Deep Blue defeated chess champion
Garry Kasparov in 1997
IBMWatson defeated top human Jeopardy!
players in 2011

4. Google’s driverless car
Microsoft's instant voice translation tool
IBMWatson as Jeopardy! player

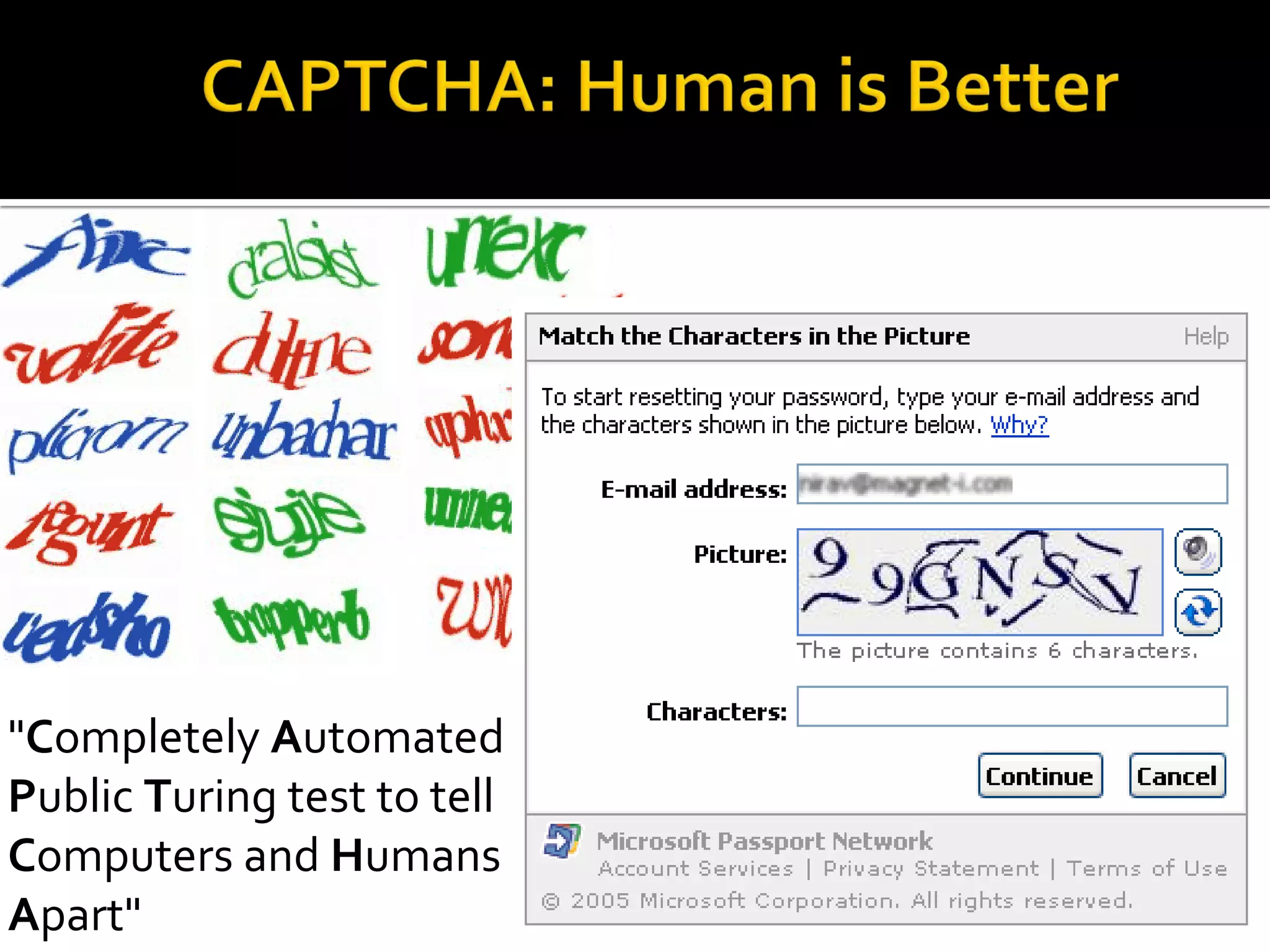

5. "Completely Automated
Public Turing test to tell
Computers and Humans
Apart"

6. Movie: Minority Report
CNN News
iPad

7. …

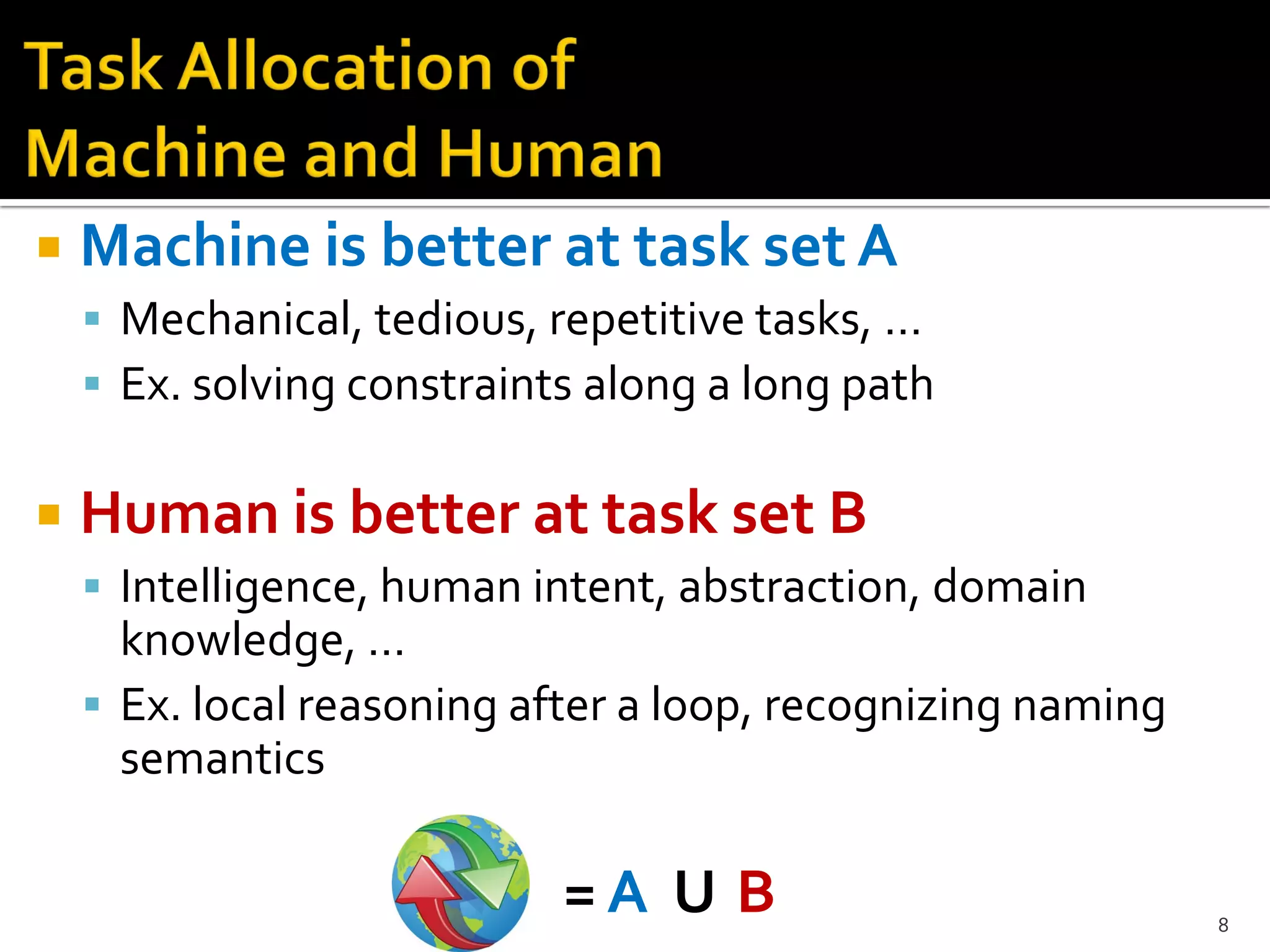

8.  Machine is better at task set A
 Mechanical, tedious, repetitive tasks, …
 Ex. solving constraints along a long path
 Human is better at task set B
 Intelligence, human intent, abstraction, domain
knowledge, …
 Ex. local reasoning after a loop, recognizing naming
semantics
= A U B 8

9. Malaysia Airlines Flight 124
@2005Lisanne Bainbridge, "Ironies of Automation”,Automatica 1983 .
“As the plane passed 39 000 feet, the stall and overspeed
warning indicators came on simultaneously—something
that’s supposed to be impossible, and a situation the crew
is not trained to handle.” IEEE Spectrum 2009

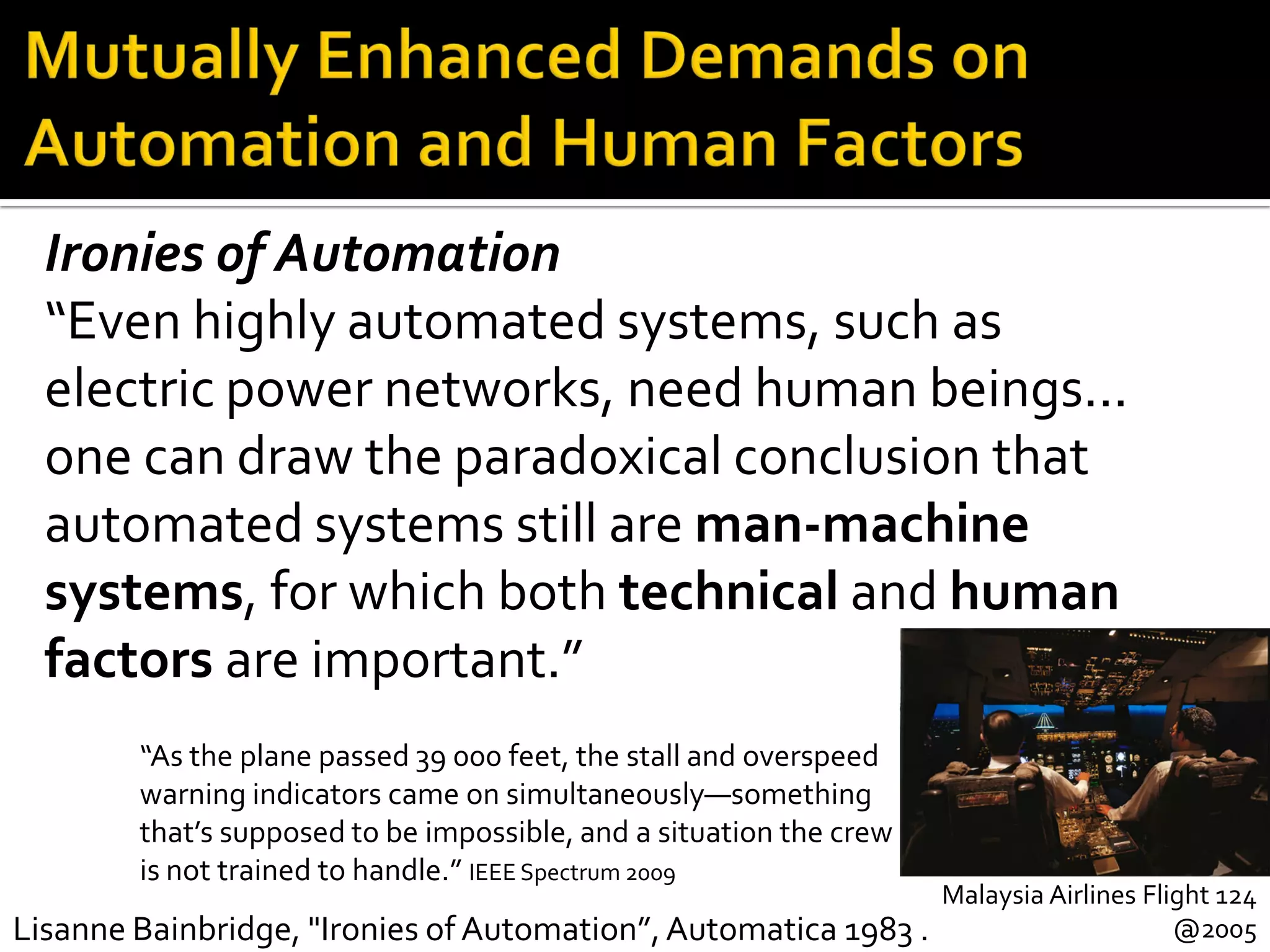

10. Malaysia Airlines Flight 124
@2005Lisanne Bainbridge, "Ironies of Automation”,Automatica 1983 .
Ironies of Automation
“Even highly automated systems, such as
electric power networks, need human beings...
one can draw the paradoxical conclusion that
automated systems still are man-machine
systems, for which both technical and human
factors are important.”
“As the plane passed 39 000 feet, the stall and overspeed
warning indicators came on simultaneously—something
that’s supposed to be impossible, and a situation the crew
is not trained to handle.” IEEE Spectrum 2009

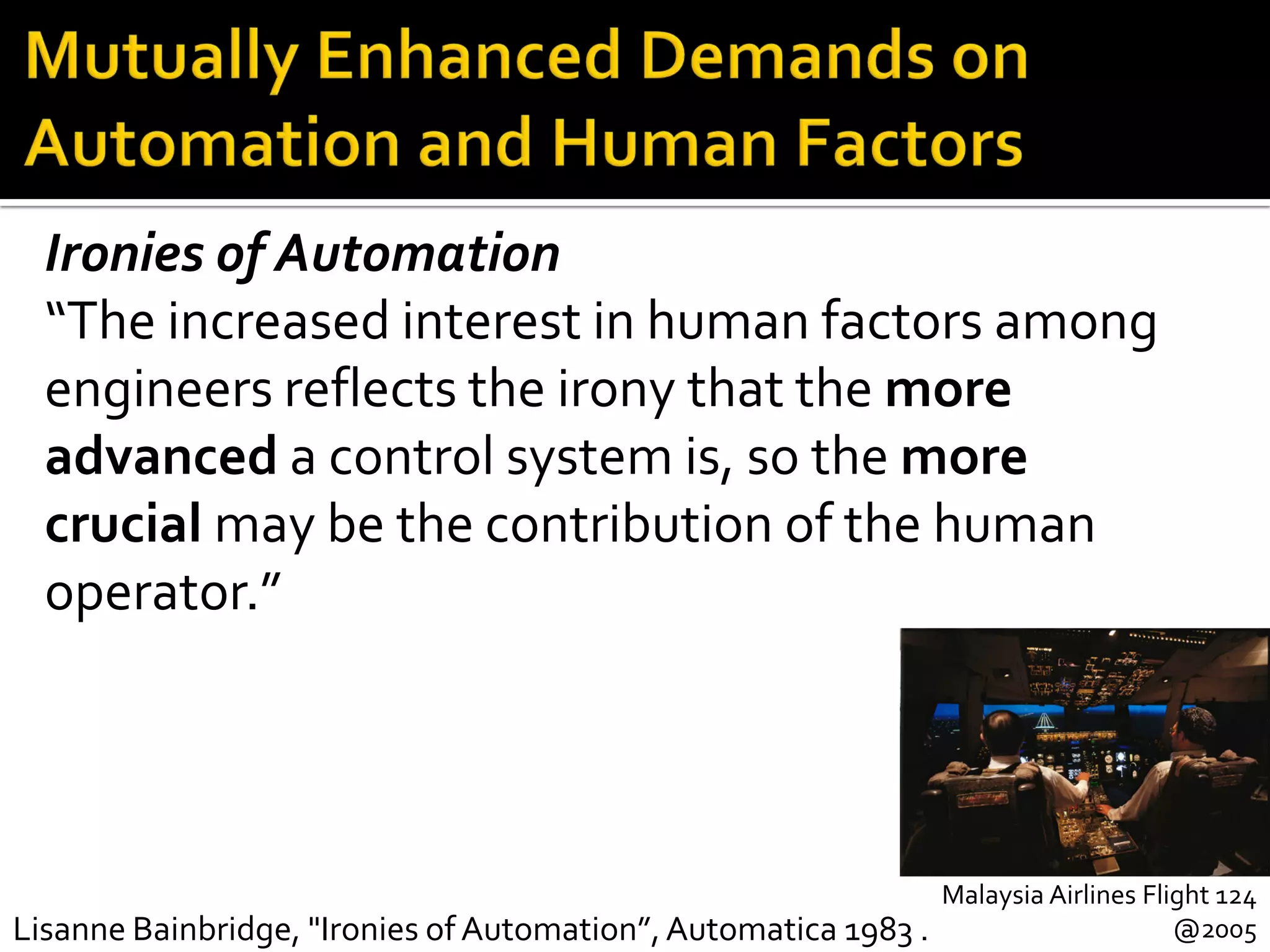

11. Malaysia Airlines Flight 124
@2005Lisanne Bainbridge, "Ironies of Automation”,Automatica 1983 .
Ironies of Automation
“The increased interest in human factors among
engineers reflects the irony that the more
advanced a control system is, so the more
crucial may be the contribution of the human
operator.”

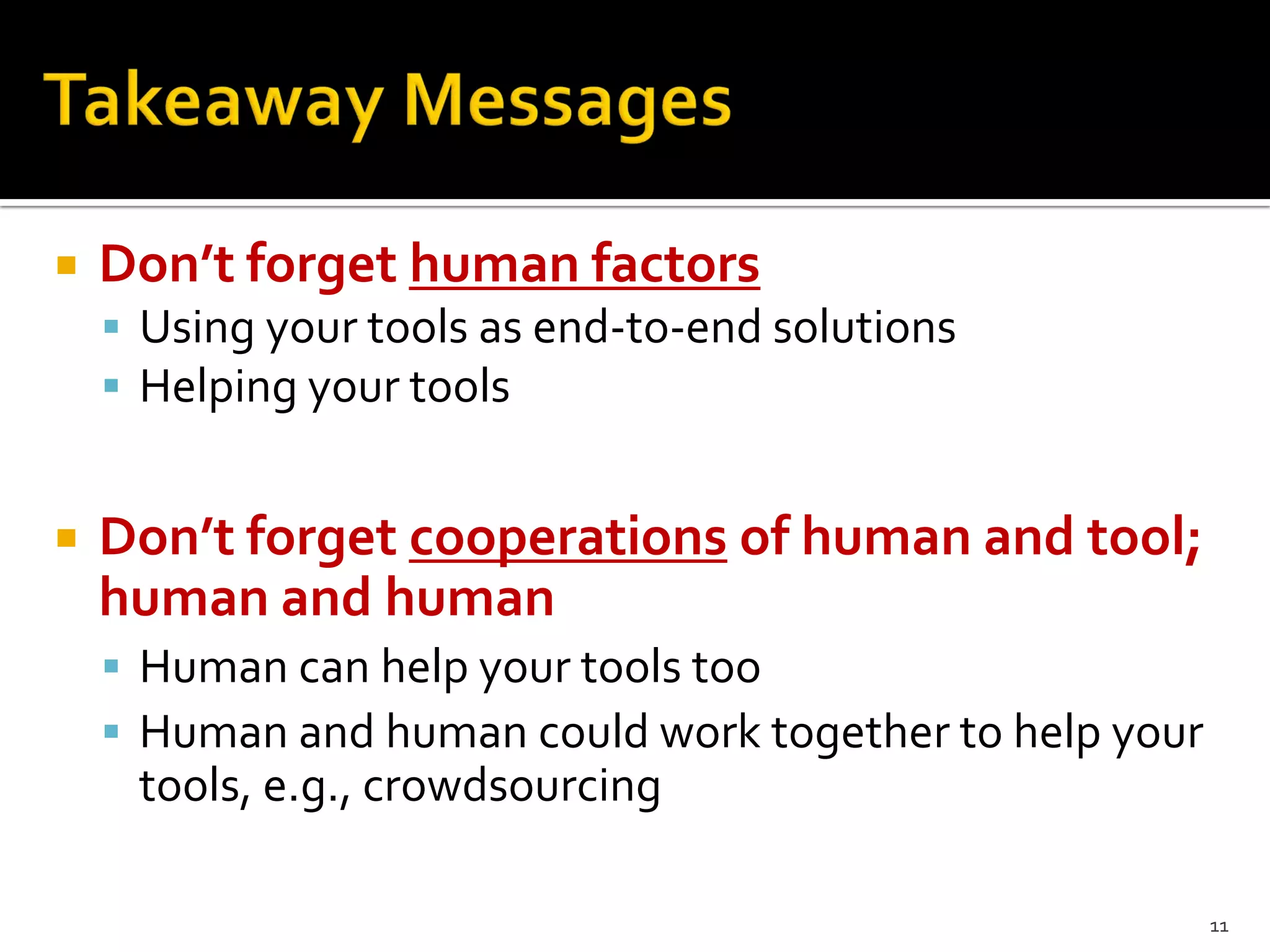

12.  Don’t forget human factors
 Using your tools as end-to-end solutions
 Helping your tools
 Don’t forget cooperations of human and tool;
human and human
 Human can help your tools too
 Human and human could work together to help your
tools, e.g., crowdsourcing
11

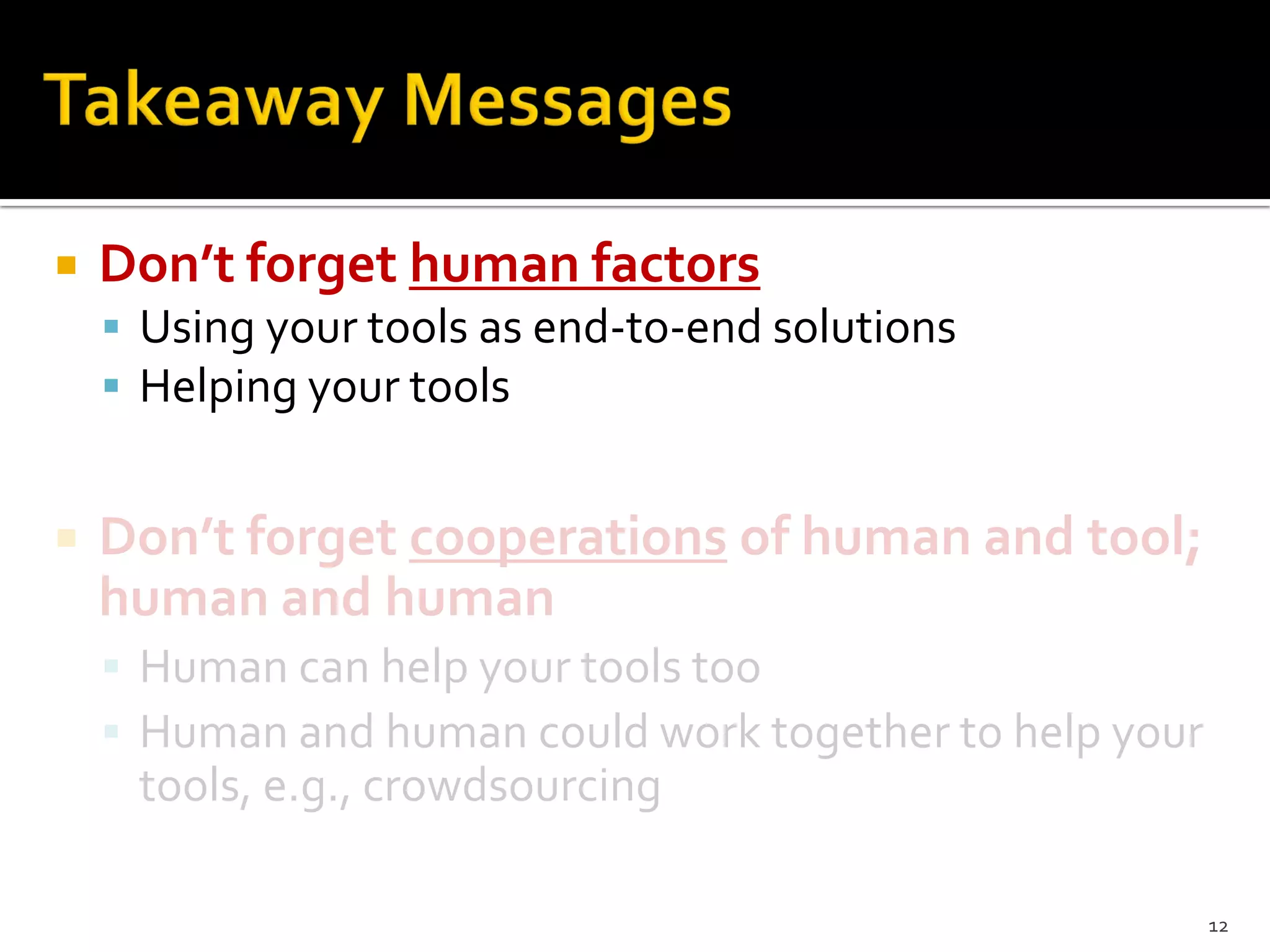

13.  Don’t forget human factors
 Using your tools as end-to-end solutions
 Helping your tools
 Don’t forget cooperations of human and tool;
human and human
 Human can help your tools too
 Human and human could work together to help your
tools, e.g., crowdsourcing
12

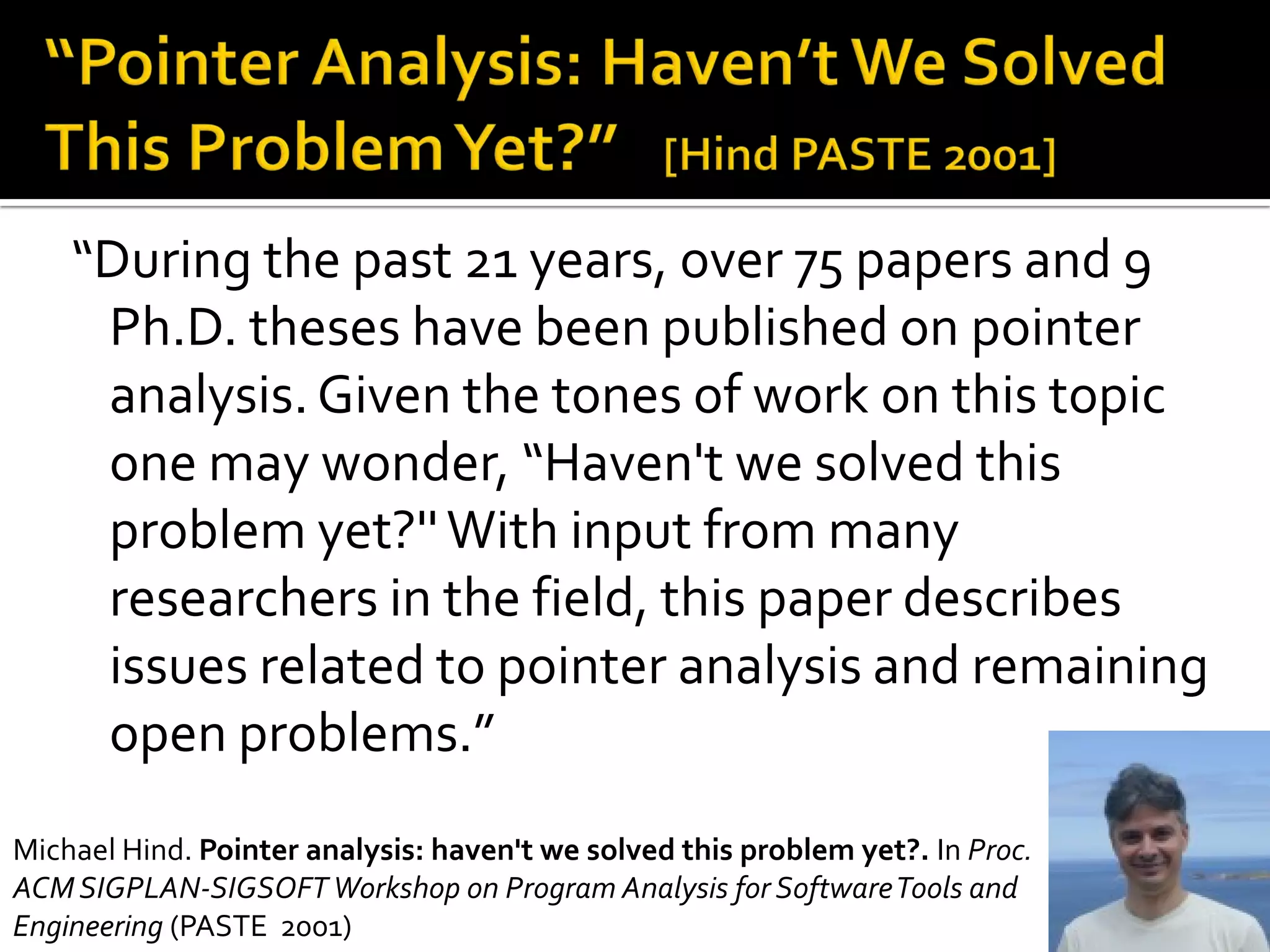

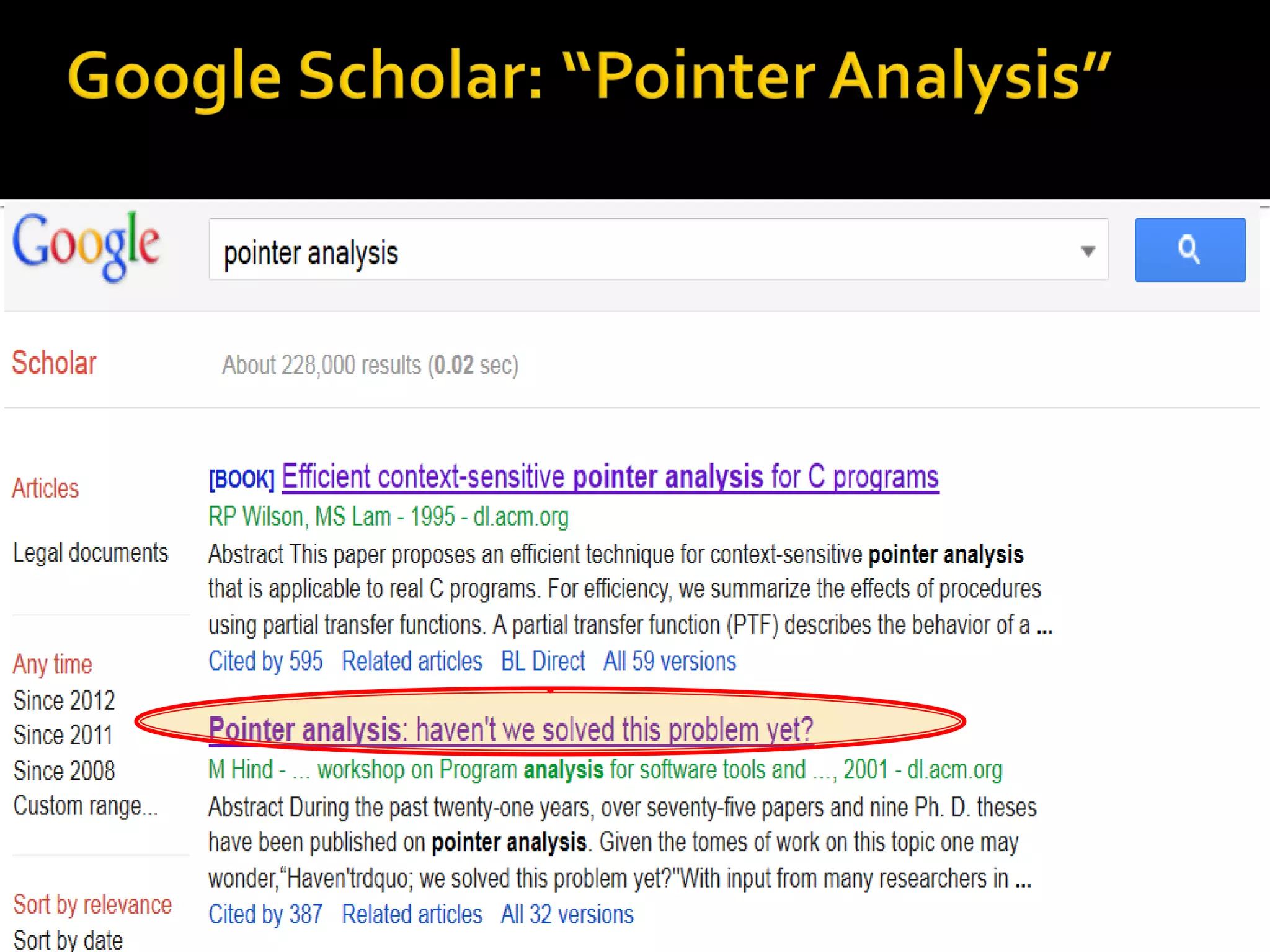

15. 14
“During the past 21 years, over 75 papers and 9
Ph.D. theses have been published on pointer
analysis.Given the tones of work on this topic
one may wonder, “Haven't we solved this
problem yet?''With input from many
researchers in the field, this paper describes
issues related to pointer analysis and remaining
open problems.”
Michael Hind. Pointer analysis: haven't we solved this problem yet?. In Proc.
ACMSIGPLAN-SIGSOFTWorkshop on Program Analysis for SoftwareTools and
Engineering (PASTE 2001)

16. 15

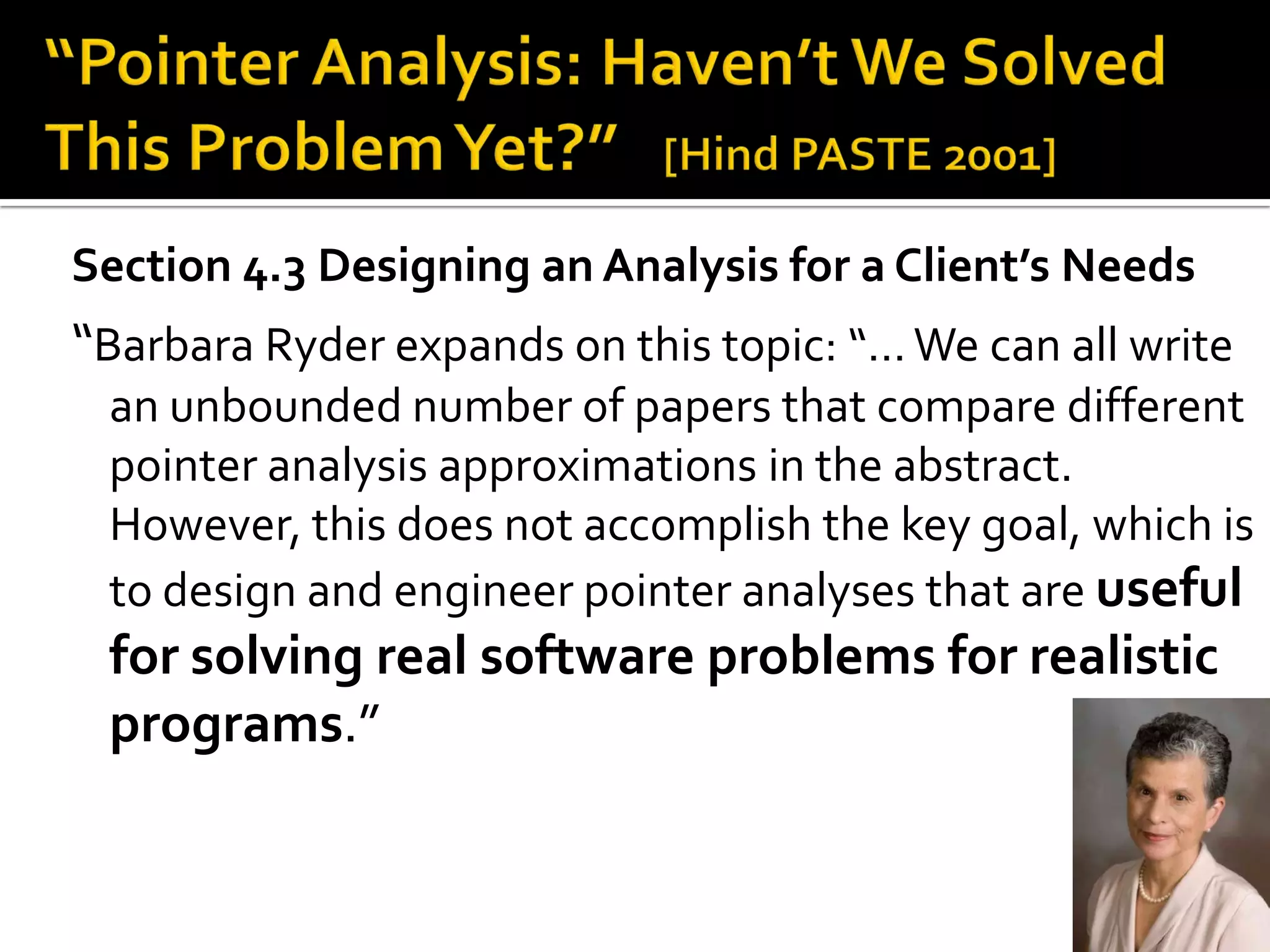

Section 4.3 Designing an Analysis for a Client’s Needs
“Barbara Ryder expands on this topic: “…We can all write
an unbounded number of papers that compare different
pointer analysis approximations in the abstract.
However, this does not accomplish the key goal, which is
to design and engineer pointer analyses that are useful
for solving real software problems for realistic
programs.”

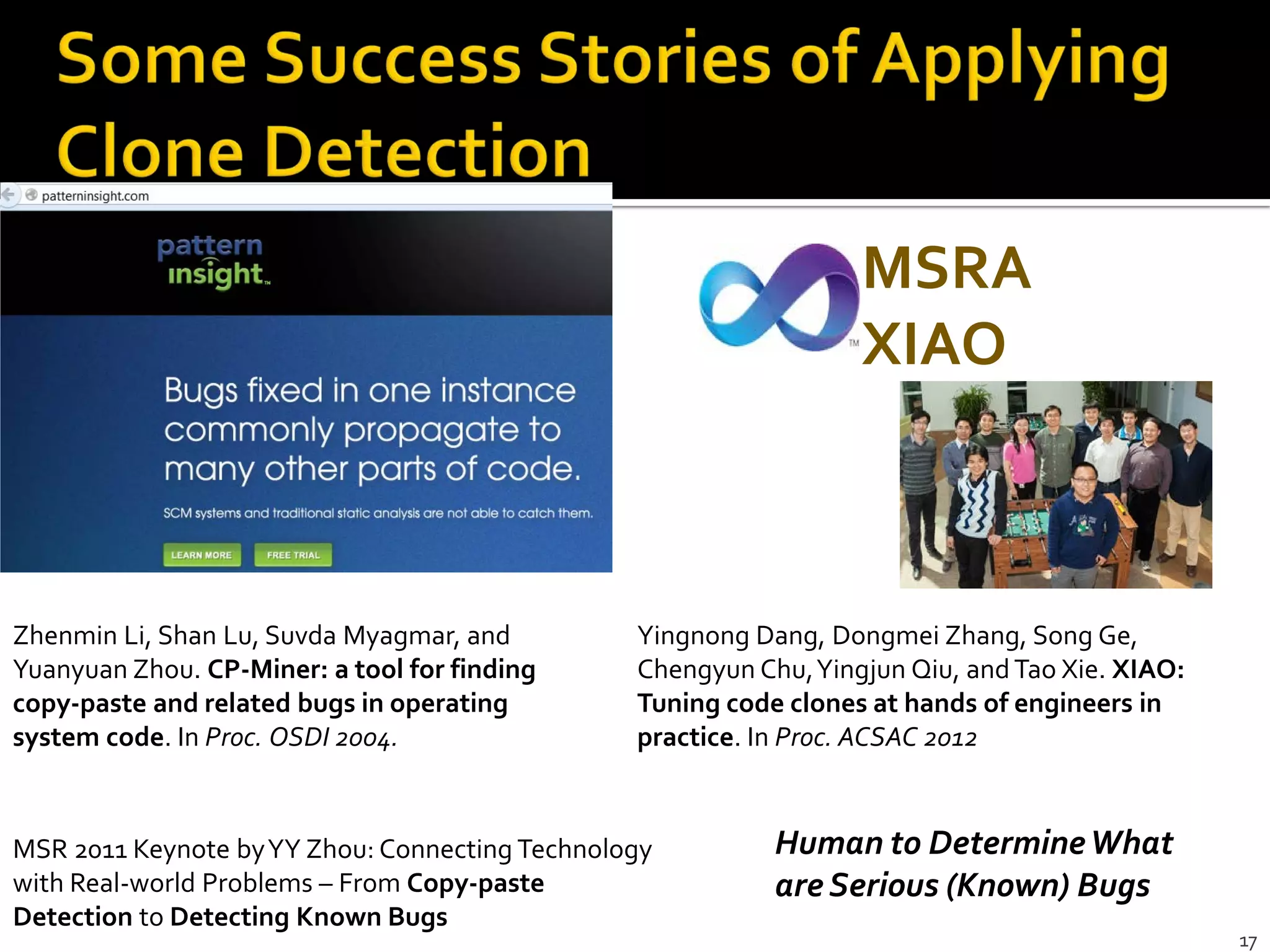

18. 17
Zhenmin Li, Shan Lu, Suvda Myagmar, and
Yuanyuan Zhou. CP-Miner: a tool for finding
copy-paste and related bugs in operating
system code. In Proc. OSDI 2004.
MSRA
XIAO
Yingnong Dang, Dongmei Zhang, Song Ge,
Chengyun Chu,Yingjun Qiu, andTao Xie. XIAO:
Tuning code clones at hands of engineers in
practice. In Proc. ACSAC 2012
MSR 2011 Keynote byYY Zhou: Connecting Technology
with Real-world Problems – From Copy-paste
Detection to Detecting Known Bugs
Human to DetermineWhat
are Serious (Known) Bugs

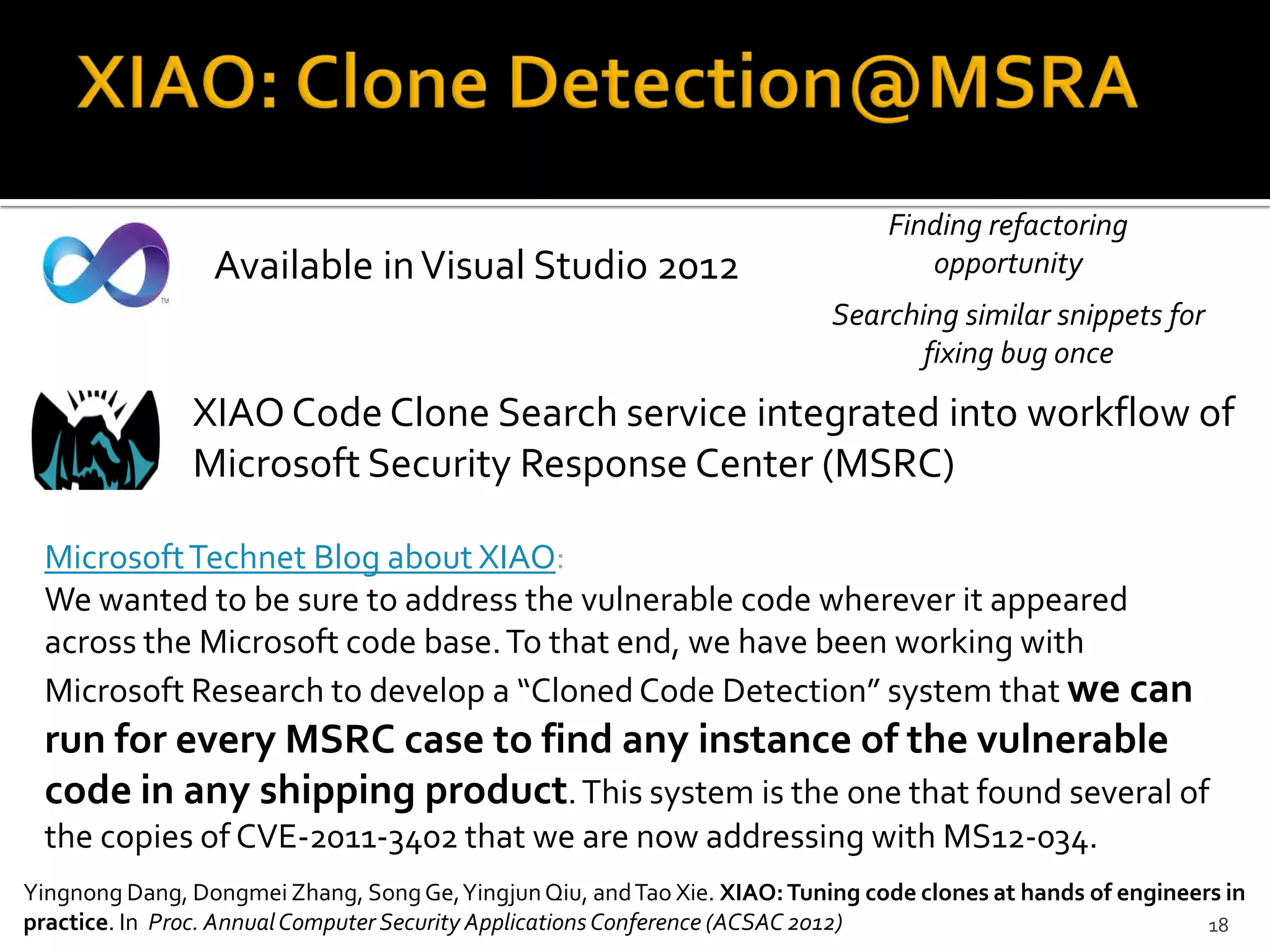

19. 18
Available inVisual Studio 2012
Searching similar snippets for
fixing bug once
Finding refactoring
opportunity
Yingnong Dang, Dongmei Zhang, SongGe,YingjunQiu, andTao Xie. XIAO:Tuning code clones at hands of engineers in
practice. In Proc. AnnualComputer Security ApplicationsConference (ACSAC 2012)
XIAOCode Clone Search service integrated into workflow of
Microsoft Security Response Center (MSRC)
MicrosoftTechnet Blog about XIAO:
We wanted to be sure to address the vulnerable code wherever it appeared
across the Microsoft code base.To that end, we have been working with
Microsoft Research to develop a “Cloned Code Detection” system that we can
run for every MSRC case to find any instance of the vulnerable
code in any shipping product.This system is the one that found several of
the copies of CVE-2011-3402 that we are now addressing with MS12-034.

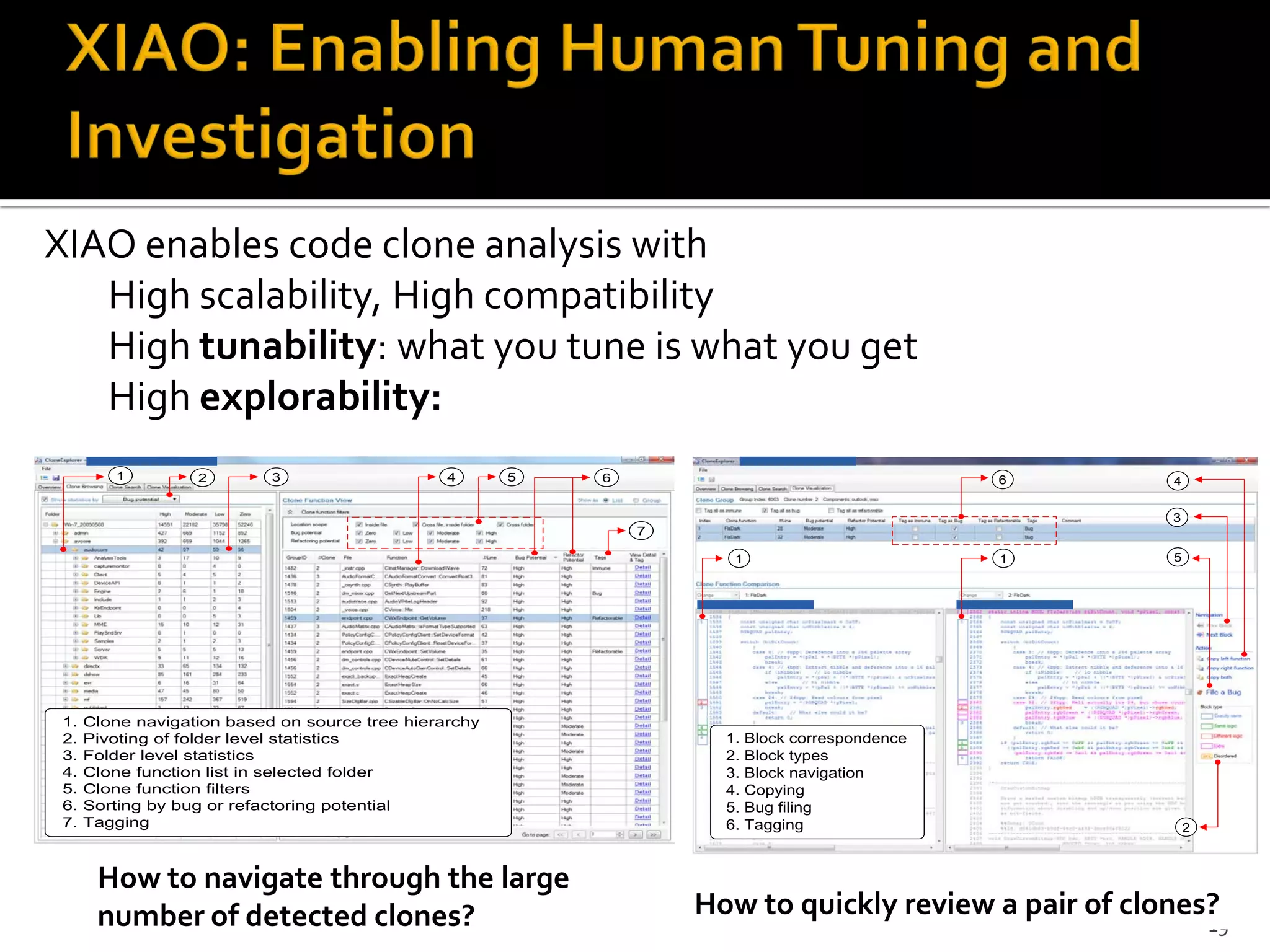

20. 19
XIAO enables code clone analysis with
High scalability, High compatibility
High tunability: what you tune is what you get
High explorability:
1. Clone navigation based on source tree hierarchy
2. Pivoting of folder level statistics
3. Folder level statistics
4. Clone function list in selected folder
5. Clone function filters
6. Sorting by bug or refactoring potential
7. Tagging
1 2 3 4 5 6
7
1. Block correspondence
2. Block types
3. Block navigation
4. Copying
5. Bug filing
6. Tagging
1
2
3
4
1
6
5
How to navigate through the large
number of detected clones? How to quickly review a pair of clones?

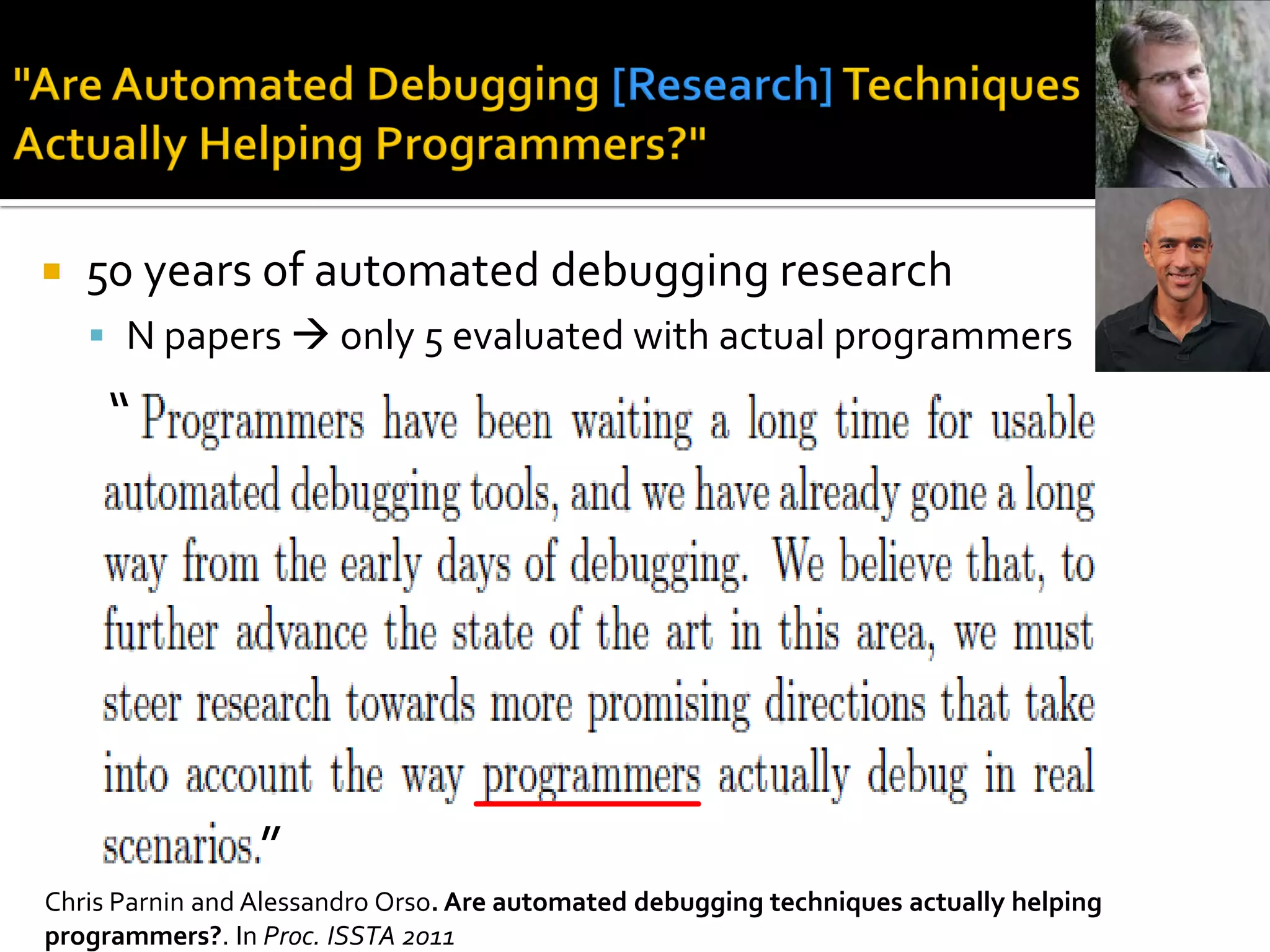

21.  50 years of automated debugging research
 N papers  only 5 evaluated with actual programmers
“
”
Chris Parnin and Alessandro Orso. Are automated debugging techniques actually helping
programmers?. In Proc. ISSTA 2011

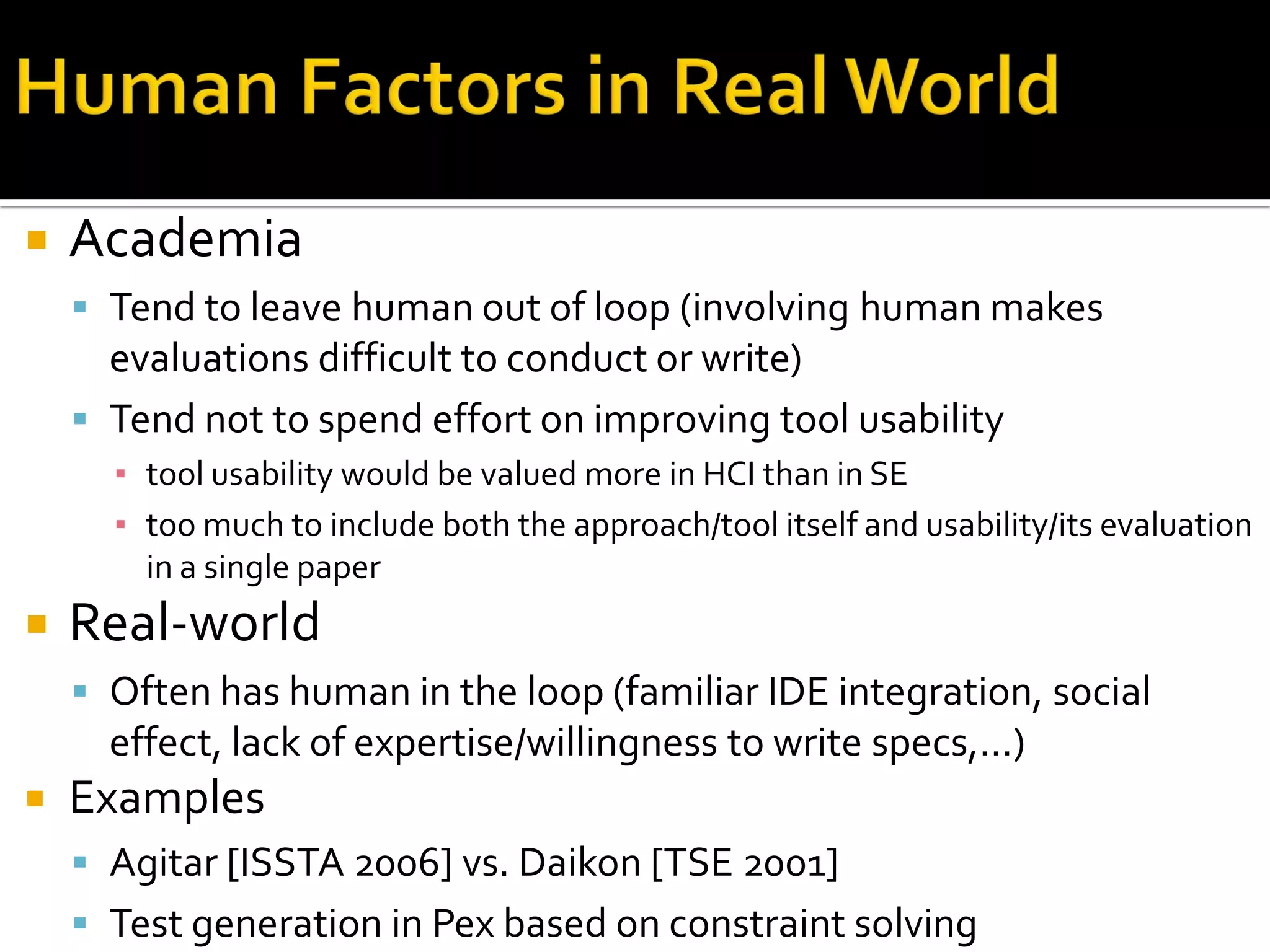

22.  Academia
 Tend to leave human out of loop (involving human makes
evaluations difficult to conduct or write)
 Tend not to spend effort on improving tool usability
▪ tool usability would be valued more in HCI than in SE
▪ too much to include both the approach/tool itself and usability/its evaluation
in a single paper
 Real-world
 Often has human in the loop (familiar IDE integration, social
effect, lack of expertise/willingness to write specs,…)
 Examples
 Agitar [ISSTA 2006] vs. Daikon [TSE 2001]
 Test generation in Pex based on constraint solving

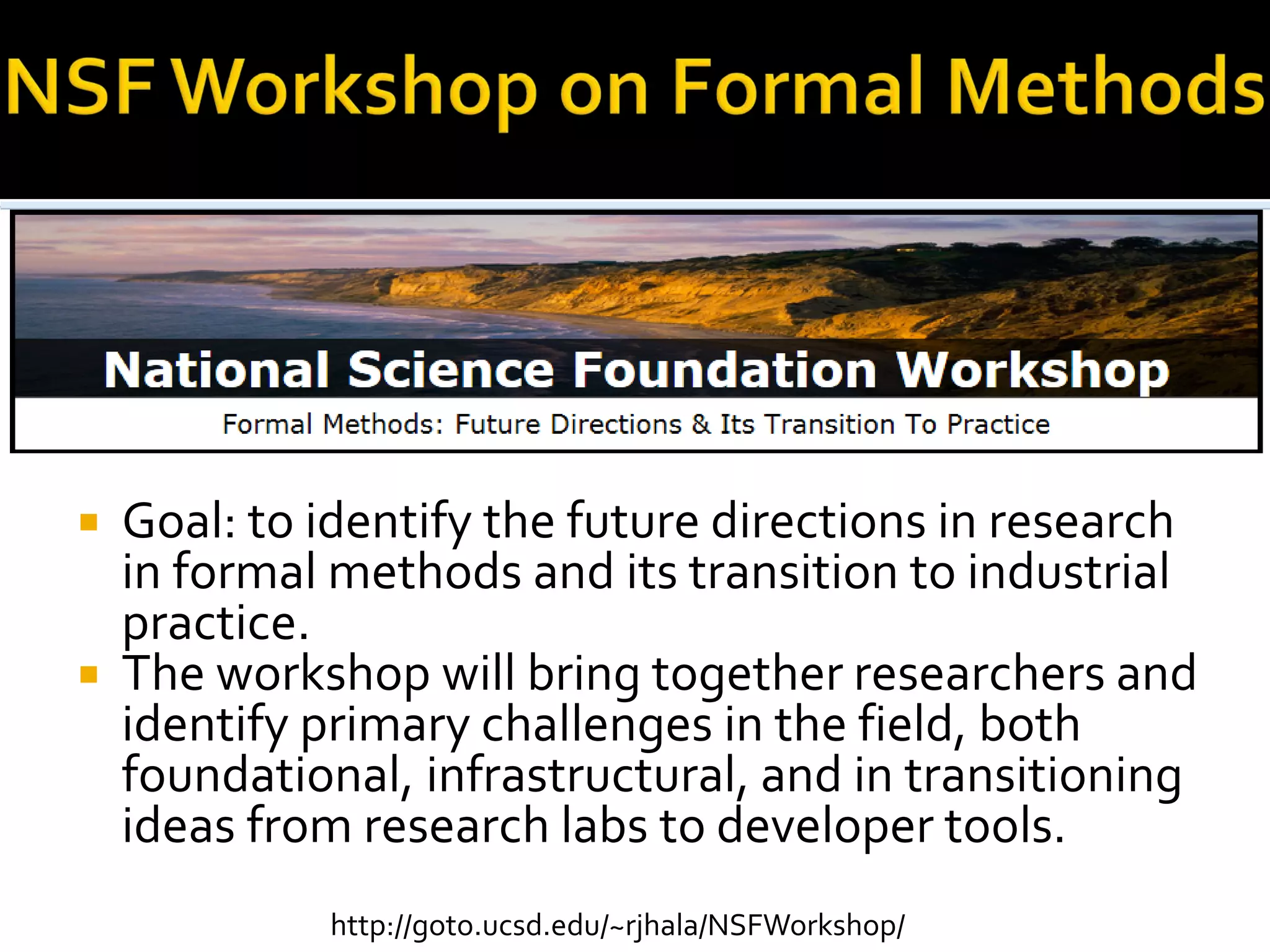

23.  Goal: to identify the future directions in research
in formal methods and its transition to industrial
practice.
 The workshop will bring together researchers and
identify primary challenges in the field, both
foundational, infrastructural, and in transitioning
ideas from research labs to developer tools.
http://goto.ucsd.edu/~rjhala/NSFWorkshop/

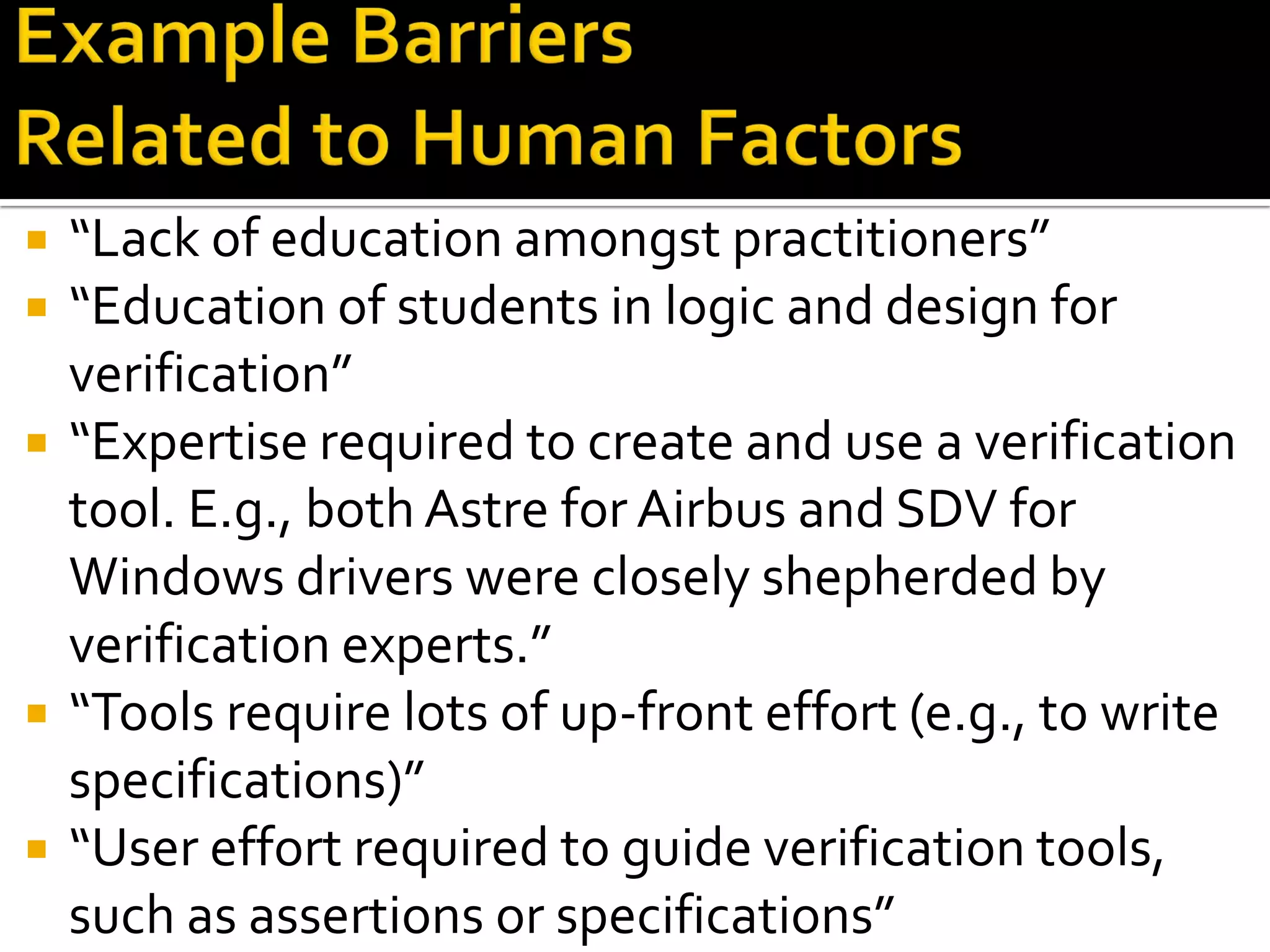

24.  “Lack of education amongst practitioners”
 “Education of students in logic and design for
verification”
 “Expertise required to create and use a verification
tool. E.g., both Astre for Airbus and SDV for
Windows drivers were closely shepherded by
verification experts.”
 “Tools require lots of up-front effort (e.g., to write
specifications)”
 “User effort required to guide verification tools,
such as assertions or specifications”

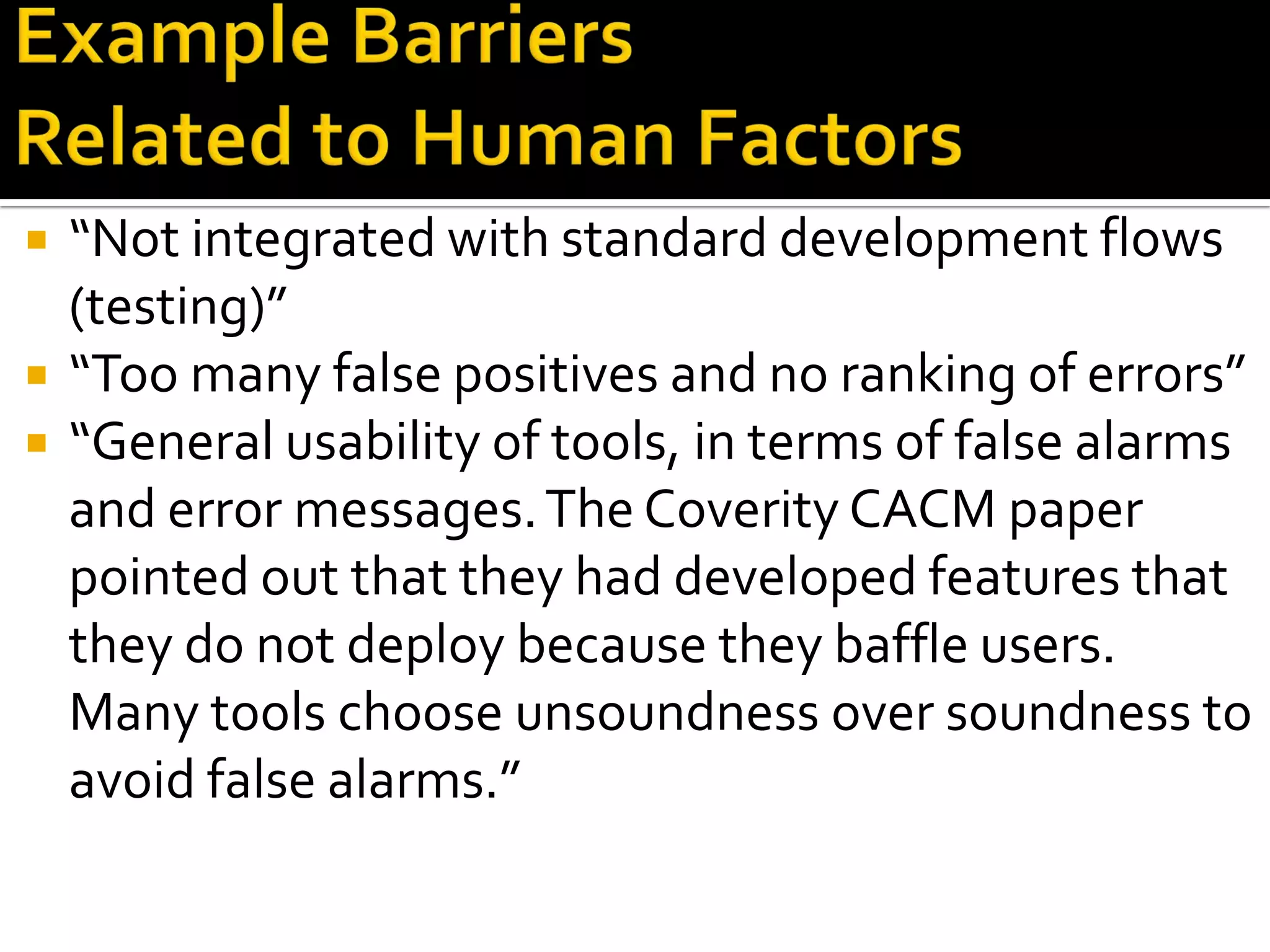

25.  “Not integrated with standard development flows
(testing)”
 “Too many false positives and no ranking of errors”
 “General usability of tools, in terms of false alarms
and error messages.The Coverity CACM paper
pointed out that they had developed features that
they do not deploy because they baffle users.
Many tools choose unsoundness over soundness to
avoid false alarms.”

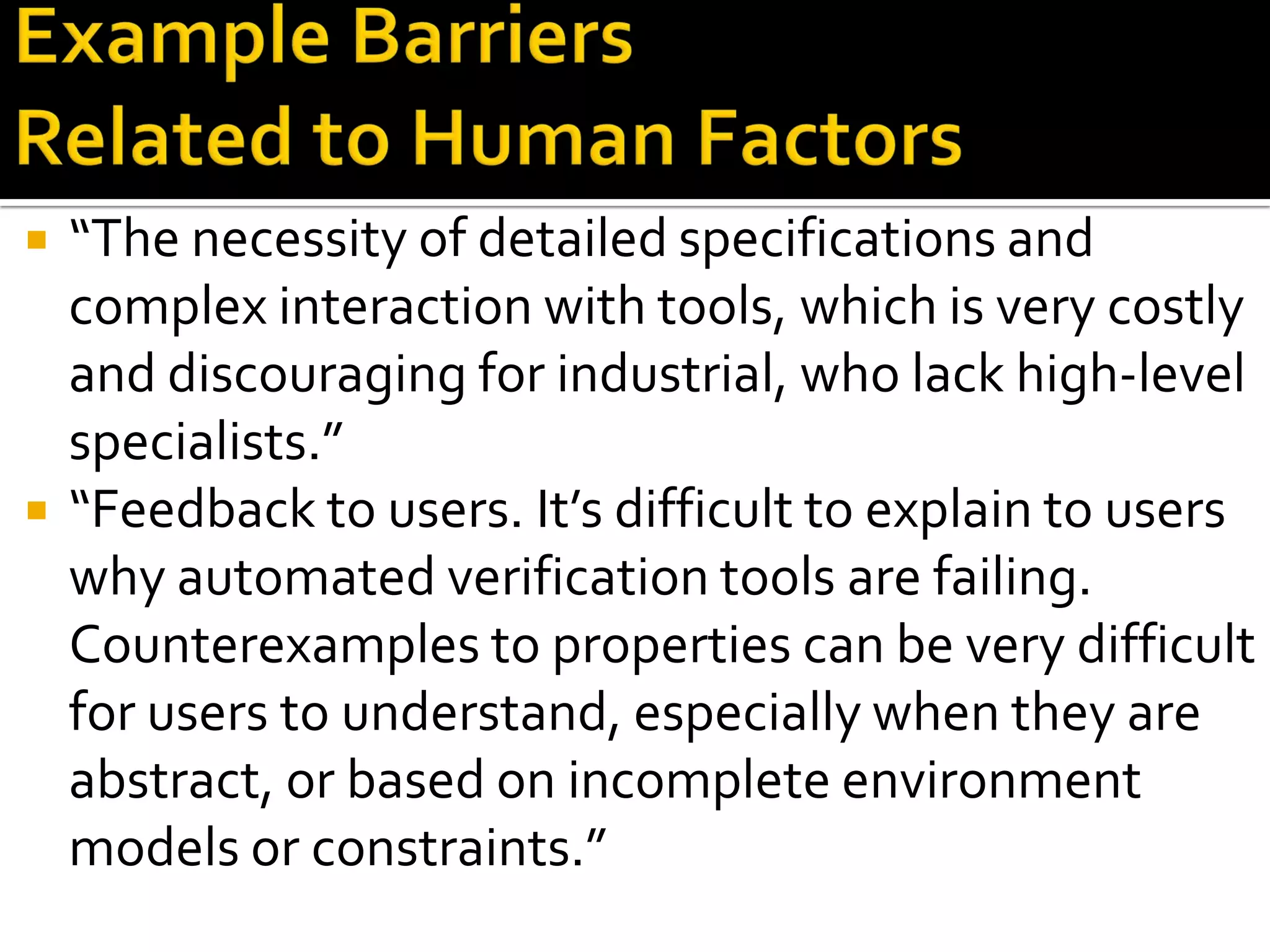

26.  “The necessity of detailed specifications and
complex interaction with tools, which is very costly
and discouraging for industrial, who lack high-level
specialists.”
 “Feedback to users. It’s difficult to explain to users
why automated verification tools are failing.
Counterexamples to properties can be very difficult
for users to understand, especially when they are
abstract, or based on incomplete environment
models or constraints.”

27. 2010 Dagstuhl Seminar 10111
Practical Software Testing: Tool Automation and Human Factors
http://www.dagstuhl.de/programm/kalender/semhp/?semnr=1011

28. 2010 Dagstuhl Seminar 10111
Practical Software Testing: Tool Automation and Human Factors
Human Factors
http://www.dagstuhl.de/programm/kalender/semhp/?semnr=1011

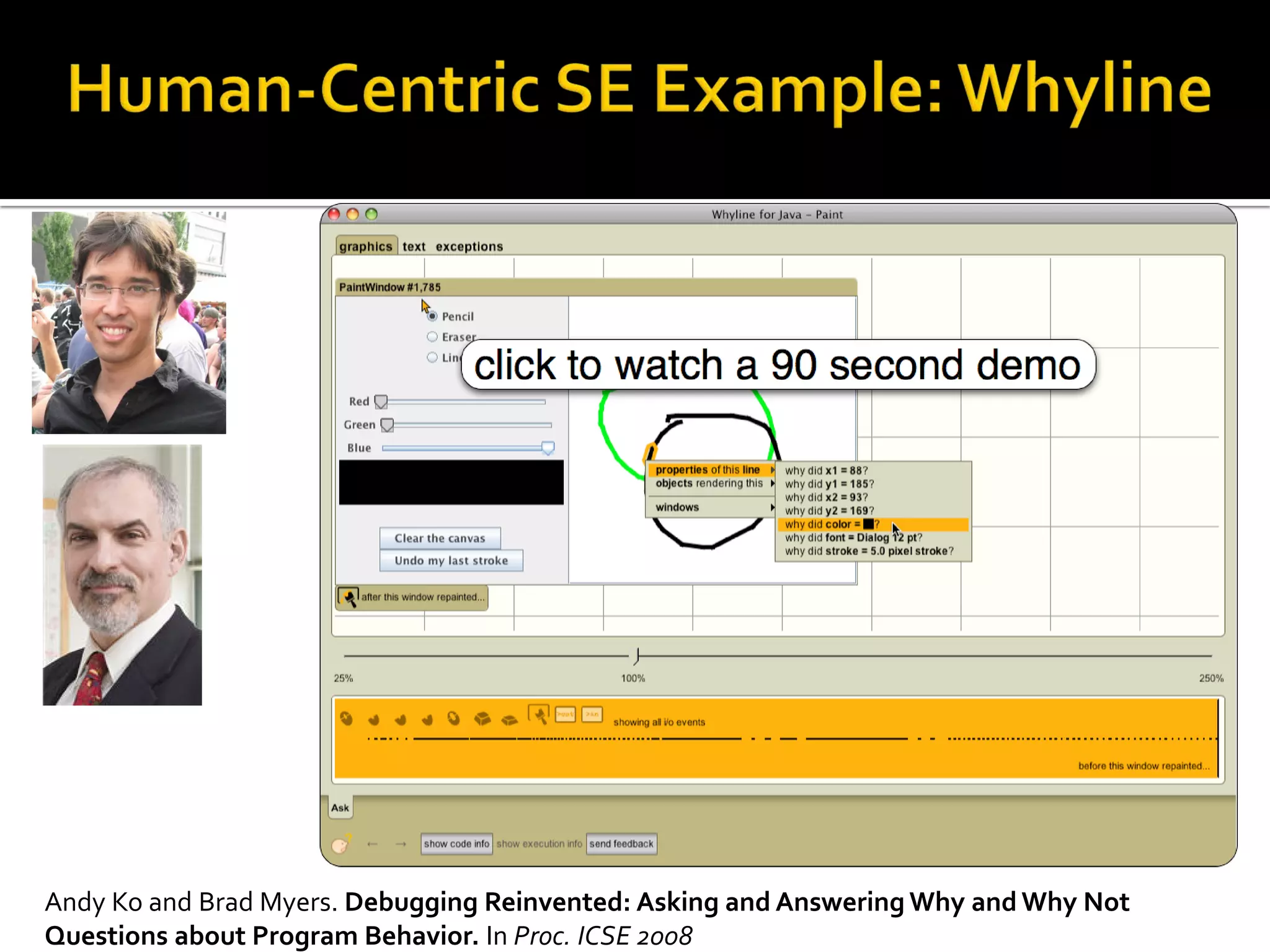

29. Andy Ko and Brad Myers. Debugging Reinvented: Asking and Answering Why and Why Not
Questions about Program Behavior. In Proc. ICSE 2008

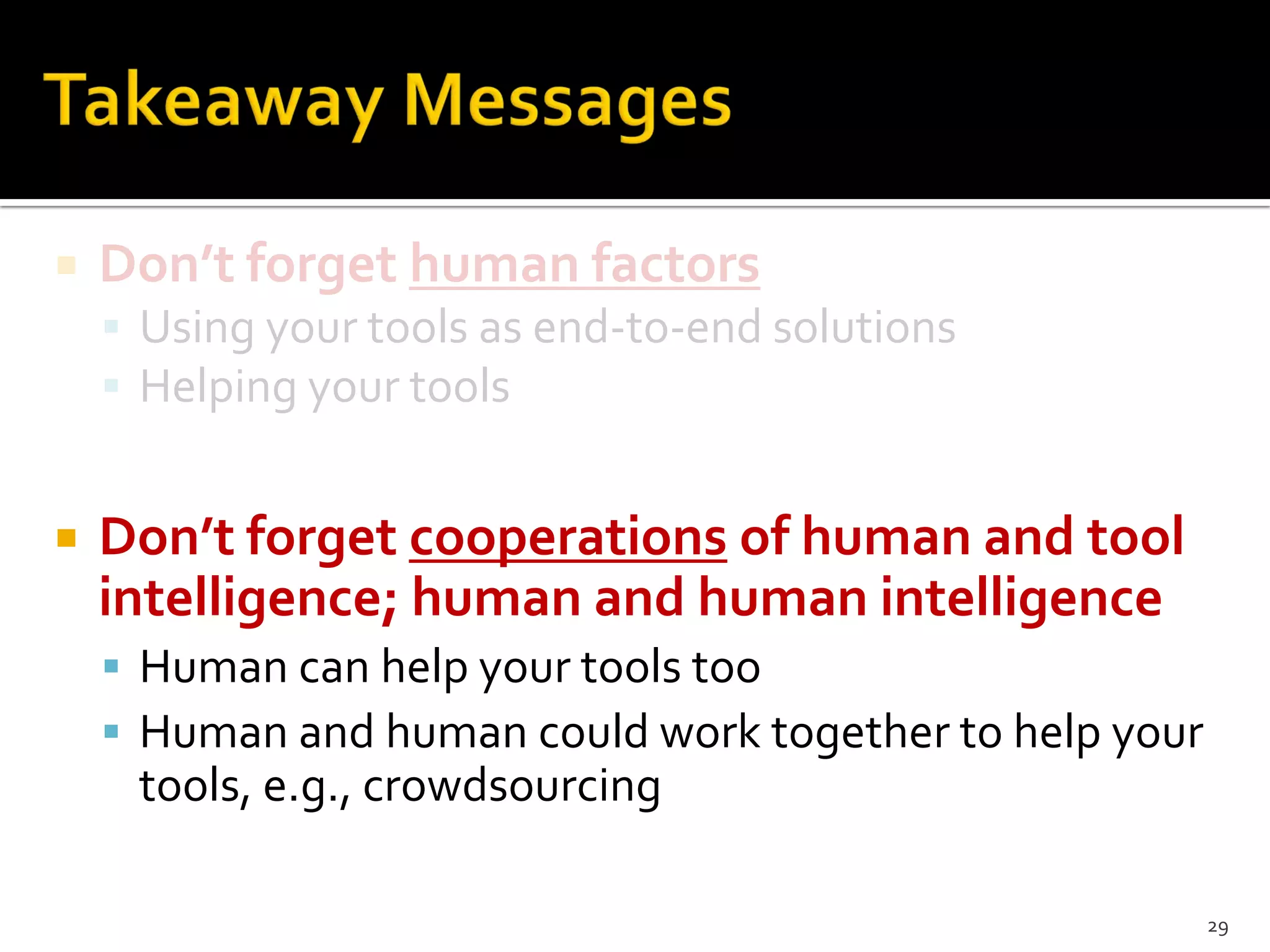

30.  Don’t forget human factors
 Using your tools as end-to-end solutions
 Helping your tools
 Don’t forget cooperations of human and tool
intelligence; human and human intelligence
 Human can help your tools too
 Human and human could work together to help your
tools, e.g., crowdsourcing
29

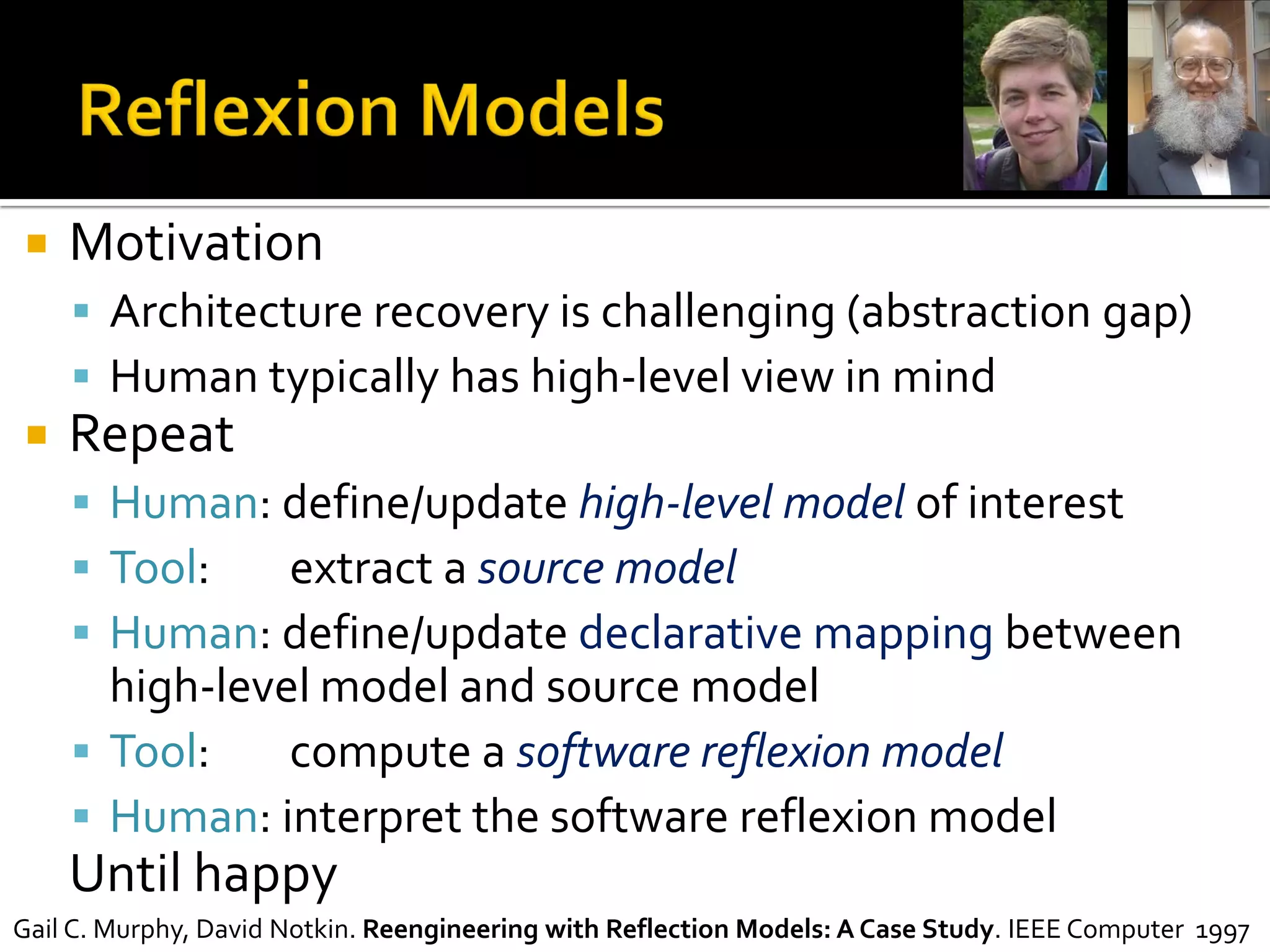

31.  Motivation
 Architecture recovery is challenging (abstraction gap)
 Human typically has high-level view in mind
 Repeat
 Human: define/update high-level model of interest
 Tool: extract a source model
 Human: define/update declarative mapping between
high-level model and source model
 Tool: compute a software reflexion model
 Human: interpret the software reflexion model
Until happy
Gail C. Murphy, David Notkin. Reengineering with Reflection Models: A Case Study. IEEE Computer 1997

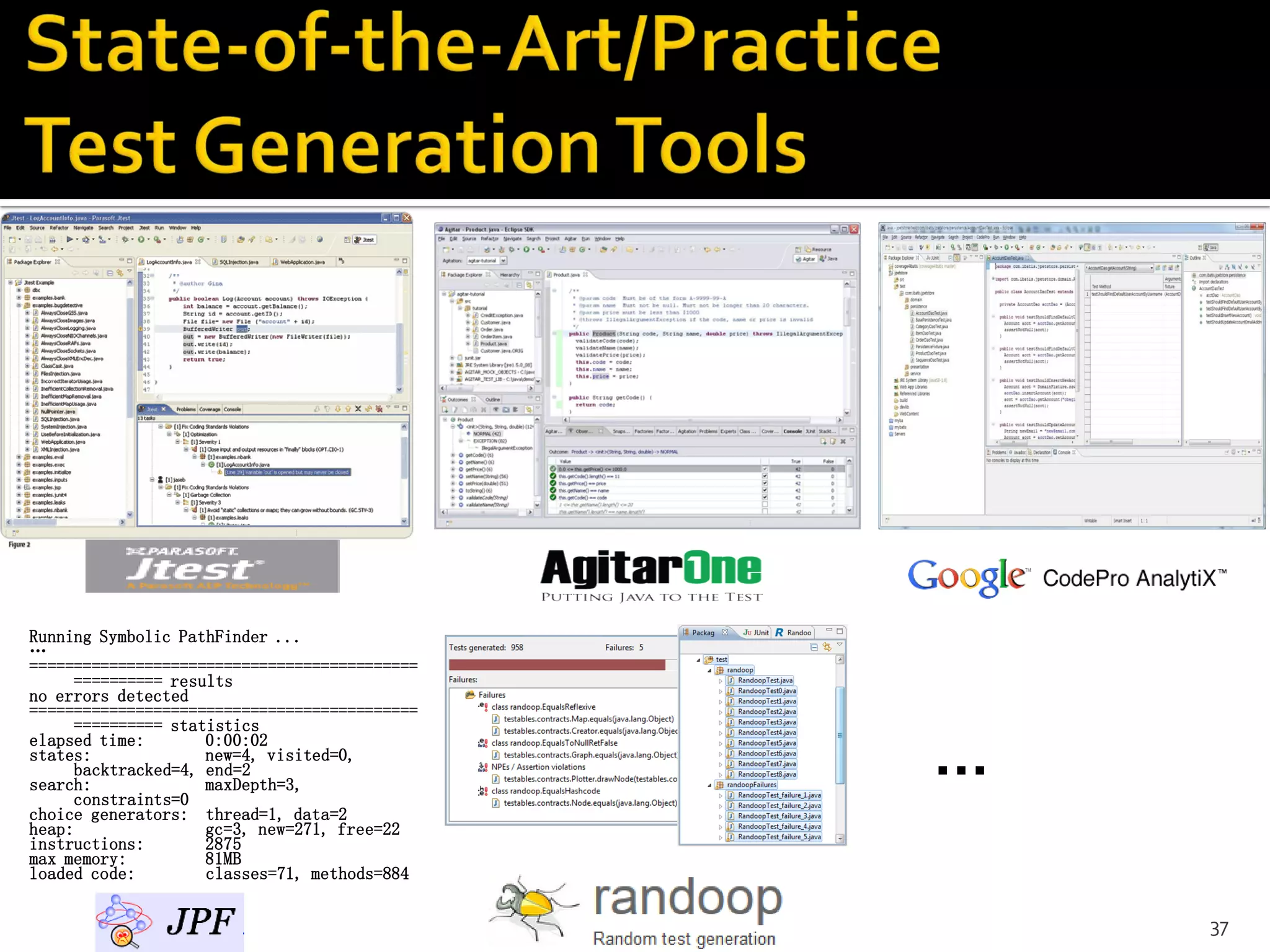

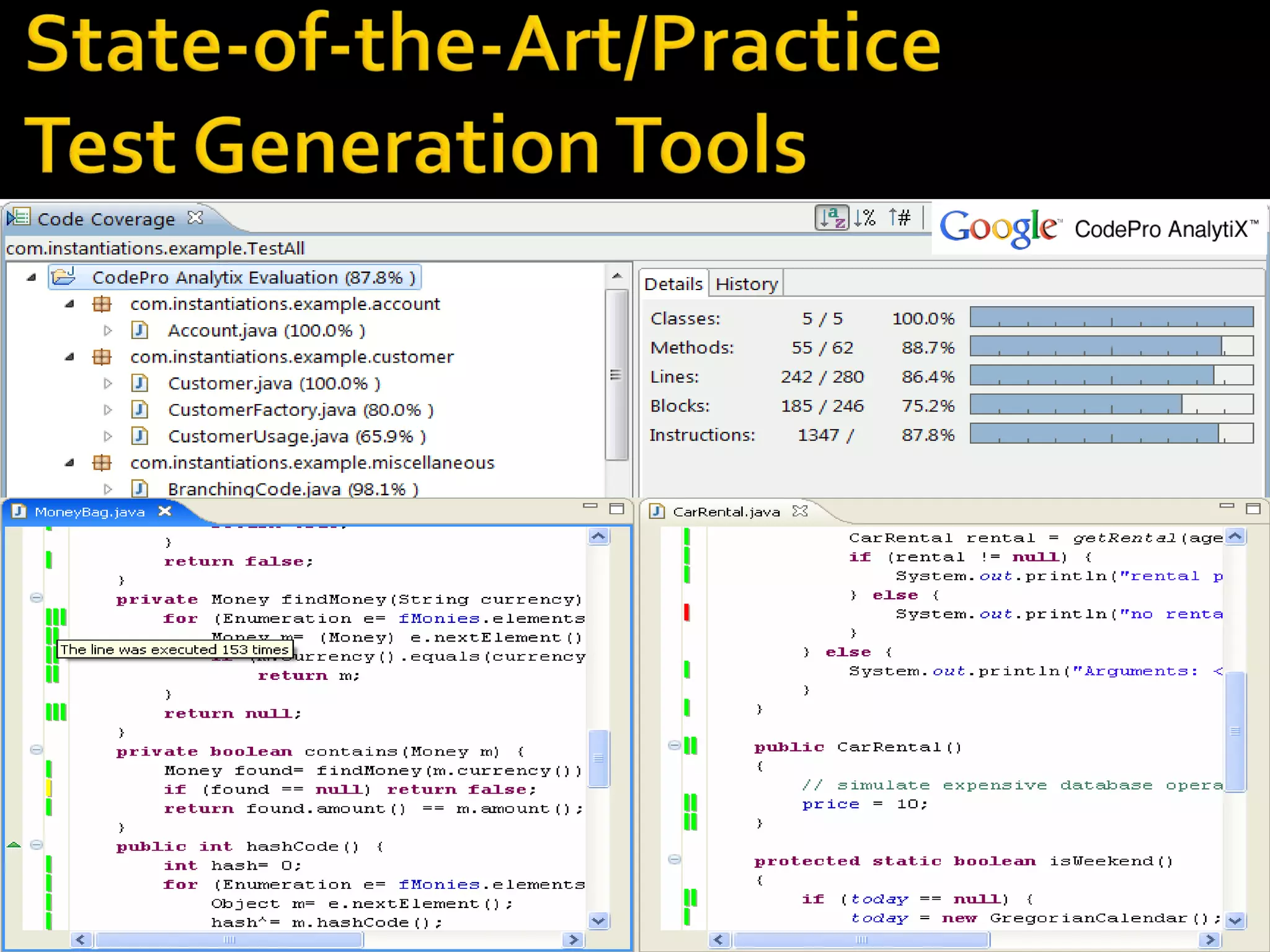

32. Running Symbolic PathFinder ...
…
============================================
========== results
no errors detected
============================================
========== statistics
elapsed time: 0:00:02
states: new=4, visited=0,
backtracked=4, end=2
search: maxDepth=3,
constraints=0
choice generators: thread=1, data=2
heap: gc=3, new=271, free=22
instructions: 2875
max memory: 81MB
loaded code: classes=71, methods=884
…
31

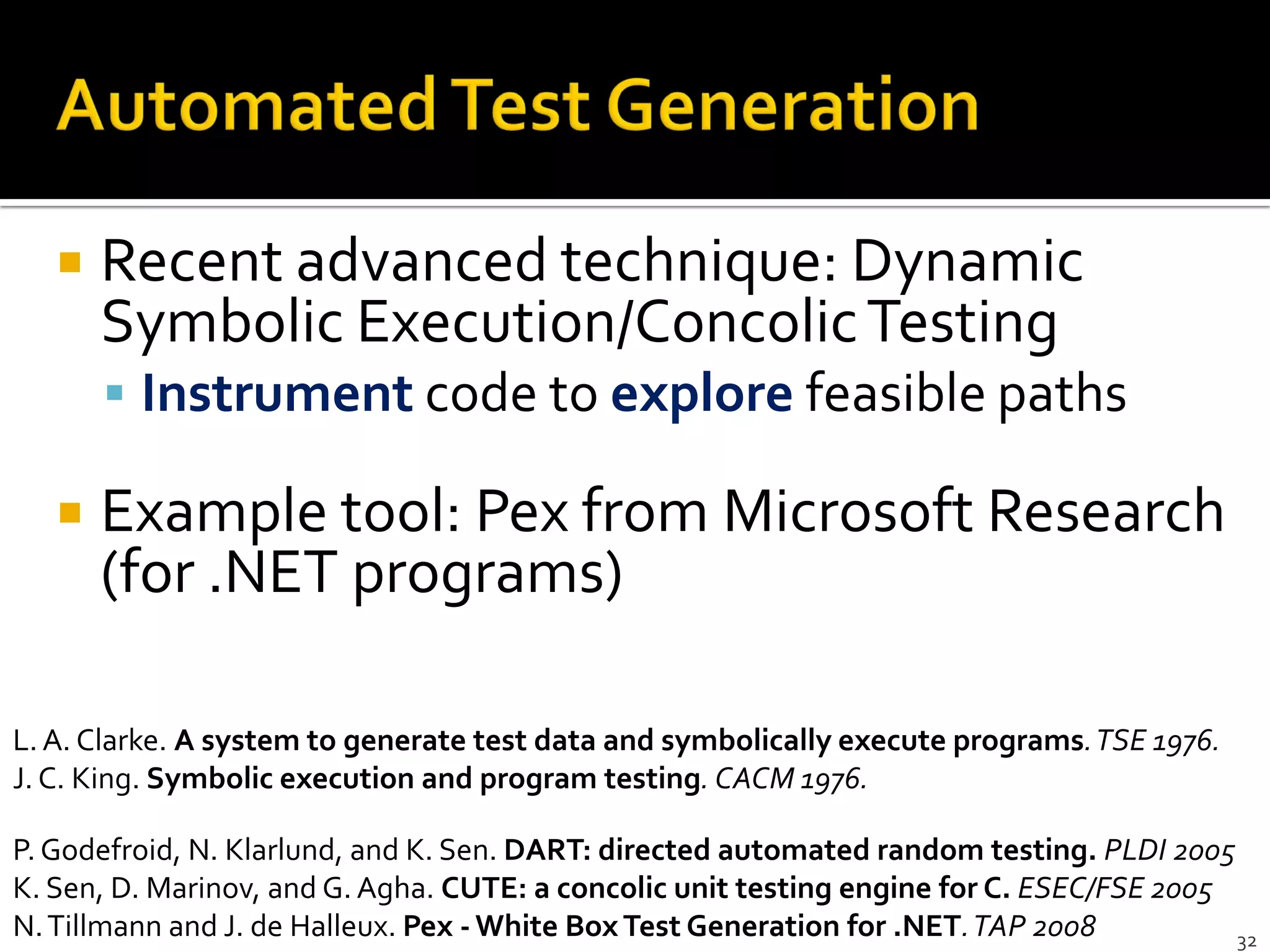

33. 32

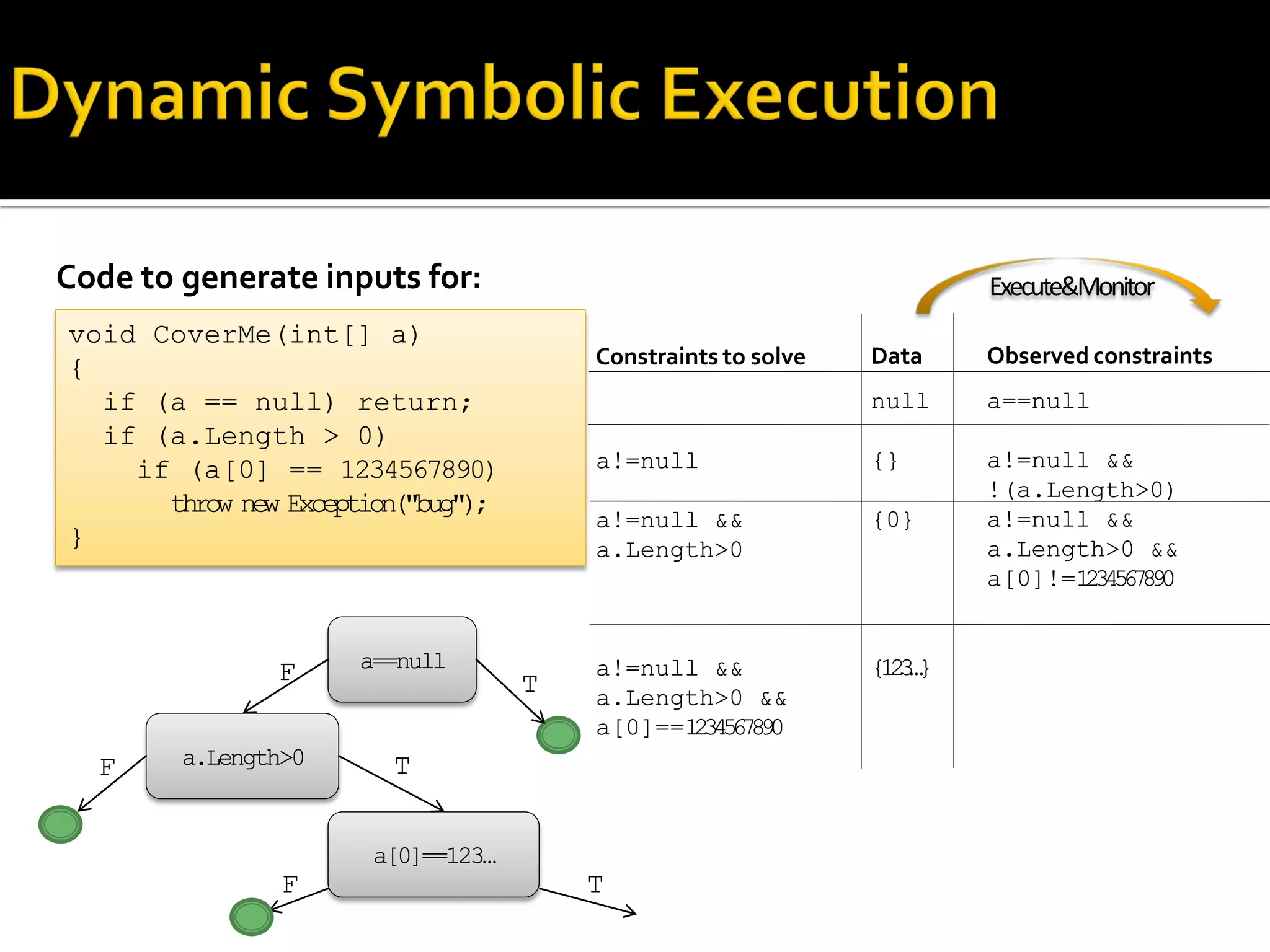

 Recent advanced technique: Dynamic
Symbolic Execution/ConcolicTesting
 Instrument code to explore feasible paths

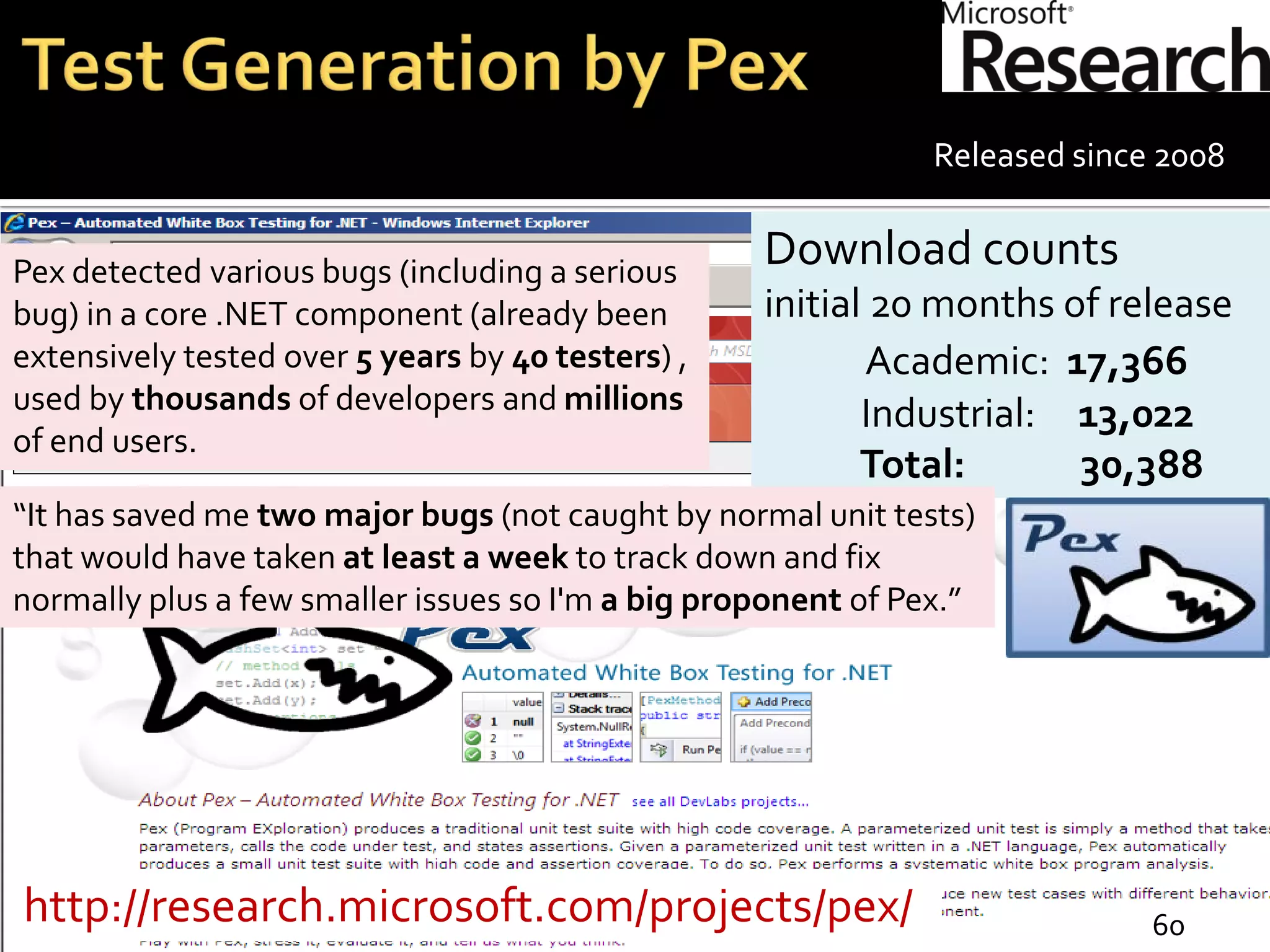

 Example tool: Pex from Microsoft Research
(for .NET programs)
P.Godefroid, N. Klarlund, and K. Sen. DART: directed automated random testing. PLDI 2005
K. Sen, D. Marinov, and G. Agha. CUTE: a concolic unit testing engine for C. ESEC/FSE 2005
N.Tillmann and J. de Halleux. Pex - White BoxTest Generation for .NET.TAP 2008
L.A. Clarke. A system to generate test data and symbolically execute programs.TSE 1976.
J. C. King. Symbolic execution and program testing. CACM 1976.

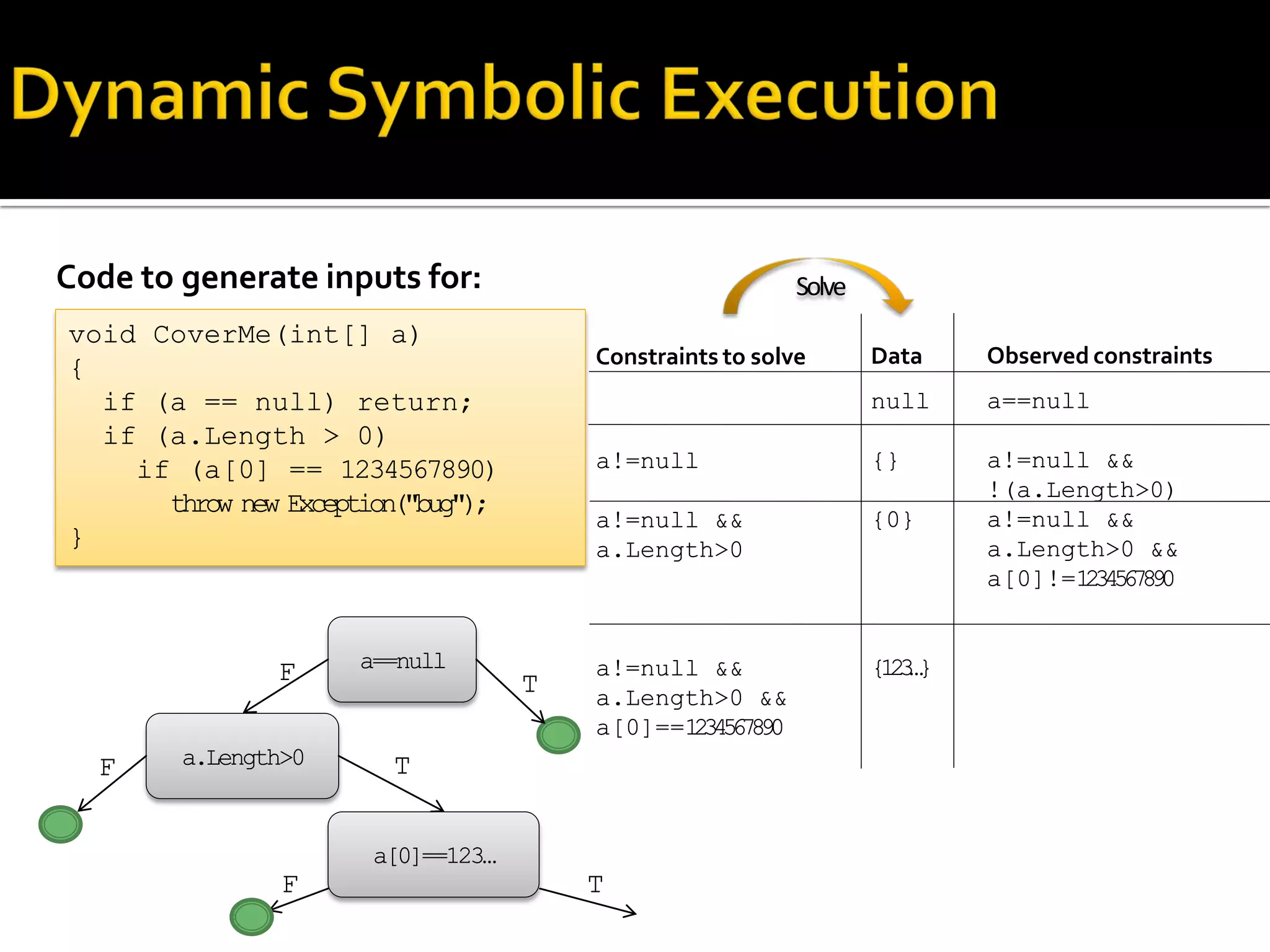

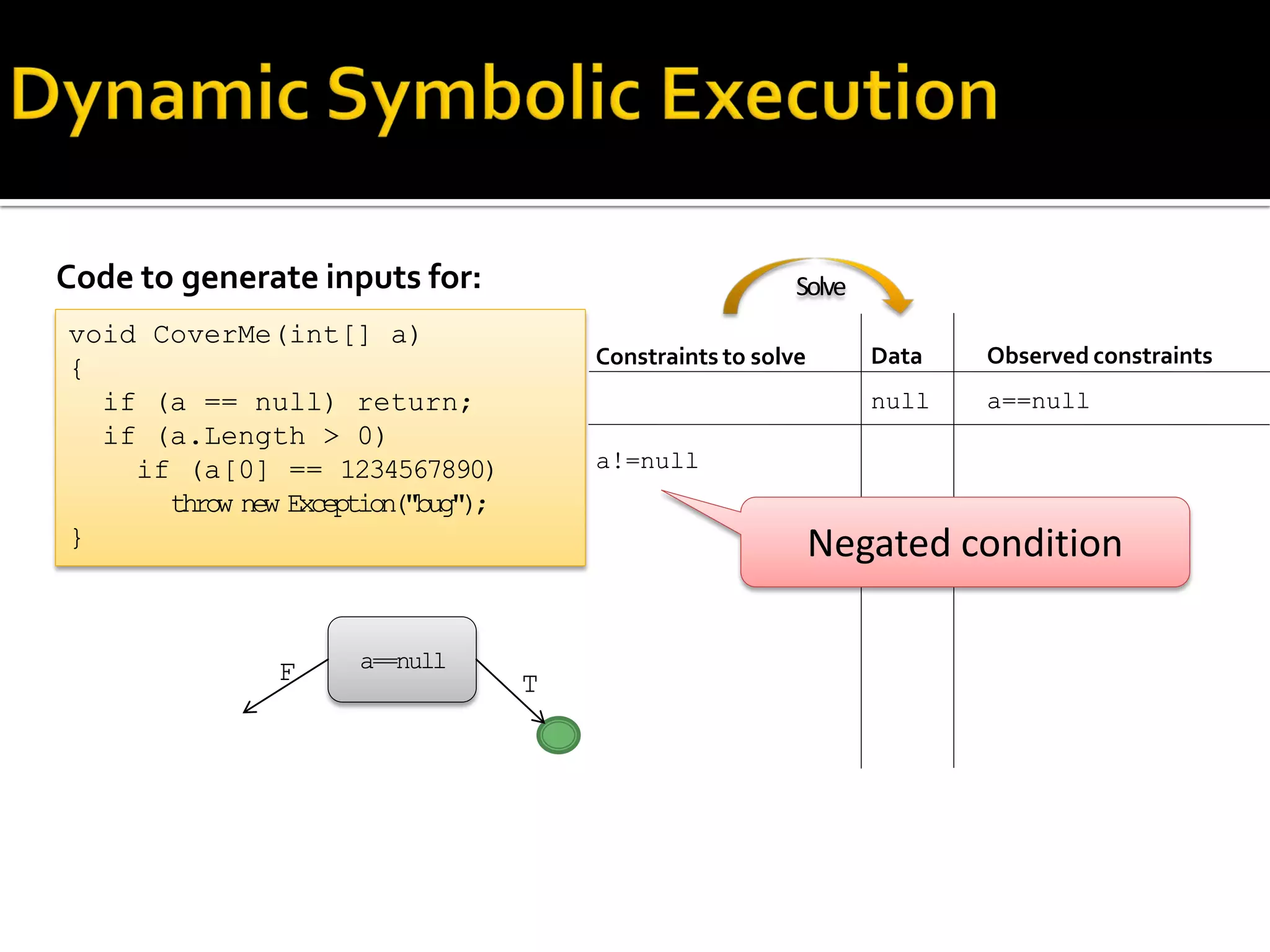

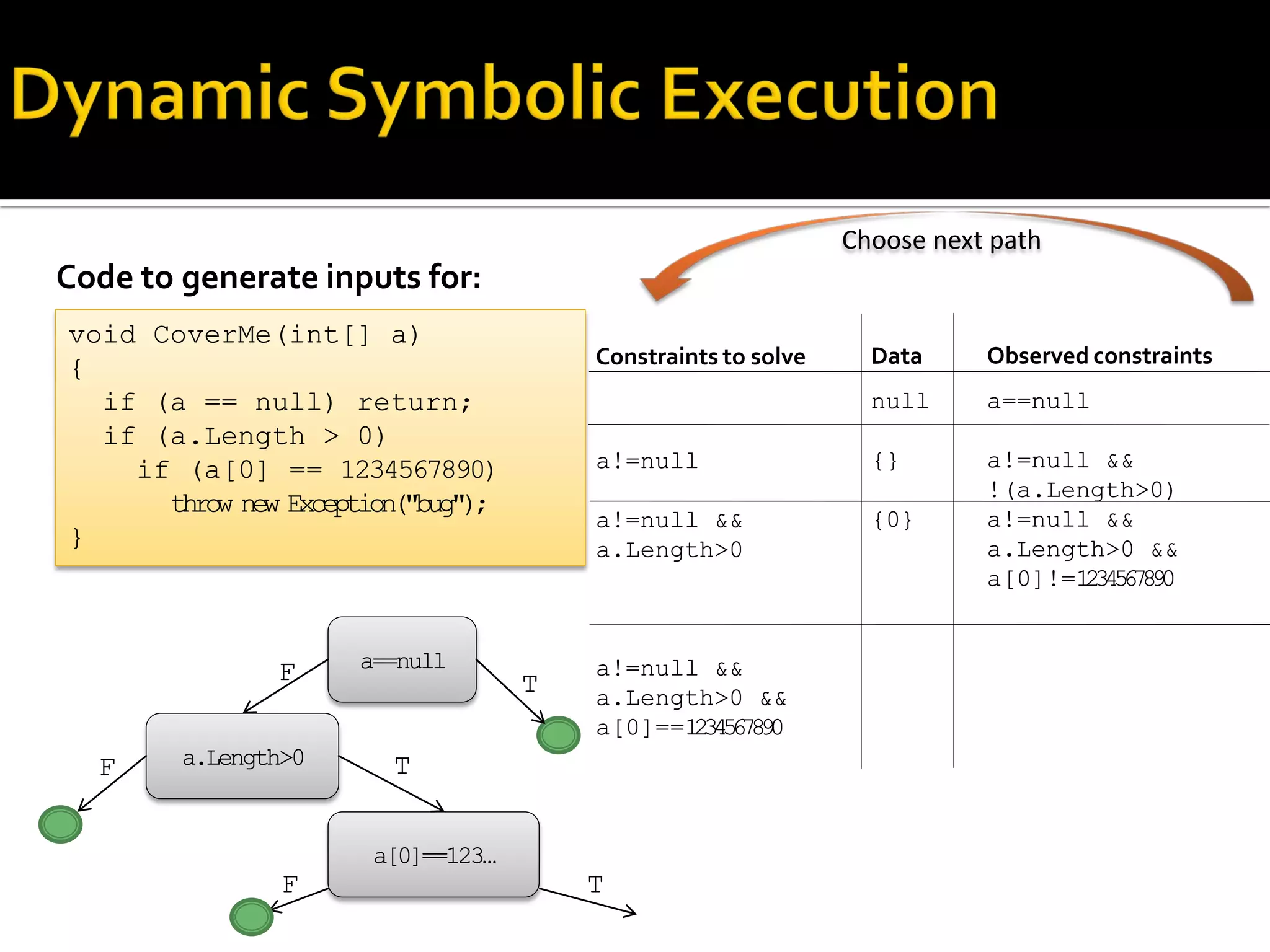

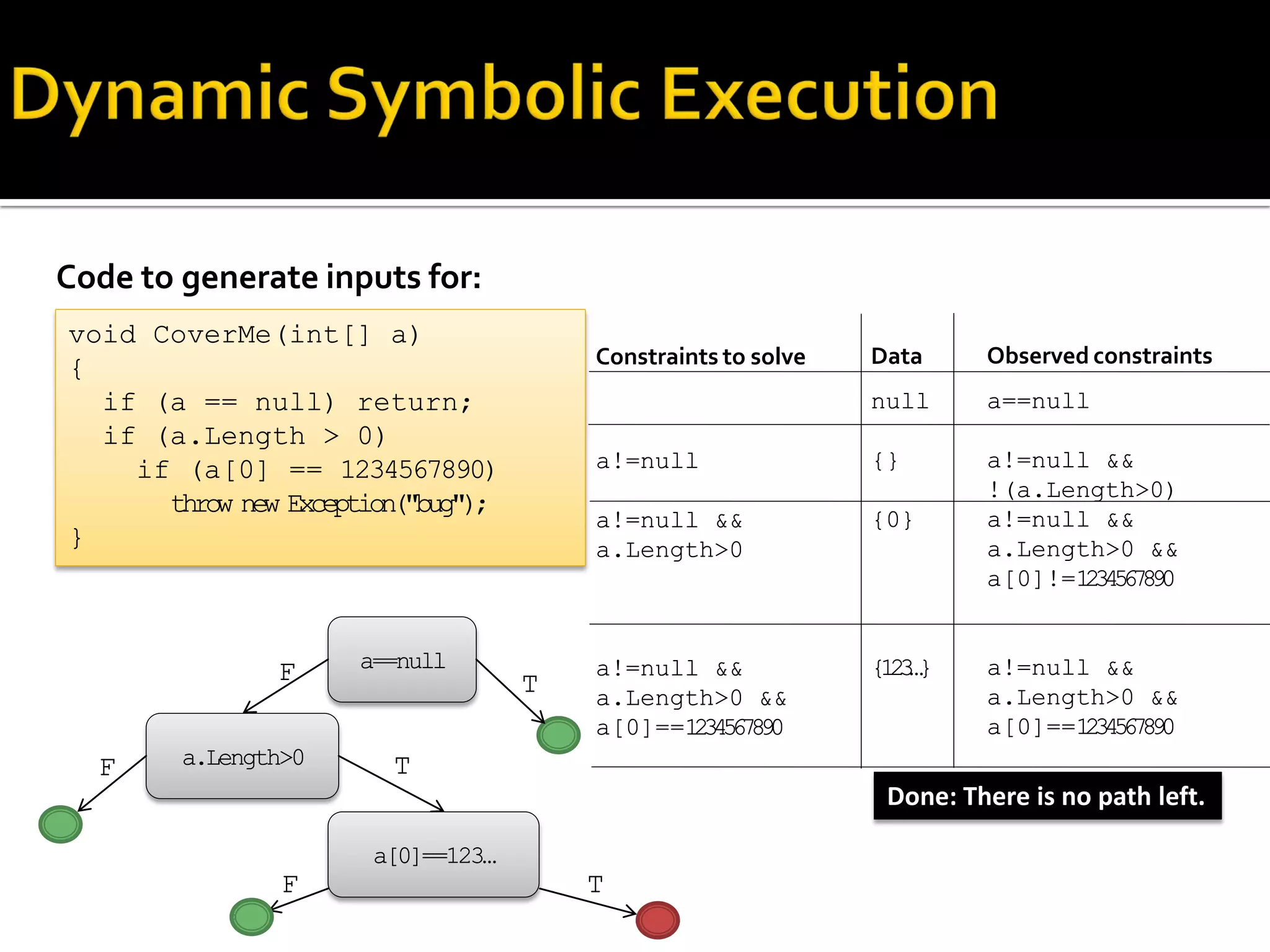

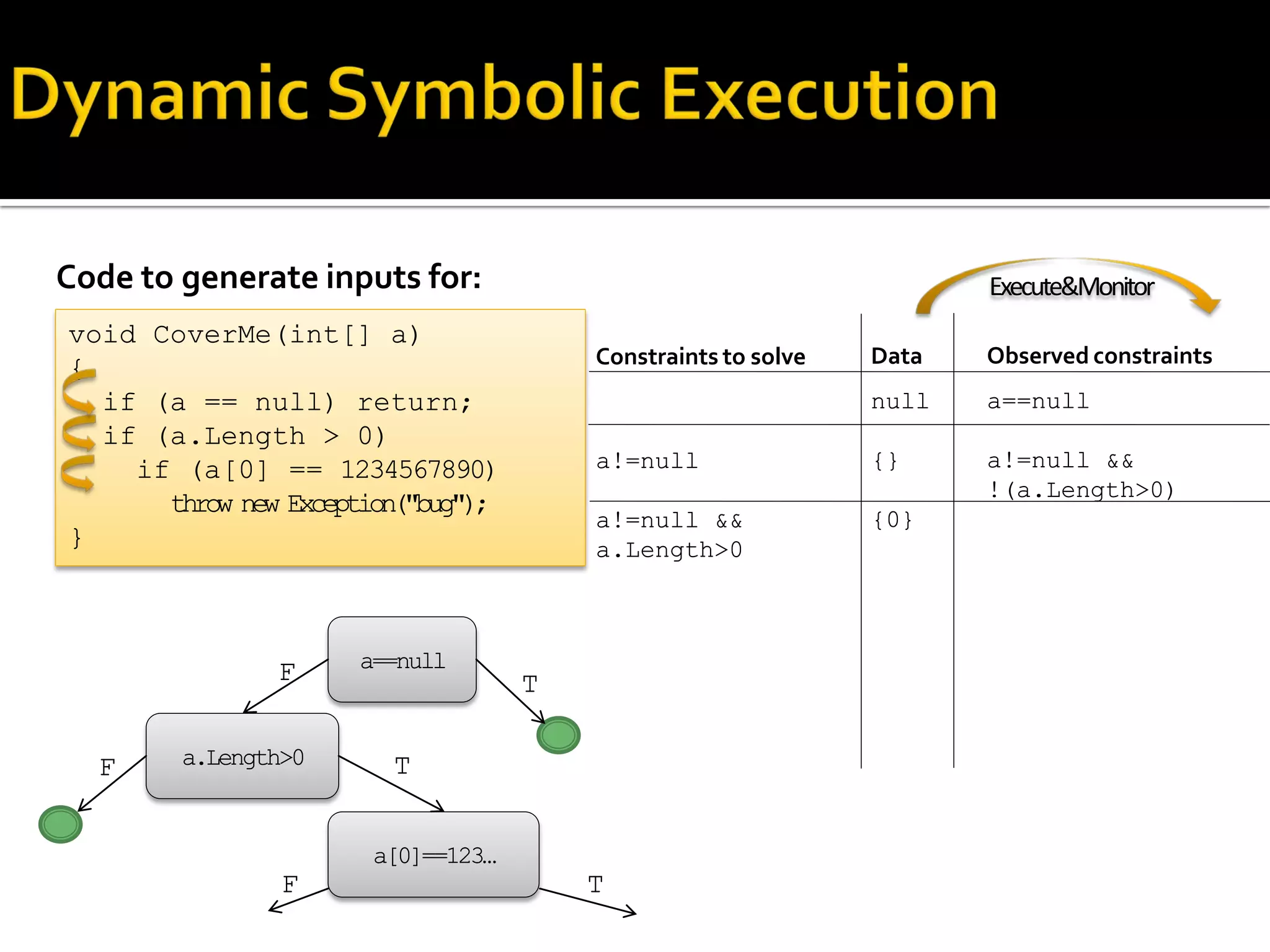

34. Code to generate inputs for:
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Data

35. Code to generate inputs for:
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Data
null

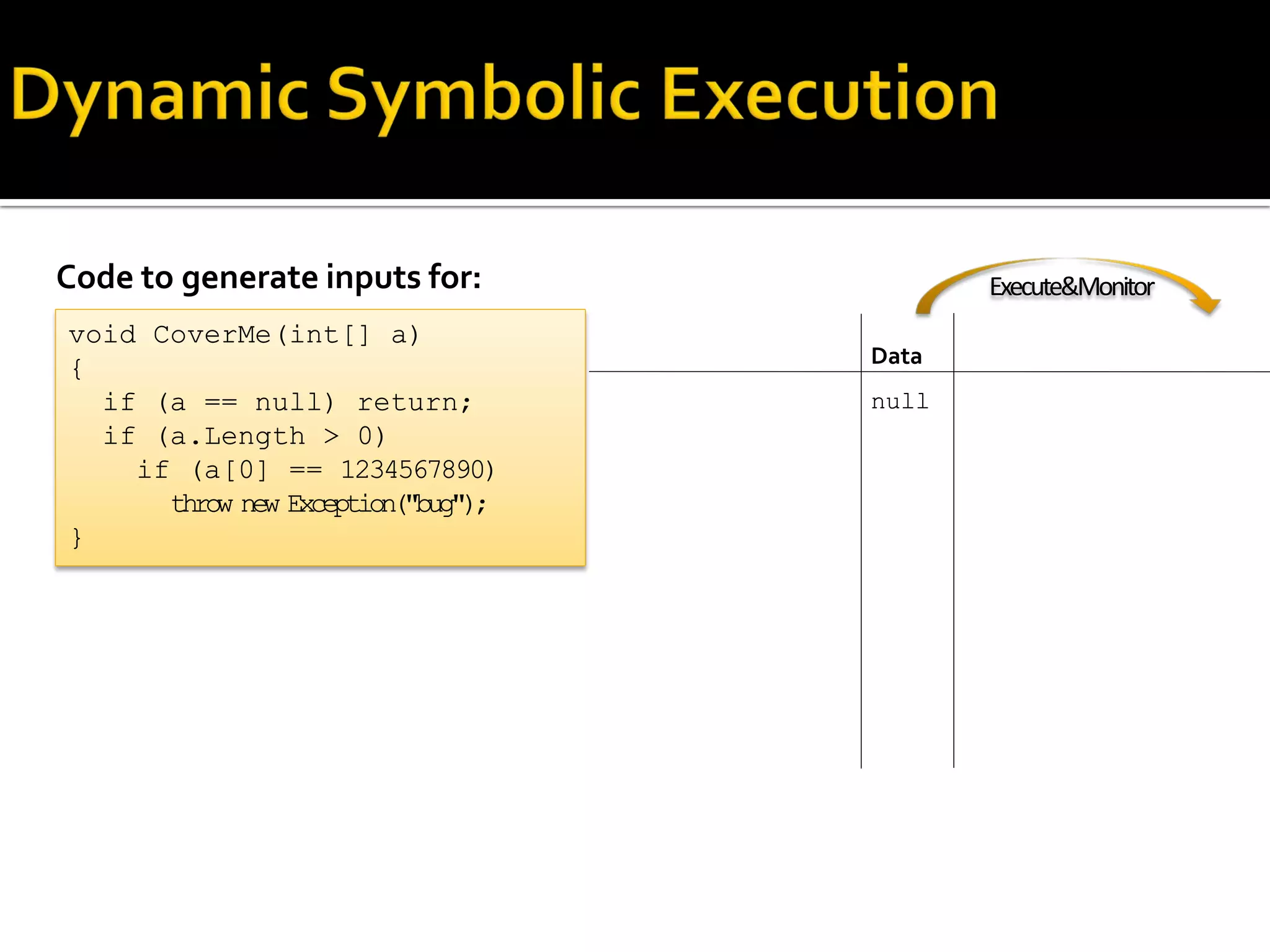

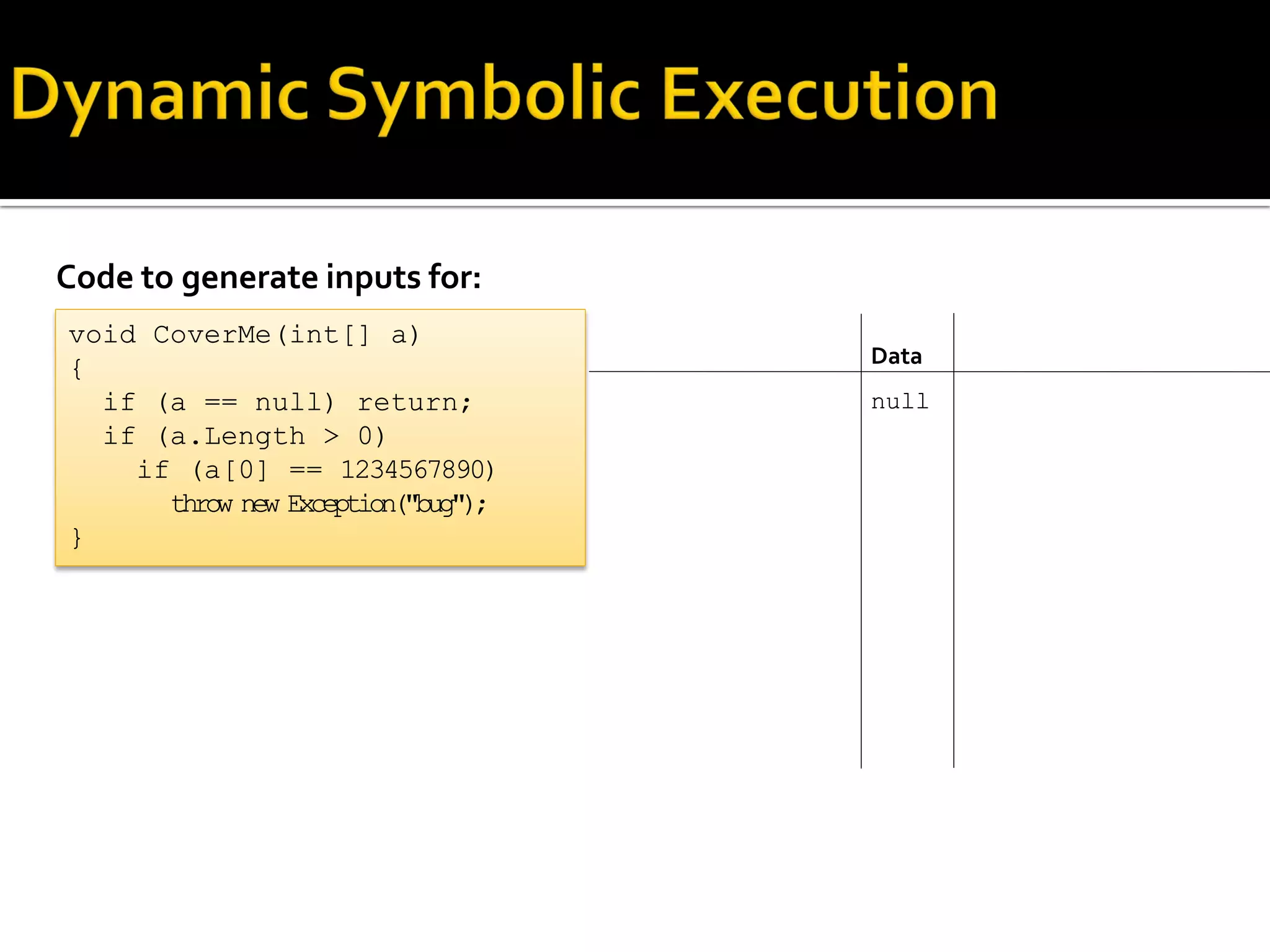

36. Code to generate inputs for:
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Data
null
Execute&Monitor

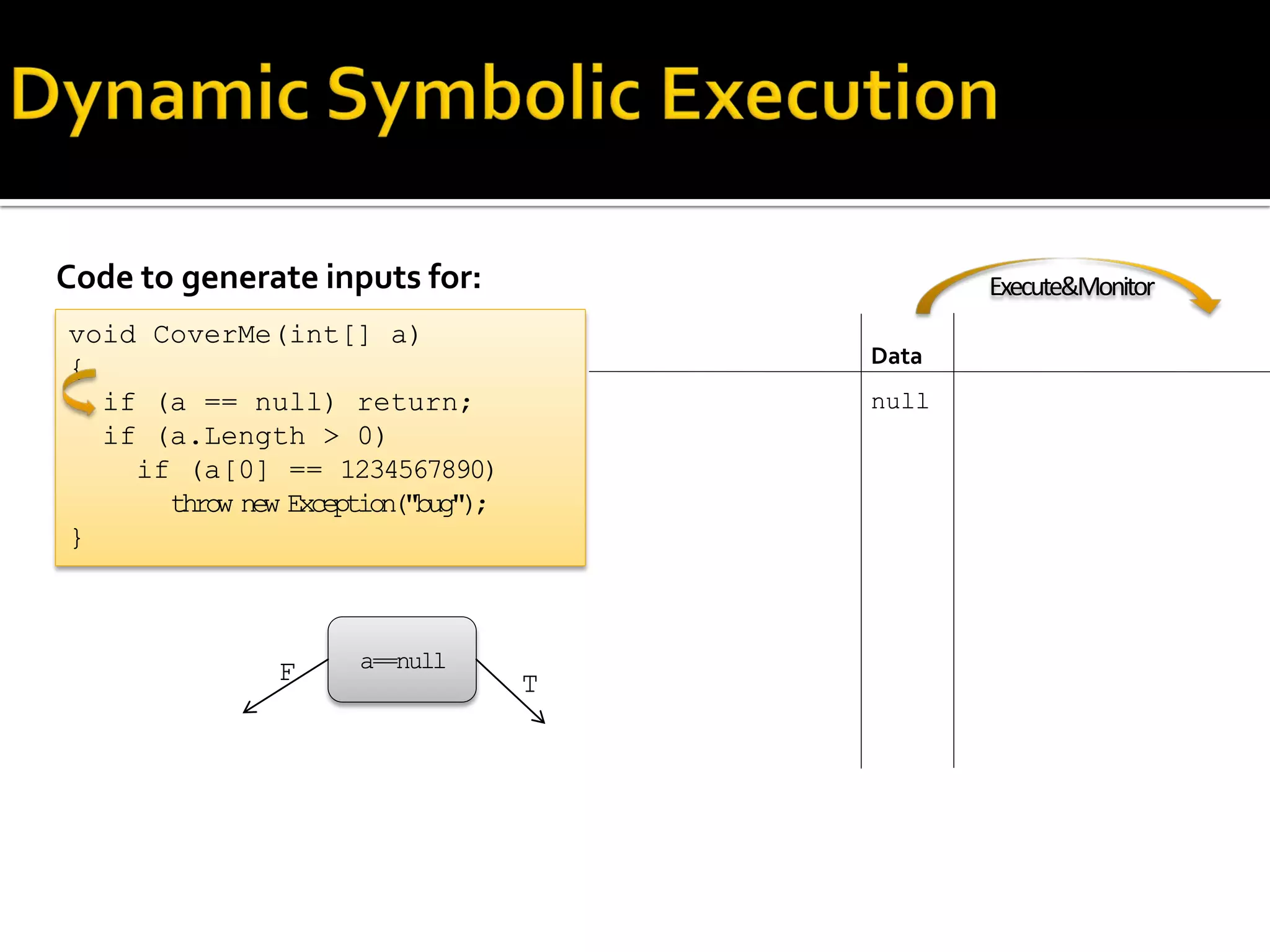

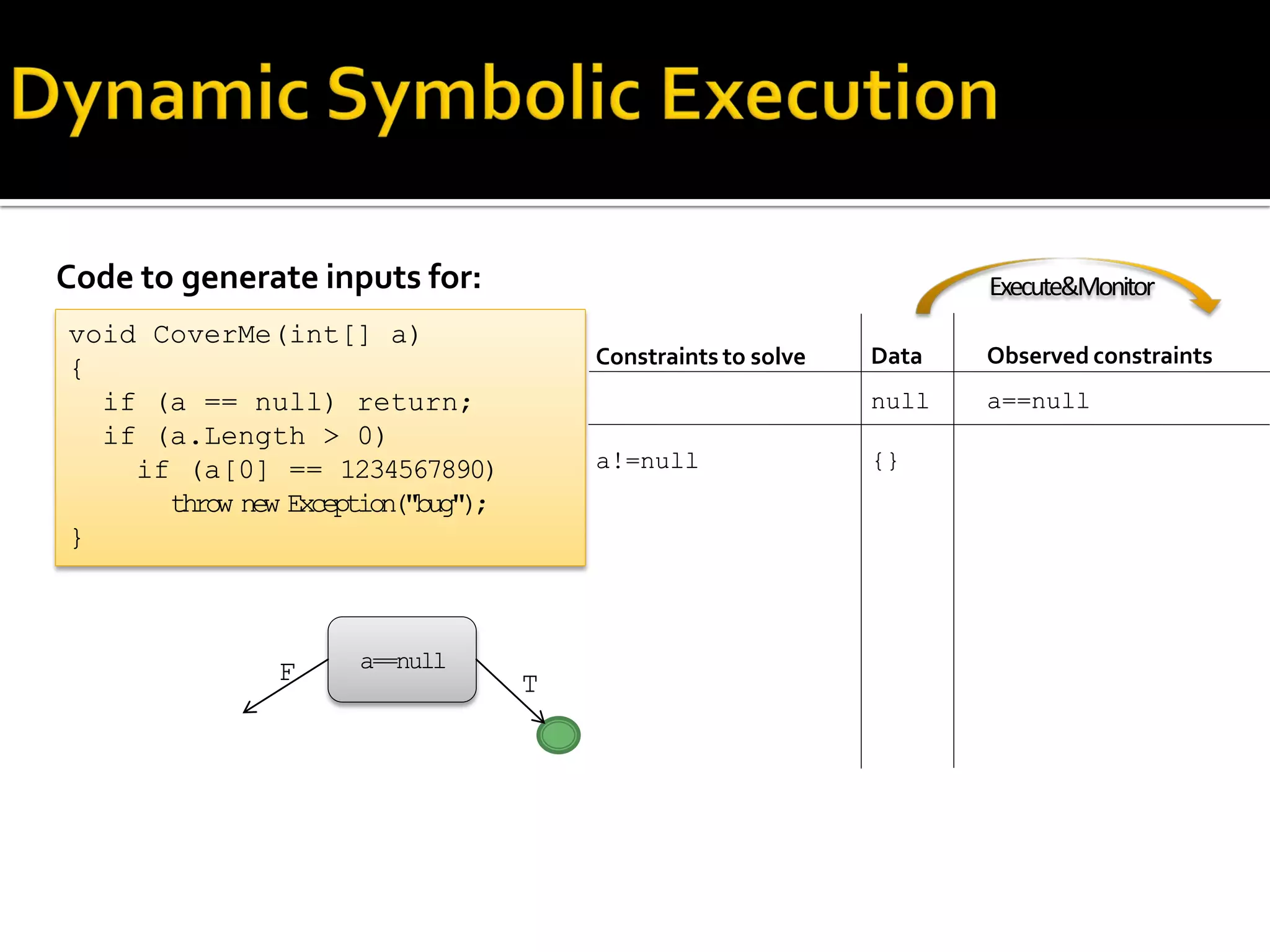

37. Code to generate inputs for:
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Data
null
a==null
TF
Execute&Monitor

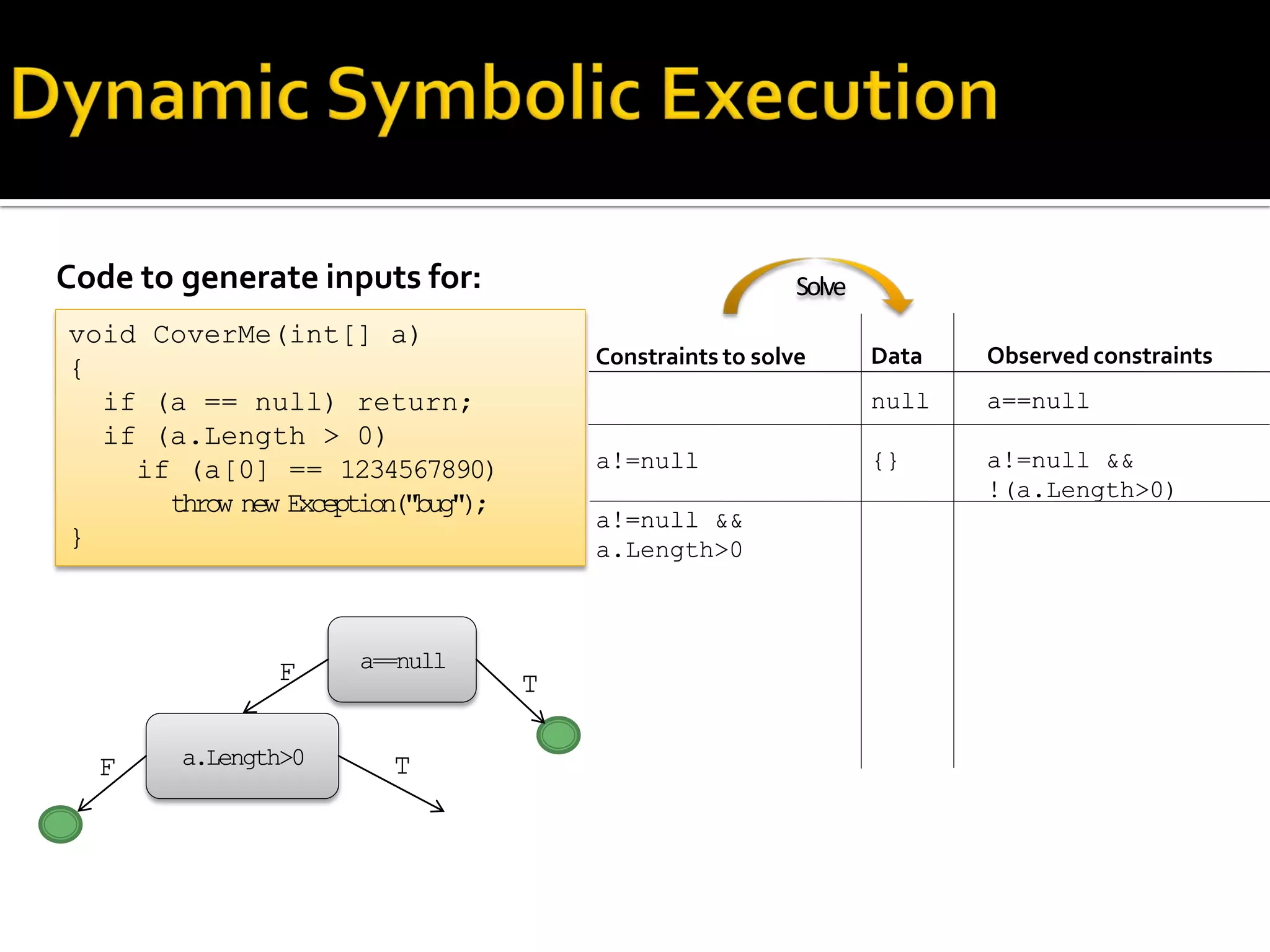

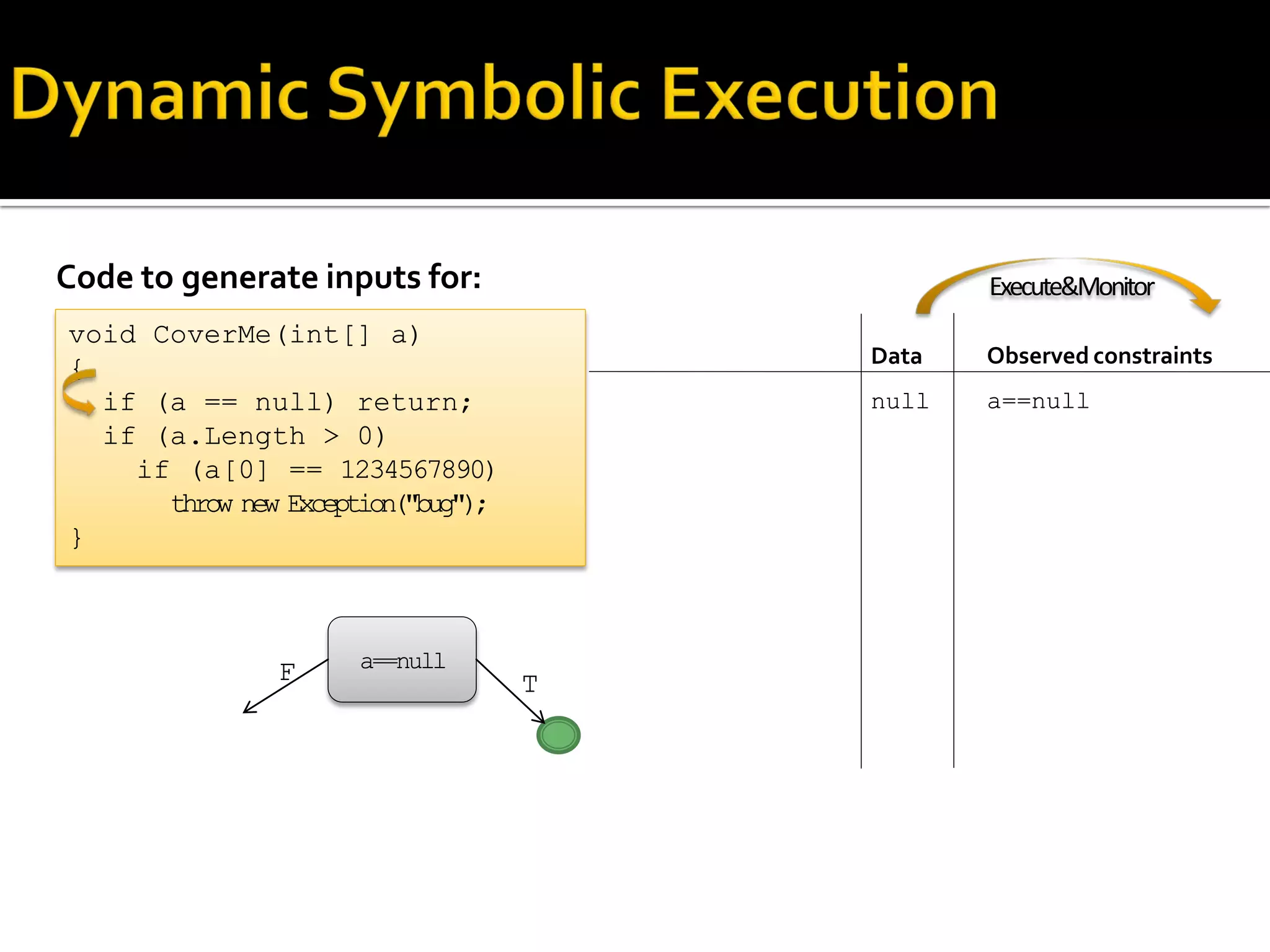

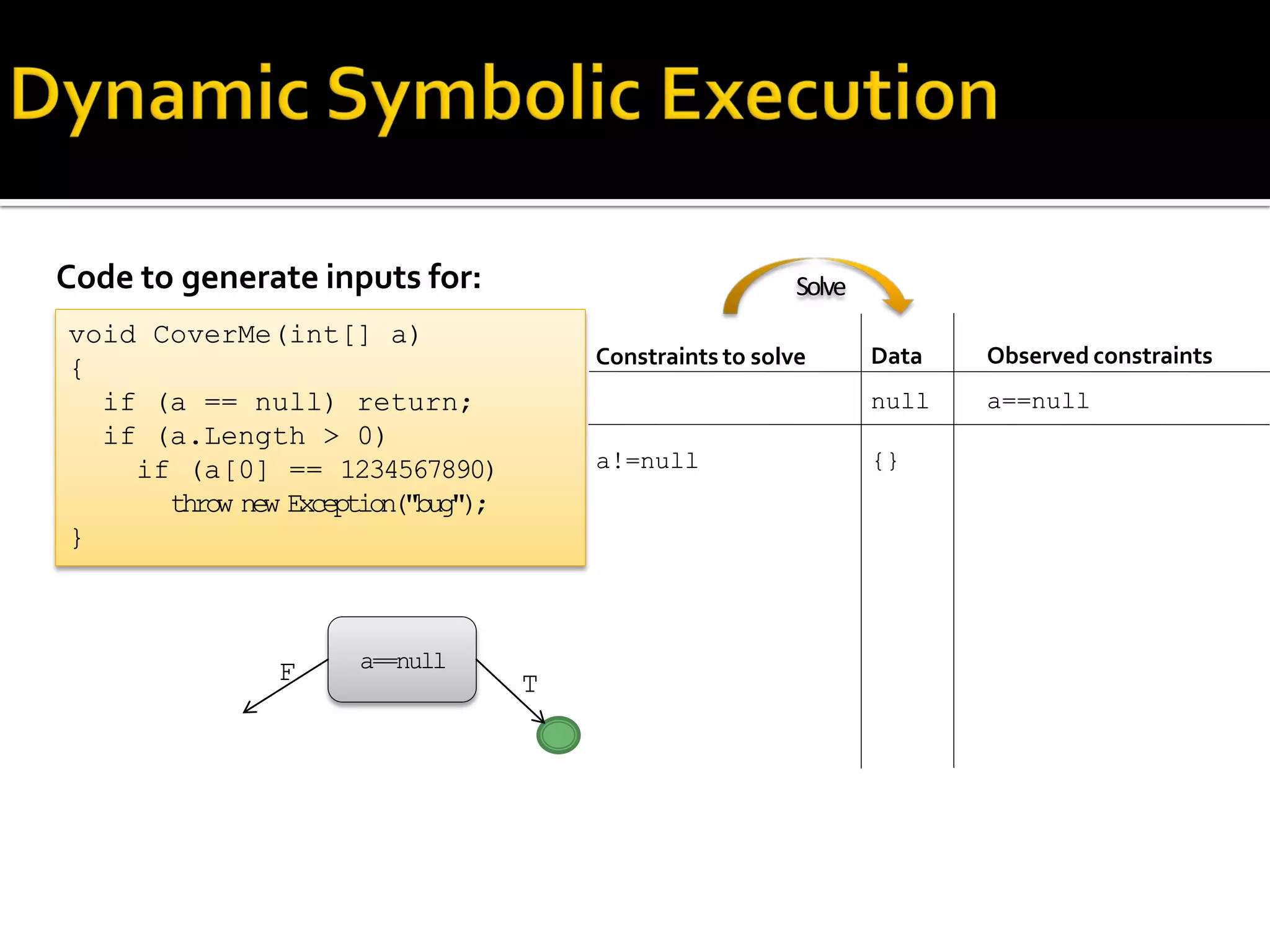

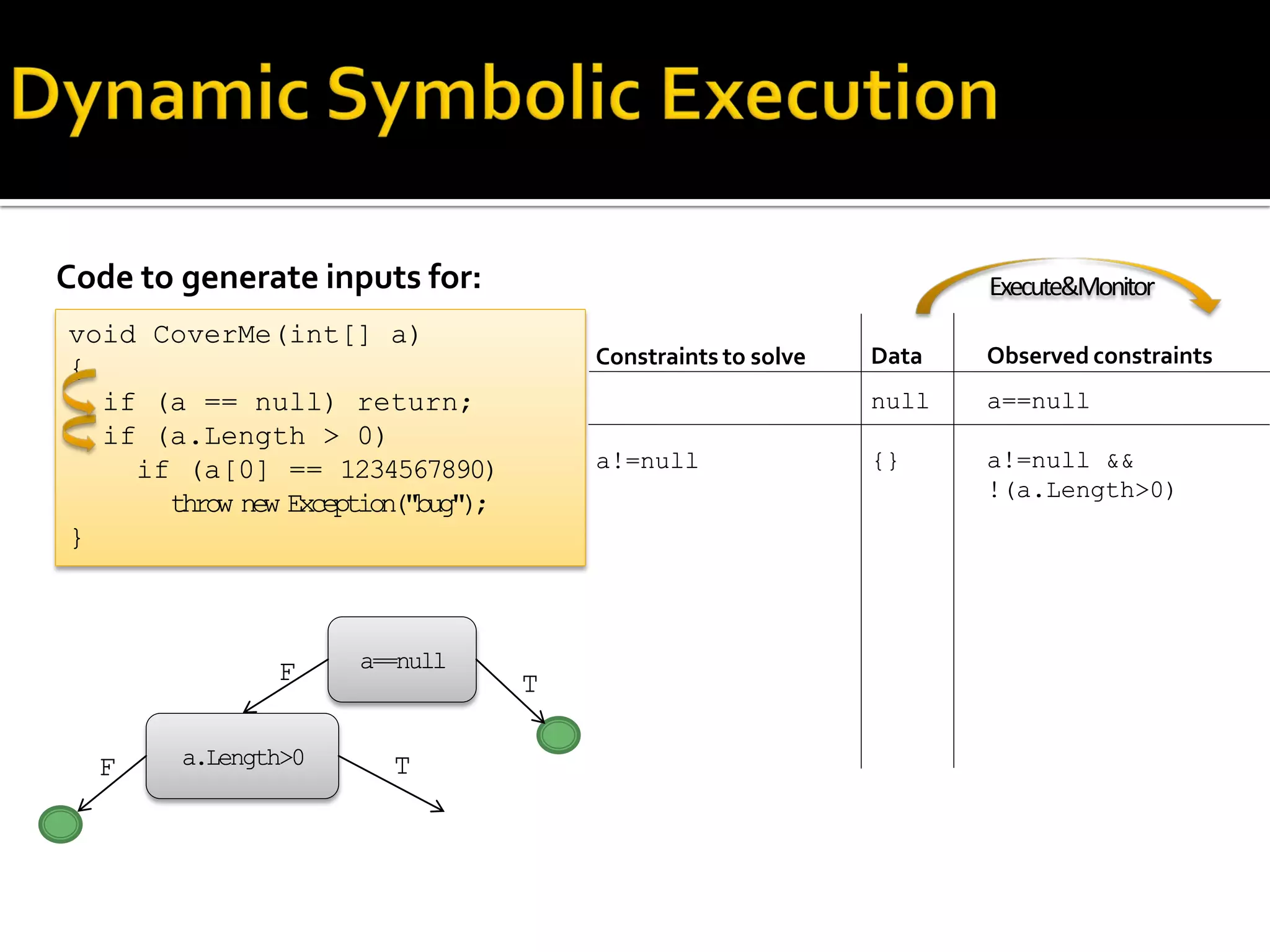

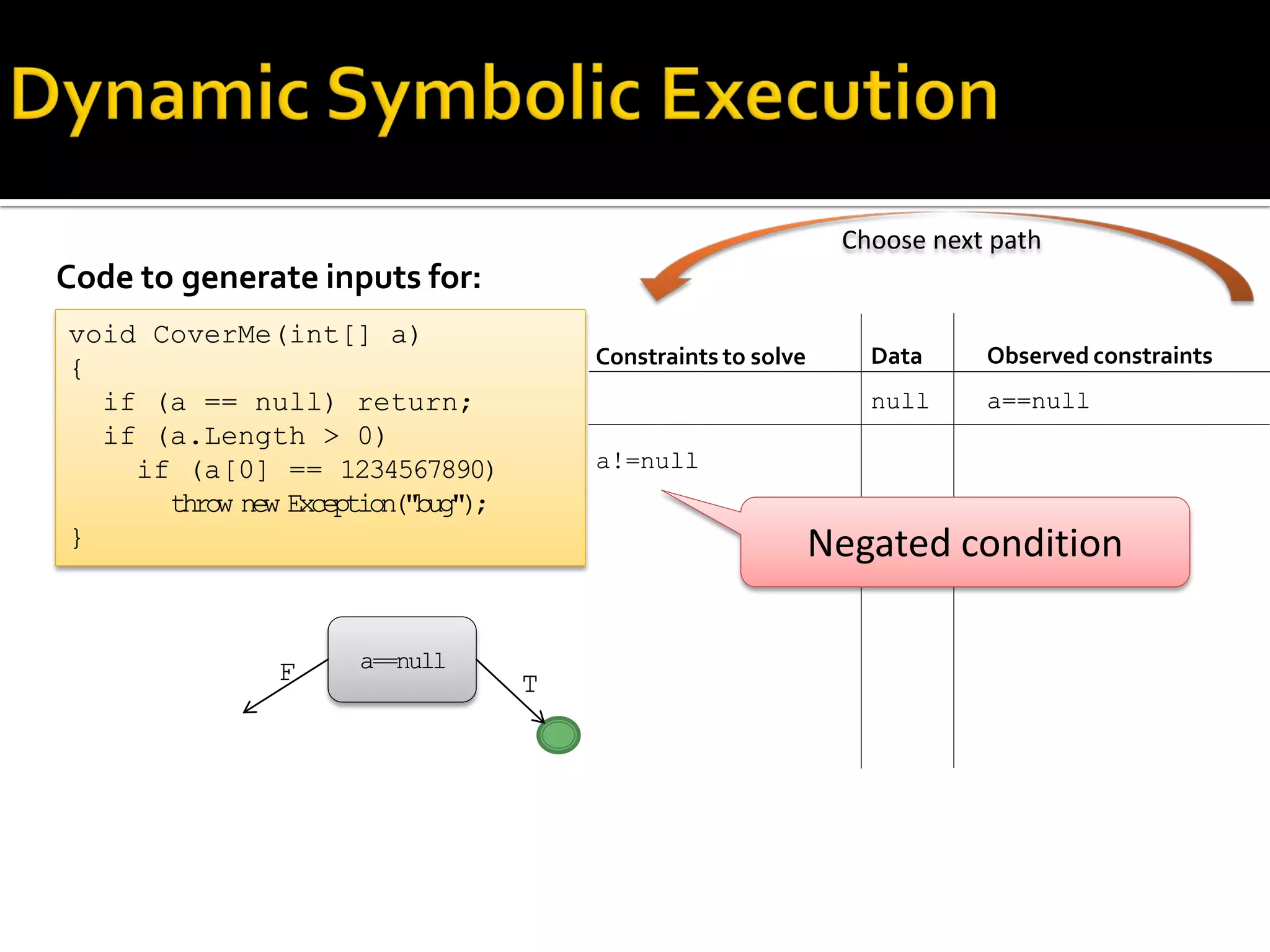

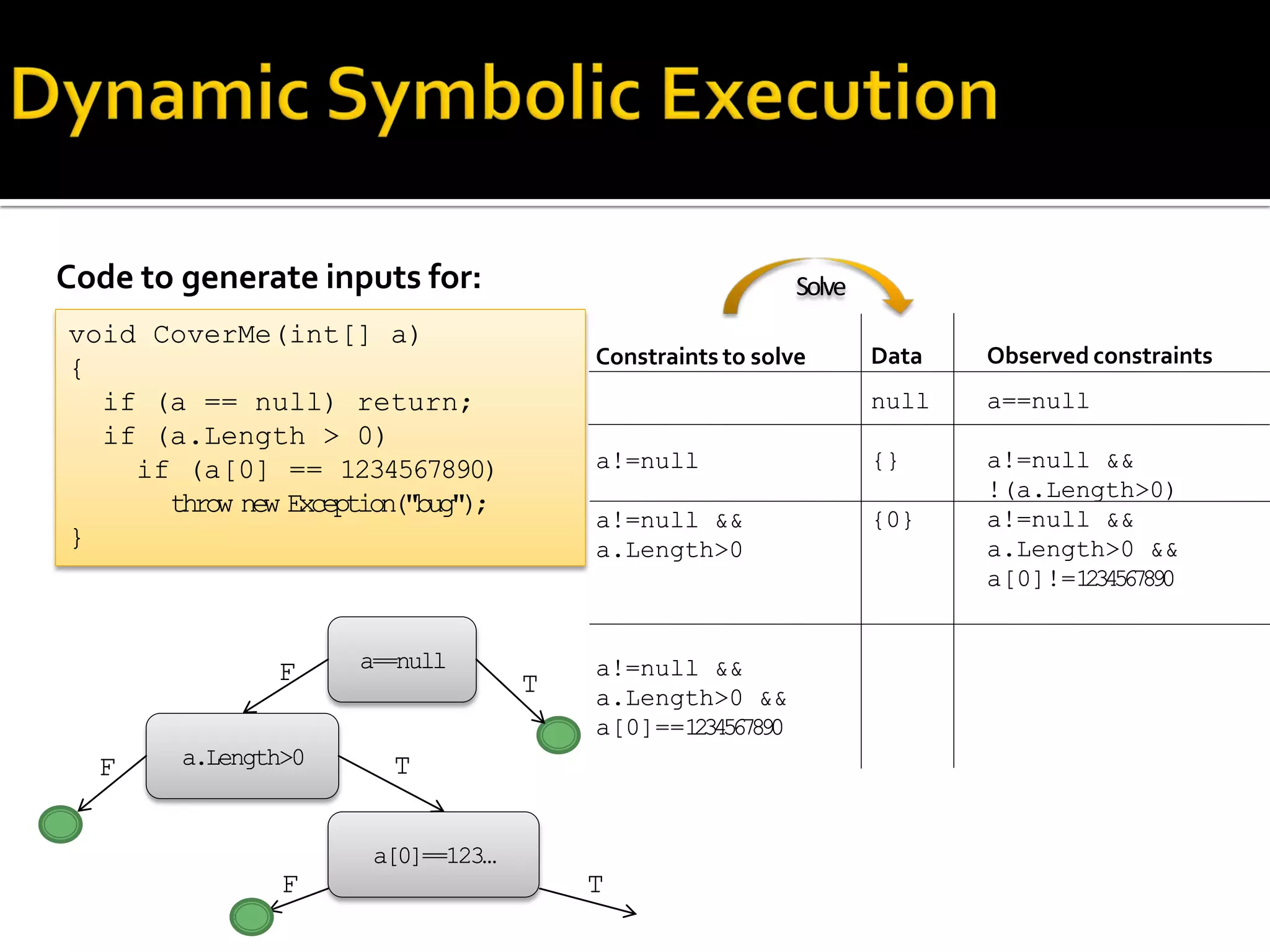

38. Code to generate inputs for:
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
Data
null
a==null
TF
Execute&Monitor

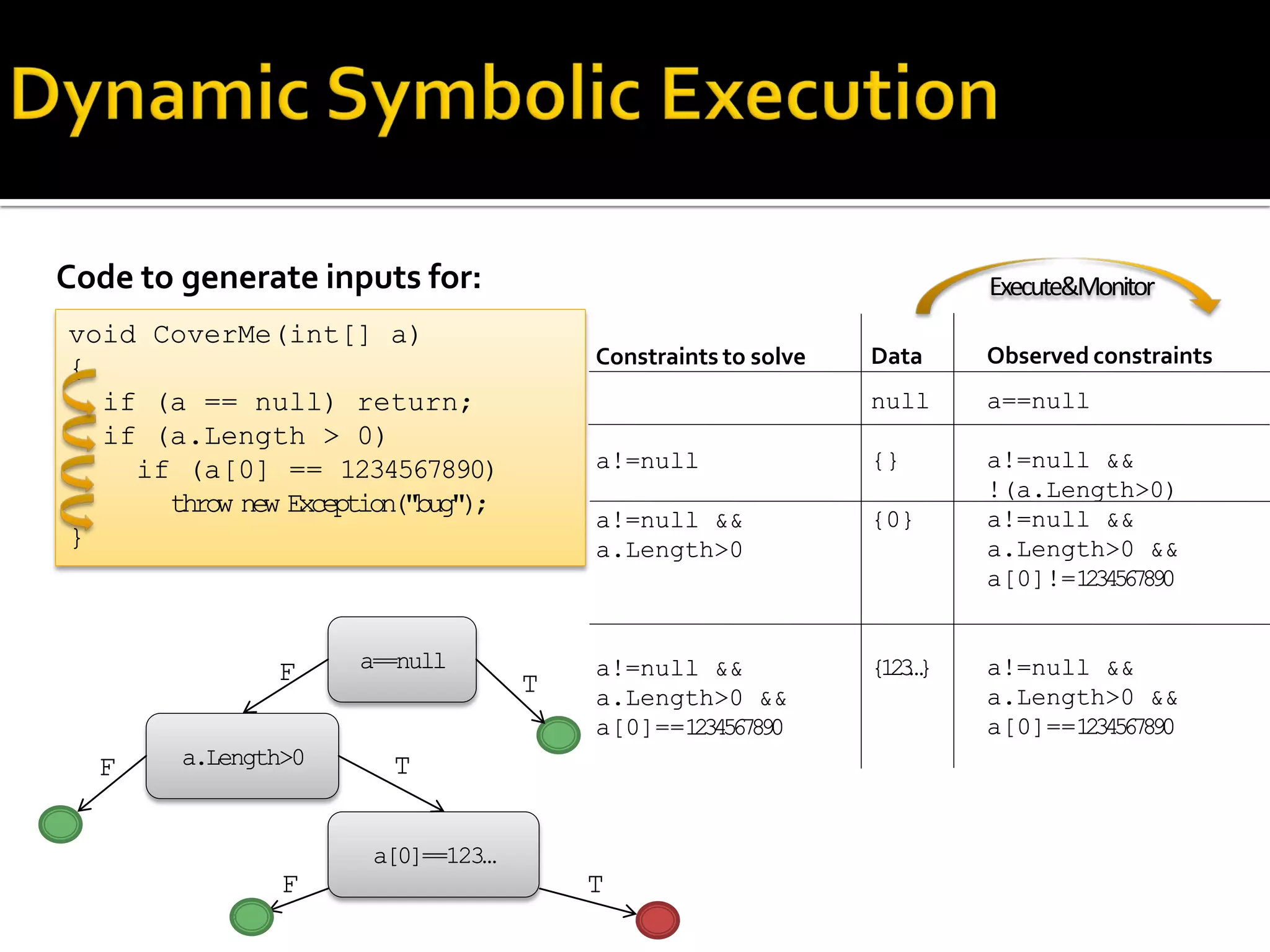

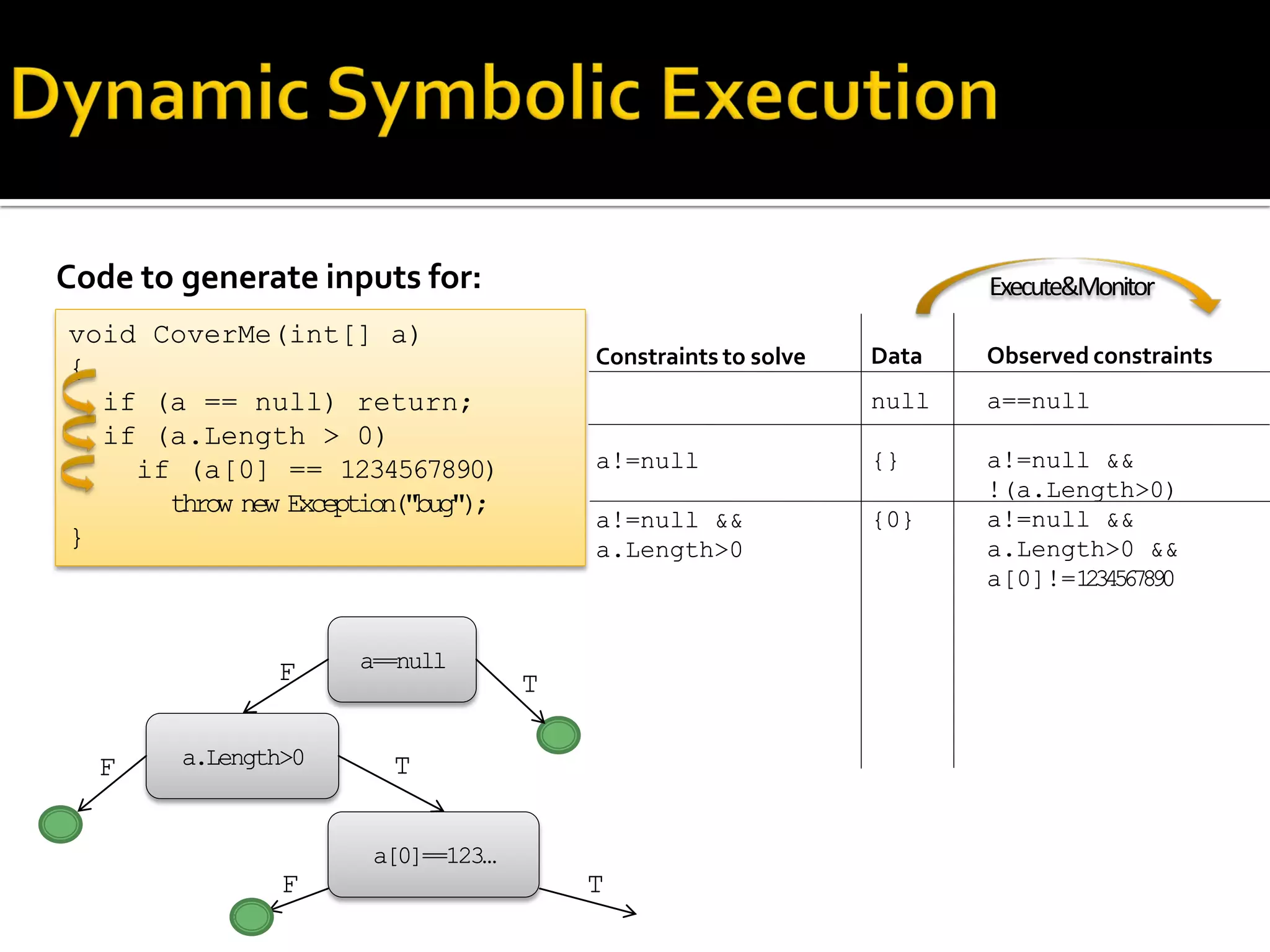

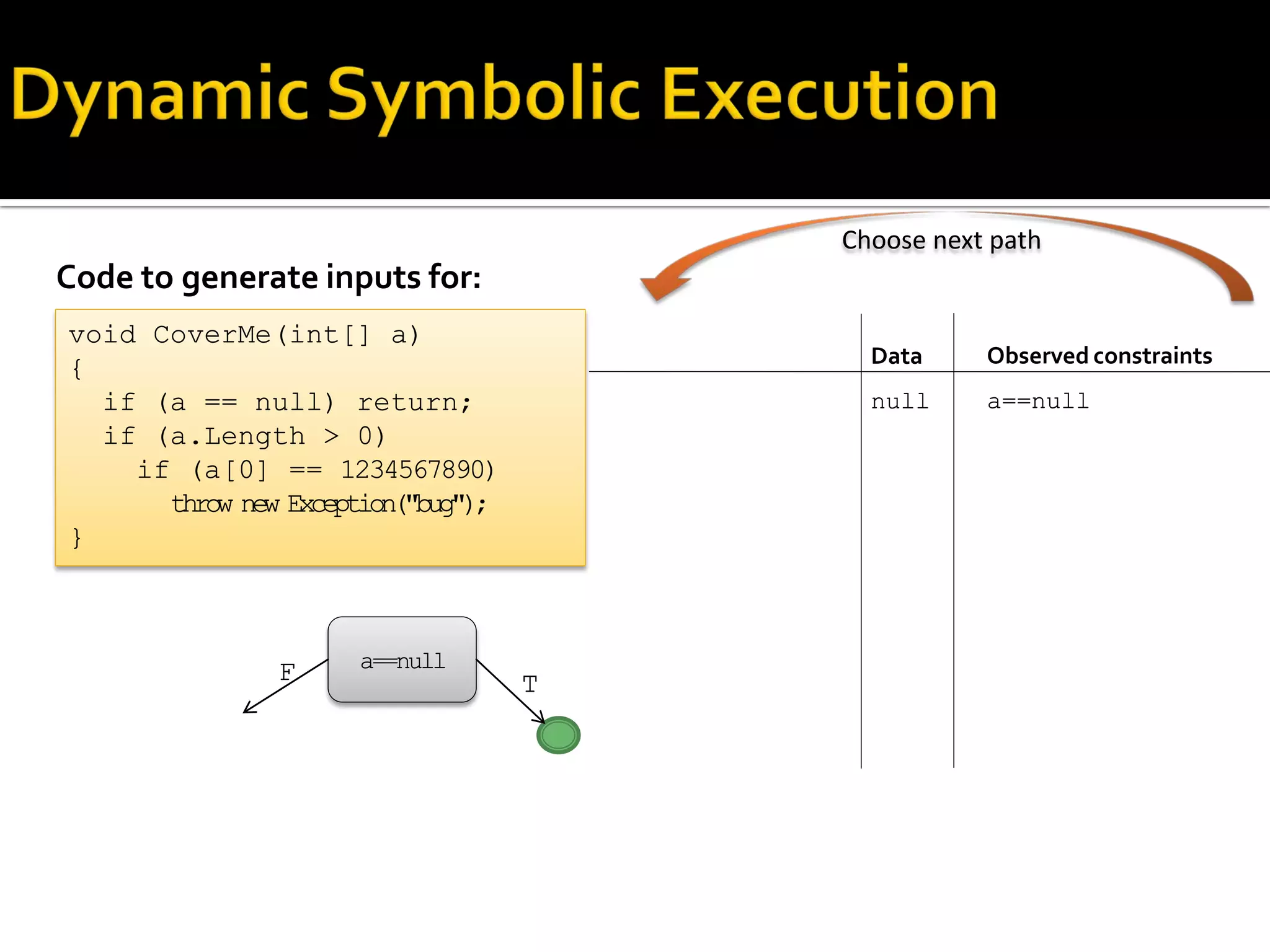

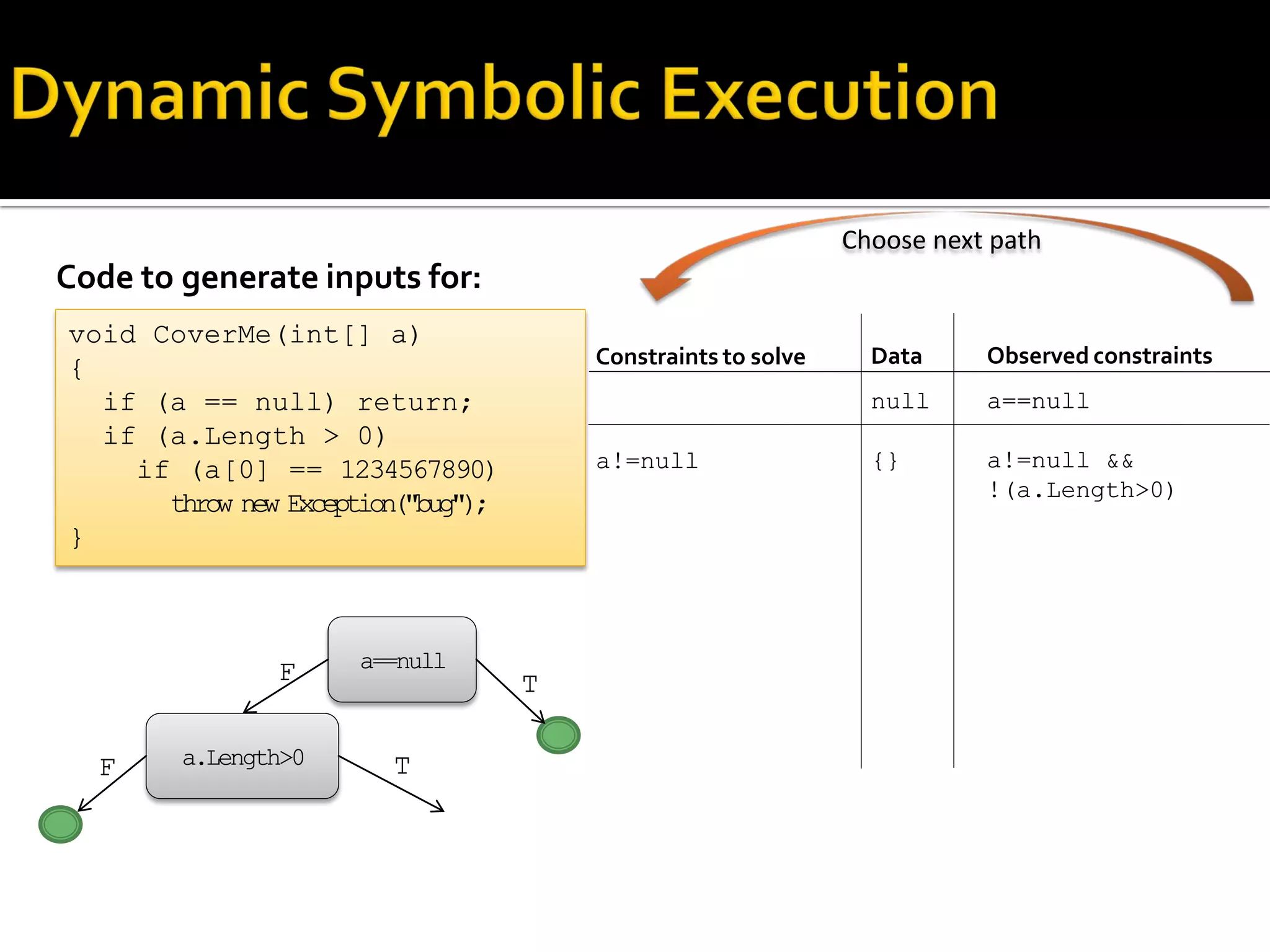

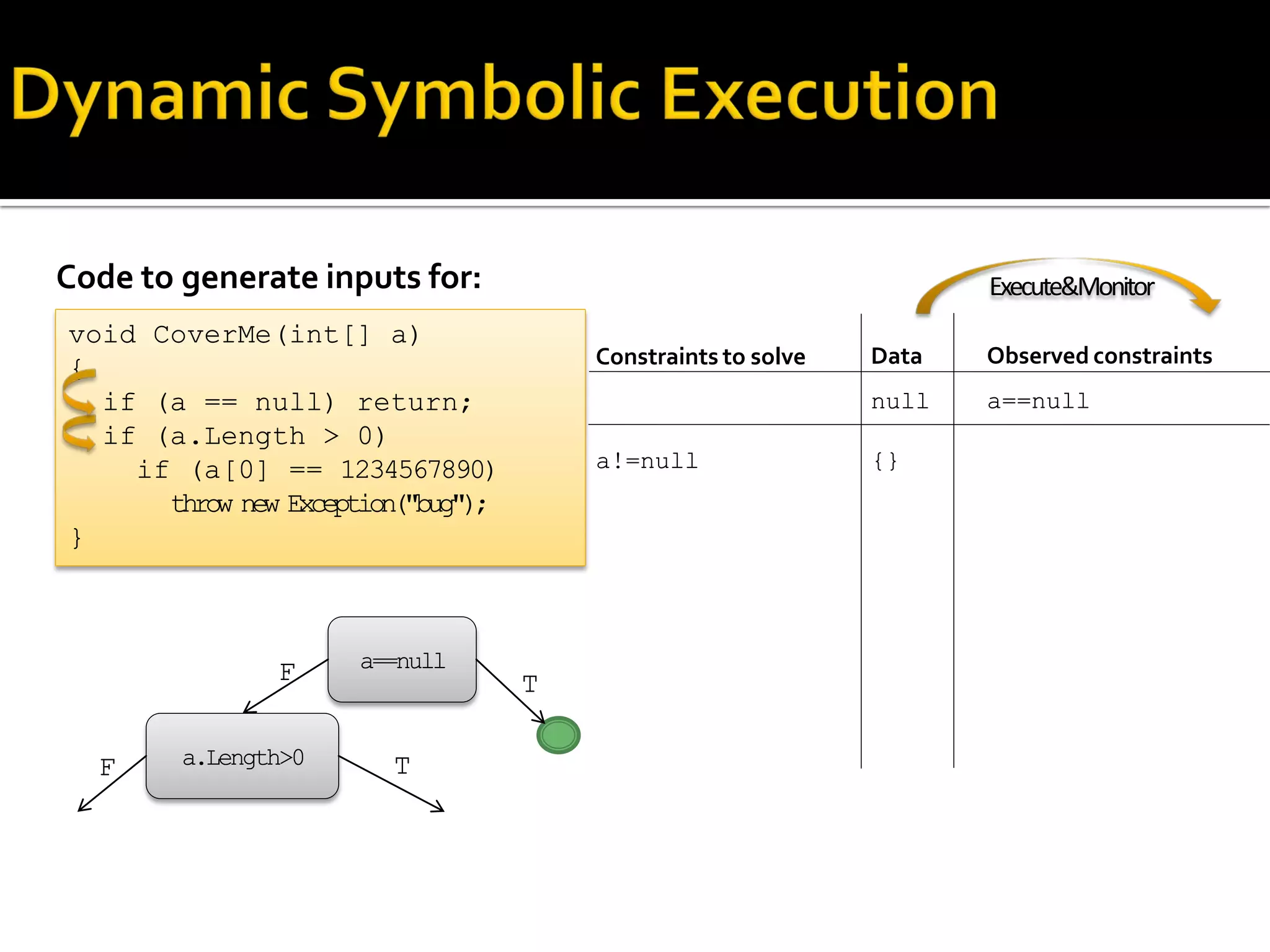

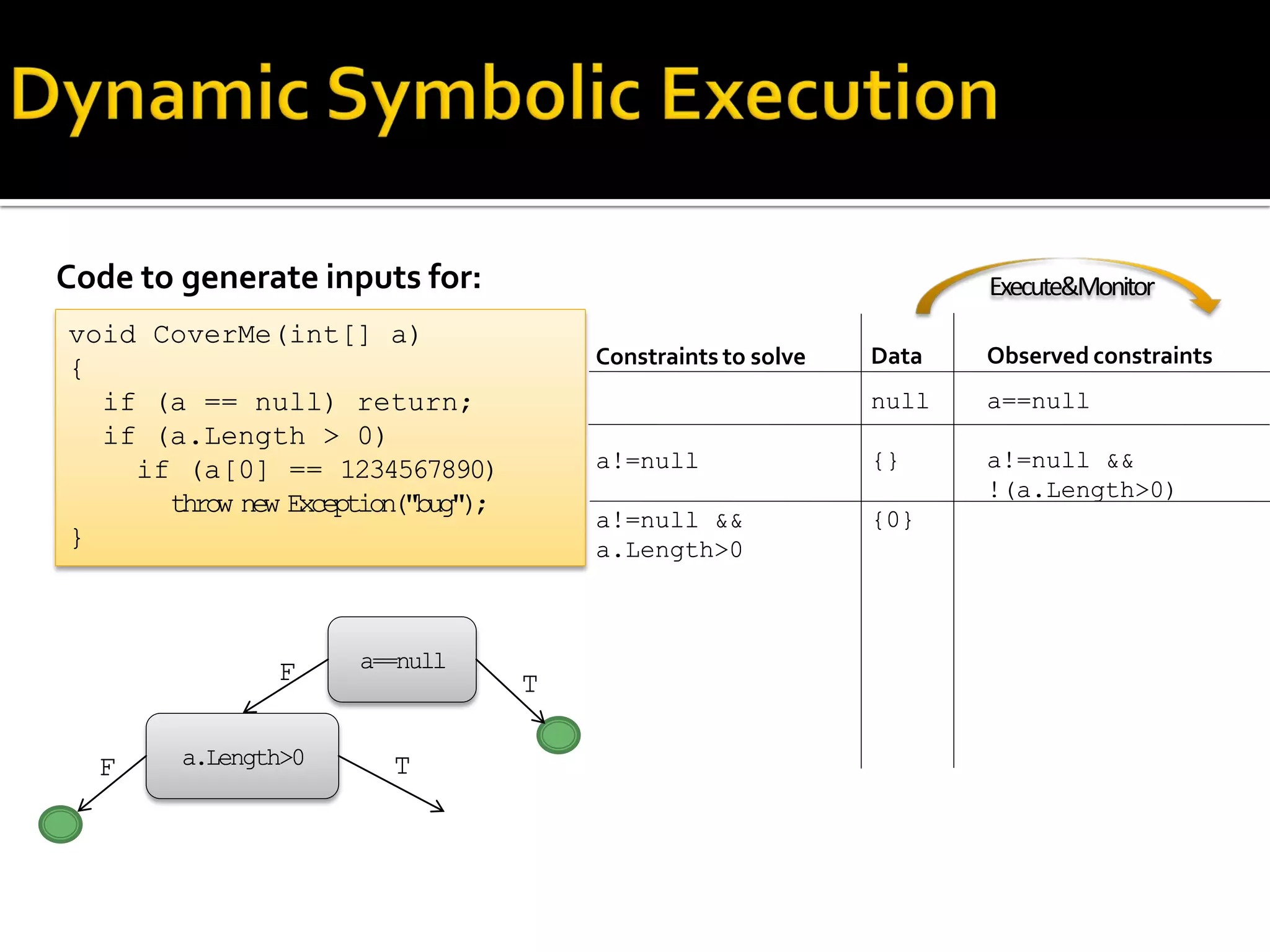

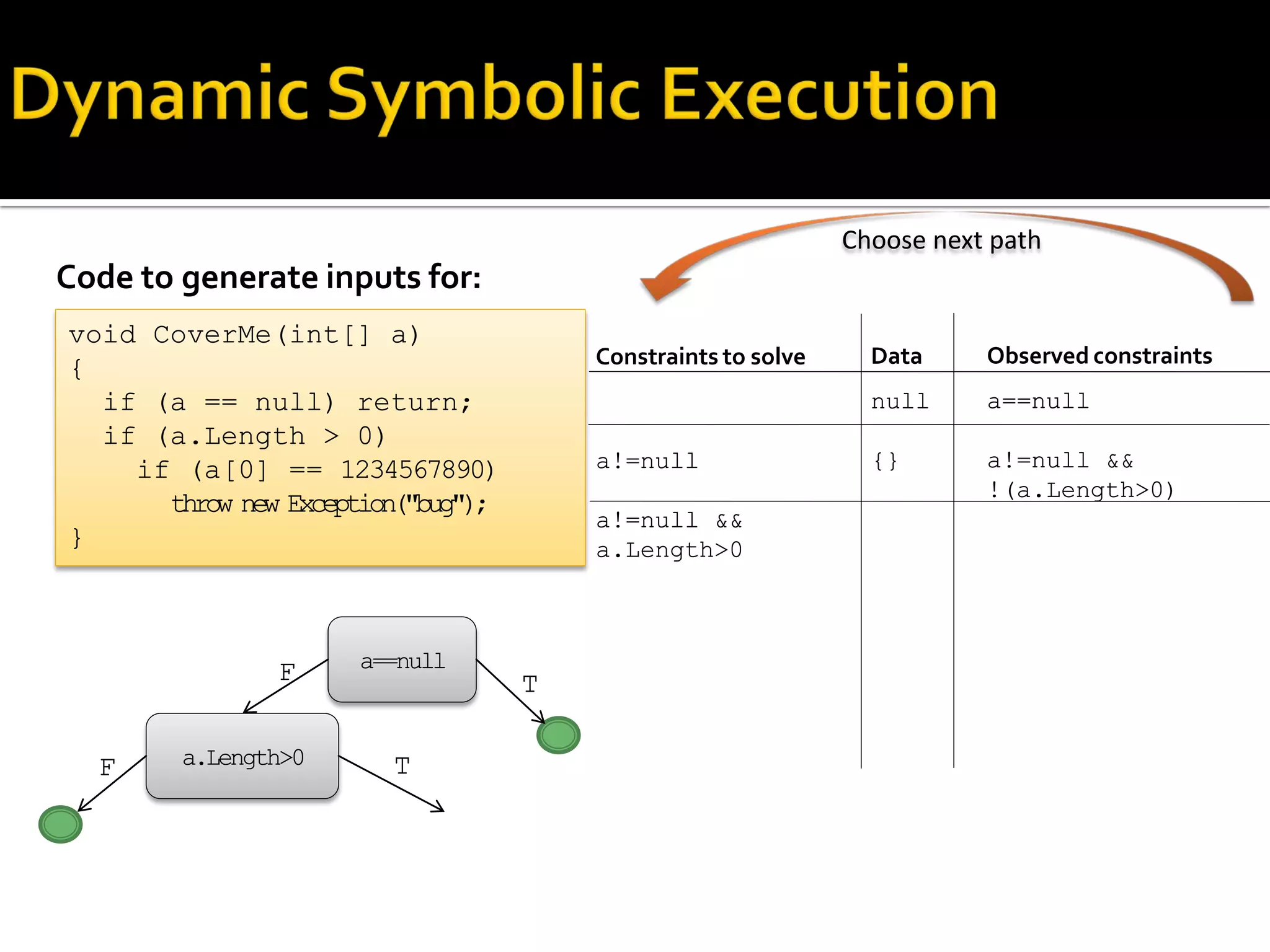

39. Code to generate inputs for:
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
Data
null
a==null
TF
Choose next path

40. Code to generate inputs for:
Constraints to solve
a!=null
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
Data
null
a==null
TF
Choose next path
Negated condition

41. Code to generate inputs for:
Constraints to solve
a!=null
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
Data
null
a==null
TF
Solve
Negated condition

42. Code to generate inputs for:
Constraints to solve
a!=null
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
Data
null
{}
a==null
TF
Solve

43. Code to generate inputs for:
Constraints to solve
a!=null
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
Data
null
{}
a==null
TF
Execute&Monitor

44. Code to generate inputs for:
Constraints to solve
a!=null
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
Data
null
{}
a==null
a.Length>0 TF
TF
Execute&Monitor

45. Code to generate inputs for:
Constraints to solve
a!=null
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
a!=null &&
!(a.Length>0)
Data
null
{}
a==null
a.Length>0 TF
TF
Execute&Monitor

46. Code to generate inputs for:
Constraints to solve
a!=null
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
a!=null &&
!(a.Length>0)
Data
null
{}
a==null
a.Length>0 TF
TF
Choose next path

47. Code to generate inputs for:
Constraints to solve
a!=null
a!=null &&
a.Length>0
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
a!=null &&
!(a.Length>0)
Data
null
{}
a==null
a.Length>0 TF
TF
Choose next path

48. Code to generate inputs for:
Constraints to solve
a!=null
a!=null &&
a.Length>0
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
a!=null &&
!(a.Length>0)
Data
null
{}
a==null
a.Length>0 TF
TF
Solve

49. Code to generate inputs for:
Constraints to solve
a!=null
a!=null &&
a.Length>0
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
a!=null &&
!(a.Length>0)
Data
null
{}
{0}
a==null
a.Length>0 TF
TF
Solve

50. Code to generate inputs for:
Constraints to solve
a!=null
a!=null &&
a.Length>0
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
a!=null &&
!(a.Length>0)
Data
null
{}
{0}
a==null
a.Length>0 TF
TF
Execute&Monitor

51. Code to generate inputs for:
Constraints to solve
a!=null
a!=null &&
a.Length>0
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
a!=null &&
!(a.Length>0)
Data
null
{}
{0}
a==null
a.Length>0
a[0]==123…
T
TF
T
F
F
Execute&Monitor

52. Code to generate inputs for:
Constraints to solve
a!=null
a!=null &&
a.Length>0
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
a!=null &&
!(a.Length>0)
a!=null &&
a.Length>0 &&
a[0]!=1234567890
Data
null
{}
{0}
a==null
a.Length>0
a[0]==123…
T
TF
T
F
F
Execute&Monitor

53. Code to generate inputs for:
Constraints to solve
a!=null
a!=null &&
a.Length>0
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
a!=null &&
!(a.Length>0)
a!=null &&
a.Length>0 &&
a[0]!=1234567890
Data
null
{}
{0}
a==null
a.Length>0
a[0]==123…
T
TF
T
F
F
Choose next path

54. Code to generate inputs for:
Constraints to solve
a!=null
a!=null &&
a.Length>0
a!=null &&
a.Length>0 &&
a[0]==1234567890
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
a!=null &&
!(a.Length>0)
a!=null &&
a.Length>0 &&
a[0]!=1234567890
Data
null
{}
{0}
a==null
a.Length>0
a[0]==123…
T
TF
T
F
F
Choose next path

55. Code to generate inputs for:
Constraints to solve
a!=null
a!=null &&
a.Length>0
a!=null &&
a.Length>0 &&
a[0]==1234567890
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
a!=null &&
!(a.Length>0)
a!=null &&
a.Length>0 &&
a[0]!=1234567890
Data
null
{}
{0}
a==null
a.Length>0
a[0]==123…
T
TF
T
F
F
Solve

56. Code to generate inputs for:
Constraints to solve
a!=null
a!=null &&
a.Length>0
a!=null &&
a.Length>0 &&
a[0]==1234567890
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
a!=null &&
!(a.Length>0)
a!=null &&
a.Length>0 &&
a[0]!=1234567890
Data
null
{}
{0}
{123…}a==null
a.Length>0
a[0]==123…
T
TF
T
F
F
Solve

57. Code to generate inputs for:
Constraints to solve
a!=null
a!=null &&
a.Length>0
a!=null &&
a.Length>0 &&
a[0]==1234567890
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
a!=null &&
!(a.Length>0)
a!=null &&
a.Length>0 &&
a[0]!=1234567890
Data
null
{}
{0}
{123…}a==null
a.Length>0
a[0]==123…
T
TF
T
F
F
Execute&Monitor

58. Code to generate inputs for:
Constraints to solve
a!=null
a!=null &&
a.Length>0
a!=null &&
a.Length>0 &&
a[0]==1234567890
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
a!=null &&
!(a.Length>0)
a!=null &&
a.Length>0 &&
a[0]!=1234567890
a!=null &&
a.Length>0 &&
a[0]==1234567890
Data
null
{}
{0}
{123…}a==null
a.Length>0
a[0]==123…
T
TF
T
F
F
Execute&Monitor

59. Code to generate inputs for:
Constraints to solve
a!=null
a!=null &&
a.Length>0
a!=null &&
a.Length>0 &&
a[0]==1234567890
void CoverMe(int[] a)
{
if (a == null) return;
if (a.Length > 0)
if (a[0] == 1234567890)
throw new Exception("bug");
}
Observed constraints
a==null
a!=null &&
!(a.Length>0)
a!=null &&
a.Length>0 &&
a[0]!=1234567890
a!=null &&
a.Length>0 &&
a[0]==1234567890
Data
null
{}
{0}
{123…}a==null
a.Length>0
a[0]==123…
T
TF
T
F
F
Done: There is no path left.

60. Download counts
initial 20 months of release
Academic: 17,366
Industrial: 13,022
Total: 30,388
60
“It has saved me two major bugs (not caught by normal unit tests)
that would have taken at least a week to track down and fix
normally plus a few smaller issues so I'm a big proponent of Pex.”
Pex detected various bugs (including a serious
bug) in a core .NET component (already been
extensively tested over 5 years by 40 testers) ,
used by thousands of developers and millions
of end users.
Released since 2008
http://research.microsoft.com/projects/pex/

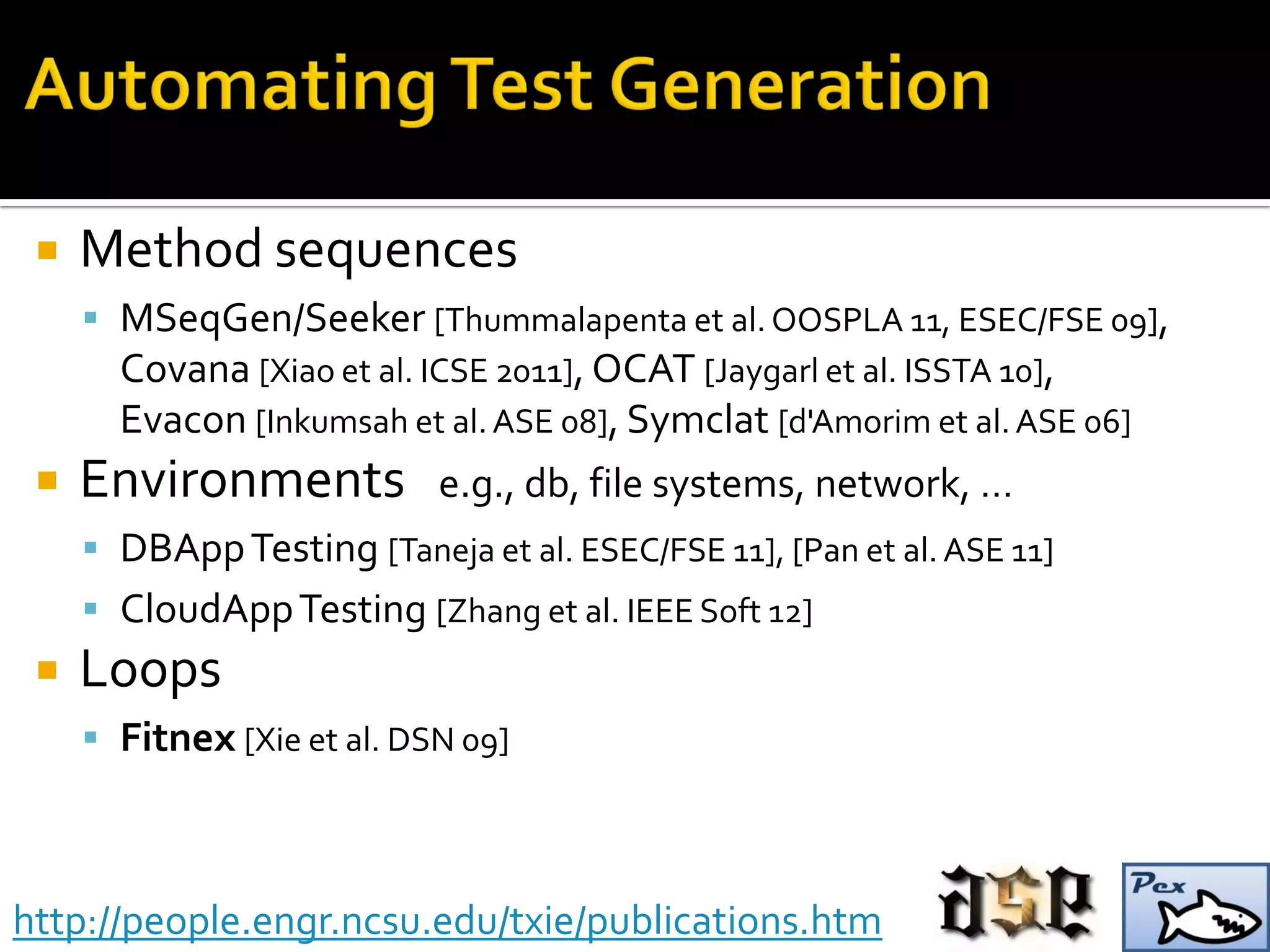

61.  Method sequences
 MSeqGen/Seeker [Thummalapenta et al.OOSPLA 11, ESEC/FSE 09],

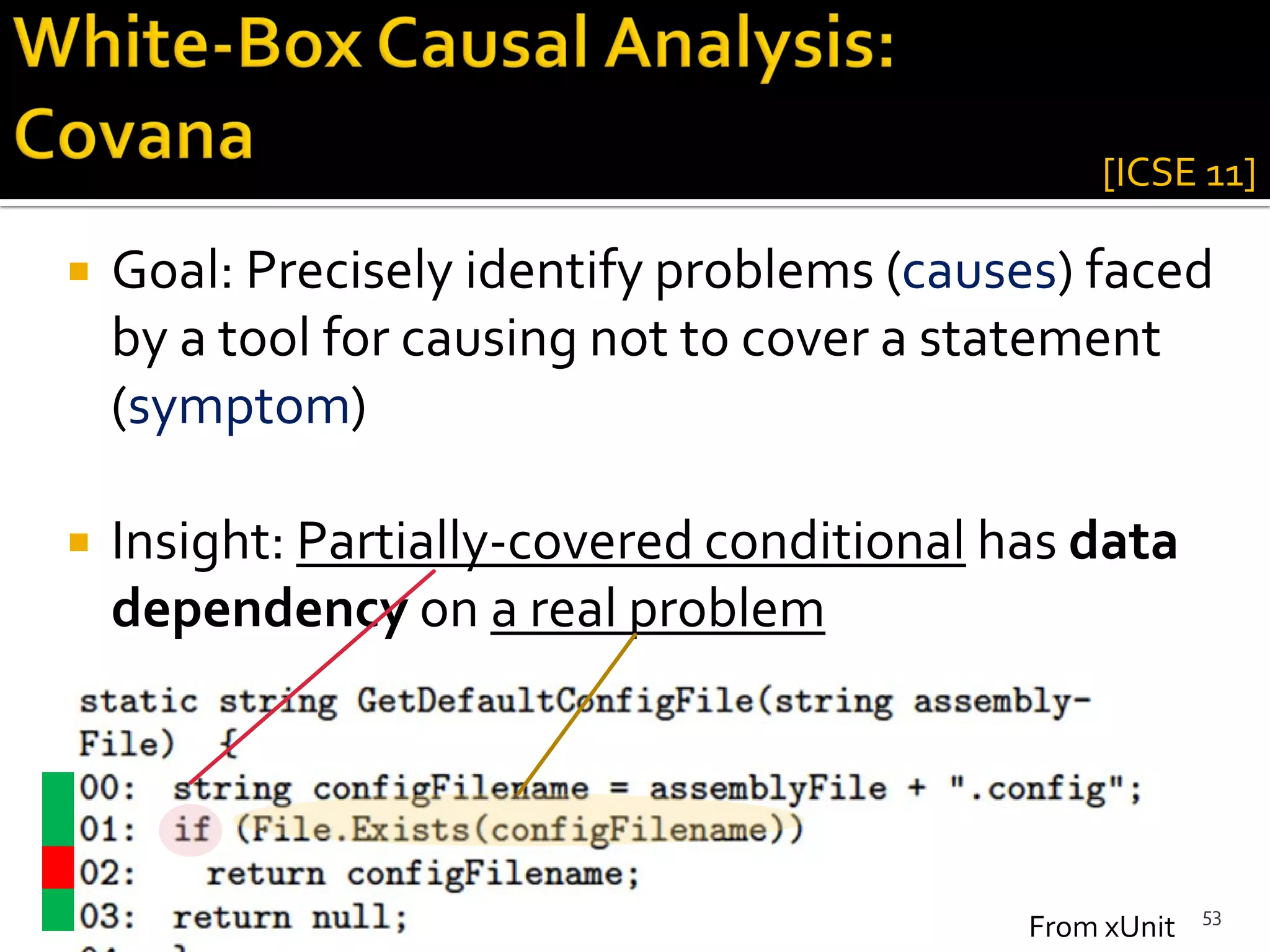

Covana [Xiao et al. ICSE 2011], OCAT [Jaygarl et al. ISSTA 10],
Evacon [Inkumsah et al.ASE 08], Symclat [d'Amorim et al.ASE 06]
 Environments e.g., db, file systems, network, …
 DBAppTesting [Taneja et al. ESEC/FSE 11], [Pan et al.ASE 11]
 CloudAppTesting [Zhang et al. IEEE Soft 12]
 Loops
 Fitnex [Xie et al. DSN 09]
http://people.engr.ncsu.edu/txie/publications.htm

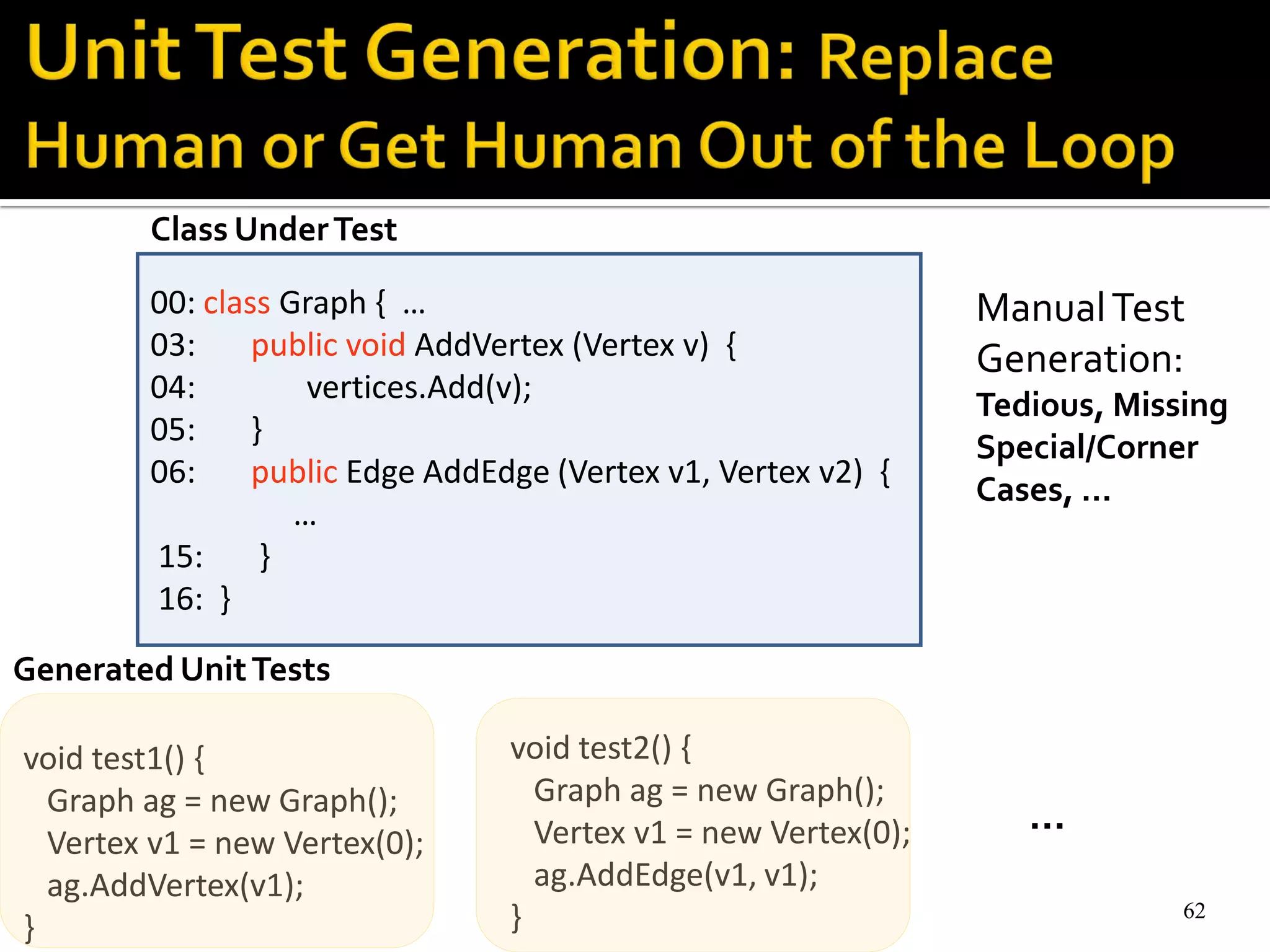

62. 62
void test1() {
Graph ag = new Graph();
Vertex v1 = new Vertex(0);
ag.AddVertex(v1);
}
62
00: class Graph { …
03: public void AddVertex (Vertex v) {
04: vertices.Add(v);
05: }
06: public Edge AddEdge (Vertex v1, Vertex v2) {
…
15: }
16: }
Class UnderTest
void test2() {
Graph ag = new Graph();
Vertex v1 = new Vertex(0);
ag.AddEdge(v1, v1);
}
…
Generated UnitTests
ManualTest
Generation:
Tedious, Missing
Special/Corner
Cases, …

63. Running Symbolic PathFinder ...
…
============================================
========== results
no errors detected
============================================
========== statistics
elapsed time: 0:00:02
states: new=4, visited=0,
backtracked=4, end=2
search: maxDepth=3,
constraints=0
choice generators: thread=1, data=2
heap: gc=3, new=271, free=22
instructions: 2875
max memory: 81MB
loaded code: classes=71, methods=884
…
37

64. Running Symbolic PathFinder ...
…
============================================
========== results
no errors detected
============================================
========== statistics
elapsed time: 0:00:02
states: new=4, visited=0,
backtracked=4, end=2
search: maxDepth=3,
constraints=0
choice generators: thread=1, data=2
heap: gc=3, new=271, free=22
instructions: 2875
max memory: 81MB
loaded code: classes=71, methods=884
…
37

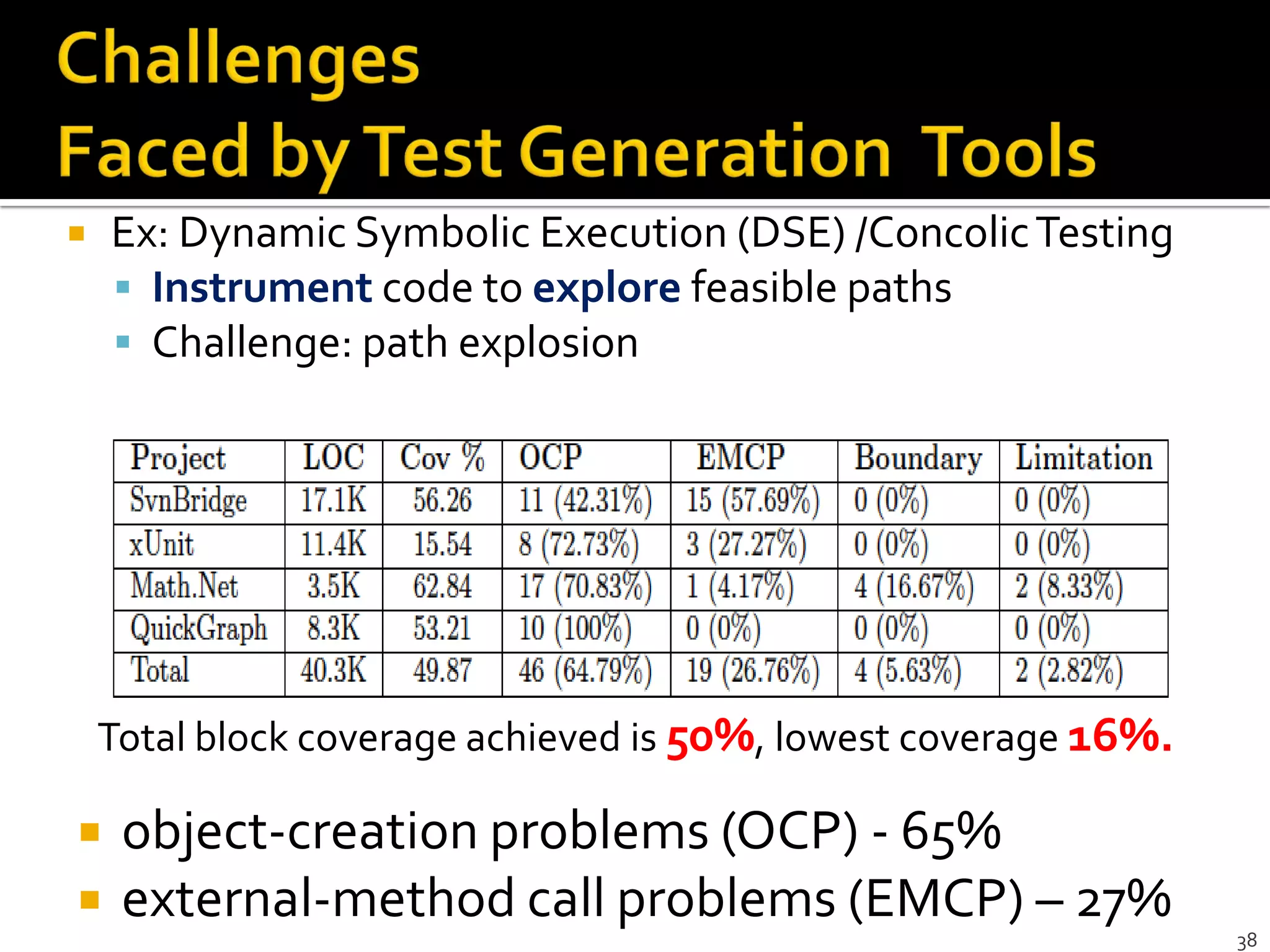

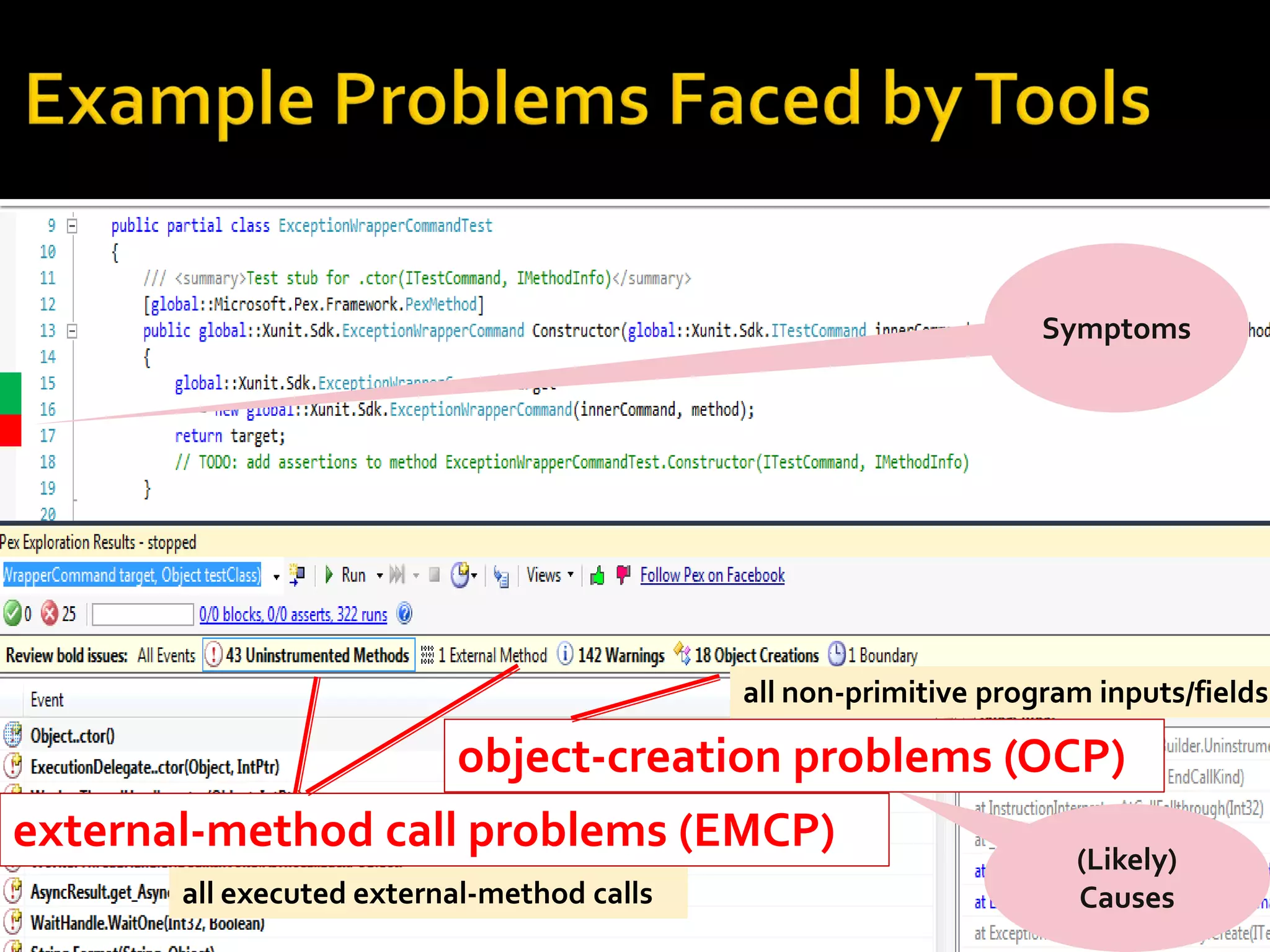

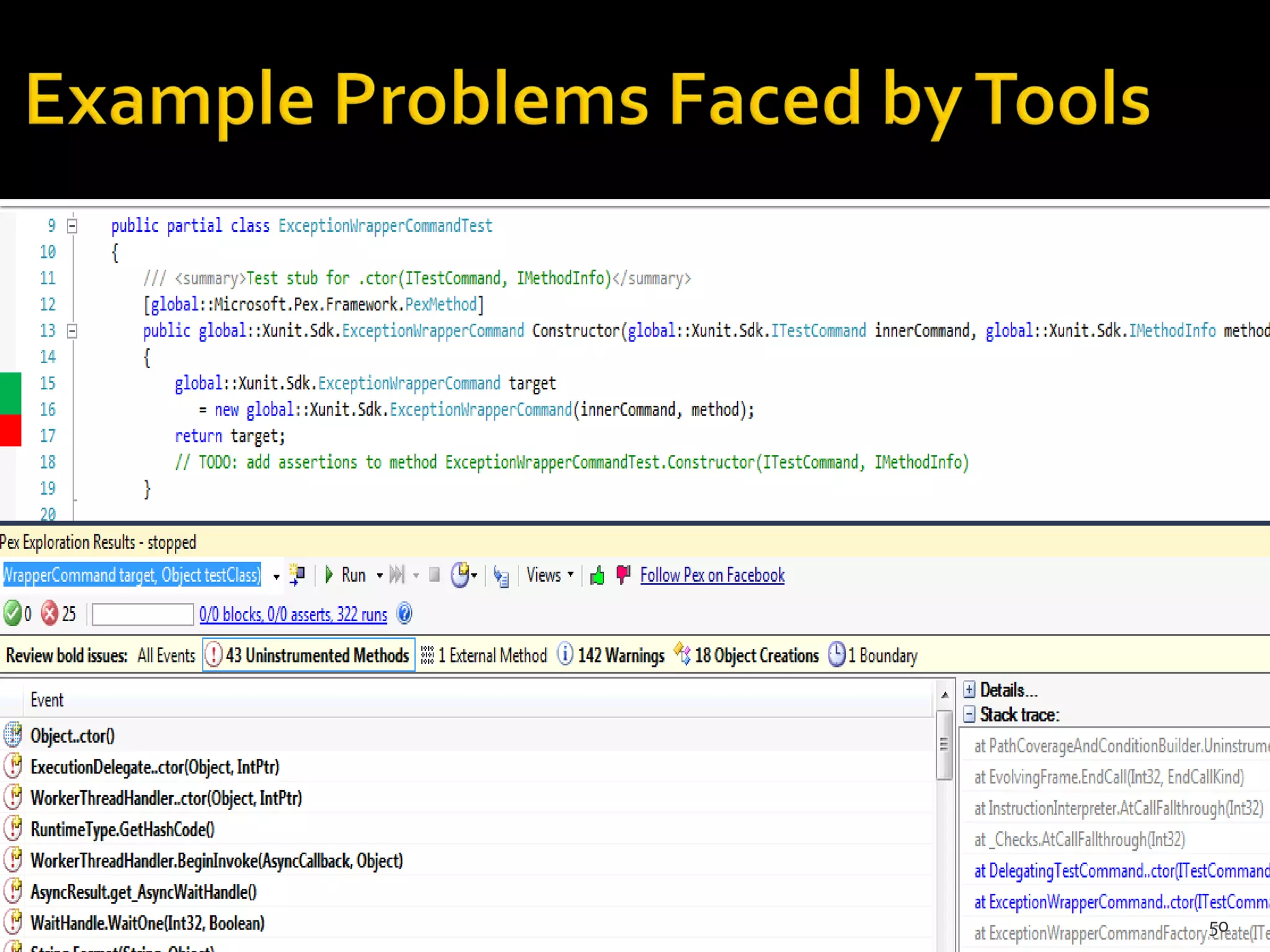

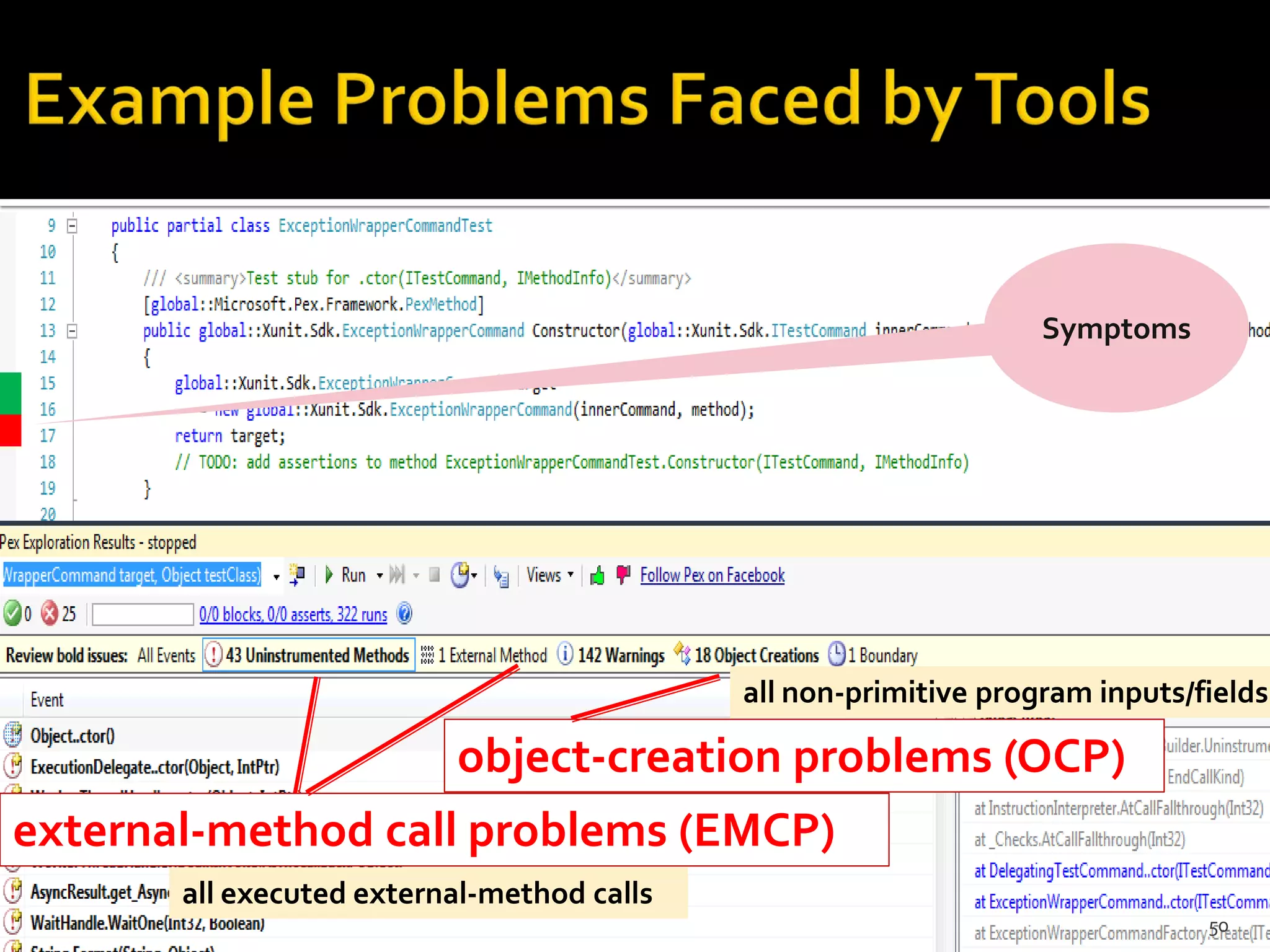

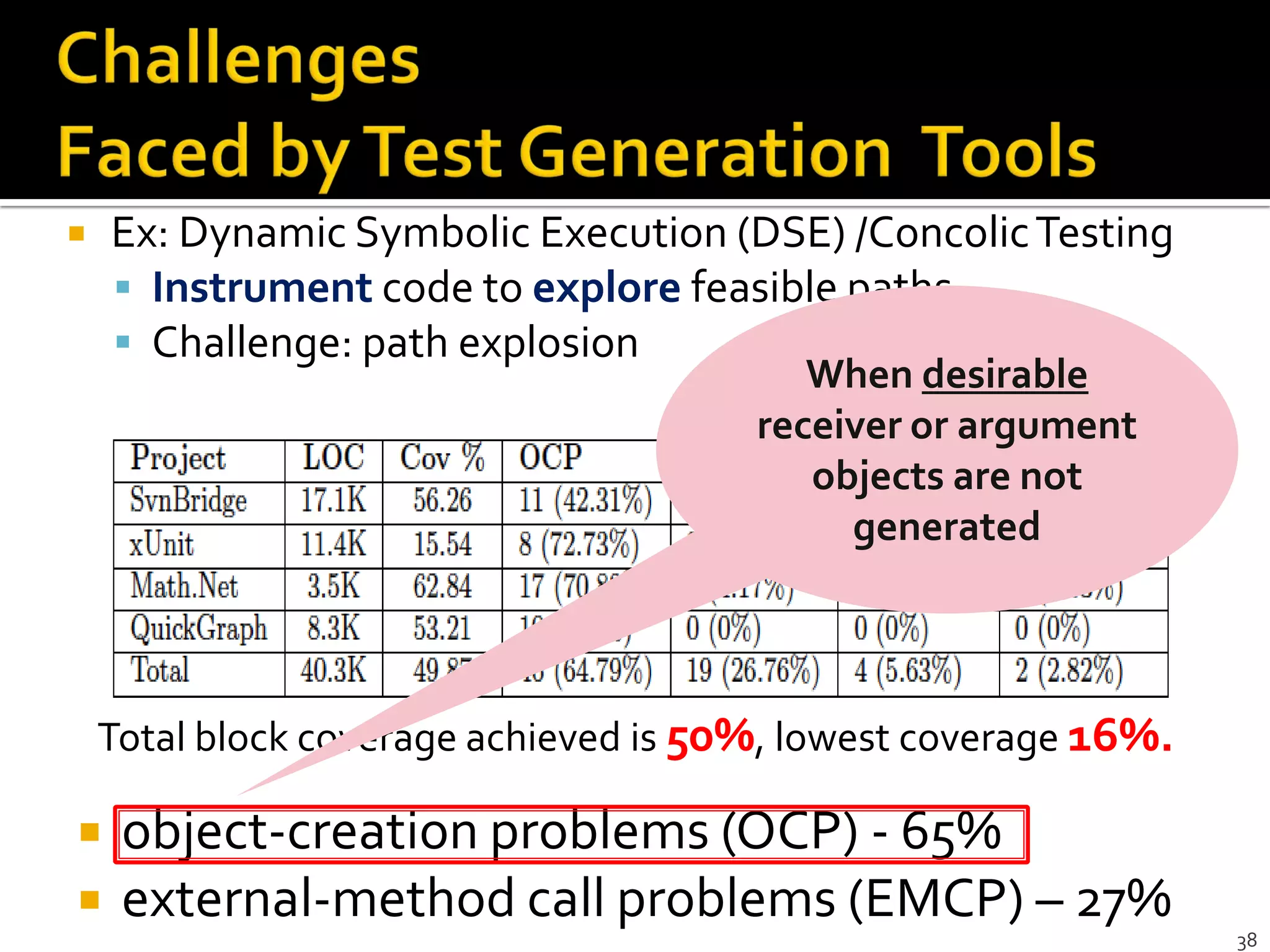

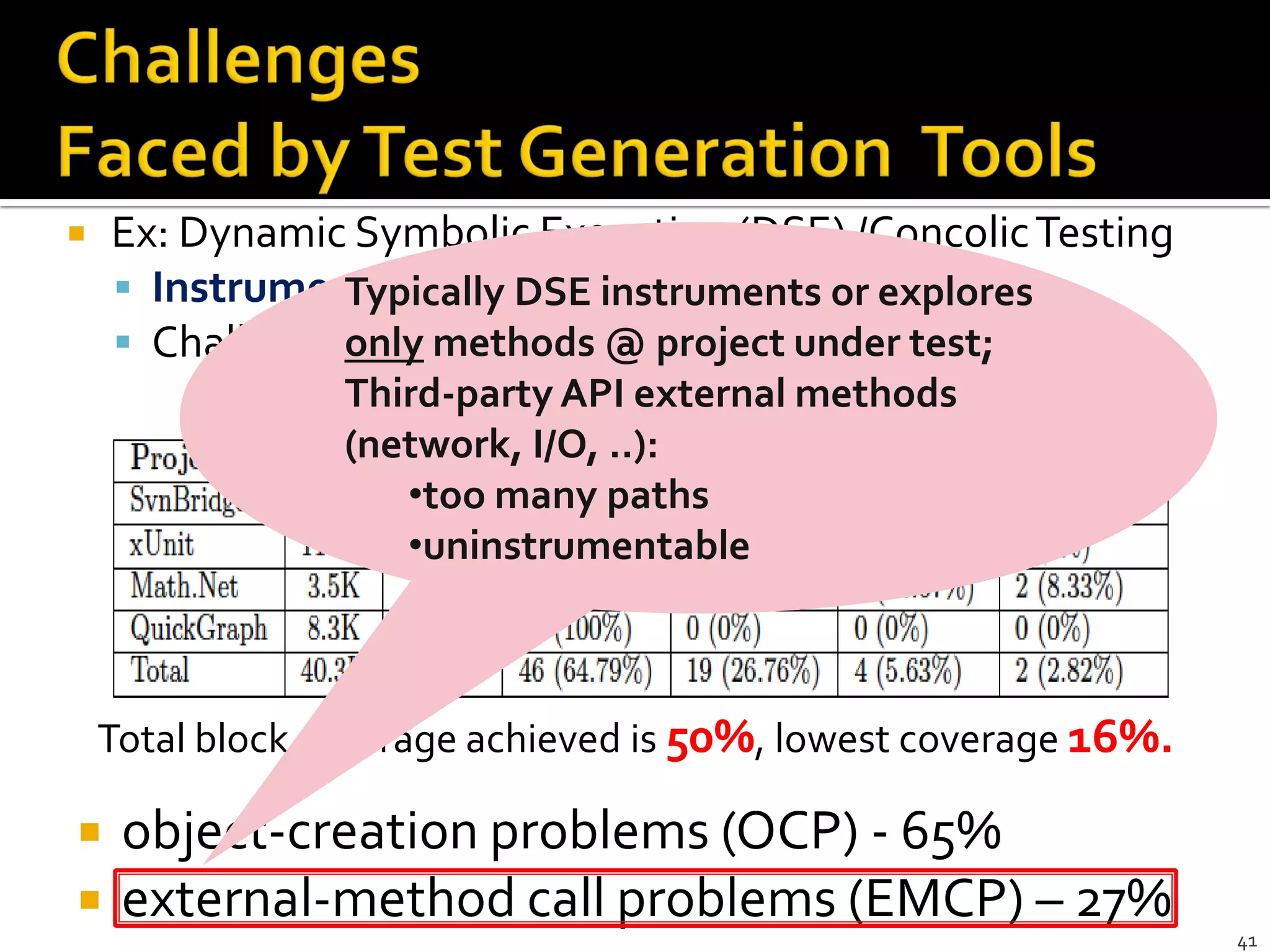

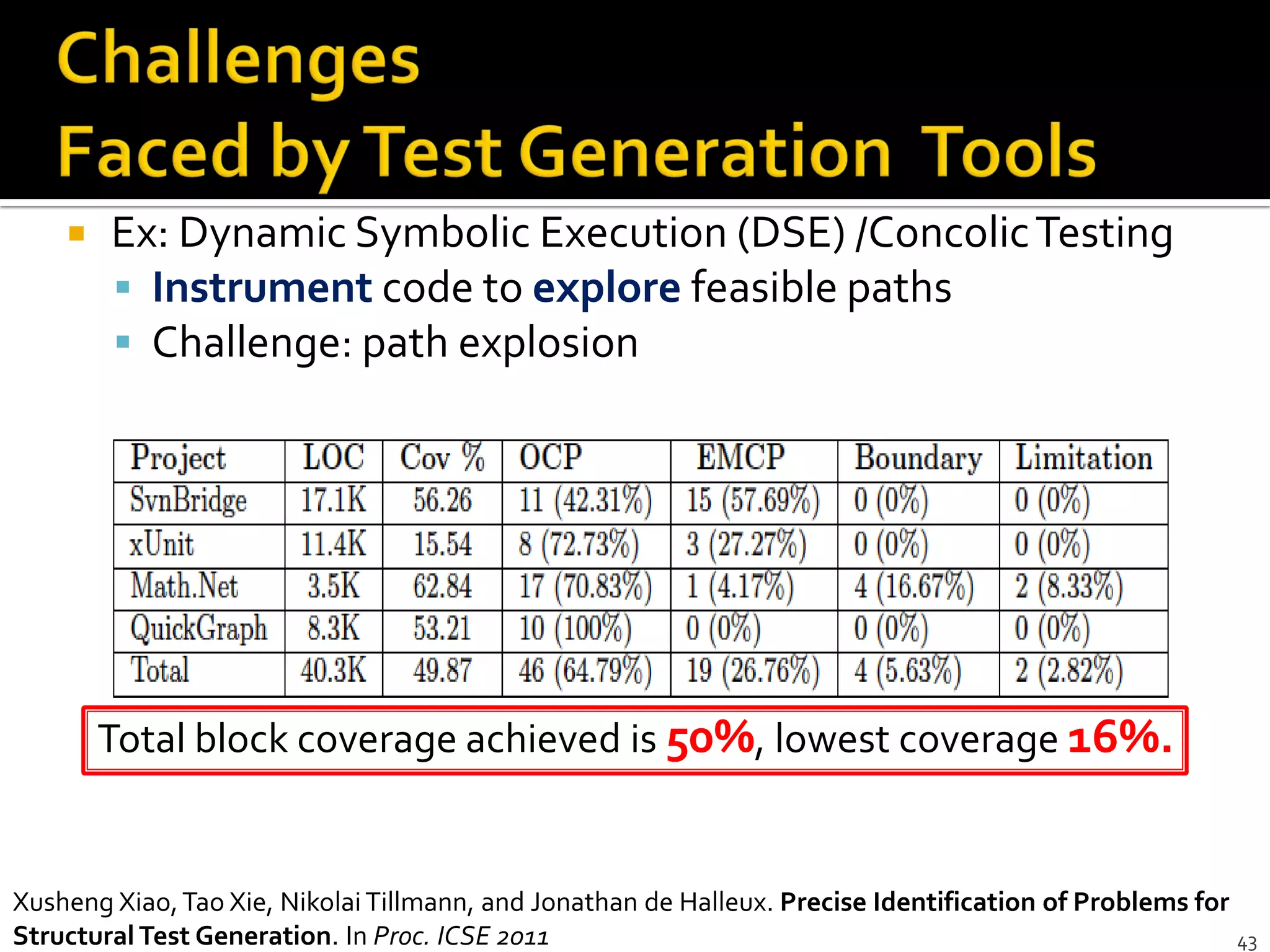

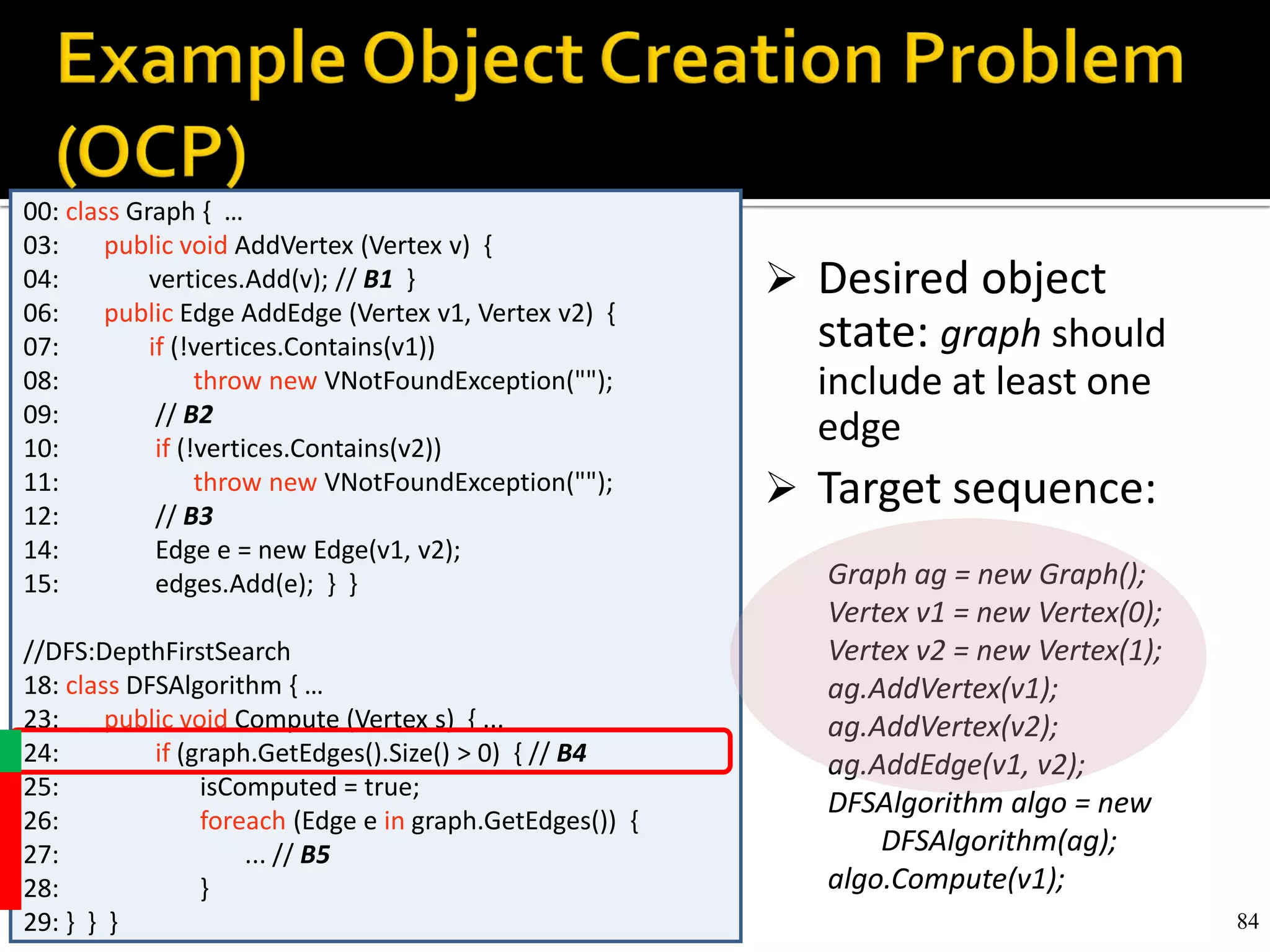

65.  object-creation problems (OCP) - 65%
 external-method call problems (EMCP) – 27%
Total block coverage achieved is 50%, lowest coverage 16%.
38
 Ex: Dynamic Symbolic Execution (DSE) /ConcolicTesting
 Instrument code to explore feasible paths
 Challenge: path explosion

66.  object-creation problems (OCP) - 65%

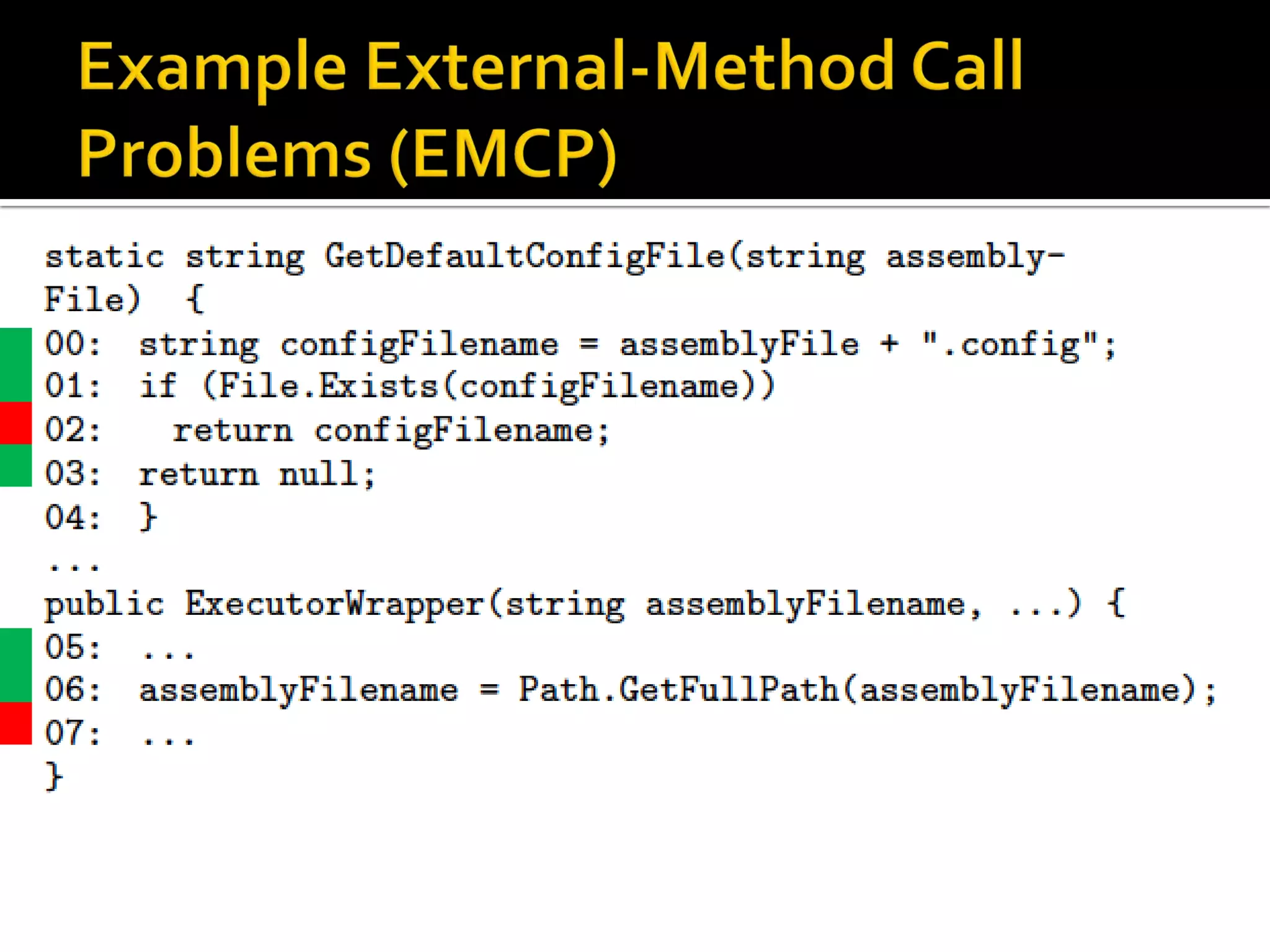

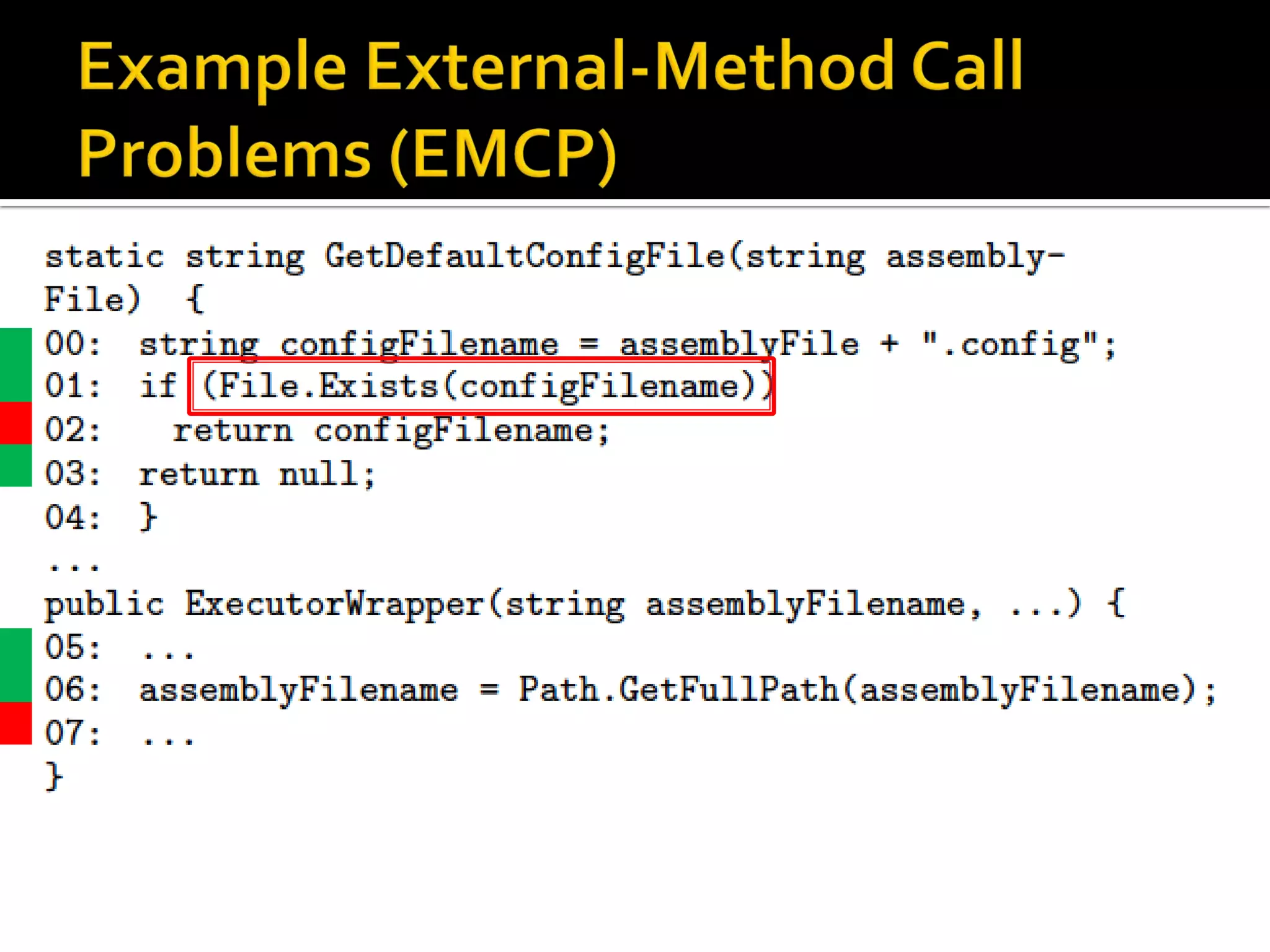

 external-method call problems (EMCP) – 27%
Total block coverage achieved is 50%, lowest coverage 16%.
38
 Ex: Dynamic Symbolic Execution (DSE) /ConcolicTesting
 Instrument code to explore feasible paths
 Challenge: path explosion
When desirable
receiver or argument
objects are not
generated

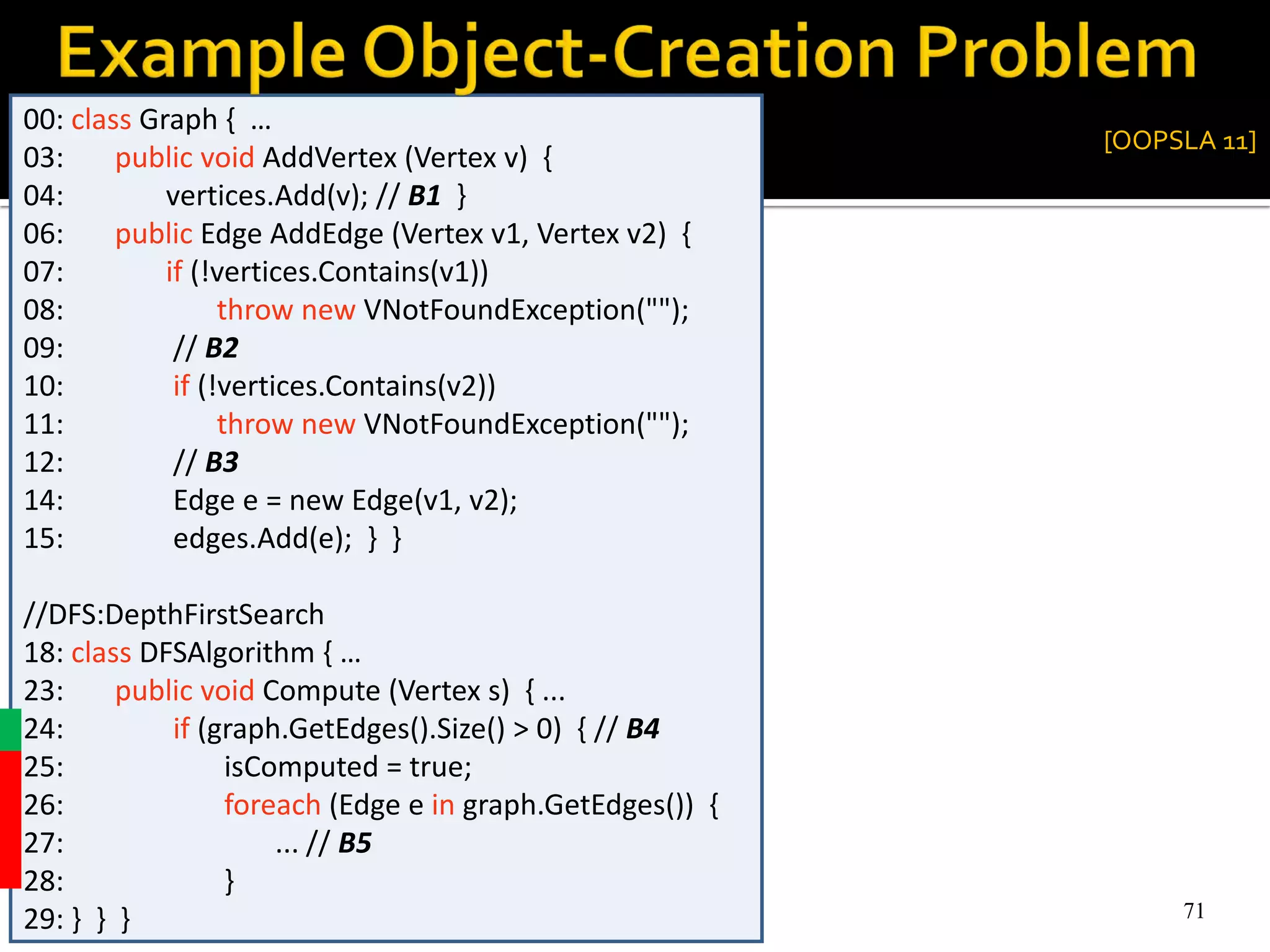

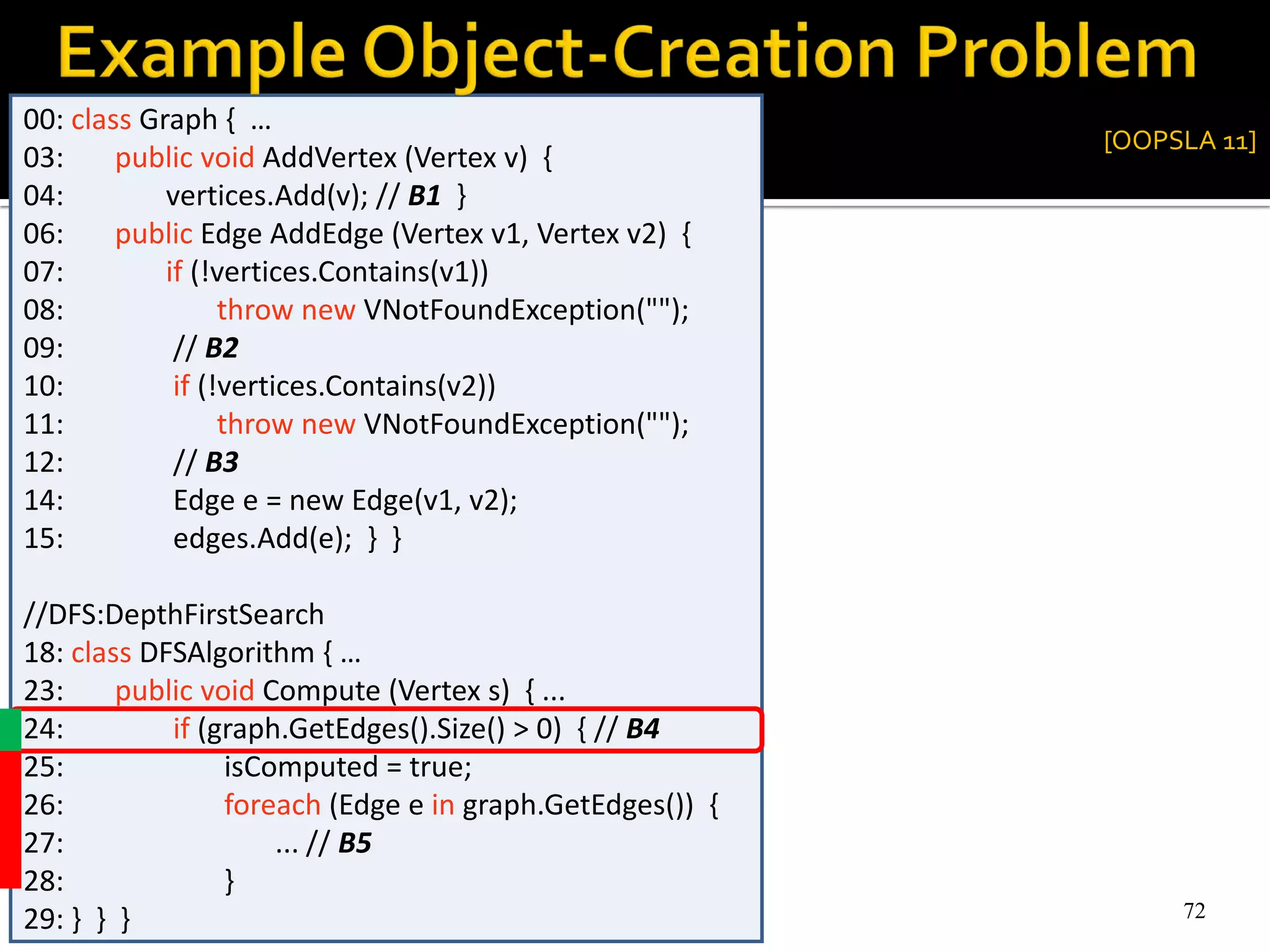

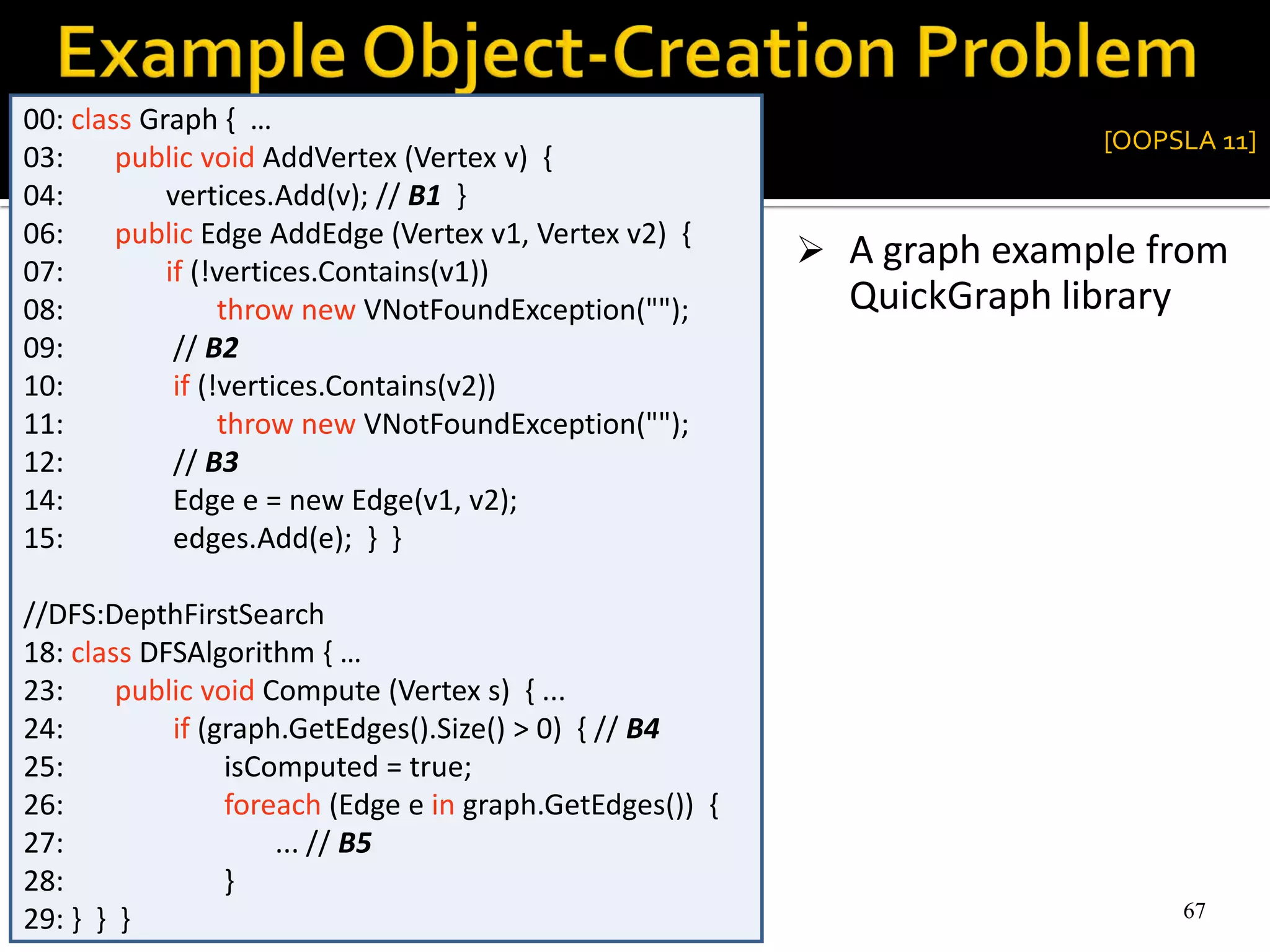

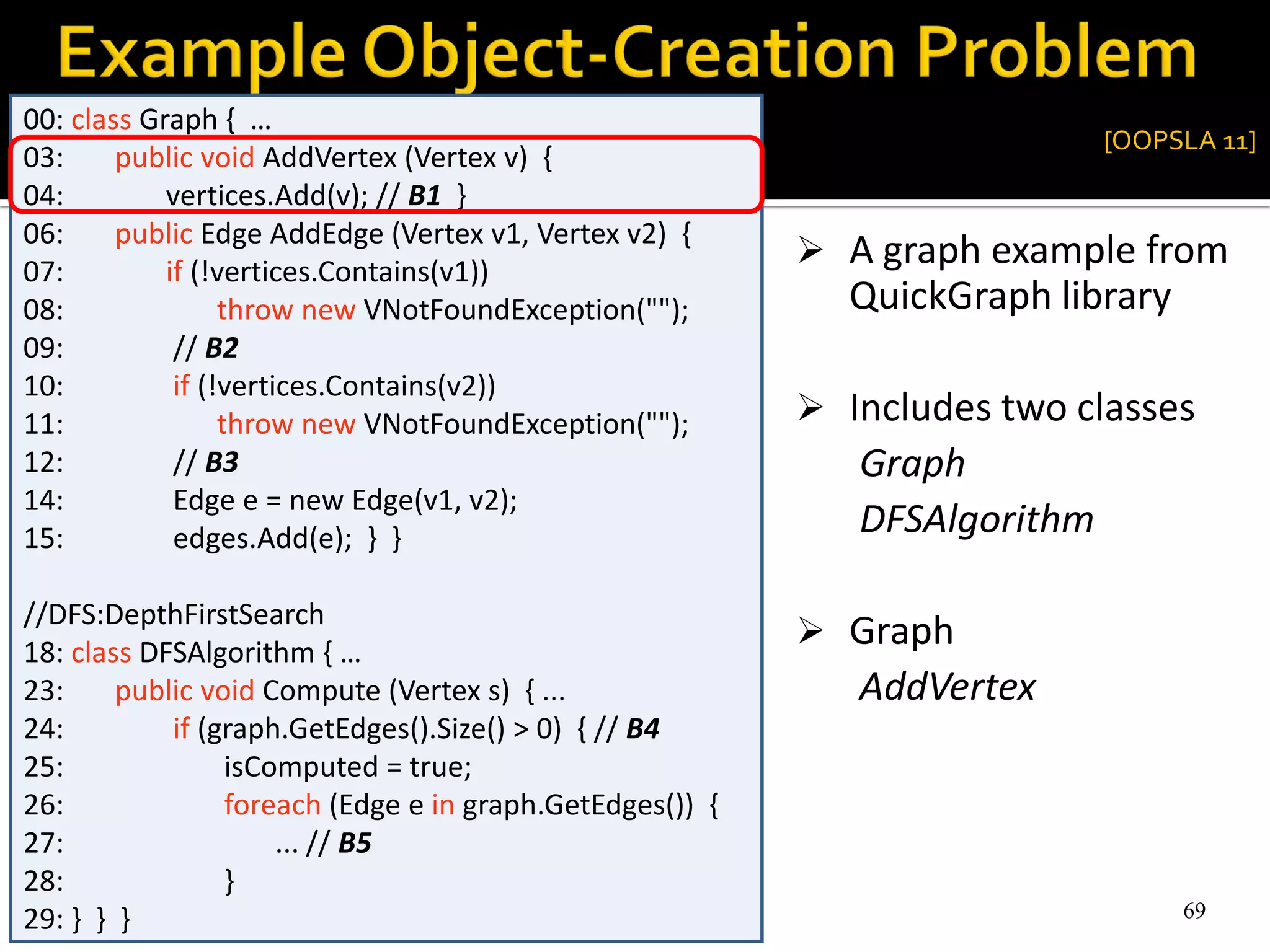

67. 67

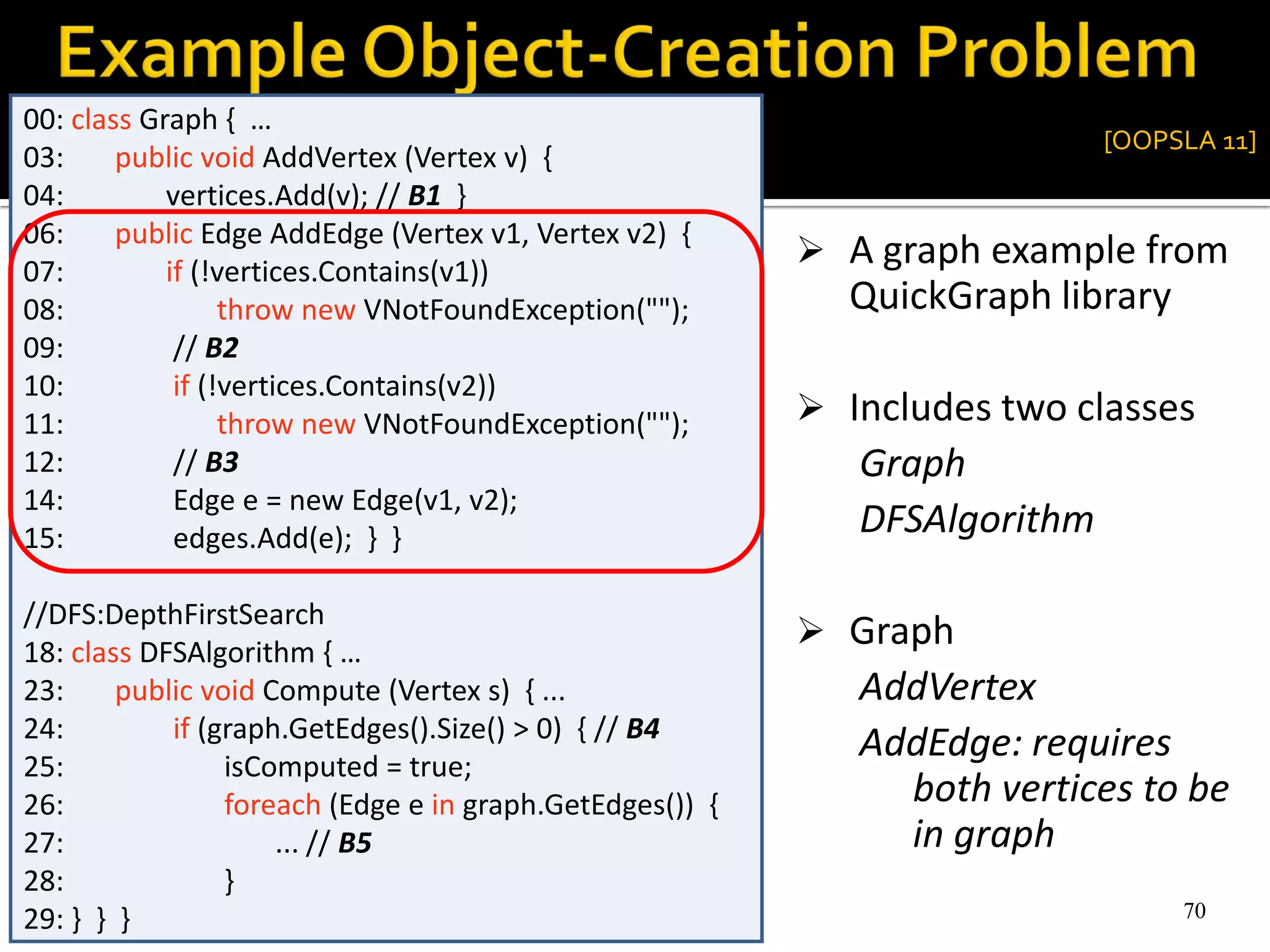

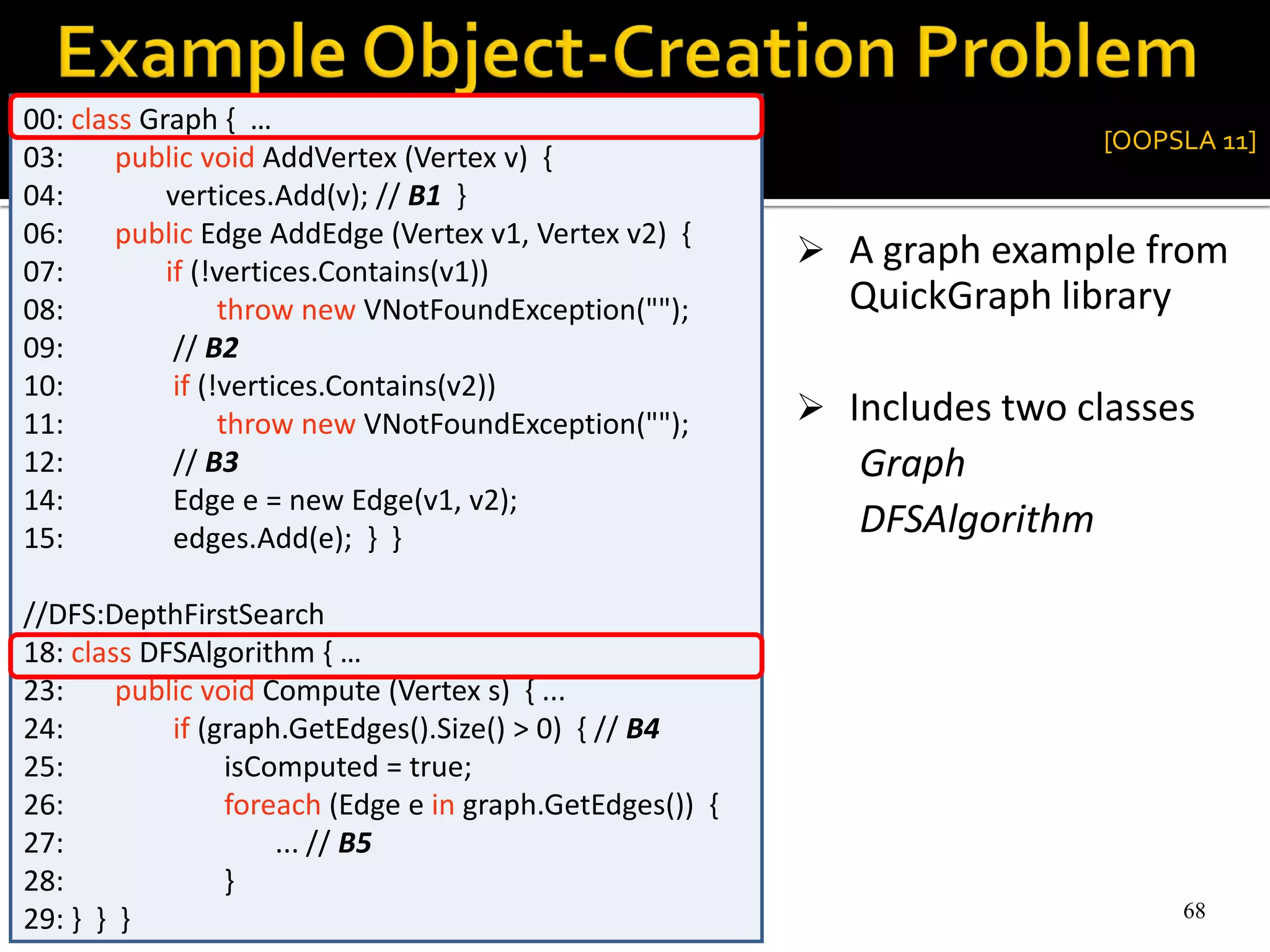

 A graph example from
QuickGraph library
00: class Graph { …
03: public void AddVertex (Vertex v) {
04: vertices.Add(v); // B1 }
06: public Edge AddEdge (Vertex v1, Vertex v2) {
07: if (!vertices.Contains(v1))
08: throw new VNotFoundException("");
09: // B2
10: if (!vertices.Contains(v2))
11: throw new VNotFoundException("");
12: // B3
14: Edge e = new Edge(v1, v2);
15: edges.Add(e); } }
//DFS:DepthFirstSearch
18: class DFSAlgorithm { …
23: public void Compute (Vertex s) { ...
24: if (graph.GetEdges().Size() > 0) { // B4
25: isComputed = true;
26: foreach (Edge e in graph.GetEdges()) {
27: ... // B5
28: }
29: } } } 67
[OOPSLA 11]

68. 68
 A graph example from
QuickGraph library
 Includes two classes
Graph
DFSAlgorithm
00: class Graph { …
03: public void AddVertex (Vertex v) {
04: vertices.Add(v); // B1 }
06: public Edge AddEdge (Vertex v1, Vertex v2) {
07: if (!vertices.Contains(v1))
08: throw new VNotFoundException("");
09: // B2
10: if (!vertices.Contains(v2))
11: throw new VNotFoundException("");
12: // B3
14: Edge e = new Edge(v1, v2);
15: edges.Add(e); } }
//DFS:DepthFirstSearch
18: class DFSAlgorithm { …
23: public void Compute (Vertex s) { ...
24: if (graph.GetEdges().Size() > 0) { // B4
25: isComputed = true;
26: foreach (Edge e in graph.GetEdges()) {
27: ... // B5
28: }
29: } } } 68
[OOPSLA 11]

69. 69
 A graph example from
QuickGraph library
 Includes two classes
Graph
DFSAlgorithm
 Graph
AddVertex
00: class Graph { …
03: public void AddVertex (Vertex v) {
04: vertices.Add(v); // B1 }
06: public Edge AddEdge (Vertex v1, Vertex v2) {
07: if (!vertices.Contains(v1))
08: throw new VNotFoundException("");
09: // B2
10: if (!vertices.Contains(v2))
11: throw new VNotFoundException("");
12: // B3
14: Edge e = new Edge(v1, v2);
15: edges.Add(e); } }
//DFS:DepthFirstSearch
18: class DFSAlgorithm { …
23: public void Compute (Vertex s) { ...
24: if (graph.GetEdges().Size() > 0) { // B4
25: isComputed = true;
26: foreach (Edge e in graph.GetEdges()) {
27: ... // B5
28: }
29: } } } 69
[OOPSLA 11]

70. 70
 A graph example from
QuickGraph library
 Includes two classes
Graph
DFSAlgorithm
 Graph
AddVertex
AddEdge: requires
both vertices to be
in graph
00: class Graph { …
03: public void AddVertex (Vertex v) {
04: vertices.Add(v); // B1 }
06: public Edge AddEdge (Vertex v1, Vertex v2) {
07: if (!vertices.Contains(v1))
08: throw new VNotFoundException("");
09: // B2
10: if (!vertices.Contains(v2))
11: throw new VNotFoundException("");
12: // B3
14: Edge e = new Edge(v1, v2);
15: edges.Add(e); } }
//DFS:DepthFirstSearch
18: class DFSAlgorithm { …
23: public void Compute (Vertex s) { ...
24: if (graph.GetEdges().Size() > 0) { // B4
25: isComputed = true;
26: foreach (Edge e in graph.GetEdges()) {
27: ... // B5
28: }
29: } } } 70
[OOPSLA 11]

71. 7171
00: class Graph { …
03: public void AddVertex (Vertex v) {
04: vertices.Add(v); // B1 }
06: public Edge AddEdge (Vertex v1, Vertex v2) {
07: if (!vertices.Contains(v1))
08: throw new VNotFoundException("");
09: // B2
10: if (!vertices.Contains(v2))
11: throw new VNotFoundException("");
12: // B3
14: Edge e = new Edge(v1, v2);
15: edges.Add(e); } }
//DFS:DepthFirstSearch
18: class DFSAlgorithm { …
23: public void Compute (Vertex s) { ...
24: if (graph.GetEdges().Size() > 0) { // B4
25: isComputed = true;
26: foreach (Edge e in graph.GetEdges()) {
27: ... // B5
28: }
29: } } }
[OOPSLA 11]

72. 72
 Test target: Cover true
branch (B4) of Line 24
72
00: class Graph { …
03: public void AddVertex (Vertex v) {
04: vertices.Add(v); // B1 }
06: public Edge AddEdge (Vertex v1, Vertex v2) {
07: if (!vertices.Contains(v1))
08: throw new VNotFoundException("");
09: // B2
10: if (!vertices.Contains(v2))
11: throw new VNotFoundException("");
12: // B3
14: Edge e = new Edge(v1, v2);
15: edges.Add(e); } }
//DFS:DepthFirstSearch
18: class DFSAlgorithm { …
23: public void Compute (Vertex s) { ...
24: if (graph.GetEdges().Size() > 0) { // B4
25: isComputed = true;
26: foreach (Edge e in graph.GetEdges()) {
27: ... // B5
28: }
29: } } }
[OOPSLA 11]

73. 73

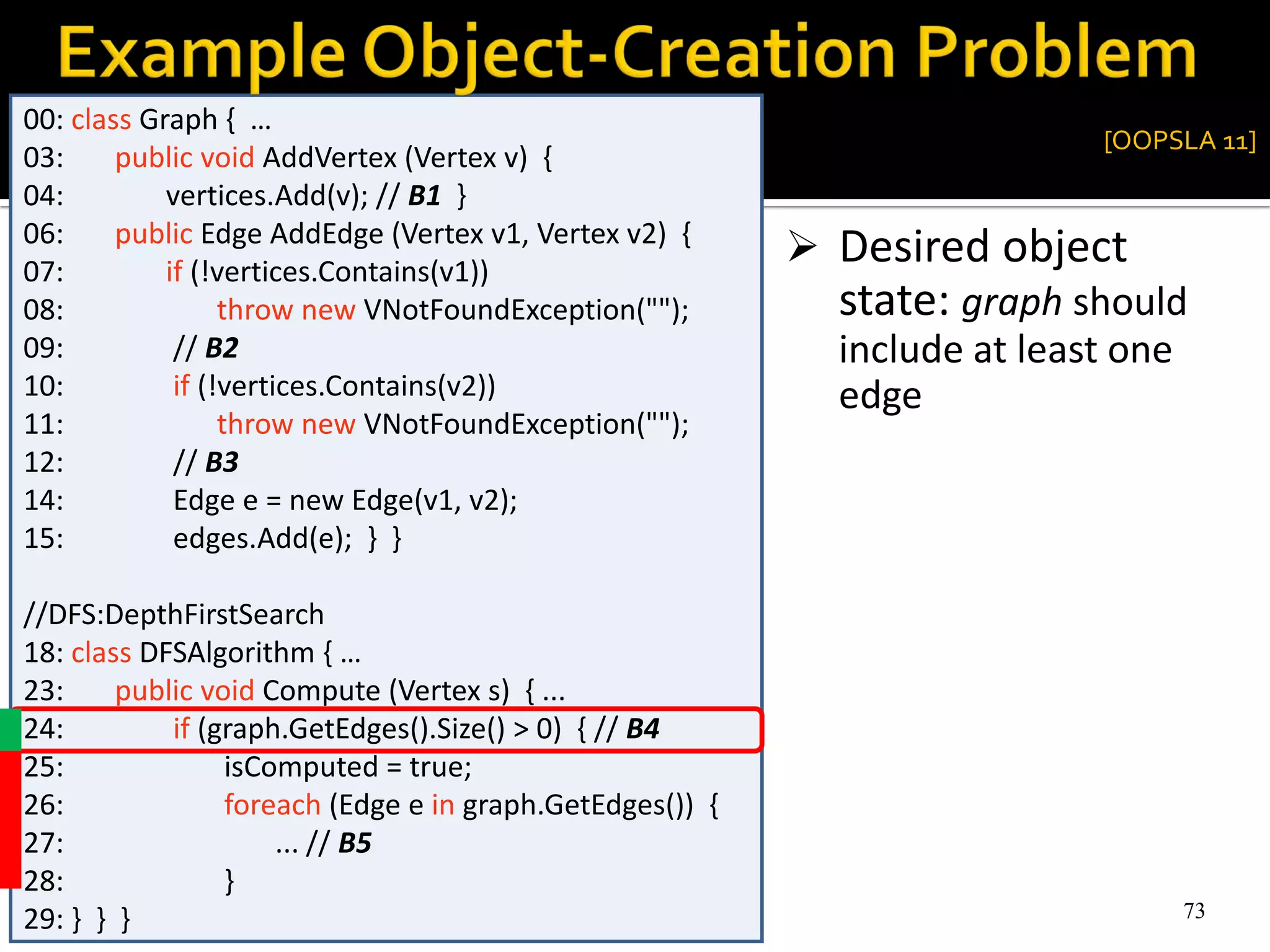

 Test target: Cover true
branch (B4) of Line 24
 Desired object
state: graph should
include at least one
edge
73
00: class Graph { …
03: public void AddVertex (Vertex v) {
04: vertices.Add(v); // B1 }
06: public Edge AddEdge (Vertex v1, Vertex v2) {
07: if (!vertices.Contains(v1))
08: throw new VNotFoundException("");
09: // B2
10: if (!vertices.Contains(v2))
11: throw new VNotFoundException("");
12: // B3
14: Edge e = new Edge(v1, v2);
15: edges.Add(e); } }
//DFS:DepthFirstSearch
18: class DFSAlgorithm { …
23: public void Compute (Vertex s) { ...
24: if (graph.GetEdges().Size() > 0) { // B4
25: isComputed = true;
26: foreach (Edge e in graph.GetEdges()) {
27: ... // B5
28: }
29: } } }
[OOPSLA 11]

74. 74
 Test target: Cover true
branch (B4) of Line 24
 Desired object
state: graph should
include at least one
edge
 Target sequence:
Graph ag = new Graph();
Vertex v1 = new Vertex(0);
Vertex v2 = new Vertex(1);
ag.AddVertex(v1);
ag.AddVertex(v2);
ag.AddEdge(v1, v2);
DFSAlgorithm algo = new
DFSAlgorithm(ag);
algo.Compute(v1);
74
00: class Graph { …
03: public void AddVertex (Vertex v) {
04: vertices.Add(v); // B1 }
06: public Edge AddEdge (Vertex v1, Vertex v2) {
07: if (!vertices.Contains(v1))
08: throw new VNotFoundException("");
09: // B2
10: if (!vertices.Contains(v2))
11: throw new VNotFoundException("");
12: // B3
14: Edge e = new Edge(v1, v2);
15: edges.Add(e); } }
//DFS:DepthFirstSearch
18: class DFSAlgorithm { …
23: public void Compute (Vertex s) { ...
24: if (graph.GetEdges().Size() > 0) { // B4
25: isComputed = true;
26: foreach (Edge e in graph.GetEdges()) {
27: ... // B5
28: }
29: } } }
[OOPSLA 11]

75.  object-creation problems (OCP) - 65%
 external-method call problems (EMCP) – 27%
Total block coverage achieved is 50%, lowest coverage 16%.
41
 Ex: Dynamic Symbolic Execution (DSE) /ConcolicTesting
 Instrument code to explore feasible paths
 Challenge: path explosion

76.  object-creation problems (OCP) - 65%
 external-method call problems (EMCP) – 27%
Total block coverage achieved is 50%, lowest coverage 16%.
41
 Ex: Dynamic Symbolic Execution (DSE) /ConcolicTesting
 Instrument code to explore feasible paths
 Challenge: path explosion
Typically DSE instruments or explores
only methods @ project under test;
Third-party API external methods
(network, I/O, ..):
•too many paths
•uninstrumentable

77. 42

78. 42

79. 42

80. Total block coverage achieved is 50%, lowest coverage 16%.
43
 Ex: Dynamic Symbolic Execution (DSE) /ConcolicTesting
 Instrument code to explore feasible paths
 Challenge: path explosion
Xusheng Xiao,Tao Xie, NikolaiTillmann, and Jonathan de Halleux. Precise Identification of Problems for
Structural Test Generation. In Proc. ICSE 2011

82. 2010 Dagstuhl Seminar 10111
Practical SoftwareTesting: Tool Automation and Human Factors

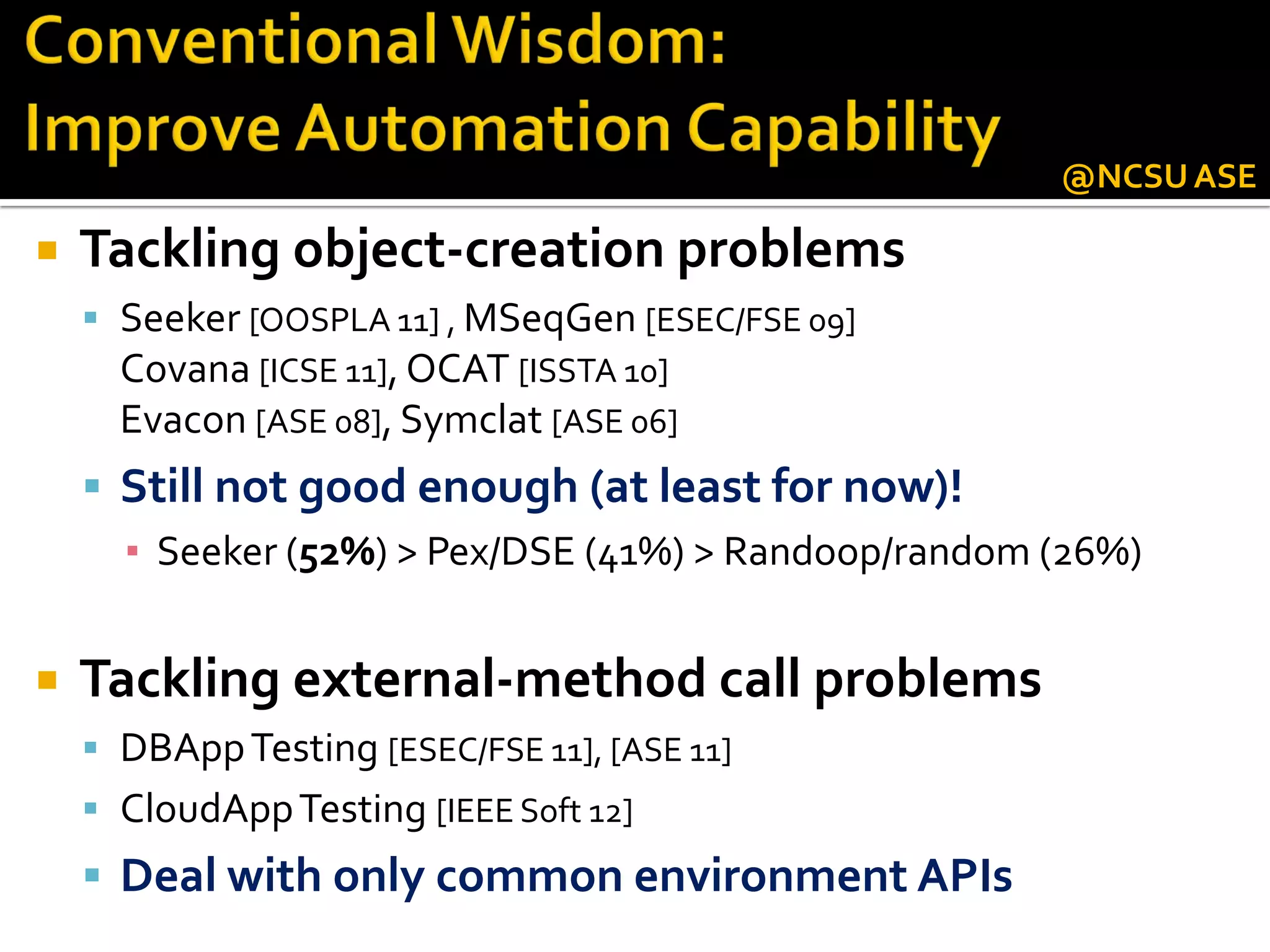

83.  Tackling object-creation problems
 Seeker [OOSPLA 11] , MSeqGen [ESEC/FSE 09]
Covana [ICSE 11], OCAT [ISSTA 10]
Evacon [ASE 08], Symclat [ASE 06]
 Still not good enough (at least for now)!
▪ Seeker (52%) > Pex/DSE (41%) > Randoop/random (26%)
 Tackling external-method call problems
 DBAppTesting [ESEC/FSE 11], [ASE 11]
 CloudAppTesting [IEEE Soft 12]
 Deal with only common environment APIs
@NCSUASE

84. 84
 Test target: Cover true
branch (B4) of Line 24
 Desired object
state: graph should
include at least one
edge
 Target sequence:
Graph ag = new Graph();
Vertex v1 = new Vertex(0);
Vertex v2 = new Vertex(1);
ag.AddVertex(v1);
ag.AddVertex(v2);
ag.AddEdge(v1, v2);
DFSAlgorithm algo = new
DFSAlgorithm(ag);
algo.Compute(v1);
84
00: class Graph { …
03: public void AddVertex (Vertex v) {
04: vertices.Add(v); // B1 }
06: public Edge AddEdge (Vertex v1, Vertex v2) {
07: if (!vertices.Contains(v1))
08: throw new VNotFoundException("");
09: // B2
10: if (!vertices.Contains(v2))
11: throw new VNotFoundException("");
12: // B3
14: Edge e = new Edge(v1, v2);
15: edges.Add(e); } }
//DFS:DepthFirstSearch
18: class DFSAlgorithm { …
23: public void Compute (Vertex s) { ...
24: if (graph.GetEdges().Size() > 0) { // B4
25: isComputed = true;
26: foreach (Edge e in graph.GetEdges()) {
27: ... // B5
28: }
29: } } }

85. Tackle object-creation problems with Factory Methods
47

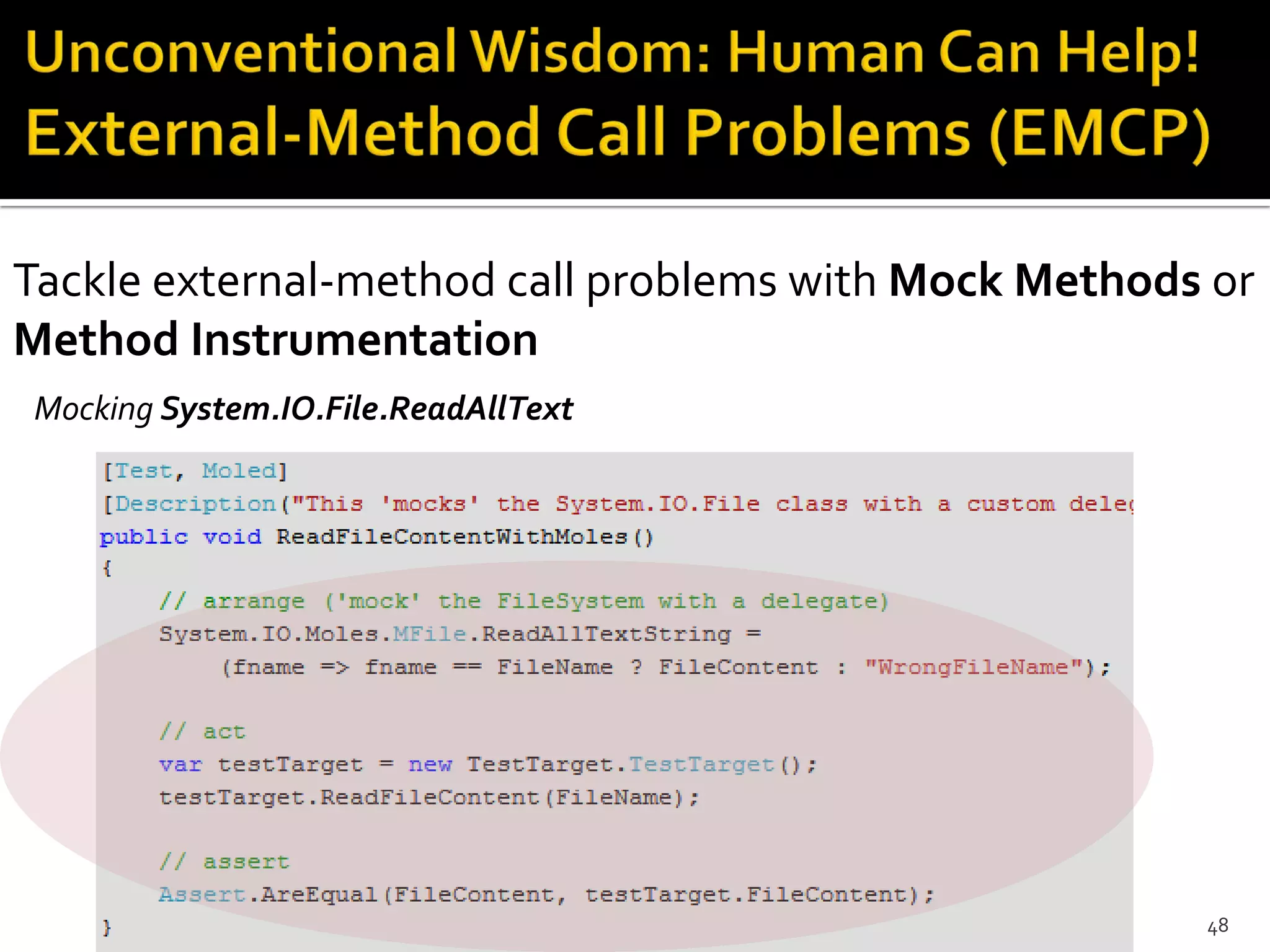

86. Tackle external-method call problems with Mock Methods or
Method Instrumentation
Mocking System.IO.File.ReadAllText
48

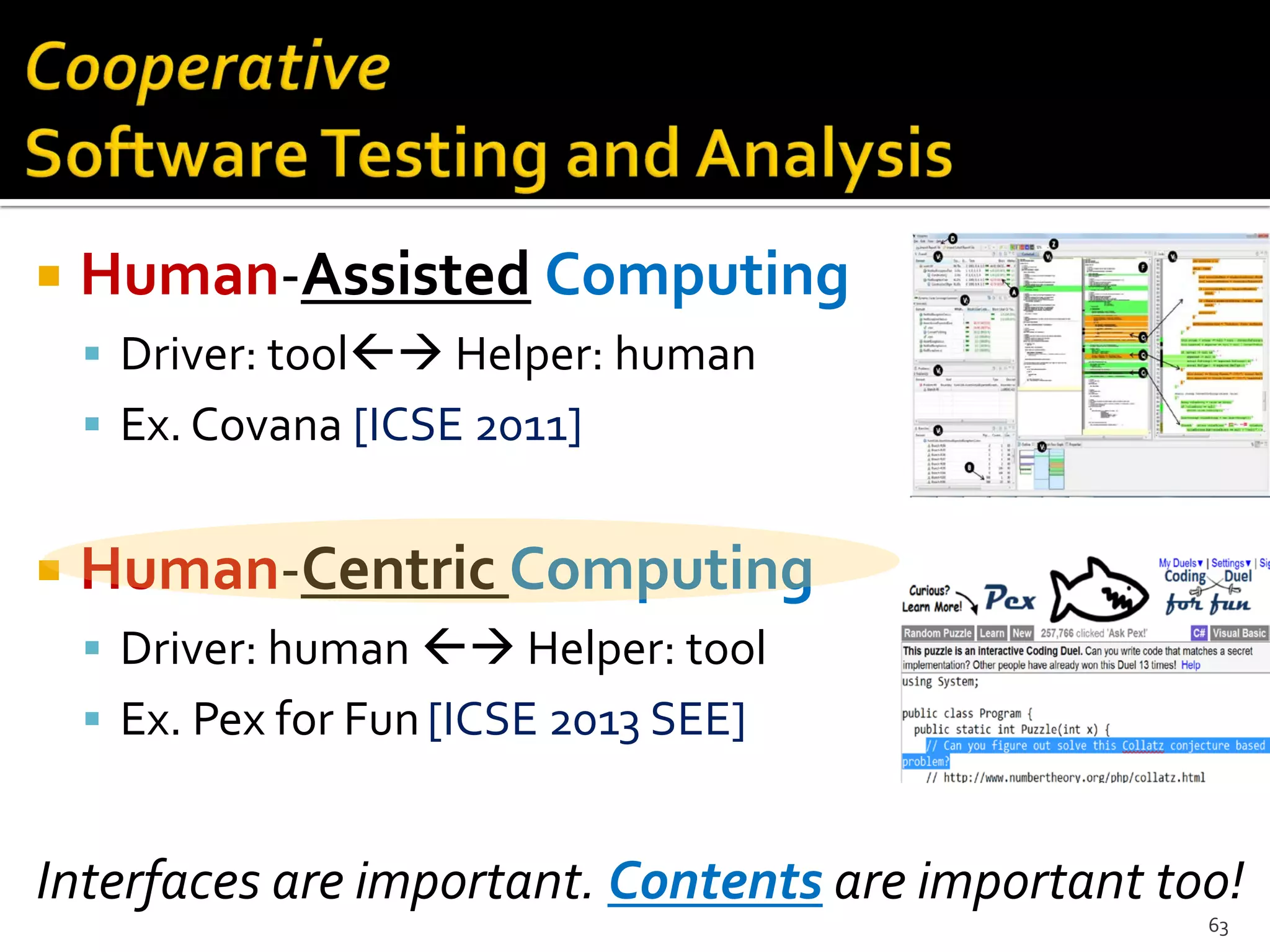

87.  Human-Assisted Computing
 Driver: tool Helper: human
 Ex. Covana [ICSE 2011]

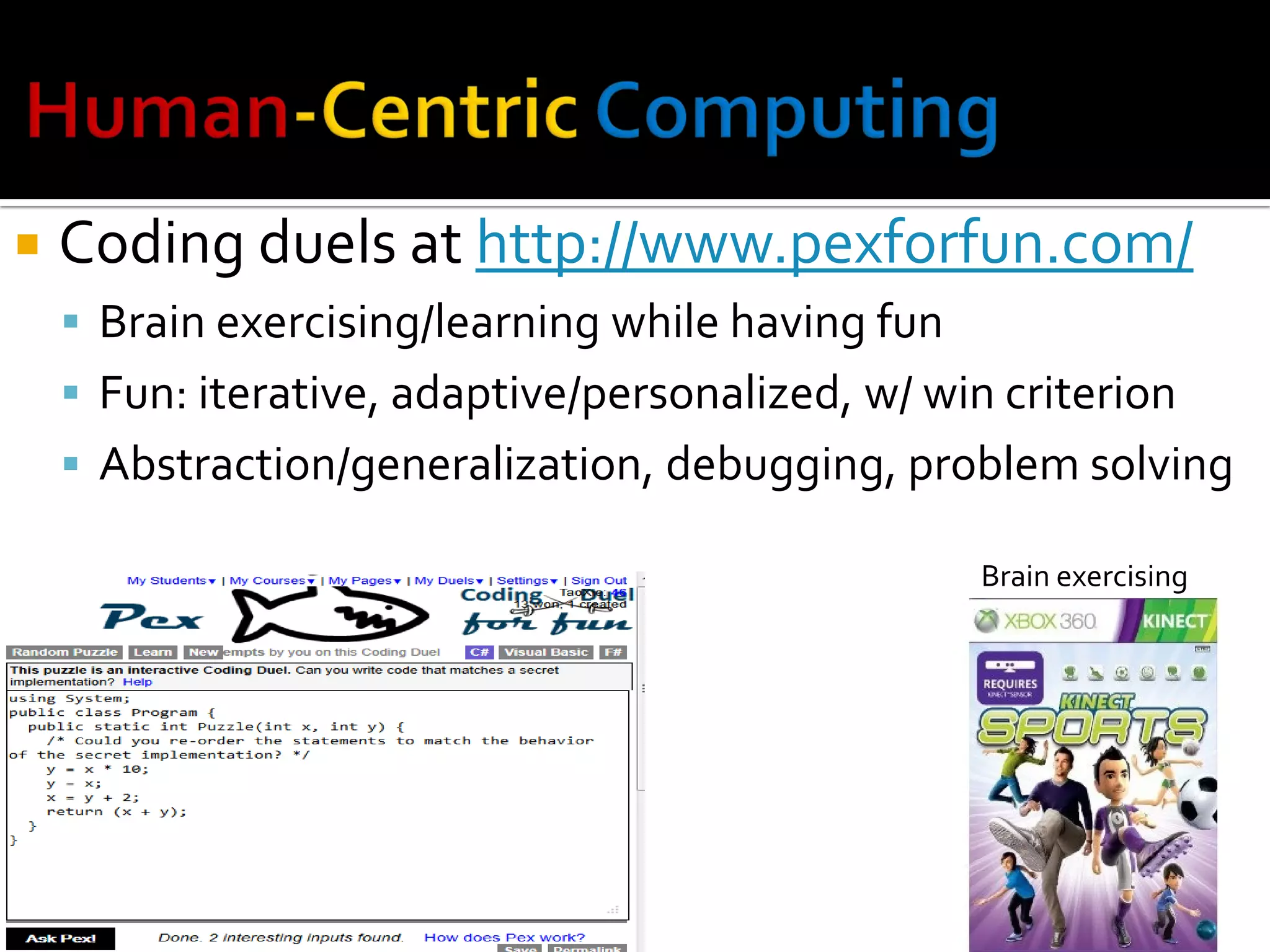

 Human-Centric Computing
 Driver: human  Helper: tool

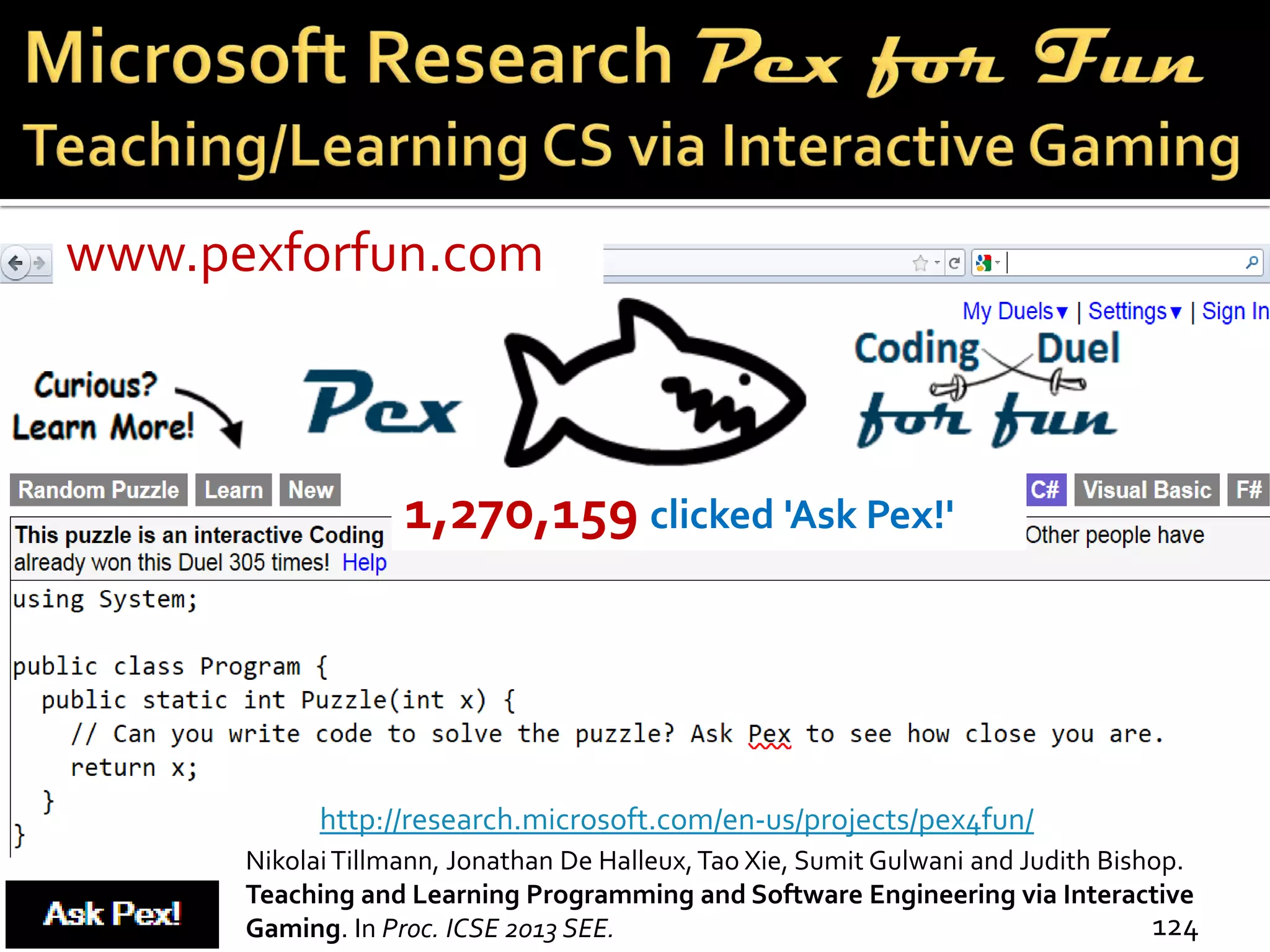

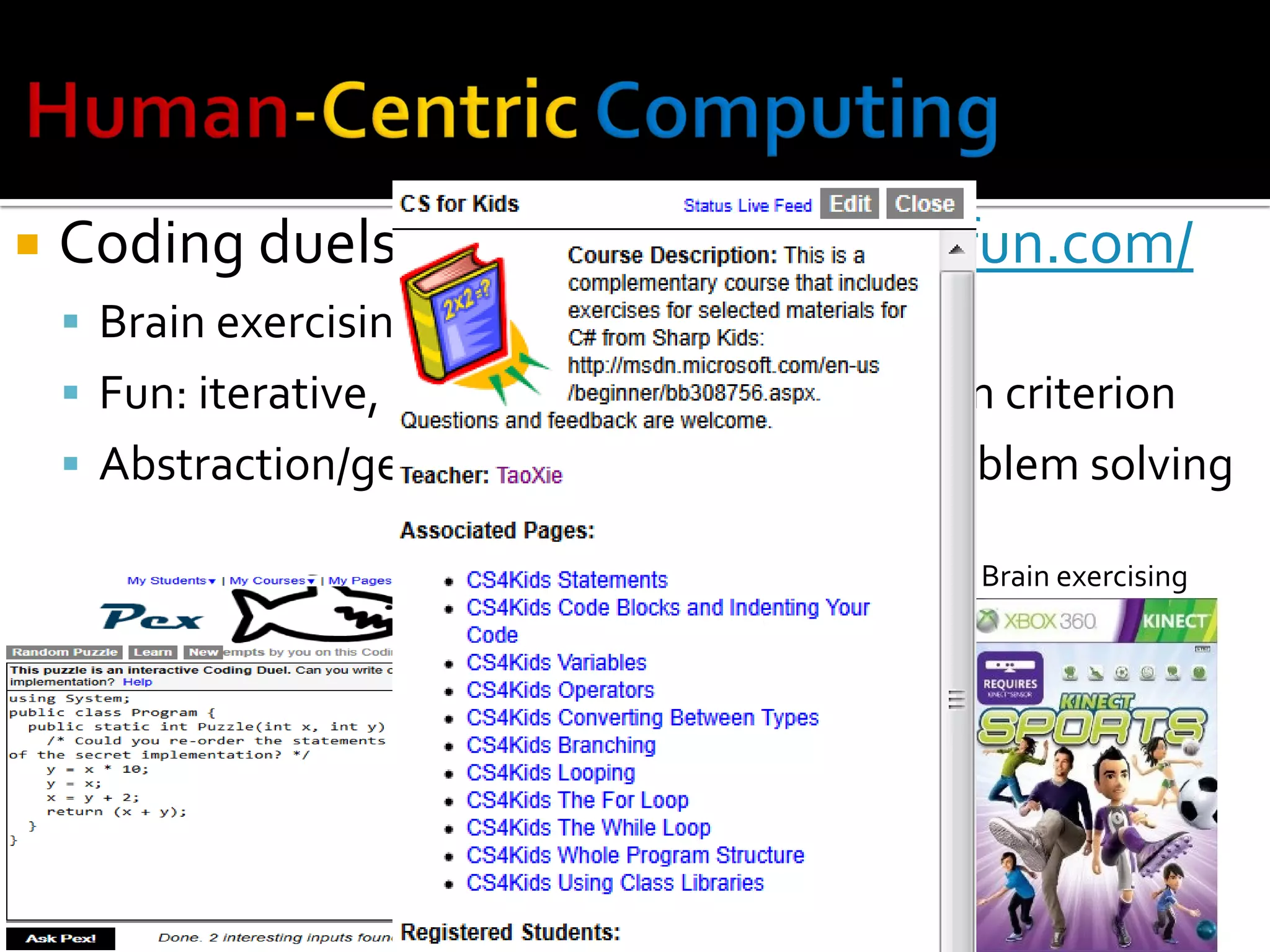

 Ex. Pex for Fun[ICSE 2013 SEE]
Interfaces are important. Contents are important too!
49

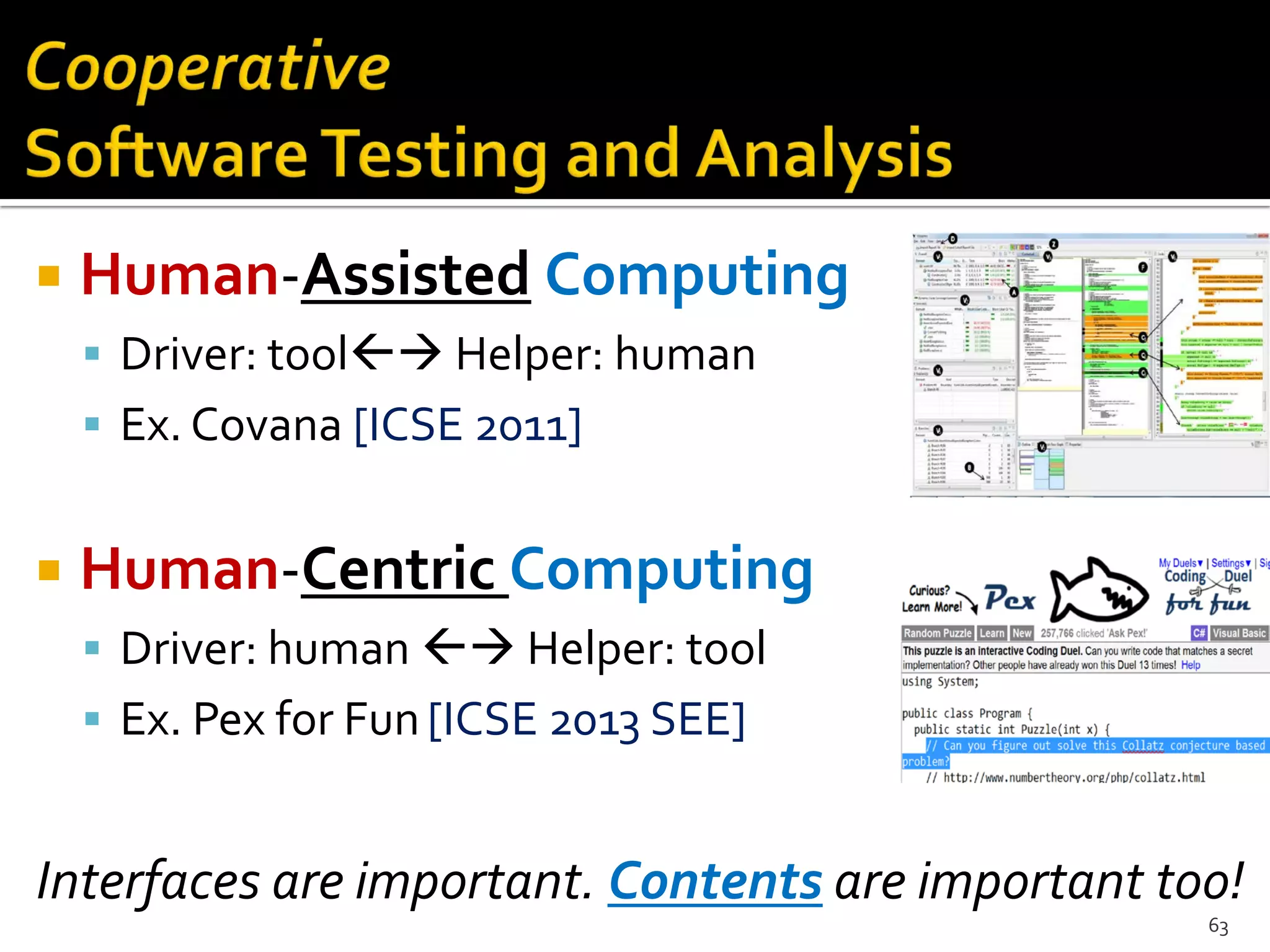

88.  Human-Assisted Computing
 Driver: tool Helper: human
 Ex. Covana [ICSE 2011]
 Human-Centric Computing
 Driver: human  Helper: tool
 Ex. Pex for Fun[ICSE 2013 SEE]
Interfaces are important. Contents are important too!
49

89. 50

90. 50
Symptoms

91. 50
Symptoms
external-method call problems (EMCP)
all executed external-method calls

92. 50

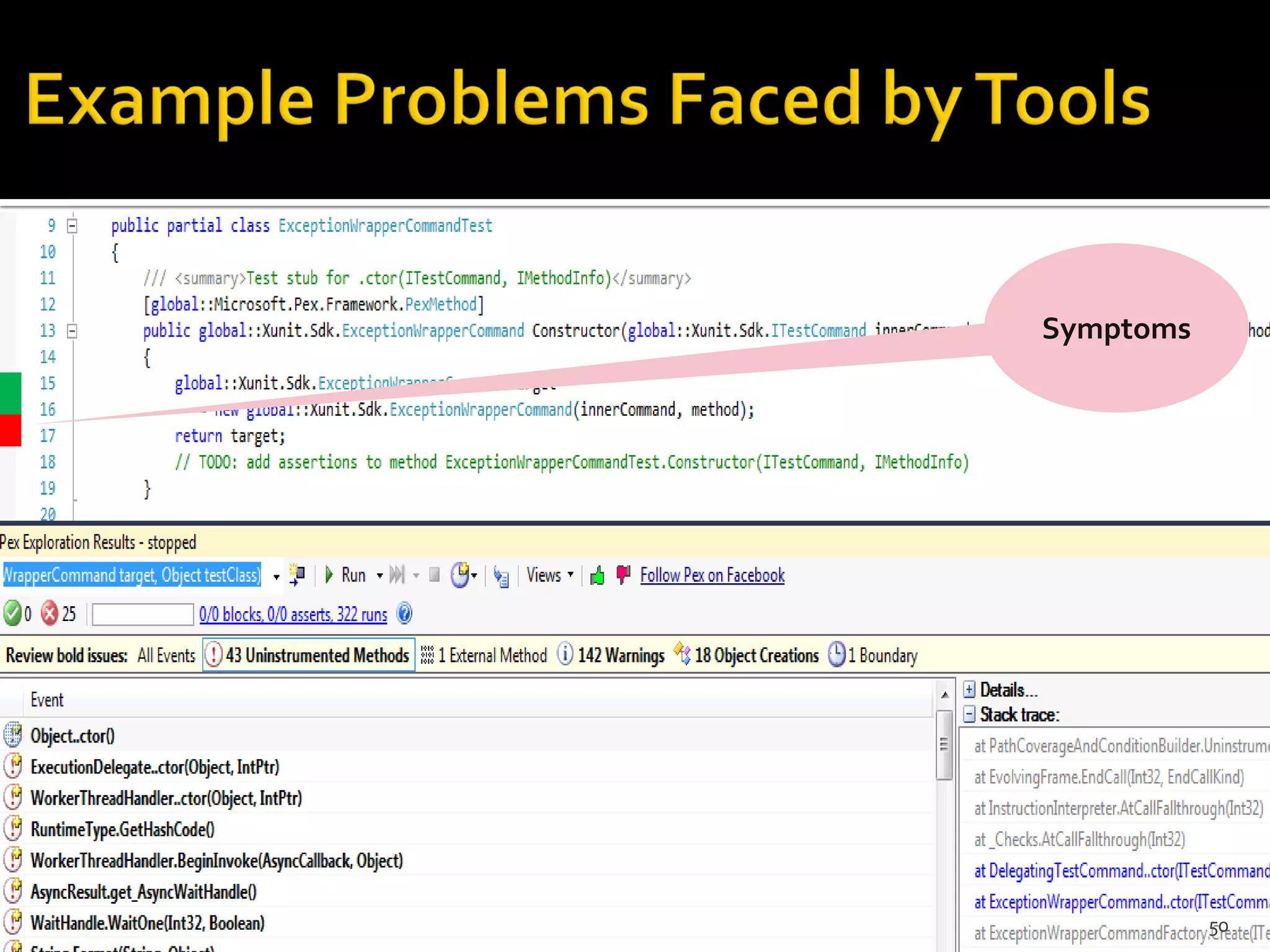

Symptoms
external-method call problems (EMCP)
all executed external-method calls
object-creation problems (OCP)
all non-primitive program inputs/fields

93. 50
Symptoms
(Likely)
Causes
external-method call problems (EMCP)
all executed external-method calls
object-creation problems (OCP)
all non-primitive program inputs/fields

94.  Causal analysis: tracing between symptoms and
(likely) causes
 Reduce cost of human consumption
▪ reduction of #(likely) causes
▪ diagnosis of each cause
 Solution construction: fixing suspected causes
 Reduce cost of human contribution
▪ measurement of solution goodness
▪ Inner iteration of human-tool cooperation! 51

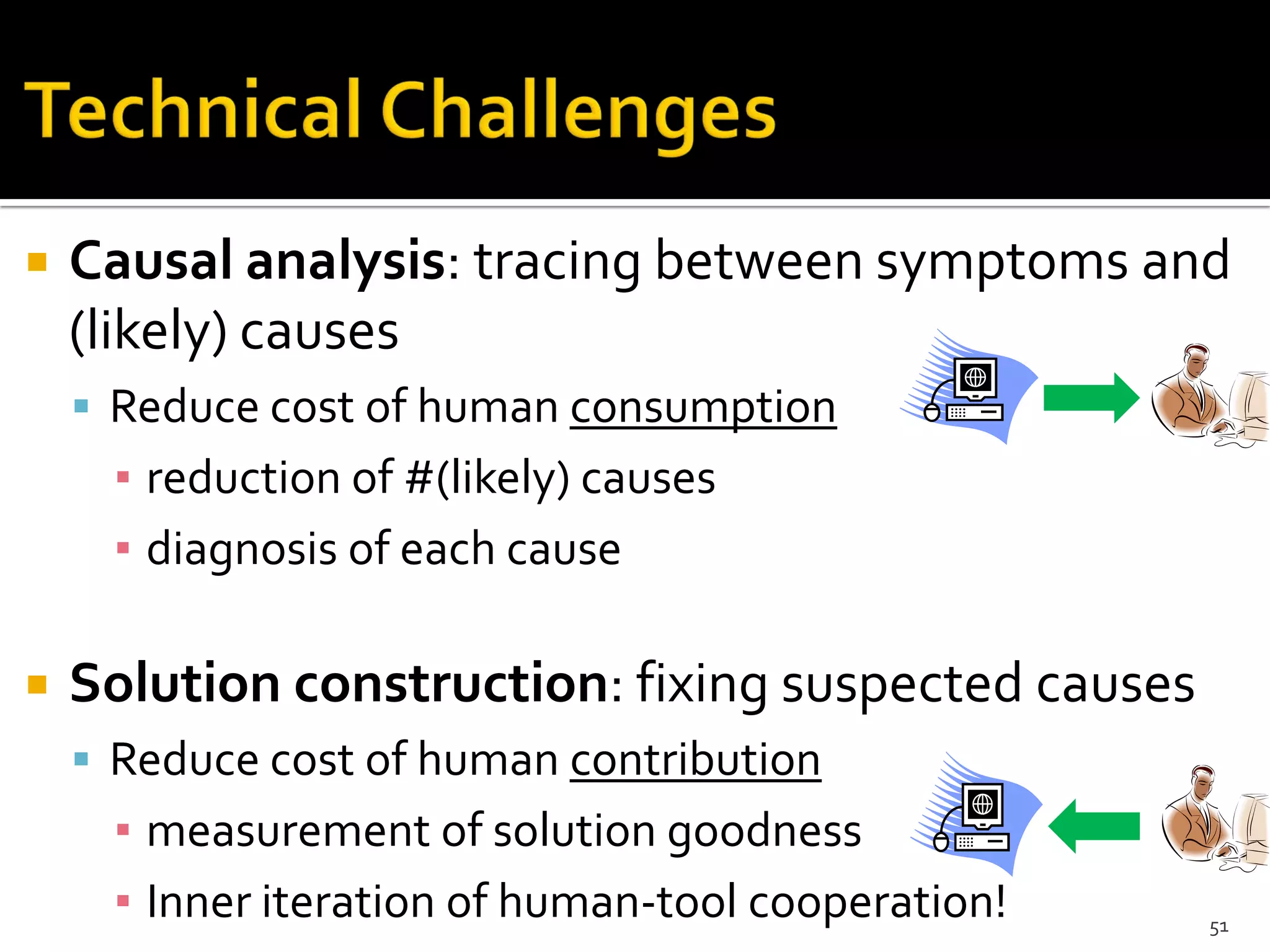

95.  Causal analysis: tracing between symptoms and
(likely) causes
 Reduce cost of human consumption
▪ reduction of #(likely) causes
▪ diagnosis of each cause
 Solution construction: fixing suspected causes
 Reduce cost of human contribution
▪ measurement of solution goodness
▪ Inner iteration of human-tool cooperation! 51

96. 52
Symptoms
(Likely)
Causes
external-method call problems (EMCP)
object-creation problems (OCP)
Given symptom s
foreach (c in LikelyCauses) {
Fix(c);
if (IsObserved(s))
RelevantCauses.add(c)
}

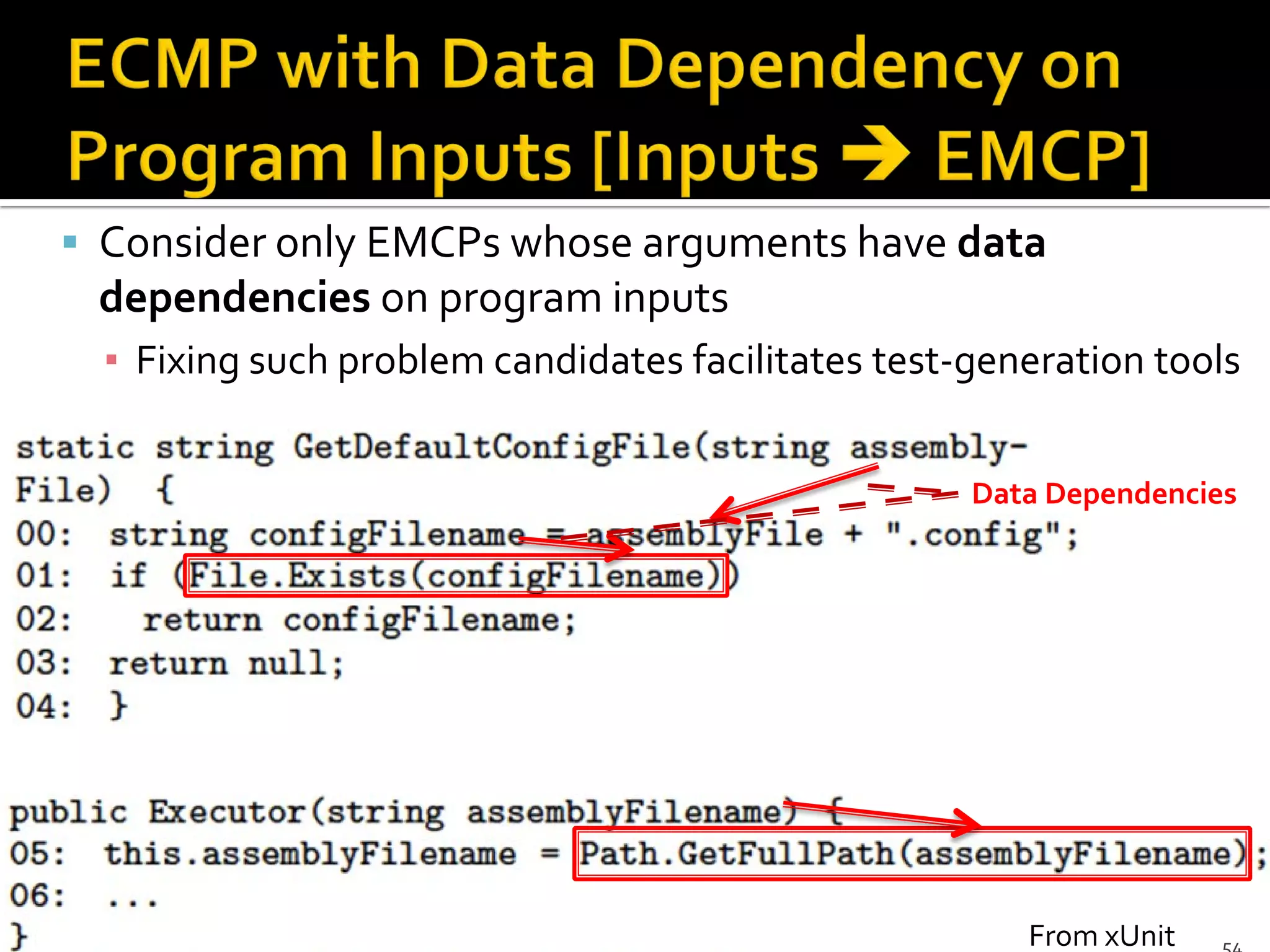

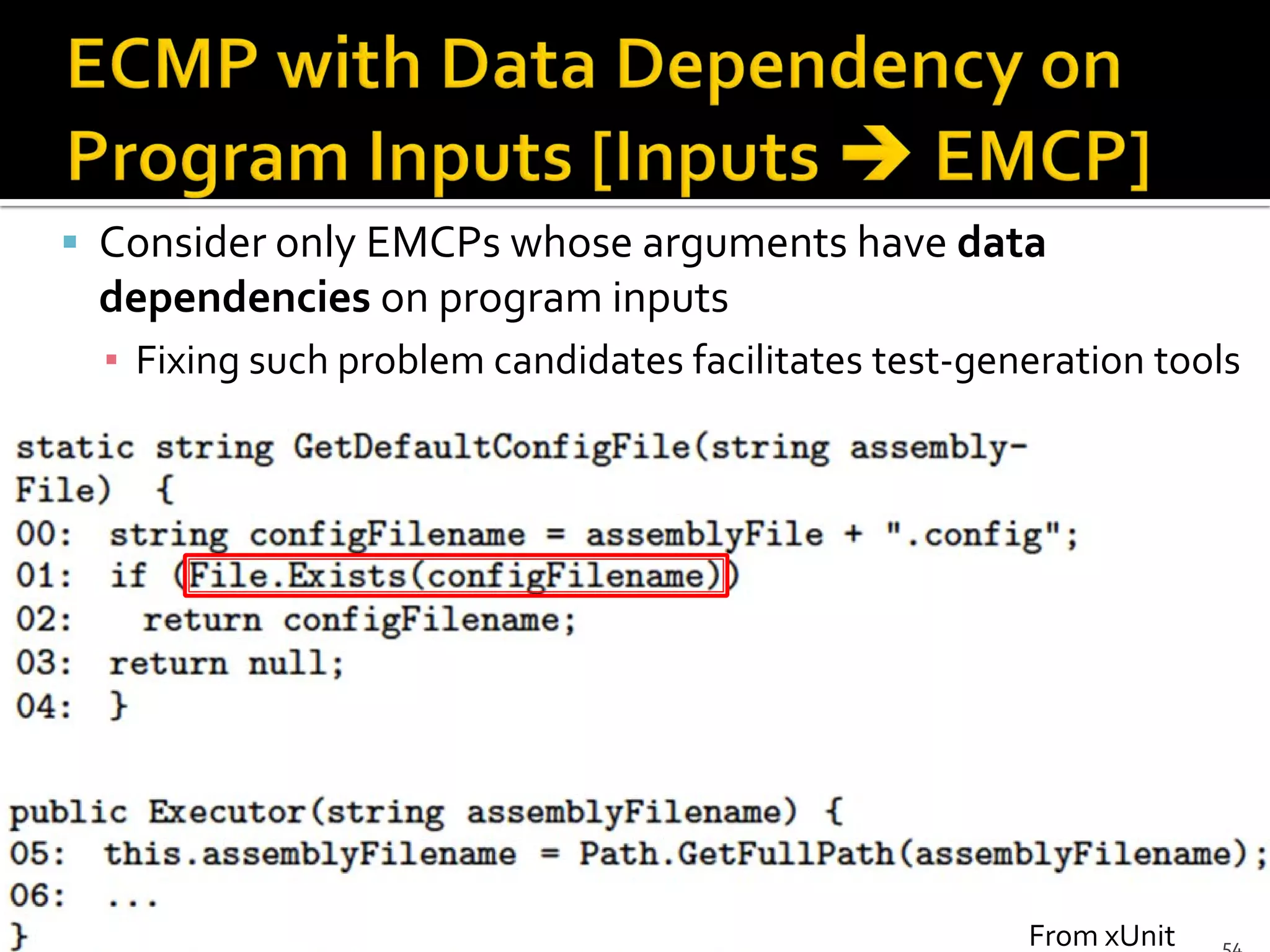

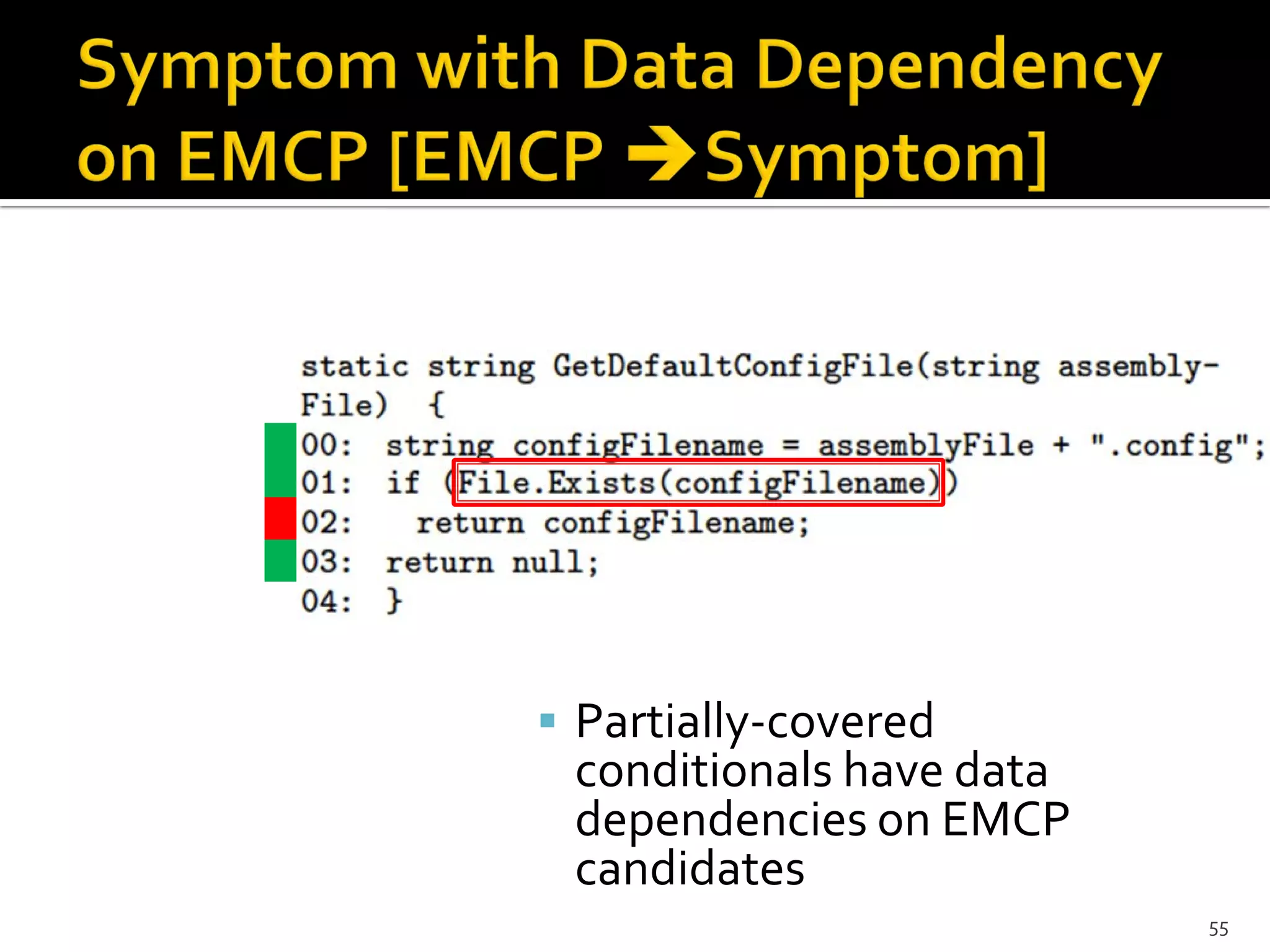

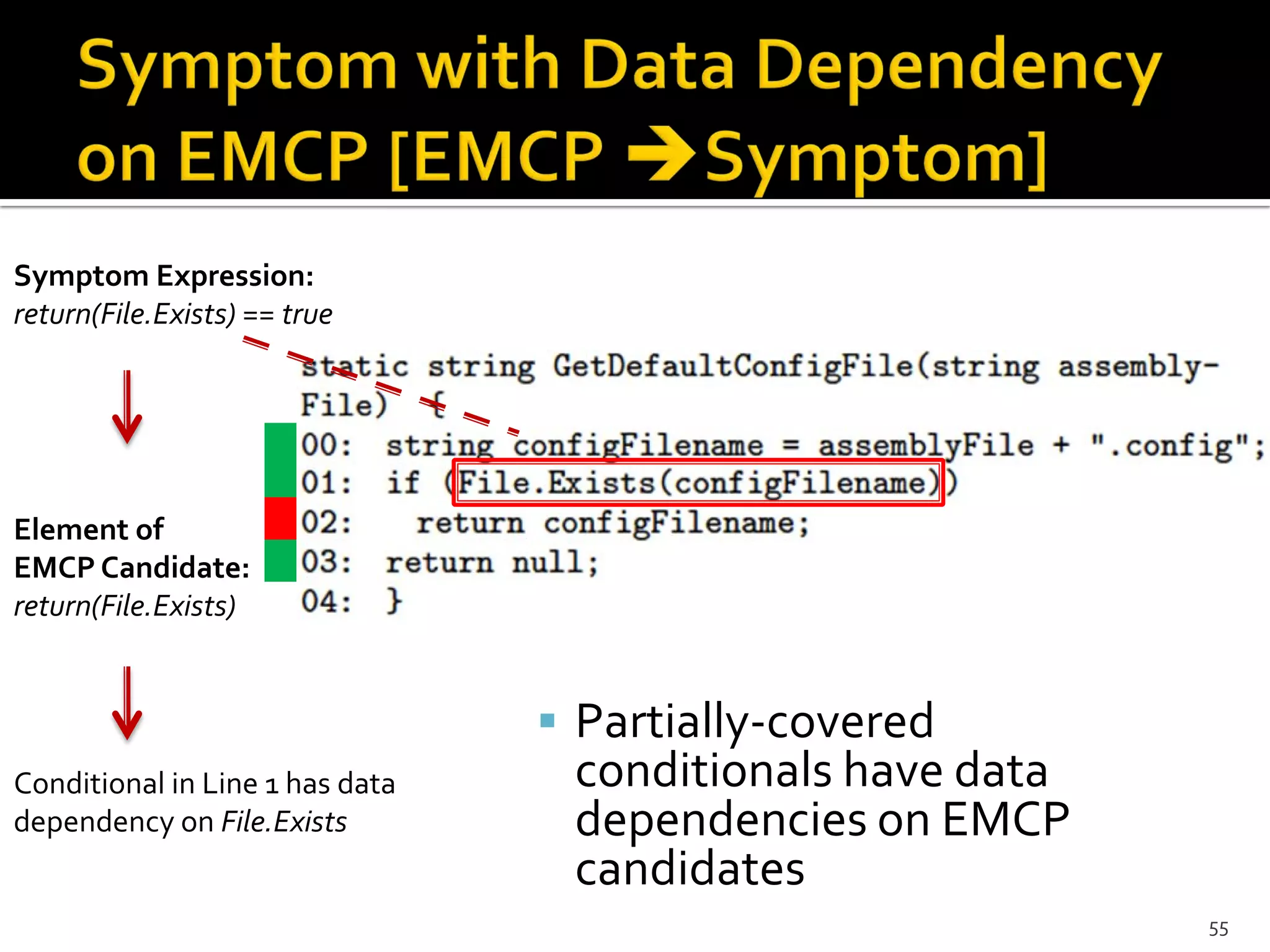

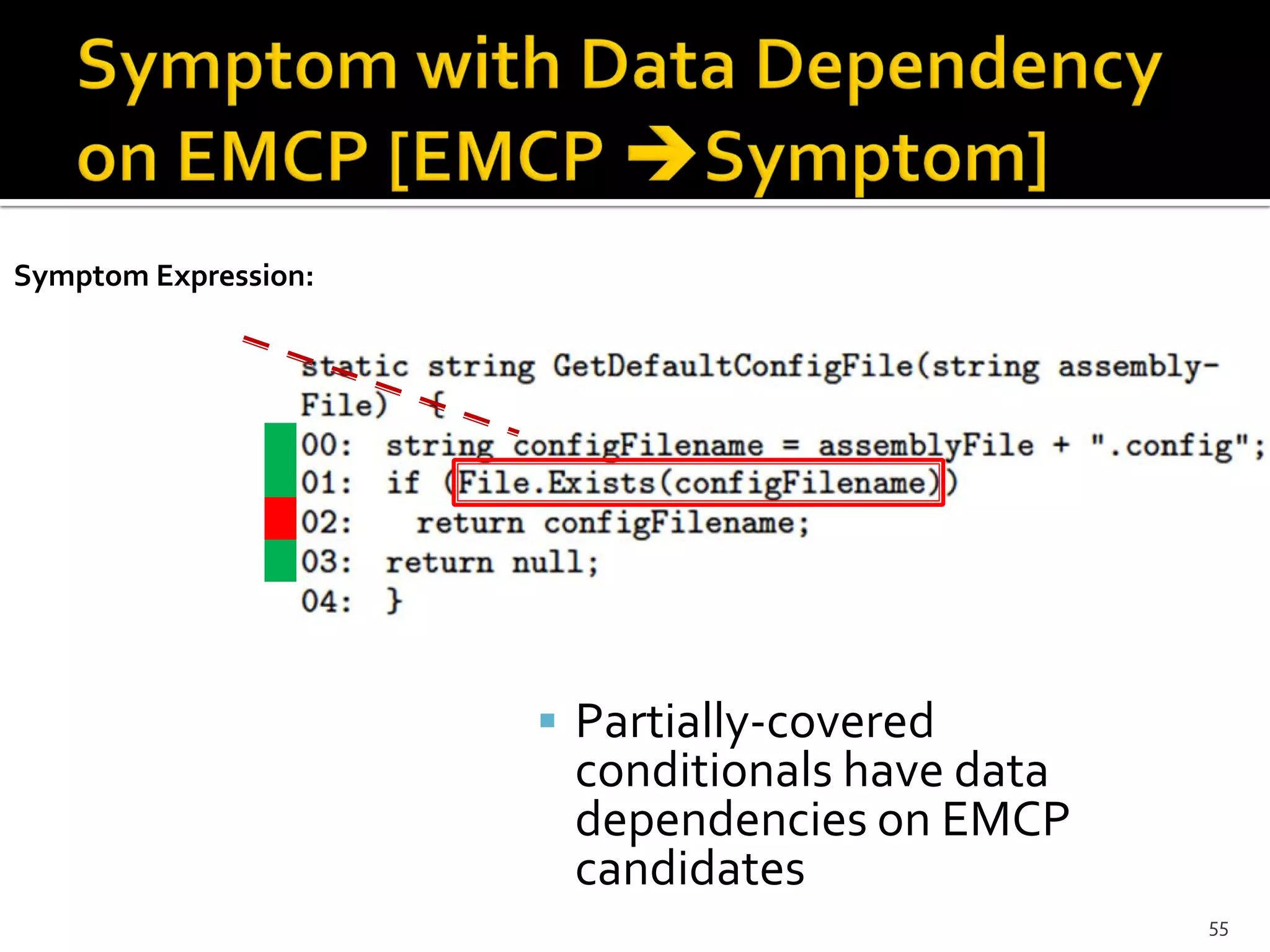

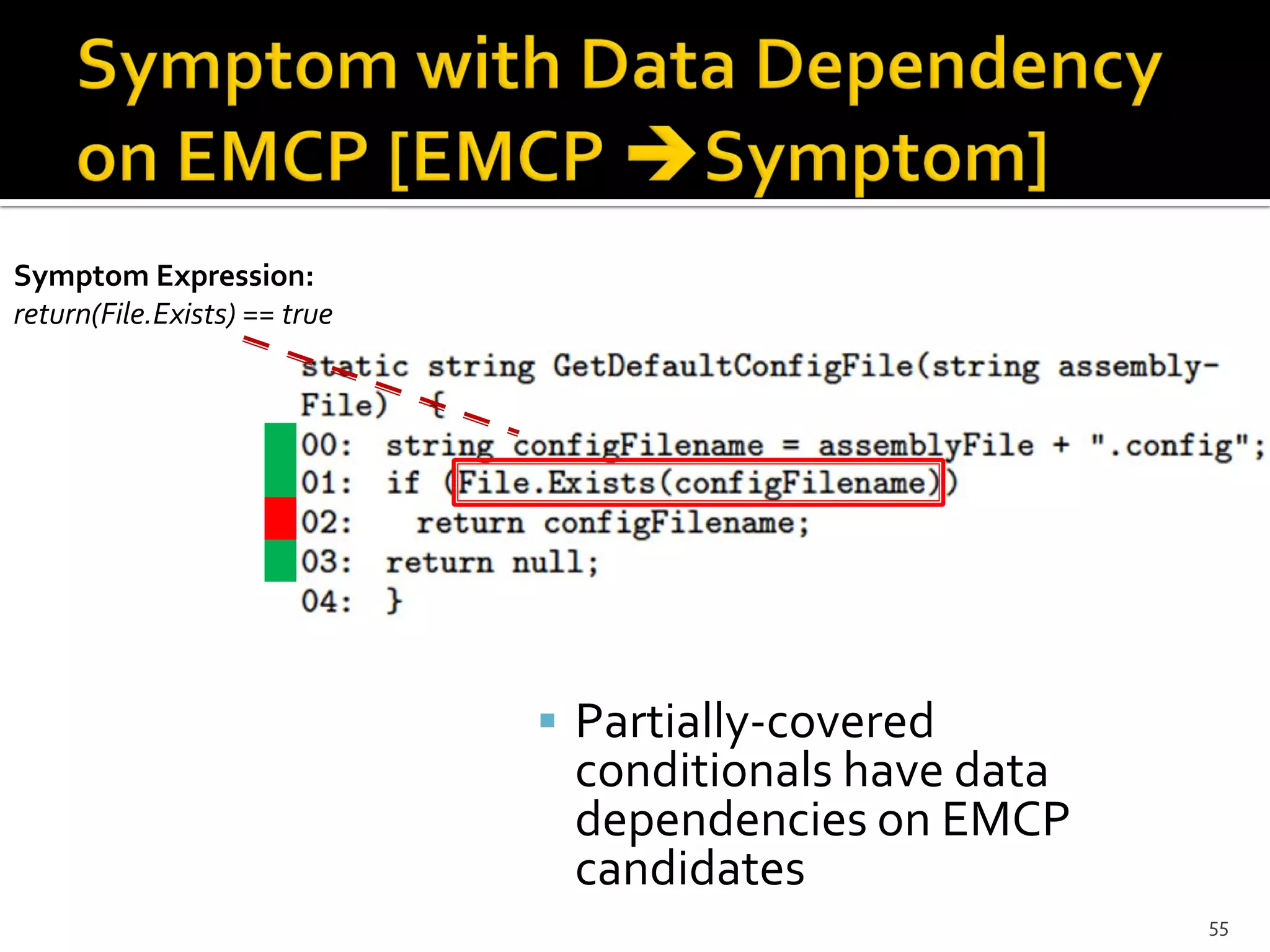

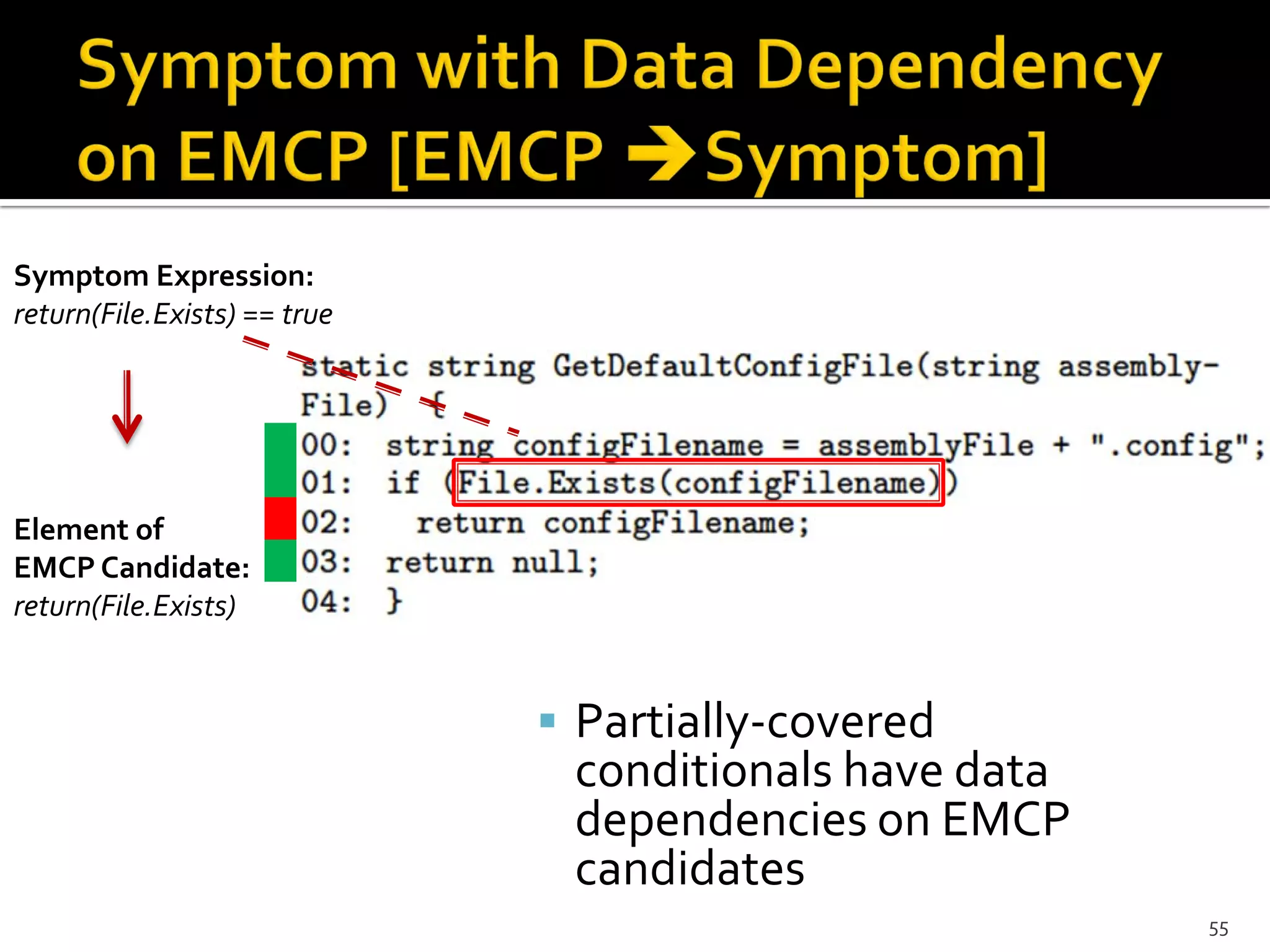

97.  Goal: Precisely identify problems (causes) faced
by a tool for causing not to cover a statement
(symptom)

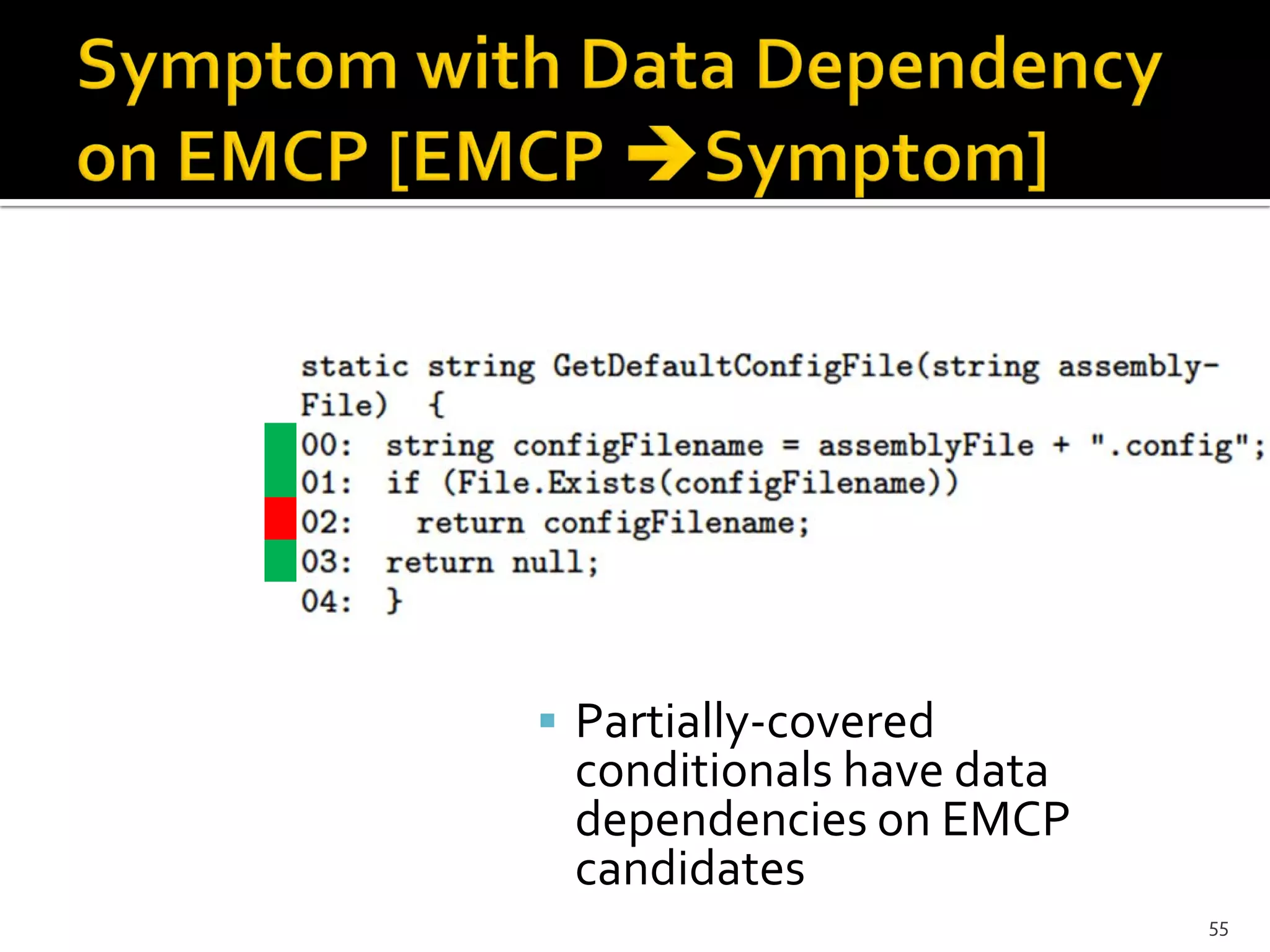

 Insight: Partially-covered conditional has data
dependency on a real problem
53
[ICSE 11]

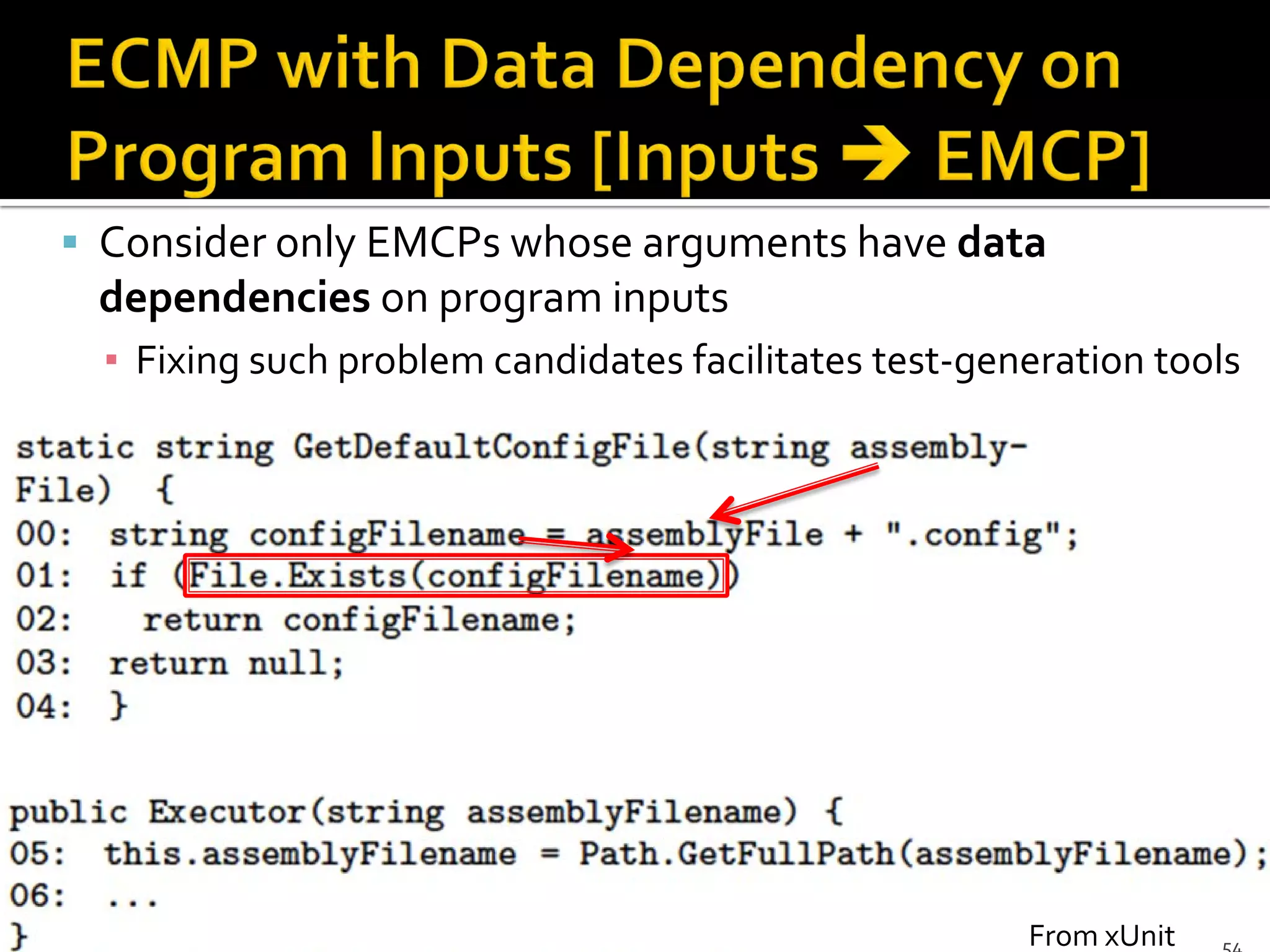

From xUnit

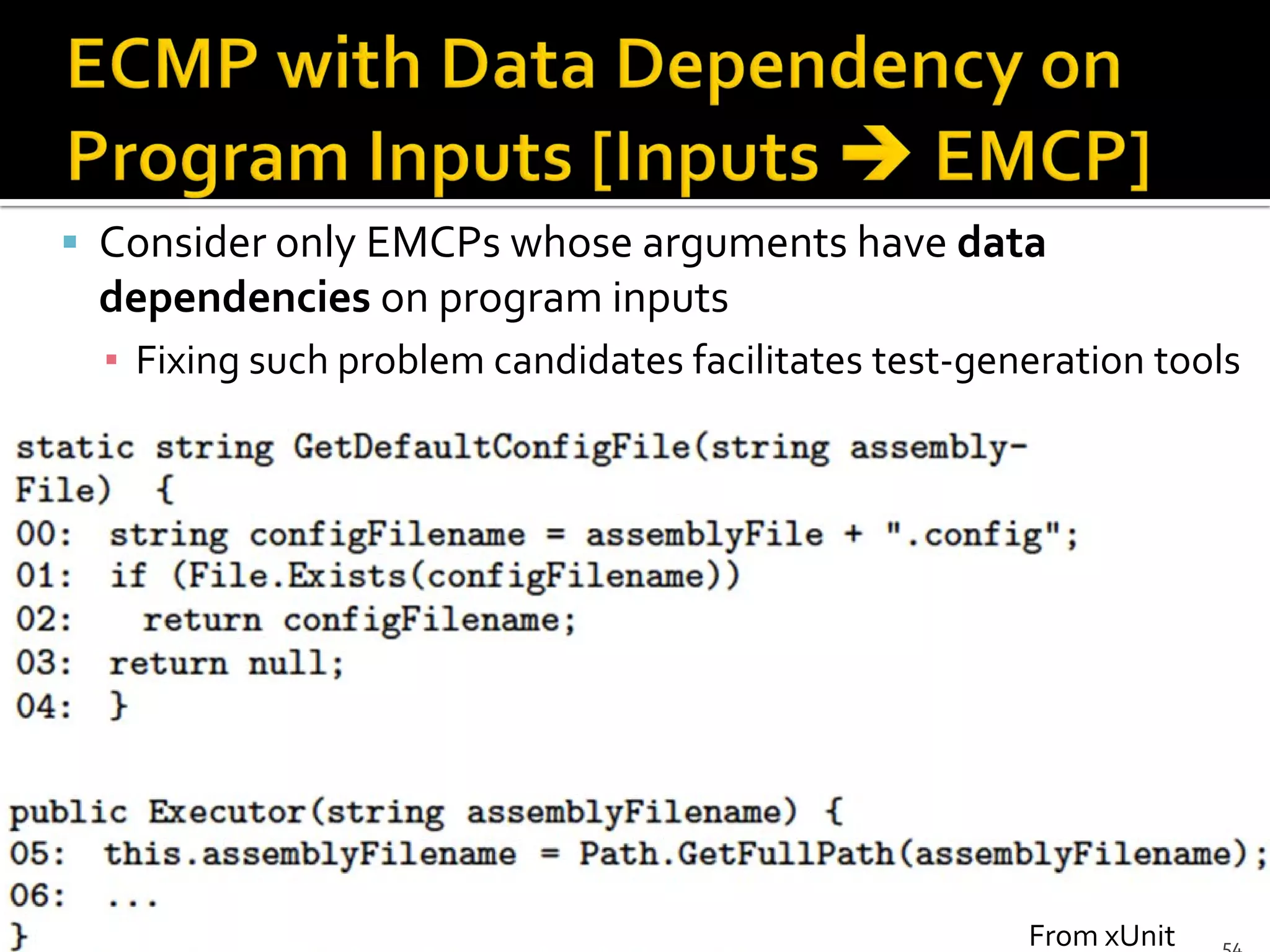

98.  Consider only EMCPs whose arguments have data
dependencies on program inputs
▪ Fixing such problem candidates facilitates test-generation tools
From xUnit

99.  Consider only EMCPs whose arguments have data
dependencies on program inputs
▪ Fixing such problem candidates facilitates test-generation tools
From xUnit

100.  Consider only EMCPs whose arguments have data
dependencies on program inputs
▪ Fixing such problem candidates facilitates test-generation tools
From xUnit

101.  Consider only EMCPs whose arguments have data
dependencies on program inputs
▪ Fixing such problem candidates facilitates test-generation tools
From xUnit

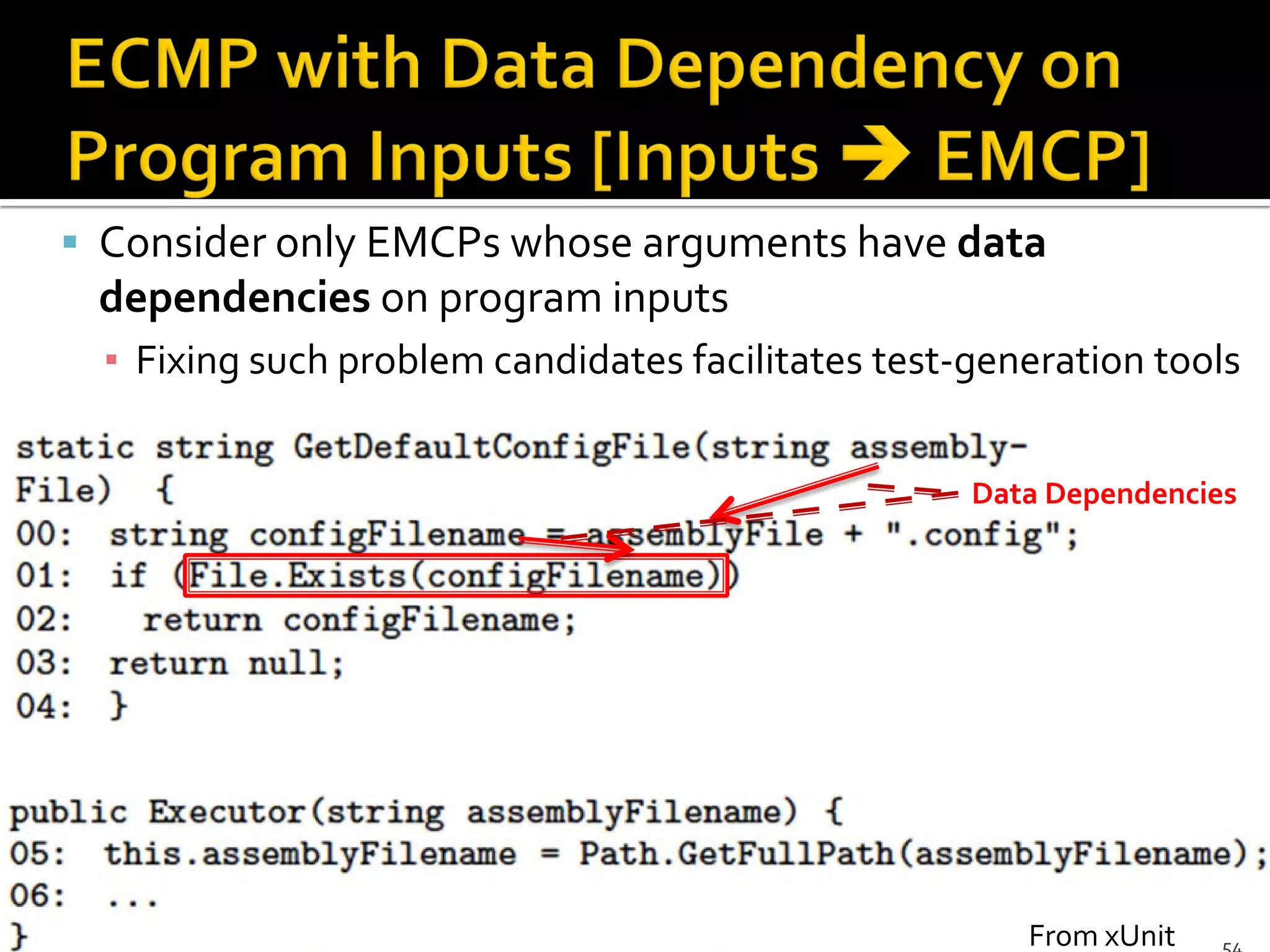

102. Data Dependencies
 Consider only EMCPs whose arguments have data
dependencies on program inputs
▪ Fixing such problem candidates facilitates test-generation tools
From xUnit

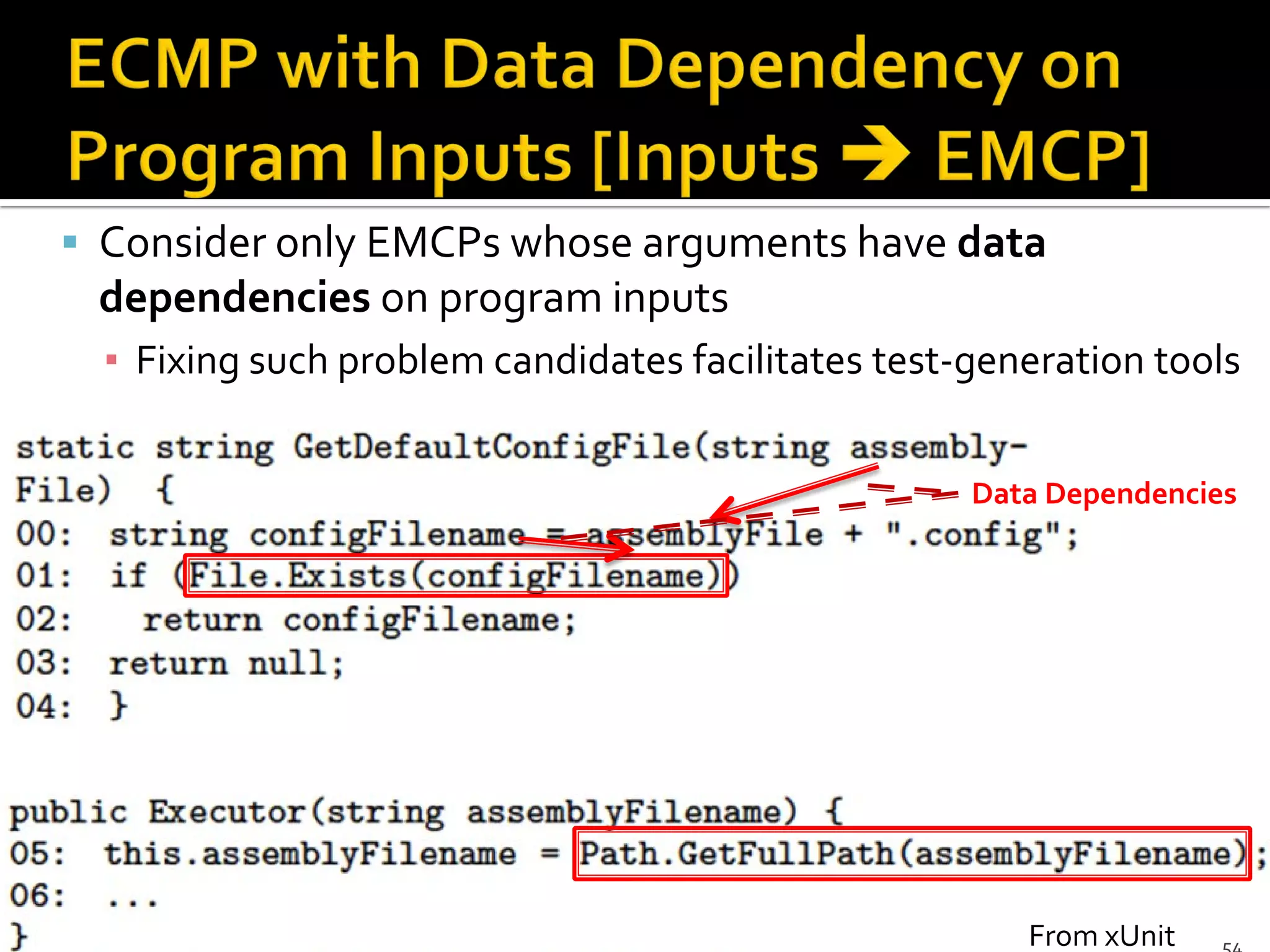

103. Data Dependencies
 Consider only EMCPs whose arguments have data
dependencies on program inputs
▪ Fixing such problem candidates facilitates test-generation tools
From xUnit

104. Data Dependencies
 Consider only EMCPs whose arguments have data
dependencies on program inputs
▪ Fixing such problem candidates facilitates test-generation tools
From xUnit

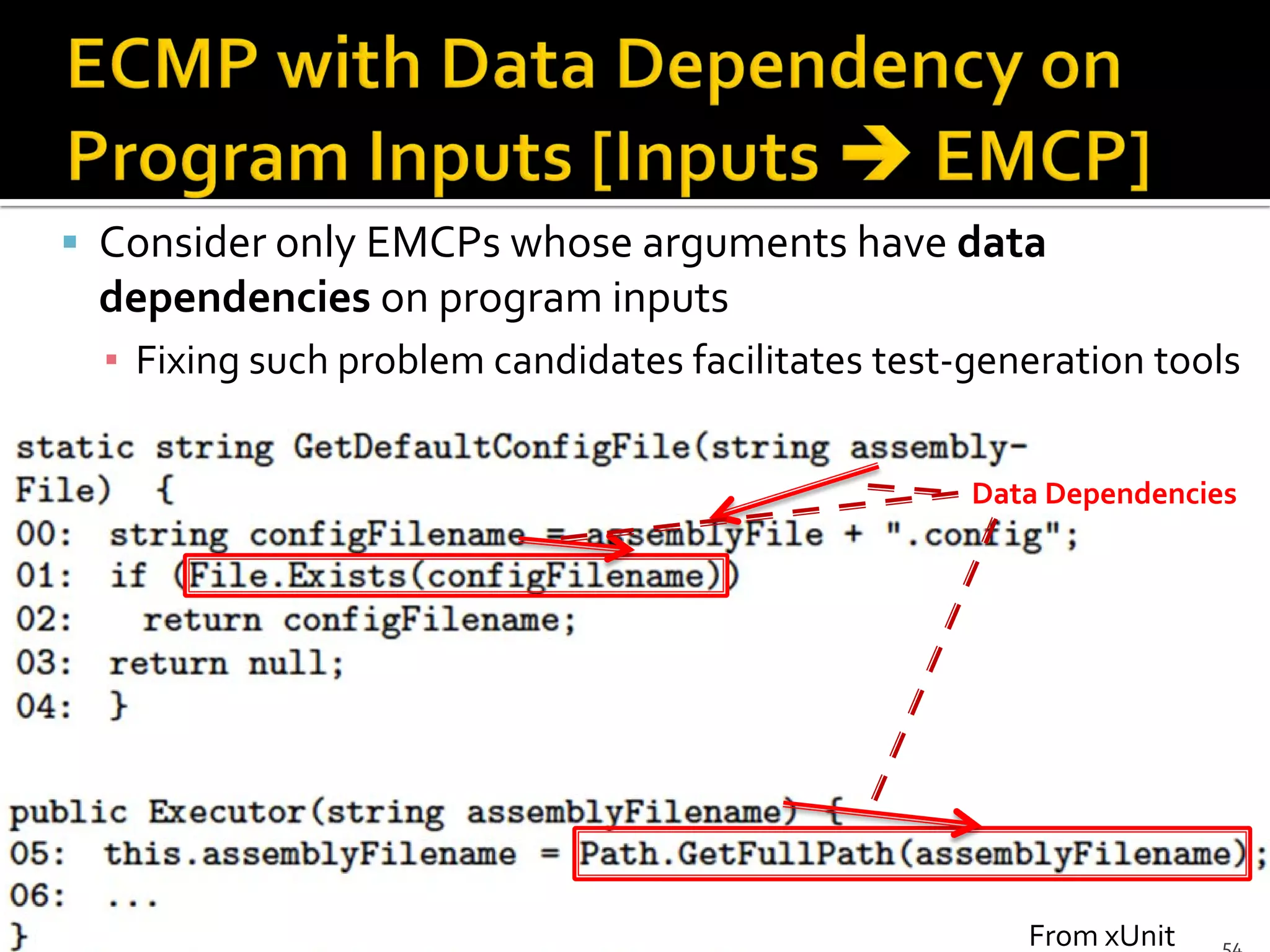

105. Data Dependencies
 Consider only EMCPs whose arguments have data
dependencies on program inputs
▪ Fixing such problem candidates facilitates test-generation tools
From xUnit

106. 55
 Partially-covered
conditionals have data
dependencies on EMCP
candidates

107. 55
 Partially-covered
conditionals have data
dependencies on EMCP
candidates

108. Symptom Expression:
55
 Partially-covered
conditionals have data
dependencies on EMCP
candidates

109. Symptom Expression:
return(File.Exists) == true
55
 Partially-covered
conditionals have data
dependencies on EMCP
candidates

110. Symptom Expression:
return(File.Exists) == true
Element of
EMCP Candidate:
return(File.Exists)
55
 Partially-covered
conditionals have data
dependencies on EMCP
candidates

111. Symptom Expression:
return(File.Exists) == true
Element of
EMCP Candidate:
return(File.Exists)
Conditional in Line 1 has data
dependency on File.Exists
55
 Partially-covered
conditionals have data
dependencies on EMCP
candidates

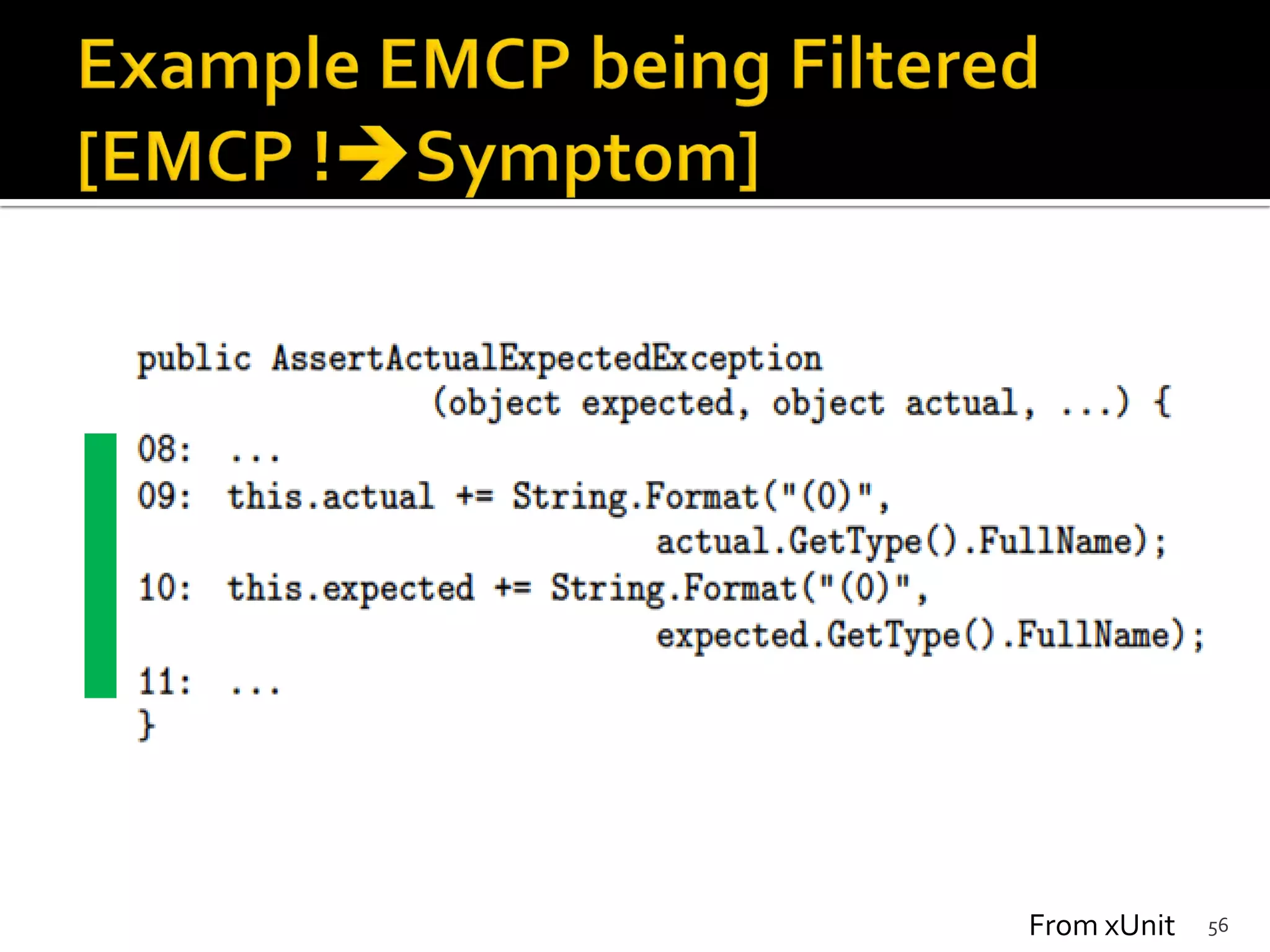

112. 56From xUnit

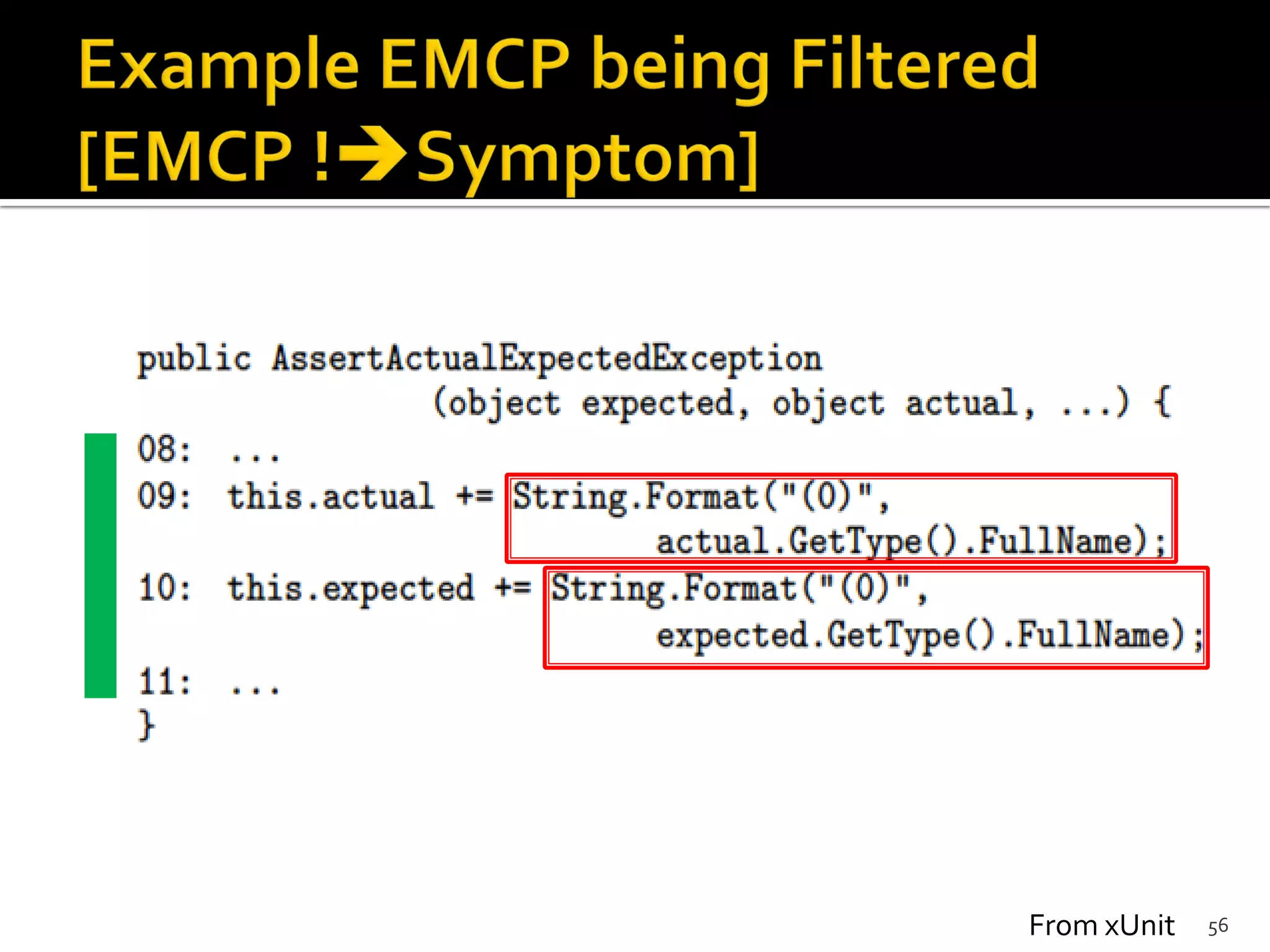

113. 56From xUnit

114. Data
Dependence
Analysis
Forward
Symbolic
Execution
Problem
Candidates
Problem
Candidate
Identification
Runtime
Information
Identified
Problems
Coverage
Program
Generated
Test Inputs
Runtime
Events
57
[Inputs  EMCP]
[EMCP Symptom]

115. 58

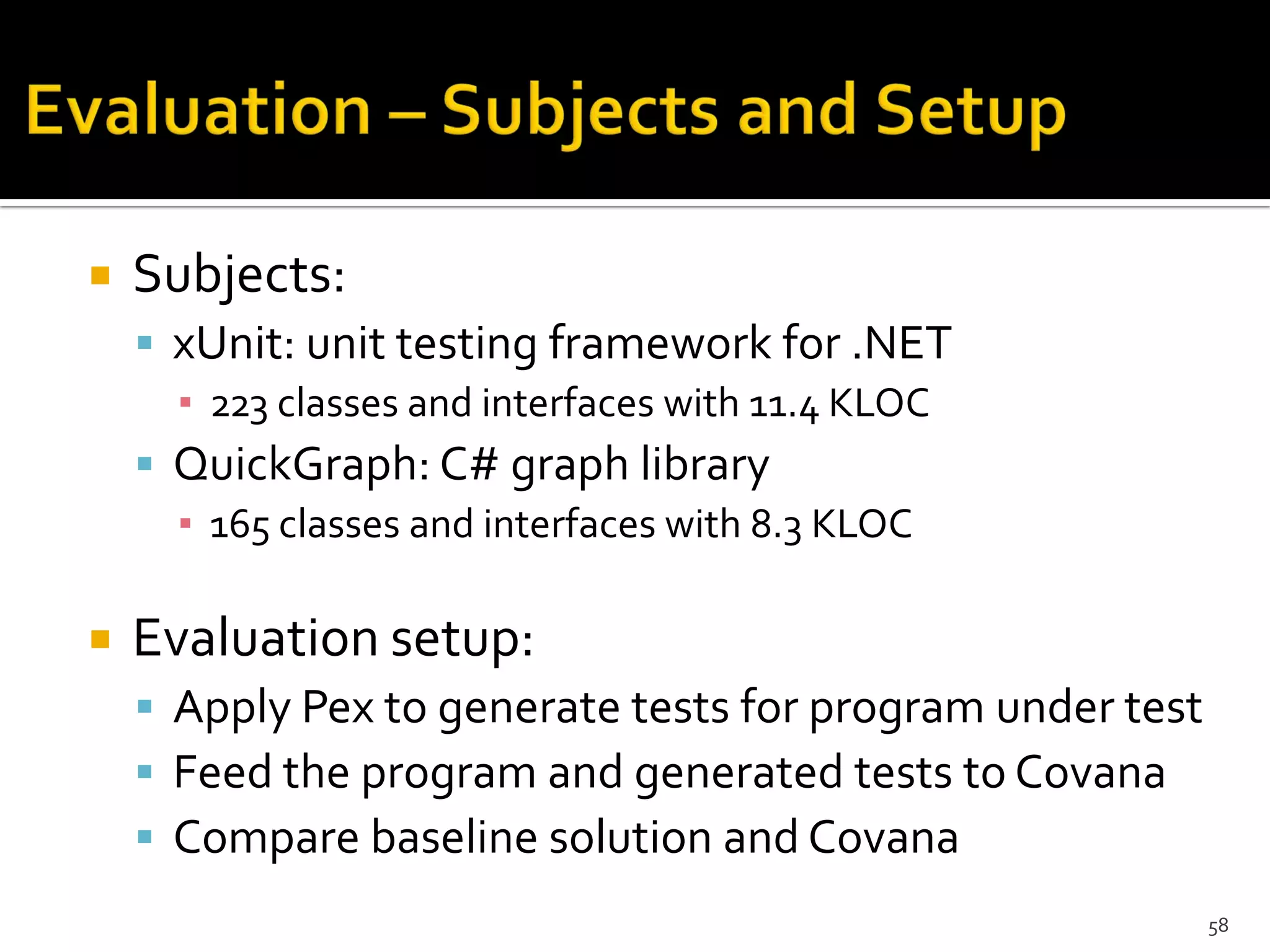

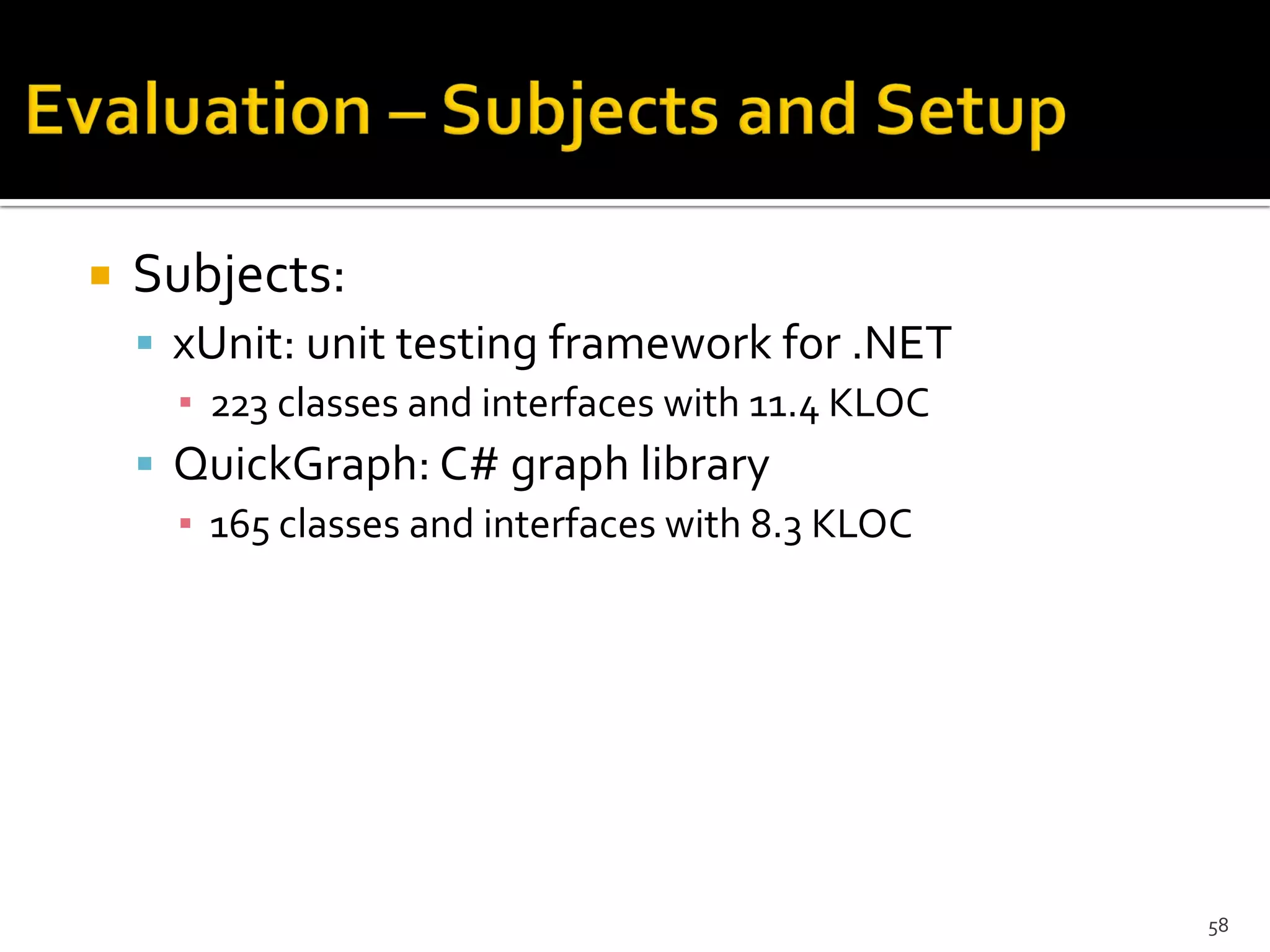

116.  Subjects:
 xUnit: unit testing framework for .NET
▪ 223 classes and interfaces with 11.4 KLOC
 QuickGraph: C# graph library
▪ 165 classes and interfaces with 8.3 KLOC
58

117.  Subjects:
 xUnit: unit testing framework for .NET
▪ 223 classes and interfaces with 11.4 KLOC
 QuickGraph: C# graph library
▪ 165 classes and interfaces with 8.3 KLOC
 Evaluation setup:
 Apply Pex to generate tests for program under test
 Feed the program and generated tests to Covana
 Compare baseline solution and Covana
58

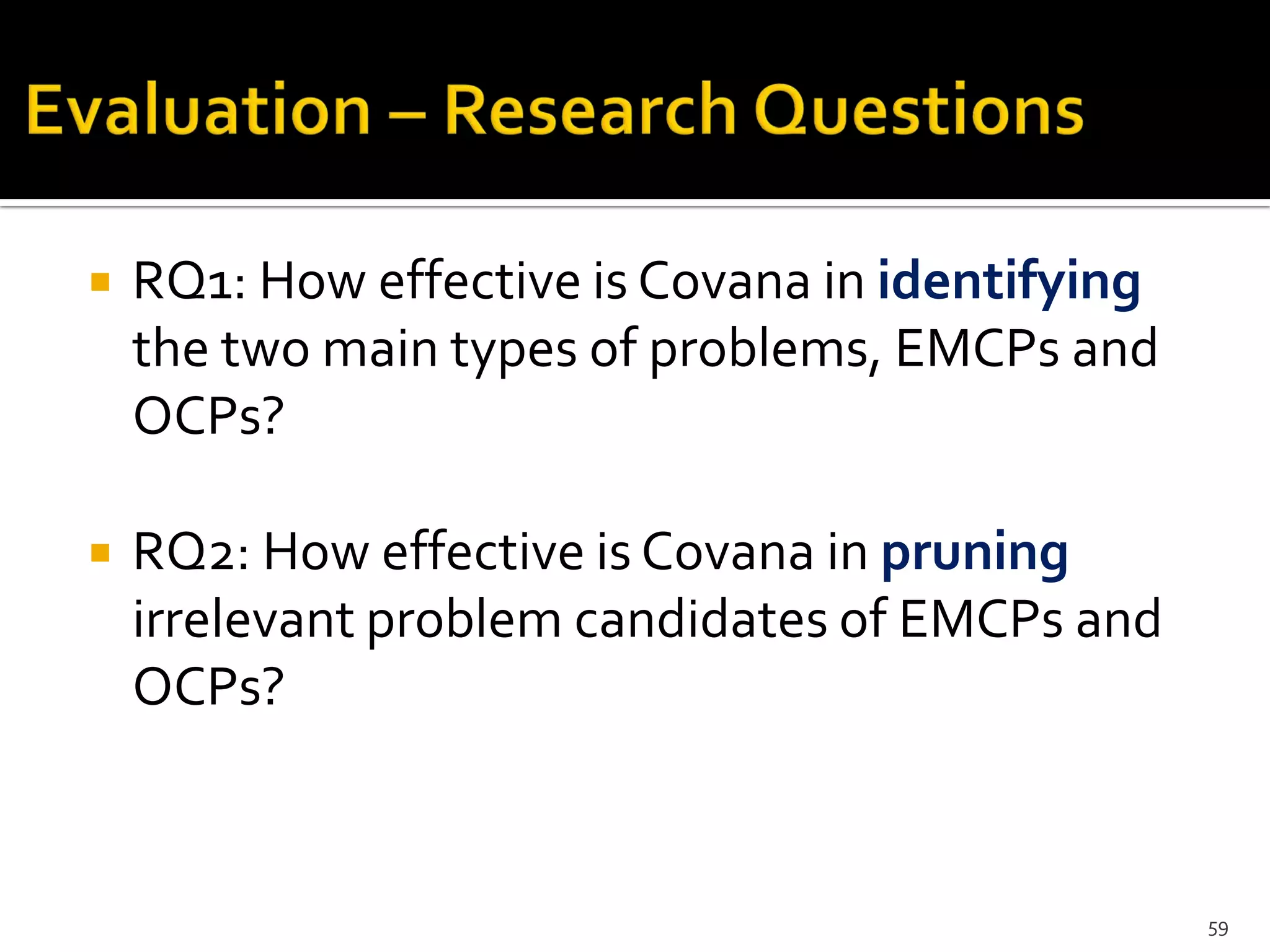

118.  RQ1: How effective is Covana in identifying
the two main types of problems, EMCPs and
OCPs?
 RQ2: How effective is Covana in pruning
irrelevant problem candidates of EMCPs and
OCPs?
59

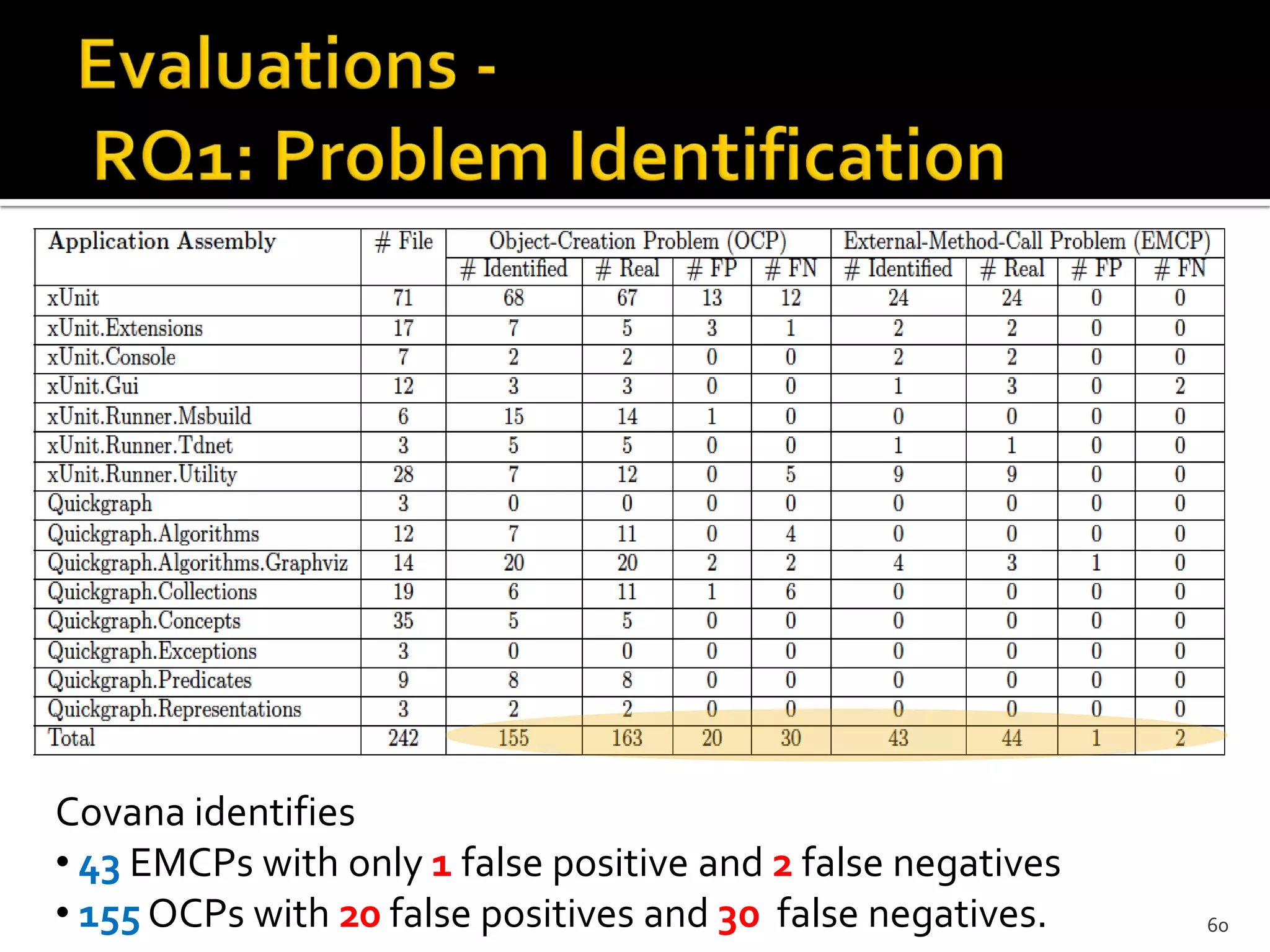

119. Covana identifies
• 43 EMCPs with only 1 false positive and 2 false negatives
• 155 OCPs with 20 false positives and 30 false negatives. 60

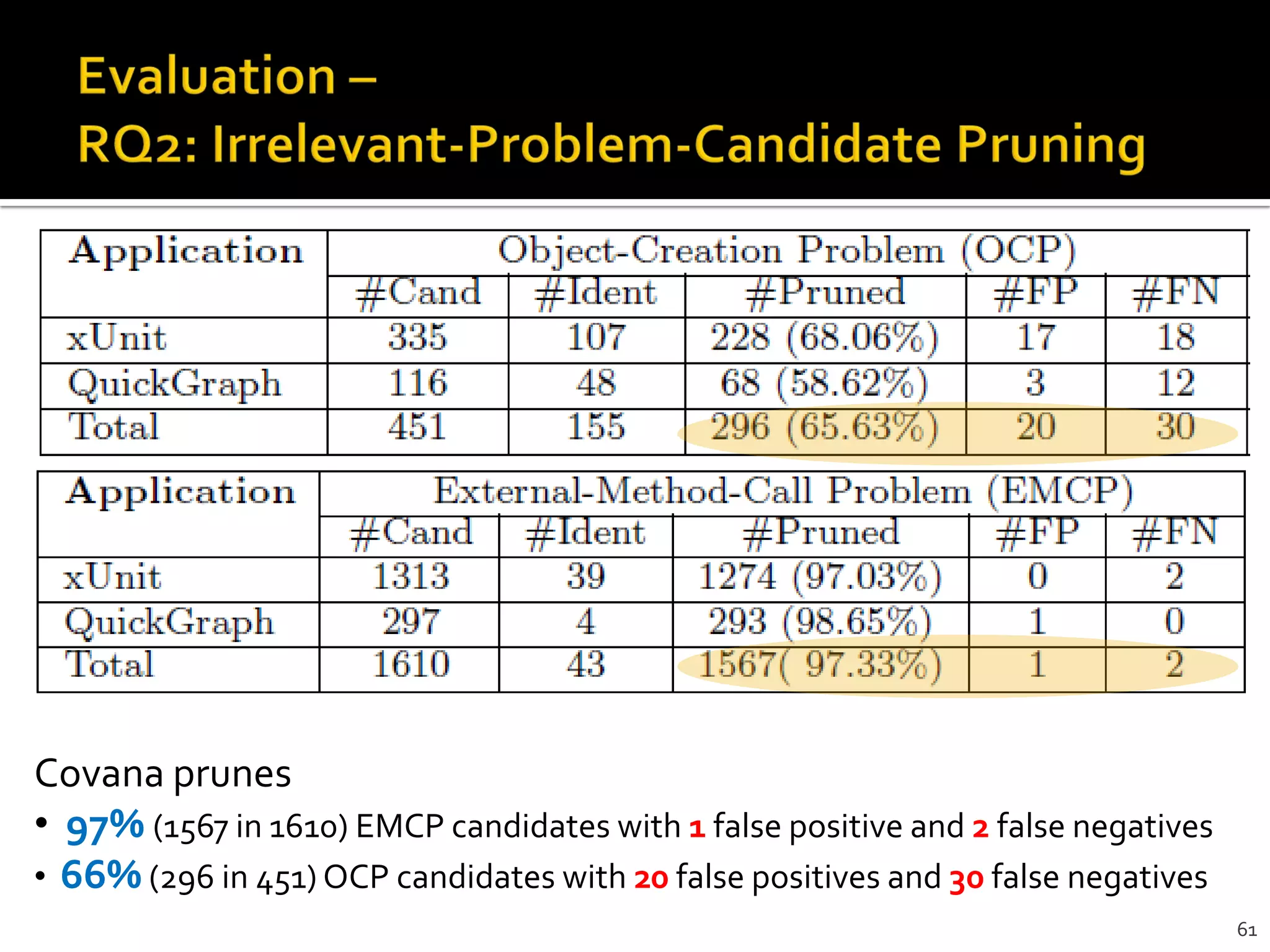

120. Covana prunes
• 97% (1567 in 1610) EMCP candidates with 1 false positive and 2 false negatives
• 66% (296 in 451) OCP candidates with 20 false positives and 30 false negatives
61

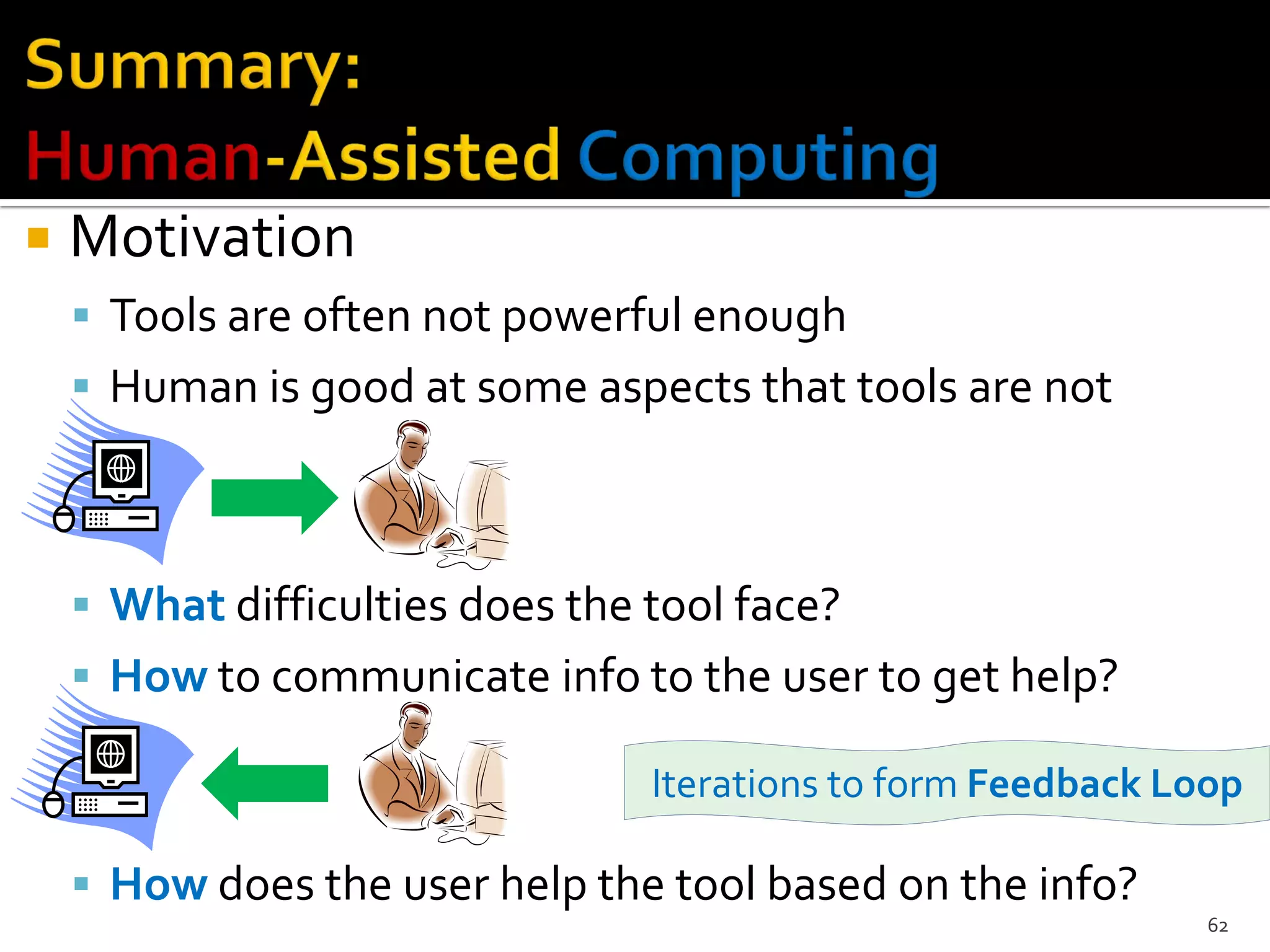

121.  Motivation
 Tools are often not powerful enough
 Human is good at some aspects that tools are not
 What difficulties does the tool face?
 How to communicate info to the user to get help?
 How does the user help the tool based on the info?
62
Iterations to form Feedback Loop

122.  Human-Assisted Computing
 Driver: tool Helper: human
 Ex. Covana [ICSE 2011]
 Human-Centric Computing
 Driver: human  Helper: tool
 Ex. Pex for Fun[ICSE 2013 SEE]
Interfaces are important. Contents are important too!
63

123.  Human-Assisted Computing
 Driver: tool Helper: human
 Ex. Covana [ICSE 2011]
 Human-Centric Computing
 Driver: human  Helper: tool
 Ex. Pex for Fun[ICSE 2013 SEE]
Interfaces are important. Contents are important too!
63

124. 1,270,159 clicked 'Ask Pex!'
www.pexforfun.com
124
NikolaiTillmann, Jonathan De Halleux,Tao Xie, Sumit Gulwani and Judith Bishop.
Teaching and Learning Programming and Software Engineering via Interactive
Gaming. In Proc. ICSE 2013 SEE.
http://research.microsoft.com/en-us/projects/pex4fun/

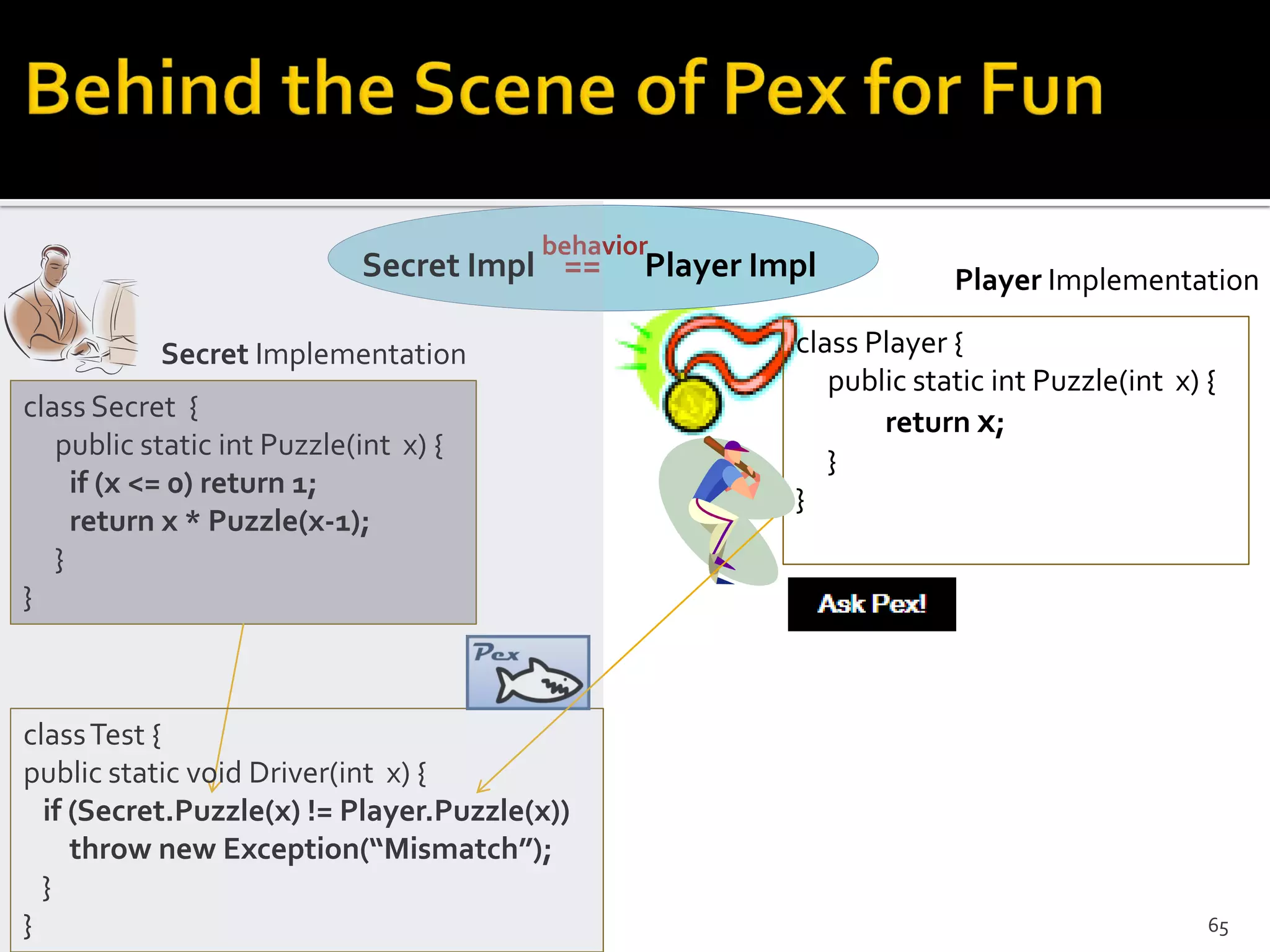

125. Secret Implementation
class Secret {
public static int Puzzle(int x) {
if (x <= 0) return 1;
return x * Puzzle(x-1);
}
}
Player Implementation
class Player {
public static int Puzzle(int x) {
return x;
}
}
classTest {
public static void Driver(int x) {
if (Secret.Puzzle(x) != Player.Puzzle(x))
throw new Exception(“Mismatch”);
}
}
behavior
Secret Impl == Player Impl
65

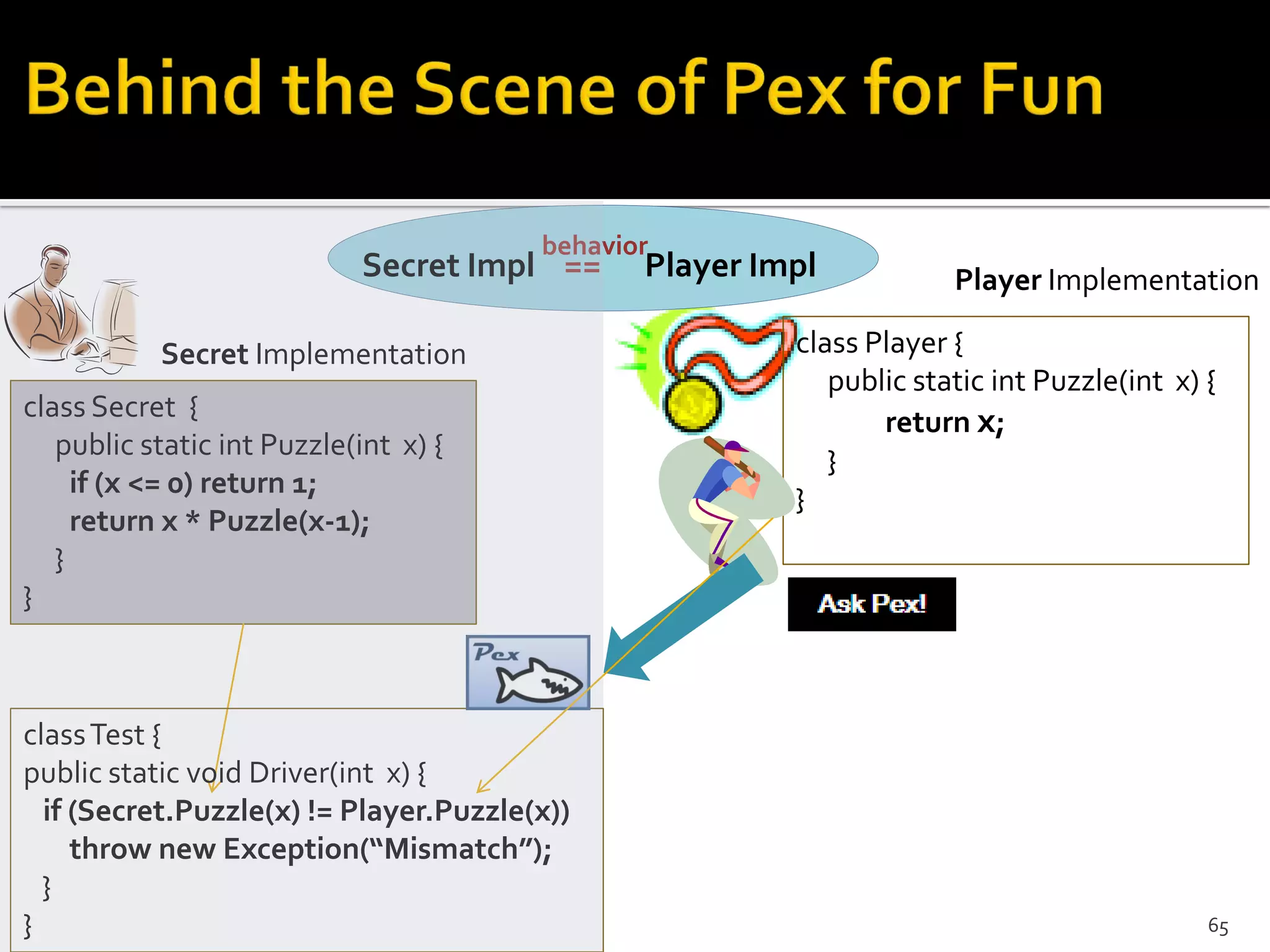

126. Secret Implementation
class Secret {
public static int Puzzle(int x) {
if (x <= 0) return 1;
return x * Puzzle(x-1);
}
}
Player Implementation
class Player {
public static int Puzzle(int x) {
return x;
}
}
classTest {
public static void Driver(int x) {
if (Secret.Puzzle(x) != Player.Puzzle(x))
throw new Exception(“Mismatch”);
}
}
behavior
Secret Impl == Player Impl
65

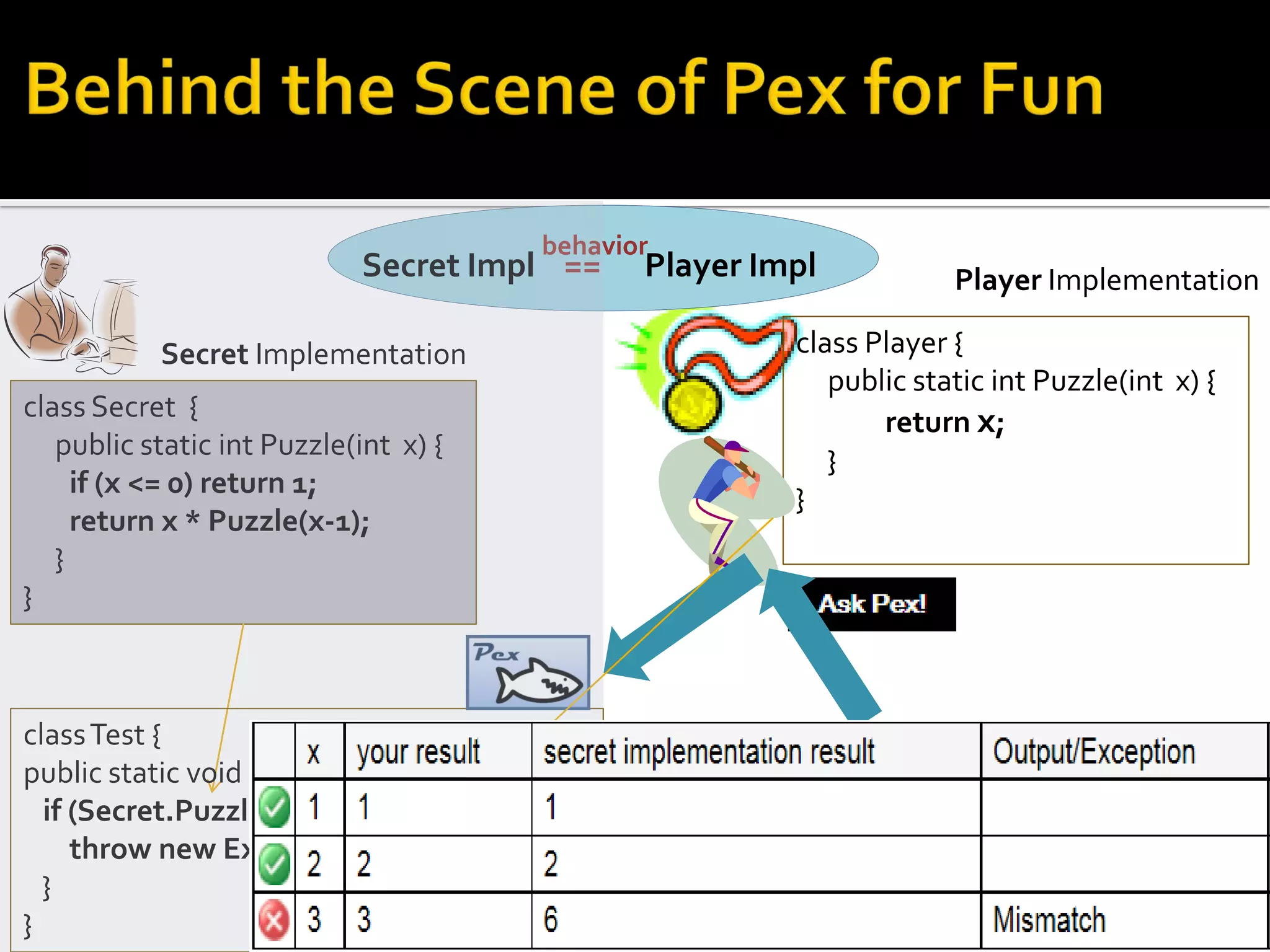

127. Secret Implementation
class Secret {
public static int Puzzle(int x) {
if (x <= 0) return 1;
return x * Puzzle(x-1);
}
}
Player Implementation
class Player {
public static int Puzzle(int x) {
return x;
}
}
classTest {
public static void Driver(int x) {
if (Secret.Puzzle(x) != Player.Puzzle(x))
throw new Exception(“Mismatch”);
}
}
behavior
Secret Impl == Player Impl
65

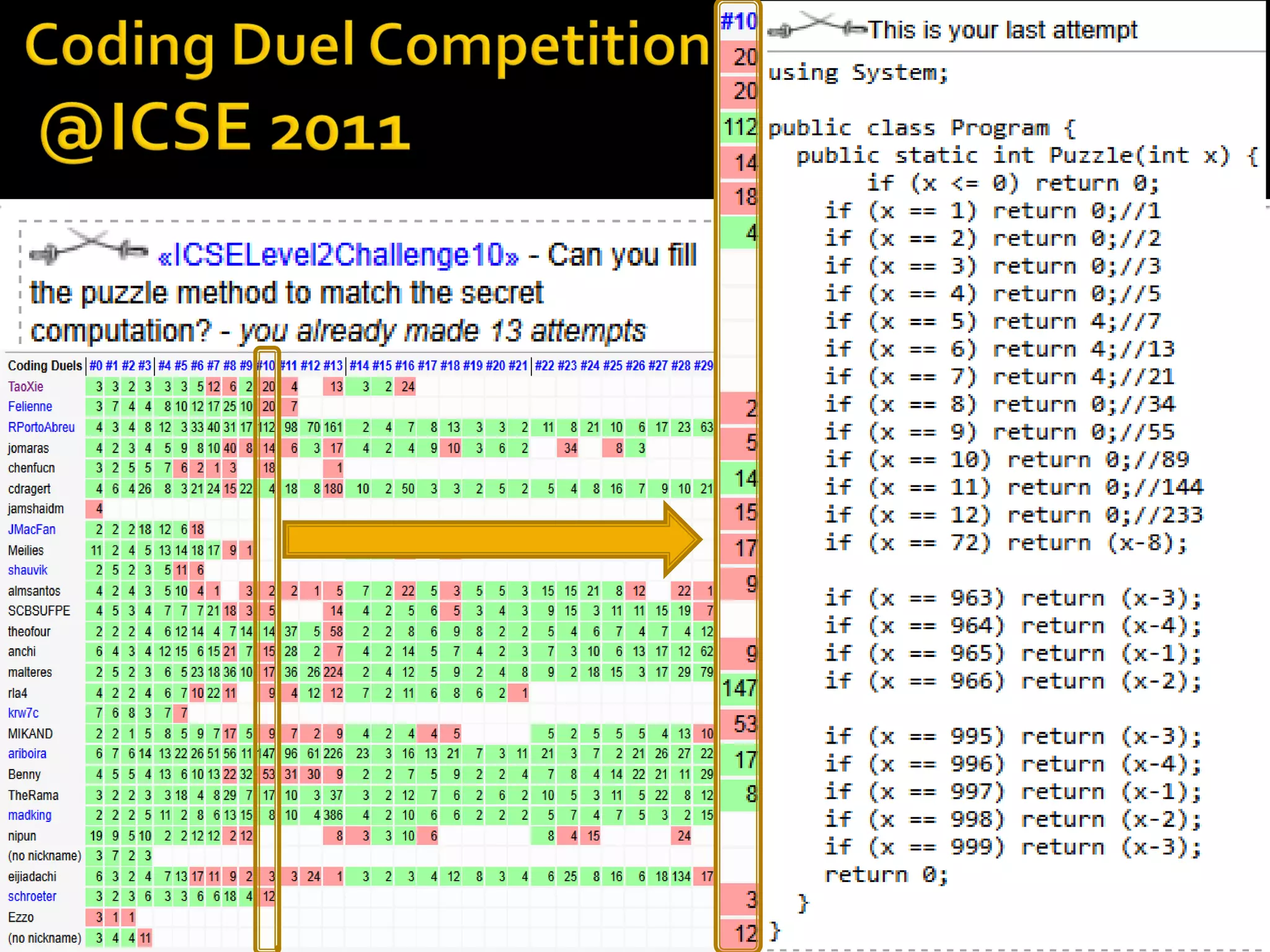

128.  Coding duels at http://www.pexforfun.com/
 Brain exercising/learning while having fun
 Fun: iterative, adaptive/personalized, w/ win criterion
 Abstraction/generalization, debugging, problem solving
Brain exercising

129.  Coding duels at http://www.pexforfun.com/
 Brain exercising/learning while having fun
 Fun: iterative, adaptive/personalized, w/ win criterion
 Abstraction/generalization, debugging, problem solving
Brain exercising

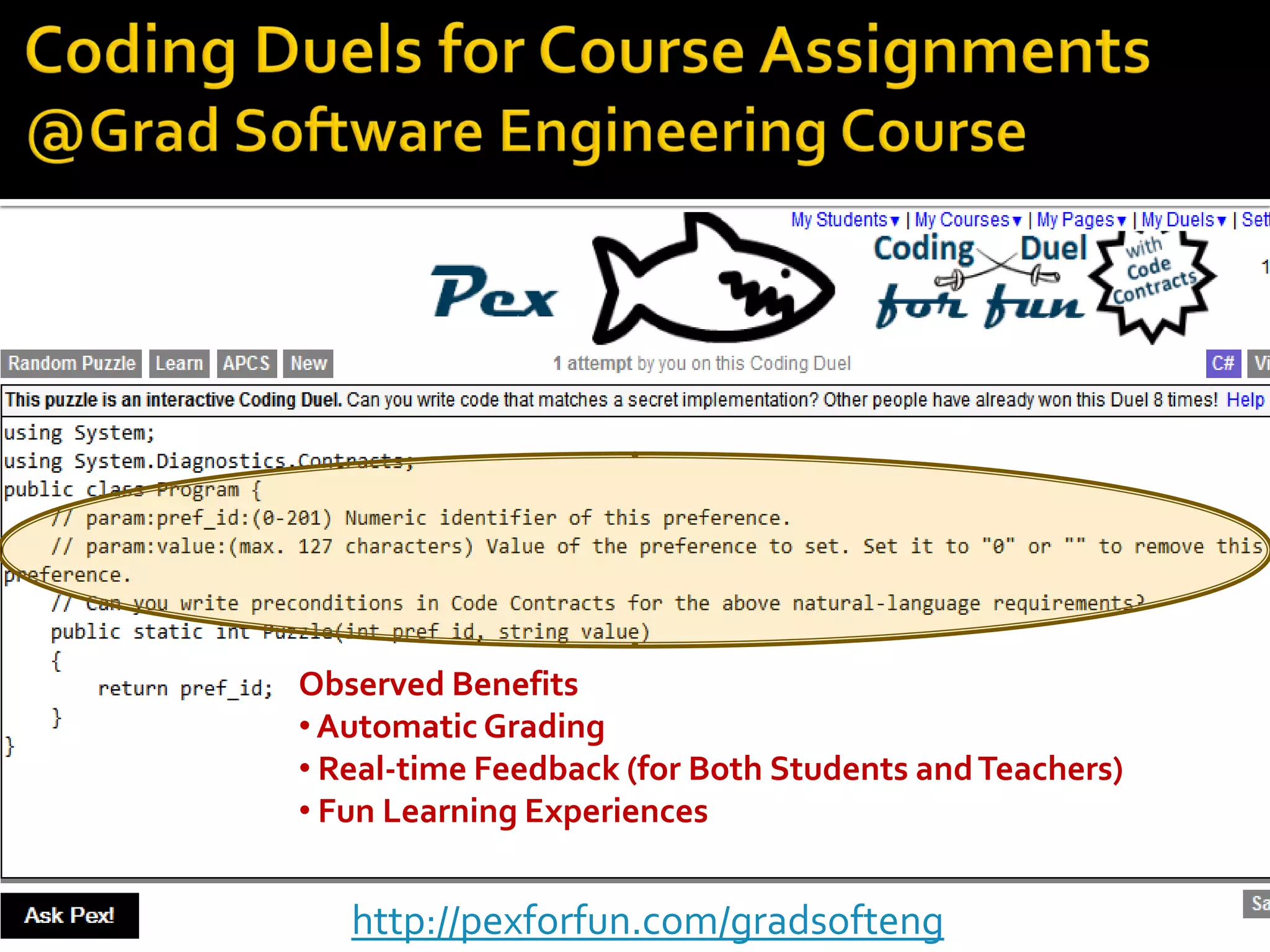

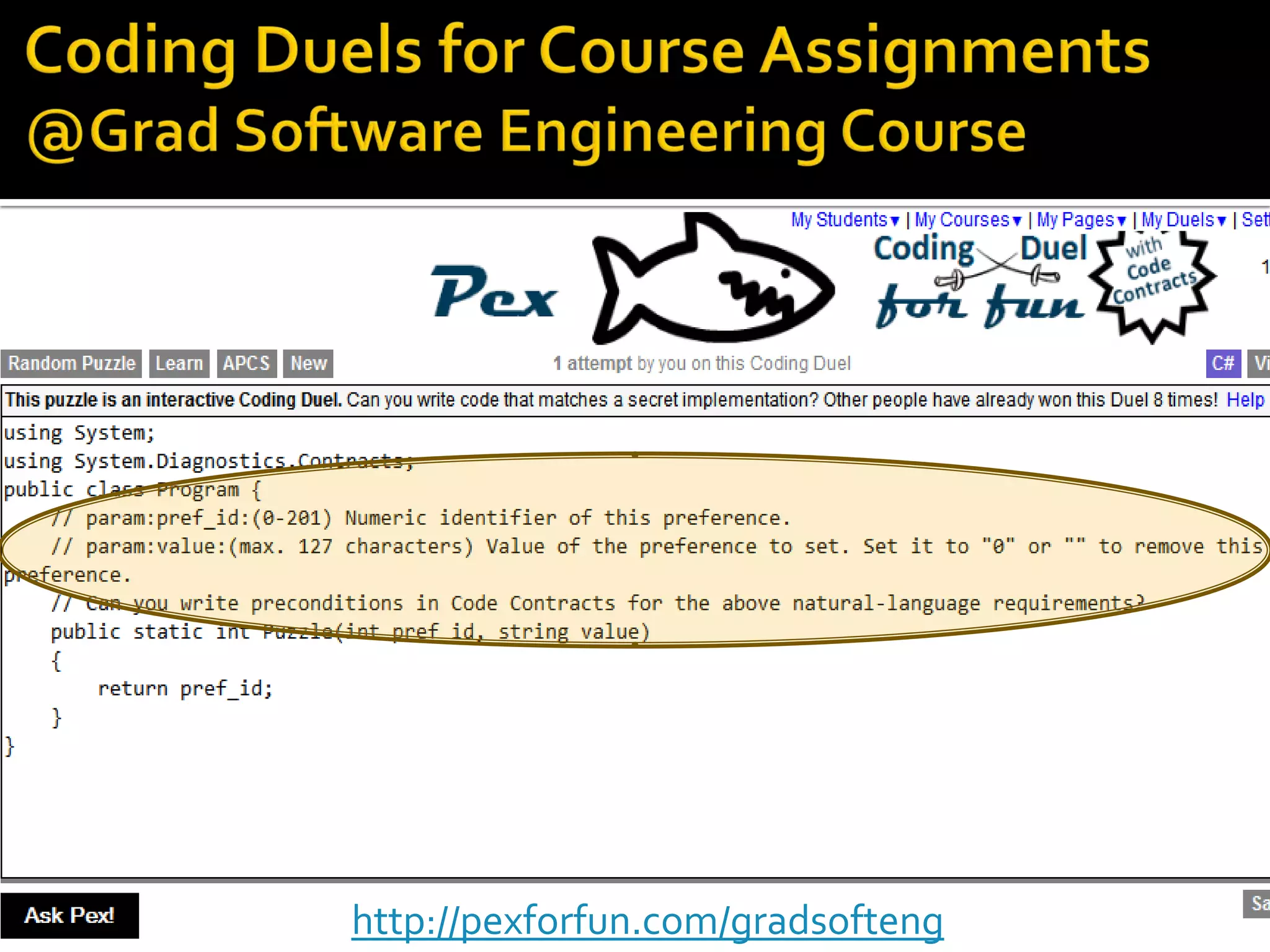

131. http://pexforfun.com/gradsofteng

132. http://pexforfun.com/gradsofteng
Observed Benefits
• Automatic Grading
• Real-time Feedback (for Both Students andTeachers)
• Fun Learning Experiences

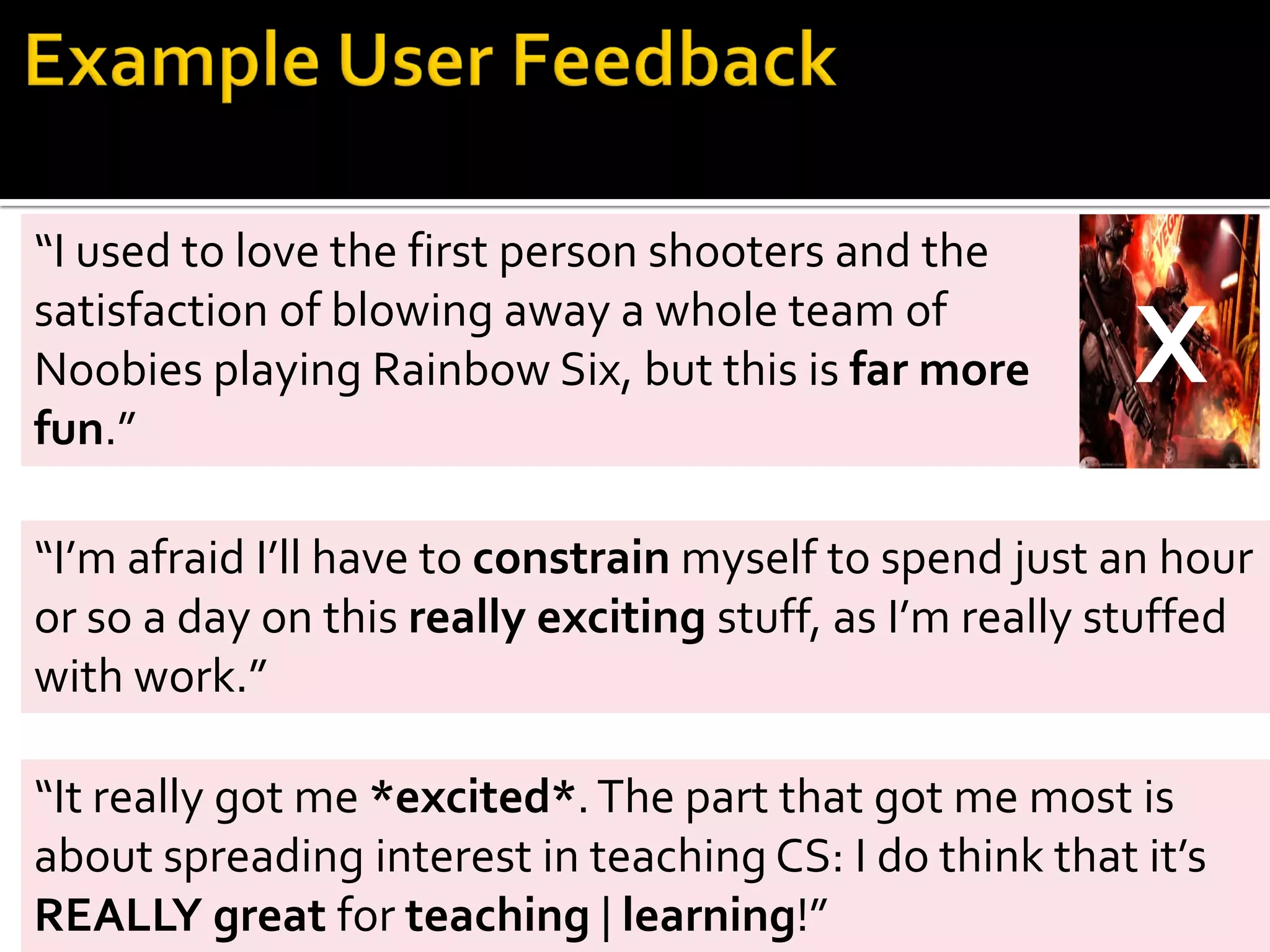

133. “It really got me *excited*.The part that got me most is
about spreading interest in teaching CS: I do think that it’s
REALLY great for teaching | learning!”
“I used to love the first person shooters and the
satisfaction of blowing away a whole team of
Noobies playing Rainbow Six, but this is far more
fun.”
“I’m afraid I’ll have to constrain myself to spend just an hour
or so a day on this really exciting stuff, as I’m really stuffed
with work.”
X

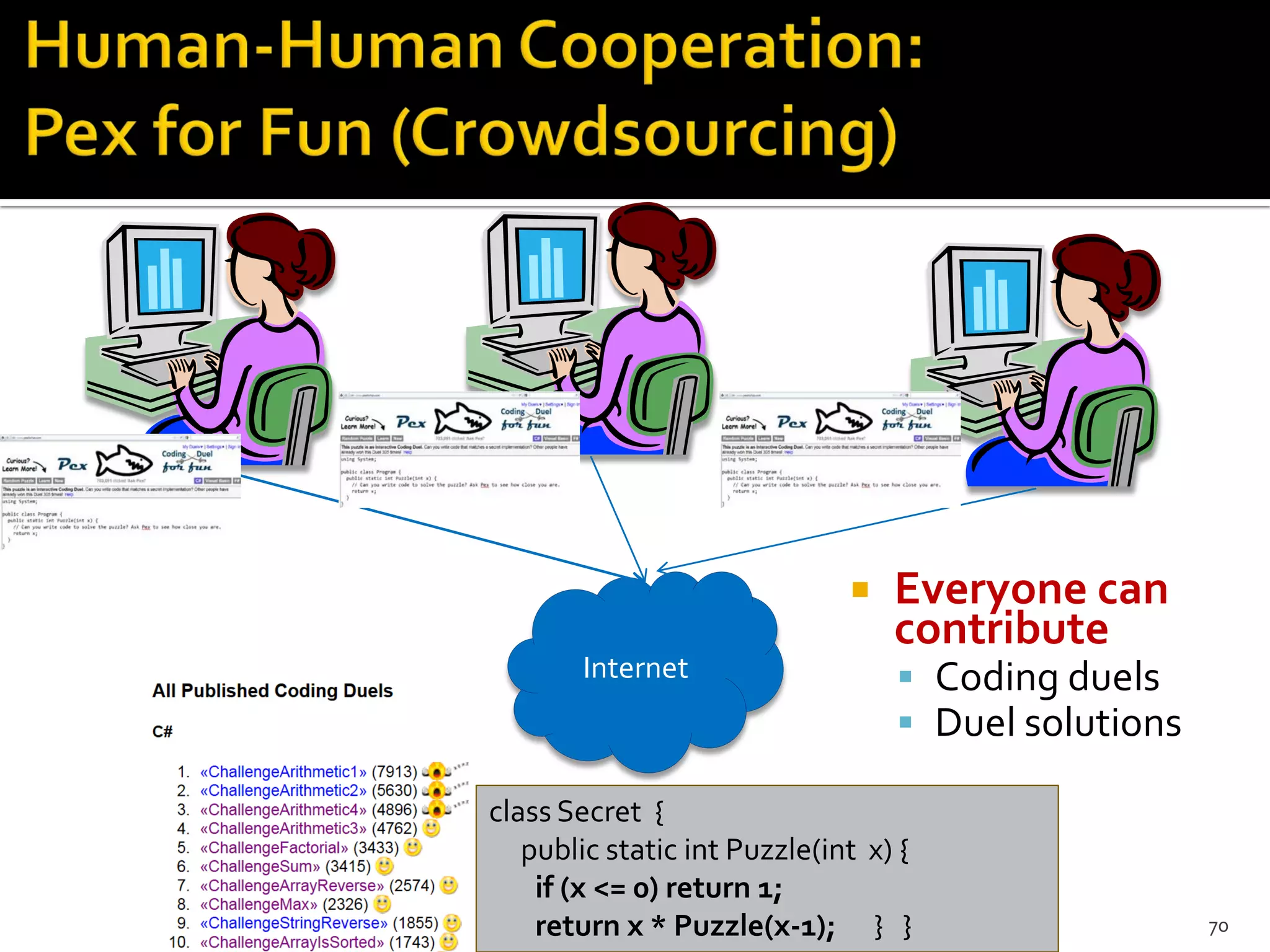

134. 70
Internet
class Secret {
public static int Puzzle(int x) {
if (x <= 0) return 1;
return x * Puzzle(x-1); } }
 Everyone can
contribute
 Coding duels
 Duel solutions

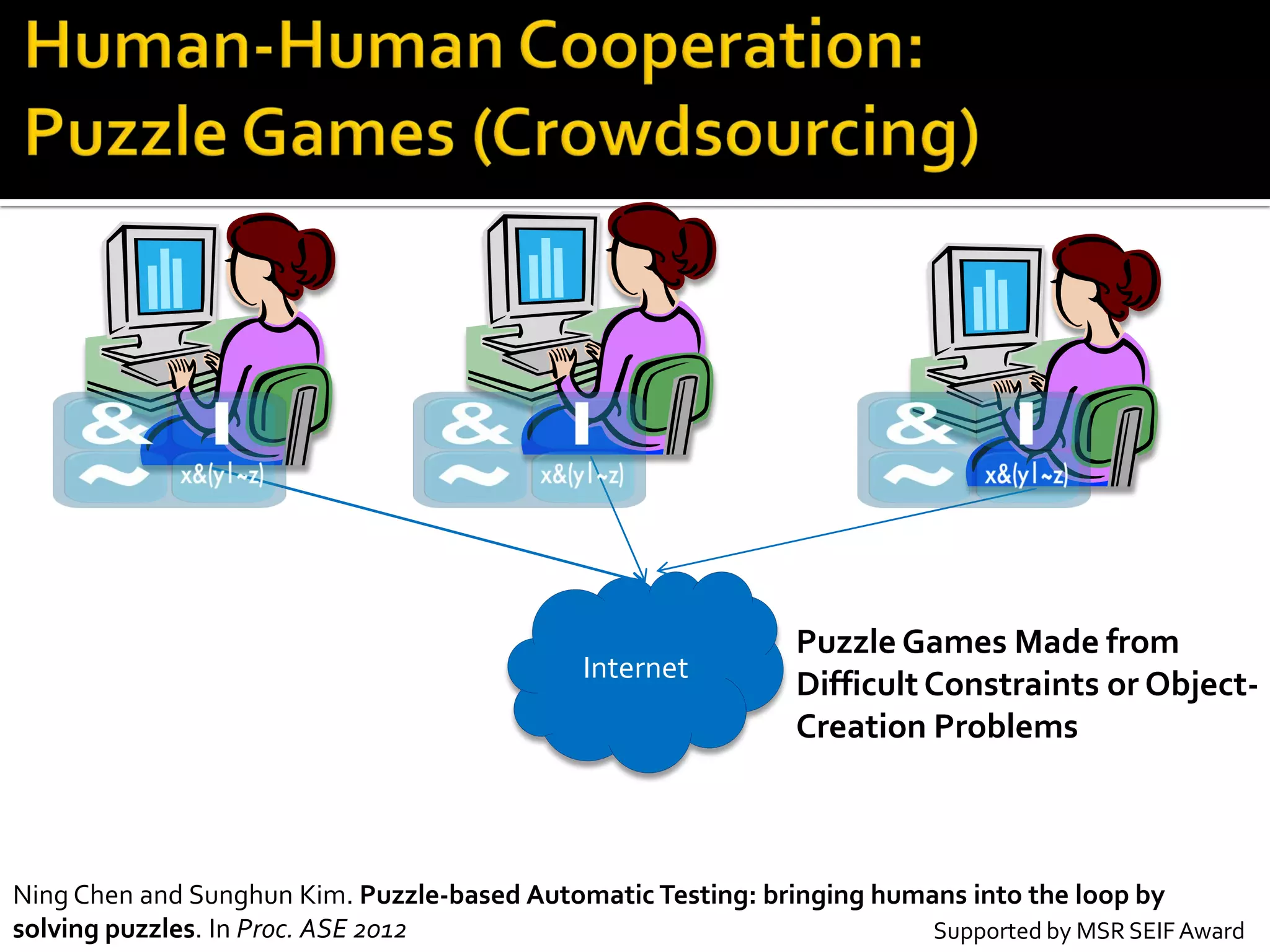

135. Internet
Puzzle Games Made from
Difficult Constraints or Object-
Creation Problems
Supported by MSR SEIFAward
Ning Chen and Sunghun Kim. Puzzle-based Automatic Testing: bringing humans into the loop by
solving puzzles. In Proc. ASE 2012

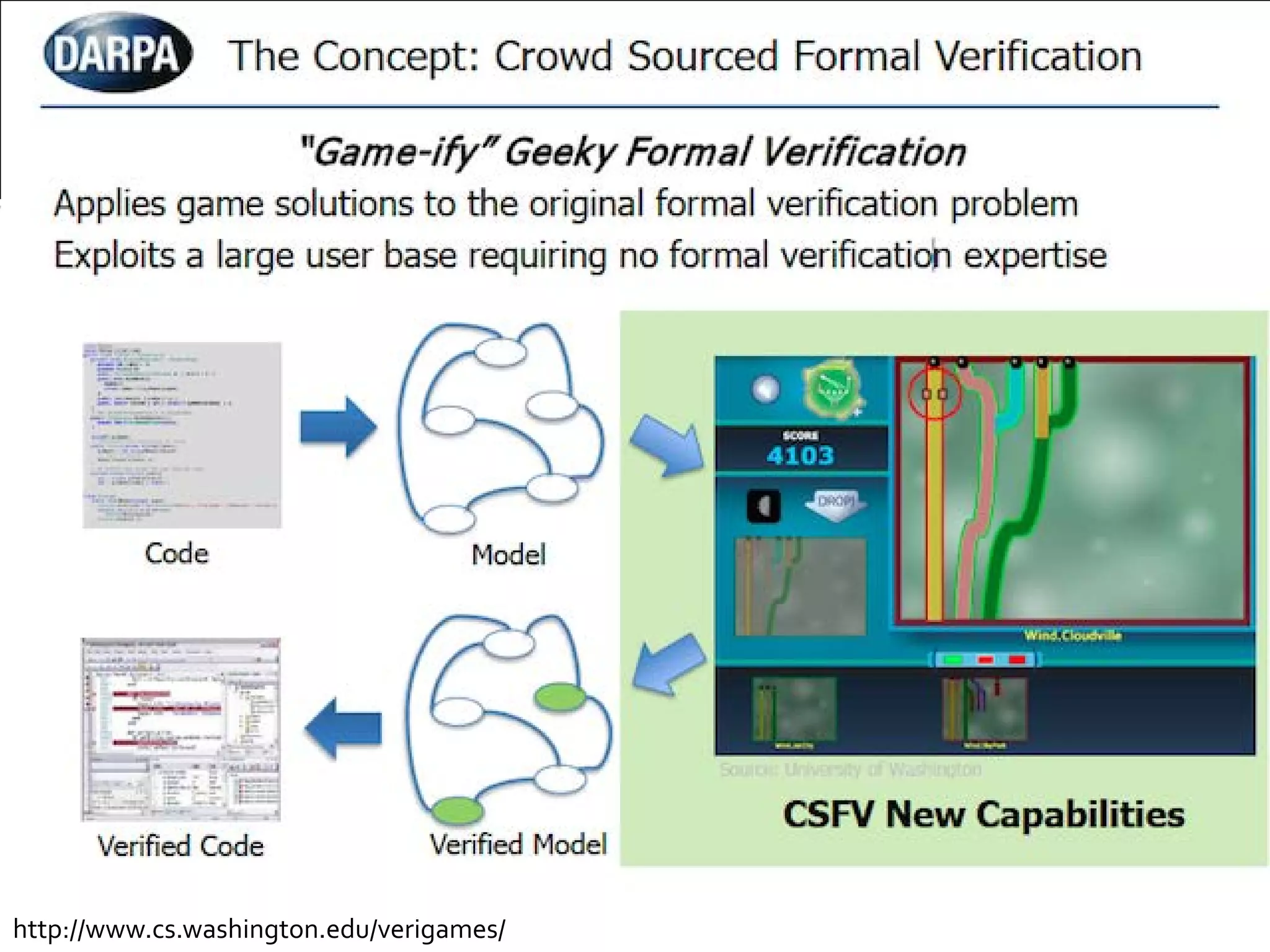

136. http://www.cs.washington.edu/verigames/

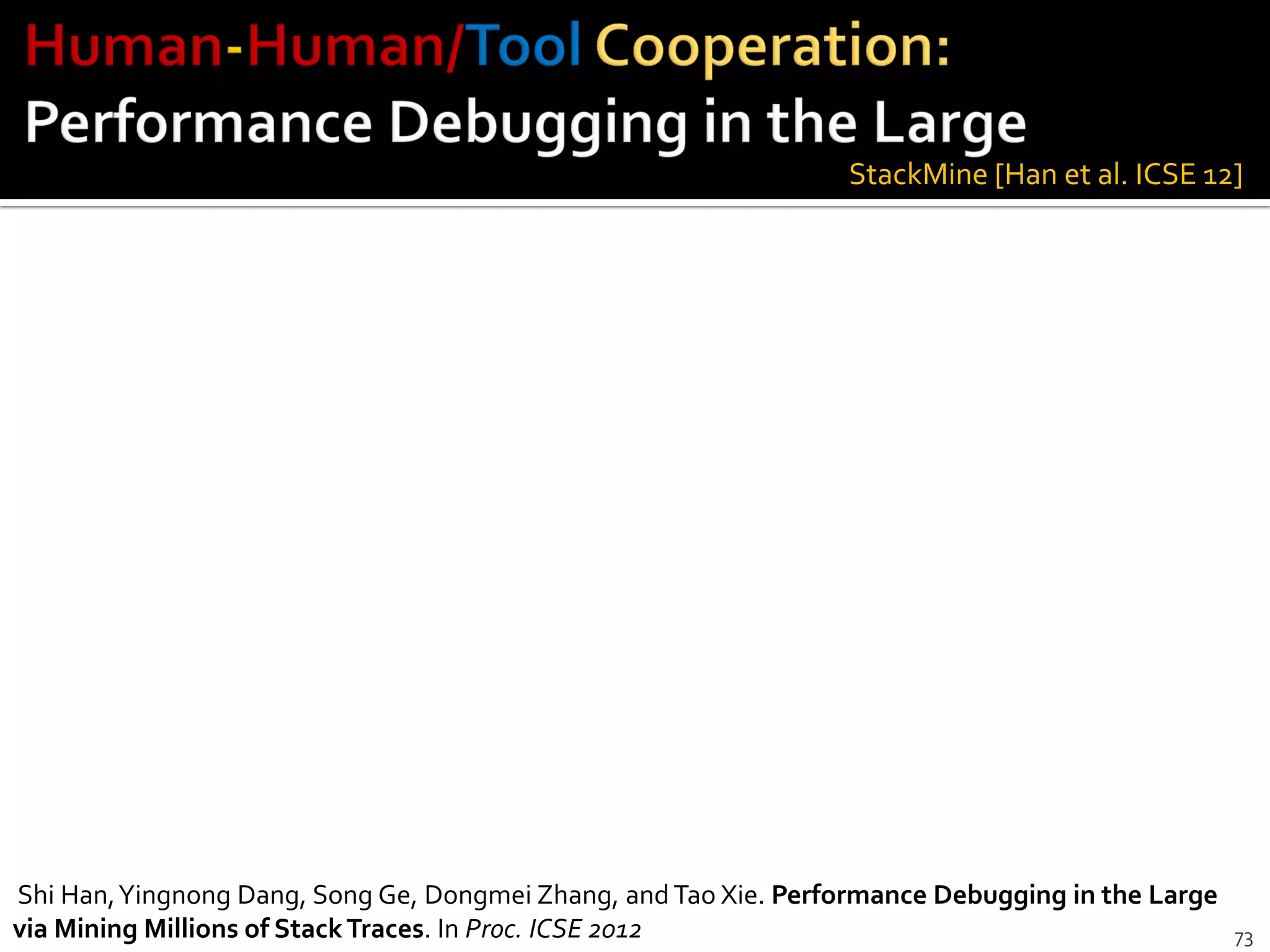

137. 73
StackMine [Han et al. ICSE 12]
Shi Han,Yingnong Dang, Song Ge, Dongmei Zhang, and Tao Xie. Performance Debugging in the Large
via Mining Millions of StackTraces. In Proc. ICSE 2012

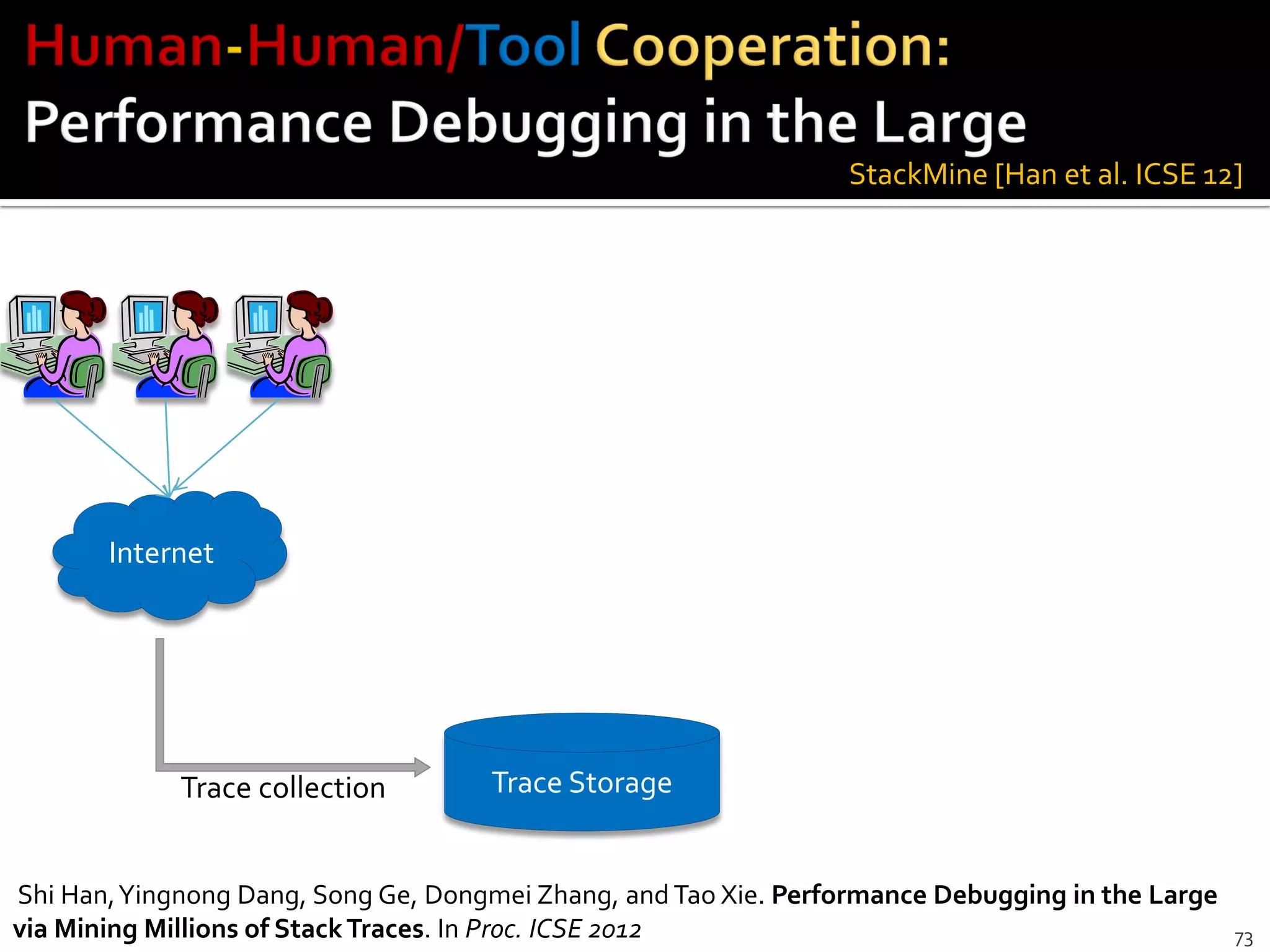

138. 73
StackMine [Han et al. ICSE 12]
Trace StorageTrace collection
Internet
Shi Han,Yingnong Dang, Song Ge, Dongmei Zhang, and Tao Xie. Performance Debugging in the Large
via Mining Millions of StackTraces. In Proc. ICSE 2012

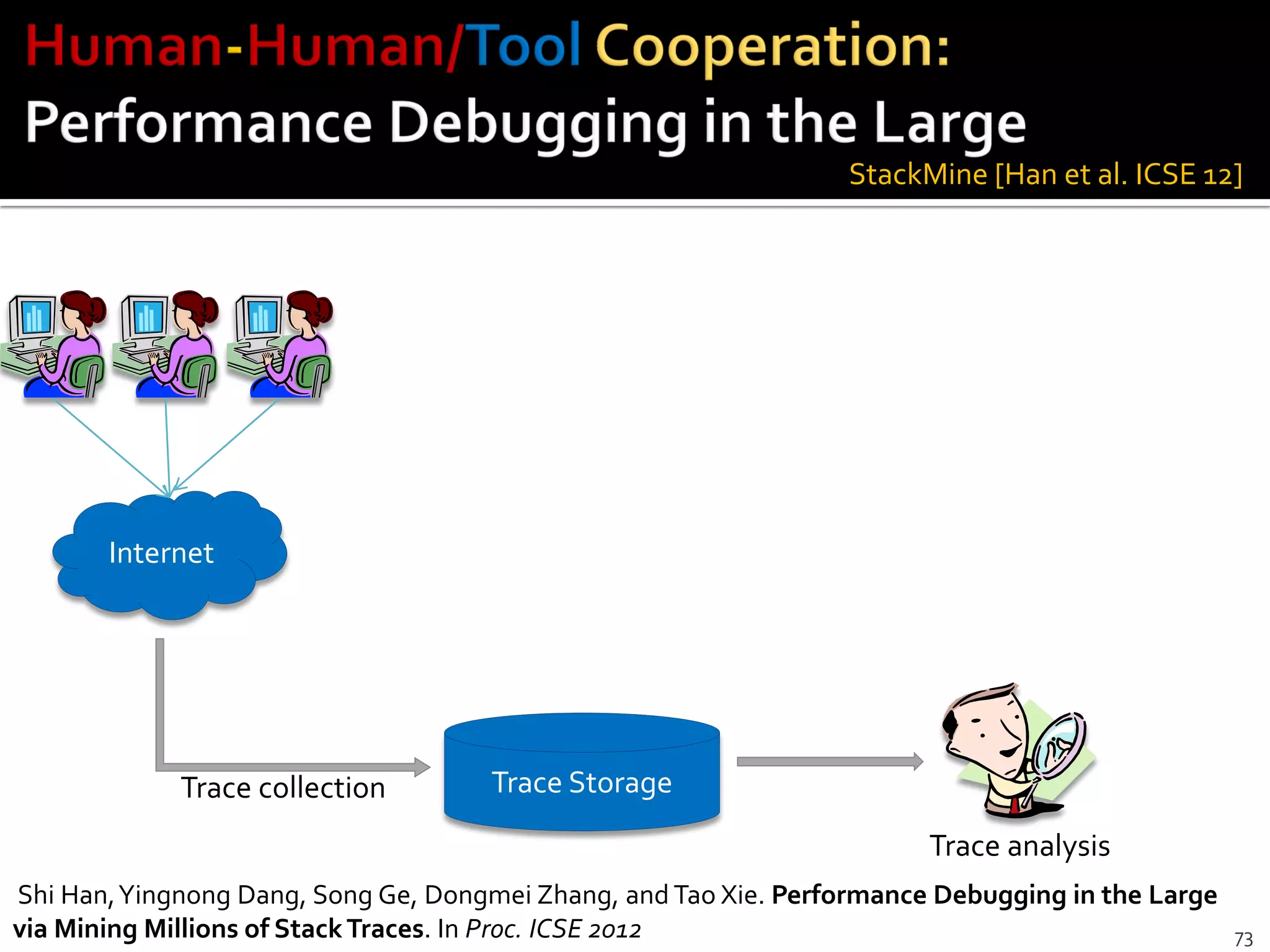

139. 73
Trace analysis
StackMine [Han et al. ICSE 12]
Trace StorageTrace collection
Internet
Shi Han,Yingnong Dang, Song Ge, Dongmei Zhang, and Tao Xie. Performance Debugging in the Large
via Mining Millions of StackTraces. In Proc. ICSE 2012

140. 73
Bug Database
Trace analysis
Bug
filing
StackMine [Han et al. ICSE 12]
Trace StorageTrace collection
Internet
Shi Han,Yingnong Dang, Song Ge, Dongmei Zhang, and Tao Xie. Performance Debugging in the Large
via Mining Millions of StackTraces. In Proc. ICSE 2012

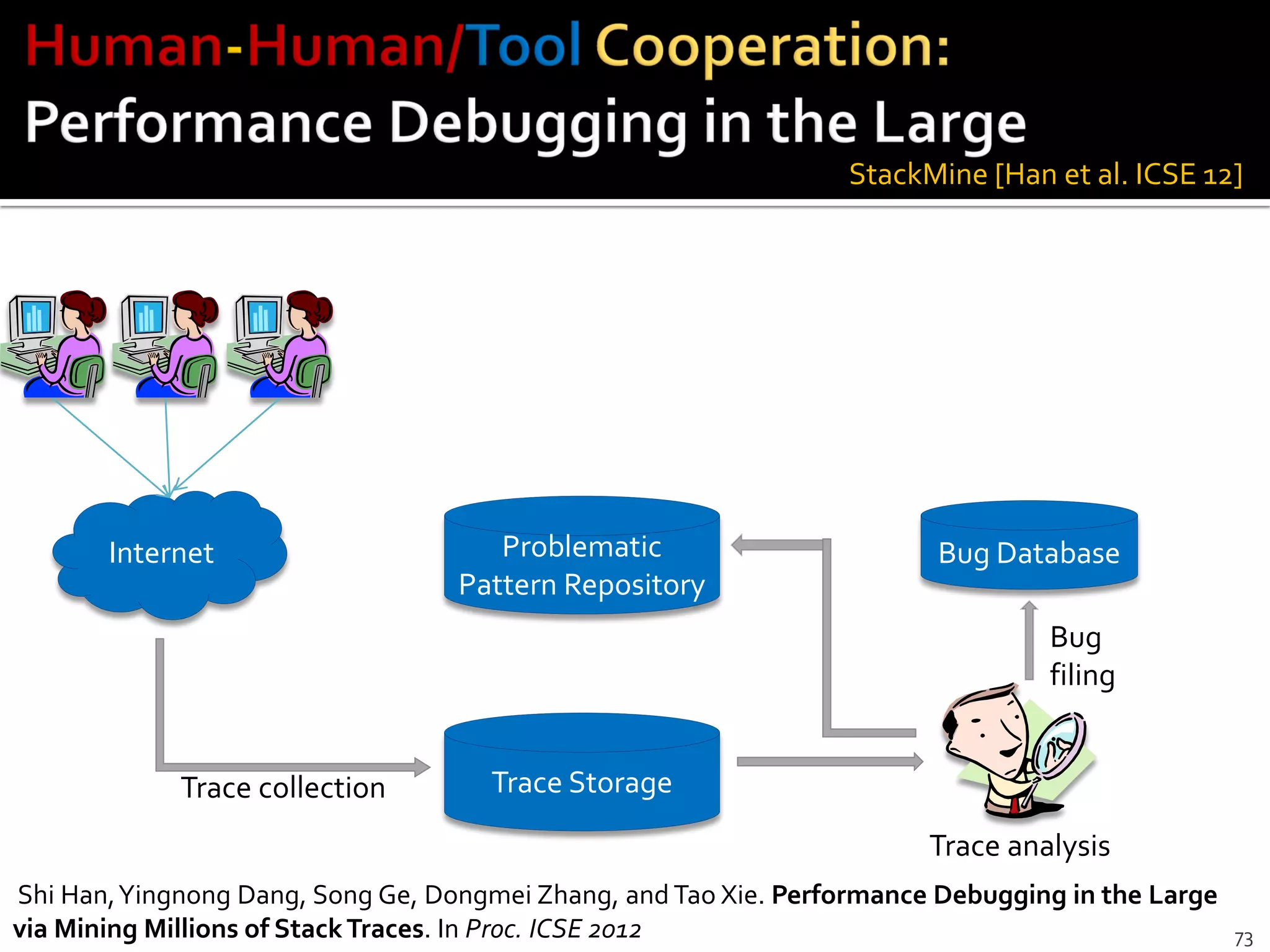

141. 73
Problematic
Pattern Repository
Bug Database
Trace analysis
Bug
filing
StackMine [Han et al. ICSE 12]
Trace StorageTrace collection
Internet
Shi Han,Yingnong Dang, Song Ge, Dongmei Zhang, and Tao Xie. Performance Debugging in the Large
via Mining Millions of StackTraces. In Proc. ICSE 2012

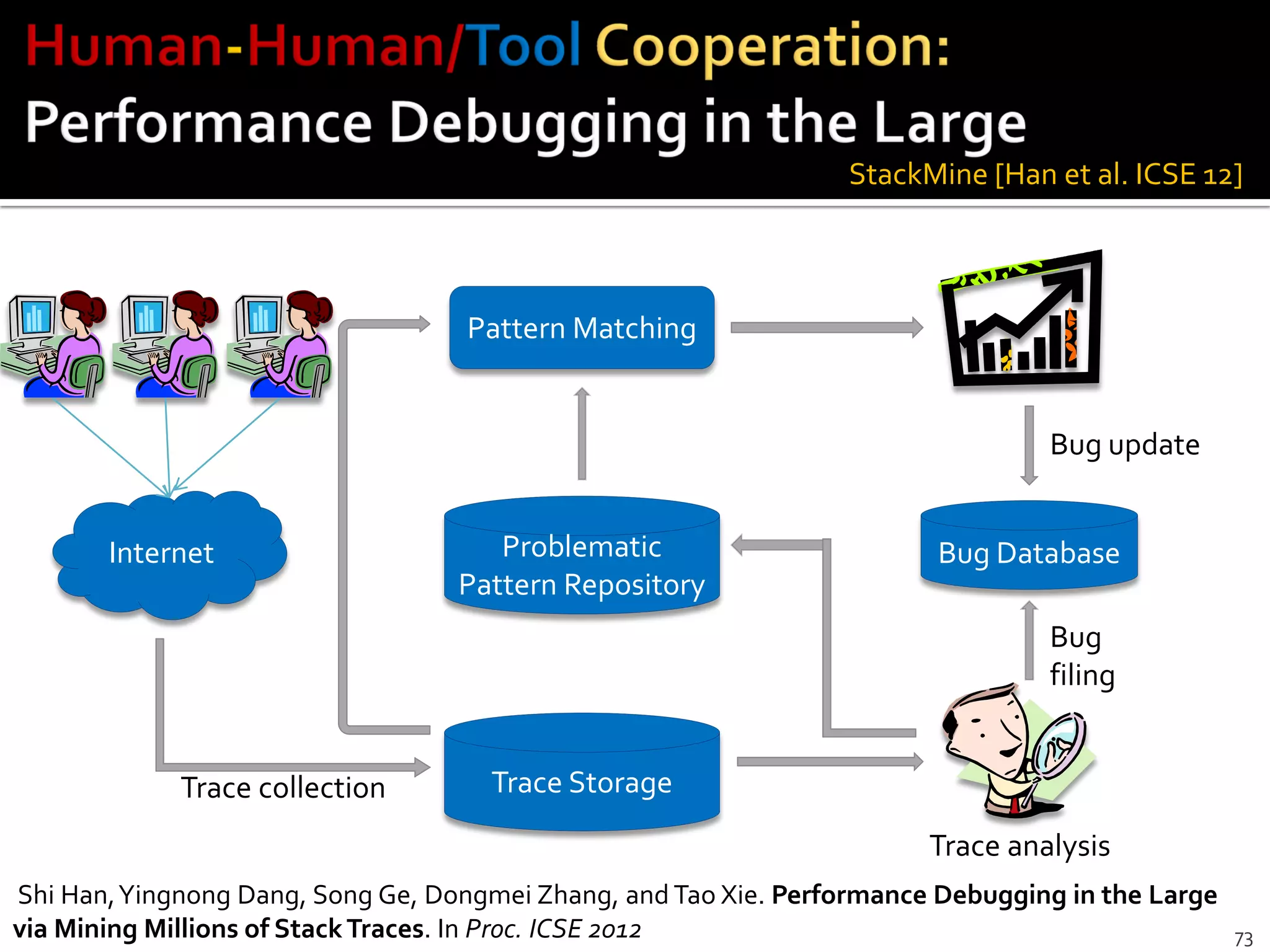

142. 73
Pattern Matching
Bug update
Problematic
Pattern Repository
Bug Database
Trace analysis
Bug
filing
StackMine [Han et al. ICSE 12]
Trace StorageTrace collection
Internet
Shi Han,Yingnong Dang, Song Ge, Dongmei Zhang, and Tao Xie. Performance Debugging in the Large
via Mining Millions of StackTraces. In Proc. ICSE 2012

143. 73
Pattern Matching
Bug update
Problematic
Pattern Repository
Bug Database
Trace analysis
Bug
filing
StackMine [Han et al. ICSE 12]
Trace StorageTrace collection
Internet
Shi Han,Yingnong Dang, Song Ge, Dongmei Zhang, and Tao Xie. Performance Debugging in the Large
via Mining Millions of StackTraces. In Proc. ICSE 2012

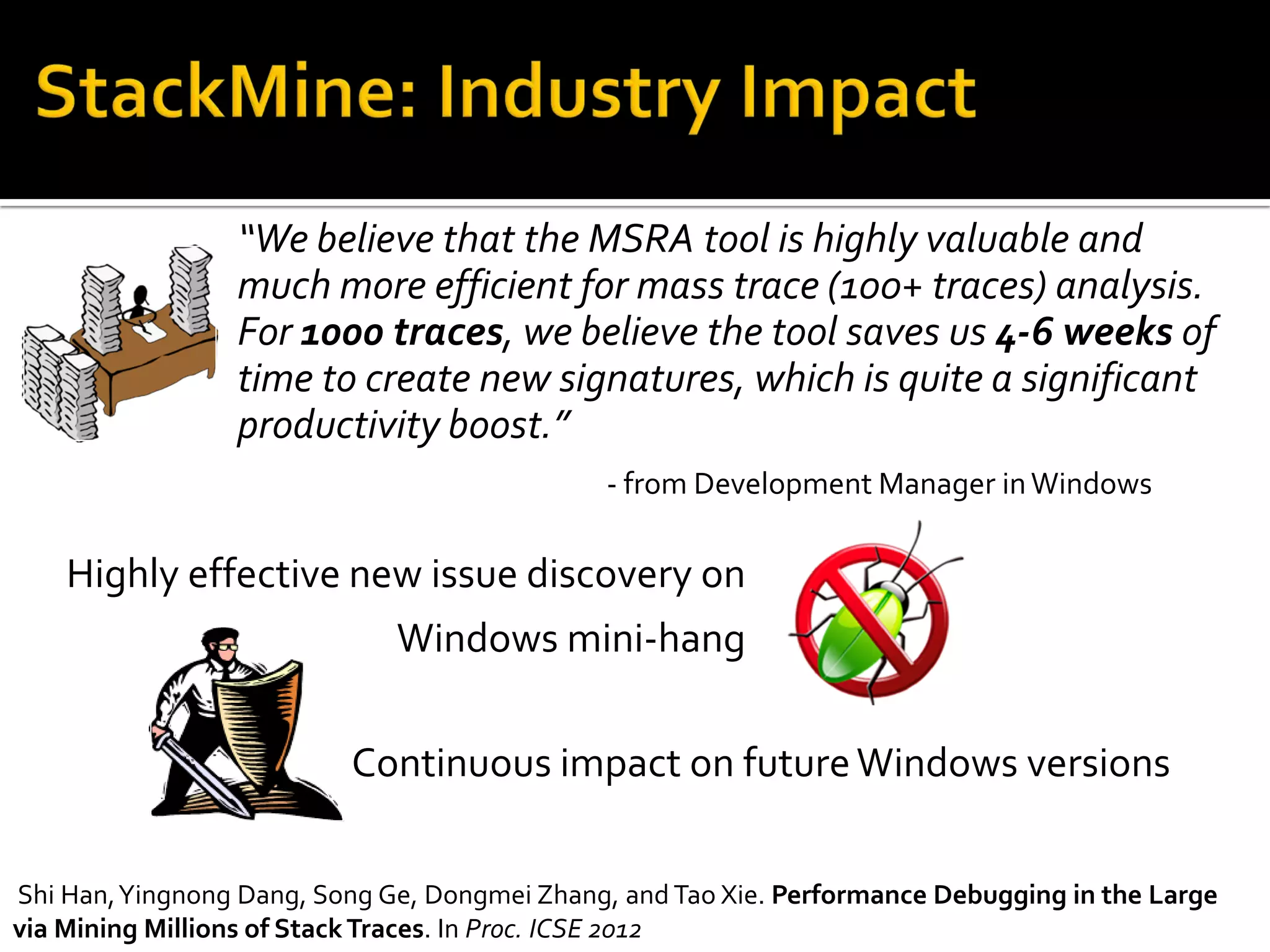

144. “We believe that the MSRA tool is highly valuable and
much more efficient for mass trace (100+ traces) analysis.
For 1000 traces, we believe the tool saves us 4-6 weeks of
time to create new signatures, which is quite a significant
productivity boost.”
- from Development Manager inWindows
Highly effective new issue discovery on
Windows mini-hang
Continuous impact on futureWindows versions
Shi Han,Yingnong Dang, Song Ge, Dongmei Zhang, and Tao Xie. Performance Debugging in the Large
via Mining Millions of StackTraces. In Proc. ICSE 2012

145.  Don’t forget human factors
 Using your tools as end-to-end solutions
 Helping your tools
 Don’t forget cooperations of human and tool
intelligence; human and human intelligence
 Human can help your tools too
 Human and human could work together to help your
tools, e.g., crowdsourcing
75

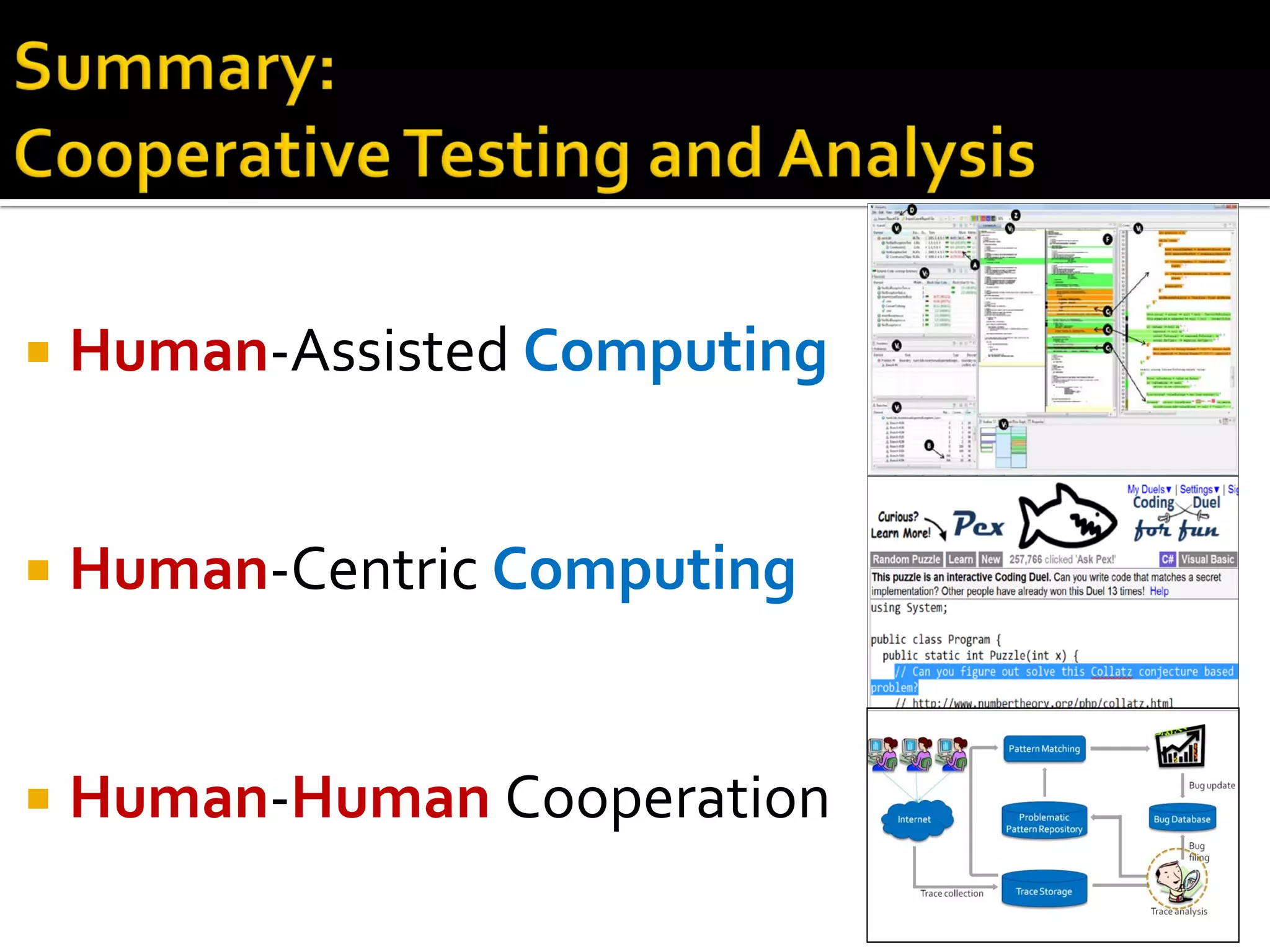

146.  Human-Assisted Computing
 Human-Centric Computing
 Human-Human Cooperation

147.  Don’t forget human factors
 Using your tools as end-to-end solutions
 Helping your tools
 Don’t forget cooperations of human and tool;
human and human
 Human can help your tools too
 Human and human could work together to help your
tools, e.g., crowdsourcing
77

148.  Wonderful current/former students@ASE
 Collaborators, especially those from Microsoft
Research Redmond/Asia, Peking University
 Colleagues who gave feedback and inspired me
NSF grants CCF-0845272, CCF-0915400, CNS-0958235, ARO grant W911NF-08-1-0443, an
NSA Science of Security, Lablet grant, a NIST grant, a 2011 Microsoft Research SEIFAward

149. Questions ?
https://sites.google.com/site/asergrp/

150.  Human-Assisted Computing
 Human-Centric Computing
 Human-Human Cooperation
