SB Engineers is a leading manufacturer and supplier of material handling equipment such as overhead cranes, wire rope hoists, gantry cranes, jib cranes, and under slung cranes. The company was established in 2009 by Suresh Patel with a vision of being the most successful and respected crane manufacturer. SB Engineers is committed to providing high quality, technologically superior products and services to achieve total customer satisfaction. Safety, quality, and reliability remain high priorities for the company.

3. We are a Leading Manufacturer, Exporter and Supplier of Material handling equipments such as
 EOT Cranes
 Electric Wire Rope Hoist
 Gantry Crane/Goliath cranes
 Jib Cranes
 Under slung Cranes
 Winch & Transfer trolley
 Goods lift/Cage hoist for special chemical /Pharmaceuticals purpose etc. Our products are mfg. as
per IS standards.
 “SB Engineers” was established in year of 2009 by a young entrepreneur Mr. Suresh Patel with
the vision “to be the most successful and respected crane manufacturer” across different
industrial segments with high-end quality and perfection. He has done BE-Mechanical engineers
and MBA in Marketing and has a vast experience with wide design & technical knowledge in
the similar field.
 Now a day’s company is making unremarkable progress with the responsibility under High
quality control, Economical Pricing and fast & efficient delivery system within a short time. our
company has archived a number of milestone in short year of span.
 SB CRANES is committed to provide excellent and proactive service to eliminate the downtime
and be there on call 24/7. We have continuously increased our R&D investments. Safety and
quality with reliability remain high on our agenda and we are committed to incorporate these
into every aspect of our culture. Our unbeatable combination of reliability, innovation and
technically superior products delivers great values and performance.

4. SB ENGINEERS is committed to provide
Technologically superior products & high quality
Services to achieve total customer satisfaction.
We are committed to quality integrity and
Excellence in all areas of business. We pledge to
Monitor our performance as an on-going activity
and services for continual improvement.
“The cornerstone of our success lies in a proactive management & excellent product quality”

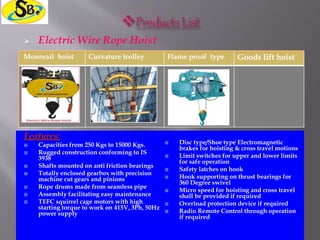

5.  Electric Wire Rope Hoist
Monorail hoist Curvature trolley Flame proof type Goods lift hoist
Features:
 Capacities from 250 Kgs to 15000 Kgs.
 Rugged construction conforming to IS
3938
 Shafts mounted on anti friction bearings
 Totally enclosed gearbox with precision
machine cut gears and pinions
 Rope drums made from seamless pipe
 Assembly facilitating easy maintenance
 TEFC squirrel cage motors with high
starting torque to work on 415V, 3Ph, 50Hz
power supply
 Disc type/Shoe type Electromagnetic
brakes for hoisting & cross travel motions
 Limit switches for upper and lower limits
for safe operation
 Safety latches on hook
 Hook supporting on thrust bearings for
360 Degree swivel
 Micro speed for hoisting and cross travel
shall be provided if required
 Overload protection device if required
 Radio Remote Control through operation
if required

6. SINGLE GIRDER
DOUBLE GIRDER
Under slung crane
 SINGLE GIRDER CRANE
SPECIFICATION:
 CRANE CAPACITY: UPTO 15 MT
 SPAN RANGE : UPTO 25 M
 DESIGN STANDARDS : IS:3177/IS3938/IS807
APPLICATIONS: LIGHT &MEDIUM DUTY

7. Concept
Ideal for frequent Starts / Stops & Reversing operation those motor are high torq
Range
0.10 H.P. to 75 H.P. (0.075 K.W. to 55 K.W.) Frame 63 to 250M in 2, 4, 6, 8, 10 & 12
Pole on customer request we are also able supply motor in 220, 380, 460, 525 volts on HZ.
50 or 60 Also
Mounting
- Foot - Flange - Face
Duty
Motor is suitable for: -
Short time duty (S2)
Intermittent periodic duty (S3)
Intermittent duty with Starting (S4)
Intermittent duty with starting & ele. Braking (S5)
Voltage and Frequency
Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also

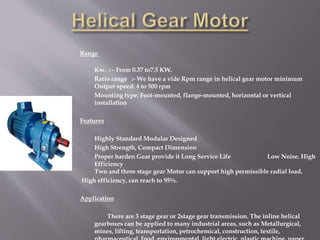

8. Range
Kw. : - From 0.37 to7.5 KW.
Ratio range :- We have a vide Rpm range in helical gear motor minimum
Output speed: 4 to 500 rpm
Mounting type: Foot-mounted, flange-mounted, horizontal or vertical
installation
Features
Highly Standard Modular Designed
High Strength, Compact Dimension
Proper harden Gear provide it Long Service Life Low Noise. High
Efficiency
Two and three stage gear Motor can support high permissible radial load.
High efficiency, can reach to 95%.
Application
There are 3 stage gear or 2stage gear transmission. The inline helical
gearboxes can be applied to many industrial areas, such as Metallurgical,
mines, lifting, transportation, petrochemical, construction, textile,

9. Nylon/Bakelite bobbin with ‘F’ class insulation coil.
10mm thickness E plate / I plate
All machines nuts are used.
M.S. Plate for liner.
15mm thickness mounting plate.
Close type Connector with Nylock Nut.
16.5mm thickness liner.
C.R.N.G.O. stamping.
Heavy Duty Brake
A.C. DISK BRAKES : (FAIL SAFE)
Very compact and modern in design. Foundation is not necessary as they are
directly mounted on non-driving end shaft of the motor. It consists of liner plates
(Brake Disc) with square hole at the center. One corresponding piece of square
hub is supplied with the brake. This hub is keyed to the motor shaft and the
liner plate is free on this hub. Normally liner plate is gripped between two discs
with the help of spring pressure. They work on 230/ 415 Volt A.C. When the
current is supplied on the brake, one disc is attracted by electromagnet against
pressure and the liner plate is released. Thus the brakes are “off”. Once the brake
is set it dose not require adjustment or maintenance. When the liner plates wear
with the use then only air gap is required to be maintained periodically. An
arrangement to release the brake manually could be provided on request.
