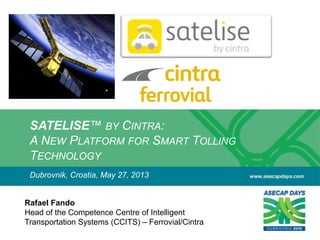

SATELISE™ BY CINTRA:
A NEW PLATFORM OF SMART TOLLING TECHNOLOGY

2. SATELISE™ BY CINTRA:
A NEW PLATFORM FOR SMART TOLLING
TECHNOLOGY
Rafael Fando
Head of the Competence Centre of Intelligent
Transportation Systems (CCITS) – Ferrovial/Cintra
Dubrovnik, Croatia, May 27, 2013

3. Founded in 1952, Ferrovial is one of the world’s leader companies in
infrastructure management, with four main divisions: Construction,
Motorways, Airports and Urban Services. Its staff ups to 52,000
employees in 25 countries
In 2012 Ferrovial celebrates 60 years of success and looks at the future
aiming to set the difference and keep its leadership in the world of
infrastructre and services, providing excellent services to the society.
7,686
2012 Turnover
(Million €)
57,276
Employees in…
25
Countries
927
EBITDA (M€)
8,215
Stock Value (M€)
710
Net profits (Million €)
at a glance
3

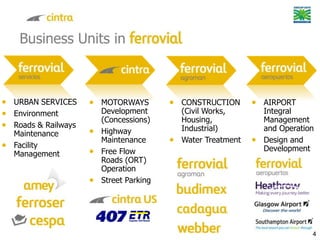

4. Business Units in
URBAN SERVICES
Environment
Roads & Railways
Maintenance
Facility
Management
MOTORWAYS
Development
(Concessions)
Highway
Maintenance
Free Flow
Roads (ORT)
Operation
Street Parking
CONSTRUCTION
(Civil Works,
Housing,
Industrial)
Water Treatment
AIRPORT
Integral
Management
and Operation
Design and
Development
4

5. 5

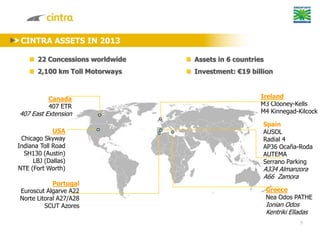

CINTRA ASSETS IN 2013
 22 Concessions worldwide
 2,100 km Toll Motorways
 Assets in 6 countries
 Investment: €19 billion
Canada
407 ETR
407 East Extension
USA
Chicago Skyway
Indiana Toll Road
SH130 (Austin)
LBJ (Dallas)
NTE (Fort Worth)
Greece
Nea Odos PATHE
Ionian Odos
Kentriki Elladas
Portugal
Euroscut Algarve A22
Norte Litoral A27/A28
SCUT Azores
Ireland
M3 Clooney-Kells
M4 Kinnegad-Kilcock
Spain
AUSOL
Radial 4
AP36 Ocaña-Roda
AUTEMA
Serrano Parking
A334 Almanzora
A66 Zamora

6. 6
Introduces the Concept
 SATELISETM is a technological
solution for road pricing and a
platform for highway services
 It uses smartphones with GPS
features and communications as the
only on-board unit required
 Complementary and compatible
with existing tolling systems
 Allows for kilometer-based
charging of motorways
SATELISE brand has been selected and registered by CINTRA
International Patent Pending (application 2012/09)

7. 7

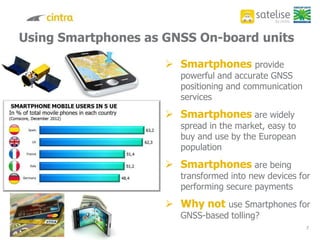

Using Smartphones as GNSS On-board units
 Smartphones provide
powerful and accurate GNSS
positioning and communication
services
 Smartphones are widely
spread in the market, easy to
buy and use by the European
population
 Smartphones are being
transformed into new devices for
performing secure payments
 Why not use Smartphones for
GNSS-based tolling?

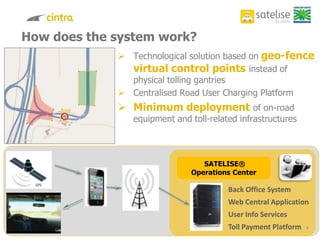

8. How does the system work?
8
SATELISE®
Operations Center
Back Office System
Web Central Application
User Info Services
Toll Payment Platform
 Technological solution based on geo-fence
virtual control points instead of
physical tolling gantries
 Centralised Road User Charging Platform
 Minimum deployment of on-road
equipment and toll-related infrastructures

9. How does the system work?
9
SATELISE™ Smartphone App
• Downloadable application for free
• Easy to install and to configure
• Smartphone linked to license plates and
the type and photograph of the vehicles

10. The advantages of
 SATELISE® maximizes the profit for the
road authorities and the toll chargers:
Minimum toll-related physical
infrastructure
Reduces installation and maintenance costs
Quick and efficient deployment
Entire road network coverage
Flexibility allowing configurable tolling
schemes and fair charges to road users
Co-habitation with existing systems (both
free flow and conventional tolling)
10

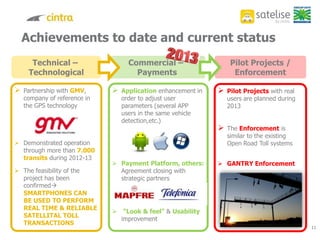

11. Achievements to date and current status
11
Technical –
Technological
Commercial –
Payments
Pilot Projects /
Enforcement
 Partnership with GMV,
company of reference in
the GPS technology
 Demonstrated operation
through more than 7.000
transits during 2012-13
 The feasibility of the
project has been
confirmed
SMARTPHONES CAN
BE USED TO PERFORM
REAL TIME & RELIABLE
SATELLITAL TOLL
TRANSACTIONS
 Application enhancement in
order to adjust user
parameters (several APP
users in the same vehicle
detection,etc.)
 Payment Platform, others:
Agreement closing with
strategic partners
 “Look & feel” & Usability
improvement
 Pilot Projects with real
users are planned during
2013
 The Enforcement is
similar to the existing
Open Road Toll systems
 GANTRY Enforcement
11

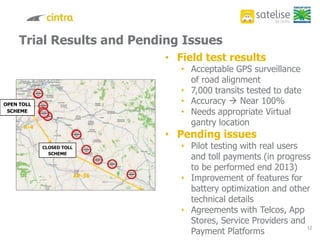

12. • Field test results
• Acceptable GPS surveillance
of road alignment
• 7,000 transits tested to date
• Accuracy  Near 100%
• Needs appropriate Virtual
gantry location
• Pending issues
• Pilot testing with real users
and toll payments (in progress
to be performed end 2013)
• Improvement of features for
battery optimization and other
technical details
• Agreements with Telcos, App
Stores, Service Providers and
Payment Platforms
R-4
AP-36
OPEN TOLL
SCHEME
CLOSED TOLL
SCHEME
Trial Results and Pending Issues
12

13. Potential features of
13
This software Platform allows for:
 Information to road users
(traffic, weather, services)
 Emergency call Services
 Fidelity Programs
 HOV High Occupancy Declaration
 Discount Policies for Green
Vehicles and Responsible Driving
 Insurance Bonuses (under
study) in cooperation with major
insurance companies
