SAS V1.2

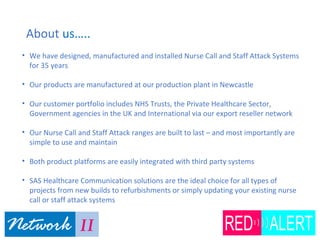

- 2. About us….. • Wehave designed, manufactured and installed Nurse Call and Staff Attack Systems for 35 years • Our products are manufactured at our production plant in Newcastle • Our customer portfolio includes NHS Trusts, the Private Healthcare Sector, Government agencies in the UK and International via our export reseller network • Our Nurse Call and Staff Attack ranges are built to last – and most importantly are simple to use and maintain • Both product platforms are easily integrated with third party systems • SAS Healthcare Communication solutions are the ideal choice for all types of projects from new builds to refurbishments or simply updating your existing nurse call or staff attack systems

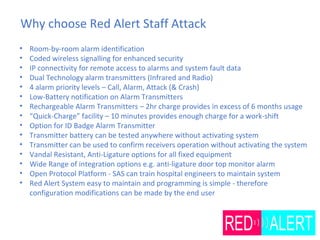

- 3. Why choose RedAlert Staff Attack • Room-by-room alarm identification • Coded wireless signalling for enhanced security • IP connectivity for remote access to alarms and system fault data • Dual Technology alarm transmitters (Infrared and Radio) • 4 alarm priority levels – Call, Alarm, Attack (& Crash) • Low-Battery notification on Alarm Transmitters • Rechargeable Alarm Transmitters – 2hr charge provides in excess of 6 months usage • “Quick-Charge” facility – 10 minutes provides enough charge for a work-shift • Option for ID Badge Alarm Transmitter • Transmitter battery can be tested anywhere without activating system • Transmitter can be used to confirm receivers operation without activating the system • Vandal Resistant, Anti-Ligature options for all fixed equipment • Wide Range of integration options e.g. anti-ligature door top monitor alarm • Open Protocol Platform - SAS can train hospital engineers to maintain system • Red Alert System easy to maintain and programming is simple - therefore configuration modifications can be made by the end user

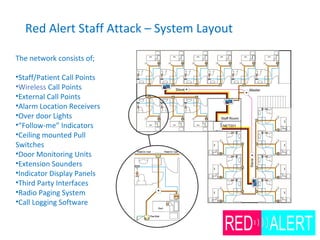

- 4. Red Alert StaffAttack – System Layout The network consists of; •Staff/Patient Call Points •Wireless Call Points •External Call Points •Alarm Location Receivers •Over door Lights •“Follow-me” Indicators •Ceiling mounted Pull Switches •Door Monitoring Units •Extension Sounders •Indicator Display Panels •Third Party Interfaces •Radio Paging System •Call Logging Software

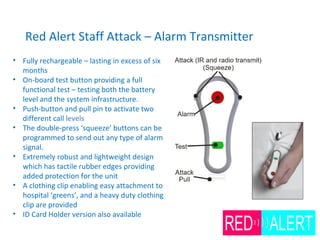

- 5. Red Alert StaffAttack – Alarm Transmitter • Fully rechargeable – lasting in excess of six months • On-board test button providing a full functional test – testing both the battery level and the system infrastructure. • Push-button and pull pin to activate two different call levels • The double-press ‘squeeze’ buttons can be programmed to send out any type of alarm signal. • Extremely robust and lightweight design which has tactile rubber edges providing added protection for the unit • A clothing clip enabling easy attachment to hospital ‘greens’, and a heavy duty clothing clip are provided • ID Card Holder version also available

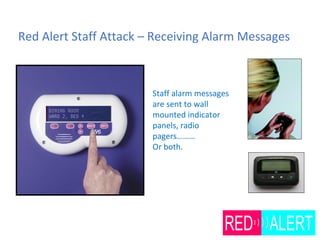

- 6. Red Alert StaffAttack – Receiving Alarm Messages Staff alarm messages are sent to wall mounted indicator panels, radio pagers……… Or both.

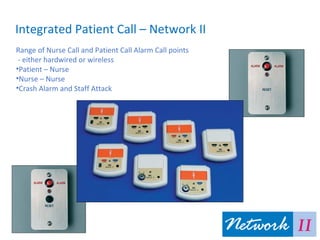

- 7. Integrated Patient Call– Network II Range of Nurse Call and Patient Call Alarm Call points - either hardwired or wireless •Patient – Nurse •Nurse – Nurse •Crash Alarm and Staff Attack

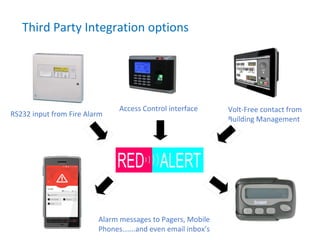

- 8. Third Party Integrationoptions RS232 input from Fire Alarm Access Control interface Volt-Free contact from Building Management Alarm messages to Pagers, Mobile Phones…….and even email inbox’s

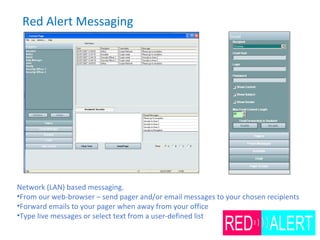

- 9. Red Alert Messaging Network(LAN) based messaging. •From our web-browser – send pager and/or email messages to your chosen recipients •Forward emails to your pager when away from your office •Type live messages or select text from a user-defined list

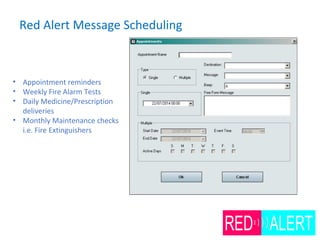

- 10. Red Alert MessageScheduling • Appointment reminders • Weekly Fire Alarm Tests • Daily Medicine/Prescription deliveries • Monthly Maintenance checks i.e. Fire Extinguishers
