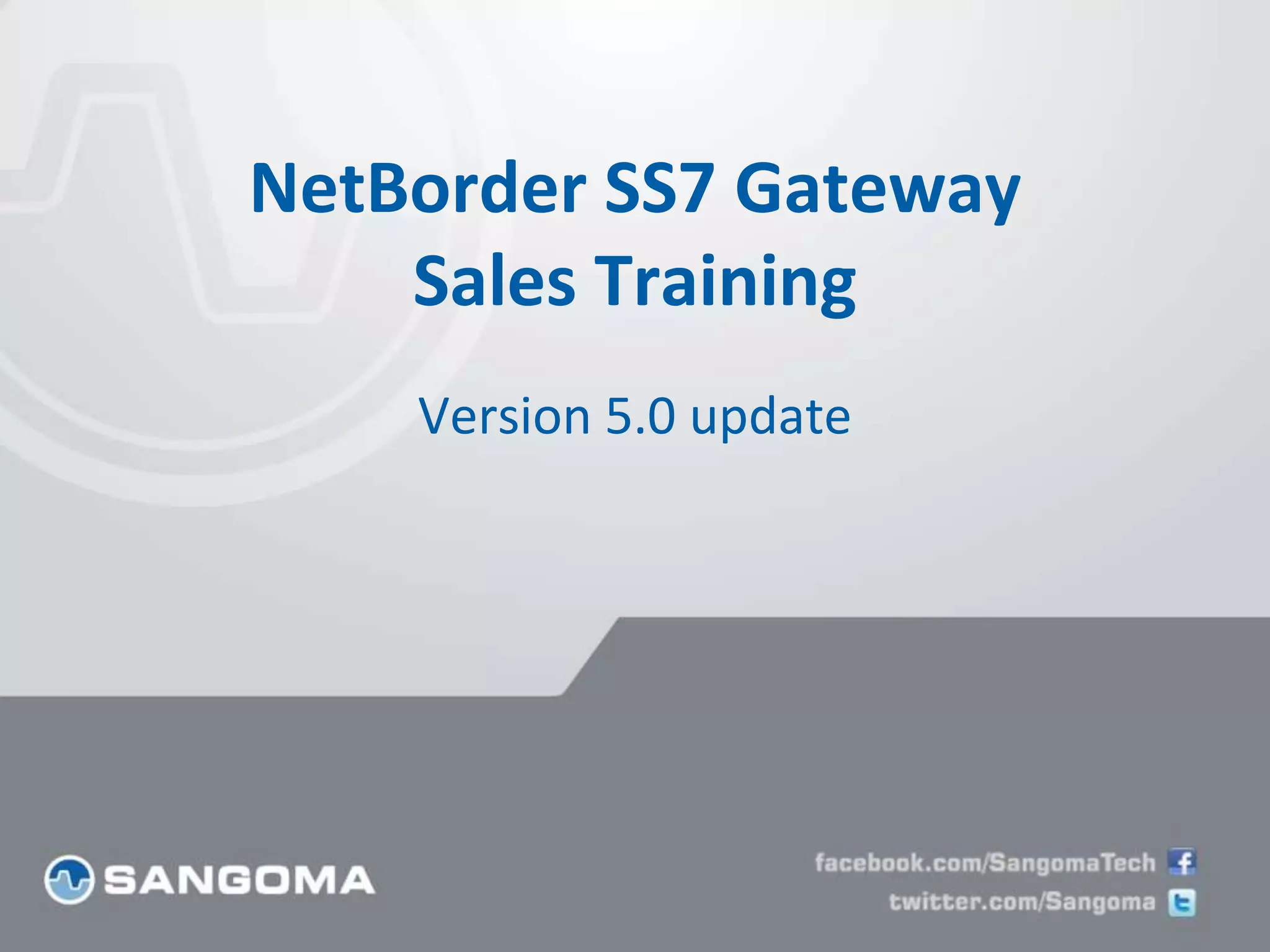

NetBorder SS7 Gateway
Sales Training
Version 5.0 update

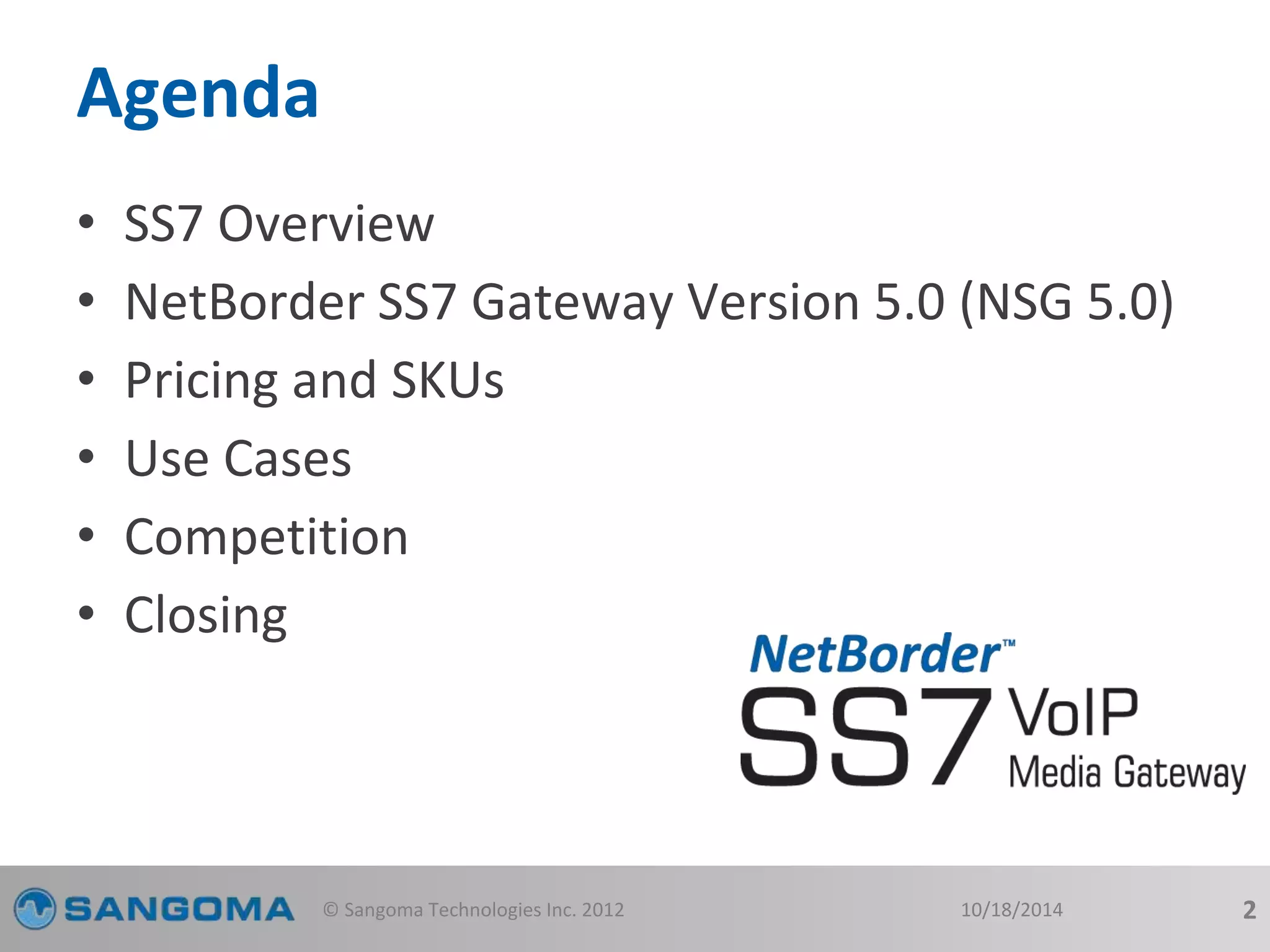

Agenda
• SS7 Overview
• NetBorder SS7 Gateway Version 5.0 (NSG 5.0)
• Pricing and SKUs
• Use Cases
• Competition
• Closing
© Sangoma Technologies Inc. 2012 10/18/2014 2
SS7 OVERVIEW

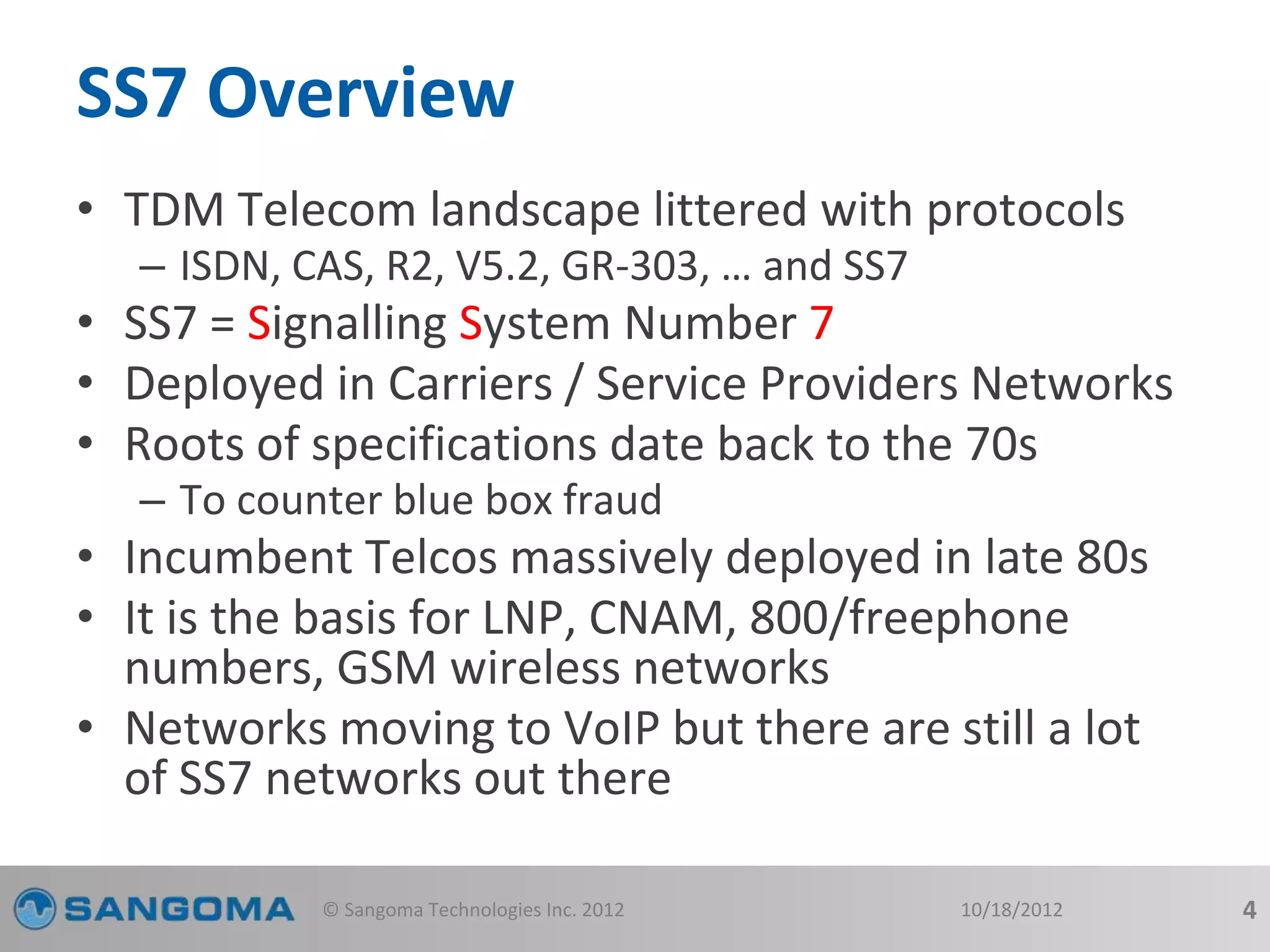

SS7 Overview
• TDM Telecom landscape littered with protocols
– ISDN, CAS, R2, V5.2, GR-303, … and SS7
• SS7 = Signalling System Number 7
• Deployed in Carriers / Service Providers Networks
• Roots of specifications date back to the 70s
– To counter blue box fraud
• Incumbent Telcos massively deployed in late 80s
• It is the basis for LNP, CNAM, 800/freephone
numbers, GSM wireless networks
• Networks moving to VoIP but there are still a lot
of SS7 networks out there
© Sangoma Technologies Inc. 2012 10/18/2012 4

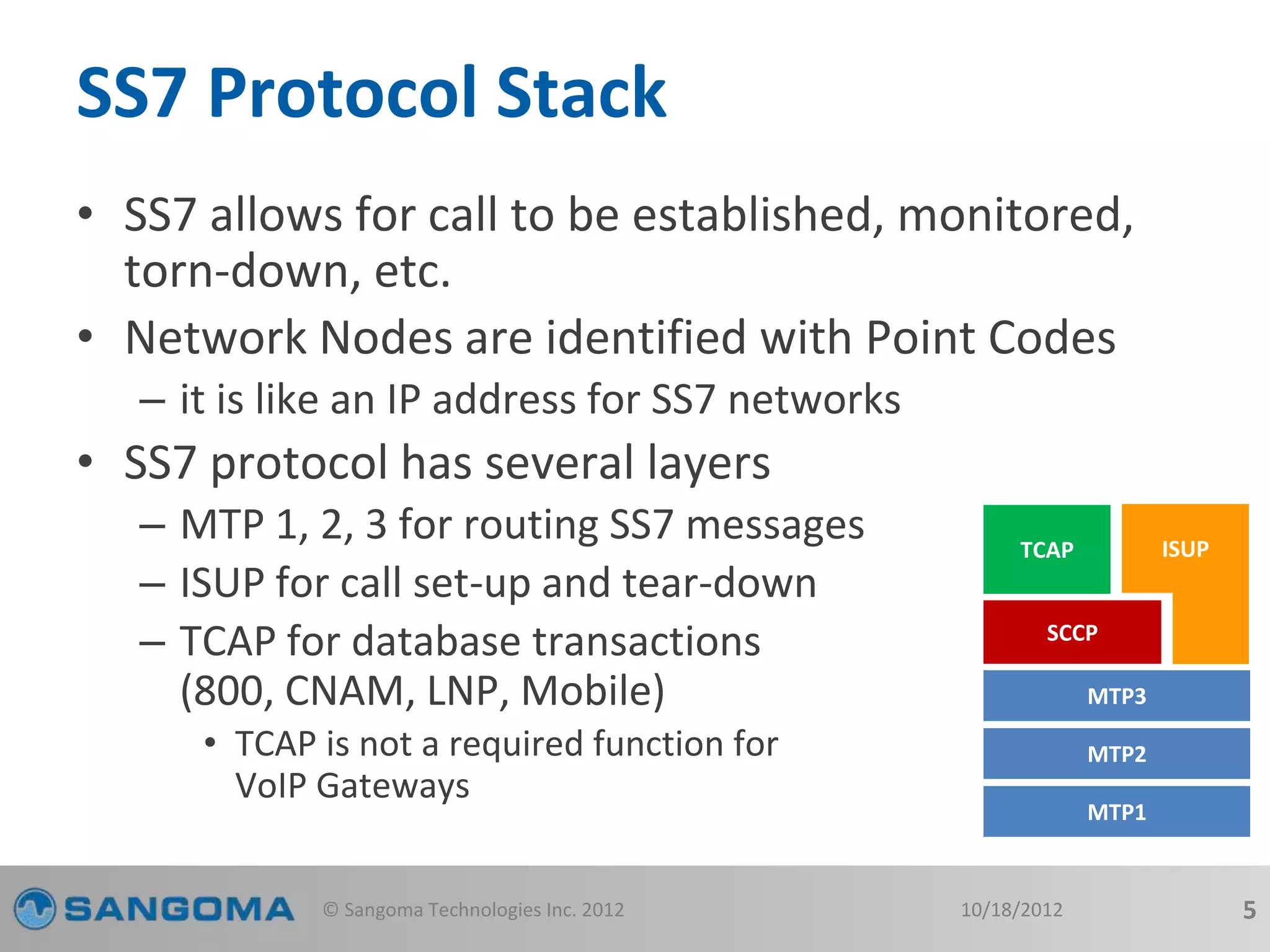

SS7 Protocol Stack
• SS7 allows for call to be established, monitored,
torn-down, etc.
• Network Nodes are identified with Point Codes
– it is like an IP address for SS7 networks
• SS7 protocol has several layers
– MTP 1, 2, 3 for routing SS7 messages
– ISUP for call set-up and tear-down
– TCAP for database transactions
(800, CNAM, LNP, Mobile)
• TCAP is not a required function for
VoIP Gateways
TCAP ISUP
SCCP
MTP3
MTP2
MTP1
© Sangoma Technologies Inc. 2012 10/18/2012 5

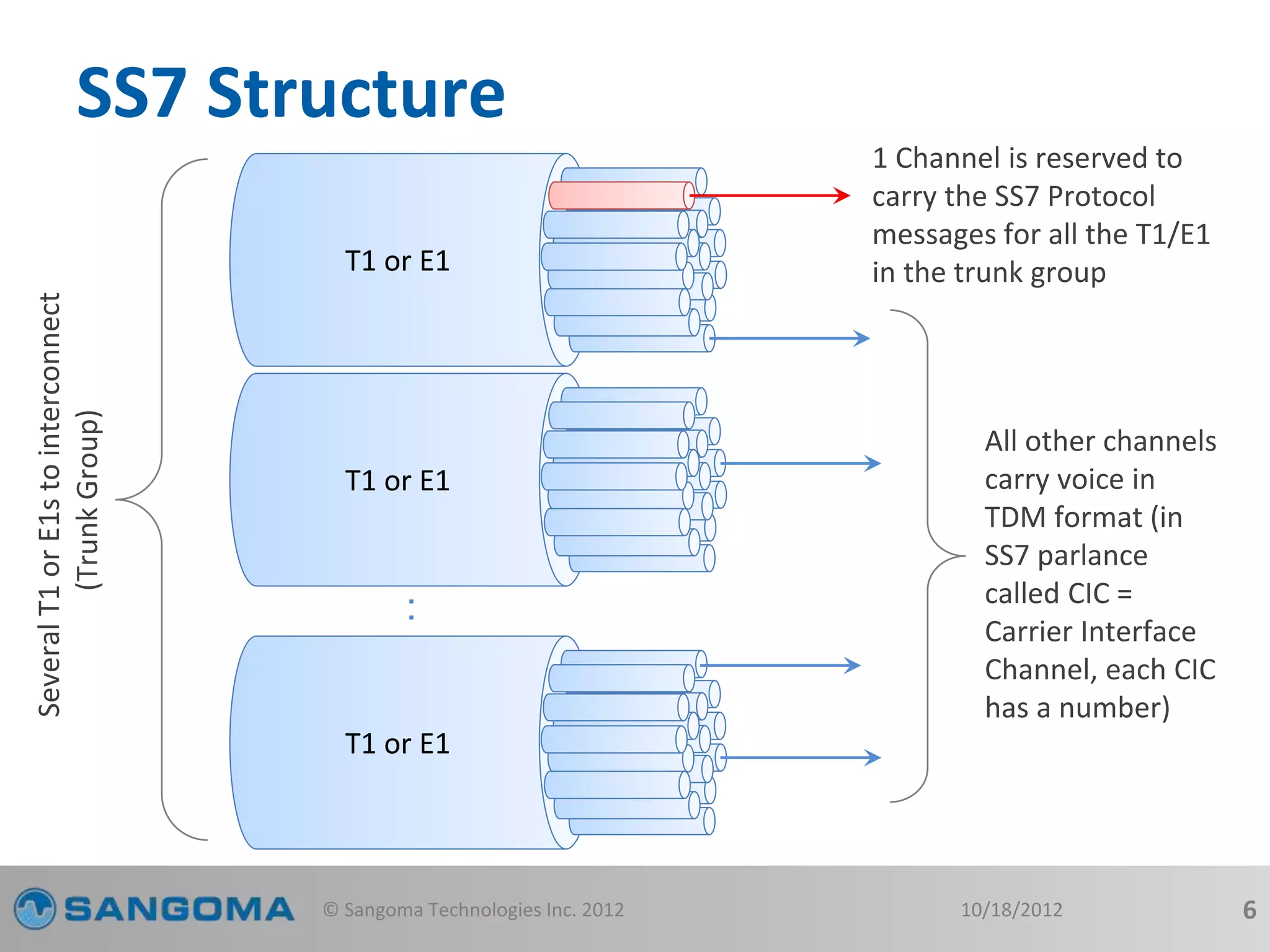

SS7 Structure
T1 or E1
T1 or E1
T1 or E1
© Sangoma Technologies Inc. 2012 10/18/2012 6
Several T1 or E1s to interconnect
(Trunk Group)
1 Channel is reserved to
carry the SS7 Protocol
messages for all the T1/E1
in the trunk group
All other channels
carry voice in
TDM format (in
SS7 parlance
called CIC =
Carrier Interface
Channel, each CIC
has a number)

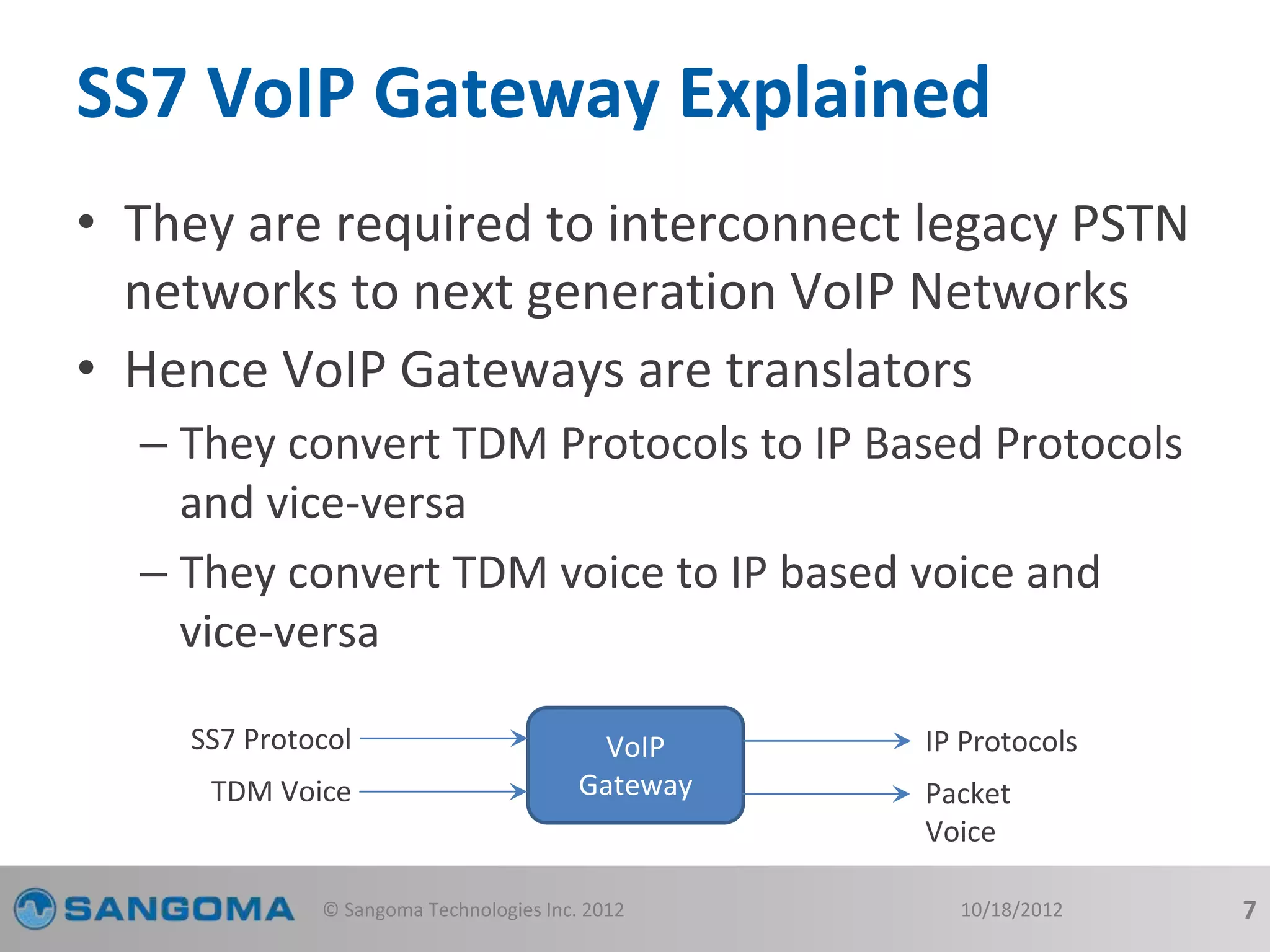

SS7 VoIP Gateway Explained
• They are required to interconnect legacy PSTN
networks to next generation VoIP Networks
• Hence VoIP Gateways are translators
– They convert TDM Protocols to IP Based Protocols
and vice-versa
– They convert TDM voice to IP based voice and
vice-versa
VoIP
Gateway
SS7 Protocol
TDM Voice
IP Protocols
Packet
Voice
© Sangoma Technologies Inc. 2012 10/18/2012 7

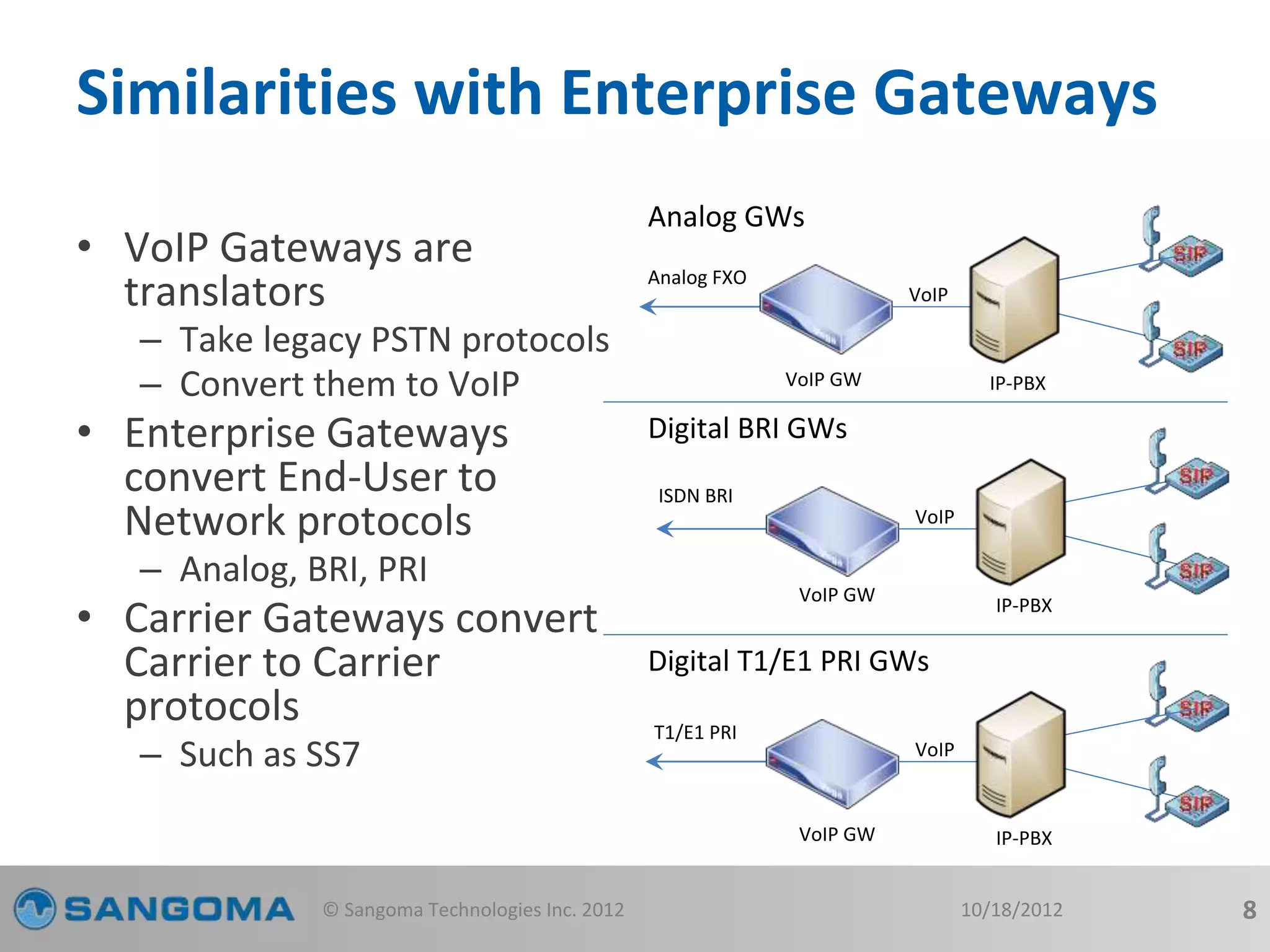

Similarities with Enterprise Gateways
• VoIP Gateways are
translators
– Take legacy PSTN protocols
– Convert them to VoIP
• Enterprise Gateways
convert End-User to
Network protocols
– Analog, BRI, PRI
• Carrier Gateways convert
Carrier to Carrier
protocols
– Such as SS7
Analog GWs
Analog FXO
VoIP
IP-PBX
Digital BRI GWs
ISDN BRI
VoIP
VoIP GW
VoIP GW IP-PBX
Digital T1/E1 PRI GWs
T1/E1 PRI
VoIP
VoIP GW IP-PBX
© Sangoma Technologies Inc. 2012 10/18/2012 8
SANGOMA’S
NETBORDER SS7 GATEWAY

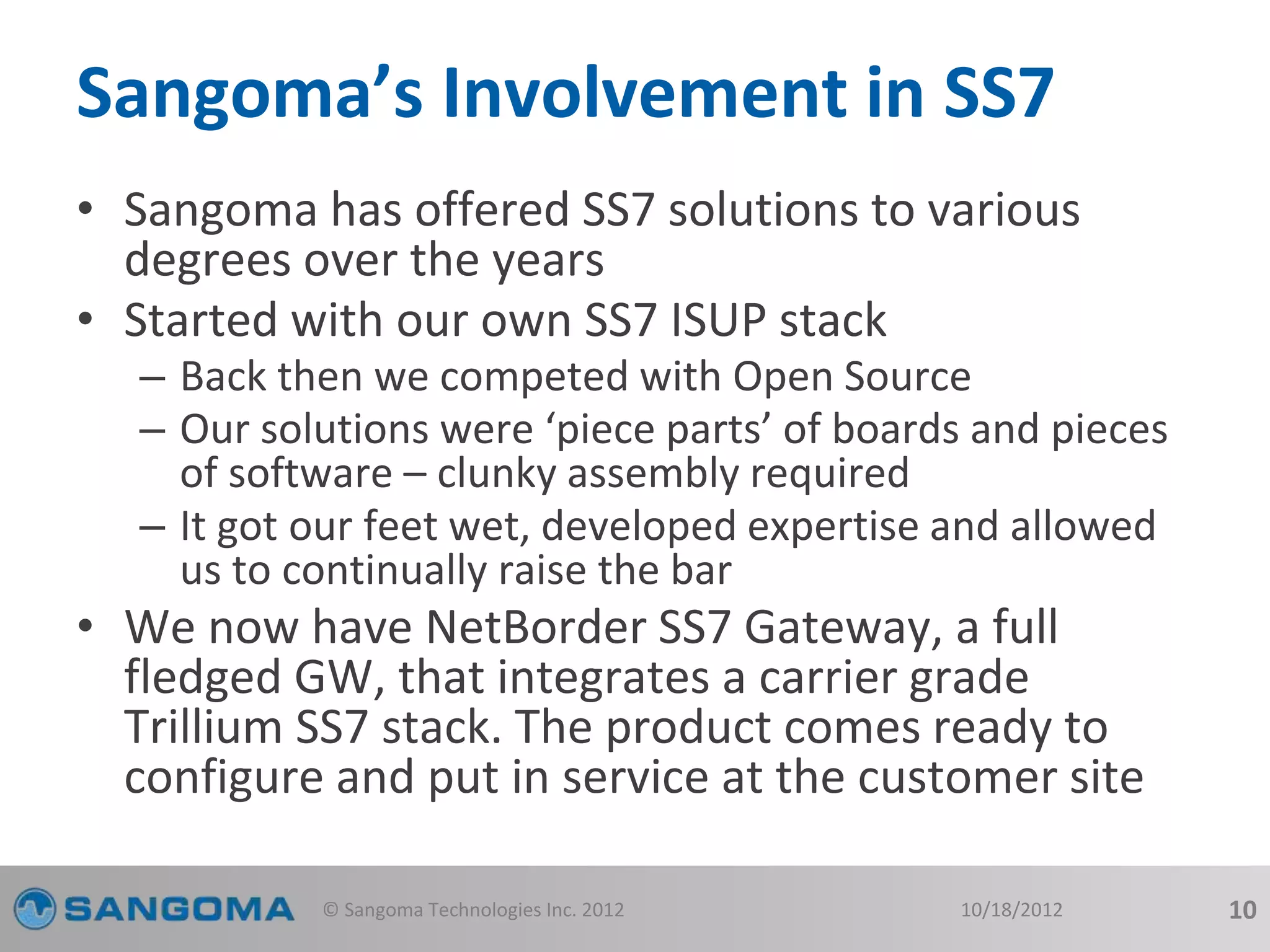

Sangoma’s Involvement in SS7
• Sangoma has offered SS7 solutions to various
degrees over the years
• Started with our own SS7 ISUP stack
– Back then we competed with Open Source
– Our solutions were ‘piece parts’ of boards and pieces
of software – clunky assembly required
– It got our feet wet, developed expertise and allowed
us to continually raise the bar
• We now have NetBorder SS7 Gateway, a full
fledged GW, that integrates a carrier grade
Trillium SS7 stack. The product comes ready to
configure and put in service at the customer site
© Sangoma Technologies Inc. 2012 10/18/2012 10

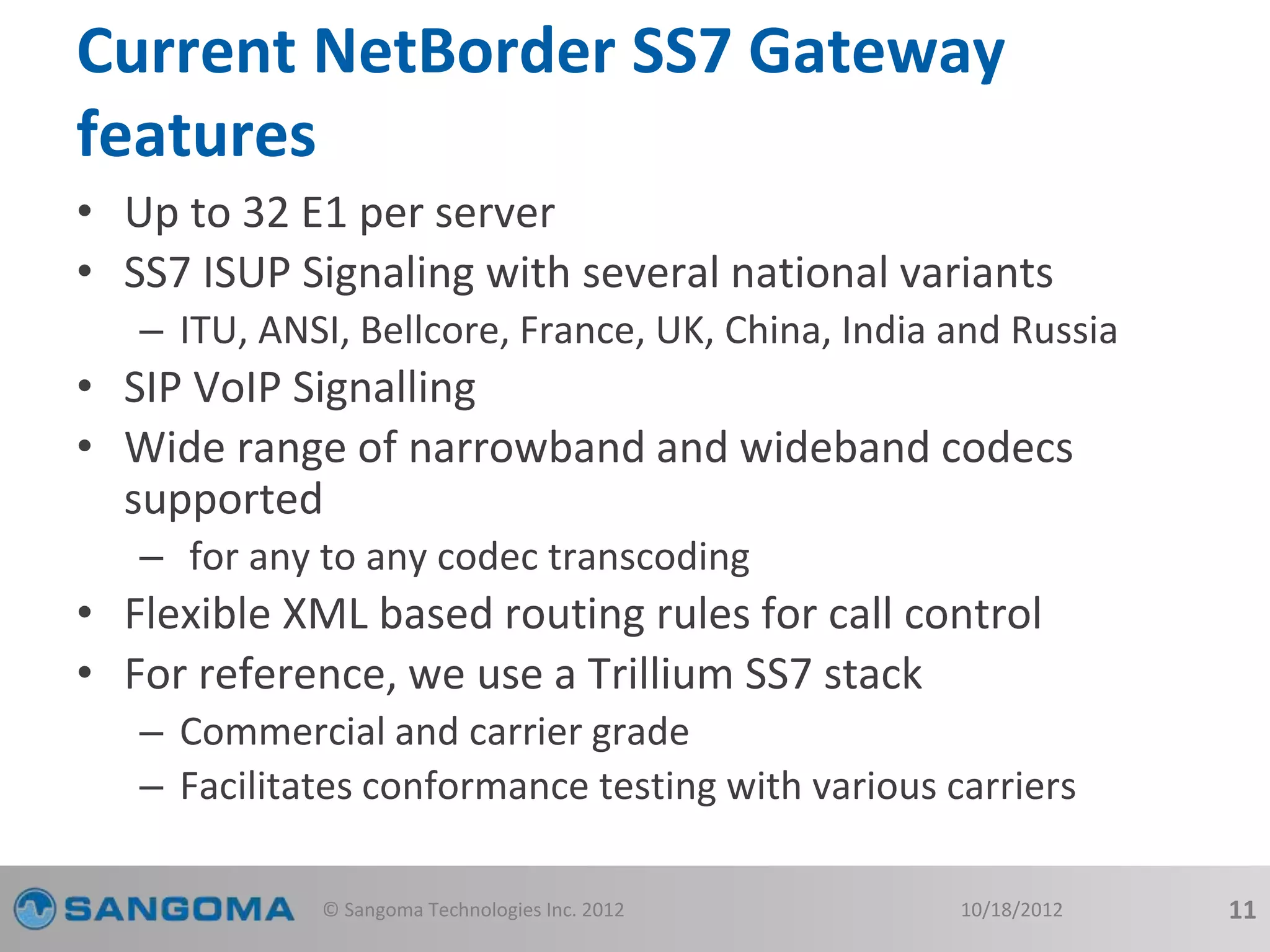

Current NetBorder SS7 Gateway
features
• Up to 32 E1 per server
• SS7 ISUP Signaling with several national variants
– ITU, ANSI, Bellcore, France, UK, China, India and Russia
• SIP VoIP Signalling
• Wide range of narrowband and wideband codecs
supported
– for any to any codec transcoding
• Flexible XML based routing rules for call control
• For reference, we use a Trillium SS7 stack
– Commercial and carrier grade
– Facilitates conformance testing with various carriers
© Sangoma Technologies Inc. 2012 10/18/2012 11

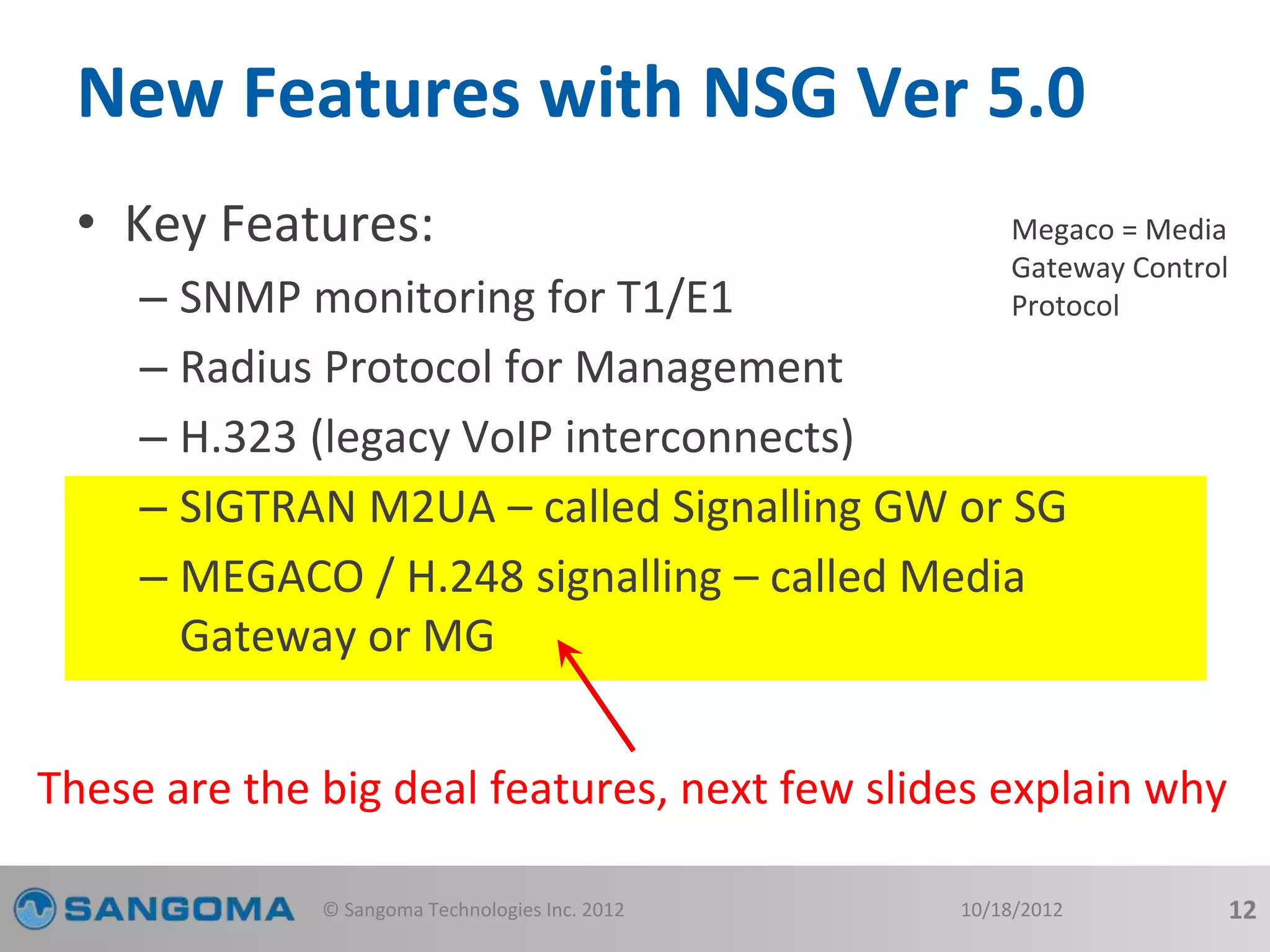

New Features with NSG Ver 5.0
• Key Features:
Megaco = Media
Gateway Control
Protocol
– SNMP monitoring for T1/E1
– Radius Protocol for Management
– H.323 (legacy VoIP interconnects)
– SIGTRAN M2UA – called Signalling GW or SG
– MEGACO / H.248 signalling – called Media
Gateway or MG
These are the big deal features, next few slides explain why
© Sangoma Technologies Inc. 2012 10/18/2012 12

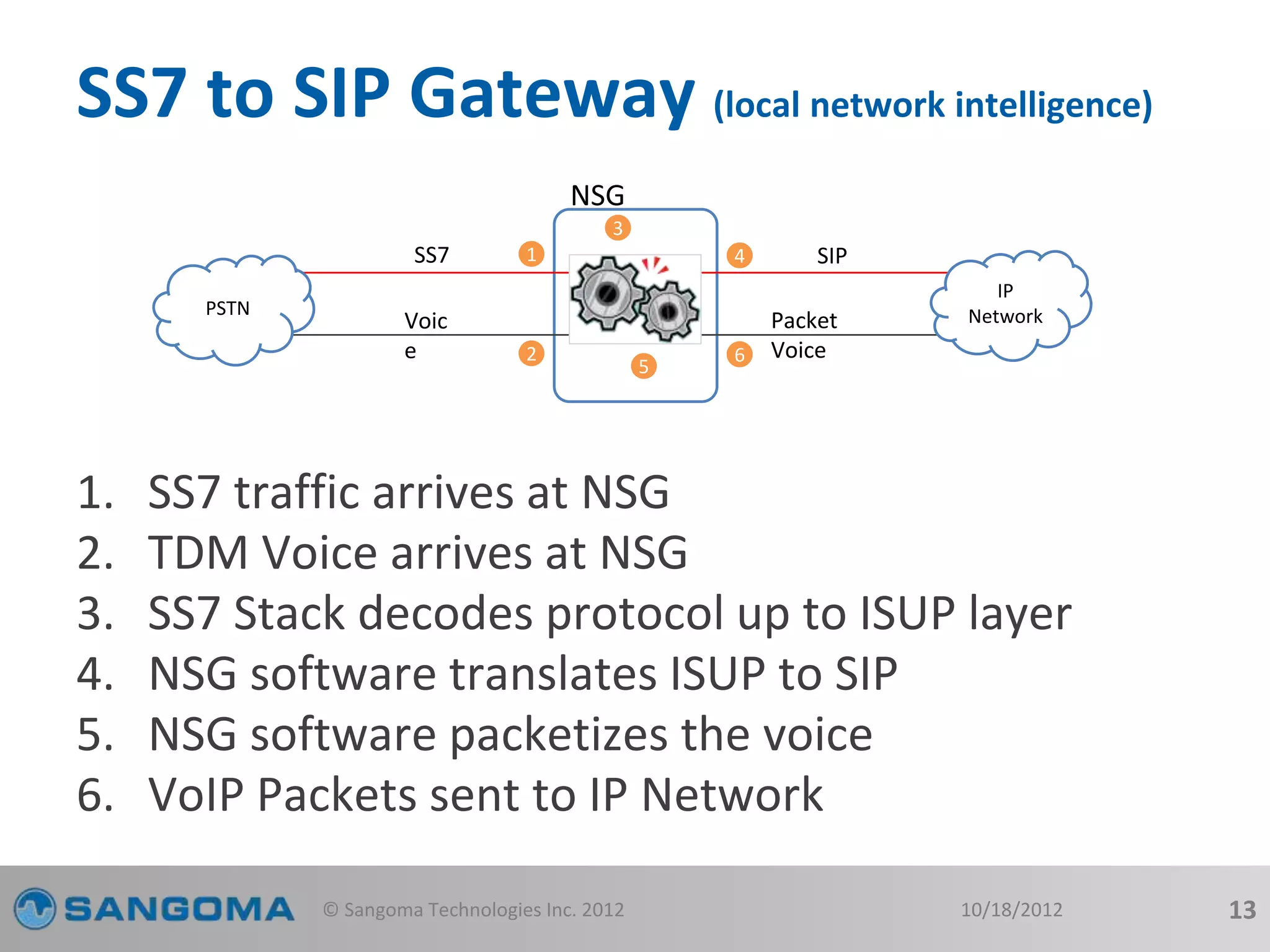

SS7 to SIP Gateway (local network intelligence)
3
1. SS7 traffic arrives at NSG
2. TDM Voice arrives at NSG
3. SS7 Stack decodes protocol up to ISUP layer
4. NSG software translates ISUP to SIP
5. NSG software packetizes the voice
6. VoIP Packets sent to IP Network
© Sangoma Technologies Inc. 2012 10/18/2012 13
PSTN
SS7
Voic
e
IP
Network
SIP
Packet
Voice
1 4
2 6
5
NSG

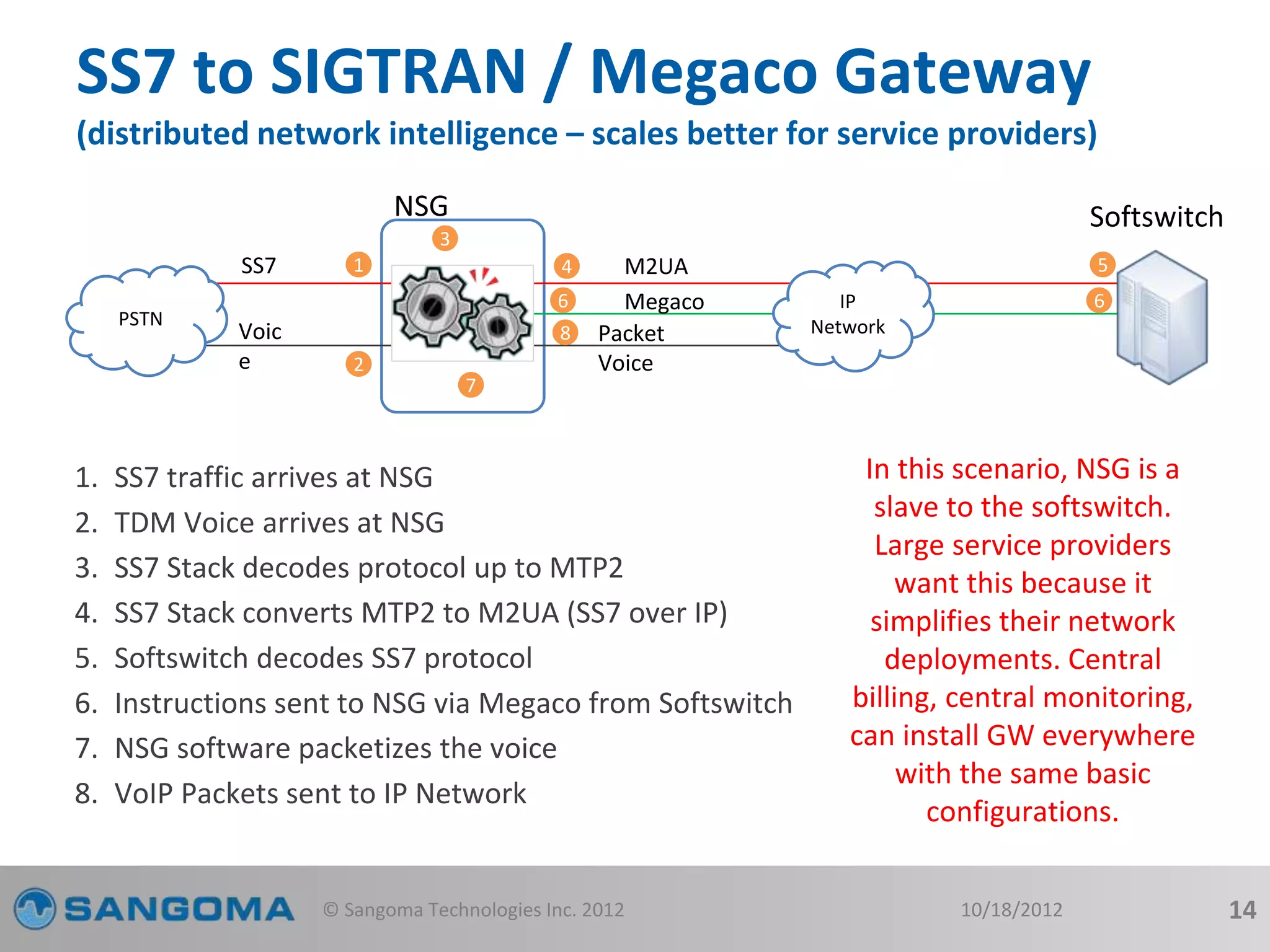

SS7 to SIGTRAN / Megaco Gateway
(distributed network intelligence – scales better for service providers)
NSG Softswitch
1. SS7 traffic arrives at NSG
2. TDM Voice arrives at NSG
3. SS7 Stack decodes protocol up to MTP2
4. SS7 Stack converts MTP2 to M2UA (SS7 over IP)
5. Softswitch decodes SS7 protocol
6. Instructions sent to NSG via Megaco from Softswitch
7. NSG software packetizes the voice
8. VoIP Packets sent to IP Network
© Sangoma Technologies Inc. 2012 10/18/2012 14
PSTN
SS7
Voic
e
M2UA
Packet
Voice
1 4
2
6
3
7
IP
Network
Megaco
5
6
8
In this scenario, NSG is a
slave to the softswitch.
Large service providers
want this because it
simplifies their network
deployments. Central
billing, central monitoring,
can install GW everywhere
with the same basic
configurations.

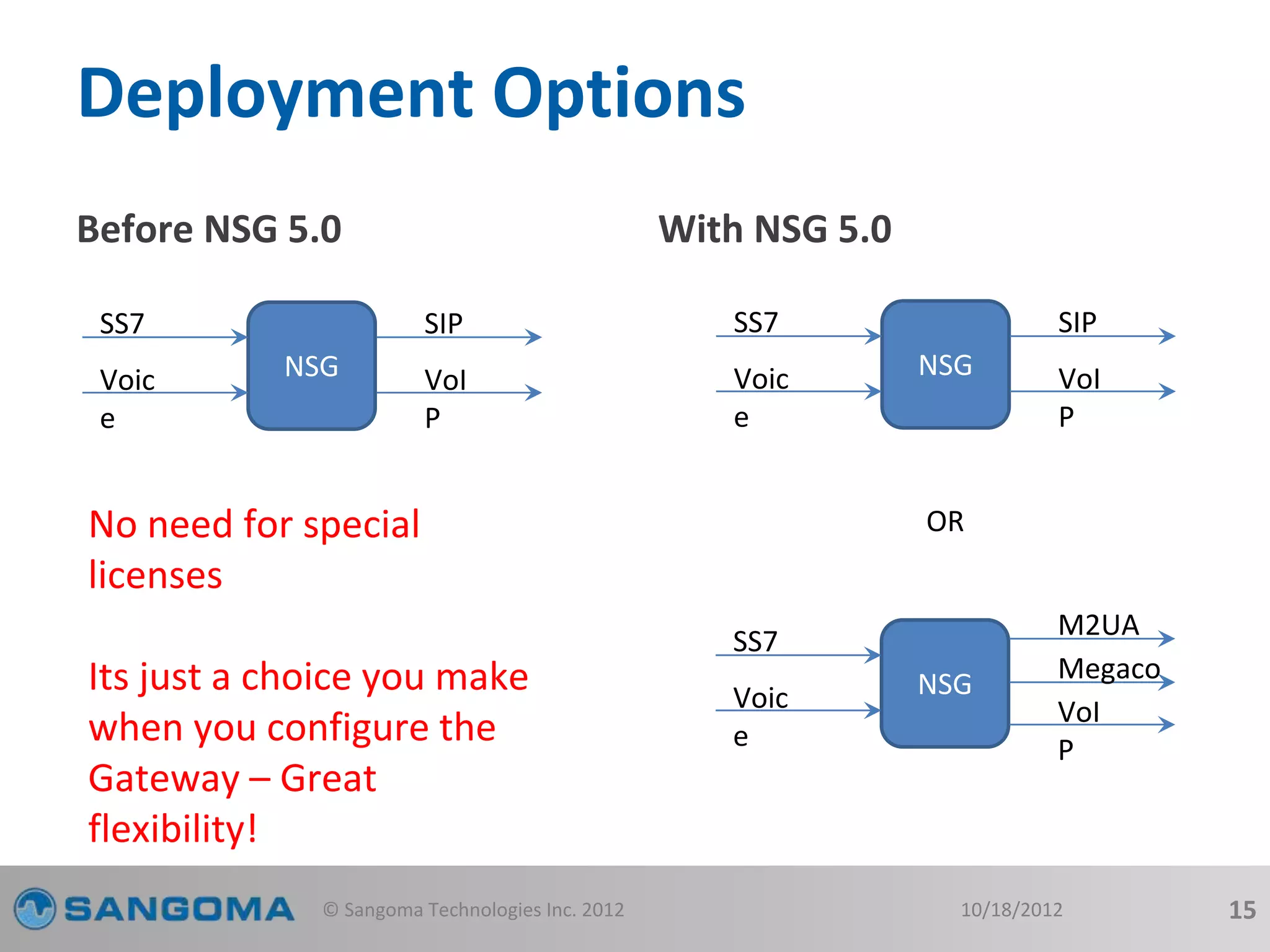

Deployment Options
Before NSG 5.0 With NSG 5.0
NSG
© Sangoma Technologies Inc. 2012 10/18/2012 15
SS7
Voic
e
SIP
VoI
P
NSG
SS7
Voic
e
SIP
VoI
P
NSG
SS7
Voic
e
M2UA
VoI
P
OR
Megaco
No need for special
licenses
Its just a choice you make
when you configure the
Gateway – Great
flexibility!

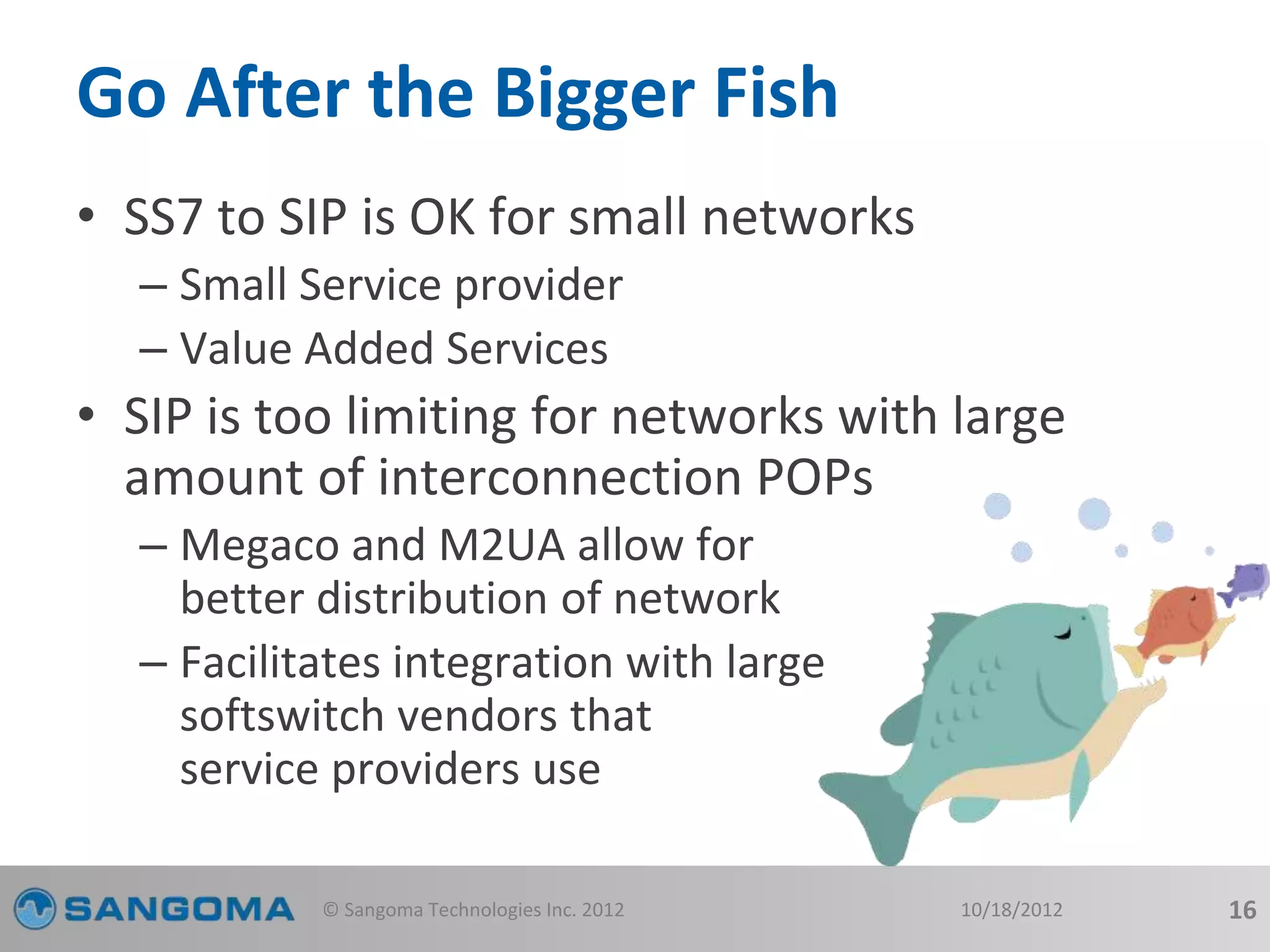

Go After the Bigger Fish
• SS7 to SIP is OK for small networks
– Small Service provider
– Value Added Services
• SIP is too limiting for networks with large
amount of interconnection POPs
– Megaco and M2UA allow for
better distribution of network
– Facilitates integration with large
softswitch vendors that
service providers use
© Sangoma Technologies Inc. 2012 10/18/2012 16

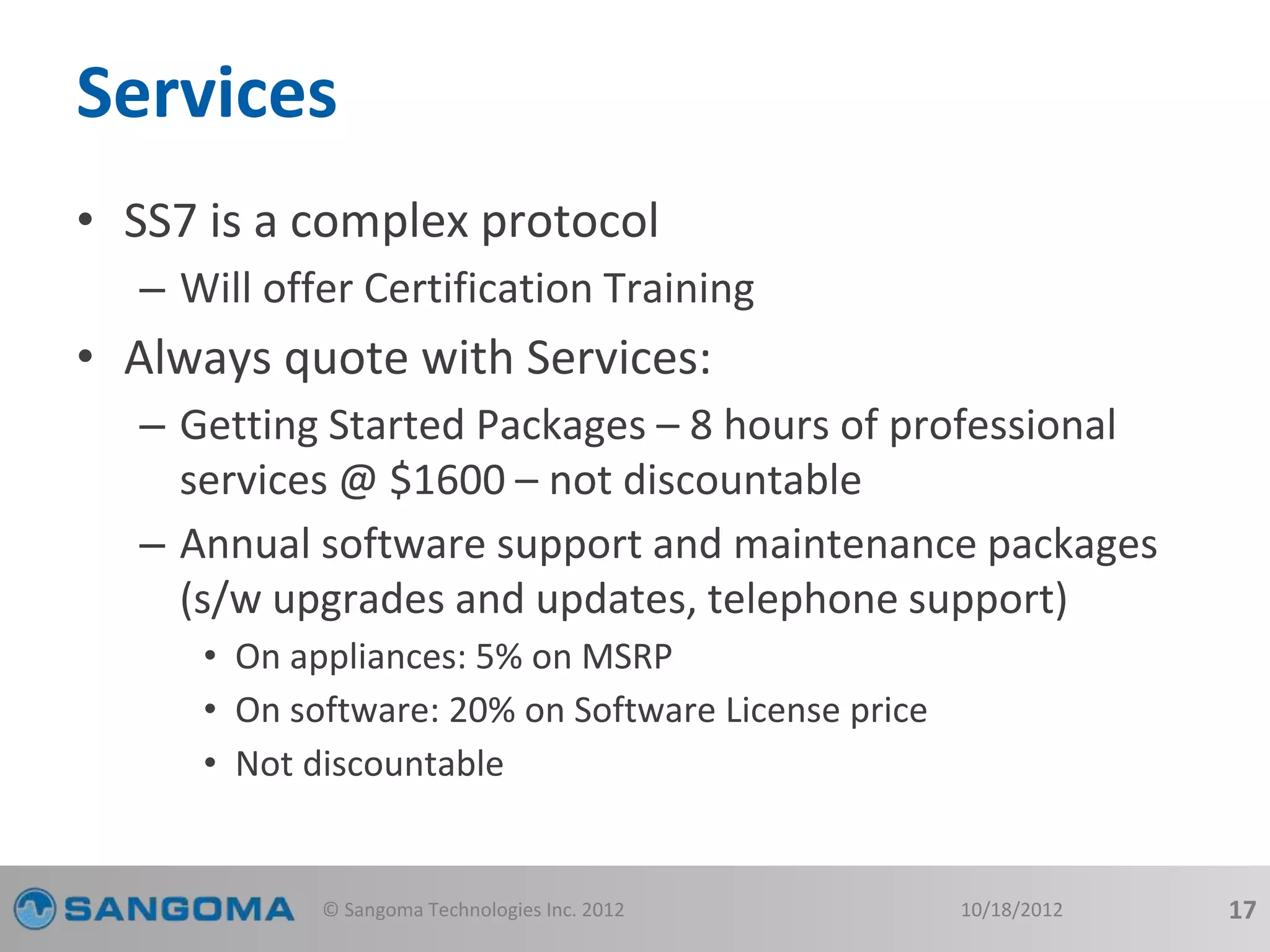

Services
• SS7 is a complex protocol
– Will offer Certification Training
• Always quote with Services:
– Getting Started Packages – 8 hours of professional
services @ $1600 – not discountable
– Annual software support and maintenance packages
(s/w upgrades and updates, telephone support)
• On appliances: 5% on MSRP
• On software: 20% on Software License price
• Not discountable
© Sangoma Technologies Inc. 2012 10/18/2012 17

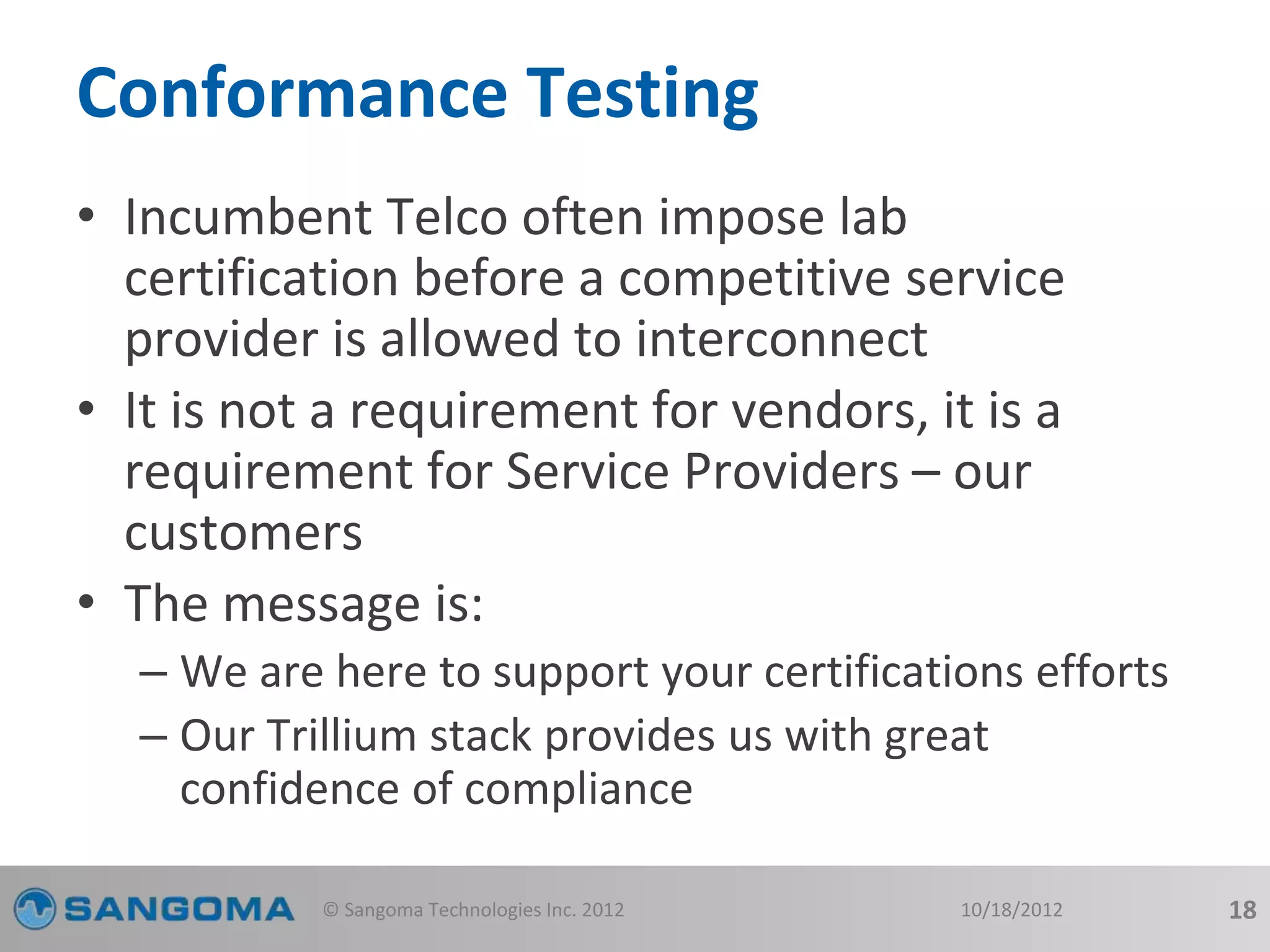

Conformance Testing
• Incumbent Telco often impose lab
certification before a competitive service
provider is allowed to interconnect
• It is not a requirement for vendors, it is a
requirement for Service Providers – our
customers
• The message is:
– We are here to support your certifications efforts
– Our Trillium stack provides us with great
confidence of compliance
© Sangoma Technologies Inc. 2012 10/18/2012 18
USE CASES

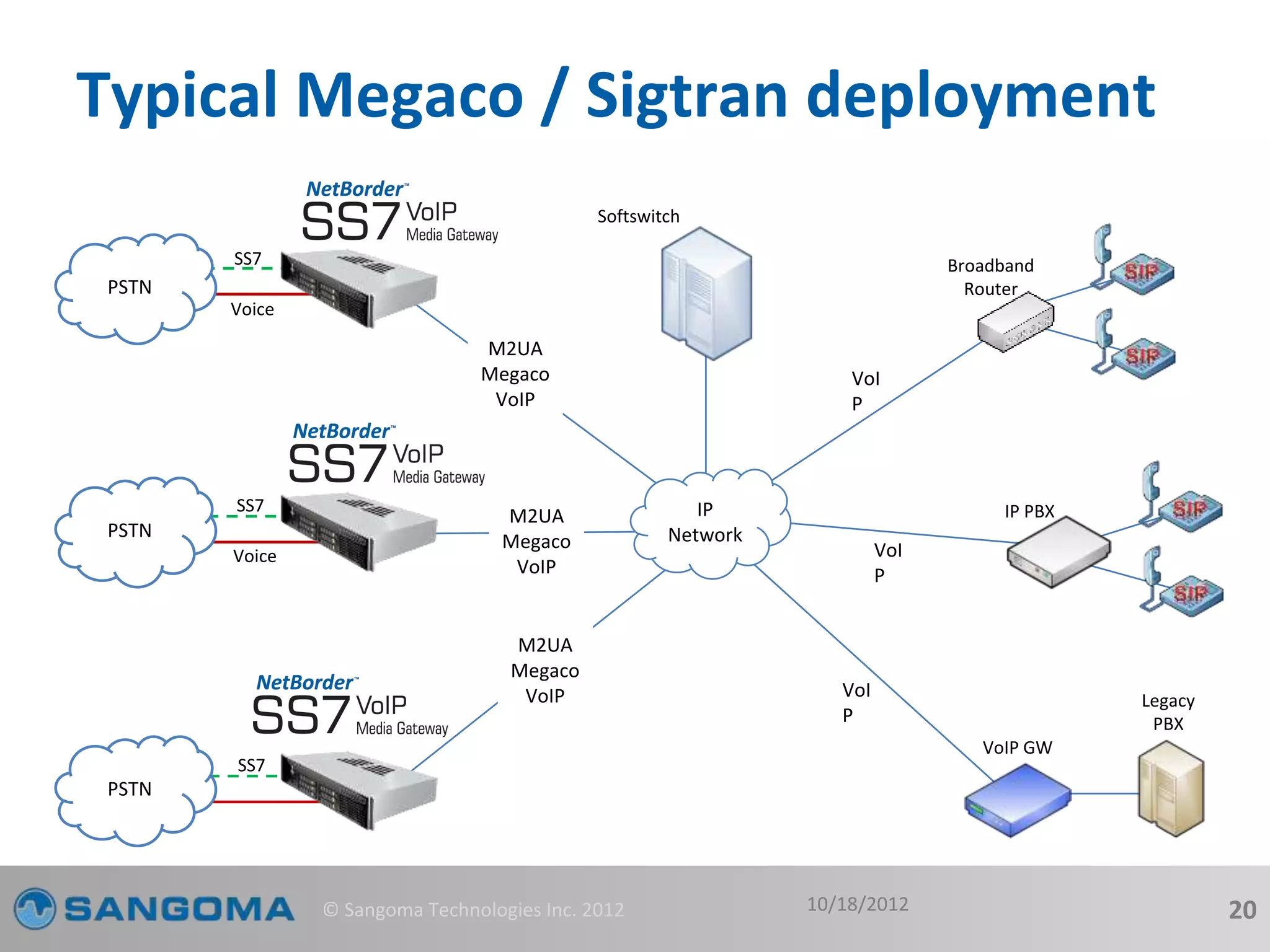

Typical Megaco / Sigtran deployment
10/18/2012
PSTN
PSTN
PSTN
SS7
Voice
SS7
Voice
SS7
IP
Network
Legacy
PBX
Broadband
Router
IP PBX
VoIP GW
Softswitch
VoI
P
VoI
P
VoI
P
M2UA
Megaco
VoIP
M2UA
Megaco
VoIP
M2UA
Megaco
VoIP
© Sangoma Technologies Inc. 2012 20

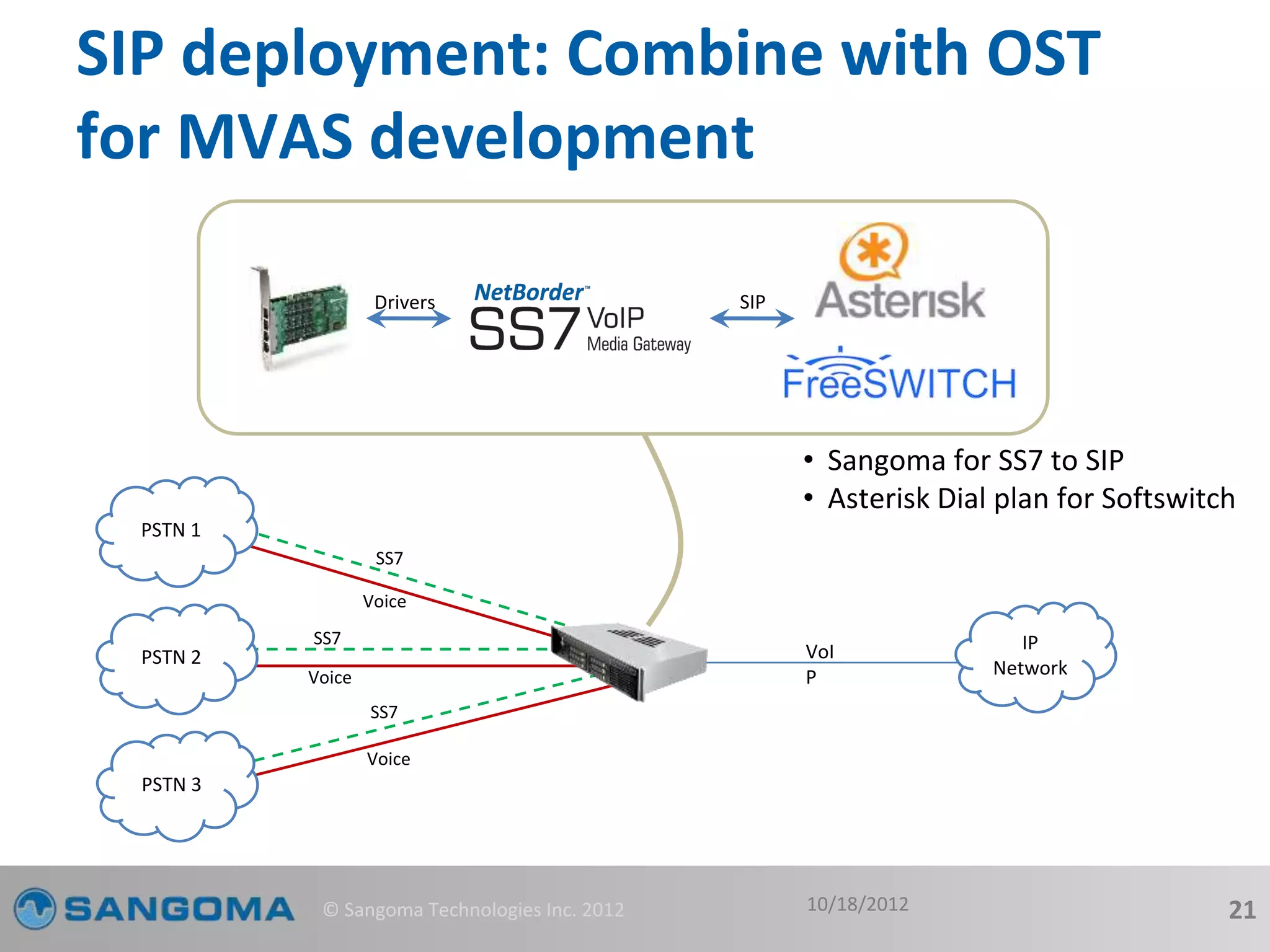

SIP deployment: Combine with OST
for MVAS development
VoI
P
10/18/2012
PSTN 1
SS7
Voice
PSTN 2
IP
Network
SS7
Voice
PSTN 3
SS7
Voice
Drivers SIP
• Sangoma for SS7 to SIP
• Asterisk Dial plan for Softswitch
© Sangoma Technologies Inc. 2012 21

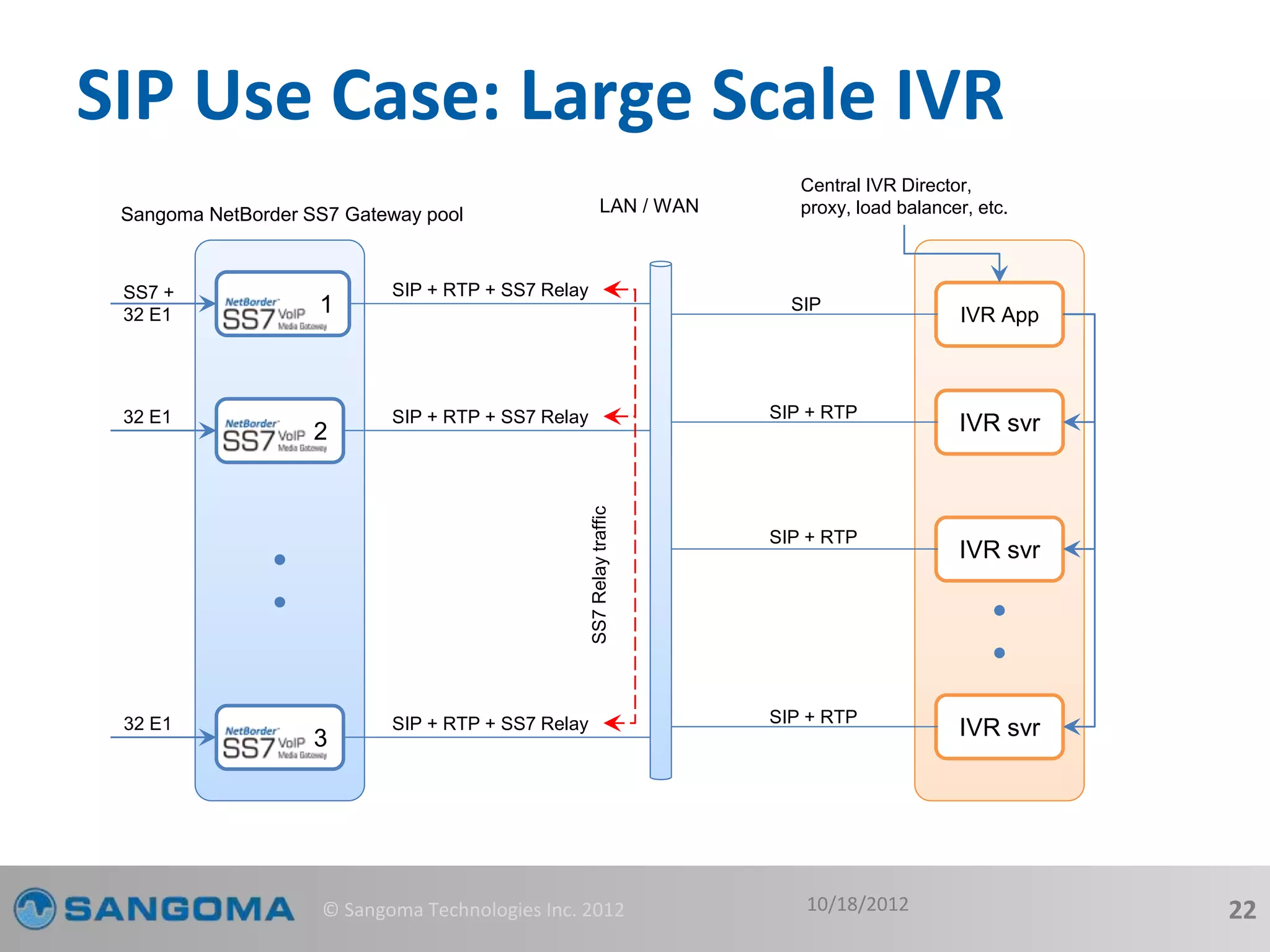

SIP Use Case: Large Scale IVR
Central IVR Director,
Sangoma NetBorder SS7 Gateway pool LAN / WAN proxy, load balancer, etc.
10/18/2012
1
2
3
SS7 +
32 E1
32 E1
32 E1
SIP + RTP + SS7 Relay
SIP + RTP + SS7 Relay
SIP + RTP + SS7 Relay
IVR svr
IVR svr
IVR svr
SIP + RTP
SIP + RTP
SIP + RTP
IVR App
SIP
SS7 Relay traffic
© Sangoma Technologies Inc. 2012 22
COMPETITION

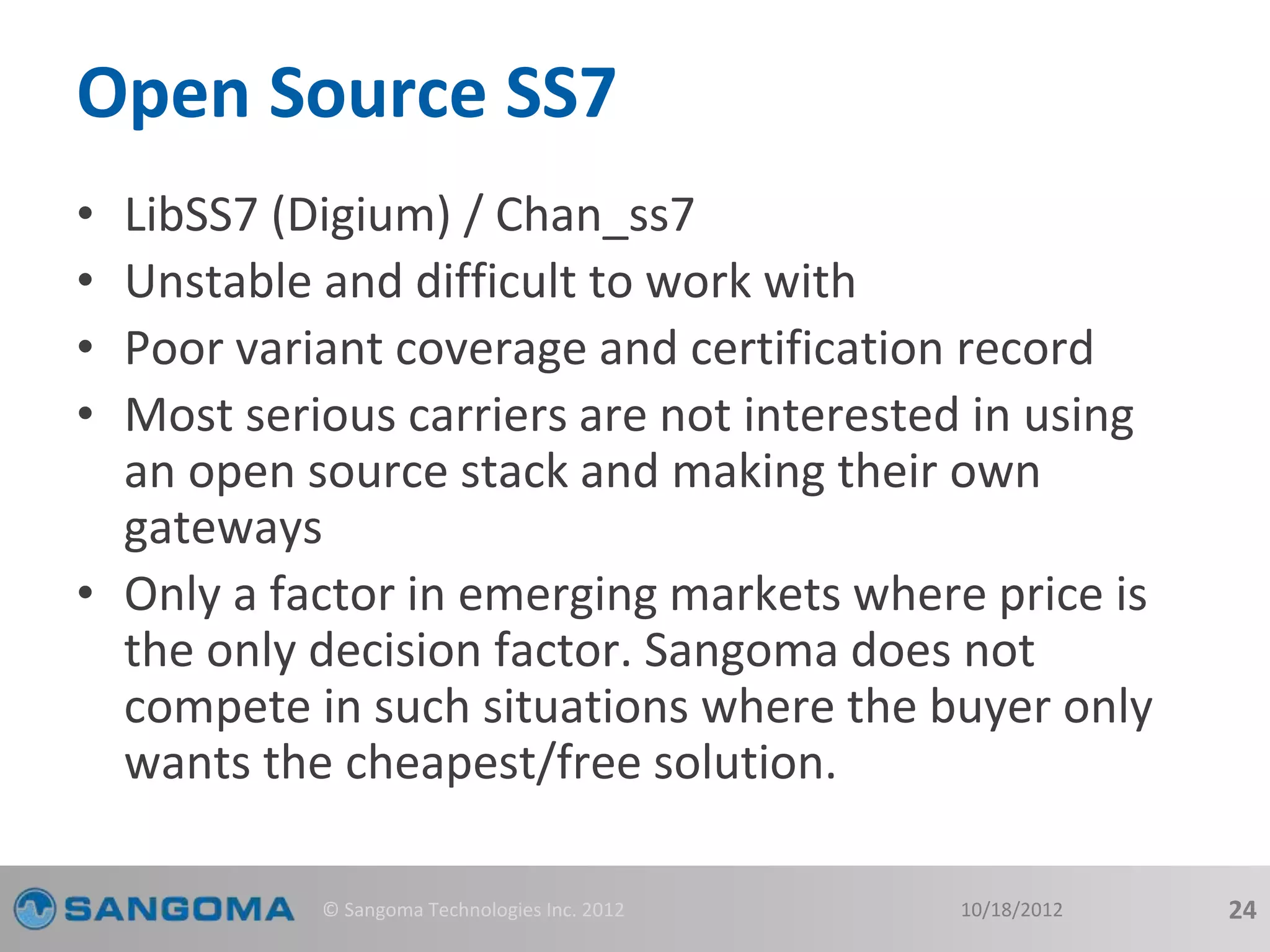

Open Source SS7
• LibSS7 (Digium) / Chan_ss7
• Unstable and difficult to work with
• Poor variant coverage and certification record
• Most serious carriers are not interested in using
an open source stack and making their own
gateways
• Only a factor in emerging markets where price is
the only decision factor. Sangoma does not
compete in such situations where the buyer only
wants the cheapest/free solution.
© Sangoma Technologies Inc. 2012 10/18/2012 24

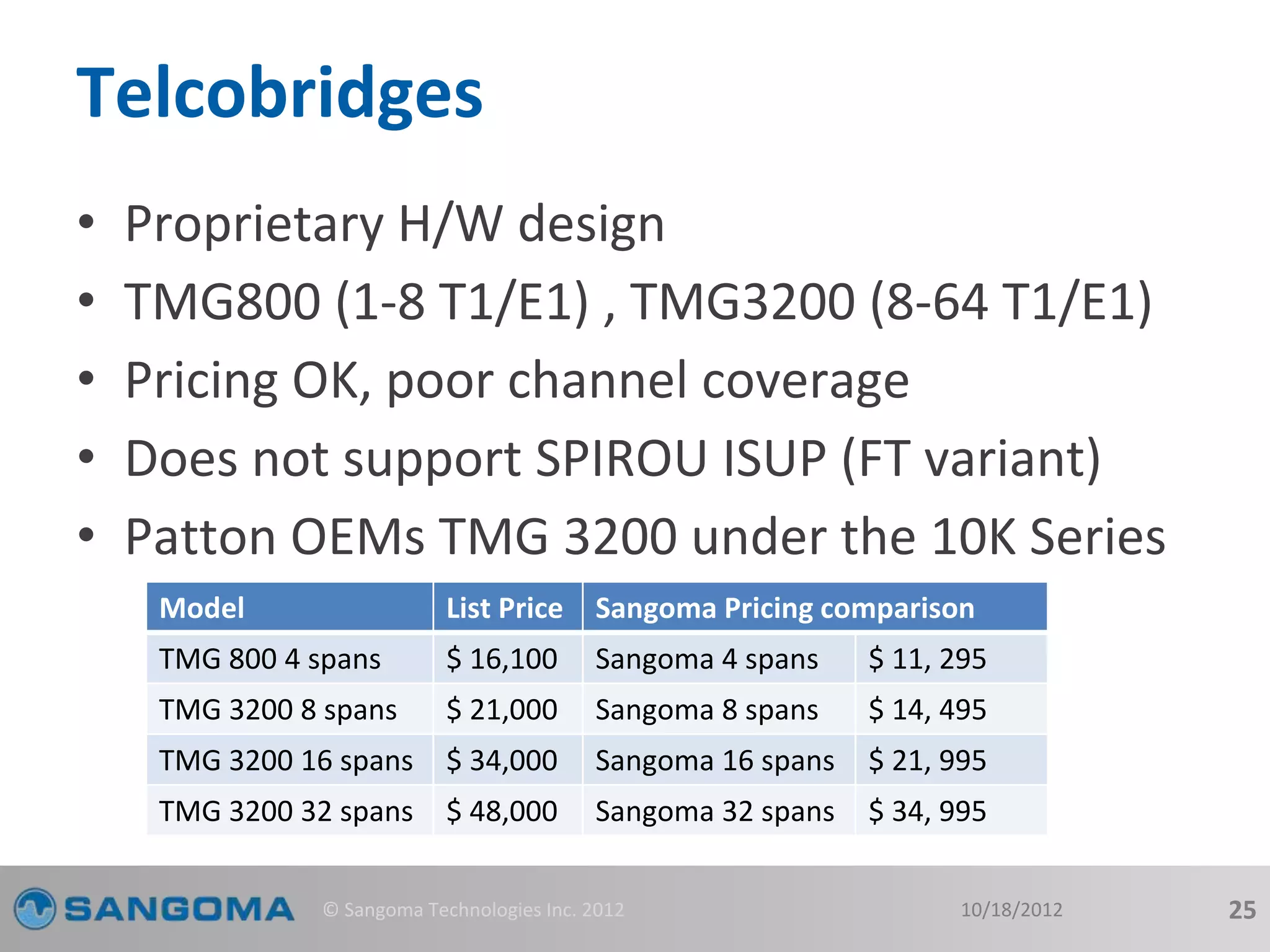

Telcobridges
• Proprietary H/W design
• TMG800 (1-8 T1/E1) , TMG3200 (8-64 T1/E1)
• Pricing OK, poor channel coverage
• Does not support SPIROU ISUP (FT variant)
• Patton OEMs TMG 3200 under the 10K Series
Model List Price Sangoma Pricing comparison
TMG 800 4 spans $ 16,100 Sangoma 4 spans $ 11, 295
TMG 3200 8 spans $ 21,000 Sangoma 8 spans $ 14, 495
TMG 3200 16 spans $ 34,000 Sangoma 16 spans $ 21, 995
TMG 3200 32 spans $ 48,000 Sangoma 32 spans $ 34, 995
© Sangoma Technologies Inc. 2012 10/18/2012 25

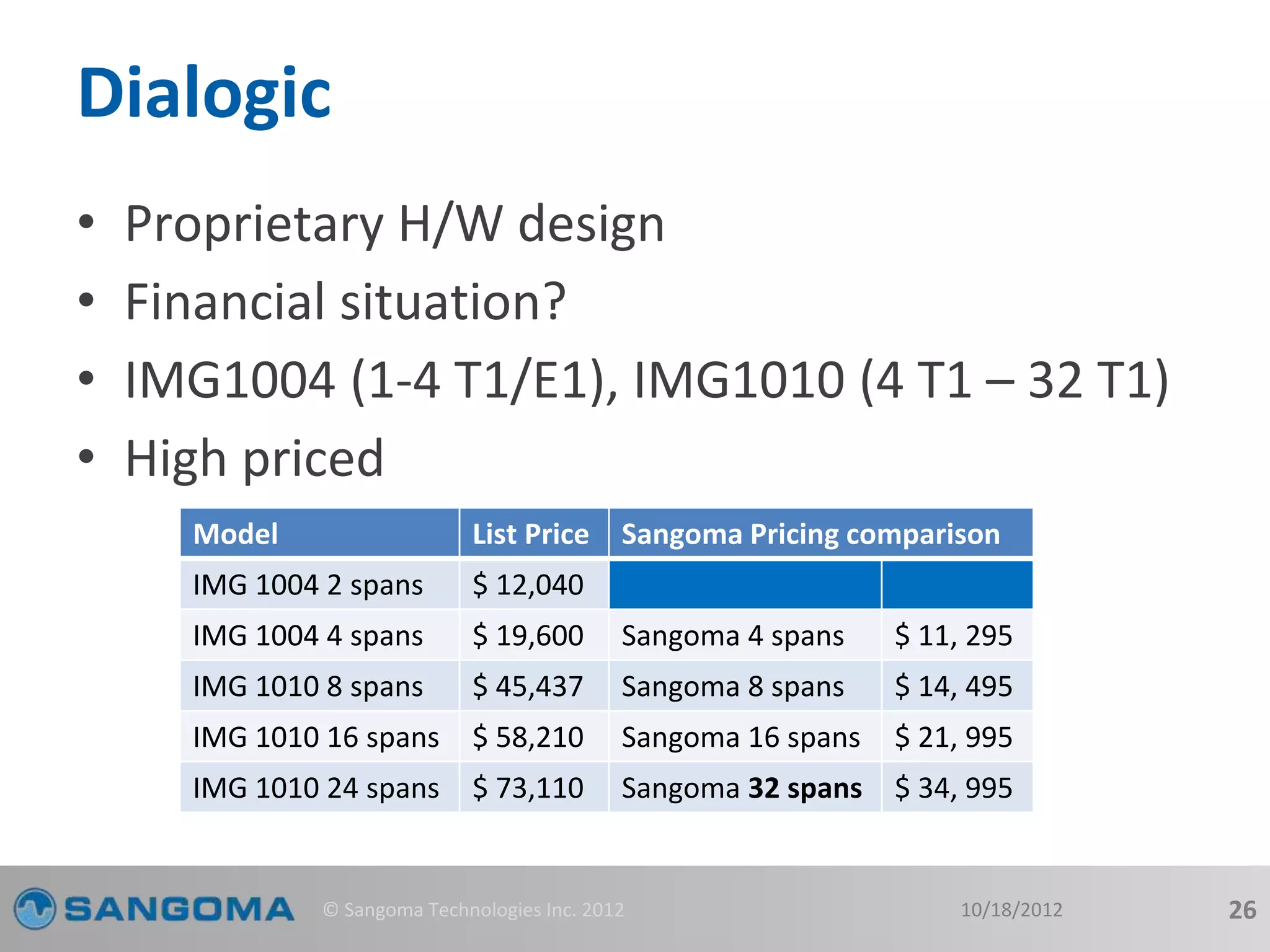

Dialogic
• Proprietary H/W design
• Financial situation?
• IMG1004 (1-4 T1/E1), IMG1010 (4 T1 – 32 T1)
• High priced
Model List Price Sangoma Pricing comparison
IMG 1004 2 spans $ 12,040
IMG 1004 4 spans $ 19,600 Sangoma 4 spans $ 11, 295
IMG 1010 8 spans $ 45,437 Sangoma 8 spans $ 14, 495
IMG 1010 16 spans $ 58,210 Sangoma 16 spans $ 21, 995
IMG 1010 24 spans $ 73,110 Sangoma 32 spans $ 34, 995
© Sangoma Technologies Inc. 2012 10/18/2012 26

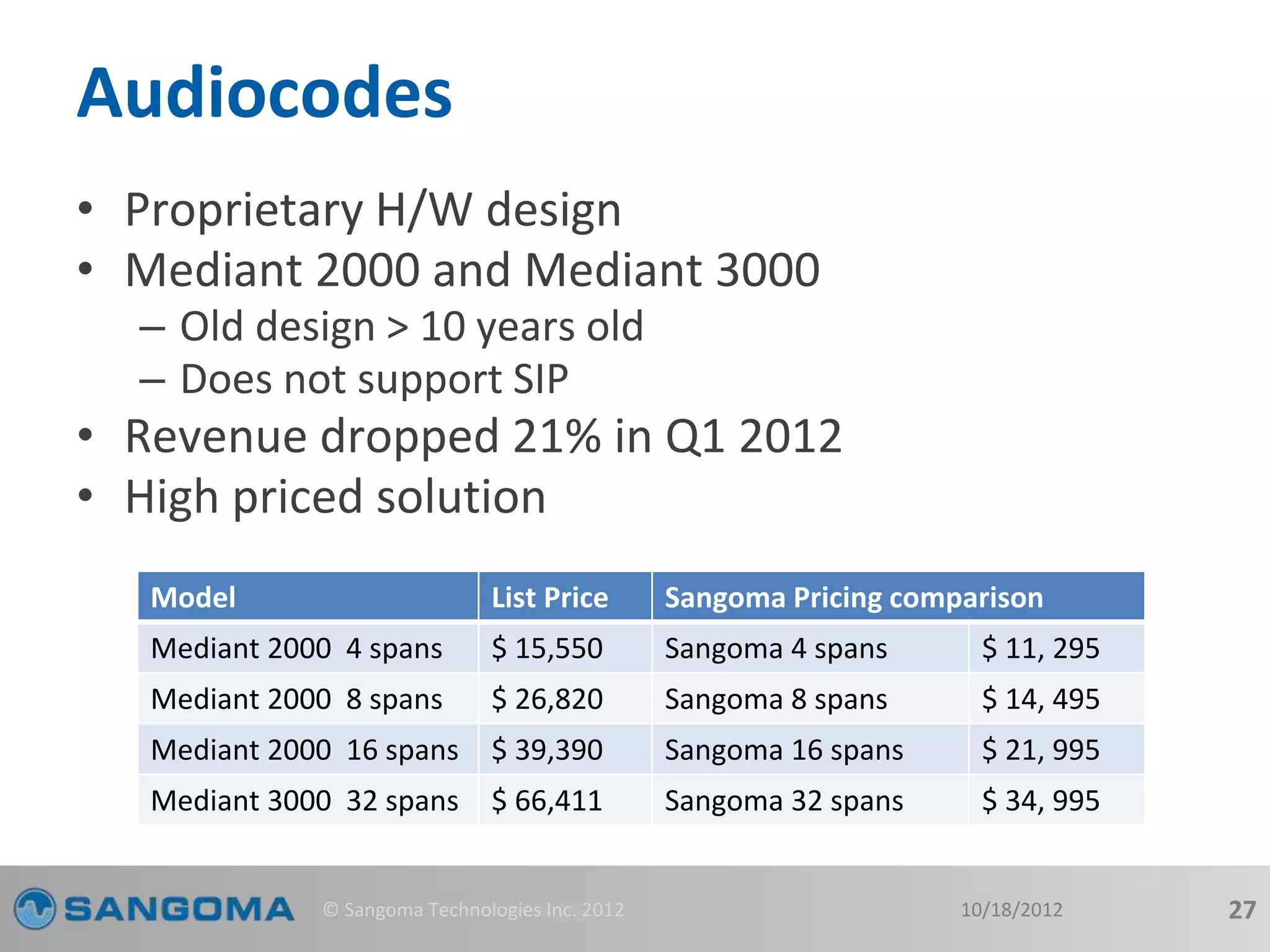

Audiocodes
• Proprietary H/W design
• Mediant 2000 and Mediant 3000
– Old design > 10 years old
– Does not support SIP
• Revenue dropped 21% in Q1 2012
• High priced solution
Model List Price Sangoma Pricing comparison
Mediant 2000 4 spans $ 15,550 Sangoma 4 spans $ 11, 295
Mediant 2000 8 spans $ 26,820 Sangoma 8 spans $ 14, 495
Mediant 2000 16 spans $ 39,390 Sangoma 16 spans $ 21, 995
Mediant 3000 32 spans $ 66,411 Sangoma 32 spans $ 34, 995
© Sangoma Technologies Inc. 2012 10/18/2012 27

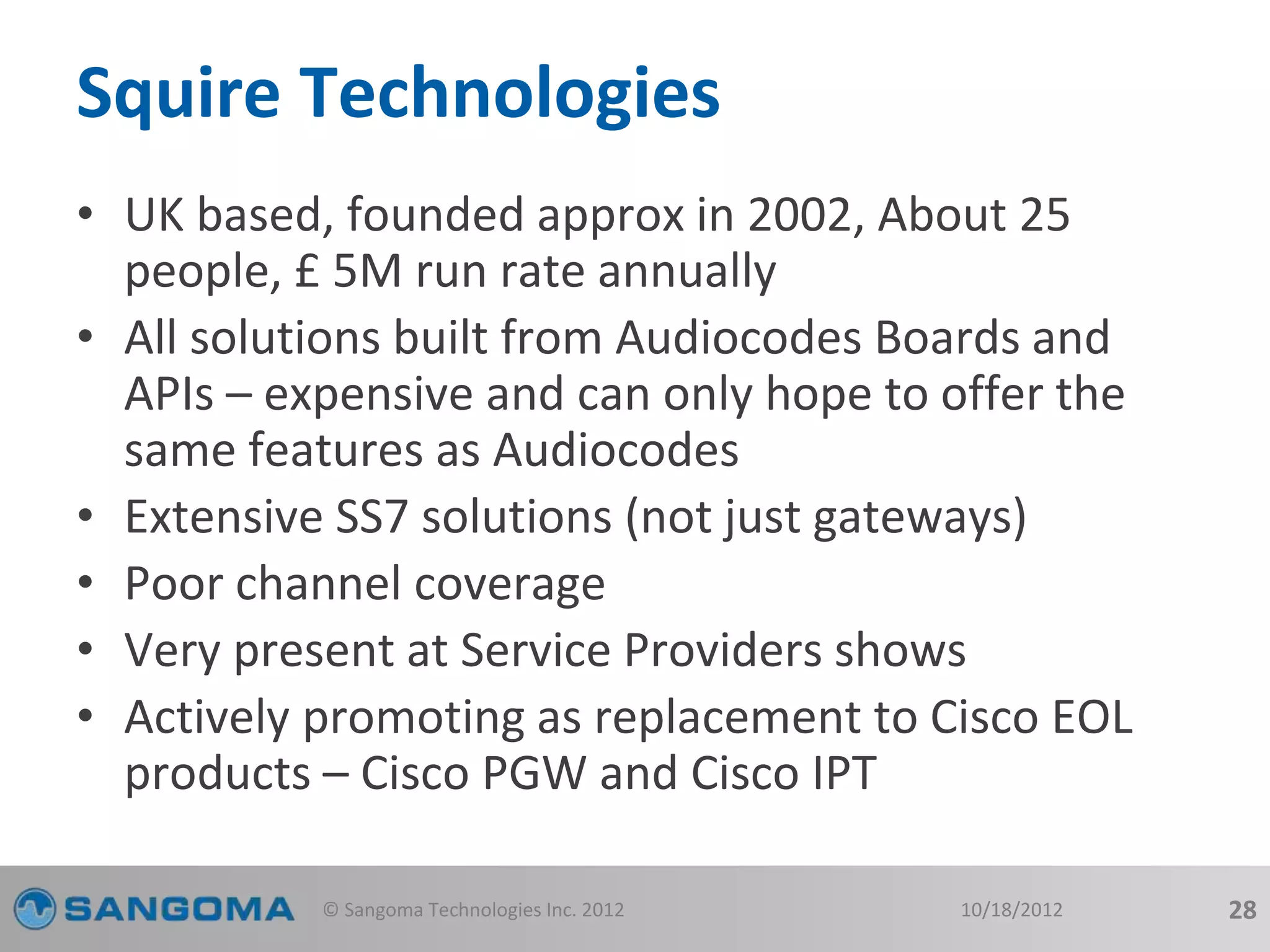

Squire Technologies
• UK based, founded approx in 2002, About 25
people, £ 5M run rate annually
• All solutions built from Audiocodes Boards and
APIs – expensive and can only hope to offer the
same features as Audiocodes
• Extensive SS7 solutions (not just gateways)
• Poor channel coverage
• Very present at Service Providers shows
• Actively promoting as replacement to Cisco EOL
products – Cisco PGW and Cisco IPT
© Sangoma Technologies Inc. 2012 10/18/2012 28

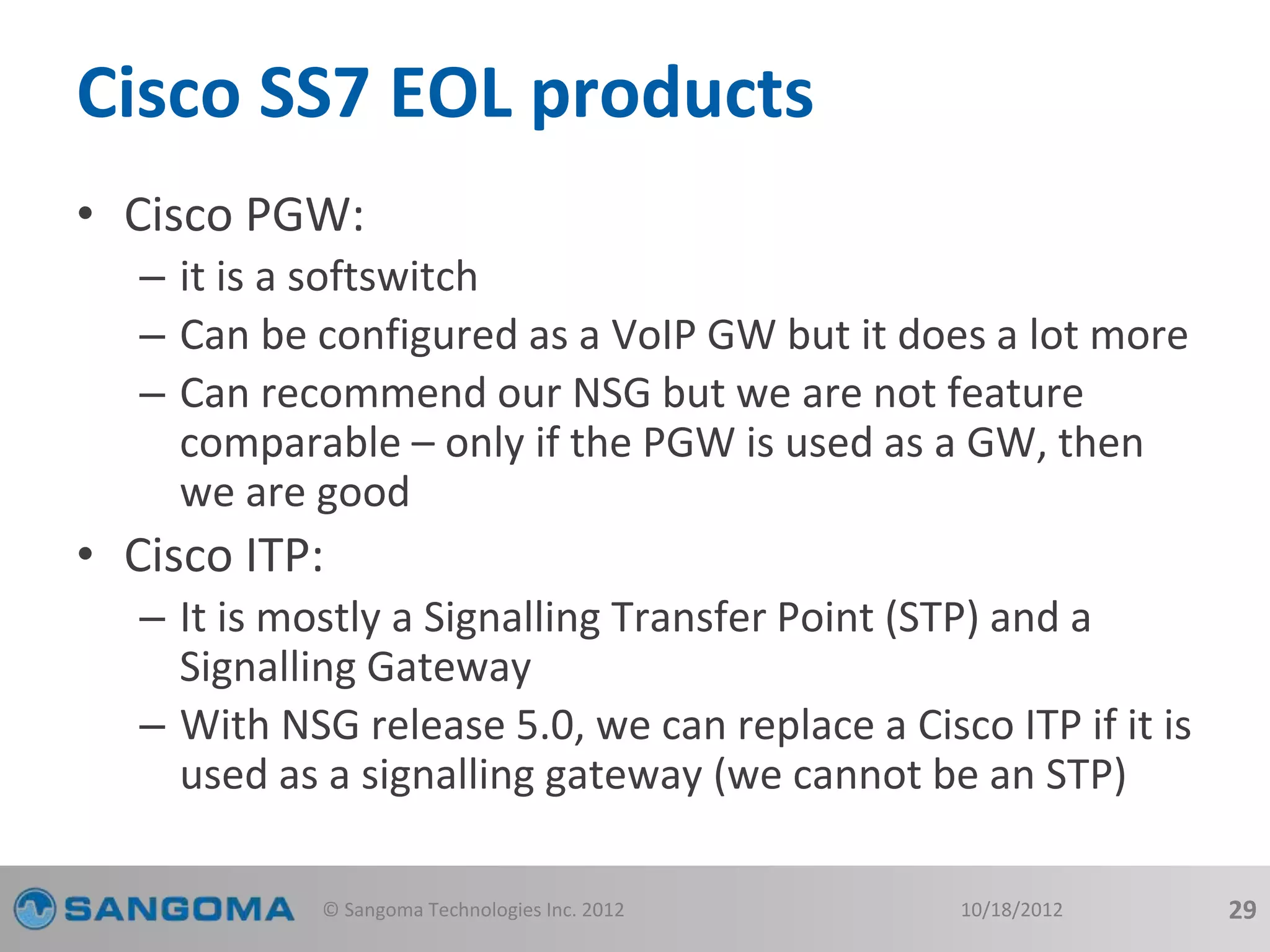

Cisco SS7 EOL products
• Cisco PGW:
– it is a softswitch
– Can be configured as a VoIP GW but it does a lot more
– Can recommend our NSG but we are not feature
comparable – only if the PGW is used as a GW, then
we are good
• Cisco ITP:
– It is mostly a Signalling Transfer Point (STP) and a
Signalling Gateway
– With NSG release 5.0, we can replace a Cisco ITP if it is
used as a signalling gateway (we cannot be an STP)
© Sangoma Technologies Inc. 2012 10/18/2012 29

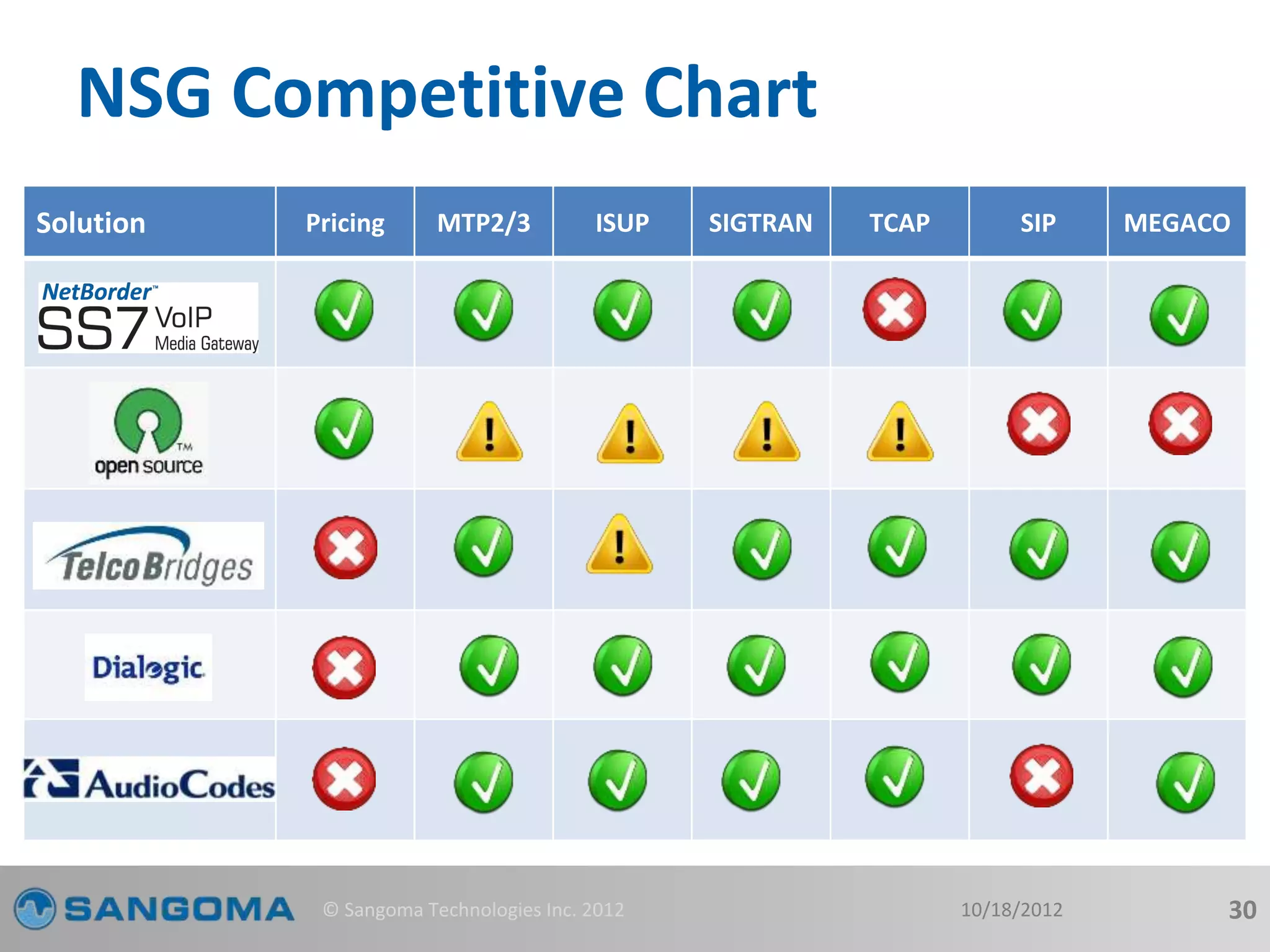

NSG Competitive Chart
Solution Pricing MTP2/3 ISUP SIGTRAN TCAP SIP MEGACO
© Sangoma Technologies Inc. 2012 10/18/2012 30
CLOSING

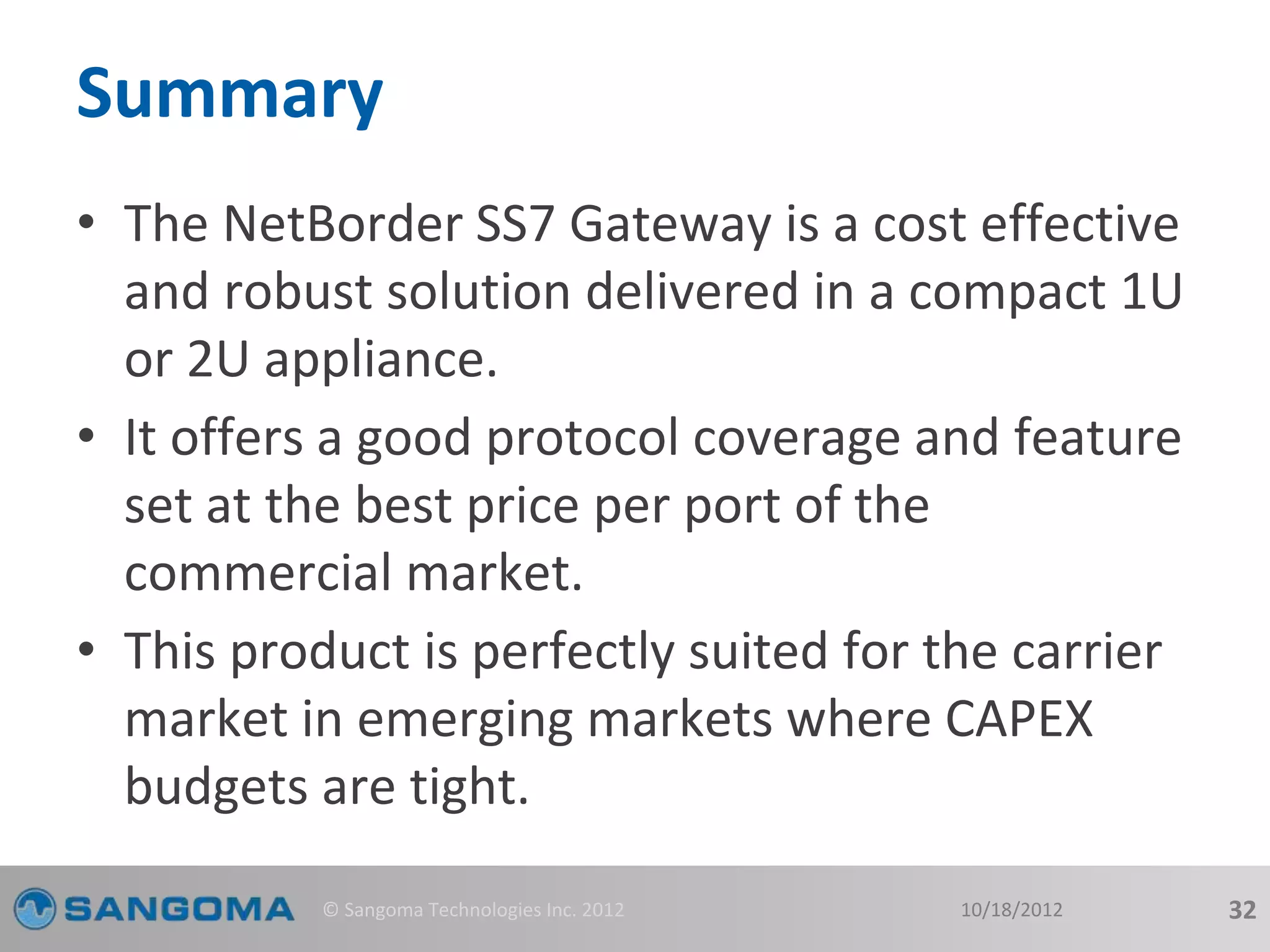

Summary
• The NetBorder SS7 Gateway is a cost effective
and robust solution delivered in a compact 1U
or 2U appliance.
• It offers a good protocol coverage and feature
set at the best price per port of the
commercial market.
• This product is perfectly suited for the carrier
market in emerging markets where CAPEX
budgets are tight.
© Sangoma Technologies Inc. 2012 10/18/2012 32

More Related Content

What's hot

SMS-SMPP-Concepts
SMS-SMPP-ConceptsSMS-SMPP-Concepts
SMS-SMPP-ConceptsDuy Do Phan

dsl (digital subscriber line)
dsl (digital subscriber line)dsl (digital subscriber line)
dsl (digital subscriber line)
waheed iqbal

Evolution of Core Networks
Evolution of Core NetworksEvolution of Core Networks
Evolution of Core Networks
Sarp Köksal

14 wcdma
14 wcdma14 wcdma
14 wcdma
Rakesh Tripathi

Introduction to VoIP using SIP
Introduction to VoIP using SIPIntroduction to VoIP using SIP
Introduction to VoIP using SIPKundan Singh

RF Analysis at Fiber-based Cell Sites with CPRI
RF Analysis at Fiber-based Cell Sites with CPRIRF Analysis at Fiber-based Cell Sites with CPRI
RF Analysis at Fiber-based Cell Sites with CPRI
Eduardo Inzunza

Mobile Networks Overview (2G / 3G / 4G-LTE)
Mobile Networks Overview (2G / 3G / 4G-LTE)Mobile Networks Overview (2G / 3G / 4G-LTE)
Mobile Networks Overview (2G / 3G / 4G-LTE)
Hamidreza Bolhasani

GSM Network Architecture
GSM Network ArchitectureGSM Network Architecture
GSM Network Architecture
Ahmed Khaled

Diameter Capabilities Exchange
Diameter Capabilities ExchangeDiameter Capabilities Exchange
Diameter Capabilities Exchange
Arpit Prajapati

AIRCOM LTE Webinar 2 - Air Interface
AIRCOM LTE Webinar 2 - Air InterfaceAIRCOM LTE Webinar 2 - Air Interface
AIRCOM LTE Webinar 2 - Air Interface
AIRCOM International

Pstn (Public Switched Telephone Networks)
Pstn (Public Switched Telephone Networks)Pstn (Public Switched Telephone Networks)
Pstn (Public Switched Telephone Networks)
rahuldaredia21

Ch5
Ch5Ch5
Ims call flow
Ims call flowIms call flow
Ims call flowMorg

2 g data call flow
2 g data call flow2 g data call flow
2 g data call flow
Alfred Ongere

Global system for mobile communication(GSM)
Global system for mobile communication(GSM)Global system for mobile communication(GSM)
Global system for mobile communication(GSM)
Jay Nagar

Gsm presentation shaikot
Gsm presentation shaikotGsm presentation shaikot
Gsm presentation shaikotsivakumar D

SIP - Introduction to SIP Protocol
SIP - Introduction to SIP ProtocolSIP - Introduction to SIP Protocol
SIP - Introduction to SIP Protocol
LivePerson

MPLS VPN
MPLS VPNMPLS VPN

What's hot (20)

SMS-SMPP-Concepts
SMS-SMPP-ConceptsSMS-SMPP-Concepts
SMS-SMPP-Concepts

dsl (digital subscriber line)
dsl (digital subscriber line)dsl (digital subscriber line)
dsl (digital subscriber line)

Evolution of Core Networks
Evolution of Core NetworksEvolution of Core Networks
Evolution of Core Networks

14 wcdma
14 wcdma14 wcdma
14 wcdma

Introduction to VoIP using SIP
Introduction to VoIP using SIPIntroduction to VoIP using SIP
Introduction to VoIP using SIP

RF Analysis at Fiber-based Cell Sites with CPRI
RF Analysis at Fiber-based Cell Sites with CPRIRF Analysis at Fiber-based Cell Sites with CPRI
RF Analysis at Fiber-based Cell Sites with CPRI

Mobile Networks Overview (2G / 3G / 4G-LTE)
Mobile Networks Overview (2G / 3G / 4G-LTE)Mobile Networks Overview (2G / 3G / 4G-LTE)
Mobile Networks Overview (2G / 3G / 4G-LTE)

GSM Network Architecture
GSM Network ArchitectureGSM Network Architecture
GSM Network Architecture

Diameter Capabilities Exchange
Diameter Capabilities ExchangeDiameter Capabilities Exchange
Diameter Capabilities Exchange

AIRCOM LTE Webinar 2 - Air Interface
AIRCOM LTE Webinar 2 - Air InterfaceAIRCOM LTE Webinar 2 - Air Interface
AIRCOM LTE Webinar 2 - Air Interface

Pstn (Public Switched Telephone Networks)
Pstn (Public Switched Telephone Networks)Pstn (Public Switched Telephone Networks)
Pstn (Public Switched Telephone Networks)

Ch5
Ch5Ch5
Ch5

Ims call flow
Ims call flowIms call flow
Ims call flow

2 g data call flow
2 g data call flow2 g data call flow
2 g data call flow

Global system for mobile communication(GSM)
Global system for mobile communication(GSM)Global system for mobile communication(GSM)
Global system for mobile communication(GSM)

Training.ppt
Training.pptTraining.ppt
Training.ppt

Gsm presentation shaikot
Gsm presentation shaikotGsm presentation shaikot
Gsm presentation shaikot

SIP - Introduction to SIP Protocol
SIP - Introduction to SIP ProtocolSIP - Introduction to SIP Protocol
SIP - Introduction to SIP Protocol

MPLS VPN
MPLS VPNMPLS VPN
MPLS VPN

Dsl
DslDsl
Dsl


Similar to Sangoma SS7 Gateway Training

Integrated Media Gateway and the Transition to IP
Integrated Media Gateway and the Transition to IPIntegrated Media Gateway and the Transition to IP
Integrated Media Gateway and the Transition to IP
Dialogic Inc.

SIP Trunking overview
SIP Trunking overviewSIP Trunking overview
SIP Trunking overview
John Downing

FreeSWITCH as a Kickass SBC
FreeSWITCH as a Kickass SBCFreeSWITCH as a Kickass SBC
FreeSWITCH as a Kickass SBC
Moises Silva

Webinar Patton: LAN extenders y Gateways de nueva generación
Webinar Patton: LAN extenders y Gateways de nueva generaciónWebinar Patton: LAN extenders y Gateways de nueva generación
Webinar Patton: LAN extenders y Gateways de nueva generación
Neocenter SA de CV

Rma past present_v3
Rma past present_v3Rma past present_v3
Rma past present_v3
Robert Seymour

Para qué sirve un SBC | Webinar Pattton ESBR
Para qué sirve un SBC | Webinar Pattton ESBR Para qué sirve un SBC | Webinar Pattton ESBR
Para qué sirve un SBC | Webinar Pattton ESBR
Neocenter SA de CV

Cisco vnp workshop 16-17 april v1-0
Cisco  vnp workshop 16-17 april v1-0Cisco  vnp workshop 16-17 april v1-0
Cisco vnp workshop 16-17 april v1-0
liemgpc2

Practical Experiences of Multi-Operator Neutral Hosting James Body, TADSummit...
Practical Experiences of Multi-Operator Neutral Hosting James Body, TADSummit...Practical Experiences of Multi-Operator Neutral Hosting James Body, TADSummit...
Practical Experiences of Multi-Operator Neutral Hosting James Body, TADSummit...
Alan Quayle

Día Neocenter | Sangoma Portfolio Product Update
Día Neocenter | Sangoma Portfolio Product UpdateDía Neocenter | Sangoma Portfolio Product Update
Día Neocenter | Sangoma Portfolio Product Update
Neocenter SA de CV

Sangoma Vega Gateway Training Presentation
Sangoma Vega Gateway Training PresentationSangoma Vega Gateway Training Presentation
Sangoma Vega Gateway Training Presentation
Empatiq İletişim Teknolojileri AŞ.

Gold Standard Wireless - Broad Sky Networks Oct. 2018
Gold Standard Wireless - Broad Sky Networks  Oct. 2018Gold Standard Wireless - Broad Sky Networks  Oct. 2018
Gold Standard Wireless - Broad Sky Networks Oct. 2018
Maureen Donovan

SiFive SoC IP for HPC, AI and Networking
SiFive SoC IP for HPC, AI and NetworkingSiFive SoC IP for HPC, AI and Networking
SiFive SoC IP for HPC, AI and Networking
Aijaz Qaisar

Iscit2007 keynote juergenschindler
Iscit2007 keynote juergenschindlerIscit2007 keynote juergenschindler
Iscit2007 keynote juergenschindler
Muhammad Ali Basra

Netfors - STP/ITP and Signaling Gateway
Netfors - STP/ITP and Signaling GatewayNetfors - STP/ITP and Signaling Gateway
Netfors - STP/ITP and Signaling Gateway
Netfors

Shenzhen Sinovo Telecom co.,limited ppt
Shenzhen Sinovo Telecom co.,limited pptShenzhen Sinovo Telecom co.,limited ppt
Shenzhen Sinovo Telecom co.,limited ppt
sinovo telecom

NAB2022: Essentials for Media over IP Network Design
NAB2022: Essentials for Media over IP Network DesignNAB2022: Essentials for Media over IP Network Design
NAB2022: Essentials for Media over IP Network Design
Koji Oyama

177732477-Voice-101.pdf
177732477-Voice-101.pdf177732477-Voice-101.pdf
177732477-Voice-101.pdf
MohamedShabana37

ProSBC a Deep Dive
ProSBC a Deep DiveProSBC a Deep Dive
ProSBC a Deep Dive
Alan Percy

Webinar Renesas - IoT é Segura? Com Renesas Synergy sim! E o SSP 1.5 tornou a...
Webinar Renesas - IoT é Segura? Com Renesas Synergy sim! E o SSP 1.5 tornou a...Webinar Renesas - IoT é Segura? Com Renesas Synergy sim! E o SSP 1.5 tornou a...
Webinar Renesas - IoT é Segura? Com Renesas Synergy sim! E o SSP 1.5 tornou a...
Embarcados

G.fast Presentation organised by IEEE-Victorian Chapter & SCTE-ISBE Australas...
G.fast Presentation organised by IEEE-Victorian Chapter & SCTE-ISBE Australas...G.fast Presentation organised by IEEE-Victorian Chapter & SCTE-ISBE Australas...
G.fast Presentation organised by IEEE-Victorian Chapter & SCTE-ISBE Australas...
Kiran Solipuram. DEP, CFHP


Similar to Sangoma SS7 Gateway Training (20)

Integrated Media Gateway and the Transition to IP
Integrated Media Gateway and the Transition to IPIntegrated Media Gateway and the Transition to IP
Integrated Media Gateway and the Transition to IP

SIP Trunking overview
SIP Trunking overviewSIP Trunking overview
SIP Trunking overview

FreeSWITCH as a Kickass SBC
FreeSWITCH as a Kickass SBCFreeSWITCH as a Kickass SBC
FreeSWITCH as a Kickass SBC

Webinar Patton: LAN extenders y Gateways de nueva generación
Webinar Patton: LAN extenders y Gateways de nueva generaciónWebinar Patton: LAN extenders y Gateways de nueva generación
Webinar Patton: LAN extenders y Gateways de nueva generación

Rma past present_v3
Rma past present_v3Rma past present_v3
Rma past present_v3

Para qué sirve un SBC | Webinar Pattton ESBR
Para qué sirve un SBC | Webinar Pattton ESBR Para qué sirve un SBC | Webinar Pattton ESBR
Para qué sirve un SBC | Webinar Pattton ESBR

Cisco vnp workshop 16-17 april v1-0
Cisco  vnp workshop 16-17 april v1-0Cisco  vnp workshop 16-17 april v1-0
Cisco vnp workshop 16-17 april v1-0

Practical Experiences of Multi-Operator Neutral Hosting James Body, TADSummit...
Practical Experiences of Multi-Operator Neutral Hosting James Body, TADSummit...Practical Experiences of Multi-Operator Neutral Hosting James Body, TADSummit...
Practical Experiences of Multi-Operator Neutral Hosting James Body, TADSummit...

Día Neocenter | Sangoma Portfolio Product Update
Día Neocenter | Sangoma Portfolio Product UpdateDía Neocenter | Sangoma Portfolio Product Update
Día Neocenter | Sangoma Portfolio Product Update

Sangoma Vega Gateway Training Presentation
Sangoma Vega Gateway Training PresentationSangoma Vega Gateway Training Presentation
Sangoma Vega Gateway Training Presentation

Gold Standard Wireless - Broad Sky Networks Oct. 2018
Gold Standard Wireless - Broad Sky Networks  Oct. 2018Gold Standard Wireless - Broad Sky Networks  Oct. 2018
Gold Standard Wireless - Broad Sky Networks Oct. 2018

SiFive SoC IP for HPC, AI and Networking
SiFive SoC IP for HPC, AI and NetworkingSiFive SoC IP for HPC, AI and Networking
SiFive SoC IP for HPC, AI and Networking

Iscit2007 keynote juergenschindler
Iscit2007 keynote juergenschindlerIscit2007 keynote juergenschindler
Iscit2007 keynote juergenschindler

Netfors - STP/ITP and Signaling Gateway
Netfors - STP/ITP and Signaling GatewayNetfors - STP/ITP and Signaling Gateway
Netfors - STP/ITP and Signaling Gateway

Shenzhen Sinovo Telecom co.,limited ppt
Shenzhen Sinovo Telecom co.,limited pptShenzhen Sinovo Telecom co.,limited ppt
Shenzhen Sinovo Telecom co.,limited ppt

NAB2022: Essentials for Media over IP Network Design
NAB2022: Essentials for Media over IP Network DesignNAB2022: Essentials for Media over IP Network Design
NAB2022: Essentials for Media over IP Network Design

177732477-Voice-101.pdf
177732477-Voice-101.pdf177732477-Voice-101.pdf
177732477-Voice-101.pdf

ProSBC a Deep Dive
ProSBC a Deep DiveProSBC a Deep Dive
ProSBC a Deep Dive

Webinar Renesas - IoT é Segura? Com Renesas Synergy sim! E o SSP 1.5 tornou a...
Webinar Renesas - IoT é Segura? Com Renesas Synergy sim! E o SSP 1.5 tornou a...Webinar Renesas - IoT é Segura? Com Renesas Synergy sim! E o SSP 1.5 tornou a...
Webinar Renesas - IoT é Segura? Com Renesas Synergy sim! E o SSP 1.5 tornou a...

G.fast Presentation organised by IEEE-Victorian Chapter & SCTE-ISBE Australas...
G.fast Presentation organised by IEEE-Victorian Chapter & SCTE-ISBE Australas...G.fast Presentation organised by IEEE-Victorian Chapter & SCTE-ISBE Australas...
G.fast Presentation organised by IEEE-Victorian Chapter & SCTE-ISBE Australas...


More from Empatiq İletişim Teknolojileri AŞ.

Özgür Yazılım ve Linux Günleri - FreePBX ile Özgür Santral Yazılımı
Özgür Yazılım ve Linux Günleri - FreePBX ile Özgür Santral YazılımıÖzgür Yazılım ve Linux Günleri - FreePBX ile Özgür Santral Yazılımı
Özgür Yazılım ve Linux Günleri - FreePBX ile Özgür Santral Yazılımı
Empatiq İletişim Teknolojileri AŞ.

Sangoma SBC Training Presentation
Sangoma SBC Training PresentationSangoma SBC Training Presentation
Sangoma SBC Training Presentation
Empatiq İletişim Teknolojileri AŞ.


More from Empatiq İletişim Teknolojileri AŞ. (9)

Özgür Yazılım ve Linux Günleri - FreePBX ile Özgür Santral Yazılımı
Özgür Yazılım ve Linux Günleri - FreePBX ile Özgür Santral YazılımıÖzgür Yazılım ve Linux Günleri - FreePBX ile Özgür Santral Yazılımı
Özgür Yazılım ve Linux Günleri - FreePBX ile Özgür Santral Yazılımı

Sangoma SBC Training Presentation
Sangoma SBC Training PresentationSangoma SBC Training Presentation
Sangoma SBC Training Presentation

Grandstream Network Video Recorder GVR3550 presentation
Grandstream Network Video Recorder GVR3550 presentationGrandstream Network Video Recorder GVR3550 presentation
Grandstream Network Video Recorder GVR3550 presentation

Trends from Grandstream Surveillance
Trends from Grandstream SurveillanceTrends from Grandstream Surveillance
Trends from Grandstream Surveillance

Grandstream Surveillance Presentation 06/2014
Grandstream Surveillance Presentation 06/2014Grandstream Surveillance Presentation 06/2014
Grandstream Surveillance Presentation 06/2014

Grandstream UCM Video Features
Grandstream UCM Video FeaturesGrandstream UCM Video Features
Grandstream UCM Video Features

How to choosing the right camera
How to choosing the right cameraHow to choosing the right camera
How to choosing the right camera

Motion detection alerts alarms
Motion detection alerts alarmsMotion detection alerts alarms
Motion detection alerts alarms

Integrating Surveillance with an Grandstream UCM IPPBX
Integrating Surveillance with an Grandstream UCM IPPBXIntegrating Surveillance with an Grandstream UCM IPPBX
Integrating Surveillance with an Grandstream UCM IPPBX


Recently uploaded

GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
Neo4j

The Art of the Pitch: WordPress Relationships and Sales
The Art of the Pitch: WordPress Relationships and SalesThe Art of the Pitch: WordPress Relationships and Sales
The Art of the Pitch: WordPress Relationships and Sales
Laura Byrne

20240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 202420240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 2024
Matthew Sinclair

RESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for studentsRESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for students
KAMESHS29

Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
SOFTTECHHUB

UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6
DianaGray10

みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
名前 です男

Introduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - CybersecurityIntroduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - Cybersecurity
mikeeftimakis1

20240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 202420240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 2024
Matthew Sinclair

Elizabeth Buie - Older adults: Are we really designing for our future selves?
Elizabeth Buie - Older adults: Are we really designing for our future selves?Elizabeth Buie - Older adults: Are we really designing for our future selves?
Elizabeth Buie - Older adults: Are we really designing for our future selves?
Nexer Digital

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf
Uni Systems S.M.S.A.

Uni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdfUni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems S.M.S.A.

GridMate - End to end testing is a critical piece to ensure quality and avoid...
GridMate - End to end testing is a critical piece to ensure quality and avoid...GridMate - End to end testing is a critical piece to ensure quality and avoid...
GridMate - End to end testing is a critical piece to ensure quality and avoid...
ThomasParaiso2

Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
SOFTTECHHUB

Epistemic Interaction - tuning interfaces to provide information for AI support
Epistemic Interaction - tuning interfaces to provide information for AI supportEpistemic Interaction - tuning interfaces to provide information for AI support
Epistemic Interaction - tuning interfaces to provide information for AI support
Alan Dix

FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdfFIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance

Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdfObservability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Paige Cruz

GraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge GraphGraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge Graph
Guy Korland

National Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practicesNational Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practices
Quotidiano Piemontese

Secstrike : Reverse Engineering & Pwnable tools for CTF.pptx
Secstrike : Reverse Engineering & Pwnable tools for CTF.pptxSecstrike : Reverse Engineering & Pwnable tools for CTF.pptx
Secstrike : Reverse Engineering & Pwnable tools for CTF.pptx
nkrafacyberclub


Recently uploaded (20)

GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...

The Art of the Pitch: WordPress Relationships and Sales
The Art of the Pitch: WordPress Relationships and SalesThe Art of the Pitch: WordPress Relationships and Sales
The Art of the Pitch: WordPress Relationships and Sales

20240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 202420240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 2024

RESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for studentsRESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for students

Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!

UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6

みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...

Introduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - CybersecurityIntroduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - Cybersecurity

20240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 202420240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 2024

Elizabeth Buie - Older adults: Are we really designing for our future selves?
Elizabeth Buie - Older adults: Are we really designing for our future selves?Elizabeth Buie - Older adults: Are we really designing for our future selves?
Elizabeth Buie - Older adults: Are we really designing for our future selves?

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf

Uni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdfUni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdf

GridMate - End to end testing is a critical piece to ensure quality and avoid...
GridMate - End to end testing is a critical piece to ensure quality and avoid...GridMate - End to end testing is a critical piece to ensure quality and avoid...
GridMate - End to end testing is a critical piece to ensure quality and avoid...

Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...

Epistemic Interaction - tuning interfaces to provide information for AI support
Epistemic Interaction - tuning interfaces to provide information for AI supportEpistemic Interaction - tuning interfaces to provide information for AI support
Epistemic Interaction - tuning interfaces to provide information for AI support

FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdfFIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf

Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdfObservability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf

GraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge GraphGraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge Graph

National Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practicesNational Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practices

Secstrike : Reverse Engineering & Pwnable tools for CTF.pptx
Secstrike : Reverse Engineering & Pwnable tools for CTF.pptxSecstrike : Reverse Engineering & Pwnable tools for CTF.pptx
Secstrike : Reverse Engineering & Pwnable tools for CTF.pptx


Sangoma SS7 Gateway Training

  • 1. NetBorder SS7 Gateway Sales Training Version 5.0 update
  • 2. Agenda • SS7 Overview • NetBorder SS7 Gateway Version 5.0 (NSG 5.0) • Pricing and SKUs • Use Cases • Competition • Closing © Sangoma Technologies Inc. 2012 10/18/2014 2
  • 4. SS7 Overview • TDM Telecom landscape littered with protocols – ISDN, CAS, R2, V5.2, GR-303, … and SS7 • SS7 = Signalling System Number 7 • Deployed in Carriers / Service Providers Networks • Roots of specifications date back to the 70s – To counter blue box fraud • Incumbent Telcos massively deployed in late 80s • It is the basis for LNP, CNAM, 800/freephone numbers, GSM wireless networks • Networks moving to VoIP but there are still a lot of SS7 networks out there © Sangoma Technologies Inc. 2012 10/18/2012 4
  • 5. SS7 Protocol Stack • SS7 allows for call to be established, monitored, torn-down, etc. • Network Nodes are identified with Point Codes – it is like an IP address for SS7 networks • SS7 protocol has several layers – MTP 1, 2, 3 for routing SS7 messages – ISUP for call set-up and tear-down – TCAP for database transactions (800, CNAM, LNP, Mobile) • TCAP is not a required function for VoIP Gateways TCAP ISUP SCCP MTP3 MTP2 MTP1 © Sangoma Technologies Inc. 2012 10/18/2012 5
  • 6. SS7 Structure T1 or E1 T1 or E1 T1 or E1 © Sangoma Technologies Inc. 2012 10/18/2012 6 Several T1 or E1s to interconnect (Trunk Group) 1 Channel is reserved to carry the SS7 Protocol messages for all the T1/E1 in the trunk group All other channels carry voice in TDM format (in SS7 parlance called CIC = Carrier Interface Channel, each CIC has a number)
  • 7. SS7 VoIP Gateway Explained • They are required to interconnect legacy PSTN networks to next generation VoIP Networks • Hence VoIP Gateways are translators – They convert TDM Protocols to IP Based Protocols and vice-versa – They convert TDM voice to IP based voice and vice-versa VoIP Gateway SS7 Protocol TDM Voice IP Protocols Packet Voice © Sangoma Technologies Inc. 2012 10/18/2012 7
  • 8. Similarities with Enterprise Gateways • VoIP Gateways are translators – Take legacy PSTN protocols – Convert them to VoIP • Enterprise Gateways convert End-User to Network protocols – Analog, BRI, PRI • Carrier Gateways convert Carrier to Carrier protocols – Such as SS7 Analog GWs Analog FXO VoIP IP-PBX Digital BRI GWs ISDN BRI VoIP VoIP GW VoIP GW IP-PBX Digital T1/E1 PRI GWs T1/E1 PRI VoIP VoIP GW IP-PBX © Sangoma Technologies Inc. 2012 10/18/2012 8
  • 10. Sangoma’s Involvement in SS7 • Sangoma has offered SS7 solutions to various degrees over the years • Started with our own SS7 ISUP stack – Back then we competed with Open Source – Our solutions were ‘piece parts’ of boards and pieces of software – clunky assembly required – It got our feet wet, developed expertise and allowed us to continually raise the bar • We now have NetBorder SS7 Gateway, a full fledged GW, that integrates a carrier grade Trillium SS7 stack. The product comes ready to configure and put in service at the customer site © Sangoma Technologies Inc. 2012 10/18/2012 10
  • 11. Current NetBorder SS7 Gateway features • Up to 32 E1 per server • SS7 ISUP Signaling with several national variants – ITU, ANSI, Bellcore, France, UK, China, India and Russia • SIP VoIP Signalling • Wide range of narrowband and wideband codecs supported – for any to any codec transcoding • Flexible XML based routing rules for call control • For reference, we use a Trillium SS7 stack – Commercial and carrier grade – Facilitates conformance testing with various carriers © Sangoma Technologies Inc. 2012 10/18/2012 11
  • 12. New Features with NSG Ver 5.0 • Key Features: Megaco = Media Gateway Control Protocol – SNMP monitoring for T1/E1 – Radius Protocol for Management – H.323 (legacy VoIP interconnects) – SIGTRAN M2UA – called Signalling GW or SG – MEGACO / H.248 signalling – called Media Gateway or MG These are the big deal features, next few slides explain why © Sangoma Technologies Inc. 2012 10/18/2012 12
  • 13. SS7 to SIP Gateway (local network intelligence) 3 1. SS7 traffic arrives at NSG 2. TDM Voice arrives at NSG 3. SS7 Stack decodes protocol up to ISUP layer 4. NSG software translates ISUP to SIP 5. NSG software packetizes the voice 6. VoIP Packets sent to IP Network © Sangoma Technologies Inc. 2012 10/18/2012 13 PSTN SS7 Voic e IP Network SIP Packet Voice 1 4 2 6 5 NSG
  • 14. SS7 to SIGTRAN / Megaco Gateway (distributed network intelligence – scales better for service providers) NSG Softswitch 1. SS7 traffic arrives at NSG 2. TDM Voice arrives at NSG 3. SS7 Stack decodes protocol up to MTP2 4. SS7 Stack converts MTP2 to M2UA (SS7 over IP) 5. Softswitch decodes SS7 protocol 6. Instructions sent to NSG via Megaco from Softswitch 7. NSG software packetizes the voice 8. VoIP Packets sent to IP Network © Sangoma Technologies Inc. 2012 10/18/2012 14 PSTN SS7 Voic e M2UA Packet Voice 1 4 2 6 3 7 IP Network Megaco 5 6 8 In this scenario, NSG is a slave to the softswitch. Large service providers want this because it simplifies their network deployments. Central billing, central monitoring, can install GW everywhere with the same basic configurations.
  • 15. Deployment Options Before NSG 5.0 With NSG 5.0 NSG © Sangoma Technologies Inc. 2012 10/18/2012 15 SS7 Voic e SIP VoI P NSG SS7 Voic e SIP VoI P NSG SS7 Voic e M2UA VoI P OR Megaco No need for special licenses Its just a choice you make when you configure the Gateway – Great flexibility!
  • 16. Go After the Bigger Fish • SS7 to SIP is OK for small networks – Small Service provider – Value Added Services • SIP is too limiting for networks with large amount of interconnection POPs – Megaco and M2UA allow for better distribution of network – Facilitates integration with large softswitch vendors that service providers use © Sangoma Technologies Inc. 2012 10/18/2012 16
  • 17. Services • SS7 is a complex protocol – Will offer Certification Training • Always quote with Services: – Getting Started Packages – 8 hours of professional services @ $1600 – not discountable – Annual software support and maintenance packages (s/w upgrades and updates, telephone support) • On appliances: 5% on MSRP • On software: 20% on Software License price • Not discountable © Sangoma Technologies Inc. 2012 10/18/2012 17
  • 18. Conformance Testing • Incumbent Telco often impose lab certification before a competitive service provider is allowed to interconnect • It is not a requirement for vendors, it is a requirement for Service Providers – our customers • The message is: – We are here to support your certifications efforts – Our Trillium stack provides us with great confidence of compliance © Sangoma Technologies Inc. 2012 10/18/2012 18
  • 20. Typical Megaco / Sigtran deployment 10/18/2012 PSTN PSTN PSTN SS7 Voice SS7 Voice SS7 IP Network Legacy PBX Broadband Router IP PBX VoIP GW Softswitch VoI P VoI P VoI P M2UA Megaco VoIP M2UA Megaco VoIP M2UA Megaco VoIP © Sangoma Technologies Inc. 2012 20
  • 21. SIP deployment: Combine with OST for MVAS development VoI P 10/18/2012 PSTN 1 SS7 Voice PSTN 2 IP Network SS7 Voice PSTN 3 SS7 Voice Drivers SIP • Sangoma for SS7 to SIP • Asterisk Dial plan for Softswitch © Sangoma Technologies Inc. 2012 21
  • 22. SIP Use Case: Large Scale IVR Central IVR Director, Sangoma NetBorder SS7 Gateway pool LAN / WAN proxy, load balancer, etc. 10/18/2012 1 2 3 SS7 + 32 E1 32 E1 32 E1 SIP + RTP + SS7 Relay SIP + RTP + SS7 Relay SIP + RTP + SS7 Relay IVR svr IVR svr IVR svr SIP + RTP SIP + RTP SIP + RTP IVR App SIP SS7 Relay traffic © Sangoma Technologies Inc. 2012 22
  • 24. Open Source SS7 • LibSS7 (Digium) / Chan_ss7 • Unstable and difficult to work with • Poor variant coverage and certification record • Most serious carriers are not interested in using an open source stack and making their own gateways • Only a factor in emerging markets where price is the only decision factor. Sangoma does not compete in such situations where the buyer only wants the cheapest/free solution. © Sangoma Technologies Inc. 2012 10/18/2012 24
  • 25. Telcobridges • Proprietary H/W design • TMG800 (1-8 T1/E1) , TMG3200 (8-64 T1/E1) • Pricing OK, poor channel coverage • Does not support SPIROU ISUP (FT variant) • Patton OEMs TMG 3200 under the 10K Series Model List Price Sangoma Pricing comparison TMG 800 4 spans $ 16,100 Sangoma 4 spans $ 11, 295 TMG 3200 8 spans $ 21,000 Sangoma 8 spans $ 14, 495 TMG 3200 16 spans $ 34,000 Sangoma 16 spans $ 21, 995 TMG 3200 32 spans $ 48,000 Sangoma 32 spans $ 34, 995 © Sangoma Technologies Inc. 2012 10/18/2012 25
  • 26. Dialogic • Proprietary H/W design • Financial situation? • IMG1004 (1-4 T1/E1), IMG1010 (4 T1 – 32 T1) • High priced Model List Price Sangoma Pricing comparison IMG 1004 2 spans $ 12,040 IMG 1004 4 spans $ 19,600 Sangoma 4 spans $ 11, 295 IMG 1010 8 spans $ 45,437 Sangoma 8 spans $ 14, 495 IMG 1010 16 spans $ 58,210 Sangoma 16 spans $ 21, 995 IMG 1010 24 spans $ 73,110 Sangoma 32 spans $ 34, 995 © Sangoma Technologies Inc. 2012 10/18/2012 26
  • 27. Audiocodes • Proprietary H/W design • Mediant 2000 and Mediant 3000 – Old design > 10 years old – Does not support SIP • Revenue dropped 21% in Q1 2012 • High priced solution Model List Price Sangoma Pricing comparison Mediant 2000 4 spans $ 15,550 Sangoma 4 spans $ 11, 295 Mediant 2000 8 spans $ 26,820 Sangoma 8 spans $ 14, 495 Mediant 2000 16 spans $ 39,390 Sangoma 16 spans $ 21, 995 Mediant 3000 32 spans $ 66,411 Sangoma 32 spans $ 34, 995 © Sangoma Technologies Inc. 2012 10/18/2012 27
  • 28. Squire Technologies • UK based, founded approx in 2002, About 25 people, £ 5M run rate annually • All solutions built from Audiocodes Boards and APIs – expensive and can only hope to offer the same features as Audiocodes • Extensive SS7 solutions (not just gateways) • Poor channel coverage • Very present at Service Providers shows • Actively promoting as replacement to Cisco EOL products – Cisco PGW and Cisco IPT © Sangoma Technologies Inc. 2012 10/18/2012 28
  • 29. Cisco SS7 EOL products • Cisco PGW: – it is a softswitch – Can be configured as a VoIP GW but it does a lot more – Can recommend our NSG but we are not feature comparable – only if the PGW is used as a GW, then we are good • Cisco ITP: – It is mostly a Signalling Transfer Point (STP) and a Signalling Gateway – With NSG release 5.0, we can replace a Cisco ITP if it is used as a signalling gateway (we cannot be an STP) © Sangoma Technologies Inc. 2012 10/18/2012 29
  • 30. NSG Competitive Chart Solution Pricing MTP2/3 ISUP SIGTRAN TCAP SIP MEGACO © Sangoma Technologies Inc. 2012 10/18/2012 30
  • 32. Summary • The NetBorder SS7 Gateway is a cost effective and robust solution delivered in a compact 1U or 2U appliance. • It offers a good protocol coverage and feature set at the best price per port of the commercial market. • This product is perfectly suited for the carrier market in emerging markets where CAPEX budgets are tight. © Sangoma Technologies Inc. 2012 10/18/2012 32
