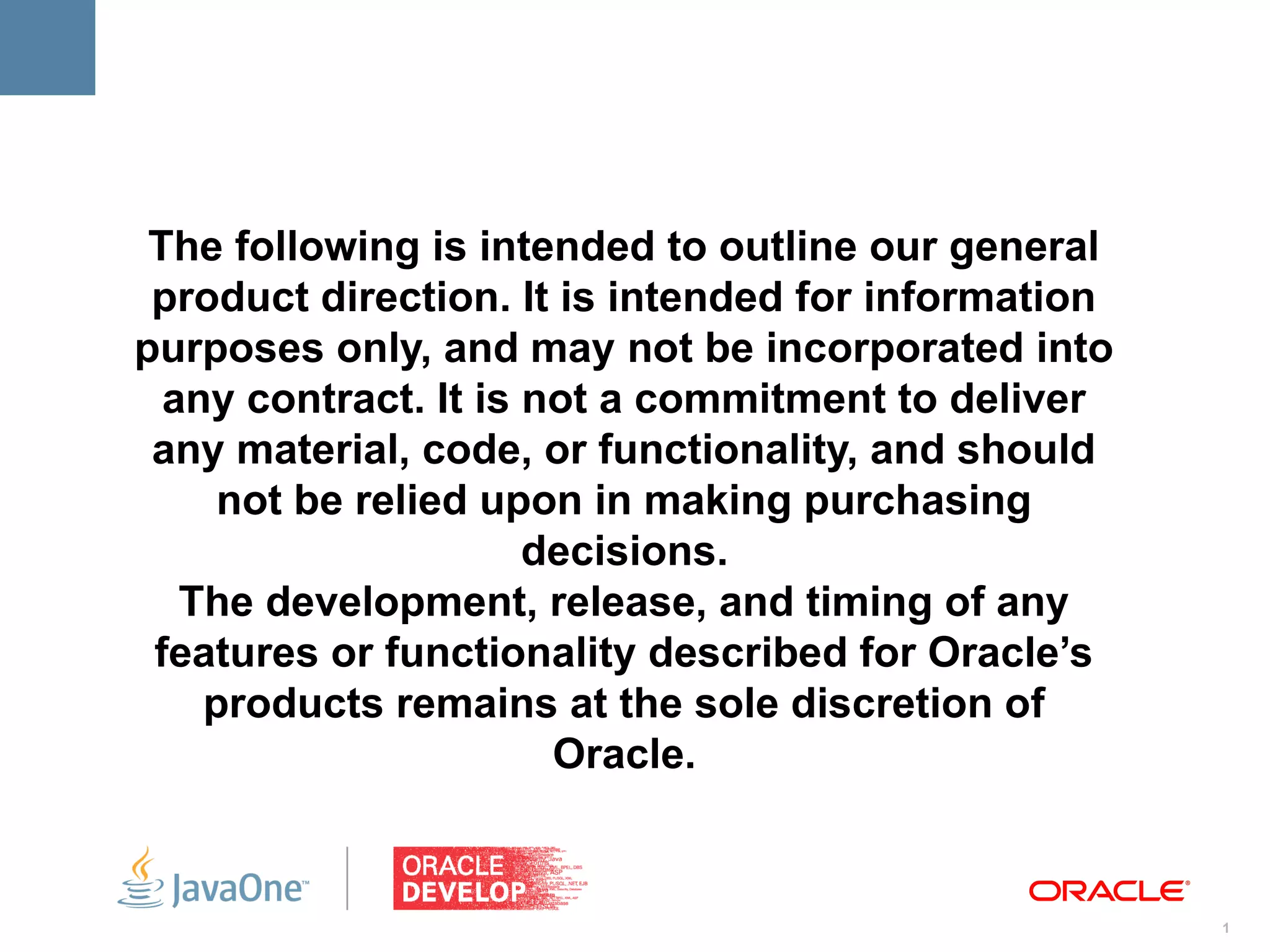

1. The following is intended to outline our general
product direction. It is intended for information
purposes only, and may not be incorporated into
any contract. It is not a commitment to deliver
any material, code, or functionality, and should
not be relied upon in making purchasing
decisions.
The development, release, and timing of any
features or functionality described for Oracle’s
products remains at the sole discretion of
Oracle.
1

2. <Insert Picture Here>
JavaTM Persistence API 2.0: An Overview
Ludovic Champenois
Architect – GlassFish, NetBeans, Eclipse

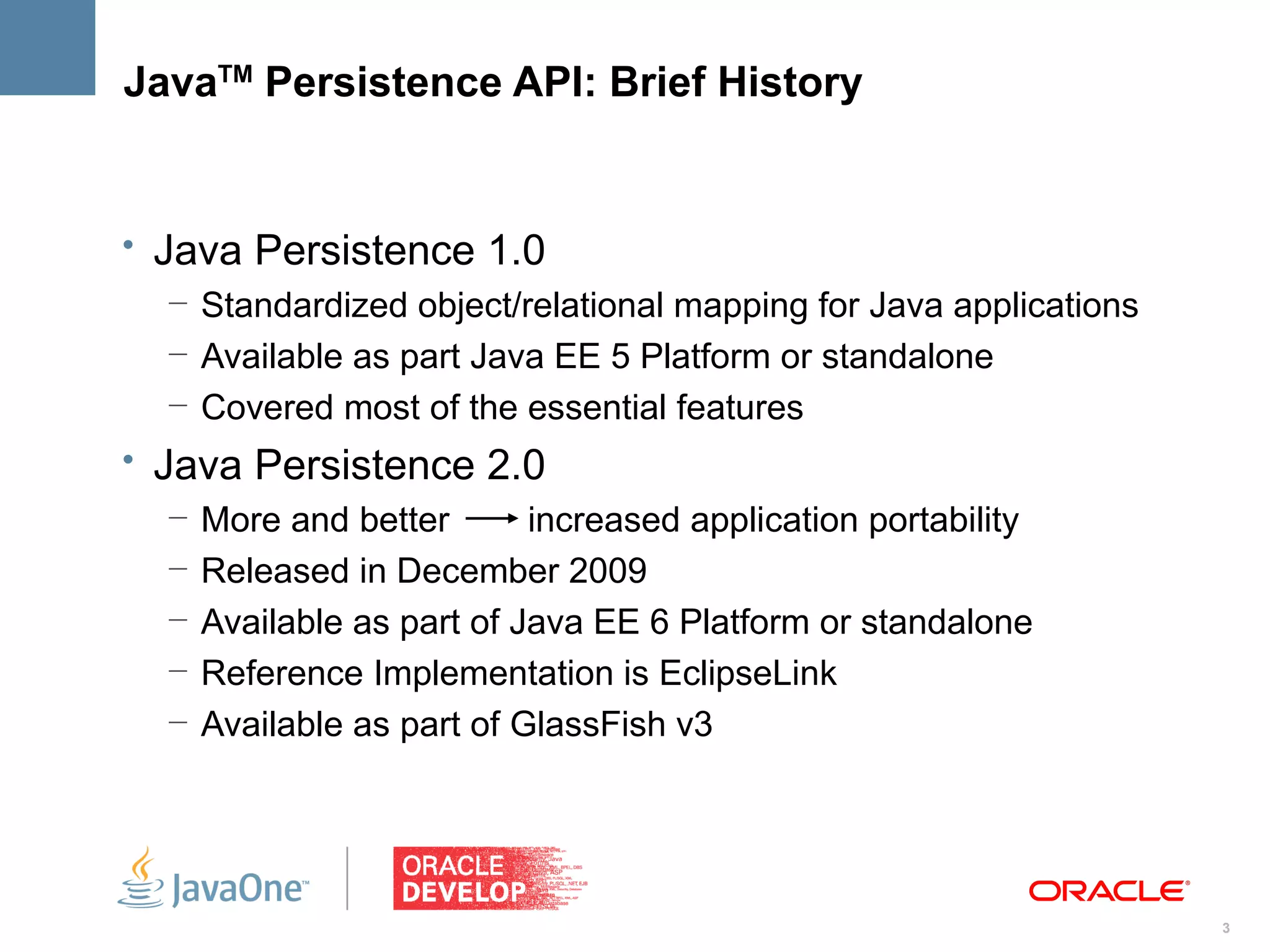

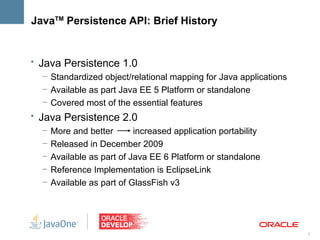

3. JavaTM Persistence API: Brief History
• Java Persistence 1.0
– Standardized object/relational mapping for Java applications
– Available as part Java EE 5 Platform or standalone
– Covered most of the essential features
• Java Persistence 2.0
– More and better increased application portability
– Released in December 2009
– Available as part of Java EE 6 Platform or standalone
– Reference Implementation is EclipseLink
– Available as part of GlassFish v3
3

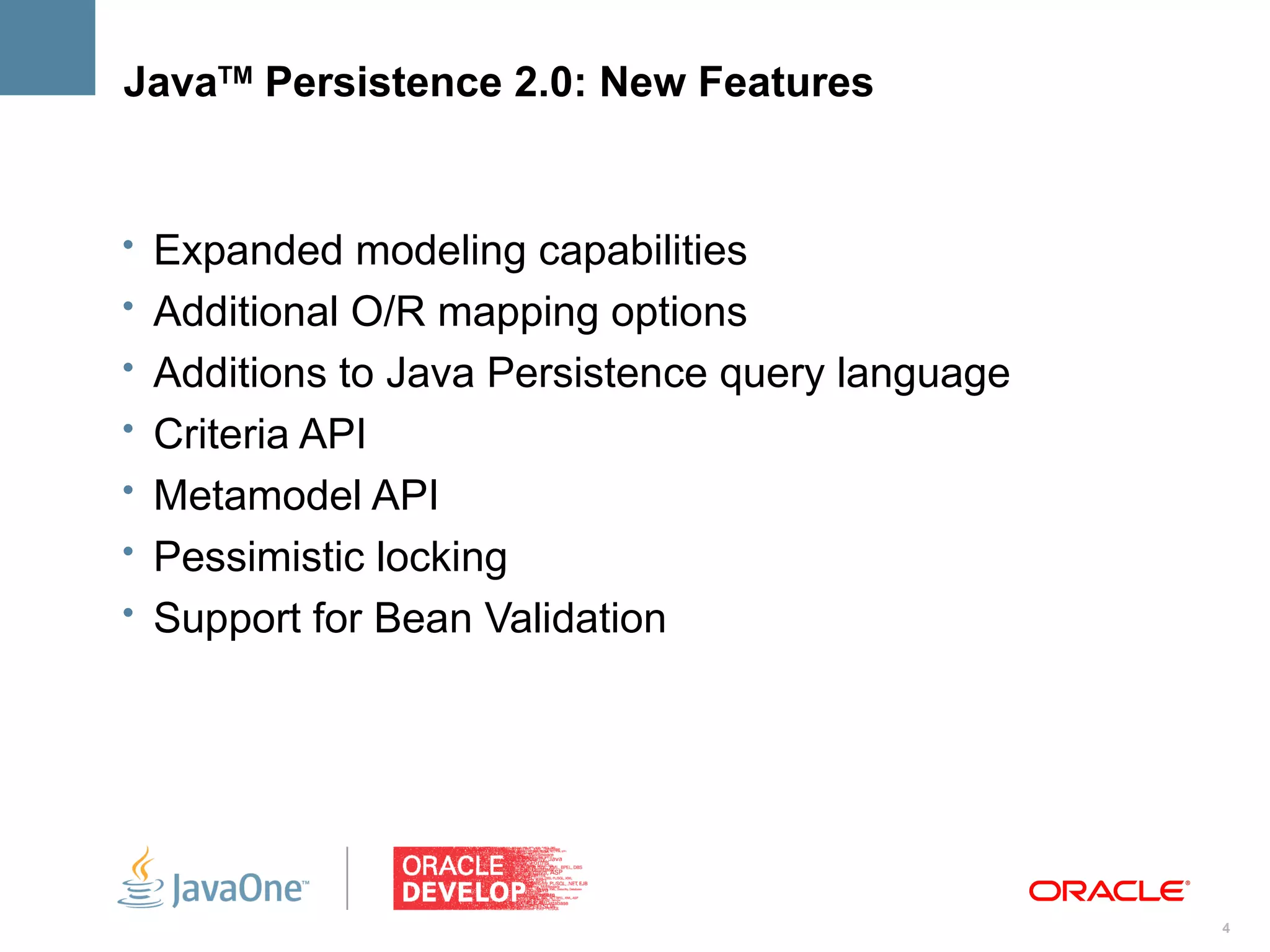

4. JavaTM Persistence 2.0: New Features
• Expanded modeling capabilities
• Additional O/R mapping options
• Additions to Java Persistence query language
• Criteria API
• Metamodel API
• Pessimistic locking
• Support for Bean Validation
4

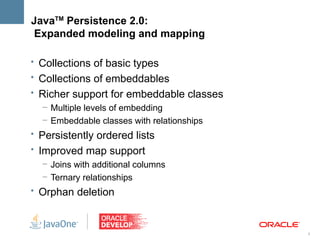

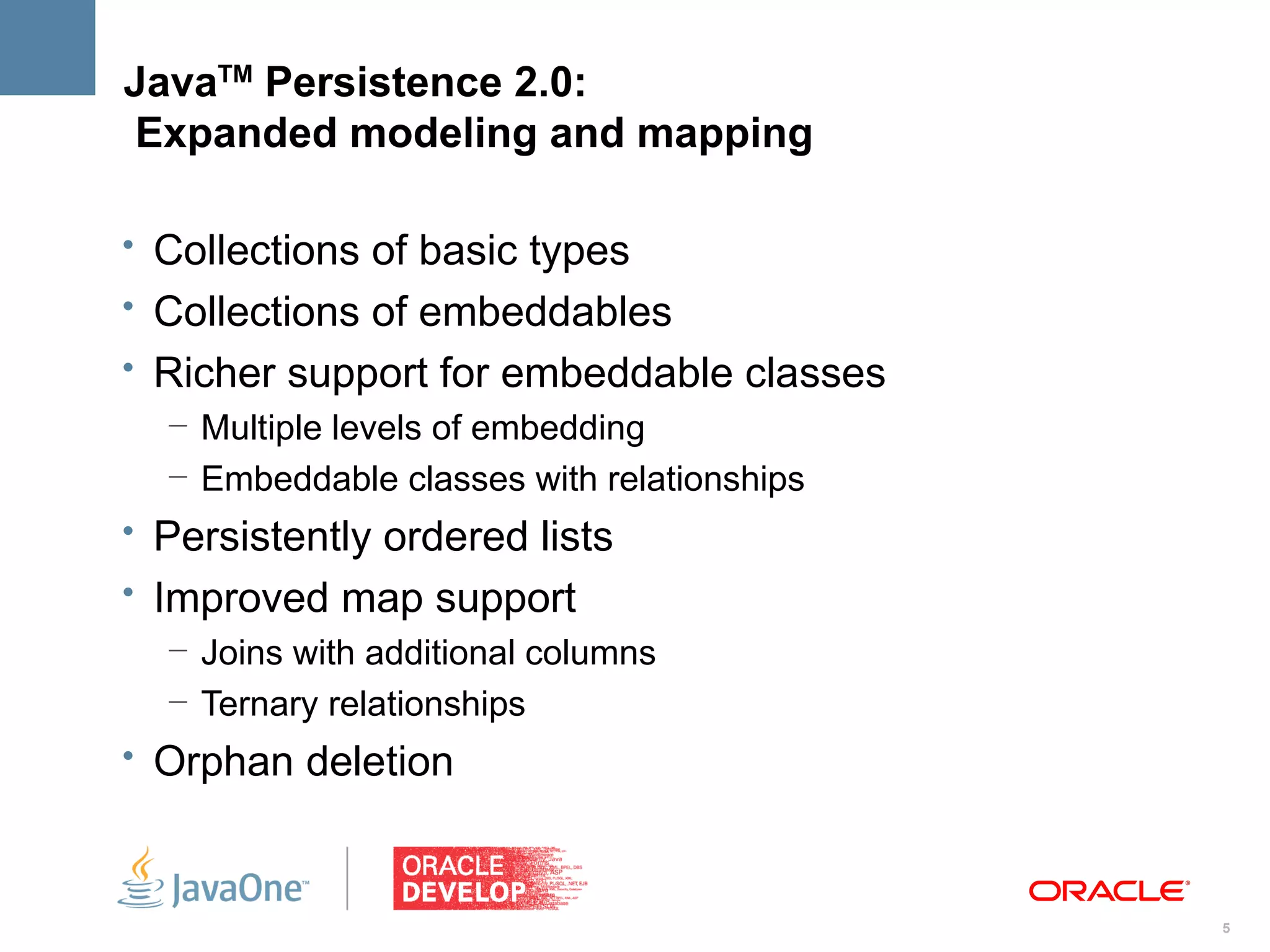

5. JavaTM Persistence 2.0:
Expanded modeling and mapping
• Collections of basic types
• Collections of embeddables
• Richer support for embeddable classes
– Multiple levels of embedding
– Embeddable classes with relationships
• Persistently ordered lists
• Improved map support
– Joins with additional columns
– Ternary relationships
• Orphan deletion
5

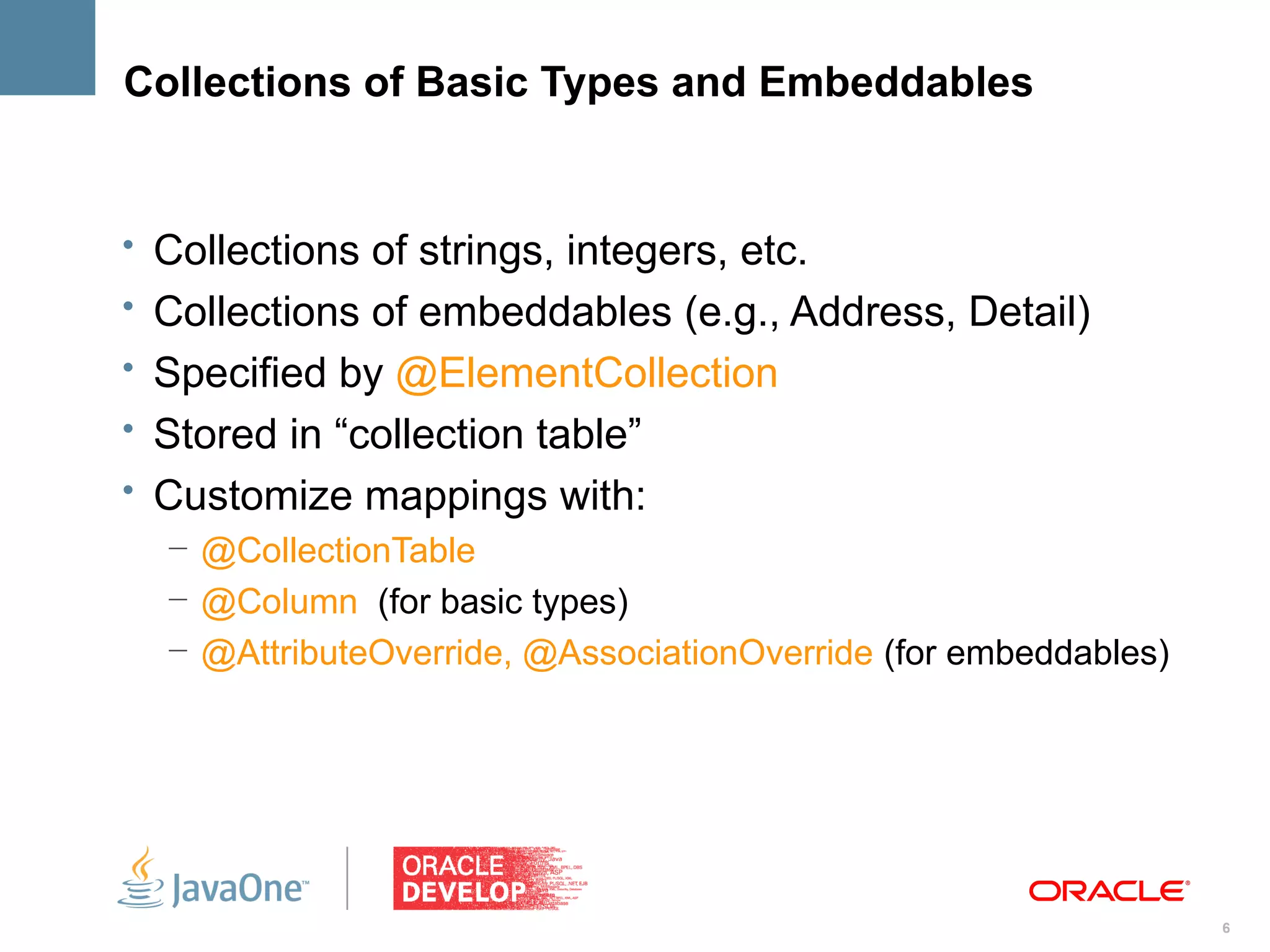

6. Collections of Basic Types and Embeddables
• Collections of strings, integers, etc.
• Collections of embeddables (e.g., Address, Detail)
• Specified by @ElementCollection
• Stored in “collection table”
• Customize mappings with:
– @CollectionTable
– @Column (for basic types)
– @AttributeOverride, @AssociationOverride (for embeddables)
6

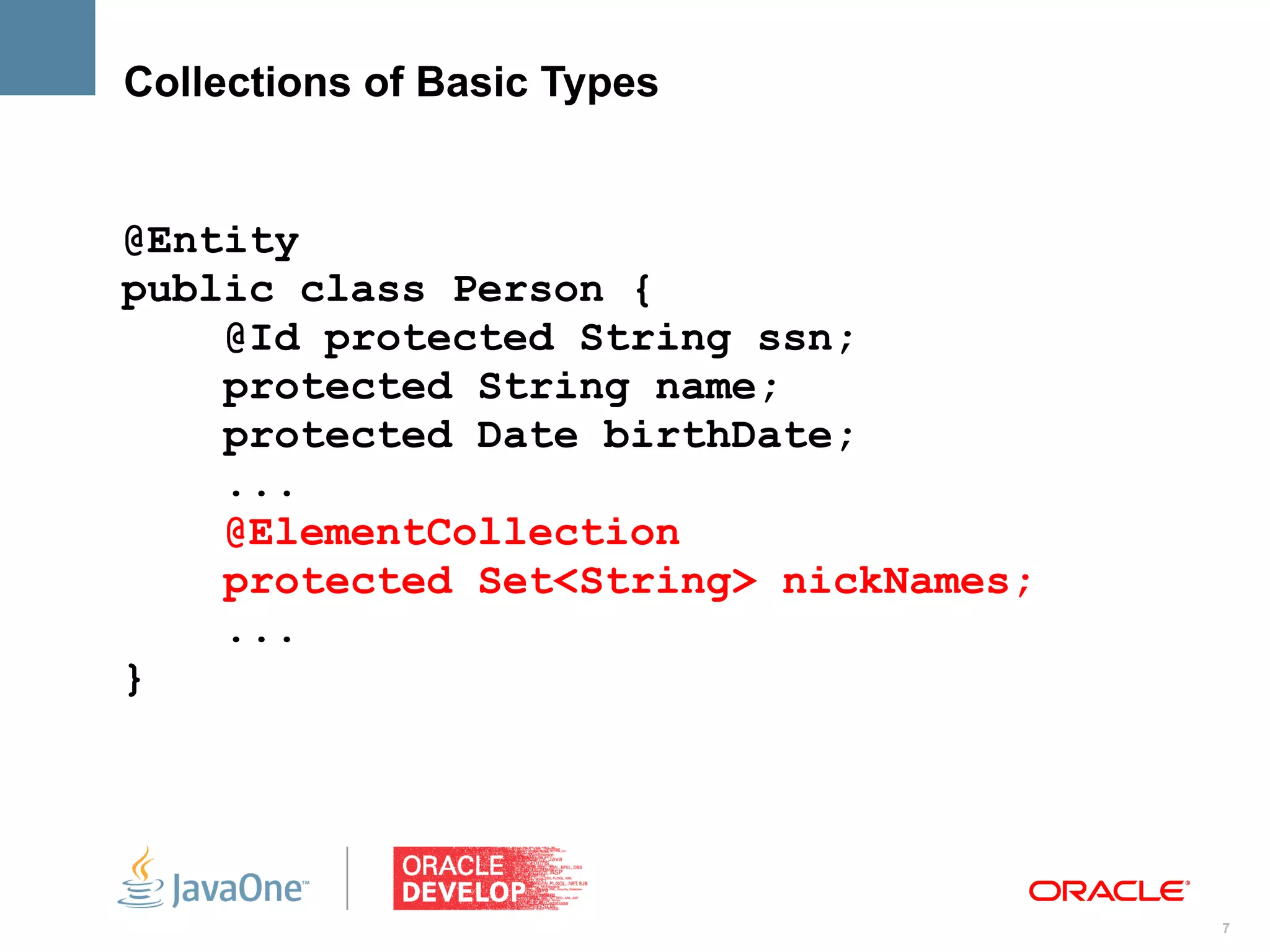

7. Collections of Basic Types
@Entity
public class Person {
@Id protected String ssn;
protected String name;
protected Date birthDate;
...
@ElementCollection
protected Set<String> nickNames;
...
}
7

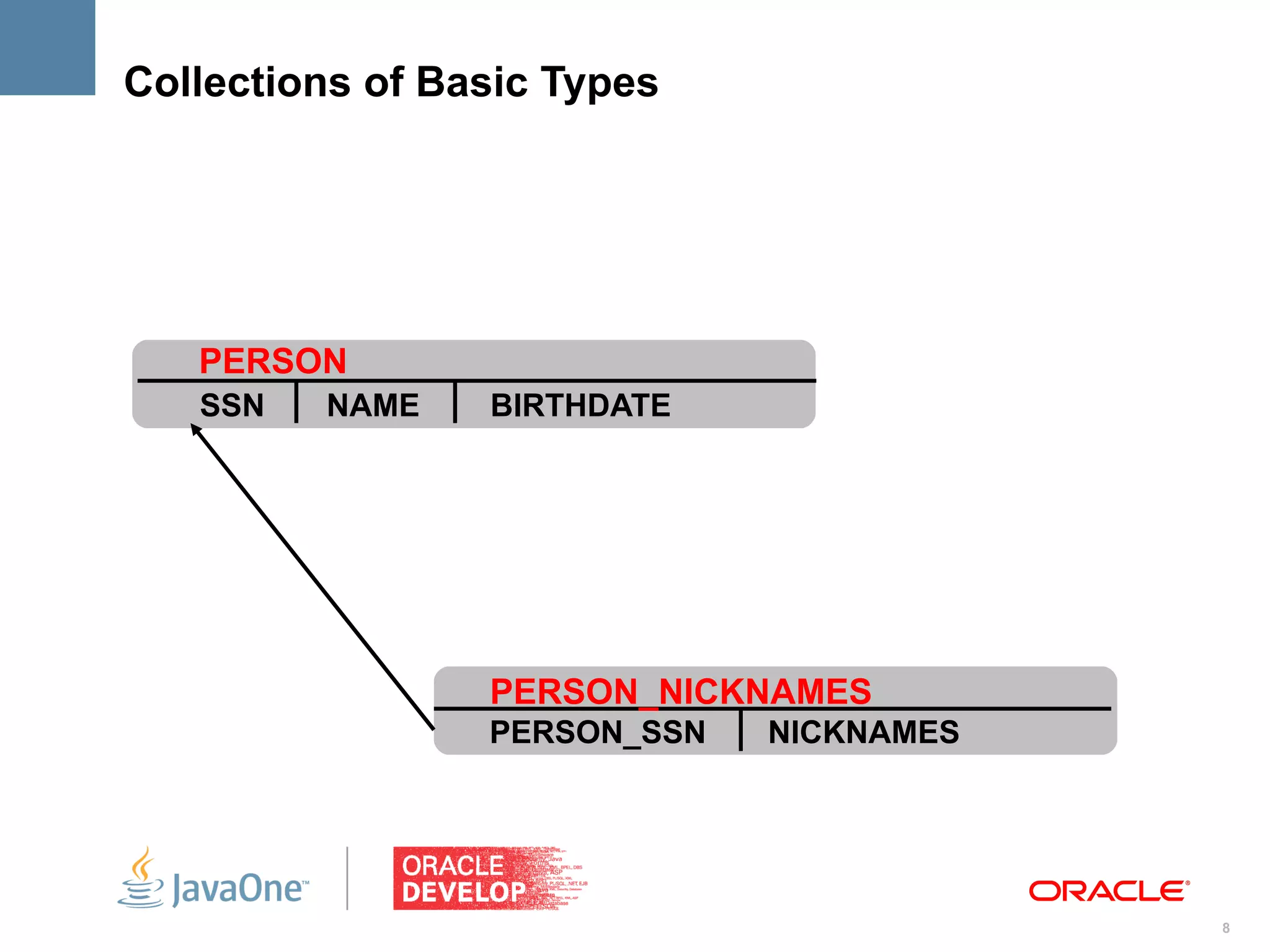

8. Collections of Basic Types
PERSON
SSN NAME BIRTHDATE
PERSON_NICKNAMES
PERSON_SSN NICKNAMES
8

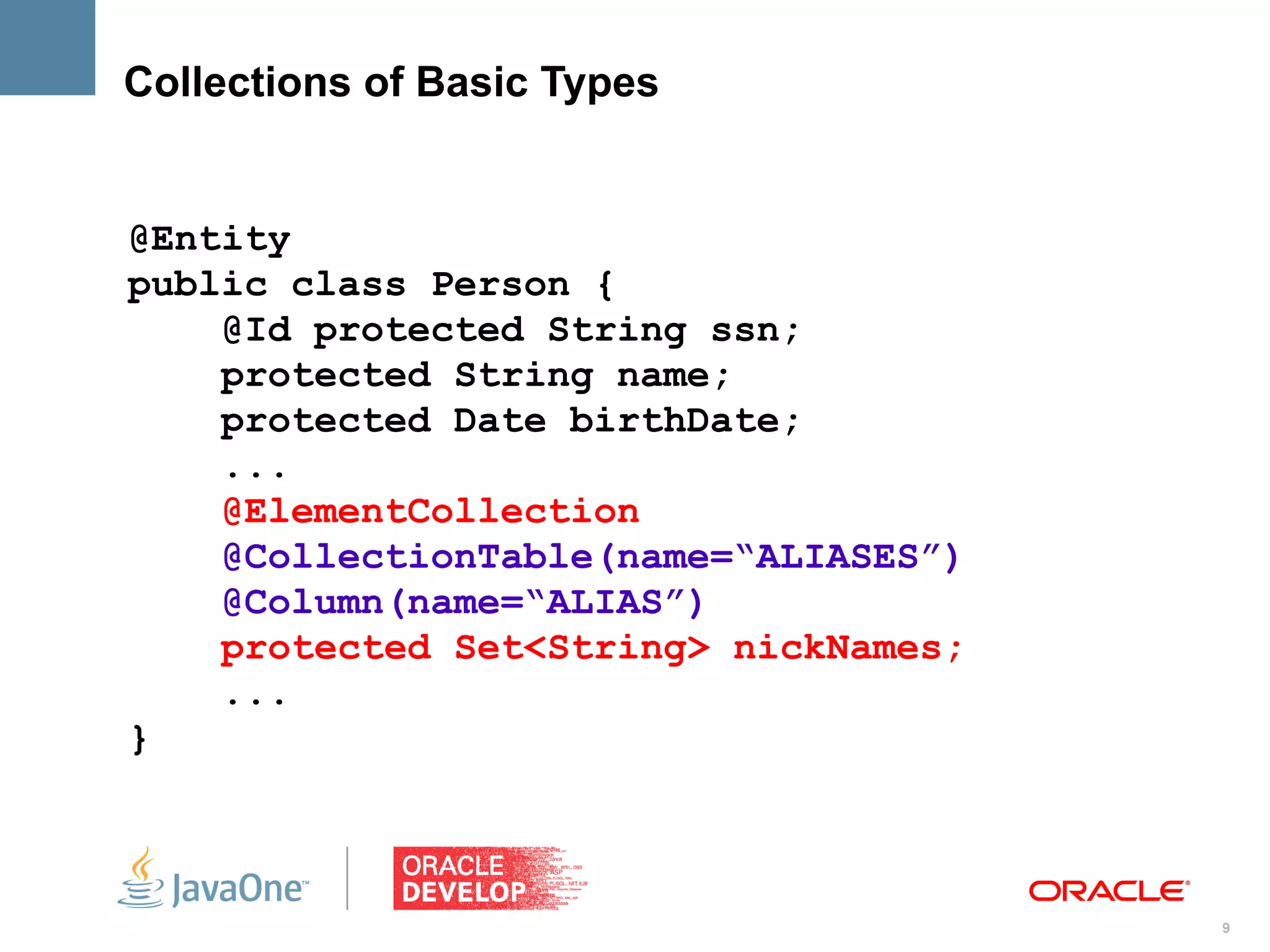

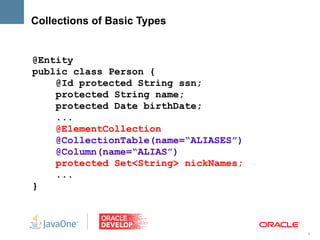

9. Collections of Basic Types
@Entity
public class Person {
@Id protected String ssn;
protected String name;
protected Date birthDate;
...
@ElementCollection
@CollectionTable(name=“ALIASES”)
@Column(name=“ALIAS”)
protected Set<String> nickNames;
...
}
9

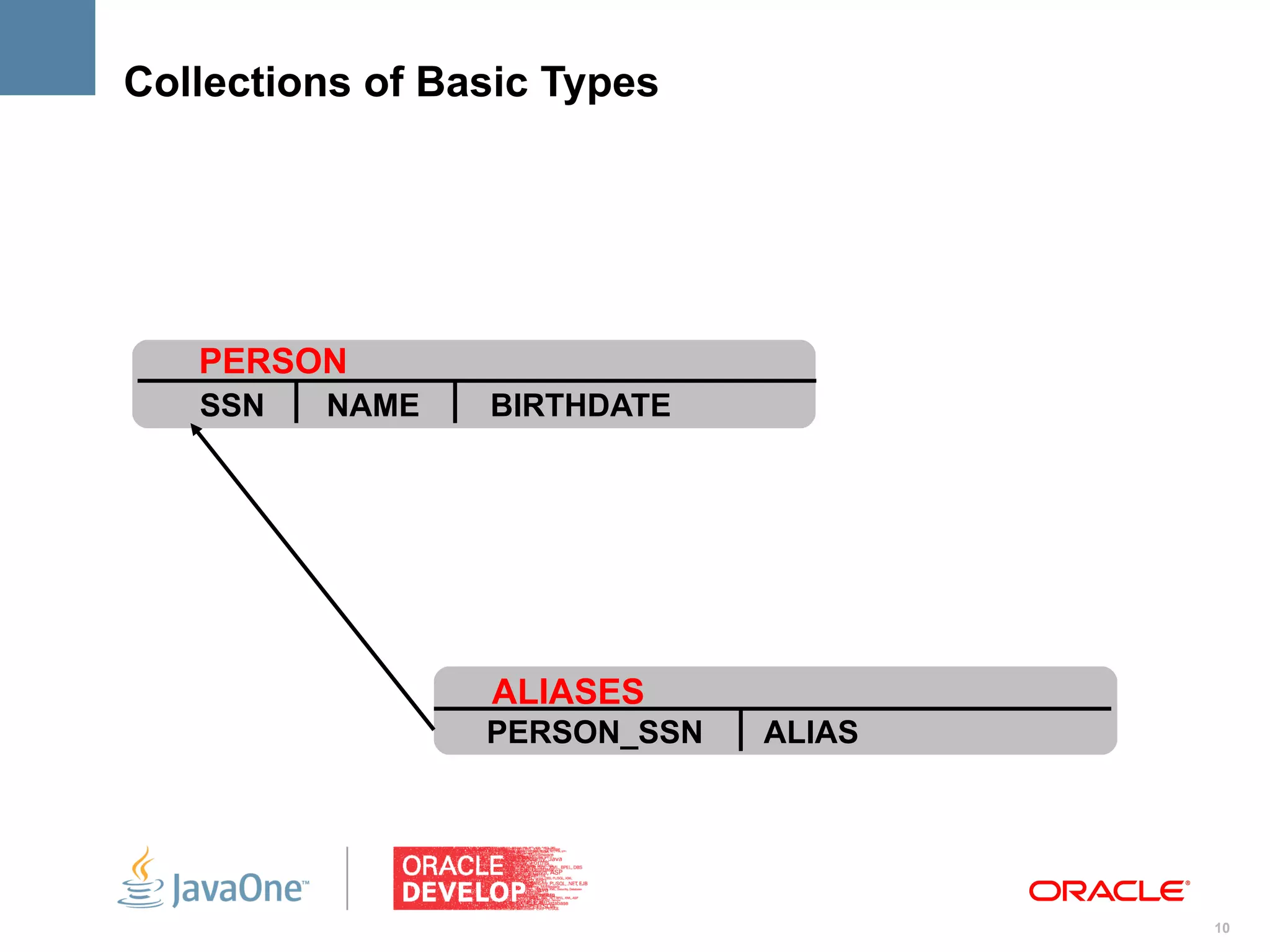

10. Collections of Basic Types
PERSON
SSN NAME BIRTHDATE
ALIASES
PERSON_SSN ALIAS
10

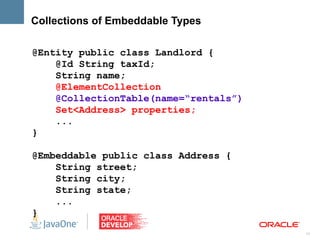

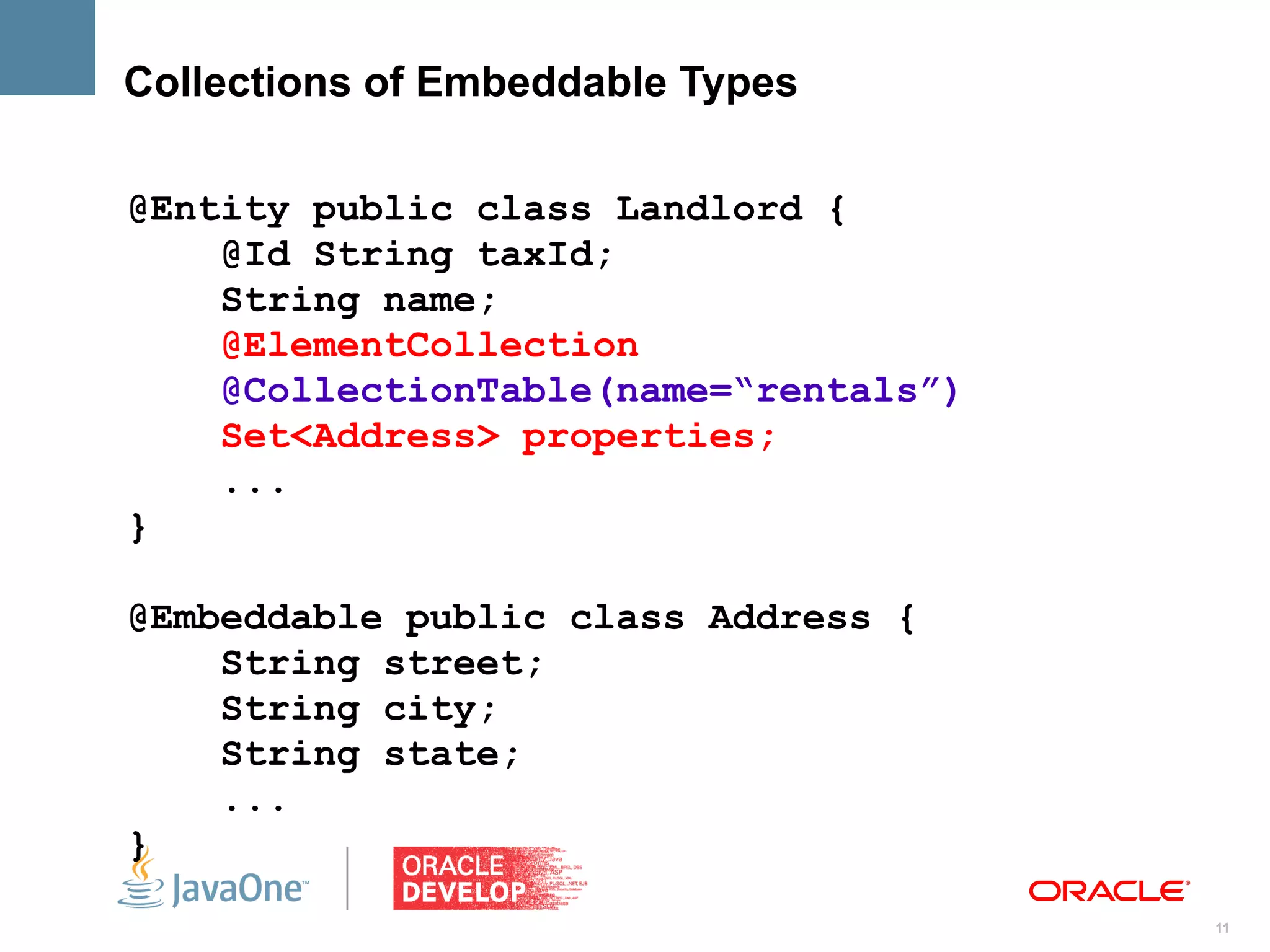

11. Collections of Embeddable Types
@Entity public class Landlord {
@Id String taxId;
String name;
@ElementCollection
@CollectionTable(name=“rentals”)
Set<Address> properties;
...
}
@Embeddable public class Address {
String street;
String city;
String state;
...
}
11

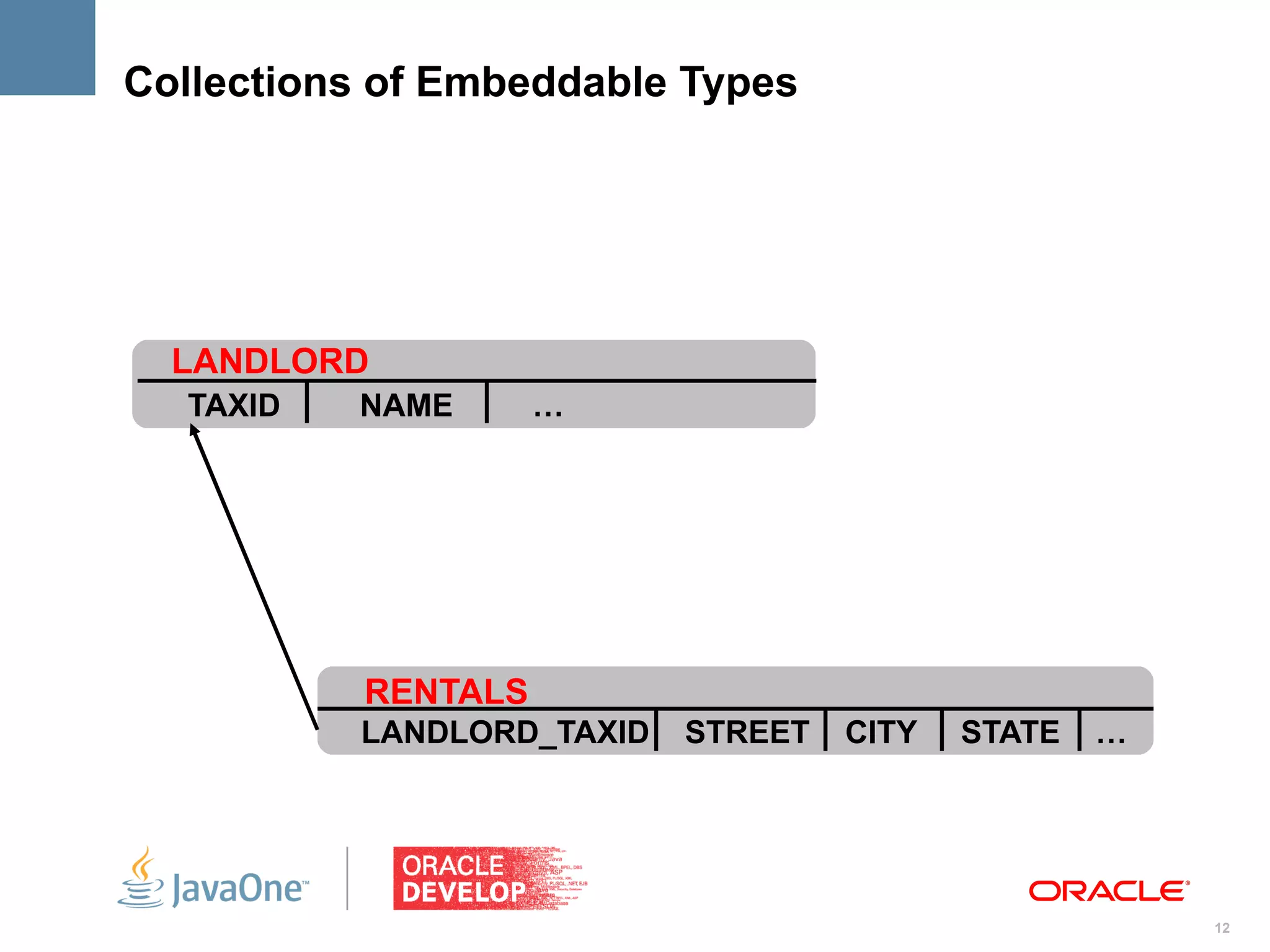

12. Collections of Embeddable Types
LANDLORD
TAXID NAME …
RENTALS
LANDLORD_TAXID STREET CITY STATE …
12

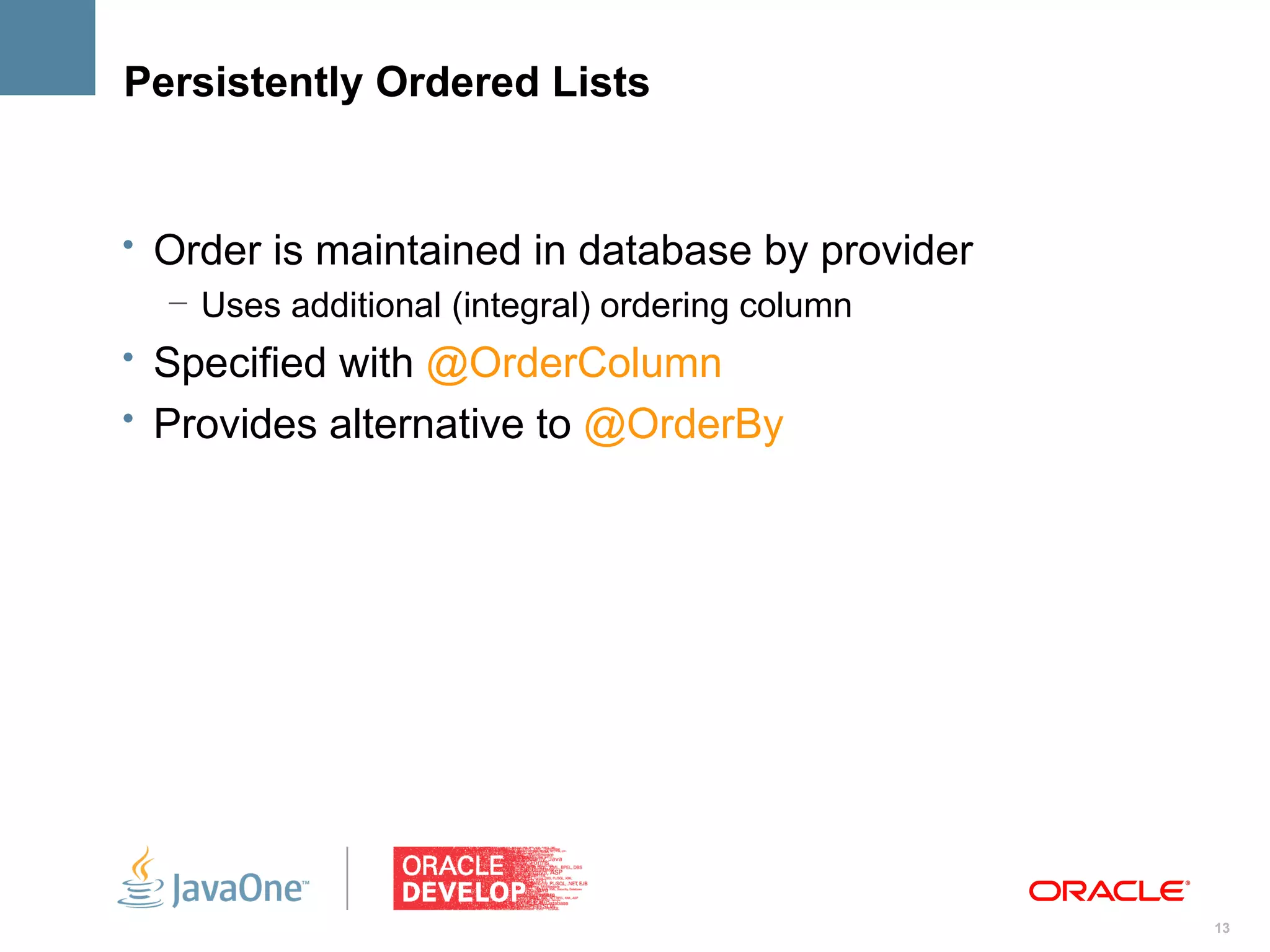

13. Persistently Ordered Lists
• Order is maintained in database by provider
– Uses additional (integral) ordering column
• Specified with @OrderColumn
• Provides alternative to @OrderBy
13

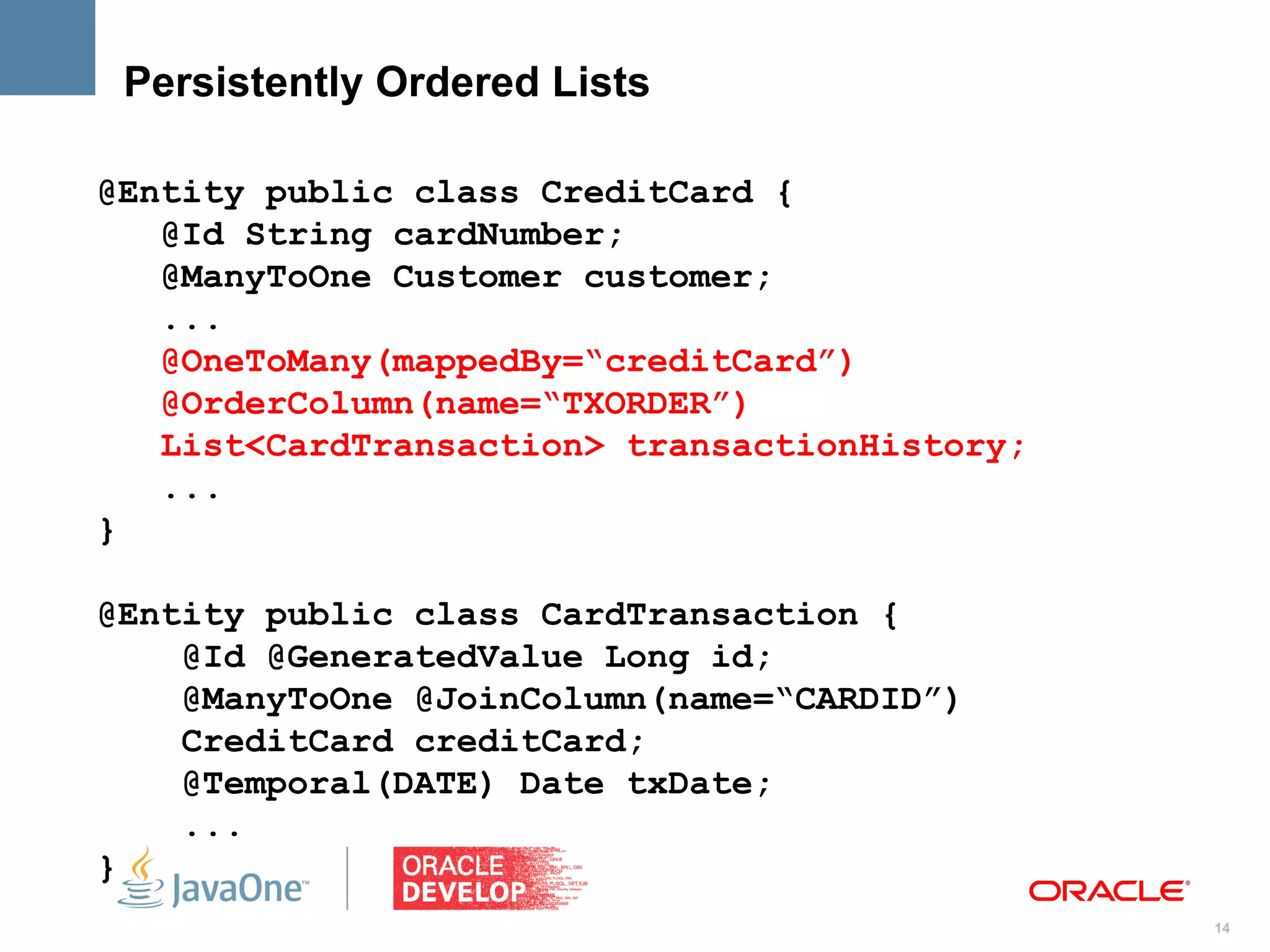

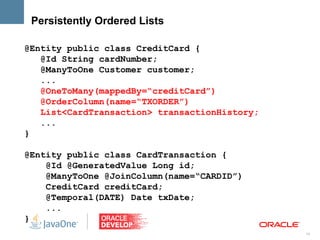

14. Persistently Ordered Lists
@Entity public class CreditCard {
@Id String cardNumber;
@ManyToOne Customer customer;
...
@OneToMany(mappedBy=“creditCard”)
@OrderColumn(name=“TXORDER”)
List<CardTransaction> transactionHistory;
...
}
@Entity public class CardTransaction {
@Id @GeneratedValue Long id;
@ManyToOne @JoinColumn(name=“CARDID”)
CreditCard creditCard;
@Temporal(DATE) Date txDate;
...
}
14

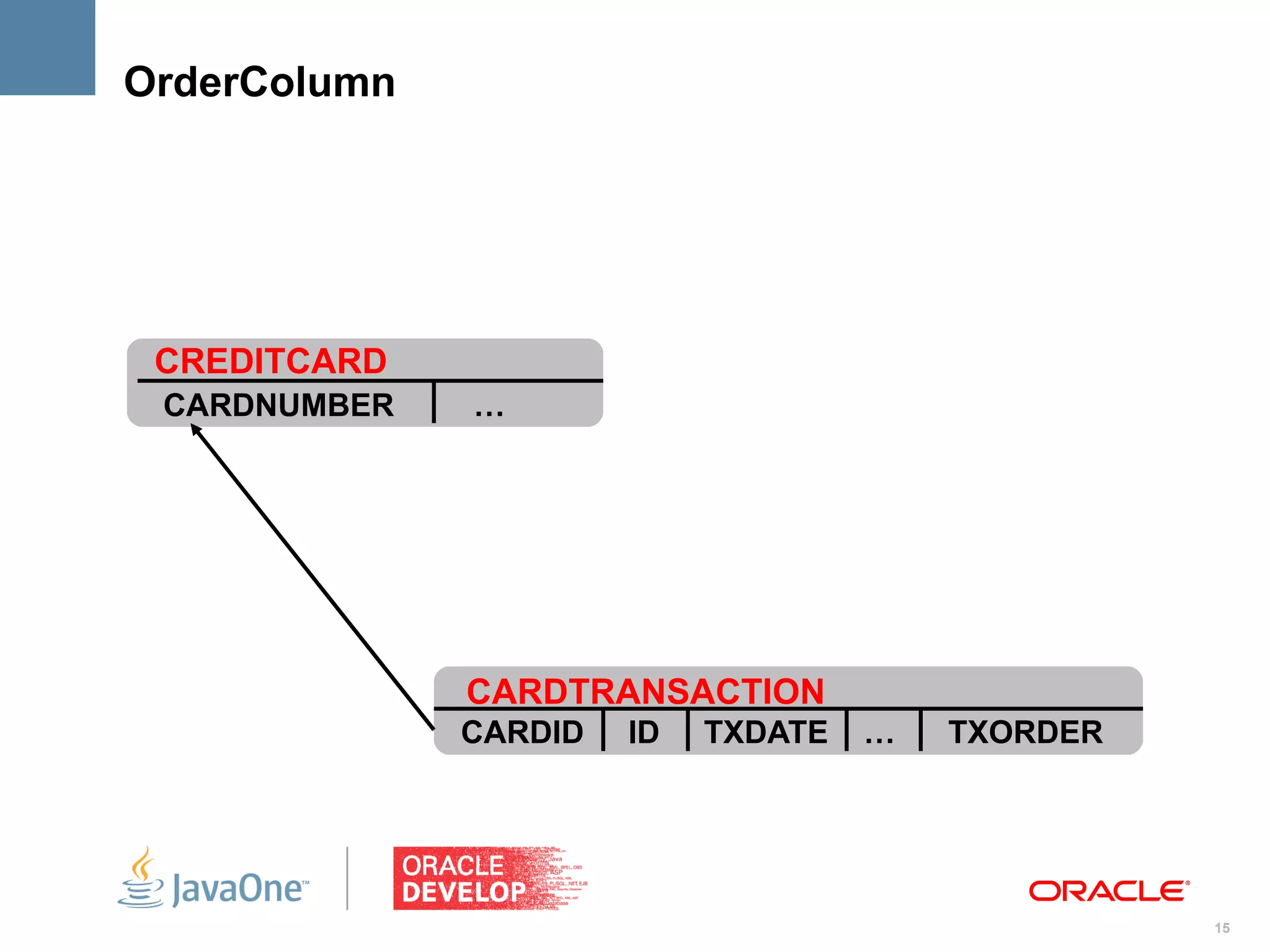

15. OrderColumn
CREDITCARD
CARDNUMBER …
CARDTRANSACTION
CARDID ID TXDATE … TXORDER
15

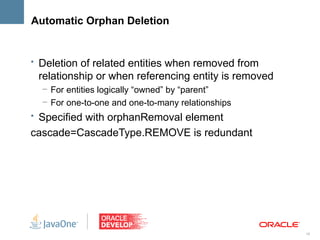

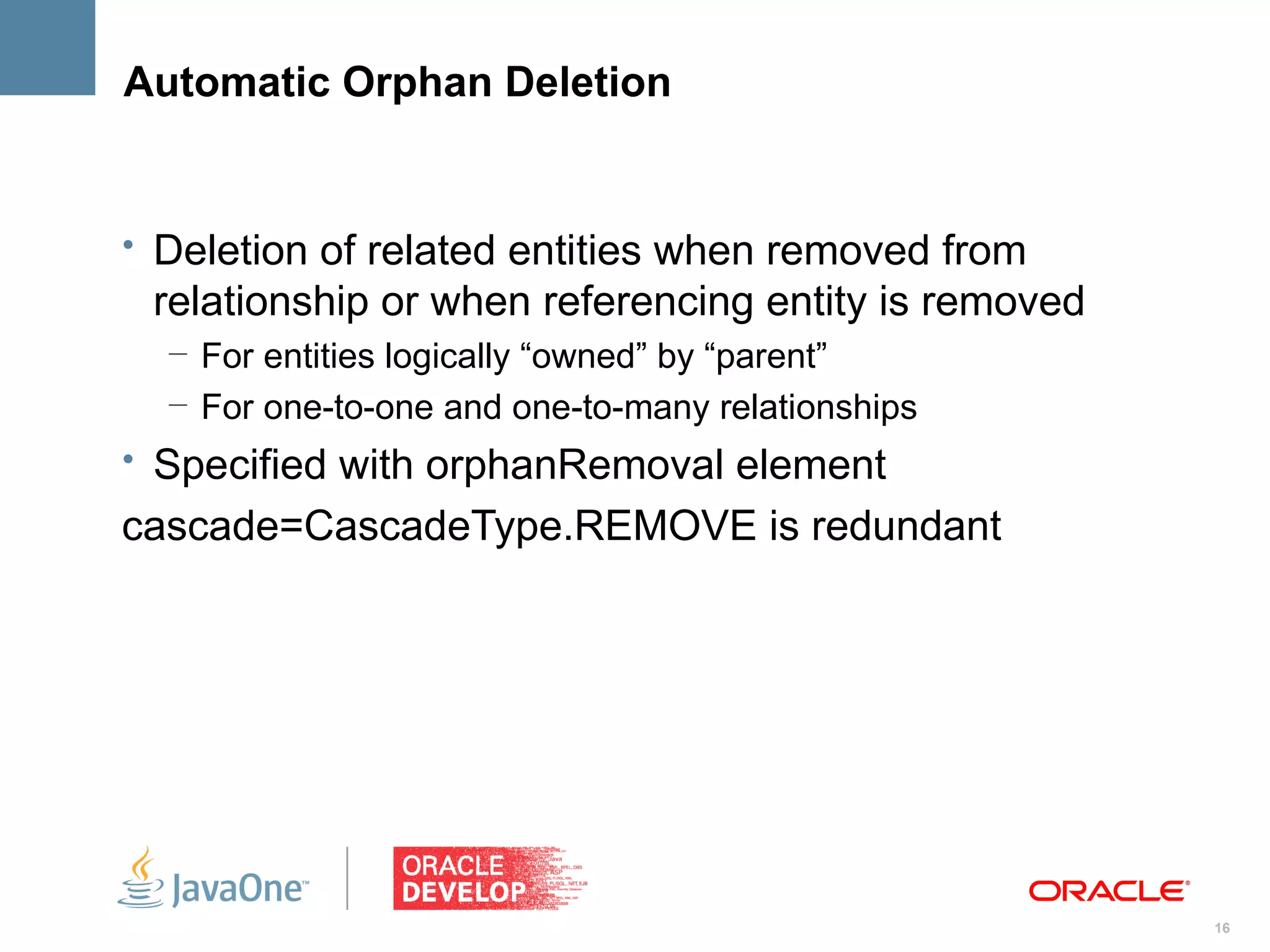

16. Automatic Orphan Deletion
• Deletion of related entities when removed from
relationship or when referencing entity is removed
– For entities logically “owned” by “parent”
– For one-to-one and one-to-many relationships
• Specified with orphanRemoval element
cascade=CascadeType.REMOVE is redundant
16

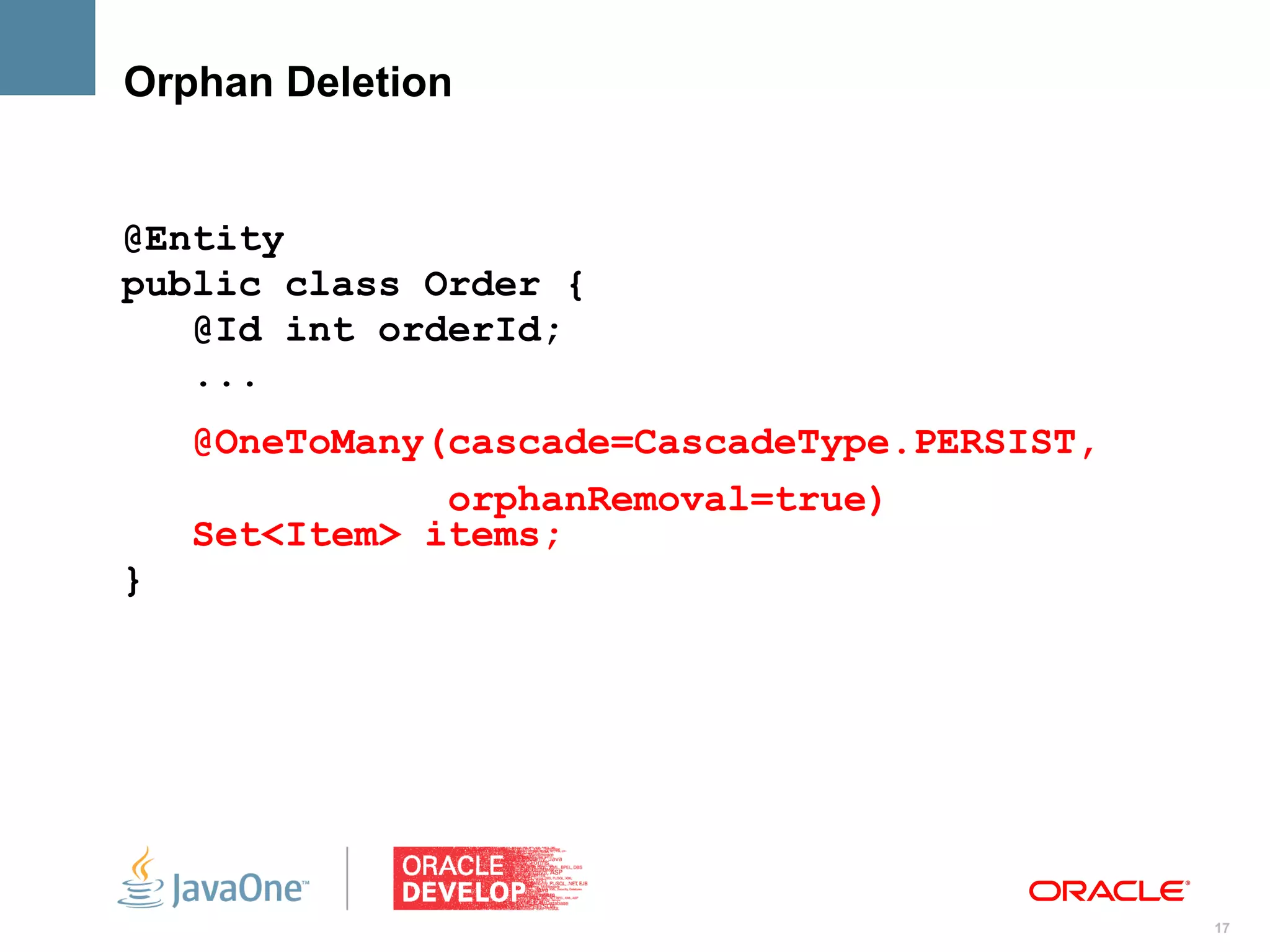

17. Orphan Deletion
@Entity
public class Order {
@Id int orderId;
...
@OneToMany(cascade=CascadeType.PERSIST,
orphanRemoval=true)
Set<Item> items;
}
17

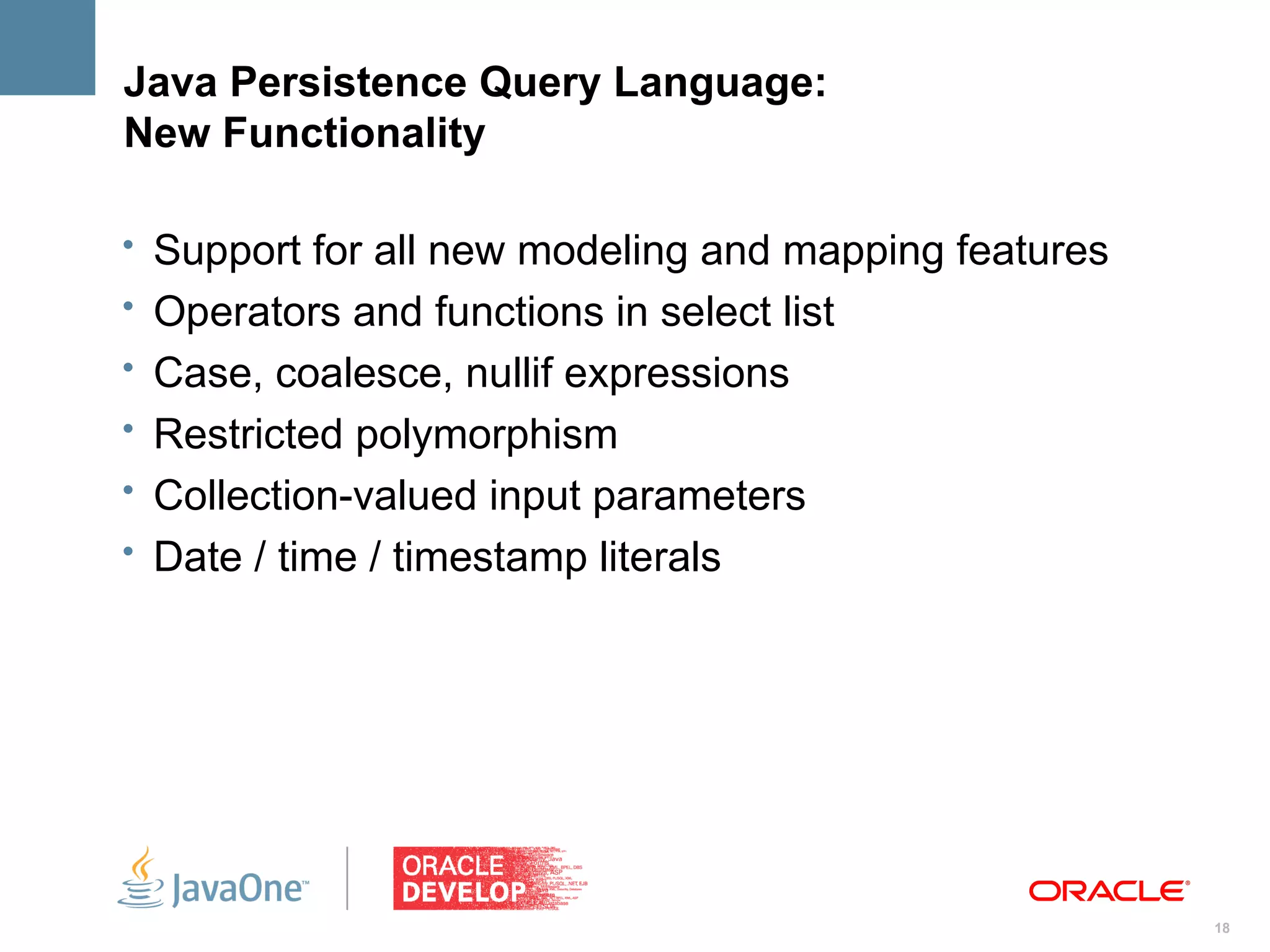

18. Java Persistence Query Language:
New Functionality
• Support for all new modeling and mapping features
• Operators and functions in select list
• Case, coalesce, nullif expressions
• Restricted polymorphism
• Collection-valued input parameters
• Date / time / timestamp literals
18

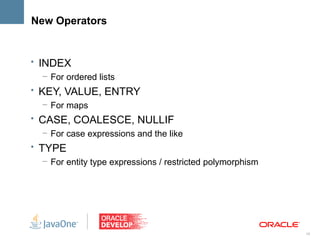

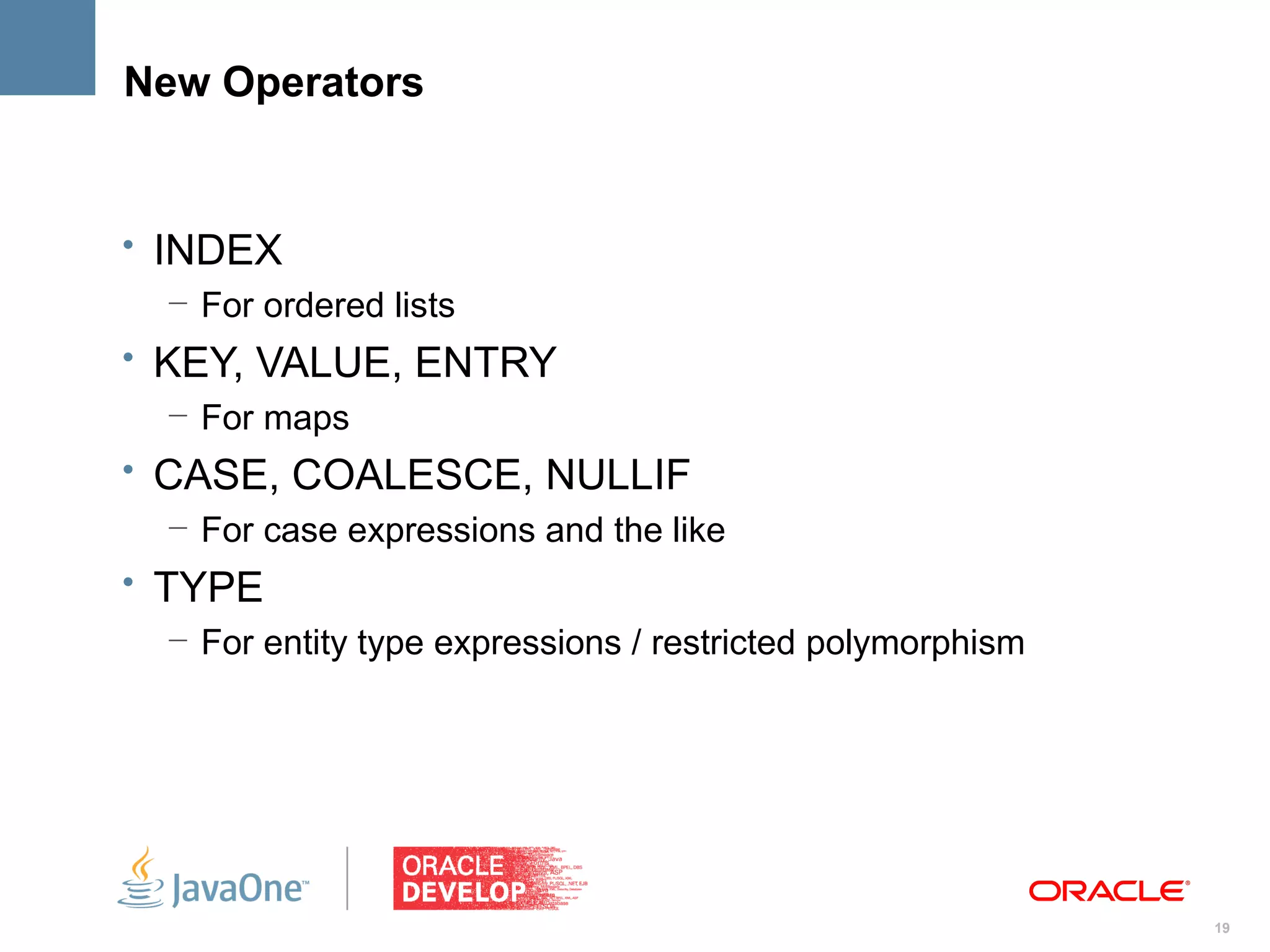

19. New Operators
• INDEX
– For ordered lists
• KEY, VALUE, ENTRY
– For maps
• CASE, COALESCE, NULLIF
– For case expressions and the like
• TYPE
– For entity type expressions / restricted polymorphism
19

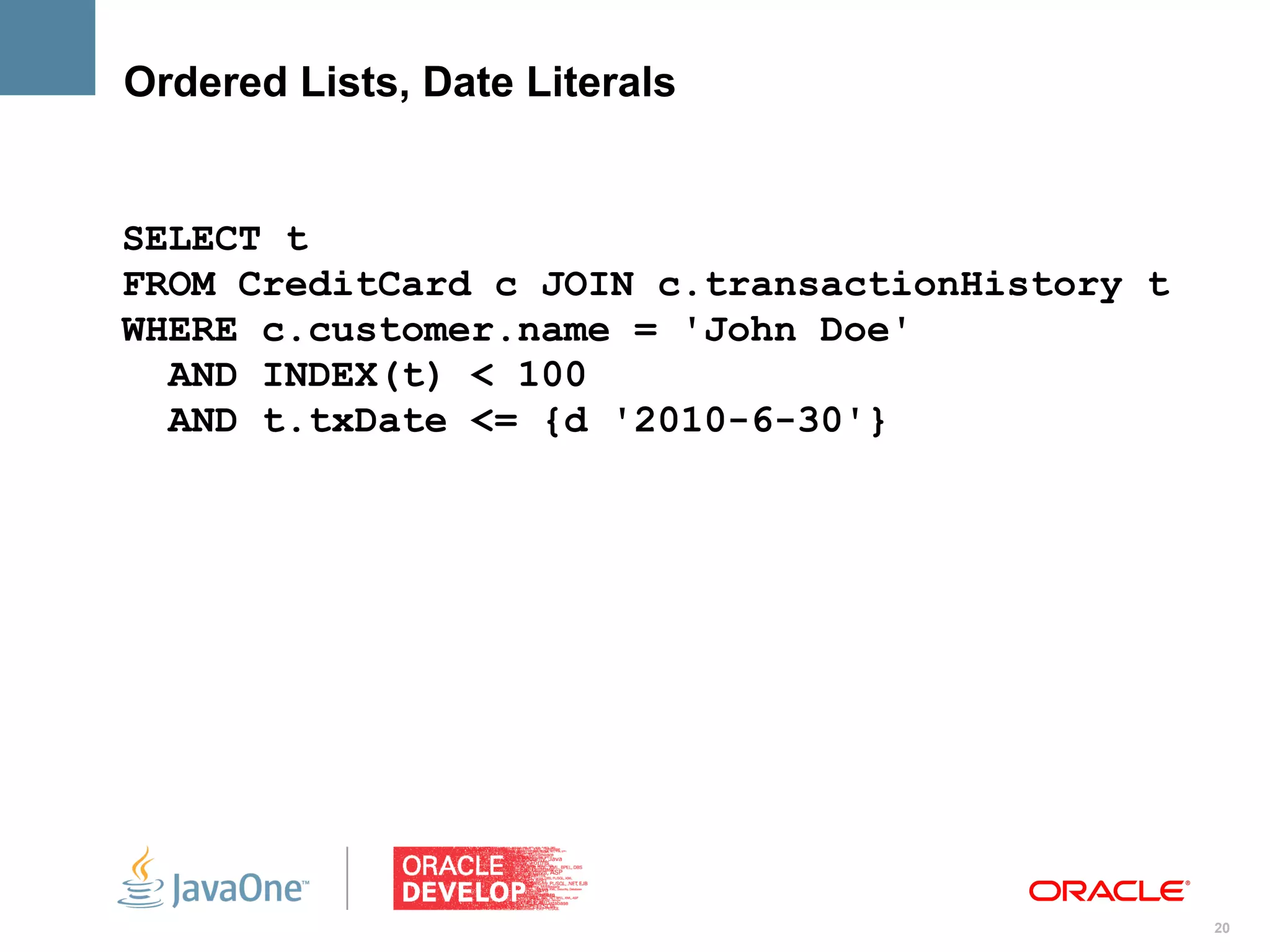

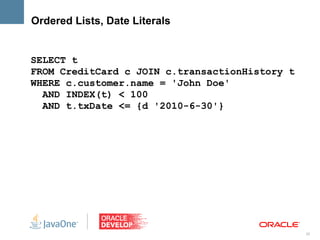

20. Ordered Lists, Date Literals
SELECT t
FROM CreditCard c JOIN c.transactionHistory t
WHERE c.customer.name = 'John Doe'
AND INDEX(t) < 100
AND t.txDate <= {d '2010-6-30'}
20

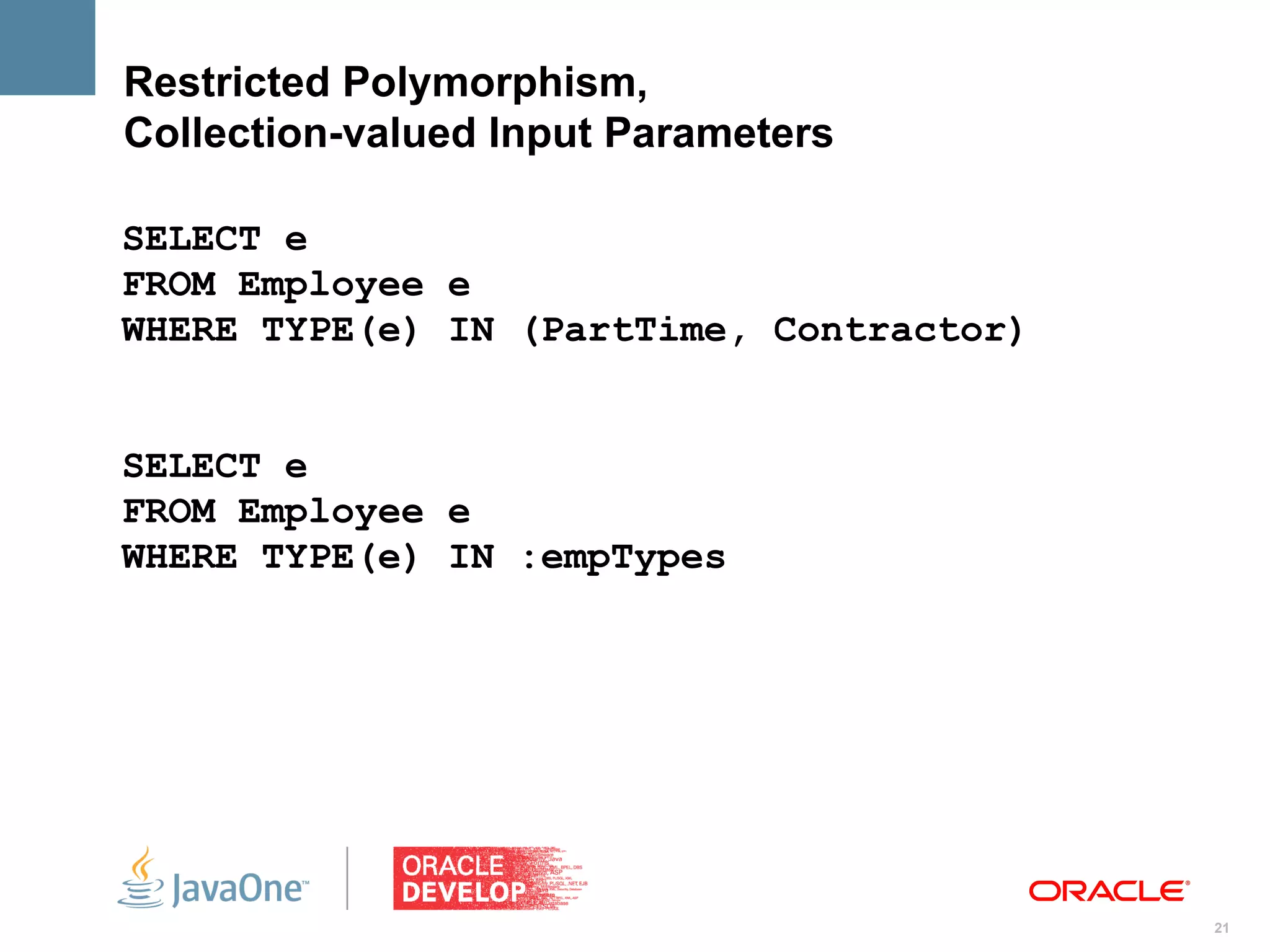

21. Restricted Polymorphism,
Collection-valued Input Parameters
SELECT e
FROM Employee e
WHERE TYPE(e) IN (PartTime, Contractor)
SELECT e
FROM Employee e
WHERE TYPE(e) IN :empTypes
21

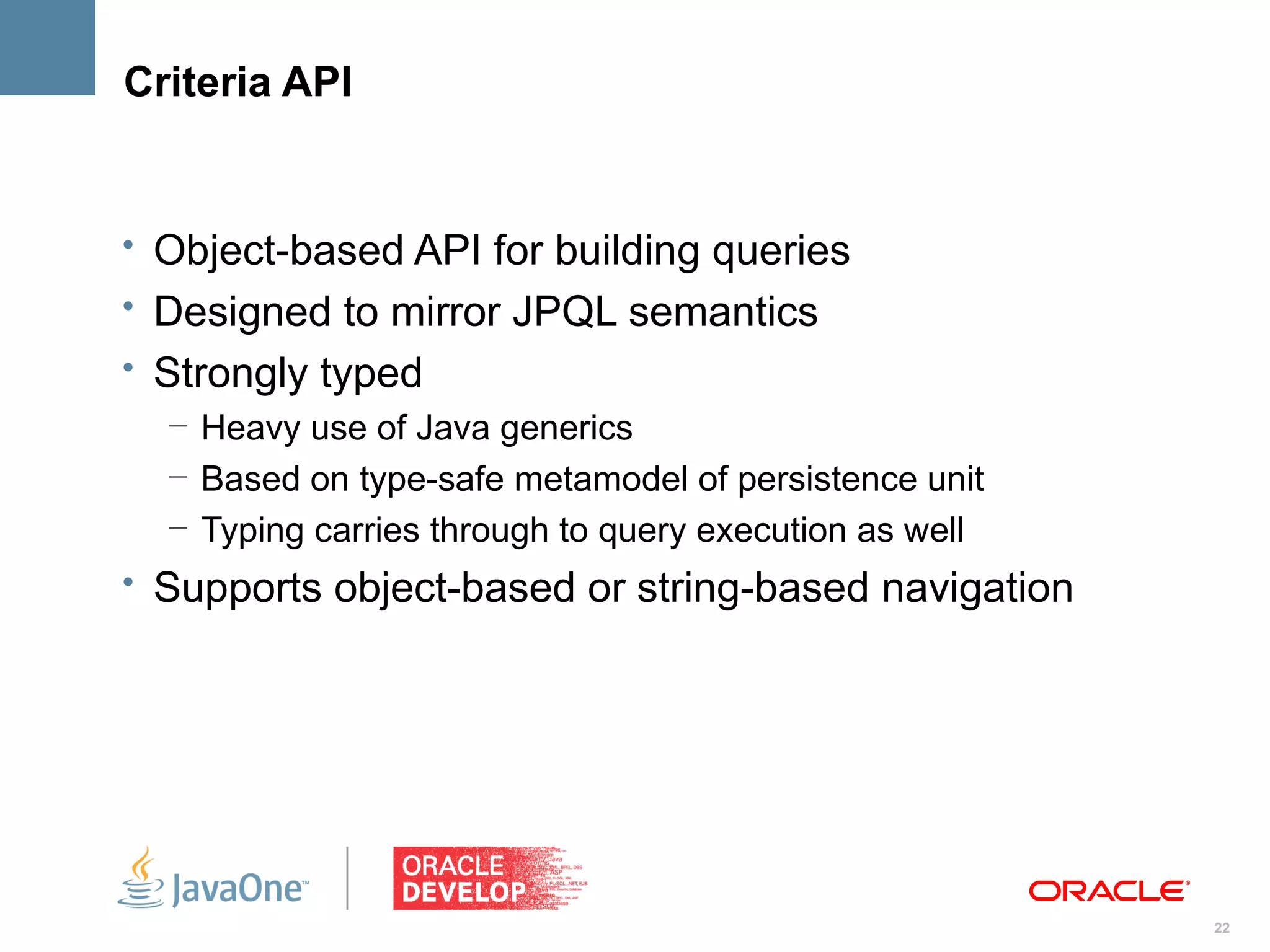

22. Criteria API
• Object-based API for building queries
• Designed to mirror JPQL semantics
• Strongly typed
– Heavy use of Java generics
– Based on type-safe metamodel of persistence unit
– Typing carries through to query execution as well
• Supports object-based or string-based navigation
22

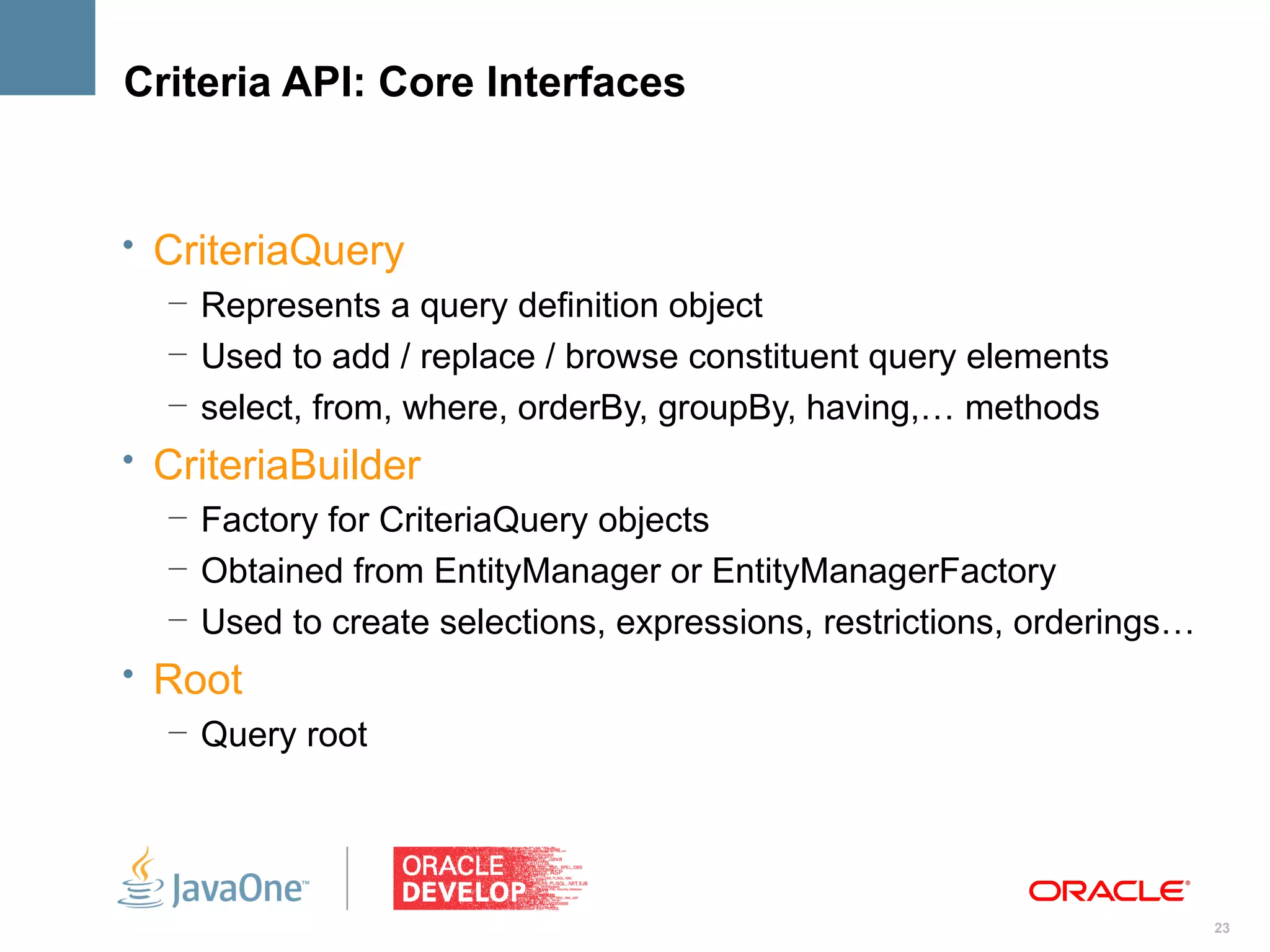

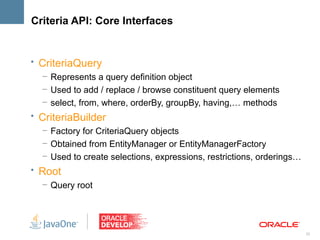

23. Criteria API: Core Interfaces
• CriteriaQuery
– Represents a query definition object
– Used to add / replace / browse constituent query elements
– select, from, where, orderBy, groupBy, having,… methods
• CriteriaBuilder
– Factory for CriteriaQuery objects
– Obtained from EntityManager or EntityManagerFactory
– Used to create selections, expressions, restrictions, orderings…
• Root
– Query root
23

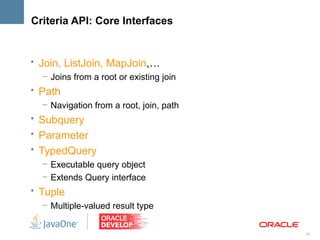

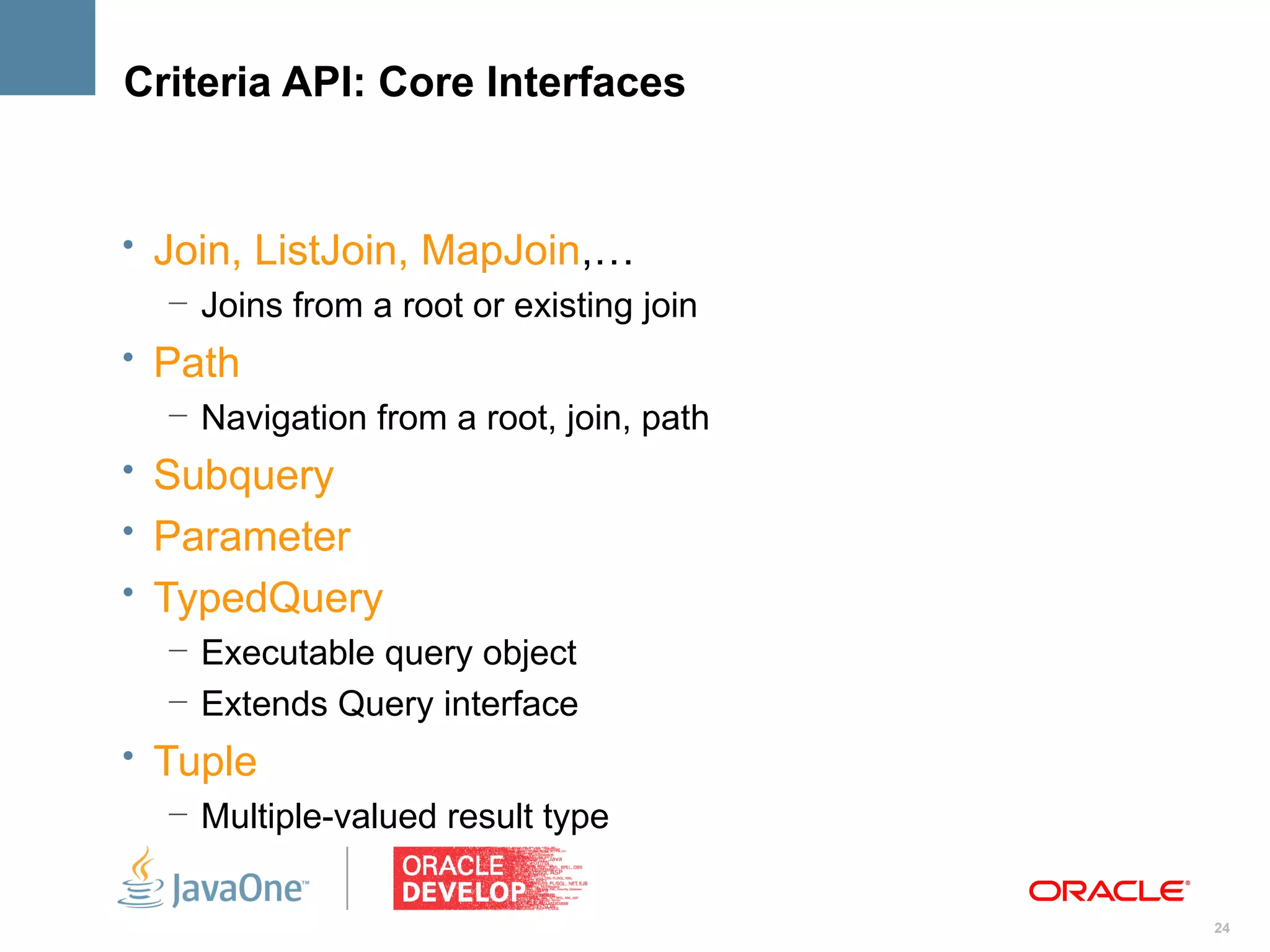

24. Criteria API: Core Interfaces
• Join, ListJoin, MapJoin,…
– Joins from a root or existing join
• Path
– Navigation from a root, join, path
• Subquery
• Parameter
• TypedQuery
– Executable query object
– Extends Query interface
• Tuple
– Multiple-valued result type
24

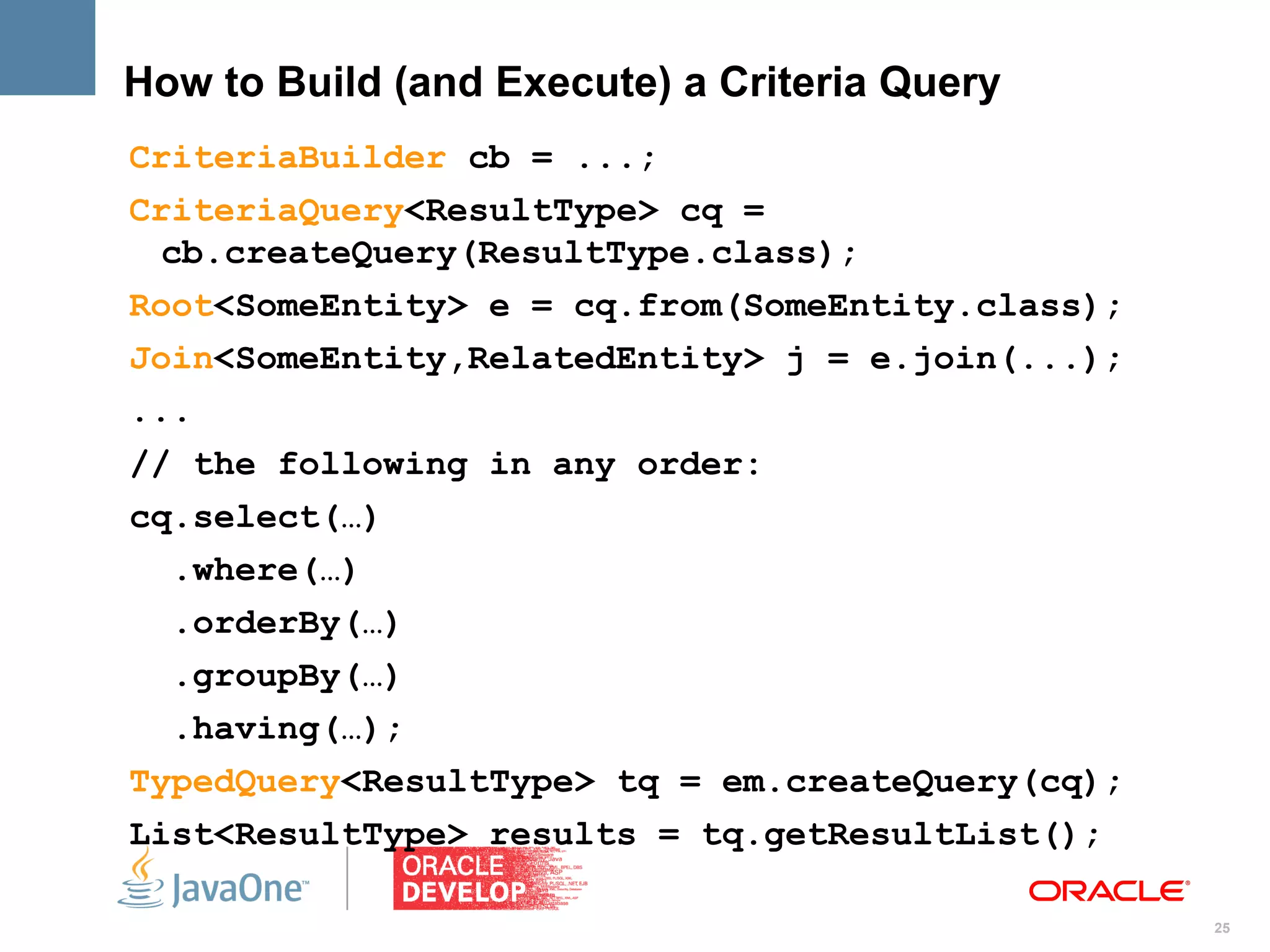

25. How to Build (and Execute) a Criteria Query
CriteriaBuilder cb = ...;
CriteriaQuery<ResultType> cq =
cb.createQuery(ResultType.class);
Root<SomeEntity> e = cq.from(SomeEntity.class);
Join<SomeEntity,RelatedEntity> j = e.join(...);
...
// the following in any order:
cq.select(…)
.where(…)
.orderBy(…)
.groupBy(…)
.having(…);
TypedQuery<ResultType> tq = em.createQuery(cq);
List<ResultType> results = tq.getResultList();
25

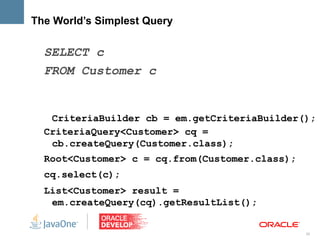

26. The World’s Simplest Query
SELECT c
FROM Customer c
CriteriaBuilder cb = em.getCriteriaBuilder();
CriteriaQuery<Customer> cq =
cb.createQuery(Customer.class);
Root<Customer> c = cq.from(Customer.class);
cq.select(c);
List<Customer> result =
em.createQuery(cq).getResultList();
26

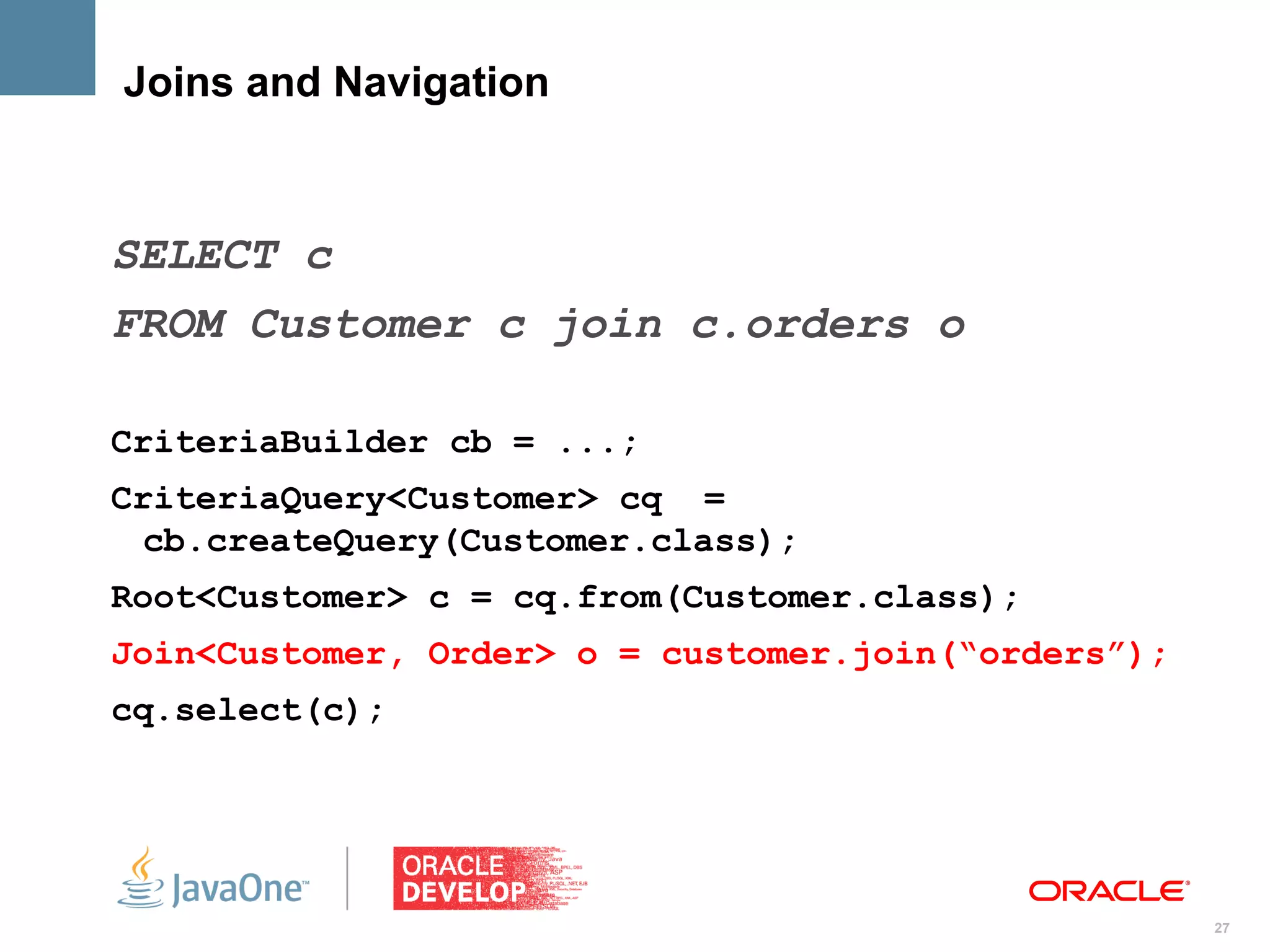

27. Joins and Navigation
SELECT c
FROM Customer c join c.orders o
CriteriaBuilder cb = ...;
CriteriaQuery<Customer> cq =
cb.createQuery(Customer.class);
Root<Customer> c = cq.from(Customer.class);
Join<Customer, Order> o = customer.join(“orders”);
cq.select(c);
27

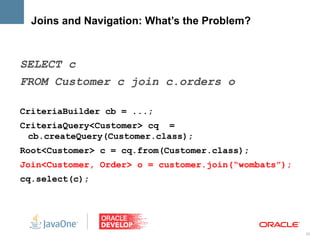

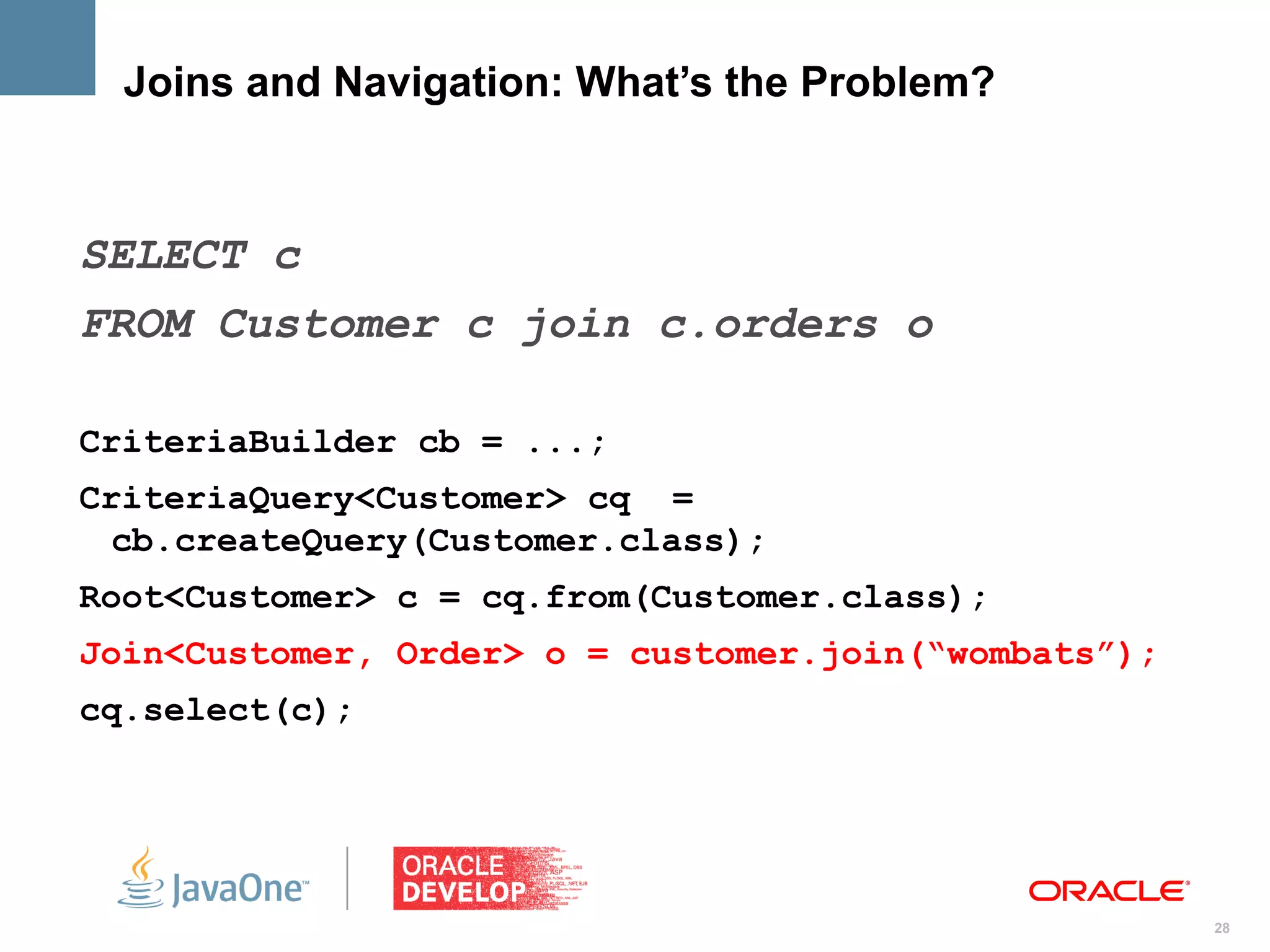

28. Joins and Navigation: What’s the Problem?
SELECT c
FROM Customer c join c.orders o
CriteriaBuilder cb = ...;
CriteriaQuery<Customer> cq =
cb.createQuery(Customer.class);
Root<Customer> c = cq.from(Customer.class);
Join<Customer, Order> o = customer.join(“wombats”);
cq.select(c);
28

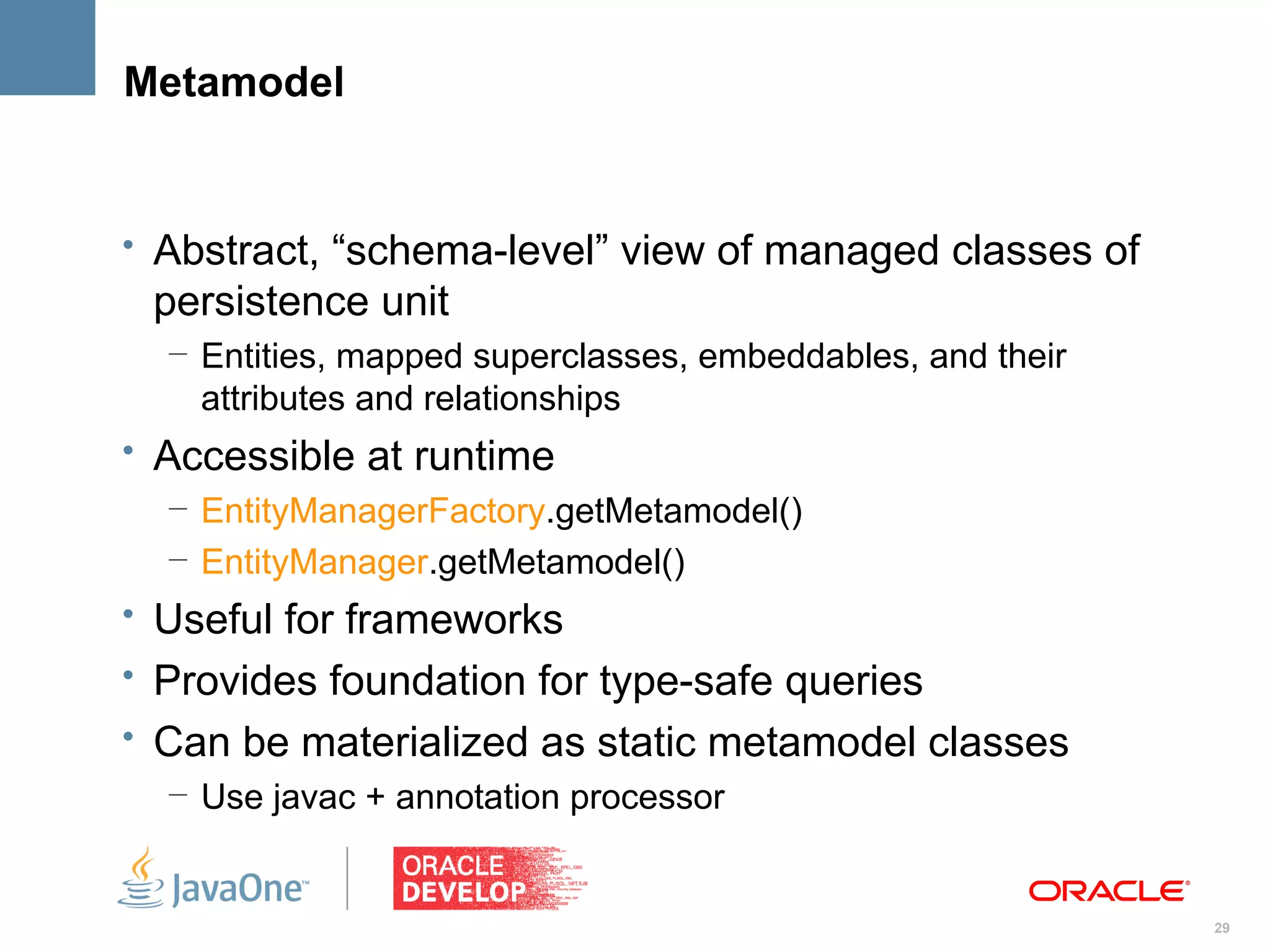

29. Metamodel
• Abstract, “schema-level” view of managed classes of
persistence unit
– Entities, mapped superclasses, embeddables, and their
attributes and relationships
• Accessible at runtime
– EntityManagerFactory.getMetamodel()
– EntityManager.getMetamodel()
• Useful for frameworks
• Provides foundation for type-safe queries
• Can be materialized as static metamodel classes
– Use javac + annotation processor
29

30. Example: Entity Class
@Entity
public class Customer {
@Id int id;
String name;
Address address;
...
@OneToMany Set<Order> orders;
@ManyToOne SalesRep rep;
...
}
30

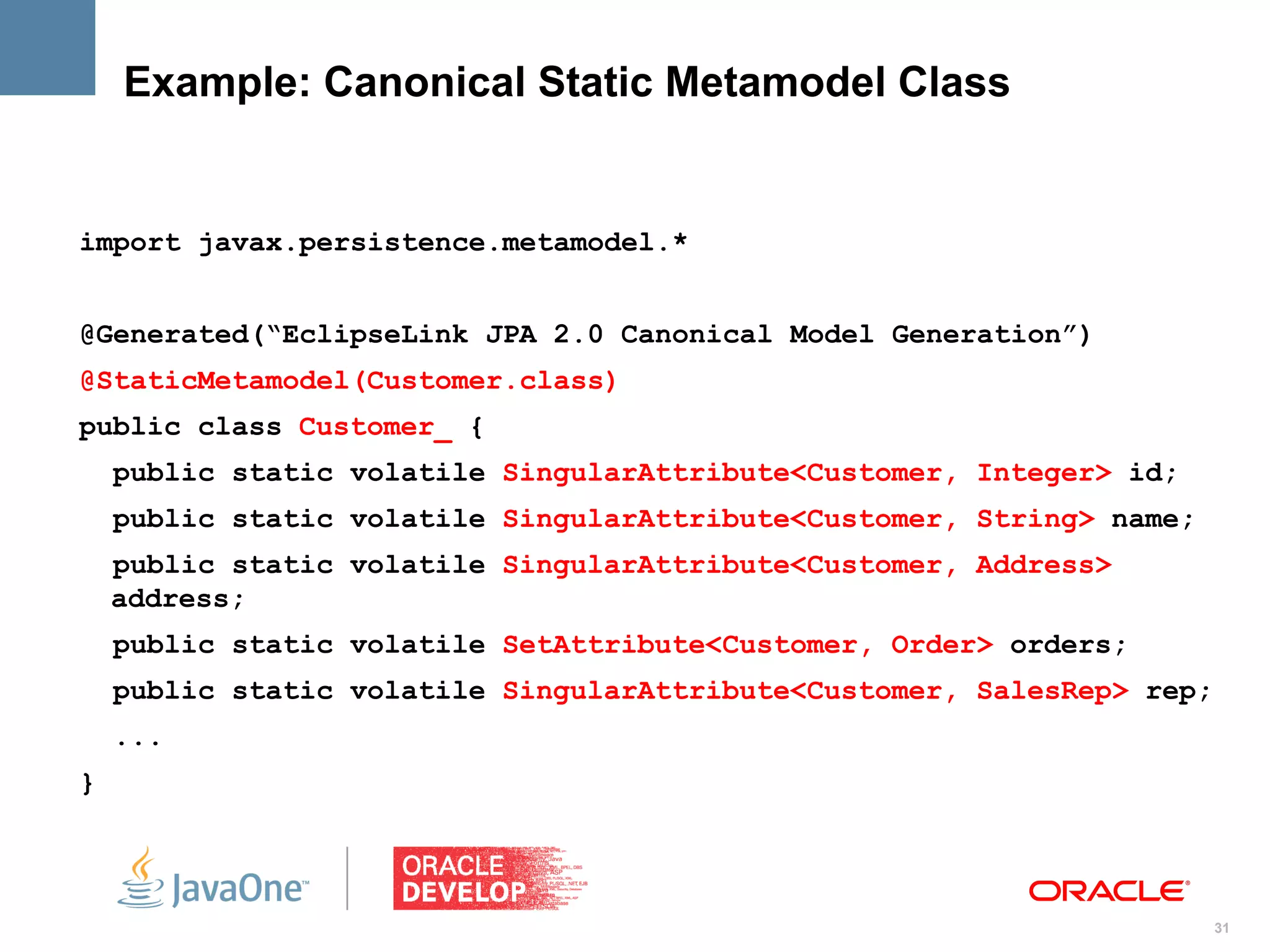

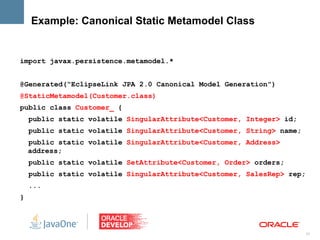

31. Example: Canonical Static Metamodel Class
import javax.persistence.metamodel.*
@Generated(“EclipseLink JPA 2.0 Canonical Model Generation”)
@StaticMetamodel(Customer.class)
public class Customer_ {
public static volatile SingularAttribute<Customer, Integer> id;
public static volatile SingularAttribute<Customer, String> name;
public static volatile SingularAttribute<Customer, Address>
address;
public static volatile SetAttribute<Customer, Order> orders;
public static volatile SingularAttribute<Customer, SalesRep> rep;
...
}
31

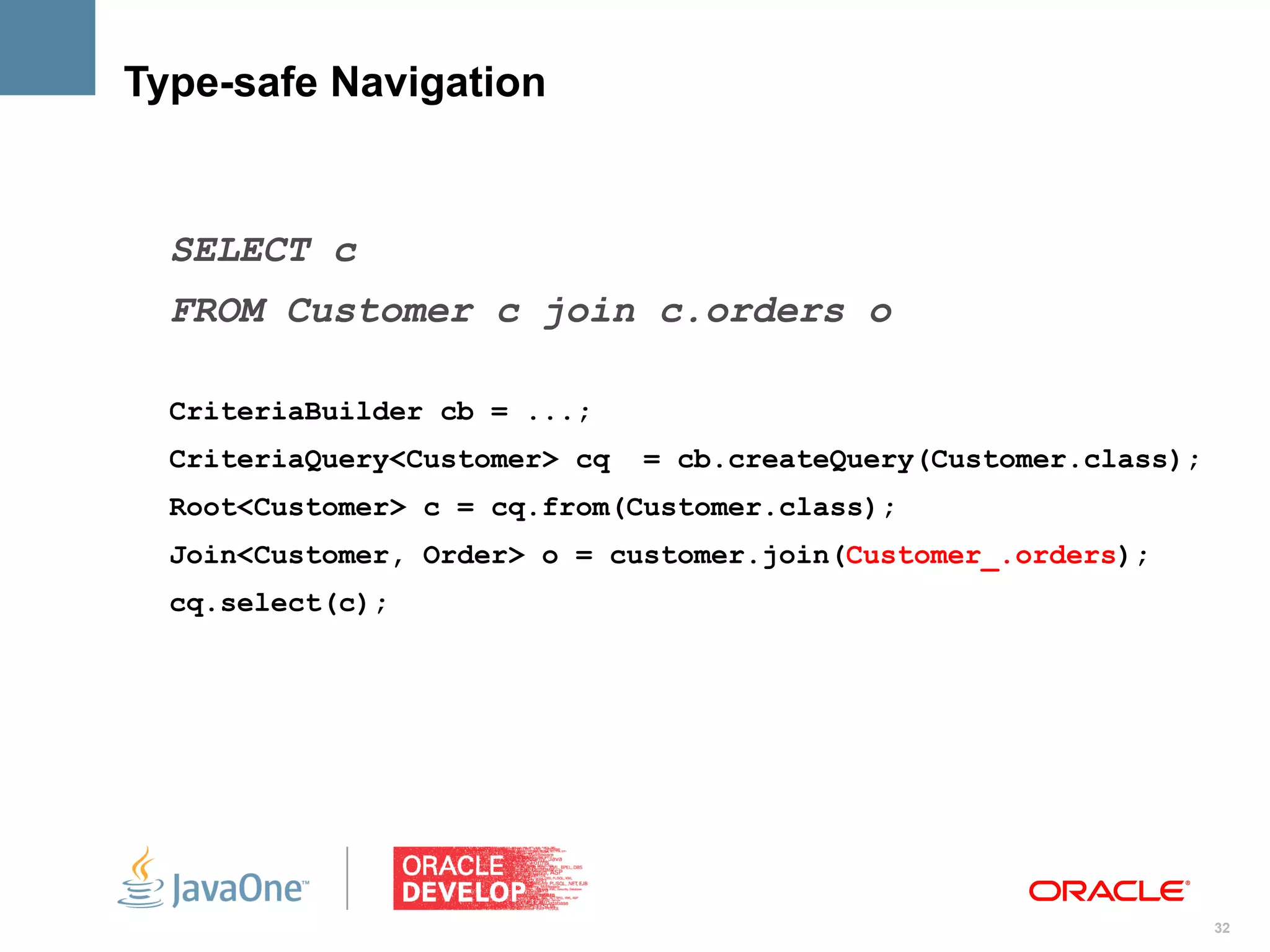

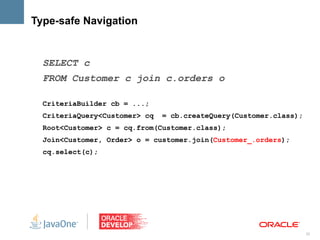

32. Type-safe Navigation
SELECT c
FROM Customer c join c.orders o
CriteriaBuilder cb = ...;
CriteriaQuery<Customer> cq = cb.createQuery(Customer.class);
Root<Customer> c = cq.from(Customer.class);
Join<Customer, Order> o = customer.join(Customer_.orders);
cq.select(c);
32

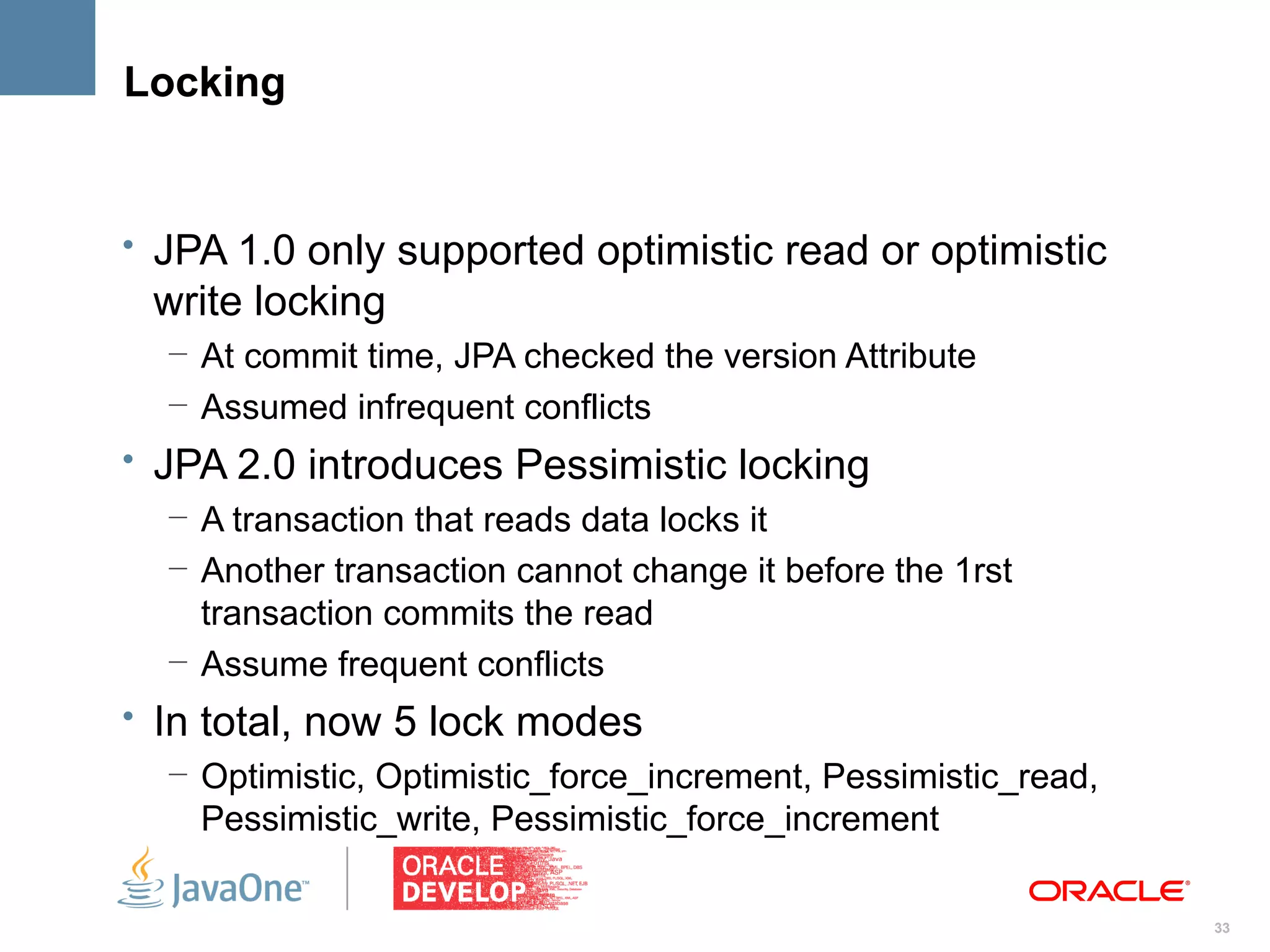

33. Locking
• JPA 1.0 only supported optimistic read or optimistic
write locking
– At commit time, JPA checked the version Attribute
– Assumed infrequent conflicts
• JPA 2.0 introduces Pessimistic locking
– A transaction that reads data locks it
– Another transaction cannot change it before the 1rst
transaction commits the read
– Assume frequent conflicts
• In total, now 5 lock modes
– Optimistic, Optimistic_force_increment, Pessimistic_read,
Pessimistic_write, Pessimistic_force_increment
33

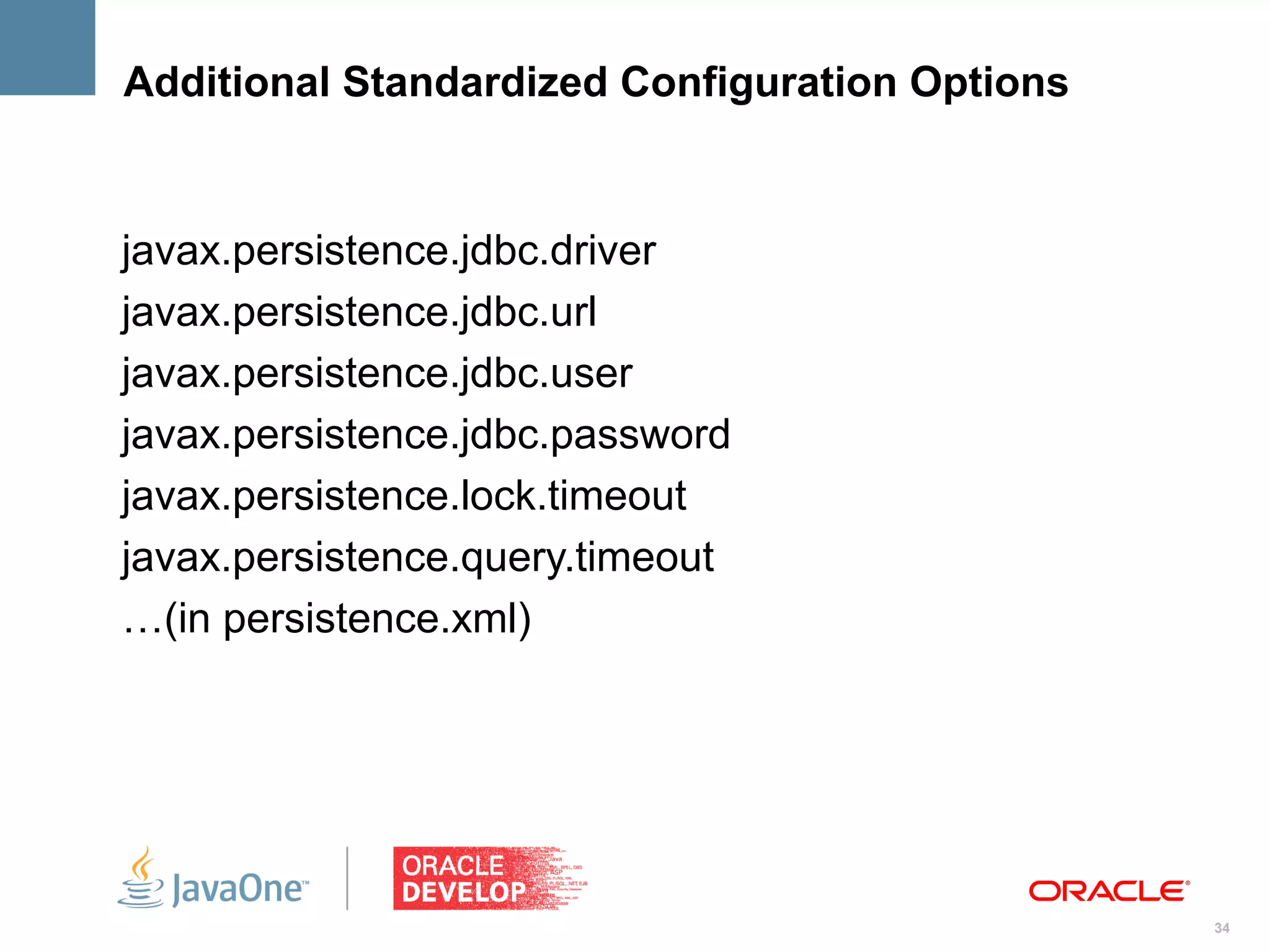

34. Additional Standardized Configuration Options
javax.persistence.jdbc.driver
javax.persistence.jdbc.url
javax.persistence.jdbc.user
javax.persistence.jdbc.password
javax.persistence.lock.timeout
javax.persistence.query.timeout
…(in persistence.xml)
34

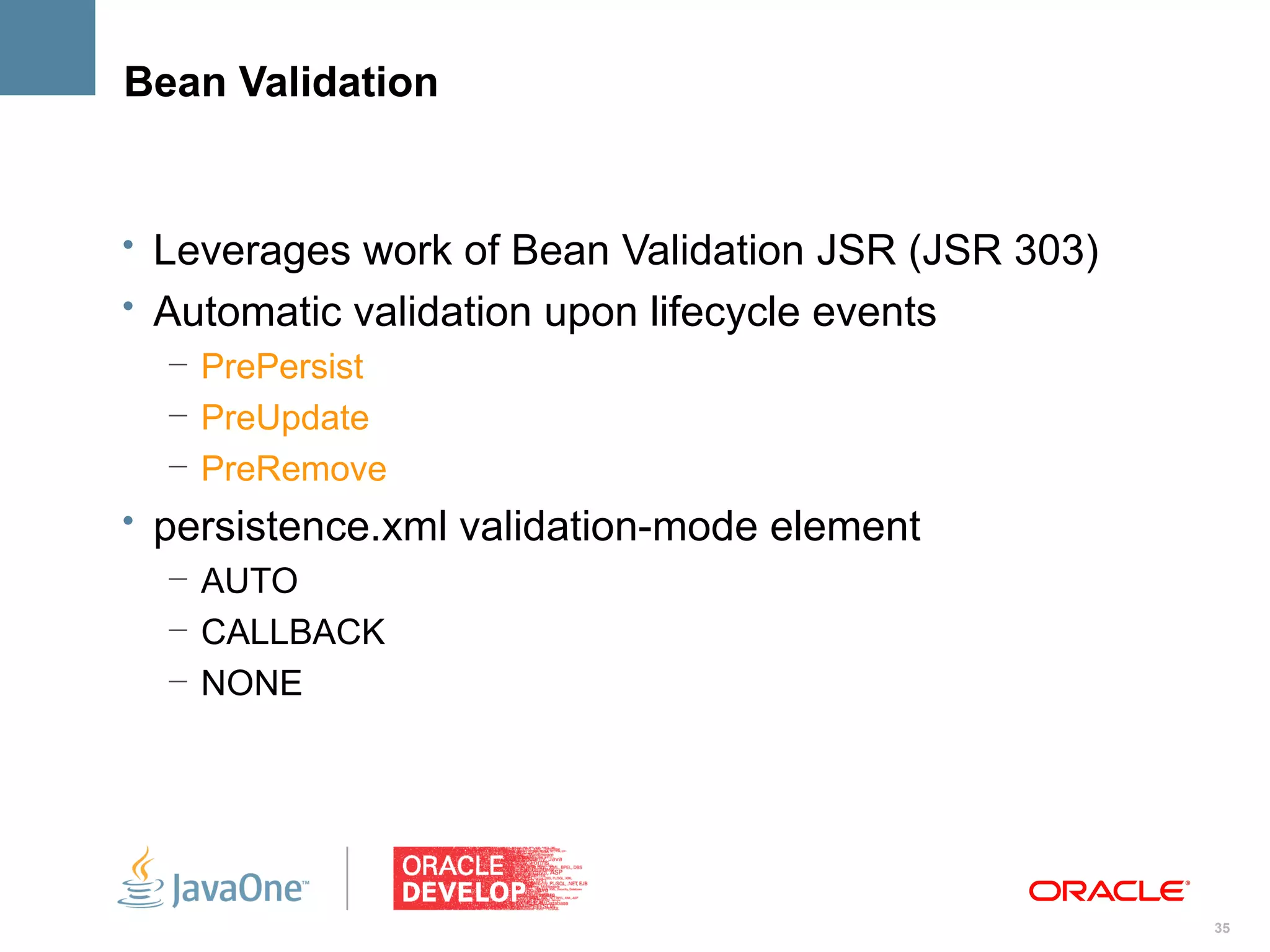

35. Bean Validation
• Leverages work of Bean Validation JSR (JSR 303)
• Automatic validation upon lifecycle events
– PrePersist
– PreUpdate
– PreRemove
• persistence.xml validation-mode element
– AUTO
– CALLBACK
– NONE
35

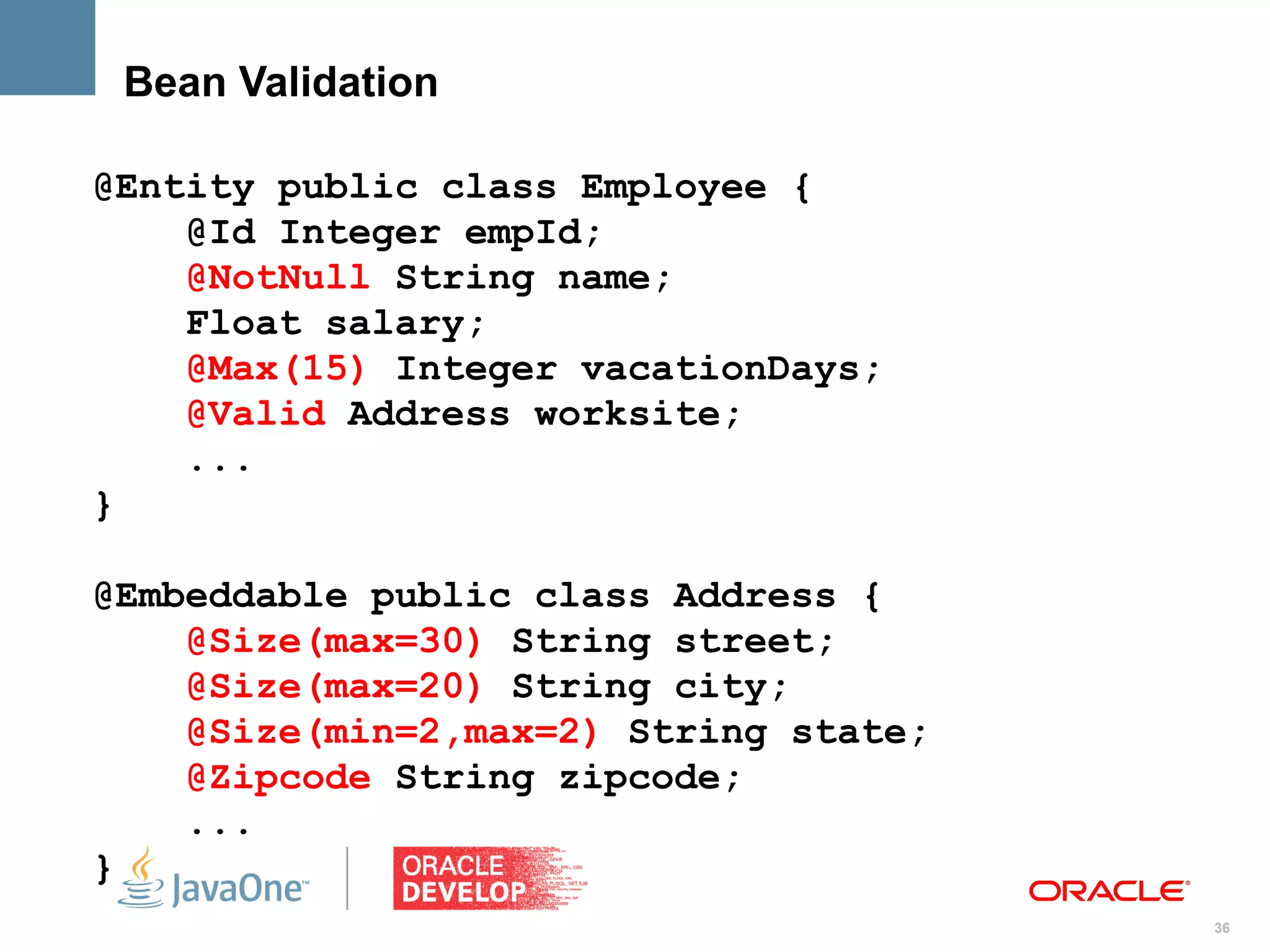

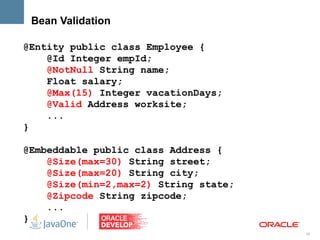

36. Bean Validation
@Entity public class Employee {
@Id Integer empId;
@NotNull String name;
Float salary;
@Max(15) Integer vacationDays;
@Valid Address worksite;
...
}
@Embeddable public class Address {
@Size(max=30) String street;
@Size(max=20) String city;
@Size(min=2,max=2) String state;
@Zipcode String zipcode;
...
}
36

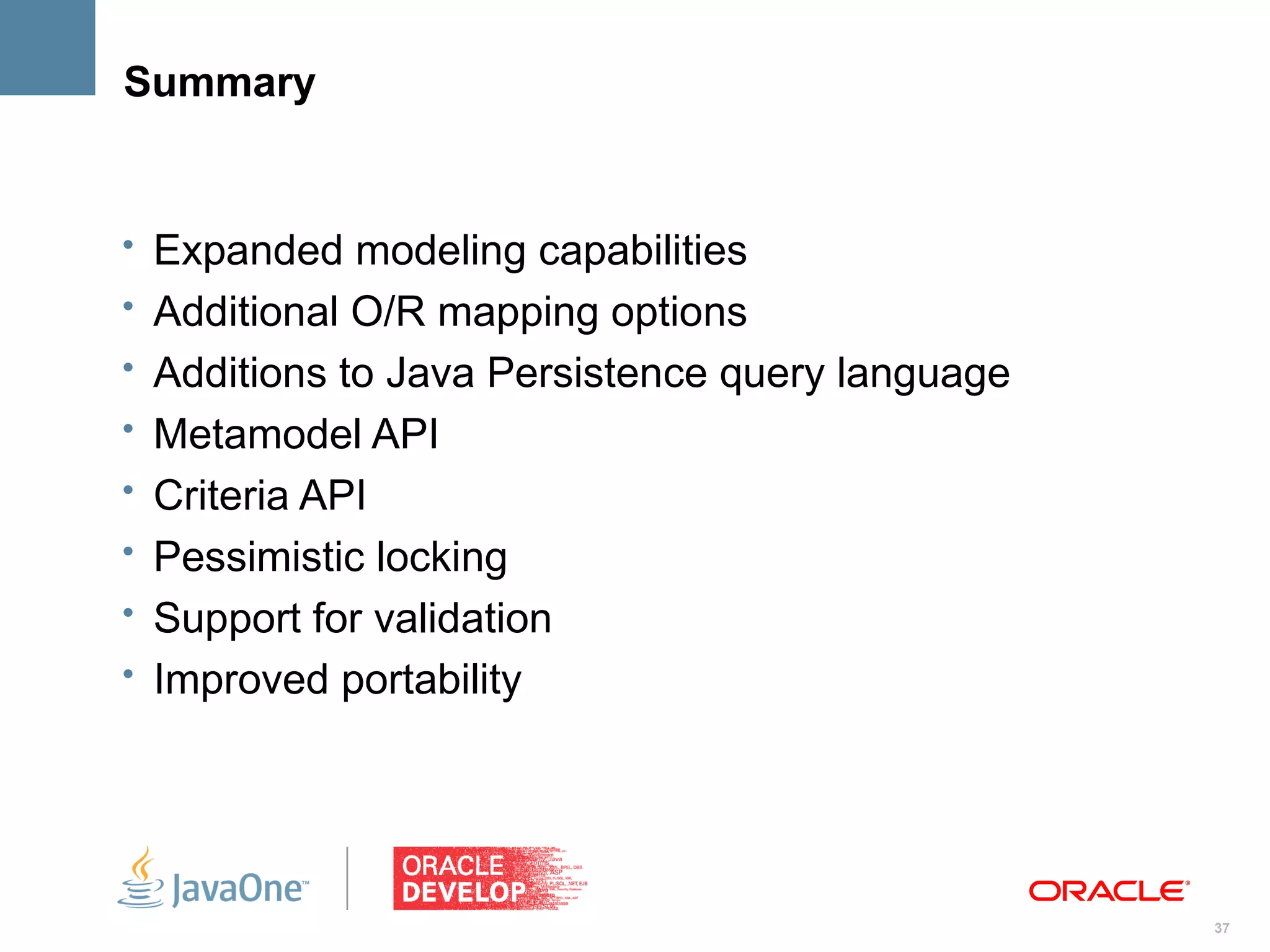

37. Summary
• Expanded modeling capabilities
• Additional O/R mapping options
• Additions to Java Persistence query language
• Metamodel API
• Criteria API
• Pessimistic locking
• Support for validation
• Improved portability
37

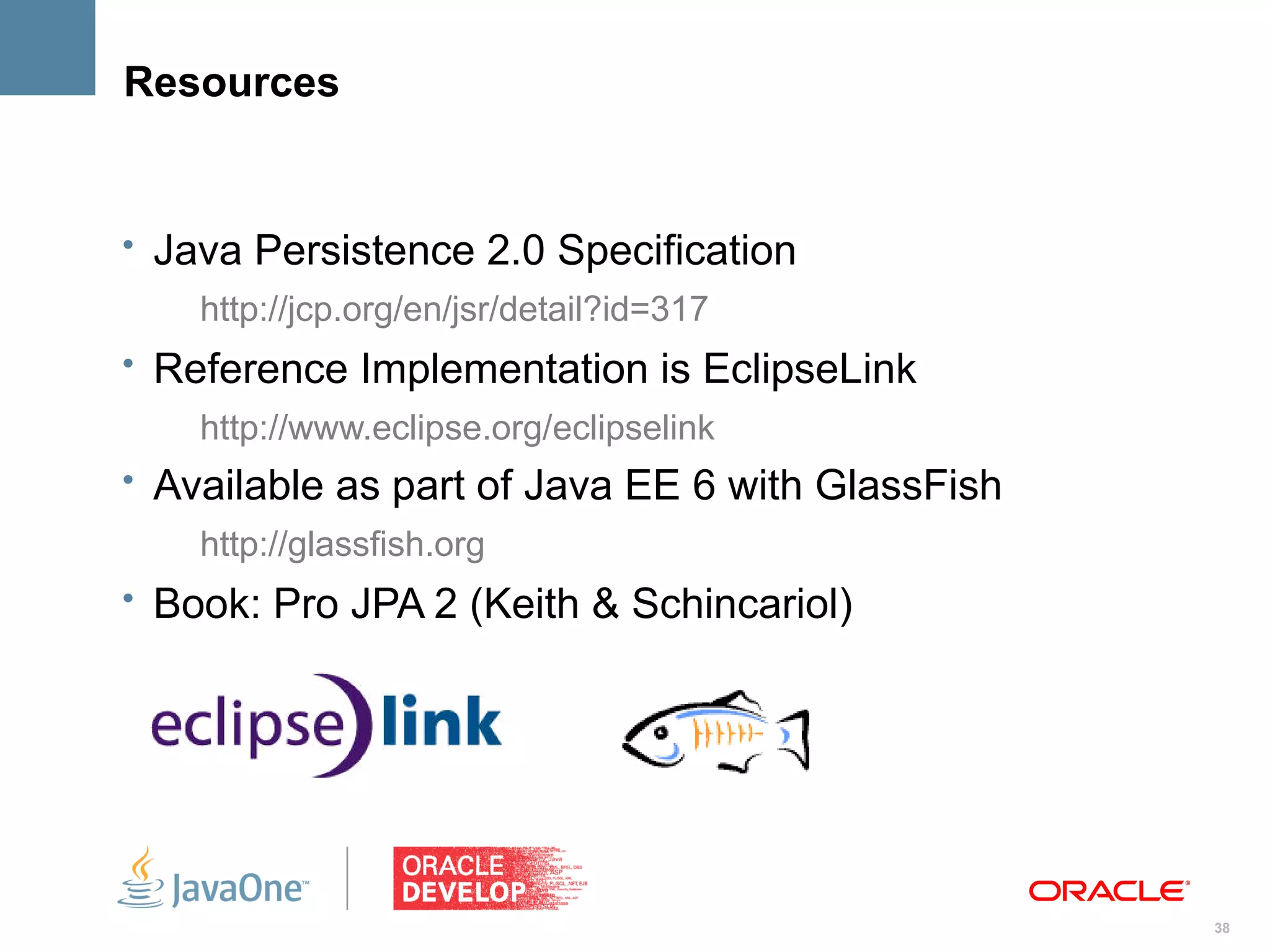

38. Resources
• Java Persistence 2.0 Specification
http://jcp.org/en/jsr/detail?id=317
• Reference Implementation is EclipseLink
http://www.eclipse.org/eclipselink
• Available as part of Java EE 6 with GlassFish
http://glassfish.org
• Book: Pro JPA 2 (Keith & Schincariol)
38
