This document discusses using the Drupal database API to interact with the database in Drupal. It covers the basics of db_query and dynamic queries using db_select. It discusses how to add conditions, joins, sorting, and other clauses to dynamic queries. It also covers how to work with result sets and how to perform inserts, updates, and deletes using the API. Finally, it discusses when to use the database API versus views and provides a case study comparing the two approaches.

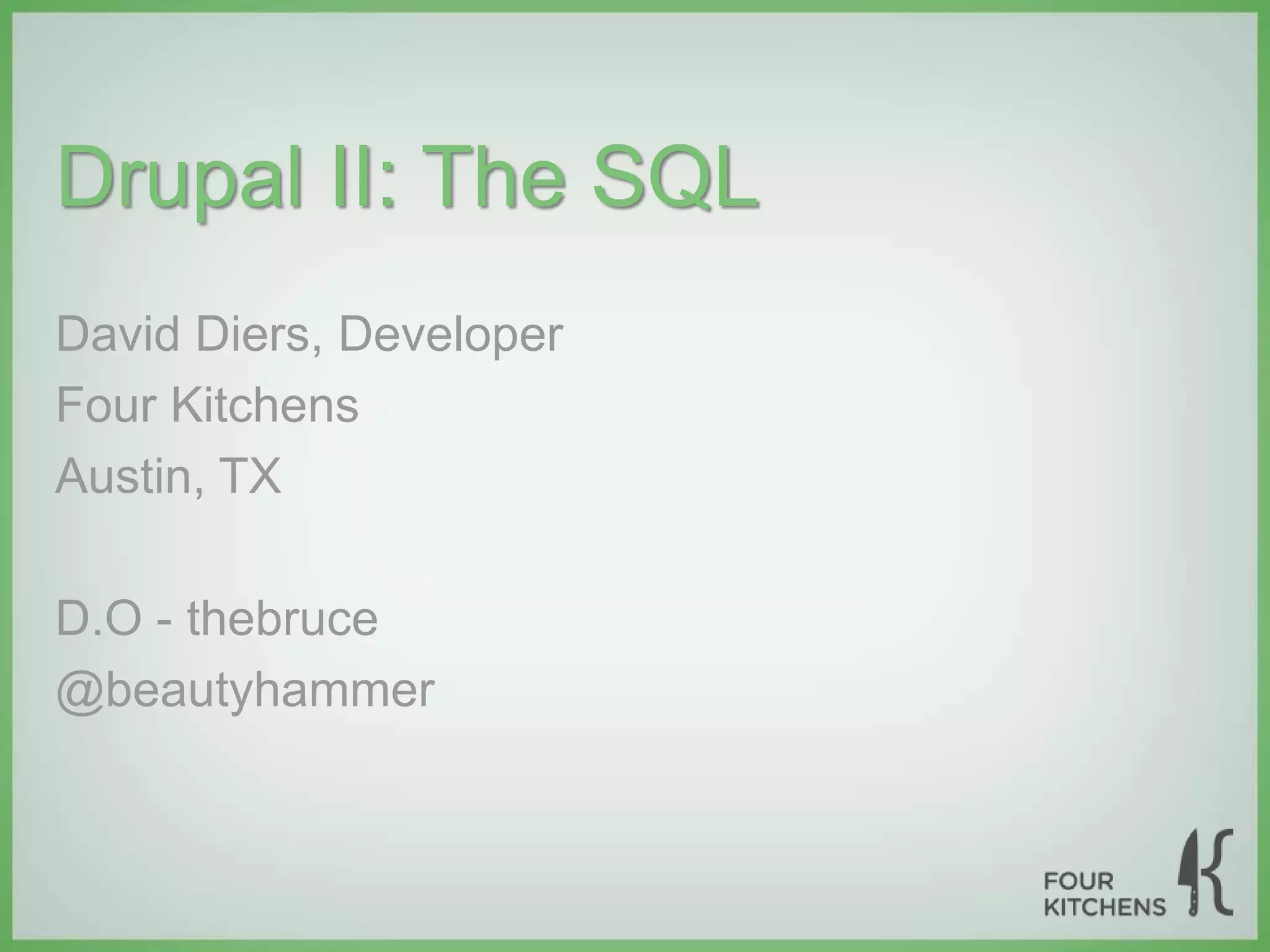

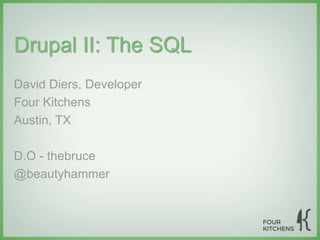

1. Drupal II: The SQL
David Diers, Developer
Four Kitchens
Austin, TX
D.O - thebruce
@beautyhammer

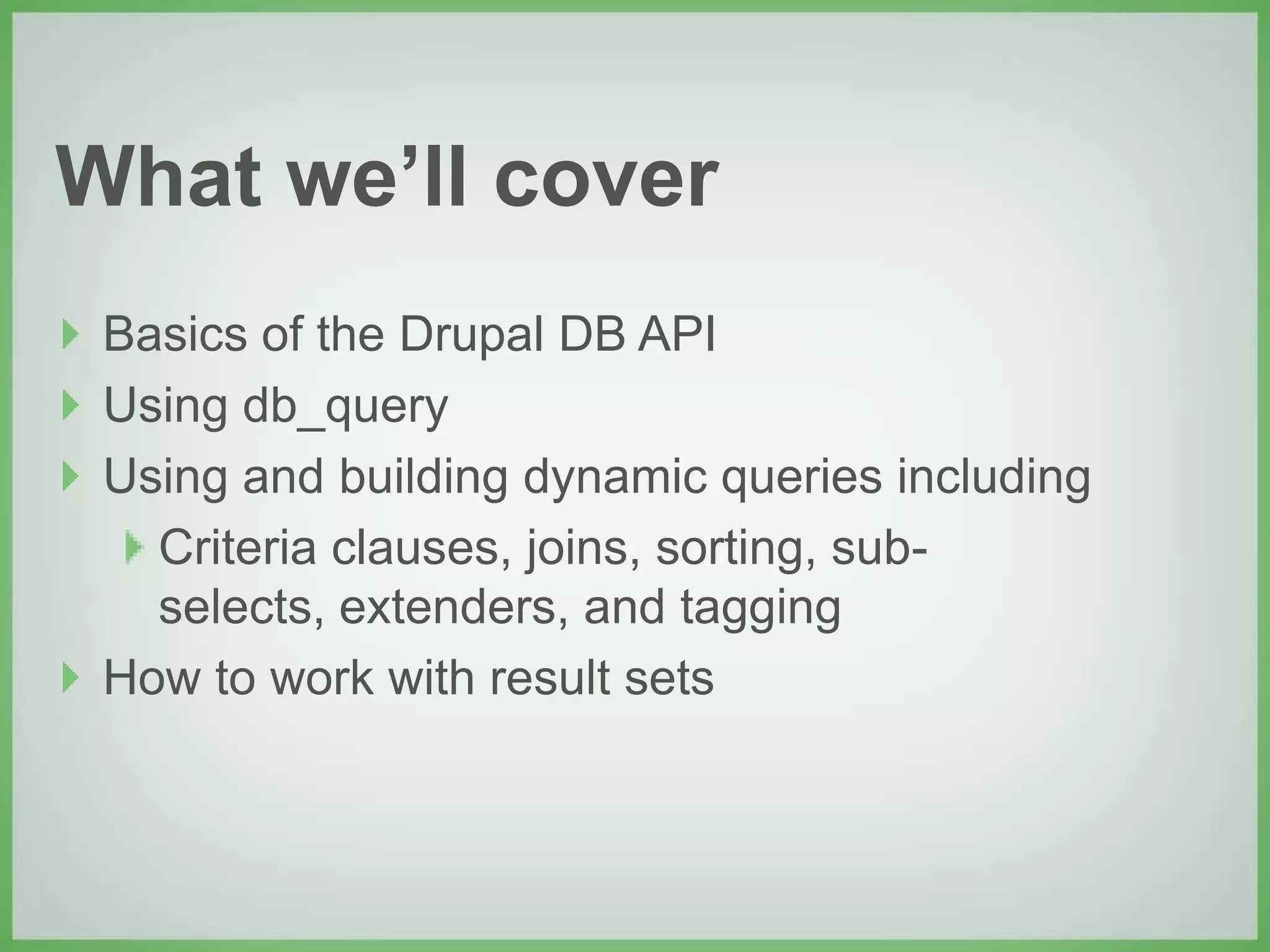

2. What we’ll cover
Basics of the Drupal DB API
Using db_query
Using and building dynamic queries including
Criteria clauses, joins, sorting, sub-
selects, extenders, and tagging
How to work with result sets

3. Drupal and the DB
Drupal uses the DB to:
Store content - where
"content" is thought of very
broadly.
Store user or module
configurations
Store system values
Drupal retrieves these values
all of the time.

4. Drupal and DB Abstraction
What is DB Abstraction?
A way of uniformly interacting and leveraging
SQL commands with multiple types of database
products.
A structured way of dynamically constructing
SQL statements
DB Abstraction is nothing new for Drupal

5. Drupal 7 DB API uses PDO
In D7 the DB Abstraction layer got a face-lift
Built on PDO
PDO is PHPOOP
Drupal extends PDO classes
PDO used in many projects

6. Why learn the DB API?
Isn‟t most of this stuff in functions already?
Doesn‟t views do this for me?
Can‟t I just use raw SQL like they did in ye olde
days ™?

7. Why Learn the DB API?
Need a result set that you can‟t get or requires custom
views development?
Writing or supporting custom modules with their own
schema?
Need results from the contrib module‟s schema but there
isn‟t a function to do so?
Patching an existing modules‟ database functionality?
Need additional ways besides features, views, panels to
transfer configuration via update hooks?
Need to implement custom sql statements to improve the
performance of your site?

8. Using the DB API
2 Primary ways to interact with data in D7
dbquery – performant, limited transferability.
Dynamic queries - more complex, high
transferability, powerful, less performant.

9. db_query – the basics
IN SQL: IN db_query:
<?php
SELECT nid, title $type = „article‟;
FROM node $result = db_query("SELECT nid, title
WHERE type = „article‟; FROM {node} WHERE type =
:type", array(':type' => $type,));

10. db_query – the breakdown
$result = db_query("SELECT nid, title FROM {node} WHERE type = :type",
array(':type' => $type,));
db_query($query, $placeholders, $options)
enclose tables in { }
Placeholders start with ":"
EX: WHERE type = :type", array(':type' => 'page',))
Options array - 2 common ones are:
Target (default or slave)
Fetch (pdo fetch type)
http://druptest7.dev:8888/example_dbq

11. db_query d6 => d7
transitions
In transitioning D6 db_query to D7 be aware:
The syntax signature has changed –
• D6 parameters were the $query, followed by a
variable number of arguments or an array of query
substitutions.
• % syntax for placeholders
• Varied sql commands executed via db_query.

12. Dynamic sql – the basics
Dynamic Queries
Much more transportable.
You MUST use for (
INSERT, UPDATE, DELETE)
You may use for (SELECT)
• http://www.lullabot.com/articles/simplify-your-code-
with-drupal-7s-database-api ).

13. db_select – the basics
IN SQL: IN db_select:
<?php
SELECT nid, title $type = „article‟;
FROM node $query = db_select(„node‟, ‟n‟);
WHERE type = „article‟; $result = $query->fields(„n‟,
array(„nid‟,‟title‟)
->condition(„n.type‟,$type)
->execute();

14. db_select – the basics
(„node‟, „n‟) IN db_select:
Name of Table / Alias <?php
$type = „article‟;
(fields(„n‟, array(„nid‟, $query = db_select(„node‟, ‟n‟);
„title‟))
$result = $query->fields(„n‟,
array(„nid‟,‟title‟)
Alias, array of fields ->condition(„n.type‟,$type)
->execute();
Single quotes are
important for
transferability.

15. Dynamic Queries – of note
$query = db_select(„node‟, ‟n‟);
$result = $query->fields(„n‟, array(„nid‟,‟title‟)
->condition(„n.type‟,$type)
->execute();
Fluid Interface - allows method chaining
Query statements are executed by ->execute(); easy
to forget, but don't.
You‟ll get back a result set / statement object

16. Working with Result Sets
Use - foreach loop or
or - Specificaly get the next record
$record = $result->fetch(); // Use the default fetch
mode.
$record = $result->fetchObject(); // Fetch as a
stdClass object.
$record = $result->fetchAssoc(); // Fetch as an
associative array.
or - to get a single field
$record = $result->fetchField($column_index);

17. Which should I use?
Is your query static? Use db_query it is faster.
Does your query need to be constructed at run
time? Use dynamic queries
Do you need to INSERT, UPDATE, or DELETE?
Use Dynamic queries.
Are you querying the node table – Use Dynamic
queries to respect node access.

18. More with Dynamic Queries
How to add fields or select *
Conditional Statements
AND / OR
Sub-selects
JOINS
SORT

19. Fields and db_select
Adding fields to a query:
$query->fields('n', array('nid', 'title', 'created', 'uid'));
"select *" is fields with no field array indicated:
$query->fields('n');
http://druptest7.dev:8888/example_dyn

20. Conditional Statements
Signature: $query->condition($field, $value = NULL,
$operator = '=')
Default operator is SQL =
can take ANSI sql comparators <, >, LIKE, = >=
EX: $query->condition('nid',1)
EX: $query->condition('nid',1, '<>')
In or between:
EX: $query->condition('myfield', array(1, 2, 3), 'IN');

21. Conditional Statements
(more)
Nested Conditionals:
db_and() / db_or() / db_xor() are used to handle
nested conditionals such as:
->condition(db_or()
->condition('field2', 5)
->condition('field3', 6))
Testing for NULL:
$query->isNull('myfield');
$query->isNotNull('myfield');

22. An example from the field…
Original query:
$result = db_query('SELECT * FROM {users}
WHERE ((access <> 0 AND login <> 0 AND access
< (%d - %d)) OR (login = 0 AND created < (%d -
%d))) AND uid <> 1', REQUEST_TIME, $warn_time,
REQUEST_TIME, $warn_time);

23. Now In dynamic query format
$query = db_select('users', 'u');
$query->fields('u', array('uid', 'name', 'mail', 'created', 'access'))
->condition(db_or()
->condition(db_and()
->condition('u.access', 0, '<>')
->condition('u.login', 0, '<>')
->condition('u.access', REQUEST_TIME - $warn_time, '<'))
->condition(db_and()
->condition('u.login', 0)
->condition('u.created', REQUEST_TIME - $warn_time, '<'))
)
->condition('u.uid', 1, '<>');
$results = $query->execute();

24. Subselects
Subselects - form a query using dbtng then instead
of executing it -
use that query variable in a condition.
Most successful when one value is returned,
or a one column return value is used with an IN
clause.
$query->condition('myfield', $querysubselect, 'IN');

25. JOINS & db_select
<?php
$query = db_select('node', 'n');
$query->join('field_data_body', 'b', 'n.nid = b.entity_id');
$query
->fields('n', array('nid', 'title'))
->condition('n.type', 'page')
->condition('n.status', '1')
->orderBy('n.created', 'DESC')
->addTag('node_access');
?>

26. dynamic queries: sorting
orderBy(„field‟, „ASC‟/‟DESC‟)
$result = db_select(„node‟, „n‟)
->fields(„n‟, array(„title‟))
->orderBy(„n.created‟, „DESC‟)
->execute();

27. db_select Tagging
Tagging – lets alter hooks take action
ex: $query->addTag('node_access'); - this should be
implemented on all queries that retrieve nodes.
Node access query alter will then check to see if a
user can see the nodes in the result.
(http://druptest7.dev:8888/example_tag)

28. What about the others?
db_update, db_insert, db_delete
Similar syntax
Assemble and execute.

29. db_insert
Syntax: $query = db_insert('node', $options);
$nid = db_insert('node')
->fields(array(
'title' => ‟This Example',
'uid' => 1,
'created' => REQUEST_TIME,
))
->execute();
db_insert returns the auto-increment value defined by
hook_schema.
(http://druptest7.dev:8888/example_insert)

30. db_update
$num_updated = db_update('node')
->fields(array(
'uid' => 1
))
->condition('uid', 2)
->execute();
db_update returns the number of records updated.
http://druptest7.dev:8888/example_update

31. db_delete
Signature: $query = db_delete('node', $options);
$num_deleted = db_delete('node')
->condition('nid', 5)
->execute();
db_delete returns the number of rows deleted.
http://druptest7.dev:8888/example_delete

32. db_select extenders
Extenders - implements a decorator pattern, currently only two in core
TableSort and PagerQuery = adds the methods for these extension to
query
example:
$query = $query
->extend('TableSort')
->orderByHeader($header);
Put these near the start.
Not chainable, if you forget to return it to itself it will have odd results.
http://druptest7.dev:8888/example_extend

33. TIME FOR BONUS ROUND
YUB NUB

34. What is the ?
Now that you have Drupal DB Chops
You may start to consider…
To VIEWS or
not to
VIEWS

35. DB API an Alternative to
Views
Who will maintain the functionality?
Does it require a lot of custom views code?
Are you doing a lot of aggregated data work?
Do you need a highly tuned SQL statement for performance?
Do you need a lot of user facing, non programmer modifications,
will site builders be cloning views or modifying displays?
Are you integrating with other modules (panels, voting, etc)?
How complex are the changes you need to views default
queries/output?
To views or not to views (http://drupal.org/node/242311 )

36. Quick case study:
• Client wanted private comments
• Client wanted to see a listing of all comments
made against all nodes
• Views can do this but it is described as “hacky”
• Created a db_select with pager and table
extenders

37. Questions and Thank you!
David Diers, Developer
Four Kitchens
david.diers@fourkitchens.com
D.O - thebruce
@beautyhammer
