Its conciseness, versatility and DSL capabilities makes Scala desirable for scripting. In this report we show how we implemented a JSR223 compliant script engine for Scala which runs inside OSGi environments.
While the Scala compiler needs a class path to load class files, OSGi only provides class loaders. To overcome this we implemented a file system abstraction on top of OSGi bundles effectively providing a class path. Furthermore, JSR223's dynamic approach for passing arguments does not play well with Scala's static types. We need to make all types of arguments visible to scripts. Our implementation generates a preamble of adequate implicit conversions which allows scripts to use statically typed variables in a manner resembling dynamic types. Finally performance constraints require caching of pre-compiled scripts.
Apache Sling, an OSGi based web application framework with a scriptable application layer, uses our implementation for type safe templating via Scala's XML support.

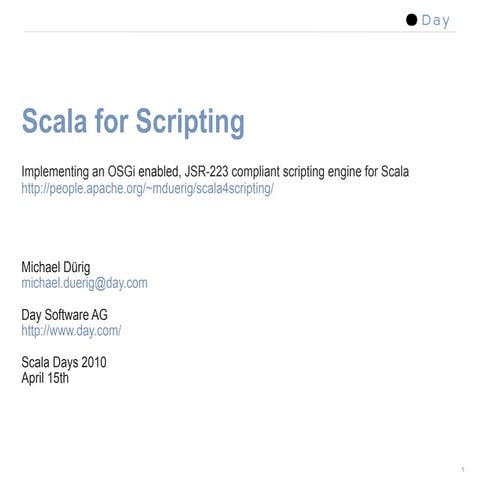

1. Scala for Scripting
Implementing an OSGi enabled, JSR-223 compliant scripting engine for Scala
http://people.apache.org/~mduerig/scala4scripting/
Michael Dürig
michael.duerig@day.com
Day Software AG
http://www.day.com/
Scala Days 2010
April 15th
1

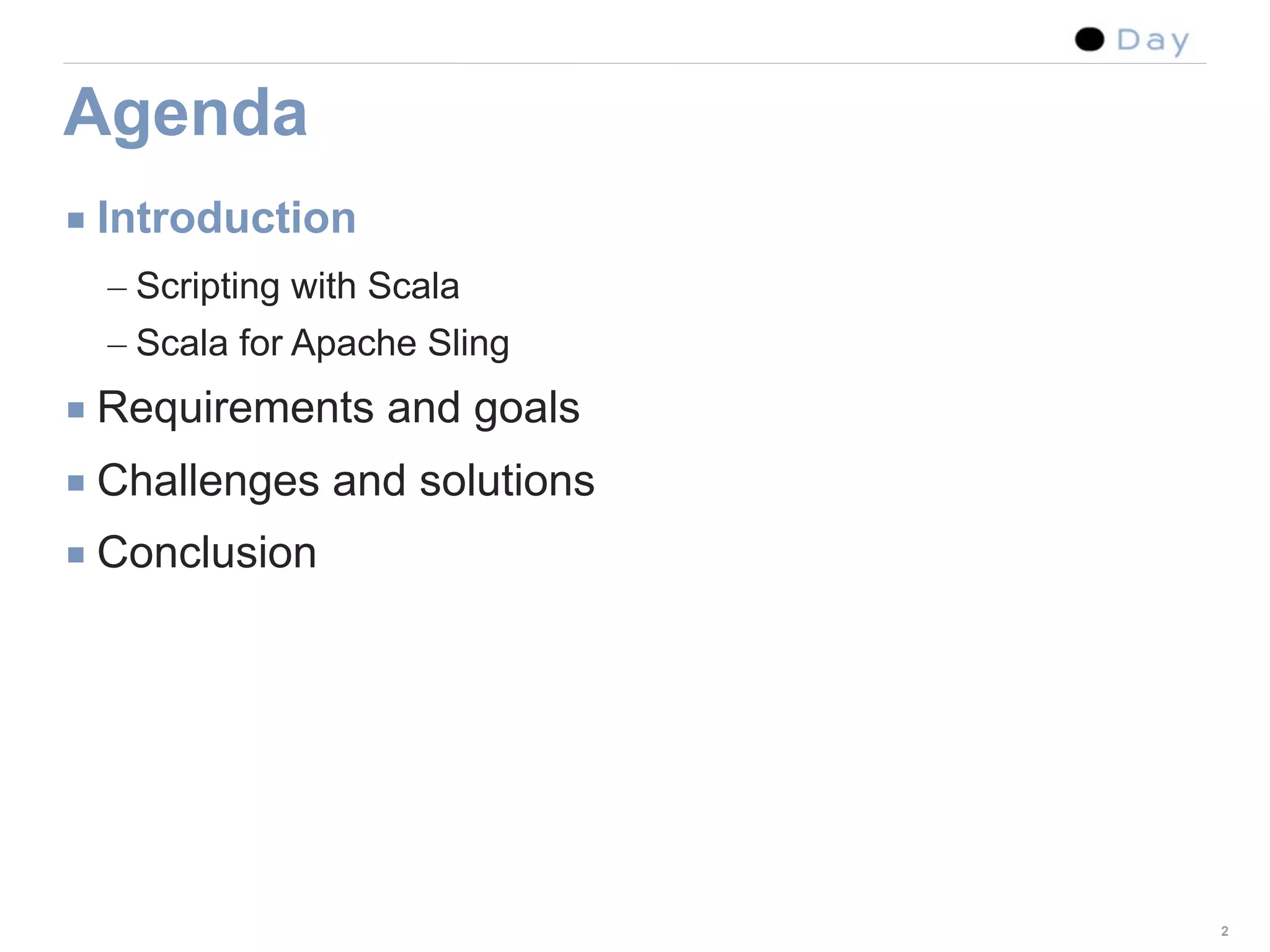

2. Agenda
■ Introduction
– Scripting with Scala
– Scala for Apache Sling
■ Requirements and goals
■ Challenges and solutions
■ Conclusion
2

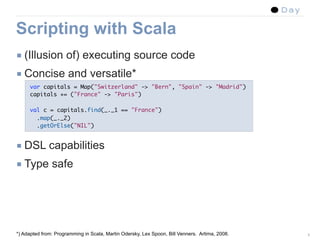

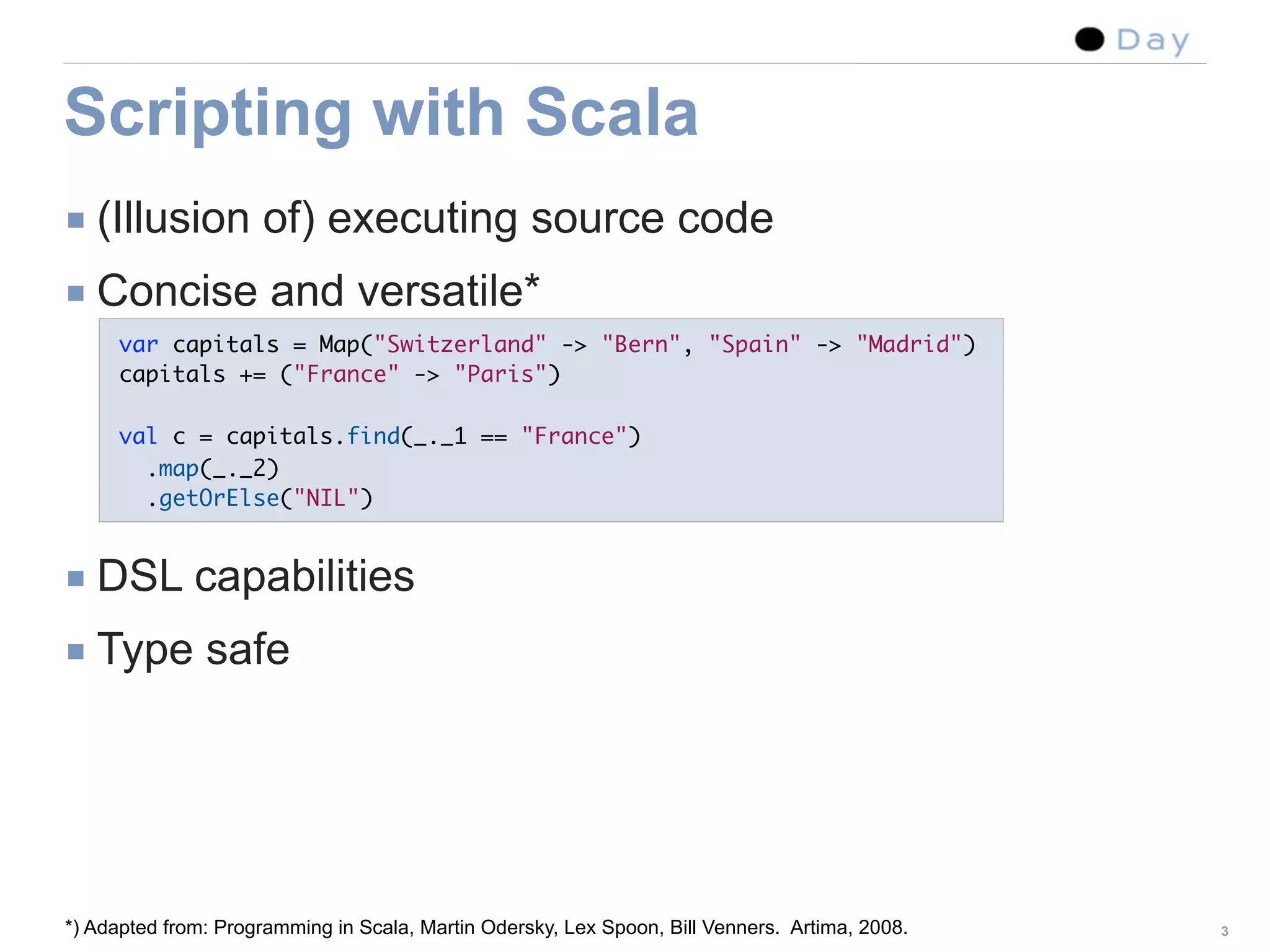

3. Scripting with Scala
■ (Illusion of) executing source code
■ Concise and versatile*
var capitals = Map("Switzerland" -> "Bern", "Spain" -> "Madrid")
capitals += ("France" -> "Paris")
val c = capitals.find(_._1 == "France")
.map(_._2)
.getOrElse("NIL")
■ DSL capabilities
■ Type safe
*) Adapted from: Programming in Scala, Martin Odersky, Lex Spoon, Bill Venners. Artima, 2008. 3

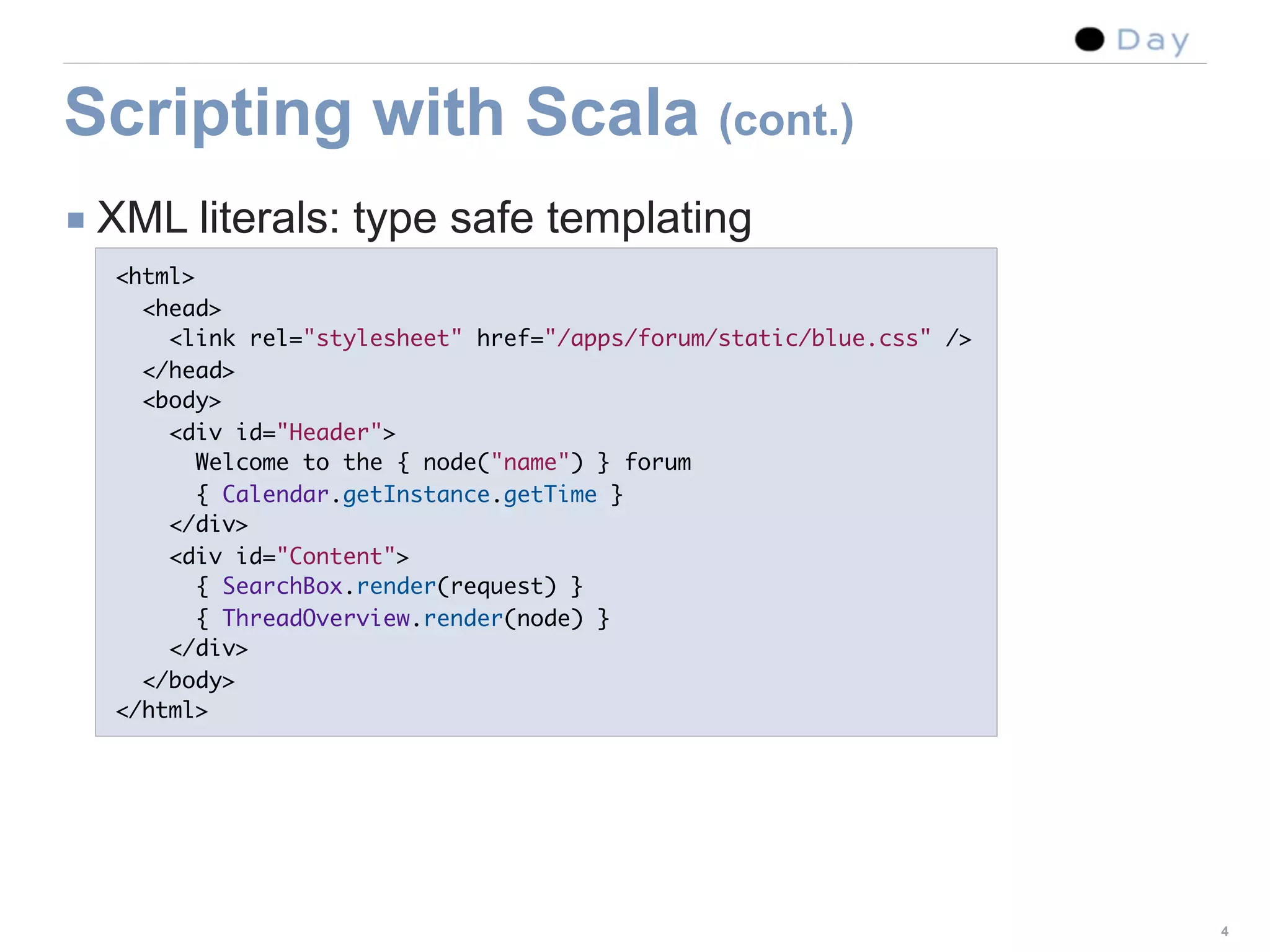

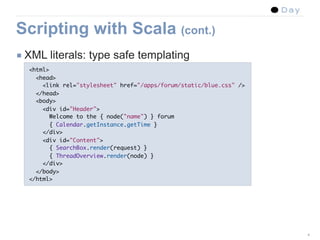

4. Scripting with Scala (cont.)
■ XML literals: type safe templating
<html>
<head>
<link rel="stylesheet" href="/apps/forum/static/blue.css" />
</head>
<body>
<div id="Header">
Welcome to the { node("name") } forum
{ Calendar.getInstance.getTime }
</div>
<div id="Content">
{ SearchBox.render(request) }
{ ThreadOverview.render(node) }
</div>
</body>
</html>
4

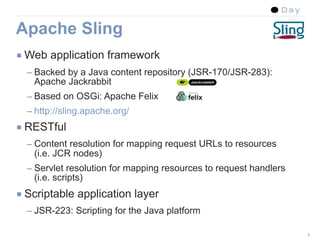

5. Apache Sling
■ Web application framework
– Backed by a Java content repository (JSR-170/JSR-283):
Apache Jackrabbit
– Based on OSGi: Apache Felix
– http://sling.apache.org/
■ RESTful
– Content resolution for mapping request URLs to resources
(i.e. JCR nodes)
– Servlet resolution for mapping resources to request handlers
(i.e. scripts)
■ Scriptable application layer
– JSR-223: Scripting for the Java platform
5

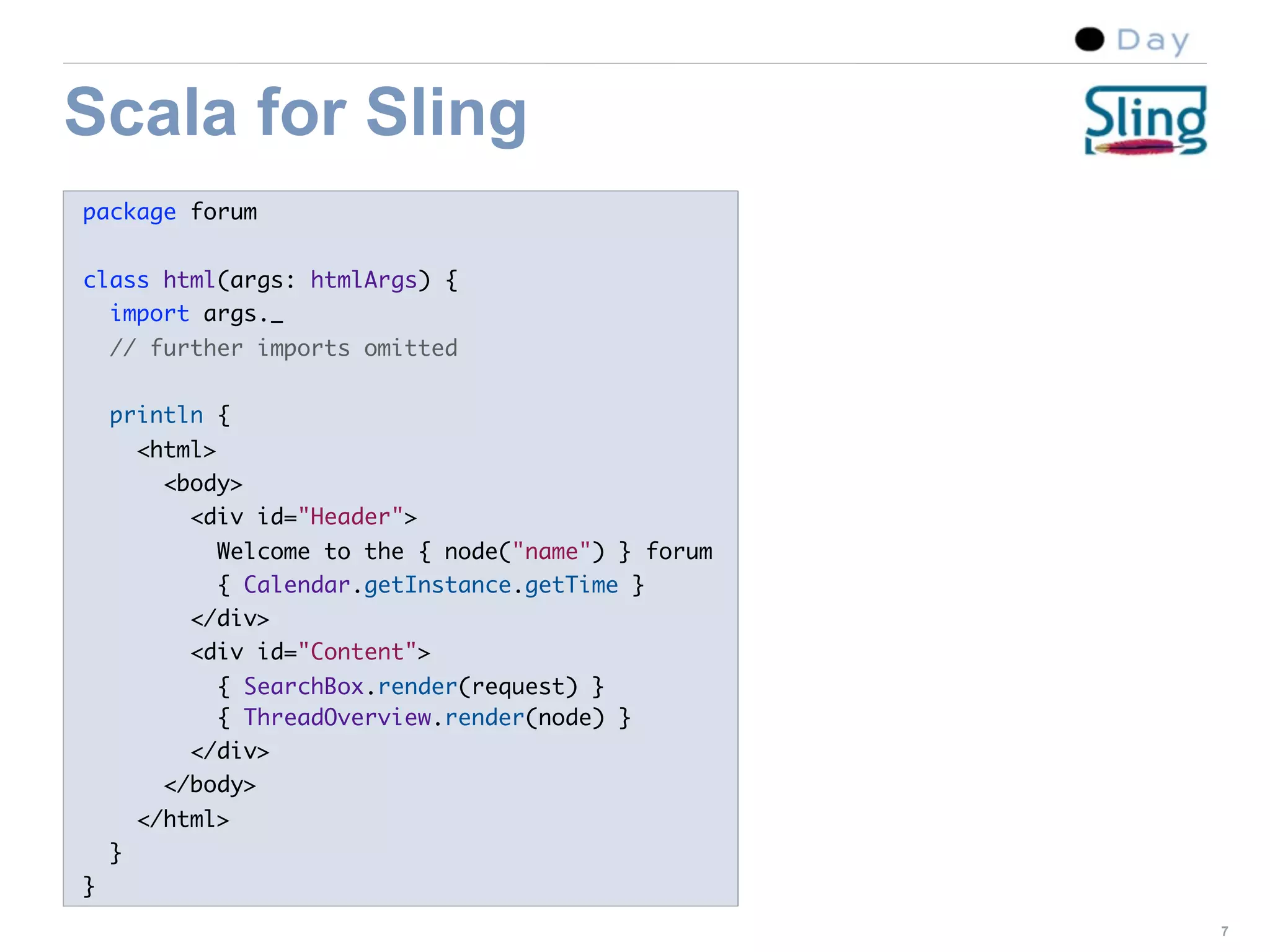

11. Scala for Sling
package forum
class html(args: htmlArgs) {
import args._
// further imports omitted
println {
<html>
<body>
<div id="Header">
Welcome to the { node("name") } forum
{ Calendar.getInstance.getTime }
</div>
<div id="Content">
{ SearchBox.render(request) }
{ ThreadOverview.render(node) }
</div>
</body>
</html>
}
}
7

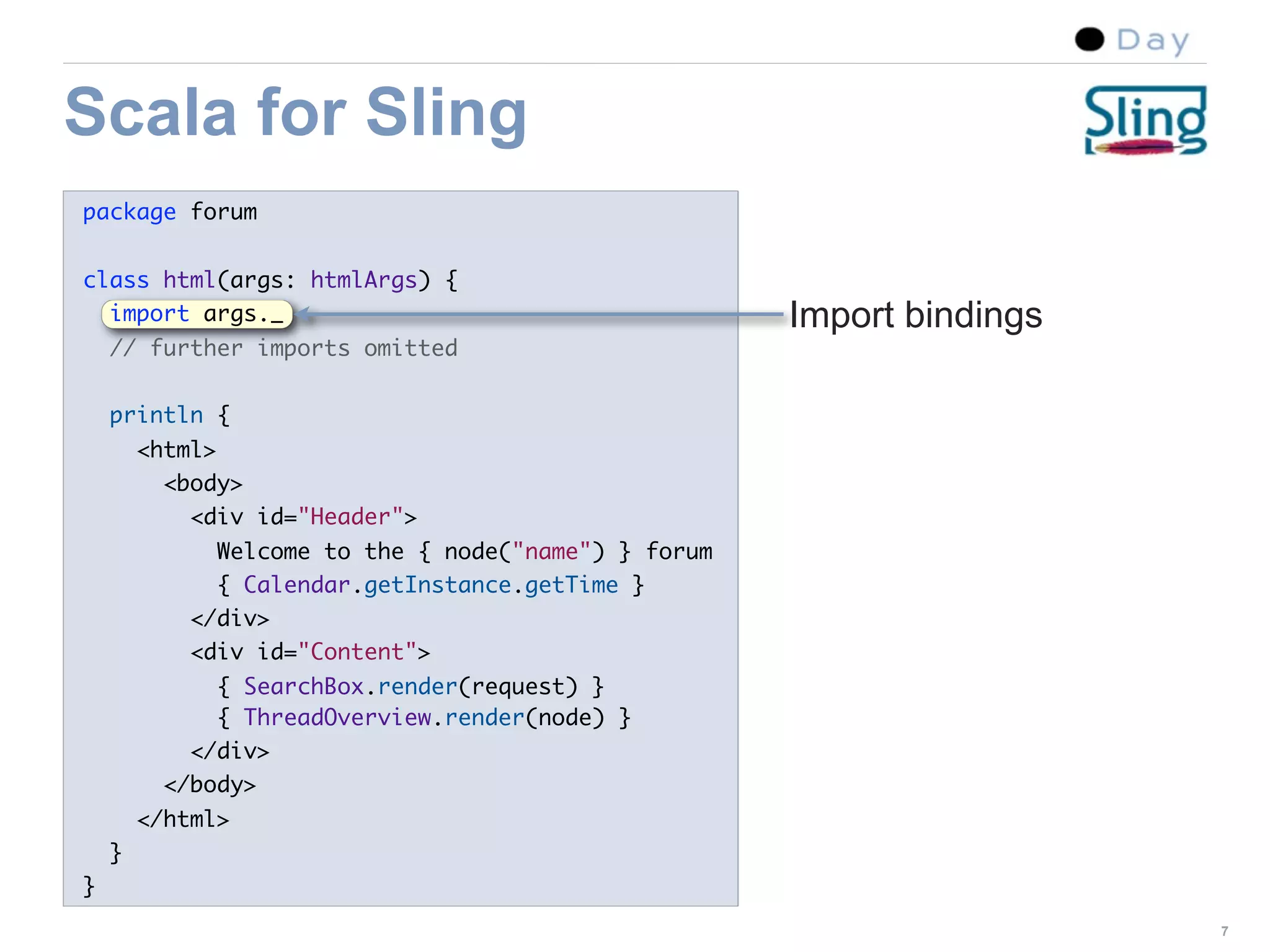

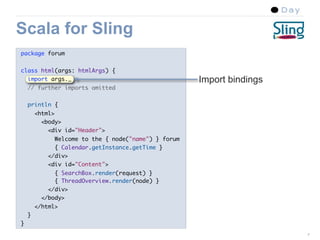

12. Scala for Sling
package forum
class html(args: htmlArgs) {
import args._ Import bindings
// further imports omitted
println {
<html>
<body>
<div id="Header">
Welcome to the { node("name") } forum
{ Calendar.getInstance.getTime }
</div>
<div id="Content">
{ SearchBox.render(request) }
{ ThreadOverview.render(node) }
</div>
</body>
</html>
}
}
7

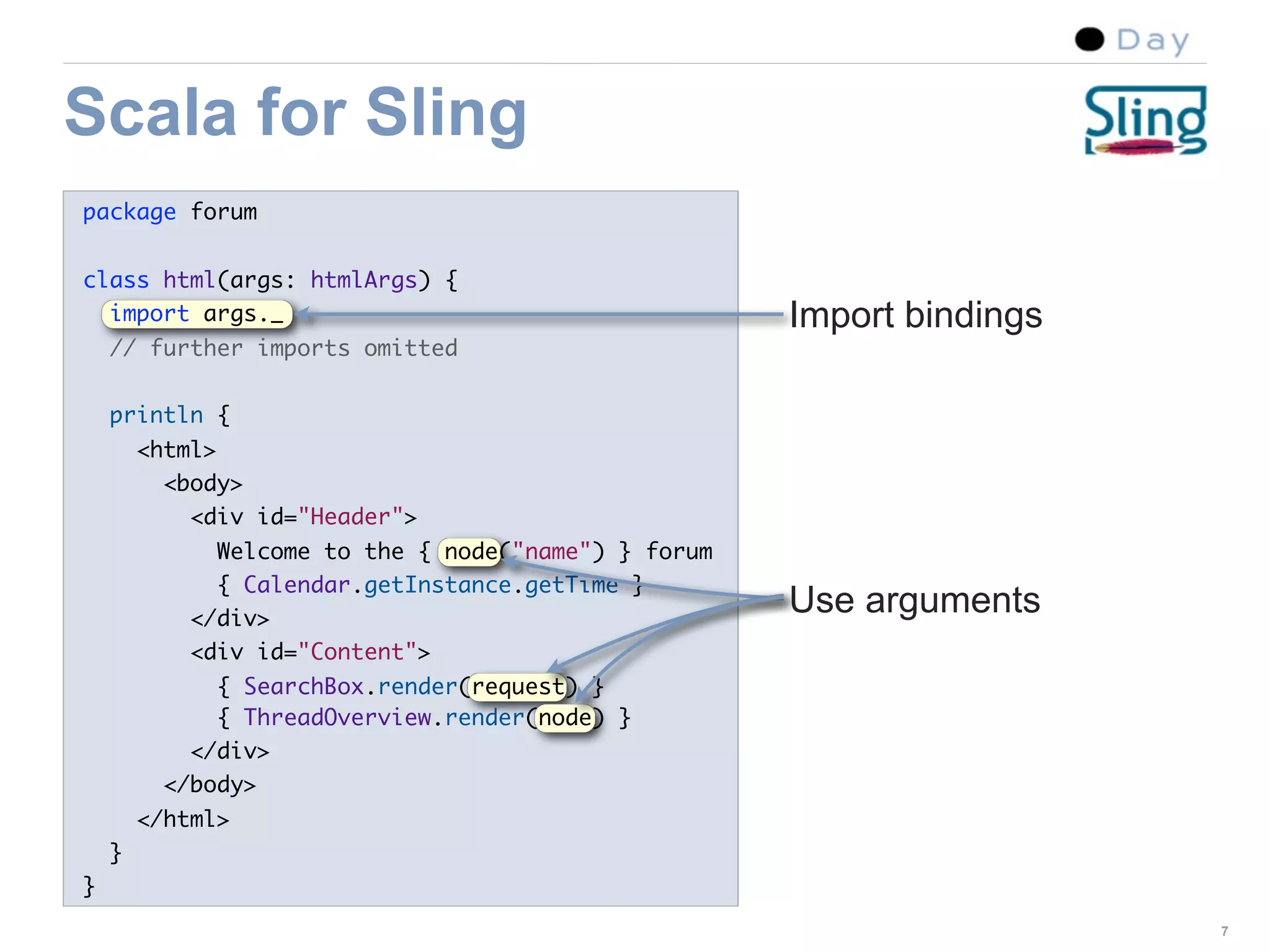

13. Scala for Sling
package forum
class html(args: htmlArgs) {
import args._ Import bindings
// further imports omitted
println {
<html>
<body>
<div id="Header">
Welcome to the { node("name") } forum
{ Calendar.getInstance.getTime }
</div>
Use arguments
<div id="Content">
{ SearchBox.render(request) }
{ ThreadOverview.render(node) }
</div>
</body>
</html>
}
}
7

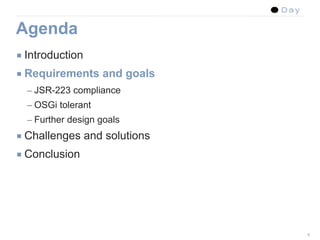

14. Agenda
■ Introduction
■ Requirements and goals
– JSR-223 compliance
– OSGi tolerant
– Further design goals
■ Challenges and solutions
■ Conclusion
8

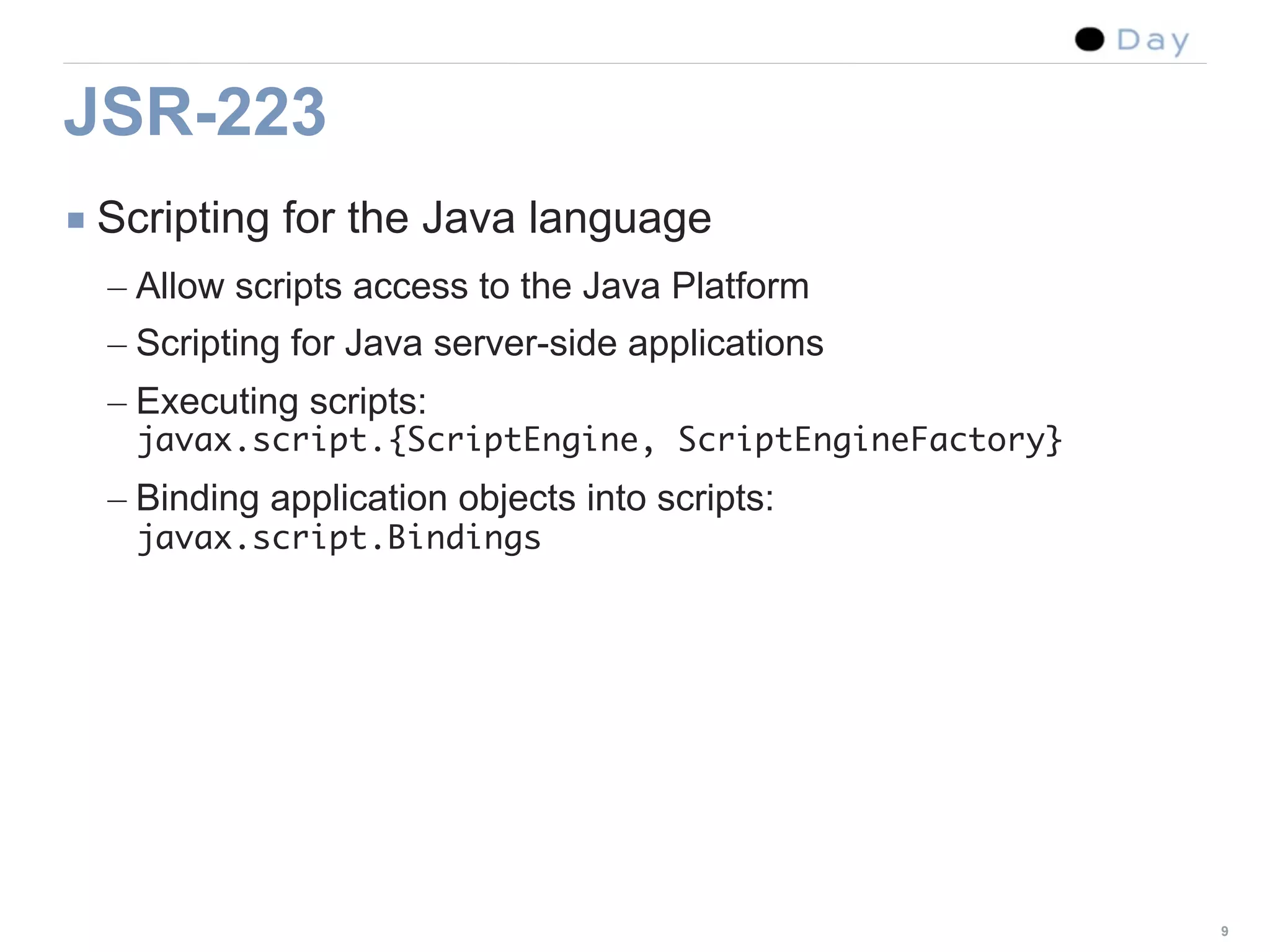

15. JSR-223
■ Scripting for the Java language
– Allow scripts access to the Java Platform
– Scripting for Java server-side applications
– Executing scripts:
javax.script.{ScriptEngine, ScriptEngineFactory}
– Binding application objects into scripts:
javax.script.Bindings
9

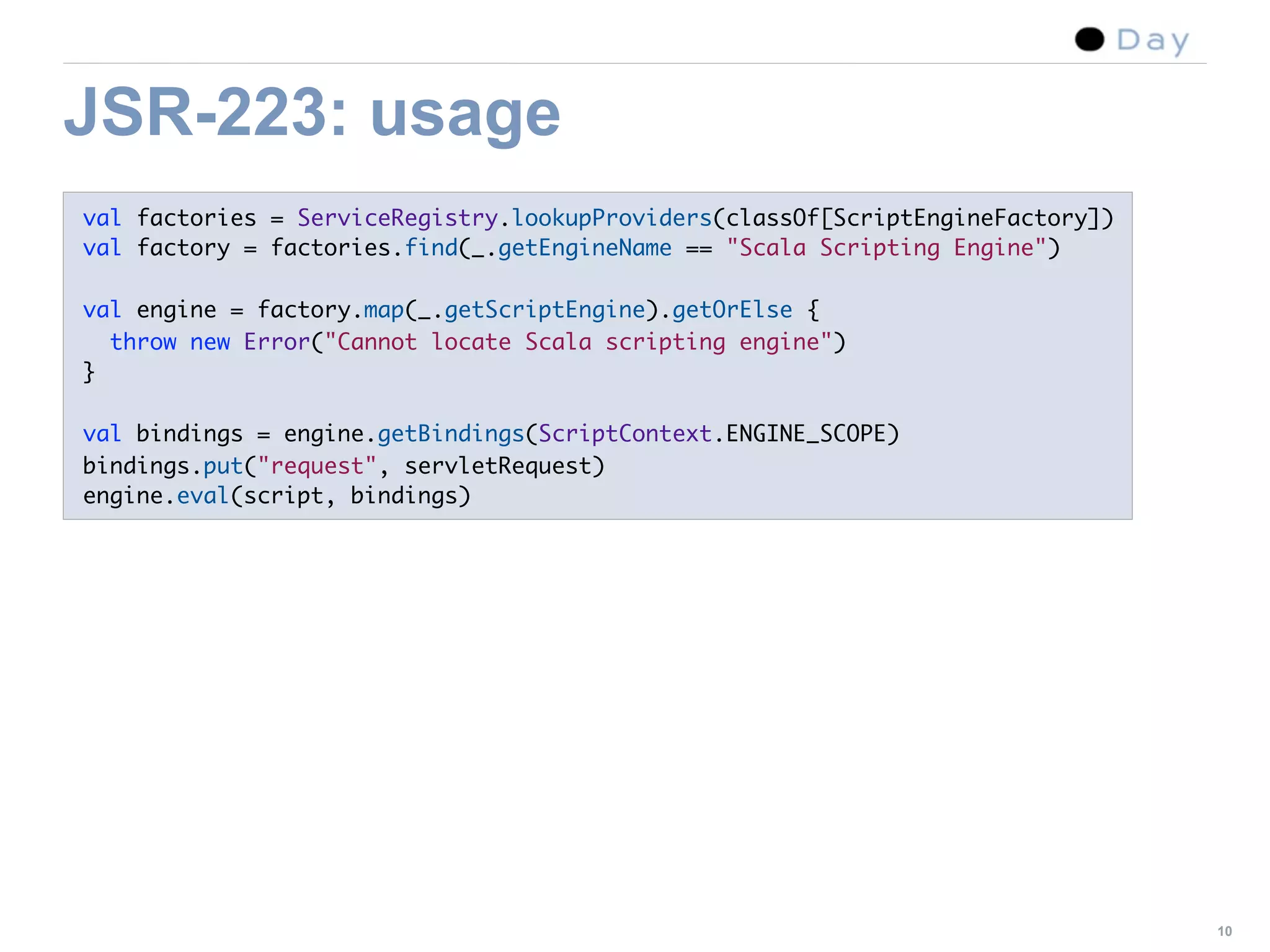

16. JSR-223: usage
val factories = ServiceRegistry.lookupProviders(classOf[ScriptEngineFactory])
val factory = factories.find(_.getEngineName == "Scala Scripting Engine")
val engine = factory.map(_.getScriptEngine).getOrElse {
throw new Error("Cannot locate Scala scripting engine")
}
val bindings = engine.getBindings(ScriptContext.ENGINE_SCOPE)
bindings.put("request", servletRequest)
engine.eval(script, bindings)
10

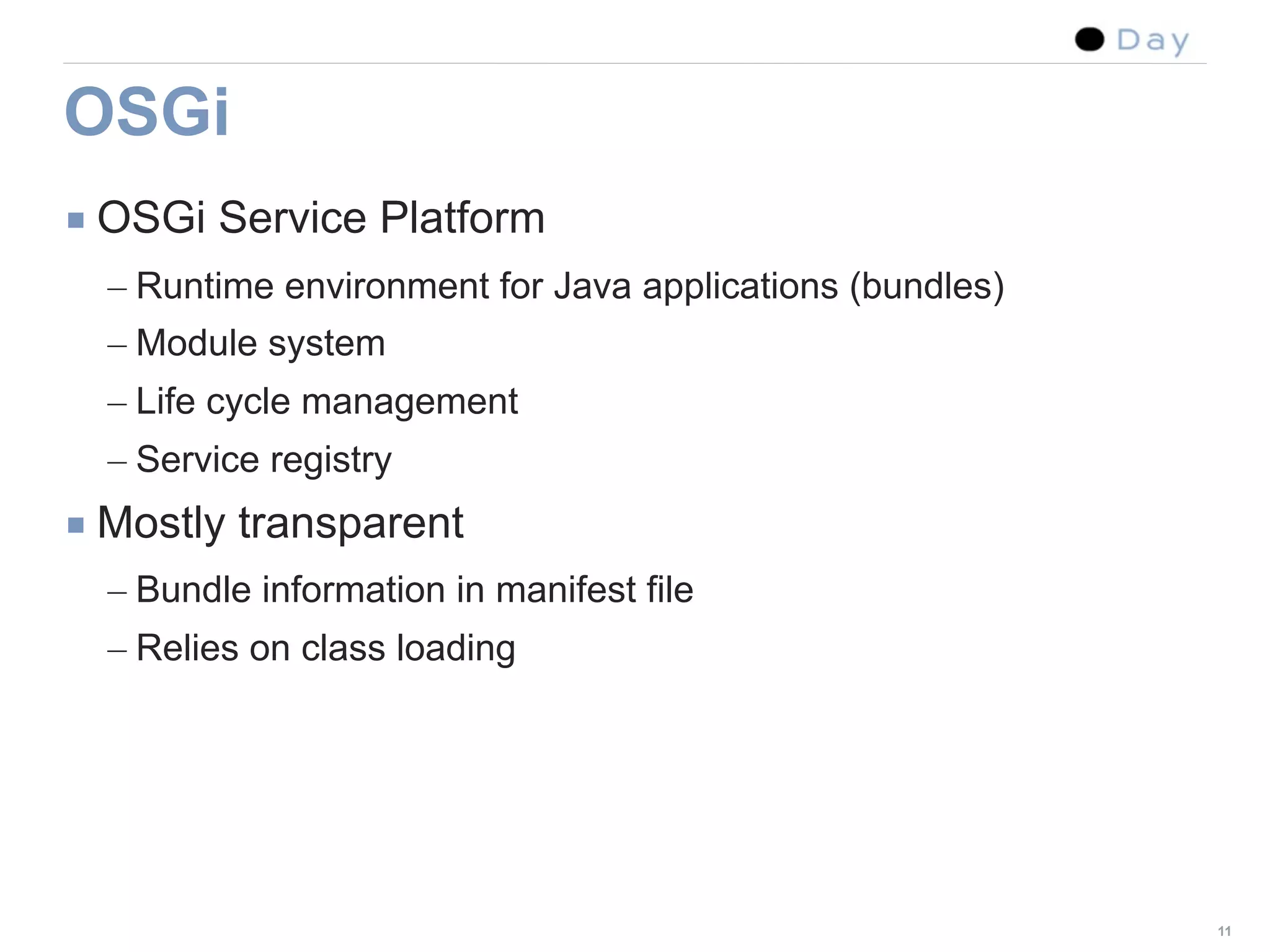

17. OSGi
■ OSGi Service Platform
– Runtime environment for Java applications (bundles)
– Module system
– Life cycle management
– Service registry
■ Mostly transparent
– Bundle information in manifest file
– Relies on class loading
11

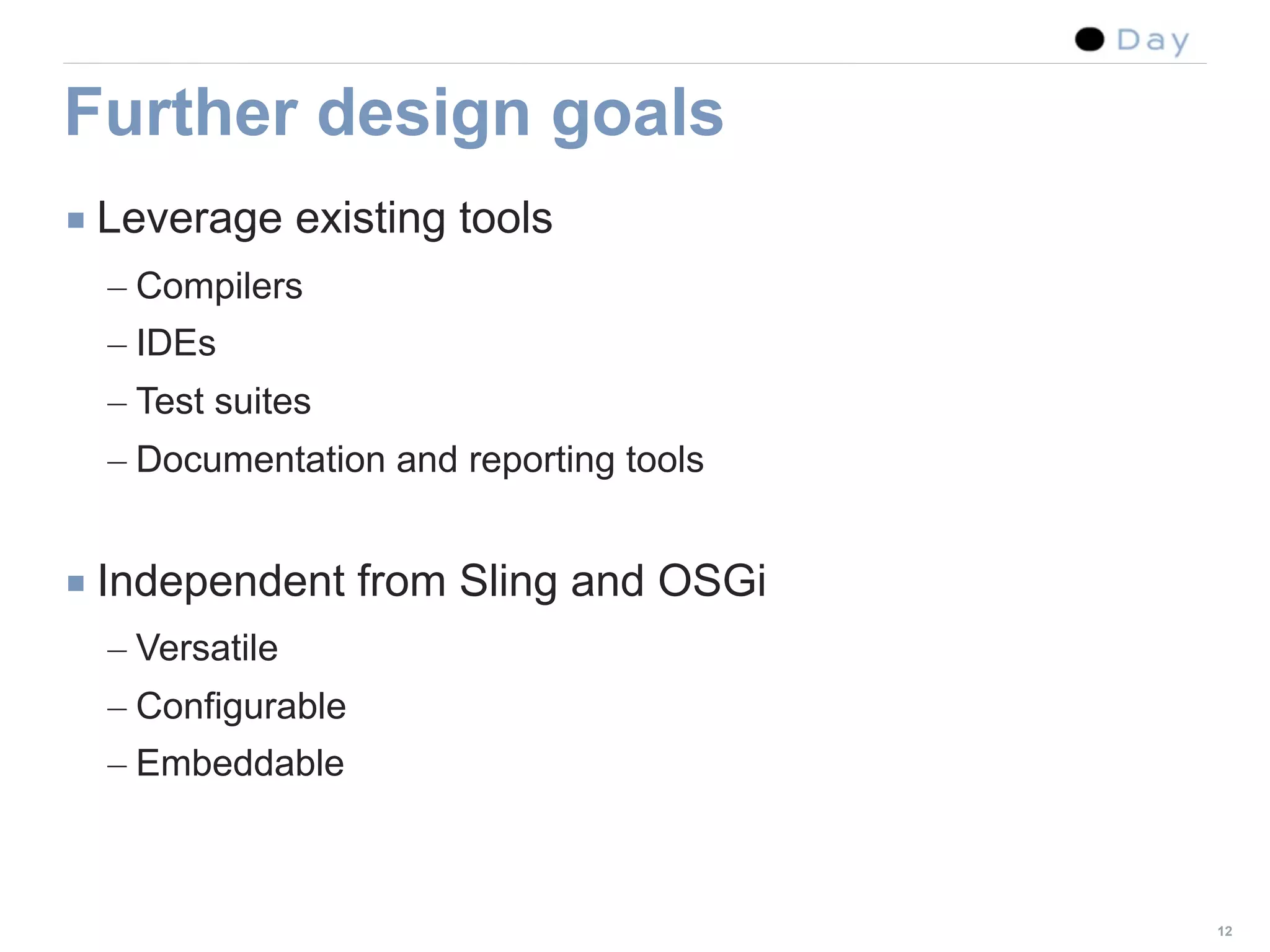

18. Further design goals
■ Leverage existing tools
– Compilers
– IDEs
– Test suites
– Documentation and reporting tools
■ Independent from Sling and OSGi
– Versatile
– Configurable
– Embeddable
12

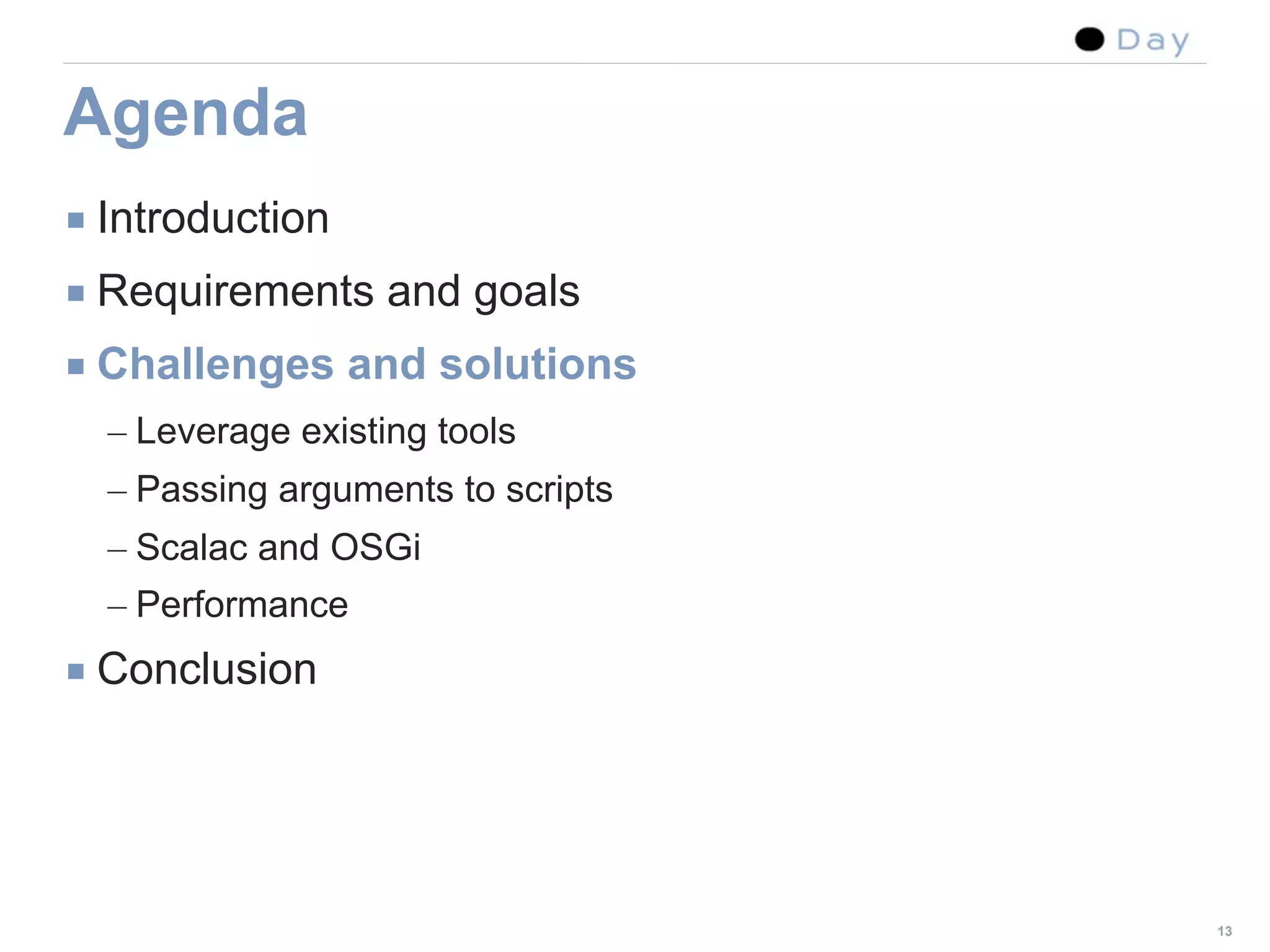

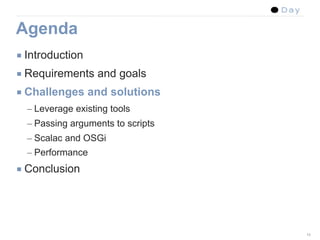

19. Agenda
■ Introduction
■ Requirements and goals
■ Challenges and solutions
– Leverage existing tools
– Passing arguments to scripts
– Scalac and OSGi
– Performance
■ Conclusion
13

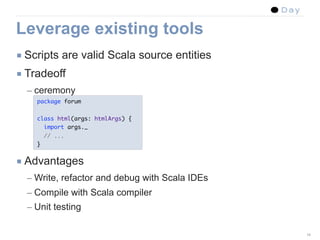

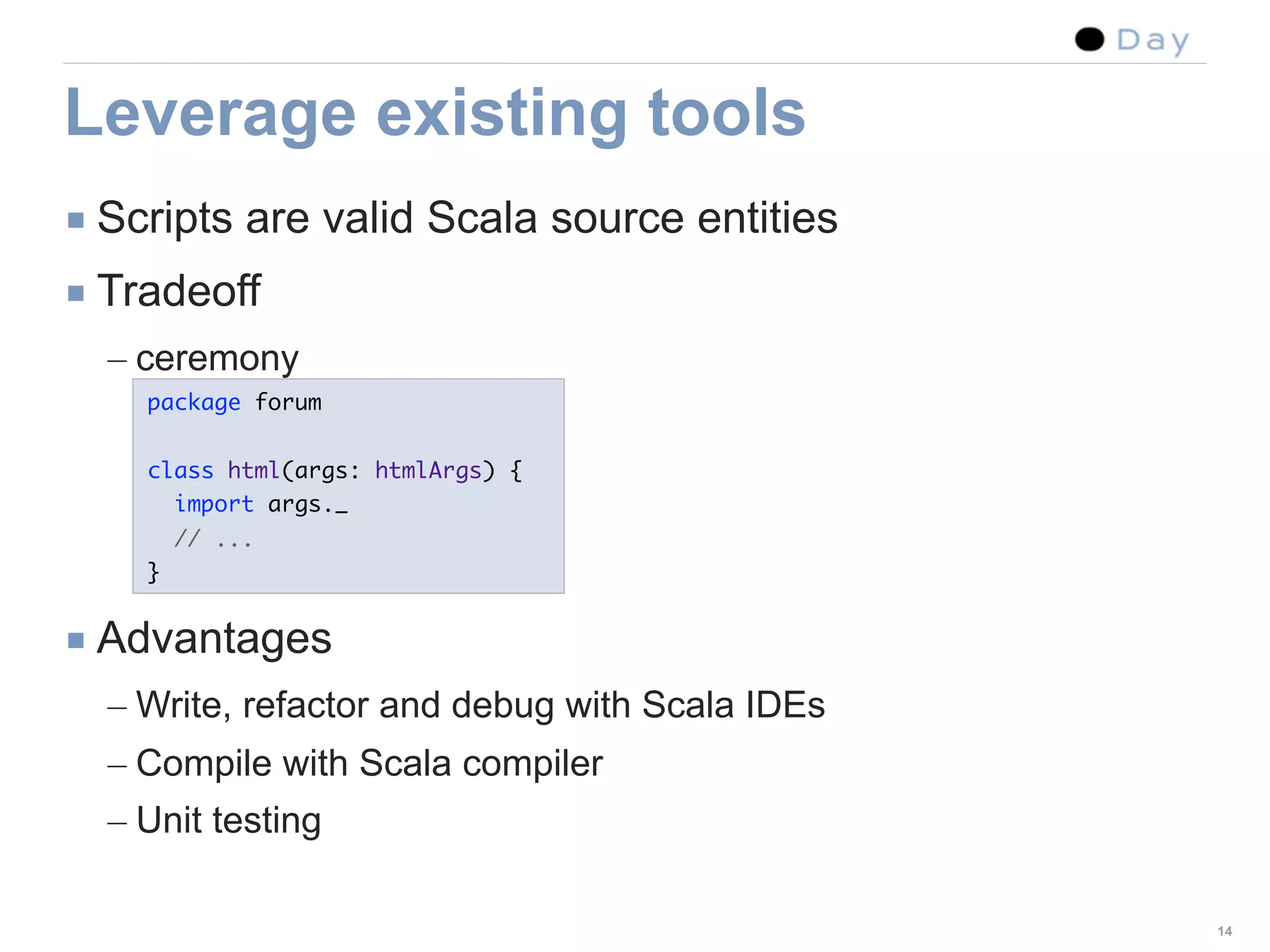

20. Leverage existing tools
■ Scripts are valid Scala source entities
■ Tradeoff
– ceremony
package forum
class html(args: htmlArgs) {
import args._
// ...
}
■ Advantages
– Write, refactor and debug with Scala IDEs
– Compile with Scala compiler
– Unit testing
14

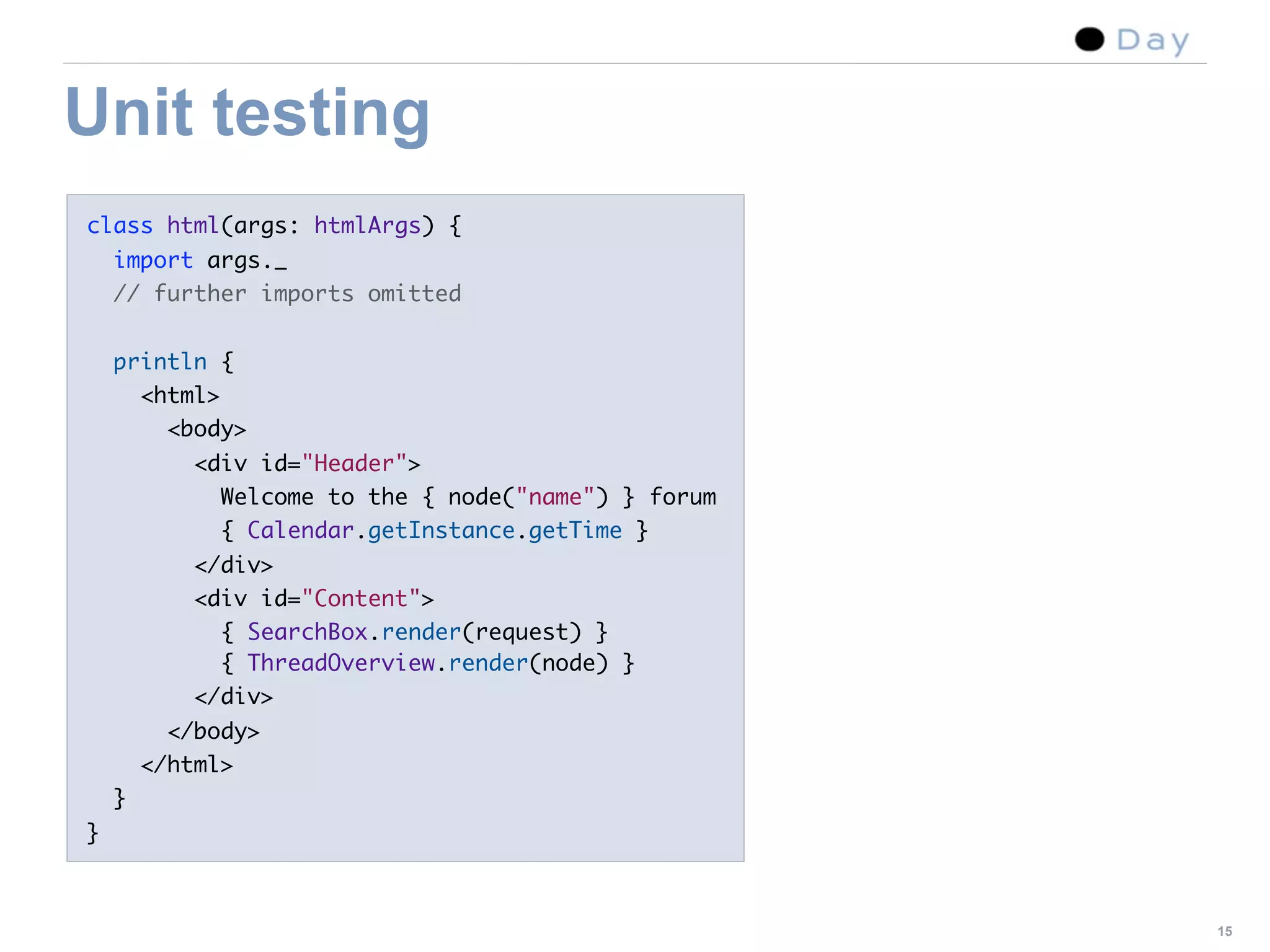

21. Unit testing
class html(args: htmlArgs) {
import args._
// further imports omitted
println {
<html>
<body>
<div id="Header">
Welcome to the { node("name") } forum
{ Calendar.getInstance.getTime }
</div>
<div id="Content">
{ SearchBox.render(request) }
{ ThreadOverview.render(node) }
</div>
</body>
</html>
}
}
15

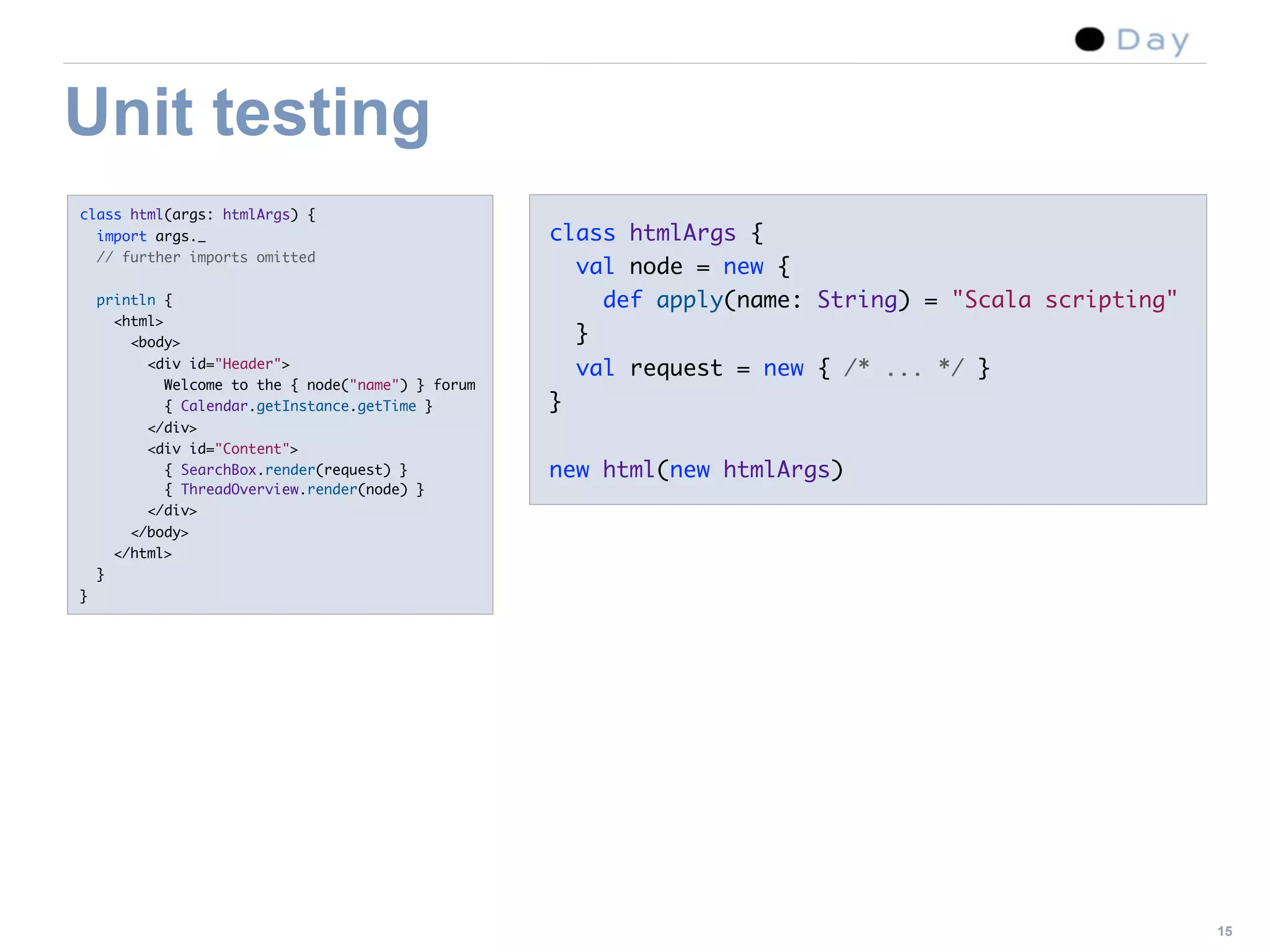

22. Unit testing
class html(args: htmlArgs) {
import args._ class htmlArgs {
// further imports omitted
val node = new {
println { def apply(name: String) = "Scala scripting"
<html>
<body> }
<div id="Header"> val request = new { /* ... */ }
Welcome to the { node("name") } forum
{ Calendar.getInstance.getTime } }
</div>
<div id="Content">
{ SearchBox.render(request) } new html(new htmlArgs)
{ ThreadOverview.render(node) }
</div>
</body>
</html>
}
}
15

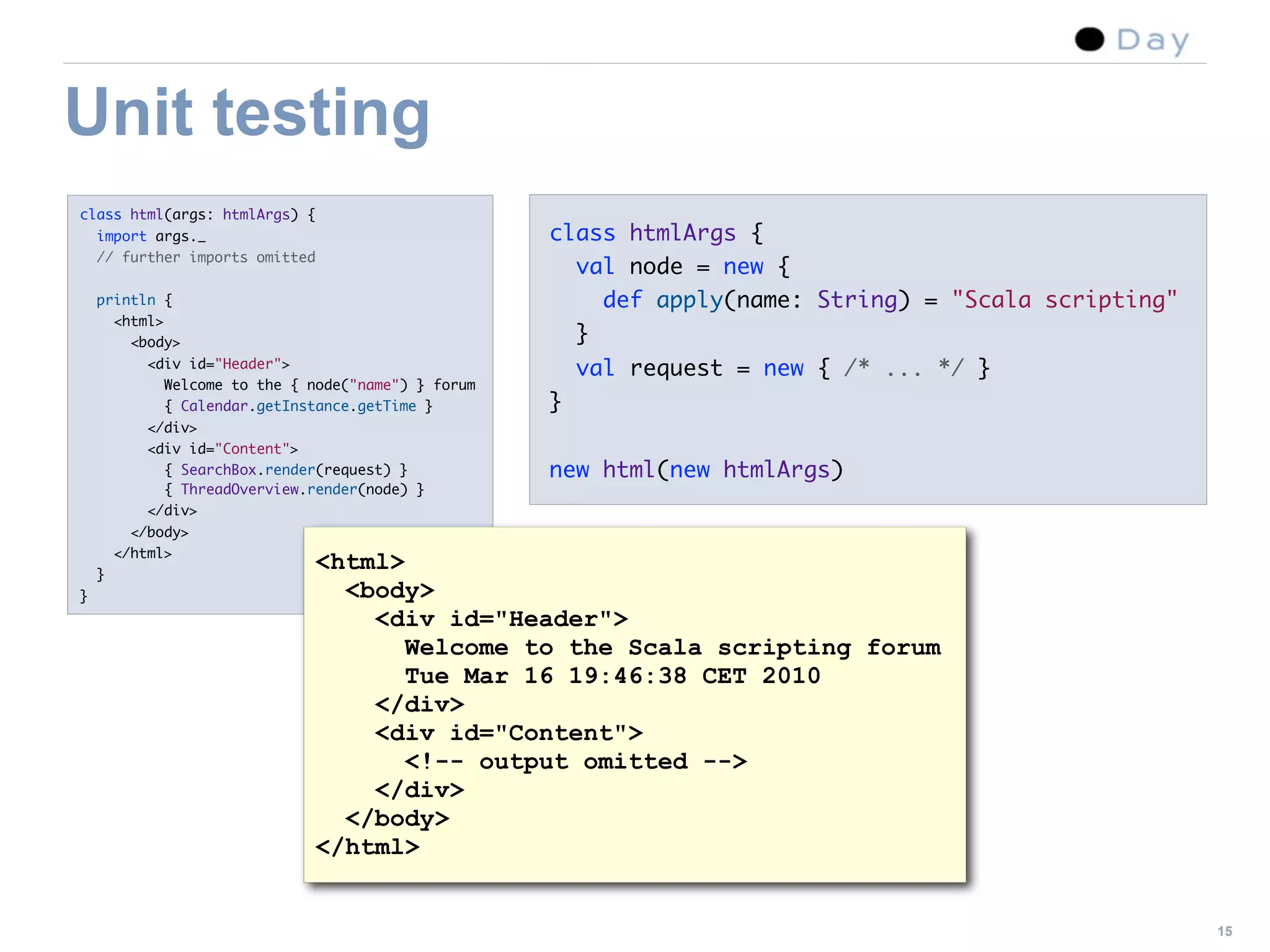

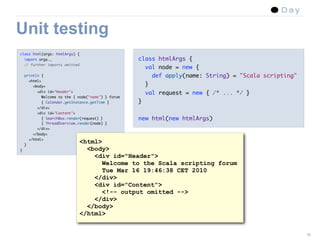

23. Unit testing
class html(args: htmlArgs) {
import args._ class htmlArgs {
// further imports omitted
val node = new {
println { def apply(name: String) = "Scala scripting"
<html>
<body> }
<div id="Header"> val request = new { /* ... */ }
Welcome to the { node("name") } forum
{ Calendar.getInstance.getTime } }
</div>
<div id="Content">
{ SearchBox.render(request) } new html(new htmlArgs)
{ ThreadOverview.render(node) }
</div>
</body>
</html>
}
<html>
} <body>
<div id="Header">
Welcome to the Scala scripting forum
Tue Mar 16 19:46:38 CET 2010
</div>
<div id="Content">
<!-- output omitted -->
</div>
</body>
</html>
15

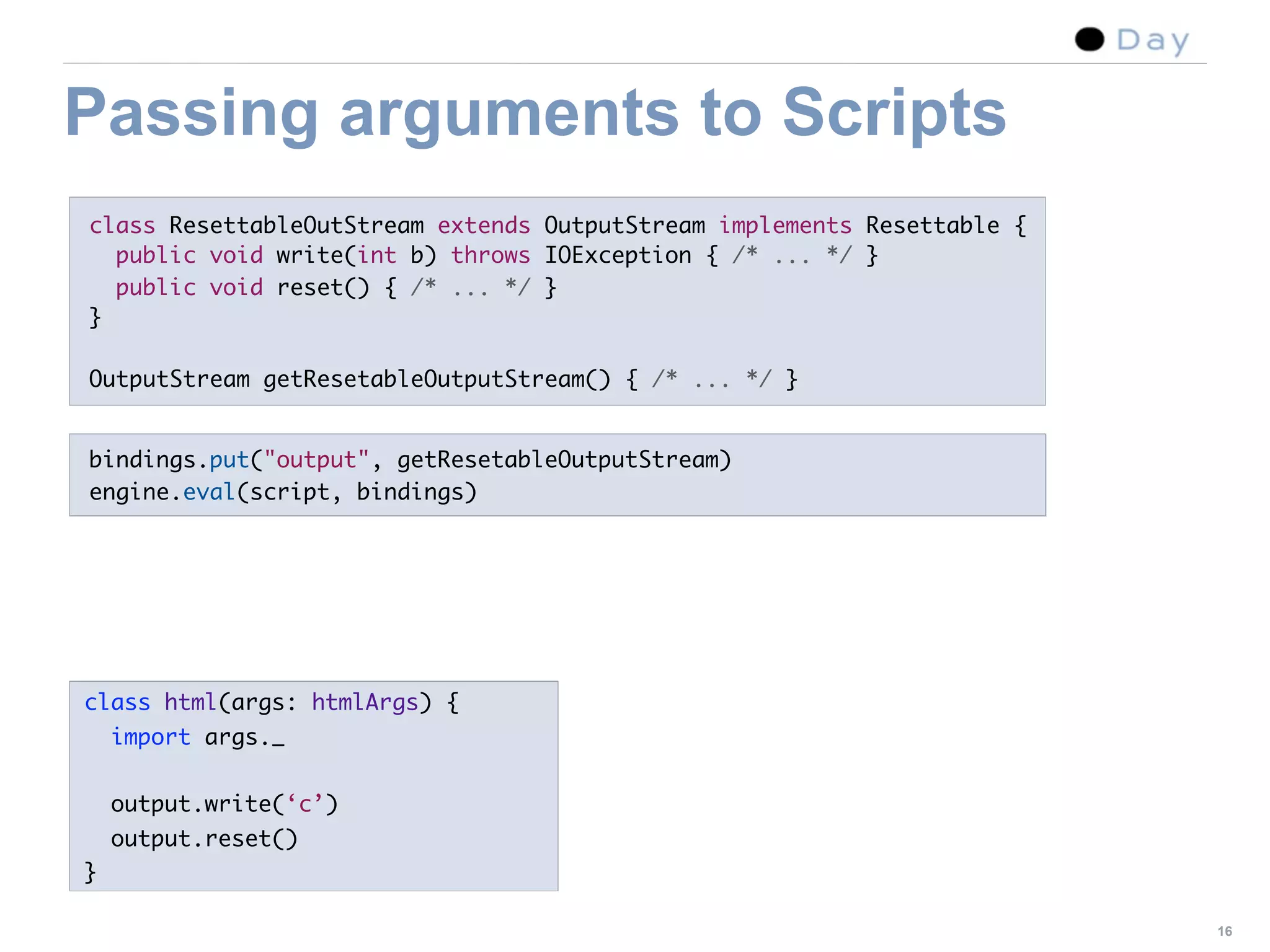

24. Passing arguments to Scripts
class ResettableOutStream extends OutputStream implements Resettable {
public void write(int b) throws IOException { /* ... */ }
public void reset() { /* ... */ }
}
OutputStream getResetableOutputStream() { /* ... */ }
bindings.put("output", getResetableOutputStream)
engine.eval(script, bindings)
class html(args: htmlArgs) {
import args._
output.write(‘c’)
output.reset()
}
16

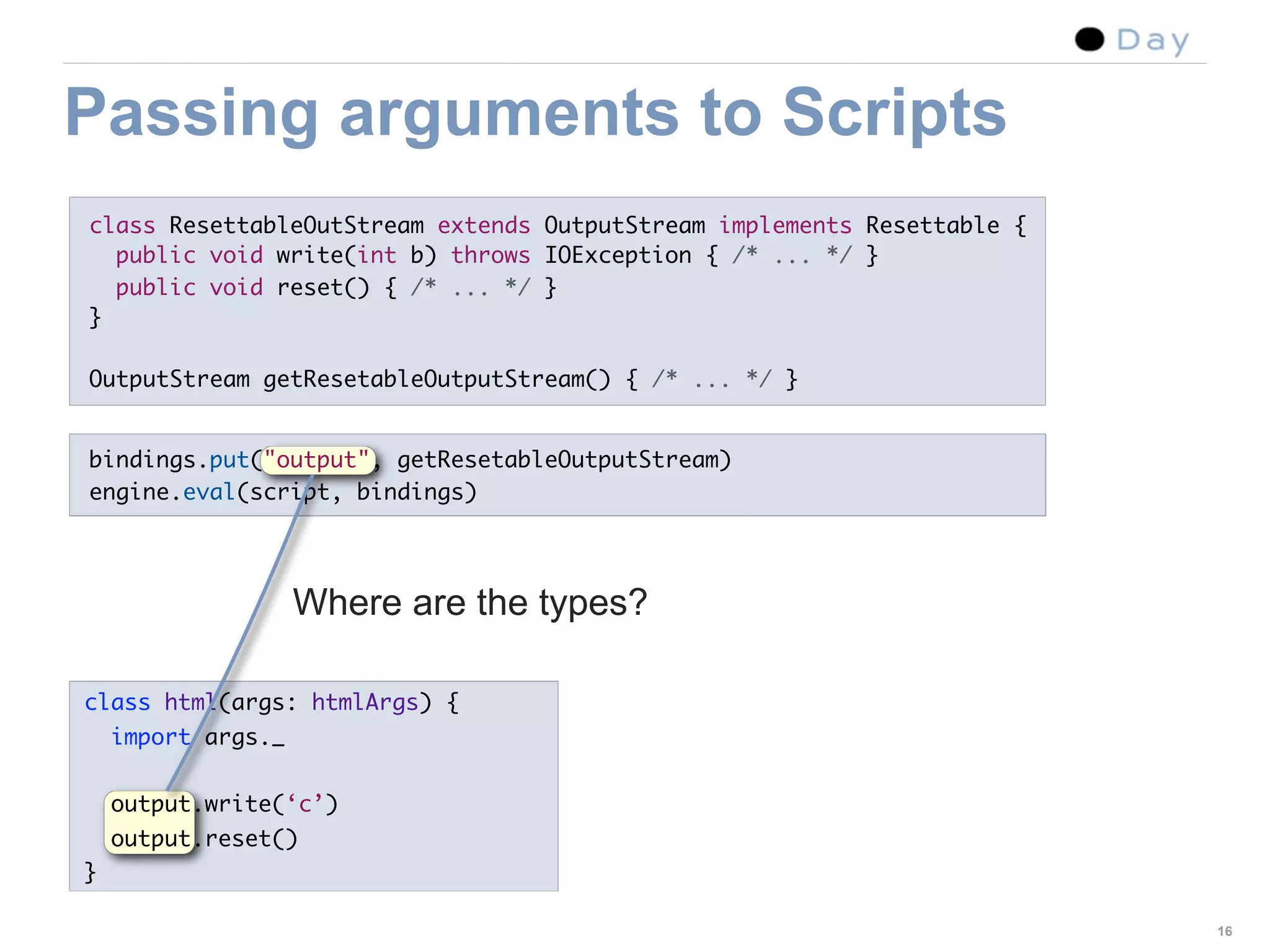

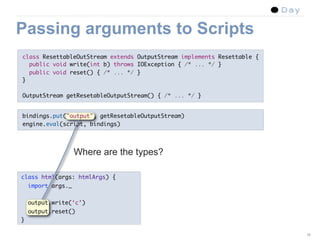

25. Passing arguments to Scripts
class ResettableOutStream extends OutputStream implements Resettable {
public void write(int b) throws IOException { /* ... */ }
public void reset() { /* ... */ }
}
OutputStream getResetableOutputStream() { /* ... */ }
bindings.put("output", getResetableOutputStream)
engine.eval(script, bindings)
Where are the types?
class html(args: htmlArgs) {
import args._
output.write(‘c’)
output.reset()
}
16

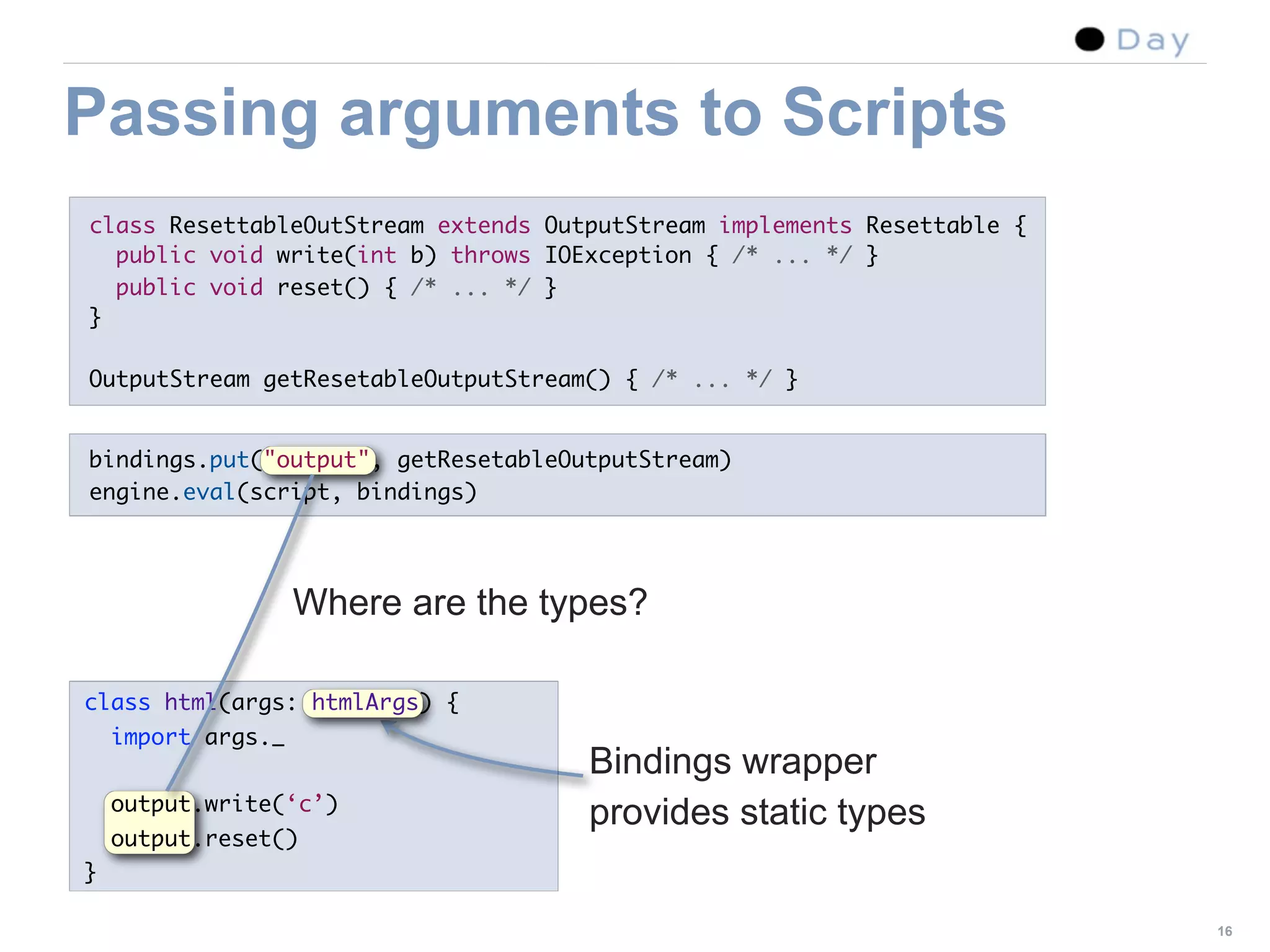

26. Passing arguments to Scripts
class ResettableOutStream extends OutputStream implements Resettable {
public void write(int b) throws IOException { /* ... */ }
public void reset() { /* ... */ }
}
OutputStream getResetableOutputStream() { /* ... */ }
bindings.put("output", getResetableOutputStream)
engine.eval(script, bindings)
Where are the types?
class html(args: htmlArgs) {
import args._
Bindings wrapper
output.write(‘c’)
provides static types
output.reset()
}
16

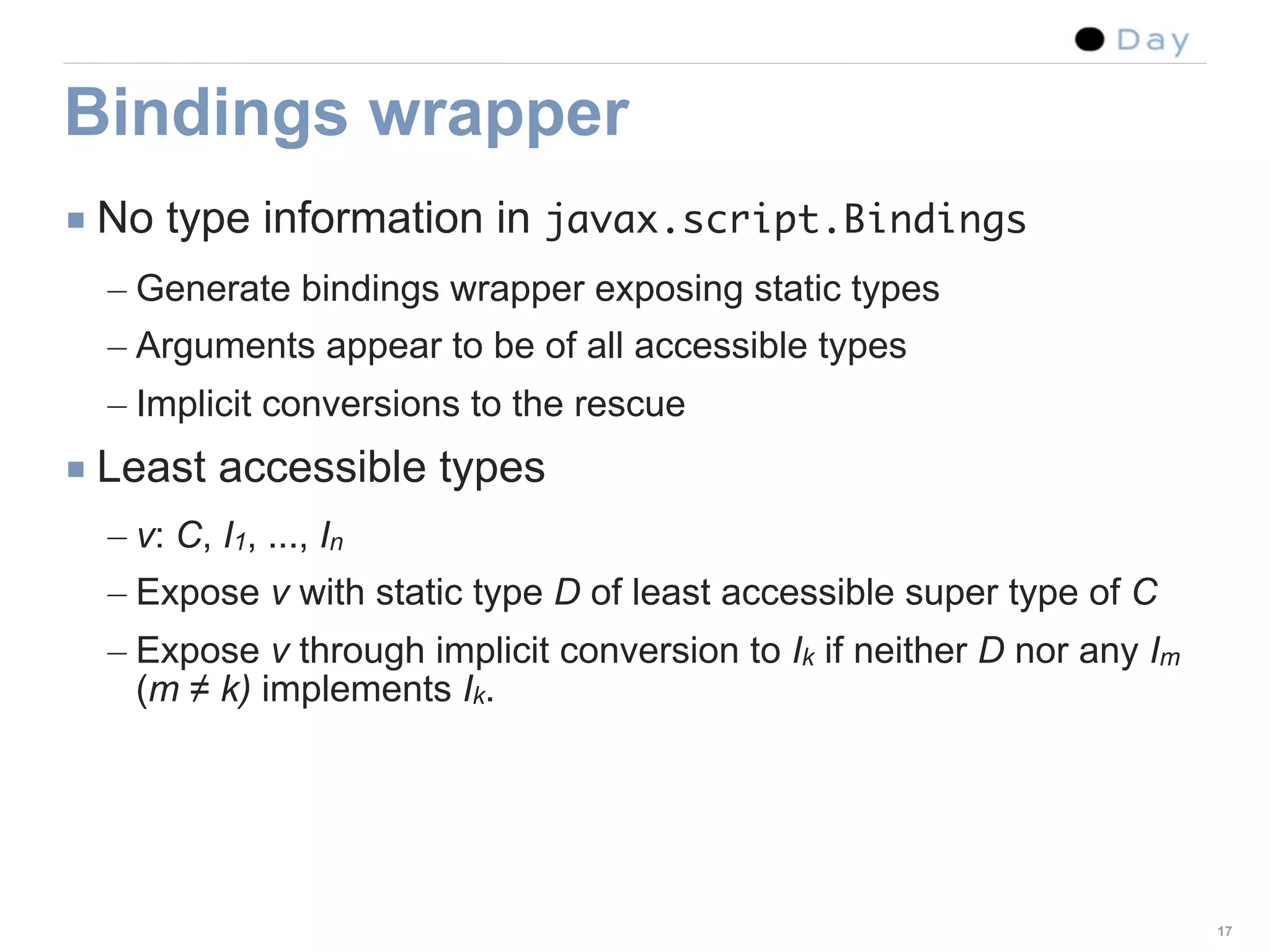

27. Bindings wrapper
■ No type information in javax.script.Bindings
– Generate bindings wrapper exposing static types
– Arguments appear to be of all accessible types
– Implicit conversions to the rescue
■ Least accessible types
– v: C, I1, ..., In
– Expose v with static type D of least accessible super type of C
– Expose v through implicit conversion to Ik if neither D nor any Im
(m ≠ k) implements Ik.
17

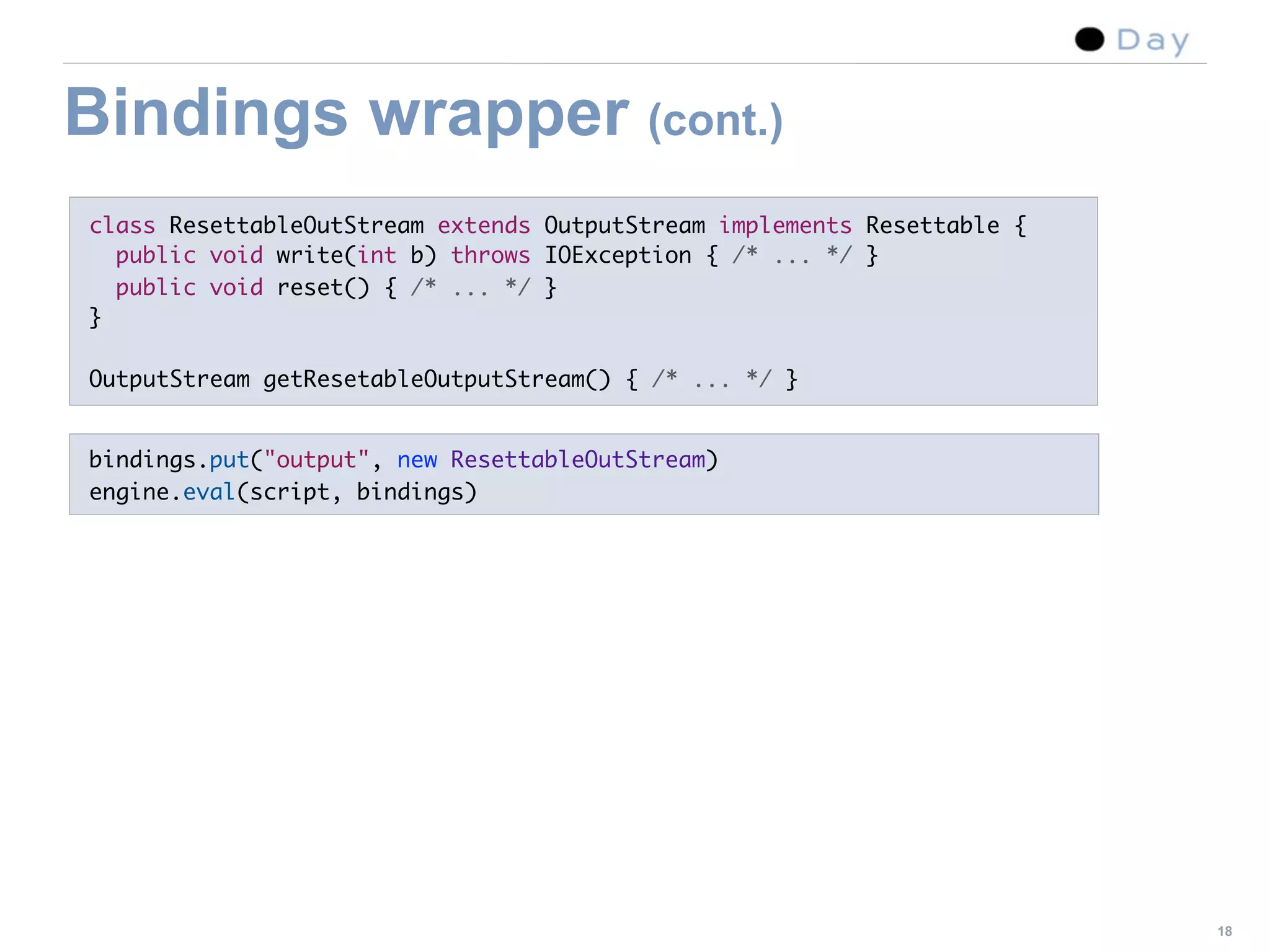

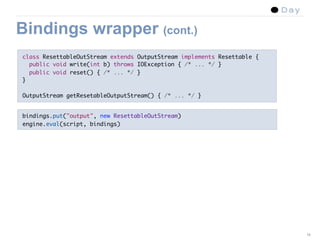

28. Bindings wrapper (cont.)
class ResettableOutStream extends OutputStream implements Resettable {
public void write(int b) throws IOException { /* ... */ }
public void reset() { /* ... */ }
}
OutputStream getResetableOutputStream() { /* ... */ }
bindings.put("output", new ResettableOutStream)
engine.eval(script, bindings)
18

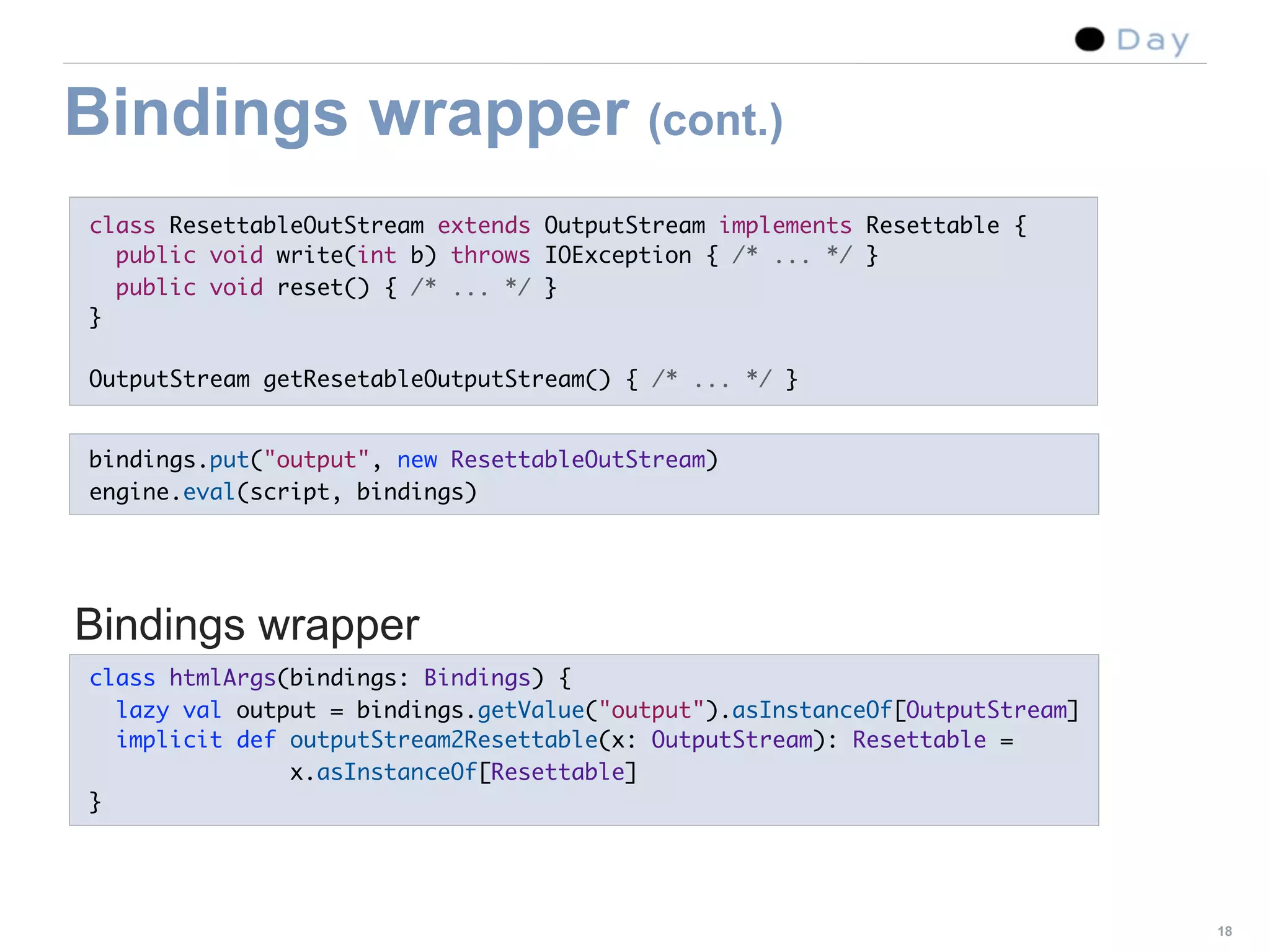

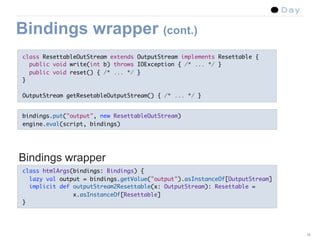

29. Bindings wrapper (cont.)
class ResettableOutStream extends OutputStream implements Resettable {
public void write(int b) throws IOException { /* ... */ }
public void reset() { /* ... */ }
}
OutputStream getResetableOutputStream() { /* ... */ }
bindings.put("output", new ResettableOutStream)
engine.eval(script, bindings)
Bindings wrapper
class htmlArgs(bindings: Bindings) {
lazy val output = bindings.getValue("output").asInstanceOf[OutputStream]
implicit def outputStream2Resettable(x: OutputStream): Resettable =
x.asInstanceOf[Resettable]
}
18

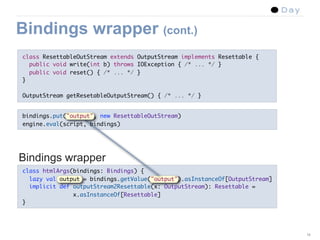

30. Bindings wrapper (cont.)
class ResettableOutStream extends OutputStream implements Resettable {
public void write(int b) throws IOException { /* ... */ }
public void reset() { /* ... */ }
}
OutputStream getResetableOutputStream() { /* ... */ }
bindings.put("output", new ResettableOutStream)
engine.eval(script, bindings)
Bindings wrapper
class htmlArgs(bindings: Bindings) {
lazy val output = bindings.getValue("output").asInstanceOf[OutputStream]
implicit def outputStream2Resettable(x: OutputStream): Resettable =
x.asInstanceOf[Resettable]
}
18

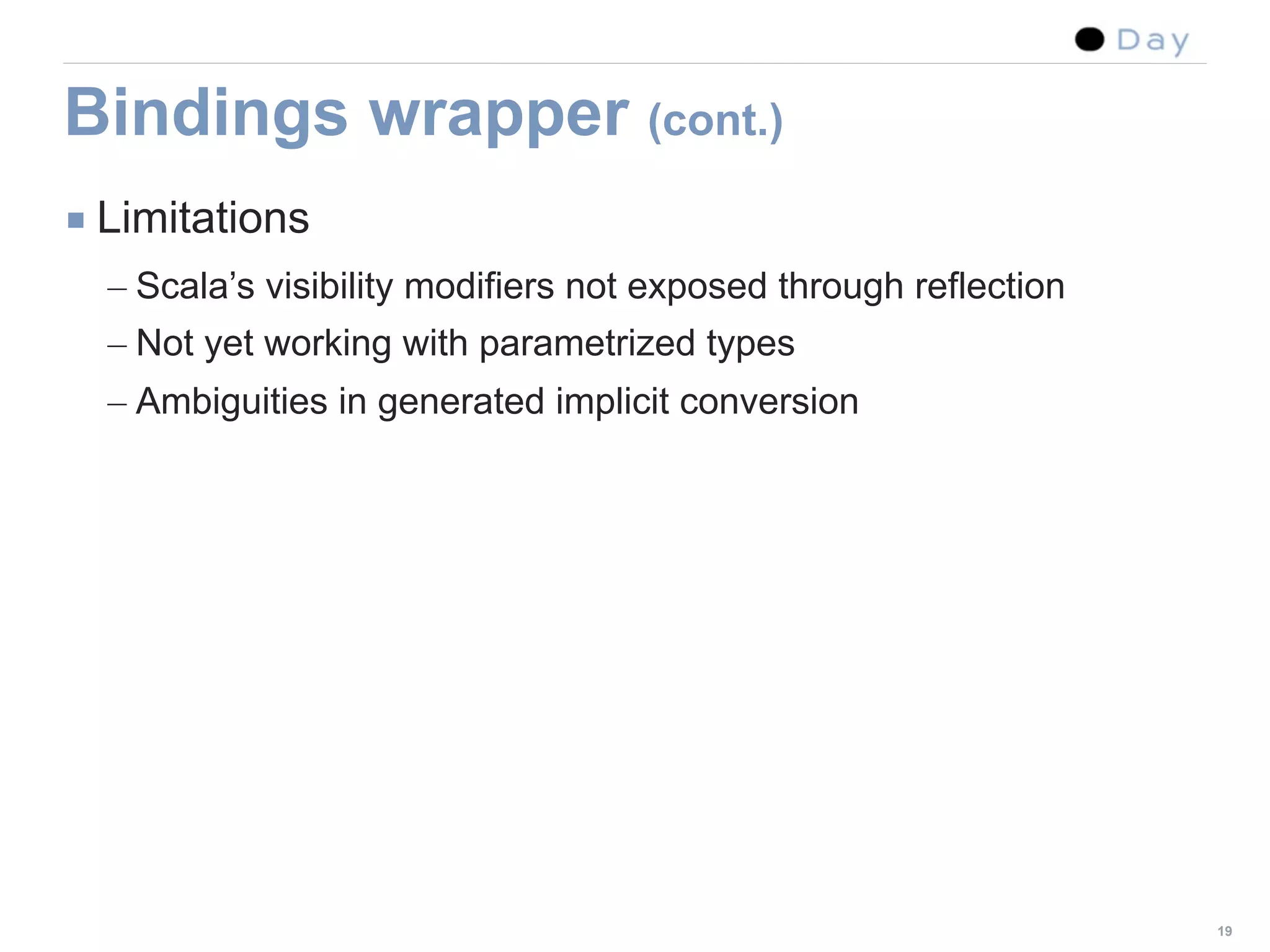

31. Bindings wrapper (cont.)
■ Limitations
– Scala’s visibility modifiers not exposed through reflection
– Not yet working with parametrized types
– Ambiguities in generated implicit conversion
19

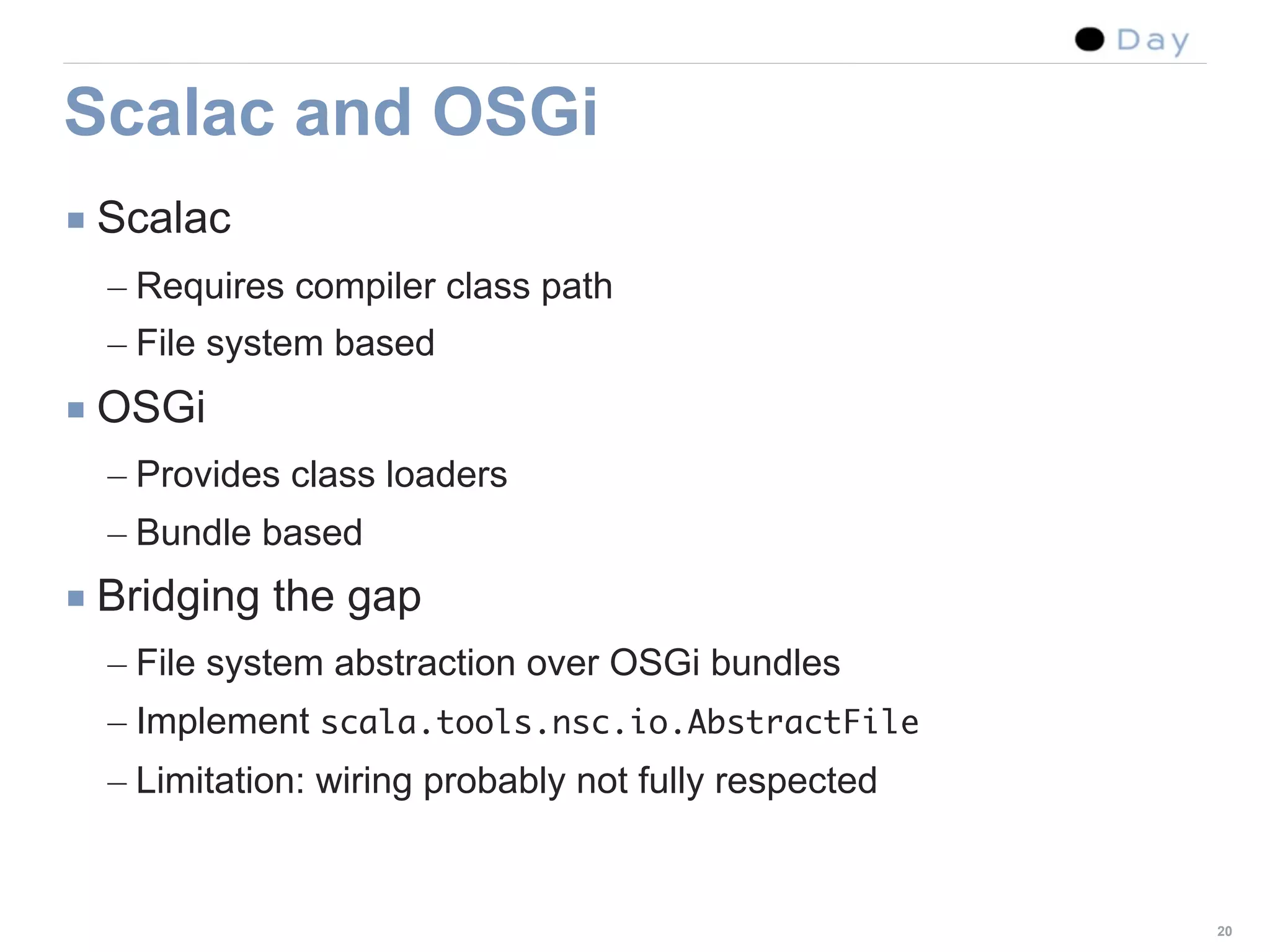

32. Scalac and OSGi
■ Scalac
– Requires compiler class path
– File system based
■ OSGi
– Provides class loaders
– Bundle based
■ Bridging the gap
– File system abstraction over OSGi bundles
– Implement scala.tools.nsc.io.AbstractFile
– Limitation: wiring probably not fully respected
20

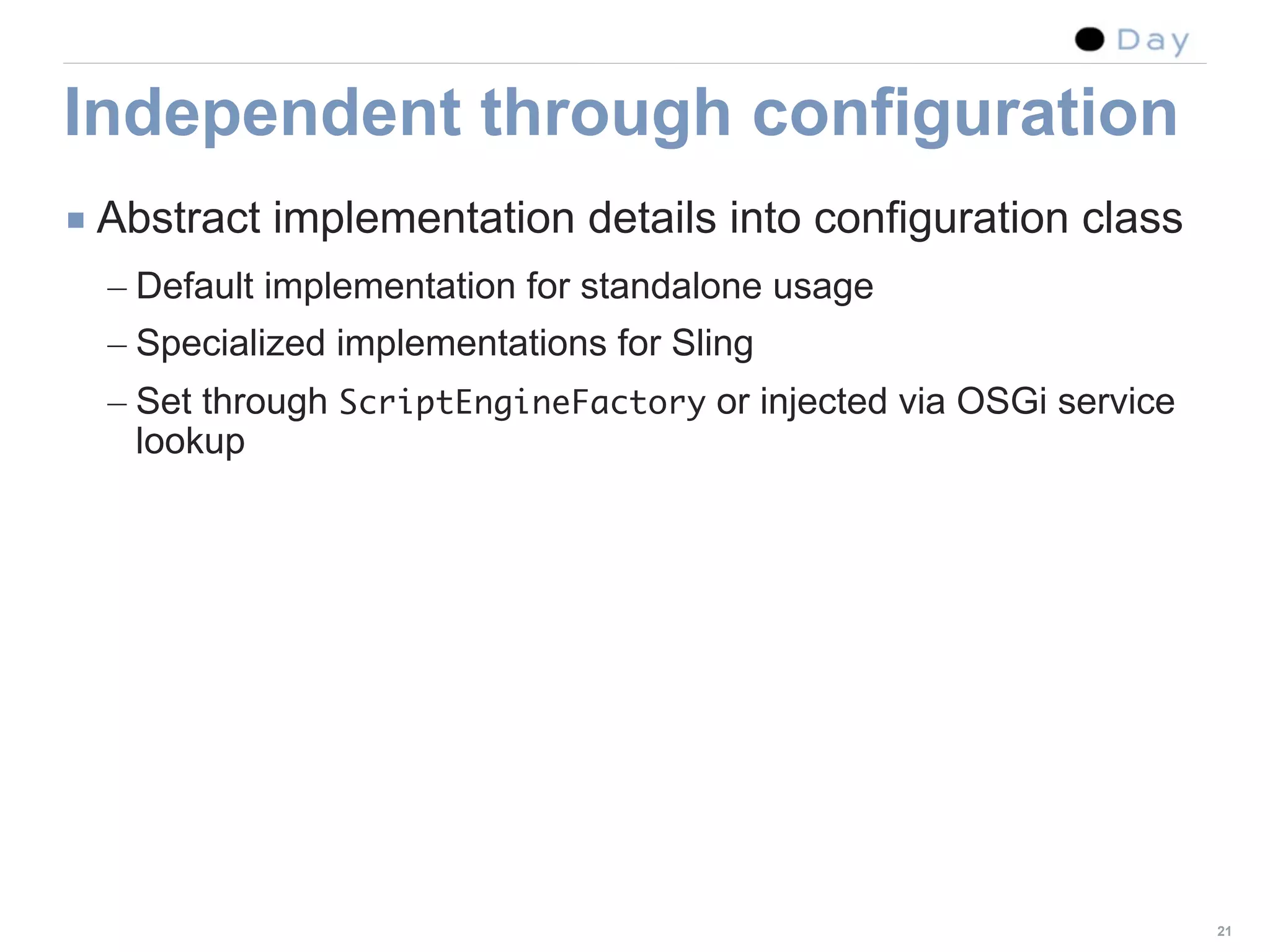

33. Independent through configuration
■ Abstract implementation details into configuration class
– Default implementation for standalone usage
– Specialized implementations for Sling
– Set through ScriptEngineFactory or injected via OSGi service
lookup
21

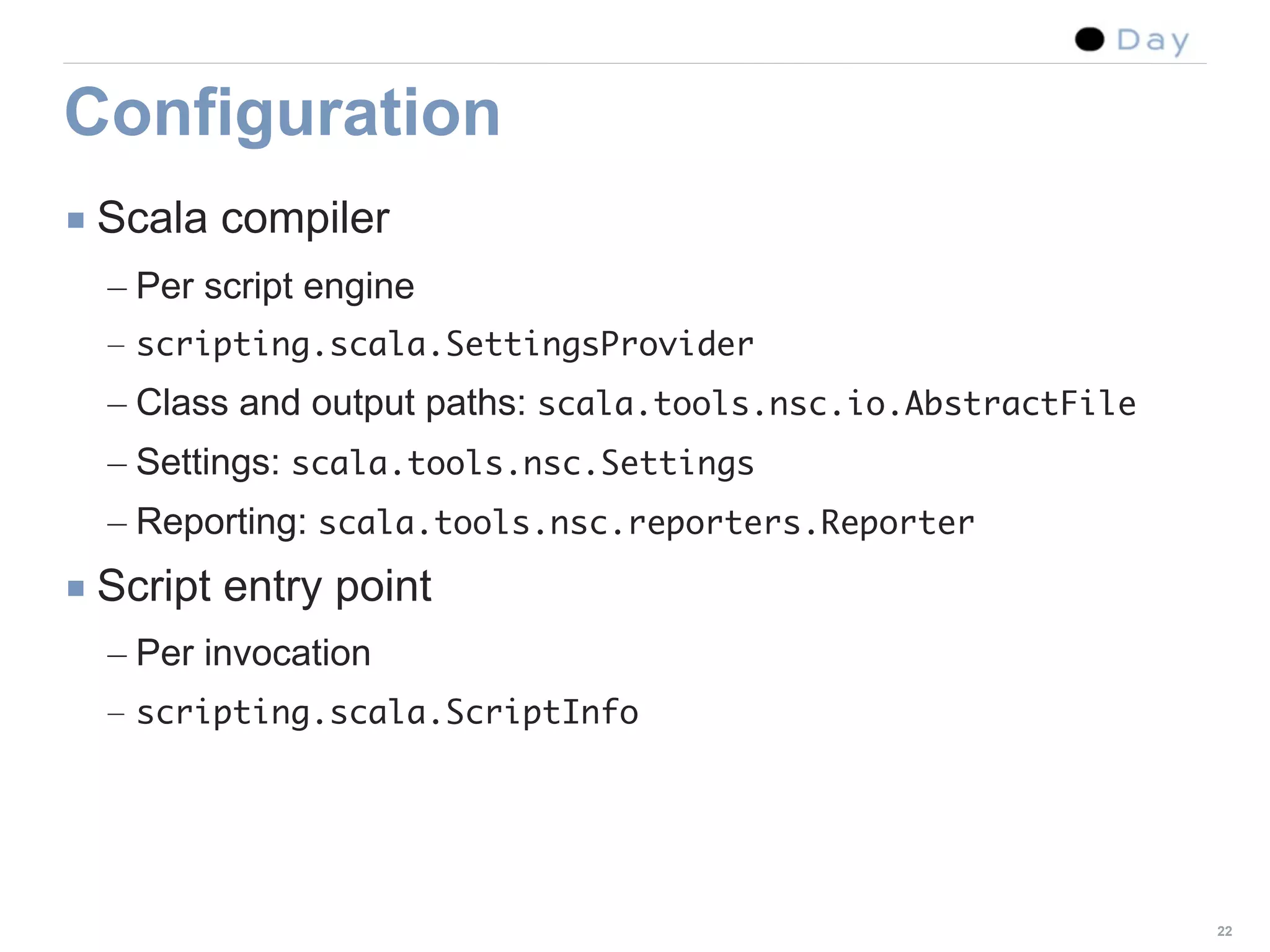

34. Configuration
■ Scala compiler
– Per script engine
– scripting.scala.SettingsProvider
– Class and output paths: scala.tools.nsc.io.AbstractFile
– Settings: scala.tools.nsc.Settings
– Reporting: scala.tools.nsc.reporters.Reporter
■ Script entry point
– Per invocation
– scripting.scala.ScriptInfo
22

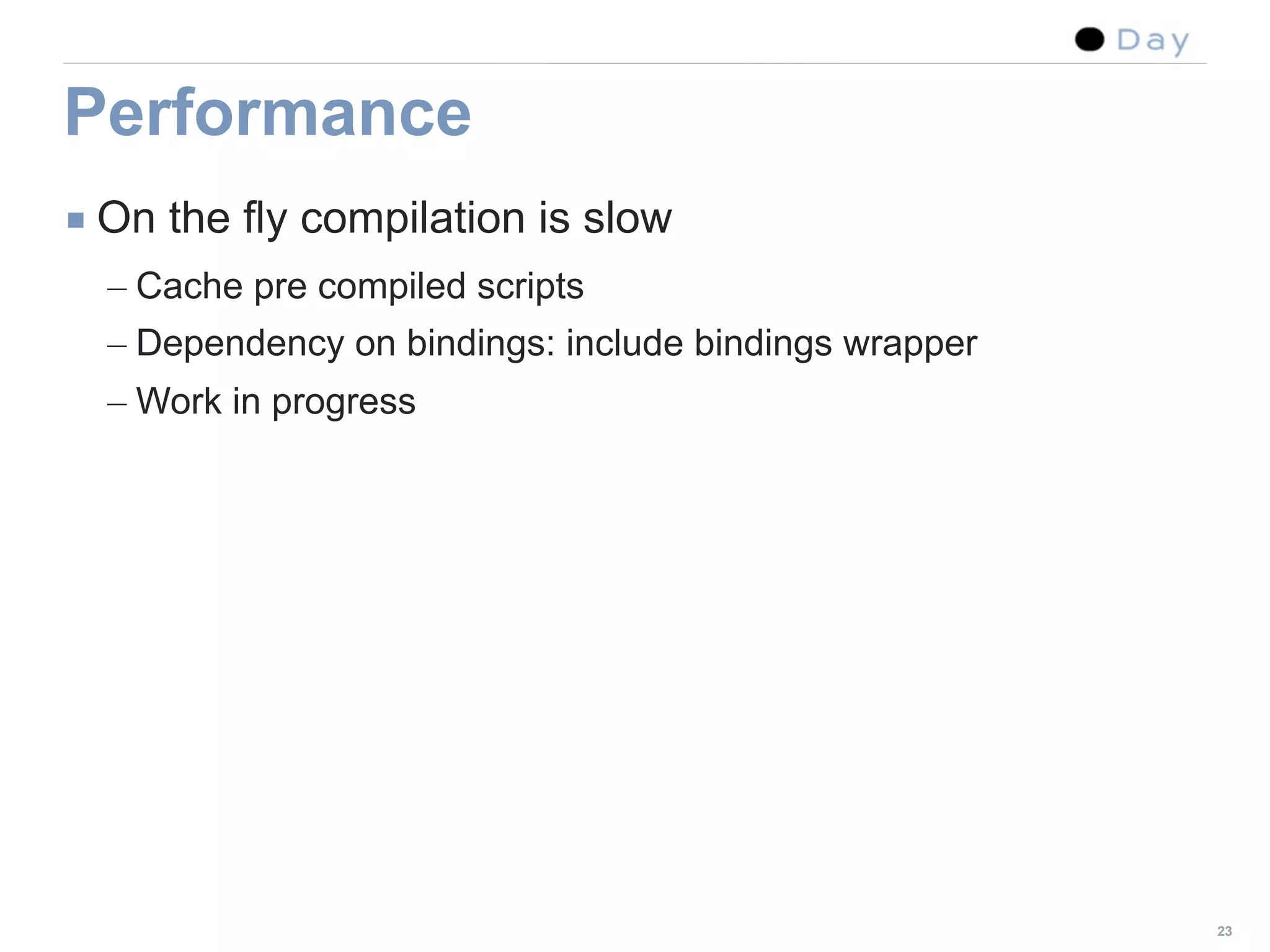

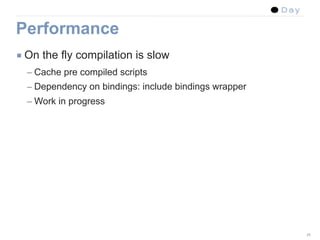

35. Performance
■ On the fly compilation is slow
– Cache pre compiled scripts
– Dependency on bindings: include bindings wrapper
– Work in progress
23

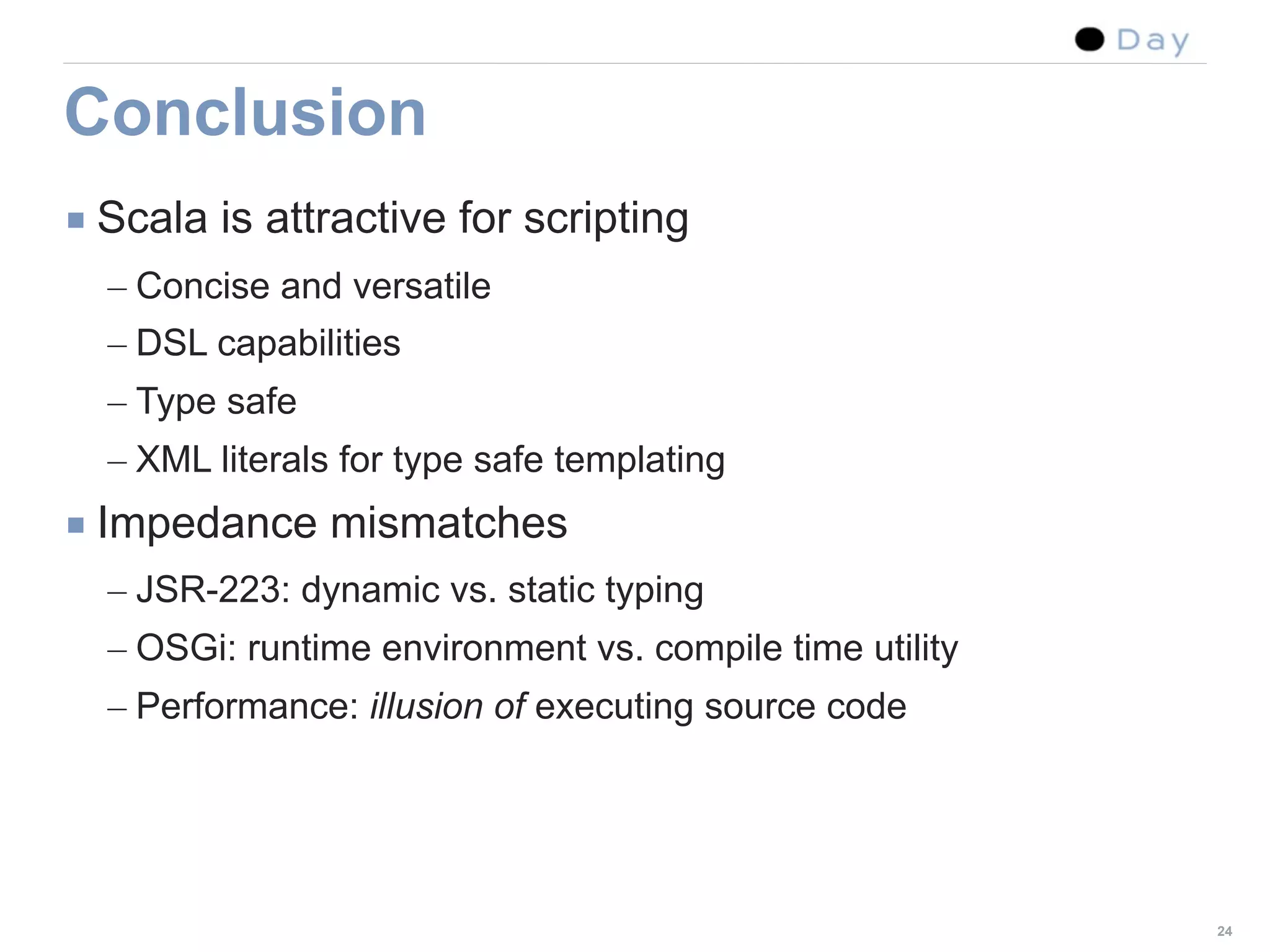

36. Conclusion
■ Scala is attractive for scripting
– Concise and versatile
– DSL capabilities
– Type safe
– XML literals for type safe templating
■ Impedance mismatches
– JSR-223: dynamic vs. static typing
– OSGi: runtime environment vs. compile time utility
– Performance: illusion of executing source code
24

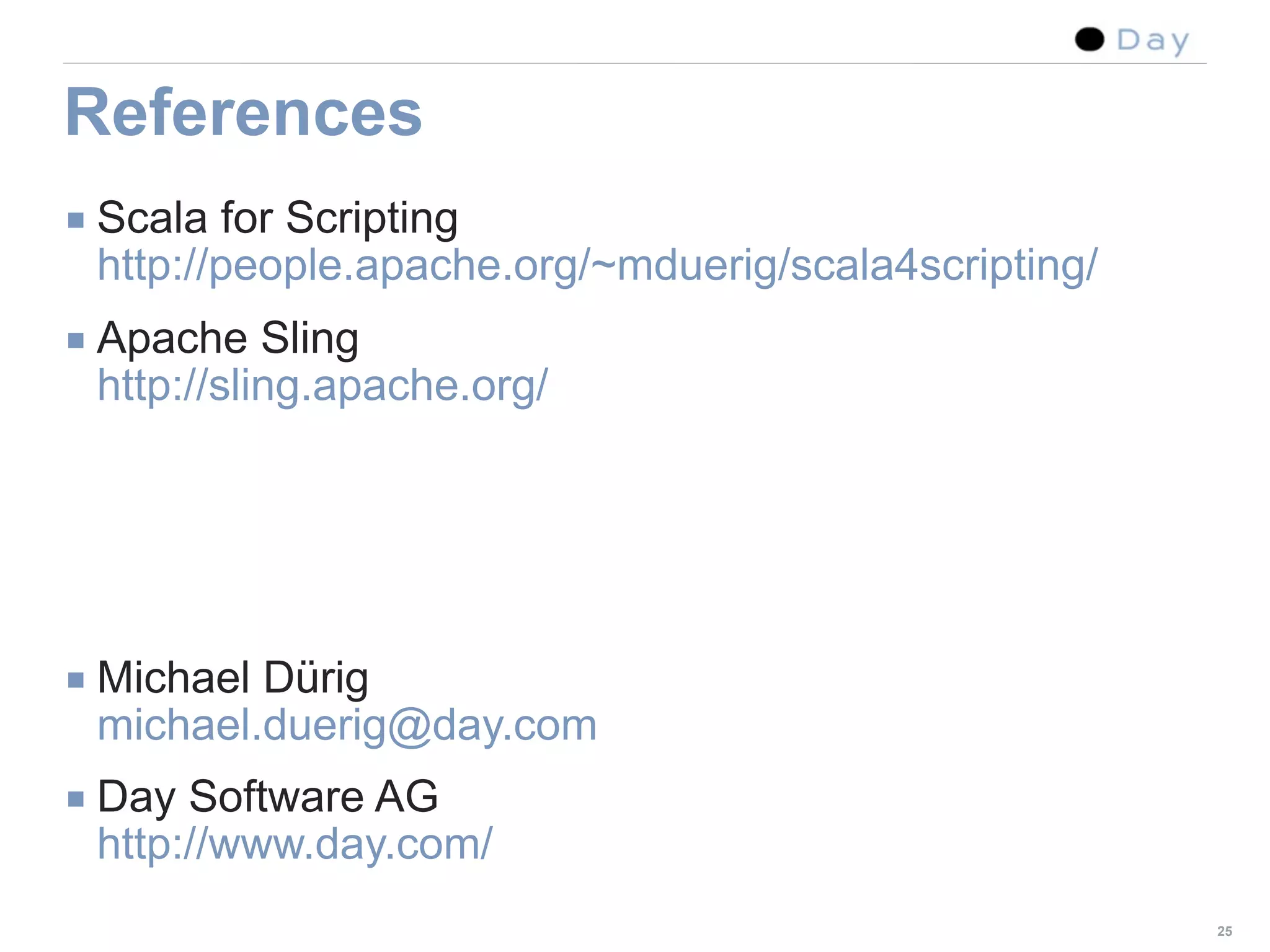

37. References
■ Scala for Scripting
http://people.apache.org/~mduerig/scala4scripting/
■ Apache Sling
http://sling.apache.org/
■ Michael Dürig
michael.duerig@day.com
■ Day Software AG
http://www.day.com/
25
Editor's Notes
Versatile: independent from file system (i.e. JCR), Reporting other then sysout
Script compilation: fail fast behavior
- Private modifier: 2.7: class file attributes, 2.8 annotations
- Ambiguity issues: robuster when using a provider class as source for implicit conversion for each binding
- Impedance mismatch: JSR-223 provides support for dynamically typed languages, Scala is statically typed
- File system traversal operations somewhat problematic on top of OSGi bundles
- Impedance mismatch: OSGi is a runtime environment, scalac a compile time utility
- Pick up &#x2018;illusion of...&#x2019; from introduction
Caching complicated: class files depend on generated type wrapper
