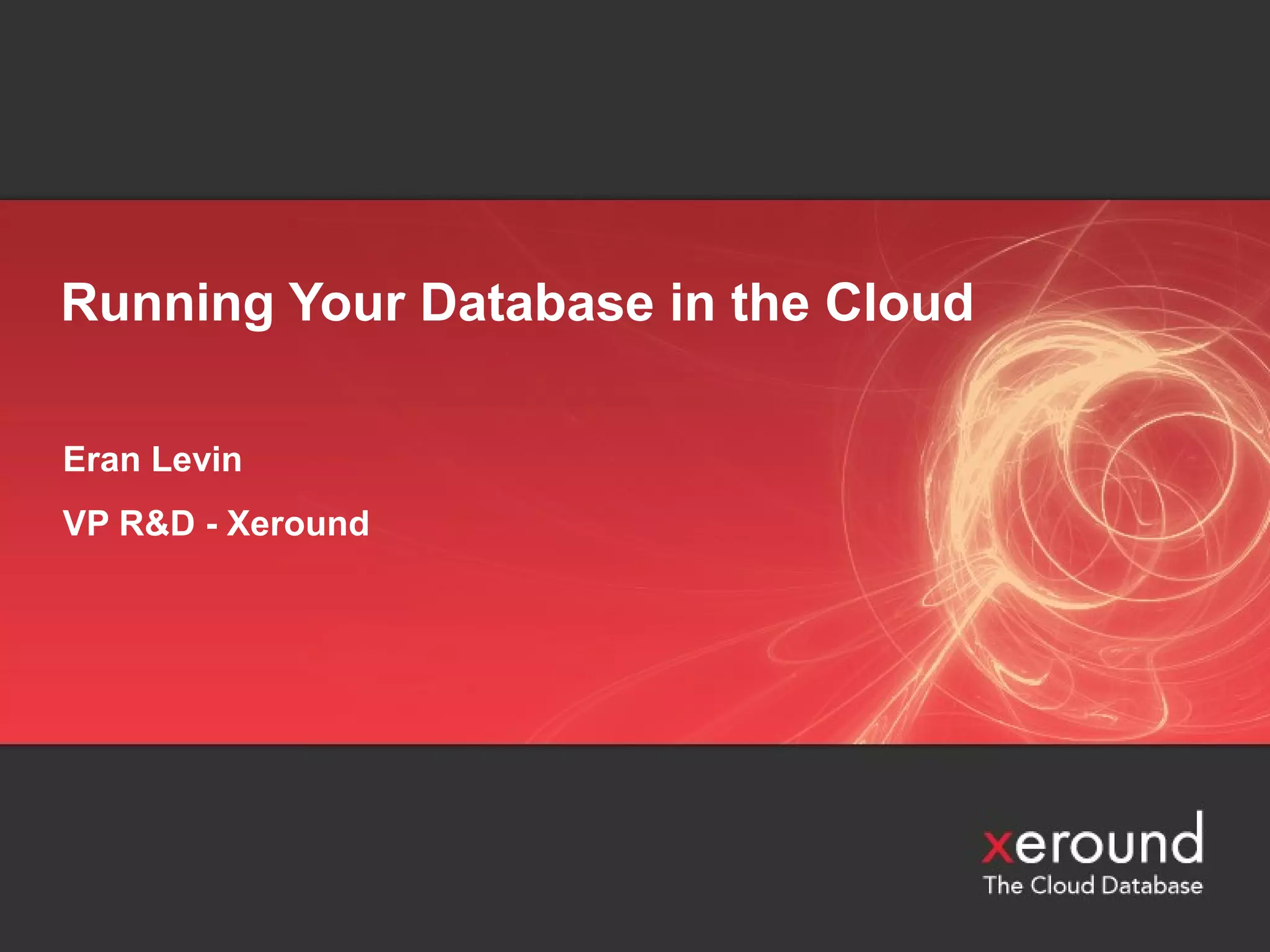

1. Running Your Database in the Cloud
Eran Levin
VP R&D - Xeround

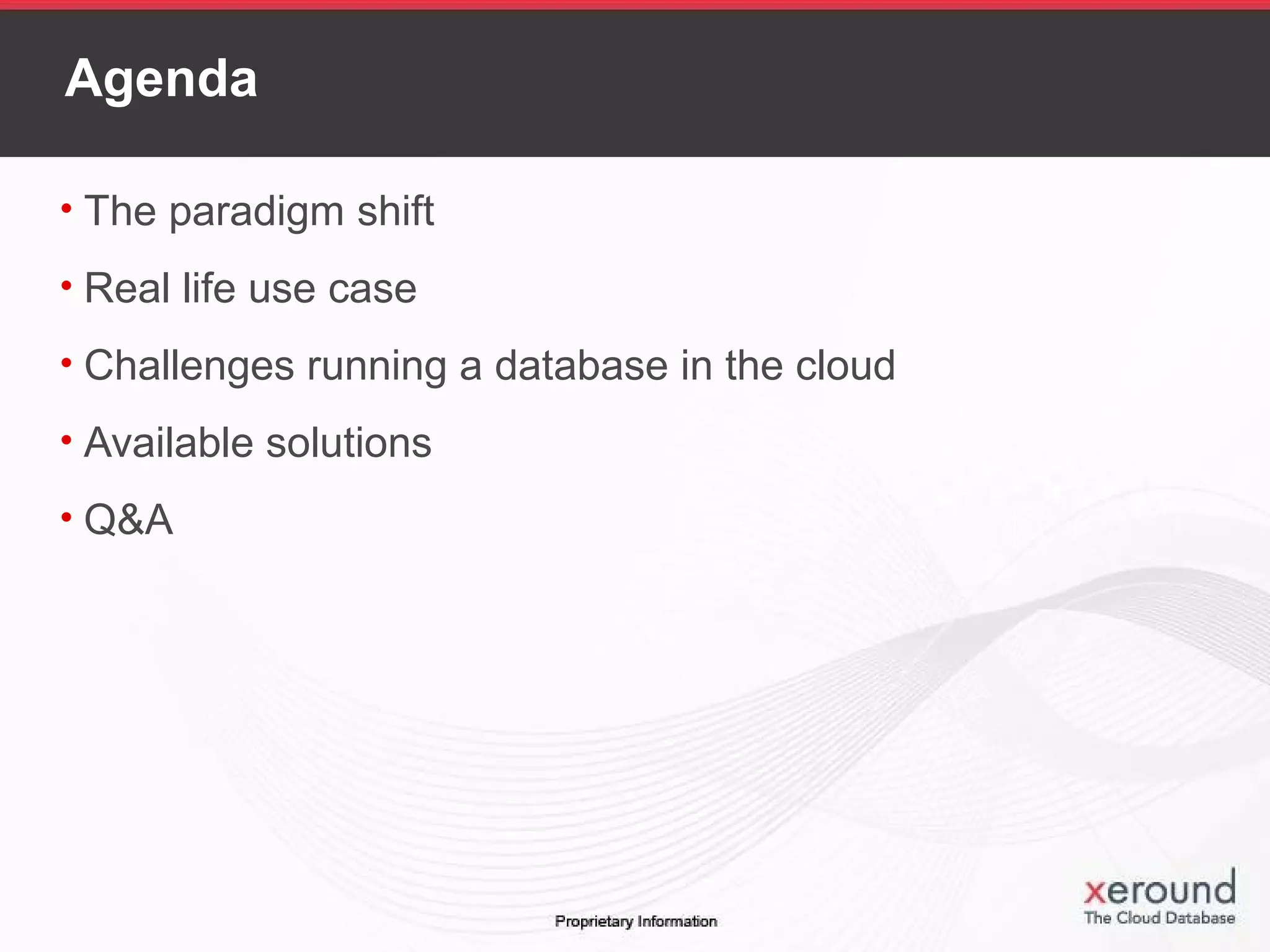

2. Agenda
• The paradigm shift
• Real life use case
• Challenges running a database in the cloud
• Available solutions
• Q&A

3. The Paradigm Shift
From
Dedicated
 On premise
 Over provisioned
 Self managed

To
Shared resources
 Cloud hosted
 Pay-per-use
 Managed service

• Without compromising functionality, performance,
availability, …

4. The Paradigm Shift
• The Cloud

Availability issues

Stateless

Limited control (HW, Virtualization, Networking)

Expectations (reduce capital and operational costs)
• Databases

Mission critical, lossless

Statefull

Usage patterns (data and throughput)

5. Use Case
eCommerce Application

6. Architectural Evolution - Rollout
• You are ready to roll your new eCommerce app
• Will deploy in the cloud (price, time to market, flexibility, “cool”)

7. Arch. Evolution - Failover
Passive
Active

8. Arch. Evolution – Traffic Increase
Load Balancer

9. Arch. Evolution – Application Scaling
Load Balancer

10. Arch. Evolution – Database Failover
Load Balancer
Passive
Active

11. Arch. Evolution – DB Read Scaling
Load Balancer
Master
R
R
R

12. Architectural Evolution – DB Write Scaling
Load Balancer
Master
R
R
R

13. Arch. Evolution – Anticipating the Peak
Load Balancer
Master
R
R
R
R
R

14. Arch. Evolution – Scaling Down
Load Balancer
Master
R
R
R

15. Arch. Evolution – Version Upgrade
Load Balancer
Load Balancer
Master
Master
R
R
R
R
R
R

16. Running Your Database in the Cloud
The Challenges

17. The Challenges
• Availability
• Elasticity
• Manageability
• Cost
Solved for the Web and application levels
Imagine an equivalent solution for your database…

18. Meeting the Challenges
• Build your own

For example - MySQL on EC2, Postgres on Rackspace, …

Acquire instances

Install the database according to your architecture

Self manage your database
• Database-as-a-Service

For example - Amazon RDS,
Xeround, Database.com, …

19. The Challenges
Availability

20. Availability
• Standby machine
• Replication
• Failover mechanism
Source:

21. Cloud Availability Solutions
• Amazon RDS Multi Zone

Master – Slave configuration

Up to 3 minutes recovery

Double the cost

Maintenance window
• Xeround

“Master-Master” configuration

Multiple replicas of the data

Always-on

22. The Challenges
Scalability

23. Scalability – Scale Up vs. Scale Out
• Scale Up

Select next available configuration (EC2, RDS)

Relatively simple but limited scalability
• Scale Out

Add additional resources

Complicated but high scalability

RDS Read replicas
Source:

24. Shared Everything vs. Shared Nothing
• Shared Everything

Scale throughput but limited due to shared resources

Storage and networking limitations in the cloud

ScaleDB
• Shared Nothing

Horizontal data partition / sharding

Unlimited scalability

Many design and implementation
challenges

25. Shared Nothing in the Cloud
• Xeround

Virtual partitioning – decoupling of data and resources

Linear scalability for both reads and writes

Automatic balancing and repartition following changes in data and /
or resources with no downtime
• ScaleBase / dbShards

Automatically partition the data and direct queries to right
databases

Original databases deployment, management and cost

Partitioning events
• MySQL Cluster

NOT supported on virtual environments

26. Elasticity
• Scaling out/up AND in/down
• One of the Cloud justifications (but what about databases)

27. The Challenges
Manageability

28. Manageability
• Self-serve is a fundamental characteristic of cloud computing
• DBaaS should provide

User management

DB management

Control and Monitoring

Backup and restore

…

API to enable extendibility and interaction with the cloud ecosystem
• Solutions: Amazon RDS, Xeround, FathomDB

29. Build Your Own
Source:

30. Database as a Service

31. The Challenges
Cost

32. Cost
• Pay-per-use is another fundamental characteristic of cloud
computing
• Achieving this model requires:

Elasticity – scale resources according to actual usage

No over provisioning

No idle standby machines

Sharing resources to share cost

Measuring exact usage

33. Q&A

34. Running Your Database in the Cloud
Thank You
eran.levin@xeround.com
www.xeround.com
Visit us in Booth 407
