An Introduction to the Speakers & What BlazeClan as an AWS Advanced Consulting Partners does and how it has Evolved. Varoon, Our Solution Architect, Specializing on Amazon Redshift, Talks about the Key differentiators of Amazon Redshift. Learn why & how Exactly Redshift can optimize your Time and Efforts & reduce costs by 1/10th the cost of a traditional warehouse solution. A Demo of Amazon Redshift in action, processing 2billion records in a matter of seconds! A casestudy of one of our products, Cloudlytics, and how it extensively user Amazon Redshift. We had conducted a webinar on Amazon Redshift, you can also view the Video of the Webinar along with the Q & A at the end of the Slideshare.

1. AWS Redshift
Your Data Warehouse Solution
1
Cloud IT Better

2. Agenda
Introduction to Amazon Redshift
Economics for Amazon Redshift
Redshift Demo
Cloudlytics.com Case Study
How BlazeClan can help your
organization with Redshift?
Blazeclan
2
Cloud IT Better

3. Introduction to Amazon Redshift
Image courtesy: datacenterknowledge.com
Blazeclan
3
Cloud IT Better

4. Amazon Redshift
• Fully managed, Petabyte scale data warehouse
• Provision in minutes
• Pay as you go, no upfront costs
• Extremely fast with low prices
• Supports SQL
Image courtesy: datacenterdynamics.com
• Allows JDBC & ODBC Connections
Blazeclan
4
Cloud IT Better

5. Amazon Redshift – Key Differentiators
Columnar Storage
Data Compression
Redshift parallelizes
everything
Massively Parallel
Processing (MPP)
Architecture
Redshift Drastically
Reduces I/O
Encryption
Amazon VPC
Automated backups
Built-in Security
Blazeclan
5
Cloud IT Better

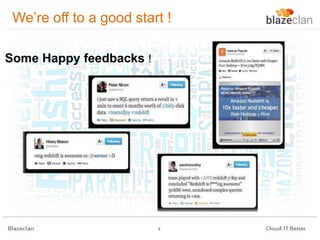

6. We’re off to a good start !
Some Happy feedbacks !
6

7. Amazon Redshift Reduces I/O drastically
Column Storage
Large data block
sizes
Zone Maps
Direct-attached
Storage
Data
Compression
Blazeclan
77
Cloud IT Better

8. Amazon Redshift Reduces I/O drastically
• Column Storage
Typical Row Storage
• Data Compression
• Zone Maps
• Direct-attached Storage
• Large data block sizes
Blazeclan
Columnar Storage in Redshift
8
Cloud IT Better

9. Amazon Redshift Reduces I/O drastically
• Column Storage
• Data compression reduces storage
• Data Compression
• Increases I/O, improves query
performance
• Zone Maps
• Less memory utilization, allowing
more memory for query processing
• Direct-attached Storage
• Large data block sizes
Blazeclan
9
Cloud IT Better

10. Amazon Redshift Reduces I/O drastically
• Column Storage
• Data Compression
• Keep track of minimum &
maximum value of each block
• Zone Maps
• Skip over blocks that don’t
contain the data needed for a
query
• Direct-attached Storage
• Minimize unnecessary I/O
• Large data block sizes
Blazeclan
10
Cloud IT Better

11. Amazon Redshift Reduces I/O drastically
• Column Storage
• Data Compression
• Use direct-attached storage to
maximize throughput
• Zone Maps
• Hardware optimized for high
performance data processing
• Direct-attached Storage
• Large block sizes to make the
most of each read
• Large data block sizes
Blazeclan
• Amazon Redshift manages
durability for you
11
Cloud IT Better

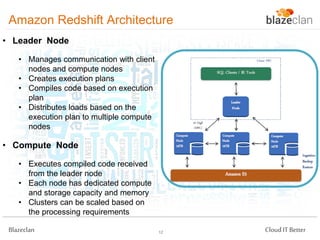

12. Amazon Redshift Architecture
• Leader Node
• Manages communication with client
nodes and compute nodes
• Creates execution plans
• Compiles code based on execution
plan
• Distributes loads based on the
execution plan to multiple compute
nodes
• Compute Node
• Executes compiled code received
from the leader node
• Each node has dedicated compute
and storage capacity and memory
• Clusters can be scaled based on
the processing requirements
Blazeclan
12
Cloud IT Better

13. Redshift is Secure
• Amazon Redshift has security built-in
• SSL to secure data in transit
• Encryption to secure
data at rest
• AES-256
• All blocks on disk and Amazon
S3 are encrypted
• No direct access to compute
nodes
• Amazon VPC Support
13

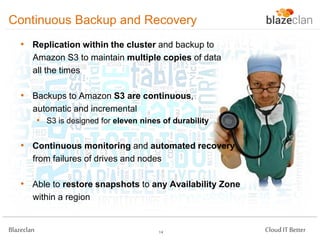

14. Continuous Backup and Recovery
• Replication within the cluster and backup to
Amazon S3 to maintain multiple copies of data
all the times
• Backups to Amazon S3 are continuous,
automatic and incremental
• S3 is designed for eleven nines of durability
• Continuous monitoring and automated recovery
from failures of drives and nodes
• Able to restore snapshots to any Availability Zone
within a region
Blazeclan
14
Cloud IT Better

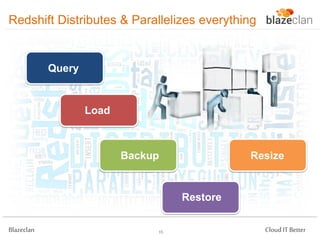

15. Redshift Distributes & Parallelizes everything
Query
Load
Backup
Resize
Restore
Blazeclan
15
Cloud IT Better

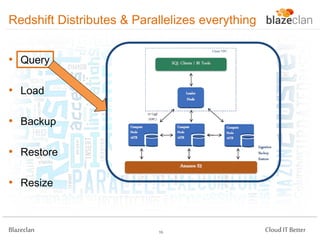

16. Redshift Distributes & Parallelizes everything
• Query
• Load
• Backup
• Restore
• Resize
Blazeclan
16
Cloud IT Better

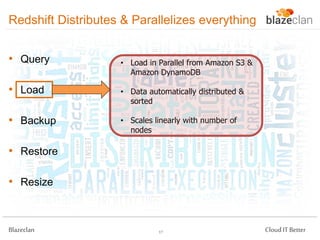

17. Redshift Distributes & Parallelizes everything
• Query
• Load in Parallel from Amazon S3 &
Amazon DynamoDB
• Load
• Data automatically distributed &
sorted
• Backup
• Scales linearly with number of
nodes
• Restore
• Resize
Blazeclan
17
Cloud IT Better

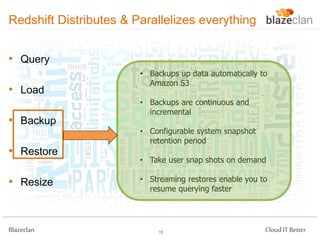

18. Redshift Distributes & Parallelizes everything
• Query
• Load
• Backup
• Restore
• Resize
Blazeclan
• Backups up data automatically to
Amazon S3
• Backups are continuous and
incremental
• Configurable system snapshot
retention period
• Take user snap shots on demand
• Streaming restores enable you to
resume querying faster
18
Cloud IT Better

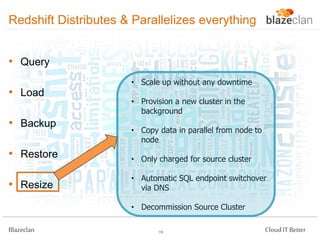

19. Redshift Distributes & Parallelizes everything
• Query
• Load
• Backup
• Scale up without any downtime
• Provision a new cluster in the
background
• Copy data in parallel from node to
node
• Restore
• Only charged for source cluster
• Resize
• Automatic SQL endpoint switchover
via DNS
• Decommission Source Cluster
Blazeclan
19
Cloud IT Better

20. Economics of Amazon Redshift
Image courtesy: dataversity.net
Blazeclan
20
Cloud IT Better

21. Traditional Data Warehouses
• Expensive Hardware &
Software Licensing
• Upfront investments
• Large team of skilled, highly
paid DBAs to manage
• Tuning & Administration is expensive
Blazeclan
21
Image courtesy: clker.com
Cloud IT Better

22. Traditional Data Warehouses
• Large Enterprises
• YoY data growth is more than 50%
• Data warehousing is not growing at the
same rate
• Most of the data generated is not put in to
data warehouses
• Losing competitive edge as not all data is
analyzed
• Small Enterprises
• Cannot afford the current solutions
• Limited access to the expensive talent
pool to implement
Blazeclan
22
Cloud IT Better

23. Amazon Redshift Pricing
• No upfront charges
• Pay-as-you-go
• Priced to analyze all your data
• Less than $1 per hour for on demand prices
• On Demand Annual Cost per TB = $3723
• 3 Year Reserved Annual Cost per TB = $999
Blazeclan
23
Cloud IT Better

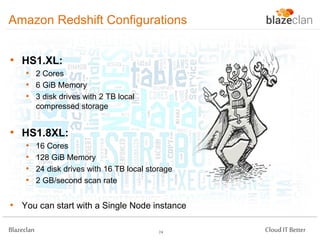

24. Amazon Redshift Configurations
• HS1.XL:
• 2 Cores
• 6 GiB Memory
• 3 disk drives with 2 TB local
compressed storage
• HS1.8XL:
•
•
•
•
16 Cores
128 GiB Memory
24 disk drives with 16 TB local storage
2 GB/second scan rate
• You can start with a Single Node instance
Blazeclan
24
Cloud IT Better

25. Amazon Redshift works with your existing
Analysis tools
Content referenced from:
http://www.slideshare.net/AmazonWebServices/buildingfault-tolerant-applications-in-the-cloud-aws-summit-2012-nyc
25

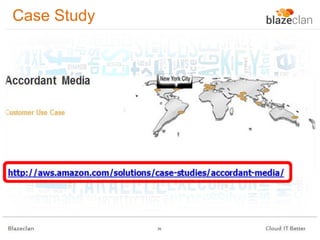

26. Case Study
26

27. CLOUDLYTICS
Case Study
Blazeclan
27
Cloud IT Better

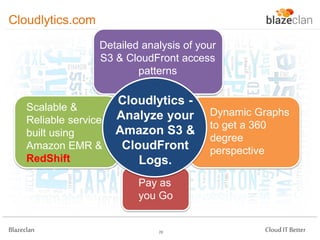

28. Cloudlytics.com
Detailed analysis of your
S3 & CloudFront access
patterns
Scalable &
Reliable service
built using
Amazon EMR &
RedShift
Cloudlytics Analyze your
Amazon S3 &
CloudFront
Logs.
Dynamic Graphs
to get a 360
degree
perspective
Pay as
you Go
Blazeclan
28
Cloud IT Better

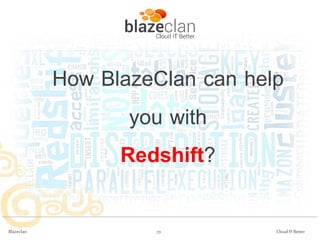

29. How BlazeClan can help
you with
Redshift?
Blazeclan
29
Cloud IT Better

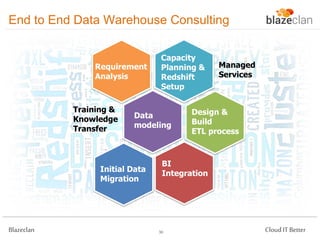

30. End to End Data Warehouse Consulting
Requirement
Analysis
Training &
Knowledge
Transfer
Data
modeling
Initial Data
Migration
Blazeclan
Capacity
Planning &
Redshift
Setup
Managed
Services
Design &
Build
ETL process
BI
Integration
30
Cloud IT Better

31. Thank you
Follow Us On :
Our Blog :
Contact us :
Blazeclan
http://blog.blazeclan.com/
info@blazeclan.com
www.blazeclan.com
31
Cloud IT Better
