1. Routing basics/CEF
May 4, 2016
Dmitry Figol
CCIE R&S #53592
dmitry@dmfigol.me

2. Intro to routing and switching
Routing
• Finding the optimal way towards destination
Switching
• Moving packet between interfaces
2

3. Packet forwarding
When the packet comes in, the router does the following:
0. Checks and removes L2 header, gets destination IP
1. Routing process
2. Switching process
3. L2 encapsulation
3

4. Routing process
• Find the longest match based on destination IP in routing
table (RIB)
• The goal is to find outgoing interface and Next Hop IP
address (if applicable)
4

5. Routing table - example
5

6. Routing table (cont.)
• Recursive Lookup
• Contains useless information for forwarding:
• For example, Administrative Distance and Metric
• Single lookup has linear complexity O(n)
• Stored in RAM
• Verification: show ip route [ip-address [mask]]
6

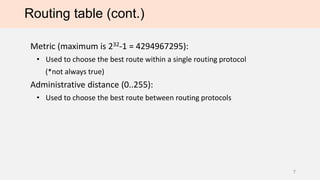

7. Routing table (cont.)
Metric (maximum is 232-1 = 4294967295):
• Used to choose the best route within a single routing protocol
(*not always true)
Administrative distance (0..255):
• Used to choose the best route between routing protocols
7

8. Routing table (cont.) - AD
8
Route Source Value
Connected 0
Static 1
EIGRP summary 5
eBGP 20
EIGRP internal 90
IGRP 100
OSPF 110
IS-IS 115
Route Source Value
RIP 120
EGP 140
ODR 160
EIGRP external 170
iBGP 200
NHRP 250
DHCP learned 254
Unknown* (Not installed) 255

9. Routing protocols
• Static
• Dynamic:
• IGP:
• Distance-vector(RIP, EIGRP)
• Link-state (OSPF, IS-IS)
• EGP:
• Path-vector (BGP)
9

10. Switching process
• Process-switching
• Fast-switching
• Cisco Express Forwarding (CEF)
10

11. L2 Encapsulation
Knowing outgoing interface and Next Hop address is not always
enough for “packet rewrite”
• Point-to-point links (PPP, HDLC) – no additional information
required
• Point-to-multipoint links (Ethernet, Frame-relay, ATM) – L2
Destination Address is required (from ARP cache, Frame-
Relay/ATM mappings)
11

12. Traffic types
Data plane – traffic through the device
Control plane – traffic to the device:
• Routing protocols hello/updates
• BPDU
• FHRP and others
Management plane – part of control plane:
• SSH/Telnet
• SNMP
12

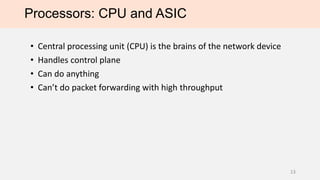

13. Processors: CPU and ASIC
• Central processing unit (CPU) is the brains of the network device
• Handles control plane
• Can do anything
• Can’t do packet forwarding with high throughput*
*Note: DPDK project enables x86 multi-core processors to forward 200+ Gbps
13

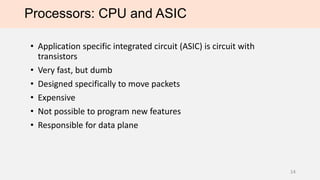

14. Processors: CPU and ASIC
• Application specific integrated circuit (ASIC) is circuit with
transistors
• Very fast, but dumb
• Designed specifically to move packets
• Expensive
• Not possible to program new features
• Responsible for data plane
14

15. Memory: RAM, CAM and TCAM
Random Access Memory (RAM) is the most common type of memory
• Value is accessed by pointer (memory address)
• Cheap
15

16. Memory: RAM, CAM and TCAM
Content-addressable memory (CAM)
• Value is accessed by a key, not a pointer
• Very fast
• Expensive
• High power consumption
• O(1) constant time lookup
• Used in switches for MAC address table
16

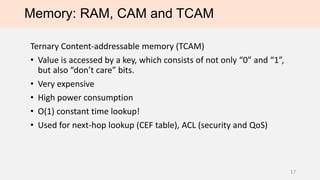

17. Memory: RAM, CAM and TCAM
Ternary Content-addressable memory (TCAM)
• Value is accessed by a key, which consists of not only “0” and “1”,
but also “don’t care” bits.
• Very expensive
• High power consumption
• O(1) constant time lookup!
• Used for next-hop lookup (CEF table), ACL (security and QoS)
17

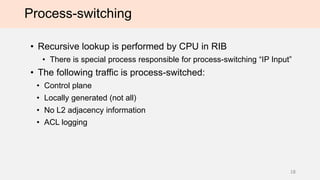

18. Process-switching
• Recursive lookup is performed by CPU in RIB
• There is special process responsible for process-switching “IP Input”
• The following traffic is process-switched:
• Control plane
• Locally generated (not all)
• No L2 adjacency information
• ACL logging
18

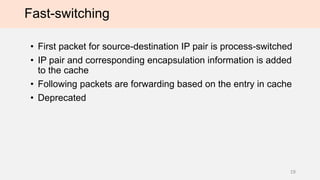

19. Fast-switching
• First packet for source-destination IP pair is process-switched
• IP pair and corresponding encapsulation information is added
to the cache
• Following packets are forwarding based on the entry in cache
• Deprecated
19

20. Cisco Express Forwarding (CEF)
The idea is to precompute and optimize information in RIB:
• Resolve recursive lookup and get rid of useless information
• Add pointer to pre-built L2 header in Adjacency table
The new table is called Forwarding Information Base (FIB) or CEF table:
• Contains prefix, NH, outgoing interface, pointer to L2 header
• Stored in DRAM [O(1) using 256-way mtrie data structure] and TCAM
[if exists, also O(1), but much faster]
The lookup is done during the interrupt (process scheduling is not
required)
20

21. CEF (cont.)
Verification:
show ip cef [ip-address [mask]] [detail] [internal]
Shows NH, outgoing interface, MPLS labels (if applicable)
Internal keyword shows pointer to Adjacency entry and hash buckets
Disable CEF:
(config)# no ip cef
21

22. CEF – Adjacency table
• CEF process takes information from all L3-to-L2 mappings and builds
L2 header
• Adjacency table contains NH, interface, associated L2 Header
• Stored in RAM
• Pitfall: CEF process does not allow adjacency to age out
(clear arp won’t delete ARP entry if it can be revalidated)
• Verification:
show adjacency [detail]
22

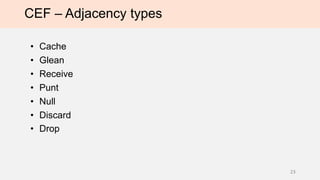

23. CEF – Adjacency types
• Cache
• Glean
• Receive
• Punt
• Null
• Discard
• Drop
23

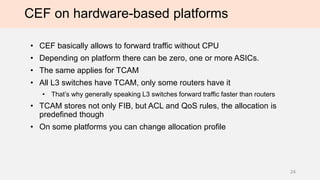

24. CEF on hardware-based platforms
• CEF basically allows to forward traffic without CPU
• Depending on platform there can be zero, one or more ASICs.
• The same applies for TCAM
• All L3 switches have TCAM, only some routers have it
• That’s why generally speaking L3 switches forward traffic faster than routers
• TCAM stores not only FIB, but ACL and QoS rules, the allocation is
predefined though
• On some platforms you can change allocation profile
24

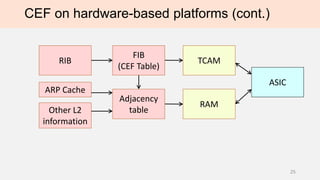

25. CEF on hardware-based platforms (cont.)
25
RIB
ARP Cache
Other L2
information
FIB
(CEF Table)
Adjacency
table
TCAM
RAM
ASIC

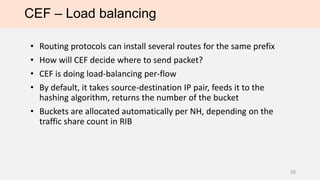

26. CEF – Load balancing
• Routing protocols can install several routes for the same prefix
• How will CEF decide where to send packet?
• CEF is doing load-balancing per-flow
• By default, it takes source-destination IP pair, feeds it to the
hashing algorithm, returns the number of the bucket
• Buckets are allocated automatically per NH, depending on the
traffic share count in RIB
26

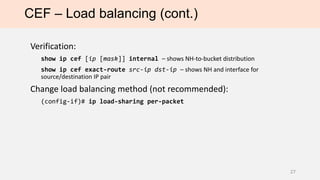

27. CEF – Load balancing (cont.)
Verification:
show ip cef [ip [mask]] internal – shows NH-to-bucket distribution
show ip cef exact-route src-ip dst-ip – shows NH and interface for
source/destination IP pair
Change load balancing method (not recommended):
(config-if)# ip load-sharing per-packet
27

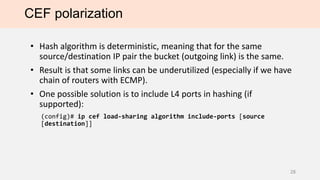

28. CEF polarization
• Hash algorithm is deterministic, meaning that for the same
source/destination IP pair the bucket (outgoing link) is the same.
• Result is that some links can be underutilized (especially if we have
chain of routers with ECMP).
• One possible solution is to include L4 ports in hashing (if
supported):
(config)# ip cef load-sharing algorithm include-ports [source
[destination]]
28

29. Static Routing
• The way to install an entry in RIB manually
• Usually overrides entries installed via dynamic routing protocols
• Advantage: gives full control over path selection in your network
• Main disadvantage: huge administrative burden
• Syntax:
(config)# ip route prefix mask [NH-IP | interface [NH-IP]] [distance]
[track track]
• Verification:
# show ip route [static]
29

30. Static Routing (cont.)
There are three different ways to configure where the traffic should
go for specific prefix:
• By specifying next-hop IP address
• By specifying outgoing interface
• By specifying both
30

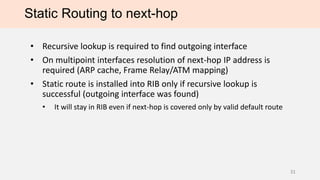

31. Static Routing to next-hop
• Recursive lookup is required to find outgoing interface
• On multipoint interfaces resolution of next-hop IP address is
required (ARP cache, Frame Relay/ATM mapping)
• Static route is installed into RIB only if recursive lookup is
successful (outgoing interface was found)
• It will stay in RIB even if next-hop is covered only by valid default route
31

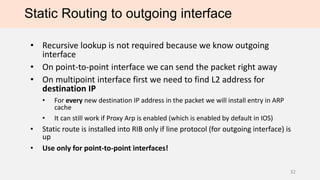

32. Static Routing to outgoing interface
• Recursive lookup is not required because we know outgoing
interface
• On point-to-point interface we can send the packet right away
• On multipoint interface first we need to find L2 address for
destination IP
• For every new destination IP addressin the packet we will install entry in ARP
cache
• It can still work if Proxy Arp is enabled (which is enabled by default in IOS)
• Static route is installed into RIB only if line protocol (for outgoing interface) is
up
• Use only for point-to-point interfaces!
32

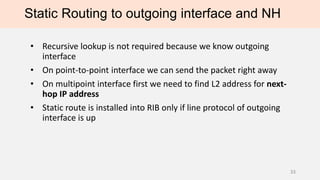

33. Static Routing to outgoing interface and NH
• Recursive lookup is not required because we know outgoing
interface
• On point-to-point interface we can send the packet right away
• On multipoint interface first we need to find L2 address for next-
hop IP address
• Static route is installed into RIB only if line protocol of outgoing
interface is up
33

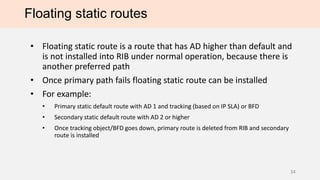

34. Floating static routes
• Floating static route is a route that has AD higher than default and
is not installed into RIB under normal operation, because there is
another preferred path
• Once primary path fails floating static route can be installed
• For example:
• Primary static default route with AD 1 and tracking (based on IP SLA) or BFD
• Secondary static default route with AD 2 or higher
• Once tracking object/BFD goes down, primary route is deleted from RIB and secondary
route is installed
34

35. Recursive lookup for static routes - exercise
• R1 has one interface up/up with IP in subnet 188.1.12.0/24.You configurethe following:
Question: Which static routes will be installed in RIB?
35

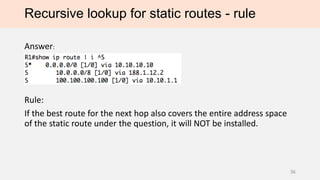

36. Recursive lookup for static routes - rule
Answer:
Rule:
If the best route for the next hop also covers the entire address space
of the static route under the question, it will NOT be installed.
36

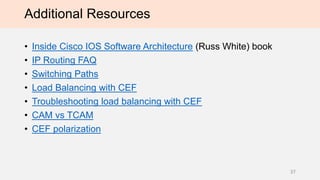

37. Additional Resources
• Inside Cisco IOS Software Architecture (Russ White) book
• IP Routing FAQ
• Switching Paths
• Load Balancing with CEF
• Troubleshooting load balancing with CEF
• CAM vs TCAM
• CEF polarization
37
