In 2008, RMtek introduced a remote monitoring application and hardware designed for various market segments, enabling efficient management of remote locations with significant labor cost reductions. The system operates 24/7 via wireless communication, can be powered through mains or renewable sources, and supports a variety of sensors for real-time data collection and control. Features include cloud services for data analysis, alerts through multiple channels, and the ability to integrate additional sensors for diverse monitoring applications.

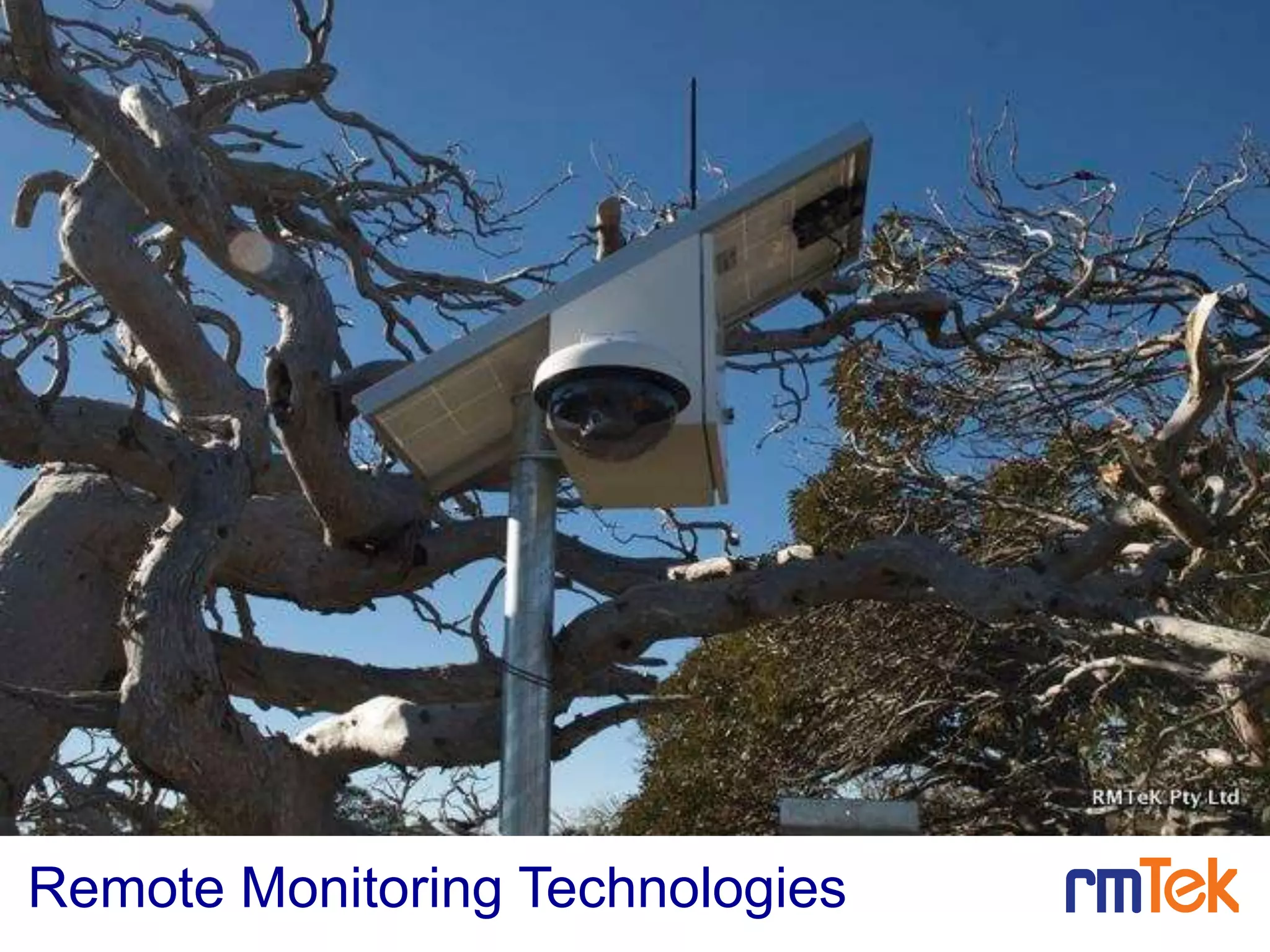

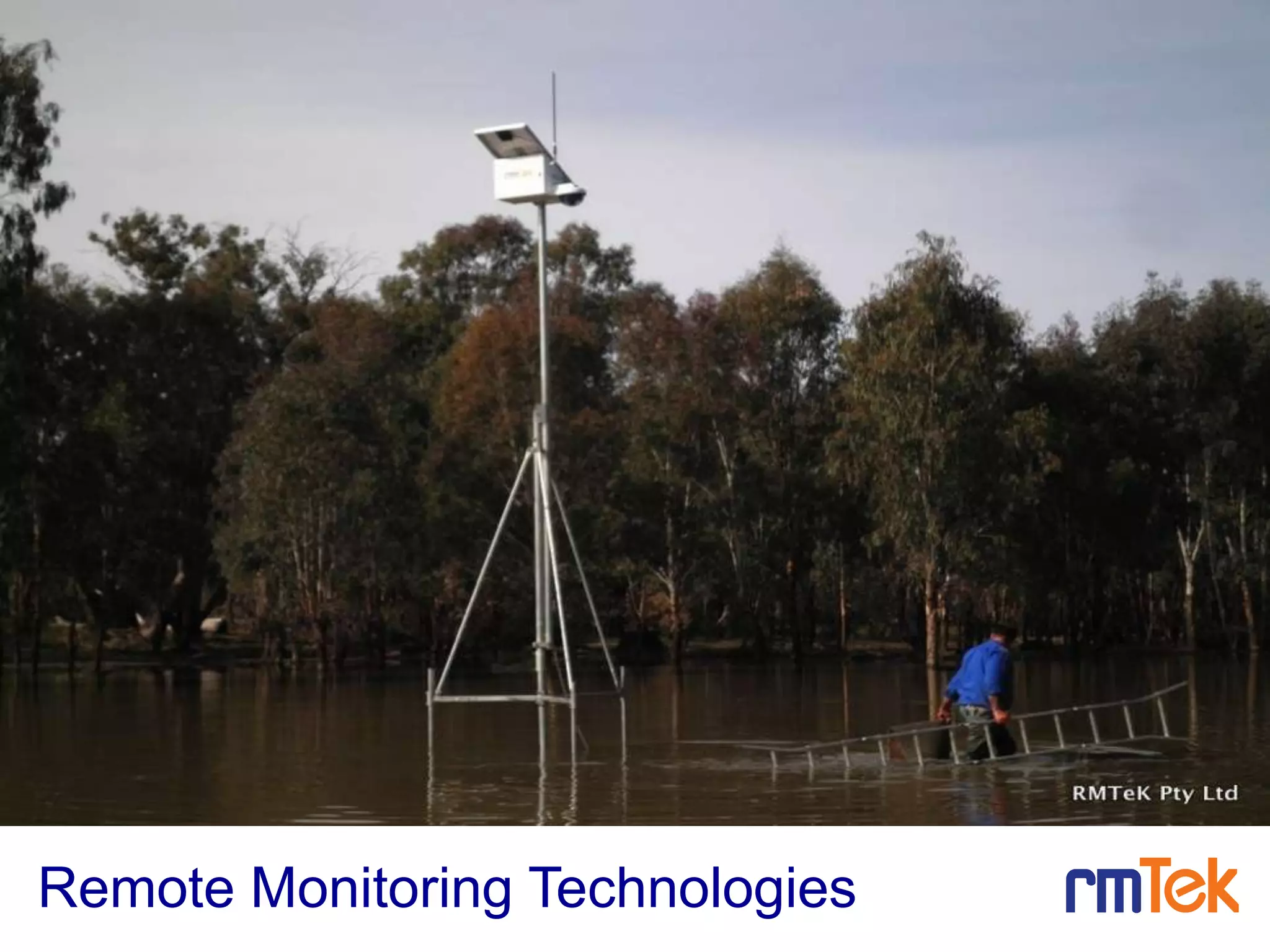

1. Remote Monitoring Technologies

2. Remote Monitoring Technologies

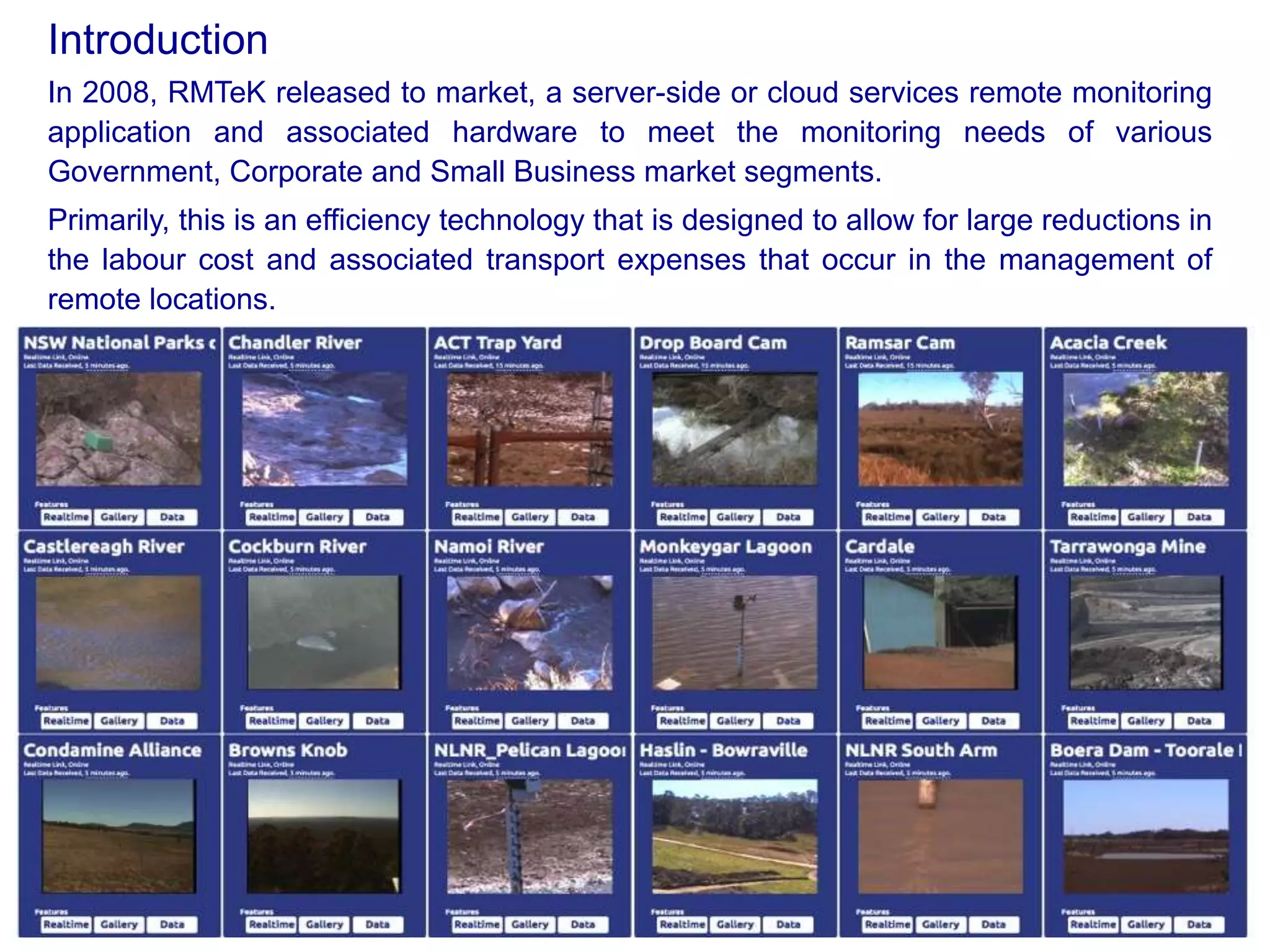

3. In 2008, RMTeK released to market, a server-side or cloud services remote monitoring
application and associated hardware to meet the monitoring needs of various
Government, Corporate and Small Business market segments.
Primarily, this is an efficiency technology that is designed to allow for large reductions in
the labour cost and associated transport expenses that occur in the management of
remote locations.
Introduction

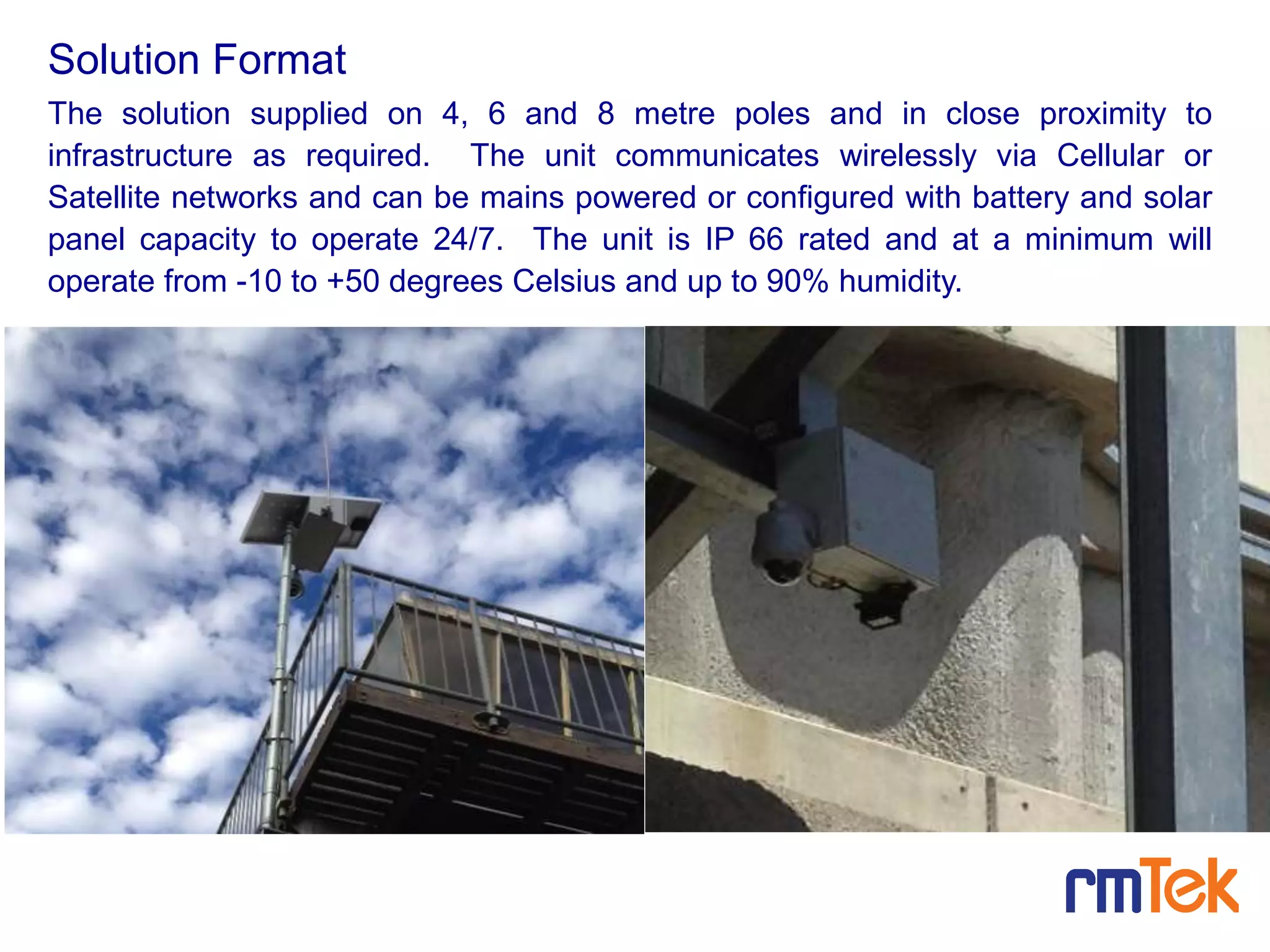

4. The solution supplied on 4, 6 and 8 metre poles and in close proximity to
infrastructure as required. The unit communicates wirelessly via Cellular or
Satellite networks and can be mains powered or configured with battery and solar
panel capacity to operate 24/7. The unit is IP 66 rated and at a minimum will
operate from -10 to +50 degrees Celsius and up to 90% humidity.
Solution Format

5. Industrial control sits at the heart of the RMCam. Capable of receiving data and
talking back to infrastructure across analogue, serial and digital protocols, a wide
range of sensors are available either connected directly to the unit, or
communicating wirelessly to allow strategic positioning of both sensors and vision.
Industrial Control
RMTek Director Brendan Doyle with Peter Blasina – the Gadget Guy.

6. 6

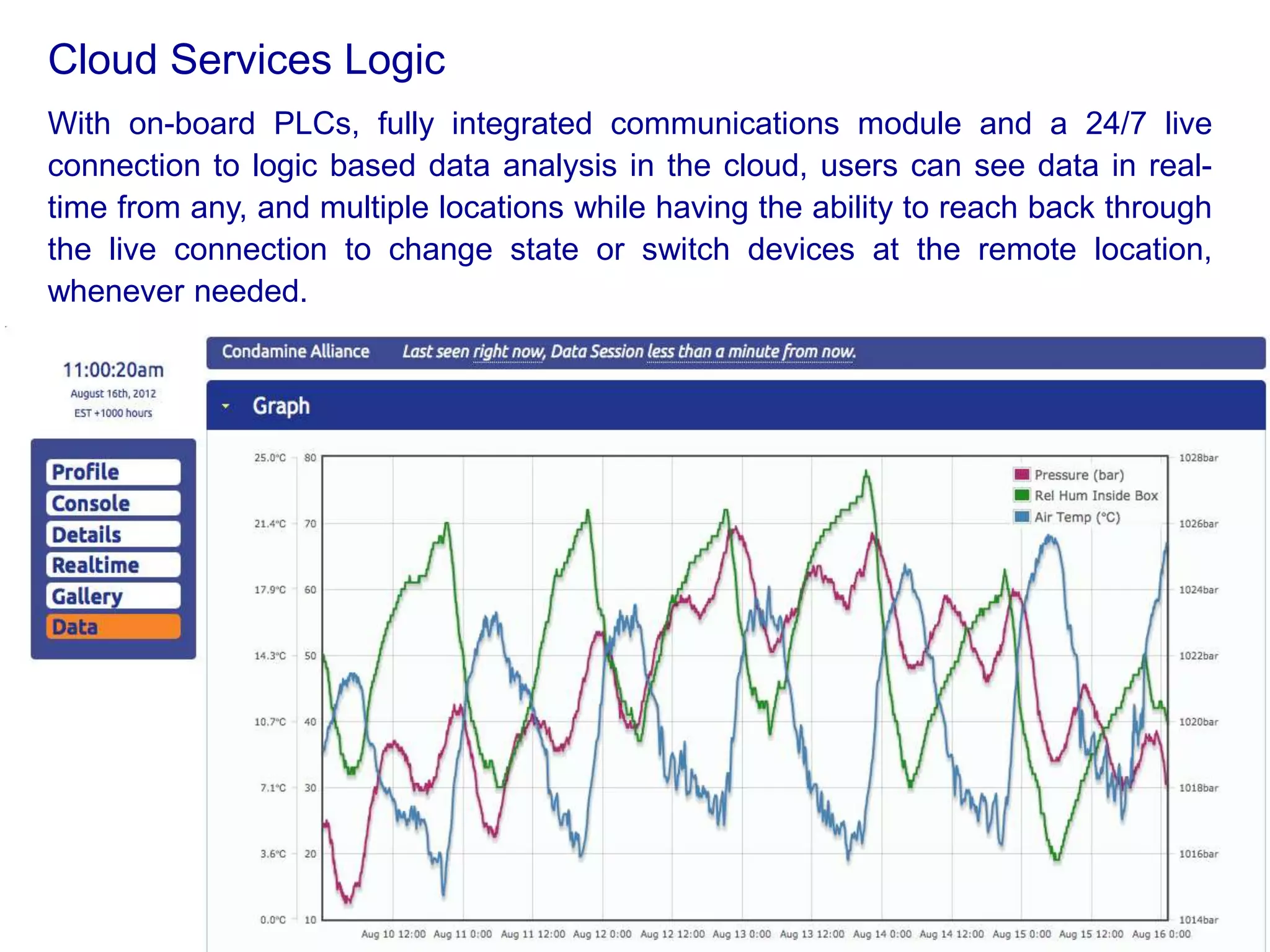

With on-board PLCs, fully integrated communications module and a 24/7 live
connection to logic based data analysis in the cloud, users can see data in real-
time from any, and multiple locations while having the ability to reach back through
the live connection to change state or switch devices at the remote location,
whenever needed.
Cloud Services Logic

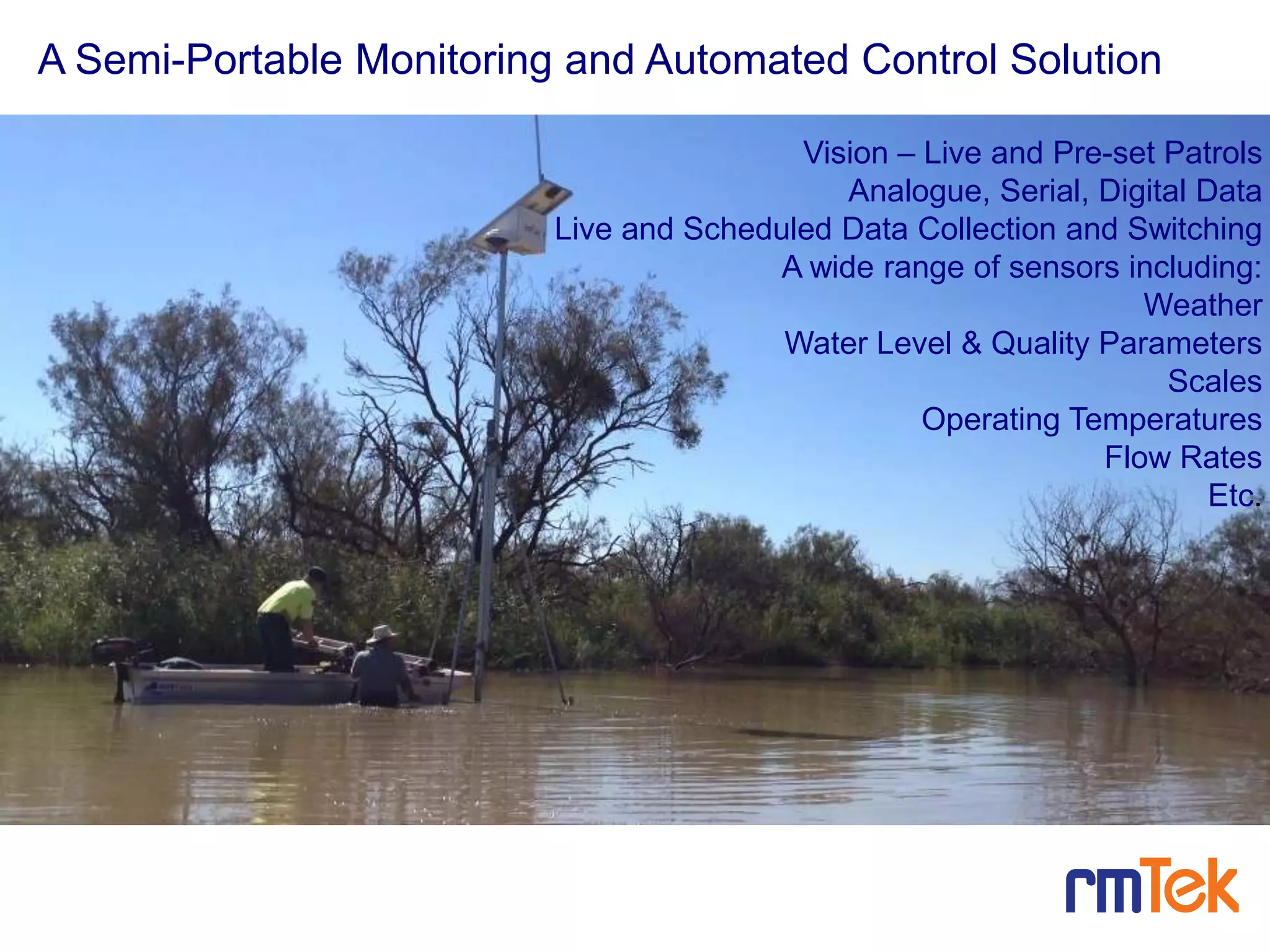

7. Vision – Live and Pre-set Patrols
Analogue, Serial, Digital Data
Live and Scheduled Data Collection and Switching
A wide range of sensors including:
Weather
Water Level & Quality Parameters
Scales
Operating Temperatures
Flow Rates
Etc.
A Semi-Portable Monitoring and Automated Control Solution
7

8. Real-Time Viewing, Data and Monitoring, Archive
Images and Data (serial, analogue, digital).
Alerts – SMS, EMAIL, Web Services –
Twitter, Facebook etc.
Local - Embedded PLCs and Remote - Server
based application of logic.
Switching Relays, lights, local wireless loops and
server based connection to remote infrastructure.
Data Storage Options – Local, Cloud….
Data Transfer Options – Council databases and
websites, custom formats – SCADA software etc.
Expandability – capable of integrating a suite of
sensors – weather stations, vehicle
counting, visibility and road surface condition
sensors, etc.
24/7 live connection for scheduled data
receipt, alarm notification and the ability to reach
through and “change state” at the remote site in
real time.
Page8

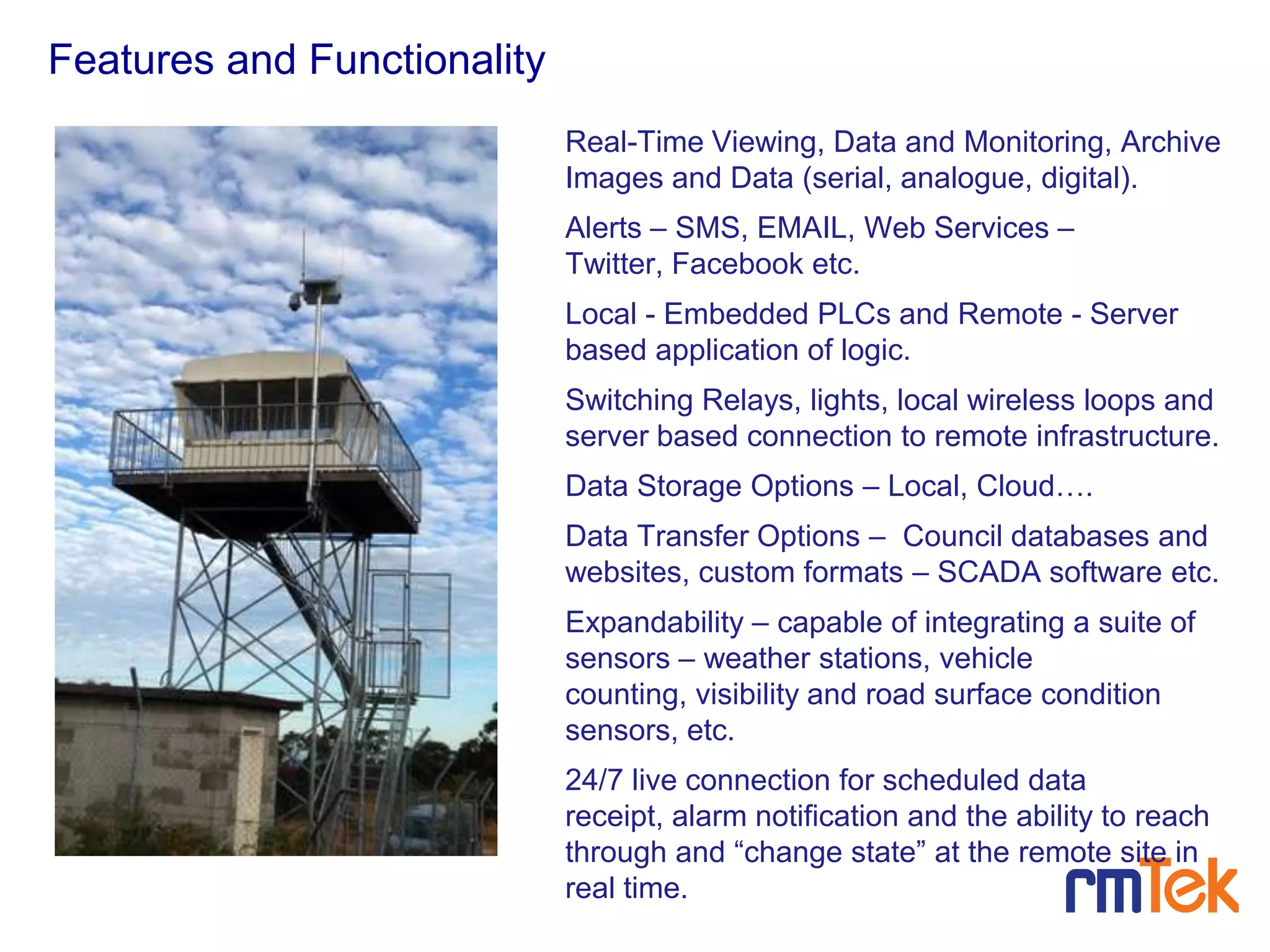

Features and Functionality

9. 9

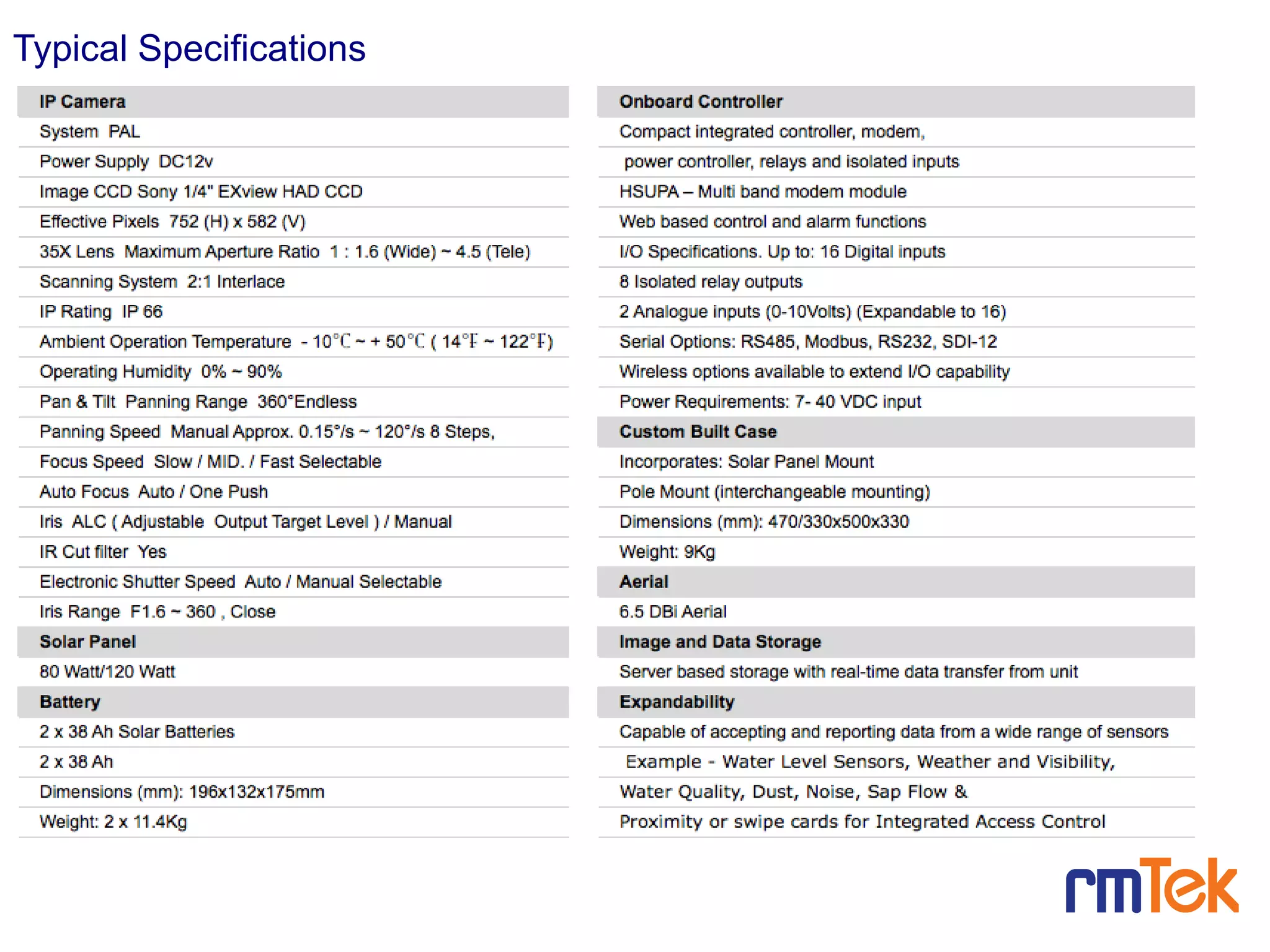

Typical Specifications

10. 10

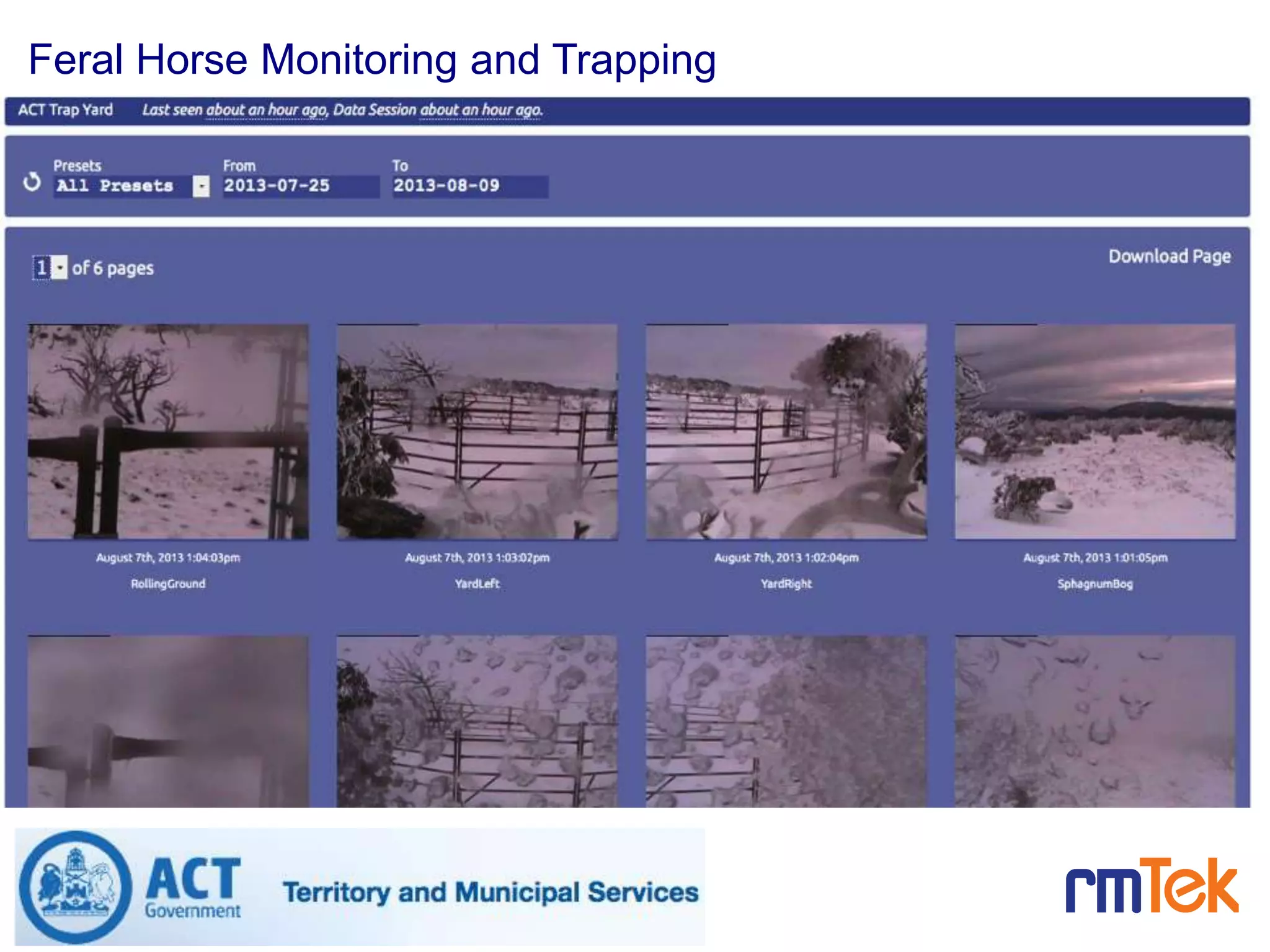

Feral Horse Monitoring and Trapping

11. 11

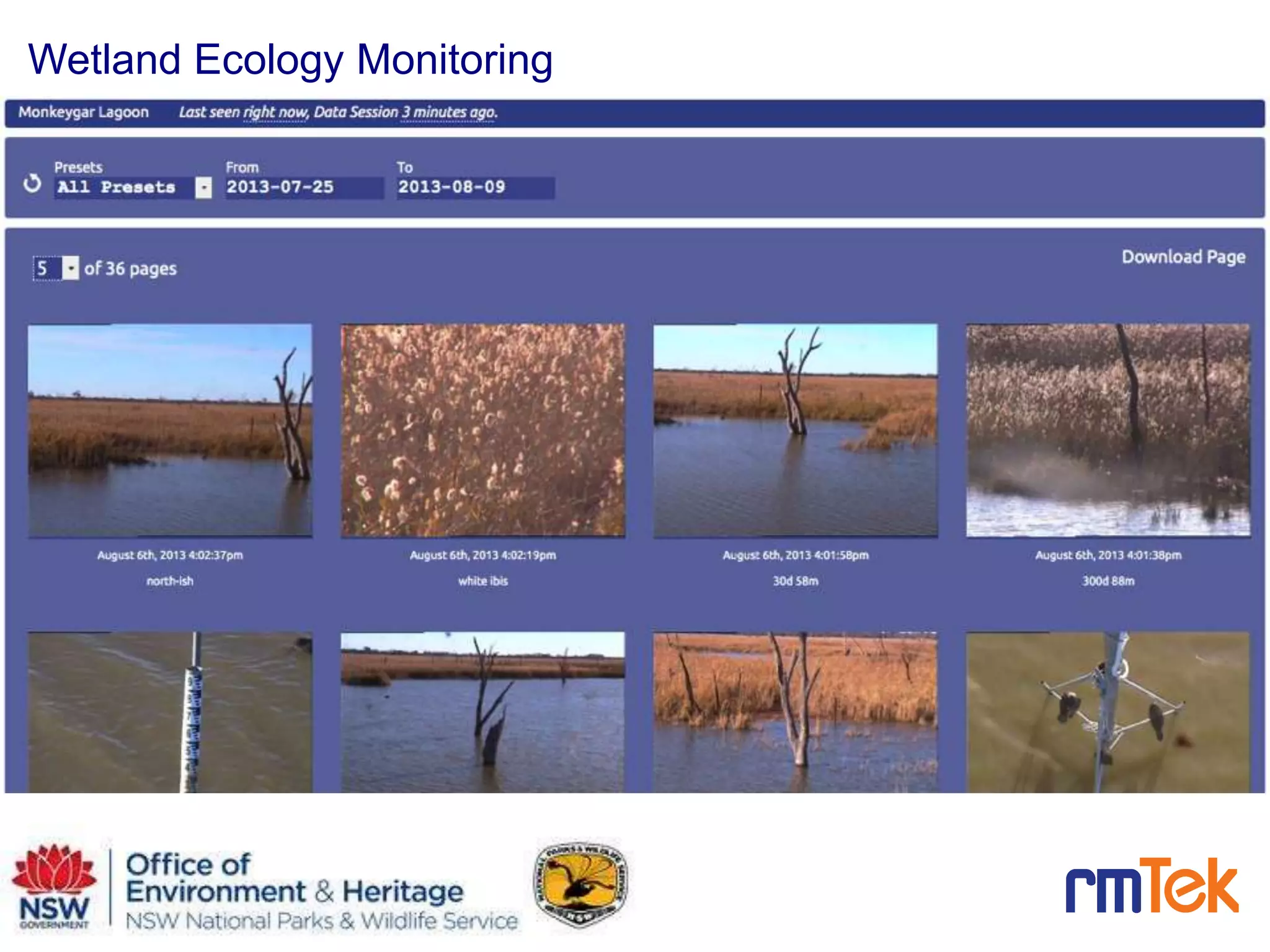

Wetland Ecology Monitoring

12. 12

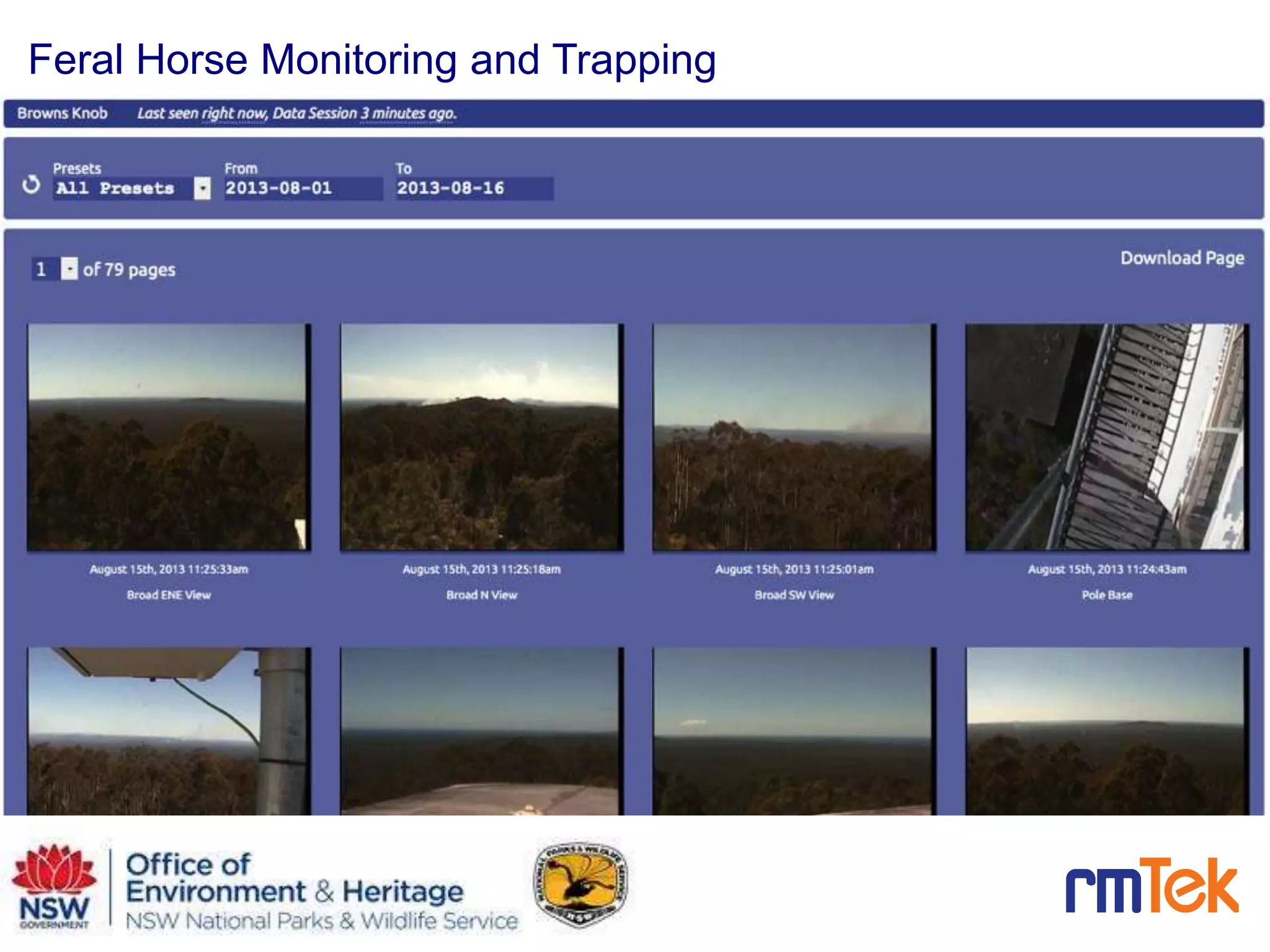

Feral Horse Monitoring and Trapping

13. 13

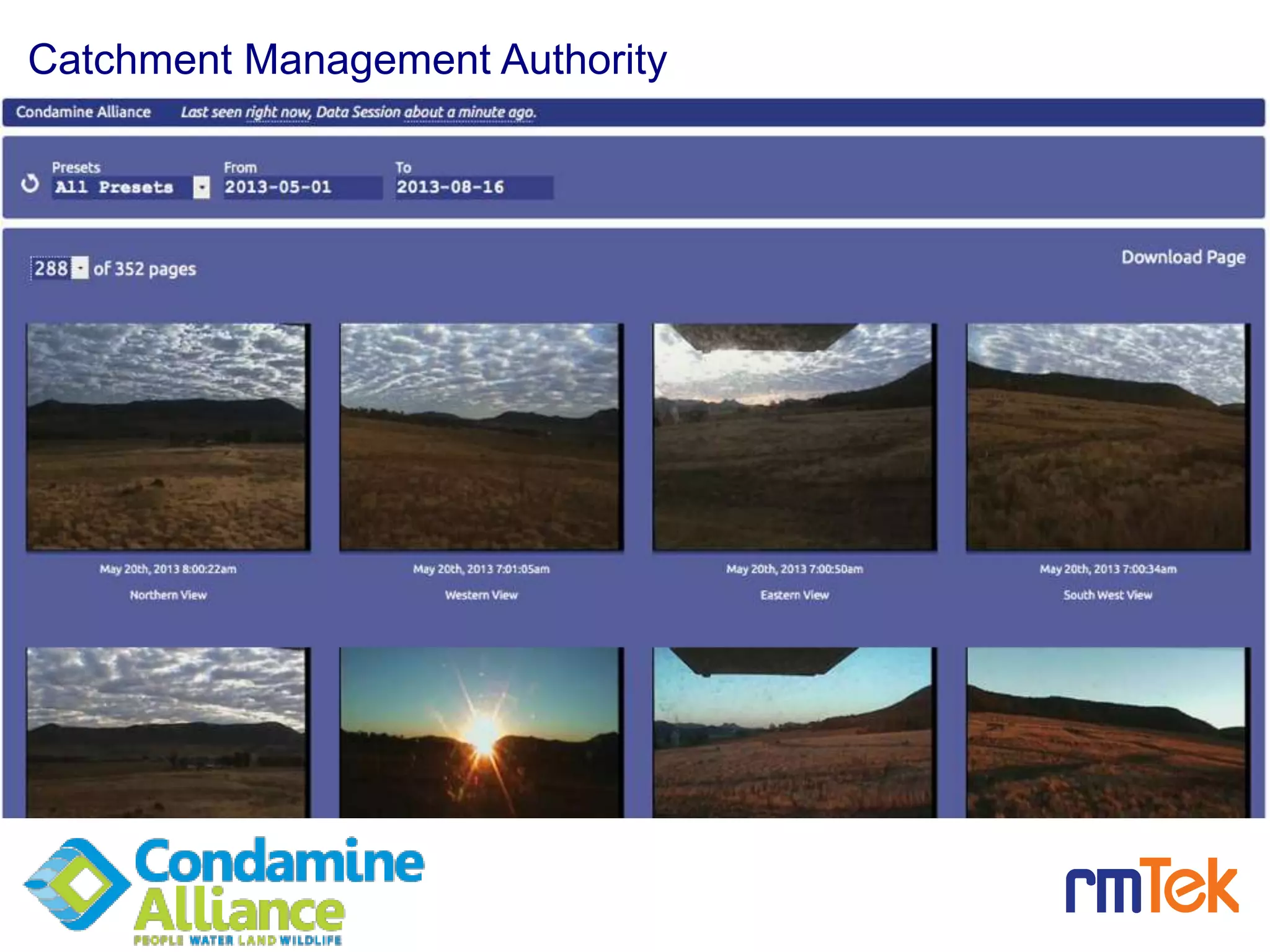

Catchment Management Authority

14. 14

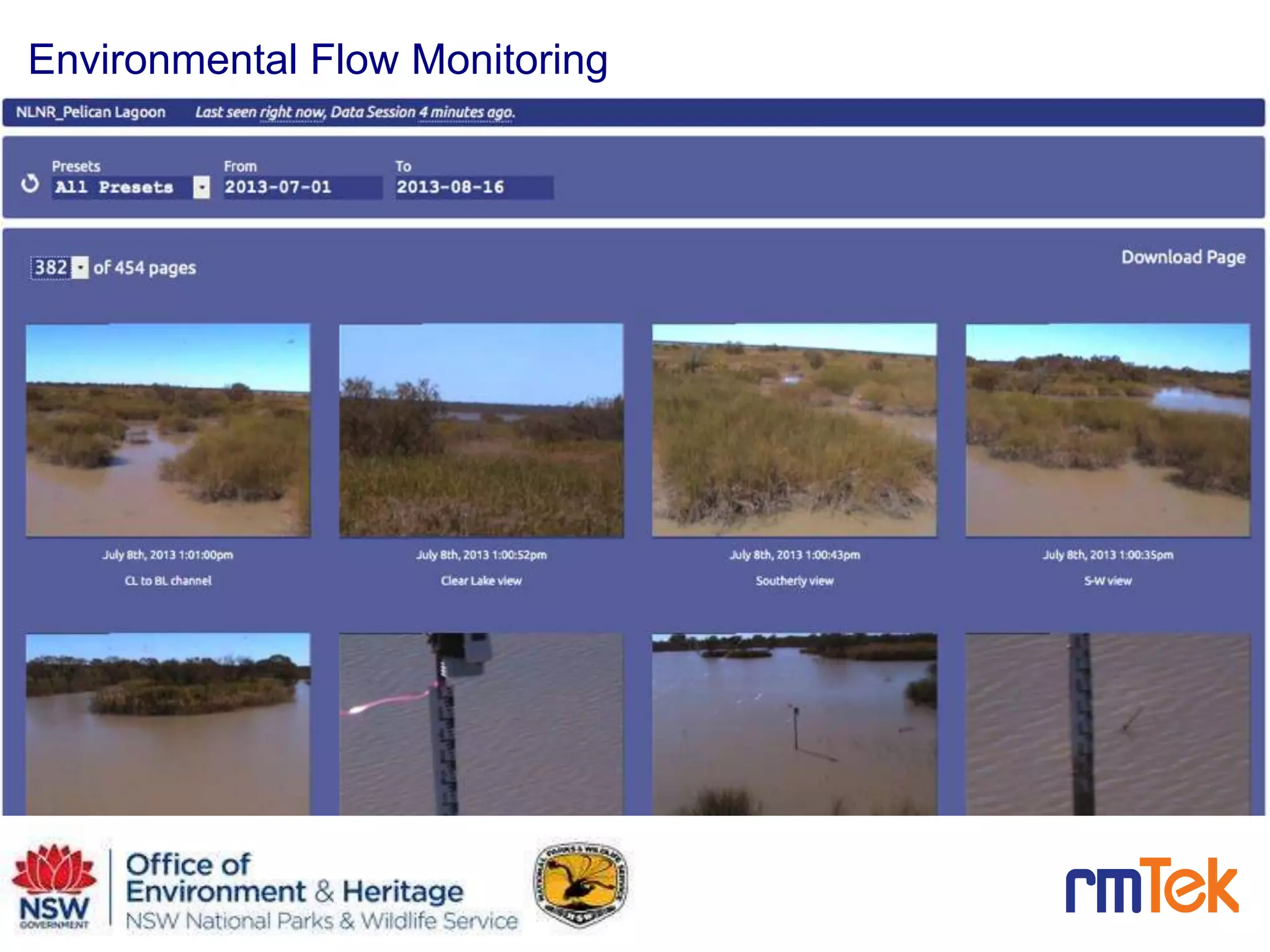

Environmental Flow Monitoring

15. 15

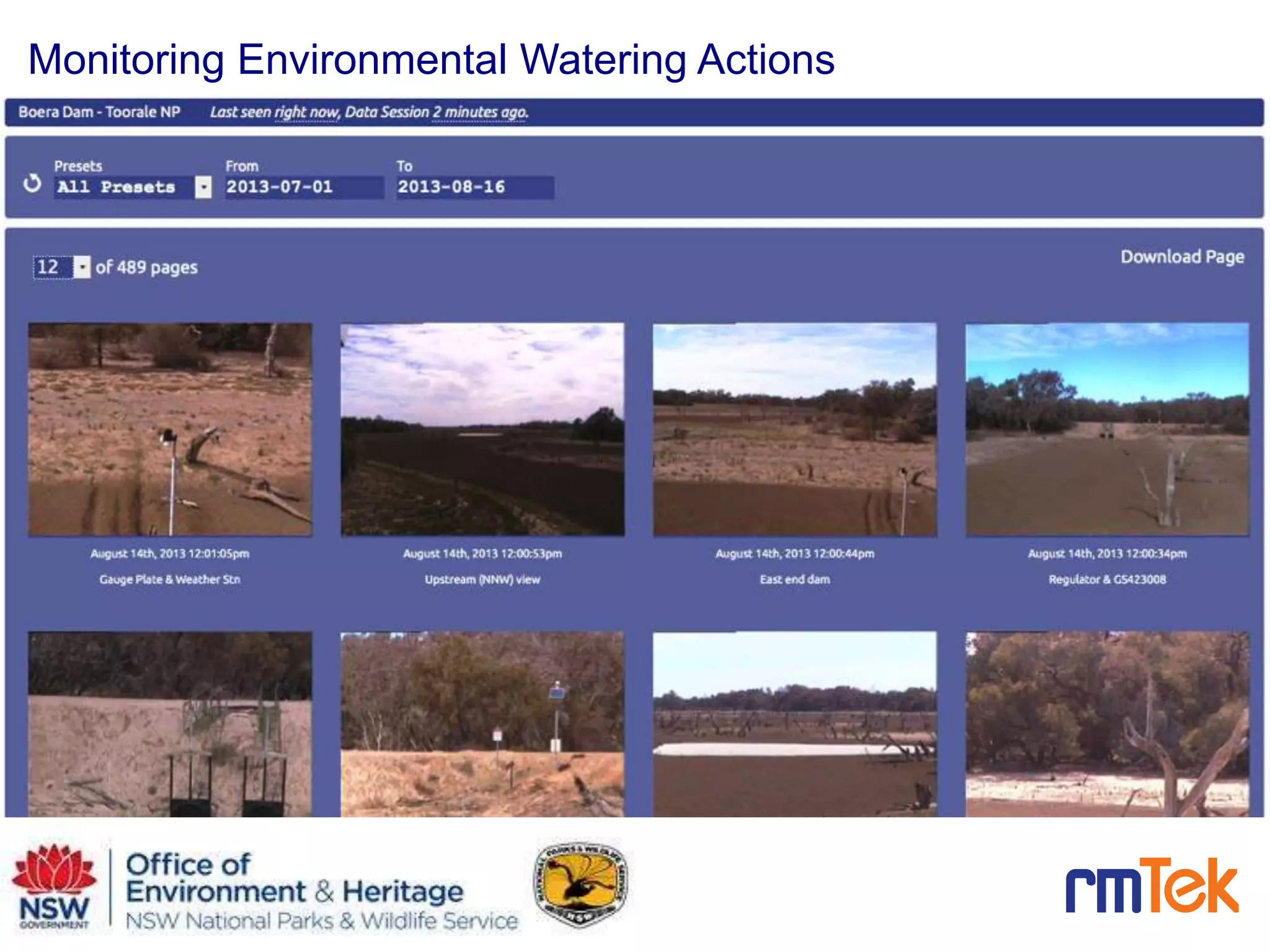

Monitoring Environmental Watering Actions

16. 16

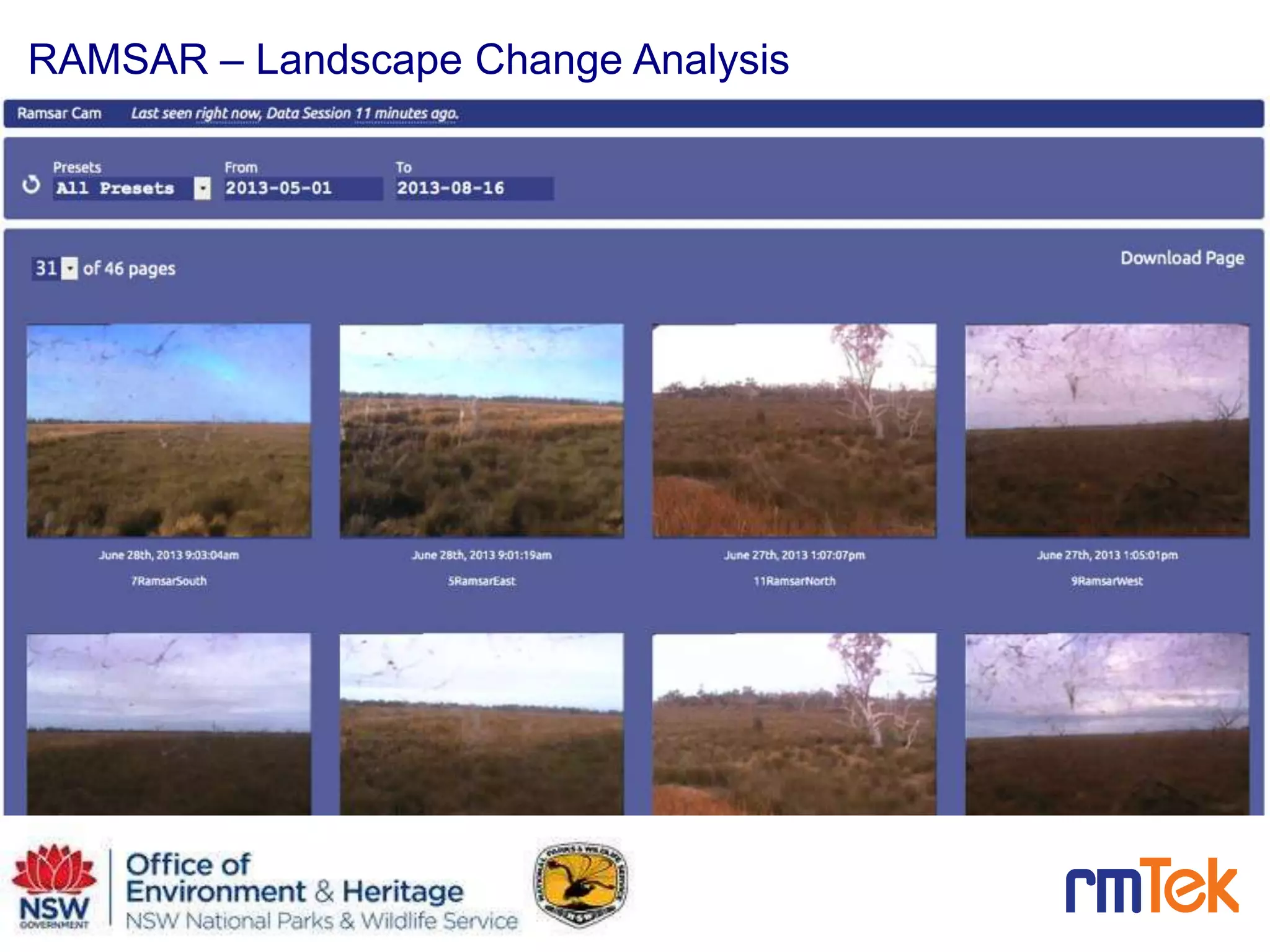

RAMSAR – Landscape Change Analysis

17. 17

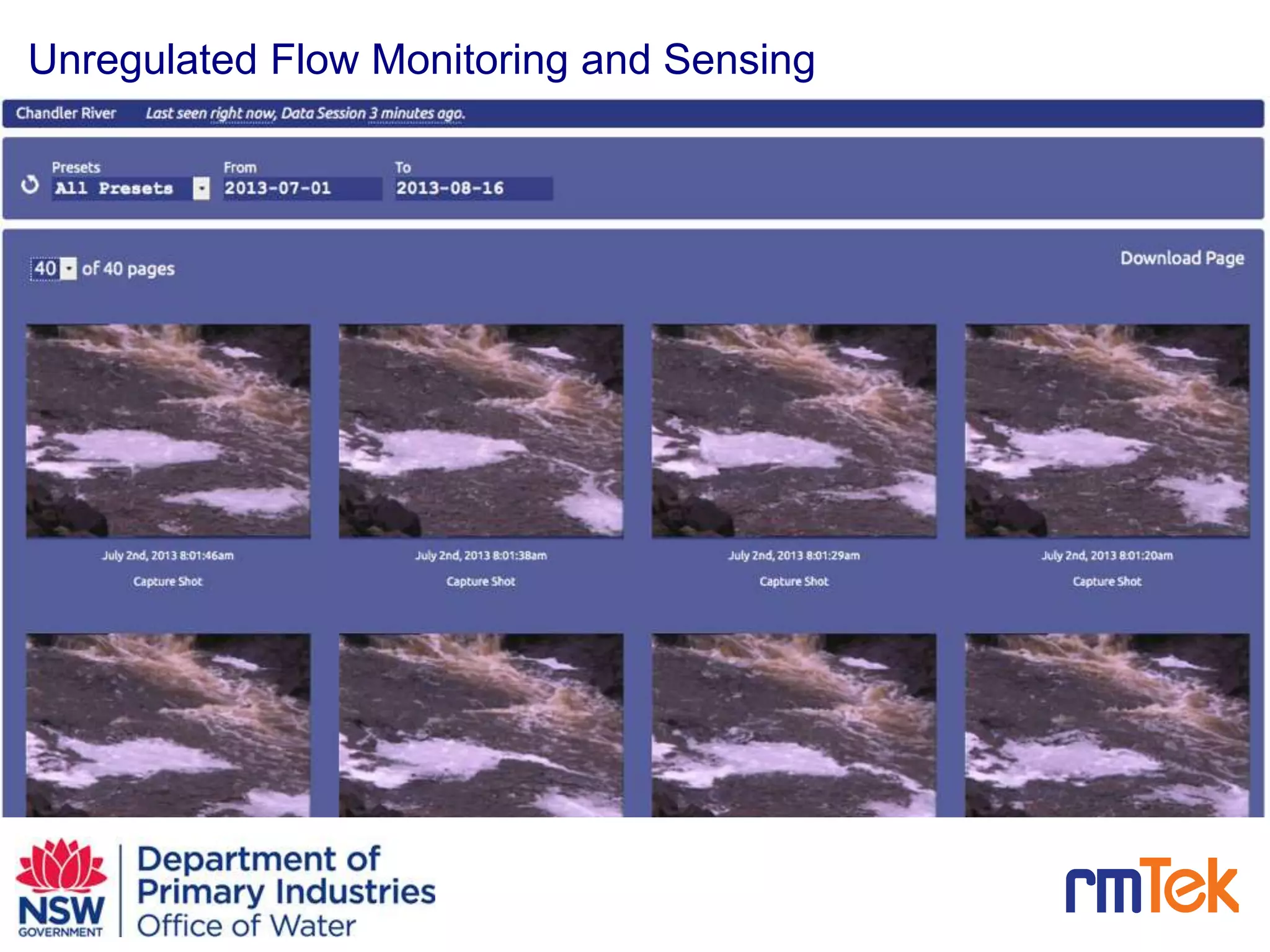

Unregulated Flow Monitoring and Sensing

18. 18

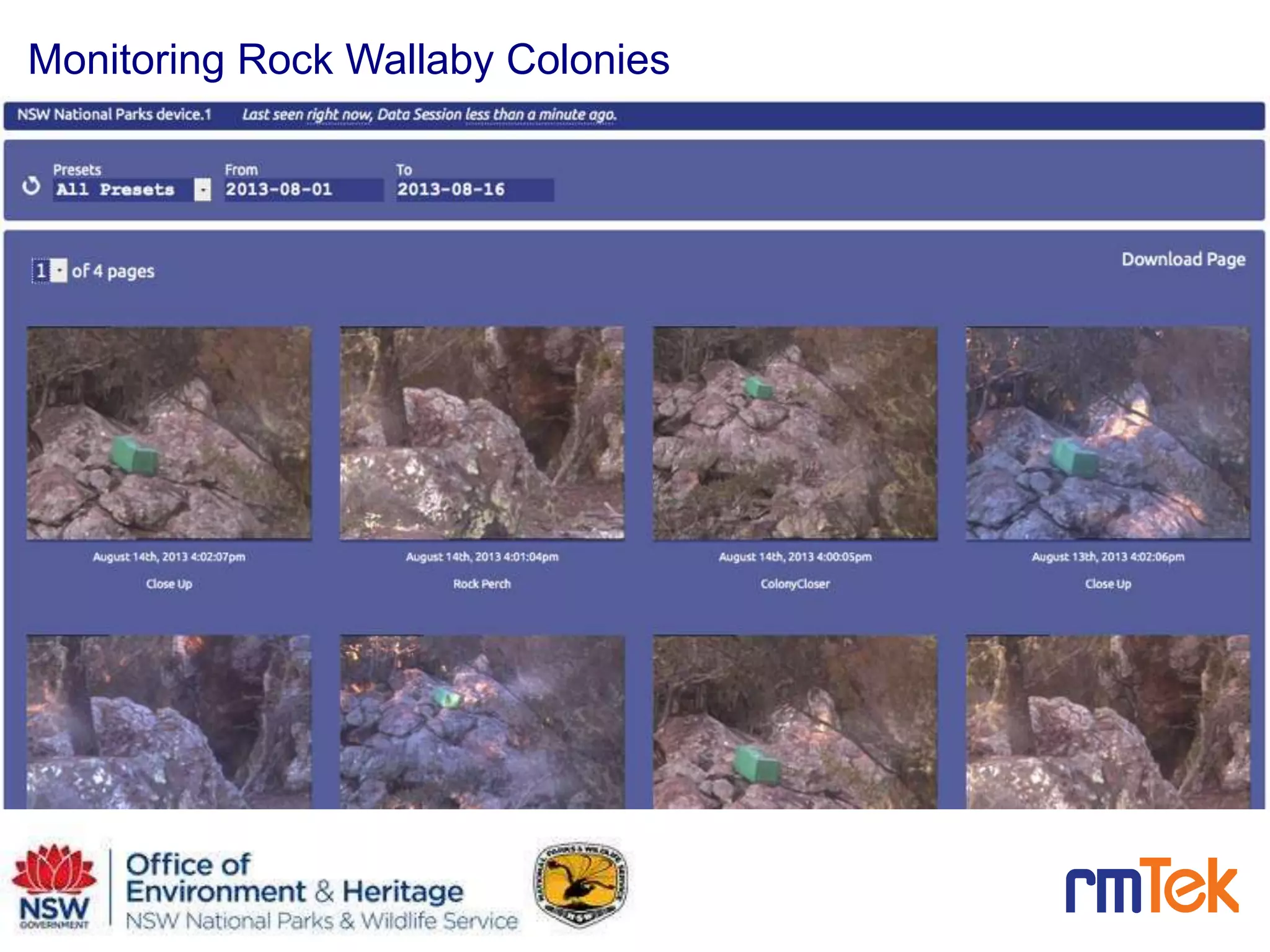

Monitoring Rock Wallaby Colonies

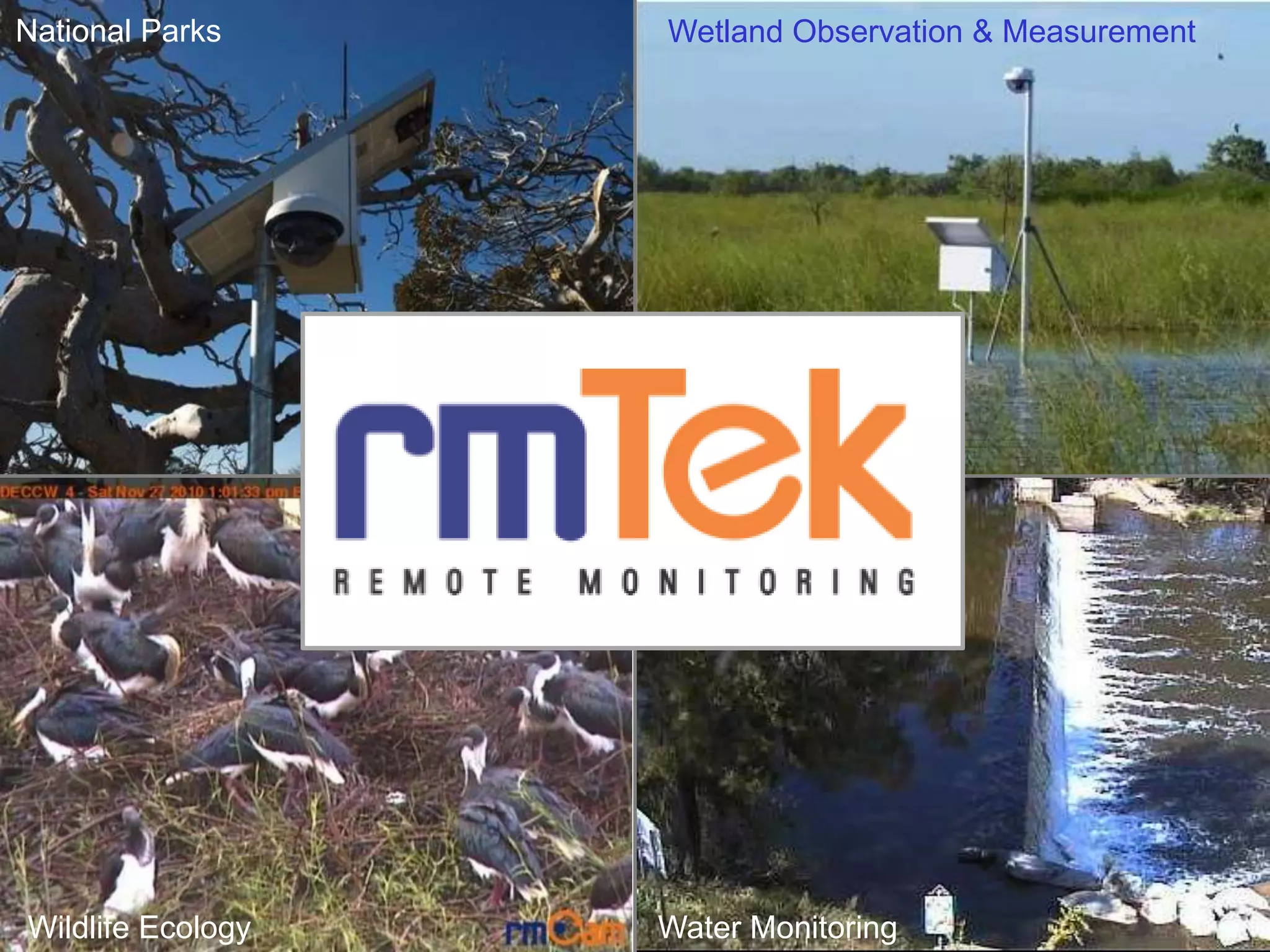

19. National Parks
Water Monitoring
Wetland Observation & Measurement
Wildlife Ecology

20. Contact Details
Brendan Doyle
90 Taylor Street
Armidale NSW 2350
E: Brendan.Doyle@rmtek.com.au
P: +61 2 6771 4798
M: +61 4 2859 7113
20
