The document discusses a remote monitoring and control system for pumping stations in water supply systems, allowing real-time oversight and management through various devices like smartphones and laptops. It addresses issues in traditional water treatment methods and highlights the benefits of wireless technology, which reduces costs and enhances reliability. This system provides operators with efficient monitoring capabilities, predicts maintenance needs, and ensures water quality and supply consistency.

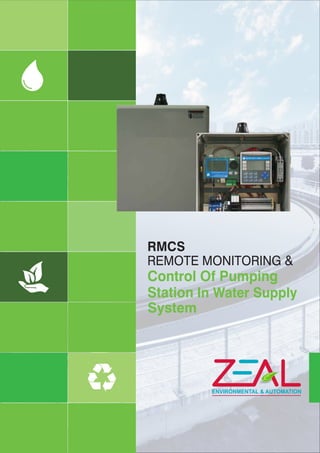

1. ENVIRONMENTAL & AUTOMATION
RMCS
REMOTE MONITORING &
Control Of Pumping
Station In Water Supply
System

2. ENVIRONMENTAL & AUTOMATION
THE CONCEPT OF “Remote Monitoring & Control”
“iSAVE-RMCs”
The information and control system allows both software and hardware to establish a connection with each other despite
varied source. It offers you get a quick insight about the objects' function and also enables users to monitor an endless
number of installations irrespective of the demographic location in real-time. In this manner, a laptop, smartphone or PC
allows performing the entire task in a most convenient manner.
Earlier water treatment system usually lacks the property to convey the entire parameter right from the centralized location
to the actual point of operation. In this manner, institutionalized control of the considerable number of ofces inside a
water region is a bit difcult. Procedure modications performed nearby may not t in with the government, state or city
guidelines for water quality control.
In a regular Wastewater Treatment Monitoring system, stream and lake water goes from a pump station to a crude water
supply, where the un-puried water is put away for some time. The water experiences sedimentation and occulation
strategies before ltration and extra decontamination at the water purging plant. Each progression has the potential for
mistake.
Remote Monitoring & Control system in India has resolved the issue to a large extent. It empowers total, computerized
checking by specialists at a central area just as manual changes in accordance with procedure ventures at explicit
destinations by nearby local organizations as required. The system enables operators to accelerate, back off or generally
change a particular part of the procedure as distinguished by the rened central monitoring system.
Generally, designing was the main c hoice for clients to interface remote instrumentation. New innovation empowering
utilization of spread range radio makes it conceivable to associate remote instrumentation without the need of an
exorbitant wired foundation. With the possibility of having the capacity to comprehend for all intents and purposes any
remote observing or control application, the industry is starting to see wireless remote monitoring system as a
development for tending to issues recently esteemed cost restrictive, not in fact achievable or ailing in dependability.
Why option for Wireless Remote Monitoring System?
Much of the time, topographically dispersed resources and sensor information are needed. Some of the alternatives
available earlier include: digging, running conductor and pulling wire to remote areas. In contrast to this, the wireless
system offers signicant and quantiable cost investment funds regarding designing, establishment and logistics and
sensational enhancements in the recurrence and dependability of information collected.

3. ENVIRONMENTAL & AUTOMATION
'Save Mother Earth' is the slogan of Green Earth movement across the globe. Nowadays; awareness about preserving the
treatment technology.
Remote Monitoring & Control Of Pumping Station In Water Supply System ……
If anything happens on site you will be the rst to know…….
Based on your requirement, we are pleased to submit our proposal as under for your kind consideration and approval.
OHT (Over head Tank).
UGR with Pump
Tub-well at different points
Current/Live Status of the water level of OTH and UGR
Current/Live Status of the pump function
Data Analysis of any time interval
Monitor the Flow rate and Total Supply of Water
Remotely Monitor and Controls of any operating pump with user I'd
The functions of the pumping station in case of remote process monitoring of the water supply system have resolved
many issues to a considerable rate. Today, data transmission is depended on the web application. The conguration is
developed depending on the Microsoft tools and a set of pre-dened web services. This empowers steady and solid
information transmission from the pumping station to the dispatch center along with the signal commands from the
middle to the local control unit. The framework gives the administrator in the dispatch center with the perception of control
ofces with the graphical and unthinkable introduction of pertinent qualities and parameters. The operator can screen the
usefulness of the whole structure on the SCADA Base Remote Monitoring screen, and alert reports help with nding
issues, which adds to a huge increment in upkeep effectiveness. The association between the dispatch center and
pumping station is built up with remote information transmission utilizing cell phone administrators.
The paper describes the functioning of the
pumping station remote monitoring and control
system in the water supply system. A modern way
of data transmission based on the Web platform is
applied. The proposed conguration is developed
based on Microsoft tools as Web applications and
a set of Web services. It enables stable and reliable
data transmission from the pumping station to the
dispatch center as well as the signal commands
from this center to the local control unit. The
system provides the operator in the dispatch
center with the visualization of control facilities with
graphical and tabular presentation of relevant
values and parameters. The operator can monitor
the functionality of the entire building on the
SCADA screen, and alarm reports assist in locating
faults, which contributes to a signicant increase in
maintenance efciency. The connection between
the pumping stations and the dispatch center is
established with wireless data transmission using
mobile phone operators
How does Remote Process Monitoring and Control Works?
Functional Area of Work

4. To ensure quality of water during end user distribution
To avoid imbalances created by excess supply in one area and shortfall in other area.
Identication of improper chlorination at plants
To ensure right quantity of water daily to the public
Identication of chlorine decay in reservoirs and pipelines
Informing the eld operator regarding local boosting before distribution
ENVIRONMENTAL & AUTOMATION
Quality of water
Quantity of water
Timeliness and duration of supply
To ensure water supply at the right time
Unreliable timings and durations will be identify PLC
Improper reservoir operations that may affect supply in
Objectives of the Water SCADA system:
other areas will be identify PLC

5. ENVIRONMENTAL & AUTOMATION
Our Work
“iSAVE-RMCs”
Insight and control anywhere in the world
Remote Pump Station Monitoring
THE CONCEPT OF “Remote Monitoring & Control”
The information and control system enables hardware as well as software to communicate with each other, irrespective of
their source. This enables you to gain an insight into how your objects function and allows you to monitor an endless
number of technical installations – anywhere in the world – in real time. The use of a smartphone, tablet, laptop or PC
allows all this to be done with utmost mobility.
This is what we call: The World at Your Fingertips…..
Zeal online monitoring systems which use a cloud based platform, designed by i-SAVE, to regularly monitor the
parameters and report data to CPCB and SPCB's.
These systems employ the technology and principle of UV-Vis spectrophotometers, which is in compliance to the
approved methods and the best method to correlate the laboratory measurements. This method involves absorbance of
light by different types of matter. This advantage of distinguishing different organic types with accurate measurements
supplants the obsolete methods. These analyzers use innovative technology and cater superior performance, cost
effectiveness, continuous photometric and spectrophotometric analysis.
Zeal systems have been designed considering technology, cost and efciency and have been categorized as:
The management system enables you to maintain complete control over installations, buildings and objects. By means of
a whole range of sensors the installations involved share data about their operations, current and future condition, and
about relevant environmental factors. Server collects and analyses these data, which means that you always have an
insight into how your objects are functioning and – where necessary – are able to exercise direct control over them.
The information and management system ensures durability, security, energy savings, reduced costs, predictive
maintenance and risks reduced to a minimum. Unsurprisingly Server is the heart and brain of a large number of
installations.
Site communication links are 100% monitored, urgent alarms are reported immediately and when the power is off
the system continues working.

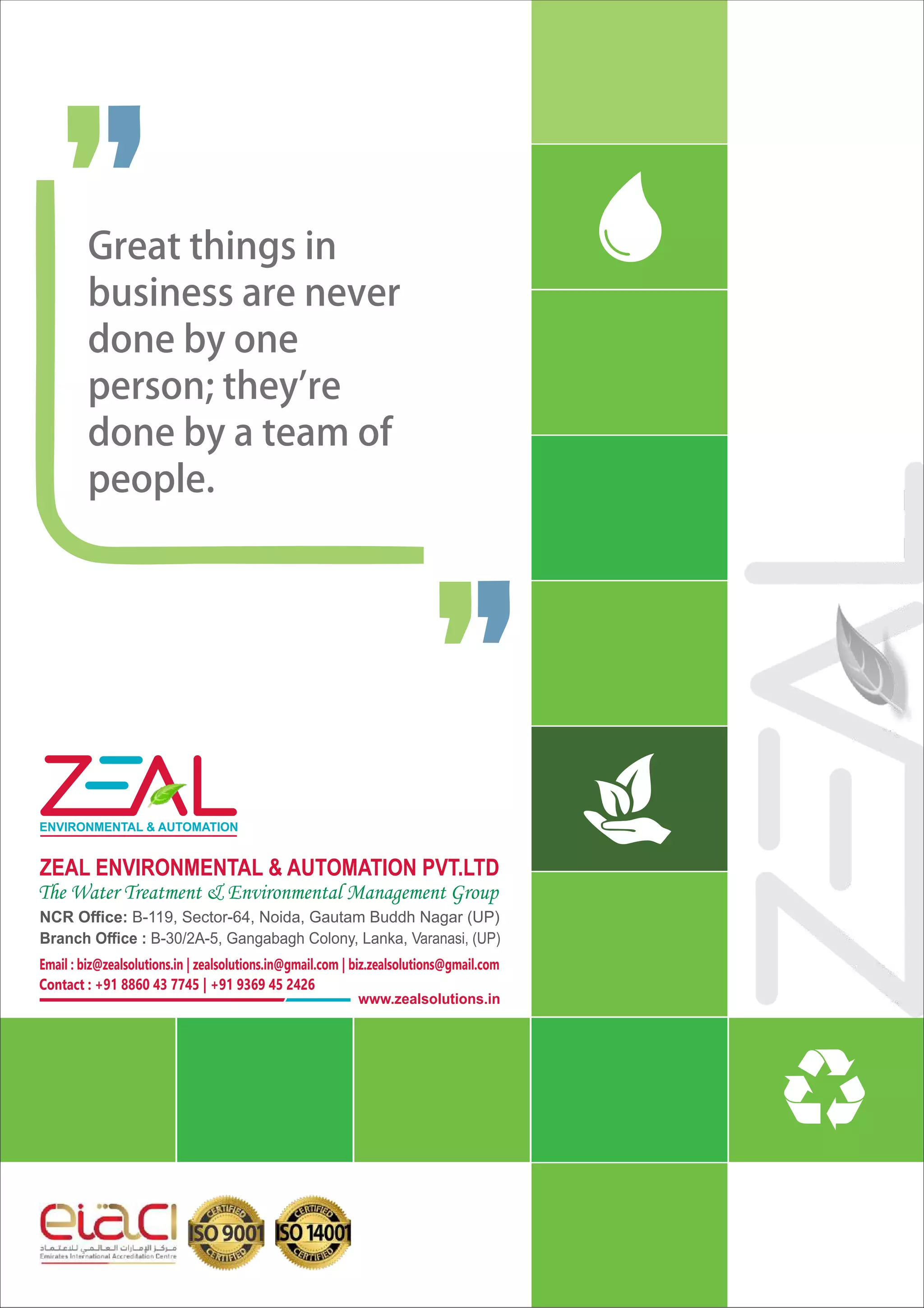

6. ZEAL ENVIRONMENTAL & AUTOMATION PVT.LTD
The Water Treatment & Environmental Management Group
NCR Office: B-119, Sector-64, Noida, Gautam Buddh Nagar (UP)
Branch Office : B-30/2A-5, Gangabagh Colony, Lanka, Varanasi, (UP)
www.zealsolutions.in
ENVIRONMENTAL & AUTOMATION
Email : biz@zealsolutions.in | zealsolutions.in@gmail.com | biz.zealsolutions@gmail.com
Contact : +91 8860 43 7745 | +91 9369 45 2426
