The document describes Robofab, a company located in Singapore that uses robotic technology to quickly cut, hole, cope and mark steel profiles. Robofab can process common steel profiles like beams, channels, pipes and plates that are up to 1200mm wide, 900mm high and 24 meters long. It has a 2.4m reach robotic arm that can cut profiles, plates and tubes with high accuracy within minutes, much faster than manual processing times that take hours. Robofab provides fabrication, shipping and erection services for structural steel projects around the world.

1. PRODUCTION CAPABILITIES
SOUTHEAST ASIA | AUSTRALIA
www.robofab.net

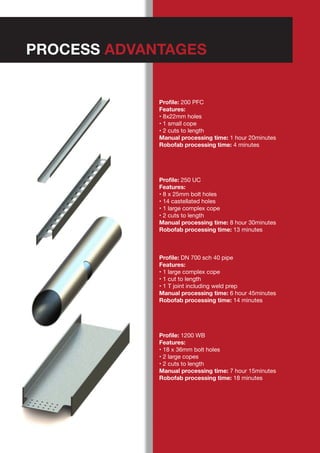

2. Profile: 200 PFC
Features:
• 8x22mm holes
• 1 small cope
• 2 cuts to length
Manual processing time: 1 hour 20minutes
Robofab processing time: 4 minutes
Profile: 250 UC
Features:
• 8 x 25mm bolt holes
• 14 castellated holes
• 1 large complex cope
• 2 cuts to length
Manual processing time: 8 hour 30minutes
Robofab processing time: 13 minutes
Profile: DN 700 sch 40 pipe
Features:
• 1 large complex cope
• 1 cut to length
• 1 T joint including weld prep
Manual processing time: 6 hour 45minutes
Robofab processing time: 14 minutes
Profile: 1200 WB
Features:
• 18 x 36mm bolt holes
• 2 large copes
• 2 cuts to length
Manual processing time: 7 hour 15minutes
Robofab processing time: 18 minutes
PROCESS ADVANTAGES

3. OUR TECHNOLOGY

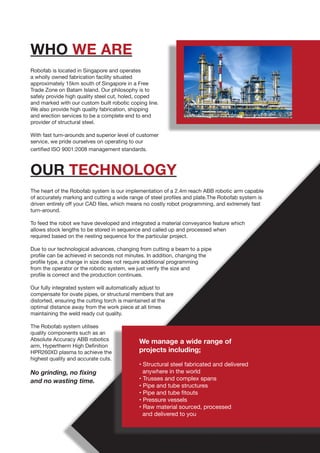

WHO WE ARE
Robofab is located in Singapore and operates
a wholly owned fabrication facility situated
approximately 15km south of Singapore in a Free
Trade Zone on Batam Island. Our philosophy is to
safely provide high quality steel cut, holed, coped
and marked with our custom built robotic coping line.
We also provide high quality fabrication, shipping
and erection services to be a complete end to end
provider of structural steel.
With fast turn-arounds and superior level of customer
service, we pride ourselves on operating to our
certified ISO 9001:2008 management standards.
The heart of the Robofab system is our implementation of a 2.4m reach ABB robotic arm capable
of accurately marking and cutting a wide range of steel profiles and plate.The Robofab system is
driven entirely off your CAD files, which means no costly robot programming, and extremely fast
turn-around.
To feed the robot we have developed and integrated a material conveyance feature which
allows stock lengths to be stored in sequence and called up and processed when
required based on the nesting sequence for the particular project.
Due to our technological advances, changing from cutting a beam to a pipe
profile can be achieved in seconds not minutes. In addition, changing the
profile type, a change in size does not require additional programming
from the operator or the robotic system, we just verify the size and
profile is correct and the production continues.
Our fully integrated system will automatically adjust to
compensate for ovate pipes, or structural members that are
distorted, ensuring the cutting torch is maintained at the
optimal distance away from the work piece at all times
maintaining the weld ready cut quality.
The Robofab system utilises
quality components such as an
Absolute Accuracy ABB robotics
arm, Hypertherm High Definition
HPR260XD plasma to achieve the
highest quality and accurate cuts.
No grinding, no fixing
and no wasting time.
We manage a wide range of
projects including;
• Structural steel fabricated and delivered
anywhere in the world
• Trusses and complex spans
• Pipe and tube structures
• Pipe and tube fitouts
• Pressure vessels
• Raw material sourced, processed
and delivered to you

4. SINGAPORE - Head office INDONESIA - Production Facility AUSTRALIA - Sales and Erection
105 Cecil Street, #16-05,
The Octagon, Singapore 069534
M: +65 90504073
E: leigh@robofabasia.asia
PT Smart Steel Solution
Kawasan Industri Batu Ampar
Jl. Bawal Kav V Batu Merah,
Batu Ampar,
Kepulauan Riau
Leigh Fitzpatrick
M: +62 811 626 776
E: leigh@smartersteelsolutions.com
Nazillah Daud
M: +62 812 823 02 513
E: nazillah@smartersteelsolutions.com
Brisbane - Geoff Grant
P: 0422 330 887
E: geoff@robofabaustralia.com.au
Gold Coast - Kevin Fitzpatrick
P: 0418 760 813
E: kevin@robofabaustralia.com.au
Contact us now with your project, and let us show you the savings you can make!

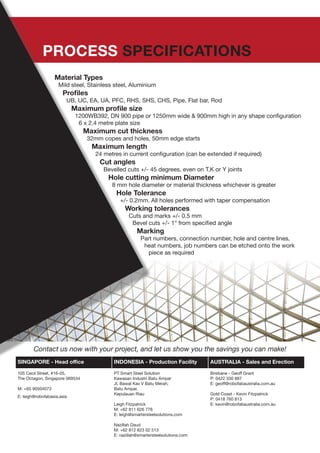

PROCESS SPECIFICATIONS
Material Types
Mild steel, Stainless steel, Aluminium
Profiles
UB, UC, EA, UA, PFC, RHS, SHS, CHS, Pipe, Flat bar, Rod
Maximum profile size
1200WB392, DN 900 pipe or 1250mm wide & 900mm high in any shape configuration
6 x 2.4 metre plate size
Maximum cut thickness
32mm copes and holes, 50mm edge starts
Maximum length
24 metres in current configuration (can be extended if required)
Cut angles
Bevelled cuts +/- 45 degrees, even on T,K or Y joints
Hole cutting minimum Diameter
8 mm hole diameter or material thickness whichever is greater
Hole Tolerance
+/- 0.2mm. All holes performed with taper compensation
Working tolerances
Cuts and marks +/- 0.5 mm
Bevel cuts +/- 1° from specified angle
Marking
Part numbers, connection number, hole and centre lines,
heat numbers, job numbers can be etched onto the work
piece as required
