The Architecture of an API Platform
- 1. The Architecture of an API Platform Johannes Lundberg @johannesl
- 2. ”Self-taught developer. 46elks co-founder. Strongly believe it's possible to combine powerful features with ease of use. Enjoys vegetarian food and world travel.” @johannesl
- 3. The essence of an API Turning traditional complexity into programatic simplicity.

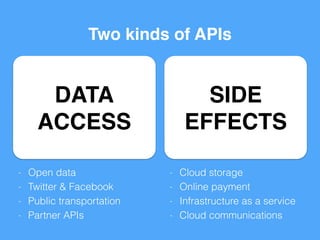

- 4. Two kinds of APIs DATA! ACCESS SIDE! EFFECTS - Cloud storage - Online payment - Infrastructure as a service - Cloud communications - Open data - Twitter & Facebook - Public transportation - Partner APIs

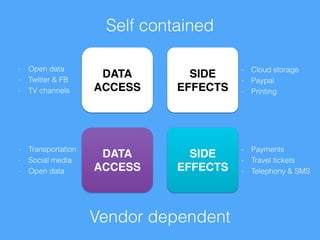

- 5. Self contained DATA! ACCESS SIDE! EFFECTS DATA! ACCESS SIDE! EFFECTS Vendor dependent - Open data - Twitter & FB - TV channels - Cloud storage - Paypal - Printing - Payments - Travel tickets - Telephony & SMS - Transportation - Social media - Open data

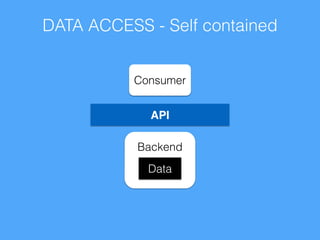

- 6. DATA ACCESS - Self contained Consumer API Backend ! Data

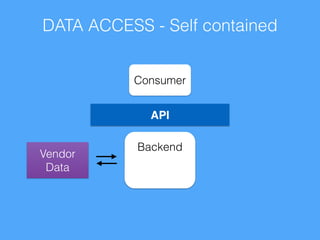

- 7. DATA ACCESS - Self contained Consumer API Backend ! Vendor Data
- 8. SIDE EFFECTS - Self contained Consumer API Backend ! Machinery

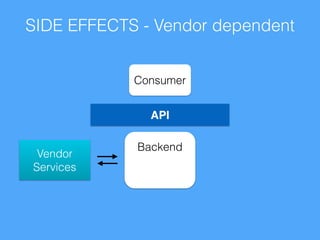

- 9. SIDE EFFECTS - Vendor dependent Consumer API Backend ! Vendor Services
- 10. REALITY? Consumer API Backend ! Vendor Services Machinery Data
- 11. REALITY?? Consumer API Backend ! ! ! ! ! Vendor Data Vendor Services Machinery Data Machinery Data Data Vendor Machinery Services
- 12. What’s the main features of your API?
- 13. We all know development costs.. ! Prototype first!

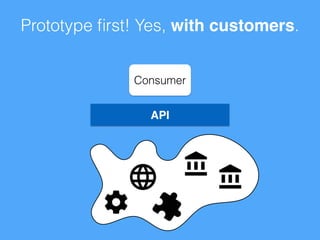

- 14. Prototype first! Yes, with customers. Consumer API
- 15. 1. Your API should work. 2. According to specs. ! 3. Maintainability.. 4. Scalability.. 5. Feature creep..
- 16. The golden rule of API design When in doubt! Leave it out!
- 17. XML vs JSON Servers vs IaaS! PUSH vs POLL OAuth vs Basic! Consistency vs Reliability! RabbitMQ vs ZeroMQ

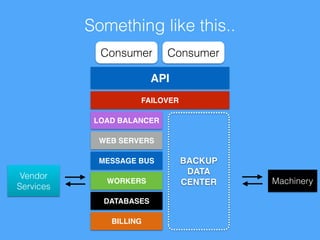

- 18. Something like this.. Consumer Consumer API FAILOVER LOAD BALANCER WEB SERVERS MESSAGE BUS WORKERS DATABASES BILLING Vendor Services Machinery BACKUP! DATA! CENTER
- 19. Do versioning. Use JSON. Talk to your API consumers. Select vendors carefully. Building APIs! should be complex
- 20. 46elks Part 2 - platform engine in-depth Voice, SMS and MMS! in one This document is confidential Unauthorized easy use prohibited API

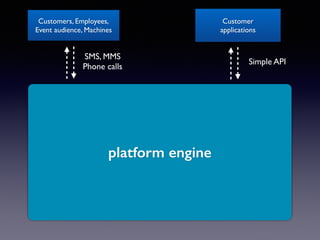

- 21. Customer applications Simple API Customers, Employees, Event audience, Machines SMS, MMS Phone calls platform engine
- 22. THE INTERNET Developer Applications PHP, C#, node.JS etc REST API HTTPS, JSON Basic auth TELCO NETWORKS nginx w/ SSL HTTP(S) callbacks ABC Conceptual module interaction HTTP Endpoint XYZ Developer Applications PHP, C#, node.JS etc Developer Application PHP, C#, node.JS etc DB XYZ Carrier endpoint Complex protocols Nice software ! elkserver main source code ! Python + gevent DEF Internal API Processing Something Module X ABC 123 46elks
- 23. The Architecture of an API Platform Johannes Lundberg @johannesl
