Restaurant case study - Coco Jaunt 1728
1. COCO JAUNT 1728
4th Main Road, Anna Nagar
East, Chennai
CASE STUDY- MULTICUISINE RESTAURANT
2. OVERVIEW:
Located : 4th Main Road, Anna Nagar East, Chennai
Area: 2300 sq ft
Cuisines : Continental, Café, Bakery
Around 50 diners (approx.)
The interiors is conceptualized around the concept of travel.
The name “Coco Jaunt 1728” was derived as the three friends loved anything Cocoa and also like
Travelling and 17:28hrs is the time when they decided the name.
Kitchen: two types open (grilling and fast service food) as well as separate kitchen for the main
preparations
Ceiling: Exposing wirings concealed within pile lines.
Lighting: Adequate amount of natural lighting is provided and track led lights of 36 lux and
incandescent pendant light of 32 lux.
Air conditioning: Ceiling mounted cassette all over the space.
Materials: White plywood furniture adds charm while black tiled flooring, while red upholstery (cotton
synthetic mix) offsets the yellow emulsion paint with enamel comic painting on the walls.

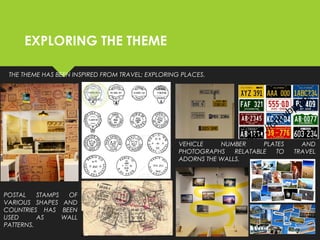

3. EXPLORING THE THEME
THE THEME HAS BEEN INSPIRED FROM TRAVEL; EXPLORING PLACES.
POSTAL STAMPS OF
VARIOUS SHAPES AND
COUNTRIES HAS BEEN
USED AS WALL
PATTERNS.
VEHICLE NUMBER PLATES AND
PHOTOGRAPHS RELATABLE TO TRAVEL
ADORNS THE WALLS.

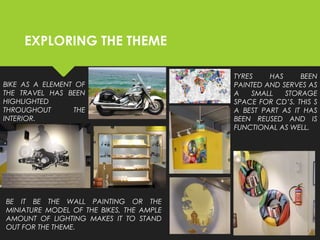

4. EXPLORING THE THEME
BIKE AS A ELEMENT OF
THE TRAVEL HAS BEEN
HIGHLIGHTED
THROUGHOUT THE
INTERIOR.
BE IT BE THE WALL PAINTING OR THE
MINIATURE MODEL OF THE BIKES, THE AMPLE
AMOUNT OF LIGHTING MAKES IT TO STAND
OUT FOR THE THEME.
TYRES HAS BEEN
PAINTED AND SERVES AS
A SMALL STORAGE
SPACE FOR CD’S. THIS S
A BEST PART AS IT HAS
BEEN REUSED AND IS
FUNCTIONAL AS WELL.
7. COLOUR PSYCHOLOGY
THE COLOR BLUE IT REDUCES STRESS, CREATING
A SENSE OF CALMNESS, RELAXATION AND
ORDER
YELLOW STIMULATES THE CENTRAL NERVOUS
SYSTEM, INCREASES THE DIGESTIVE
CAPACITY,IMPROVES TONNE MAKING YOU FEEL
FIT.
WHITE CONTAINS AN EQUAL BALANCE OF ALL
THE COLORS OF THE SPECTRUM, REPRESENTING
BOTH THE POSITIVE AND NEGATIVE ASPECTS OF
ALL COLORS. ITS BASIC FEATURE IS EQUALITY,
IMPLYING FAIRNESS AND IMPARTIALITY,
NEUTRALITY AND INDEPENDENCE.
THE COLOR GRAY CAN
LEND INTERIORS AN
ELEGANT FORMALITY THAT
IS SUBTLE WITHOUT BEING
OVERLY CONSERVATIVE

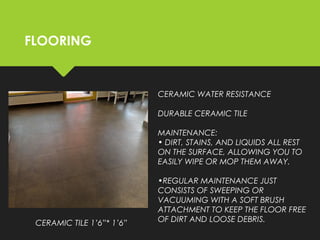

9. FLOORING
CERAMIC TILE 1’6”* 1’6”
CERAMIC WATER RESISTANCE
DURABLE CERAMIC TILE
MAINTENANCE:
• DIRT, STAINS, AND LIQUIDS ALL REST
ON THE SURFACE, ALLOWING YOU TO
EASILY WIPE OR MOP THEM AWAY.
•REGULAR MAINTENANCE JUST
CONSISTS OF SWEEPING OR
VACUUMING WITH A SOFT BRUSH
ATTACHMENT TO KEEP THE FLOOR FREE
OF DIRT AND LOOSE DEBRIS.

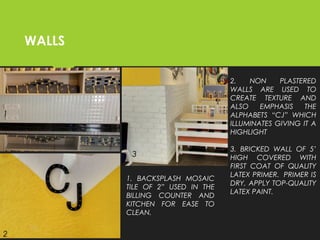

10. WALLS
2. NON PLASTERED
WALLS ARE USED TO
CREATE TEXTURE AND
ALSO EMPHASIS THE
ALPHABETS “CJ” WHICH
ILLUMINATES GIVING IT A
HIGHLIGHT
3. BRICKED WALL OF 5’
HIGH COVERED WITH
FIRST COAT OF QUALITY
LATEX PRIMER. PRIMER IS
DRY, APPLY TOP-QUALITY
LATEX PAINT.
1
2
3
1. BACKSPLASH MOSAIC
TILE OF 2” USED IN THE
BILLING COUNTER AND
KITCHEN FOR EASE TO
CLEAN.

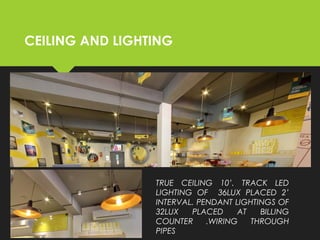

12. CEILING AND LIGHTING
TRUE CEILING 10’. TRACK LED
LIGHTING OF 36LUX PLACED 2’
INTERVAL. PENDANT LIGHTINGS OF
32LUX PLACED AT BILLING
COUNTER .WIRING THROUGH
PIPES

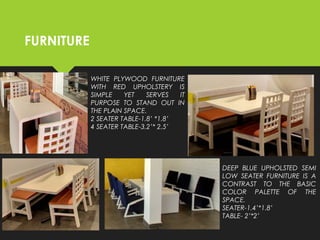

13. FURNITURE
WHITE PLYWOOD FURNITURE
WITH RED UPHOLSTERY IS
SIMPLE YET SERVES IT
PURPOSE TO STAND OUT IN
THE PLAIN SPACE.
2 SEATER TABLE-1.8’ *1.8’
4 SEATER TABLE-3.2’* 2.5’
DEEP BLUE UPHOLSTED SEMI
LOW SEATER FURNITURE IS A
CONTRAST TO THE BASIC
COLOR PALETTE OF THE
SPACE.
SEATER-1.4’*1.8’
TABLE- 2’*2’
14. KITCHEN - OPEN
THE STRAIGHT LINE SUB KITCHEN 11’7”*
6’4” FOR THE FAST DINING SERVES
AND TAKE AWAY COUNTER.

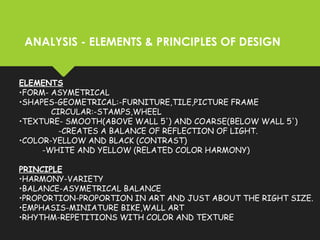

15. ANALYSIS - ELEMENTS & PRINCIPLES OF DESIGN
ELEMENTS
•FORM- ASYMETRICAL
•SHAPES-GEOMETRICAL:-FURNITURE,TILE,PICTURE FRAME
CIRCULAR:-STAMPS,WHEEL
•TEXTURE- SMOOTH(ABOVE WALL 5') AND COARSE(BELOW WALL 5')
-CREATES A BALANCE OF REFLECTION OF LIGHT.
•COLOR-YELLOW AND BLACK (CONTRAST)
-WHITE AND YELLOW (RELATED COLOR HARMONY)
PRINCIPLE
•HARMONY-VARIETY
•BALANCE-ASYMETRICAL BALANCE
•PROPORTION-PROPORTION IN ART AND JUST ABOUT THE RIGHT SIZE.
•EMPHASIS-MINIATURE BIKE,WALL ART
•RHYTHM-REPETITIONS WITH COLOR AND TEXTURE
16. INFERENCE
•PRECISE EXPLANATION OF THE WORD"TRAVEL" INTO THE INTERIORS.
•THE COLOR SCHEME IS VERY INVITING CREATING A PLEASANT ATMOSPHERE.
•COULD HAVE GIVEN MORE DINING SPACE UTILISING THE HIGHLIGHTING
WALL SPACE.
•HAVING DOMINANT WHITE COLOR CREATES A PSYCHOLOGICAL FEELING THAT
THE SPACE IS HYGEINIC ALTHOUGH HIGH MAINTENACE WILL BE REQUIRED.
•PLACEMENT OF RESTROOM COULD HAVE BEEN MORE TOWARDS THE ENTRANCE
SO THAT THERE WONT BE ANY DISTURBANCE TO THE DINERS
•WITH SO MUCH OF ART APPRECIATION,THERE COULD HAVE BEEN SOME
TREATMENT TO THE CEILING AS WELL AS THE FLOORING
