The presentation by Alicia Duffy and Ben Bond details the development of a responsive vegan campus map project using WordPress. It covers the technical requirements, including the creation of a custom post type for schools with geocoding functionality, the use of Leaflet.js for map rendering, and the incorporation of GeoJSON for efficient rendering of multiple locations. The project also includes customizable map markers with options for different icons and colors.

1. Building Responsive Maps
with WordPress
Presented by
Alicia Duffy & Ben Bond
Norfolk, VA
Saturday, November 23, 13

2. Alicia Duffy
Designer & Front-End Developer
@bedsheet / aliciad@petaf.org
Ben Bond
PHP Developer
@benniestacks / bennyb@petaf.org
Norfolk, VA / www.peta.org
Saturday, November 23, 13

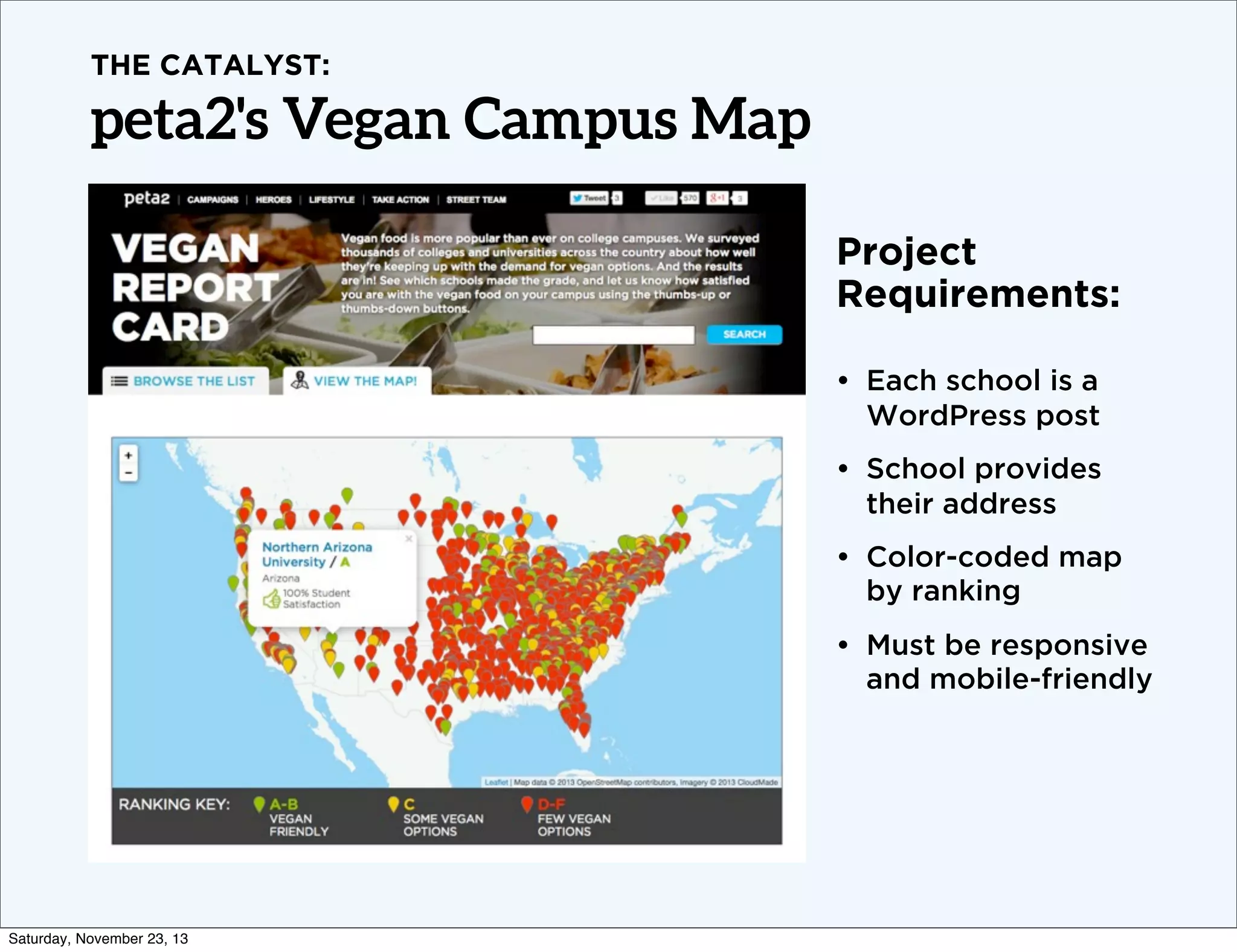

3. THE CATALYST:
peta2's Vegan Campus Map
Project
Requirements:
• Each school is a
WordPress post
• School provides
their address
• Color-coded map
by ranking
• Must be responsive
and mobile-friendly
Saturday, November 23, 13

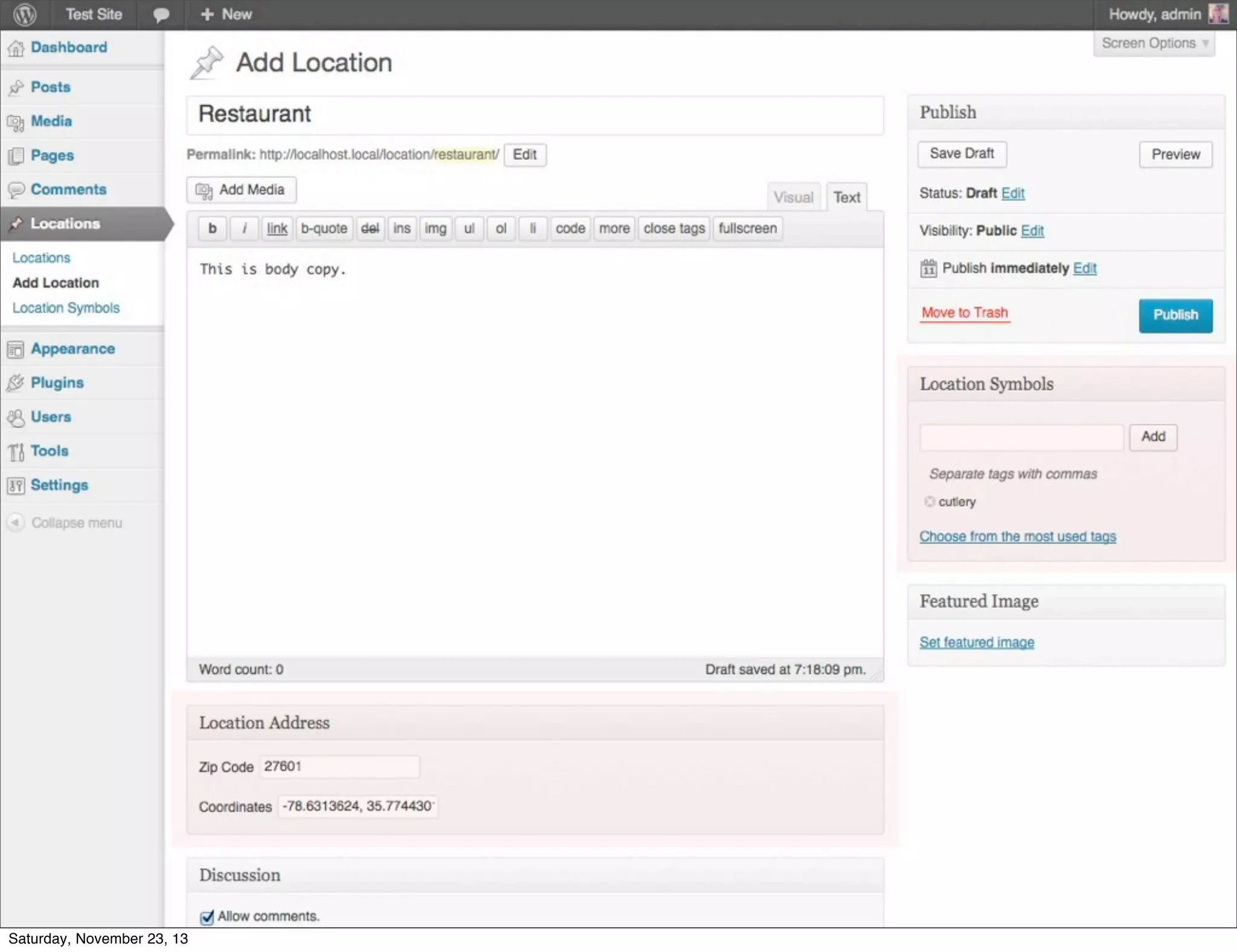

4. Screenshot of custom post type + meta + taxonomy
Saturday, November 23, 13

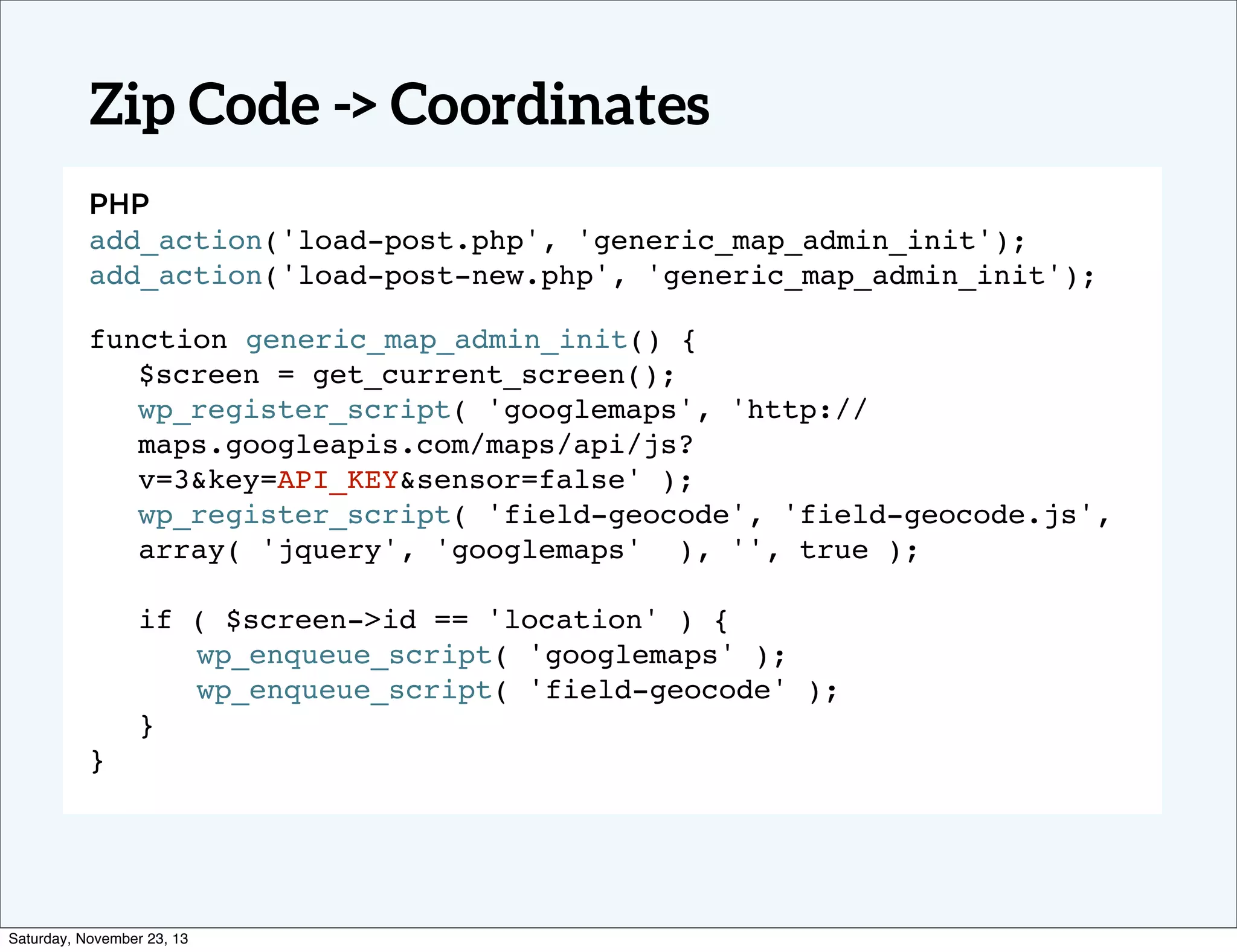

5. Zip Code -> Coordinates
PHP
add_action('load-post.php', 'generic_map_admin_init');
add_action('load-post-new.php', 'generic_map_admin_init');!
function generic_map_admin_init() {
$screen = get_current_screen();
wp_register_script( 'googlemaps', 'http://
maps.googleapis.com/maps/api/js?
v=3&key=API_KEY&sensor=false' );
wp_register_script( 'field-geocode', 'field-geocode.js',
array( 'jquery', 'googlemaps' ), '', true );
! ! ! ! ! ! !
! ! !
if ( $screen->id == 'location' ) { ! !
!
! wp_enqueue_script( 'googlemaps' ); ! !
! wp_enqueue_script( 'field-geocode' );
}
} !
Saturday, November 23, 13

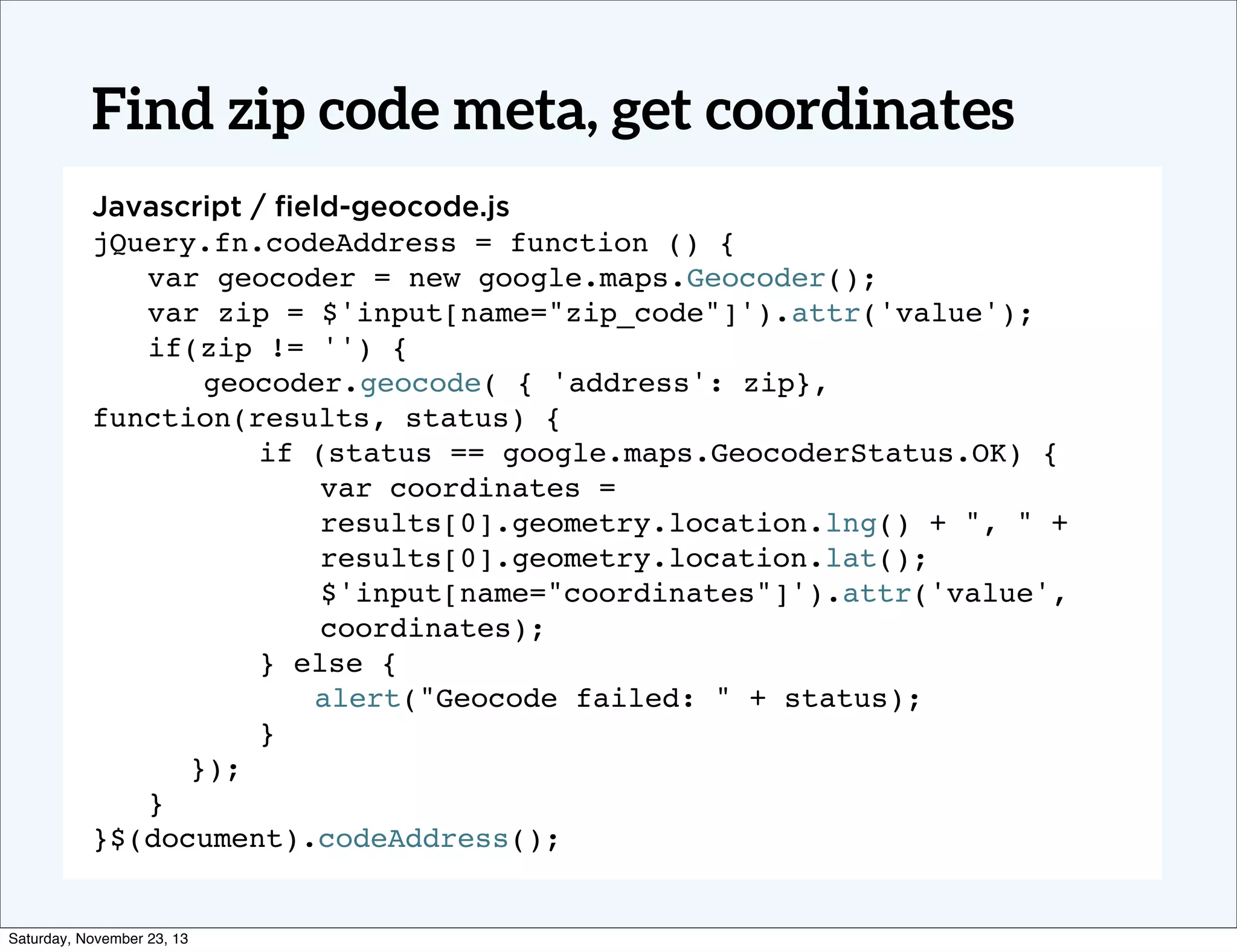

6. Find zip code meta, get coordinates
Javascript / field-geocode.js
jQuery.fn.codeAddress = function () {
! var geocoder = new google.maps.Geocoder();
! var zip = $'input[name="zip_code"]').attr('value');
! if(zip != '') {
! ! geocoder.geocode( { 'address': zip},
function(results, status) {
!
if (status == google.maps.GeocoderStatus.OK) {
var coordinates =
results[0].geometry.location.lng() + ", " +
results[0].geometry.location.lat();
$'input[name="coordinates"]').attr('value',
coordinates);
!
} else {
!
! alert("Geocode failed: " + status);
!
}
});
! }
}$(document).codeAddress();
Saturday, November 23, 13

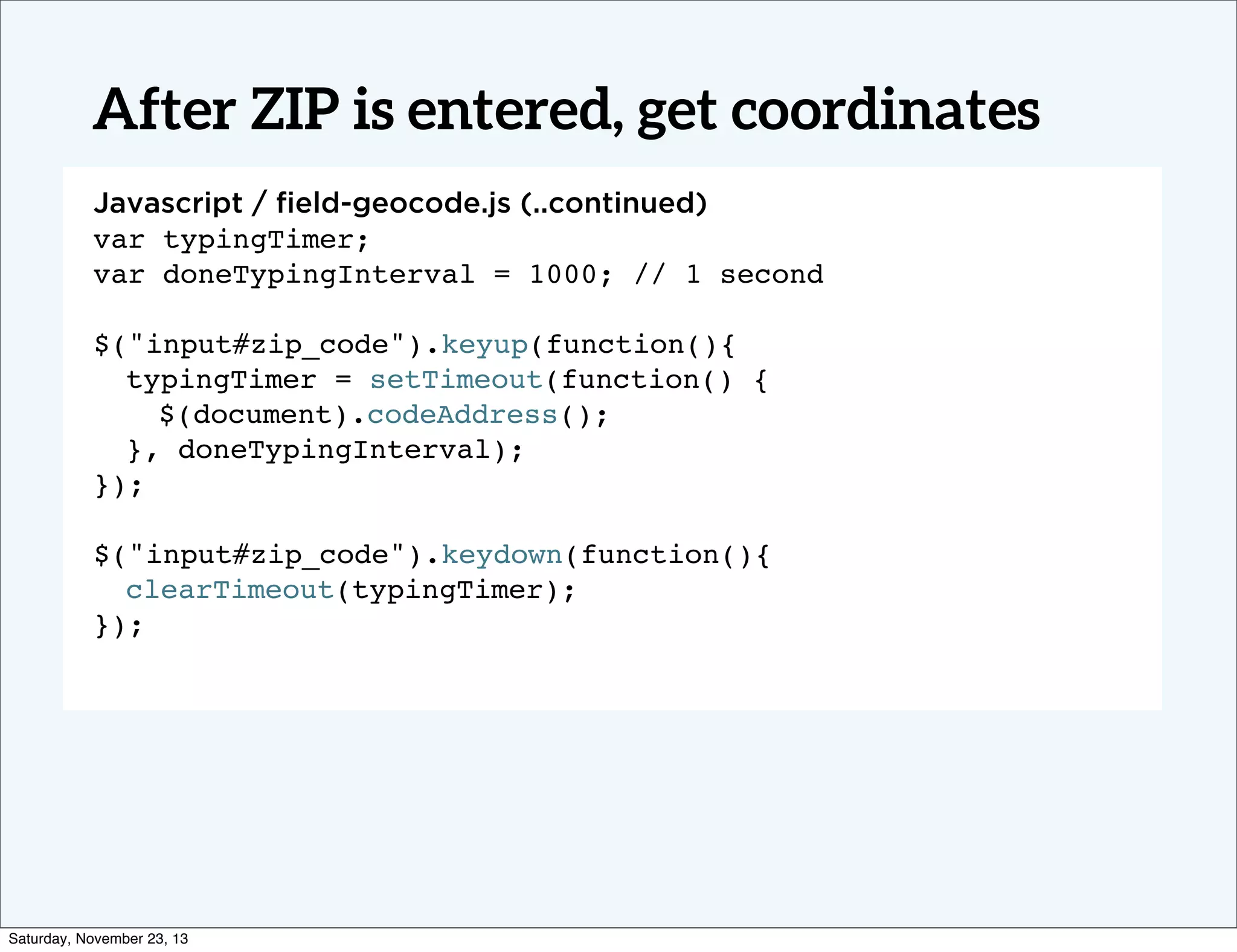

7. After ZIP is entered, get coordinates
Javascript / field-geocode.js (..continued)
var typingTimer;
Text
var doneTypingInterval = 1000; // 1 second
!
$("input#zip_code").keyup(function(){
typingTimer = setTimeout(function() {
$(document).codeAddress();
}, doneTypingInterval);
});
$("input#zip_code").keydown(function(){
clearTimeout(typingTimer);
});!
Saturday, November 23, 13

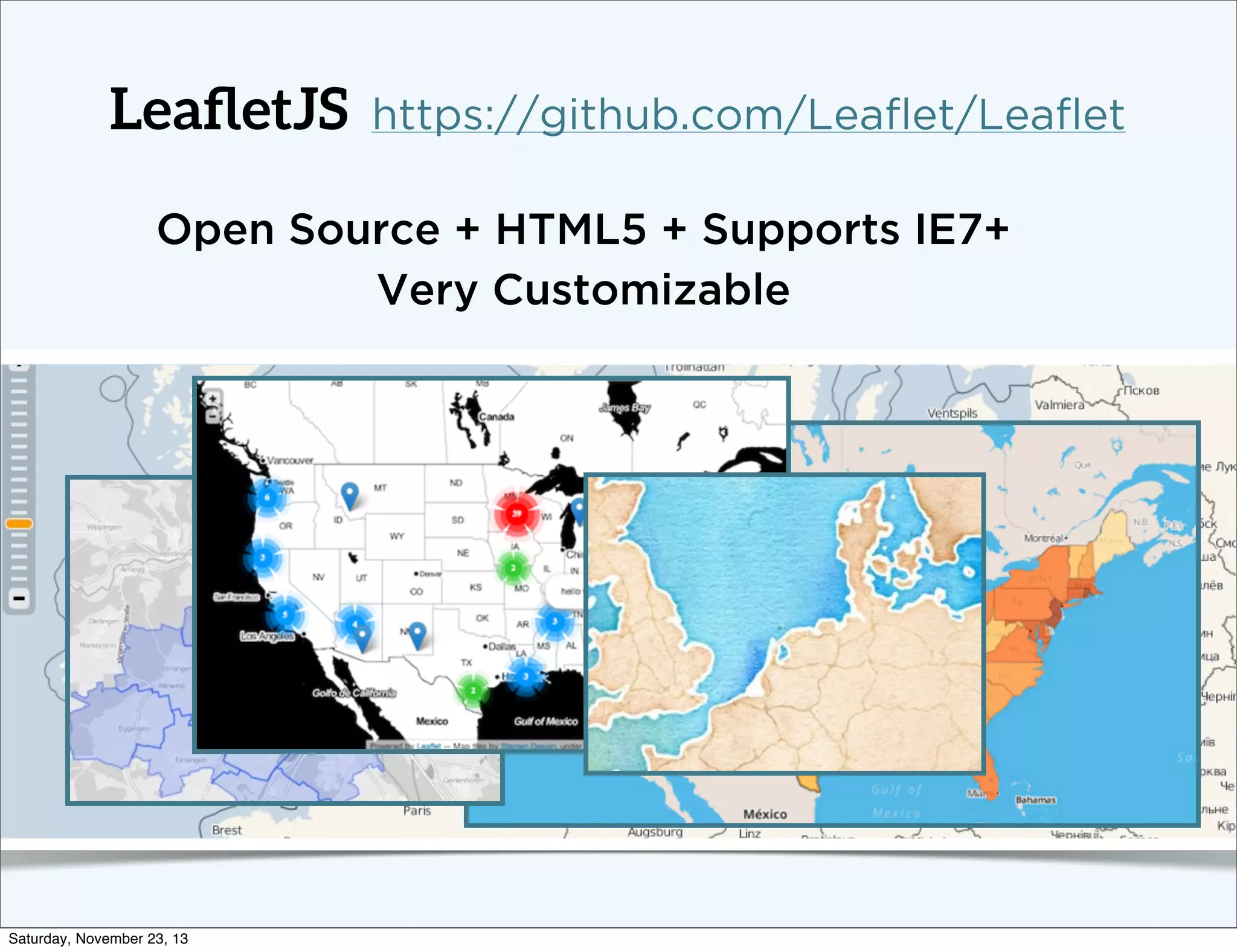

8. LeafletJS
https://github.com/Leaflet/Leaflet
Open Source + HTML5 + Supports IE7+
Very Customizable
Saturday, November 23, 13

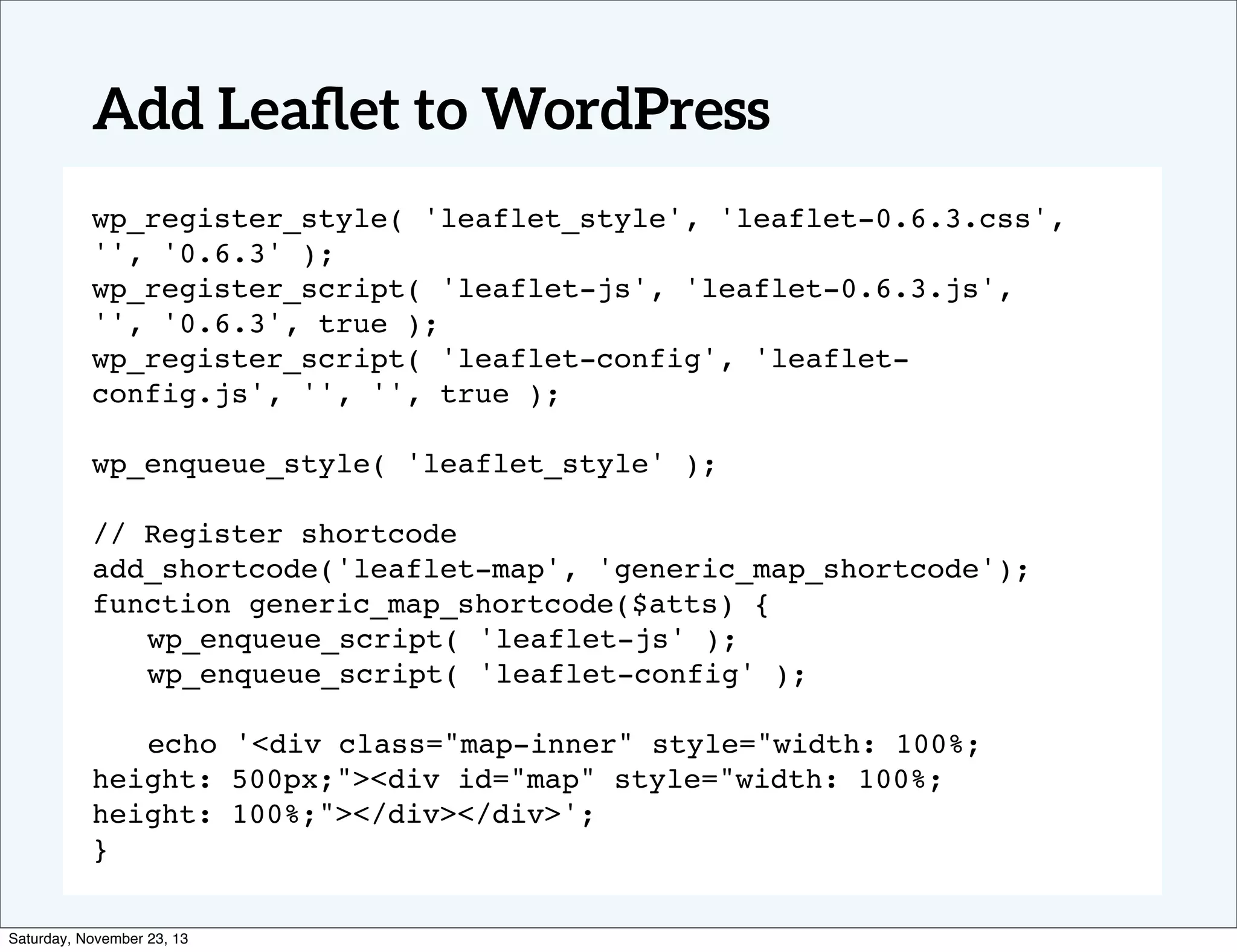

9. Add Leaflet to WordPress
wp_register_style( 'leaflet_style', 'leaflet-0.6.3.css',
'', '0.6.3' );
wp_register_script( 'leaflet-js', 'leaflet-0.6.3.js',
'', '0.6.3', true );
wp_register_script( 'leaflet-config', 'leafletconfig.js', '', '', true );
wp_enqueue_style( 'leaflet_style' );
// Register shortcode
add_shortcode('leaflet-map', 'generic_map_shortcode');
function generic_map_shortcode($atts) {
! wp_enqueue_script( 'leaflet-js' );
! wp_enqueue_script( 'leaflet-config' );
! echo '<div class="map-inner" style="width: 100%;
height: 500px;"><div id="map" style="width: 100%;
height: 100%;"></div></div>';
}
Saturday, November 23, 13

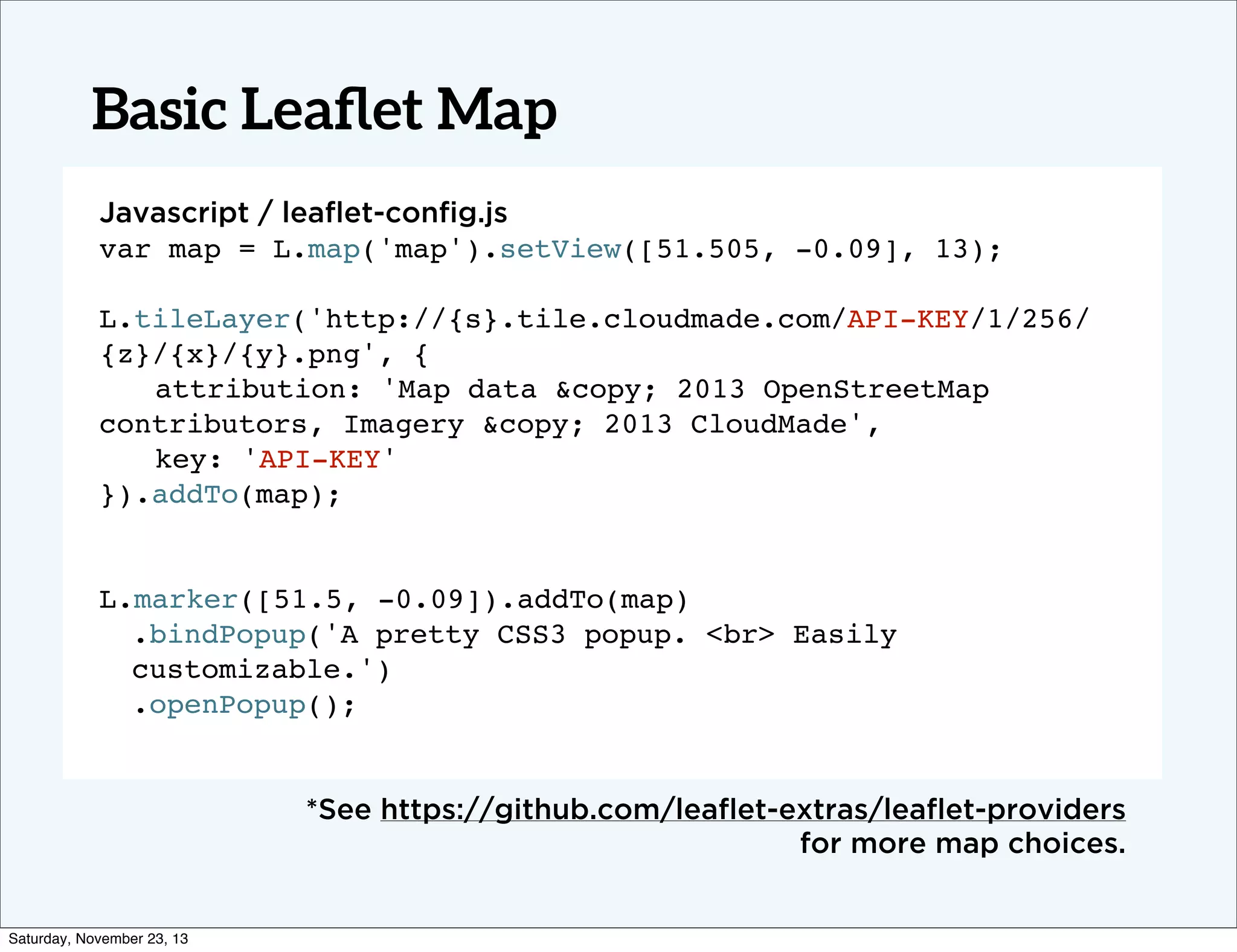

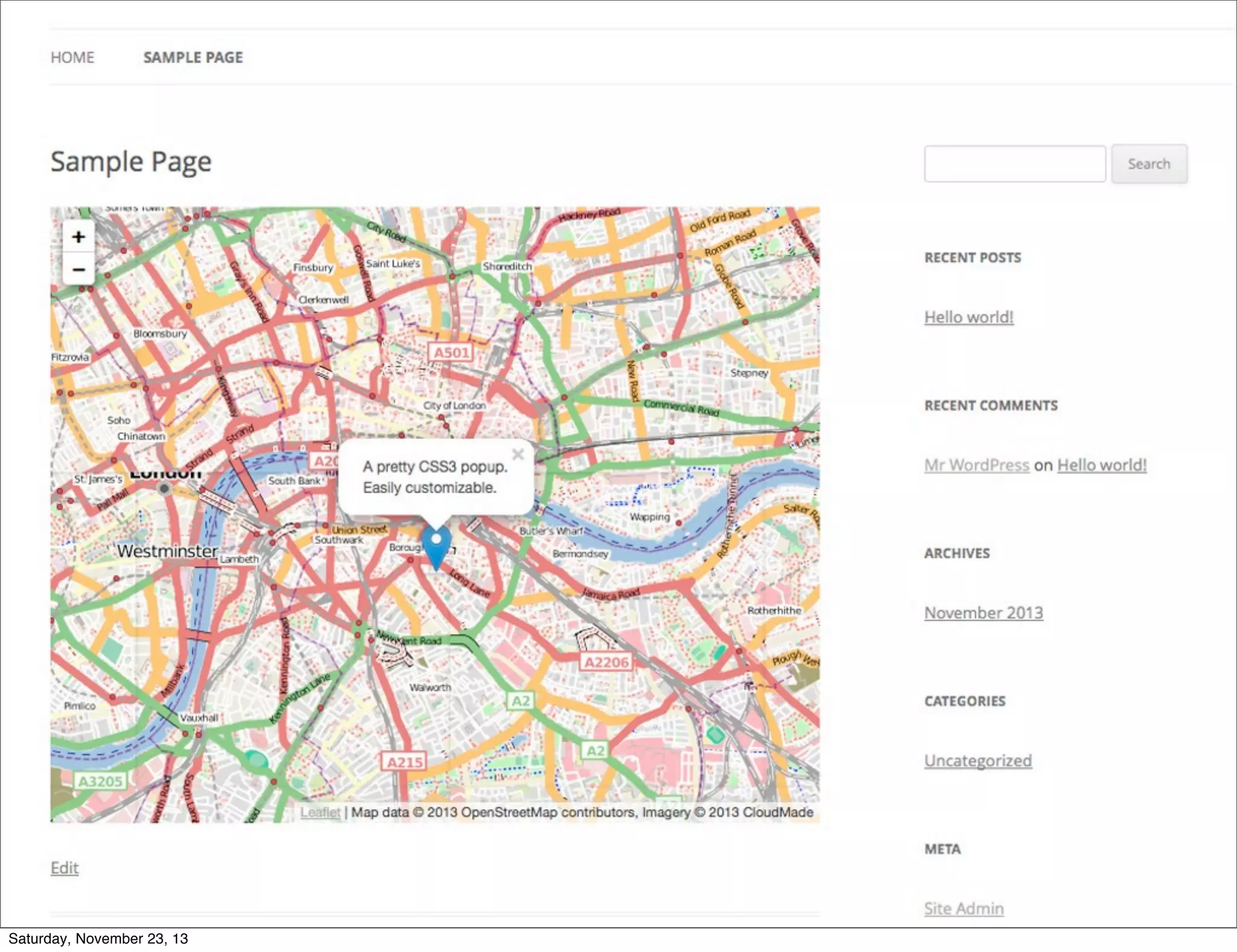

10. Basic Leaflet Map
Javascript / leaflet-config.js
var map = L.map('map').setView([51.505, -0.09], 13);
L.tileLayer('http://{s}.tile.cloudmade.com/API-KEY/1/256/
{z}/{x}/{y}.png', {
! attribution: 'Map data &copy; 2013 OpenStreetMap
contributors, Imagery &copy; 2013 CloudMade',
! key: 'API-KEY'
}).addTo(map);
! !
L.marker([51.5, -0.09]).addTo(map)
.bindPopup('A pretty CSS3 popup. <br> Easily
customizable.')
.openPopup();!
*See https://github.com/leaflet-extras/leaflet-providers
for more map choices.
Saturday, November 23, 13

11. Screenshot of custom post type + meta + taxonomy
Saturday, November 23, 13

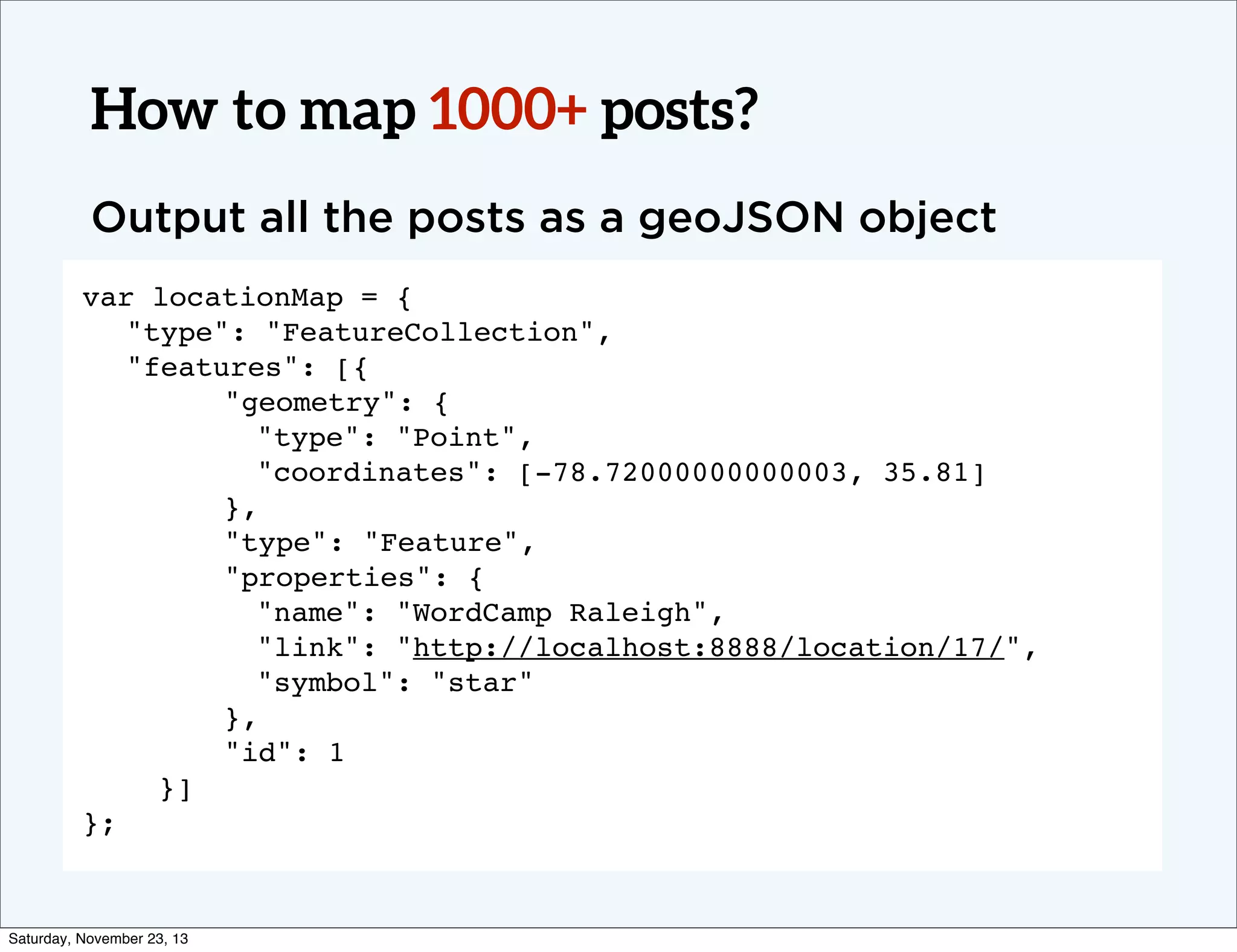

12. How to map 1000+ posts?
Output all the posts as a geoJSON object
var locationMap = {
! "type": "FeatureCollection",
! "features": [{
"geometry": {
"type": "Point",
"coordinates": [-78.72000000000003, 35.81]
},
"type": "Feature",
"properties": {
"name": "WordCamp Raleigh",
"link": "http://localhost:8888/location/17/",
"symbol": "star"
},
"id": 1
}]
};
Saturday, November 23, 13

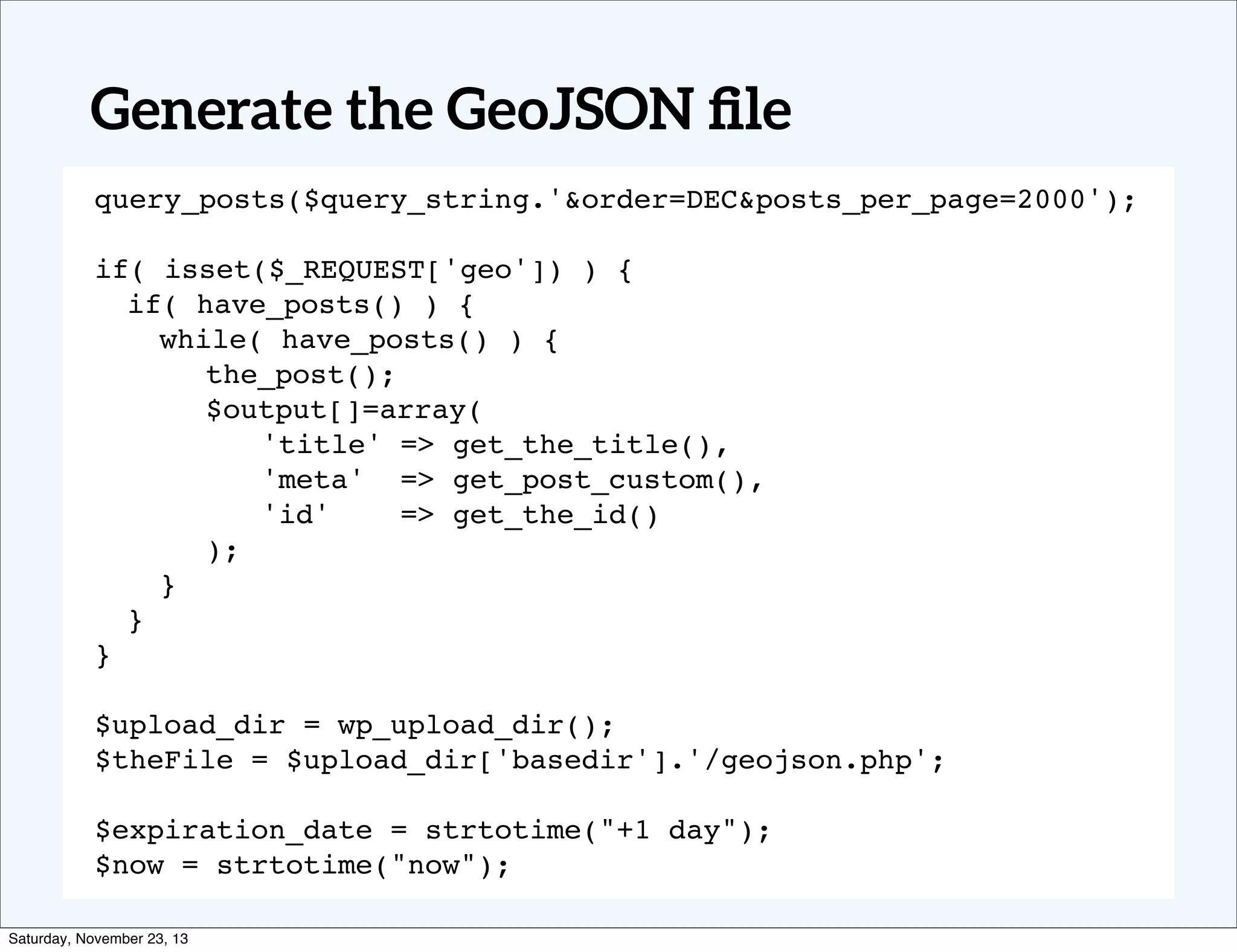

13. Generate the GeoJSON file
query_posts($query_string.'&order=DEC&posts_per_page=2000');
if( isset($_REQUEST['geo']) ) {
if( have_posts() ) {
while( have_posts() ) {
! ! the_post();
! ! $output[]=array(
! ! ! 'title' => get_the_title(),
! ! ! 'meta' => get_post_custom(),
! ! ! 'id'
=> get_the_id()
! ! );
}
}
}
$upload_dir = wp_upload_dir();
$theFile = $upload_dir['basedir'].'/geojson.php';
$expiration_date = strtotime("+1 day");
$now = strtotime("now");
Saturday, November 23, 13

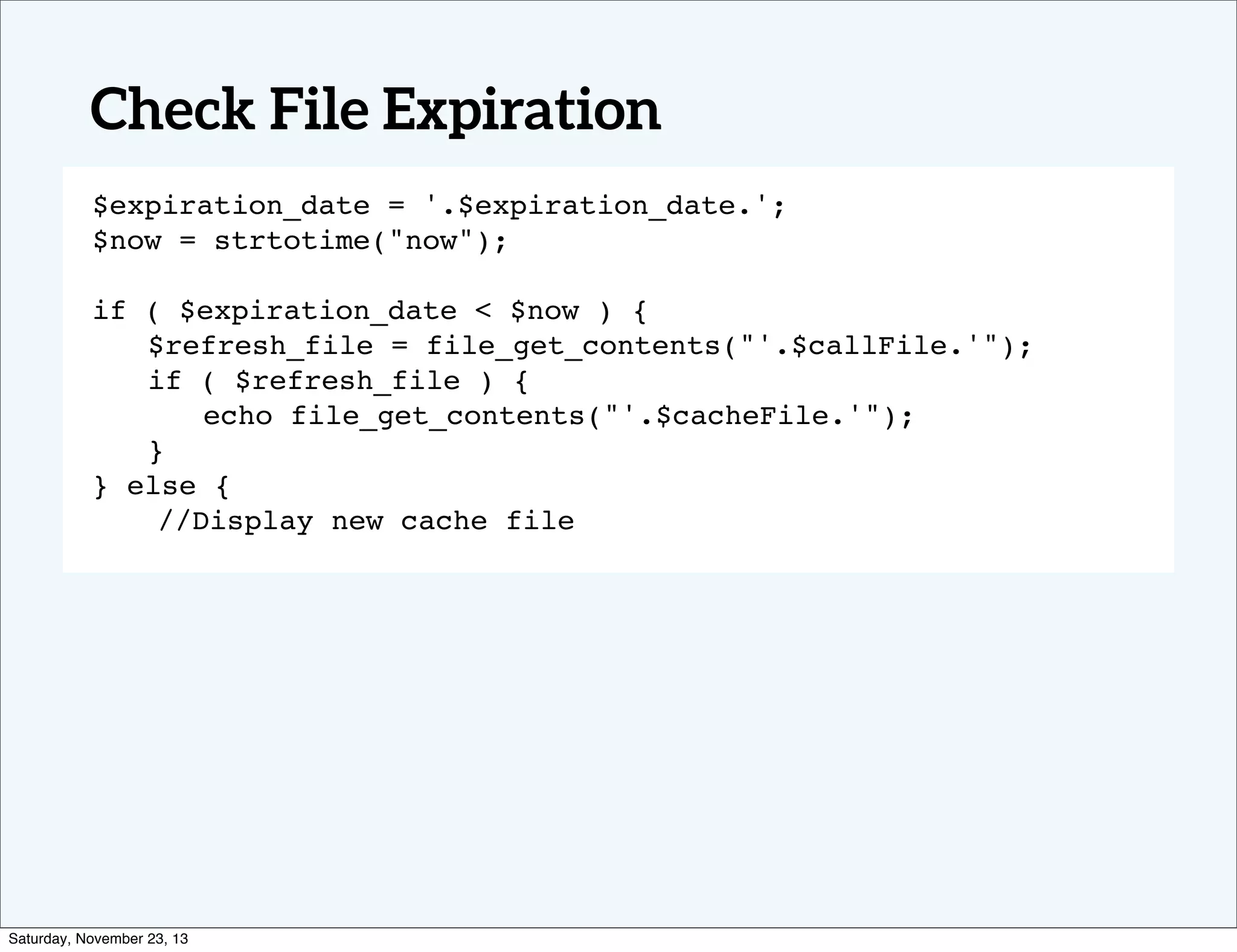

14. Check File Expiration
$expiration_date = '.$expiration_date.';
$now = strtotime("now");
! !
if ( $expiration_date < $now ) {
! $refresh_file = file_get_contents("'.$callFile.'");
! if ( $refresh_file ) {
! ! echo file_get_contents("'.$cacheFile.'");
! }
} else {
//Display new cache file
Saturday, November 23, 13

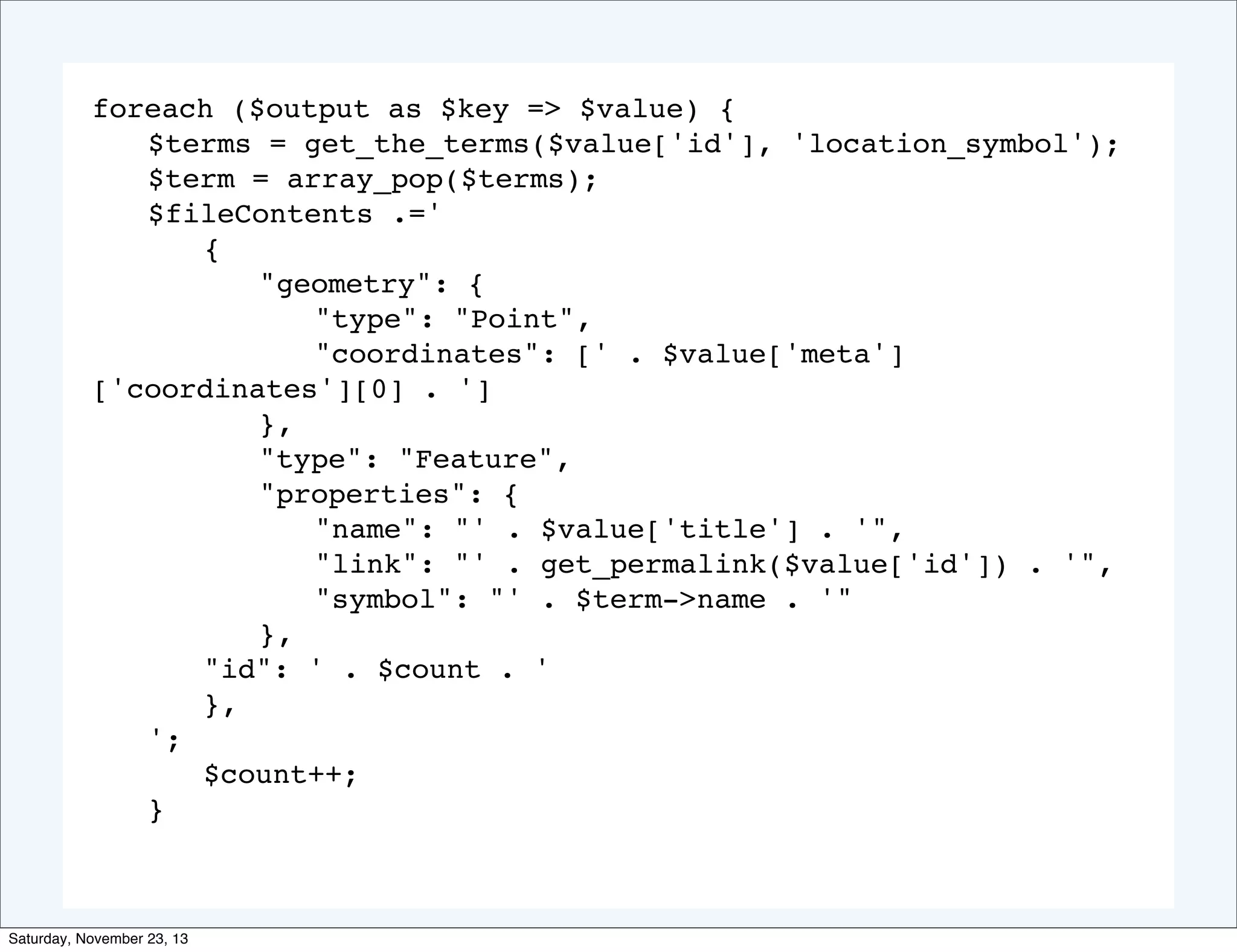

15. foreach ($output as $key => $value) {
! $terms = get_the_terms($value['id'], 'location_symbol');
! $term = array_pop($terms);
! $fileContents .='
! ! {
! ! ! "geometry": {
! ! ! ! "type": "Point",
! ! ! ! "coordinates": [' . $value['meta']
['coordinates'][0] . ']
! ! ! },
! ! ! "type": "Feature",
! ! ! "properties": {
! ! ! ! "name": "' . $value['title'] . '",
! ! ! ! "link": "' . get_permalink($value['id']) . '",
! ! ! ! "symbol": "' . $term‐>name . '"
! ! ! },
! ! "id": ' . $count . '
! ! },
! ';
! ! $count++;
! }
Saturday, November 23, 13

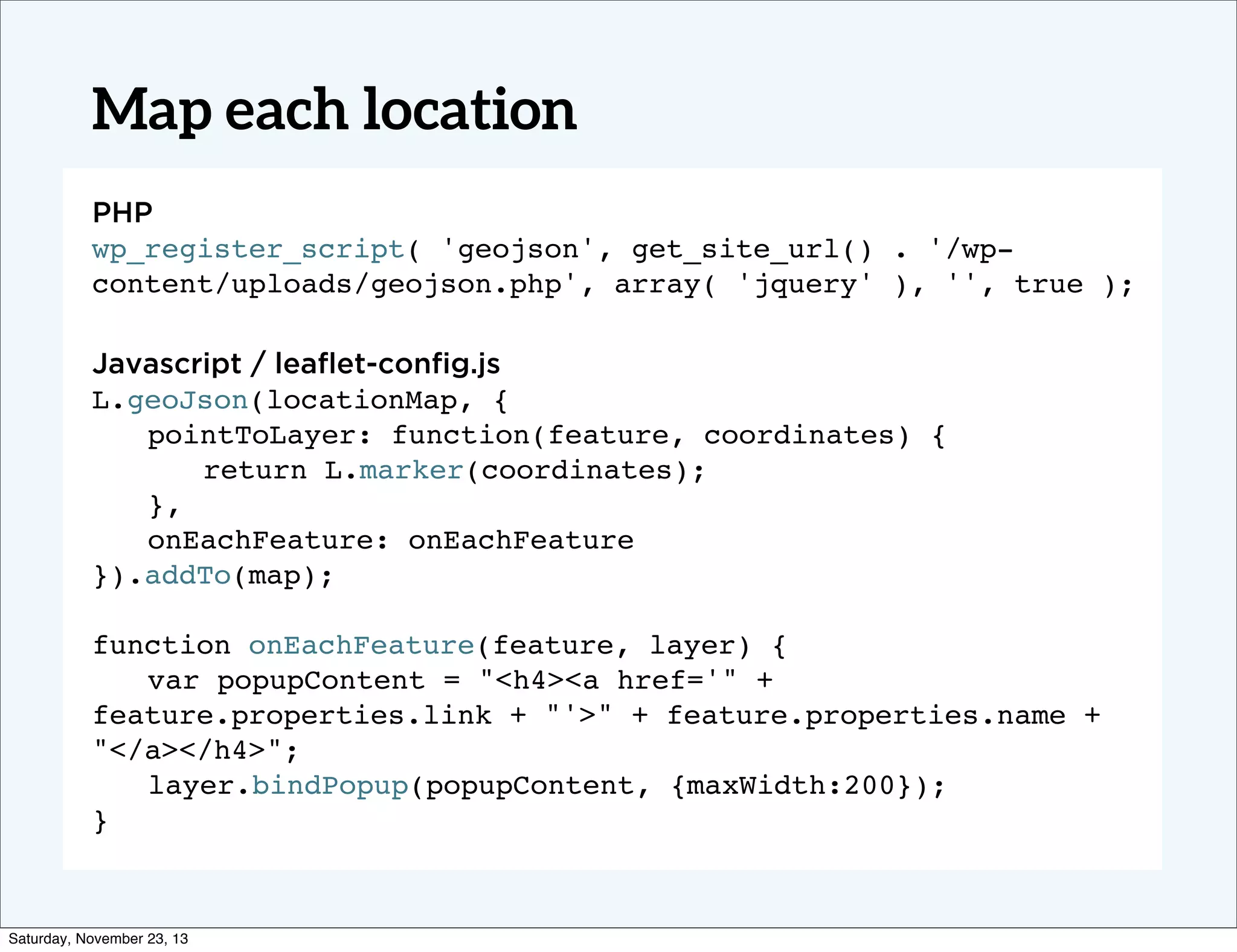

16. Map each location
PHP
wp_register_script( 'geojson', get_site_url() . '/wpcontent/uploads/geojson.php', array( 'jquery' ), '', true );
Javascript / leaflet-config.js
L.geoJson(locationMap, {
! pointToLayer: function(feature, coordinates) {
! ! return L.marker(coordinates);
! },
! onEachFeature: onEachFeature
}).addTo(map);
function onEachFeature(feature, layer) {
! var popupContent = "<h4><a href='" +
feature.properties.link + "'>" + feature.properties.name +
"</a></h4>";
! layer.bindPopup(popupContent, {maxWidth:200});!
}
Saturday, November 23, 13

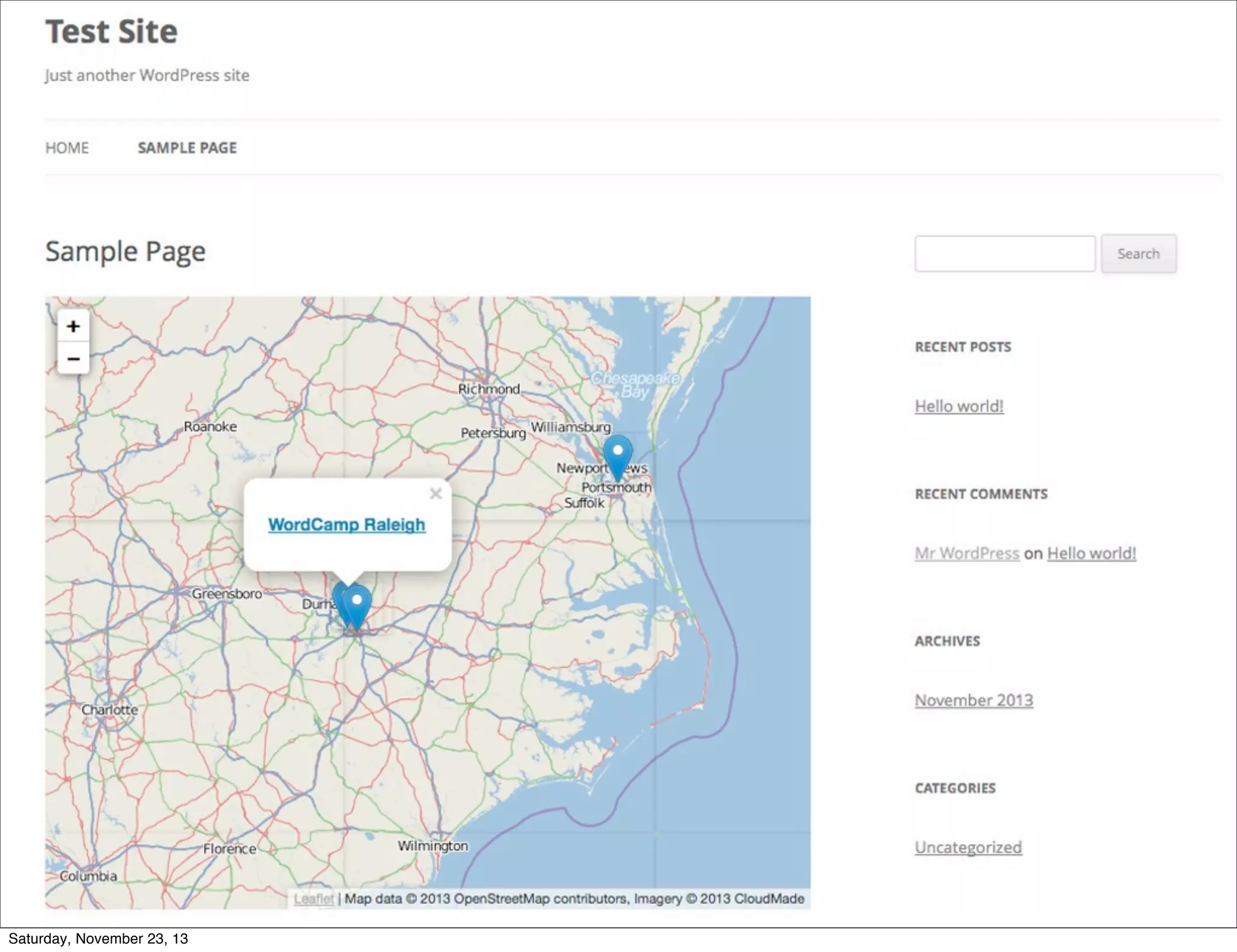

17. Screenshot of custom post type + meta + taxonomy
Saturday, November 23, 13

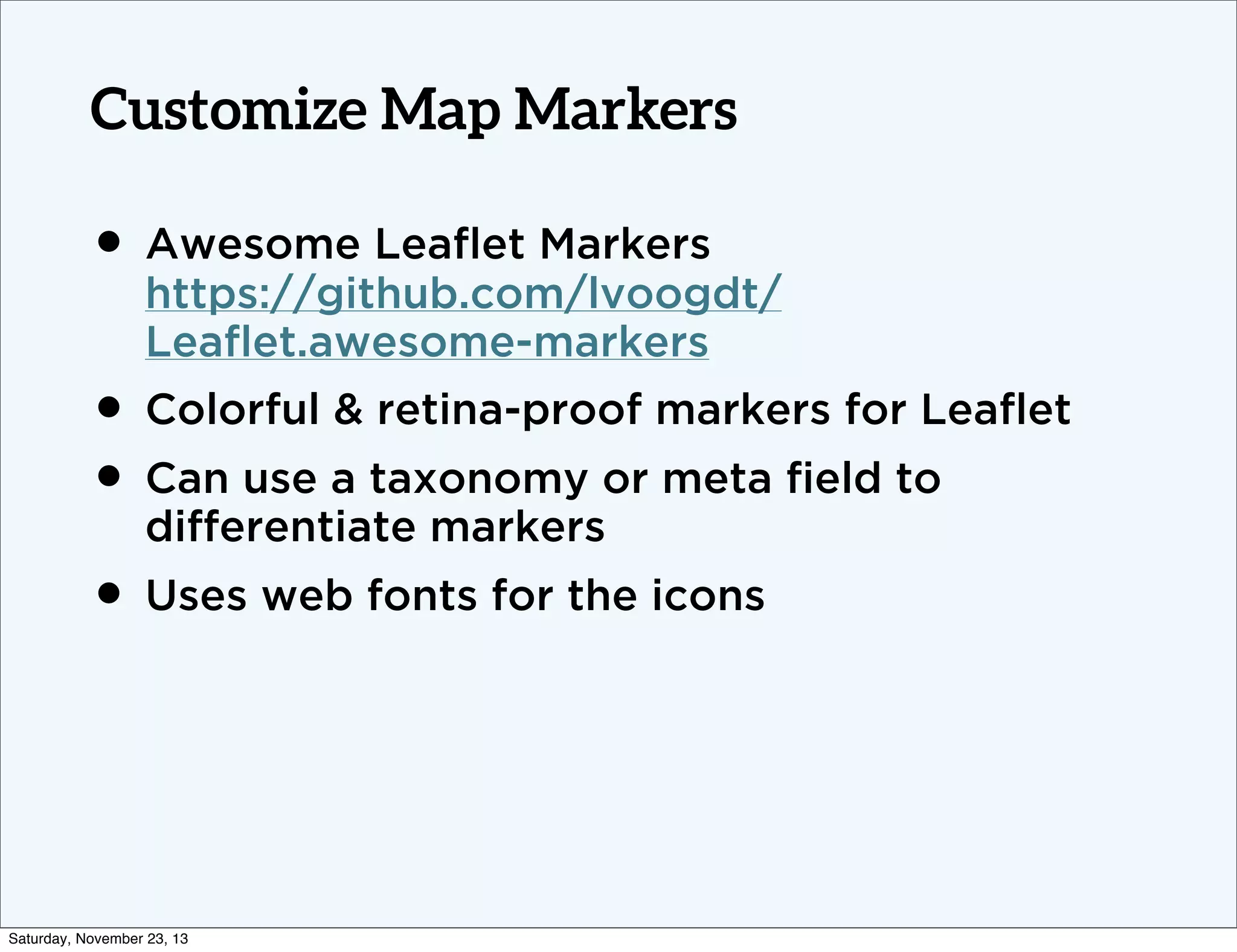

18. Customize Map Markers
• Awesome Leaflet Markers
https://github.com/lvoogdt/
Leaflet.awesome-markers
• Colorful & retina-proof markers for Leaflet
• Can use a taxonomy or meta field to
differentiate markers
• Uses web fonts for the icons
Saturday, November 23, 13

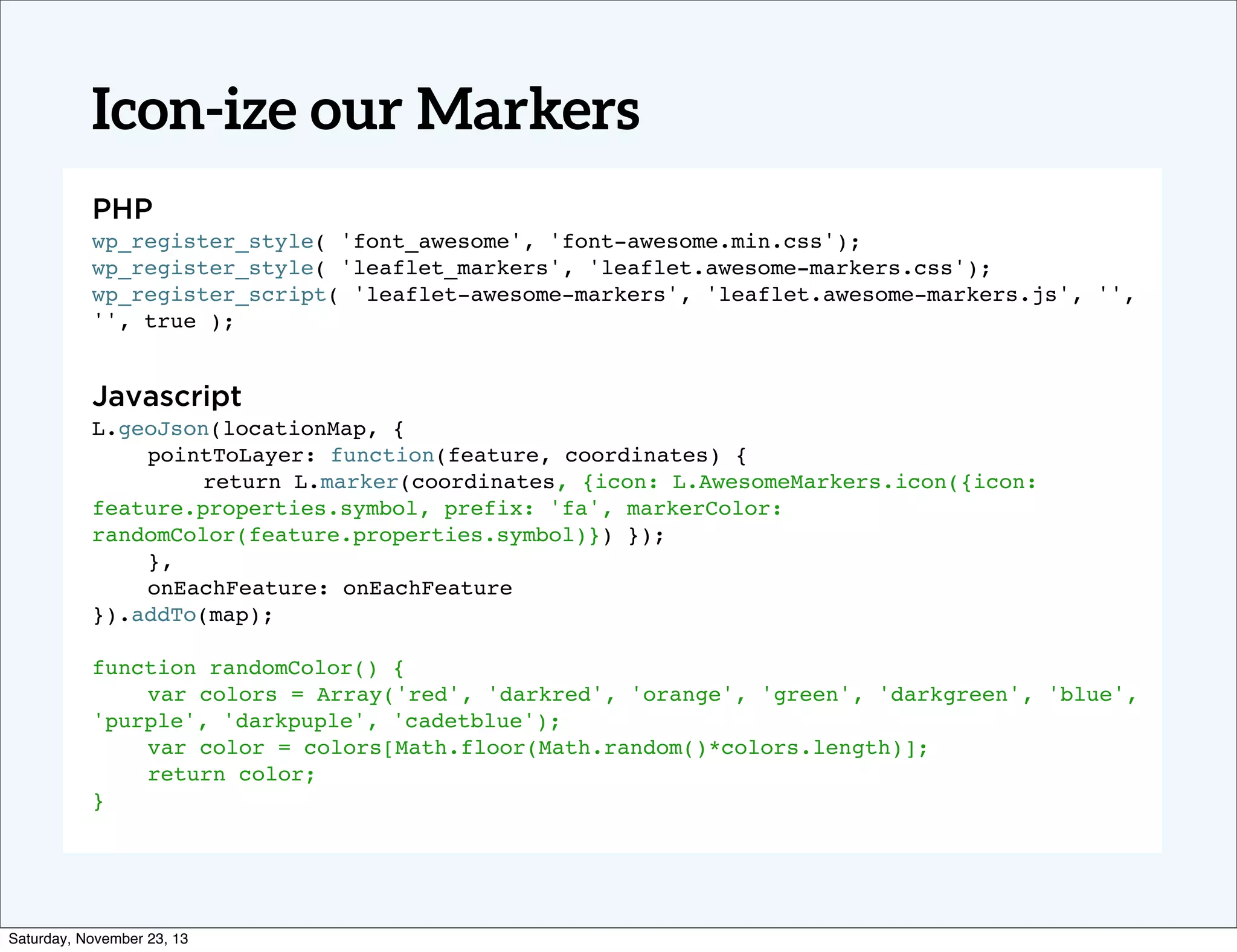

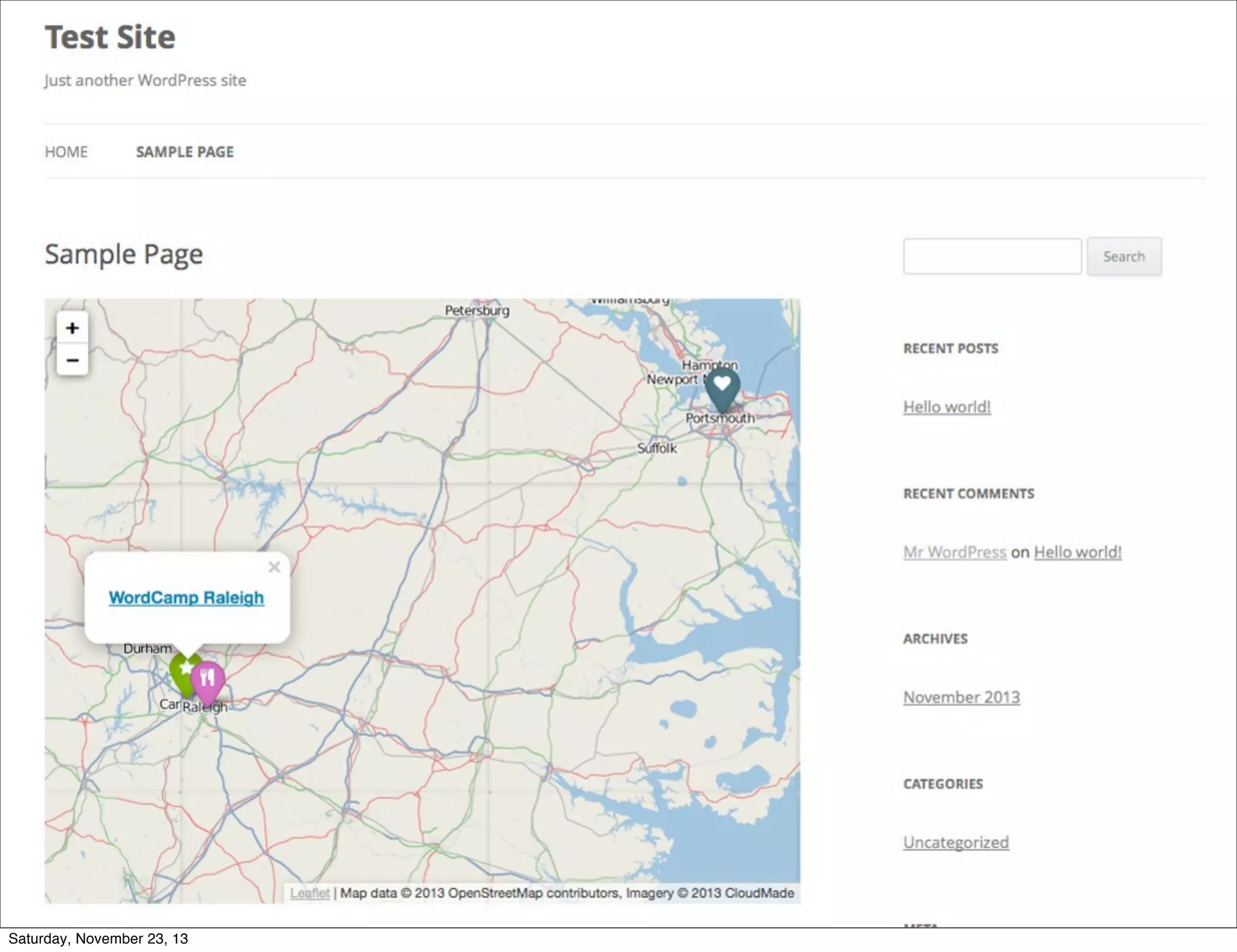

19. Icon-ize our Markers
PHP
wp_register_style( 'font_awesome', 'font-awesome.min.css');
wp_register_style( 'leaflet_markers', 'leaflet.awesome-markers.css');
wp_register_script( 'leaflet-awesome-markers', 'leaflet.awesome-markers.js', '',
'', true );
Javascript
L.geoJson(locationMap, {
!
pointToLayer: function(feature, coordinates) {
!
!
return L.marker(coordinates, {icon: L.AwesomeMarkers.icon({icon:
feature.properties.symbol, prefix: 'fa', markerColor:
randomColor(feature.properties.symbol)}) });
!
},
!
onEachFeature: onEachFeature
}).addTo(map);
function randomColor() {
!
var colors = Array('red', 'darkred', 'orange', 'green', 'darkgreen', 'blue',
'purple', 'darkpuple', 'cadetblue');
!
var color = colors[Math.floor(Math.random()*colors.length)];
!
return color;
}
Saturday, November 23, 13

20. Screenshot of custom post type + meta + taxonomy
Saturday, November 23, 13

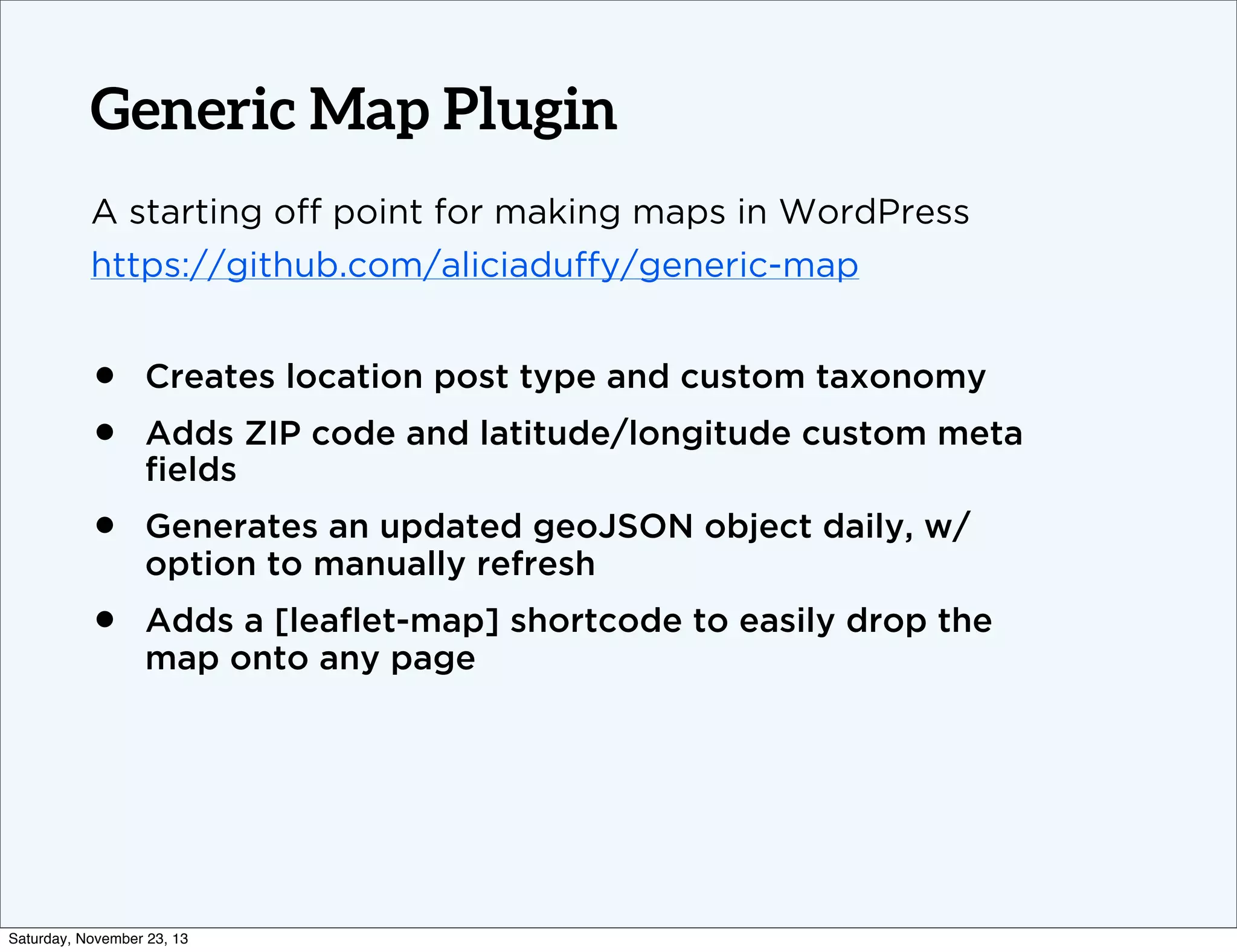

21. Generic Map Plugin
A starting off point for making maps in WordPress
https://github.com/aliciaduffy/generic-map
•
•
Creates location post type and custom taxonomy
•
Generates an updated geoJSON object daily, w/
option to manually refresh
•
Adds a [leaflet-map] shortcode to easily drop the
map onto any page
Adds ZIP code and latitude/longitude custom meta
fields
