Report with Hermes 2013

Construction of Satellite Ground Station
Page1

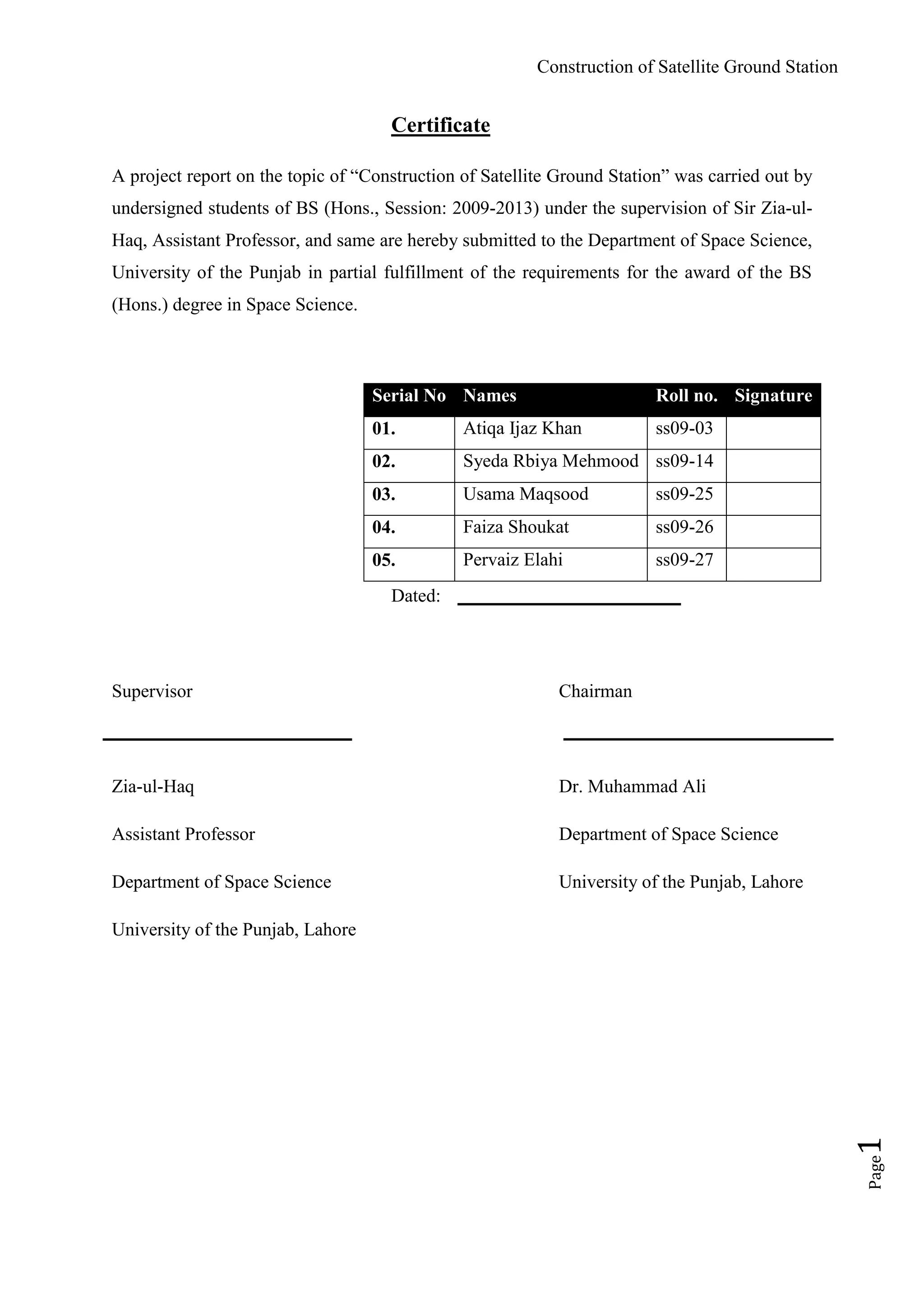

Certificate
A project report on the topic of “Construction of Satellite Ground Station” was carried out by
undersigned students of BS (Hons., Session: 2009-2013) under the supervision of Sir Zia-ul-
Haq, Assistant Professor, and same are hereby submitted to the Department of Space Science,
University of the Punjab in partial fulfillment of the requirements for the award of the BS
(Hons.) degree in Space Science.
Dated:
Supervisor Chairman
Zia-ul-Haq Dr. Muhammad Ali
Assistant Professor Department of Space Science
Department of Space Science University of the Punjab, Lahore
University of the Punjab, Lahore
Serial No Names Roll no. Signature
01. Atiqa Ijaz Khan ss09-03
02. Syeda Rbiya Mehmood ss09-14
03. Usama Maqsood ss09-25
04. Faiza Shoukat ss09-26
05. Pervaiz Elahi ss09-27

Page2
Dedication
This project report is dedicated to our respected teachers and parents who made us to see the
height of this achievement.

Page3

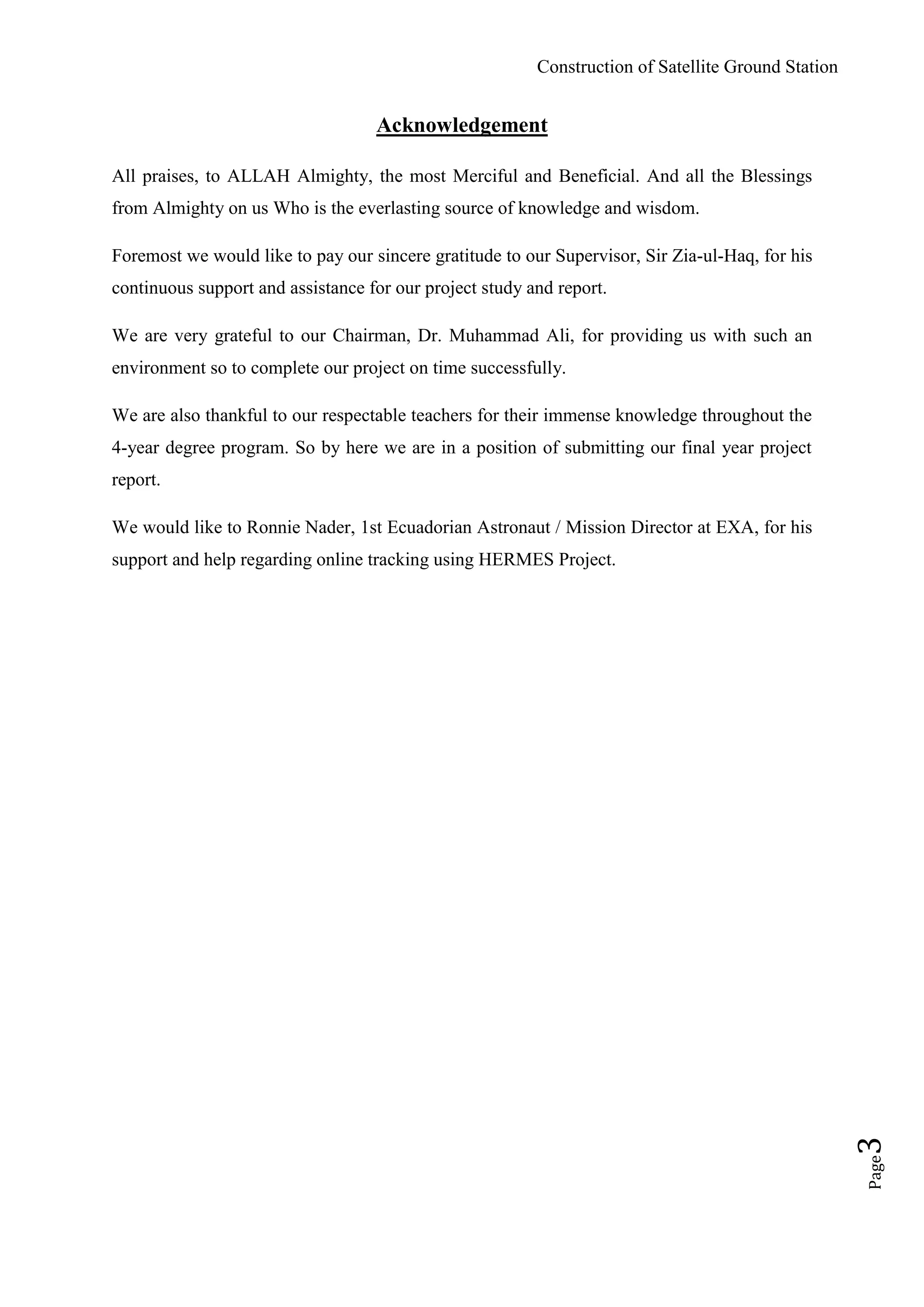

Acknowledgement
All praises, to ALLAH Almighty, the most Merciful and Beneficial. And all the Blessings
from Almighty on us Who is the everlasting source of knowledge and wisdom.
Foremost we would like to pay our sincere gratitude to our Supervisor, Sir Zia-ul-Haq, for his
continuous support and assistance for our project study and report.
We are very grateful to our Chairman, Dr. Muhammad Ali, for providing us with such an
environment so to complete our project on time successfully.
We are also thankful to our respectable teachers for their immense knowledge throughout the
4-year degree program. So by here we are in a position of submitting our final year project
report.
We would like to Ronnie Nader, 1st Ecuadorian Astronaut / Mission Director at EXA, for his
support and help regarding online tracking using HERMES Project.

Page4

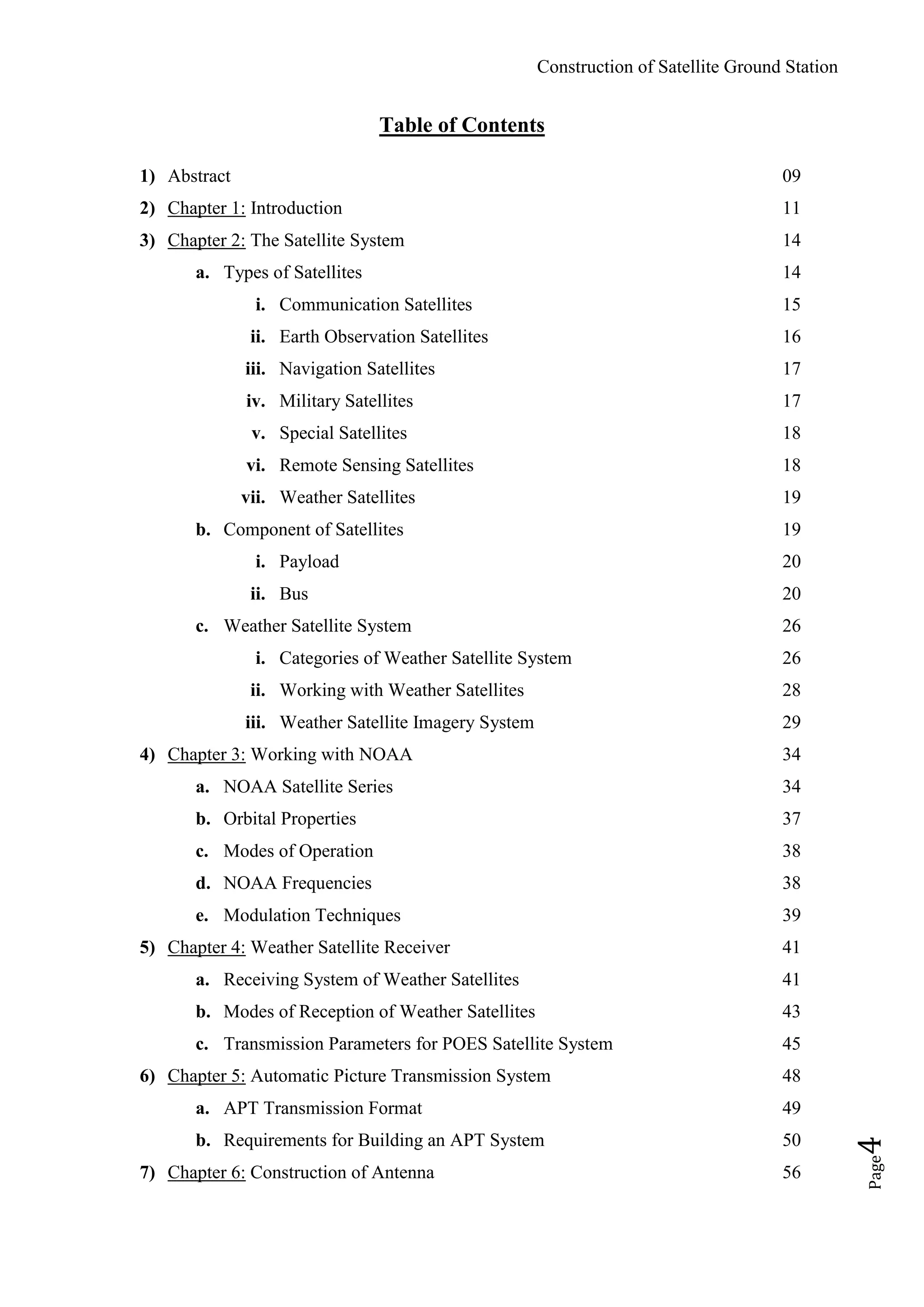

Table of Contents
1) Abstract 09
2) Chapter 1: Introduction 11
3) Chapter 2: The Satellite System 14
a. Types of Satellites 14
i. Communication Satellites 15
ii. Earth Observation Satellites 16
iii. Navigation Satellites 17
iv. Military Satellites 17
v. Special Satellites 18
vi. Remote Sensing Satellites 18
vii. Weather Satellites 19
b. Component of Satellites 19
i. Payload 20
ii. Bus 20
c. Weather Satellite System 26
i. Categories of Weather Satellite System 26
ii. Working with Weather Satellites 28
iii. Weather Satellite Imagery System 29
4) Chapter 3: Working with NOAA 34
a. NOAA Satellite Series 34
b. Orbital Properties 37
c. Modes of Operation 38
d. NOAA Frequencies 38
e. Modulation Techniques 39
5) Chapter 4: Weather Satellite Receiver 41
a. Receiving System of Weather Satellites 41
b. Modes of Reception of Weather Satellites 43
c. Transmission Parameters for POES Satellite System 45
6) Chapter 5: Automatic Picture Transmission System 48
a. APT Transmission Format 49
b. Requirements for Building an APT System 50
7) Chapter 6: Construction of Antenna 56

Page5
a. Omni-directional Antennas 56
b. Directional Antennas 57
c. Cross Antennas 58
d. Double Cross Antennas 58
e. Why we choose Double Cross Dipole Antenna? 60
f. Construction 61
i. Calculation of Dipole Rod Length 63
8) Chapter 7: Introduction to Wpeix 2000 B Receiver 65
a. Calibration 65
b. Selection Criteria for Receiver 66
9) Chapter 8: Introduction to WXtoImg 69
a. Software Features 69
b. Versions 69
c. Calibration 70
d. Why we choose WXtoImg? 74
e. Sample Images 75
10) Chapter 9: Online Tracking of Satellite Images 77
a. Background 77
b. Project Hermes 78
c. Modes of Operation 79
d. Implementation of Delta Mode 80
e. Future Expansion 82
11) Issues and Problems 84
12) Conclusion 85
13) Recommendation 86
14) Glossary 87
15) Performance 94
16) Software List 96
17) References 97

Page6
List of Figures
1. Figure: Satellite 14
2. Figure 01: ANIK 16
3. Figure 02: Quick Bird 16
4. Figure 03: Navstar 17
5. Figure 04: Military Satellite 17
6. Figure 05: Galileo 18
7. Figure 06: Landsat 18
8. Figure 07: Meteosat 19
9. Figure 08: Component of Satellite 20
10. Figure 09: GOES 24
11. Figure 10: POES 27
12. Figure 11: GOES GVAR (United East Cost) 28
13. Figure 12: HRPT (Hurricane Emily) 42
14. Figure 13: APT (Europe) 42
15. Figure 14: WEFAX and HRI (Europe) 43
16. Figure 15: Commercial Pre-amplifier 45
17. Figure 16: APT Transmission Format 46
18. Figure 17: APT Ground Station 49
19. Figure 18: Antenna Requirement 50

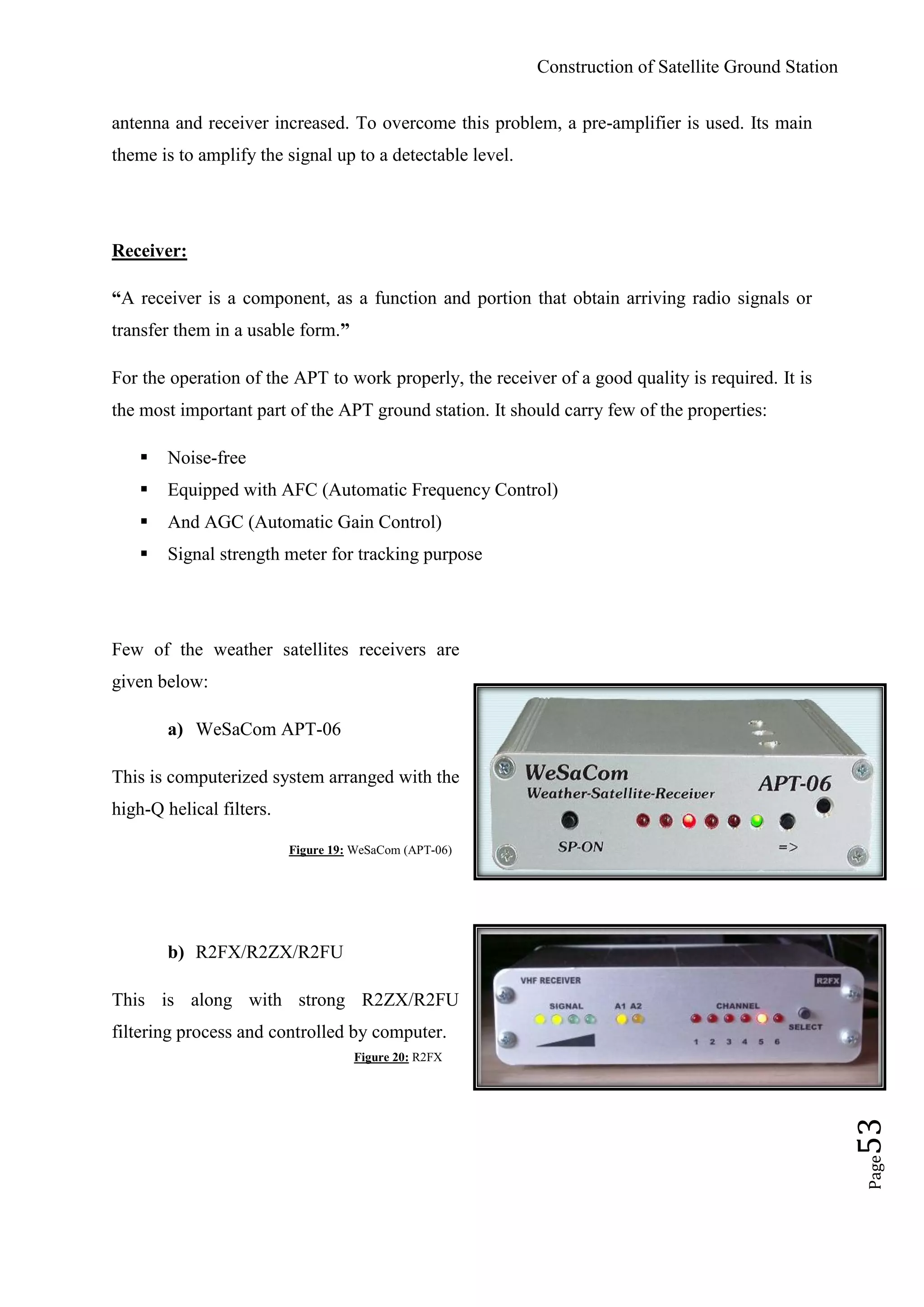

20. Figure 19: WeSaCom APT-06 53
21. Figure 20: R2FX 53
22. Figure 21: Hamtronics 54
23. Figure 22: EMGO 54
24. Figure 23: Cross Dipole Antenna 58
25. Figure 24: Double Cross Dipole Antenna 59
26. Figure 25: Double Cross Dipole Antenna 59
27. Figure 26: Pipes of Antenna 61
28. Figure 27: Holders of Antenna 61
29. Figure 28: Pipes Assembly 62
30. Figure 29: Final Antenna 62
31. Figure 30: Dipole Phasing 63
32. Figure 31: Wpeix 2000 B 65

Page7

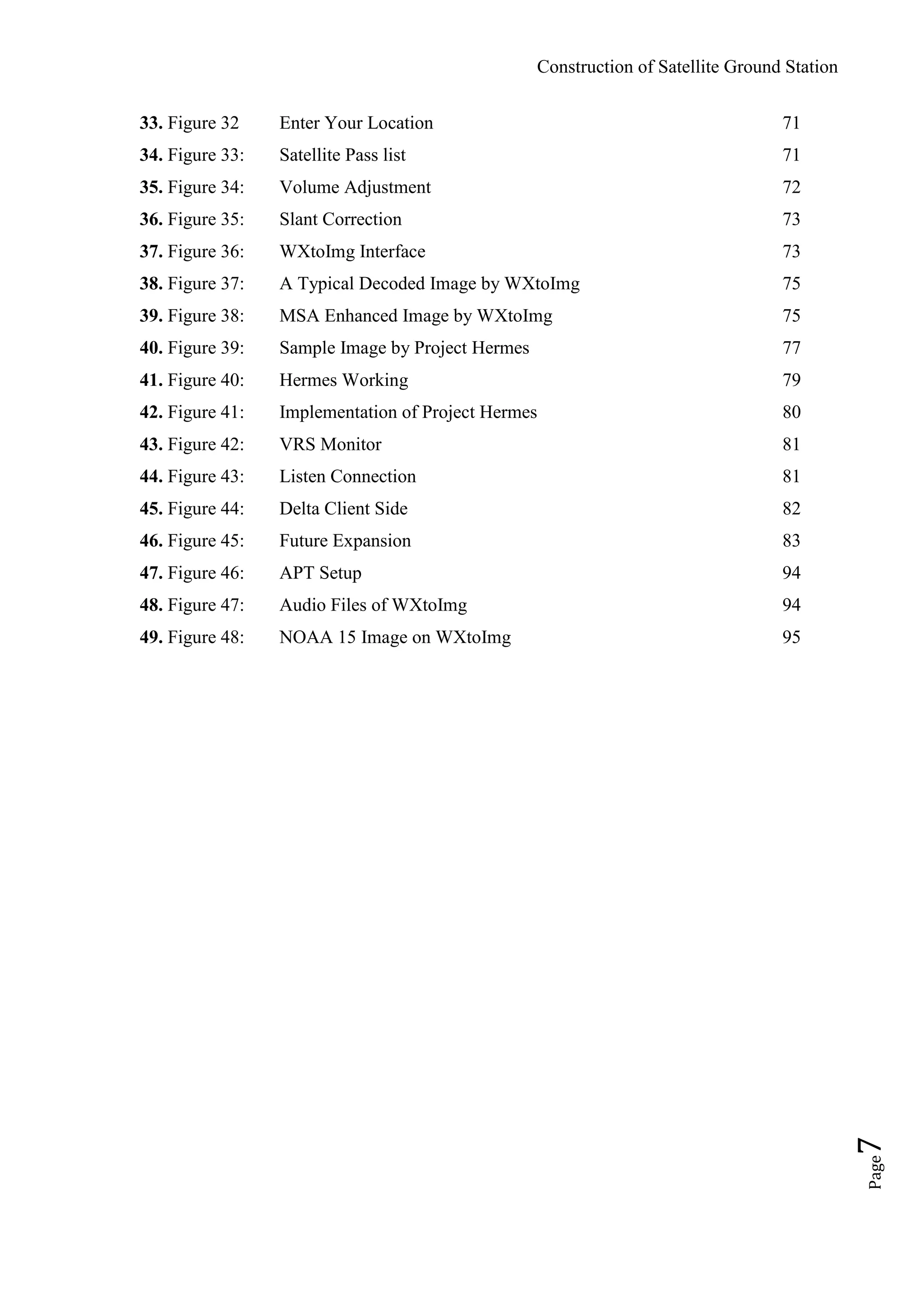

33. Figure 32 Enter Your Location 71
34. Figure 33: Satellite Pass list 71
35. Figure 34: Volume Adjustment 72
36. Figure 35: Slant Correction 73
37. Figure 36: WXtoImg Interface 73
38. Figure 37: A Typical Decoded Image by WXtoImg 75
39. Figure 38: MSA Enhanced Image by WXtoImg 75
40. Figure 39: Sample Image by Project Hermes 77
41. Figure 40: Hermes Working 79
42. Figure 41: Implementation of Project Hermes 80
43. Figure 42: VRS Monitor 81
44. Figure 43: Listen Connection 81
45. Figure 44: Delta Client Side 82
46. Figure 45: Future Expansion 83
47. Figure 46: APT Setup 94
48. Figure 47: Audio Files of WXtoImg 94

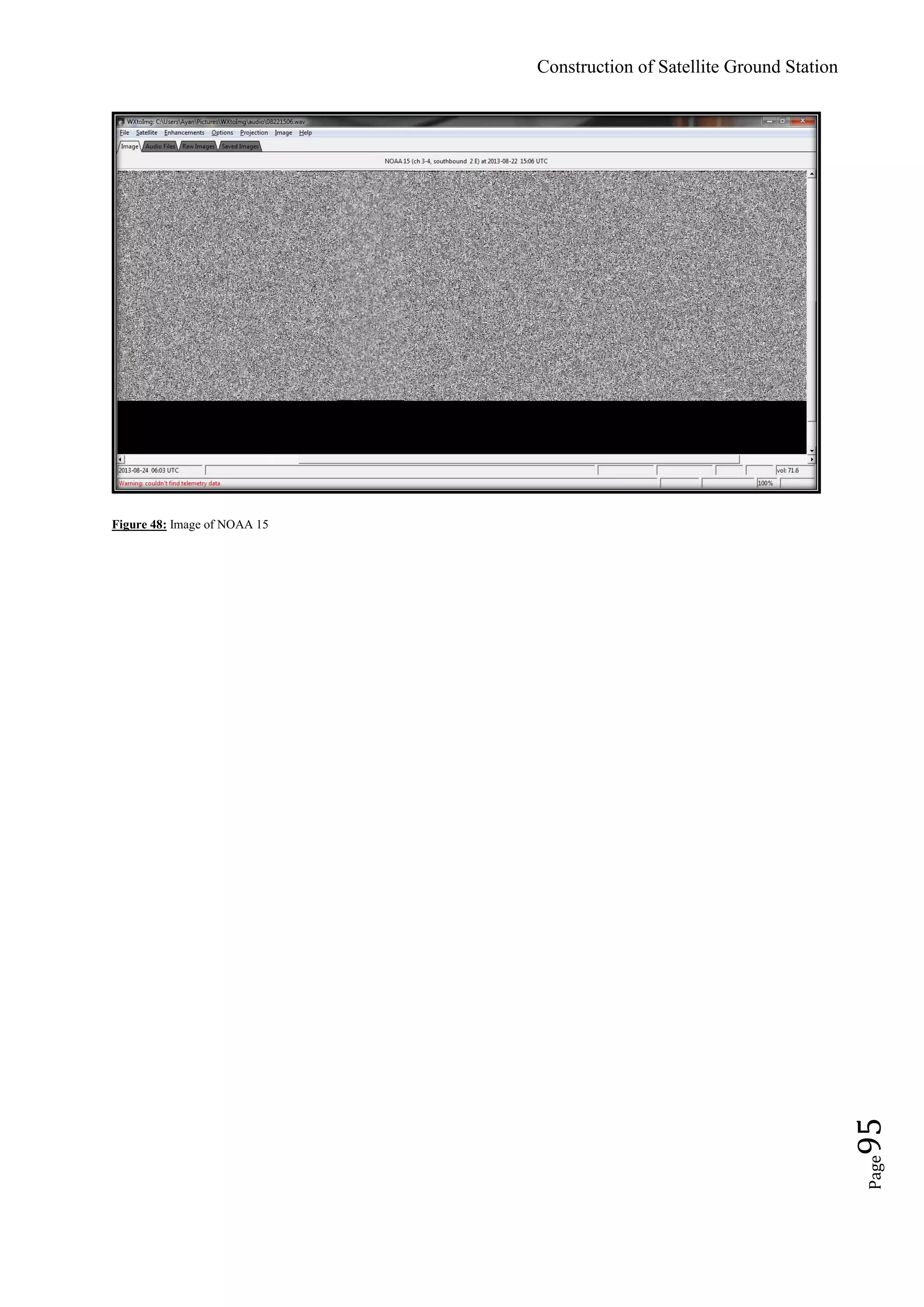

49. Figure 48: NOAA 15 Image on WXtoImg 95

Page8
List of Tables
1. Table 01: Satellite Categories 15
2. Table 02: Comparison of Satellites 31
3. Table 03: Comparison between Polar and Geostationary Satellites 32

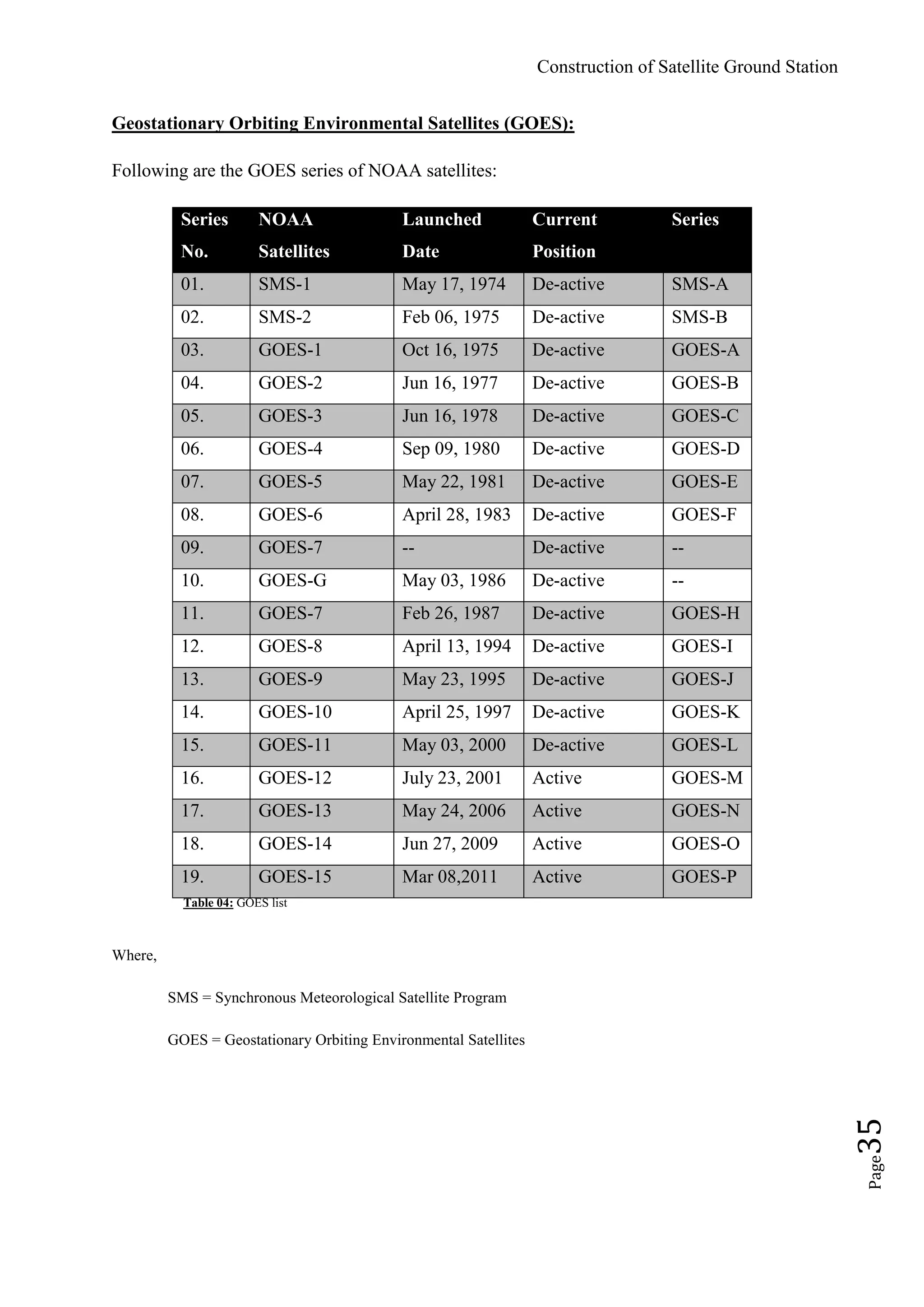

4. Table 04: GOES 35
5. Table 05: NOAA 36, 37

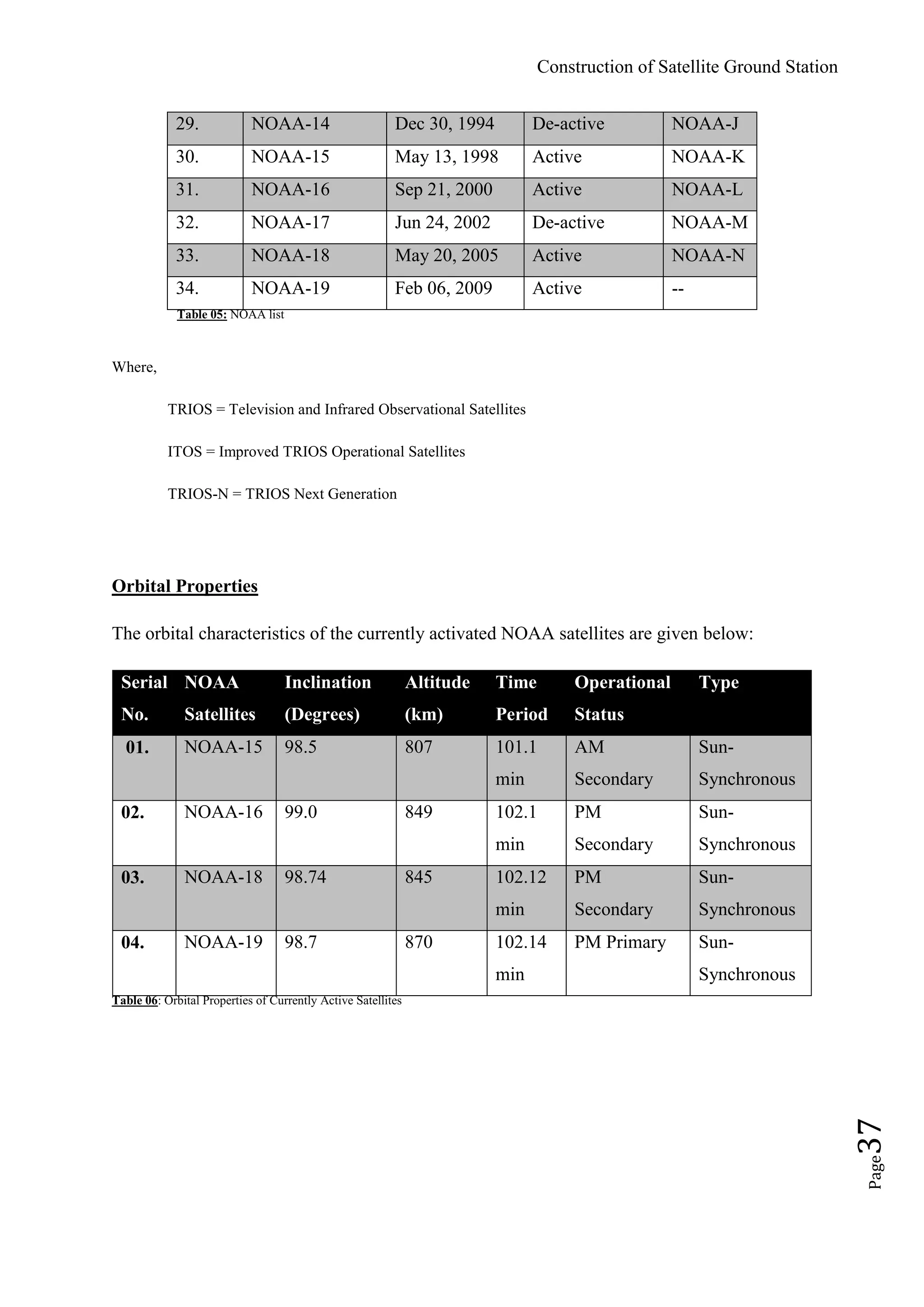

6. Table 06: Orbital Properties of NOAA 37
7. Table 07: Modes of Operation 38
8. Table 08: NOAA Frequencies 38
9. Table 09: NOAA Modulation Techniques 39
10. Table 10: US POES Satellite Parameters 45
11. Table 11: Properties of APT 48, 49
12. Table 12: Comparison between Cross And Double Cross Antenna 60
13. Table 13: Comparison of Double Cross Antenna 60
14. Table 14: Comparison of Wpeix 2000 B 66
15. Table 15: Versions of WXtoImg 69, 70
16. Table 16: Comparison of WXtoImg 74

Page9
Abstract
The world has progress to the century of technology where everything is in the click of a
second. Satellite images are one of the key aspects of advancement of this era. There come
many methods to deal with these images for educational, scientific, re-search, and military
purposes. The basic thing to do is to obtain them for a user. In order to provide this facility,
one of the applications is APT that is Automatic Picture Transmission. That is actually a low
resolution image by low orbiting satellites like NOAA.
The main objective of this project report is to establish an APT ground station to meet the
educational purposes of the student of our Department of Space Science, University of the
Punjab. It comes with antenna and decoder. This project report highlights the working and
building of an APT station at a reasonable cost. In future, the room of modification is still
available; it is just a starting towards the higher goals.

Page10
Chapter 01

Page11
Introduction
In the last few decades, the satellite reception system is more into consideration. The weather
satellite receiving system has evolved with time and come to this stage of advancement. Now
it is affordable for even small institute and department to have their satellite ground station.
That is in return one step forward at the educational level. NOAA is the most easily available
satellite for the weather reception.
The technique used here is of automatic picture transmission (APT). There are two modes of
this operation. Satellite imagery can be accessed by formally building an APT ground station,
using antennas, amplifier, decoders and software. Secondly it can also be tracked by online
systems.
This project report is started from the general information about the satellites and its types.
Weather satellite reception system is the key towards the better understanding of this system,
so this topic is also discussed here. It then mainly focused on the NOAA satellites and its
reception system, as per our need. NOAA polar orbiting satellite system is the foremost
requirement of the APT.
As the APT operate on polar satellites. Building of an APT ground station requires a little
basic work on the antennas. As antennas are building blocks of any reception system. For
signals to receive properly, another important part is pre-amplifier. The strength of the signal
is mostly depended upon the area where the signal is receiving. Other factors are also there.
As a result, the APT catches the signal as satellite passes through our mandatory track. Then
it is further decoded by the help of software, such as WXtoImg. Now the images are ready for
any kind of analysis.
For the satellite images to be captured and displayed, the setup requires a receiver. The
quality of the receiver defines the resolution of the images. This is an important portion of an
APT system. The apparatus used here is Wpeix 2000 B.
There many software available for tracking as well as decoding of the satellite images. It is
up to user demand, which software can display the finest images to meet up the demands of
users. They are all there in internet in free version and paid ones. Obviously, the paid one
carries the greatest features with it, which is a helpful key for experts.

Page12

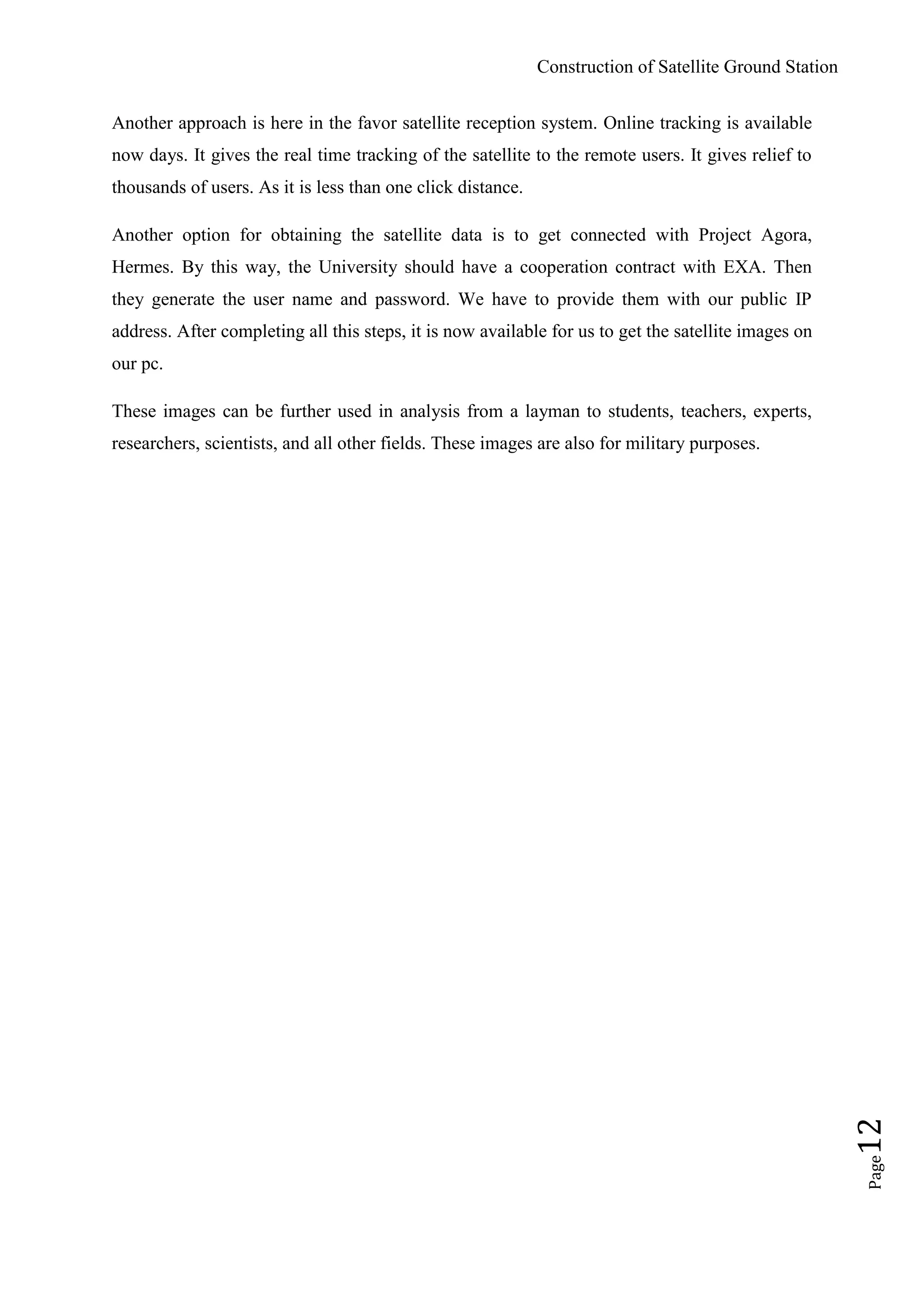

Another approach is here in the favor satellite reception system. Online tracking is available
now days. It gives the real time tracking of the satellite to the remote users. It gives relief to
thousands of users. As it is less than one click distance.
Another option for obtaining the satellite data is to get connected with Project Agora,
Hermes. By this way, the University should have a cooperation contract with EXA. Then
they generate the user name and password. We have to provide them with our public IP
address. After completing all this steps, it is now available for us to get the satellite images on
our pc.
These images can be further used in analysis from a layman to students, teachers, experts,
researchers, scientists, and all other fields. These images are also for military purposes.

Page13

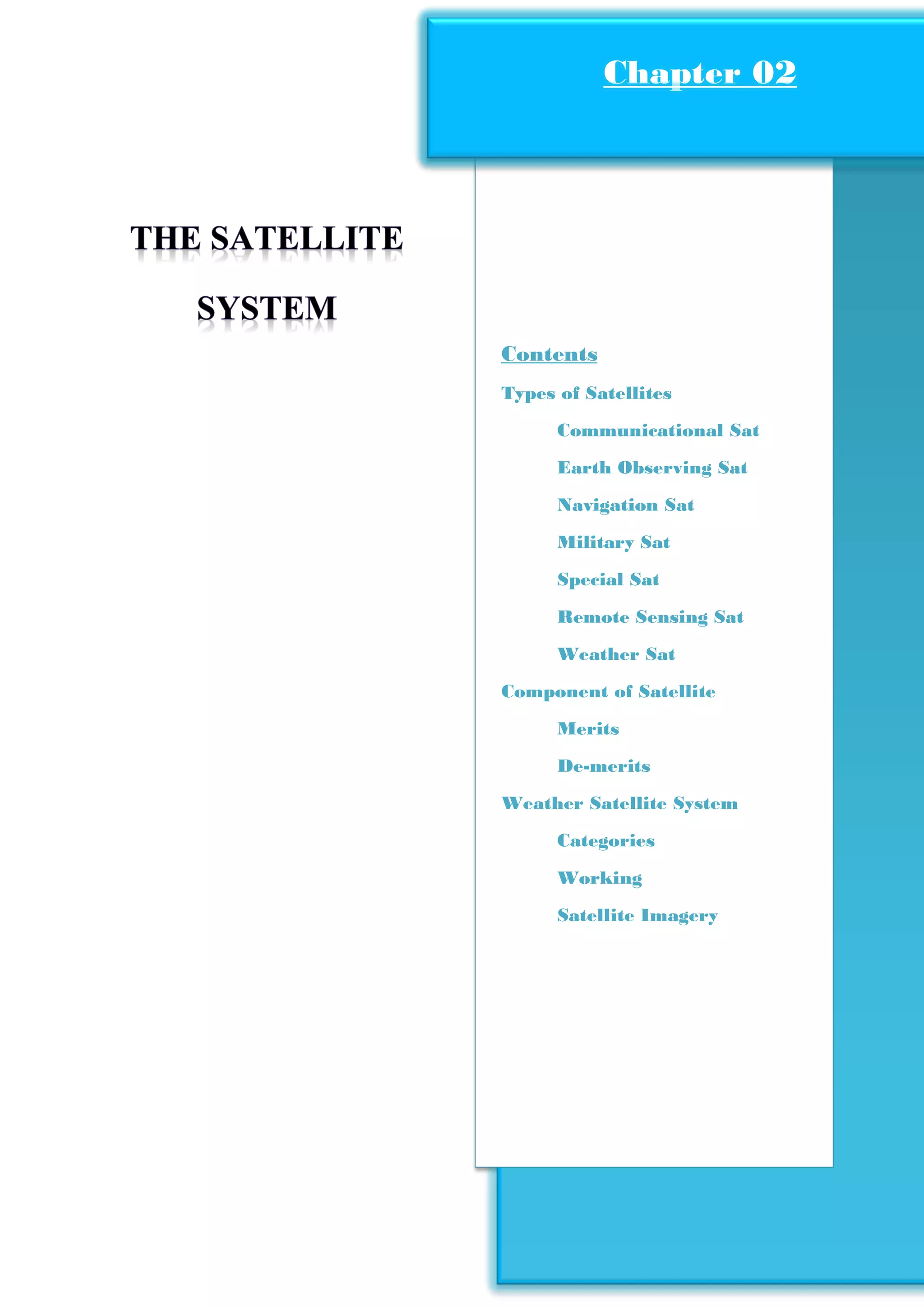

Contents
Types of Satellites
Communicational Sat
Earth Observing Sat
Navigation Sat
Military Sat
Special Sat
Remote Sensing Sat
Weather Sat
Component of Satellite
Merits
De-merits
Weather Satellite System
Categories
Working
Satellite Imagery
Chapter 02Chapter 02

Page14

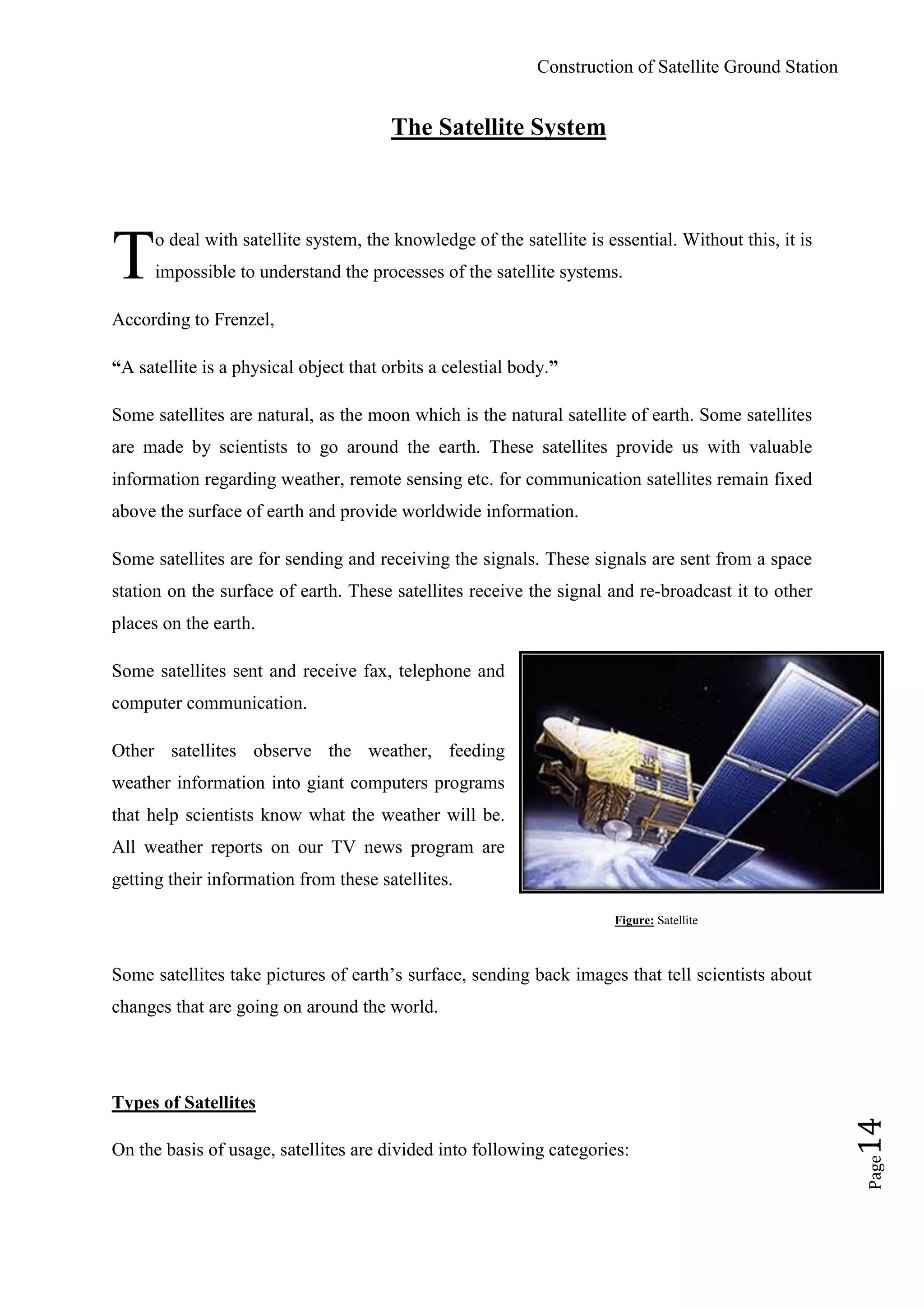

The Satellite System
o deal with satellite system, the knowledge of the satellite is essential. Without this, it is
impossible to understand the processes of the satellite systems.
According to Frenzel,
“A satellite is a physical object that orbits a celestial body.”
Some satellites are natural, as the moon which is the natural satellite of earth. Some satellites
are made by scientists to go around the earth. These satellites provide us with valuable
information regarding weather, remote sensing etc. for communication satellites remain fixed
above the surface of earth and provide worldwide information.
Some satellites are for sending and receiving the signals. These signals are sent from a space
station on the surface of earth. These satellites receive the signal and re-broadcast it to other
places on the earth.
Some satellites sent and receive fax, telephone and
computer communication.
Other satellites observe the weather, feeding
weather information into giant computers programs
that help scientists know what the weather will be.
All weather reports on our TV news program are
getting their information from these satellites.
Figure: Satellite
Some satellites take pictures of earth‟s surface, sending back images that tell scientists about
changes that are going on around the world.
Types of Satellites
On the basis of usage, satellites are divided into following categories:
T

Page15
1. Communication satellites
2. Earth Observation satellites
3. Navigation satellites
4. Military satellites
5. Special satellites
6. Remote sensing satellites
7. Weather satellites

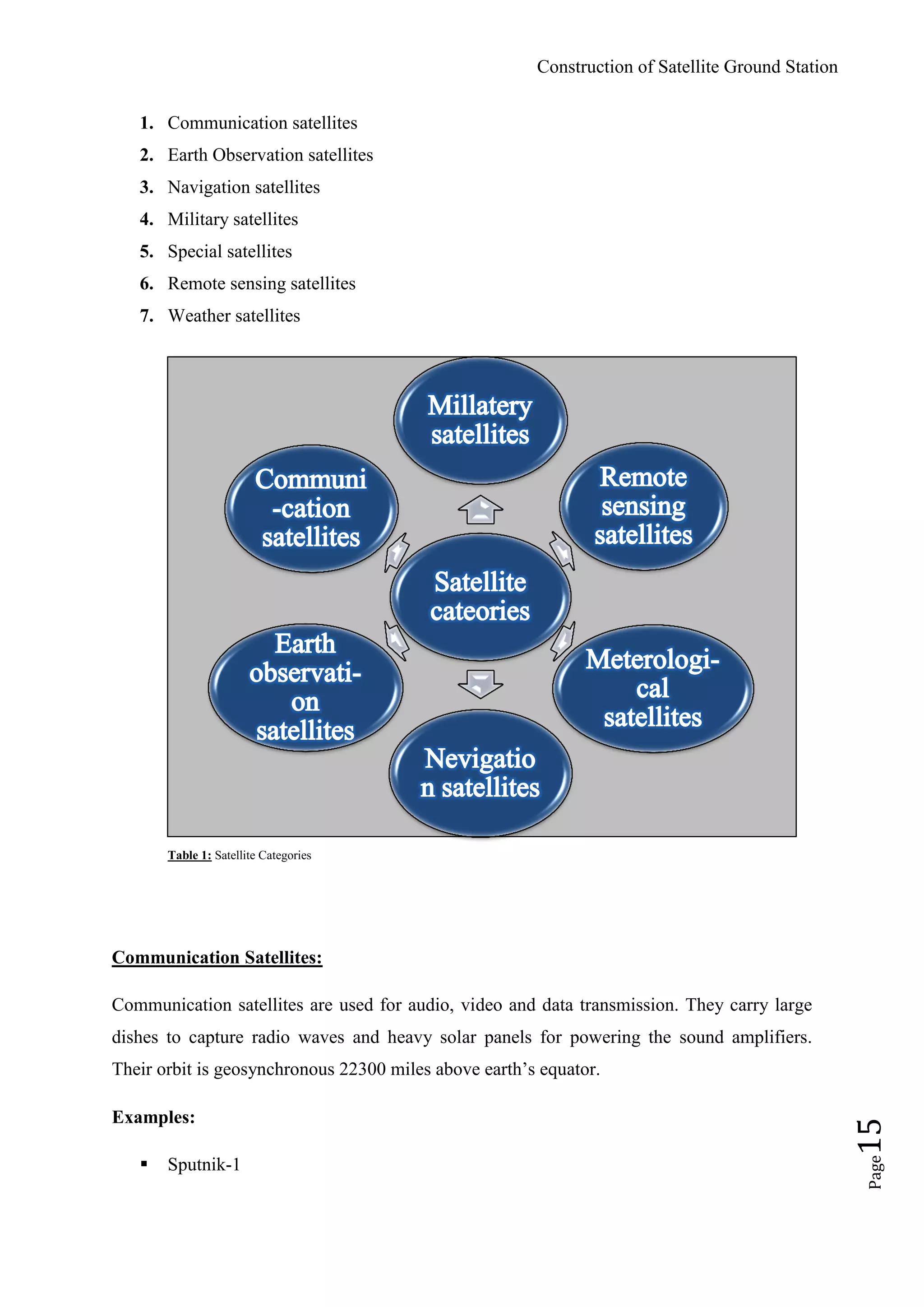

Table 1: Satellite Categories
Communication Satellites:
Communication satellites are used for audio, video and data transmission. They carry large
dishes to capture radio waves and heavy solar panels for powering the sound amplifiers.
Their orbit is geosynchronous 22300 miles above earth‟s equator.
Examples:
 Sputnik-1

Page16
 Nimbus-3
 Westar-1
 Arabsat-1A
 Badar
 TIROS-1

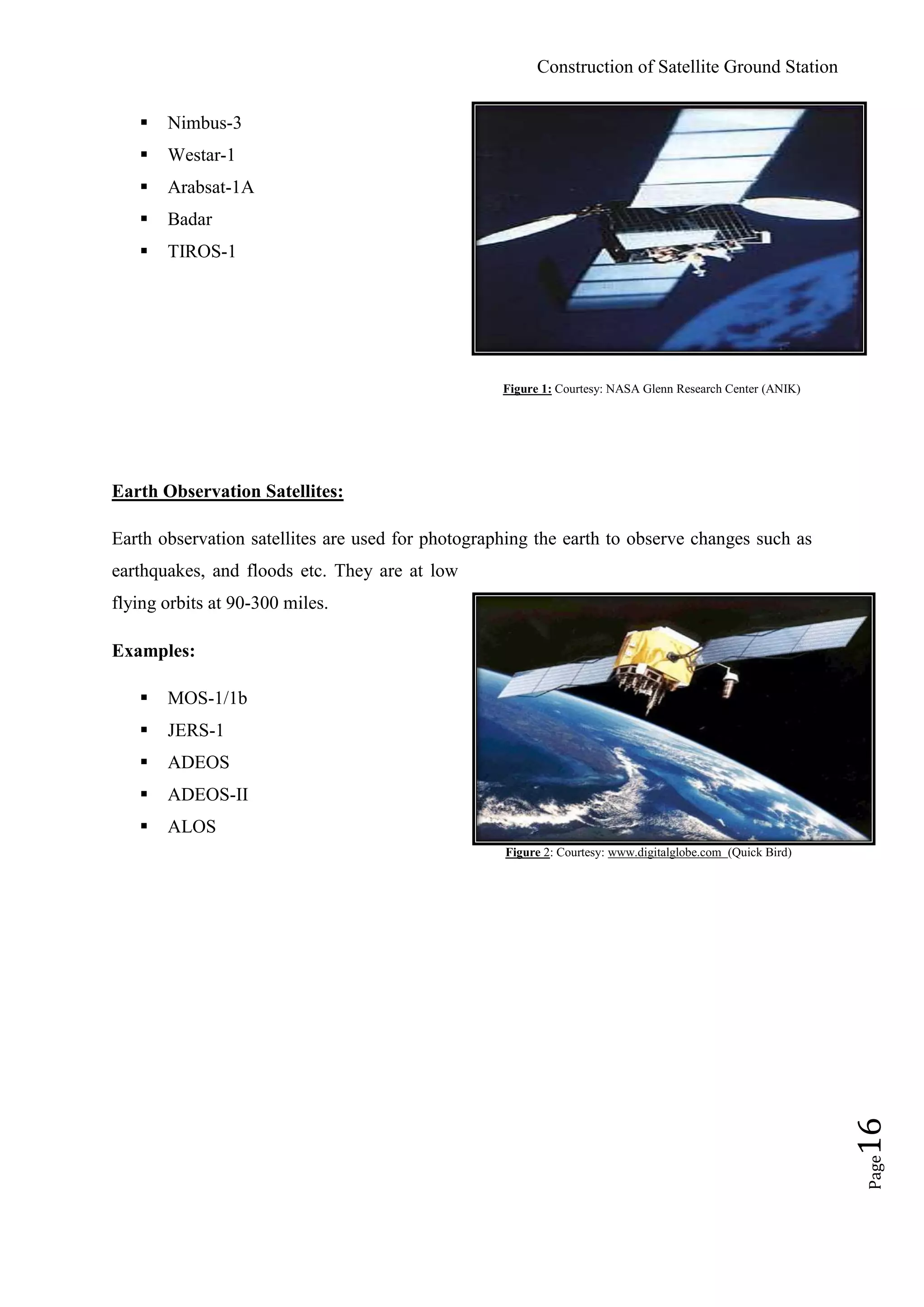

Figure 1: Courtesy: NASA Glenn Research Center (ANIK)
Earth Observation Satellites:
Earth observation satellites are used for photographing the earth to observe changes such as
earthquakes, and floods etc. They are at low
flying orbits at 90-300 miles.
Examples:
 MOS-1/1b
 JERS-1
 ADEOS
 ADEOS-II
 ALOS
Figure 2: Courtesy: www.digitalglobe.com (Quick Bird)

Page17

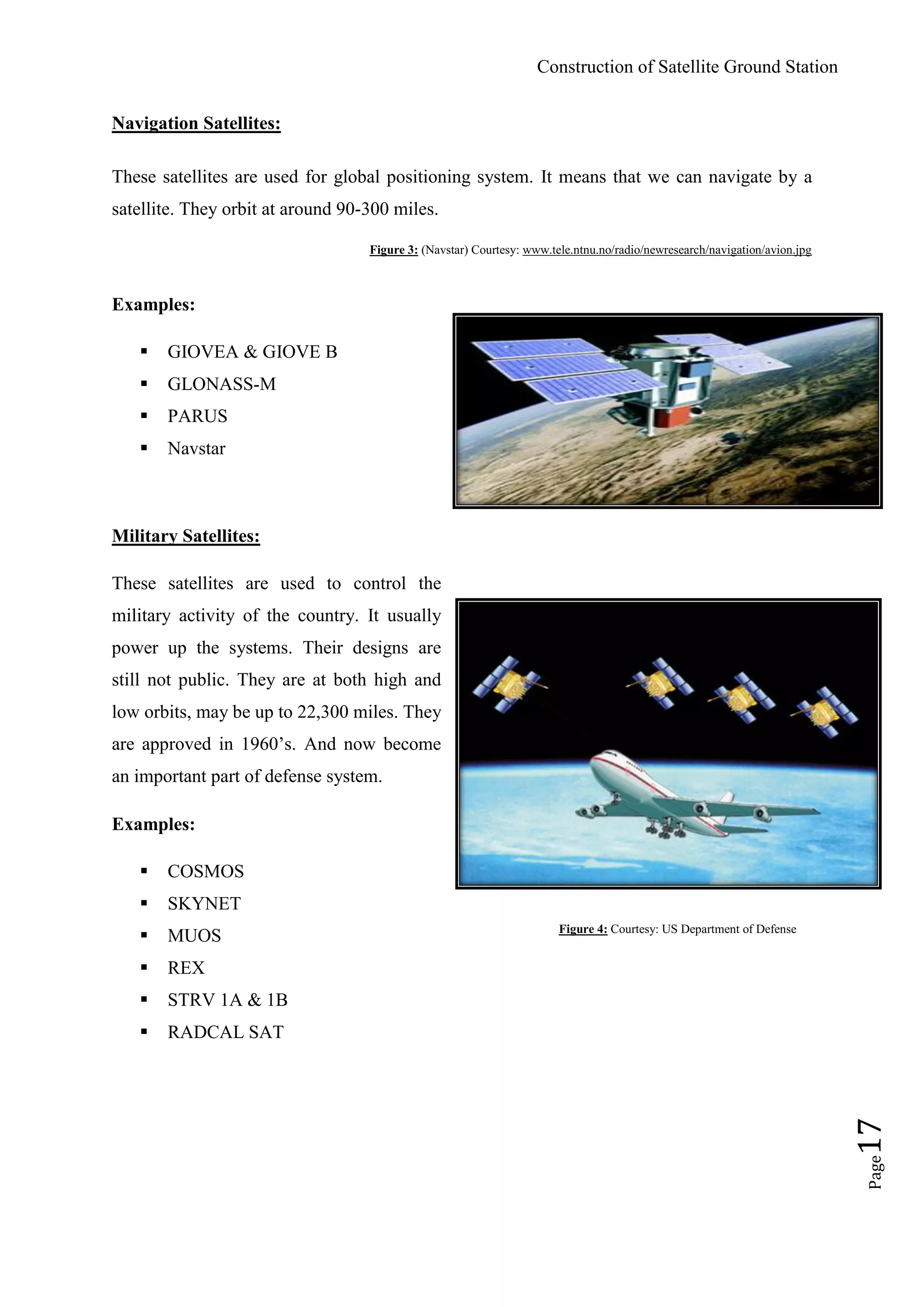

Navigation Satellites:
These satellites are used for global positioning system. It means that we can navigate by a
satellite. They orbit at around 90-300 miles.
Figure 3: (Navstar) Courtesy: www.tele.ntnu.no/radio/newresearch/navigation/avion.jpg
Examples:
 GIOVEA & GIOVE B
 GLONASS-M
 PARUS
 Navstar
Military Satellites:
These satellites are used to control the
military activity of the country. It usually
power up the systems. Their designs are
still not public. They are at both high and
low orbits, may be up to 22,300 miles. They
are approved in 1960‟s. And now become
an important part of defense system.
Examples:
 COSMOS
 SKYNET
 MUOS Figure 4: Courtesy: US Department of Defense
 REX
 STRV 1A & 1B
 RADCAL SAT

Page18

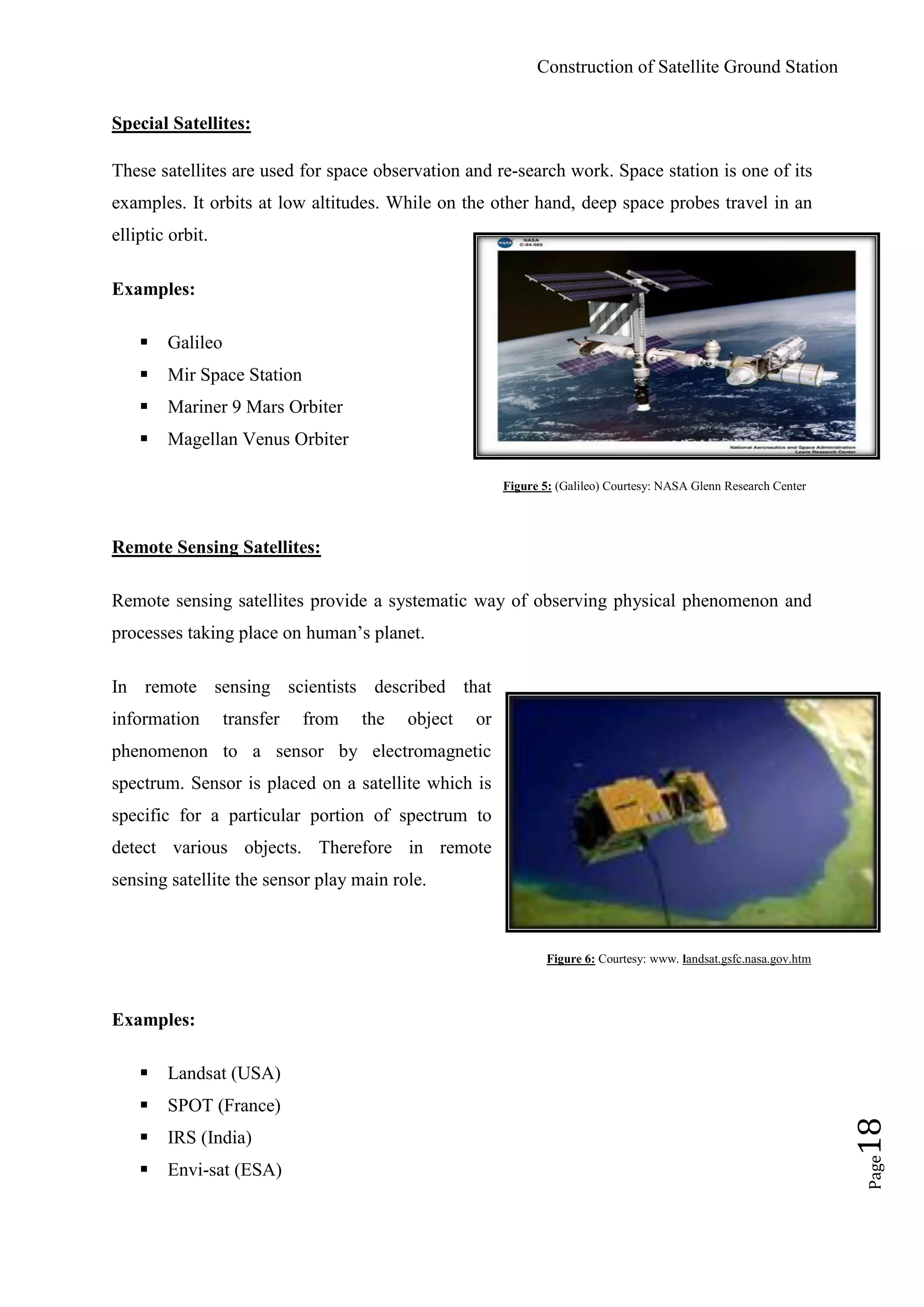

Special Satellites:
These satellites are used for space observation and re-search work. Space station is one of its
examples. It orbits at low altitudes. While on the other hand, deep space probes travel in an
elliptic orbit.
Examples:
 Galileo
 Mir Space Station
 Mariner 9 Mars Orbiter
 Magellan Venus Orbiter
Figure 5: (Galileo) Courtesy: NASA Glenn Research Center
Remote Sensing Satellites:
Remote sensing satellites provide a systematic way of observing physical phenomenon and
processes taking place on human‟s planet.
In remote sensing scientists described that
information transfer from the object or
phenomenon to a sensor by electromagnetic
spectrum. Sensor is placed on a satellite which is
specific for a particular portion of spectrum to
detect various objects. Therefore in remote
sensing satellite the sensor play main role.
Figure 6: Courtesy: www. landsat.gsfc.nasa.gov.htm
Examples:
 Landsat (USA)
 SPOT (France)
 IRS (India)
 Envi-sat (ESA)

Page19
 RADARSAT (Canada)
 IKONOS
 Quick bird
 Orb View

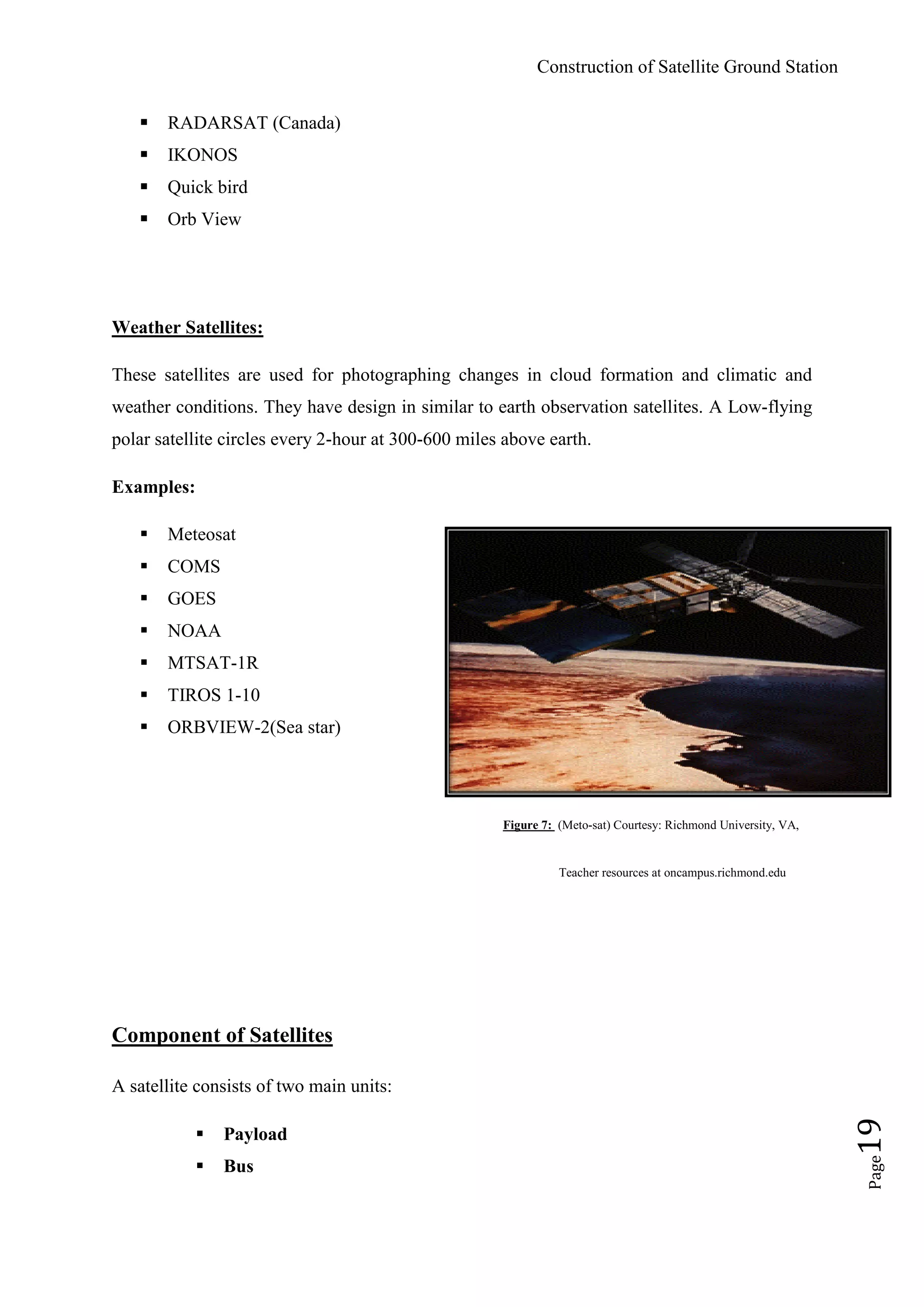

Weather Satellites:
These satellites are used for photographing changes in cloud formation and climatic and
weather conditions. They have design in similar to earth observation satellites. A Low-flying
polar satellite circles every 2-hour at 300-600 miles above earth.
Examples:
 Meteosat
 COMS
 GOES
 NOAA
 MTSAT-1R
 TIROS 1-10
 ORBVIEW-2(Sea star)
Figure 7: (Meto-sat) Courtesy: Richmond University, VA,
Teacher resources at oncampus.richmond.edu
Component of Satellites
A satellite consists of two main units:
 Payload
 Bus

Page20

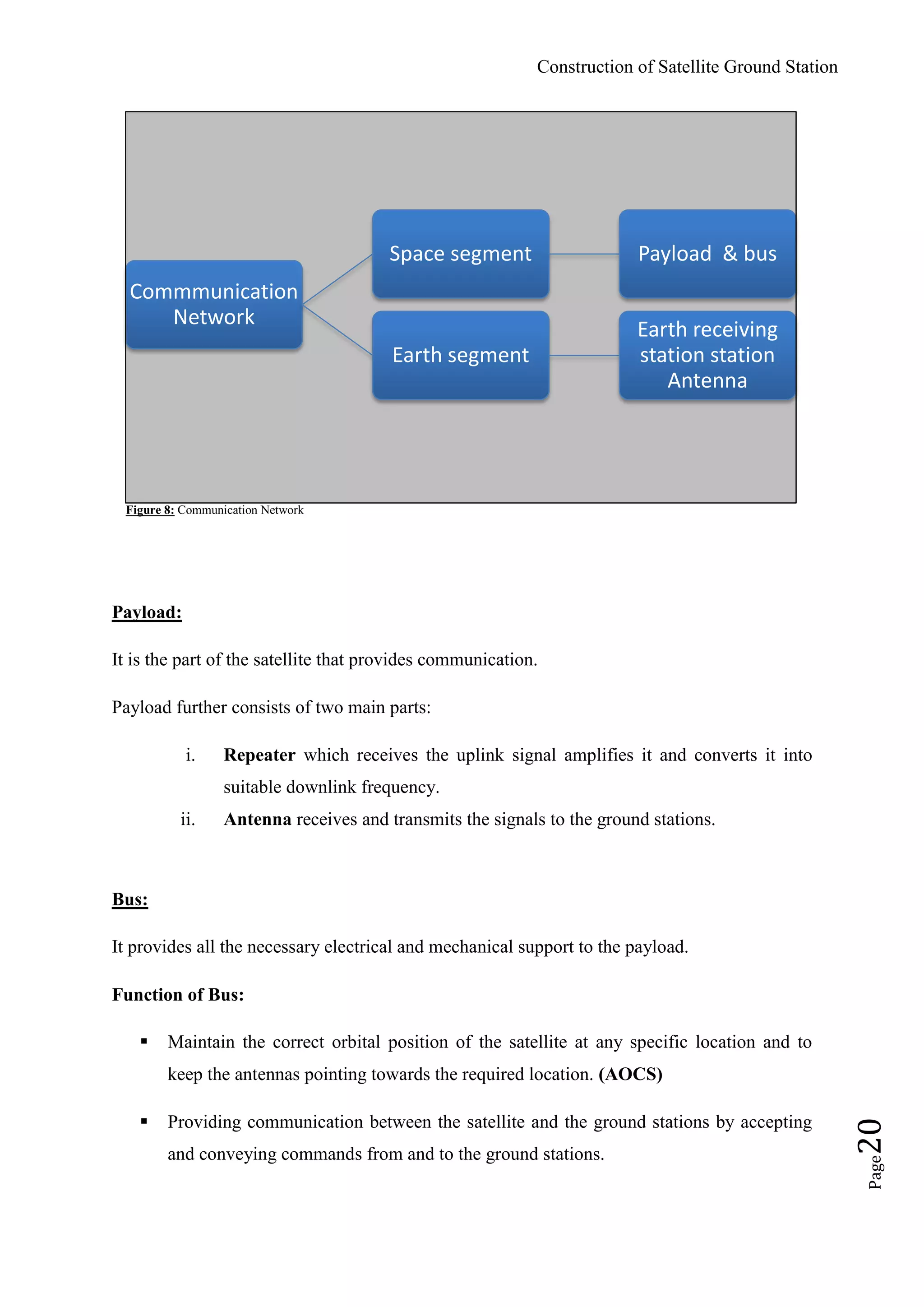

Figure 8: Communication Network
Payload:
It is the part of the satellite that provides communication.
Payload further consists of two main parts:
i. Repeater which receives the uplink signal amplifies it and converts it into
suitable downlink frequency.
ii. Antenna receives and transmits the signals to the ground stations.
Bus:
It provides all the necessary electrical and mechanical support to the payload.
Function of Bus:
 Maintain the correct orbital position of the satellite at any specific location and to
keep the antennas pointing towards the required location. (AOCS)
 Providing communication between the satellite and the ground stations by accepting
and conveying commands from and to the ground stations.
Commmunication
Network
Space segment Payload & bus
Earth segment
Earth receiving
station station
Antenna

Page21
 Providing the DC power to all the operative components of the satellite (Power Sub
system)
 Maintain the suitable temperature of various subsystems of the satellite
Bus consists of further components:

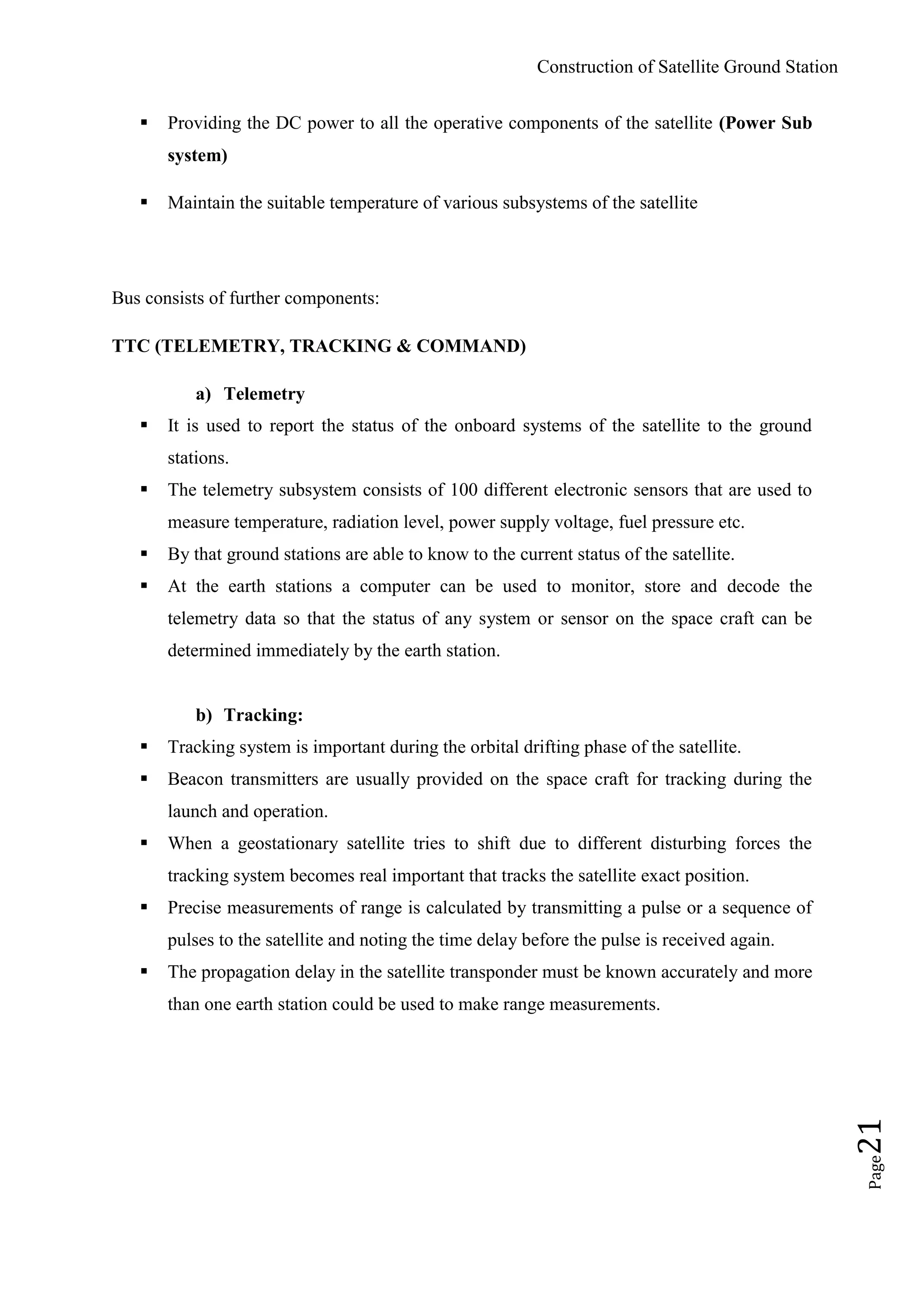

TTC (TELEMETRY, TRACKING & COMMAND)
a) Telemetry
 It is used to report the status of the onboard systems of the satellite to the ground
stations.
 The telemetry subsystem consists of 100 different electronic sensors that are used to
measure temperature, radiation level, power supply voltage, fuel pressure etc.
 By that ground stations are able to know to the current status of the satellite.
 At the earth stations a computer can be used to monitor, store and decode the
telemetry data so that the status of any system or sensor on the space craft can be
determined immediately by the earth station.
b) Tracking:
 Tracking system is important during the orbital drifting phase of the satellite.
 Beacon transmitters are usually provided on the space craft for tracking during the
launch and operation.
 When a geostationary satellite tries to shift due to different disturbing forces the
tracking system becomes real important that tracks the satellite exact position.
 Precise measurements of range is calculated by transmitting a pulse or a sequence of
pulses to the satellite and noting the time delay before the pulse is received again.
 The propagation delay in the satellite transponder must be known accurately and more
than one earth station could be used to make range measurements.

Page22

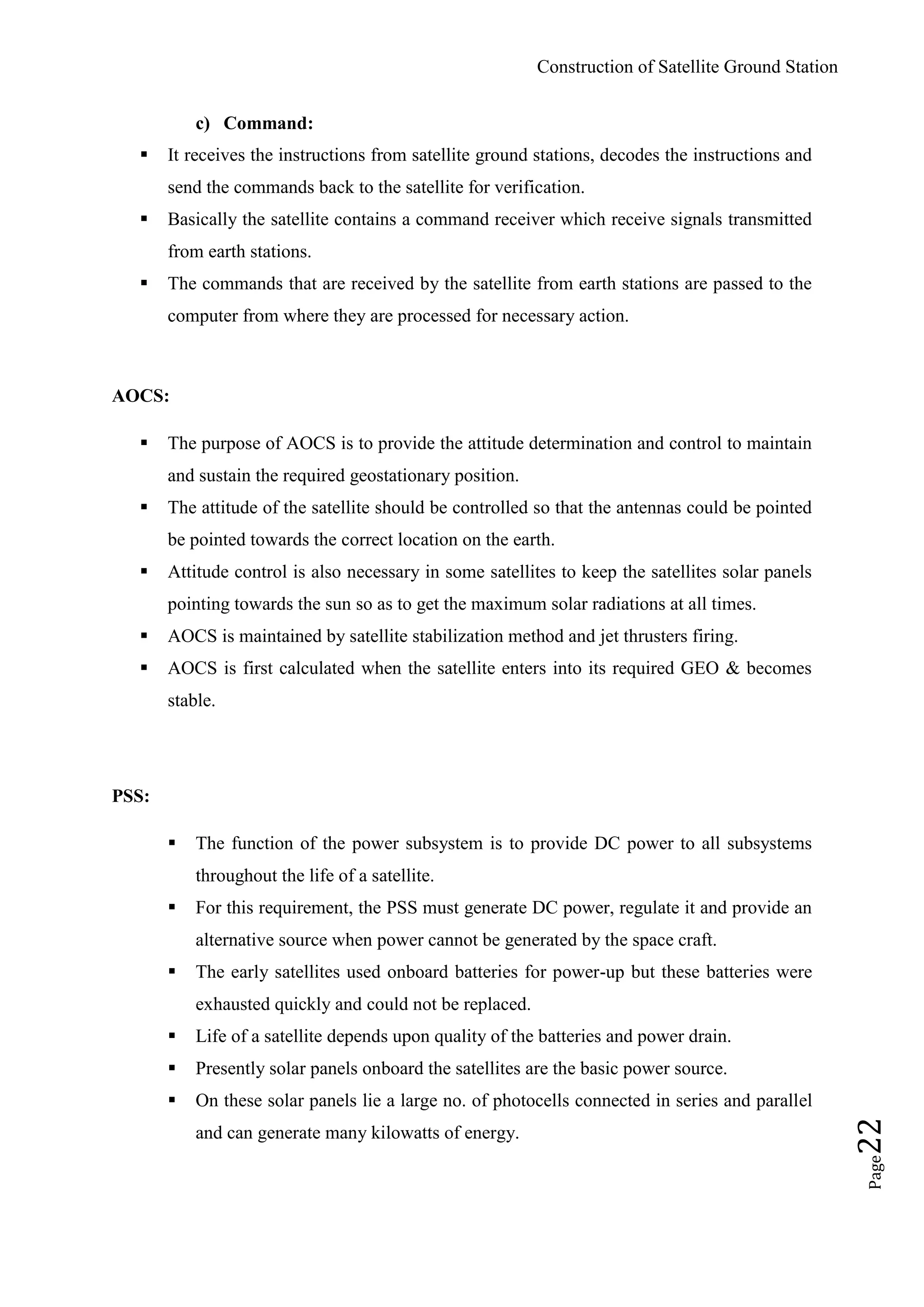

c) Command:
 It receives the instructions from satellite ground stations, decodes the instructions and
send the commands back to the satellite for verification.
 Basically the satellite contains a command receiver which receive signals transmitted
from earth stations.
 The commands that are received by the satellite from earth stations are passed to the
computer from where they are processed for necessary action.
AOCS:
 The purpose of AOCS is to provide the attitude determination and control to maintain
and sustain the required geostationary position.
 The attitude of the satellite should be controlled so that the antennas could be pointed
be pointed towards the correct location on the earth.
 Attitude control is also necessary in some satellites to keep the satellites solar panels
pointing towards the sun so as to get the maximum solar radiations at all times.
 AOCS is maintained by satellite stabilization method and jet thrusters firing.
 AOCS is first calculated when the satellite enters into its required GEO & becomes
stable.
PSS:
 The function of the power subsystem is to provide DC power to all subsystems
throughout the life of a satellite.
 For this requirement, the PSS must generate DC power, regulate it and provide an
alternative source when power cannot be generated by the space craft.
 The early satellites used onboard batteries for power-up but these batteries were
exhausted quickly and could not be replaced.
 Life of a satellite depends upon quality of the batteries and power drain.
 Presently solar panels onboard the satellites are the basic power source.
 On these solar panels lie a large no. of photocells connected in series and parallel
and can generate many kilowatts of energy.

Page23

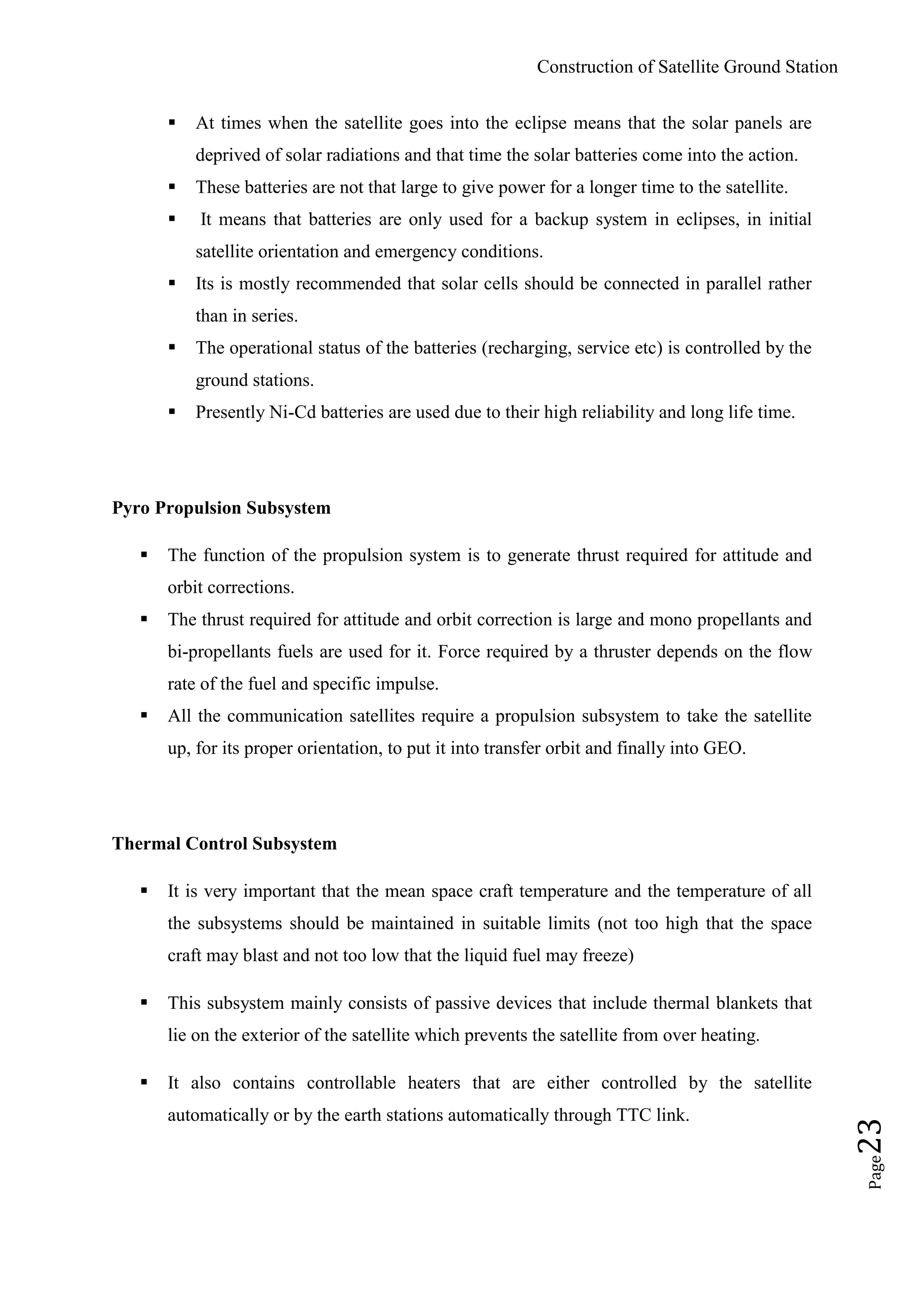

 At times when the satellite goes into the eclipse means that the solar panels are
deprived of solar radiations and that time the solar batteries come into the action.
 These batteries are not that large to give power for a longer time to the satellite.
 It means that batteries are only used for a backup system in eclipses, in initial
satellite orientation and emergency conditions.
 Its is mostly recommended that solar cells should be connected in parallel rather
than in series.
 The operational status of the batteries (recharging, service etc) is controlled by the
ground stations.
 Presently Ni-Cd batteries are used due to their high reliability and long life time.
Pyro Propulsion Subsystem
 The function of the propulsion system is to generate thrust required for attitude and
orbit corrections.
 The thrust required for attitude and orbit correction is large and mono propellants and
bi-propellants fuels are used for it. Force required by a thruster depends on the flow
rate of the fuel and specific impulse.
 All the communication satellites require a propulsion subsystem to take the satellite
up, for its proper orientation, to put it into transfer orbit and finally into GEO.
Thermal Control Subsystem
 It is very important that the mean space craft temperature and the temperature of all
the subsystems should be maintained in suitable limits (not too high that the space
craft may blast and not too low that the liquid fuel may freeze)
 This subsystem mainly consists of passive devices that include thermal blankets that
lie on the exterior of the satellite which prevents the satellite from over heating.
 It also contains controllable heaters that are either controlled by the satellite
automatically or by the earth stations automatically through TTC link.

Page24

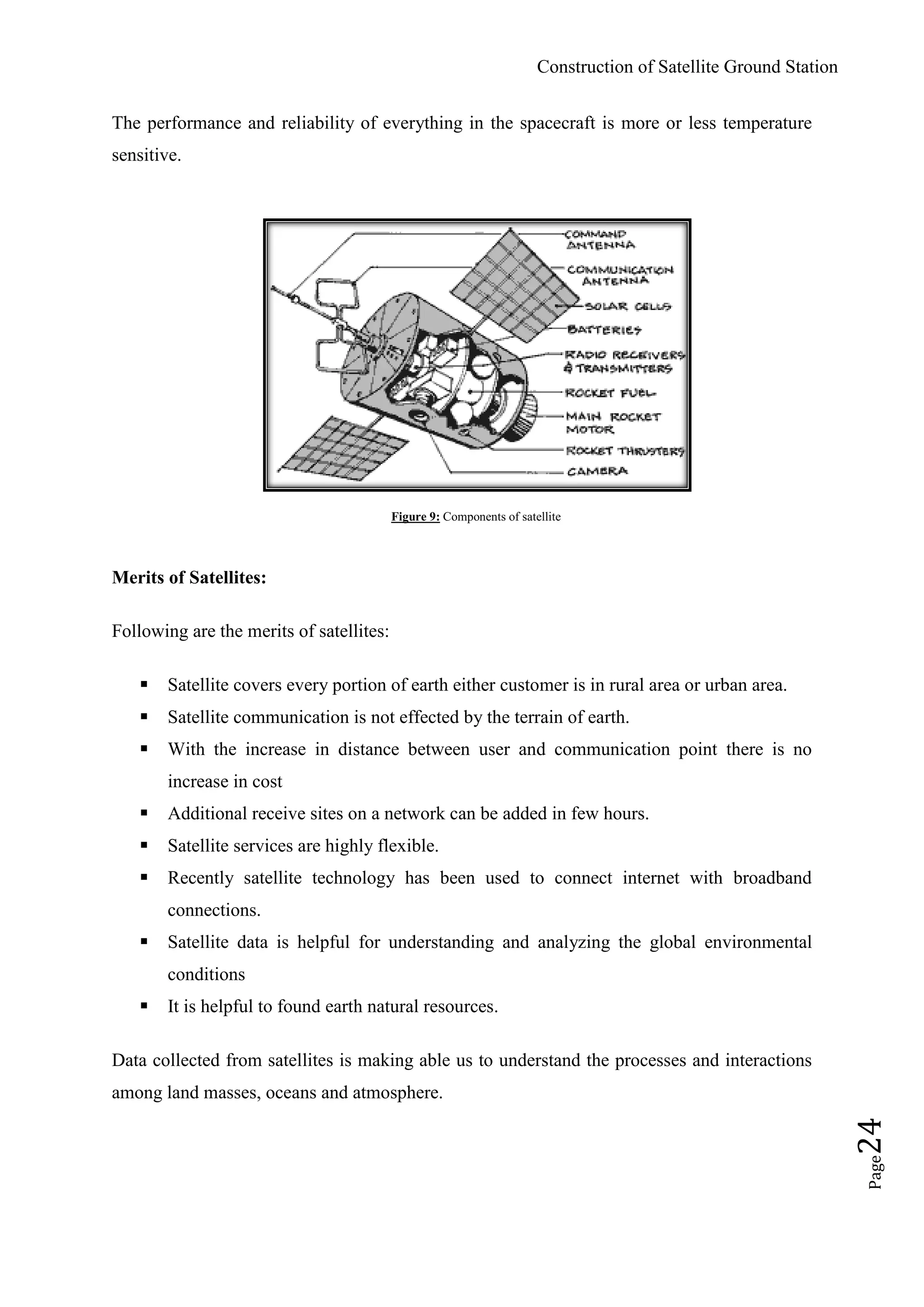

The performance and reliability of everything in the spacecraft is more or less temperature
sensitive.
Figure 9: Components of satellite
Merits of Satellites:
Following are the merits of satellites:
 Satellite covers every portion of earth either customer is in rural area or urban area.
 Satellite communication is not effected by the terrain of earth.
 With the increase in distance between user and communication point there is no
increase in cost
 Additional receive sites on a network can be added in few hours.
 Satellite services are highly flexible.
 Recently satellite technology has been used to connect internet with broadband
connections.
 Satellite data is helpful for understanding and analyzing the global environmental
conditions
 It is helpful to found earth natural resources.
Data collected from satellites is making able us to understand the processes and interactions
among land masses, oceans and atmosphere.

Page25

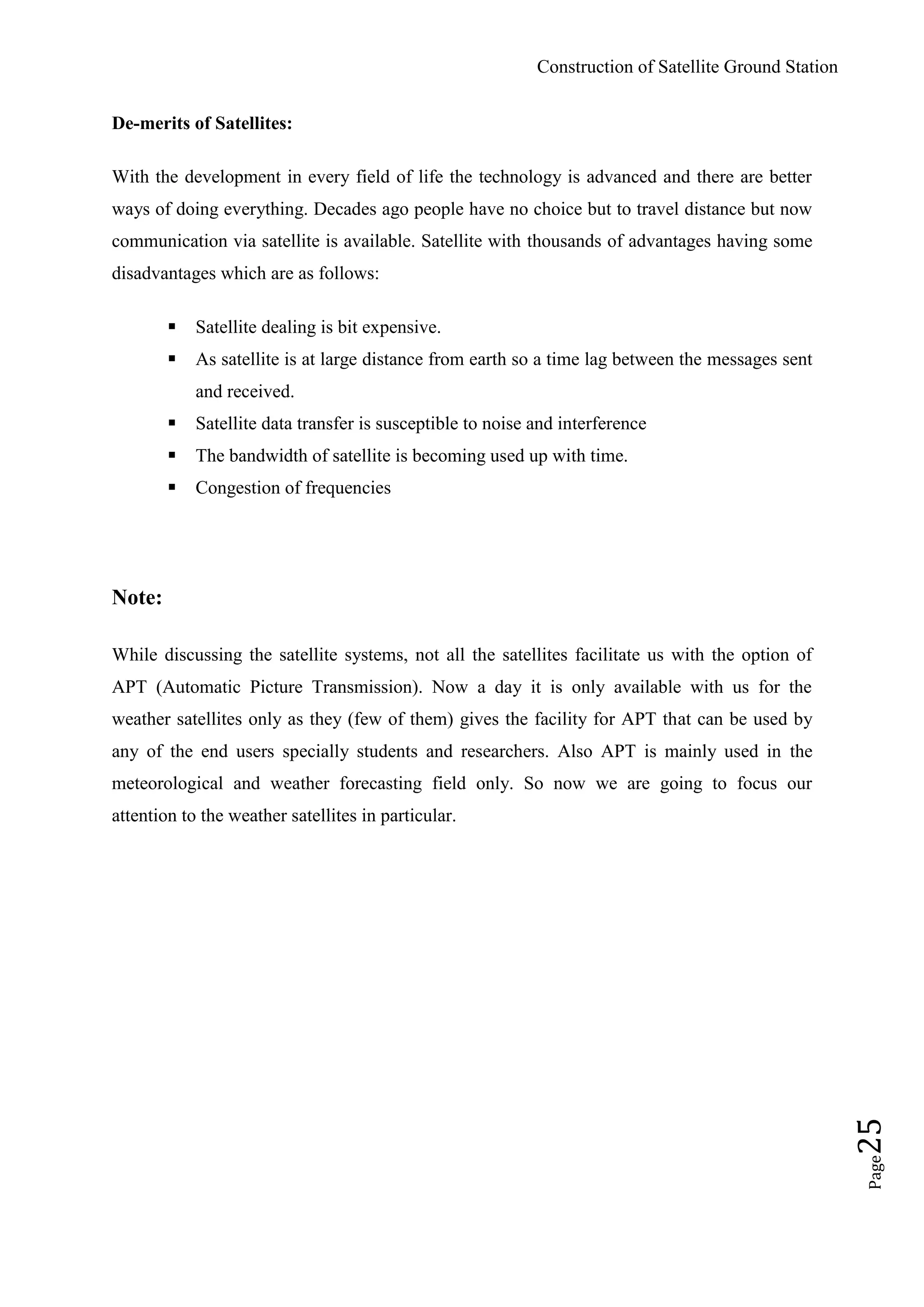

De-merits of Satellites:
With the development in every field of life the technology is advanced and there are better
ways of doing everything. Decades ago people have no choice but to travel distance but now
communication via satellite is available. Satellite with thousands of advantages having some
disadvantages which are as follows:
 Satellite dealing is bit expensive.
 As satellite is at large distance from earth so a time lag between the messages sent
and received.
 Satellite data transfer is susceptible to noise and interference
 The bandwidth of satellite is becoming used up with time.
 Congestion of frequencies
Note:
While discussing the satellite systems, not all the satellites facilitate us with the option of
APT (Automatic Picture Transmission). Now a day it is only available with us for the
weather satellites only as they (few of them) gives the facility for APT that can be used by
any of the end users specially students and researchers. Also APT is mainly used in the
meteorological and weather forecasting field only. So now we are going to focus our
attention to the weather satellites in particular.

Page26

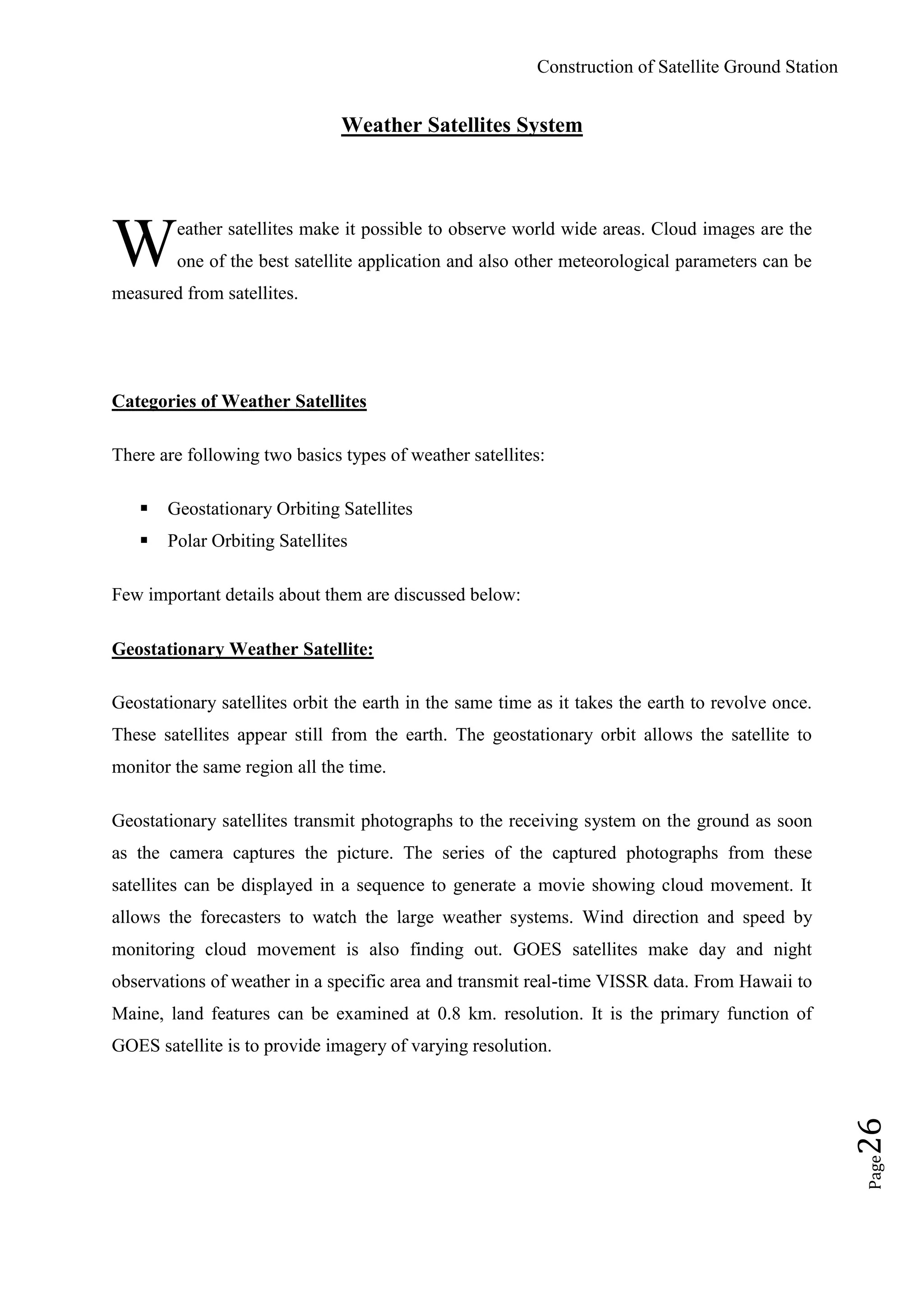

Weather Satellites System
eather satellites make it possible to observe world wide areas. Cloud images are the
one of the best satellite application and also other meteorological parameters can be
measured from satellites.
Categories of Weather Satellites
There are following two basics types of weather satellites:
 Geostationary Orbiting Satellites
 Polar Orbiting Satellites
Few important details about them are discussed below:
Geostationary Weather Satellite:
Geostationary satellites orbit the earth in the same time as it takes the earth to revolve once.
These satellites appear still from the earth. The geostationary orbit allows the satellite to
monitor the same region all the time.
Geostationary satellites transmit photographs to the receiving system on the ground as soon
as the camera captures the picture. The series of the captured photographs from these
satellites can be displayed in a sequence to generate a movie showing cloud movement. It
allows the forecasters to watch the large weather systems. Wind direction and speed by
monitoring cloud movement is also finding out. GOES satellites make day and night
observations of weather in a specific area and transmit real-time VISSR data. From Hawaii to
Maine, land features can be examined at 0.8 km. resolution. It is the primary function of
GOES satellite is to provide imagery of varying resolution.
W

Page27
Merits:
 It can view the whole earth at all
times.
 It always locates at the same place

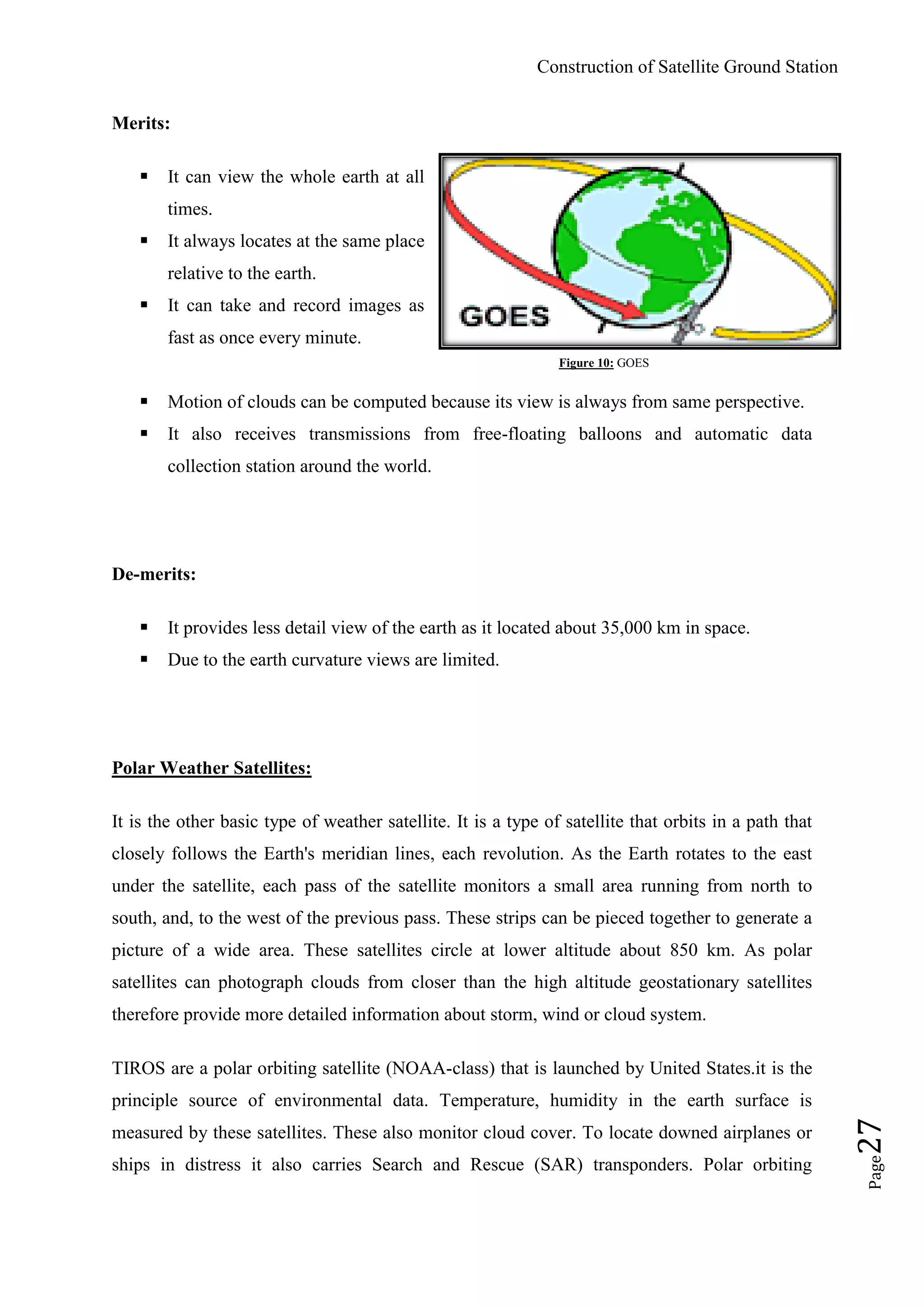

relative to the earth.
 It can take and record images as
fast as once every minute.
Figure 10: GOES
 Motion of clouds can be computed because its view is always from same perspective.
 It also receives transmissions from free-floating balloons and automatic data
collection station around the world.
De-merits:
 It provides less detail view of the earth as it located about 35,000 km in space.
 Due to the earth curvature views are limited.
Polar Weather Satellites:
It is the other basic type of weather satellite. It is a type of satellite that orbits in a path that
closely follows the Earth's meridian lines, each revolution. As the Earth rotates to the east
under the satellite, each pass of the satellite monitors a small area running from north to
south, and, to the west of the previous pass. These strips can be pieced together to generate a
picture of a wide area. These satellites circle at lower altitude about 850 km. As polar
satellites can photograph clouds from closer than the high altitude geostationary satellites
therefore provide more detailed information about storm, wind or cloud system.
TIROS are a polar orbiting satellite (NOAA-class) that is launched by United States.it is the
principle source of environmental data. Temperature, humidity in the earth surface is
measured by these satellites. These also monitor cloud cover. To locate downed airplanes or
ships in distress it also carries Search and Rescue (SAR) transponders. Polar orbiting

Page28

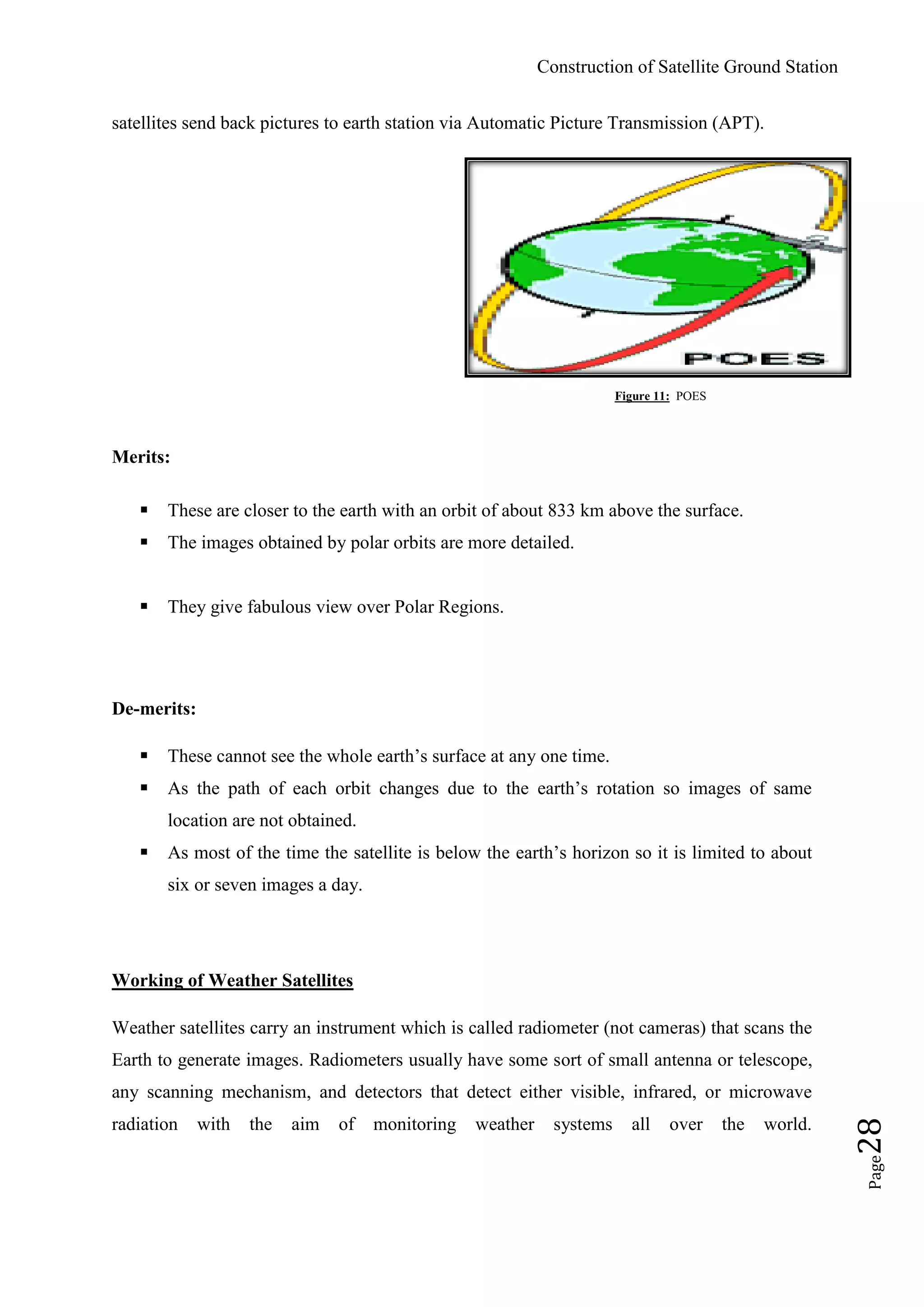

satellites send back pictures to earth station via Automatic Picture Transmission (APT).
Figure 11: POES
Merits:
 These are closer to the earth with an orbit of about 833 km above the surface.
 The images obtained by polar orbits are more detailed.
 They give fabulous view over Polar Regions.
De-merits:
 These cannot see the whole earth‟s surface at any one time.
 As the path of each orbit changes due to the earth‟s rotation so images of same
location are not obtained.
 As most of the time the satellite is below the earth‟s horizon so it is limited to about
six or seven images a day.
Working of Weather Satellites
Weather satellites carry an instrument which is called radiometer (not cameras) that scans the
Earth to generate images. Radiometers usually have some sort of small antenna or telescope,
any scanning mechanism, and detectors that detect either visible, infrared, or microwave
radiation with the aim of monitoring weather systems all over the world.

Page29
The data are then provided to various weather forecast centers of world and available over the
internet in the form of images. The time from satellite measurements to image availability
can be less than a minute because weather changes quickly.
The life span of instruments on the satellites is 3 to 7 years, although many of them last
longer than that.

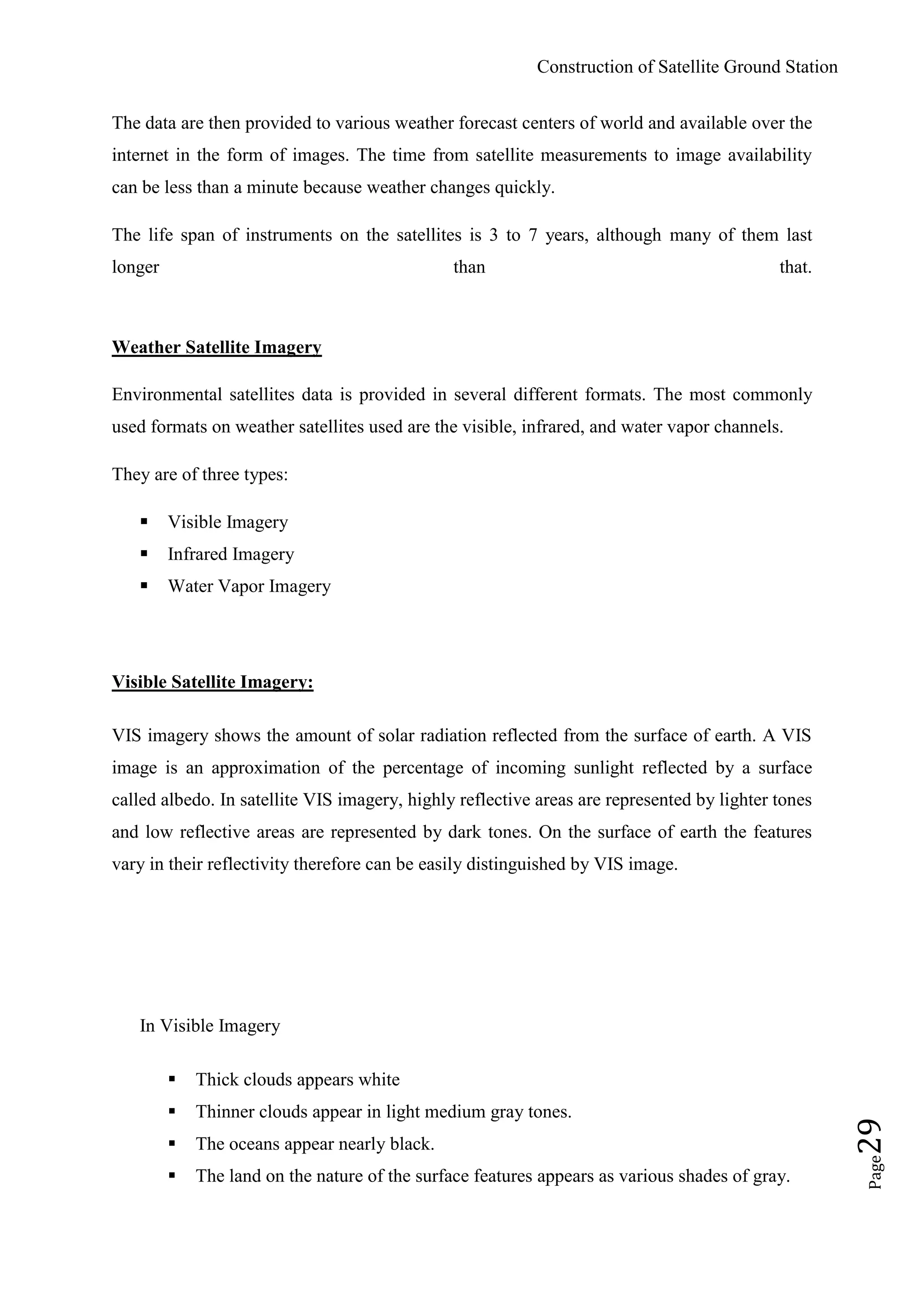

Weather Satellite Imagery
Environmental satellites data is provided in several different formats. The most commonly
used formats on weather satellites used are the visible, infrared, and water vapor channels.
They are of three types:
 Visible Imagery
 Infrared Imagery
 Water Vapor Imagery
Visible Satellite Imagery:
VIS imagery shows the amount of solar radiation reflected from the surface of earth. A VIS
image is an approximation of the percentage of incoming sunlight reflected by a surface
called albedo. In satellite VIS imagery, highly reflective areas are represented by lighter tones
and low reflective areas are represented by dark tones. On the surface of earth the features
vary in their reflectivity therefore can be easily distinguished by VIS image.
In Visible Imagery
 Thick clouds appears white
 Thinner clouds appear in light medium gray tones.
 The oceans appear nearly black.
 The land on the nature of the surface features appears as various shades of gray.

Page30

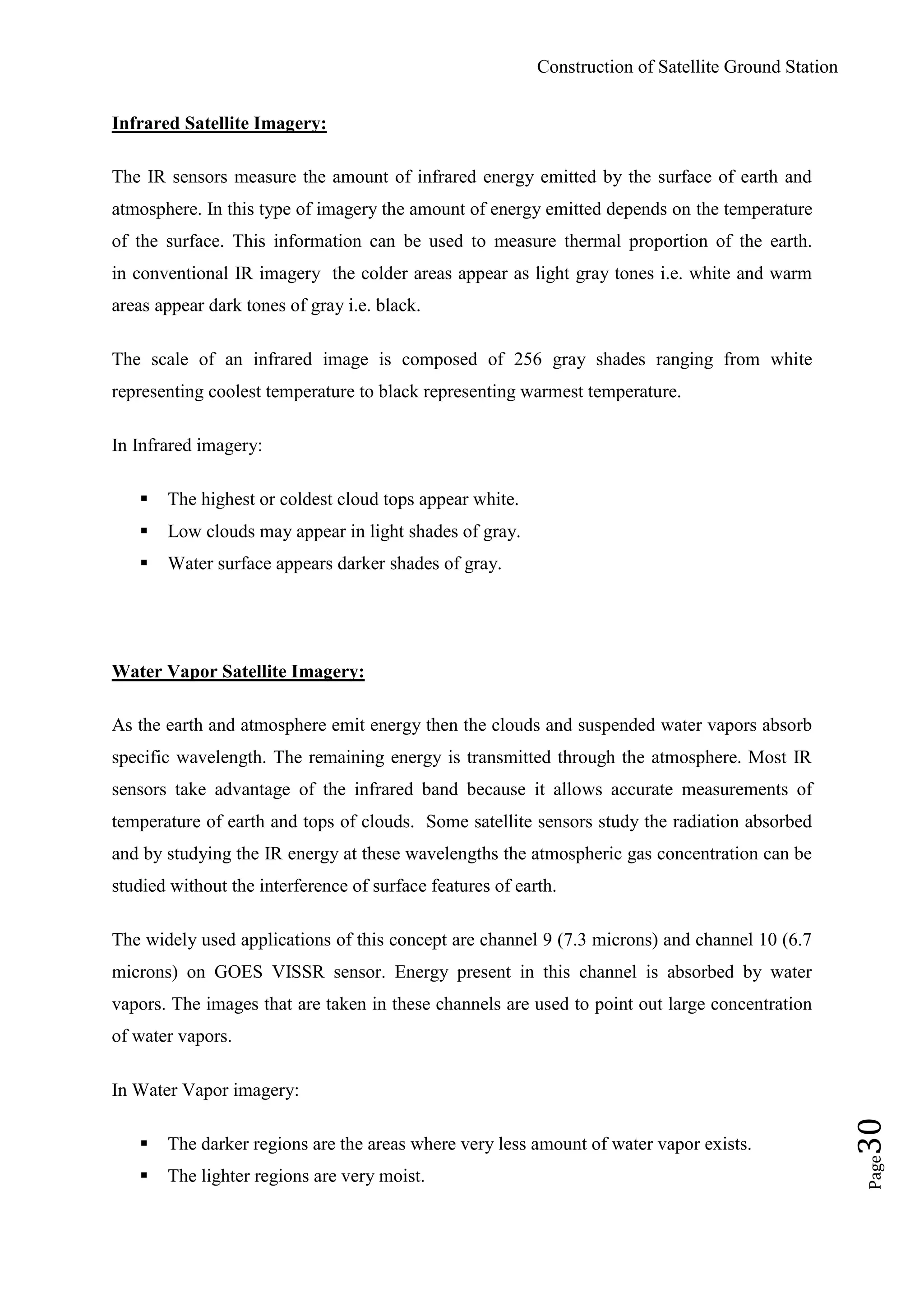

Infrared Satellite Imagery:
The IR sensors measure the amount of infrared energy emitted by the surface of earth and
atmosphere. In this type of imagery the amount of energy emitted depends on the temperature
of the surface. This information can be used to measure thermal proportion of the earth.
in conventional IR imagery the colder areas appear as light gray tones i.e. white and warm
areas appear dark tones of gray i.e. black.
The scale of an infrared image is composed of 256 gray shades ranging from white
representing coolest temperature to black representing warmest temperature.
In Infrared imagery:
 The highest or coldest cloud tops appear white.
 Low clouds may appear in light shades of gray.
 Water surface appears darker shades of gray.
Water Vapor Satellite Imagery:
As the earth and atmosphere emit energy then the clouds and suspended water vapors absorb
specific wavelength. The remaining energy is transmitted through the atmosphere. Most IR
sensors take advantage of the infrared band because it allows accurate measurements of
temperature of earth and tops of clouds. Some satellite sensors study the radiation absorbed
and by studying the IR energy at these wavelengths the atmospheric gas concentration can be
studied without the interference of surface features of earth.
The widely used applications of this concept are channel 9 (7.3 microns) and channel 10 (6.7
microns) on GOES VISSR sensor. Energy present in this channel is absorbed by water
vapors. The images that are taken in these channels are used to point out large concentration
of water vapors.
In Water Vapor imagery:
 The darker regions are the areas where very less amount of water vapor exists.
 The lighter regions are very moist.

Page31
Water vapors are very important tool for weather analysis and prediction because it not only
shows the cloud pattern but also shows the moisture content in the atmosphere. This allows
the meteorologists to observe large scale circulation patterns even in the absence of clouds.
Note:
After discussing the weather satellites in general, we are now going for the NOAA satellites.
They are under special consideration as this series (NOAA satellite series) is the most
authentic data provider globally and is majorly available to layman for free. And most of all it
is equipped with APT Setup.
A general comparison is given here that shows why we chose NOAA.

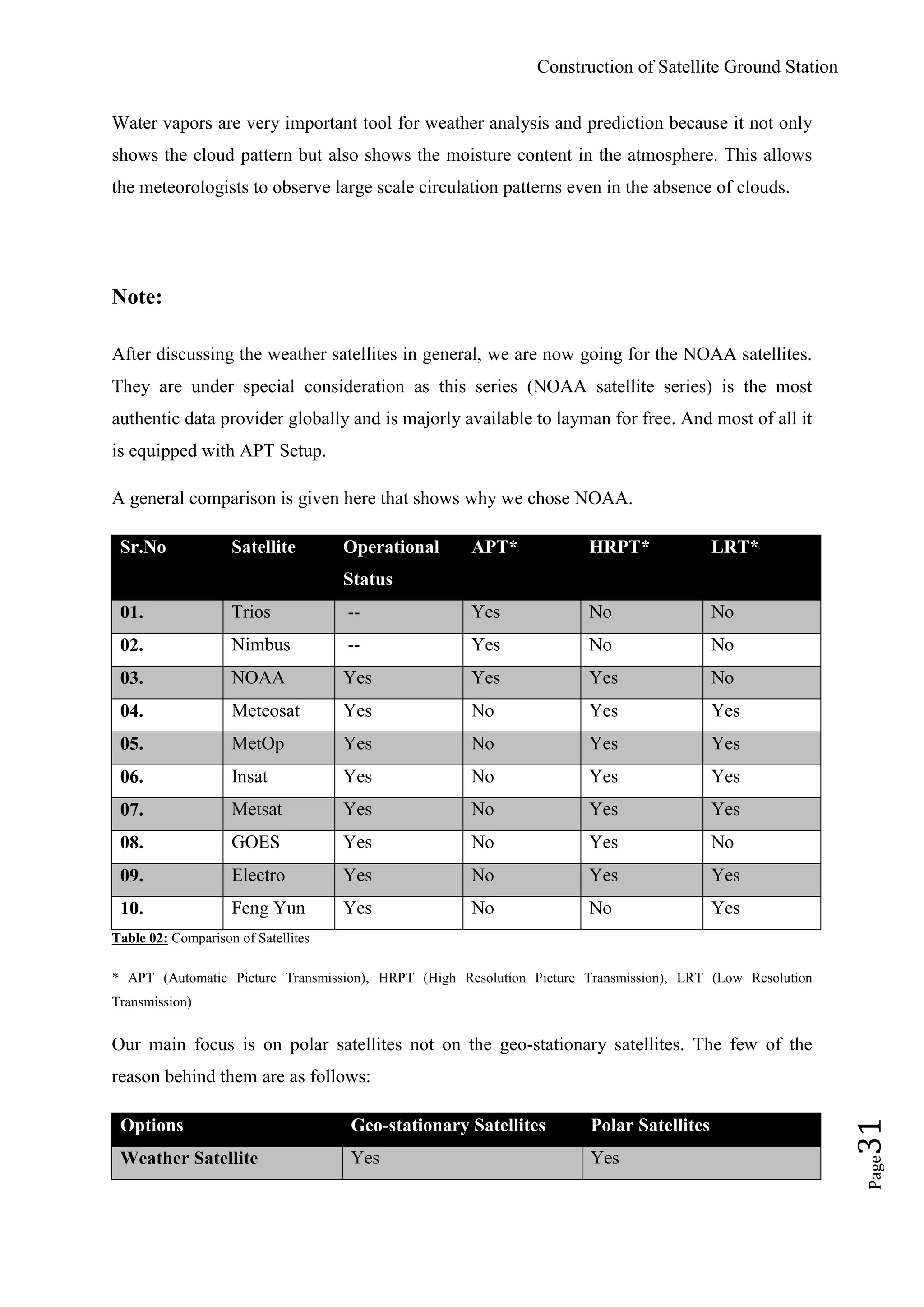

Sr.No Satellite Operational
Status
APT* HRPT* LRT*
01. Trios -- Yes No No
02. Nimbus -- Yes No No
03. NOAA Yes Yes Yes No
04. Meteosat Yes No Yes Yes
05. MetOp Yes No Yes Yes
06. Insat Yes No Yes Yes
07. Metsat Yes No Yes Yes
08. GOES Yes No Yes No
09. Electro Yes No Yes Yes
10. Feng Yun Yes No No Yes
Table 02: Comparison of Satellites
* APT (Automatic Picture Transmission), HRPT (High Resolution Picture Transmission), LRT (Low Resolution
Transmission)
Our main focus is on polar satellites not on the geo-stationary satellites. The few of the
reason behind them are as follows:

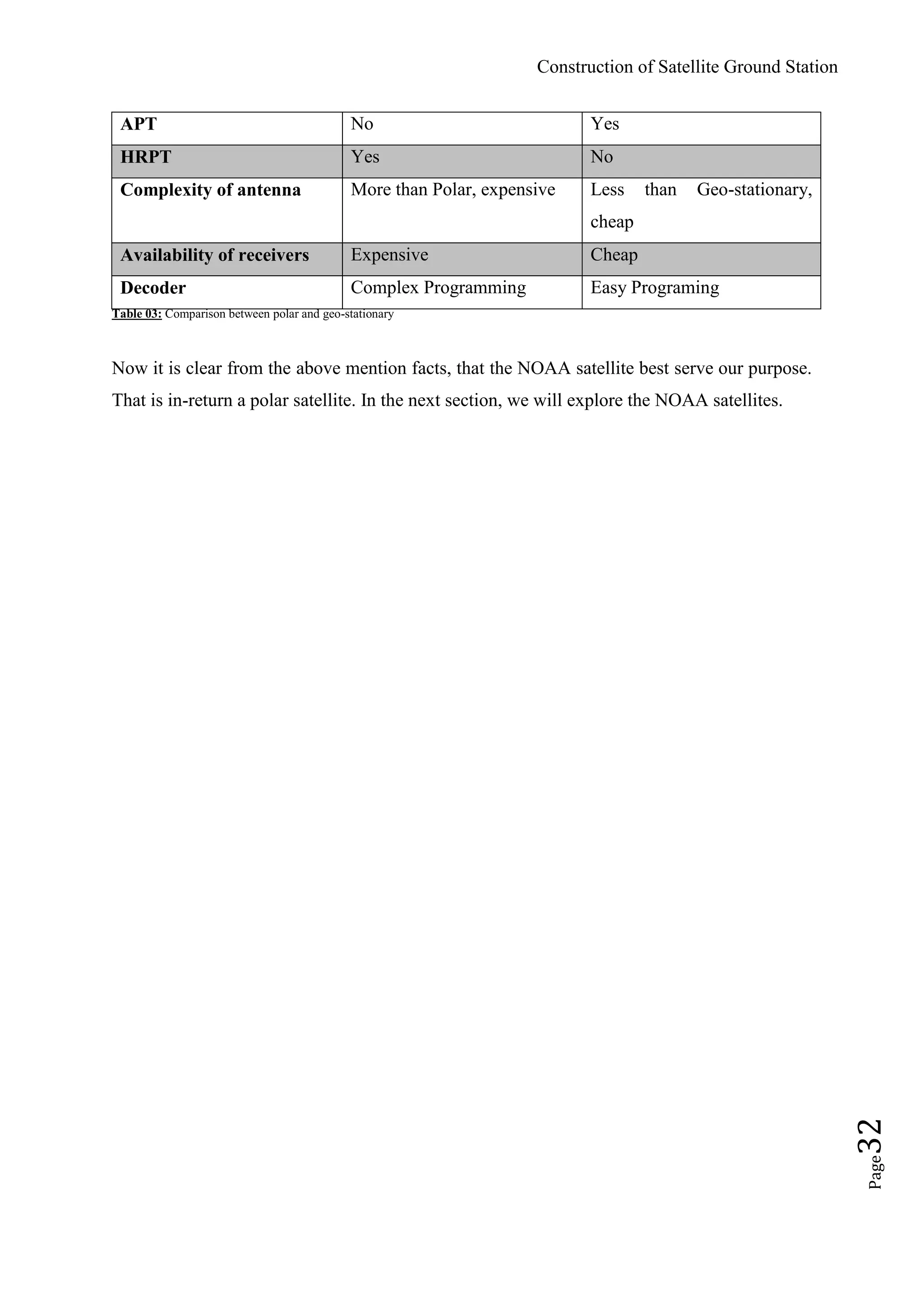

Options Geo-stationary Satellites Polar Satellites
Weather Satellite Yes Yes

Page32
APT No Yes
HRPT Yes No
Complexity of antenna More than Polar, expensive Less than Geo-stationary,
cheap
Availability of receivers Expensive Cheap
Decoder Complex Programming Easy Programing
Table 03: Comparison between polar and geo-stationary
Now it is clear from the above mention facts, that the NOAA satellite best serve our purpose.
That is in-return a polar satellite. In the next section, we will explore the NOAA satellites.

Page33

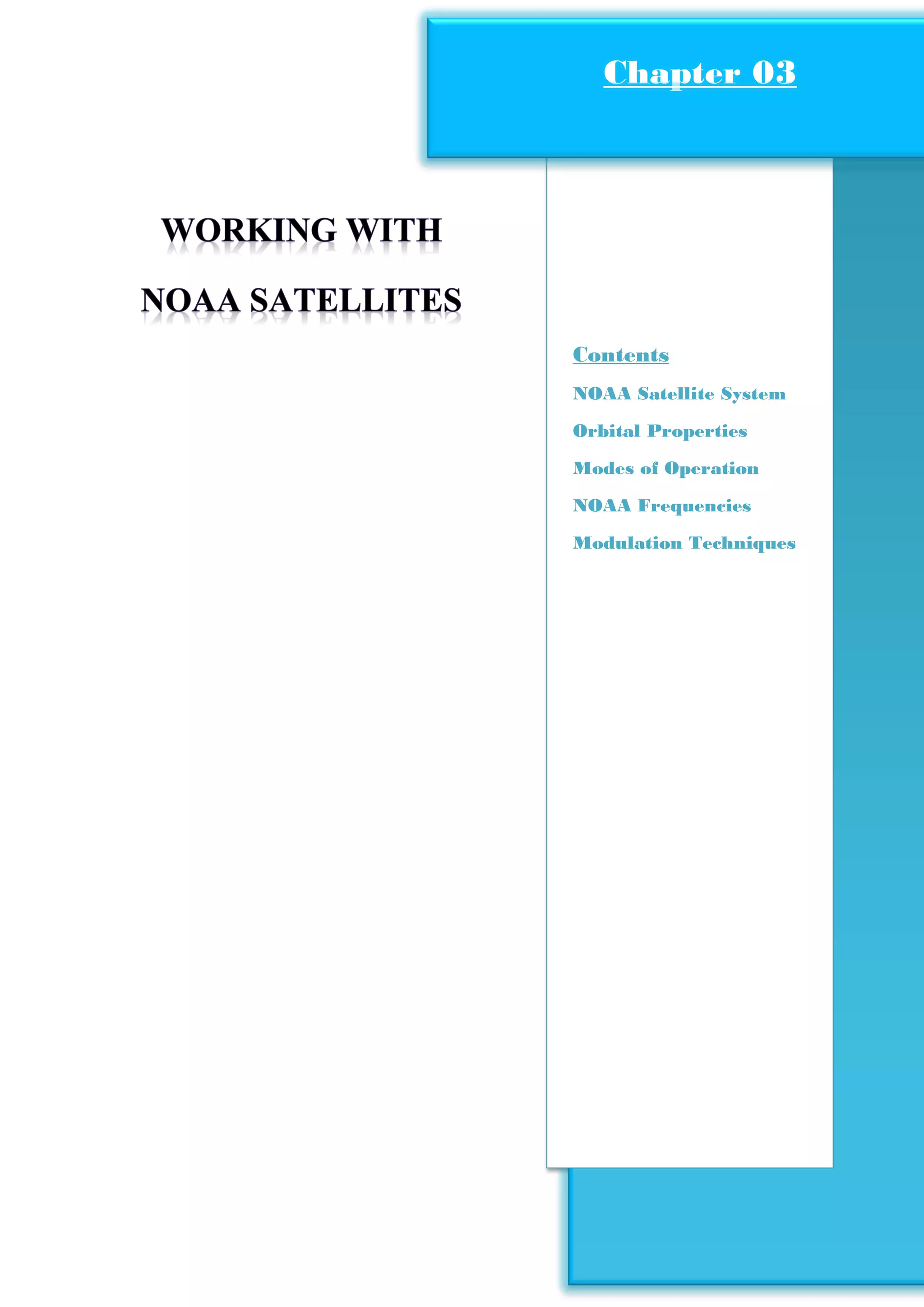

Contents
NOAA Satellite System
Orbital Properties
Modes of Operation
NOAA Frequencies
Modulation Techniques
Chapter 03

Page34

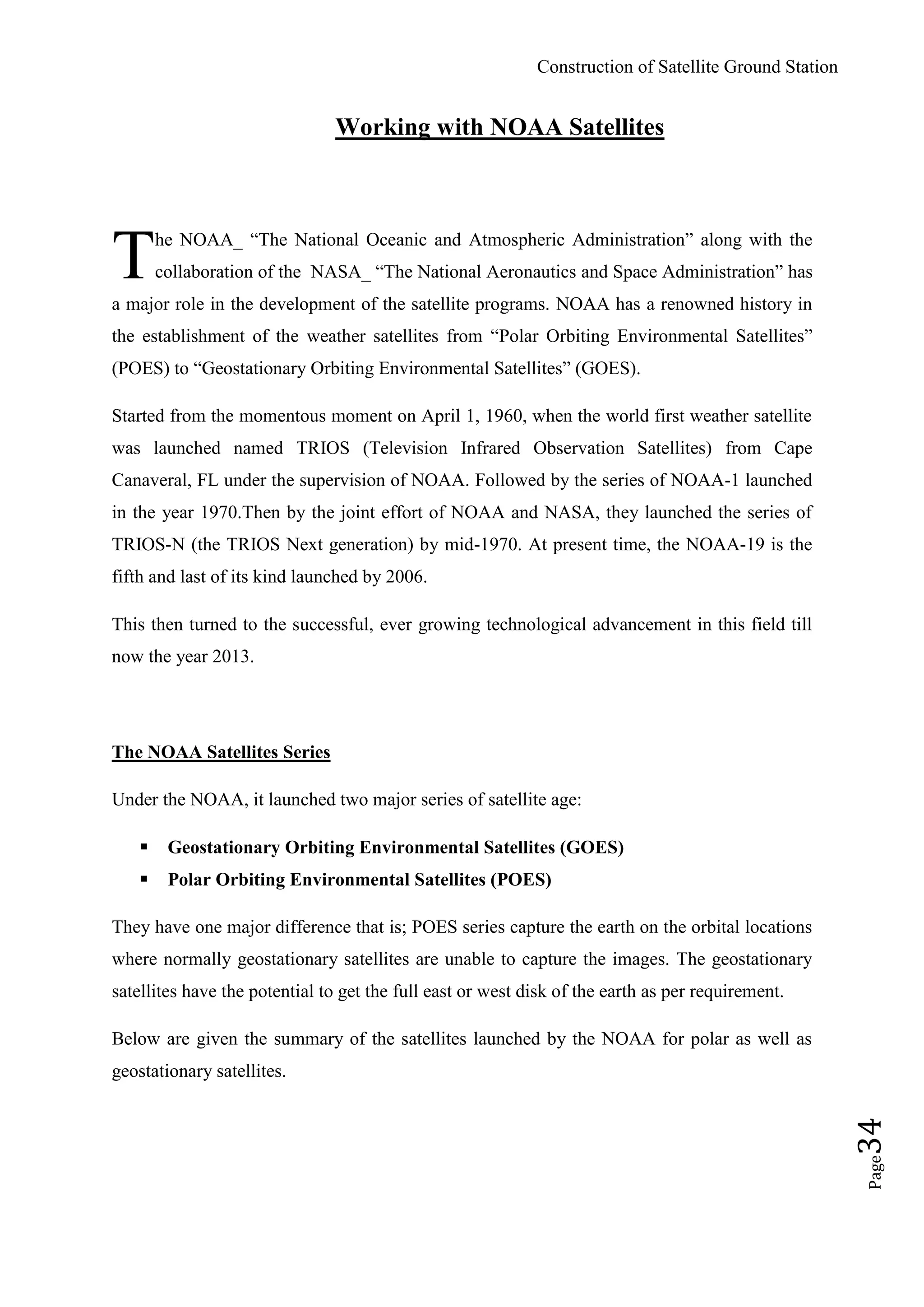

Working with NOAA Satellites
he NOAA_ “The National Oceanic and Atmospheric Administration” along with the
collaboration of the NASA_ “The National Aeronautics and Space Administration” has
a major role in the development of the satellite programs. NOAA has a renowned history in
the establishment of the weather satellites from “Polar Orbiting Environmental Satellites”
(POES) to “Geostationary Orbiting Environmental Satellites” (GOES).
Started from the momentous moment on April 1, 1960, when the world first weather satellite
was launched named TRIOS (Television Infrared Observation Satellites) from Cape
Canaveral, FL under the supervision of NOAA. Followed by the series of NOAA-1 launched
in the year 1970.Then by the joint effort of NOAA and NASA, they launched the series of
TRIOS-N (the TRIOS Next generation) by mid-1970. At present time, the NOAA-19 is the
fifth and last of its kind launched by 2006.
This then turned to the successful, ever growing technological advancement in this field till
now the year 2013.
The NOAA Satellites Series
Under the NOAA, it launched two major series of satellite age:
 Geostationary Orbiting Environmental Satellites (GOES)
 Polar Orbiting Environmental Satellites (POES)
They have one major difference that is; POES series capture the earth on the orbital locations
where normally geostationary satellites are unable to capture the images. The geostationary
satellites have the potential to get the full east or west disk of the earth as per requirement.
Below are given the summary of the satellites launched by the NOAA for polar as well as
geostationary satellites.
T

Page35
Geostationary Orbiting Environmental Satellites (GOES):
Following are the GOES series of NOAA satellites:
Series
No.
NOAA
Satellites
Launched
Date
Current
Position
Series
01. SMS-1 May 17, 1974 De-active SMS-A
02. SMS-2 Feb 06, 1975 De-active SMS-B
03. GOES-1 Oct 16, 1975 De-active GOES-A
04. GOES-2 Jun 16, 1977 De-active GOES-B
05. GOES-3 Jun 16, 1978 De-active GOES-C
06. GOES-4 Sep 09, 1980 De-active GOES-D
07. GOES-5 May 22, 1981 De-active GOES-E
08. GOES-6 April 28, 1983 De-active GOES-F
09. GOES-7 -- De-active --
10. GOES-G May 03, 1986 De-active --
11. GOES-7 Feb 26, 1987 De-active GOES-H
12. GOES-8 April 13, 1994 De-active GOES-I
13. GOES-9 May 23, 1995 De-active GOES-J
14. GOES-10 April 25, 1997 De-active GOES-K
15. GOES-11 May 03, 2000 De-active GOES-L
16. GOES-12 July 23, 2001 Active GOES-M
17. GOES-13 May 24, 2006 Active GOES-N
18. GOES-14 Jun 27, 2009 Active GOES-O
19. GOES-15 Mar 08,2011 Active GOES-P
Table 04: GOES list
Where,
SMS = Synchronous Meteorological Satellite Program
GOES = Geostationary Orbiting Environmental Satellites

Page36

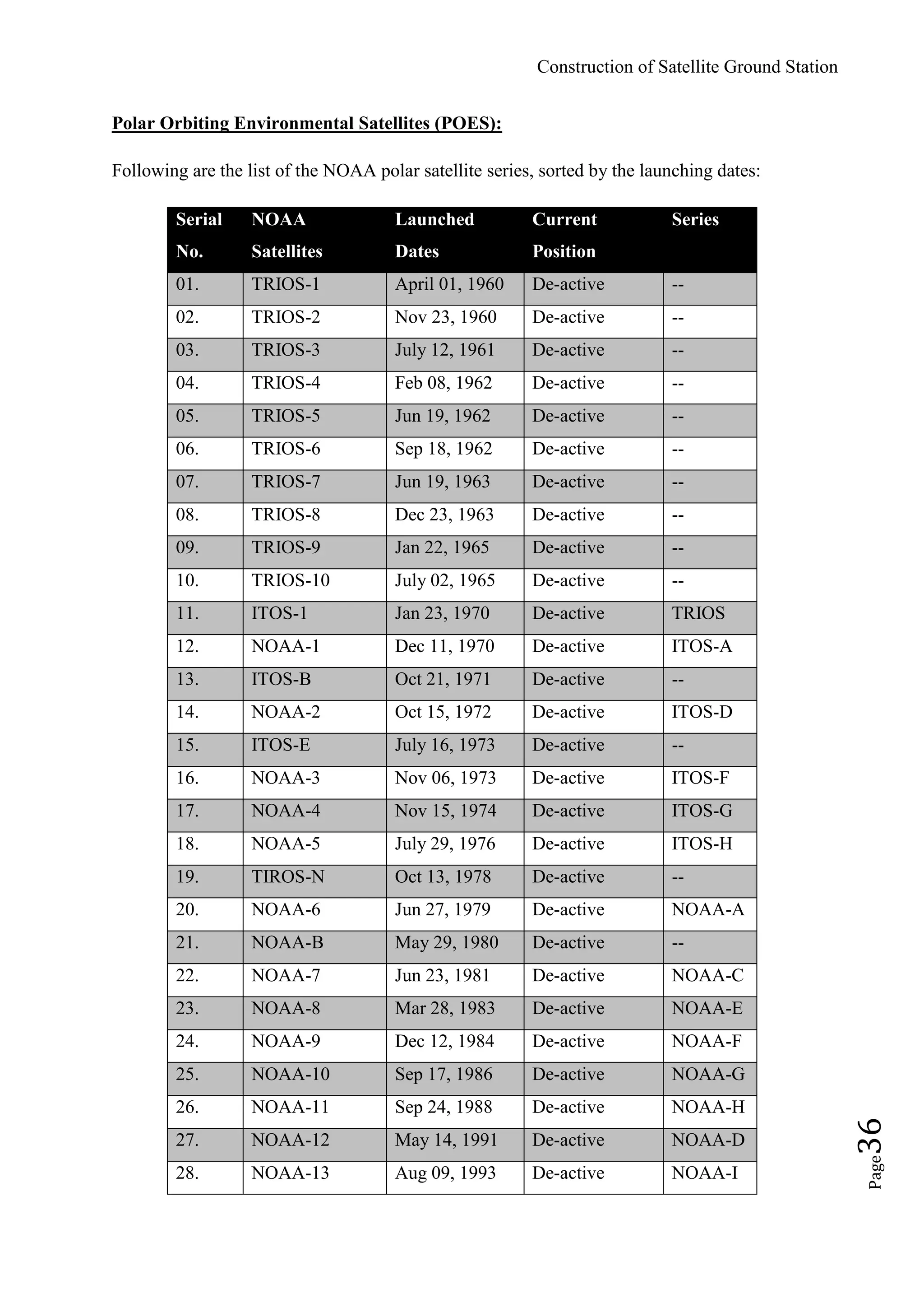

Polar Orbiting Environmental Satellites (POES):
Following are the list of the NOAA polar satellite series, sorted by the launching dates:
Serial
No.
NOAA
Satellites
Launched
Dates
Current
Position
Series
01. TRIOS-1 April 01, 1960 De-active --
02. TRIOS-2 Nov 23, 1960 De-active --
03. TRIOS-3 July 12, 1961 De-active --
04. TRIOS-4 Feb 08, 1962 De-active --
05. TRIOS-5 Jun 19, 1962 De-active --
06. TRIOS-6 Sep 18, 1962 De-active --
07. TRIOS-7 Jun 19, 1963 De-active --
08. TRIOS-8 Dec 23, 1963 De-active --
09. TRIOS-9 Jan 22, 1965 De-active --
10. TRIOS-10 July 02, 1965 De-active --
11. ITOS-1 Jan 23, 1970 De-active TRIOS
12. NOAA-1 Dec 11, 1970 De-active ITOS-A
13. ITOS-B Oct 21, 1971 De-active --
14. NOAA-2 Oct 15, 1972 De-active ITOS-D
15. ITOS-E July 16, 1973 De-active --
16. NOAA-3 Nov 06, 1973 De-active ITOS-F
17. NOAA-4 Nov 15, 1974 De-active ITOS-G
18. NOAA-5 July 29, 1976 De-active ITOS-H
19. TIROS-N Oct 13, 1978 De-active --
20. NOAA-6 Jun 27, 1979 De-active NOAA-A
21. NOAA-B May 29, 1980 De-active --
22. NOAA-7 Jun 23, 1981 De-active NOAA-C
23. NOAA-8 Mar 28, 1983 De-active NOAA-E
24. NOAA-9 Dec 12, 1984 De-active NOAA-F
25. NOAA-10 Sep 17, 1986 De-active NOAA-G
26. NOAA-11 Sep 24, 1988 De-active NOAA-H
27. NOAA-12 May 14, 1991 De-active NOAA-D
28. NOAA-13 Aug 09, 1993 De-active NOAA-I

Page37
29. NOAA-14 Dec 30, 1994 De-active NOAA-J
30. NOAA-15 May 13, 1998 Active NOAA-K
31. NOAA-16 Sep 21, 2000 Active NOAA-L
32. NOAA-17 Jun 24, 2002 De-active NOAA-M
33. NOAA-18 May 20, 2005 Active NOAA-N
34. NOAA-19 Feb 06, 2009 Active --
Table 05: NOAA list
Where,
TRIOS = Television and Infrared Observational Satellites
ITOS = Improved TRIOS Operational Satellites
TRIOS-N = TRIOS Next Generation
Orbital Properties
The orbital characteristics of the currently activated NOAA satellites are given below:
Serial
No.
NOAA
Satellites
Inclination
(Degrees)
Altitude
(km)
Time
Period
Operational
Status
Type
01. NOAA-15 98.5 807 101.1
min
AM
Secondary
Sun-
Synchronous
02. NOAA-16 99.0 849 102.1
min
PM
Secondary
Sun-
Synchronous
03. NOAA-18 98.74 845 102.12
min
PM
Secondary
Sun-
Synchronous
04. NOAA-19 98.7 870 102.14
min
PM Primary Sun-
Synchronous
Table 06: Orbital Properties of Currently Active Satellites

Page38

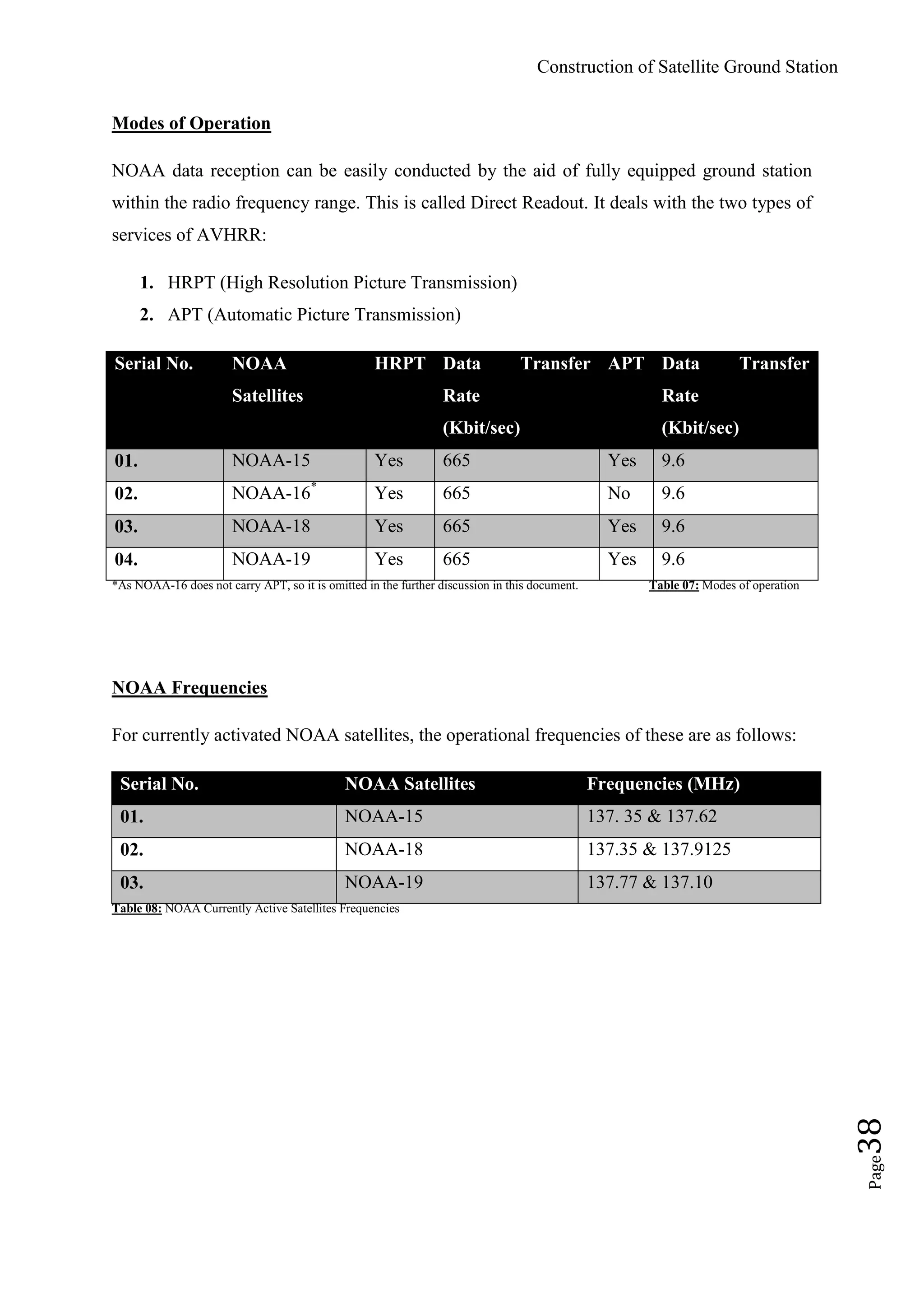

Modes of Operation
NOAA data reception can be easily conducted by the aid of fully equipped ground station
within the radio frequency range. This is called Direct Readout. It deals with the two types of
services of AVHRR:
1. HRPT (High Resolution Picture Transmission)
2. APT (Automatic Picture Transmission)
Serial No. NOAA
Satellites
HRPT Data Transfer
Rate
(Kbit/sec)
APT Data Transfer
Rate
(Kbit/sec)
01. NOAA-15 Yes 665 Yes 9.6
02. NOAA-16*
Yes 665 No 9.6
03. NOAA-18 Yes 665 Yes 9.6
04. NOAA-19 Yes 665 Yes 9.6
*As NOAA-16 does not carry APT, so it is omitted in the further discussion in this document. Table 07: Modes of operation
NOAA Frequencies
For currently activated NOAA satellites, the operational frequencies of these are as follows:
Serial No. NOAA Satellites Frequencies (MHz)
01. NOAA-15 137. 35 & 137.62
02. NOAA-18 137.35 & 137.9125
03. NOAA-19 137.77 & 137.10
Table 08: NOAA Currently Active Satellites Frequencies

Page39

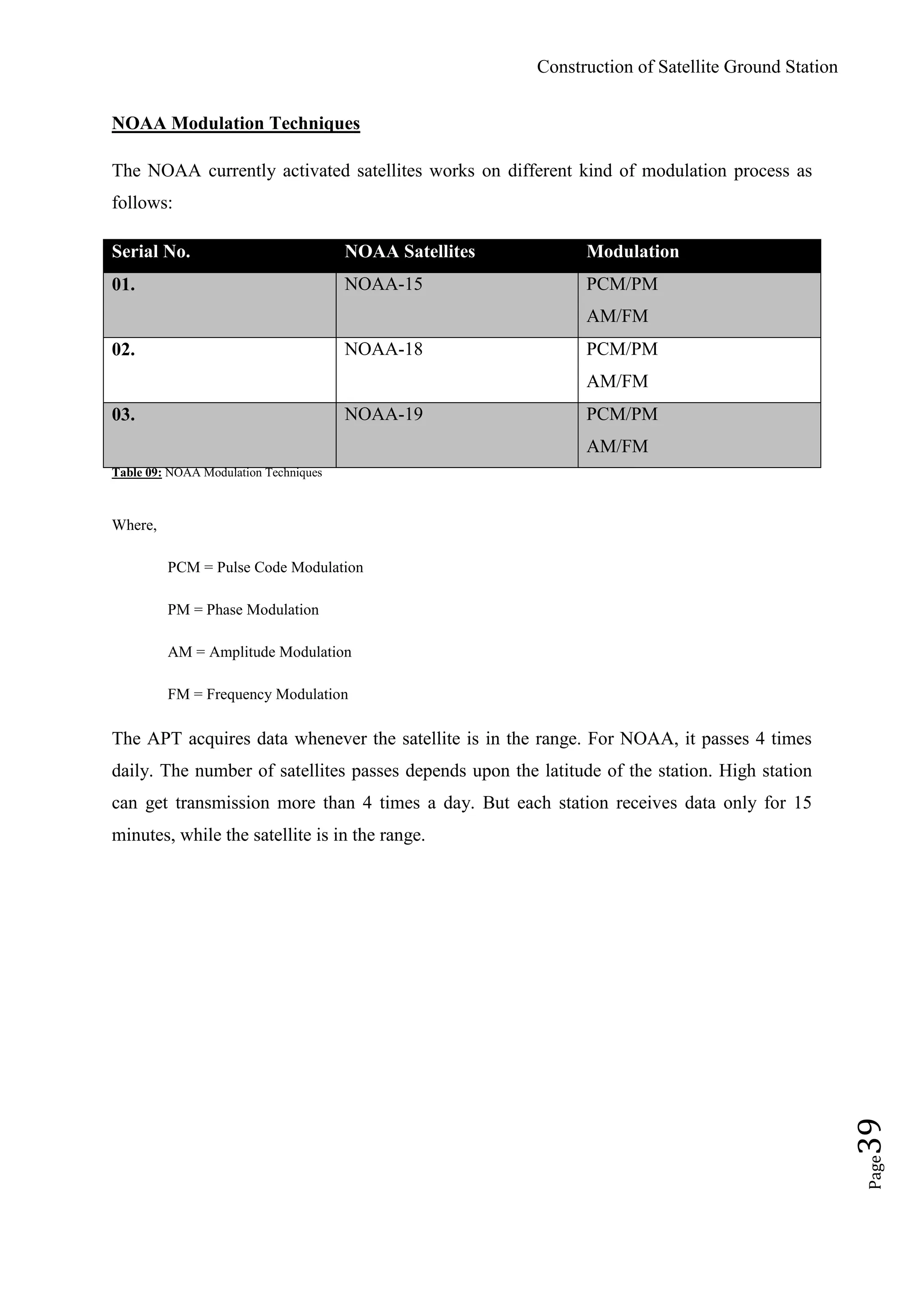

NOAA Modulation Techniques
The NOAA currently activated satellites works on different kind of modulation process as
follows:
Serial No. NOAA Satellites Modulation
01. NOAA-15 PCM/PM
AM/FM
02. NOAA-18 PCM/PM
AM/FM
03. NOAA-19 PCM/PM
AM/FM
Table 09: NOAA Modulation Techniques
Where,
PCM = Pulse Code Modulation
PM = Phase Modulation
AM = Amplitude Modulation
FM = Frequency Modulation
The APT acquires data whenever the satellite is in the range. For NOAA, it passes 4 times
daily. The number of satellites passes depends upon the latitude of the station. High station
can get transmission more than 4 times a day. But each station receives data only for 15
minutes, while the satellite is in the range.

Page40

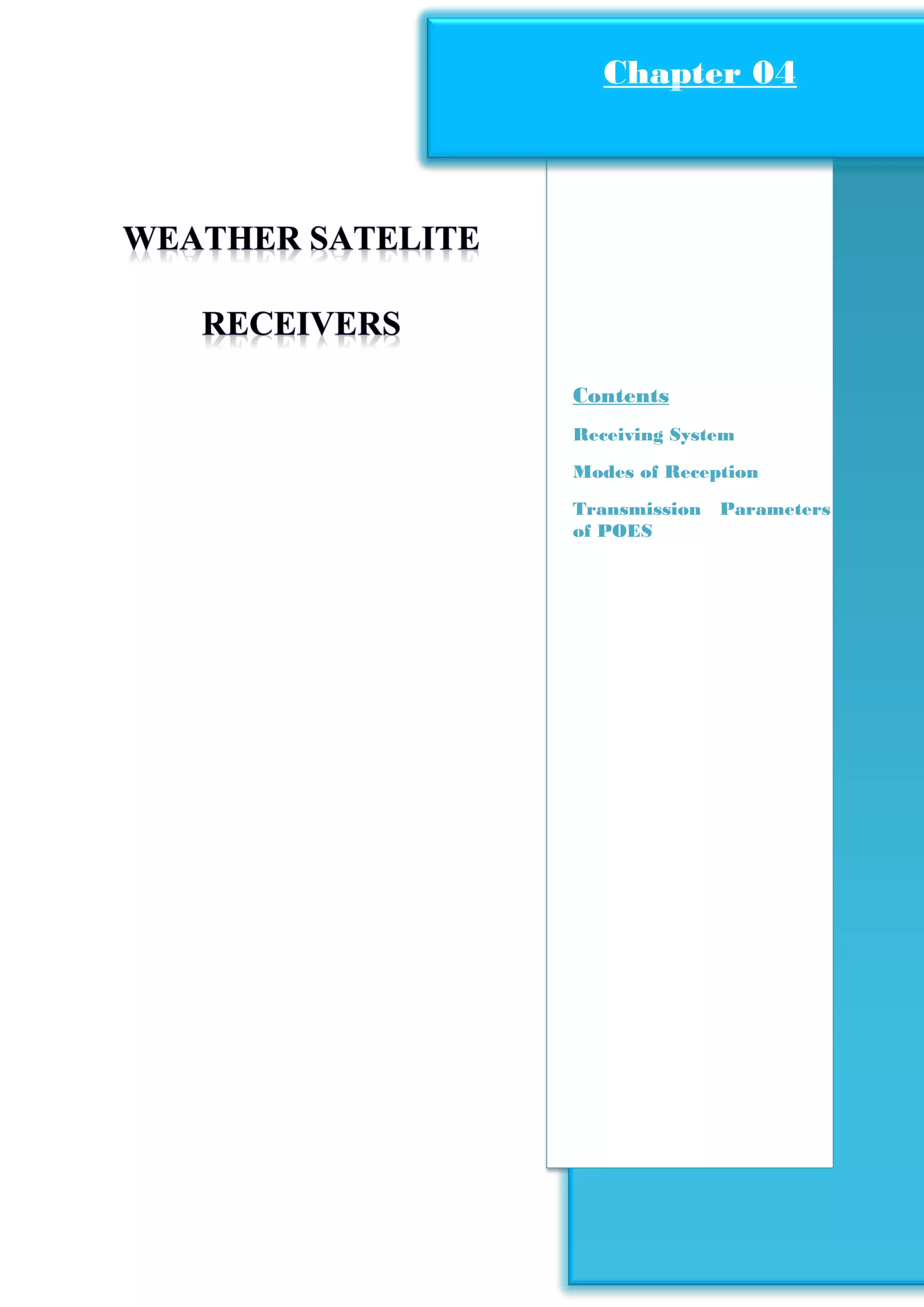

Contents
Receiving System
Modes of Reception
Transmission Parameters
of POES

Page41

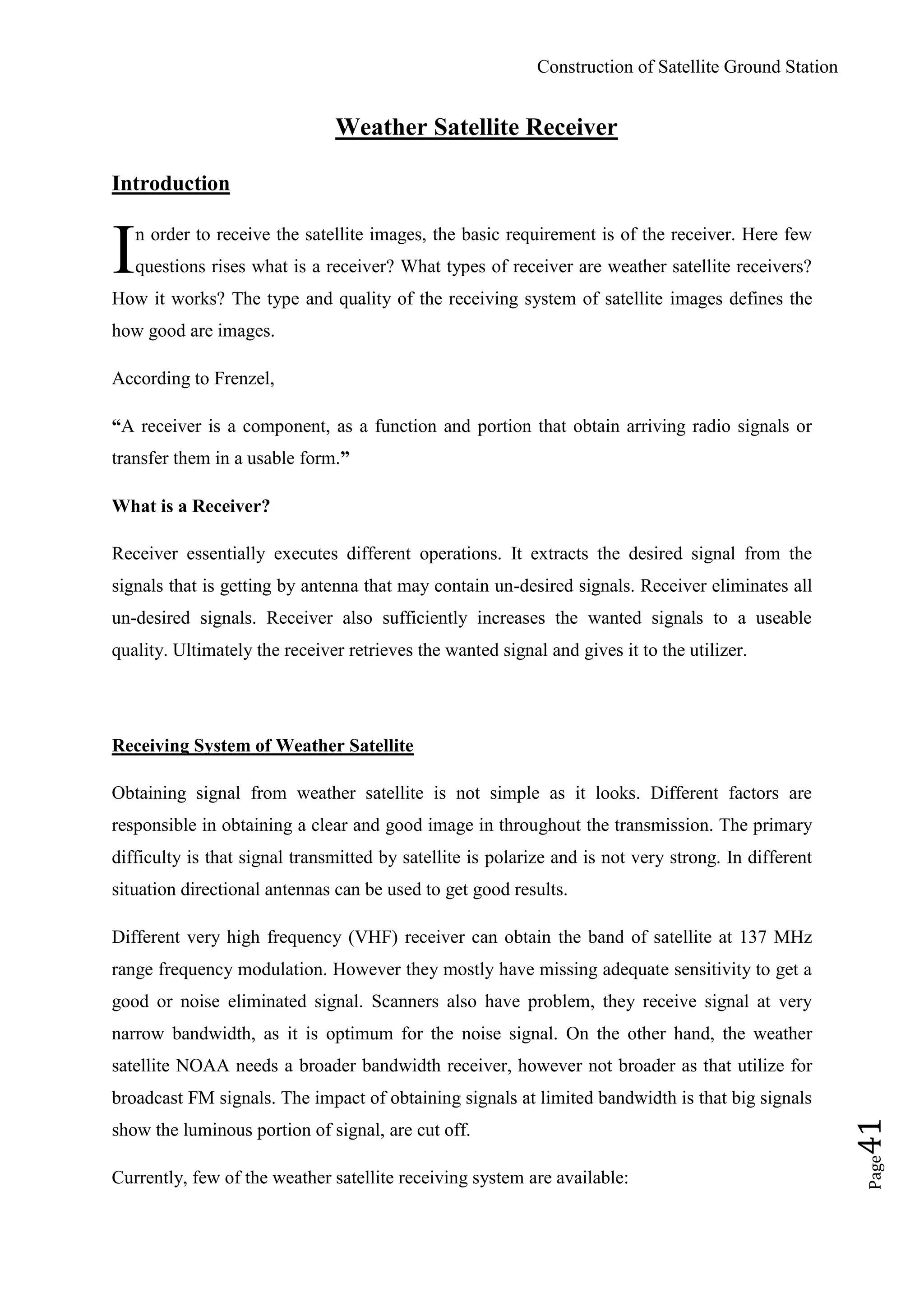

Weather Satellite Receiver
Introduction
n order to receive the satellite images, the basic requirement is of the receiver. Here few
questions rises what is a receiver? What types of receiver are weather satellite receivers?
How it works? The type and quality of the receiving system of satellite images defines the
how good are images.
According to Frenzel,
“A receiver is a component, as a function and portion that obtain arriving radio signals or
transfer them in a usable form.”
What is a Receiver?
Receiver essentially executes different operations. It extracts the desired signal from the
signals that is getting by antenna that may contain un-desired signals. Receiver eliminates all
un-desired signals. Receiver also sufficiently increases the wanted signals to a useable
quality. Ultimately the receiver retrieves the wanted signal and gives it to the utilizer.
Receiving System of Weather Satellite
Obtaining signal from weather satellite is not simple as it looks. Different factors are
responsible in obtaining a clear and good image in throughout the transmission. The primary
difficulty is that signal transmitted by satellite is polarize and is not very strong. In different
situation directional antennas can be used to get good results.
Different very high frequency (VHF) receiver can obtain the band of satellite at 137 MHz
range frequency modulation. However they mostly have missing adequate sensitivity to get a
good or noise eliminated signal. Scanners also have problem, they receive signal at very
narrow bandwidth, as it is optimum for the noise signal. On the other hand, the weather
satellite NOAA needs a broader bandwidth receiver, however not broader as that utilize for
broadcast FM signals. The impact of obtaining signals at limited bandwidth is that big signals
show the luminous portion of signal, are cut off.
Currently, few of the weather satellite receiving system are available:
I

Page42

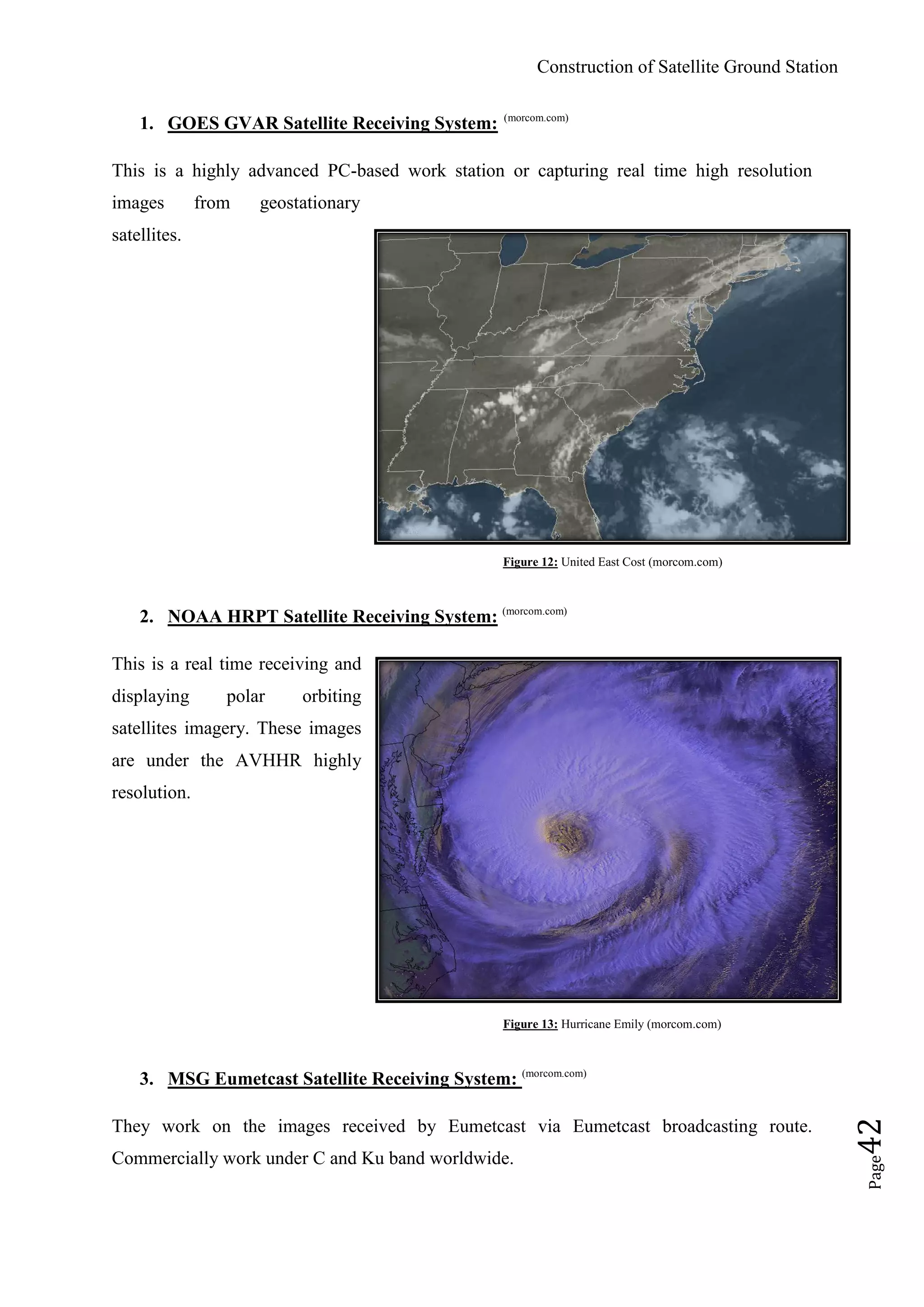

1. GOES GVAR Satellite Receiving System: (morcom.com)
This is a highly advanced PC-based work station or capturing real time high resolution
images from geostationary
satellites.
Figure 12: United East Cost (morcom.com)
2. NOAA HRPT Satellite Receiving System: (morcom.com)
This is a real time receiving and
displaying polar orbiting
satellites imagery. These images
are under the AVHHR highly
resolution.
Figure 13: Hurricane Emily (morcom.com)
3. MSG Eumetcast Satellite Receiving System: (morcom.com)
They work on the images received by Eumetcast via Eumetcast broadcasting route.
Commercially work under C and Ku band worldwide.

Page43
4. APT Satellite Receiving System:
This is an uncomplicated system work with low resolution images with low orbiting
satellites. These satellites are powerful enough that one can obtain images at 10 degree above
the horizon. It is a type FAX transmission mode by the aid of satellite. APT carries tow
sensors: visible and infrared. Images from this system are receivable by 137 MHz frequency
range antenna.

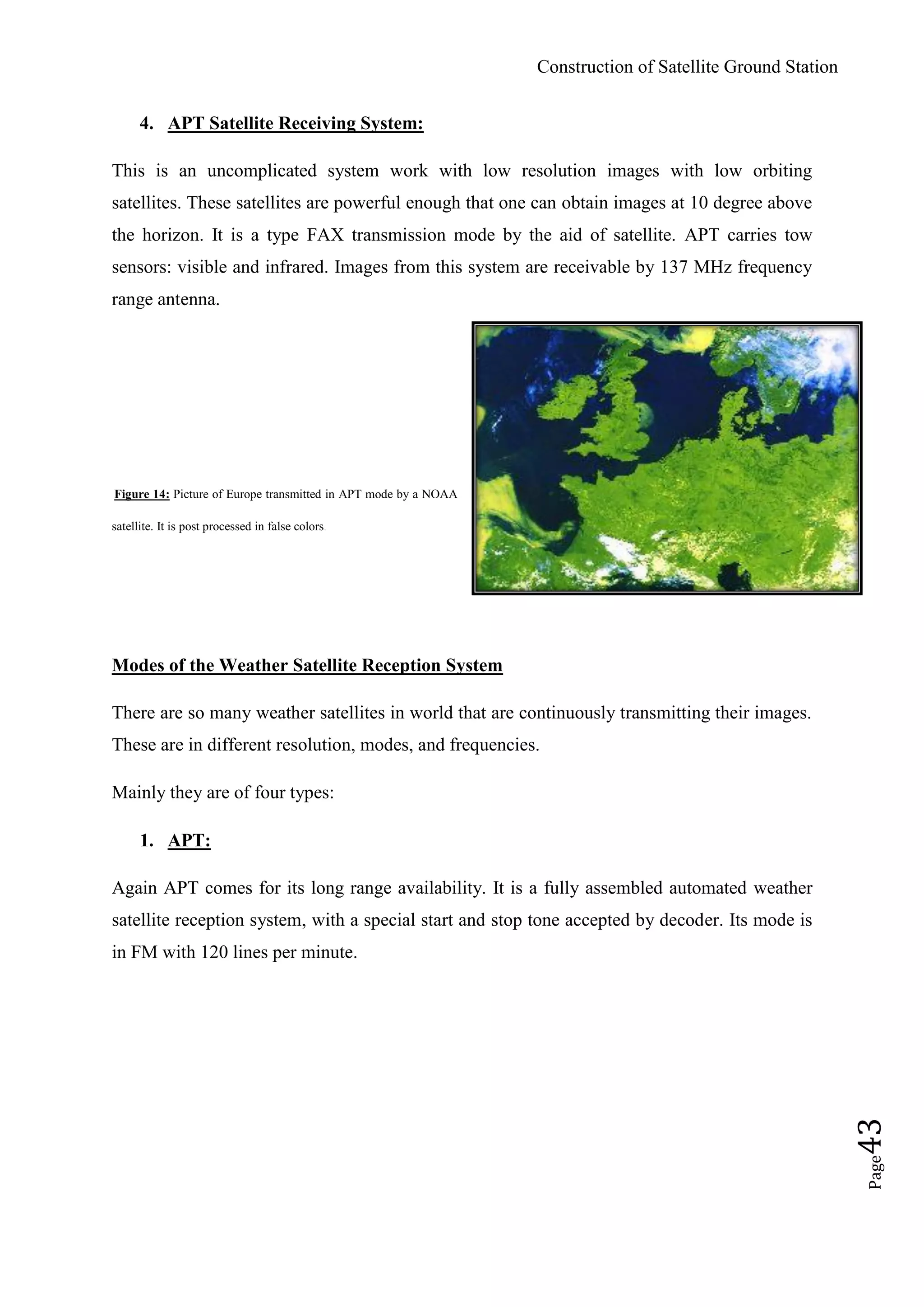

Figure 14: Picture of Europe transmitted in APT mode by a NOAA
satellite. It is post processed in false colors.
Modes of the Weather Satellite Reception System
There are so many weather satellites in world that are continuously transmitting their images.
These are in different resolution, modes, and frequencies.
Mainly they are of four types:
1. APT:
Again APT comes for its long range availability. It is a fully assembled automated weather
satellite reception system, with a special start and stop tone accepted by decoder. Its mode is
in FM with 120 lines per minute.

Page44

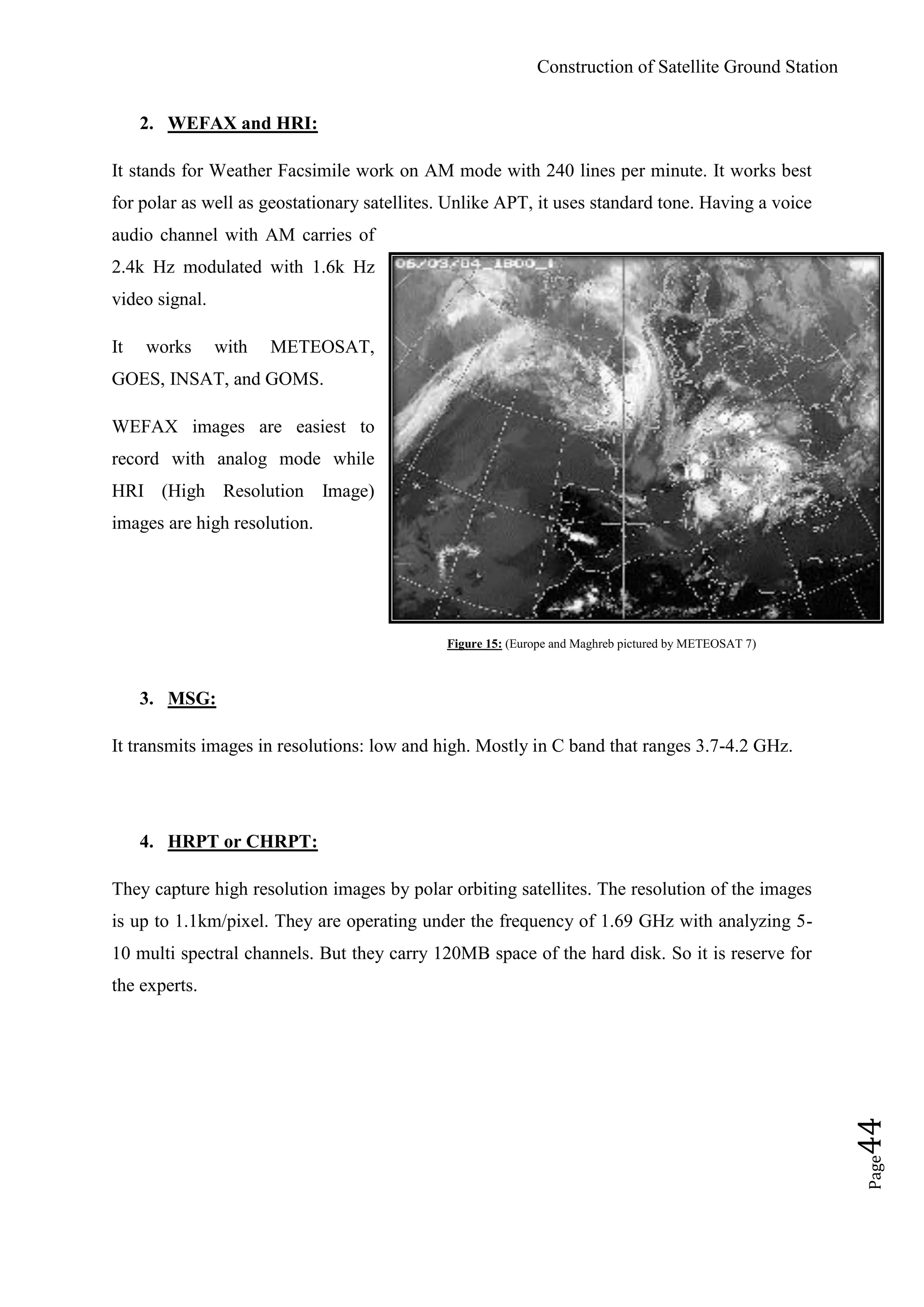

2. WEFAX and HRI:
It stands for Weather Facsimile work on AM mode with 240 lines per minute. It works best
for polar as well as geostationary satellites. Unlike APT, it uses standard tone. Having a voice
audio channel with AM carries of
2.4k Hz modulated with 1.6k Hz
video signal.
It works with METEOSAT,
GOES, INSAT, and GOMS.
WEFAX images are easiest to
record with analog mode while
HRI (High Resolution Image)
images are high resolution.
Figure 15: (Europe and Maghreb pictured by METEOSAT 7)
3. MSG:
It transmits images in resolutions: low and high. Mostly in C band that ranges 3.7-4.2 GHz.
4. HRPT or CHRPT:
They capture high resolution images by polar orbiting satellites. The resolution of the images
is up to 1.1km/pixel. They are operating under the frequency of 1.69 GHz with analyzing 5-
10 multi spectral channels. But they carry 120MB space of the hard disk. So it is reserve for
the experts.

Page45

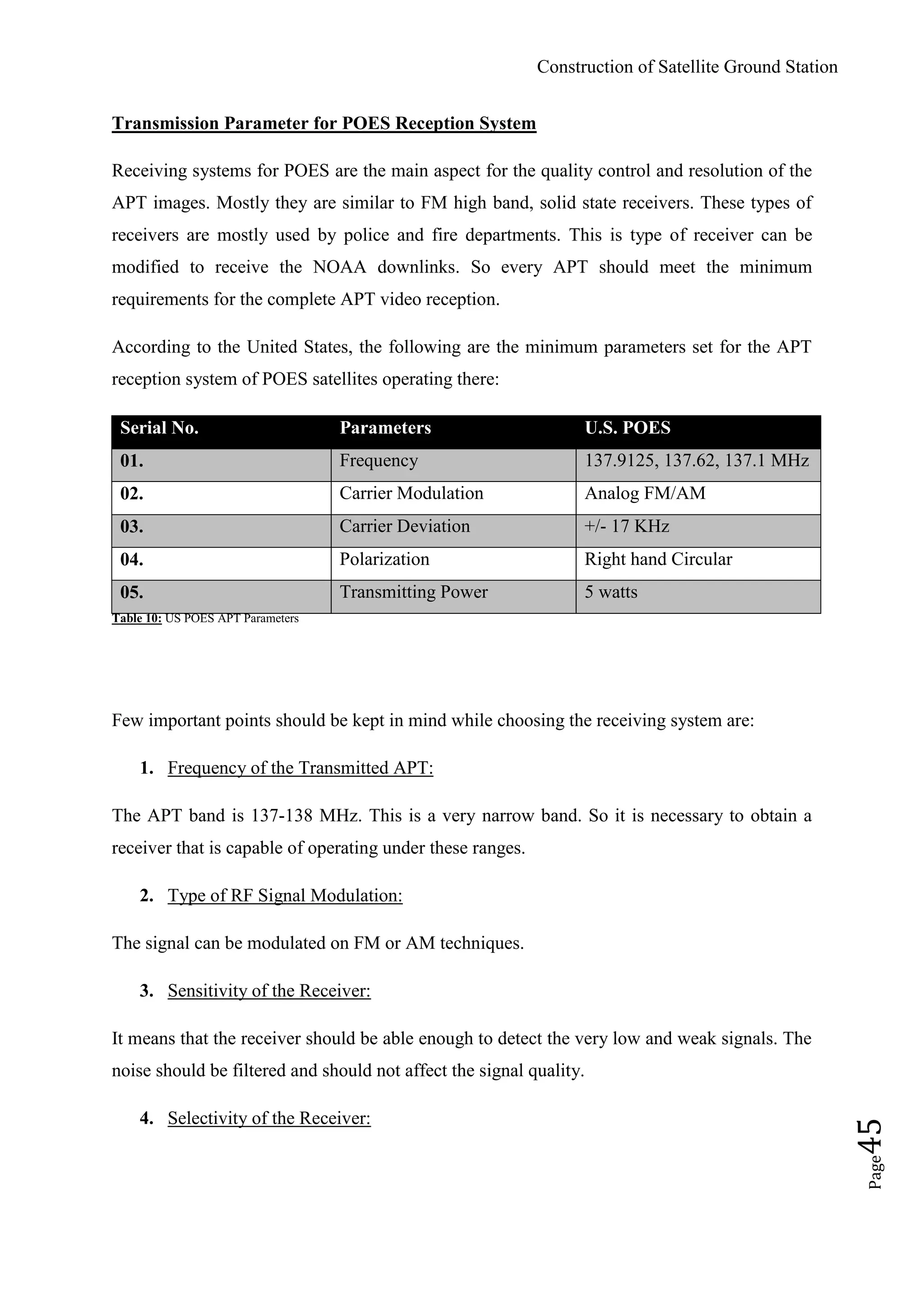

Transmission Parameter for POES Reception System
Receiving systems for POES are the main aspect for the quality control and resolution of the
APT images. Mostly they are similar to FM high band, solid state receivers. These types of
receivers are mostly used by police and fire departments. This is type of receiver can be
modified to receive the NOAA downlinks. So every APT should meet the minimum
requirements for the complete APT video reception.
According to the United States, the following are the minimum parameters set for the APT
reception system of POES satellites operating there:
Serial No. Parameters U.S. POES
01. Frequency 137.9125, 137.62, 137.1 MHz
02. Carrier Modulation Analog FM/AM
03. Carrier Deviation +/- 17 KHz
04. Polarization Right hand Circular
05. Transmitting Power 5 watts
Table 10: US POES APT Parameters
Few important points should be kept in mind while choosing the receiving system are:
1. Frequency of the Transmitted APT:
The APT band is 137-138 MHz. This is a very narrow band. So it is necessary to obtain a
receiver that is capable of operating under these ranges.
2. Type of RF Signal Modulation:
The signal can be modulated on FM or AM techniques.
3. Sensitivity of the Receiver:
It means that the receiver should be able enough to detect the very low and weak signals. The
noise should be filtered and should not affect the signal quality.
4. Selectivity of the Receiver:

Page46
It is the important area of transmitting signal. The receiver can be a radio receiver or a
scanner.
5. Bandwidth of the Transmitted Signal:
The bandwidth of the transmitting signal is effected by:
a. Satellite transmission deviation:
For ideal APT system, it could afford the deviation of +/- 20 KHz.
b. Doppler shift:
It causes the frequency shift as the satellite approaches and passes by. The ideal values for
APT are 40 KHz.

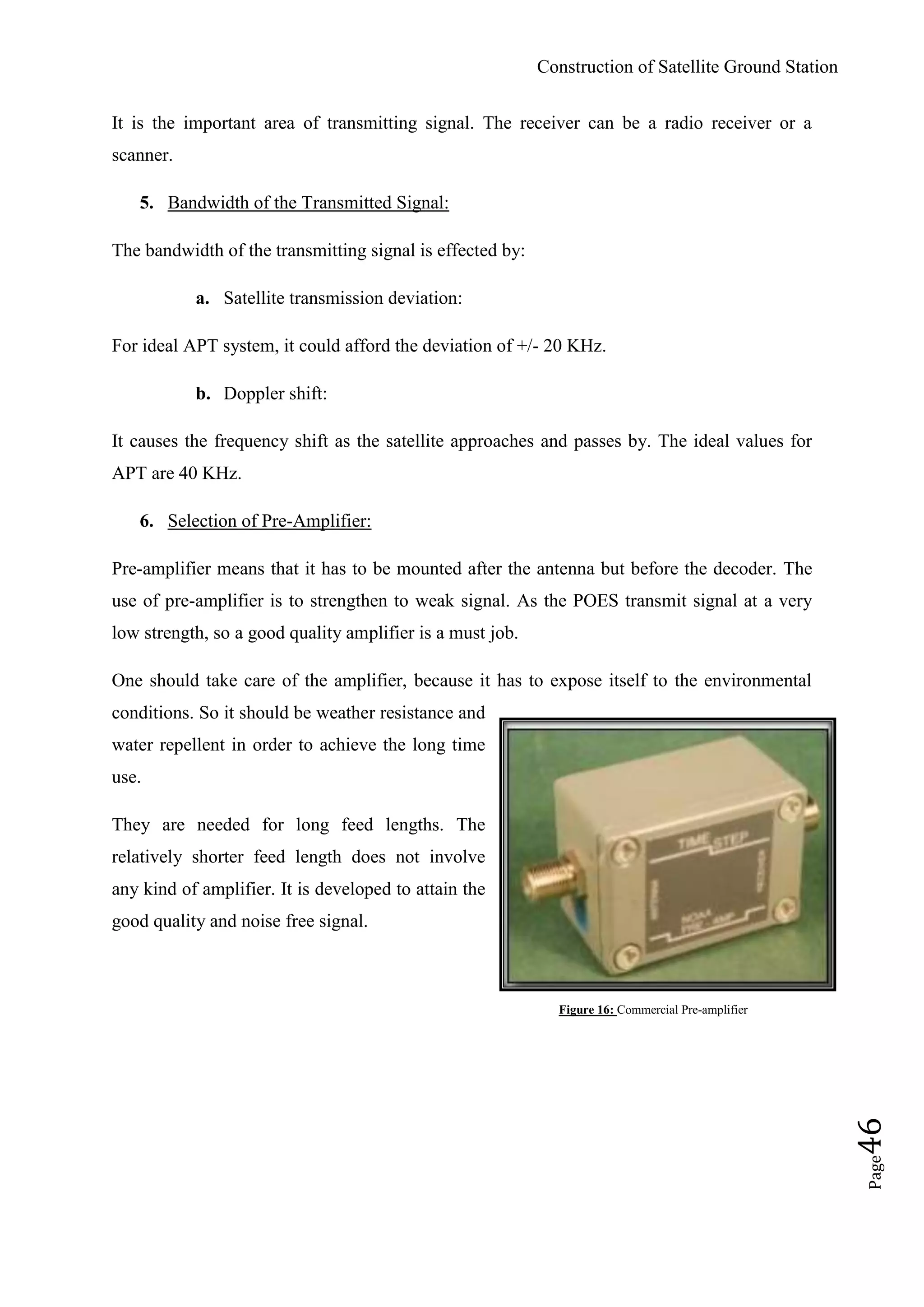

6. Selection of Pre-Amplifier:
Pre-amplifier means that it has to be mounted after the antenna but before the decoder. The
use of pre-amplifier is to strengthen to weak signal. As the POES transmit signal at a very
low strength, so a good quality amplifier is a must job.
One should take care of the amplifier, because it has to expose itself to the environmental
conditions. So it should be weather resistance and
water repellent in order to achieve the long time
use.
They are needed for long feed lengths. The
relatively shorter feed length does not involve
any kind of amplifier. It is developed to attain the
good quality and noise free signal.
Figure 16: Commercial Pre-amplifier

Page47
Contents
Introduction
Transmission Format
Requirements of Building
an APT Ground Station
Antenna
Receiver
Tacking Software
Decoder

Page48

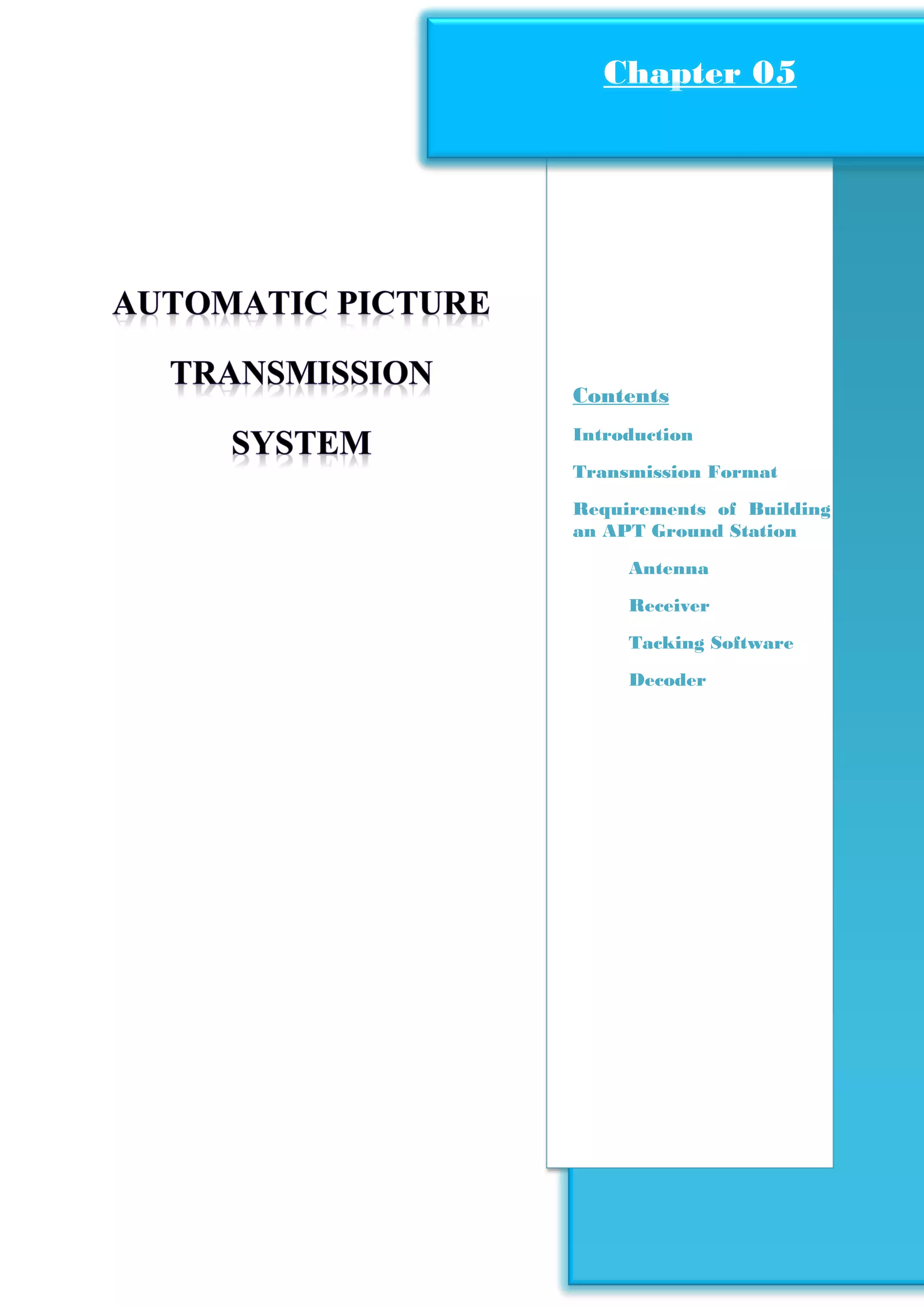

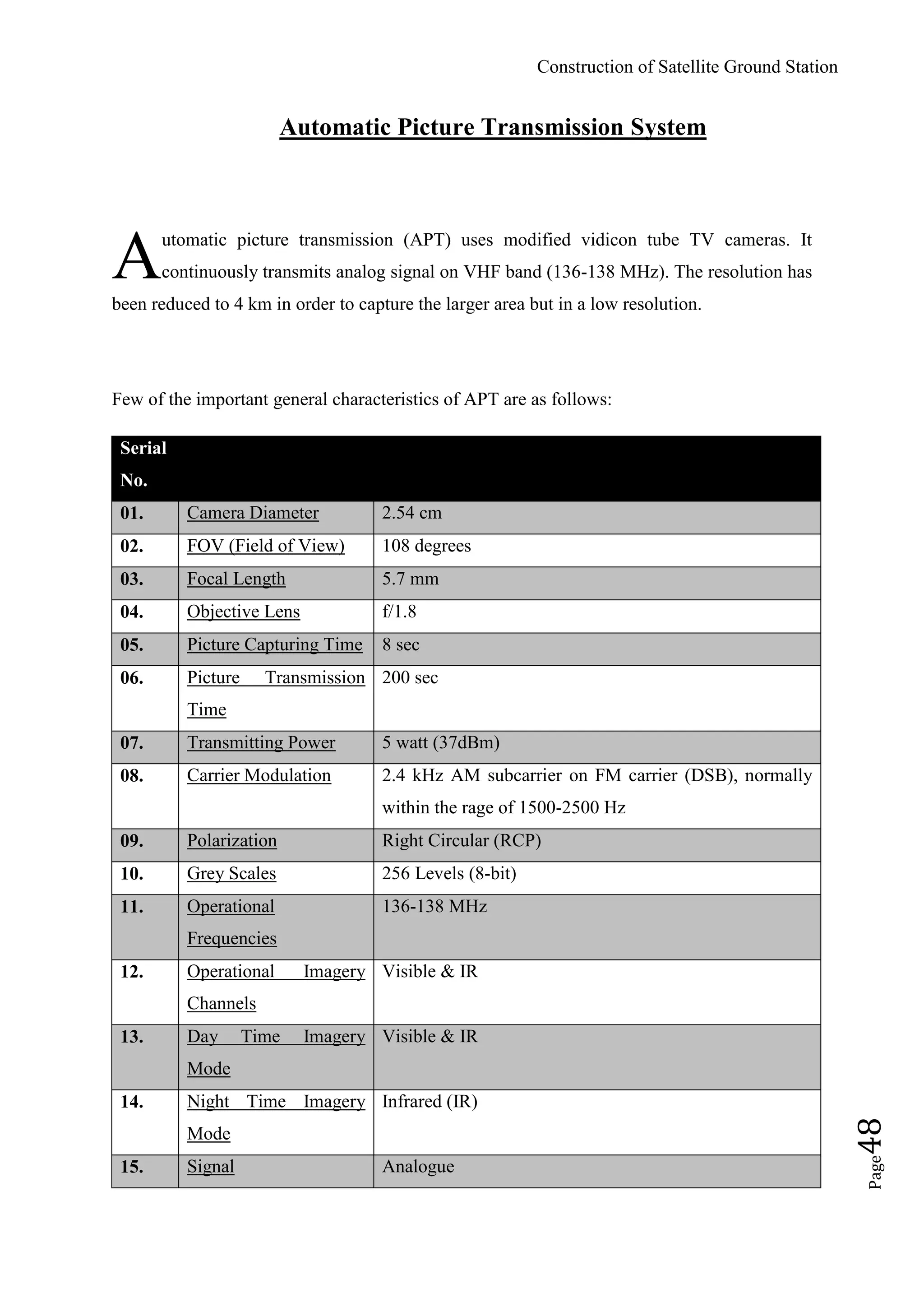

Automatic Picture Transmission System
utomatic picture transmission (APT) uses modified vidicon tube TV cameras. It
continuously transmits analog signal on VHF band (136-138 MHz). The resolution has
been reduced to 4 km in order to capture the larger area but in a low resolution.
Few of the important general characteristics of APT are as follows:
Serial
No.
01. Camera Diameter 2.54 cm
02. FOV (Field of View) 108 degrees
03. Focal Length 5.7 mm
04. Objective Lens f/1.8
05. Picture Capturing Time 8 sec
06. Picture Transmission
Time
200 sec
07. Transmitting Power 5 watt (37dBm)
08. Carrier Modulation 2.4 kHz AM subcarrier on FM carrier (DSB), normally
within the rage of 1500-2500 Hz
09. Polarization Right Circular (RCP)
10. Grey Scales 256 Levels (8-bit)
11. Operational
Frequencies
136-138 MHz
12. Operational Imagery
Channels
Visible & IR
13. Day Time Imagery
Mode
Visible & IR
14. Night Time Imagery
Mode
Infrared (IR)
15. Signal Analogue
A

Page49
16. Data Transfer Rate 120 lines per minute (lpm) or 2 lines/sec
17. Resolution 4km/pixel
Table 11: General Properties of APT
Considering the normal altitude of 700 km for APT system, the foot print of the satellite is all
about 1200 km * 1200 km having the nadir with 7.6 km of resolution.

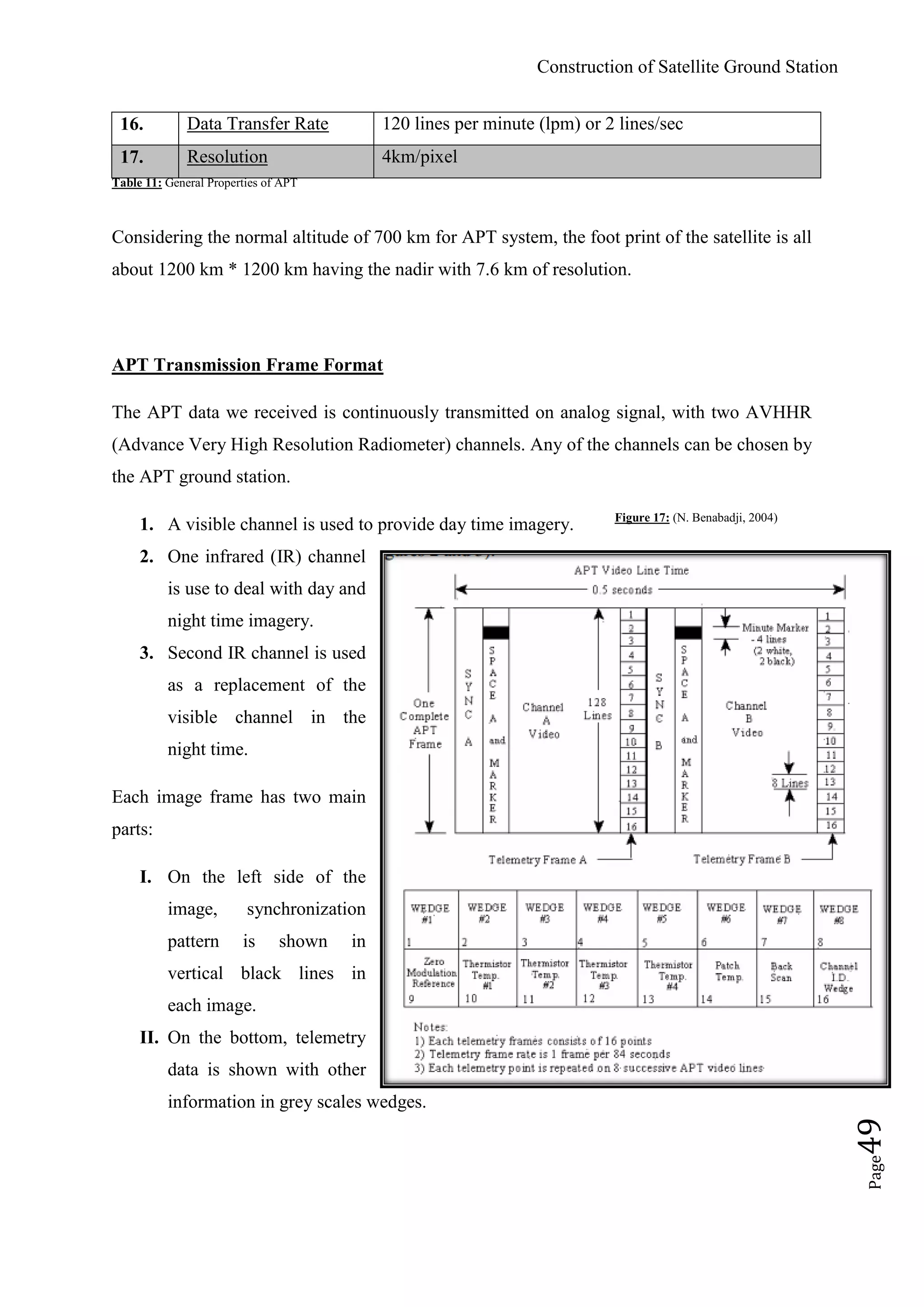

APT Transmission Frame Format
The APT data we received is continuously transmitted on analog signal, with two AVHHR
(Advance Very High Resolution Radiometer) channels. Any of the channels can be chosen by
the APT ground station.
1. A visible channel is used to provide day time imagery. Figure 17: (N. Benabadji, 2004)
2. One infrared (IR) channel
is use to deal with day and
night time imagery.
3. Second IR channel is used
as a replacement of the
visible channel in the
night time.
Each image frame has two main
parts:
I. On the left side of the
image, synchronization
pattern is shown in
vertical black lines in
each image.
II. On the bottom, telemetry
data is shown with other
information in grey scales wedges.

Page50

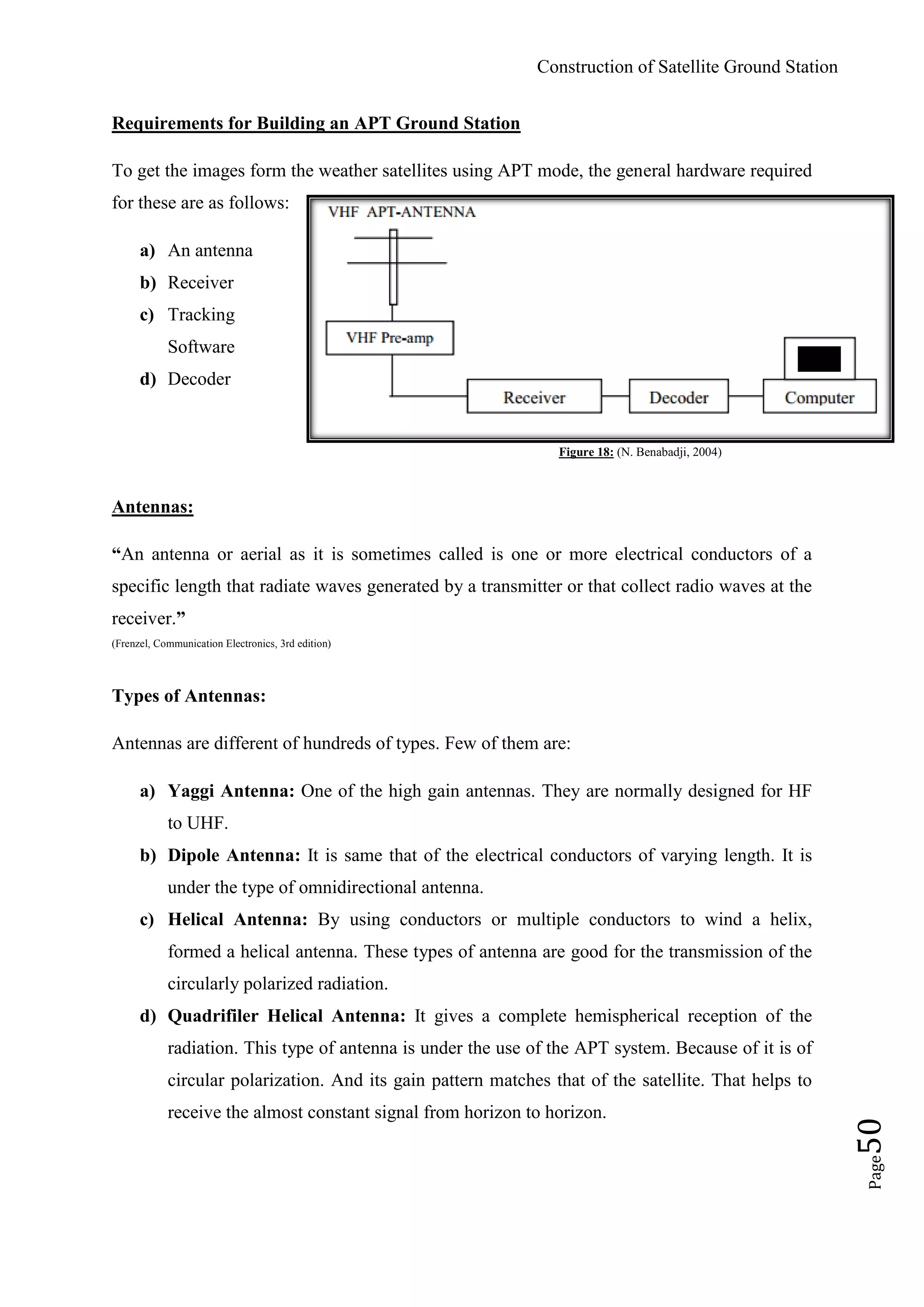

Requirements for Building an APT Ground Station
To get the images form the weather satellites using APT mode, the general hardware required
for these are as follows:
a) An antenna
b) Receiver
c) Tracking
Software
d) Decoder
Figure 18: (N. Benabadji, 2004)
Antennas:
“An antenna or aerial as it is sometimes called is one or more electrical conductors of a
specific length that radiate waves generated by a transmitter or that collect radio waves at the
receiver.”
(Frenzel, Communication Electronics, 3rd edition)
Types of Antennas:
Antennas are different of hundreds of types. Few of them are:
a) Yaggi Antenna: One of the high gain antennas. They are normally designed for HF
to UHF.
b) Dipole Antenna: It is same that of the electrical conductors of varying length. It is
under the type of omnidirectional antenna.
c) Helical Antenna: By using conductors or multiple conductors to wind a helix,
formed a helical antenna. These types of antenna are good for the transmission of the
circularly polarized radiation.
d) Quadrifiler Helical Antenna: It gives a complete hemispherical reception of the
radiation. This type of antenna is under the use of the APT system. Because of it is of
circular polarization. And its gain pattern matches that of the satellite. That helps to
receive the almost constant signal from horizon to horizon.

Page51

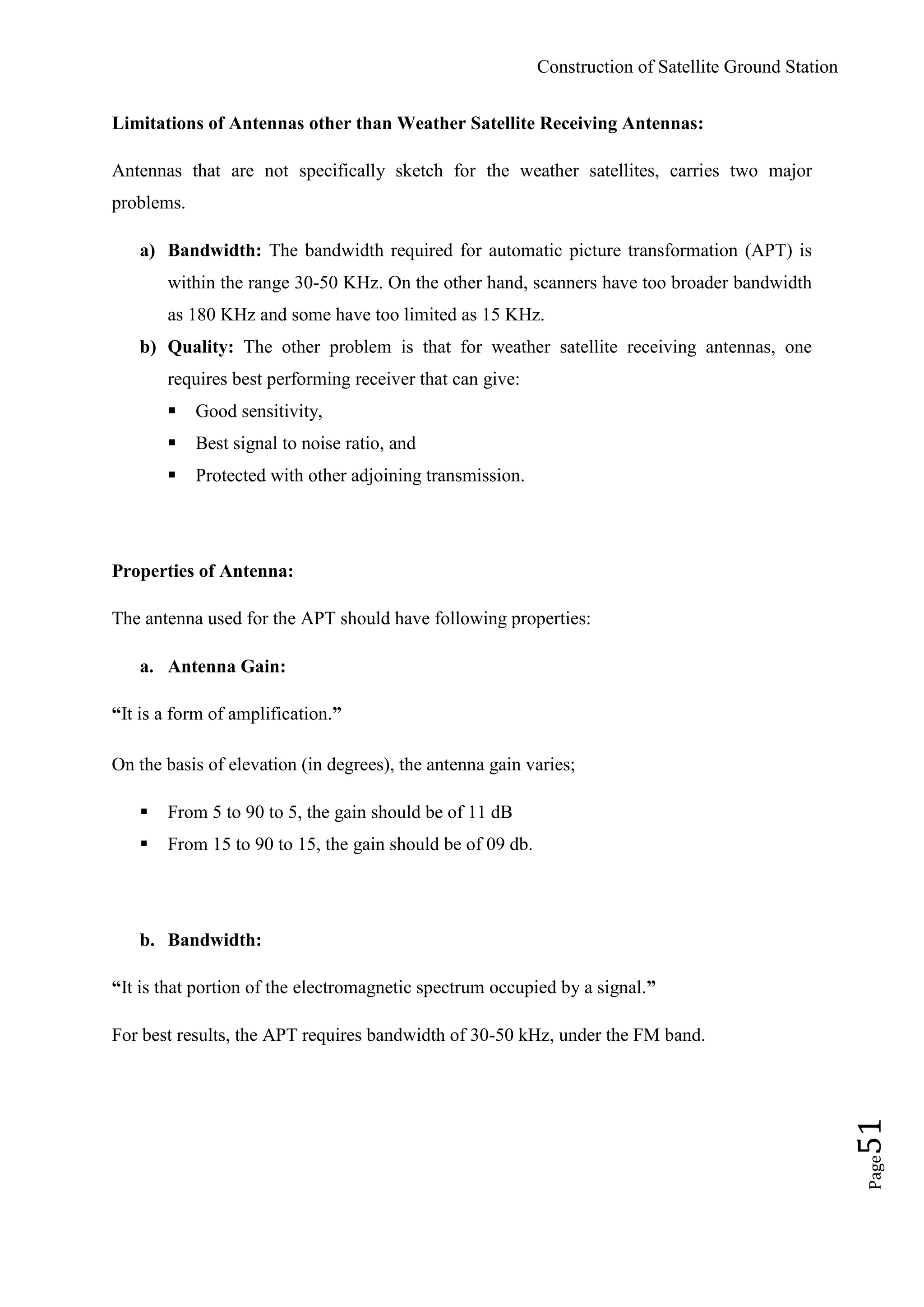

Limitations of Antennas other than Weather Satellite Receiving Antennas:
Antennas that are not specifically sketch for the weather satellites, carries two major
problems.
a) Bandwidth: The bandwidth required for automatic picture transformation (APT) is
within the range 30-50 KHz. On the other hand, scanners have too broader bandwidth
as 180 KHz and some have too limited as 15 KHz.
b) Quality: The other problem is that for weather satellite receiving antennas, one
requires best performing receiver that can give:
 Good sensitivity,
 Best signal to noise ratio, and
 Protected with other adjoining transmission.
Properties of Antenna:
The antenna used for the APT should have following properties:
a. Antenna Gain:
“It is a form of amplification.”
On the basis of elevation (in degrees), the antenna gain varies;
 From 5 to 90 to 5, the gain should be of 11 dB
 From 15 to 90 to 15, the gain should be of 09 db.
b. Bandwidth:
“It is that portion of the electromagnetic spectrum occupied by a signal.”
For best results, the APT requires bandwidth of 30-50 kHz, under the FM band.

Page52

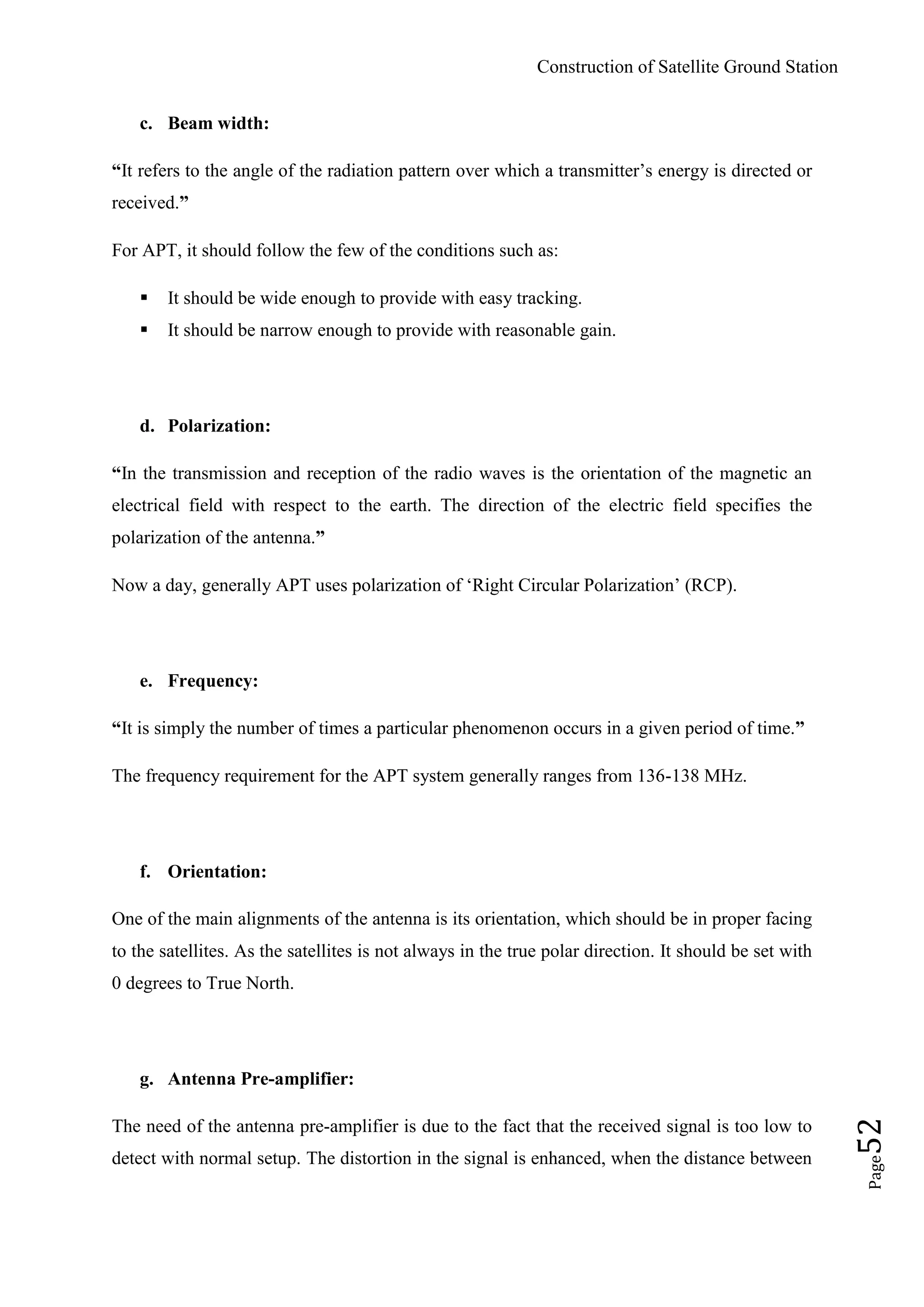

c. Beam width:
“It refers to the angle of the radiation pattern over which a transmitter‟s energy is directed or
received.”
For APT, it should follow the few of the conditions such as:
 It should be wide enough to provide with easy tracking.
 It should be narrow enough to provide with reasonable gain.
d. Polarization:
“In the transmission and reception of the radio waves is the orientation of the magnetic an
electrical field with respect to the earth. The direction of the electric field specifies the
polarization of the antenna.”
Now a day, generally APT uses polarization of „Right Circular Polarization‟ (RCP).
e. Frequency:
“It is simply the number of times a particular phenomenon occurs in a given period of time.”
The frequency requirement for the APT system generally ranges from 136-138 MHz.
f. Orientation:
One of the main alignments of the antenna is its orientation, which should be in proper facing
to the satellites. As the satellites is not always in the true polar direction. It should be set with
0 degrees to True North.
g. Antenna Pre-amplifier:
The need of the antenna pre-amplifier is due to the fact that the received signal is too low to
detect with normal setup. The distortion in the signal is enhanced, when the distance between

Page53
antenna and receiver increased. To overcome this problem, a pre-amplifier is used. Its main
theme is to amplify the signal up to a detectable level.
Receiver:
“A receiver is a component, as a function and portion that obtain arriving radio signals or
transfer them in a usable form.”
For the operation of the APT to work properly, the receiver of a good quality is required. It is
the most important part of the APT ground station. It should carry few of the properties:
 Noise-free
 Equipped with AFC (Automatic Frequency Control)
 And AGC (Automatic Gain Control)
 Signal strength meter for tracking purpose
Few of the weather satellites receivers are
given below:
a) WeSaCom APT-06
This is computerized system arranged with the
high-Q helical filters.
Figure 19: WeSaCom (APT-06)
b) R2FX/R2ZX/R2FU
This is along with strong R2ZX/R2FU
filtering process and controlled by computer.
Figure 20: R2FX

Page54

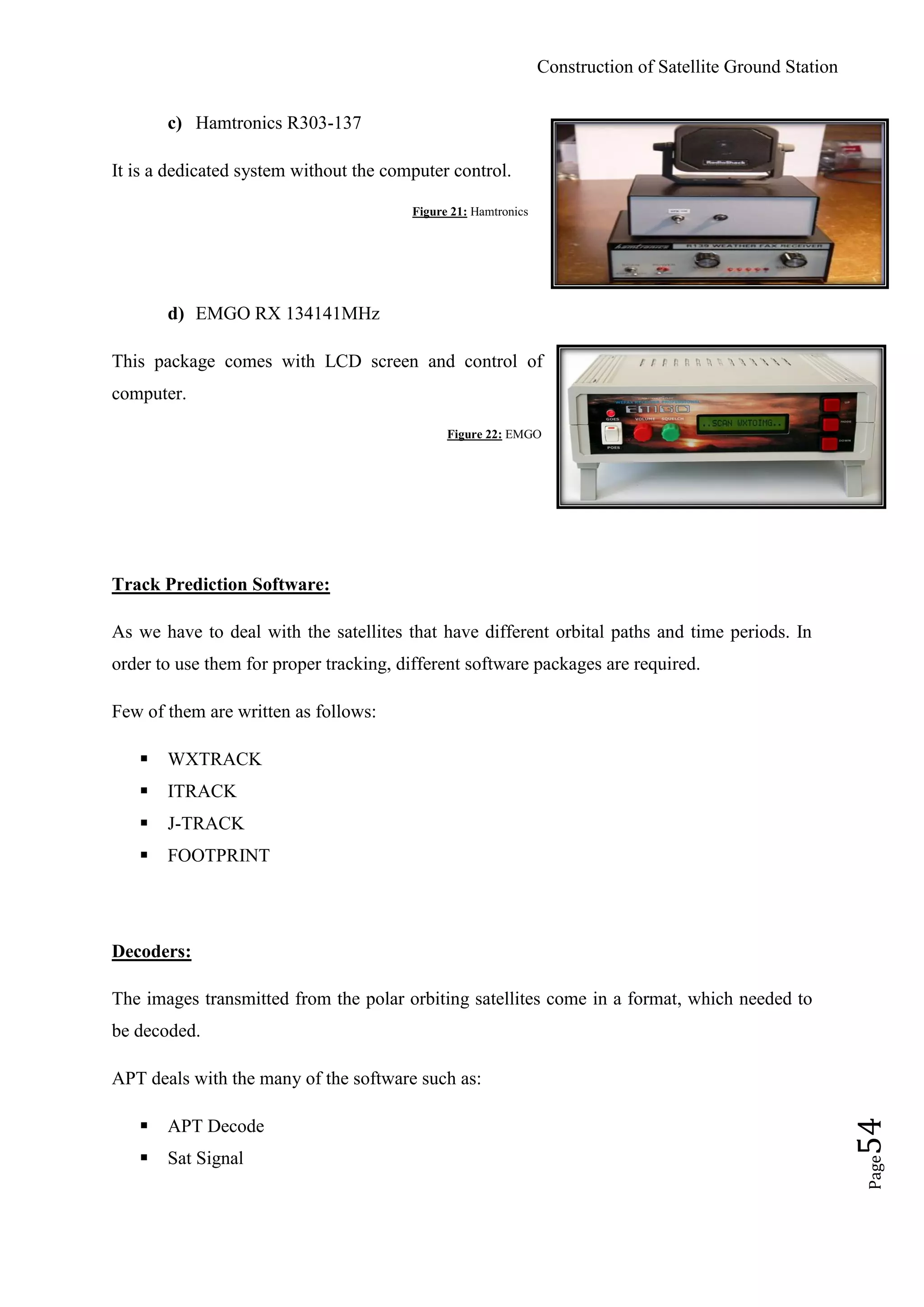

c) Hamtronics R303-137
It is a dedicated system without the computer control.
Figure 21: Hamtronics
d) EMGO RX 134141MHz
This package comes with LCD screen and control of
computer.
Figure 22: EMGO
Track Prediction Software:
As we have to deal with the satellites that have different orbital paths and time periods. In
order to use them for proper tracking, different software packages are required.
Few of them are written as follows:
 WXTRACK
 ITRACK
 J-TRACK
 FOOTPRINT
Decoders:
The images transmitted from the polar orbiting satellites come in a format, which needed to
be decoded.
APT deals with the many of the software such as:
 APT Decode
 Sat Signal

Page55
Contents
Introduction
Omni-directional Antennas
Directional Antennas
Cross Antennas
Double Cross Antennas
Construction of Antenna
Calculation of Dipole
Rod Length

Page56

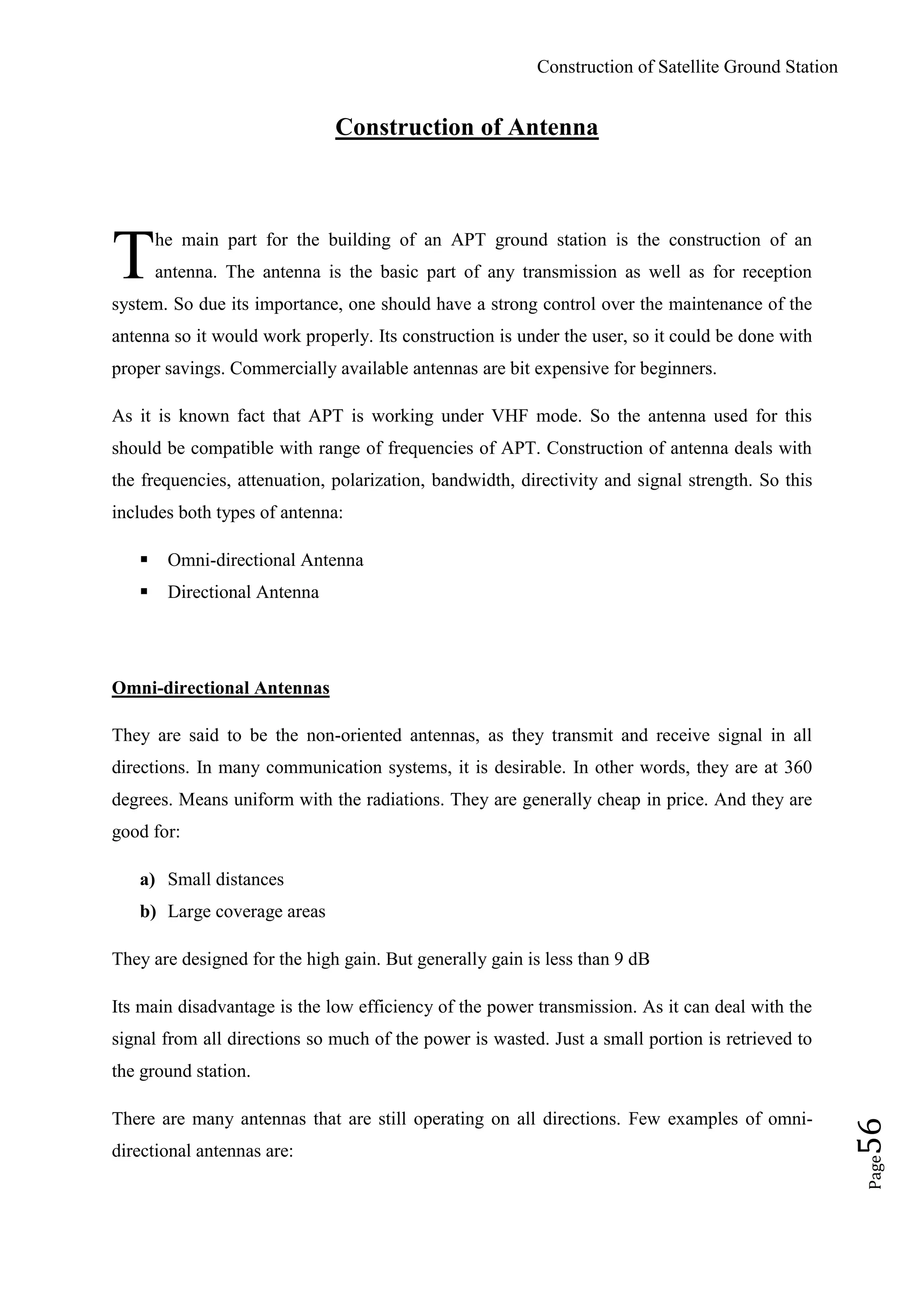

Construction of Antenna
he main part for the building of an APT ground station is the construction of an
antenna. The antenna is the basic part of any transmission as well as for reception
system. So due its importance, one should have a strong control over the maintenance of the
antenna so it would work properly. Its construction is under the user, so it could be done with
proper savings. Commercially available antennas are bit expensive for beginners.
As it is known fact that APT is working under VHF mode. So the antenna used for this
should be compatible with range of frequencies of APT. Construction of antenna deals with
the frequencies, attenuation, polarization, bandwidth, directivity and signal strength. So this
includes both types of antenna:
 Omni-directional Antenna
 Directional Antenna
Omni-directional Antennas
They are said to be the non-oriented antennas, as they transmit and receive signal in all
directions. In many communication systems, it is desirable. In other words, they are at 360
degrees. Means uniform with the radiations. They are generally cheap in price. And they are
good for:
a) Small distances
b) Large coverage areas
They are designed for the high gain. But generally gain is less than 9 dB
Its main disadvantage is the low efficiency of the power transmission. As it can deal with the
signal from all directions so much of the power is wasted. Just a small portion is retrieved to
the ground station.
There are many antennas that are still operating on all directions. Few examples of omni-
directional antennas are:
T

Page57

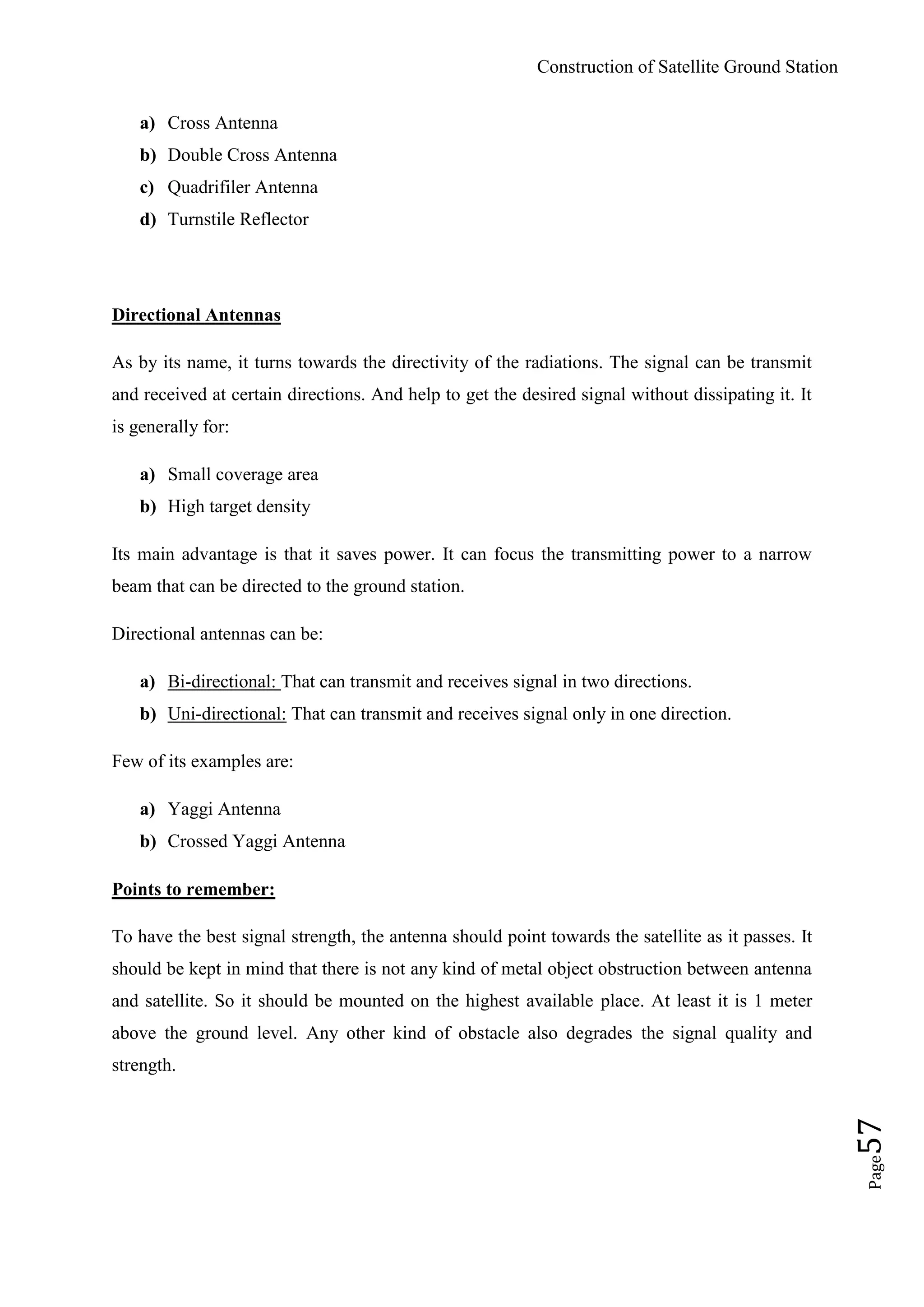

a) Cross Antenna
b) Double Cross Antenna
c) Quadrifiler Antenna
d) Turnstile Reflector
Directional Antennas
As by its name, it turns towards the directivity of the radiations. The signal can be transmit
and received at certain directions. And help to get the desired signal without dissipating it. It
is generally for:
a) Small coverage area
b) High target density
Its main advantage is that it saves power. It can focus the transmitting power to a narrow
beam that can be directed to the ground station.
Directional antennas can be:
a) Bi-directional: That can transmit and receives signal in two directions.
b) Uni-directional: That can transmit and receives signal only in one direction.
Few of its examples are:
a) Yaggi Antenna
b) Crossed Yaggi Antenna
Points to remember:
To have the best signal strength, the antenna should point towards the satellite as it passes. It
should be kept in mind that there is not any kind of metal object obstruction between antenna
and satellite. So it should be mounted on the highest available place. At least it is 1 meter
above the ground level. Any other kind of obstacle also degrades the signal quality and
strength.

Page58

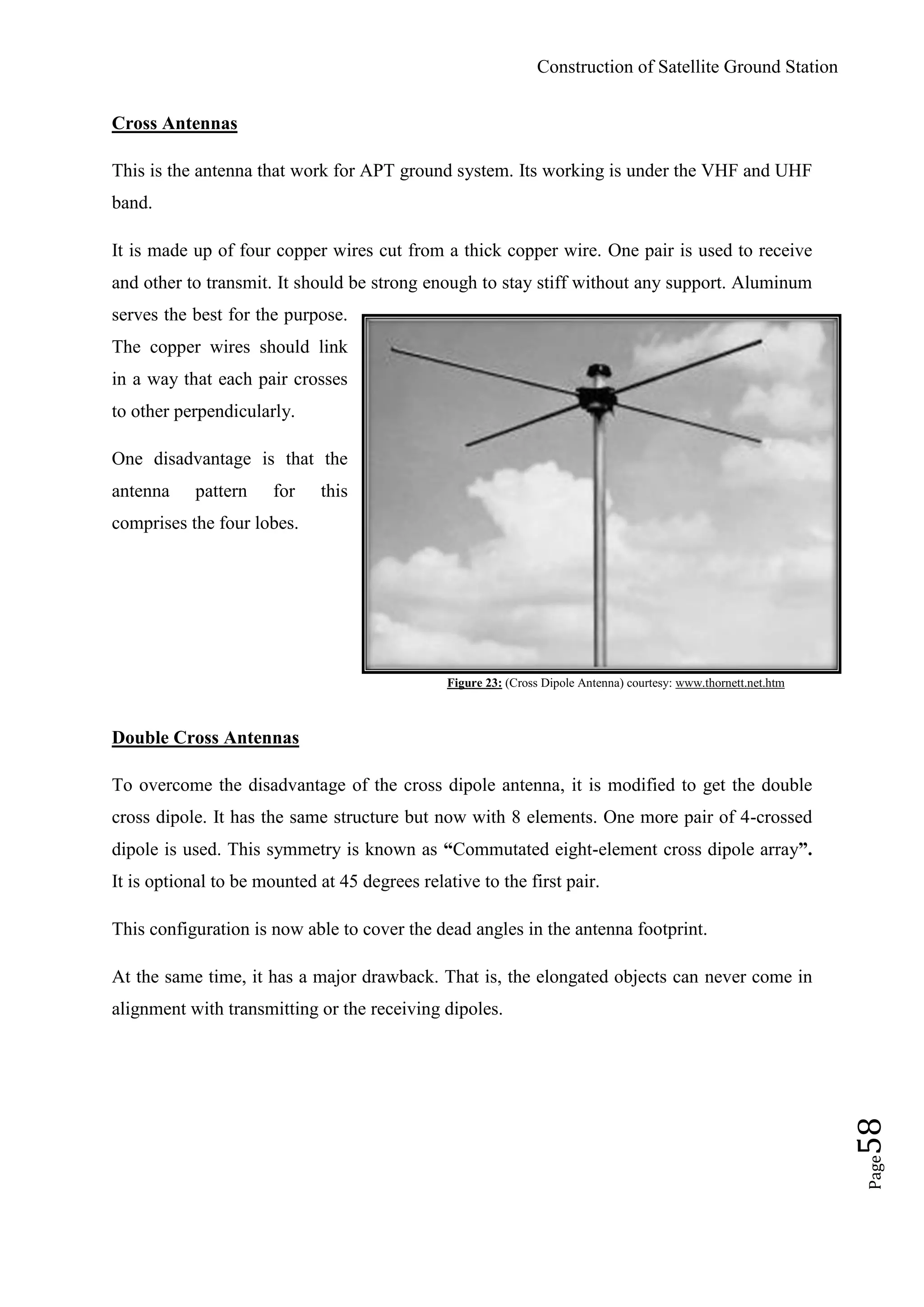

Cross Antennas
This is the antenna that work for APT ground system. Its working is under the VHF and UHF
band.
It is made up of four copper wires cut from a thick copper wire. One pair is used to receive
and other to transmit. It should be strong enough to stay stiff without any support. Aluminum
serves the best for the purpose.
The copper wires should link
in a way that each pair crosses
to other perpendicularly.
One disadvantage is that the
antenna pattern for this
comprises the four lobes.
Figure 23: (Cross Dipole Antenna) courtesy: www.thornett.net.htm
Double Cross Antennas
To overcome the disadvantage of the cross dipole antenna, it is modified to get the double
cross dipole. It has the same structure but now with 8 elements. One more pair of 4-crossed
dipole is used. This symmetry is known as “Commutated eight-element cross dipole array”.
It is optional to be mounted at 45 degrees relative to the first pair.
This configuration is now able to cover the dead angles in the antenna footprint.
At the same time, it has a major drawback. That is, the elongated objects can never come in
alignment with transmitting or the receiving dipoles.

Page59

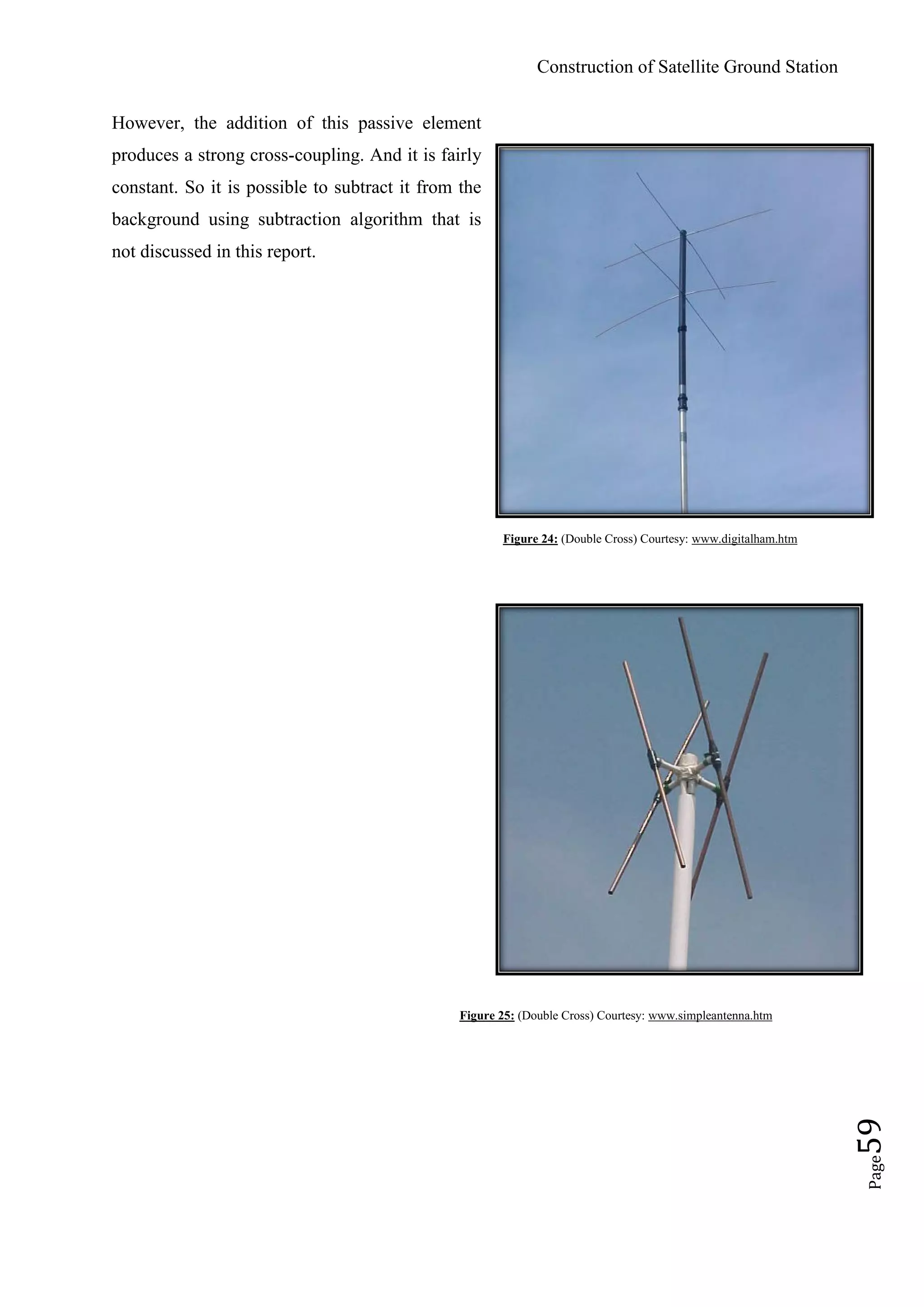

However, the addition of this passive element
produces a strong cross-coupling. And it is fairly
constant. So it is possible to subtract it from the
background using subtraction algorithm that is
not discussed in this report.
Figure 24: (Double Cross) Courtesy: www.digitalham.htm
Figure 25: (Double Cross) Courtesy: www.simpleantenna.htm

Page60

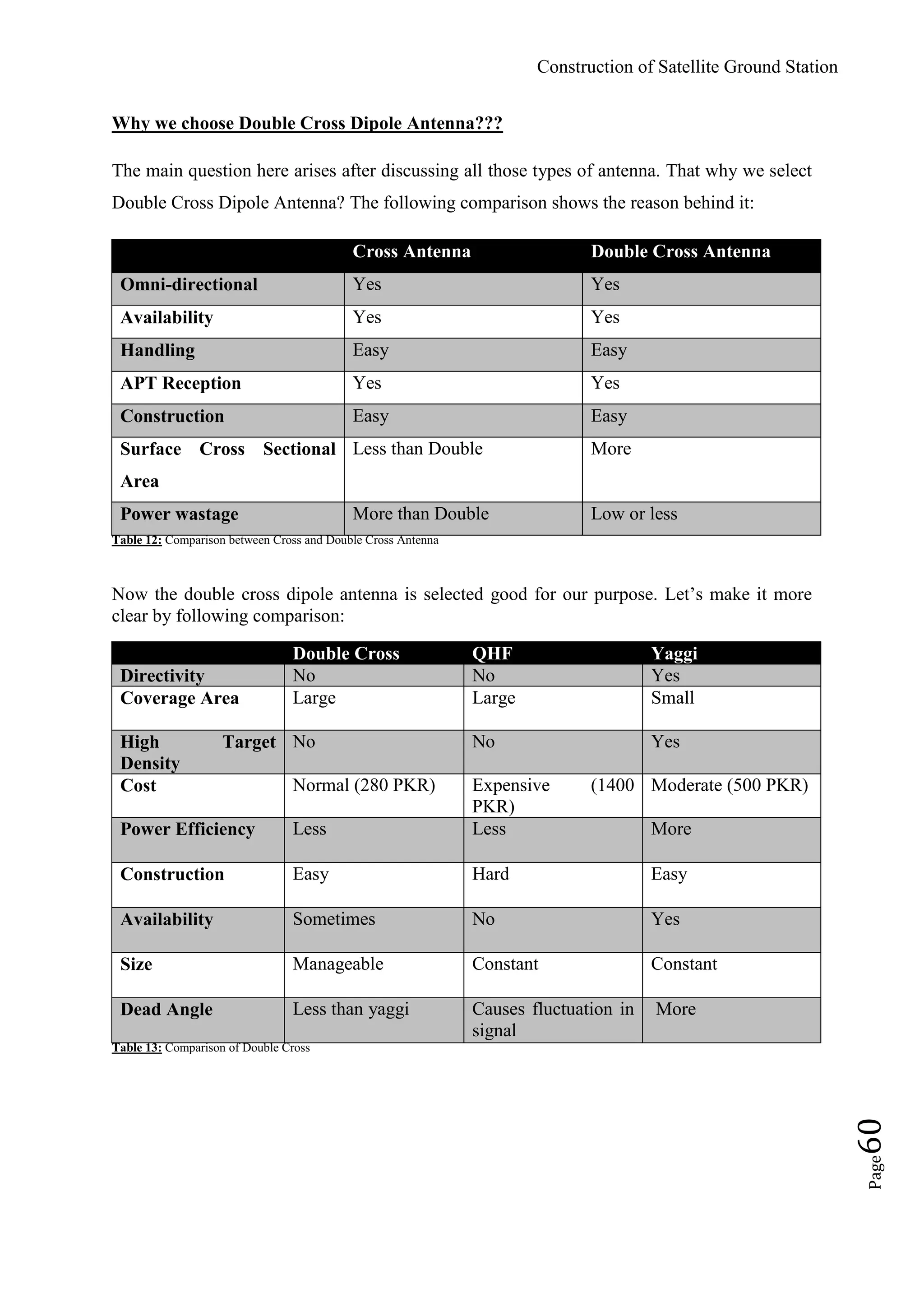

Why we choose Double Cross Dipole Antenna???
The main question here arises after discussing all those types of antenna. That why we select
Double Cross Dipole Antenna? The following comparison shows the reason behind it:
Cross Antenna Double Cross Antenna
Omni-directional Yes Yes
Availability Yes Yes
Handling Easy Easy
APT Reception Yes Yes
Construction Easy Easy
Surface Cross Sectional
Area
Less than Double More
Power wastage More than Double Low or less
Table 12: Comparison between Cross and Double Cross Antenna
Now the double cross dipole antenna is selected good for our purpose. Let‟s make it more
clear by following comparison:
Double Cross QHF Yaggi
Directivity No No Yes
Coverage Area Large Large Small
High Target
Density
No No Yes
Cost Normal (280 PKR) Expensive (1400
PKR)
Moderate (500 PKR)
Power Efficiency Less Less More
Construction Easy Hard Easy
Availability Sometimes No Yes
Size Manageable Constant Constant
Dead Angle Less than yaggi Causes fluctuation in
signal
More
Table 13: Comparison of Double Cross

Page61

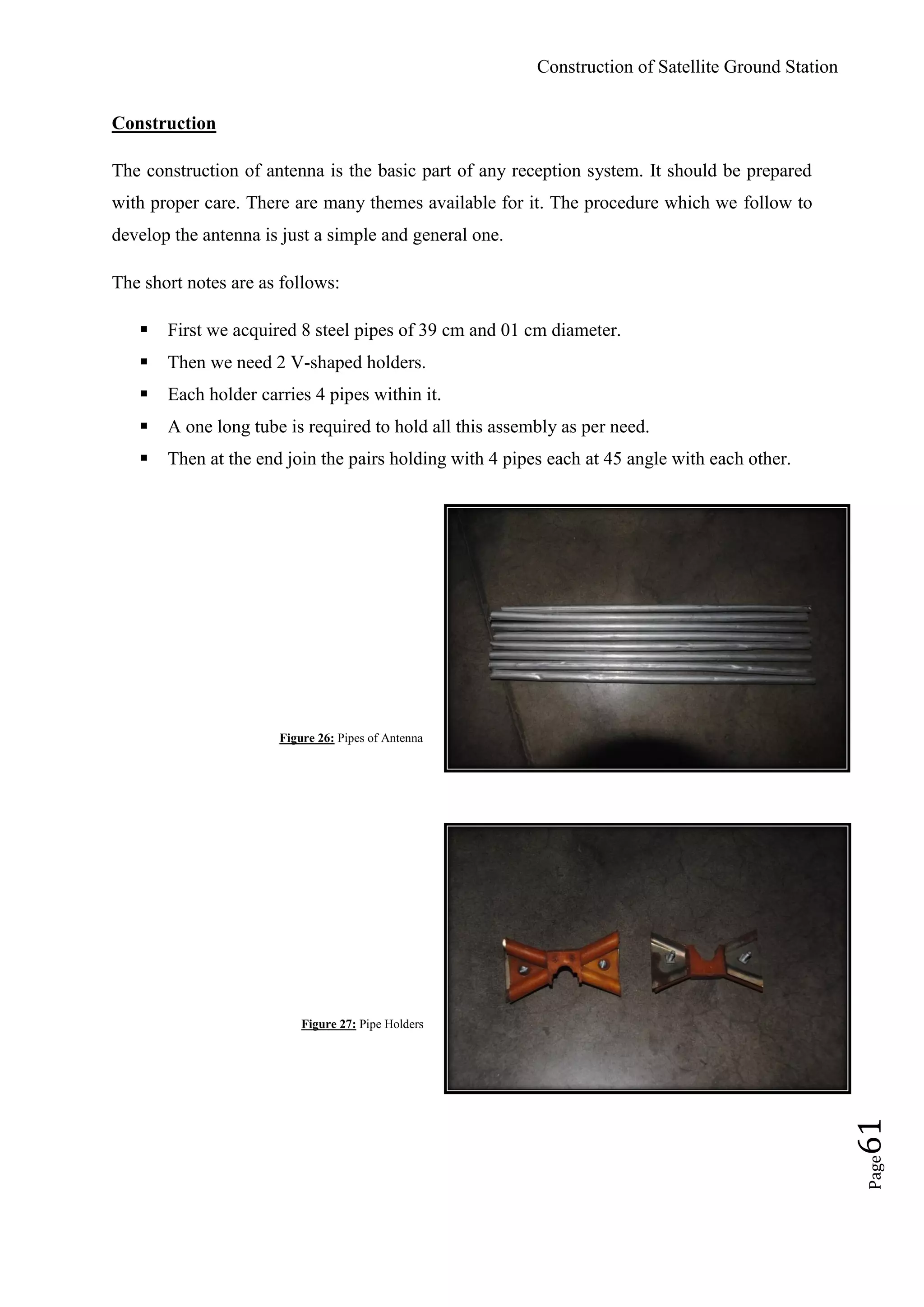

Construction
The construction of antenna is the basic part of any reception system. It should be prepared
with proper care. There are many themes available for it. The procedure which we follow to
develop the antenna is just a simple and general one.
The short notes are as follows:
 First we acquired 8 steel pipes of 39 cm and 01 cm diameter.
 Then we need 2 V-shaped holders.
 Each holder carries 4 pipes within it.
 A one long tube is required to hold all this assembly as per need.
 Then at the end join the pairs holding with 4 pipes each at 45 angle with each other.
Figure 26: Pipes of Antenna
Figure 27: Pipe Holders

Page62

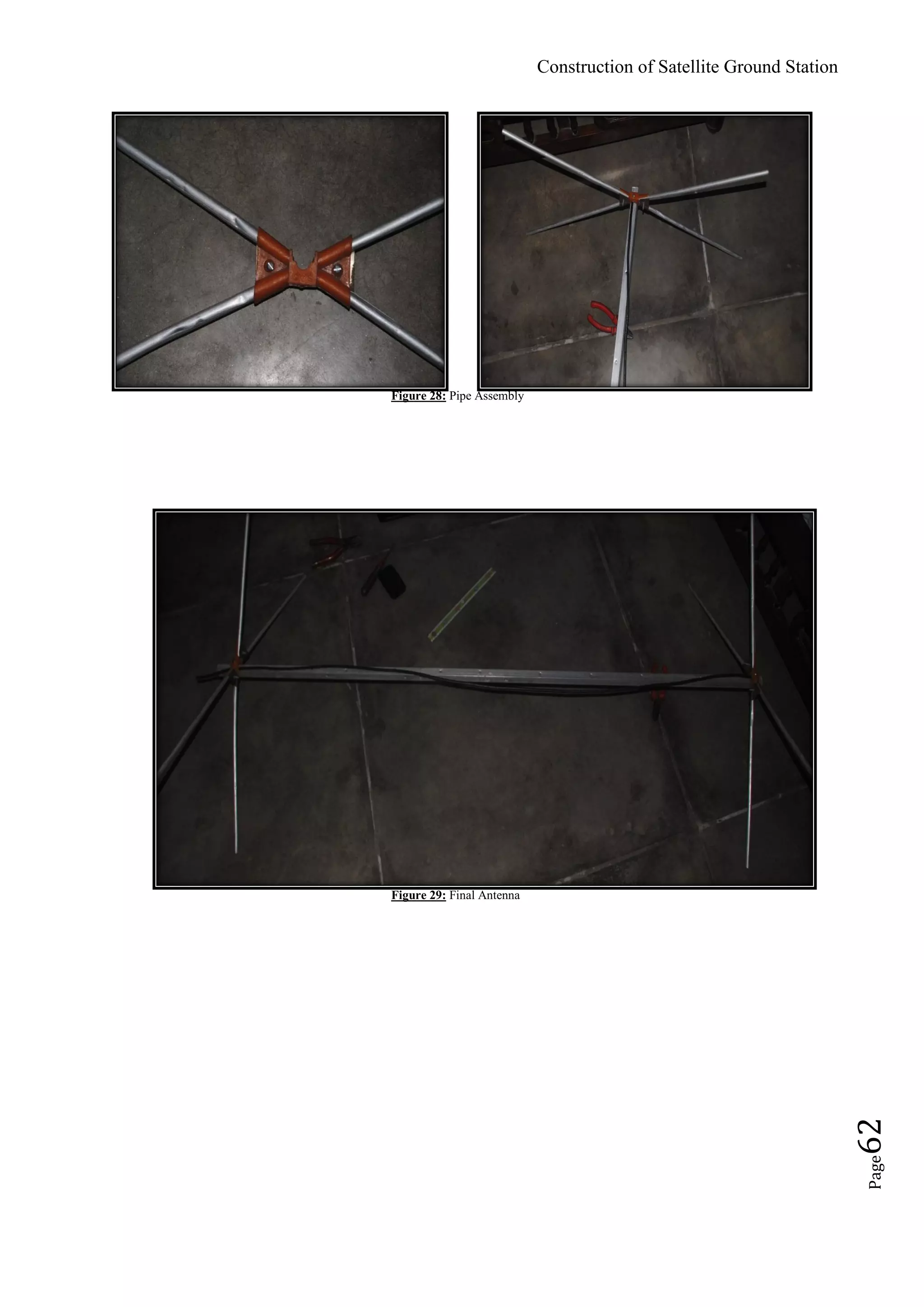

Figure 28: Pipe Assembly
Figure 29: Final Antenna

Page63

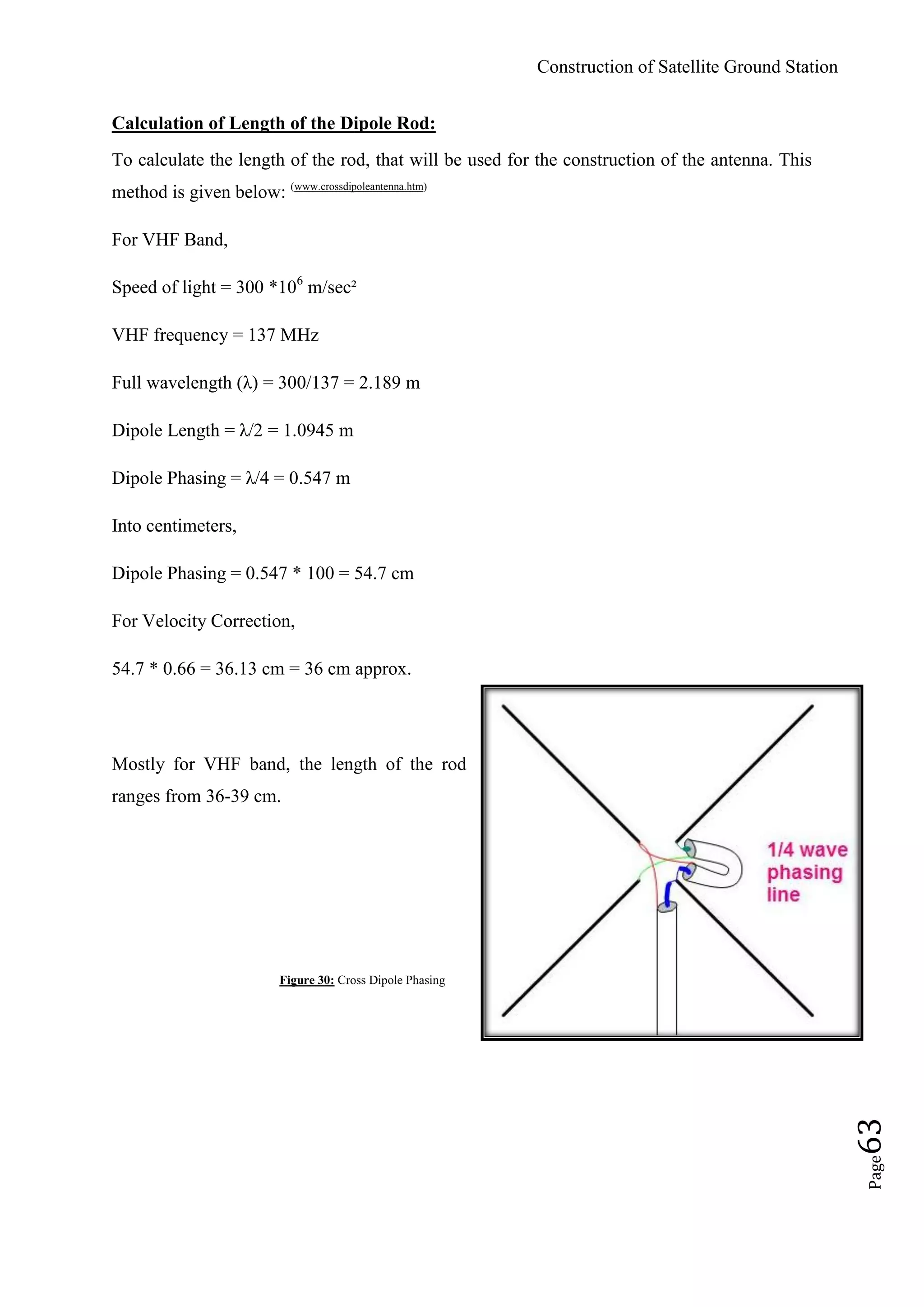

Calculation of Length of the Dipole Rod:
To calculate the length of the rod, that will be used for the construction of the antenna. This
method is given below: (www.crossdipoleantenna.htm)
For VHF Band,
Speed of light = 300 *106
m/sec²
VHF frequency = 137 MHz
Full wavelength (λ) = 300/137 = 2.189 m
Dipole Length = λ/2 = 1.0945 m
Dipole Phasing = λ/4 = 0.547 m
Into centimeters,
Dipole Phasing = 0.547 * 100 = 54.7 cm
For Velocity Correction,
54.7 * 0.66 = 36.13 cm = 36 cm approx.
Mostly for VHF band, the length of the rod
ranges from 36-39 cm.
Figure 30: Cross Dipole Phasing

Page64
Contents
Introduction
Calibration of Wpeix

Page65

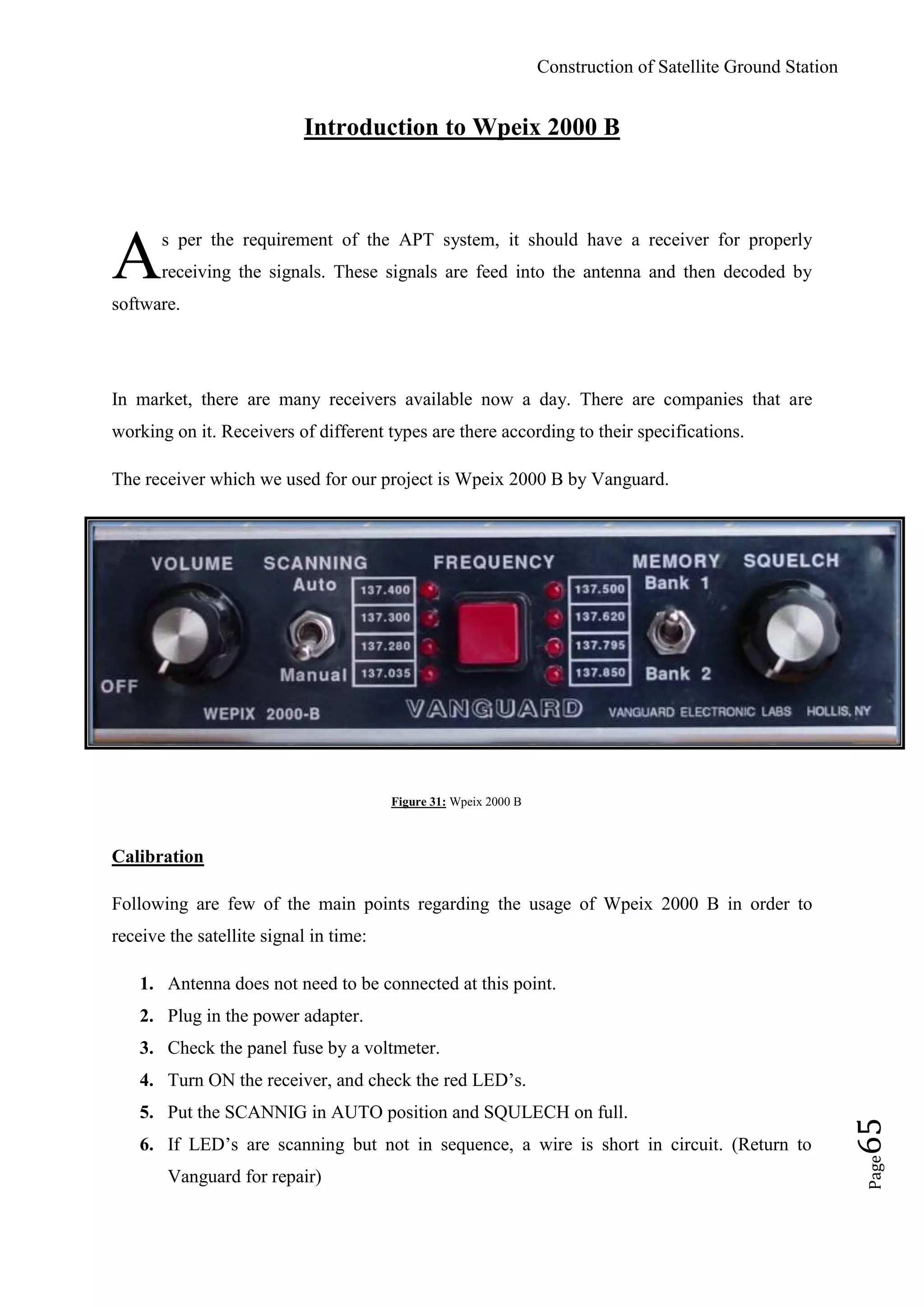

Introduction to Wpeix 2000 B
s per the requirement of the APT system, it should have a receiver for properly
receiving the signals. These signals are feed into the antenna and then decoded by
software.
In market, there are many receivers available now a day. There are companies that are
working on it. Receivers of different types are there according to their specifications.
The receiver which we used for our project is Wpeix 2000 B by Vanguard.
Figure 31: Wpeix 2000 B
Calibration
Following are few of the main points regarding the usage of Wpeix 2000 B in order to
receive the satellite signal in time:
1. Antenna does not need to be connected at this point.
2. Plug in the power adapter.
3. Check the panel fuse by a voltmeter.
4. Turn ON the receiver, and check the red LED‟s.
5. Put the SCANNIG in AUTO position and SQULECH on full.
6. If LED‟s are scanning but not in sequence, a wire is short in circuit. (Return to
Vanguard for repair)
A

Page66

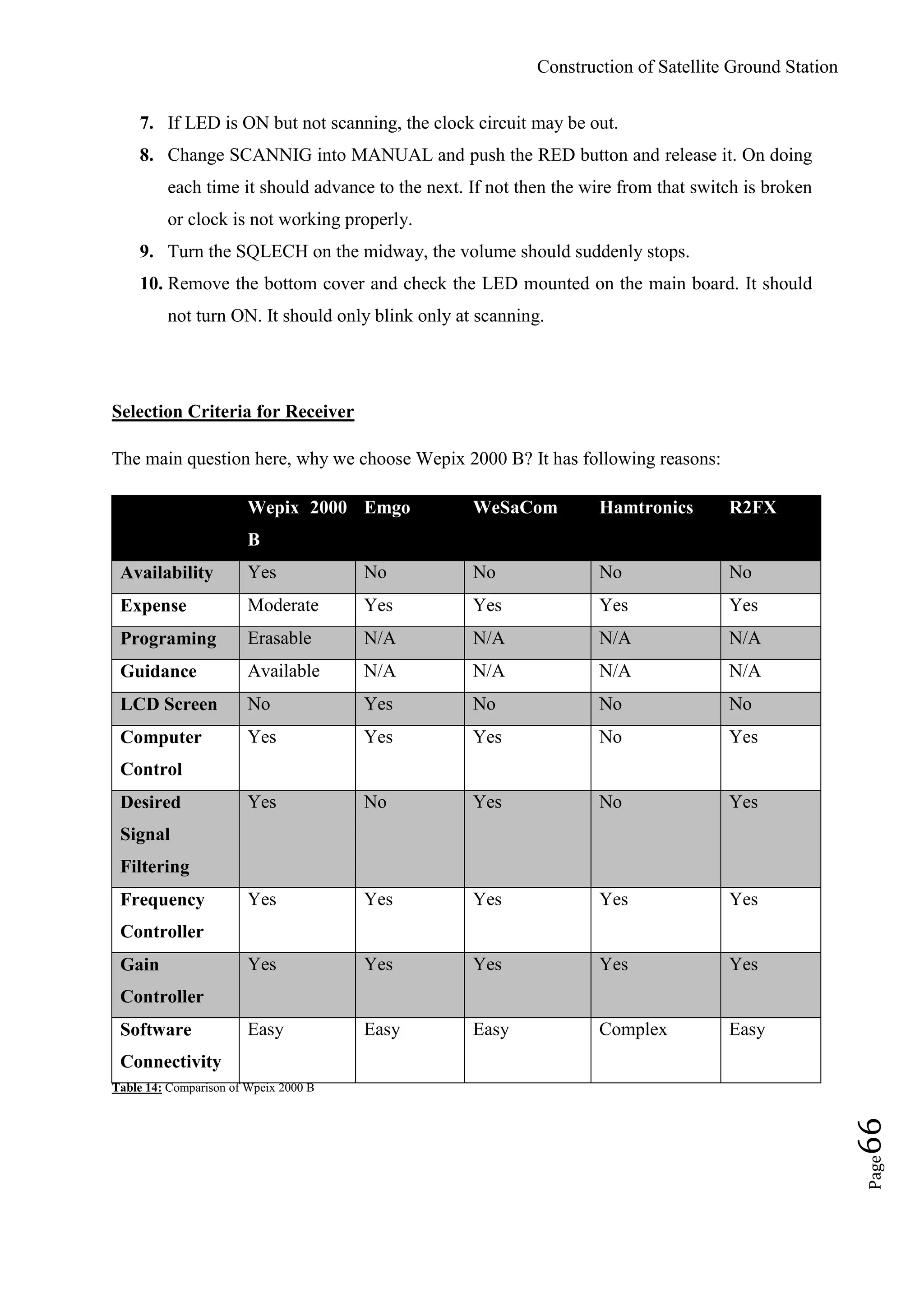

7. If LED is ON but not scanning, the clock circuit may be out.
8. Change SCANNIG into MANUAL and push the RED button and release it. On doing
each time it should advance to the next. If not then the wire from that switch is broken
or clock is not working properly.
9. Turn the SQLECH on the midway, the volume should suddenly stops.
10. Remove the bottom cover and check the LED mounted on the main board. It should
not turn ON. It should only blink only at scanning.
Selection Criteria for Receiver
The main question here, why we choose Wepix 2000 B? It has following reasons:
Wepix 2000
B
Emgo WeSaCom Hamtronics R2FX
Availability Yes No No No No
Expense Moderate Yes Yes Yes Yes
Programing Erasable N/A N/A N/A N/A
Guidance Available N/A N/A N/A N/A
LCD Screen No Yes No No No
Computer
Control
Yes Yes Yes No Yes
Desired
Signal
Filtering
Yes No Yes No Yes
Frequency
Controller
Yes Yes Yes Yes Yes
Gain
Controller
Yes Yes Yes Yes Yes
Software
Connectivity
Easy Easy Easy Complex Easy
Table 14: Comparison of Wpeix 2000 B

Page67
Due these reasons, we have selected the Wpeix 2000 B for the continuity of our project
report.

Page68
Contents
Introduction
Software Features
Versions
Latest Version
Calibration
Sample Images

Page69

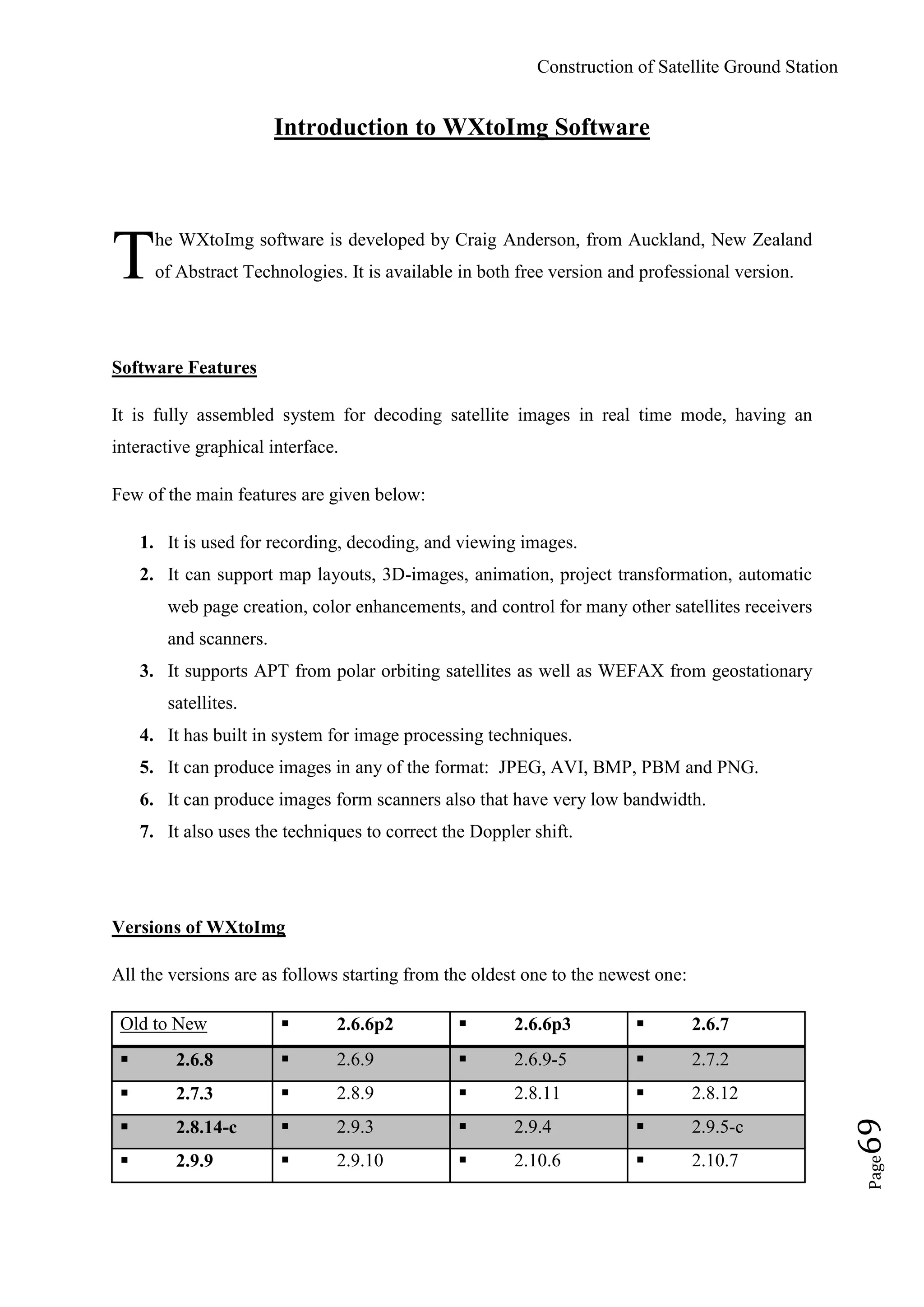

Introduction to WXtoImg Software
he WXtoImg software is developed by Craig Anderson, from Auckland, New Zealand
of Abstract Technologies. It is available in both free version and professional version.
Software Features
It is fully assembled system for decoding satellite images in real time mode, having an
interactive graphical interface.
Few of the main features are given below:
1. It is used for recording, decoding, and viewing images.
2. It can support map layouts, 3D-images, animation, project transformation, automatic
web page creation, color enhancements, and control for many other satellites receivers
and scanners.
3. It supports APT from polar orbiting satellites as well as WEFAX from geostationary
satellites.
4. It has built in system for image processing techniques.
5. It can produce images in any of the format: JPEG, AVI, BMP, PBM and PNG.
6. It can produce images form scanners also that have very low bandwidth.
7. It also uses the techniques to correct the Doppler shift.
Versions of WXtoImg
All the versions are as follows starting from the oldest one to the newest one:
Old to New  2.6.6p2  2.6.6p3  2.6.7
 2.6.8  2.6.9  2.6.9-5  2.7.2
 2.7.3  2.8.9  2.8.11  2.8.12
 2.8.14-c  2.9.3  2.9.4  2.9.5-c
 2.9.9  2.9.10  2.10.6  2.10.7
T

Page70

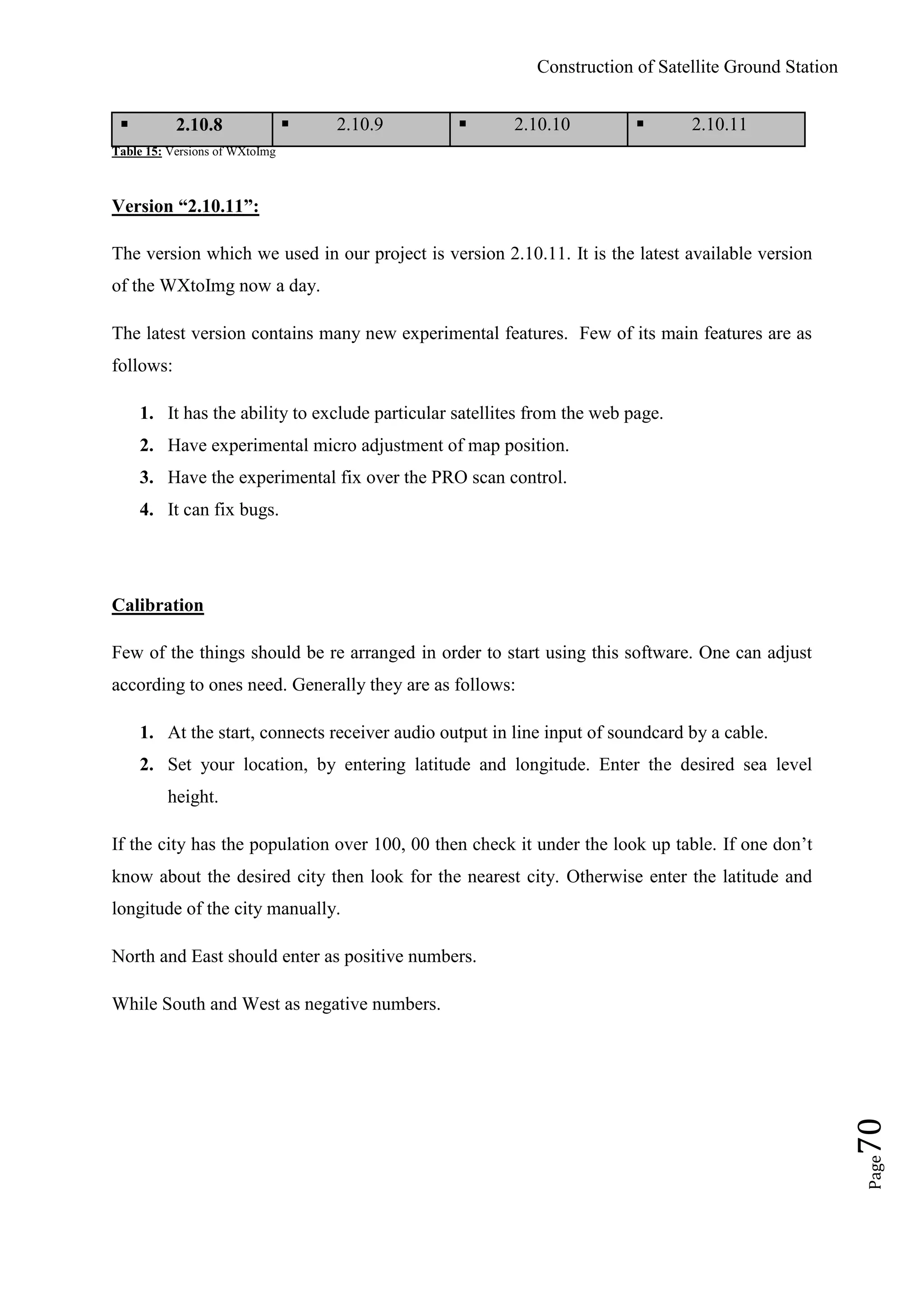

 2.10.8  2.10.9  2.10.10  2.10.11
Table 15: Versions of WXtoImg
Version “2.10.11”:
The version which we used in our project is version 2.10.11. It is the latest available version
of the WXtoImg now a day.
The latest version contains many new experimental features. Few of its main features are as
follows:
1. It has the ability to exclude particular satellites from the web page.
2. Have experimental micro adjustment of map position.
3. Have the experimental fix over the PRO scan control.
4. It can fix bugs.
Calibration
Few of the things should be re arranged in order to start using this software. One can adjust
according to ones need. Generally they are as follows:
1. At the start, connects receiver audio output in line input of soundcard by a cable.
2. Set your location, by entering latitude and longitude. Enter the desired sea level
height.
If the city has the population over 100, 00 then check it under the look up table. If one don‟t
know about the desired city then look for the nearest city. Otherwise enter the latitude and
longitude of the city manually.
North and East should enter as positive numbers.
While South and West as negative numbers.

Page71

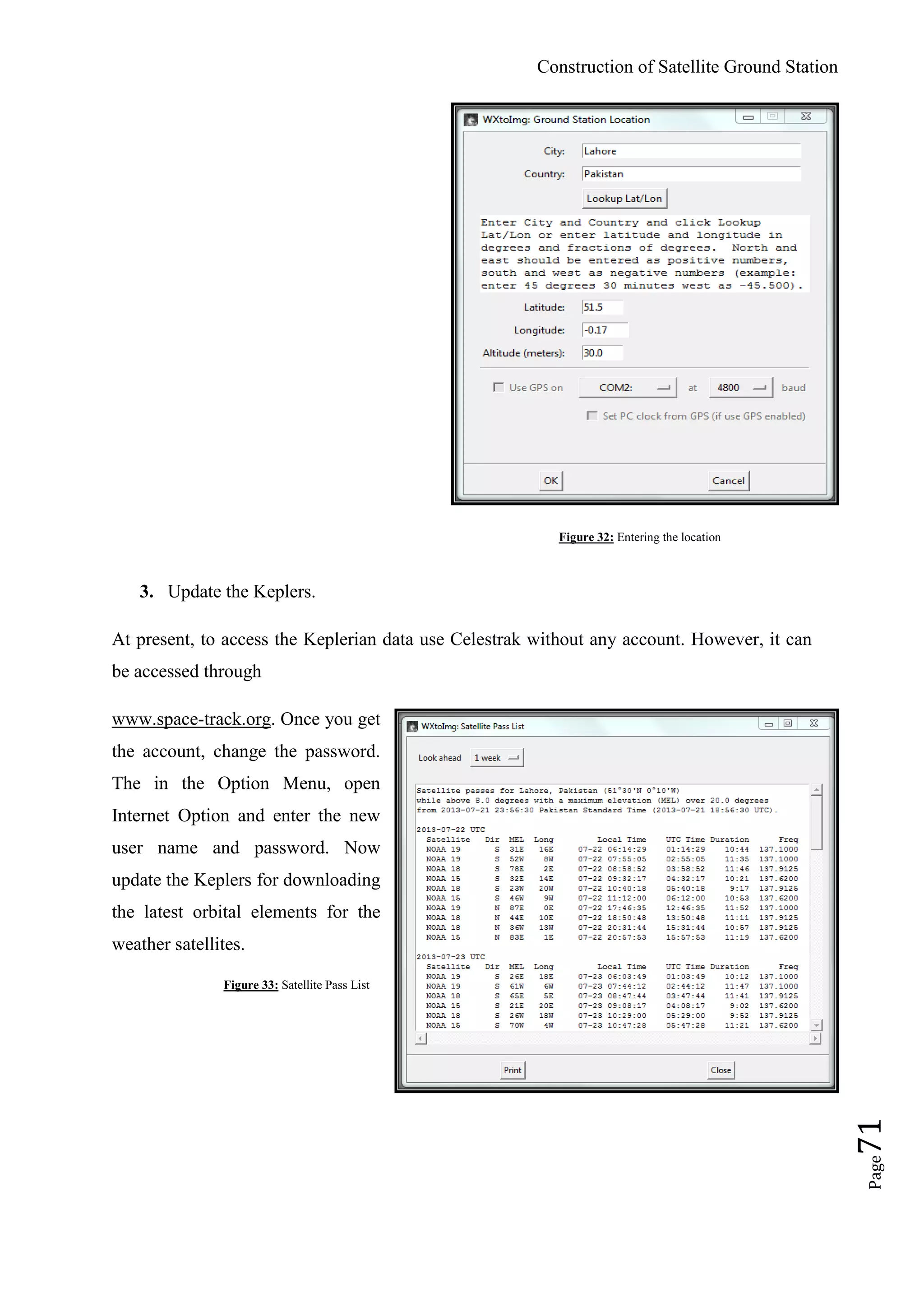

Figure 32: Entering the location
3. Update the Keplers.
At present, to access the Keplerian data use Celestrak without any account. However, it can
be accessed through
www.space-track.org. Once you get
the account, change the password.
The in the Option Menu, open
Internet Option and enter the new
user name and password. Now
update the Keplers for downloading
the latest orbital elements for the
weather satellites.
Figure 33: Satellite Pass List

Page72

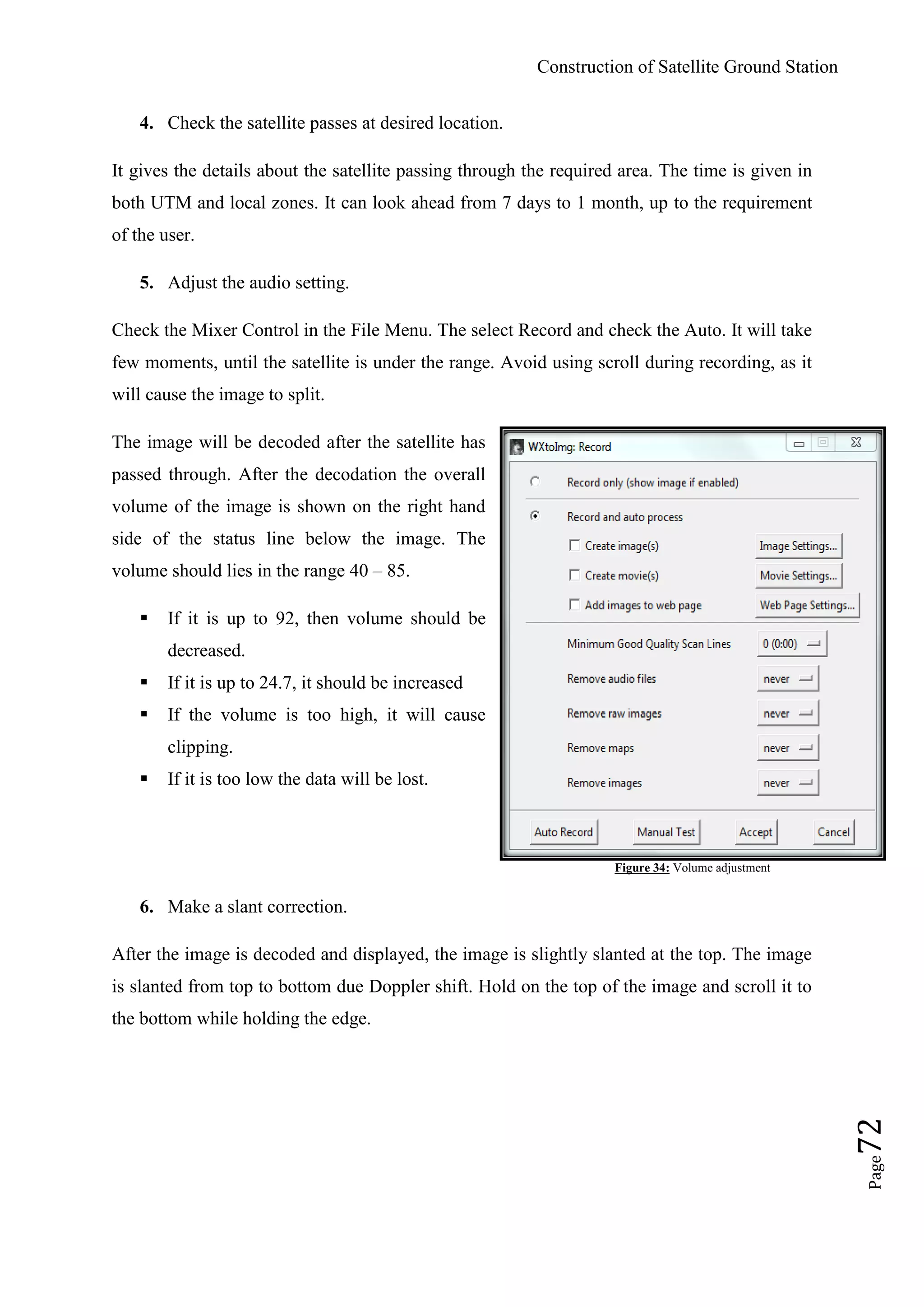

4. Check the satellite passes at desired location.
It gives the details about the satellite passing through the required area. The time is given in
both UTM and local zones. It can look ahead from 7 days to 1 month, up to the requirement
of the user.
5. Adjust the audio setting.
Check the Mixer Control in the File Menu. The select Record and check the Auto. It will take
few moments, until the satellite is under the range. Avoid using scroll during recording, as it
will cause the image to split.
The image will be decoded after the satellite has
passed through. After the decodation the overall
volume of the image is shown on the right hand
side of the status line below the image. The
volume should lies in the range 40 – 85.
 If it is up to 92, then volume should be
decreased.
 If it is up to 24.7, it should be increased
 If the volume is too high, it will cause
clipping.
 If it is too low the data will be lost.
Figure 34: Volume adjustment
6. Make a slant correction.
After the image is decoded and displayed, the image is slightly slanted at the top. The image
is slanted from top to bottom due Doppler shift. Hold on the top of the image and scroll it to
the bottom while holding the edge.

Page73

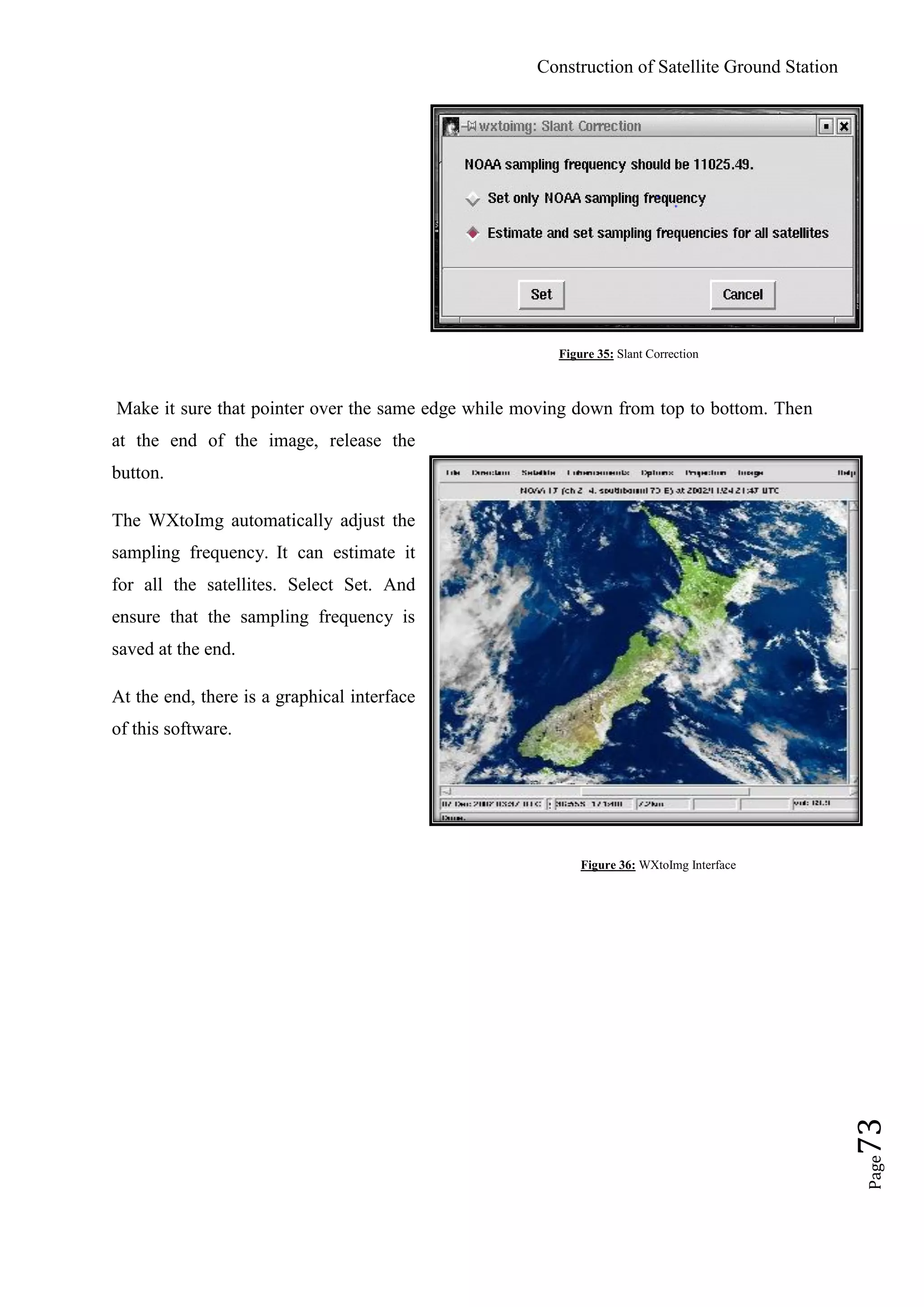

Figure 35: Slant Correction
Make it sure that pointer over the same edge while moving down from top to bottom. Then
at the end of the image, release the
button.
The WXtoImg automatically adjust the
sampling frequency. It can estimate it
for all the satellites. Select Set. And
ensure that the sampling frequency is
saved at the end.
At the end, there is a graphical interface
of this software.
Figure 36: WXtoImg Interface

Page74

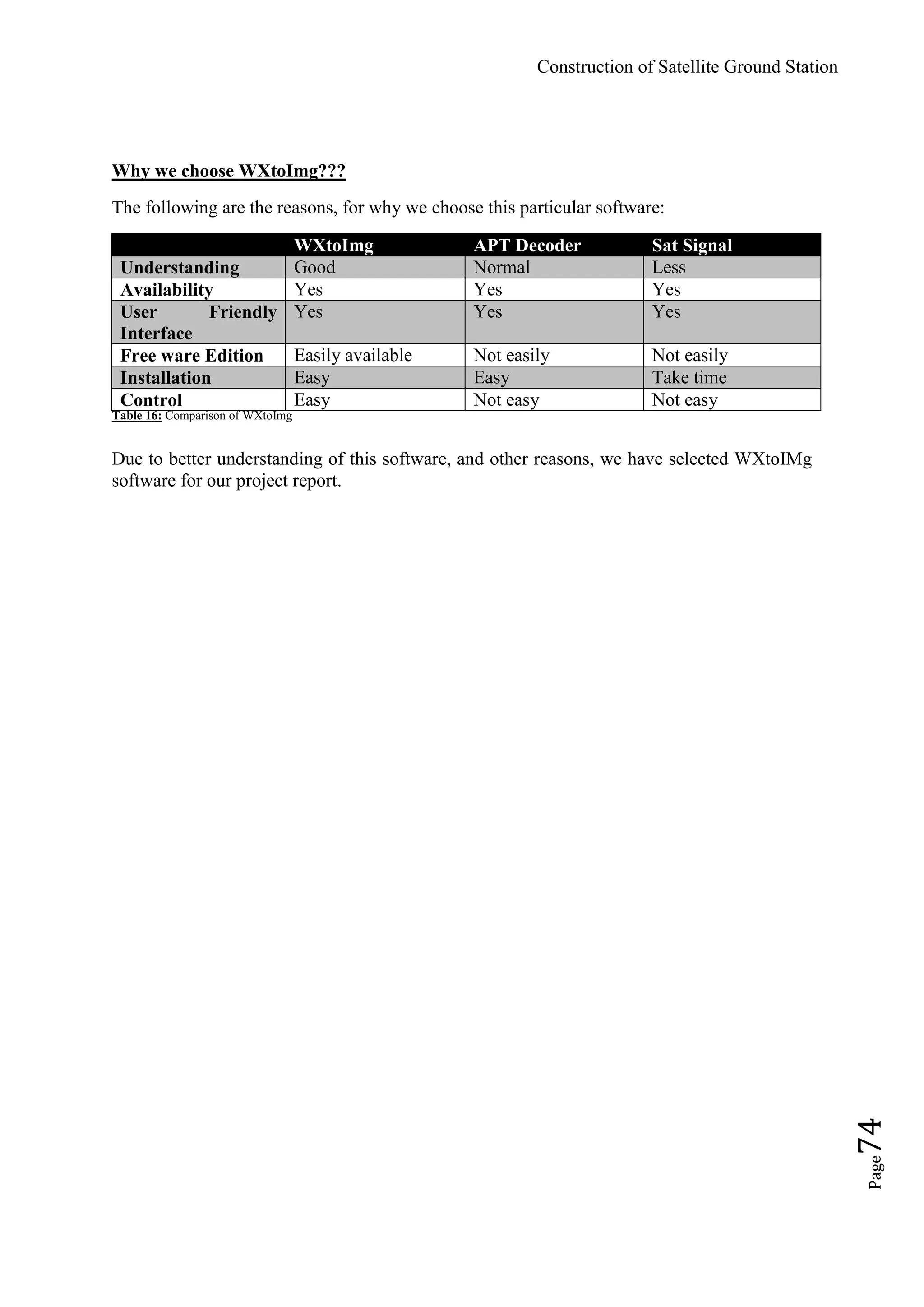

Why we choose WXtoImg???
The following are the reasons, for why we choose this particular software:
WXtoImg APT Decoder Sat Signal
Understanding Good Normal Less
Availability Yes Yes Yes
User Friendly
Interface
Yes Yes Yes
Free ware Edition Easily available Not easily Not easily
Installation Easy Easy Take time
Control Easy Not easy Not easy
Table 16: Comparison of WXtoImg
Due to better understanding of this software, and other reasons, we have selected WXtoIMg
software for our project report.

Page75

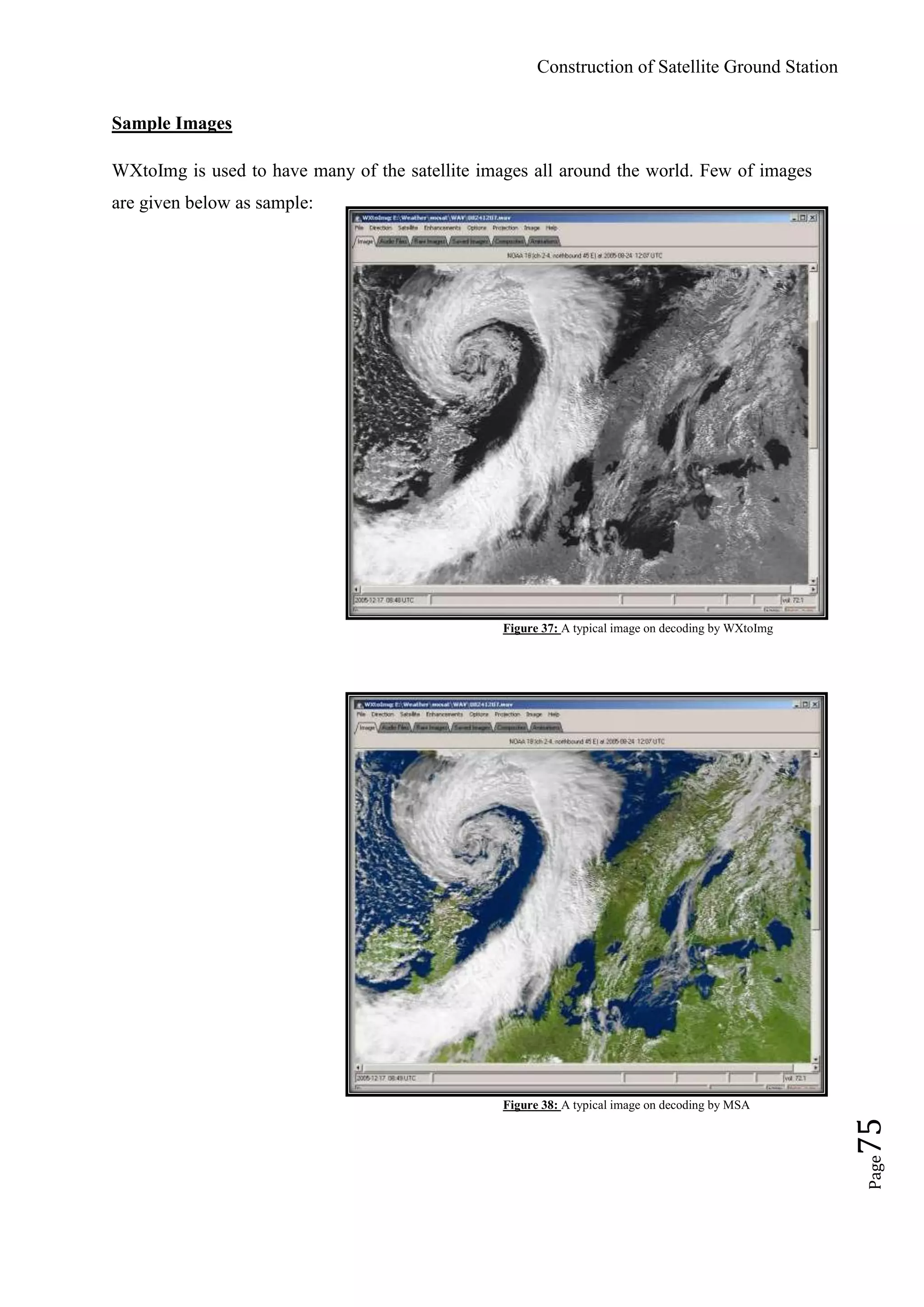

Sample Images
WXtoImg is used to have many of the satellite images all around the world. Few of images
are given below as sample:
Figure 37: A typical image on decoding by WXtoImg
Figure 38: A typical image on decoding by MSA

Page76
Contents
Introduction
Background of EXA
Project Hermes
Objectives of Hermes
Modes of Operation of Hermes
Implementation of Delta Mode
Procedure of Delta Mode
Future Expansion
Chapter 09

Page77
Online Tracking of Satellite Images
n present days, it is now a common fact to deal with the satellite images in daily routine.
The most advance countries are updating their projects and facilities by using satellite
data. So it is important to access them on ease. Thus, the availability of the satellite data
should be in the hands of users.
Today this credit goes to the EXA (Ecuadorian Civil Space Agency), who provides the world
with online tracking of satellite images.
Background of EXA
EXA is a civilian NGO charged of administration and execution of Ecuadorian Civil Space
Program. It is the only Ecuadorian agency that has been accepted in the “International
Astronautical Federation” with vote and voice into the general assembly.
Few of the projects, under EXA are:
 Project Daedalus
 Project Poseidon
 Project Hermes
 Project Agora
EXA trained its first astronaut, on 2007, named Cmdr. Ronnie Nader.
I

Page78

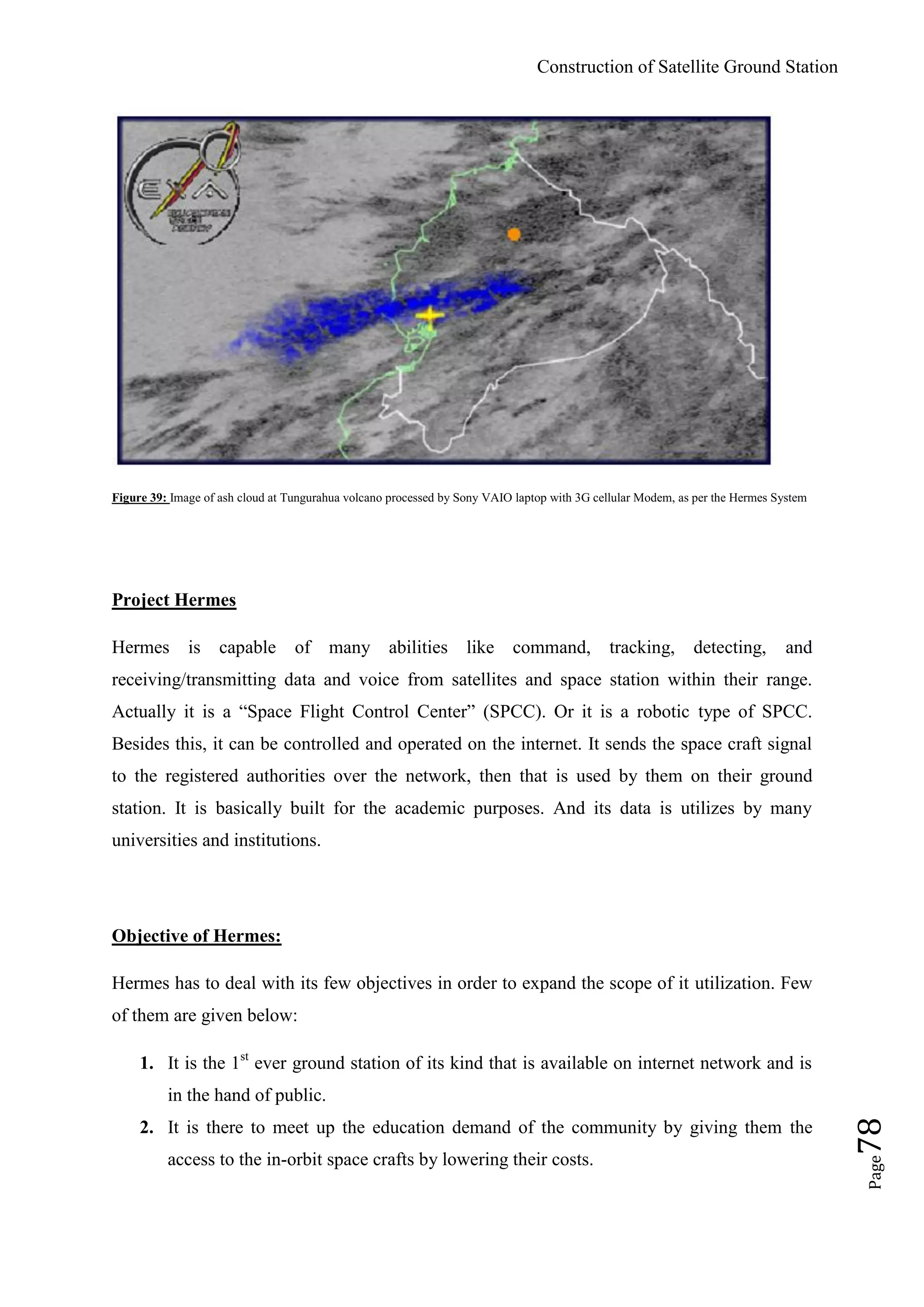

Figure 39: Image of ash cloud at Tungurahua volcano processed by Sony VAIO laptop with 3G cellular Modem, as per the Hermes System
Project Hermes
Hermes is capable of many abilities like command, tracking, detecting, and
receiving/transmitting data and voice from satellites and space station within their range.
Actually it is a “Space Flight Control Center” (SPCC). Or it is a robotic type of SPCC.
Besides this, it can be controlled and operated on the internet. It sends the space craft signal
to the registered authorities over the network, then that is used by them on their ground
station. It is basically built for the academic purposes. And its data is utilizes by many
universities and institutions.
Objective of Hermes:
Hermes has to deal with its few objectives in order to expand the scope of it utilization. Few
of them are given below:
1. It is the 1st
ever ground station of its kind that is available on internet network and is
in the hand of public.
2. It is there to meet up the education demand of the community by giving them the
access to the in-orbit space crafts by lowering their costs.

Page79
3. It is helpful for the experts without having their ground stations.
4. It is also participating, with the other nations and institutions to control the manned
space crafts.

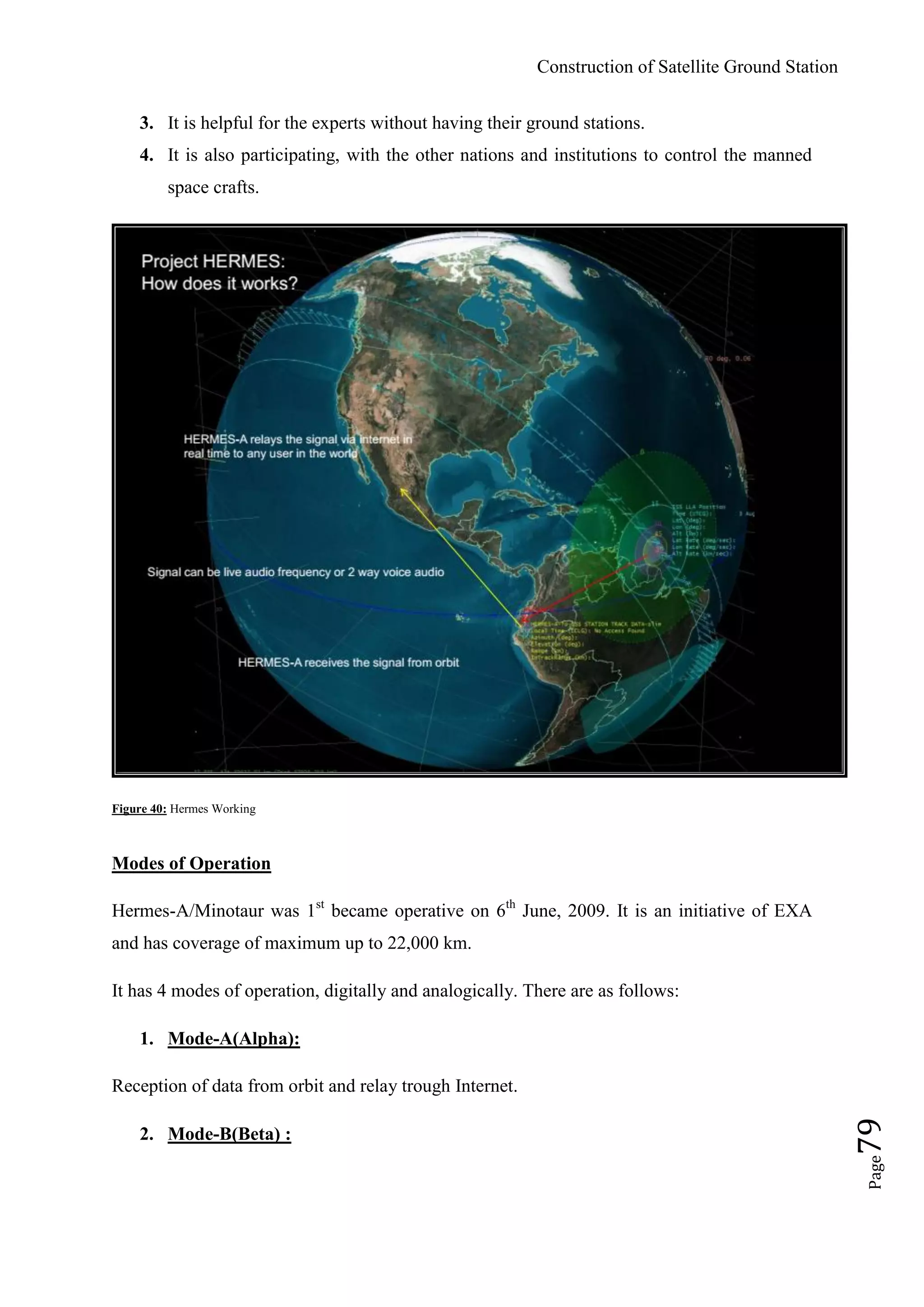

Figure 40: Hermes Working
Modes of Operation
Hermes-A/Minotaur was 1st
became operative on 6th
June, 2009. It is an initiative of EXA
and has coverage of maximum up to 22,000 km.
It has 4 modes of operation, digitally and analogically. There are as follows:
1. Mode-A(Alpha):
Reception of data from orbit and relay trough Internet.
2. Mode-B(Beta) :

Page80

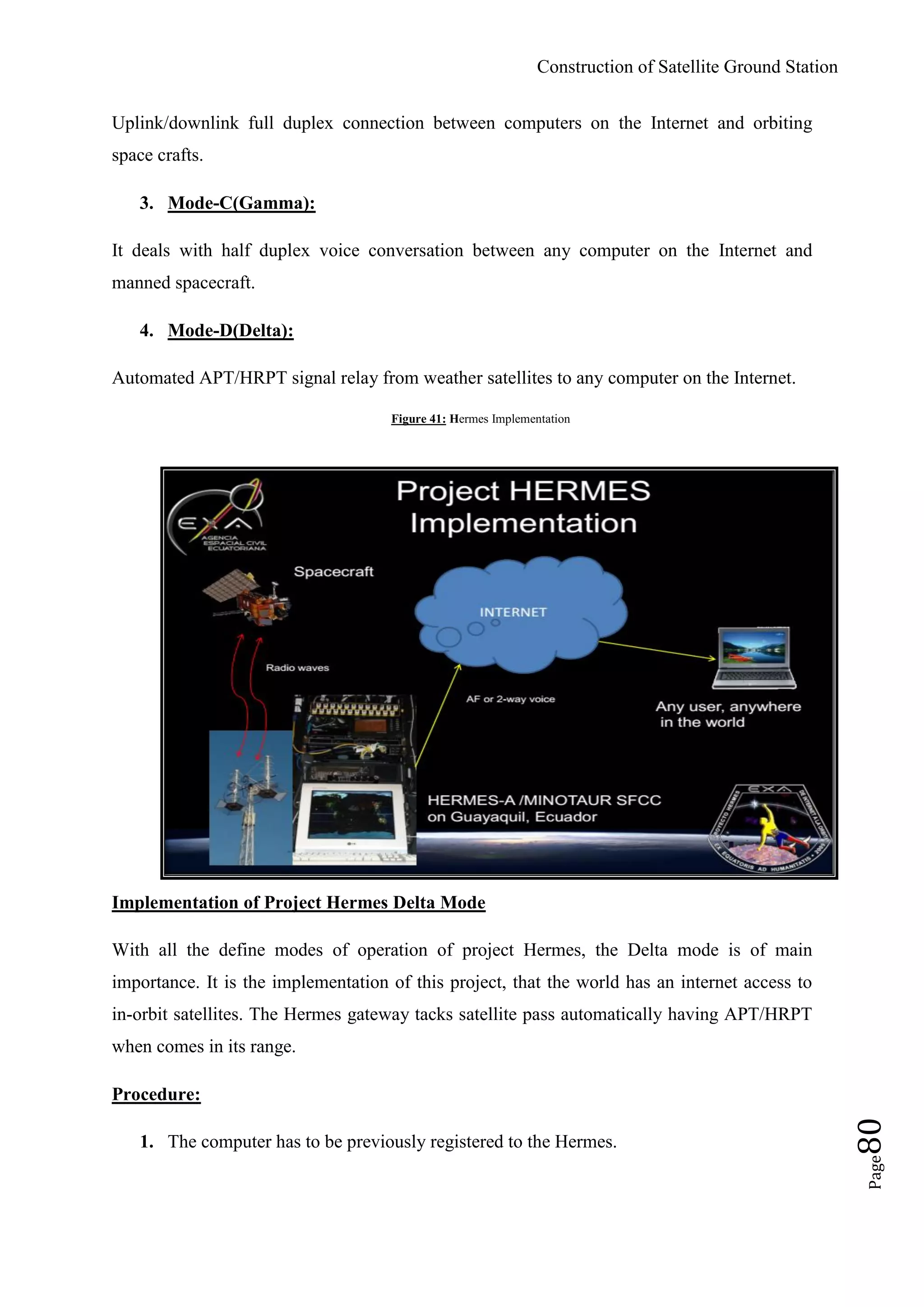

Uplink/downlink full duplex connection between computers on the Internet and orbiting
space crafts.
3. Mode-C(Gamma):
It deals with half duplex voice conversation between any computer on the Internet and
manned spacecraft.
4. Mode-D(Delta):
Automated APT/HRPT signal relay from weather satellites to any computer on the Internet.
Figure 41: Hermes Implementation
Implementation of Project Hermes Delta Mode
With all the define modes of operation of project Hermes, the Delta mode is of main
importance. It is the implementation of this project, that the world has an internet access to
in-orbit satellites. The Hermes gateway tacks satellite pass automatically having APT/HRPT
when comes in its range.
Procedure:
1. The computer has to be previously registered to the Hermes.

Page81
2. It will generate the username and password at your given public IP address for
security purposes.
3. To access the gateway, small software is required named VRS Monitor. With:
 Server name: hermes-a.exa.ec
 Speed: 256
Figure 42: VRS Monitor
4. Software is required for decoding that is
WXtoImg.
5. Then press the Connect to access the Hermes.
Then a window appears.
6. On this window, check the 3rd
box. This is for
Delta Mode.
Figure 43: Listen Connection
7. The telemetry data is required for satellite to be tracked. That is downloaded by
decoding software. Or it is directly accessed from the web site: www.celestrak.com
on free.
8. Find the satellite pass through at the location.
9. Once the satellite is in the range, the program will just open the Hermes Delta Serve
and start processing audio frequency (AF) as the satellite sends the data.
10. After the satellite has passed, the software will start decoding images using the
different enhancement techniques as per preference.

Page82

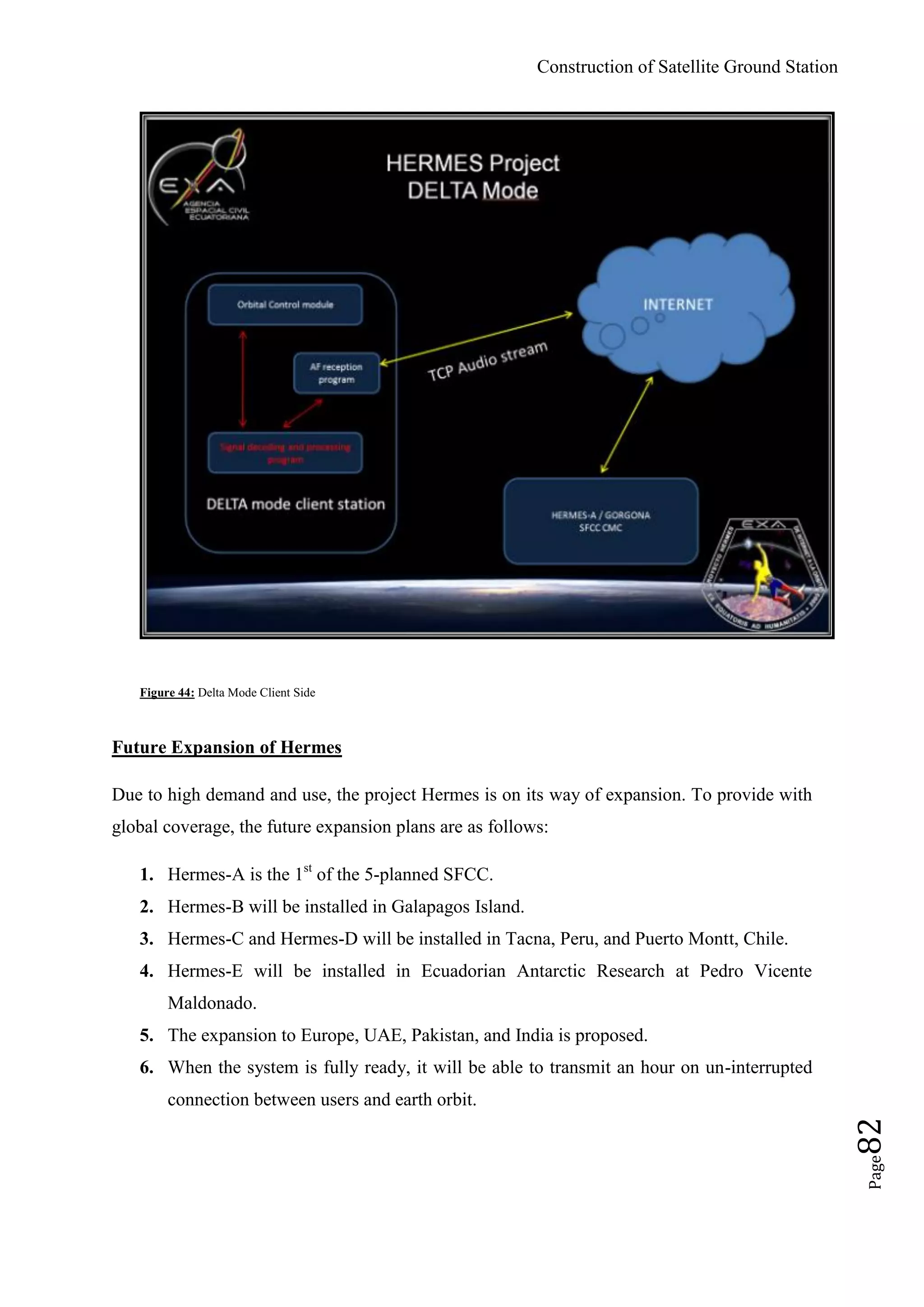

Figure 44: Delta Mode Client Side
Future Expansion of Hermes
Due to high demand and use, the project Hermes is on its way of expansion. To provide with
global coverage, the future expansion plans are as follows:
1. Hermes-A is the 1st
of the 5-planned SFCC.
2. Hermes-B will be installed in Galapagos Island.
3. Hermes-C and Hermes-D will be installed in Tacna, Peru, and Puerto Montt, Chile.
4. Hermes-E will be installed in Ecuadorian Antarctic Research at Pedro Vicente
Maldonado.
5. The expansion to Europe, UAE, Pakistan, and India is proposed.
6. When the system is fully ready, it will be able to transmit an hour on un-interrupted
connection between users and earth orbit.

Page83

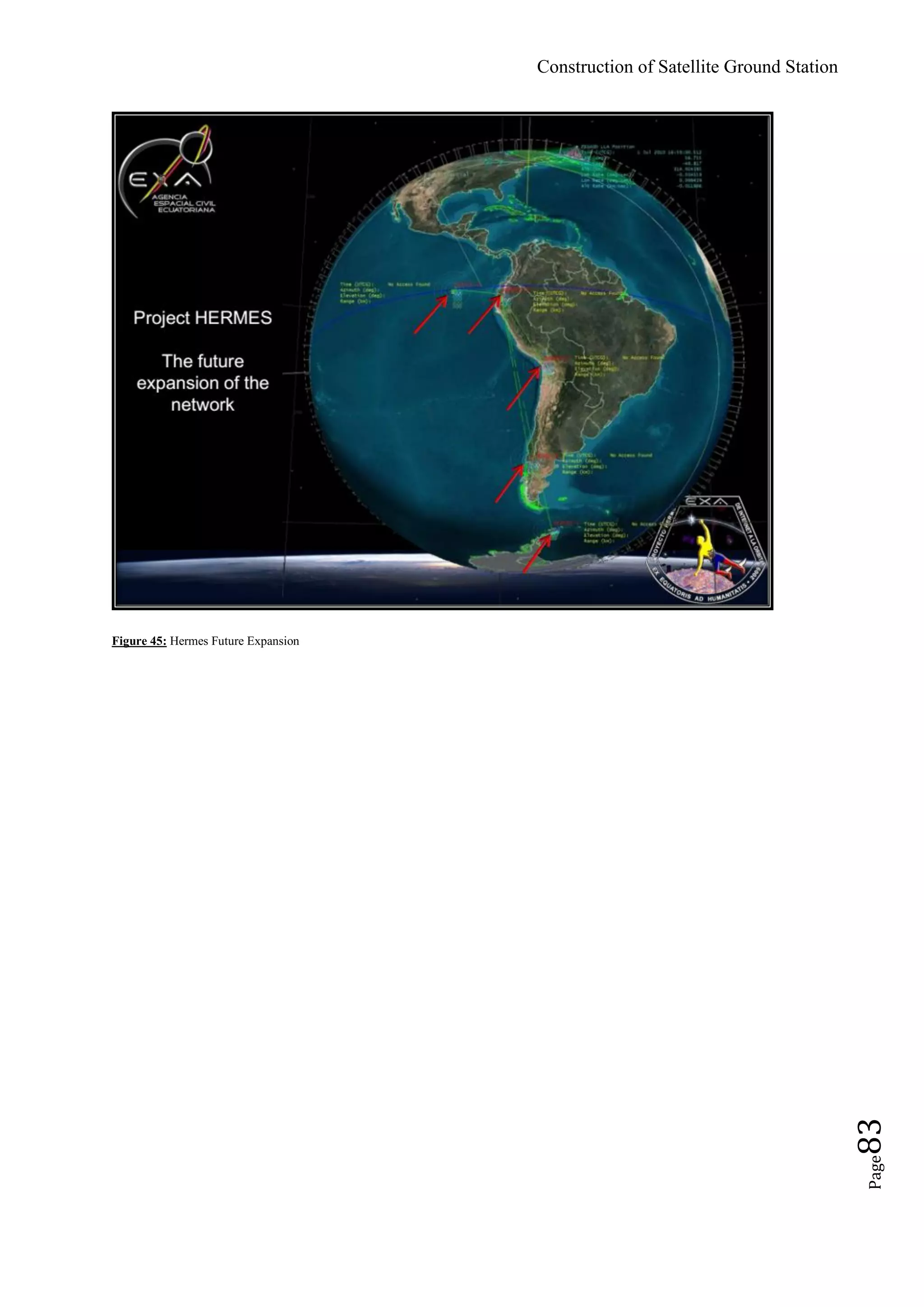

Figure 45: Hermes Future Expansion

Page84

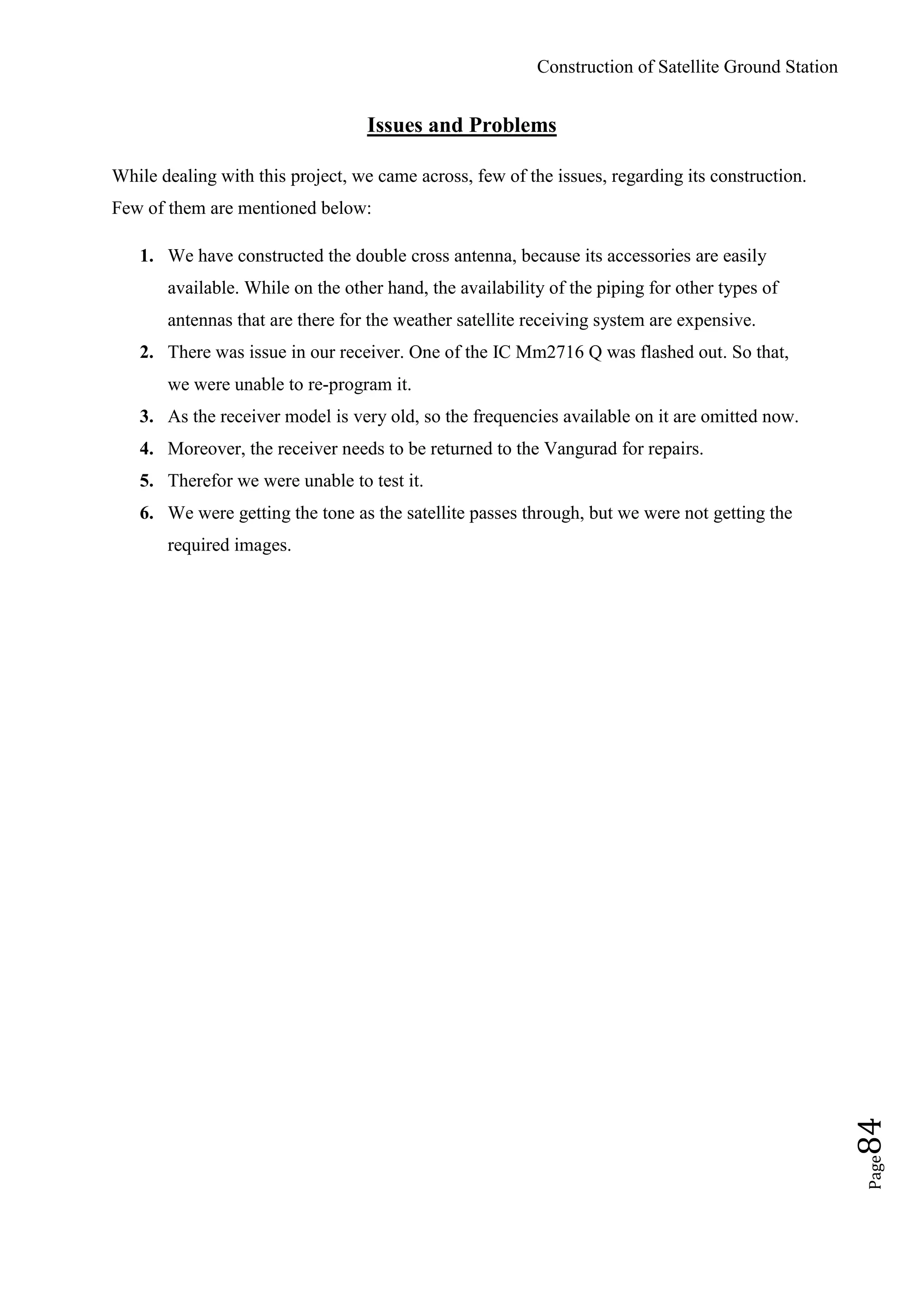

Issues and Problems
While dealing with this project, we came across, few of the issues, regarding its construction.
Few of them are mentioned below:
1. We have constructed the double cross antenna, because its accessories are easily
available. While on the other hand, the availability of the piping for other types of
antennas that are there for the weather satellite receiving system are expensive.
2. There was issue in our receiver. One of the IC Mm2716 Q was flashed out. So that,
we were unable to re-program it.
3. As the receiver model is very old, so the frequencies available on it are omitted now.
4. Moreover, the receiver needs to be returned to the Vangurad for repairs.
5. Therefor we were unable to test it.
6. We were getting the tone as the satellite passes through, but we were not getting the
required images.

Page85
Conclusion
After all dealing this with Automatic Picture Transmission System, it is obvious now that
satellite images are now in hands at no issue. The room of betterment is always there. The
images obtain from this method is a step forward on in this field. New technologies are on
their way. The satellites are now equipped with modern system that helps such system to get
the images as per need. Many companies are in market for developing weather satellite
receiving system. Soft-wares are there to decode these images.
These images can be further utilized in many ways depending upon the requirement. Many
image processing techniques can be applied for further analysis.

Page86
Recommendation
Now, here it comes, how to go further in this area for extra progress. The upcoming satellite
will be equipped with LRT system (Low Resolution Transmission), a modified version of
APT. The quality of the antenna and pre-amplifier, the type of satellite receivers, the newer
version of software, and image enhancement techniques are updating on daily basis. That can
in return add more options to the APT system.
It can be further extended from polar satellites to the geo-stationary satellites. But this, on the
other hand, need more complex apparatus and staff.

Page87

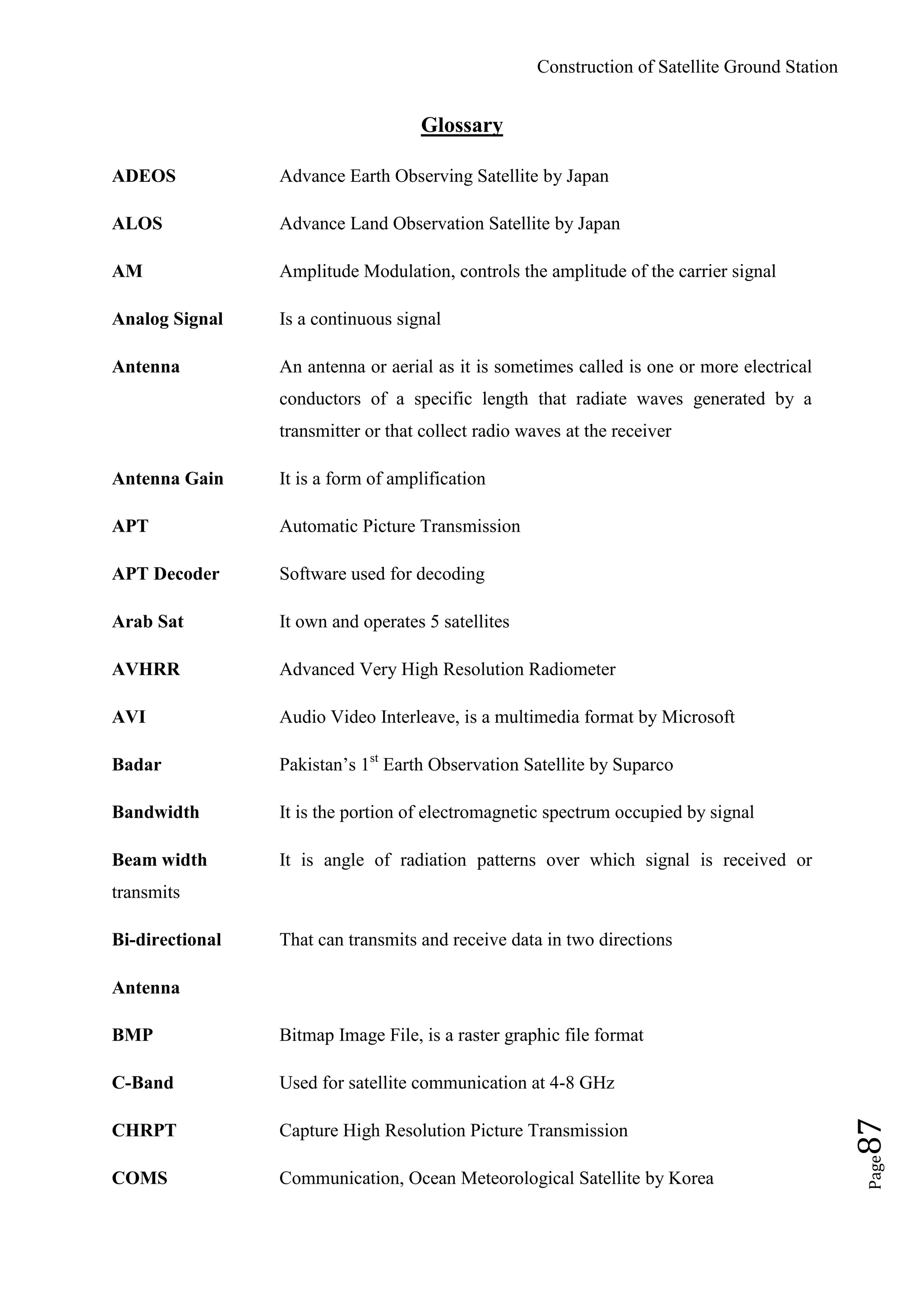

Glossary
ADEOS Advance Earth Observing Satellite by Japan
ALOS Advance Land Observation Satellite by Japan
AM Amplitude Modulation, controls the amplitude of the carrier signal
Analog Signal Is a continuous signal
Antenna An antenna or aerial as it is sometimes called is one or more electrical
conductors of a specific length that radiate waves generated by a
transmitter or that collect radio waves at the receiver
Antenna Gain It is a form of amplification
APT Automatic Picture Transmission
APT Decoder Software used for decoding
Arab Sat It own and operates 5 satellites
AVHRR Advanced Very High Resolution Radiometer
AVI Audio Video Interleave, is a multimedia format by Microsoft
Badar Pakistan‟s 1st
Earth Observation Satellite by Suparco
Bandwidth It is the portion of electromagnetic spectrum occupied by signal
Beam width It is angle of radiation patterns over which signal is received or
transmits
Bi-directional That can transmits and receive data in two directions
Antenna
BMP Bitmap Image File, is a raster graphic file format
C-Band Used for satellite communication at 4-8 GHz
CHRPT Capture High Resolution Picture Transmission
COMS Communication, Ocean Meteorological Satellite by Korea

Page88

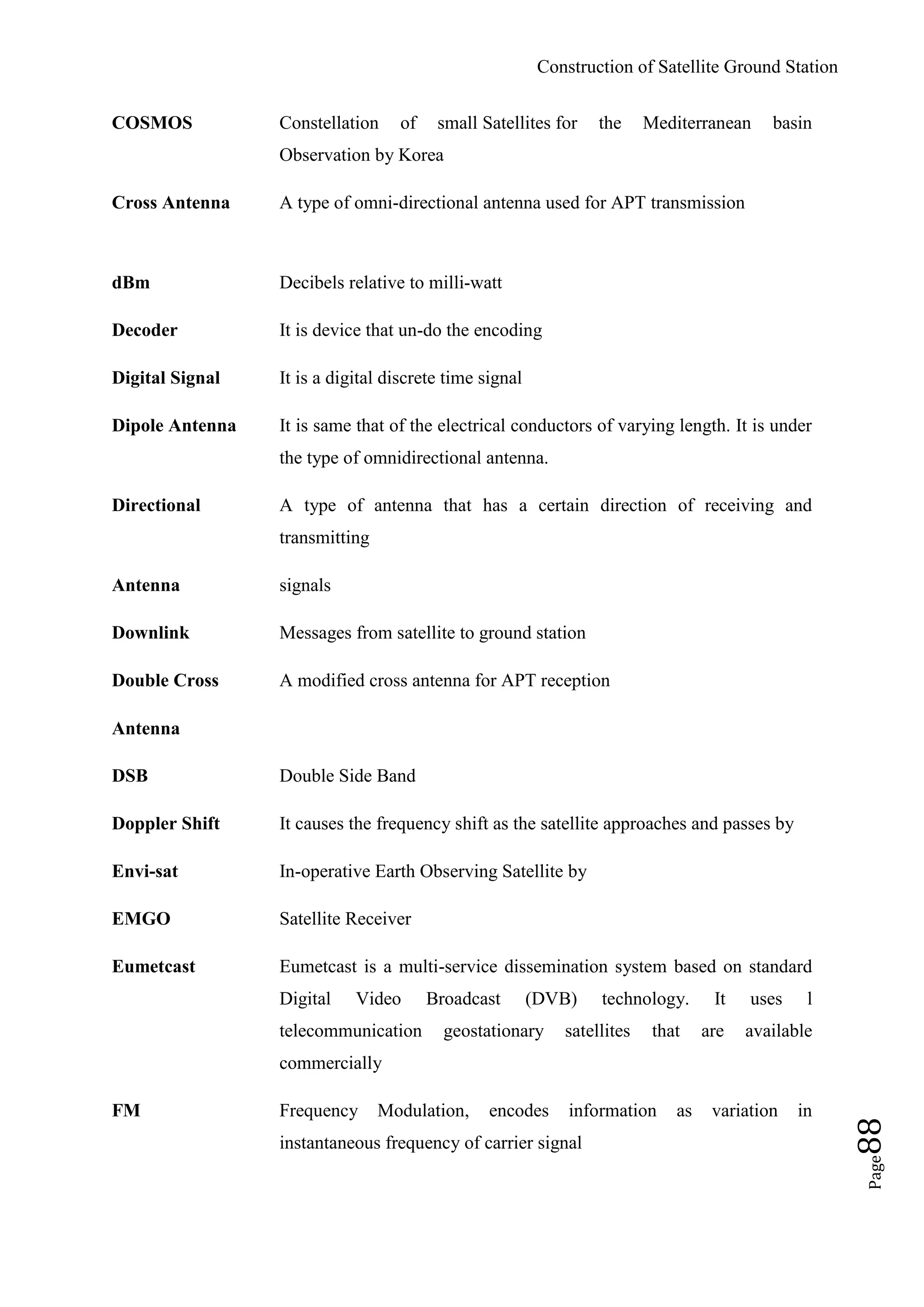

COSMOS Constellation of small Satellites for the Mediterranean basin
Observation by Korea
Cross Antenna A type of omni-directional antenna used for APT transmission
dBm Decibels relative to milli-watt
Decoder It is device that un-do the encoding
Digital Signal It is a digital discrete time signal
Dipole Antenna It is same that of the electrical conductors of varying length. It is under
the type of omnidirectional antenna.
Directional A type of antenna that has a certain direction of receiving and
transmitting
Antenna signals
Downlink Messages from satellite to ground station
Double Cross A modified cross antenna for APT reception
Antenna
DSB Double Side Band
Doppler Shift It causes the frequency shift as the satellite approaches and passes by
Envi-sat In-operative Earth Observing Satellite by
EMGO Satellite Receiver
Eumetcast Eumetcast is a multi-service dissemination system based on standard
Digital Video Broadcast (DVB) technology. It uses l
telecommunication geostationary satellites that are available
commercially
FM Frequency Modulation, encodes information as variation in
instantaneous frequency of carrier signal

Page89

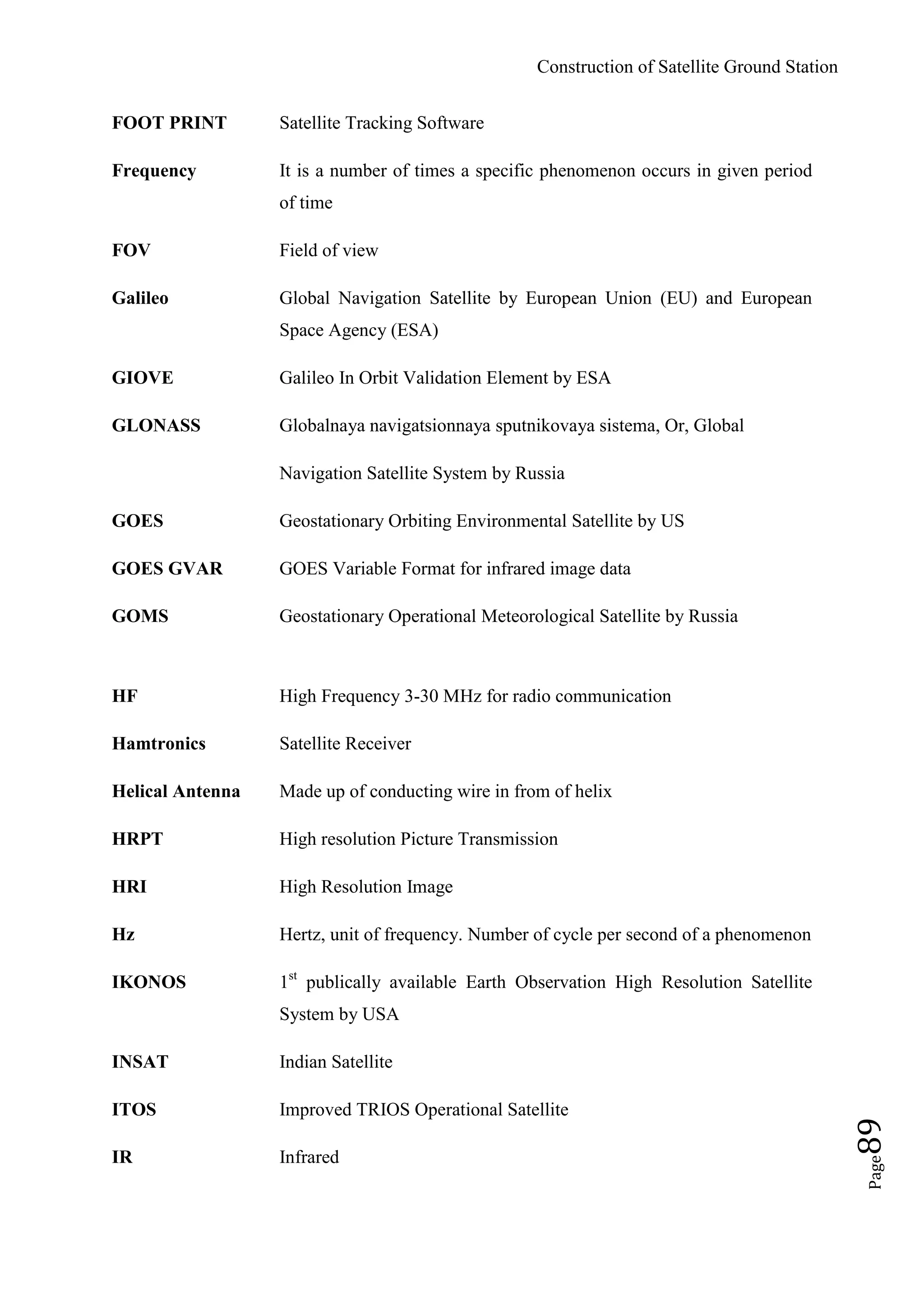

FOOT PRINT Satellite Tracking Software
Frequency It is a number of times a specific phenomenon occurs in given period
of time
FOV Field of view
Galileo Global Navigation Satellite by European Union (EU) and European
Space Agency (ESA)
GIOVE Galileo In Orbit Validation Element by ESA
GLONASS Globalnaya navigatsionnaya sputnikovaya sistema, Or, Global
Navigation Satellite System by Russia
GOES Geostationary Orbiting Environmental Satellite by US
GOES GVAR GOES Variable Format for infrared image data
GOMS Geostationary Operational Meteorological Satellite by Russia
HF High Frequency 3-30 MHz for radio communication
Hamtronics Satellite Receiver
Helical Antenna Made up of conducting wire in from of helix
HRPT High resolution Picture Transmission
HRI High Resolution Image
Hz Hertz, unit of frequency. Number of cycle per second of a phenomenon
IKONOS 1st
publically available Earth Observation High Resolution Satellite
System by USA
INSAT Indian Satellite
ITOS Improved TRIOS Operational Satellite
IR Infrared

Page90

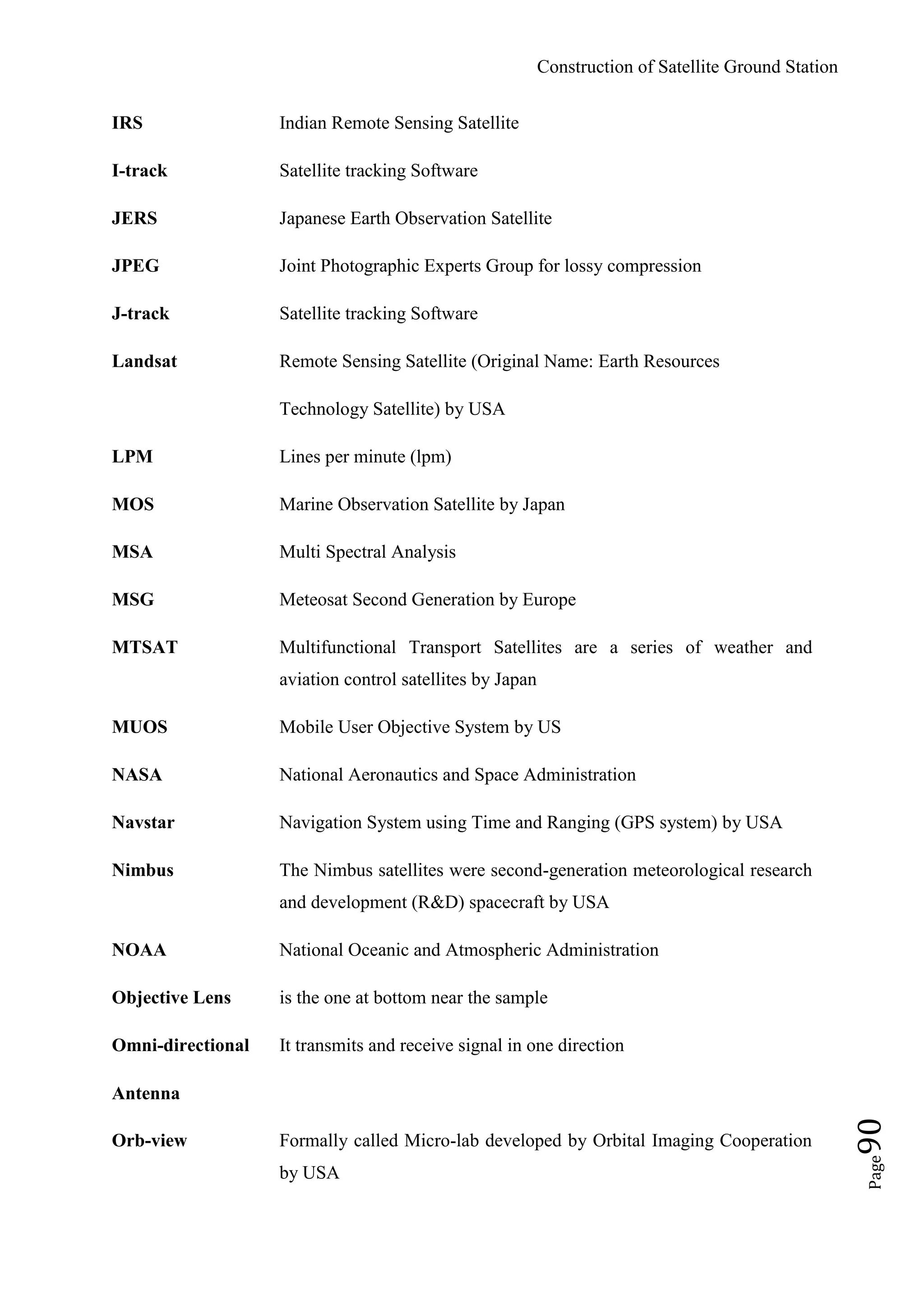

IRS Indian Remote Sensing Satellite
I-track Satellite tracking Software
JERS Japanese Earth Observation Satellite
JPEG Joint Photographic Experts Group for lossy compression
J-track Satellite tracking Software
Landsat Remote Sensing Satellite (Original Name: Earth Resources
Technology Satellite) by USA
LPM Lines per minute (lpm)
MOS Marine Observation Satellite by Japan
MSA Multi Spectral Analysis
MSG Meteosat Second Generation by Europe
MTSAT Multifunctional Transport Satellites are a series of weather and
aviation control satellites by Japan
MUOS Mobile User Objective System by US
NASA National Aeronautics and Space Administration
Navstar Navigation System using Time and Ranging (GPS system) by USA
Nimbus The Nimbus satellites were second-generation meteorological research
and development (R&D) spacecraft by USA
NOAA National Oceanic and Atmospheric Administration
Objective Lens is the one at bottom near the sample
Omni-directional It transmits and receive signal in one direction
Antenna
Orb-view Formally called Micro-lab developed by Orbital Imaging Cooperation
by USA

Page91

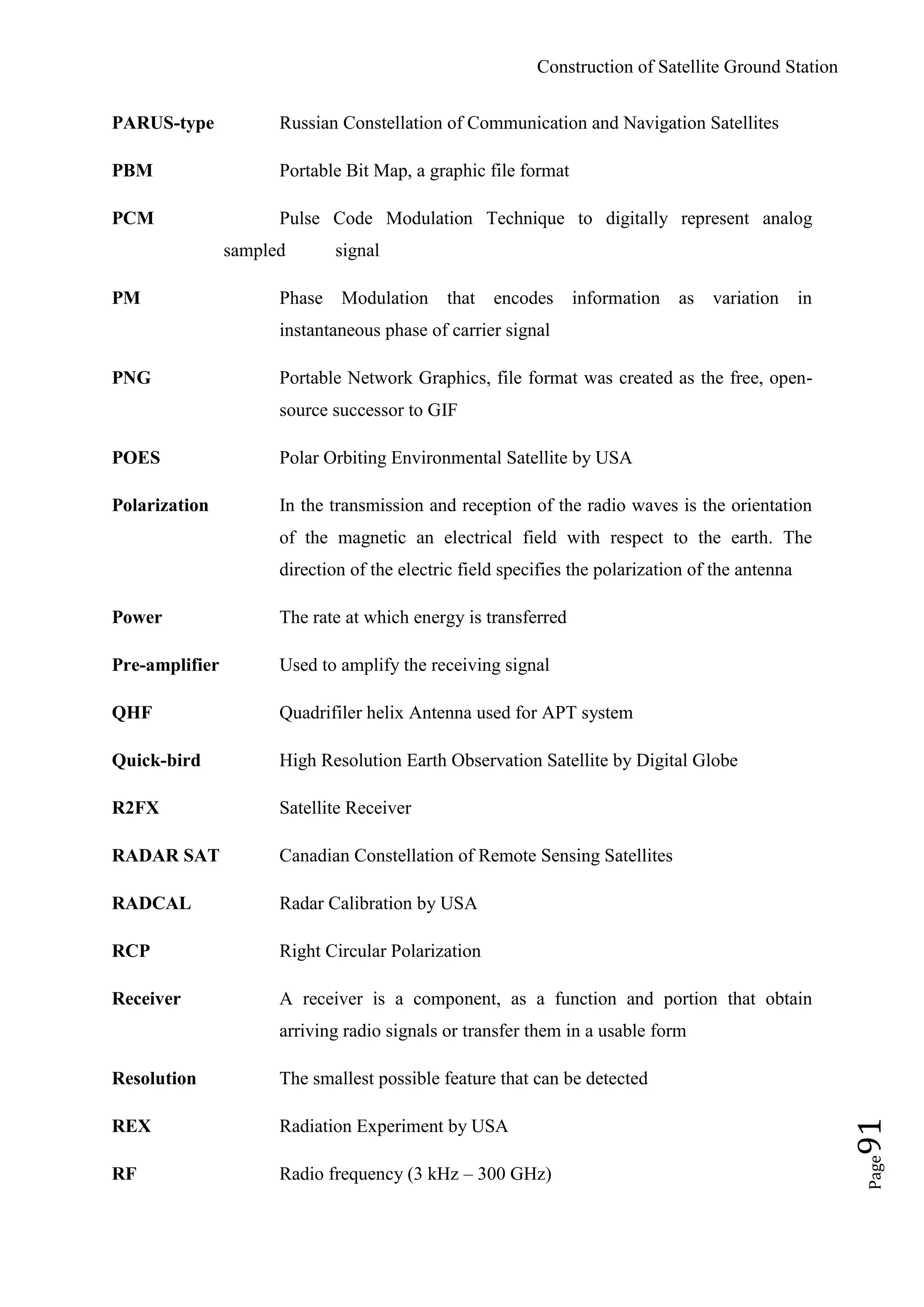

PARUS-type Russian Constellation of Communication and Navigation Satellites
PBM Portable Bit Map, a graphic file format
PCM Pulse Code Modulation Technique to digitally represent analog
sampled signal
PM Phase Modulation that encodes information as variation in
instantaneous phase of carrier signal
PNG Portable Network Graphics, file format was created as the free, open-
source successor to GIF
POES Polar Orbiting Environmental Satellite by USA
Polarization In the transmission and reception of the radio waves is the orientation
of the magnetic an electrical field with respect to the earth. The
direction of the electric field specifies the polarization of the antenna
Power The rate at which energy is transferred
Pre-amplifier Used to amplify the receiving signal
QHF Quadrifiler helix Antenna used for APT system
Quick-bird High Resolution Earth Observation Satellite by Digital Globe
R2FX Satellite Receiver
RADAR SAT Canadian Constellation of Remote Sensing Satellites
RADCAL Radar Calibration by USA
RCP Right Circular Polarization
Receiver A receiver is a component, as a function and portion that obtain
arriving radio signals or transfer them in a usable form
Resolution The smallest possible feature that can be detected
REX Radiation Experiment by USA
RF Radio frequency (3 kHz – 300 GHz)

Page92

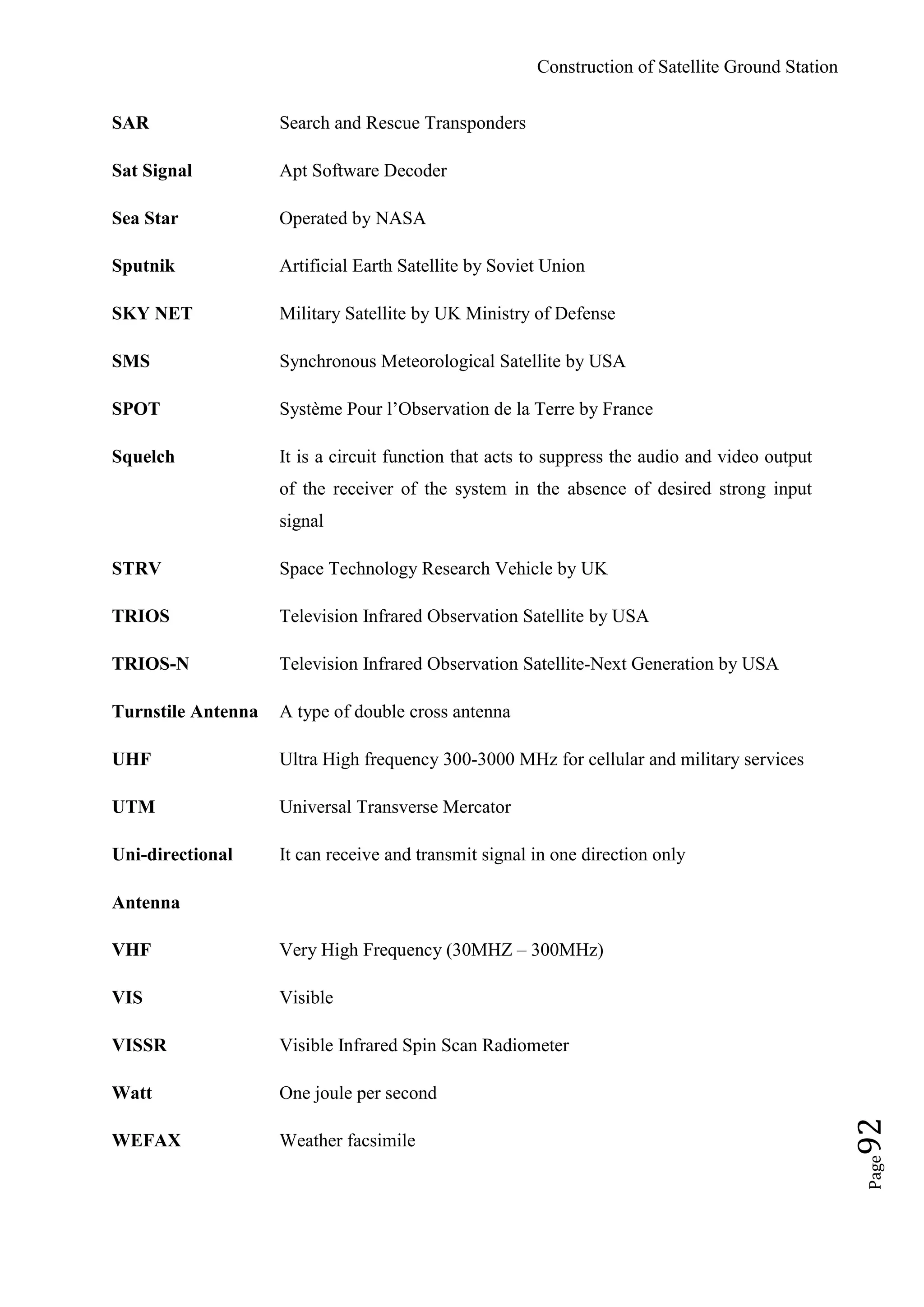

SAR Search and Rescue Transponders
Sat Signal Apt Software Decoder
Sea Star Operated by NASA
Sputnik Artificial Earth Satellite by Soviet Union
SKY NET Military Satellite by UK Ministry of Defense
SMS Synchronous Meteorological Satellite by USA
SPOT Système Pour l‟Observation de la Terre by France
Squelch It is a circuit function that acts to suppress the audio and video output
of the receiver of the system in the absence of desired strong input
signal
STRV Space Technology Research Vehicle by UK
TRIOS Television Infrared Observation Satellite by USA
TRIOS-N Television Infrared Observation Satellite-Next Generation by USA
Turnstile Antenna A type of double cross antenna
UHF Ultra High frequency 300-3000 MHz for cellular and military services
UTM Universal Transverse Mercator
Uni-directional It can receive and transmit signal in one direction only
Antenna
VHF Very High Frequency (30MHZ – 300MHz)
VIS Visible
VISSR Visible Infrared Spin Scan Radiometer
Watt One joule per second
WEFAX Weather facsimile

Page93

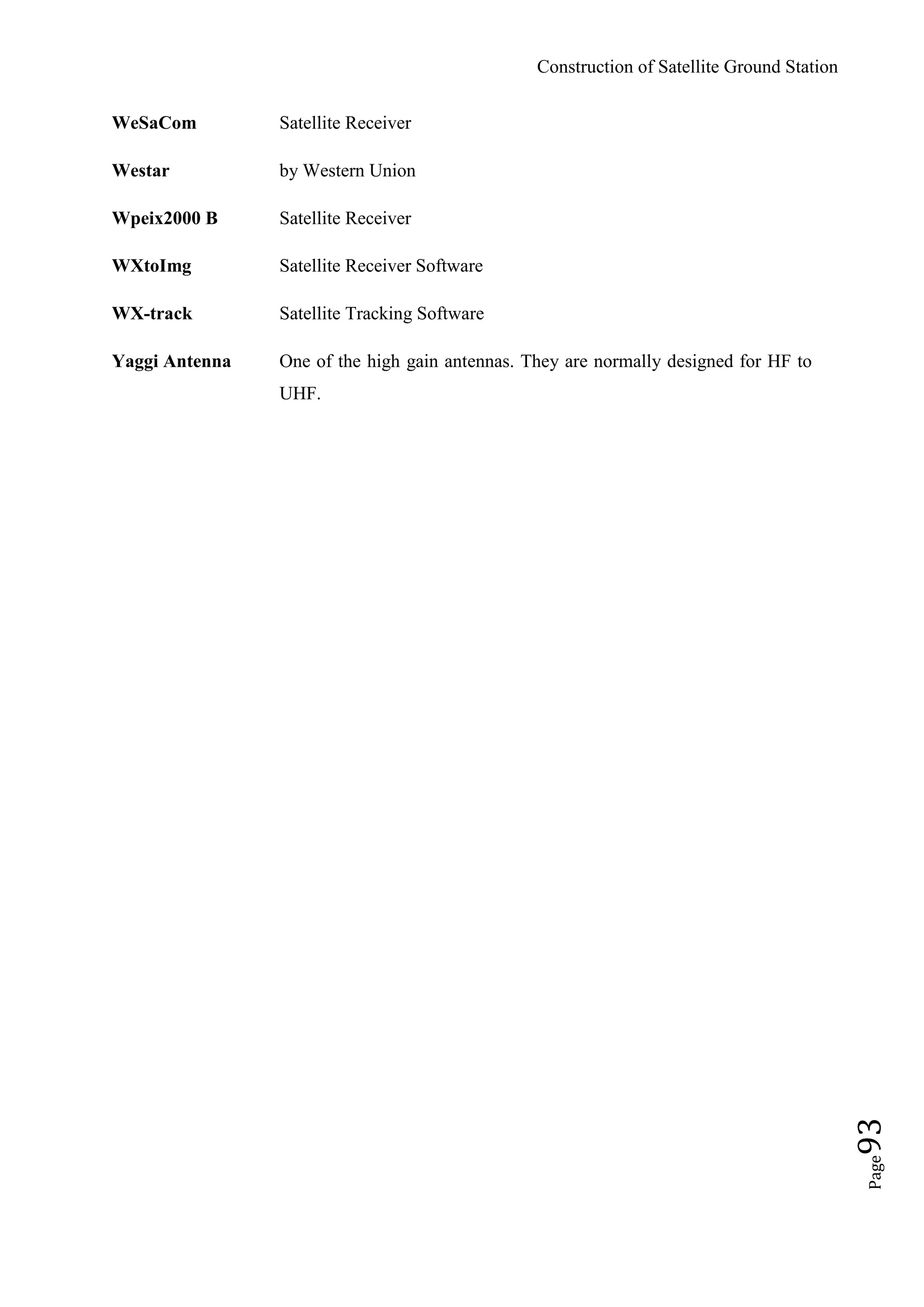

WeSaCom Satellite Receiver
Westar by Western Union
Wpeix2000 B Satellite Receiver
WXtoImg Satellite Receiver Software
WX-track Satellite Tracking Software
Yaggi Antenna One of the high gain antennas. They are normally designed for HF to
UHF.

Page94

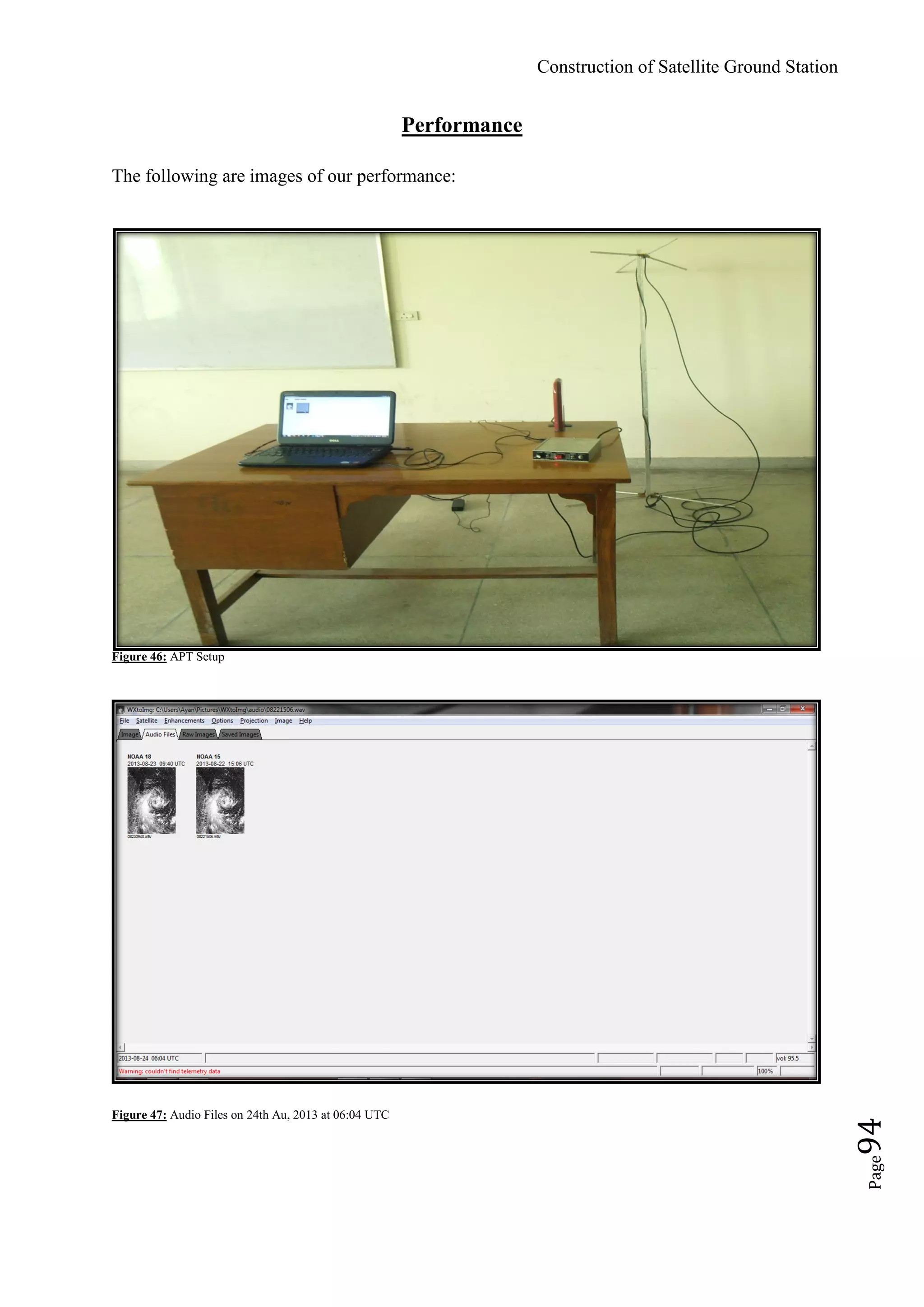

Performance
The following are images of our performance:
Figure 46: APT Setup
Figure 47: Audio Files on 24th Au, 2013 at 06:04 UTC

Page95
Figure 48: Image of NOAA 15

Page96
Software List
 WXtoImg
www.wxtoimg.com
 APT decoder
www.aptdec.htm
 VRS Monitor
www.remotelisten.htm

Page97
References
Books
1. Joseph A. Angelo, Jr, Frontiers in Space: Satellites, http://www.factsonfile.com
2. Definitions from: Louis E. Frenzel, Communication Electronics: Principles and
Applications (3rd
Edition). McGraw-Hill INTERNATIONAL EDITIONS
PDF Files
The following are arranged date-wise and alphabetically:
03-10-12
1. http://docs.lib.noaa.gov/rescue/TIROS/TL798M4T341964.pdf
2. http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19630013799_1963013799.pdf
04-10-12
1. http://satelliteconferences.noaa.gov/Miami04/docs/weds/NOAA-FUTURE-DRO.pdf
13-03-13
1. http://docs.lib.noaa.gov/rescue/TIROS/QC87954A681963.pdf
29-05-13
1. http://www.cder.dz/download/Art7-1_1.pdf
14-07-13
1. http://www.nws.noaa.gov/com/files/nwshighlevelorgchart_01-12-2012.pdf
2. http://www.osd.noaa.gov/download/JRS012504-GD.pdf
22-07-13
1. http://www.iau-neyshabur.ac.ir/nokhodchian/satellite.pdf

Page98
2. http://www.ieee.li/pdf/viewgraphs/fundamentals_satellite_communication_part_1.pdf
3. http://www.ituarabic.org/2007/Disaster-Relief/FinalDocs/3rd Day/SessionXII/Doc58-
Globalstar.pdf
4. http://userspages.uob.edu.bh/mangoud/ms-sat1.pdf
5. http://www.usingenglish.com/files/pdf/advantages-and-disadvantages-of-future-
technologies.pdf
26-07-13
1. The HERMES Internet to Orbit gateway, UNOOSA, Graz, Austria – 2009
http://www.unoosa.org/pdf/sap/2009/graz/Programme_3September.pdf
Research Articles
1. Benabadji. N., Hassani. A., and Belbachir. A. (2004). Hardware and Software
Considerations to Use NOAA Images. Rev. Energ. Ren, Vol.7, p 1-11.
2. Charles. H.V. A User Guide to Construction of Inexpensive Automatic picture-
Transmission Ground Station. Goddard Space Flight Center Greenbelt, Maryland.
(1967).
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19670029628_1967029628.pd
f.
3. Charles. H.V. (1968) Constructing Inexpensive Automatic picture-Transmission
Ground Station. NASA SP-5079, p 1-57.
4. Gary. D. History of NOAA Satellite Program. 2011.
http://www.osd.noaa.gov.
5. Major C.I.T., Kenney. J., and Richards. R. (1964). Consideration Program for
Automatic Picture Transmission from TRIOS VIII. Consideration Aeronautics
and Space Journal, Vol. 10, p 103-106.
6. Patrik. T., and Jerry. M. (2008). Signal Plotter: A Tool for Evaluation APT
Antenna Performance. Group for Earth Observation, Vol. 20, p 6-12.
7. Using a Virtual Ground Station as a Tool for Supporting Higher Education, Jafer,
Klesh, Nader, Koudelka – IAC 2010.3
8. 61st International Astronautical Congress, Prague, IAC-10-E1.1.2 - A Satellite In The
Classroom: 2nd Grade Students Work With Real-Time Satellite Images - Solberg -
Academia Cotopaxi, Quito, Ecuador

Page99
9. 61st International Astronautical Congress 2010 - Space Communications And
Navigation Symposium (B2) - Project Agora: Simultaneously Downloading A Satellite
Signal Around The World, ”, Jaffer, Klesh, Nader, Koudelka
Websites
The following are arranged date-wise and alphabetically:
29-05-13
1. http://www.emgo.cz/www_fa/meteosat_englisch_how.html
2. http://jcoppens.com/sat/howto/receive.en.php
3. http://nssdc.gsfc.nasa.gov/nmc/experimentDisplay.do?id=1963-054A-02
30-05-13
1. http://www.astrosurf.com/luxorion/qsl-satellites-reception2.htm
2. http://noaasis.noaa.gov/NOAASIS/ml/meteor.html
3. http://www.qsl.net/g4hbt/wxsats.htm
4. http://www.wraase.de/e_apt06.htm
5. http://www.zarya.info/Frequencies/Frequencies136.php
13-07-2013
1. http://celebrating200years.noaa.gov/resources.html#satellites
2. http://www.n2yo.com/satellites/?c=3
3. http://www.n2yo.com/satellites/?c=4
4. http://weather.gc.ca/satellite/
14-07-2013
1. http://www2.ncdc.noaa.gov/docs/podug/html/c1/sec12.htm
2. http://www.pco.noaa.gov/org/NOAA_Organization.htm
3. http://poes.gsfc.nasa.gov/noaa-heritage.html
4. http://www.g4ilo.com/wxsats.html
5. http://www.ncdc.noaa.gov/oa/pod-guide/ncdc/docs/klm/html/c4/sec4-2.htm

Page100
6. http://www.noaa.gov/about-noaa.html
7. http://noaasis.noaa.gov/NOAASIS/ml/genlsatl.html
8. http://www.oz9aec.net/index.php/gnu-radio/gnu-radio-blog/451-howto-receive-and-
decode-noaa-apt-images-with-the-fun cube-dongle-and-gqrx
9. http://www.oso.noaa.gov/poesstatus/spacecraftStatusSummary.asp?spacecraft=15
13. http://planet.iitp.ru/english/spacecraft/noaa.htm
14. http://www.srh.weather.gov/srh/jetstream/remote/satellite.htm
15-07-13
1. http://goes.gsfc.nasa.gov/text/goesnew.html
2. http://elecaskar.blogspot.com/2012/08/part-1-home-weather-satellite-receiver.html
3. http://myweb.tiscali.co.uk/wxsatellite/wxtoimg.htm
4. http://www.time-step.com/products_apt.htm
5. http://www.weatherscience.net/My_APT_Station.html
6. http://www.wxtoimg.com/hardware/
17-07-13
1. http://www.antenna-theory.com/antennas/main.php
21-07-13
1. https://sites.google.com/site/projagora/instructions/delta-mode---weather-images
22-07-13
2. http://electriciantraining.tpub.com/14189/css/14189_135.htm
3. http://www.fi.edu/weather/satellite/history.html
4. http://www.gma.org/surfing/sats.html
5. http://history.nasa.gov/weathsat.html
6. http://sat232.blogspot.com/2011/12/disadvantages-of-satellites.html
7. http://satellitecommunicationzone.com/disadvantages-of-satellite-communication
8. http://www.satellites.spacesim.org/english/engineer/copy/
9. http://www.stella2000.com/the-advantages-of-satellite-images/

Page101
10. http://www.satimagingcorp.om/characterization-of-satellite-remote-sensing-
systems.html
11. http://www.telesat.com/about-us/why-satellite/advantages-satellites
12. http://www.telescope.org/nuffield/pas/moon/moon9e.html
13. http://www.ustudy.in/node/3529
14. http://www.weatherdefender.com/Features.aspx
15. http://www.vectorsite.net/ttgps_2.html
Un-identified Dates
1. http://antenna-theory.com/antennas/main.php
2. http://crossdipoleantenna.htm
3. http://turnstileantennaforsatellite reception/digitalham.htm
4. http://GOES-NEWS.htm
5. http://www.astrosurf.com/luxorion/qsl-satellites-reception2.htm
6. http://www.hffax.de/html/simple_apt_antenna.html
7. http://www.morcom.com/satellite_imaging.html

Report with Hermes 2013

More Related Content

What's hot

Similar to Report with Hermes 2013

More from Atiqa khan

Recently uploaded

Report with Hermes 2013
