RelProxy, Easy Class Reload and Scripting with Java

RelProxy
Easy Class Reload
and Scripting with Java
Jose María Arranz Santamaría January 28, 2015

RelProxy...
● WHAT IS?
● WHY?
● HOW IT WORKS…
● WHERE?

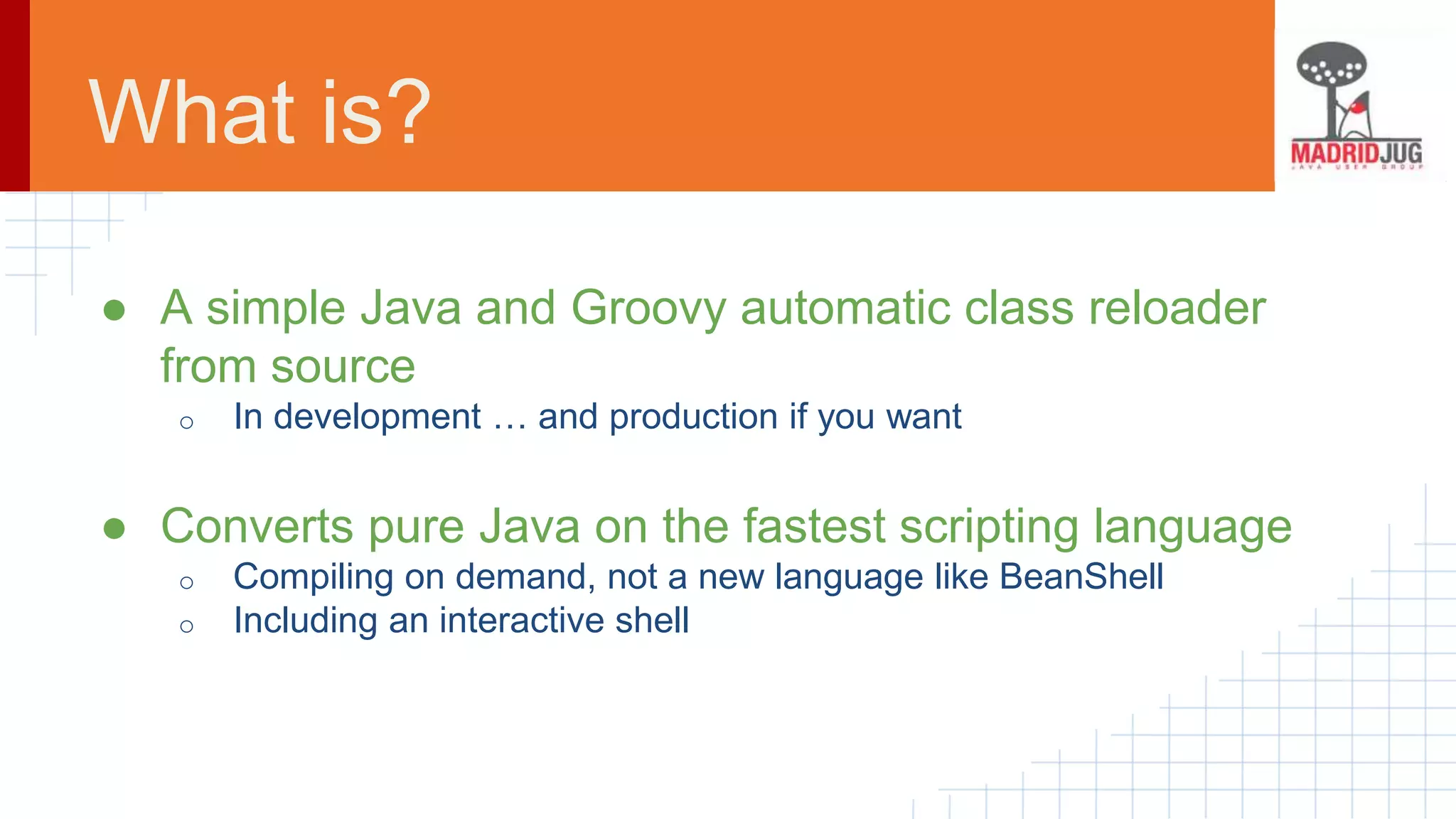

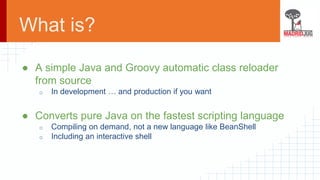

What is?
● A simple Java and Groovy automatic class reloader
from source
o In development … and production if you want
● Converts pure Java on the fastest scripting language
o Compiling on demand, not a new language like BeanShell
o Including an interactive shell

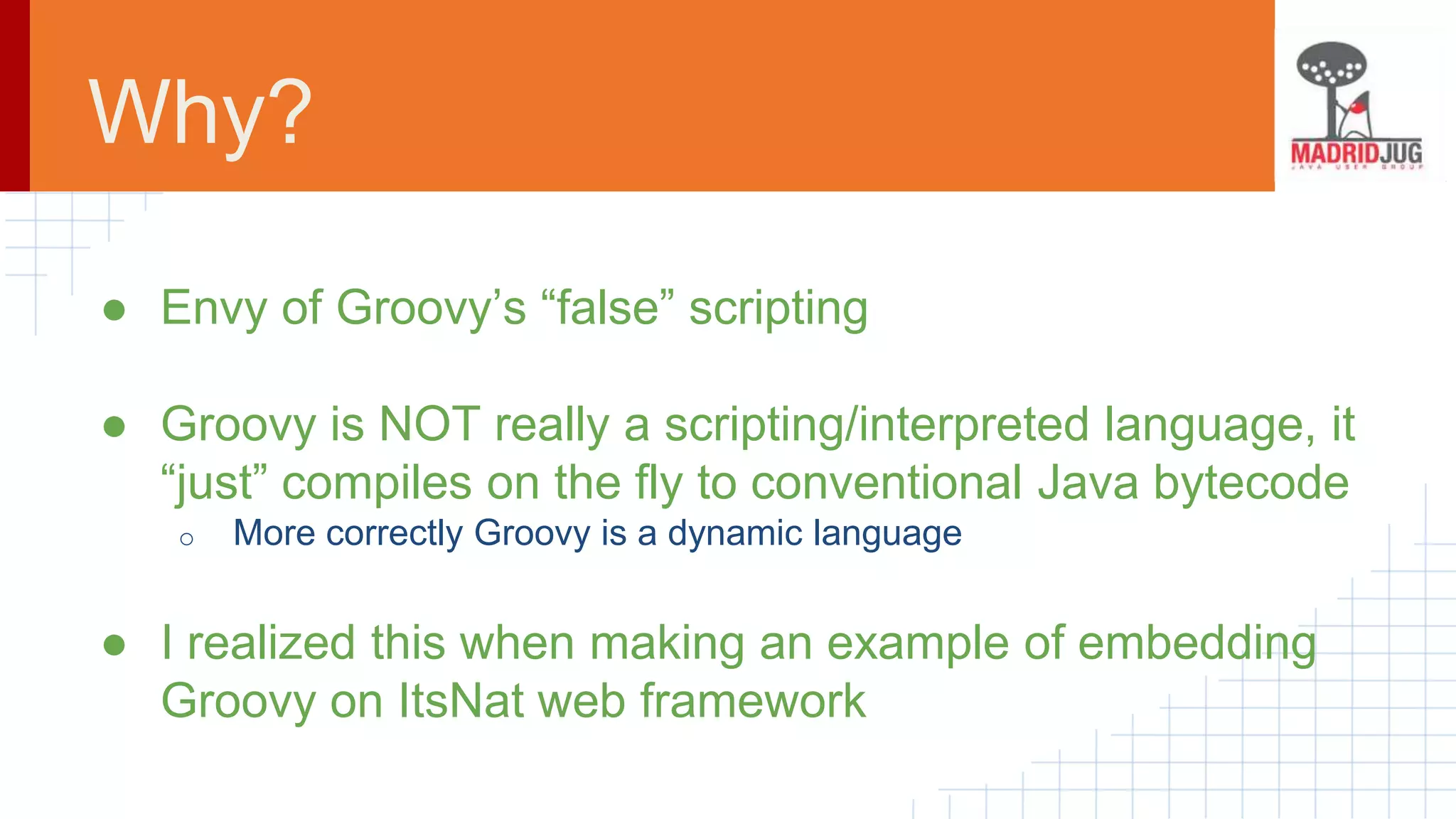

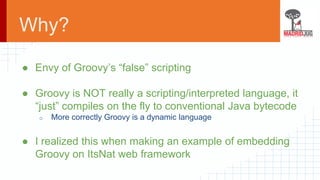

Why?
● Envy of Groovy’s “false” scripting
● Groovy is NOT really a scripting/interpreted language, it
“just” compiles on the fly to conventional Java bytecode
o More correctly Groovy is a dynamic language
● I realized this when making an example of embedding
Groovy on ItsNat web framework

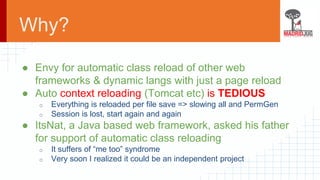

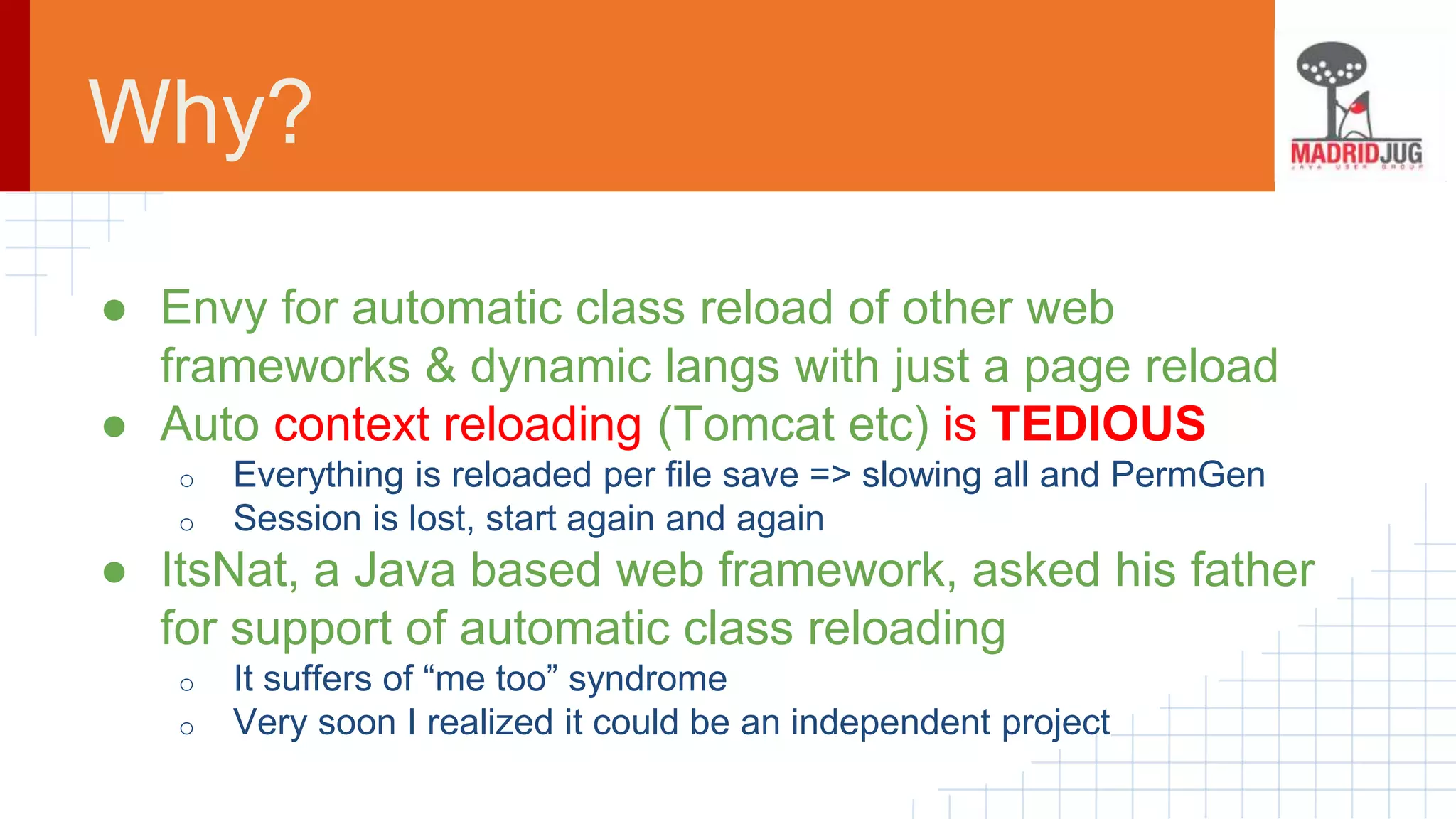

Why?
● Envy for automatic class reload of other web
frameworks & dynamic langs with just a page reload
● Auto context reloading (Tomcat etc) is TEDIOUS
o Everything is reloaded per file save => slowing all and PermGen
o Session is lost, start again and again
● ItsNat, a Java based web framework, asked his father
for support of automatic class reloading
o It suffers of “me too” syndrome
o Very soon I realized it could be an independent project

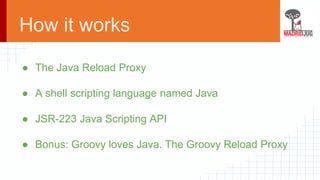

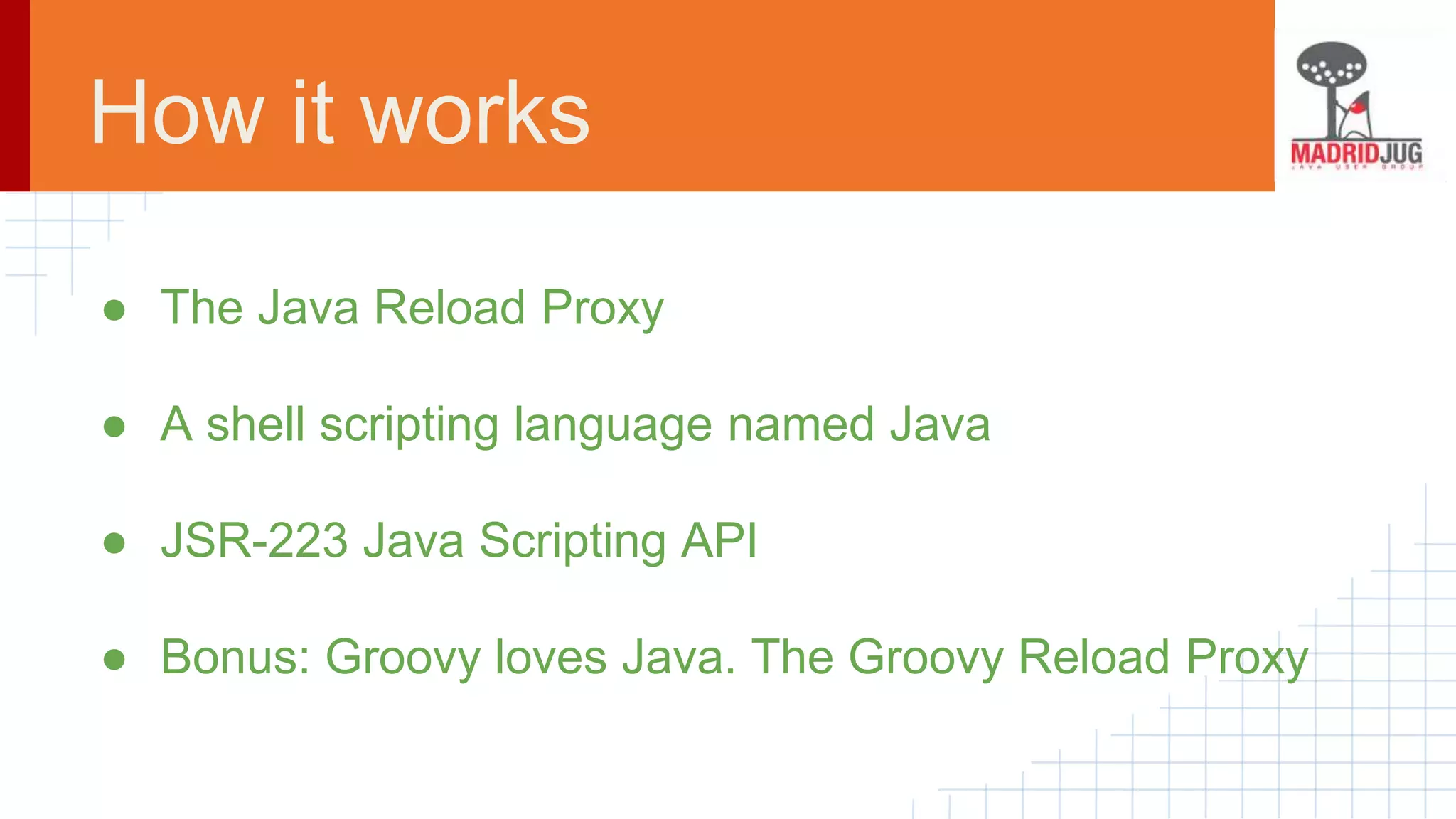

How it works
● The Java Reload Proxy

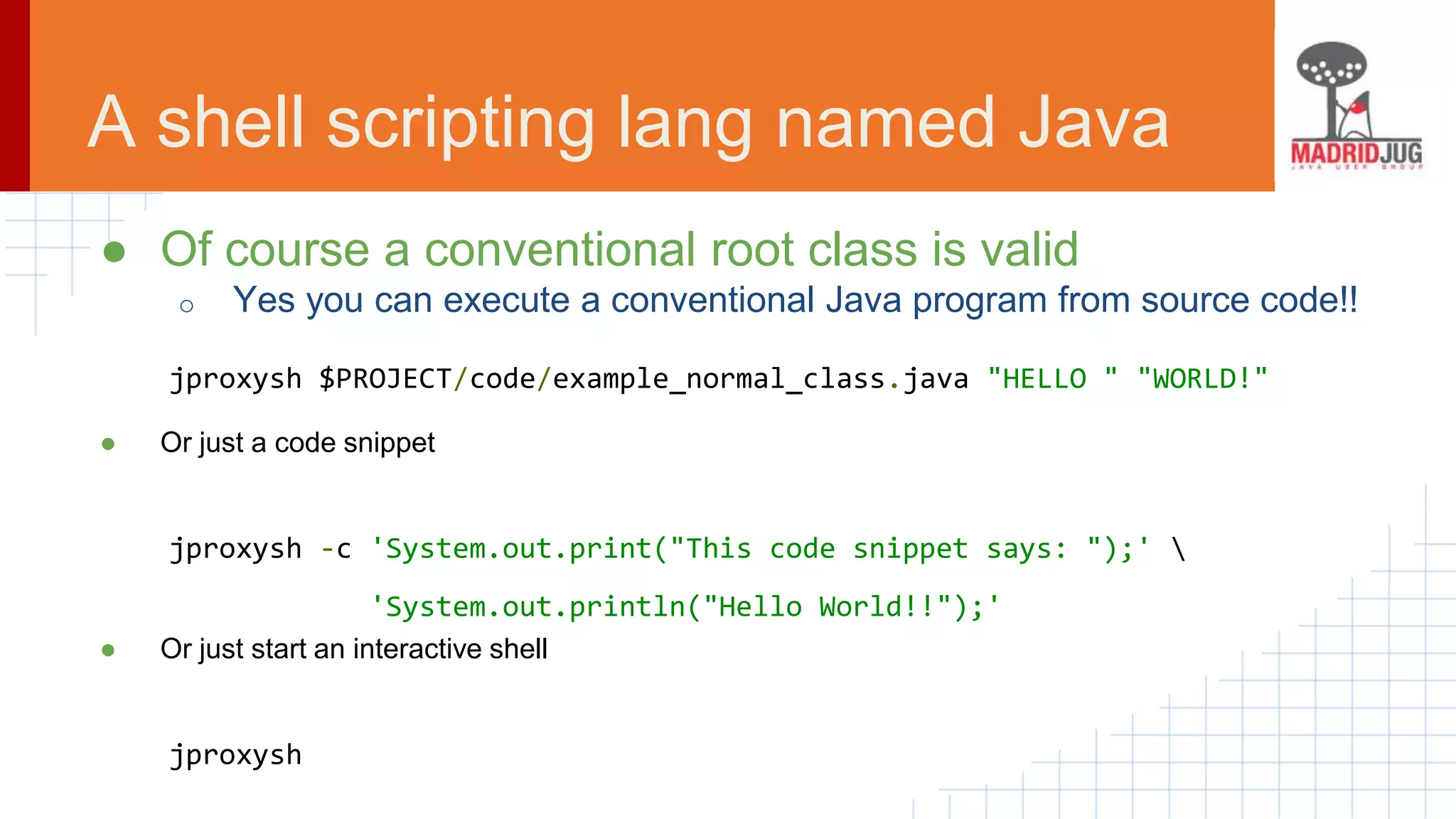

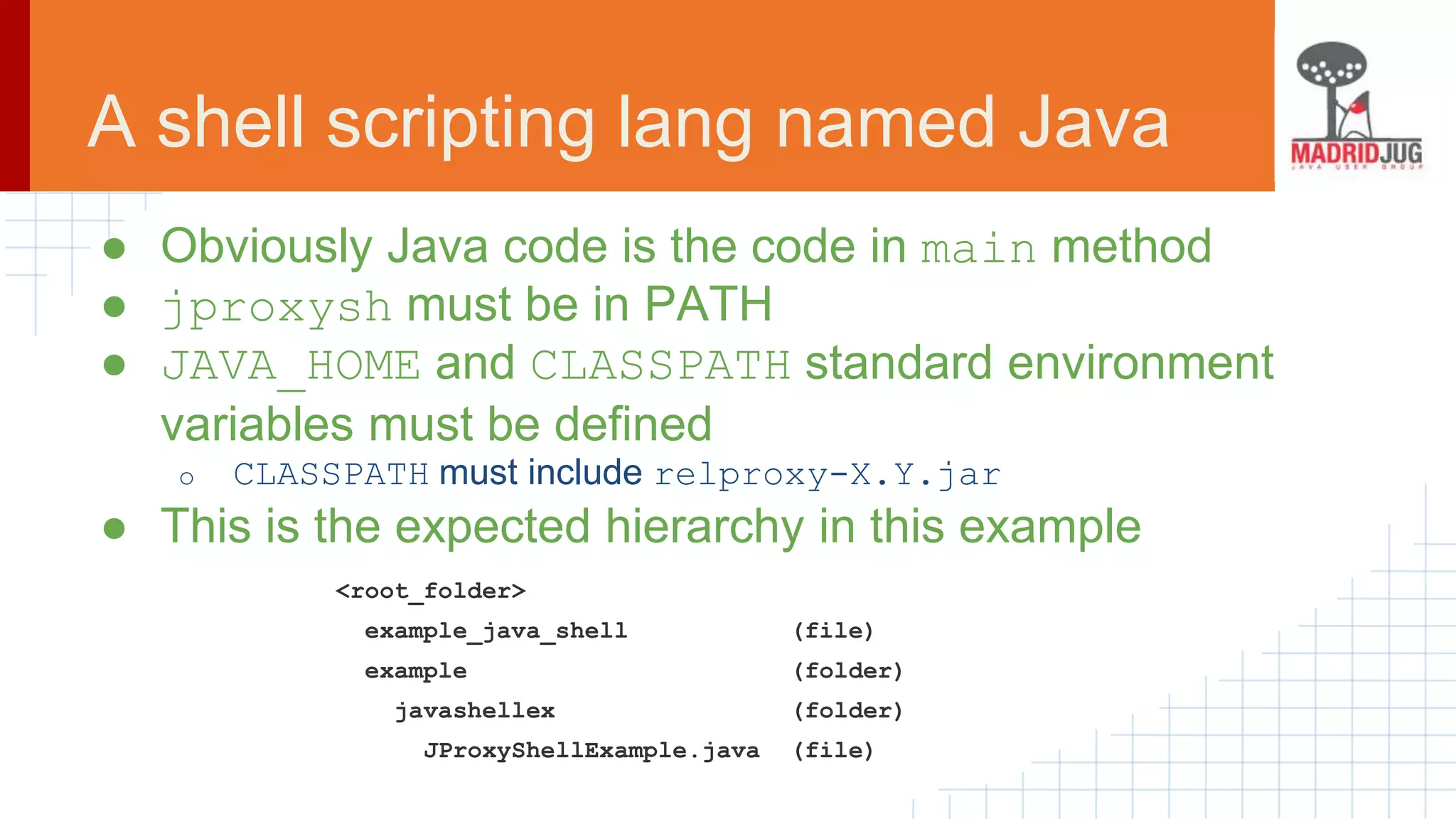

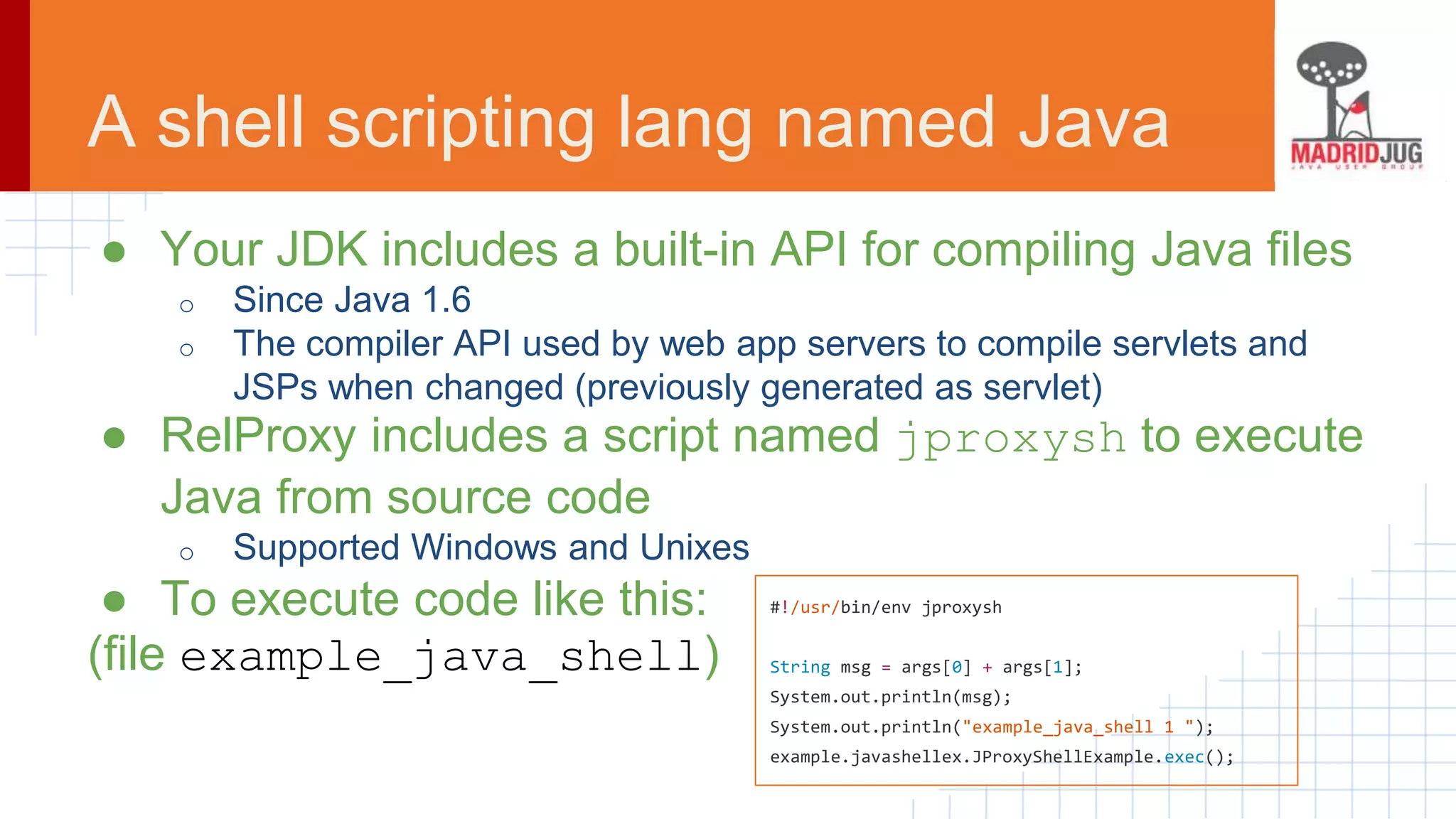

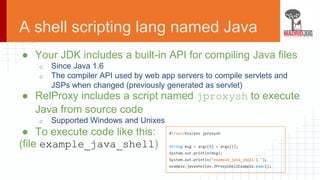

● A shell scripting language named Java

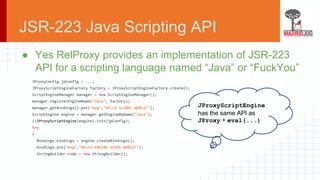

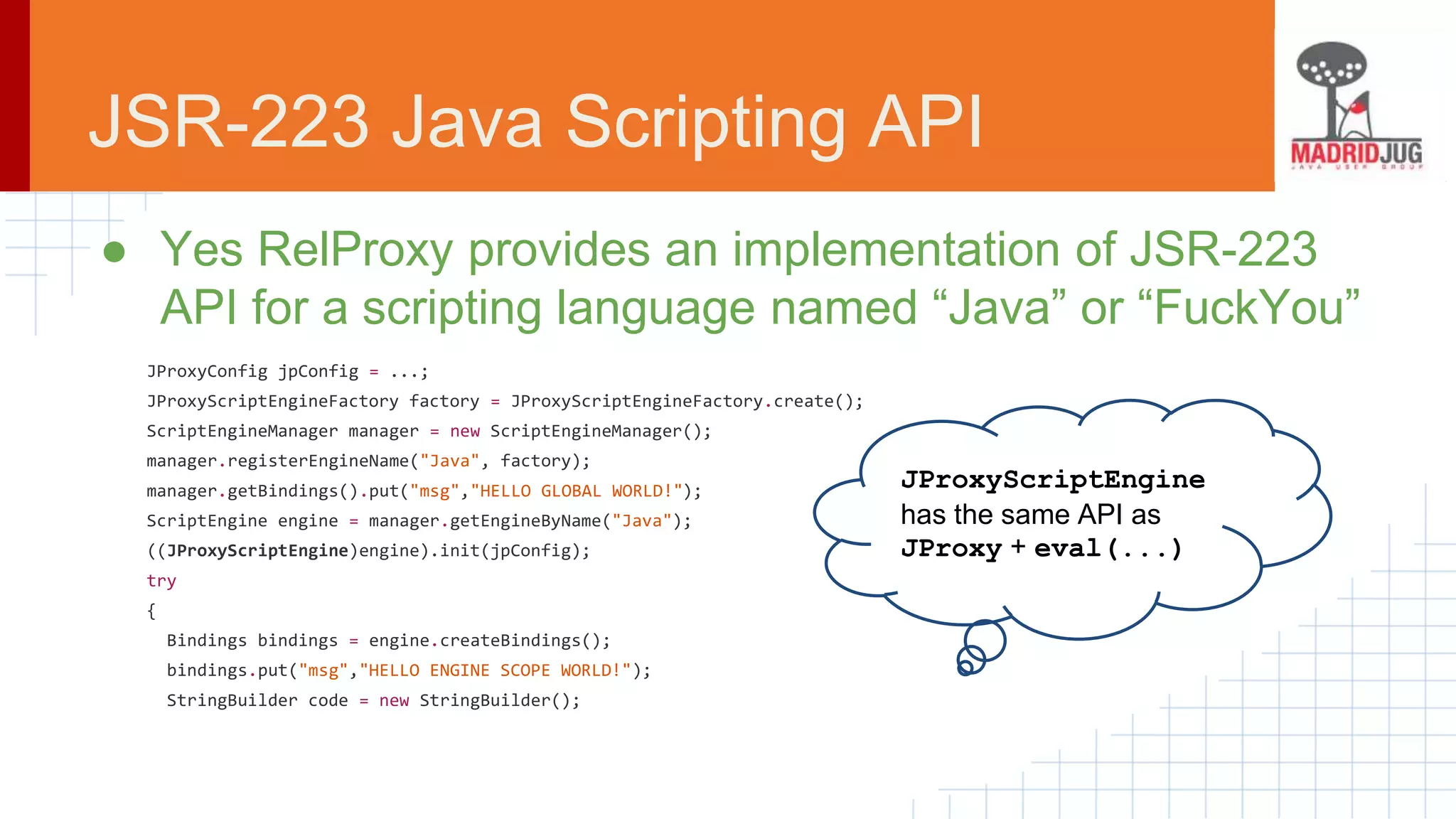

● JSR-223 Java Scripting API
● Bonus: Groovy loves Java. The Groovy Reload Proxy

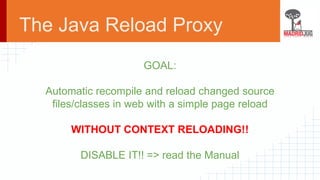

The Java Reload Proxy
GOAL:
Automatic recompile and reload changed source
files/classes in web with a simple page reload
WITHOUT CONTEXT RELOADING!!
DISABLE IT!! => read the Manual

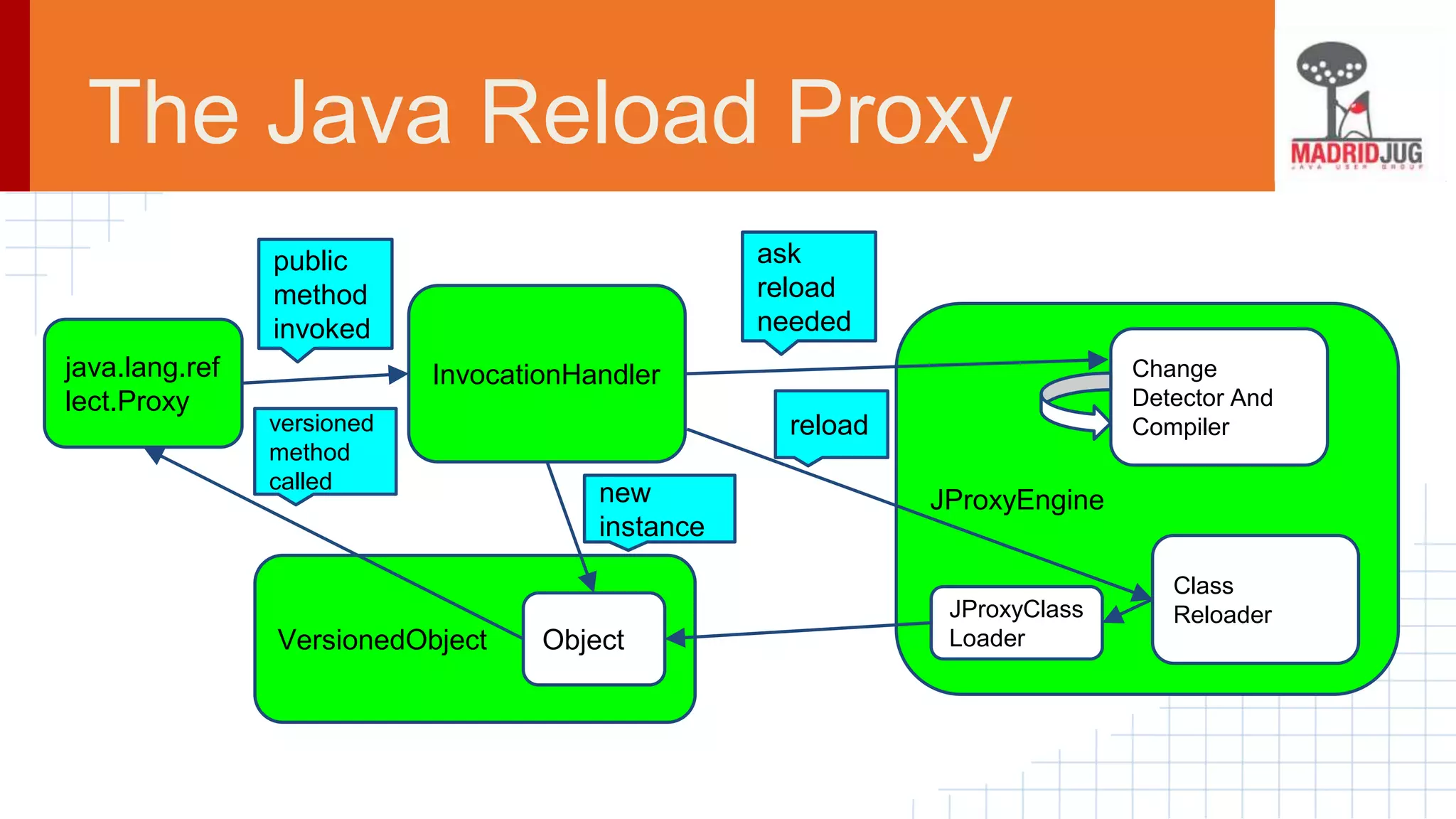

InvocationHandler
VersionedObject Object
JProxyEngine
Change
Detector And
Compiler
Class
Reloader
java.lang.ref
lect.Proxy
public
method
invoked
ask
reload
needed
reload
JProxyClass
Loader
new
instance
versioned
method
called

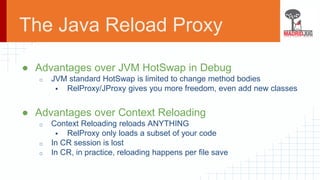

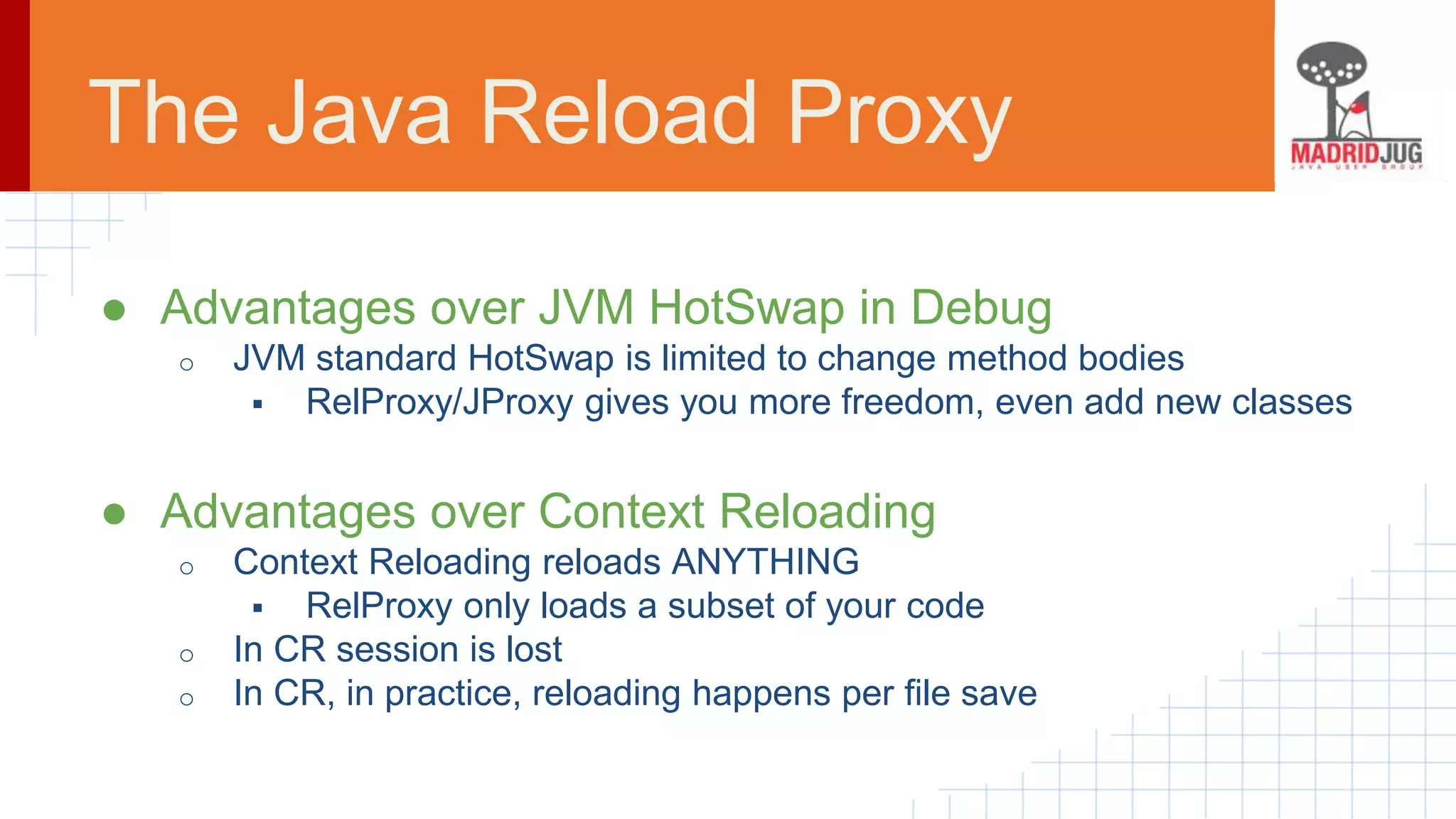

● Advantages over JVM HotSwap in Debug
o JVM standard HotSwap is limited to change method bodies
 RelProxy/JProxy gives you more freedom, even add new classes
● Advantages over Context Reloading
o Context Reloading reloads ANYTHING
 RelProxy only loads a subset of your code
o In CR session is lost
o In CR, in practice, reloading happens per file save

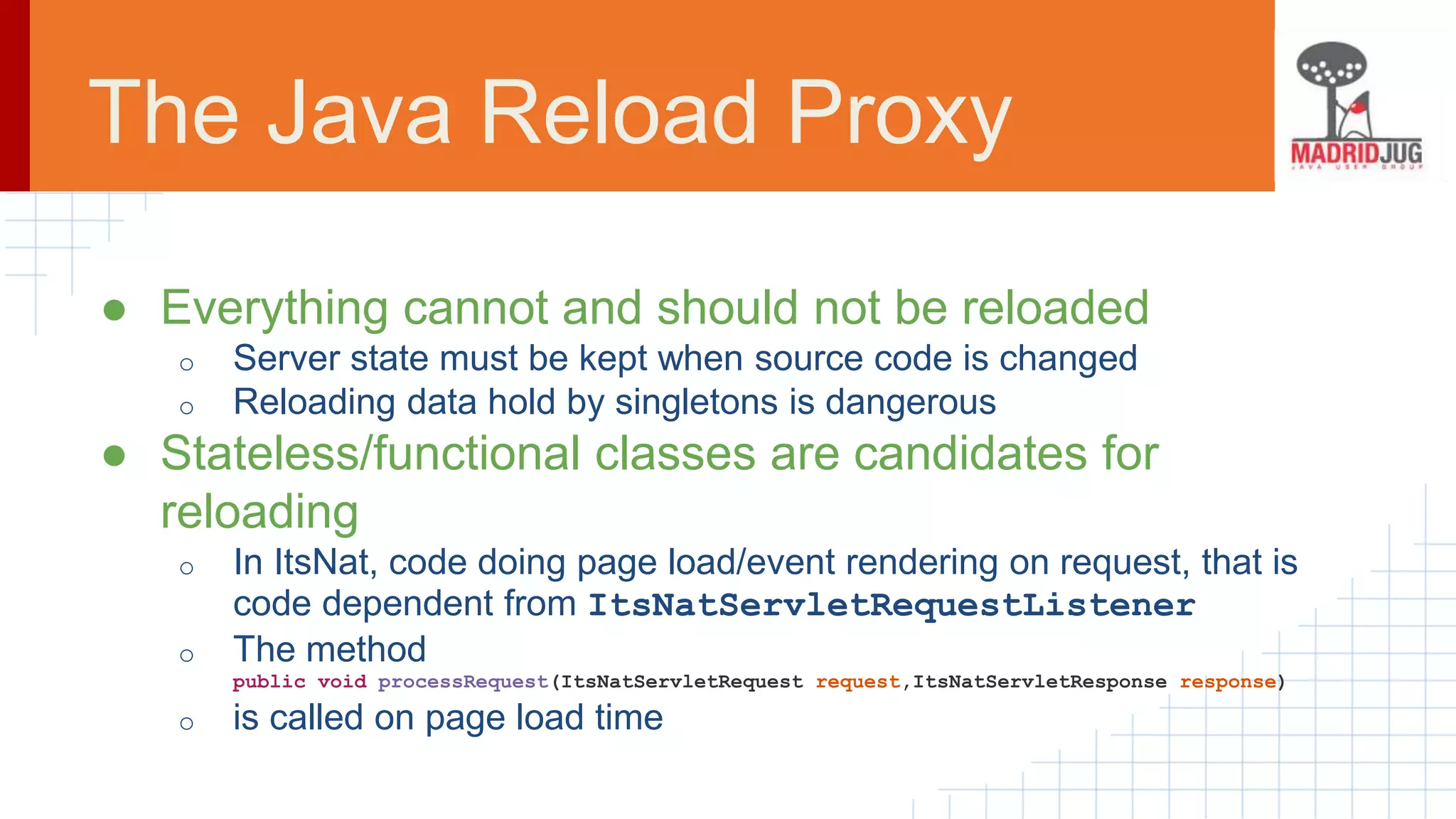

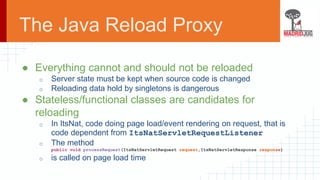

● Everything cannot and should not be reloaded
o Server state must be kept when source code is changed
o Reloading data hold by singletons is dangerous
● Stateless/functional classes are candidates for
reloading
o In ItsNat, code doing page load/event rendering on request, that is
code dependent from ItsNatServletRequestListener
o The method
public void processRequest(ItsNatServletRequest request,ItsNatServletResponse response)
o is called on page load time

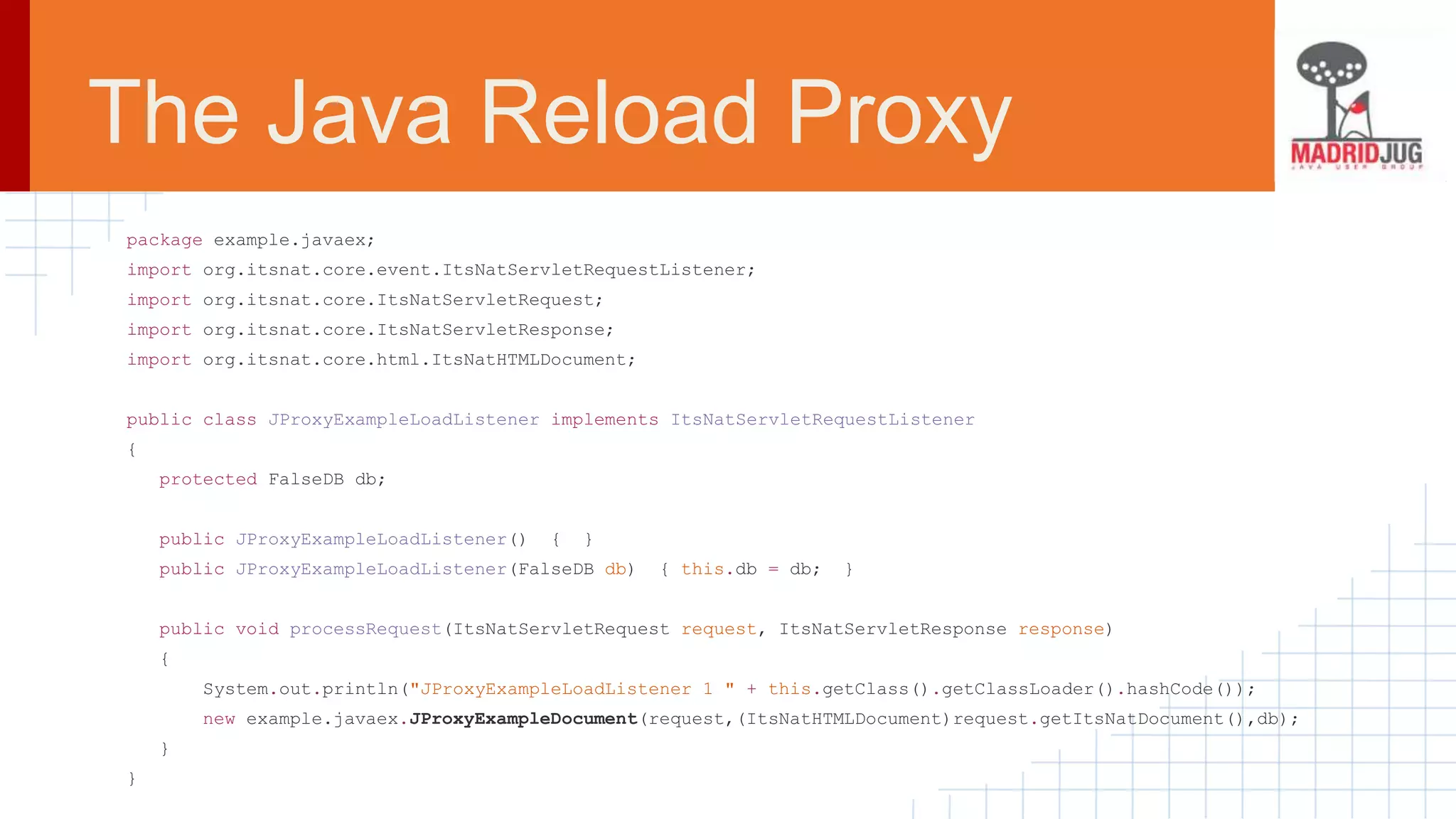

package example.javaex;
import org.itsnat.core.event.ItsNatServletRequestListener;
import org.itsnat.core.ItsNatServletRequest;
import org.itsnat.core.ItsNatServletResponse;
import org.itsnat.core.html.ItsNatHTMLDocument;
public class JProxyExampleLoadListener implements ItsNatServletRequestListener
{
protected FalseDB db;
public JProxyExampleLoadListener() { }
public JProxyExampleLoadListener(FalseDB db) { this.db = db; }
public void processRequest(ItsNatServletRequest request, ItsNatServletResponse response)
{
System.out.println("JProxyExampleLoadListener 1 " + this.getClass().getClassLoader().hashCode());
new example.javaex.JProxyExampleDocument(request,(ItsNatHTMLDocument)request.getItsNatDocument(),db);
}
}

FalseDB db = new FalseDB();
String pathPrefix = context.getRealPath("/") + "/WEB-INF/jproxyex/pages/";
ItsNatDocumentTemplate docTemplate;
docTemplate = itsNatServlet.registerItsNatDocumentTemplate("jproxyex","text/html",
pathPrefix + "jproxyex.html");
ItsNatServletRequestListener listener = new example.javaex.JProxyExampleLoadListener(db);
docTemplate.addItsNatServletRequestListener(listener);

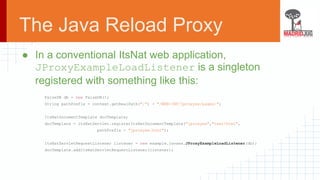

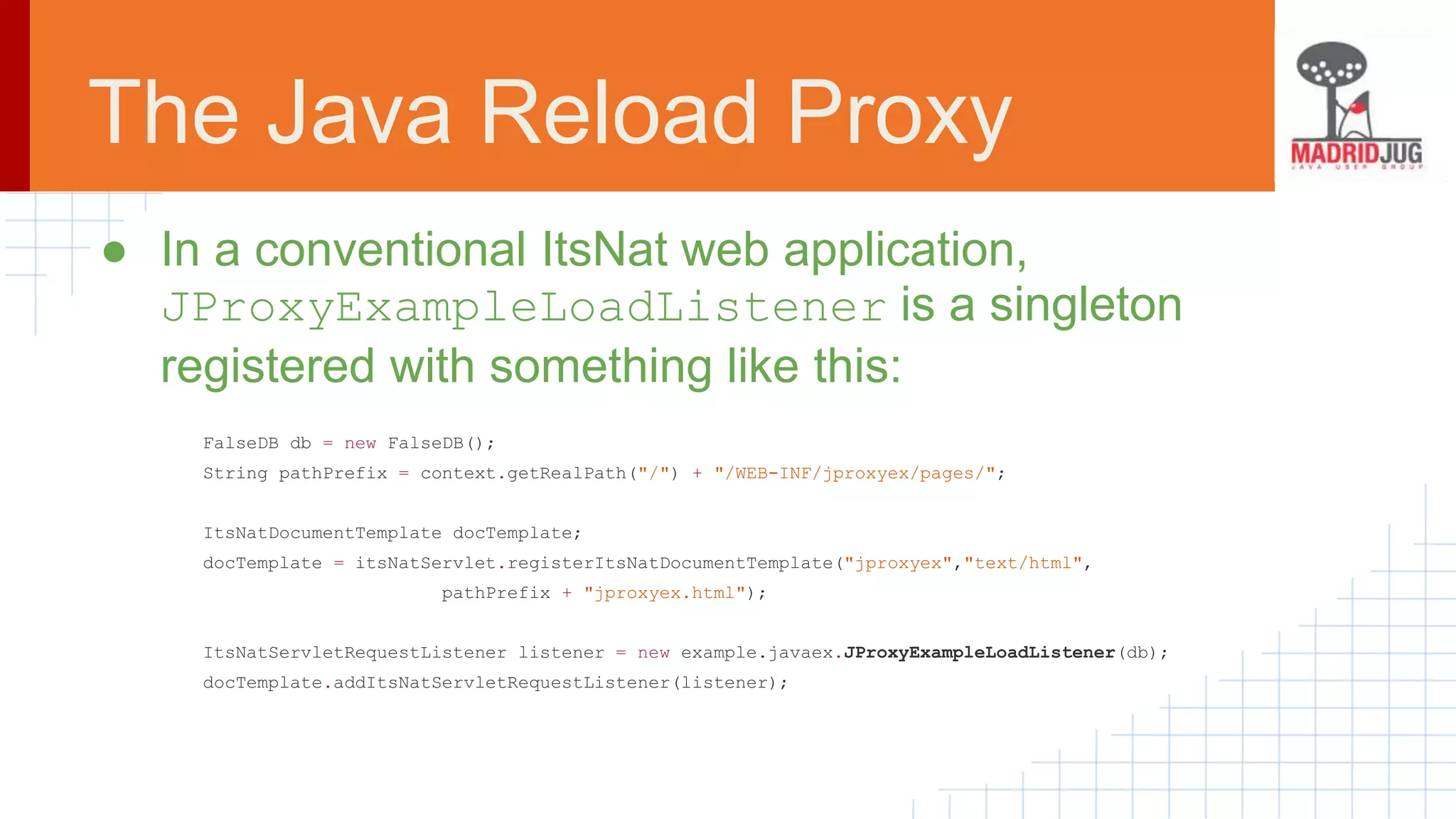

● In a conventional ItsNat web application,
JProxyExampleLoadListener is a singleton
registered with something like this:

public void processRequest(ItsNatServletRequest request, ItsNatServletResponse response)
{
System.out.println("JProxyExampleLoadListener 10 " + this.getClass().getClassLoader().hashCode());
new example.javaex.JProxyExampleDocument(request,(ItsNatHTMLDocument)request.getItsNatDocument(),db);
}

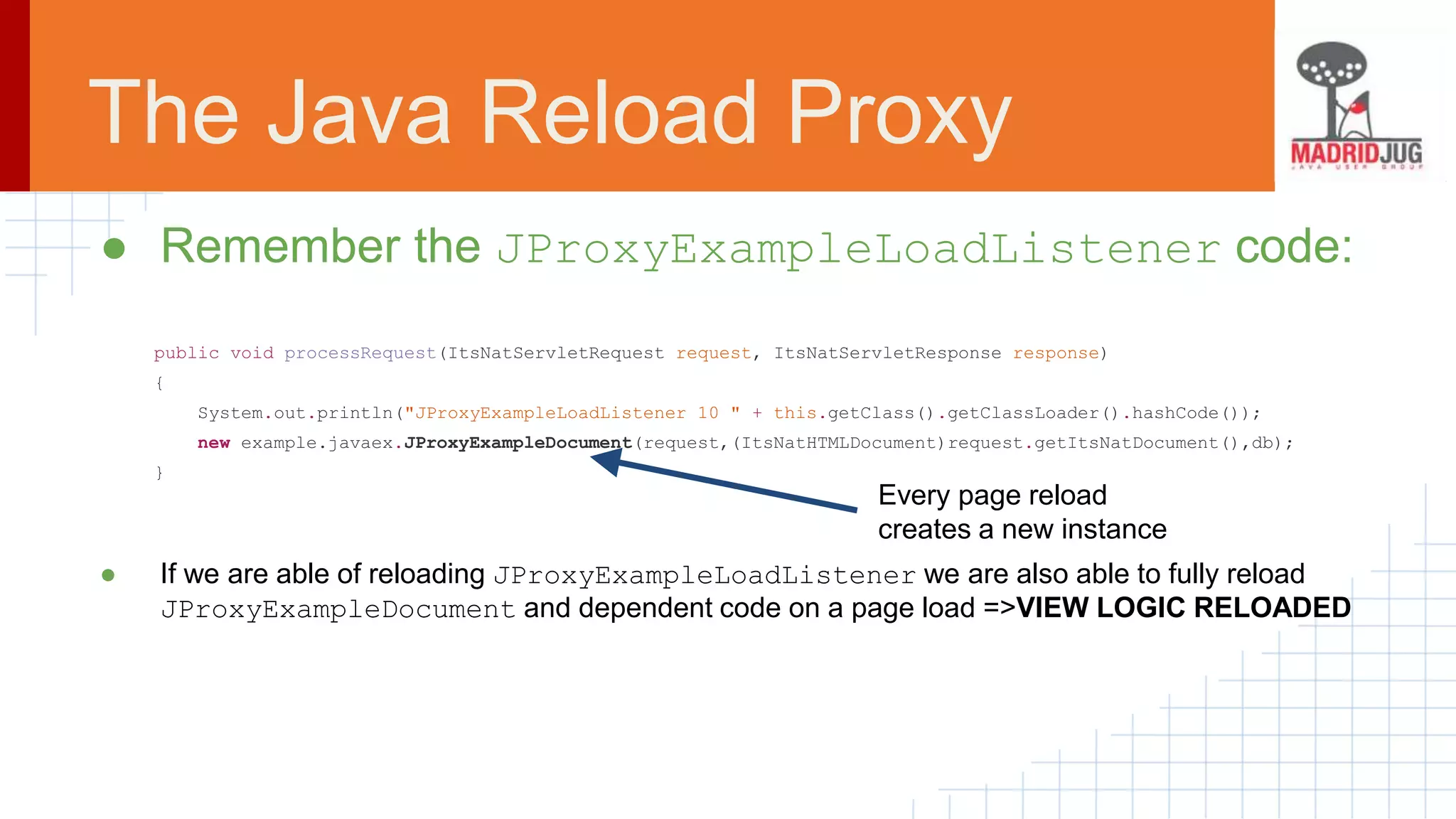

● Remember the JProxyExampleLoadListener code:
● If we are able of reloading JProxyExampleLoadListener we are also able to fully reload
JProxyExampleDocument and dependent code on a page load =>VIEW LOGIC RELOADED
Every page reload
creates a new instance

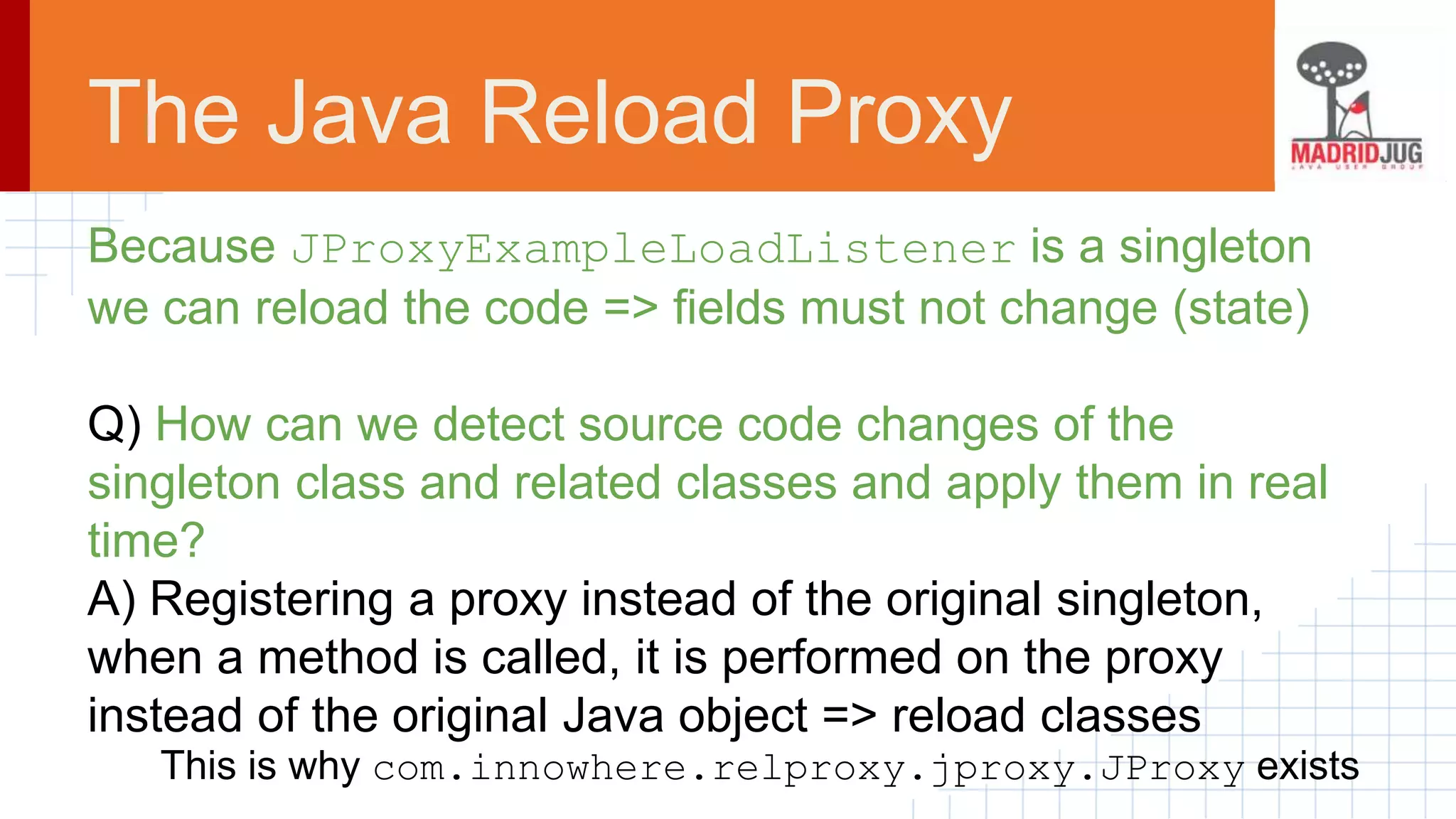

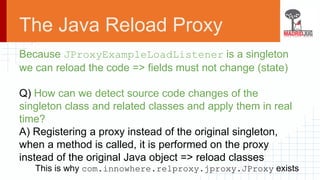

Because JProxyExampleLoadListener is a singleton
we can reload the code => fields must not change (state)
Q) How can we detect source code changes of the
singleton class and related classes and apply them in real
time?
A) Registering a proxy instead of the original singleton,
when a method is called, it is performed on the proxy
instead of the original Java object => reload classes
This is why com.innowhere.relproxy.jproxy.JProxy exists

package example.javaex;
import java.io.File;
import java.lang.reflect.Method;
import java.util.Arrays;
import java.util.List;
import javax.servlet.*;
import javax.tools.Diagnostic;
import javax.tools.DiagnosticCollector;
import javax.tools.JavaFileObject;
import org.itsnat.core.event.ItsNatServletRequestListener;
import org.itsnat.core.http.HttpServletWrapper;

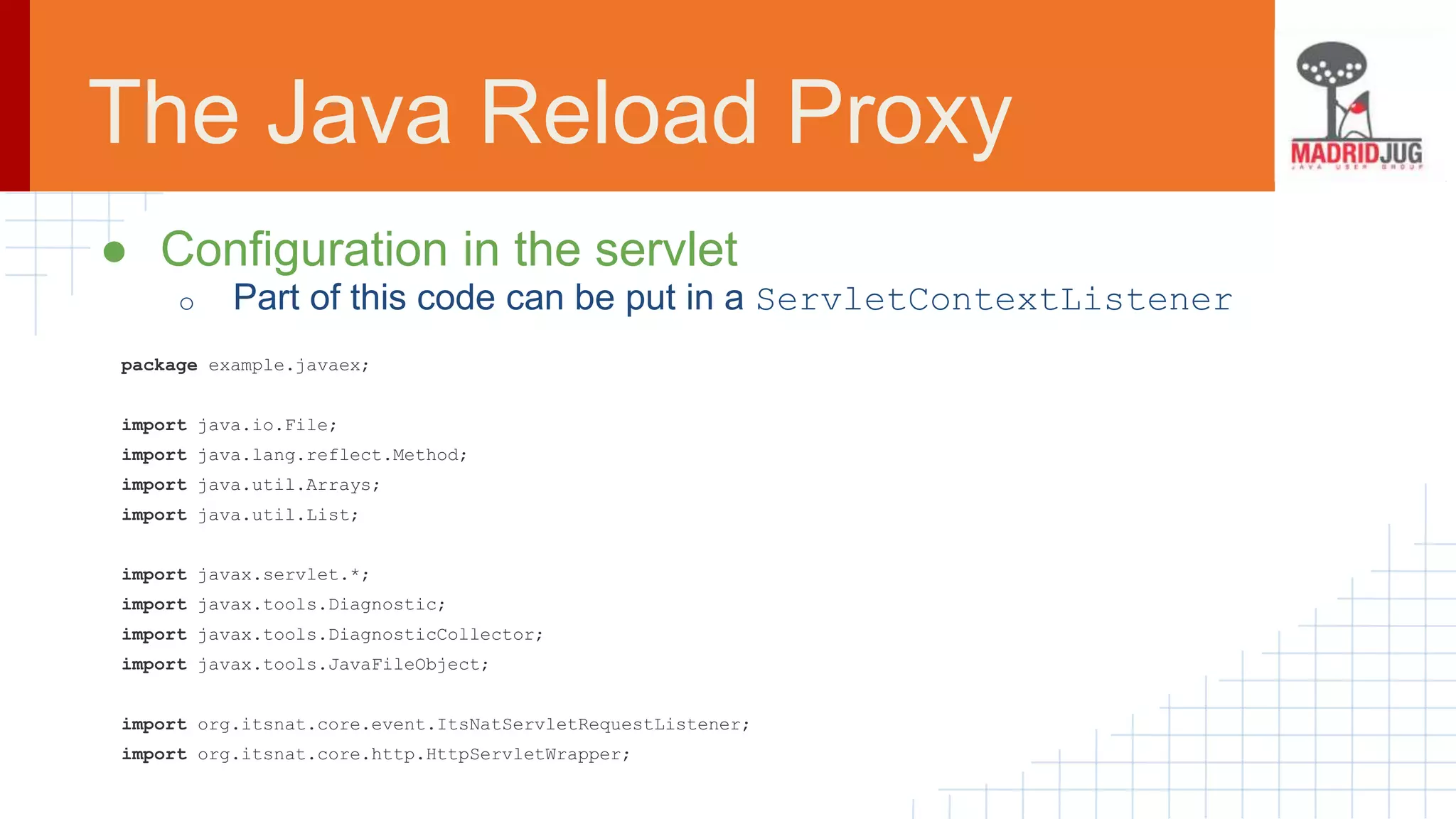

● Configuration in the servlet
o Part of this code can be put in a ServletContextListener

import org.itsnat.core.tmpl.ItsNatDocumentTemplate;
import com.innowhere.relproxy.RelProxyOnReloadListener;
import com.innowhere.relproxy.jproxy.*;

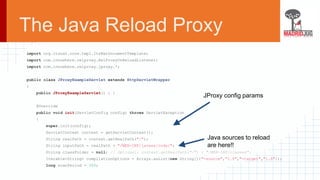

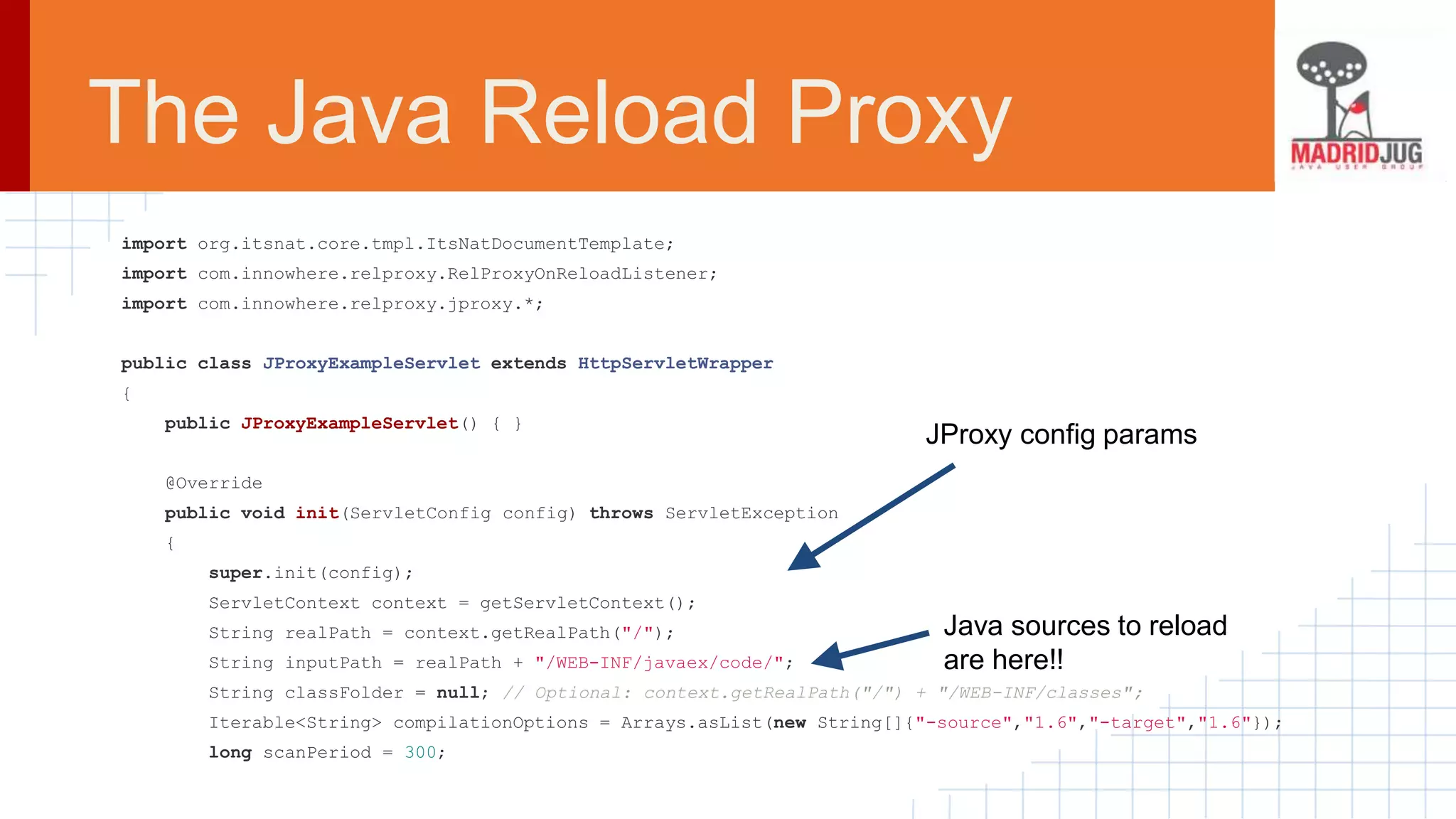

public class JProxyExampleServlet extends HttpServletWrapper
{
public JProxyExampleServlet() { }
@Override
public void init(ServletConfig config) throws ServletException
{
super.init(config);
ServletContext context = getServletContext();
String realPath = context.getRealPath("/");
String inputPath = realPath + "/WEB-INF/javaex/code/";
String classFolder = null; // Optional: context.getRealPath("/") + "/WEB-INF/classes";
Iterable<String> compilationOptions = Arrays.asList(new String[]{"-source","1.6","-target","1.6"});
long scanPeriod = 300;
JProxy config params
Java sources to reload
are here!!

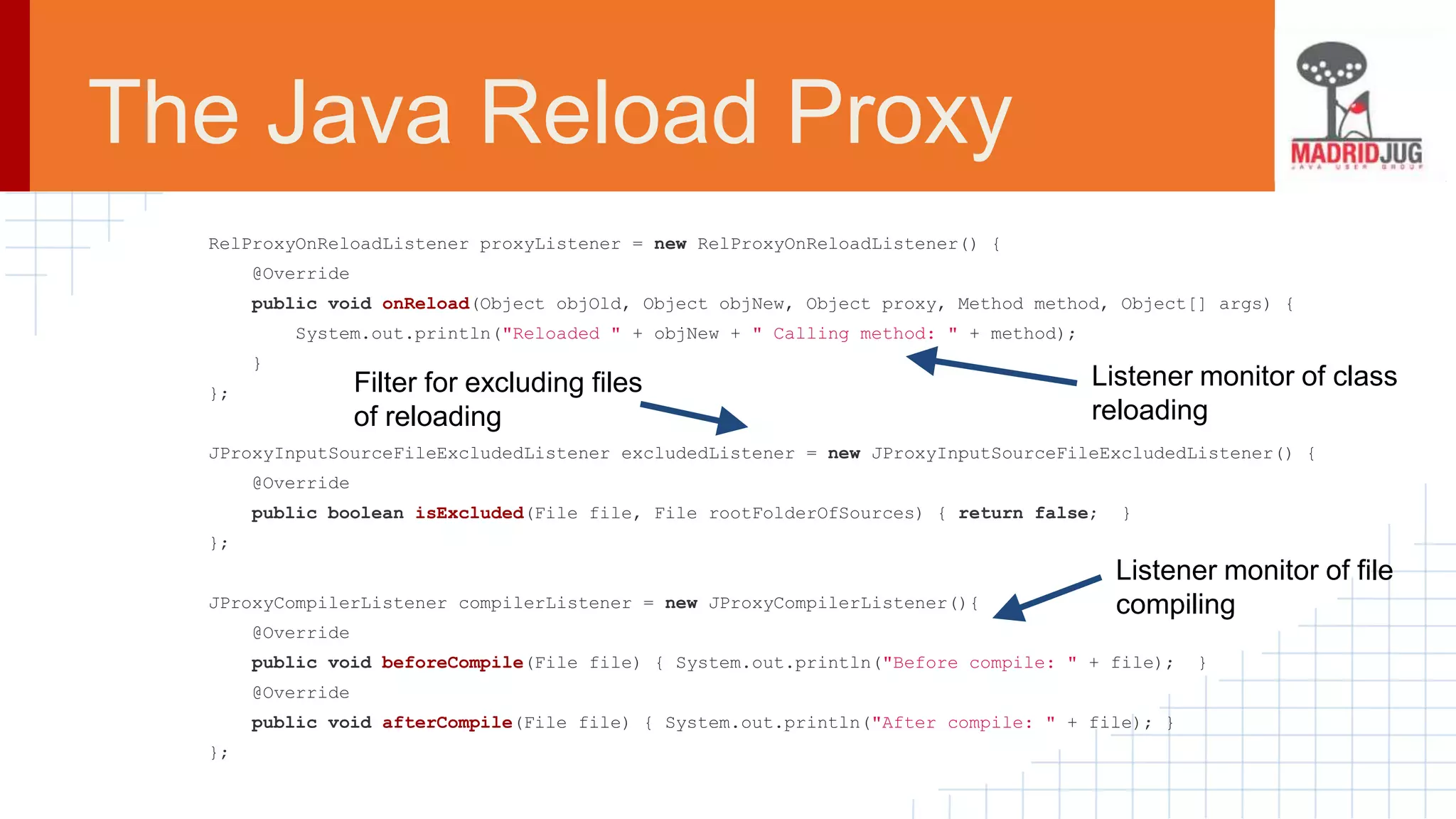

RelProxyOnReloadListener proxyListener = new RelProxyOnReloadListener() {
@Override
public void onReload(Object objOld, Object objNew, Object proxy, Method method, Object[] args) {
System.out.println("Reloaded " + objNew + " Calling method: " + method);
}
};
JProxyInputSourceFileExcludedListener excludedListener = new JProxyInputSourceFileExcludedListener() {
@Override
public boolean isExcluded(File file, File rootFolderOfSources) { return false; }
};
JProxyCompilerListener compilerListener = new JProxyCompilerListener(){
@Override
public void beforeCompile(File file) { System.out.println("Before compile: " + file); }
@Override
public void afterCompile(File file) { System.out.println("After compile: " + file); }
};
Listener monitor of class
reloading
Listener monitor of file
compiling
Filter for excluding files
of reloading

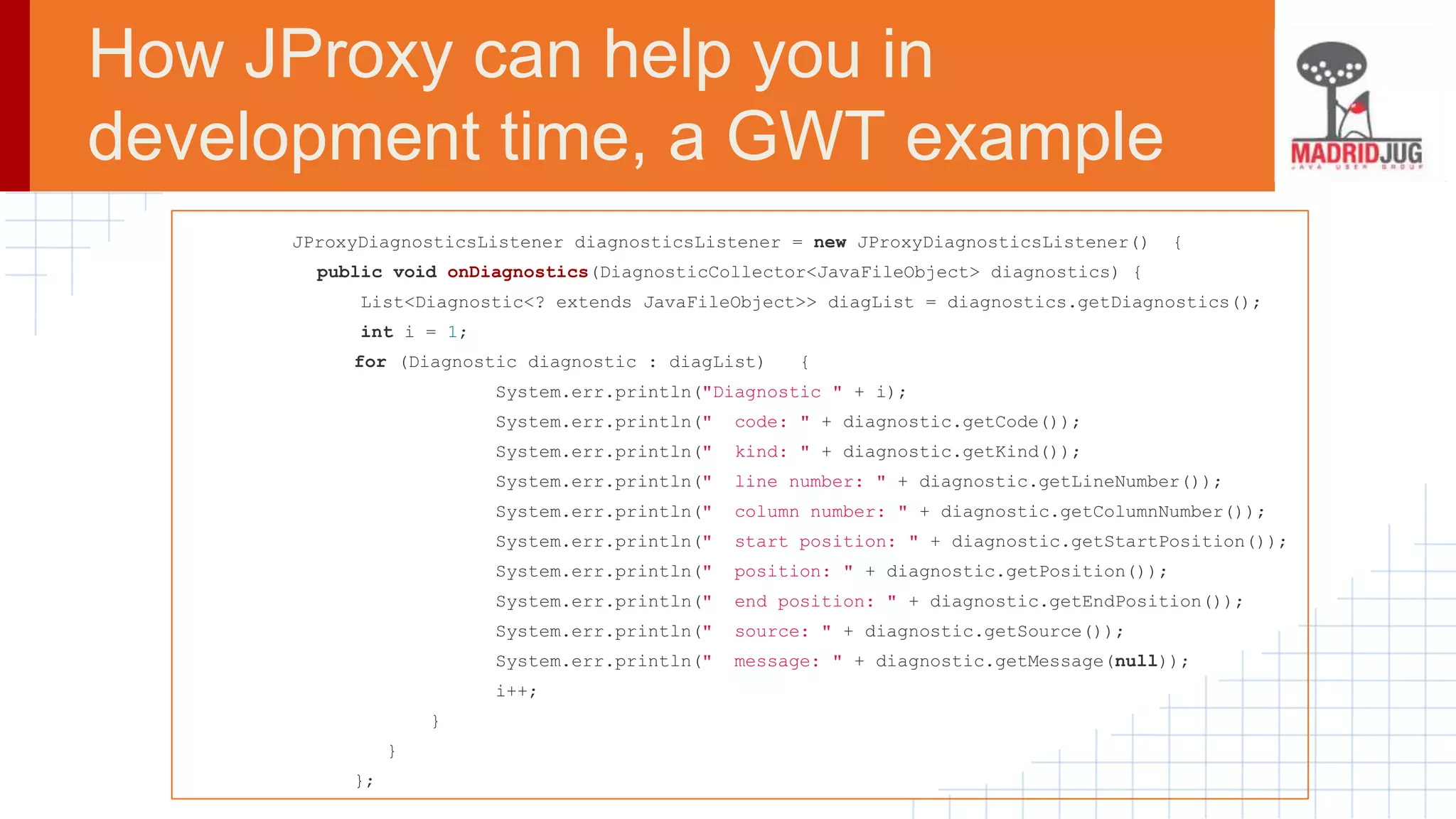

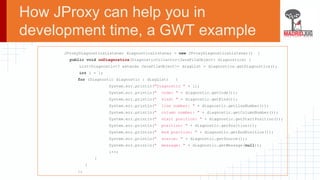

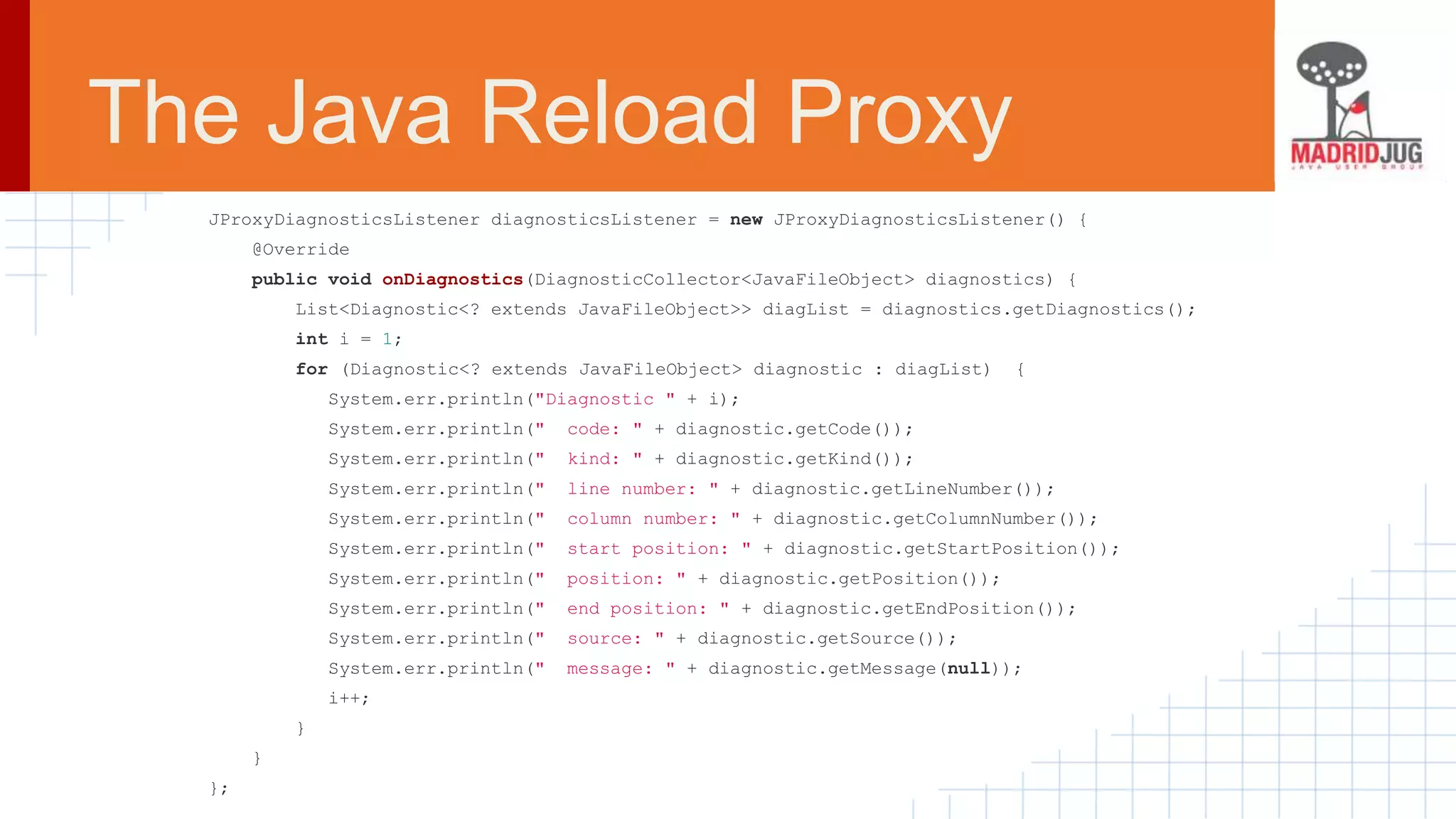

JProxyDiagnosticsListener diagnosticsListener = new JProxyDiagnosticsListener() {
@Override
public void onDiagnostics(DiagnosticCollector<JavaFileObject> diagnostics) {
List<Diagnostic<? extends JavaFileObject>> diagList = diagnostics.getDiagnostics();
int i = 1;
for (Diagnostic<? extends JavaFileObject> diagnostic : diagList) {
System.err.println("Diagnostic " + i);
System.err.println(" code: " + diagnostic.getCode());
System.err.println(" kind: " + diagnostic.getKind());
System.err.println(" line number: " + diagnostic.getLineNumber());
System.err.println(" column number: " + diagnostic.getColumnNumber());
System.err.println(" start position: " + diagnostic.getStartPosition());
System.err.println(" position: " + diagnostic.getPosition());
System.err.println(" end position: " + diagnostic.getEndPosition());
System.err.println(" source: " + diagnostic.getSource());
System.err.println(" message: " + diagnostic.getMessage(null));
i++;
}
}
};

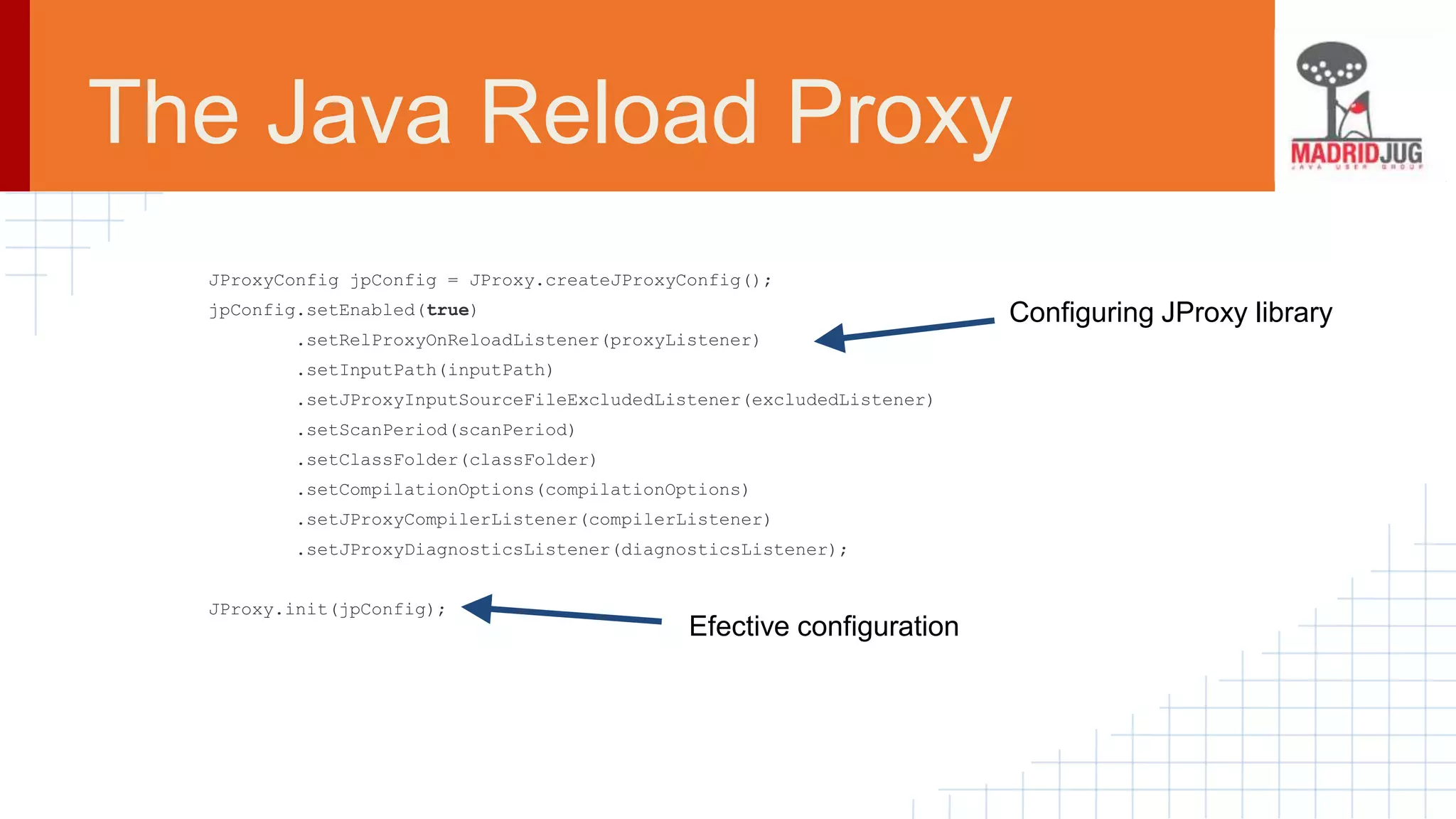

JProxyConfig jpConfig = JProxy.createJProxyConfig();
jpConfig.setEnabled(true)
.setRelProxyOnReloadListener(proxyListener)
.setInputPath(inputPath)
.setJProxyInputSourceFileExcludedListener(excludedListener)
.setScanPeriod(scanPeriod)
.setClassFolder(classFolder)
.setCompilationOptions(compilationOptions)
.setJProxyCompilerListener(compilerListener)
.setJProxyDiagnosticsListener(diagnosticsListener);
JProxy.init(jpConfig);
Configuring JProxy library
Efective configuration

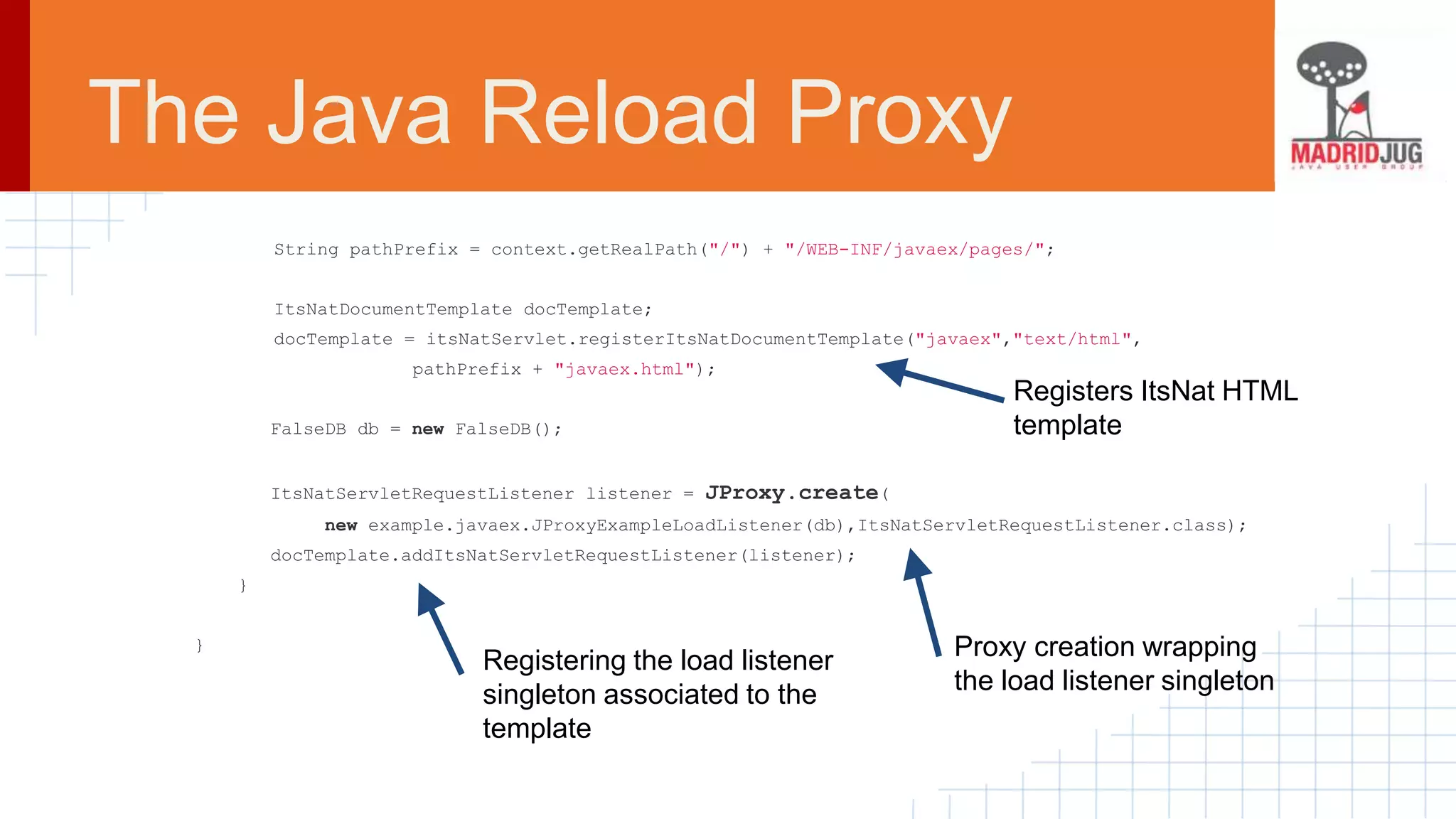

String pathPrefix = context.getRealPath("/") + "/WEB-INF/javaex/pages/";
ItsNatDocumentTemplate docTemplate;
docTemplate = itsNatServlet.registerItsNatDocumentTemplate("javaex","text/html",
pathPrefix + "javaex.html");
FalseDB db = new FalseDB();
ItsNatServletRequestListener listener = JProxy.create(
new example.javaex.JProxyExampleLoadListener(db),ItsNatServletRequestListener.class);
docTemplate.addItsNatServletRequestListener(listener);
}
}
Registers ItsNat HTML
template
Proxy creation wrapping
the load listener singleton
Registering the load listener
singleton associated to the
template

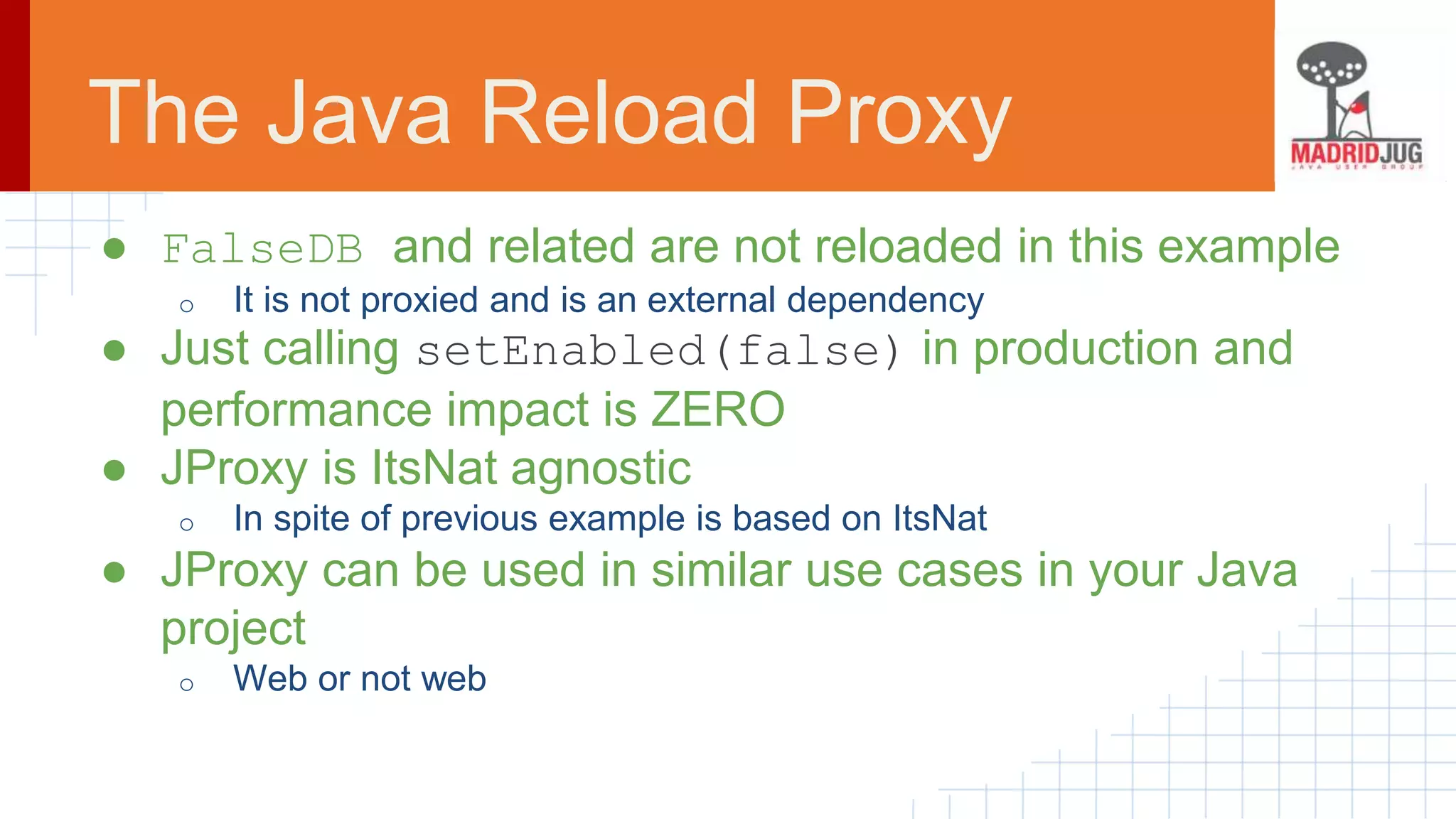

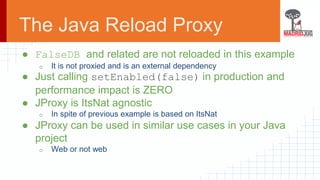

● FalseDB and related are not reloaded in this example
o It is not proxied and is an external dependency
● Just calling setEnabled(false) in production and
performance impact is ZERO
● JProxy is ItsNat agnostic
o In spite of previous example is based on ItsNat
● JProxy can be used in similar use cases in your Java
project
o Web or not web

WHO THE FUCK
IS USING
ITSNAT !!!

https://groups.google.com/forum/#!topic/itsnat/CO8Qd-Am3L0

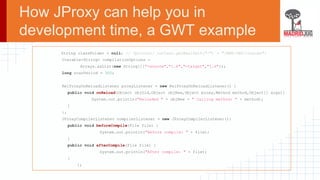

How JProxy can help you
in development time,
a GWT example

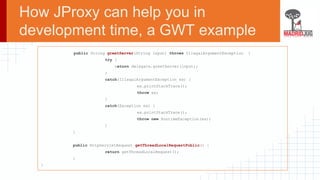

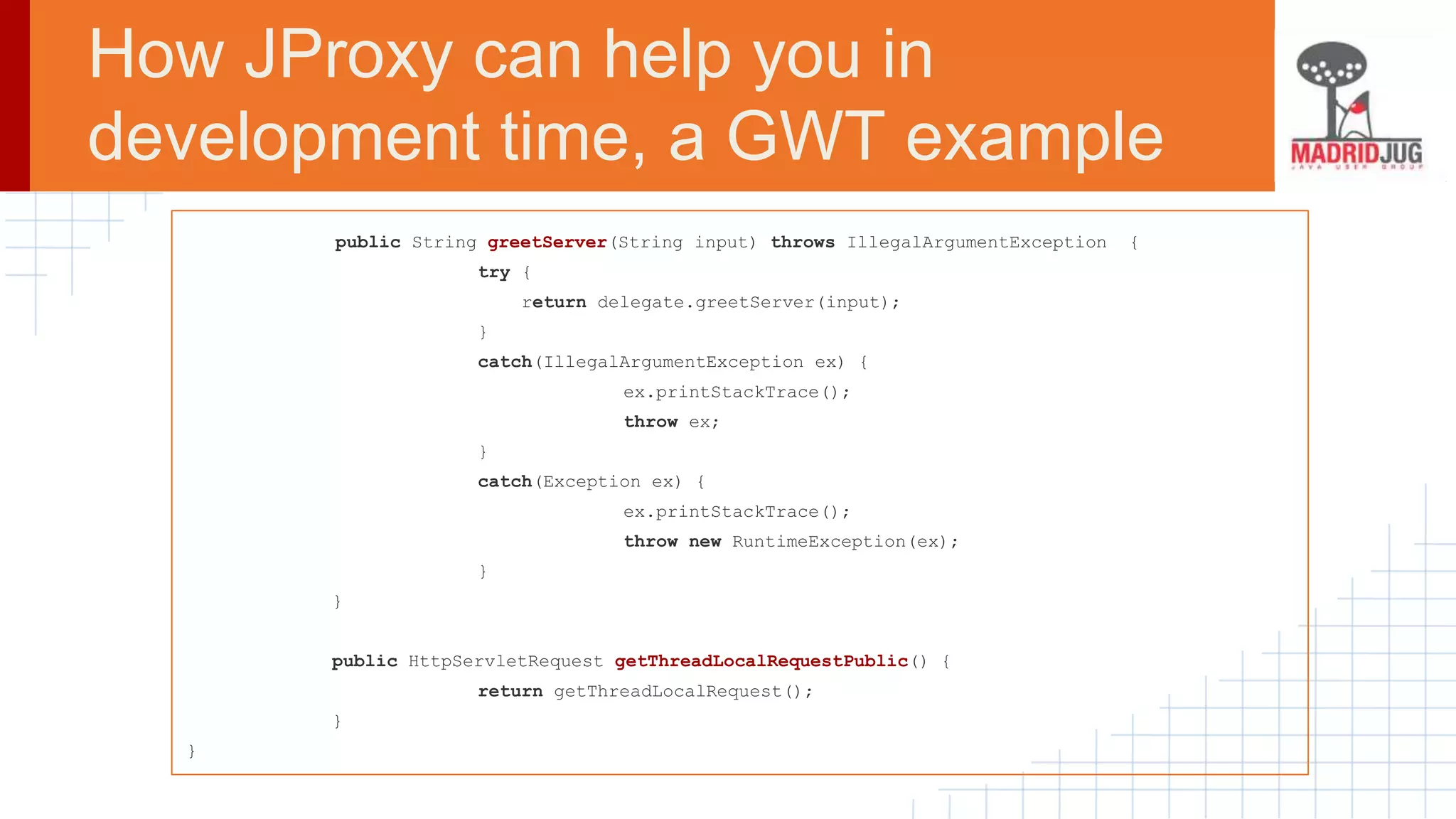

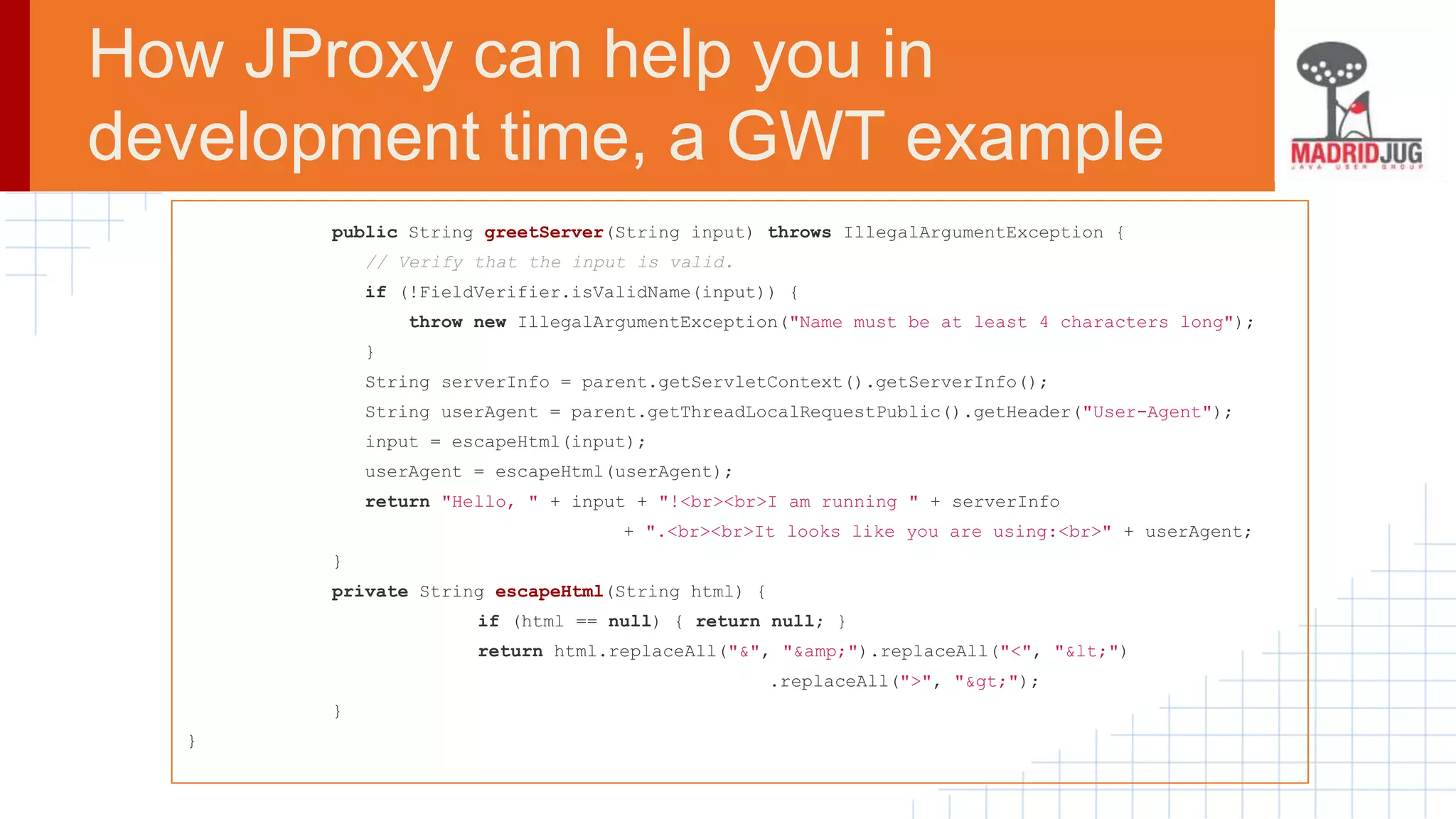

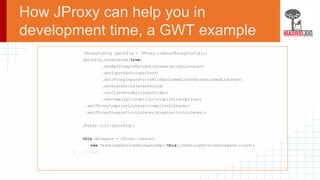

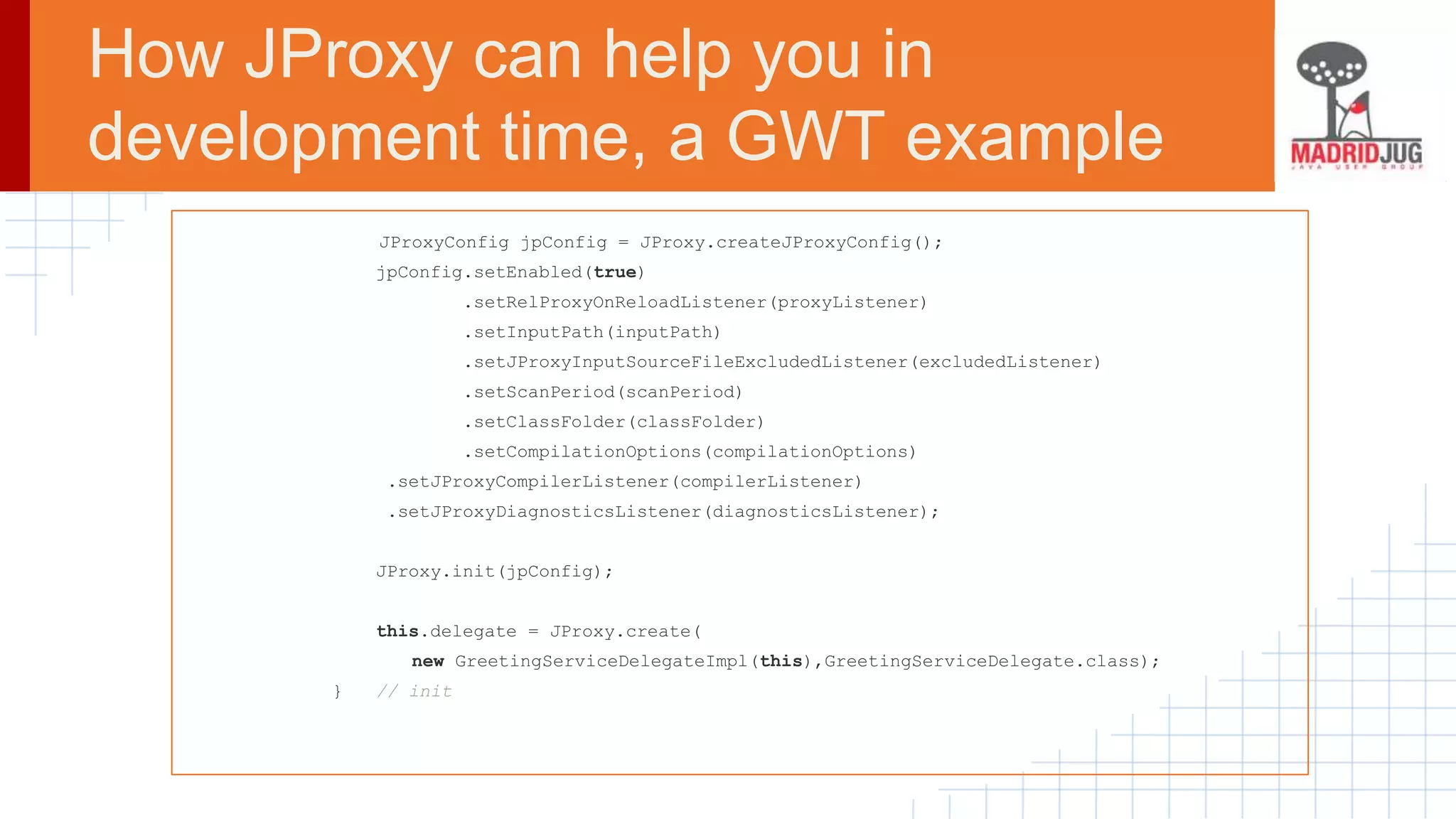

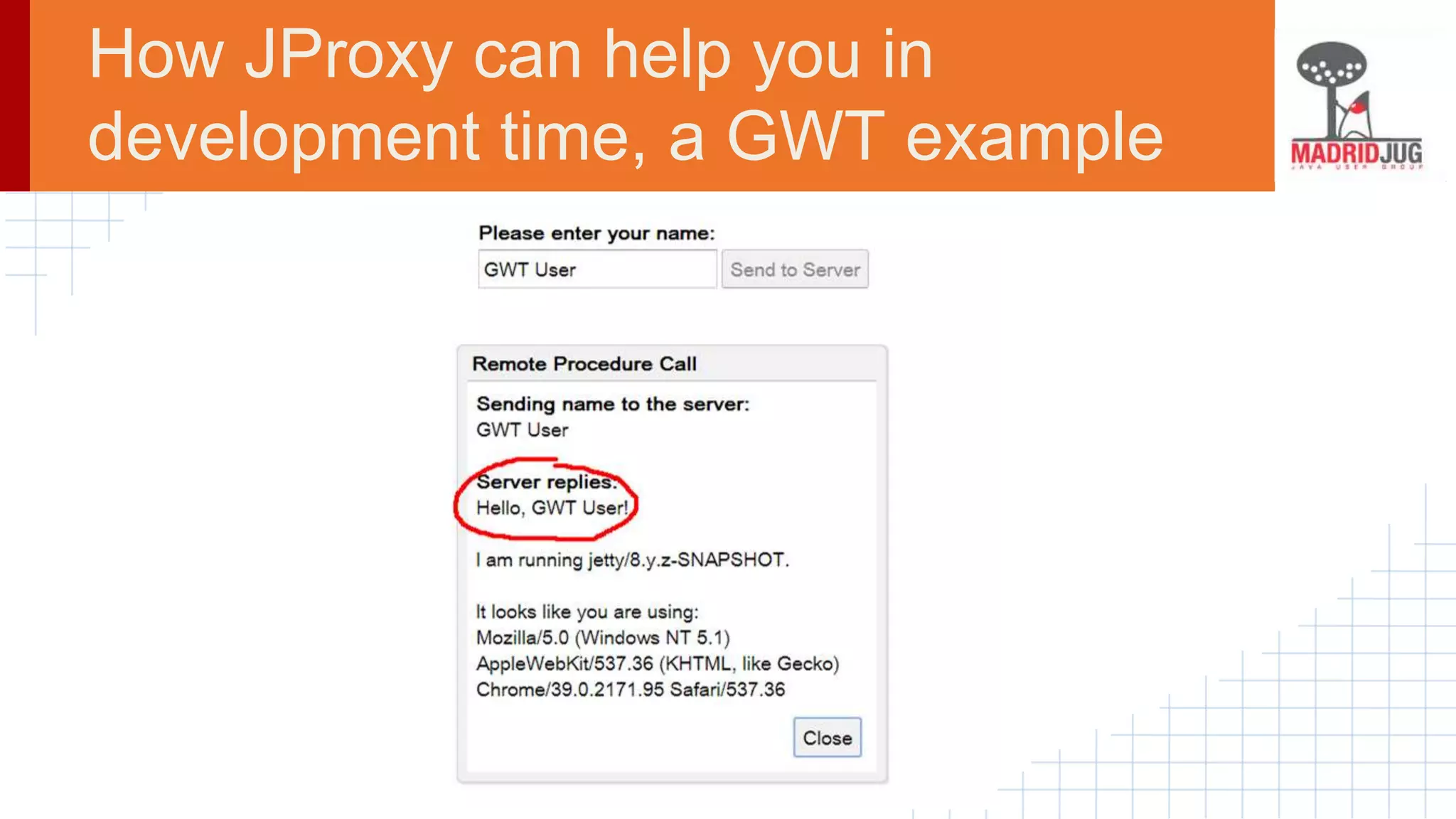

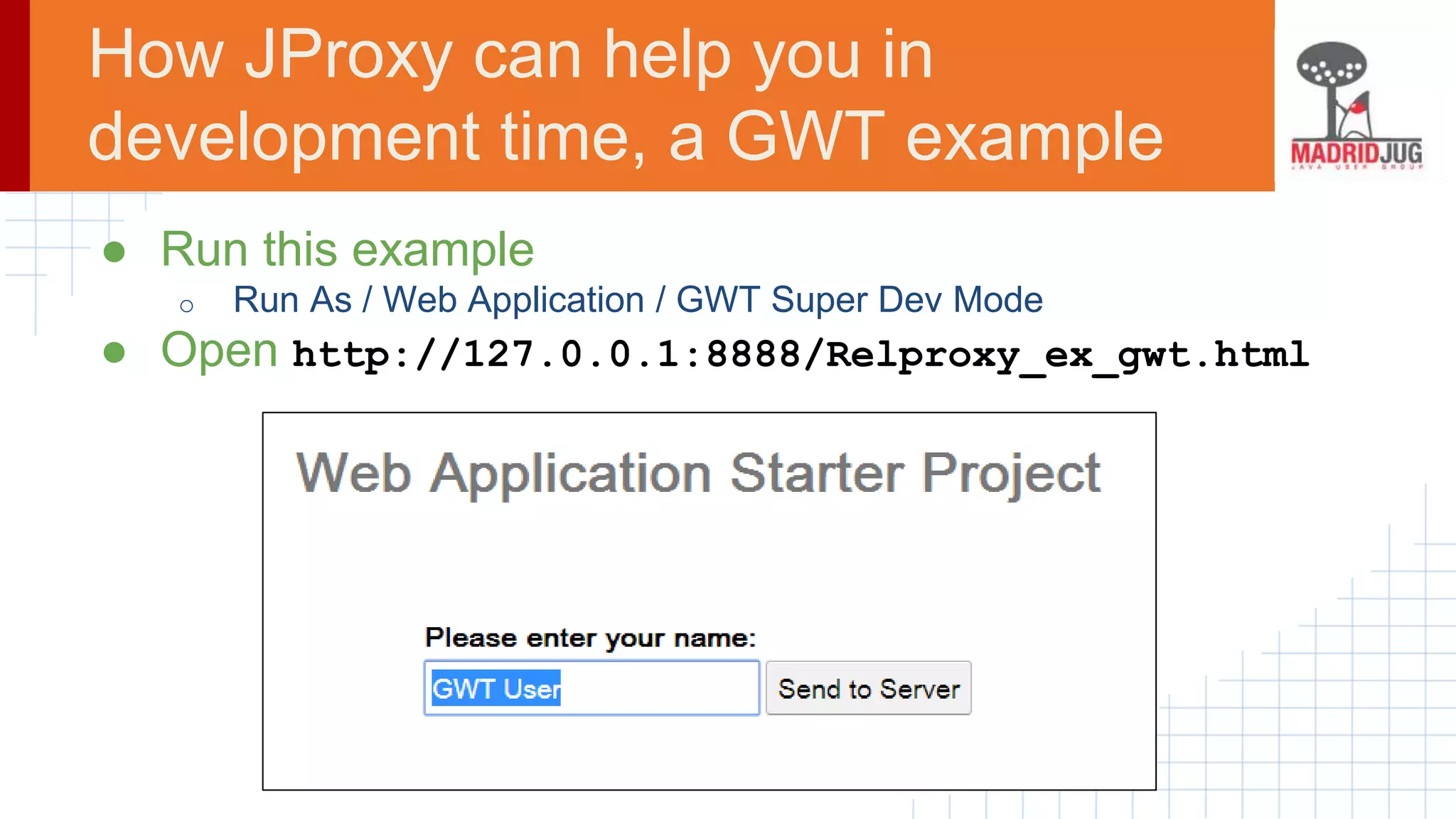

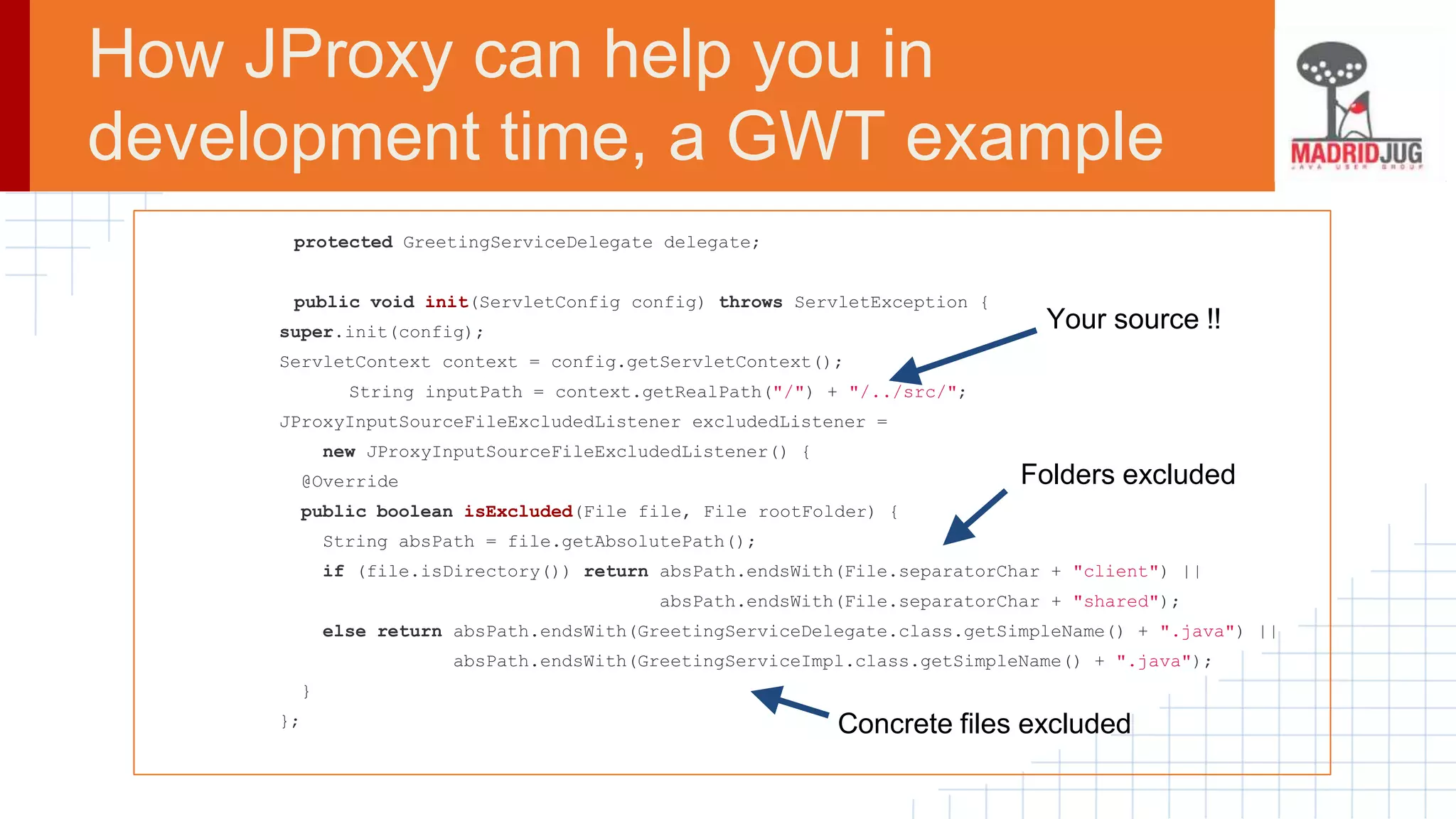

How JProxy can help you in
development time, a GWT example
● We can define normal Java source code folders as
reloadable
o No need of source code below WEB-INF/
o No need to publish source code in production
o Of course this is NOT valid for production
● We will show this feature through a GWT-RPC example
● Download and install Eclipse (Luna is supposed) and
Google Plugin for Eclipse
● Create a GWT-RPC project
o Select New/Other/Google/Web Application Project
o Add relproxy-x.y.z.jar to WEB-INF/lib

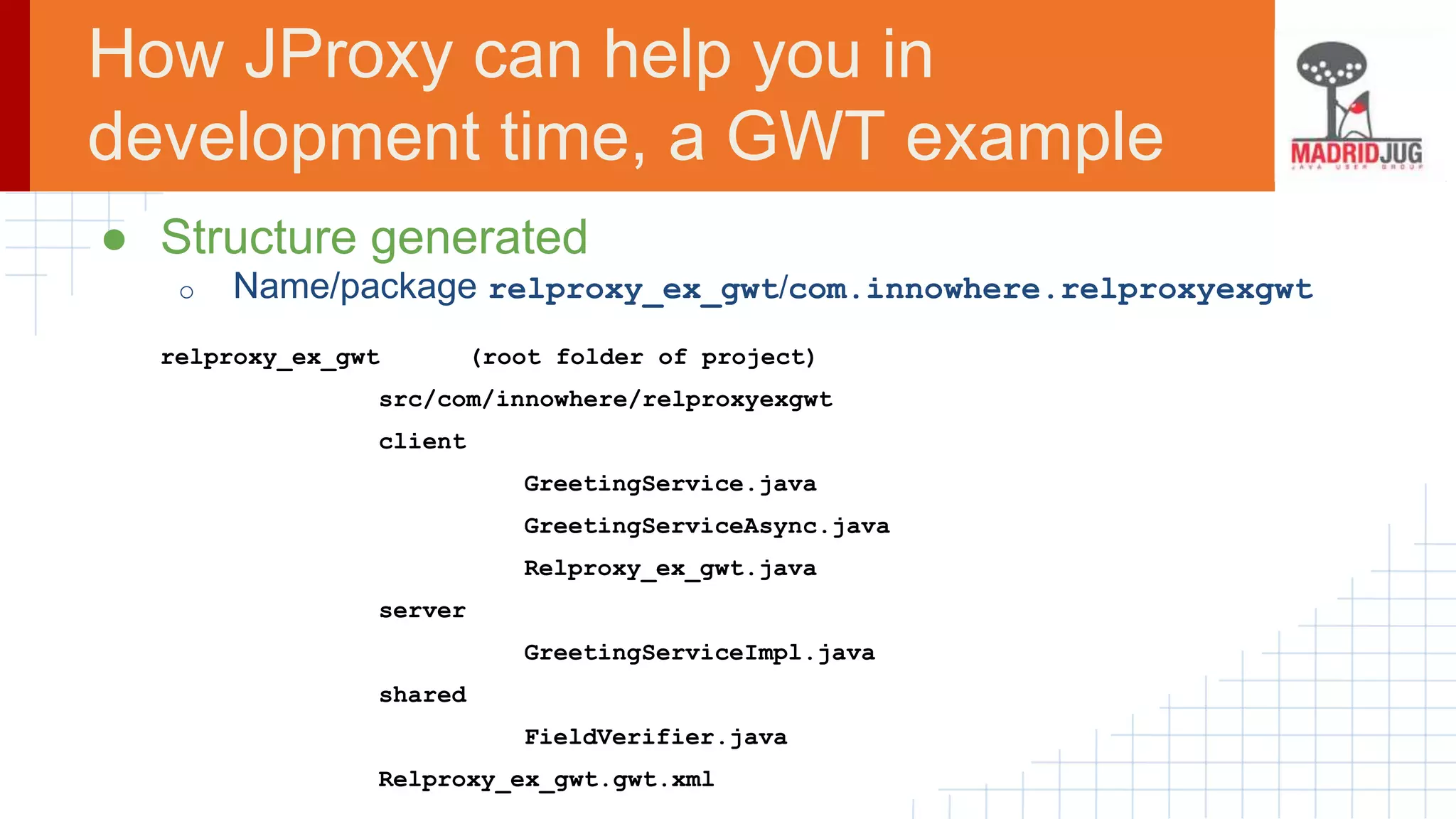

● Structure generated
o Name/package relproxy_ex_gwt/com.innowhere.relproxyexgwt
relproxy_ex_gwt (root folder of project)
src/com/innowhere/relproxyexgwt
client
GreetingService.java
GreetingServiceAsync.java
Relproxy_ex_gwt.java
server
GreetingServiceImpl.java
shared
FieldVerifier.java
Relproxy_ex_gwt.gwt.xml

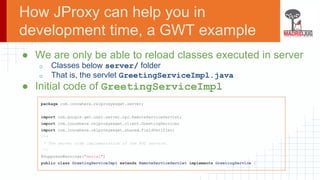

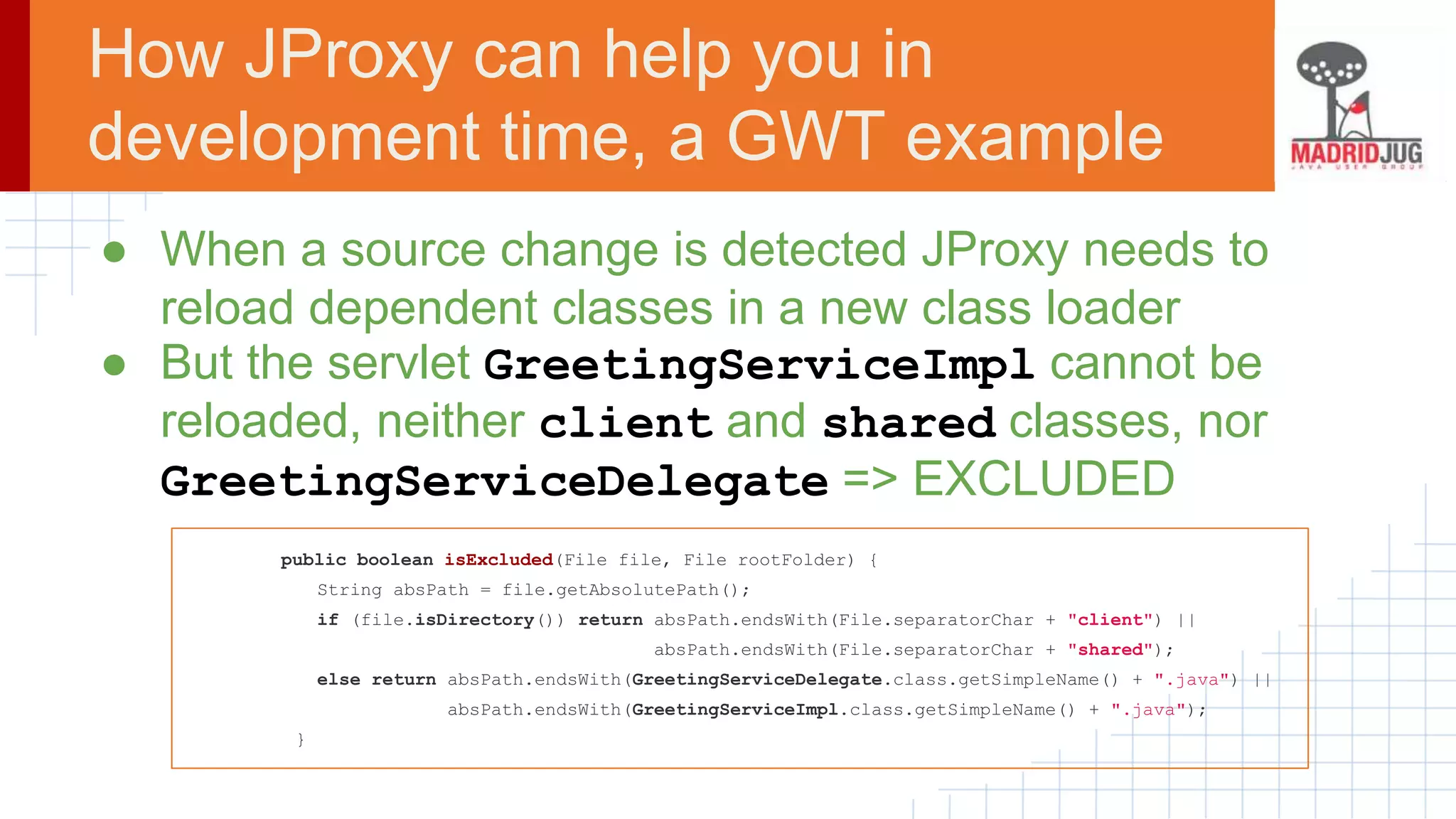

● We are only be able to reload classes executed in server
o Classes below server/ folder
o That is, the servlet GreetingServiceImpl.java

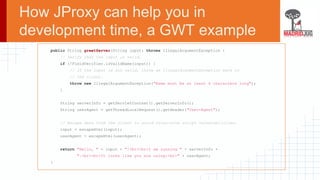

● Initial code of GreetingServiceImpl

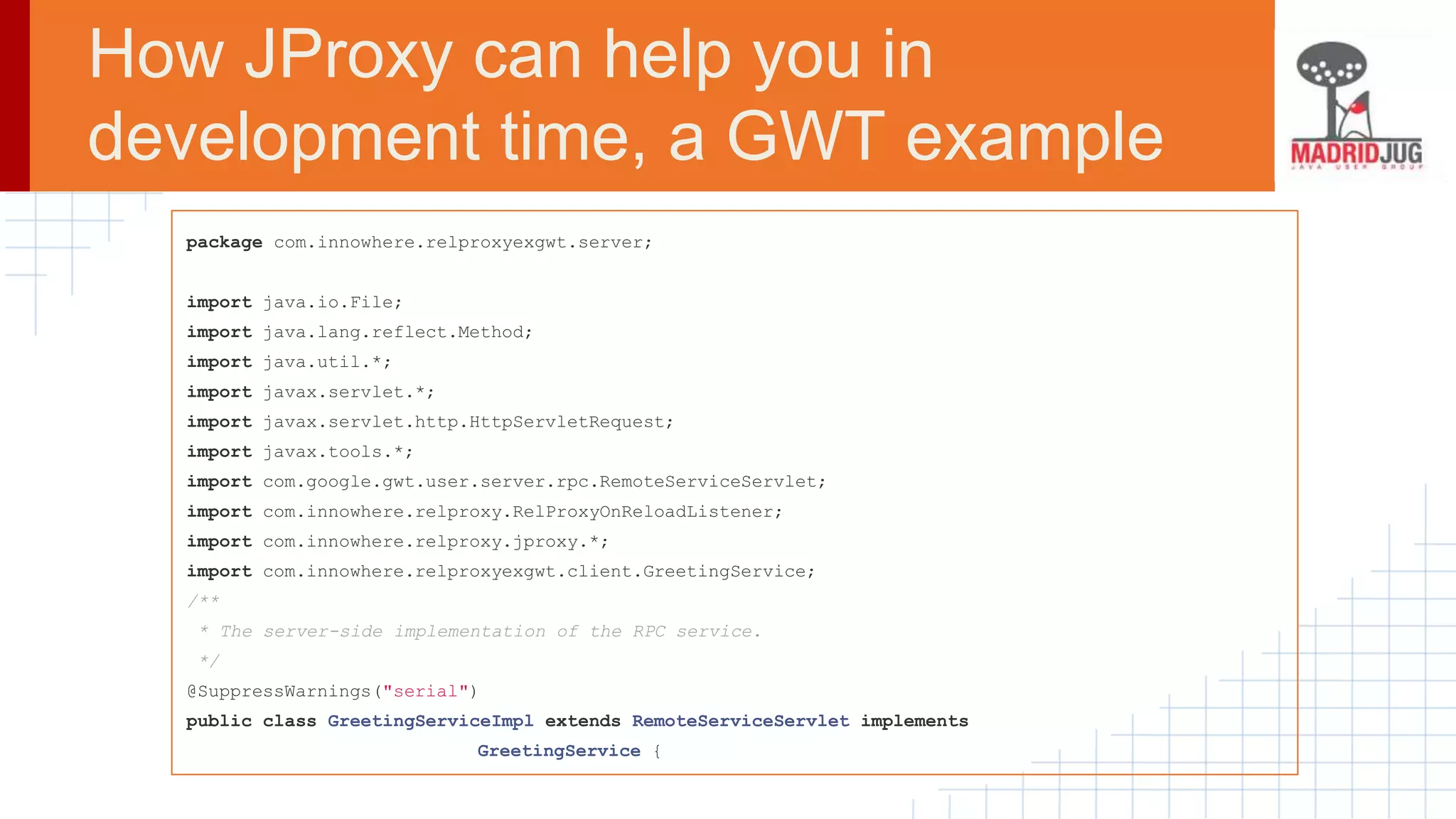

package com.innowhere.relproxyexgwt.server;
import com.google.gwt.user.server.rpc.RemoteServiceServlet;
import com.innowhere.relproxyexgwt.client.GreetingService;
import com.innowhere.relproxyexgwt.shared.FieldVerifier;
/**
* The server side implementation of the RPC service.
*/
@SuppressWarnings("serial")
public class GreetingServiceImpl extends RemoteServiceServlet implements GreetingService {

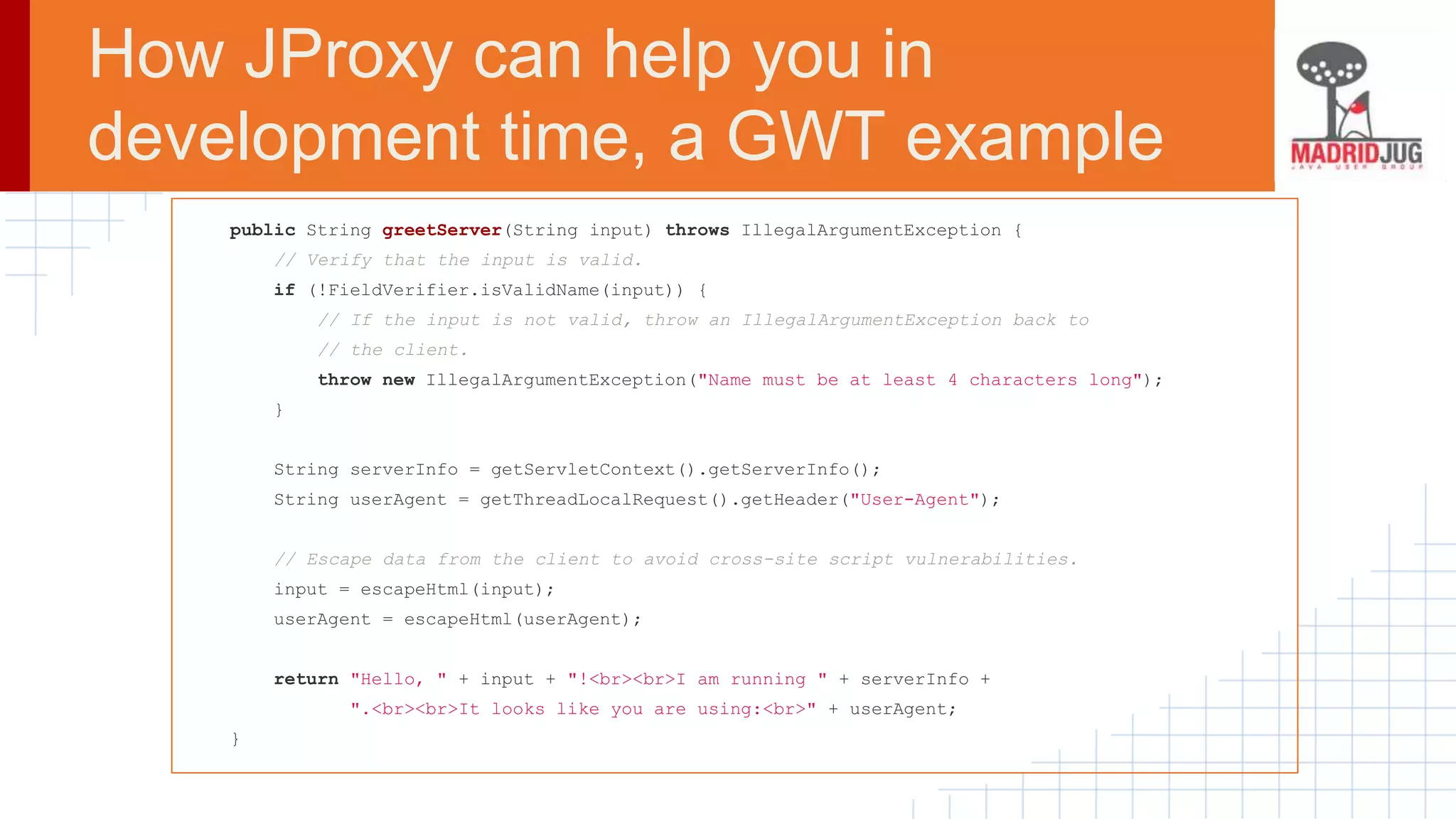

public String greetServer(String input) throws IllegalArgumentException {
// Verify that the input is valid.
if (!FieldVerifier.isValidName(input)) {
// If the input is not valid, throw an IllegalArgumentException back to
// the client.
throw new IllegalArgumentException("Name must be at least 4 characters long");
}
String serverInfo = getServletContext().getServerInfo();
String userAgent = getThreadLocalRequest().getHeader("User-Agent");
// Escape data from the client to avoid cross-site script vulnerabilities.
input = escapeHtml(input);
userAgent = escapeHtml(userAgent);
return "Hello, " + input + "! I am running " + serverInfo +
". It looks like you are using: " + userAgent;
}

/**

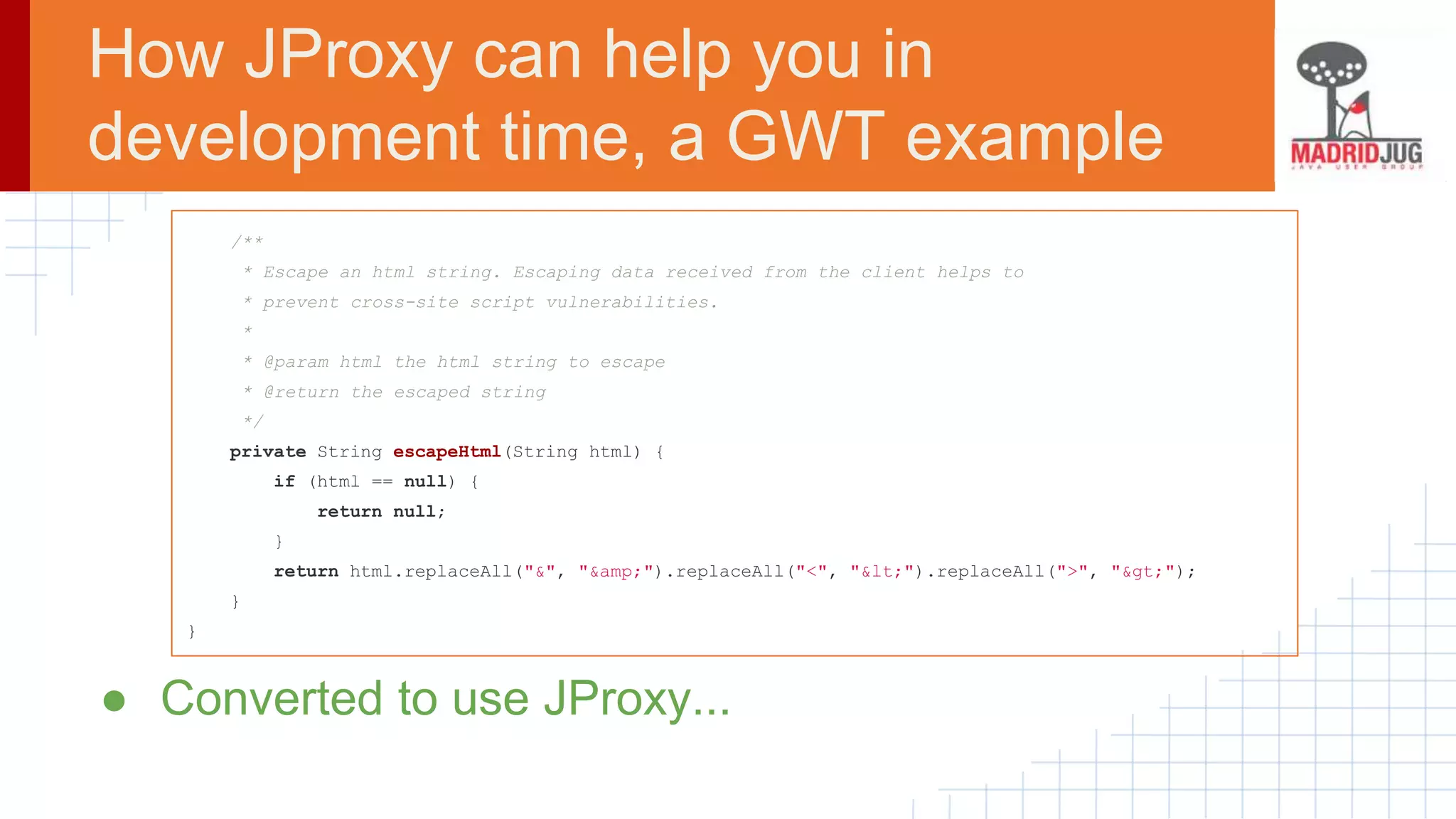

* Escape an html string. Escaping data received from the client helps to
* prevent cross-site script vulnerabilities.
*
* @param html the html string to escape
* @return the escaped string
*/
private String escapeHtml(String html) {
if (html == null) {
return null;
}
return html.replaceAll("&", "&").replaceAll("<", "<").replaceAll(">", ">");
}
}
● Converted to use JProxy...

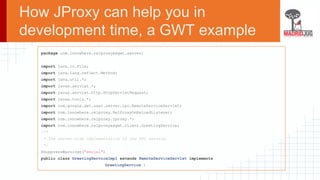

import java.io.File;
import java.lang.reflect.Method;
import java.util.*;
import javax.servlet.*;
import javax.servlet.http.HttpServletRequest;
import javax.tools.*;
import com.google.gwt.user.server.rpc.RemoteServiceServlet;
import com.innowhere.relproxy.RelProxyOnReloadListener;
import com.innowhere.relproxy.jproxy.*;
import com.innowhere.relproxyexgwt.client.GreetingService;
/**
* The server-side implementation of the RPC service.
*/
@SuppressWarnings("serial")
public class GreetingServiceImpl extends RemoteServiceServlet implements
GreetingService {

protected GreetingServiceDelegate delegate;
public void init(ServletConfig config) throws ServletException {
super.init(config);
ServletContext context = config.getServletContext();
String inputPath = context.getRealPath("/") + "/../src/";
JProxyInputSourceFileExcludedListener excludedListener =
new JProxyInputSourceFileExcludedListener() {
@Override
public boolean isExcluded(File file, File rootFolder) {
String absPath = file.getAbsolutePath();
if (file.isDirectory()) return absPath.endsWith(File.separatorChar + "client") ||
absPath.endsWith(File.separatorChar + "shared");
else return absPath.endsWith(GreetingServiceDelegate.class.getSimpleName() + ".java") ||
absPath.endsWith(GreetingServiceImpl.class.getSimpleName() + ".java");
}
};
Your source !!
Folders excluded
Concrete files excluded

String classFolder = null; // Optional: context.getRealPath("/") + "/WEB-INF/classes";
Iterable<String> compilationOptions =
Arrays.asList(new String[]{"-source","1.6","-target","1.6"});
long scanPeriod = 300;
RelProxyOnReloadListener proxyListener = new RelProxyOnReloadListener() {
public void onReload(Object objOld,Object objNew,Object proxy,Method method,Object[] args){
System.out.println("Reloaded " + objNew + " Calling method: " + method);
}
};
JProxyCompilerListener compilerListener = new JProxyCompilerListener(){
public void beforeCompile(File file) {
System.out.println("Before compile: " + file);
}
public void afterCompile(File file) {
System.out.println("After compile: " + file);
}
};

JProxyDiagnosticsListener diagnosticsListener = new JProxyDiagnosticsListener() {
public void onDiagnostics(DiagnosticCollector<JavaFileObject> diagnostics) {
List<Diagnostic<? extends JavaFileObject>> diagList = diagnostics.getDiagnostics();
int i = 1;
for (Diagnostic diagnostic : diagList) {
System.err.println("Diagnostic " + i);
System.err.println(" code: " + diagnostic.getCode());
System.err.println(" kind: " + diagnostic.getKind());
System.err.println(" line number: " + diagnostic.getLineNumber());
System.err.println(" column number: " + diagnostic.getColumnNumber());
System.err.println(" start position: " + diagnostic.getStartPosition());
System.err.println(" position: " + diagnostic.getPosition());
System.err.println(" end position: " + diagnostic.getEndPosition());
System.err.println(" source: " + diagnostic.getSource());
System.err.println(" message: " + diagnostic.getMessage(null));
i++;
}
}
};

JProxyConfig jpConfig = JProxy.createJProxyConfig();
jpConfig.setEnabled(true)
.setRelProxyOnReloadListener(proxyListener)
.setInputPath(inputPath)
.setJProxyInputSourceFileExcludedListener(excludedListener)
.setScanPeriod(scanPeriod)
.setClassFolder(classFolder)
.setCompilationOptions(compilationOptions)
.setJProxyCompilerListener(compilerListener)
.setJProxyDiagnosticsListener(diagnosticsListener);
JProxy.init(jpConfig);
this.delegate = JProxy.create(
new GreetingServiceDelegateImpl(this),GreetingServiceDelegate.class);
} // init

try {
return delegate.greetServer(input);
}
catch(IllegalArgumentException ex) {
ex.printStackTrace();
throw ex;
}
catch(Exception ex) {
ex.printStackTrace();
throw new RuntimeException(ex);
}
}
public HttpServletRequest getThreadLocalRequestPublic() {
return getThreadLocalRequest();
}
}

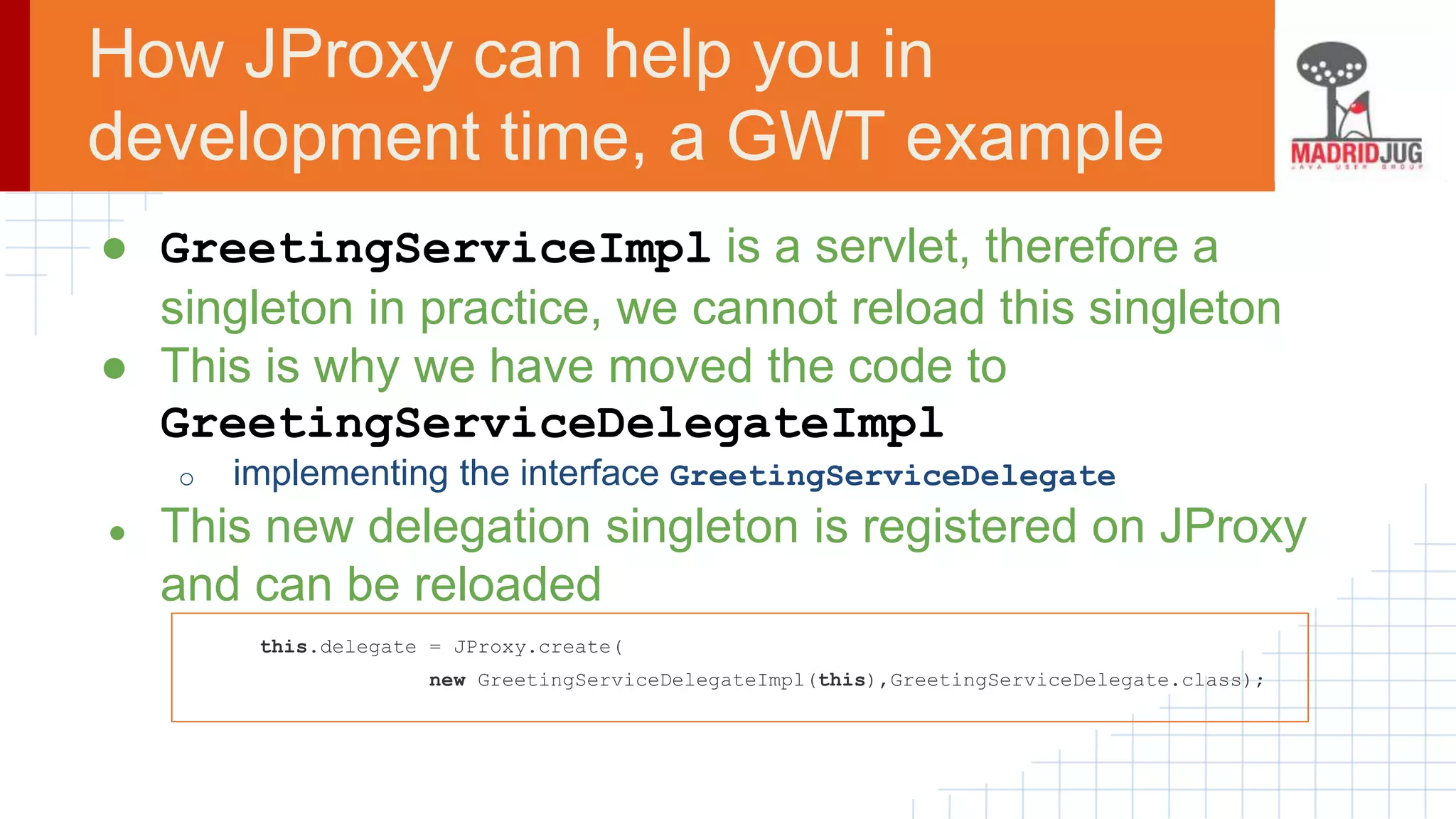

● GreetingServiceImpl is a servlet, therefore a
singleton in practice, we cannot reload this singleton
● This is why we have moved the code to
GreetingServiceDelegateImpl
o implementing the interface GreetingServiceDelegate
● This new delegation singleton is registered on JProxy
and can be reloaded
this.delegate = JProxy.create(
new GreetingServiceDelegateImpl(this),GreetingServiceDelegate.class);

● When a source change is detected JProxy needs to
reload dependent classes in a new class loader
● But the servlet GreetingServiceImpl cannot be
reloaded, neither client and shared classes, nor
GreetingServiceDelegate => EXCLUDED
public boolean isExcluded(File file, File rootFolder) {
String absPath = file.getAbsolutePath();
if (file.isDirectory()) return absPath.endsWith(File.separatorChar + "client") ||
absPath.endsWith(File.separatorChar + "shared");
else return absPath.endsWith(GreetingServiceDelegate.class.getSimpleName() + ".java") ||
absPath.endsWith(GreetingServiceImpl.class.getSimpleName() + ".java");
}

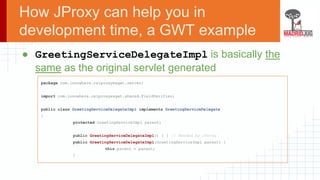

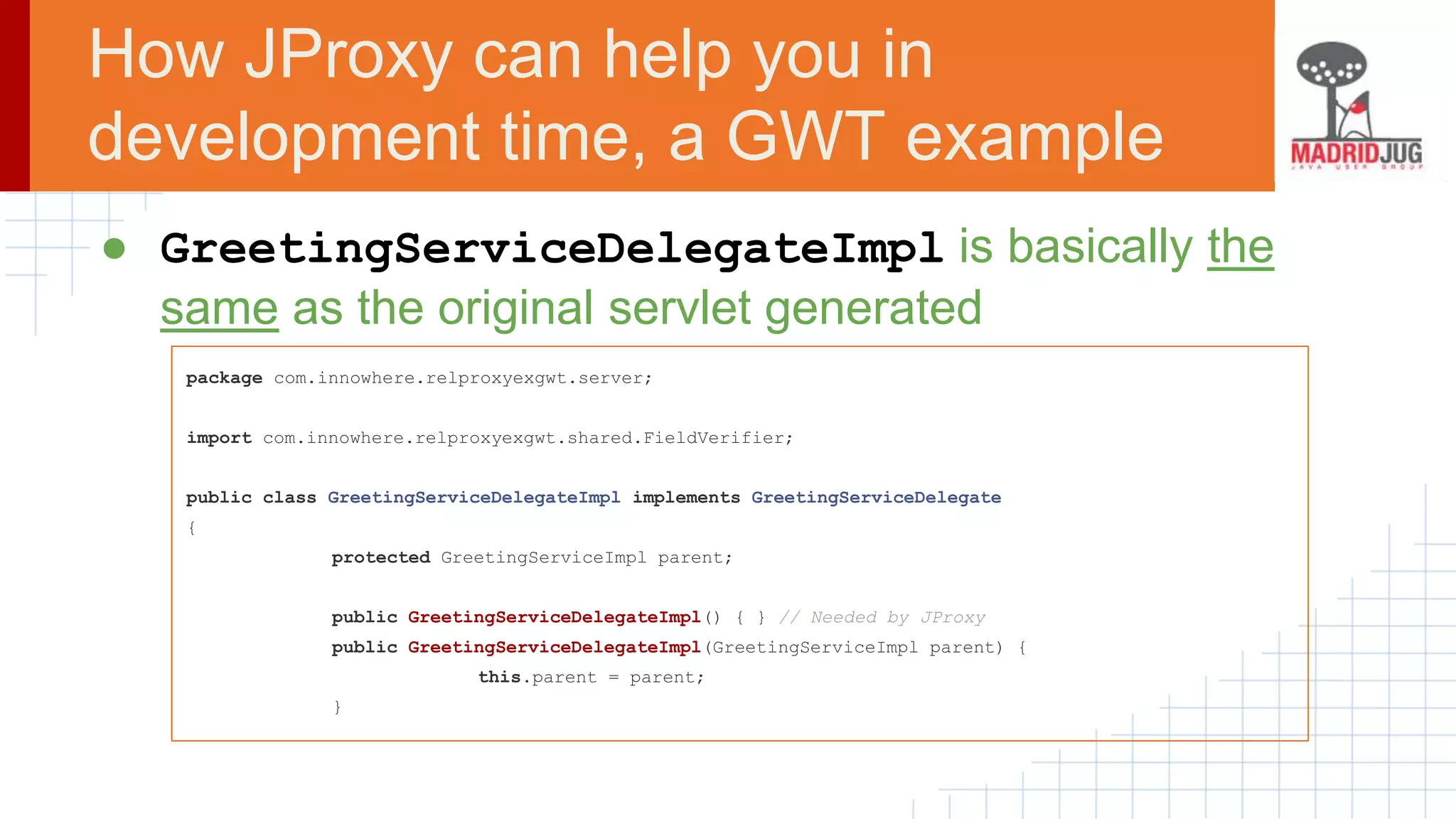

● GreetingServiceDelegateImpl is basically the
same as the original servlet generated
import com.innowhere.relproxyexgwt.shared.FieldVerifier;
public class GreetingServiceDelegateImpl implements GreetingServiceDelegate
{
protected GreetingServiceImpl parent;
public GreetingServiceDelegateImpl() { } // Needed by JProxy
public GreetingServiceDelegateImpl(GreetingServiceImpl parent) {
this.parent = parent;
}

// Verify that the input is valid.
if (!FieldVerifier.isValidName(input)) {
throw new IllegalArgumentException("Name must be at least 4 characters long");
}
String serverInfo = parent.getServletContext().getServerInfo();
String userAgent = parent.getThreadLocalRequestPublic().getHeader("User-Agent");
input = escapeHtml(input);
userAgent = escapeHtml(userAgent);
return "Hello, " + input + "! I am running " + serverInfo
+ ". It looks like you are using: " + userAgent;
}
private String escapeHtml(String html) {
if (html == null) { return null; }
return html.replaceAll("&", "&").replaceAll("<", "<")
.replaceAll(">", ">");
}
}

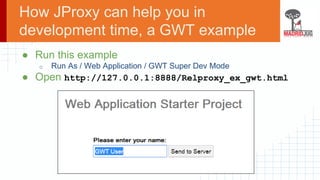

● Run this example
o Run As / Web Application / GWT Super Dev Mode
● Open http://127.0.0.1:8888/Relproxy_ex_gwt.html

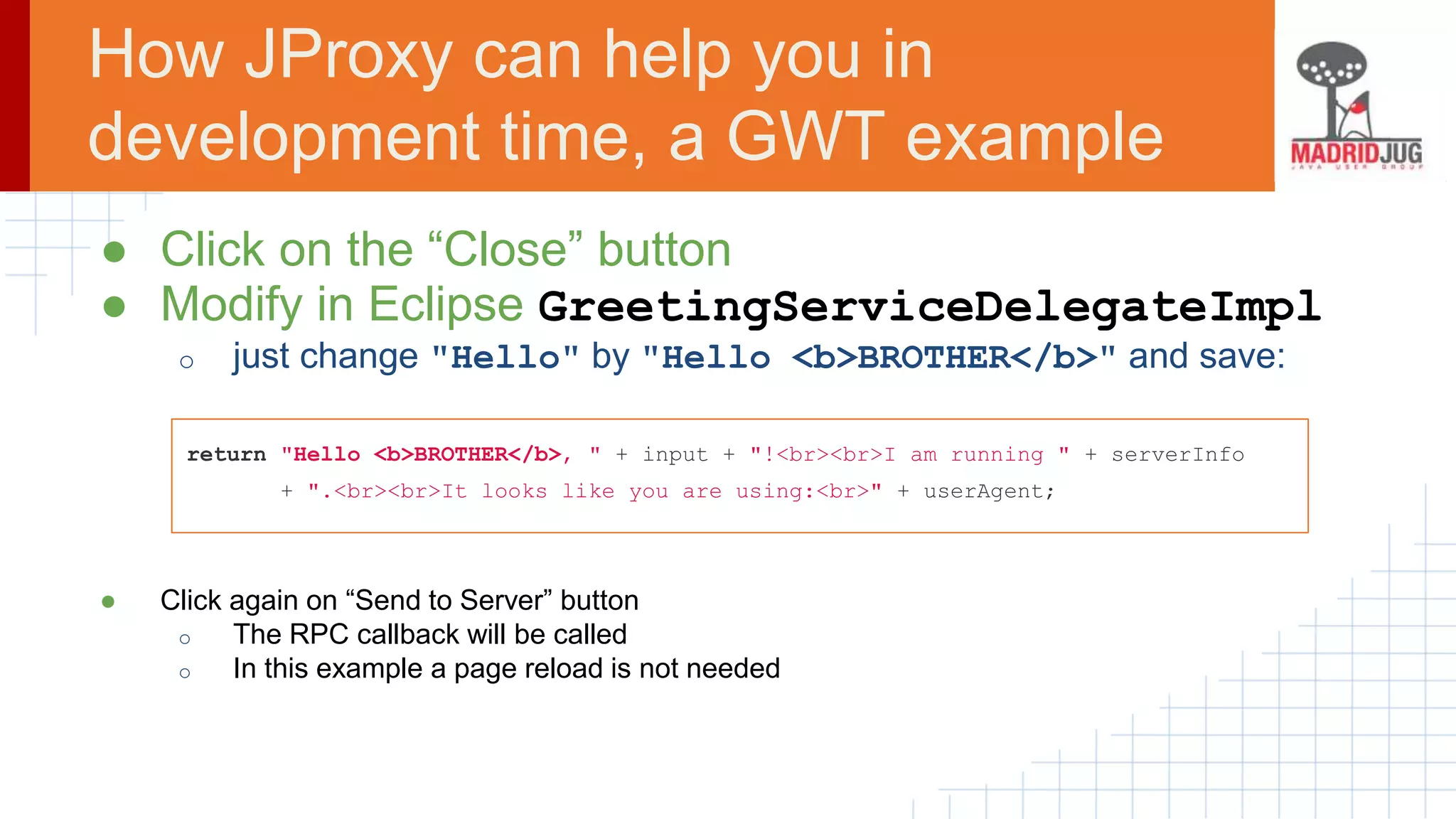

● Click on the “Close” button
● Modify in Eclipse GreetingServiceDelegateImpl
o just change "Hello" by "Hello BROTHER" and save:
return "Hello BROTHER, " + input + "! I am running " + serverInfo
+ ". It looks like you are using: " + userAgent;

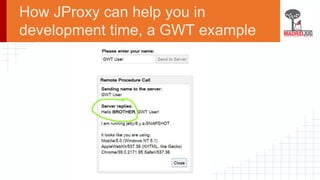

● Click again on “Send to Server” button
o The RPC callback will be called
o In this example a page reload is not needed

A shell scripting
language named Java

A shell scripting lang named Java
● Your JDK includes a built-in API for compiling Java files
o Since Java 1.6
o The compiler API used by web app servers to compile servlets and
JSPs when changed (previously generated as servlet)
● RelProxy includes a script named jproxysh to execute
Java from source code
o Supported Windows and Unixes
● To execute code like this:
(file example_java_shell)
#!/usr/bin/env jproxysh
String msg = args[0] + args[1];
System.out.println(msg);
System.out.println("example_java_shell 1 ");
example.javashellex.JProxyShellExample.exec();

● Obviously Java code is the code in main method
● jproxysh must be in PATH
● JAVA_HOME and CLASSPATH standard environment
variables must be defined
o CLASSPATH must include relproxy-X.Y.jar
● This is the expected hierarchy in this example
<root_folder>
example_java_shell (file)
example (folder)
javashellex (folder)
JProxyShellExample.java (file)

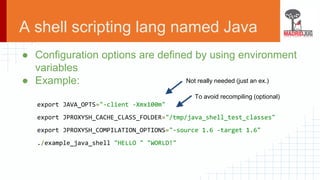

● Configuration options are defined by using environment
variables
● Example:
export JAVA_OPTS="-client -Xmx100m"
export JPROXYSH_CACHE_CLASS_FOLDER="/tmp/java_shell_test_classes"
export JPROXYSH_COMPILATION_OPTIONS="-source 1.6 -target 1.6"
./example_java_shell "HELLO " "WORLD!"
Not really needed (just an ex.)
To avoid recompiling (optional)

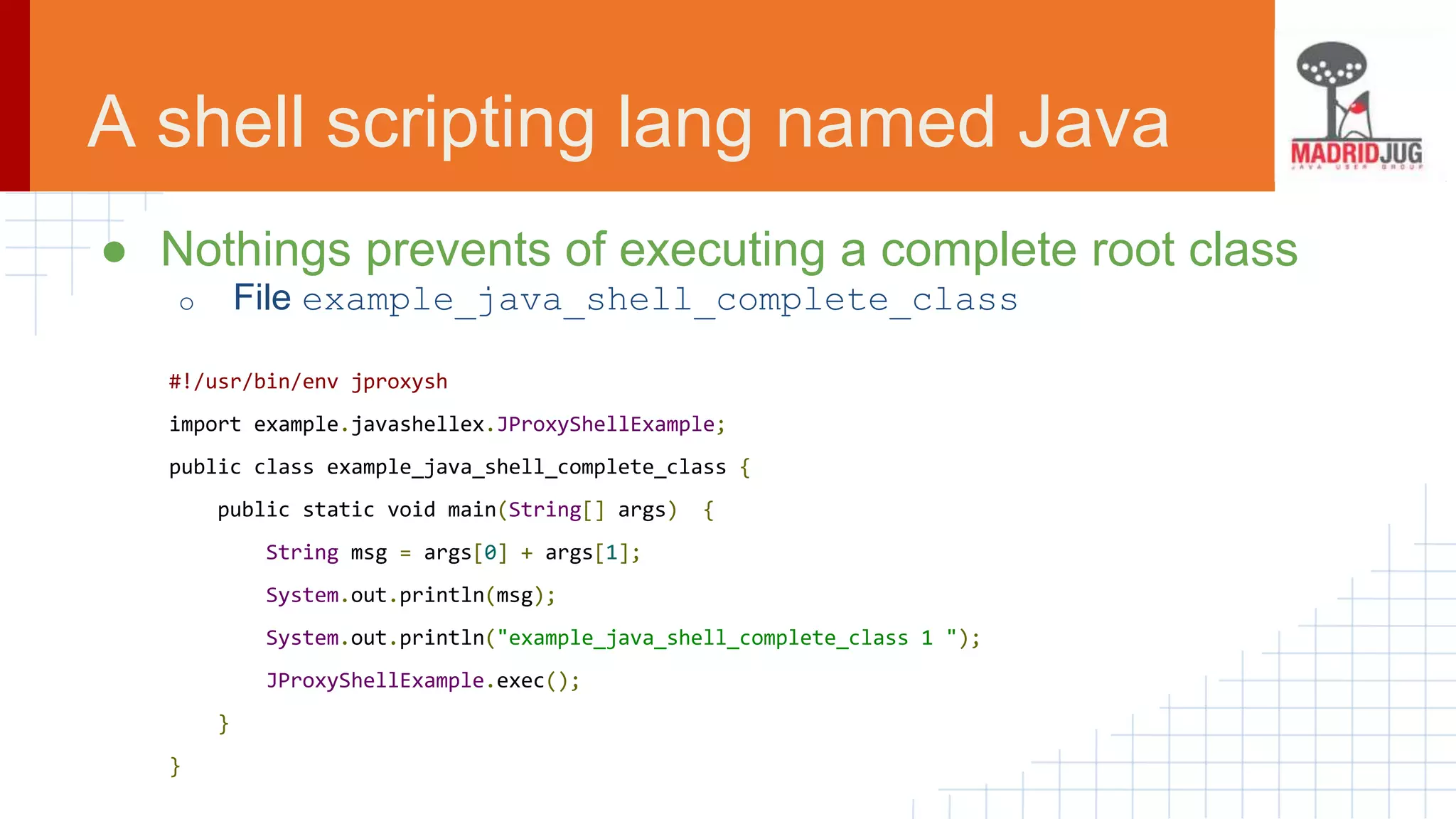

● Nothings prevents of executing a complete root class
o File example_java_shell_complete_class
#!/usr/bin/env jproxysh
import example.javashellex.JProxyShellExample;
public class example_java_shell_complete_class {
public static void main(String[] args) {
String msg = args[0] + args[1];
System.out.println(msg);
System.out.println("example_java_shell_complete_class 1 ");
JProxyShellExample.exec();
}
}

● Of course a conventional root class is valid
o Yes you can execute a conventional Java program from source code!!
jproxysh $PROJECT/code/example_normal_class.java "HELLO " "WORLD!"
● Or just a code snippet
jproxysh -c 'System.out.print("This code snippet says: ");'
'System.out.println("Hello World!!");'
● Or just start an interactive shell
jproxysh

JSR-223 Java Scripting API
● Yes RelProxy provides an implementation of JSR-223
API for a scripting language named “Java” or “FuckYou”
JProxyConfig jpConfig = ...;
JProxyScriptEngineFactory factory = JProxyScriptEngineFactory.create();
ScriptEngineManager manager = new ScriptEngineManager();
manager.registerEngineName("Java", factory);
manager.getBindings().put("msg","HELLO GLOBAL WORLD!");
ScriptEngine engine = manager.getEngineByName("Java");
((JProxyScriptEngine)engine).init(jpConfig);
try
{
Bindings bindings = engine.createBindings();
bindings.put("msg","HELLO ENGINE SCOPE WORLD!");
StringBuilder code = new StringBuilder();
JProxyScriptEngine
has the same API as
JProxy + eval(...)

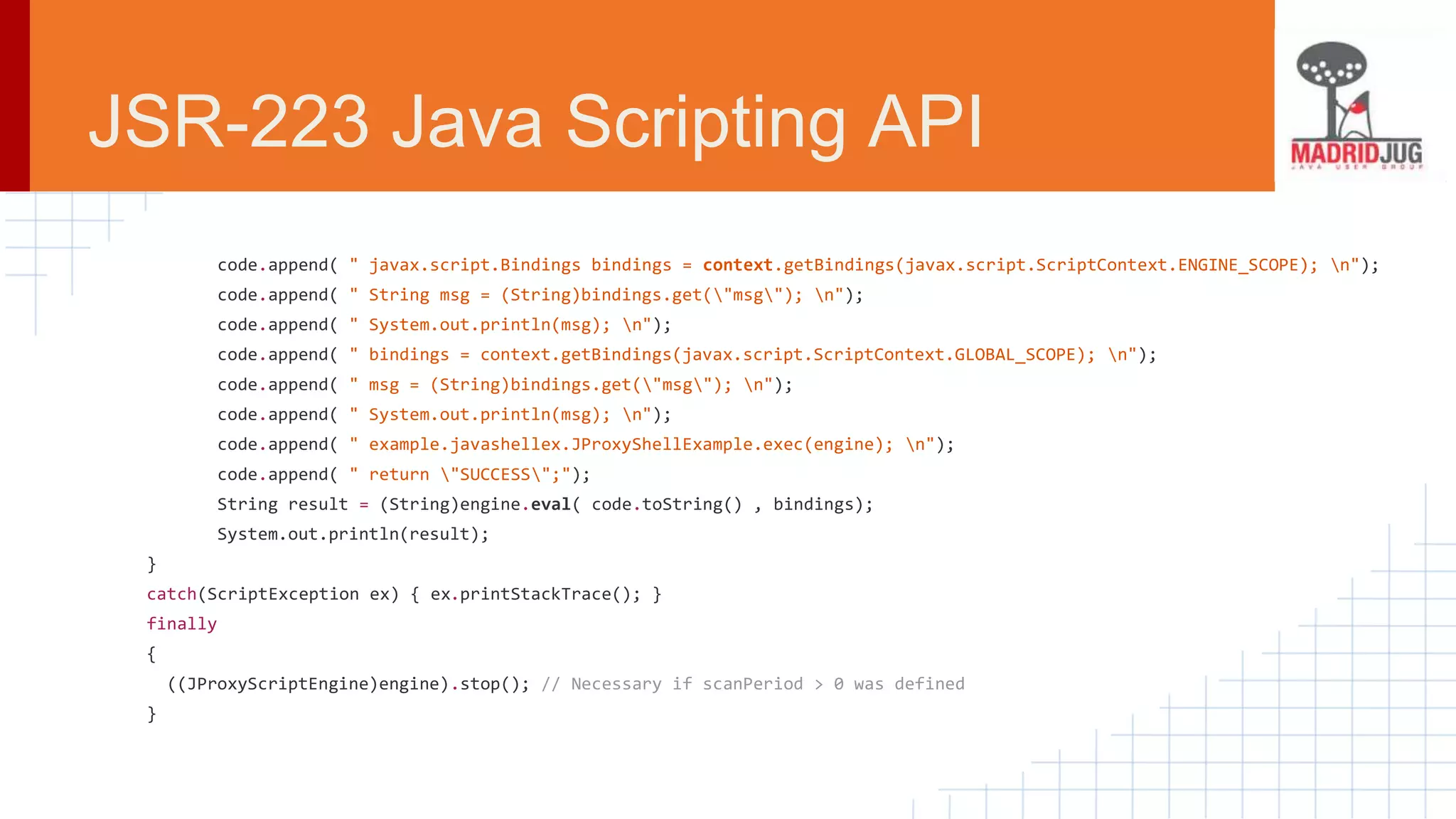

JSR-223 Java Scripting API
code.append( " javax.script.Bindings bindings = context.getBindings(javax.script.ScriptContext.ENGINE_SCOPE); n");
code.append( " String msg = (String)bindings.get("msg"); n");
code.append( " System.out.println(msg); n");
code.append( " bindings = context.getBindings(javax.script.ScriptContext.GLOBAL_SCOPE); n");
code.append( " msg = (String)bindings.get("msg"); n");
code.append( " System.out.println(msg); n");
code.append( " example.javashellex.JProxyShellExample.exec(engine); n");
code.append( " return "SUCCESS";");
String result = (String)engine.eval( code.toString() , bindings);
System.out.println(result);
}
catch(ScriptException ex) { ex.printStackTrace(); }
finally
{
((JProxyScriptEngine)engine).stop(); // Necessary if scanPeriod > 0 was defined
}

THANKS &
ENJOY !!
https://github.com/jmarranz/relproxy/
https://github.com/jmarranz/relproxy_examples/

Q & A
I’m sorry, half the world uses this stolen image from…(?)

RelProxy, Easy Class Reload and Scripting with Java

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to RelProxy, Easy Class Reload and Scripting with Java

Similar to RelProxy, Easy Class Reload and Scripting with Java (20)

Recently uploaded

Recently uploaded (20)

RelProxy, Easy Class Reload and Scripting with Java

Editor's Notes
