1. THE JAVA SERVER
PAGES
By
Atul Saurabh
Assist.
Professor
BITs edu
Campus

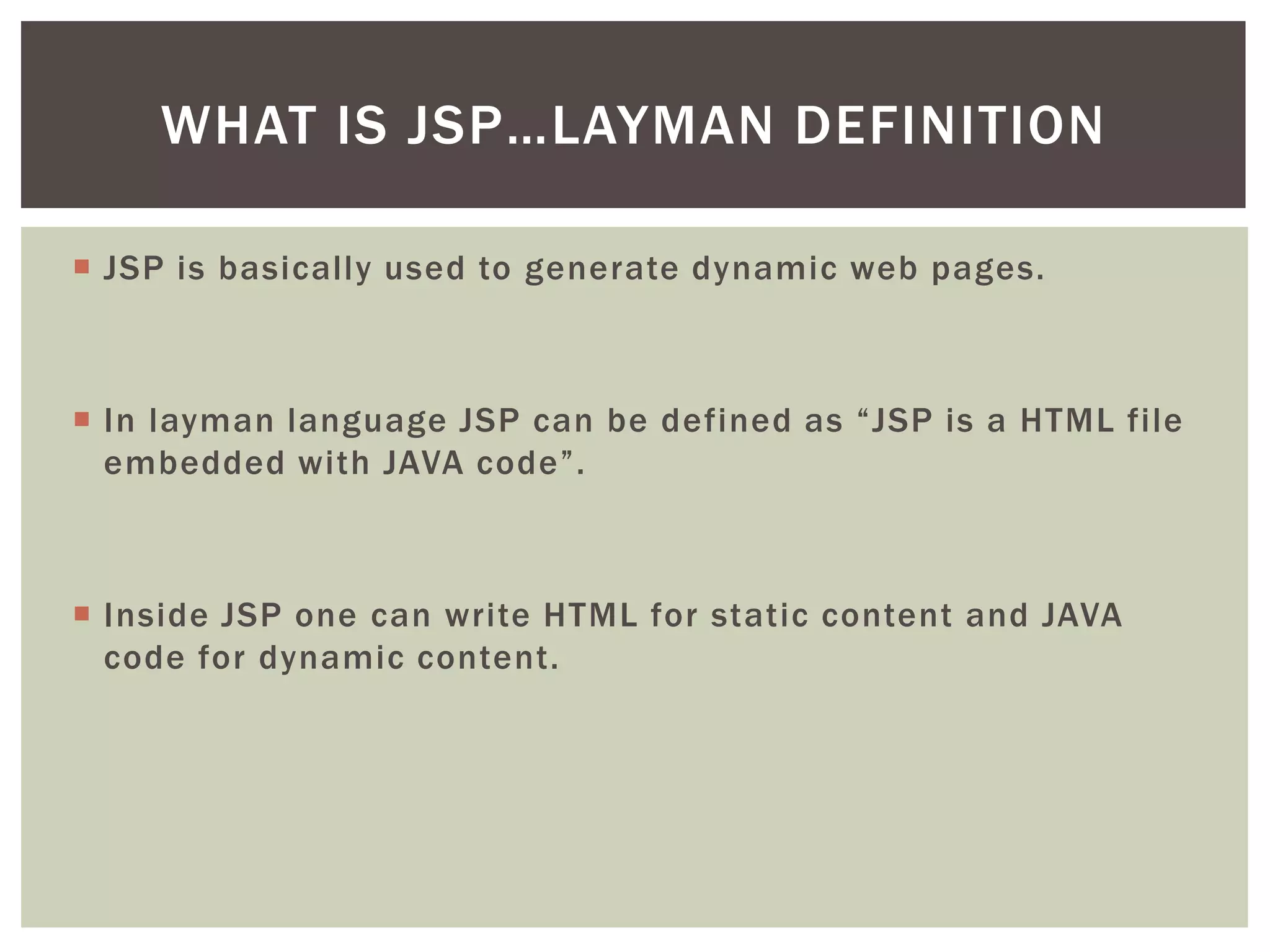

2. WHAT IS JSP…LAYMAN DEFINITION
 JSP is basically used to generate dynamic web pages.
 In layman language JSP can be defined as “JSP is a HTML file
embedded with JAVA code”.
 Inside JSP one can write HTML for static content and JAVA
code for dynamic content.

3. WHAT IS JSP …TECHNICAL DEFINITION
Technically a JSP is defined as follow :
“A JSP is a server side technology running in a
special engine called JSP engine , providing
dynamicity to the web pages and works as a high
level abstraction to the java servlet”.
A JSP page is basically an extension to the Java Servlet
technology. JSP contains both HTML and JAVA code. When a JSP
is compiled, it is transformed into JAVA Class. This
transformation is done by a special compiler called Page
Compiler.

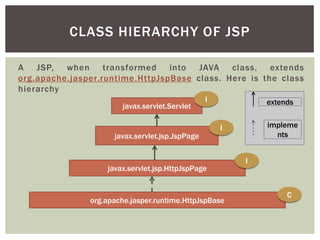

4. CLASS HIERARCHY OF JSP
A JSP, when transformed into JAVA class, extends
org.apache.jasper.runtime.HttpJspBase class. Here is the class
hierarchy
javax.servlet.Servlet
I
javax.servlet.jsp.JspPage
extends
impleme
nts
I
javax.servlet.jsp.HttpJspPage
org.apache.jasper.runtime.HttpJspBase
I
C

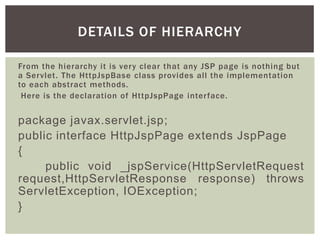

5. DETAILS OF HIERARCHY
From the hierarchy it is very clear that any JSP page is nothing but
a Servlet. The HttpJspBase class provides all the implementation
to each abstract methods.
Here is the declaration of HttpJspPage interface.
package javax.servlet.jsp;
public interface HttpJspPage extends JspPage
{
public void _jspService(HttpServletRequest
request,HttpServletResponse response) throws
ServletException, IOException;
}

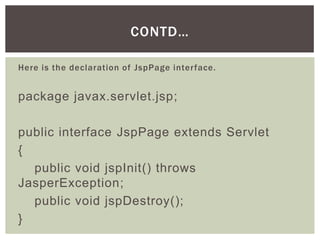

6. CONTD…
Here is the declaration of JspPage interface.
package javax.servlet.jsp;
public interface JspPage extends Servlet
{
public void jspInit() throws
JasperException;
public void jspDestroy();
}

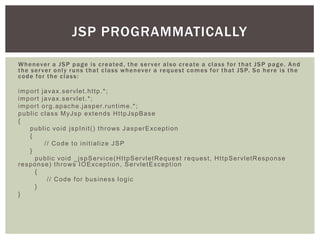

7. JSP PROGRAMMATICALLY
W h e n ev e r a J S P p a g e i s c r e a te d , t h e s e r v e r a l s o c r e a te a c l a s s f o r t h a t J S P p a g e . A n d
t h e s e r v e r o n l y r u n s t h a t c l a s s w h e n ev e r a r e q u e s t c o m e s f o r t h a t J S P. S o h e r e i s t h e
code for the class:
i m p o r t j a va x. s e r vl e t . h t t p .* ;
i m p o r t j a va x. s e r vl e t . * ;
i m p o r t o r g . a p a c h e . j a s p e r. r u n t i m e . * ;
p u b l i c c l a s s M yJ s p e xt e n d s H t t p J s p B a s e
{
p u b l i c vo i d j s p I n i t ( ) t h r o ws J a s p e r E xc e p t i o n
{
// Code to initialize JSP
}
p u b l i c vo i d _ j s p S e r vi c e ( H t t p S e r vl e t R e q u e s t r e q u e s t , H t t p S e r vl e t R e s p o n s e
r e s p o n s e ) t h r o ws I O E xc e p t i o n , S e r vl e t E xc e p t i o n
{
// Code for business logic
}
}

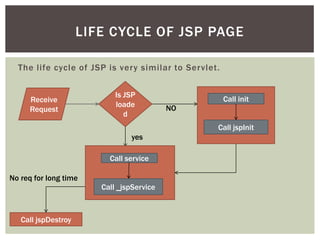

8. LIFE CYCLE OF JSP PAGE
The life cycle of JSP is very similar to Servlet.
Receive
Request
Is JSP
loade
d
Call init
NO
Call jspInit
yes
Call service
No req for long time
Call _jspService
Call jspDestroy

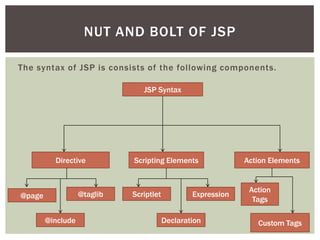

9. NUT AND BOLT OF JSP
The syntax of JSP is consists of the following components.
JSP Syntax
Directive
@taglib
@page
@include
Scripting Elements
Scriptlet
Expression
Declaration
Action Elements
Action
Tags
Custom Tags

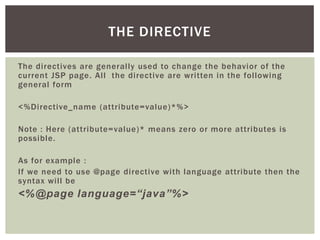

10. THE DIRECTIVE
The directives are generally used to change the behavior of the
current JSP page. All the directive are written in the following
general form
<%Directive_name (attribute=value)*%>
Note : Here (attribute=value)* means zero or more attributes is
possible.
As for example :
If we need to use @page directive with language attribute then the
syntax will be
<%@page language=“java”%>

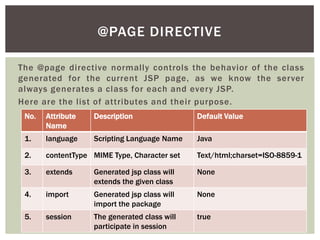

11. @PAGE DIRECTIVE
The @page directive normally controls the behavior of the class
generated for the current JSP page, as we know the server
always generates a class for each and every JSP.
Here are the list of attributes and their purpose.
No.
Attribute
Name
Description
Default Value
1.
language
Scripting Language Name
Java
2.
contentType MIME Type, Character set
Text/html;charset=ISO-8859-1
3.
extends
Generated jsp class will
extends the given class
None
4.
import
Generated jsp class will
import the package
None
5.
session
The generated class will
participate in session
true

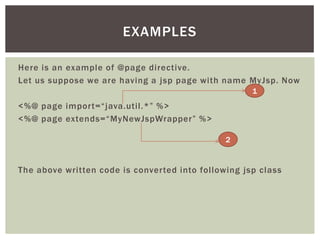

12. EXAMPLES
Here is an example of @page directive.
Let us suppose we are having a jsp page with name MyJsp. Now
1
<%@ page import=“java.util.*” %>
<%@ page extends=“MyNewJspWrapper” %>
2
The above written code is converted into following jsp class

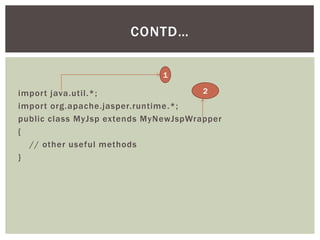

13. CONTD…
1
2
import java.util.*;
import org.apache.jasper.runtime .*;
public class MyJsp extends MyNewJspWrapper
{
// other useful methods
}

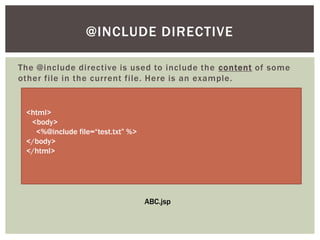

14. @INCLUDE DIRECTIVE
The @include directive is used to include the content of some
other file in the current file. Here is an example.
<html>
<body>
<%@include file=“test.txt” %>
</body>
</html>
ABC.jsp

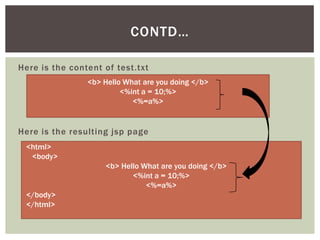

15. CONTD…
Here is the content of test.txt
<b> Hello What are you doing </b>
<%int a = 10;%>
<%=a%>
Here is the resulting jsp page
<html>
<body>
<b> Hello What are you doing </b>
<%int a = 10;%>
<%=a%>
</body>
</html>

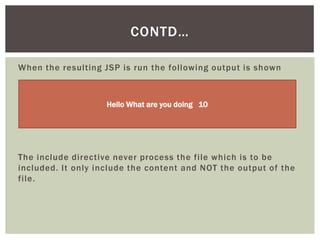

16. CONTD…
When the resulting JSP is run the following output is shown
Hello What are you doing 10
The include directive never process the file which is to be
included. It only include the content and NOT the output of the
file.

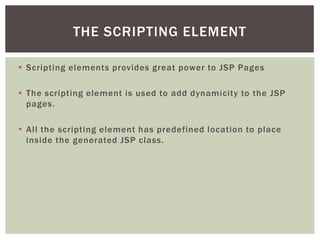

17. THE SCRIPTING ELEMENT
 Scripting elements provides great power to JSP Pages
 The scripting element is used to add dynamicity to the JSP
pages.
 All the scripting element has predefined location to place
inside the generated JSP class.

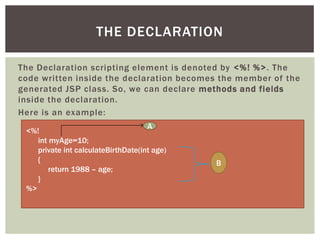

18. THE DECLARATION
The Declaration scripting element is denoted by <%! %>. The
code written inside the declaration becomes the member of the
generated JSP class. So, we can declare methods and fields
inside the declaration.
Here is an example:
A
<%!
int myAge=10;
private int calculateBirthDate(int age)
{
return 1988 – age;
}
%>
B

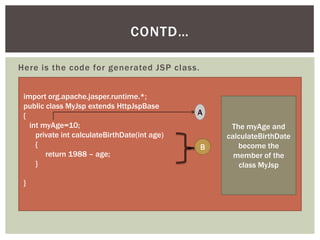

19. CONTD…
Here is the code for generated JSP class.
import org.apache.jasper.runtime.*;
public class MyJsp extends HttpJspBase
{
int myAge=10;
private int calculateBirthDate(int age)
{
return 1988 – age;
}
}
A
B
The myAge and
calculateBirthDate
become the
member of the
class MyJsp

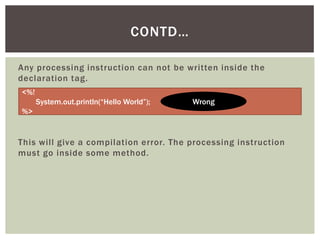

20. CONTD…
Any processing instruction can not be written inside the
declaration tag.
<%!
System.out.println(“Hello World”);
Wrong
%>
This will give a compilation error. The processing instruction
must go inside some method.

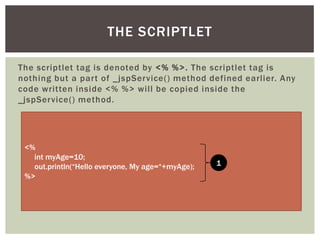

21. THE SCRIPTLET
The scriptlet tag is denoted by <% %>. The scriptlet tag is
nothing but a part of _ jspService() method defined earlier. Any
code written inside <% %> will be copied inside the
_jspService() method.
<%
int myAge=10;
out.println(“Hello everyone, My age=“+myAge);
%>
1

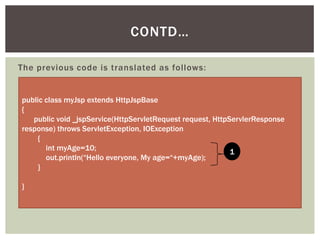

22. CONTD…
The previous code is translated as follows:
public class myJsp extends HttpJspBase
{
public void _jspService(HttpServletRequest request, HttpServlerResponse
response) throws ServletException, IOException
{
int myAge=10;
1
out.println(“Hello everyone, My age=“+myAge);
}
}

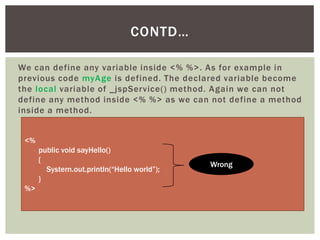

23. CONTD…
We can define any variable inside <% %>. As for example in
previous code myAge is defined. The declared variable become
the local variable of _jspService() method. Again we can not
define any method inside <% %> as we can not define a method
inside a method.
<%
public void sayHello()
{
System.out.println(“Hello world”);
}
%>
Wrong

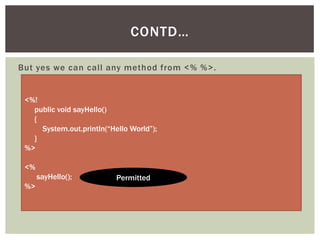

24. CONTD…
But yes we can call any method from <% %>.
<%!
public void sayHello()
{
System.out.println(“Hello World”);
}
%>
<%
sayHello();
%>
Permitted

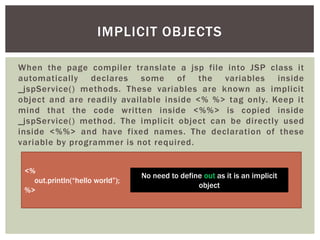

25. IMPLICIT OBJECTS
When the page compiler translate a jsp file into JSP class it
automatically declares some of the variables inside
_jspService() methods. These variables are known as implicit
object and are readily available inside <% %> tag only. Keep it
mind that the code written inside <%%> is copied inside
_jspService() method. The implicit object can be directly used
inside <%%> and have fixed names. The declaration of these
variable by programmer is not required.
<%
out.println(“hello world”);
%>
No need to define out as it is an implicit
object

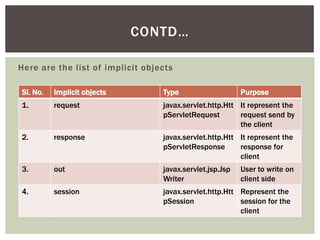

26. CONTD…
Here are the list of implicit objects
Sl. No.
Implicit objects
Type
Purpose
1.
request
javax.servlet.http.Htt It represent the
pServletRequest
request send by
the client
2.
response
javax.servlet.http.Htt It represent the
pServletResponse
response for
client
3.
out
javax.servlet.jsp.Jsp
Writer
4.
session
javax.servlet.http.Htt Represent the
pSession
session for the
client
User to write on
client side

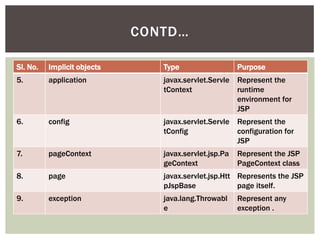

27. CONTD…
Sl. No.
Implicit objects
Type
Purpose
5.
application
javax.servlet.Servle Represent the
tContext
runtime
environment for
JSP
6.
config
javax.servlet.Servle Represent the
tConfig
configuration for
JSP
7.
pageContext
javax.servlet.jsp.Pa
geContext
8.
page
javax.servlet.jsp.Htt Represents the JSP
pJspBase
page itself.
9.
exception
java.lang.Throwabl
e
Represent the JSP
PageContext class
Represent any
exception .

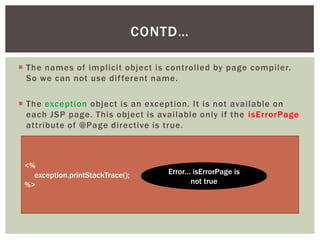

28. CONTD…
 The names of implicit object is controlled by page compiler.
So we can not use dif ferent name.
 The exception object is an exception. It is not available on
each JSP page. This object is available only if the isErrorPage
attribute of @Page directive is true.
<%
exception.printStackTrace();
%>
Error… isErrorPage is
not true

29. CONTD…
But
<%@page isErrorPage=“true” %>
<%
exception.printStackTrace();
%>
OK…

30. THE EXPRESSION
The expression tag is represented by <%=%>. It is basically the
short form of out.println();. Note the last semicolon. So if we
write
<%=“Hello World”%>
The code is translated as
out.println(“Hello world”);
Also the code must be copied inside the _ jspService() method.

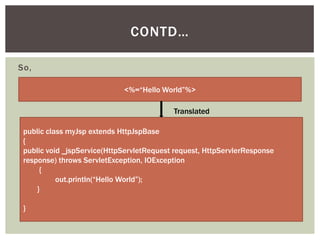

31. CONTD…
So,
<%=“Hello World”%>
Translated
public class myJsp extends HttpJspBase
{
public void _jspService(HttpServletRequest request, HttpServlerResponse
response) throws ServletException, IOException
{
out.println(“Hello World”);
}
}

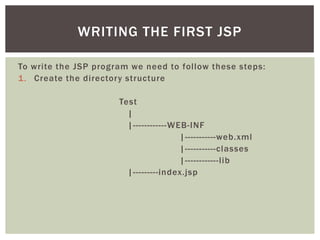

32. WRITING THE FIRST JSP
To write the JSP program we need to follow these steps:
1. Create the directory structure
Test
|
|------------WEB-INF
|-----------web.xml
|-----------classes
|------------lib
|---------index.jsp

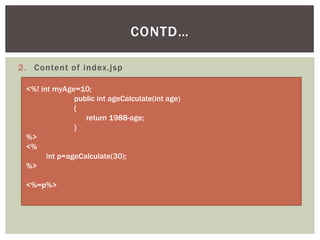

33. CONTD…
2. Content of index.jsp
<%! int myAge=10;
public int ageCalculate(int age)
{
return 1988-age;
}
%>
<%
int p=ageCalculate(30);
%>
<%=p%>

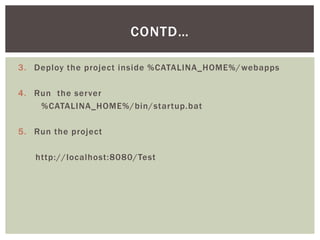

34. CONTD…
3. Deploy the project inside %CATALINA_HOME%/ webapps
4. Run the server
%CATALINA_HOME%/bin/startup.bat
5. Run the project
http://localhost:8080/Test

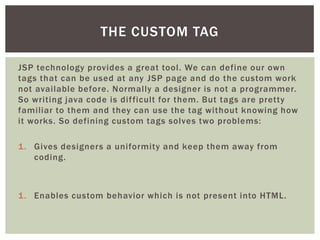

35. THE CUSTOM TAG
JSP technology provides a great tool. We can define our own
tags that can be used at any JSP page and do the custom work
not available before. Normally a designer is not a programmer.
So writing java code is dif ficult for them. But tags are pretty
familiar to them and they can use the tag without knowing how
it works. So defining custom tags solves two problems:
1. Gives designers a uniformity and keep them away from
coding.
1. Enables custom behavior which is not present into HTML.

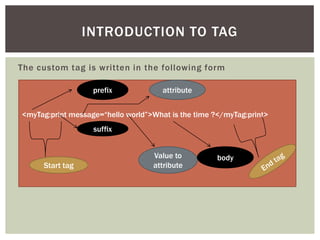

36. INTRODUCTION TO TAG
The custom tag is written in the following form
prefix
attribute
<myTag:print message=“hello world”>What is the time ?</myTag:print>
suffix
Start tag
Value to
attribute
body

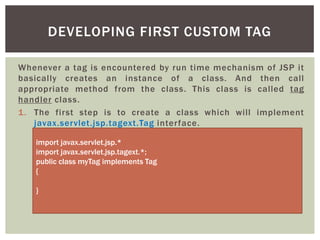

37. DEVELOPING FIRST CUSTOM TAG
Whenever a tag is encountered by run time mechanism of JSP it
basically creates an instance of a class. And then call
appropriate method from the class. This class is called tag
handler class.
1. The first step is to create a class which will implement
javax.servlet.jsp.tagext.Tag interface.
import javax.servlet.jsp.*
import javax.servlet.jsp.tagext.*;
public class myTag implements Tag
{
}

38. CONTD…
The Tag interface has following abstract methods






public
public
public
public
public
public
int doStartTag()
int doEndTag()
void setPageContext(PageContext p)
void setParent(Tag t)
Tag getParent()
void release()

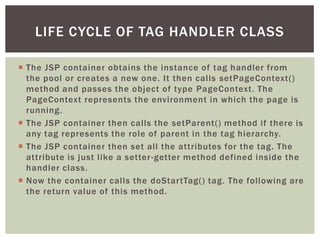

39. LIFE CYCLE OF TAG HANDLER CLASS
 The JSP container obtains the instance of tag handler from
the pool or creates a new one. It then calls setPageContext()
method and passes the object of type PageContext. The
PageContext represents the environment in which the page is
running.
 The JSP container then calls the setParent() method if there is
any tag represents the role of parent in the tag hierarchy.
 The JSP container then set all the attributes for the tag. The
attribute is just like a setter -getter method defined inside the
handler class.
 Now the container calls the doStartTag() tag. The following are
the return value of this method.

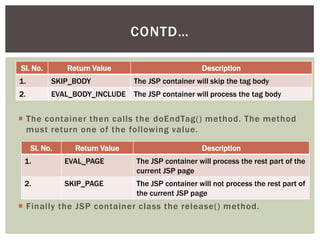

40. CONTD…
Sl. No.
Return Value
Description
1.
SKIP_BODY
The JSP container will skip the tag body
2.
EVAL_BODY_INCLUDE
The JSP container will process the tag body
 The container then calls the doEndTag() method. The method
must return one of the following value.
Sl. No.
Return Value
Description
1.
EVAL_PAGE
The JSP container will process the rest part of the
current JSP page
2.
SKIP_PAGE
The JSP container will not process the rest part of
the current JSP page
 Finally the JSP container class the release() method.

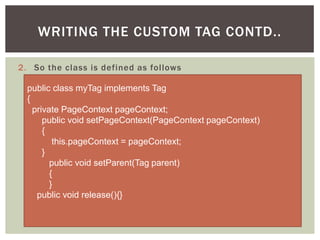

41. WRITING THE CUSTOM TAG CONTD..
2. So the class is defined as follows
public class myTag implements Tag
{
private PageContext pageContext;
public void setPageContext(PageContext pageContext)
{
this.pageContext = pageContext;
}
public void setParent(Tag parent)
{
}
public void release(){}

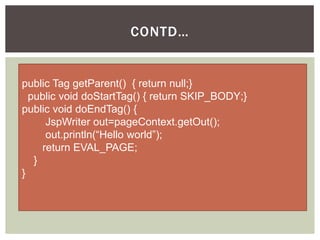

42. CONTD…
public Tag getParent() { return null;}
public void doStartTag() { return SKIP_BODY;}
public void doEndTag() {
JspWriter out=pageContext.getOut();
out.println(“Hello world”);
return EVAL_PAGE;
}
}

43. DEFINING TLD
TLD is short form Tag Library Descriptor. The tag processor first
read the TLD to get information about the tag. One TLD may
contain information about a set of tags. Every TLD is identified
by a unique URL. Here is an example :
<taglib>
The tld will identified by
<tlib-version>1.0</tlib-version>
this URI A
<short-name>taglib</short-name>
<uri>/WEB-INF/tlds/taglib</uri>
<!– TAG CONFIGURATION -->
The suffix of the
<tag>
B
tag
<name>myTag</name>
<tag-class>db2admin. myTag </tag-class>
</tag>
</taglib>
The complete path of Tag Handler class

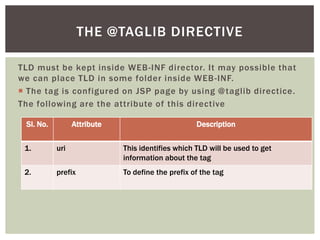

44. THE @TAGLIB DIRECTIVE
TLD must be kept inside WEB -INF director. It may possible that
we can place TLD in some folder inside WEB -INF.
 The tag is configured on JSP page by using @ taglib directice.
The following are the attribute of this directive
Sl. No.
Attribute
Description
1.
uri
This identifies which TLD will be used to get
information about the tag
2.
prefix
To define the prefix of the tag

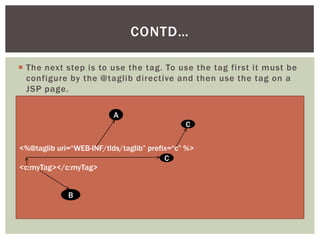

45. CONTD…
 The next step is to use the tag. To use the tag first it must be
configure by the @taglib directive and then use the tag on a
JSP page.
A
C
<%@taglib uri=“WEB-INF/tlds/taglib” prefix=“c” %>
C
<c:myTag></c:myTag>
B
