Redis is an open source, advanced key-value store. It supports data structures like lists, sets, sorted sets, and hashes. Redis can persist data on disk using Redis Database files or append-only files. Redis supports master-slave replication where slaves can be promoted to masters in case of failures using Redis Sentinel. The main thing to note is that Redis is single-threaded, so long operations can block the server.

1. Redis Begins
charsyam@naver.com

2. Redis?

3. Redis?
Redis is an open source.
http://redis.io

4. Redis?
Redis is an open source.
BSD licensed.
http://redis.io

5. Redis?
Redis is an open source.
BSD licensed.
advanced key-value store.
http://redis.io

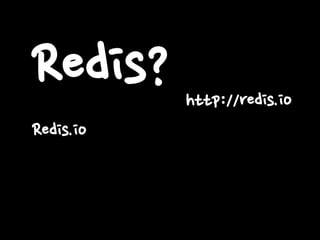

6. Redis?
Redis.io
http://redis.io

7. Why Redis?

8. Why Redis?
Simple.
Performance.

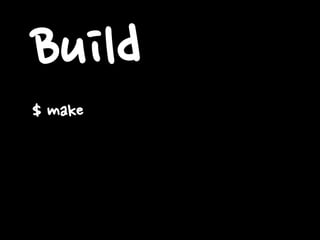

9. Build
$ make

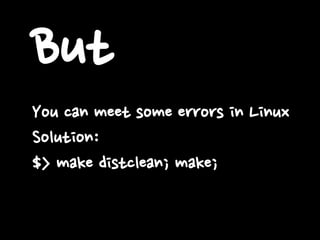

10. But
You can meet some errors in Linux
Solution:
$> make distclean; make;

11. Why?
Redis saves settings to .make-* files
And they disturb normal building.

12. Argenda
Single Thread.
Collections.
Persistent.
Replication.

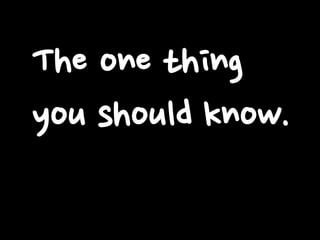

13. The one thing
you should know.

14. Redis is
Single Threaded!

15. Single Thread
Means!

16. Don’t execute
long task.

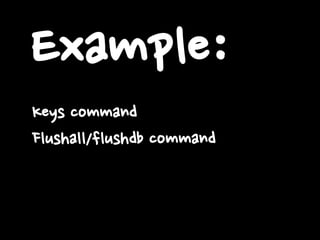

17. Example:
Keys command
Flushall/flushdb command

18. O(n)

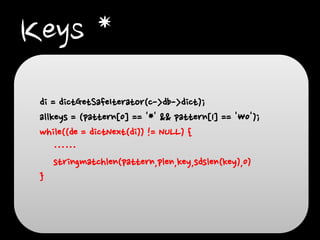

19. Keys *
di = dictGetSafeIterator(c->db->dict);
allkeys = (pattern[0] == '*' && pattern[1] == '0');
while((de = dictNext(di)) != NULL) {
……
stringmatchlen(pattern,plen,key,sdslen(key),0)
}

20. FlushAll
Cache Item Count Time
Memcache 1,000,000 1~2ms
Redis 1,000,000 1000ms(1 second)

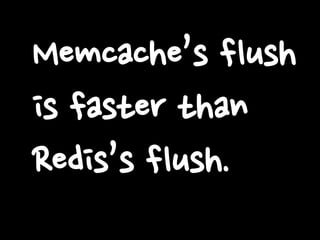

21. Memcache’s flush
is faster than
Redis’s flush.

22. Memcache’s flush
is faster than
Redis’s flush?

23. FlushAll-Redis
for (i = 0; i < ht->size && ht->used > 0; i++) {
dictEntry *he, *nextHe;
if ((he = ht->table[i]) == NULL) continue;
while(he) {
nextHe = he->next;
dictFreeKey(d, he);
dictFreeVal(d, he);
zfree(he);
ht->used--;
he = nextHe;
}
}

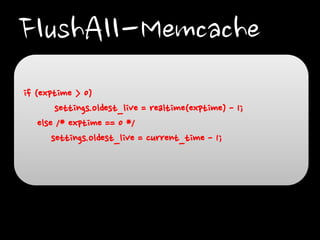

24. FlushAll-Memcache
if (exptime > 0)
settings.oldest_live = realtime(exptime) - 1;
else /* exptime == 0 */
settings.oldest_live = current_time - 1;

25. FlushAll-Memcache
if (settings.oldest_live != 0 &&
settings.oldest_live <= current_time &&
it->time <= settings.oldest_live) {
do_item_unlink(it, hv);
do_item_remove(it);
it = NULL;
}

26. Argenda
Single Thread.
Collections.
Persistent.
Replication.

27. Collections
Memcached supports just K-V
List
Set
Sorted Set
Hash

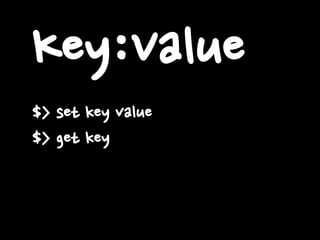

28. Key:Value
$> set key value
$> get key

29. Key:Value
sql> insert into userinfo (name,
email) values(‘charsyam’,
‘test@abc.com’);

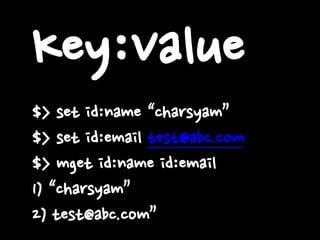

30. Key:Value
$> set id:name “charsyam”
$> set id:email test@abc.com
$> mget id:name id:email
1) “charsyam”
2) test@abc.com”

31. List
$> rpush listname a --- (a)
$> rpush listname b --- (a, b)
$> lpush listname c --- (c, a, b)
$> rpop listname(or lpop listname)

32. List - when
When you need job queue or stack.

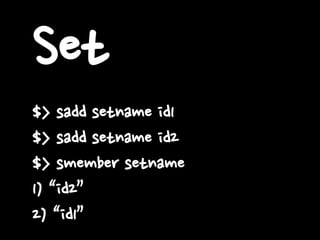

33. Set
$> sadd setname id1
$> sadd setname id2
$> smember setname
1) “id2”
2) “id1”

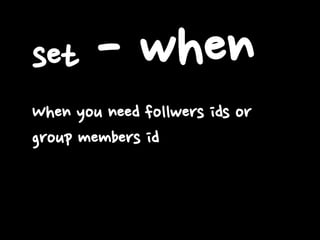

34. set - when
When you need follwers ids or
group members id

35. Sorted Set
$> zadd zsetname 1 “one”
$> zadd zsetname 2 “two”
$> zadd zsetname 3 “three”

36. Sorted Set
$> zrange zsetname 0 -1
1) “one”
2) “two”
3) “three”

37. zset - when

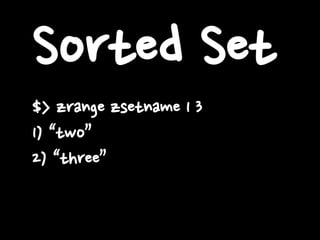

When you need ranking

38. Sorted Set
$> zrange zsetname 1 3
1) “two”
2) “three”

39. Hash
sql> insert into userinfo (name,
email) values(‘charsyam’,
‘test@abc.com’);

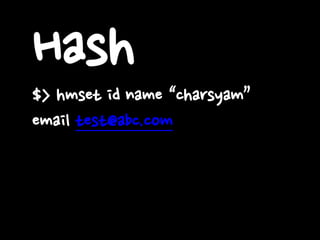

40. Hash$> hmset id name “charsyam”
email test@abc.com

41. Hash$> hgetall
1) “name”
2) “charsyam”
3) “email”
4) “test@abc.com”

42. Hash$> hset id email abc@abc.com
$> hgetall
1) “name”
2) “charsyam”
3) “email”
4) “abc@abc.com”

43. Remember!!!!!

44. The one thing
you should know.

45. Redis is
Single Threaded!

46. Don’t insert too
many items into
collections.

47. Delete collections
Item Count Time
list 1,000,000 1000ms(1 second)
set
Sorted set
hash

48. Argenda
Single Thread.
Collections.
Persistent.
Replication.

49. Redis can store
its memory
snapshot.

50. RDB

51. RDB is not
Relation DBMS.

52. RDB is redis
snapshot name.

53. Fork()

54. RDB - BAD
• Bad Performance in Large memory.
• Twice memory problem.
• Denying write problem when storing
RDB fails.
• If you just want Cache. Turn off RDB

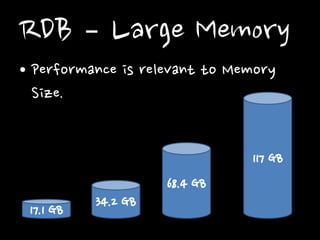

55. RDB – Large Memory
• Performance is relevant to Memory
Size.
17.1 GB
34.2 GB
68.4 GB
117 GB

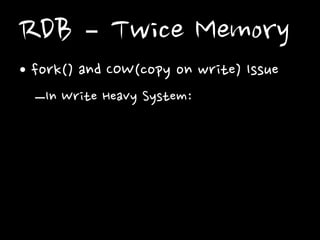

56. RDB – Twice Memory
• fork() and COW(copy on write) Issue
–In Write Heavy System:

57. RDB – Twice Memory

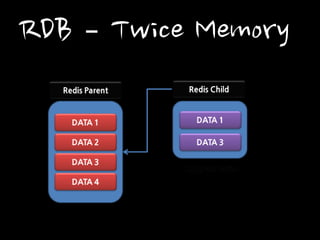

58. RDB – Twice Memory

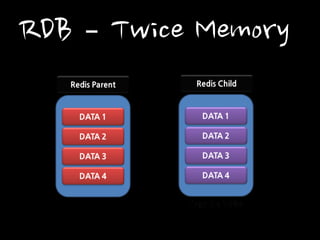

59. RDB – Twice Memory

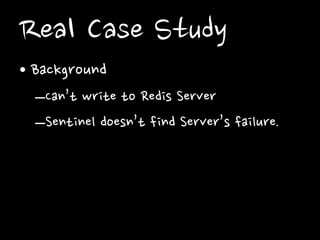

60. Real Case Study
• Background
–Can’t write to Redis Server
–Sentinel doesn’t find Server’s failure.

61. Real Case Study
• Reason
–If redis fails to save RDB, Redis basically
denies write operations from client.
–“MISCONF Redis is configured to save RDB
snapshots, but is currently not able to
persist on disk. Commands that may modify
the data set are disabled. Please check Redis
logs for details about the error.”

62. Real Case Study
• Reason
if (server.stop_writes_on_bgsave_err &&
server.saveparamslen > 0
&& server.lastbgsave_status == REDIS_ERR &&
c->cmd->flags & REDIS_CMD_WRITE)
{
flagTransaction(c);
addReply(c, shared.bgsaveerr);
return REDIS_OK;
}

63. Real Case Study
• Solution #1
• Solution #2
config set stop-writes-on-bgsave-error no
Turn off RDB Setting
2.6.12 부터 conf 에서 stop-writes-on-bgsave-error
설정이 가능해짐.

64. AOF

65. AOF is append
only file.

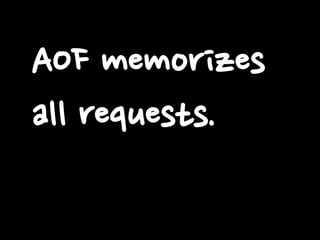

66. AOF memorizes
all requests.

67. AOF*3rn$3rnsetrn$1rnA
rn$3rn123rn*3rn$3rn
setrn$1rnBrn$3rn123
rn*3rn$3rnsetrn$1r
nCrn$3rn123rn

68. AOF*3
$3
Set
$1
A
……

69. AOF Rewrite
When size of AOF grows than redis
rewrite memory state to AOF.

70. Argenda
Single Thread.
Collections.
Persistent.
Replication.

71. Redis support
master/slave
replication

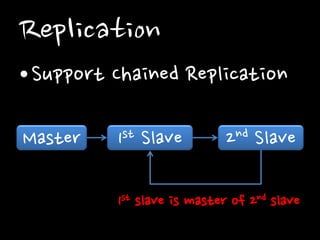

72. Replication
•Support Chained Replication
Master 1st Slave 2nd Slave
1st slave is master of 2nd slave

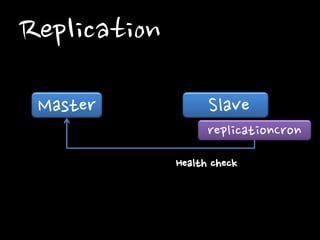

73. Replication
Master Slave
replicationCron
Health check

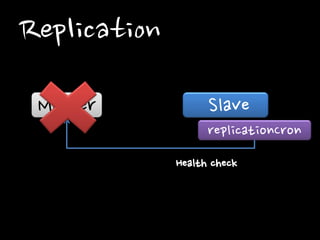

74. Replication
Master Slave
replicationCron
Health check

75. Replication
Master Slave
replicationCron
When master reruns, Resync with Master

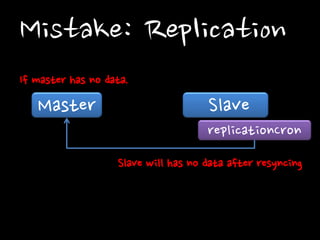

76. Mistake: Replication
Master Slave
replicationCron
Slave will has no data after resyncing
If master has no data.

77. Initial Replication Step

78. Replication
Don’t forget
“slave of no one”

79. Sentinel

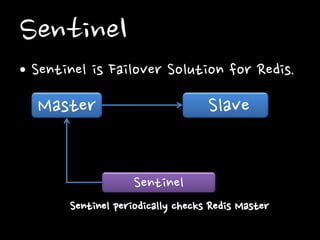

80. Sentinel
• Sentinel is Failover Solution for Redis.
Master Slave
Sentinel
Sentinel periodically checks Redis Master

81. Sentinel
Master Slave
Sentinel
Send “slaveof no one” to slave node

82. Sentinel
Master Slave
Sentinel
Notify to client about changing master
Client

83. Sentinel
redis 127.0.0.1:2003> psubscribe *
Reading messages... (press Ctrl-C to quit)
1) "pmessage"
2) "*"
3) "+switch-master"
4) "resque 127.0.0.1 1999 127.0.0.1 2002"

84. Sentinel
• Sentinel will connect correct master
even if you set slave’s ip in conf
Master Slave
Sentinel
Slave’s ip in sentinel.conf

85. Sentinel
• INFO
# Replication
role:slave
master_host:127.0.0.1
master_port:6379
……

86. Sentinel
• Reconnect to correct master using
master_host and master_port.
Master Slave
Sentinel
Reconnect to master of slave.

87. Sentinel.conf
port 26379
sentinel monitor mymaster 127.0.0.1 6379 1
sentinel down-after-milliseconds mymaster 30000
sentinel can-failover mymaster yes
sentinel parallel-syncs mymaster 1
sentinel failover-timeout mymaster 900000

88. Wrap Up

89. Redis is
Single Threaded!

90. Q & A

91. Thank you!
