1. Something On GDB And Debugging
dutor
Gdutor@gmail.com
TAIR
September 26, 2013

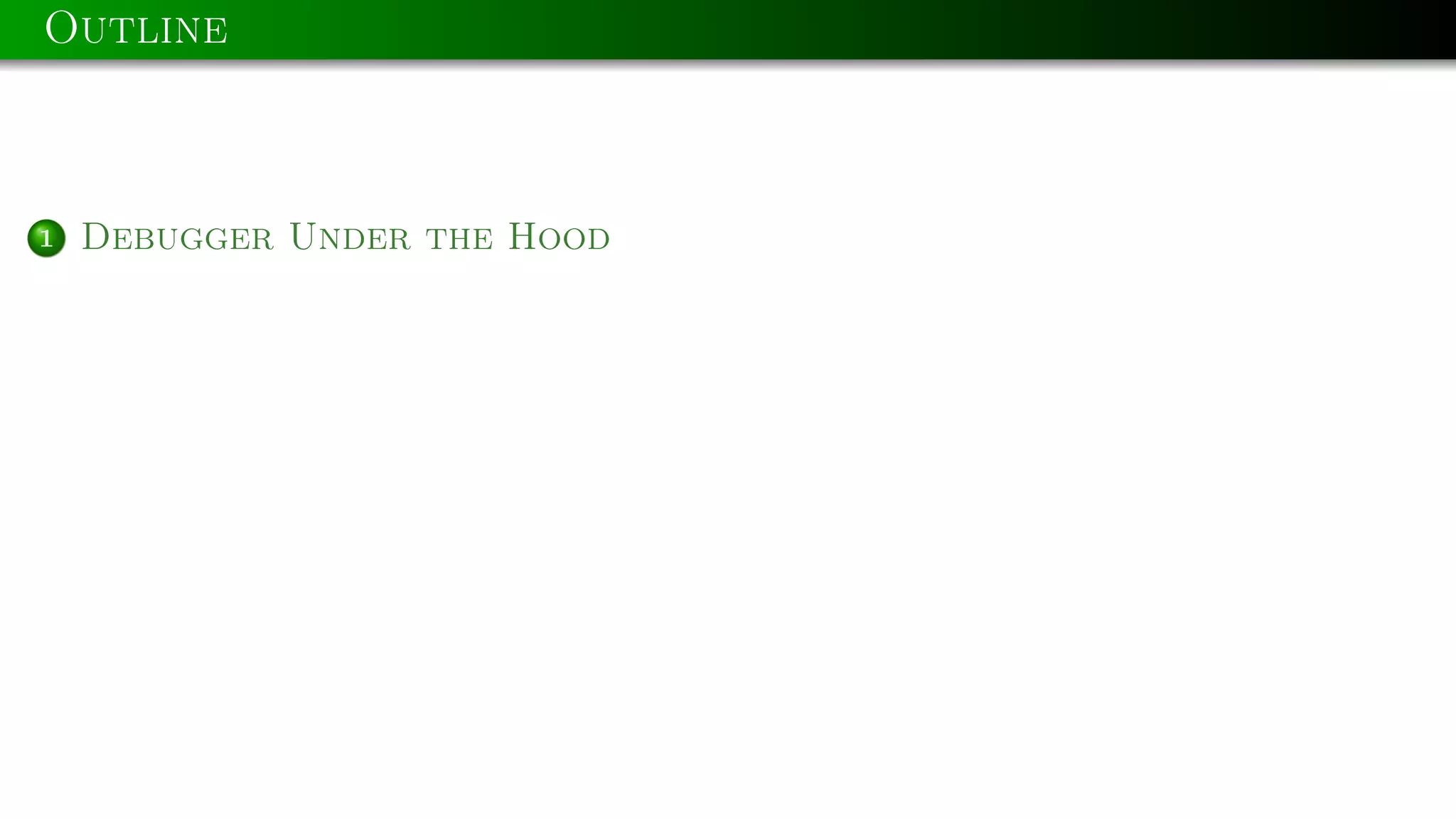

2. Outline
1
Debugger Under the Hood

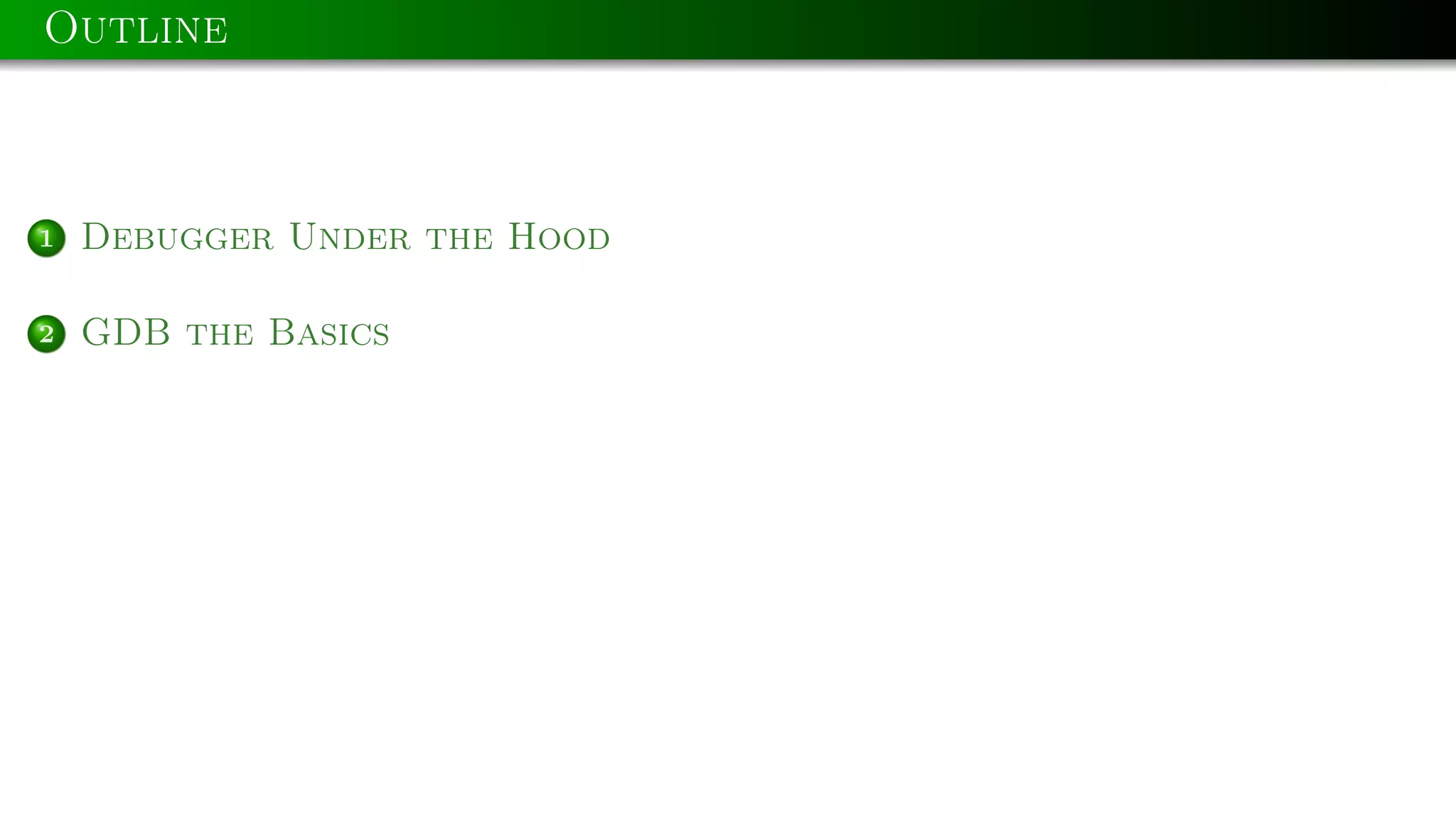

3. Outline
1
Debugger Under the Hood
2
GDB the Basics

4. Outline
1
Debugger Under the Hood
2
GDB the Basics
3
Bonus

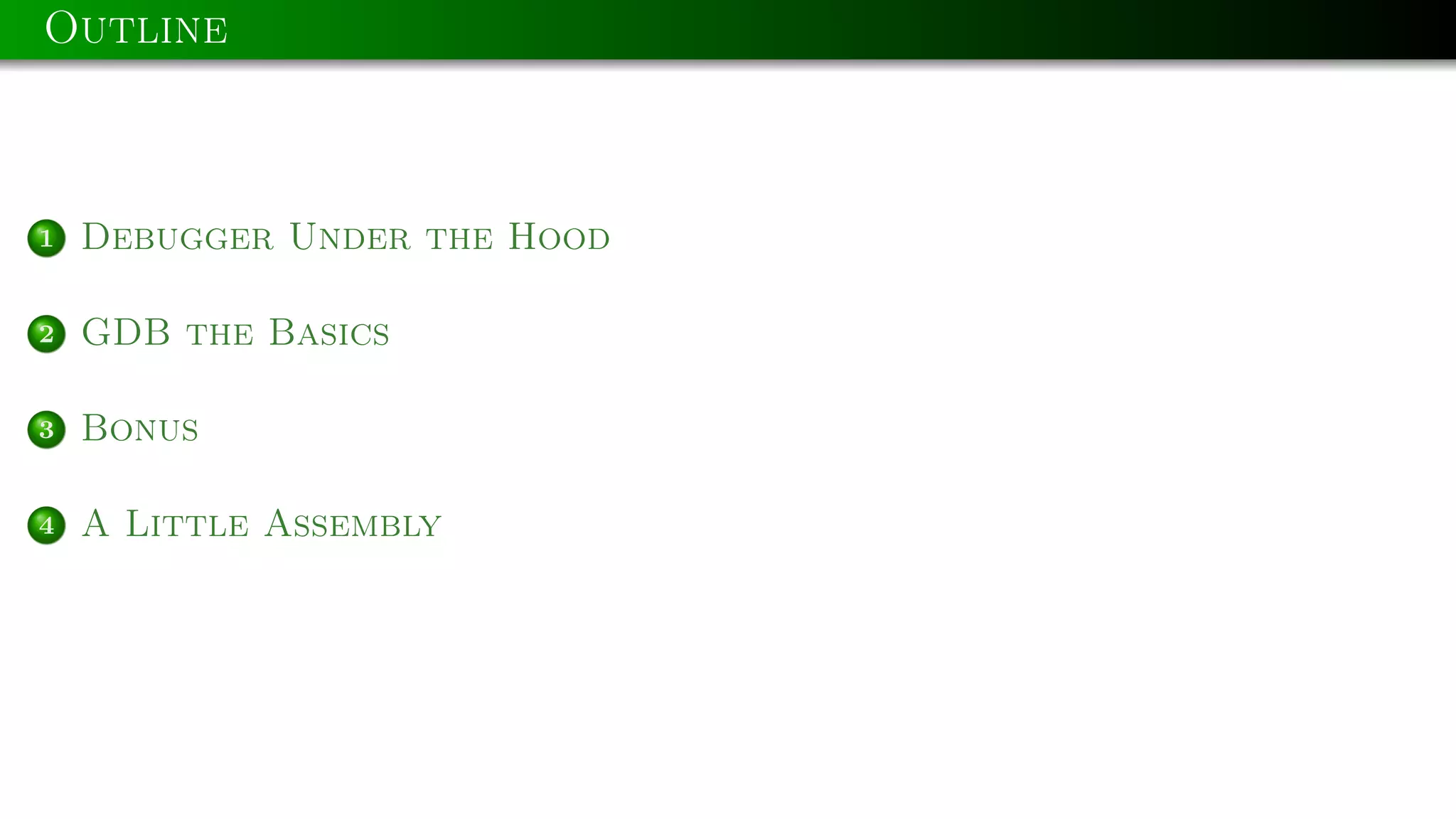

5. Outline
1
Debugger Under the Hood
2
GDB the Basics
3
Bonus
4
A Little Assembly

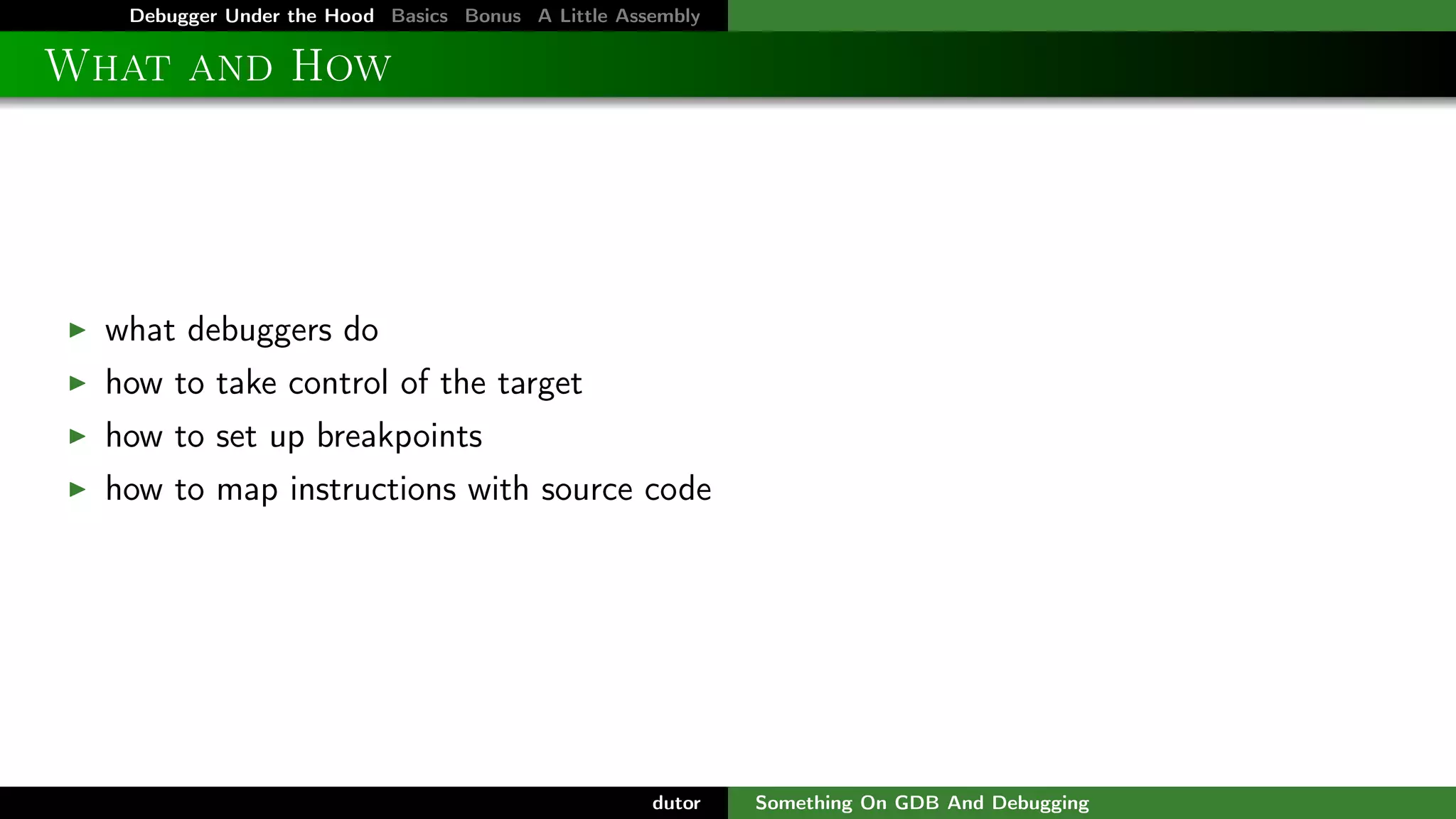

6. Debugger Under the Hood Basics Bonus A Little Assembly
What and How
what debuggers do
how to take control of the target
how to set up breakpoints
how to map instructions with source code
dutor
Something On GDB And Debugging

7. Debugger Under the Hood Basics Bonus A Little Assembly

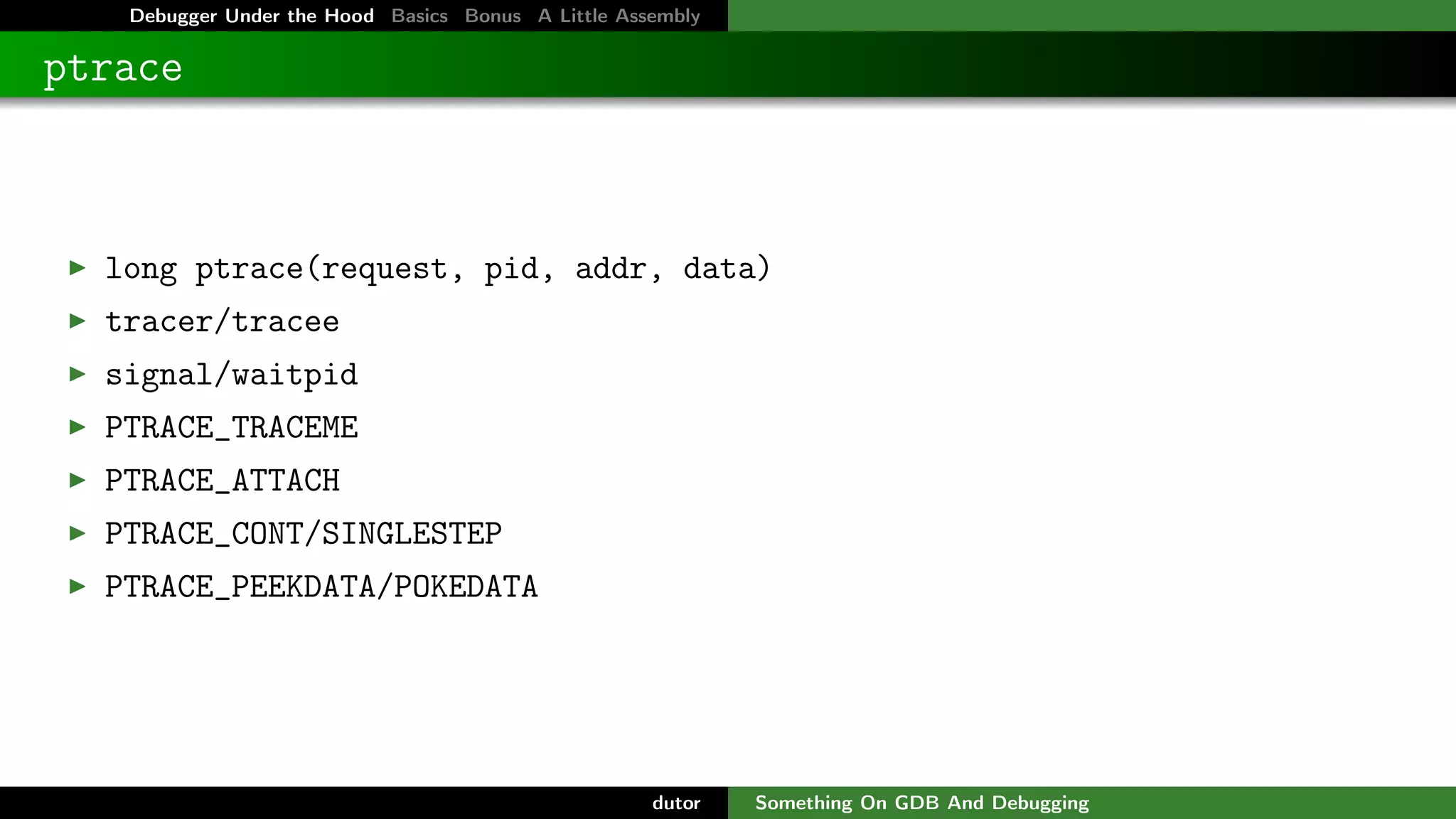

ptrace
long ptrace(request, pid, addr, data)
tracer/tracee
signal/waitpid
PTRACE_TRACEME
PTRACE_ATTACH
PTRACE_CONT/SINGLESTEP
PTRACE_PEEKDATA/POKEDATA
dutor
Something On GDB And Debugging

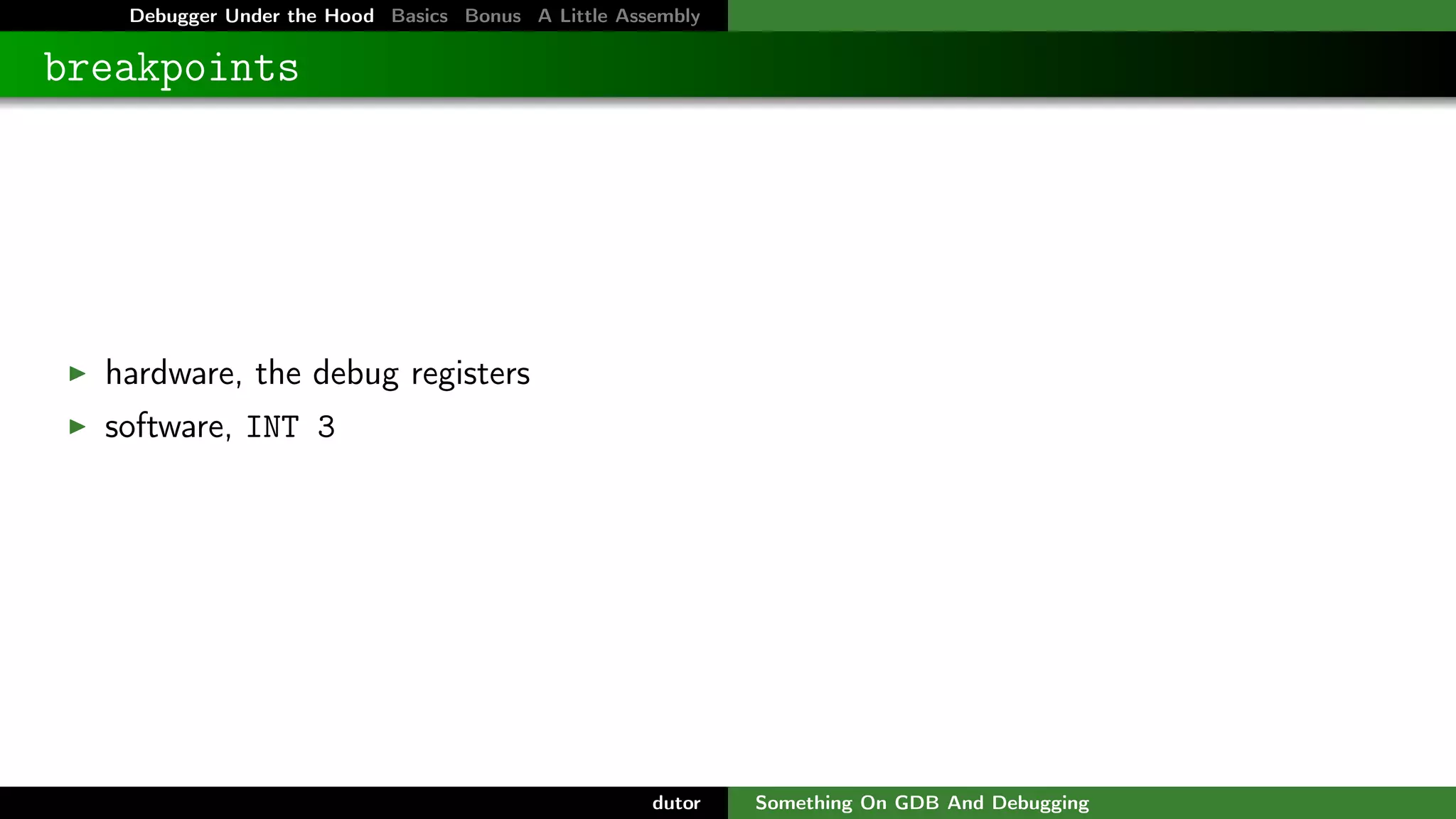

8. Debugger Under the Hood Basics Bonus A Little Assembly
breakpoints
hardware, the debug registers
software, INT 3
dutor
Something On GDB And Debugging

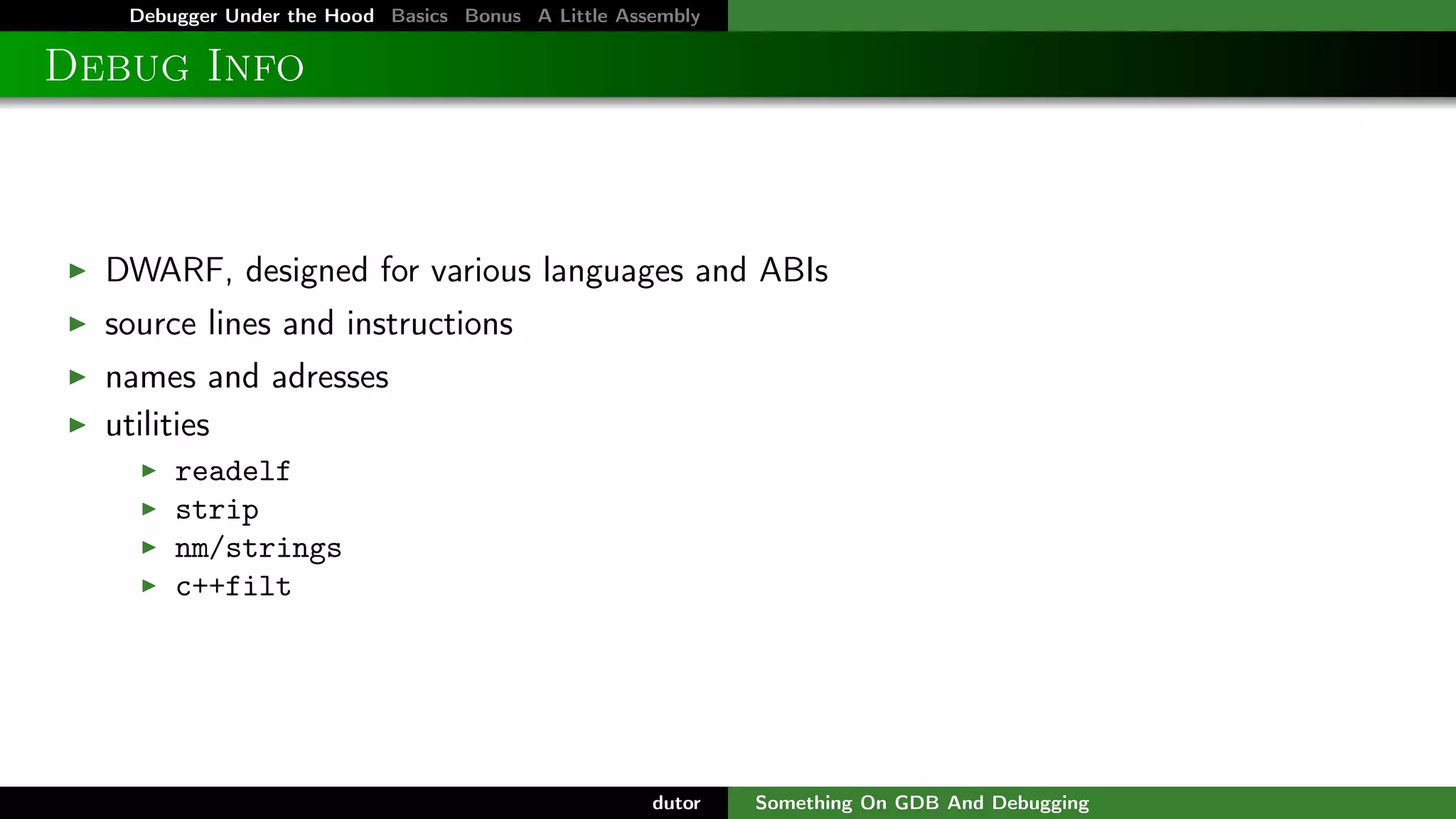

9. Debugger Under the Hood Basics Bonus A Little Assembly
Debug Info
DWARF, designed for various languages and ABIs
source lines and instructions
names and adresses
utilities
readelf
strip
nm/strings
c++filt
dutor
Something On GDB And Debugging

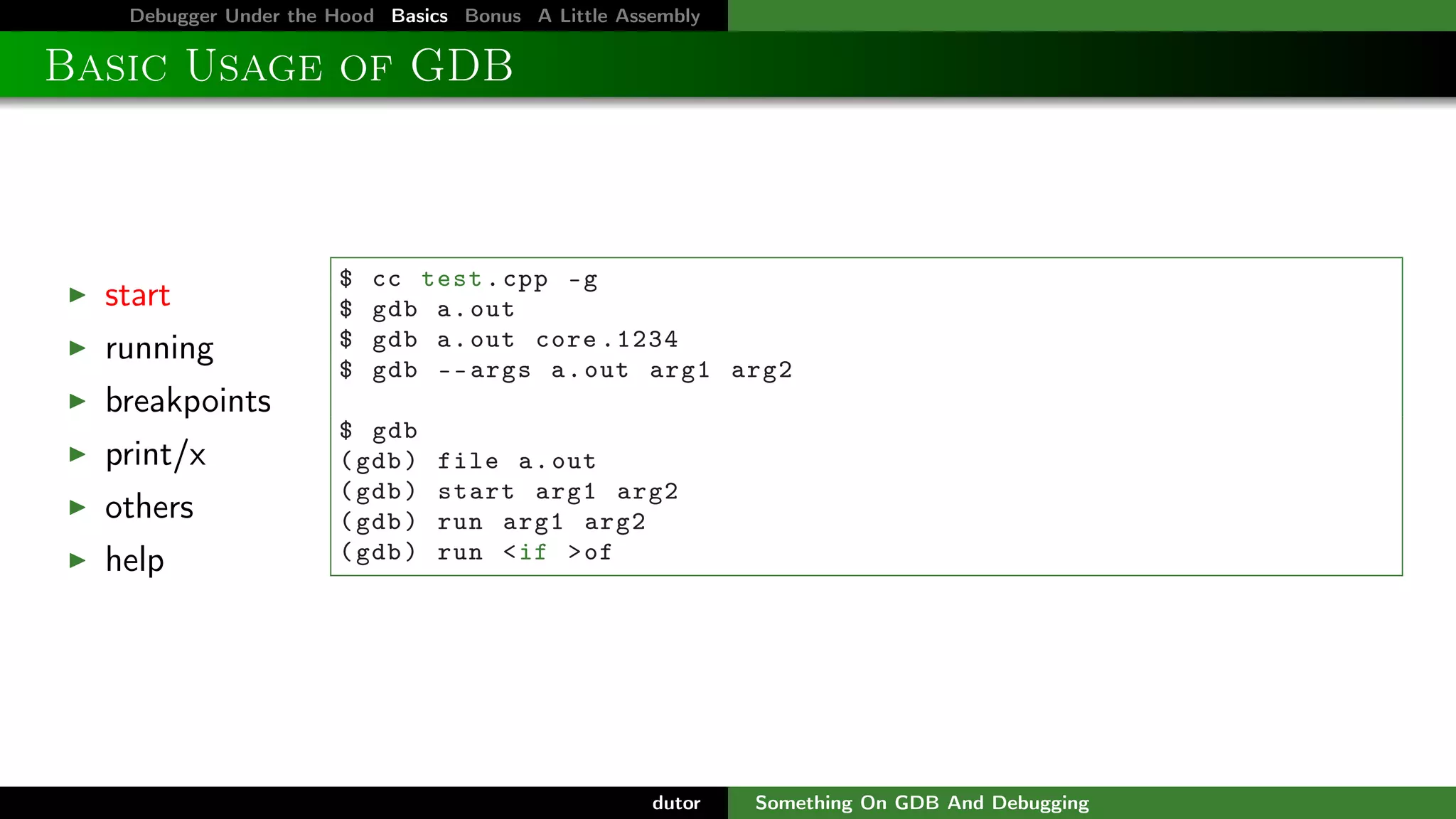

10. Debugger Under the Hood Basics Bonus A Little Assembly
Basic Usage of GDB
start
running
$
$
$
$
cc test . cpp -g
gdb a . out
gdb a . out core .1234
gdb -- args a . out arg1 arg2
breakpoints
print/x
others
help
$ gdb
( gdb )
( gdb )
( gdb )
( gdb )
file a . out
start arg1 arg2
run arg1 arg2
run < if > of
dutor
Something On GDB And Debugging

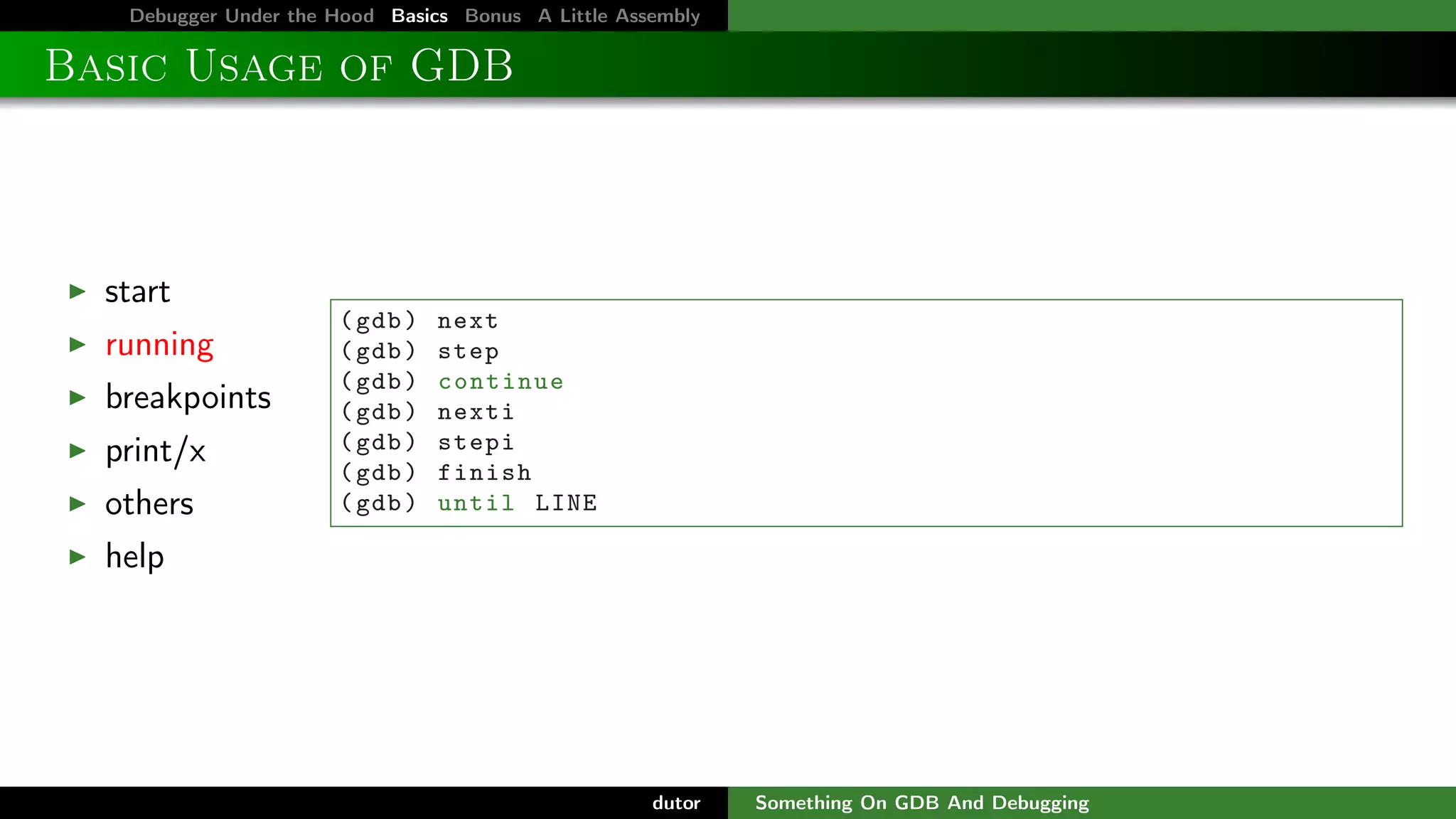

11. Debugger Under the Hood Basics Bonus A Little Assembly
Basic Usage of GDB
start
running
breakpoints
print/x
others
( gdb )
( gdb )
( gdb )
( gdb )
( gdb )
( gdb )
( gdb )
next
step
continue
nexti
stepi
finish
until LINE
help
dutor
Something On GDB And Debugging

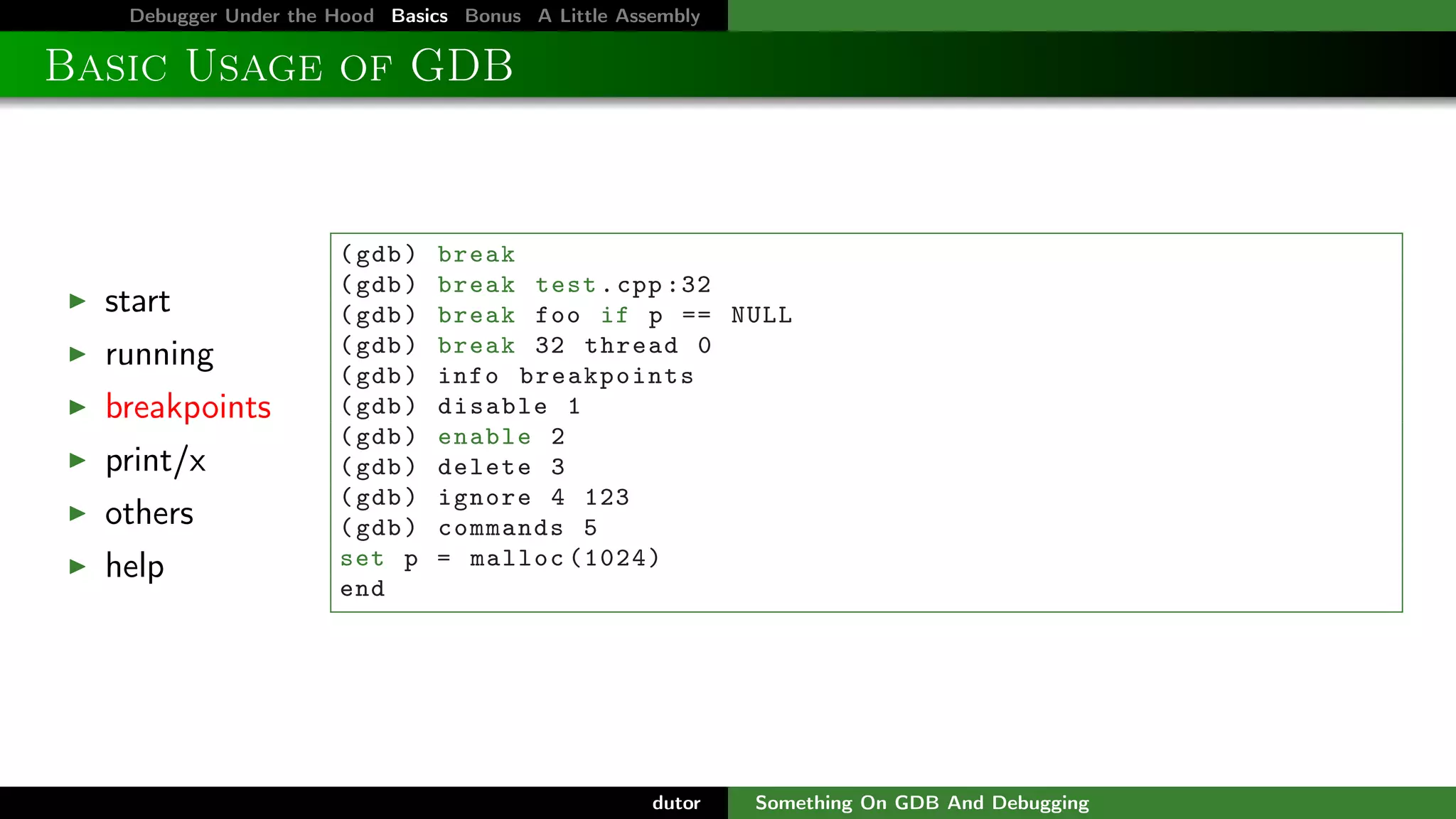

12. Debugger Under the Hood Basics Bonus A Little Assembly
Basic Usage of GDB
start
running
breakpoints
print/x
others
help
( gdb )
( gdb )
( gdb )
( gdb )
( gdb )
( gdb )
( gdb )
( gdb )
( gdb )
( gdb )
set p
end
break
break test . cpp :32
break foo if p == NULL
break 32 thread 0
info breakpoints
disable 1
enable 2
delete 3
ignore 4 123
commands 5
= malloc (1024)
dutor
Something On GDB And Debugging

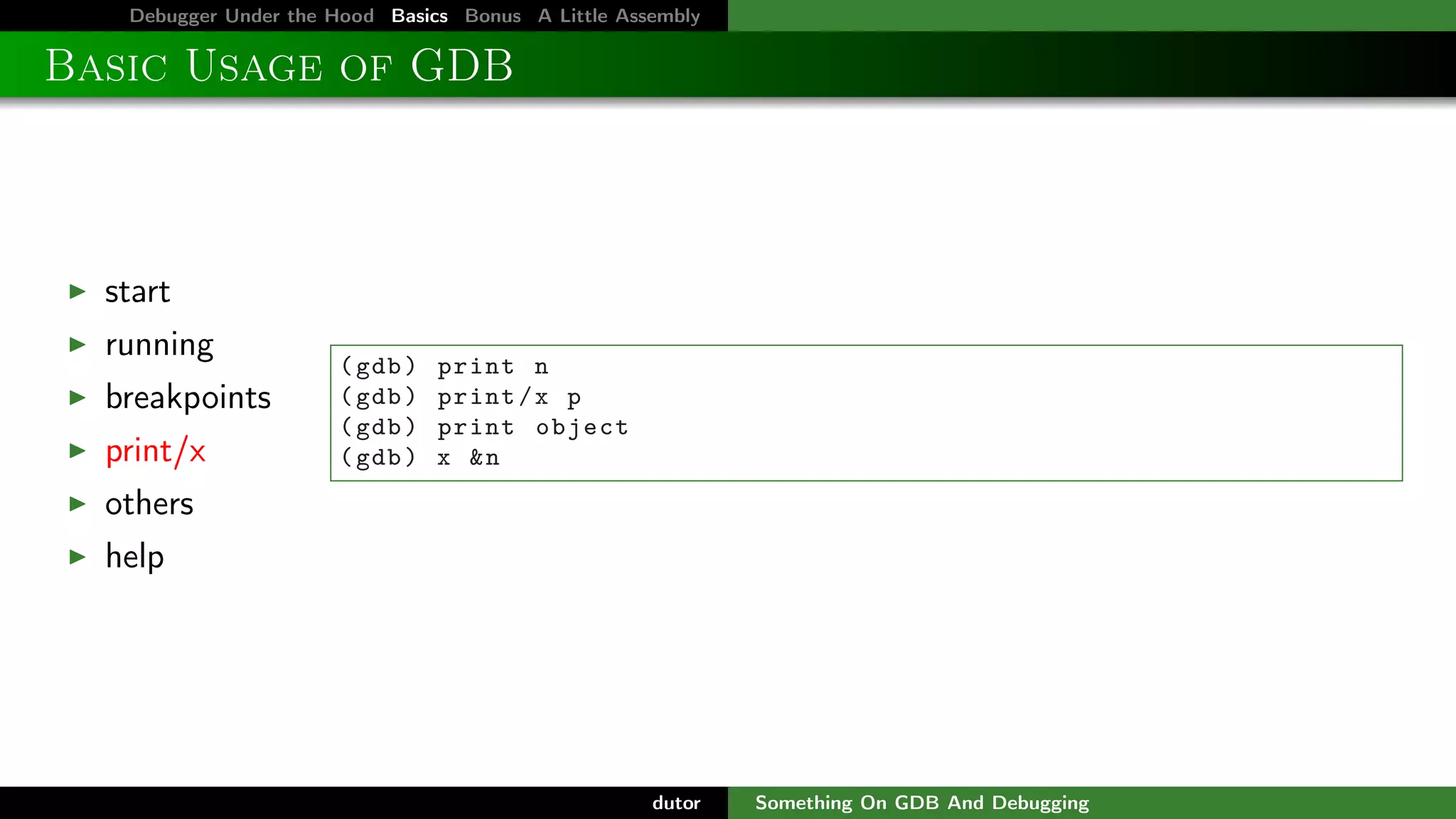

13. Debugger Under the Hood Basics Bonus A Little Assembly
Basic Usage of GDB
start
running
breakpoints
print/x
( gdb )
( gdb )
( gdb )
( gdb )
print n
print / x p
print object
x &n
others
help
dutor
Something On GDB And Debugging

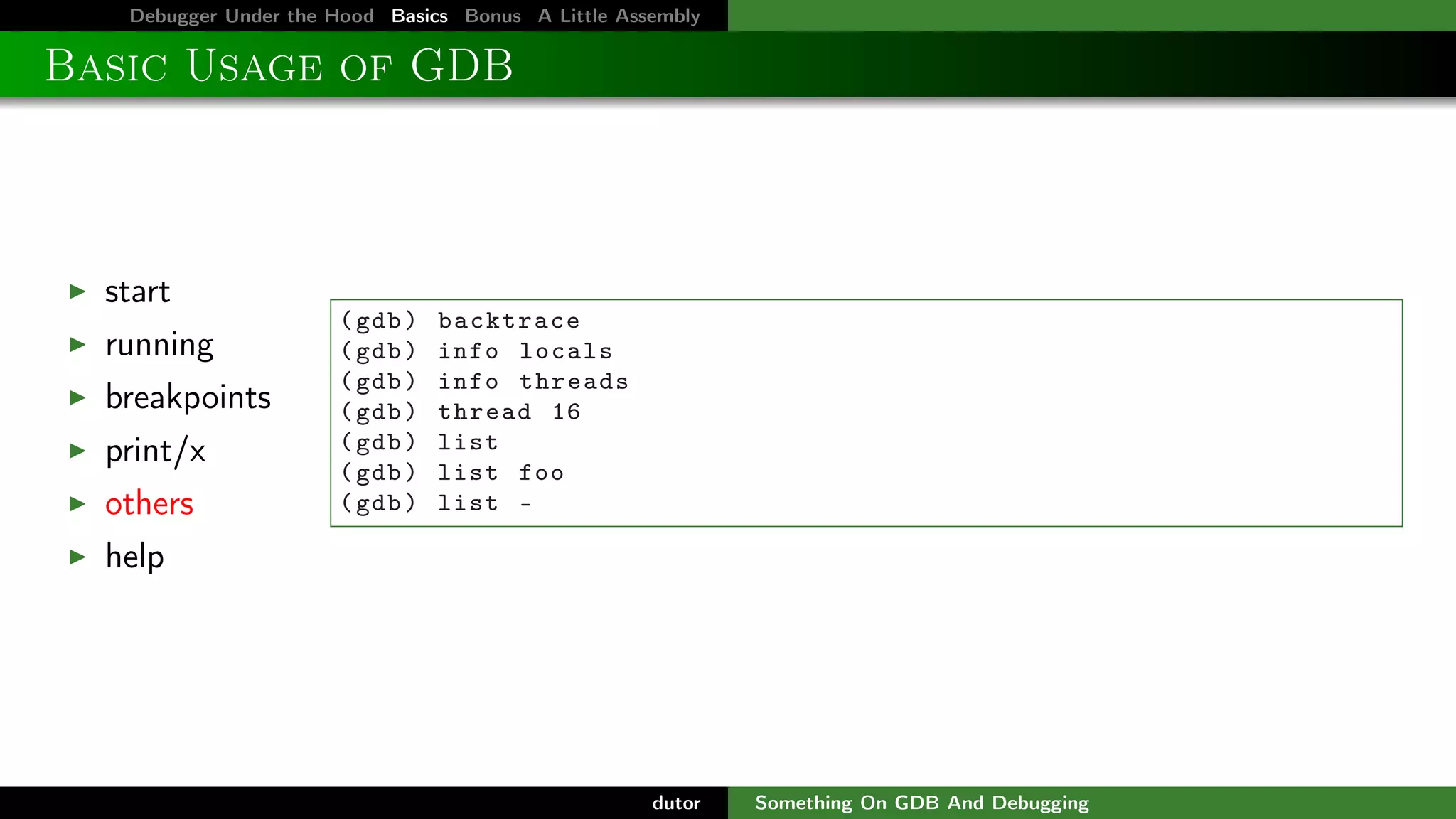

14. Debugger Under the Hood Basics Bonus A Little Assembly
Basic Usage of GDB
start
running
breakpoints
print/x
others
( gdb )
( gdb )
( gdb )
( gdb )
( gdb )
( gdb )
( gdb )
backtrace
info locals
info threads
thread 16
list
list foo
list -
help
dutor
Something On GDB And Debugging

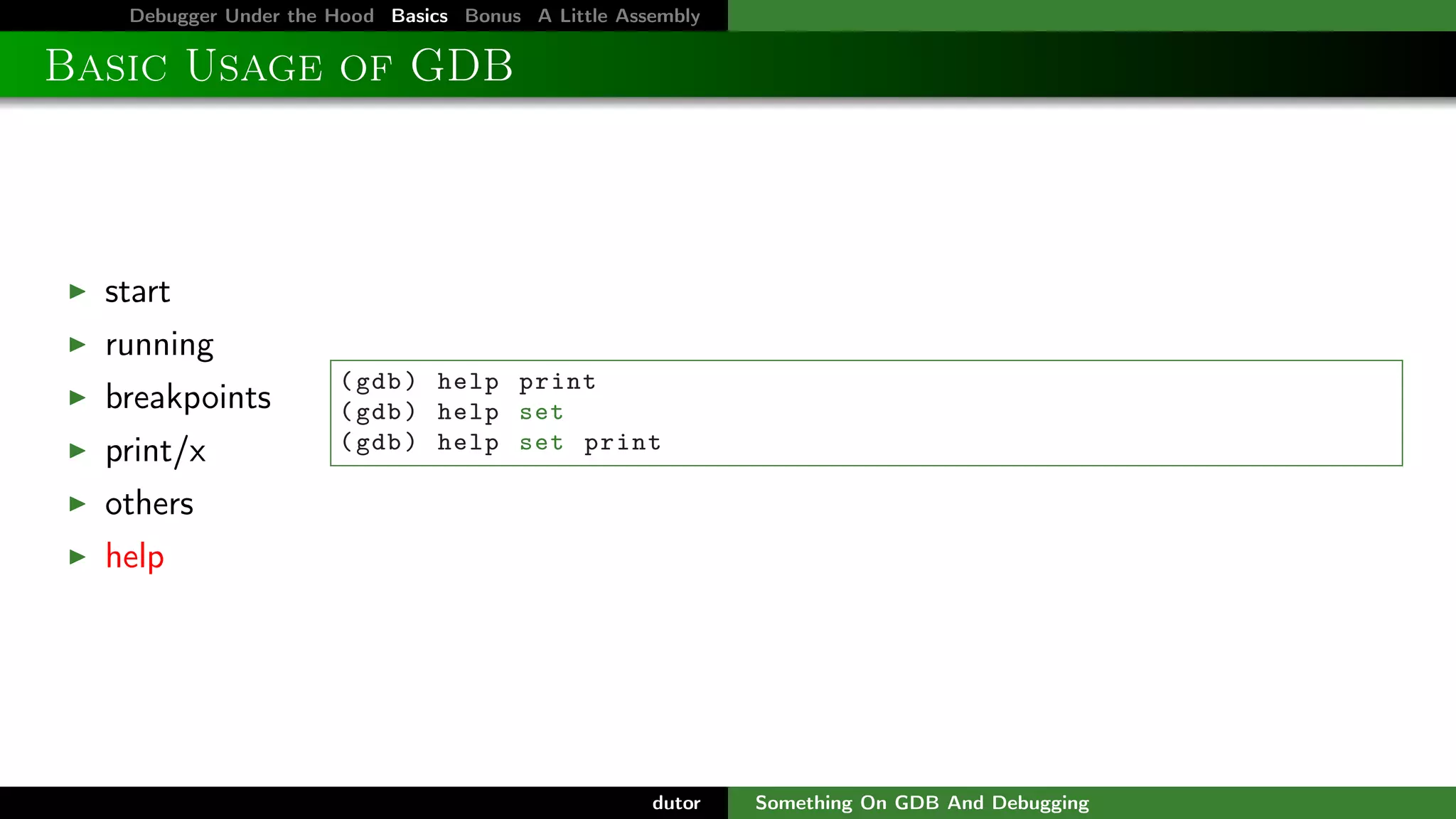

15. Debugger Under the Hood Basics Bonus A Little Assembly
Basic Usage of GDB
start
running
breakpoints
print/x
( gdb ) help print
( gdb ) help set
( gdb ) help set print
others
help
dutor
Something On GDB And Debugging

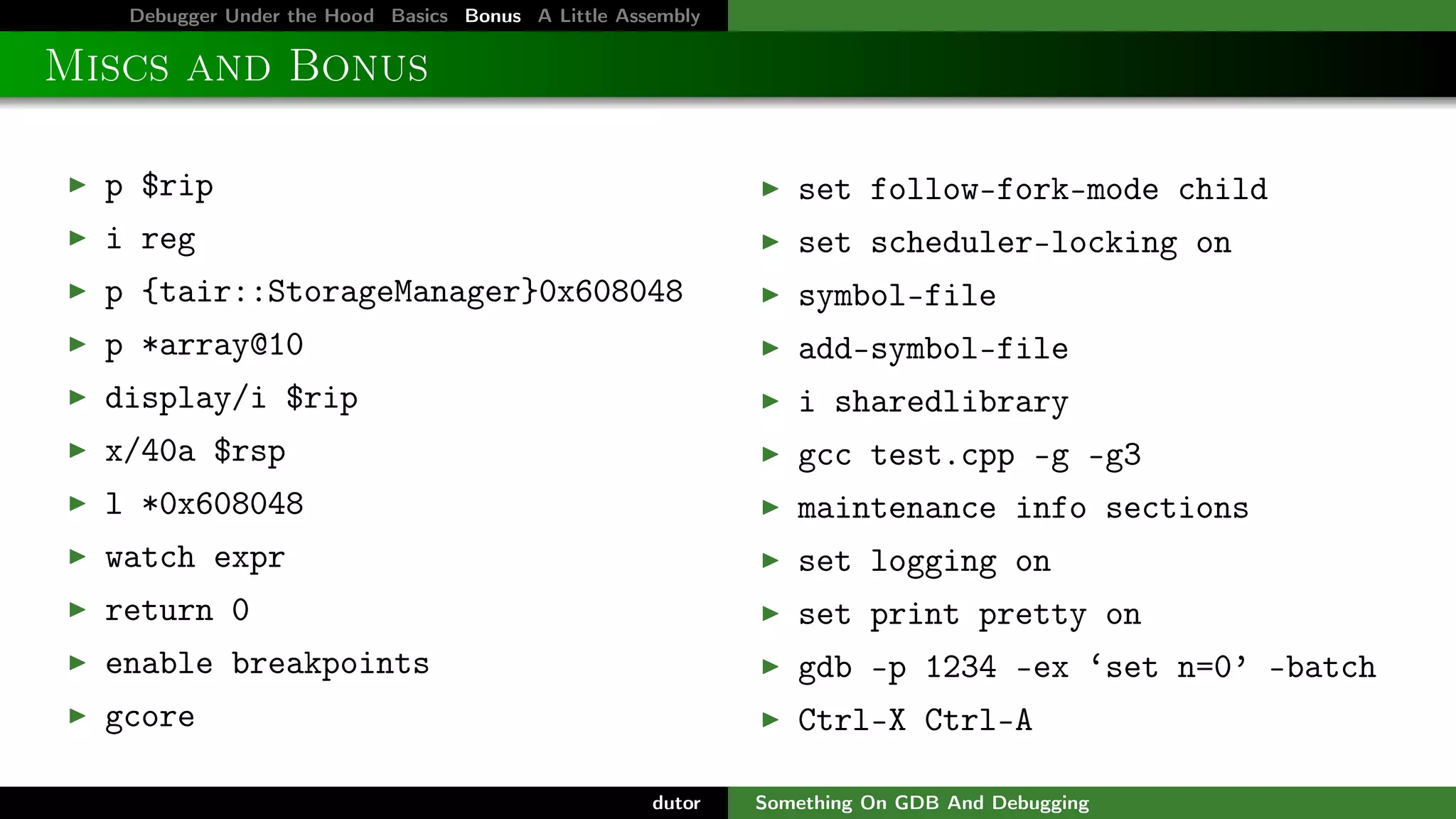

16. Debugger Under the Hood Basics Bonus A Little Assembly
Miscs and Bonus
p $rip
set follow-fork-mode child
i reg
set scheduler-locking on
p {tair::StorageManager}0x608048
symbol-file
p *array@10
add-symbol-file
display/i $rip
i sharedlibrary
x/40a $rsp
gcc test.cpp -g -g3
l *0x608048
maintenance info sections
watch expr
set logging on
return 0
set print pretty on
enable breakpoints
gdb -p 1234 -ex ‘set n=0’ -batch
gcore
Ctrl-X Ctrl-A
dutor
Something On GDB And Debugging

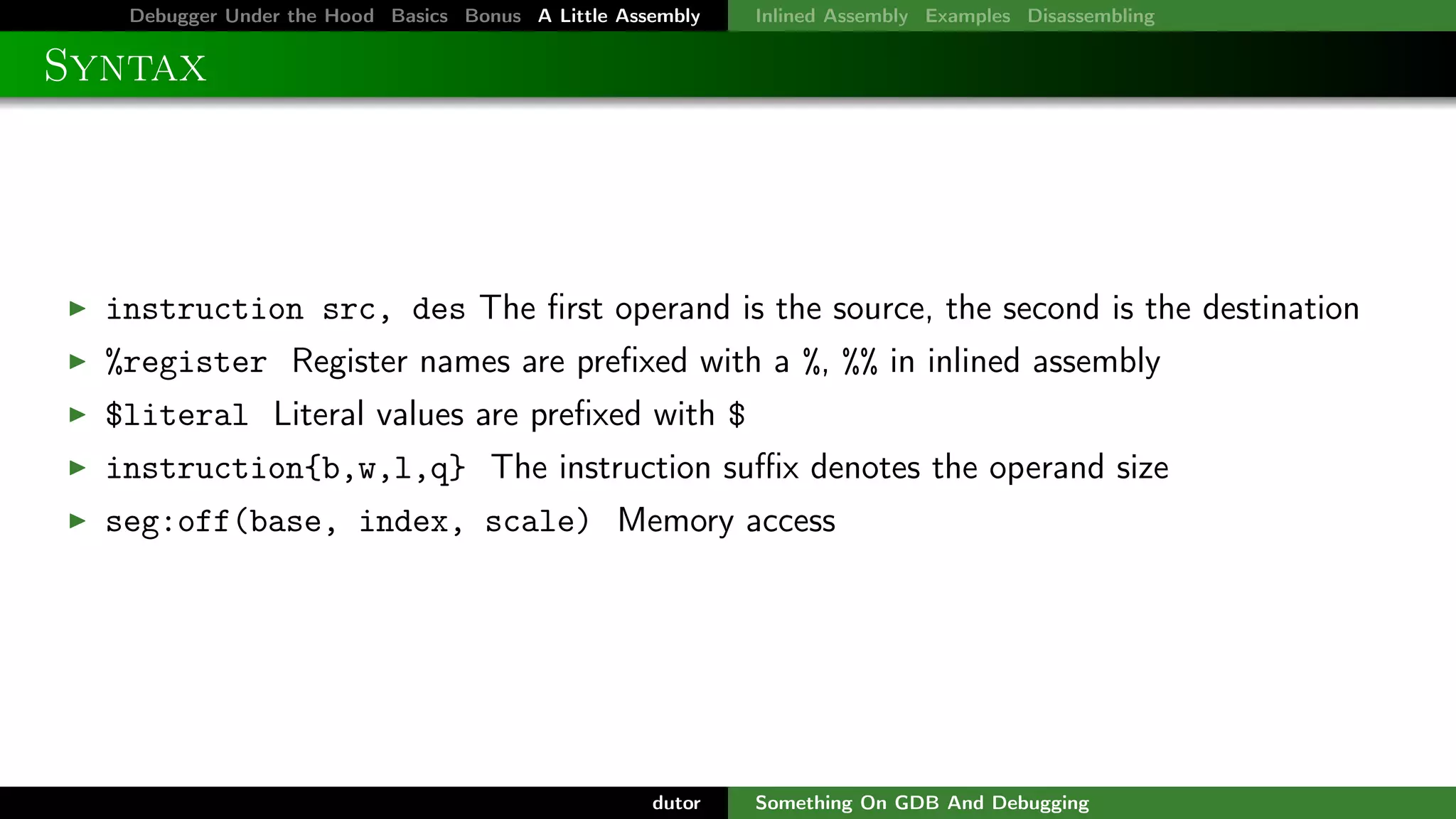

17. Debugger Under the Hood Basics Bonus A Little Assembly
Inlined Assembly Examples Disassembling
Syntax
instruction src, des The first operand is the source, the second is the destination
%register Register names are prefixed with a %, %% in inlined assembly
$literal Literal values are prefixed with $
instruction{b,w,l,q} The instruction suffix denotes the operand size
seg:off(base, index, scale) Memory access
dutor
Something On GDB And Debugging

18. Debugger Under the Hood Basics Bonus A Little Assembly
Inlined Assembly Examples Disassembling

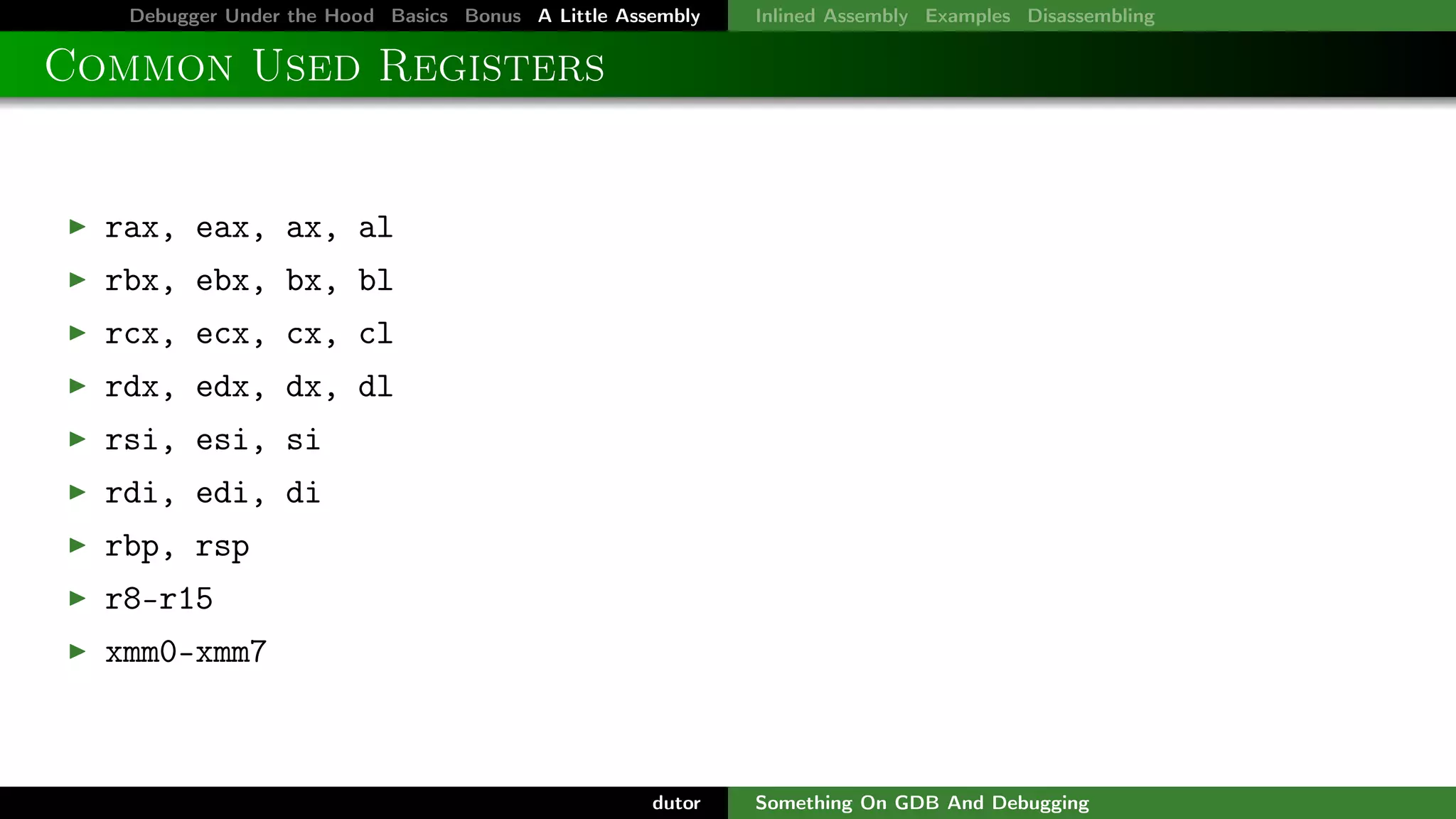

Common Used Registers
rax, eax, ax, al
rbx, ebx, bx, bl
rcx, ecx, cx, cl
rdx, edx, dx, dl
rsi, esi, si
rdi, edi, di
rbp, rsp
r8-r15
xmm0-xmm7
dutor
Something On GDB And Debugging

19. Debugger Under the Hood Basics Bonus A Little Assembly
Inlined Assembly Examples Disassembling

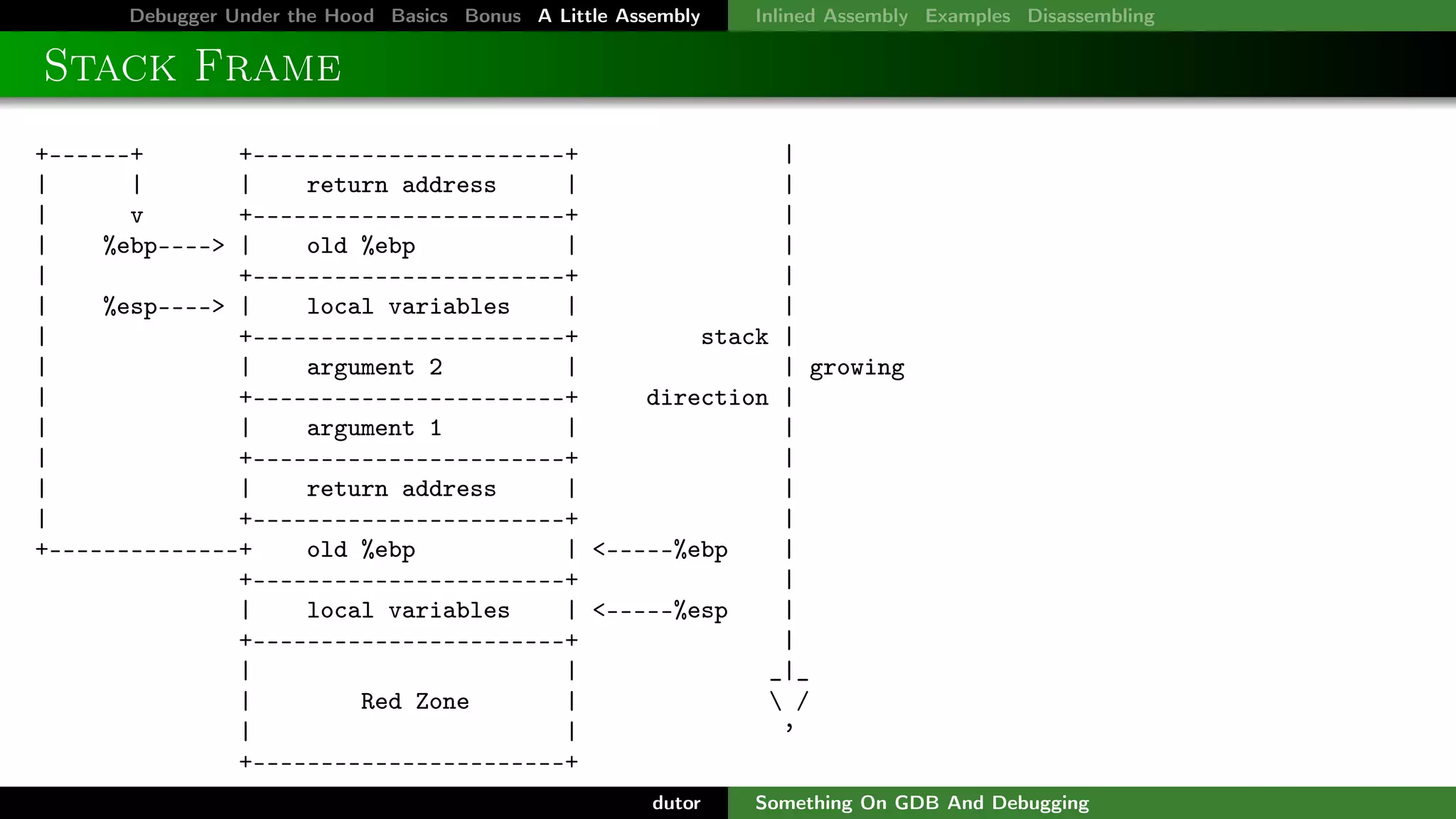

Stack Frame
+------+
+-----------------------+
|
|
|
|
return address
|
|
|
v
+-----------------------+
|
|
%ebp----> |
old %ebp
|
|
|
+-----------------------+
|
|
%esp----> |
local variables
|
|
|
+-----------------------+
stack |
|
|
argument 2
|
| growing
|
+-----------------------+
direction |
|
|
argument 1
|
|
|
+-----------------------+
|
|
|
return address
|
|
|
+-----------------------+
|
+--------------+
old %ebp
| <-----%ebp
|
+-----------------------+
|
|
local variables
| <-----%esp
|
+-----------------------+
|
|
|
_|_
|
Red Zone
|
/
|
|
’
+-----------------------+
dutor
Something On GDB And Debugging

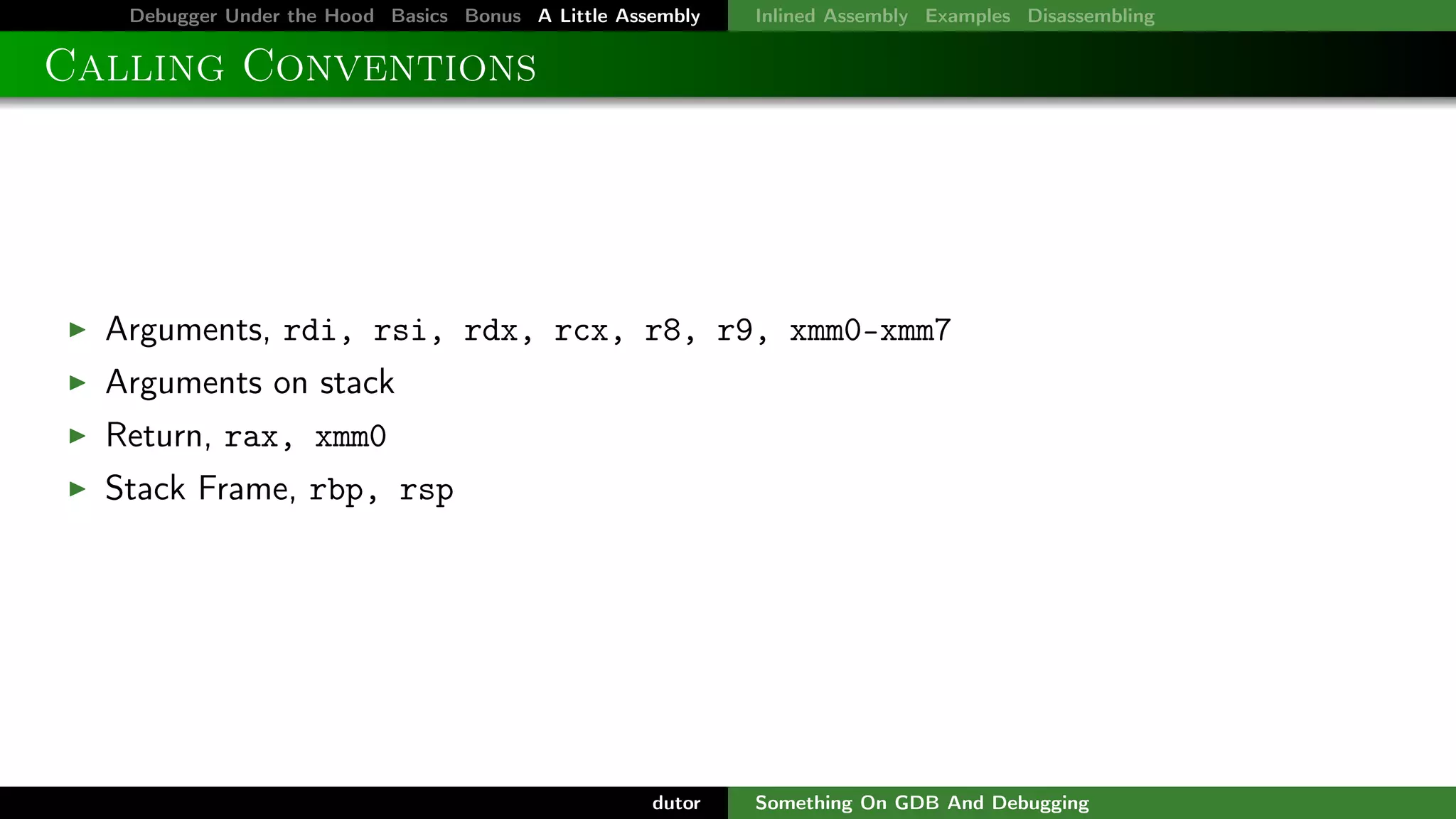

20. Debugger Under the Hood Basics Bonus A Little Assembly
Inlined Assembly Examples Disassembling
Calling Conventions
Arguments, rdi, rsi, rdx, rcx, r8, r9, xmm0-xmm7
Arguments on stack
Return, rax, xmm0
Stack Frame, rbp, rsp
dutor
Something On GDB And Debugging

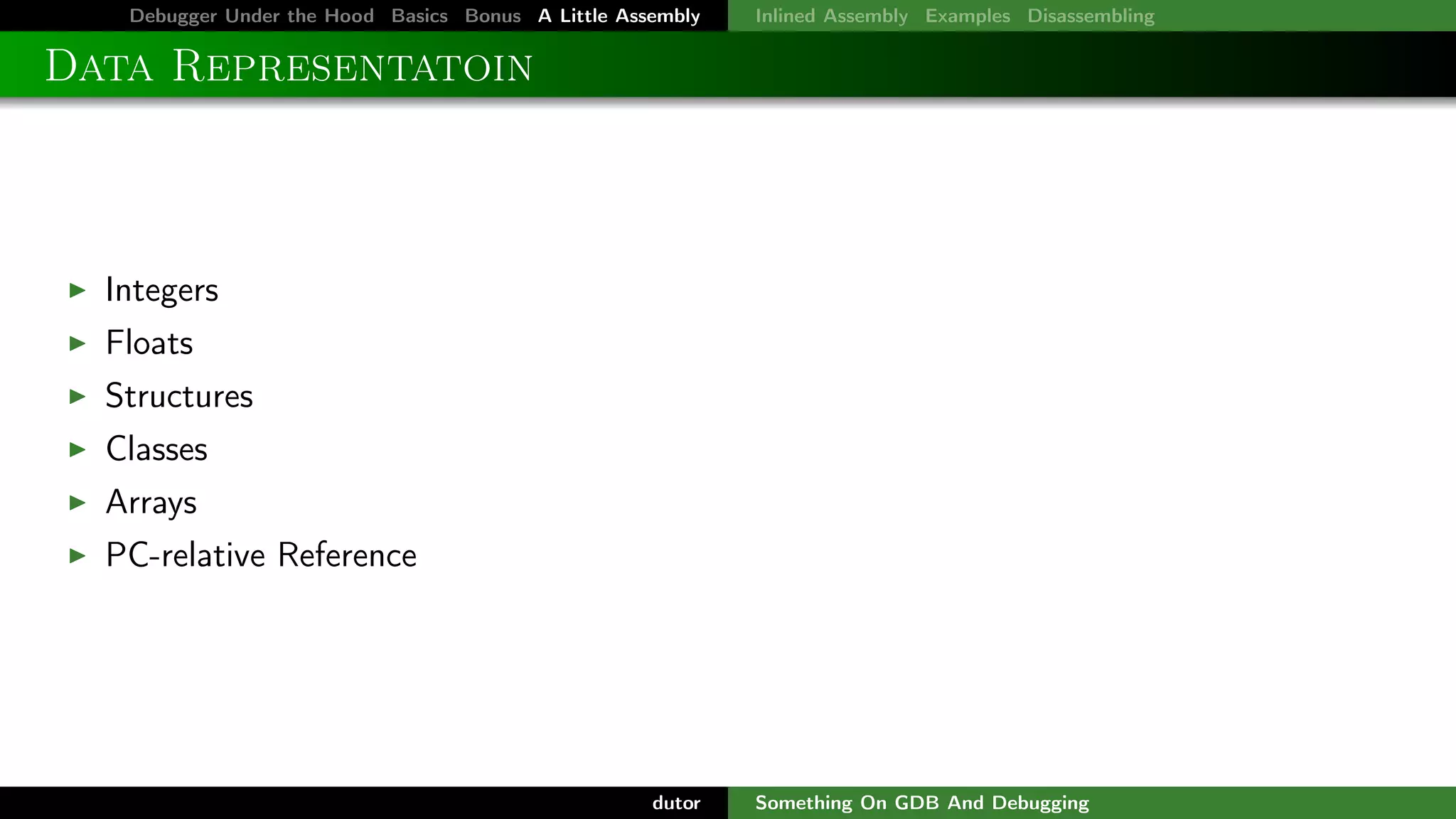

21. Debugger Under the Hood Basics Bonus A Little Assembly
Inlined Assembly Examples Disassembling
Data Representatoin
Integers
Floats
Structures
Classes
Arrays
PC-relative Reference
dutor
Something On GDB And Debugging

22. That’s All.

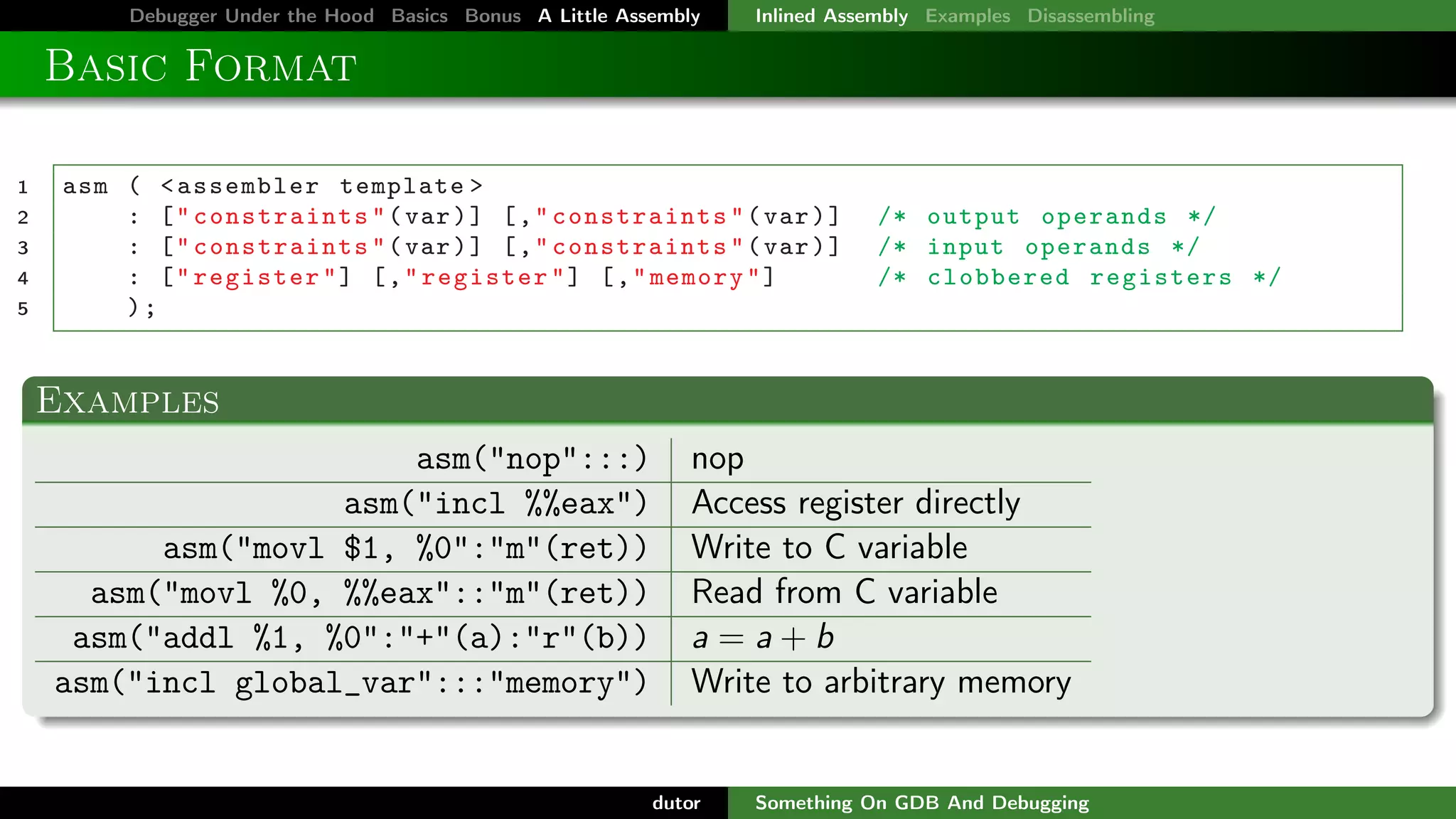

23. Debugger Under the Hood Basics Bonus A Little Assembly
Inlined Assembly Examples Disassembling
Basic Format
1
2
3
4
5
asm ( < assembler template >
: [ " constraints " ( var ) ] [ , " constraints " ( var ) ]
: [ " constraints " ( var ) ] [ , " constraints " ( var ) ]
: [ " register " ] [ , " register " ] [ , " memory " ]
);
/* output operands */
/* input operands */
/* clobbered registers */
Examples
asm("nop":::)
asm("incl %%eax")
asm("movl $1, %0":"m"(ret))
asm("movl %0, %%eax"::"m"(ret))
asm("addl %1, %0":"+"(a):"r"(b))
asm("incl global_var":::"memory")
nop
Access register directly
Write to C variable
Read from C variable
a =a+b
Write to arbitrary memory
dutor
Something On GDB And Debugging

24. Debugger Under the Hood Basics Bonus A Little Assembly
Inlined Assembly Examples Disassembling

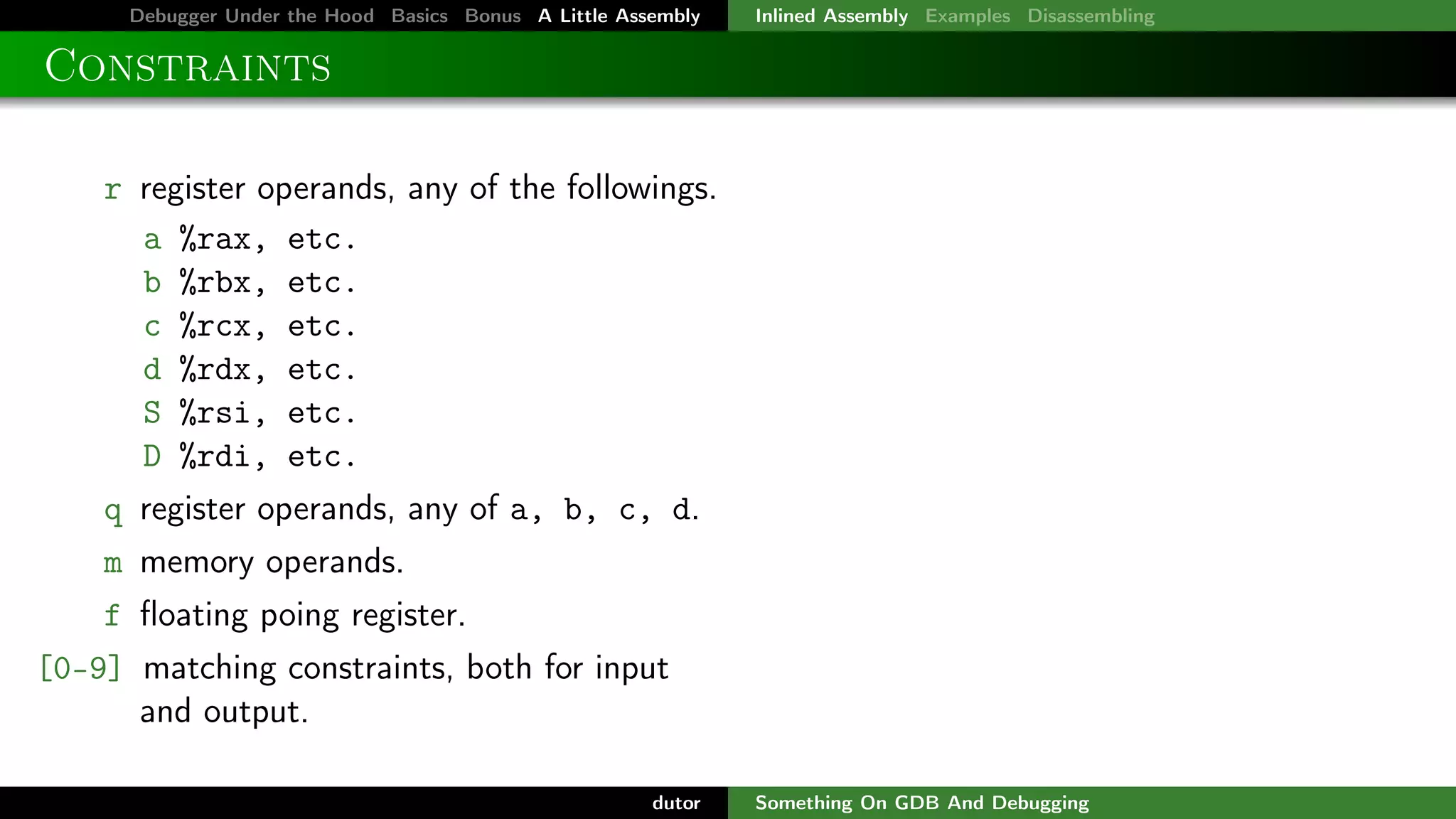

Constraints
r register operands, any of the followings.
a %rax, etc.
b %rbx, etc.
c %rcx, etc.
d %rdx, etc.
S %rsi, etc.
D %rdi, etc.
q register operands, any of a, b, c, d.
m memory operands.
f floating poing register.
[0-9] matching constraints, both for input
and output.
dutor
Something On GDB And Debugging

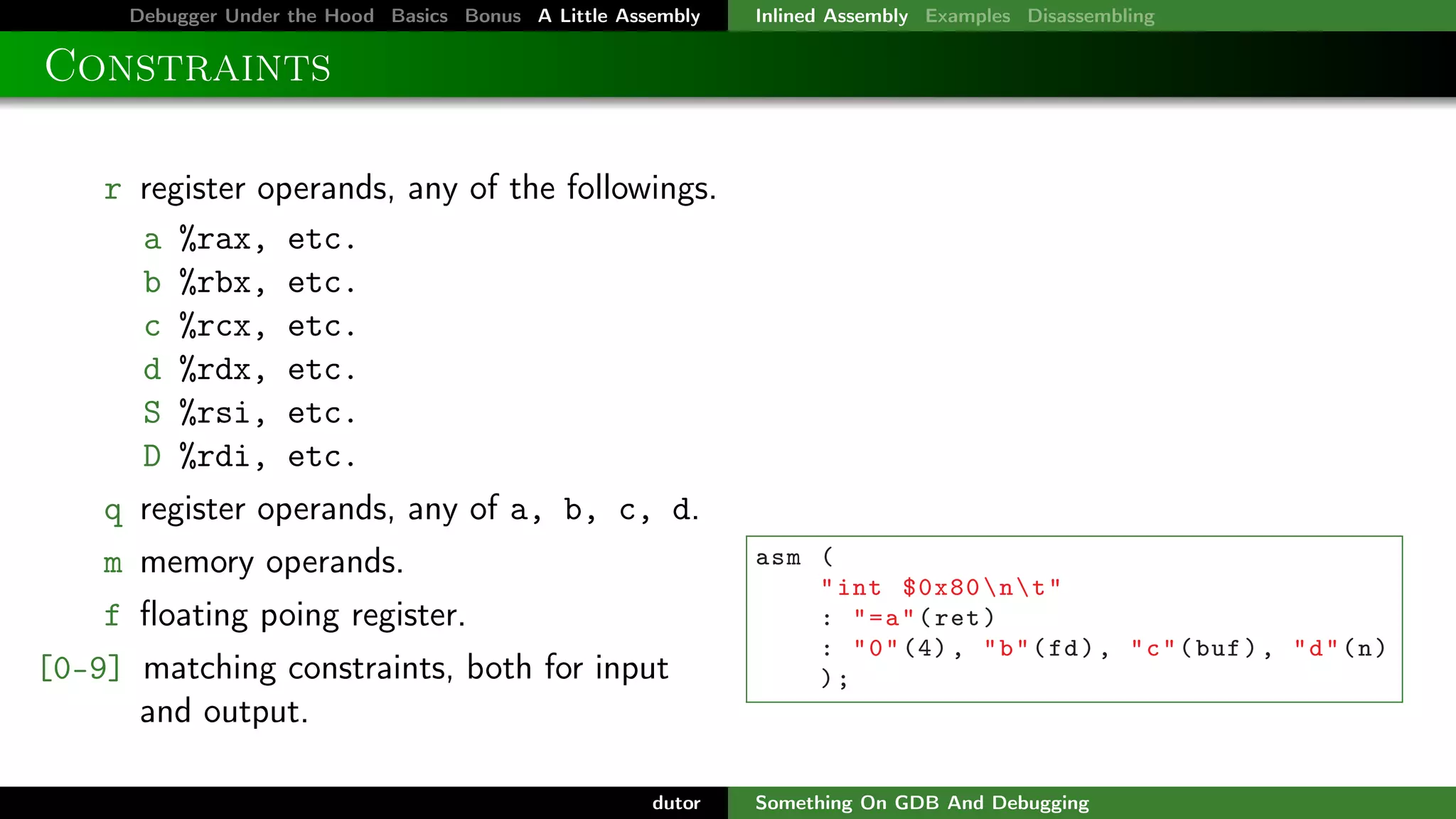

25. Debugger Under the Hood Basics Bonus A Little Assembly
Inlined Assembly Examples Disassembling
Constraints
r register operands, any of the followings.
a %rax, etc.
b %rbx, etc.
c %rcx, etc.
d %rdx, etc.
S %rsi, etc.
D %rdi, etc.
q register operands, any of a, b, c, d.
m memory operands.
f floating poing register.
[0-9] matching constraints, both for input
and output.
dutor
asm (
" int $0x80 n t "
: " = a " ( ret )
: " 0 " (4) , " b " ( fd ) , " c " ( buf ) , " d " ( n )
);
Something On GDB And Debugging

26. Debugger Under the Hood Basics Bonus A Little Assembly
Inlined Assembly Examples Disassembling

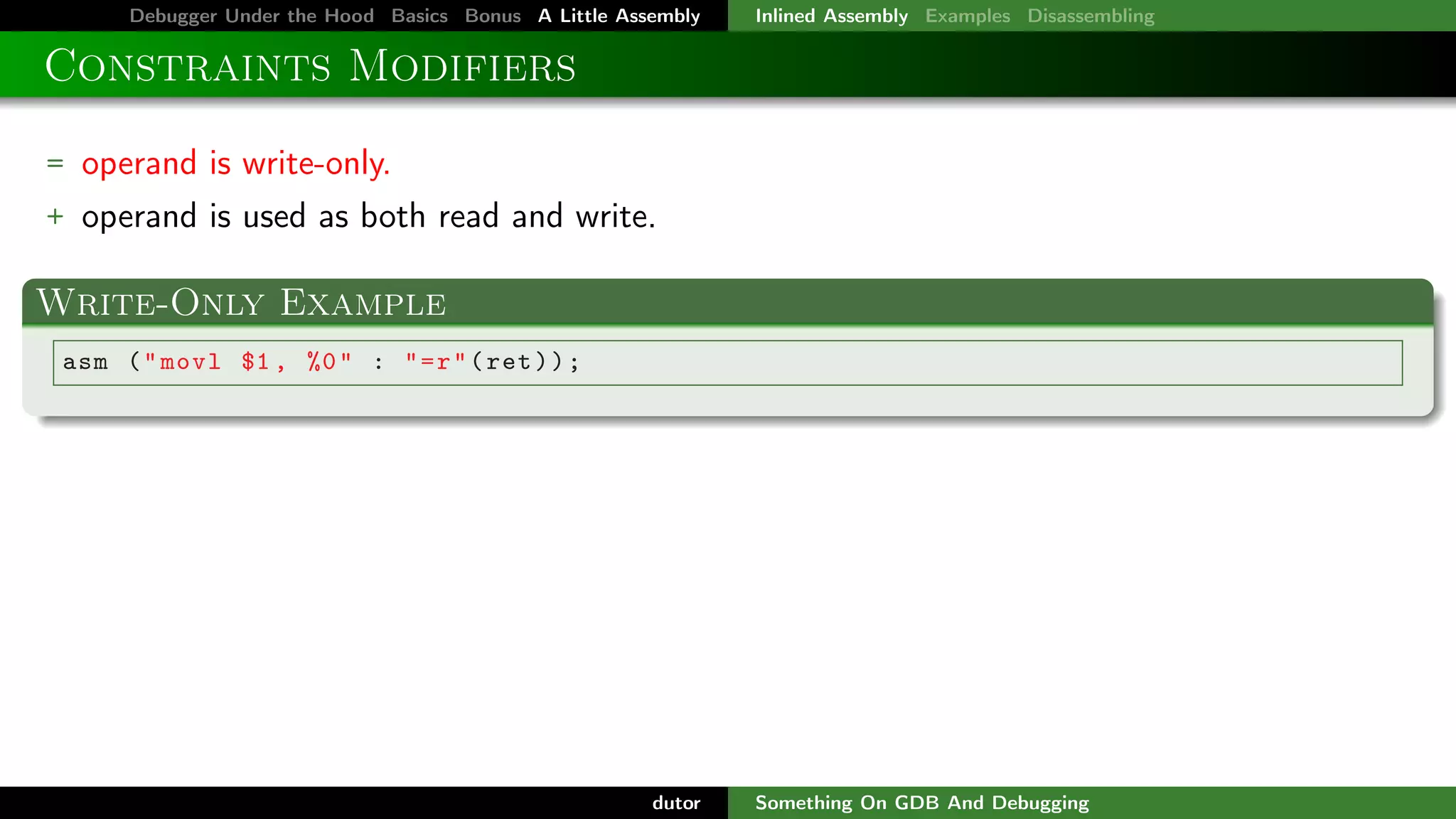

Constraints Modifiers
= operand is write-only.
+ operand is used as both read and write.
Write-Only Example
asm ( " movl $1 , %0 " : " = r " ( ret ) ) ;
dutor
Something On GDB And Debugging

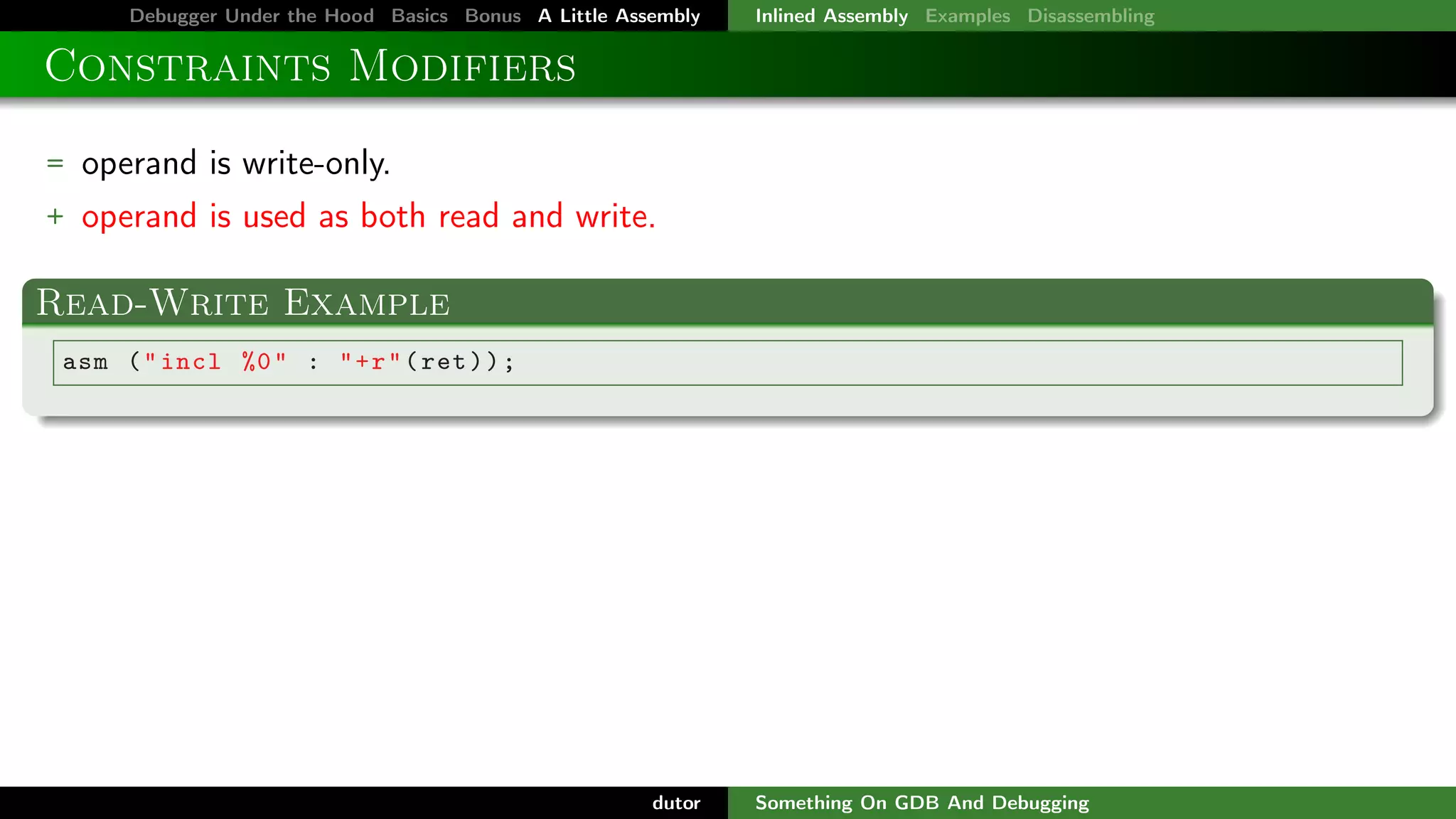

27. Debugger Under the Hood Basics Bonus A Little Assembly
Inlined Assembly Examples Disassembling
Constraints Modifiers
= operand is write-only.
+ operand is used as both read and write.
Read-Write Example
asm ( " incl %0 " : " + r " ( ret ) ) ;
dutor
Something On GDB And Debugging

28. Debugger Under the Hood Basics Bonus A Little Assembly
Inlined Assembly Examples Disassembling

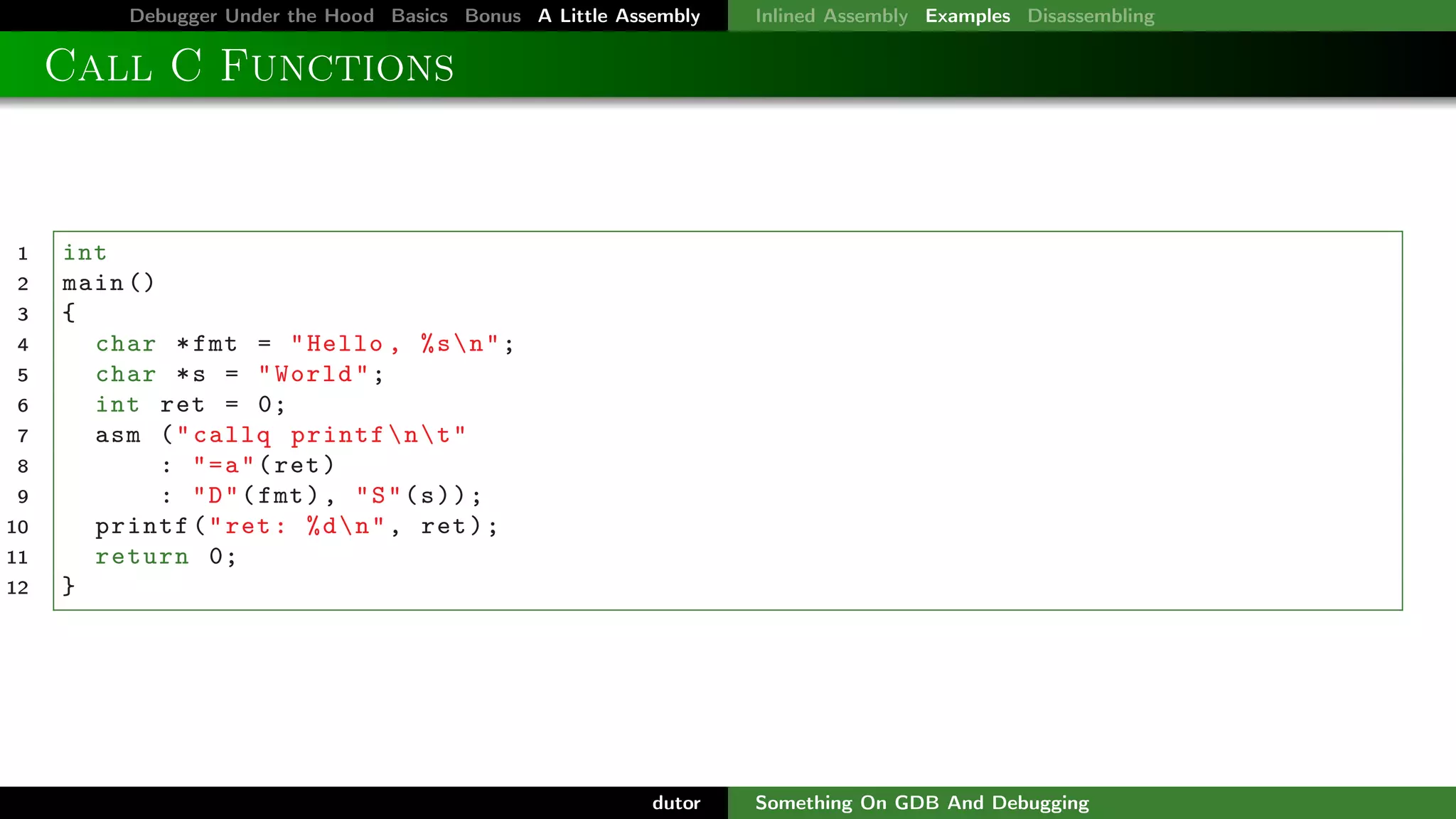

Call C Functions
1
2
3
4
5
6
7
8
9
10
11
12
int
main ()
{
char * fmt = " Hello , % s n " ;
char * s = " World " ;
int ret = 0;
asm ( " callq printf n t "
: " = a " ( ret )
: " D " ( fmt ) , " S " ( s ) ) ;
printf ( " ret : % d n " , ret ) ;
return 0;
}
dutor
Something On GDB And Debugging

29. Debugger Under the Hood Basics Bonus A Little Assembly
Inlined Assembly Examples Disassembling

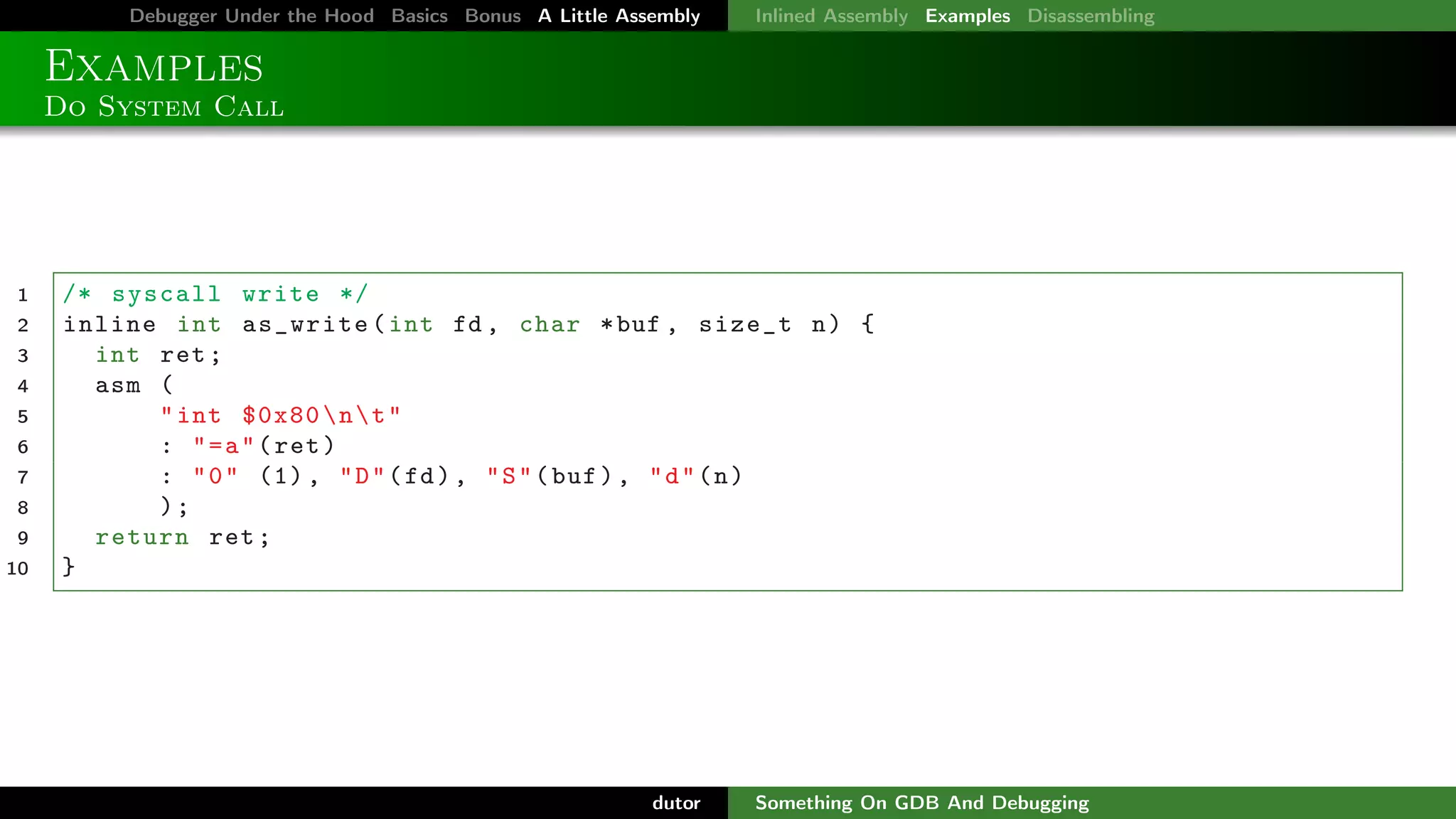

Examples
Do System Call
1
2
3
4
5
6
7
8
9
10
/* syscall write */
inline int as_write ( int fd , char * buf , size_t n ) {
int ret ;
asm (
" int $0x80 n t "
: " = a " ( ret )
: " 0 " (1) , " D " ( fd ) , " S " ( buf ) , " d " ( n )
);
return ret ;
}
dutor
Something On GDB And Debugging

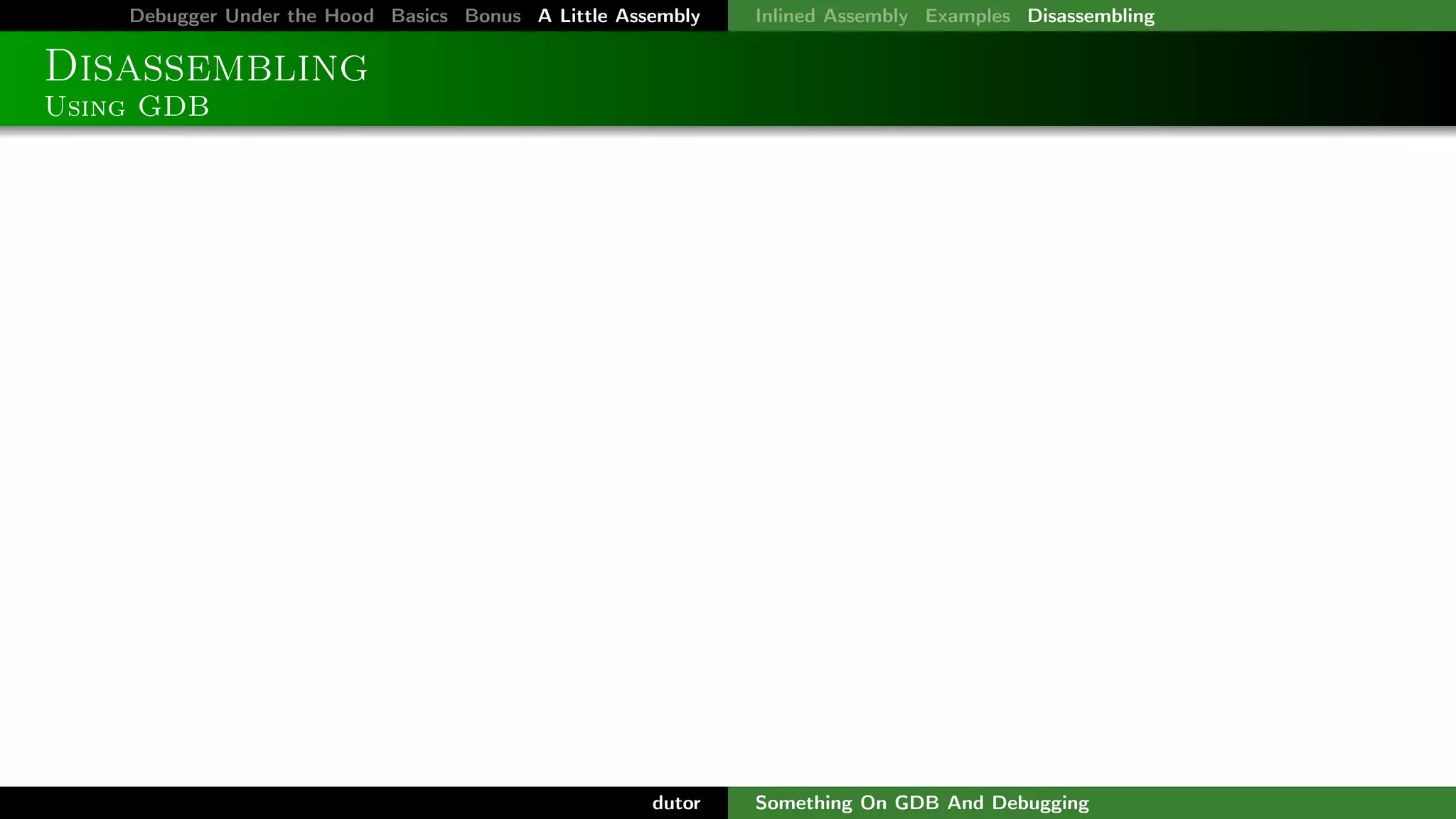

30. Debugger Under the Hood Basics Bonus A Little Assembly
Inlined Assembly Examples Disassembling
Disassembling
Using GDB
dutor
Something On GDB And Debugging
