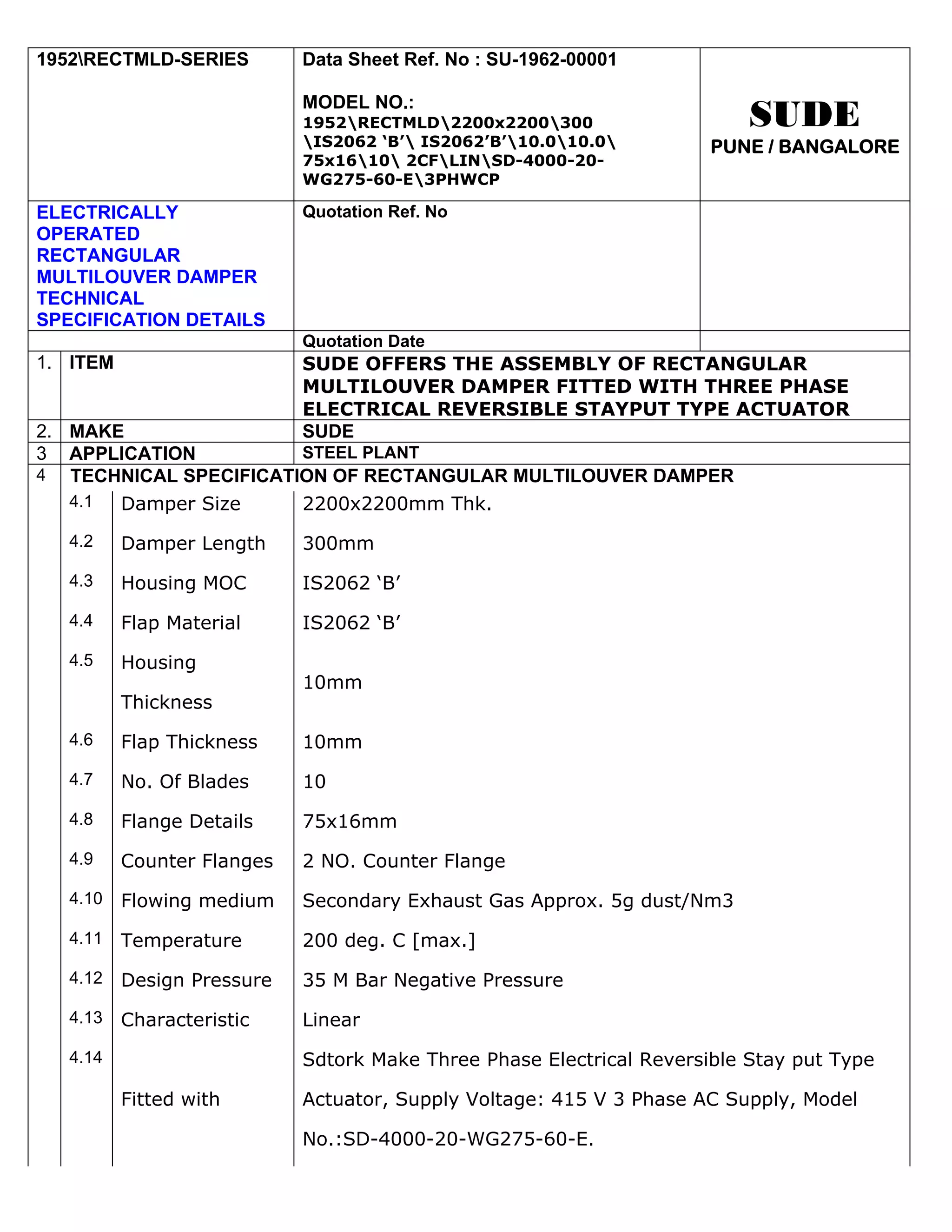

![1952RECTMLD-SERIES Data Sheet Ref. No : SU-1962-00001
MODEL NO.:
1952RECTMLD2200x2200300 SUDE
IS2062 ‘B’ IS2062’B’10.010.0 PUNE / BANGALORE
75x1610 2CFLINSD-4000-20-
WG275-60-E3PHWCP
ELECTRICALLY Quotation Ref. No
OPERATED
RECTANGULAR
MULTILOUVER DAMPER
TECHNICAL
SPECIFICATION DETAILS
Quotation Date
1. ITEM SUDE OFFERS THE ASSEMBLY OF RECTANGULAR
MULTILOUVER DAMPER FITTED WITH THREE PHASE
ELECTRICAL REVERSIBLE STAYPUT TYPE ACTUATOR
2. MAKE SUDE
3 APPLICATION STEEL PLANT
4 TECHNICAL SPECIFICATION OF RECTANGULAR MULTILOUVER DAMPER
4.1 Damper Size 2200x2200mm Thk.
4.2 Damper Length 300mm
4.3 Housing MOC IS2062 ‘B’
4.4 Flap Material IS2062 ‘B’
4.5 Housing
10mm
Thickness
4.6 Flap Thickness 10mm
4.7 No. Of Blades 10
4.8 Flange Details 75x16mm
4.9 Counter Flanges 2 NO. Counter Flange
4.10 Flowing medium Secondary Exhaust Gas Approx. 5g dust/Nm3
4.11 Temperature 200 deg. C [max.]
4.12 Design Pressure 35 M Bar Negative Pressure
4.13 Characteristic Linear
4.14 Sdtork Make Three Phase Electrical Reversible Stay put Type
Fitted with Actuator, Supply Voltage: 415 V 3 Phase AC Supply, Model
No.:SD-4000-20-WG275-60-E.](https://image.slidesharecdn.com/rectangulardamper-110714221142-phpapp01/85/Rectangular-damper-1-320.jpg)
![1952RECTMLD-SERIES Data Sheet Ref. No : SU-1962-00001
MODEL NO.:
1952RECTMLD2200x2200300 SUDE
IS2062 ‘B’ IS2062’B’10.010.0 PUNE / BANGALORE
75x1610 2CFLINSD-4000-20-
WG275-60-E3PHWCP
ELECTRICALLY Quotation Ref. No
OPERATED
RECTANGULAR
MULTILOUVER DAMPER
TECHNICAL
SPECIFICATION DETAILS
Quotation Date
1. ITEM SUDE OFFERS THE ASSEMBLY OF RECTANGULAR
MULTILOUVER DAMPER FITTED WITH THREE PHASE
ELECTRICAL REVERSIBLE STAYPUT TYPE ACTUATOR
2. MAKE SUDE
3 APPLICATION STEEL PLANT
4 TECHNICAL SPECIFICATION OF RECTANGULAR MULTILOUVER DAMPER
4.1 Damper Size 2200x2200mm Thk.
4.2 Damper Length 300mm
4.3 Housing MOC IS2062 ‘B’
4.4 Flap Material IS2062 ‘B’
4.5 Housing
10mm
Thickness
4.6 Flap Thickness 10mm
4.7 No. Of Blades 10
4.8 Flange Details 75x16mm
4.9 Counter Flanges 2 NO. Counter Flange
4.10 Flowing medium Secondary Exhaust Gas Approx. 5g dust/Nm3
4.11 Temperature 200 deg. C [max.]
4.12 Design Pressure 35 M Bar Negative Pressure
4.13 Characteristic Linear
4.14 Sdtork Make Three Phase Electrical Reversible Stay put Type
Fitted with Actuator, Supply Voltage: 415 V 3 Phase AC Supply, Model
No.:SD-4000-20-WG275-60-E.](https://image.slidesharecdn.com/rectangulardamper-110714221142-phpapp01/75/Rectangular-damper-1-2048.jpg)

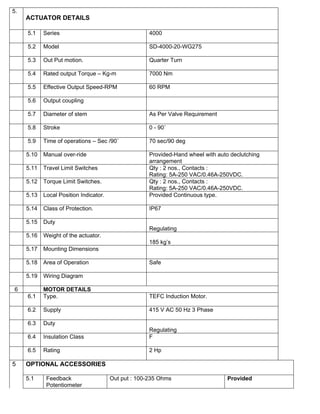

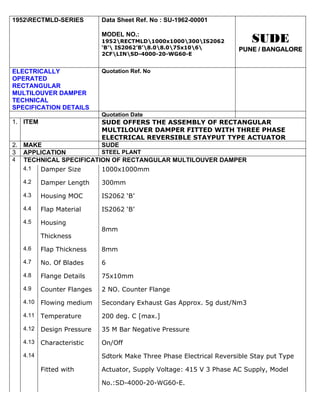

![1952RECTMLD-SERIES Data Sheet Ref. No : SU-1962-00001
MODEL NO.:
1952RECTMLD1000x1000300IS2062 SUDE
‘B’ IS2062’B’8.08.075x106 PUNE / BANGALORE
2CFLINSD-4000-20-WG60-E
ELECTRICALLY Quotation Ref. No
OPERATED
RECTANGULAR
MULTILOUVER DAMPER
TECHNICAL
SPECIFICATION DETAILS
Quotation Date
1. ITEM SUDE OFFERS THE ASSEMBLY OF RECTANGULAR
MULTILOUVER DAMPER FITTED WITH THREE PHASE
ELECTRICAL REVERSIBLE STAYPUT TYPE ACTUATOR
2. MAKE SUDE
3 APPLICATION STEEL PLANT
4 TECHNICAL SPECIFICATION OF RECTANGULAR MULTILOUVER DAMPER
4.1 Damper Size 1000x1000mm
4.2 Damper Length 300mm
4.3 Housing MOC IS2062 ‘B’
4.4 Flap Material IS2062 ‘B’
4.5 Housing
8mm
Thickness
4.6 Flap Thickness 8mm
4.7 No. Of Blades 6
4.8 Flange Details 75x10mm
4.9 Counter Flanges 2 NO. Counter Flange
4.10 Flowing medium Secondary Exhaust Gas Approx. 5g dust/Nm3
4.11 Temperature 200 deg. C [max.]
4.12 Design Pressure 35 M Bar Negative Pressure
4.13 Characteristic On/Off
4.14 Sdtork Make Three Phase Electrical Reversible Stay put Type
Fitted with Actuator, Supply Voltage: 415 V 3 Phase AC Supply, Model
No.:SD-4000-20-WG60-E.](https://image.slidesharecdn.com/rectangulardamper-110714221142-phpapp01/85/Rectangular-damper-4-320.jpg)

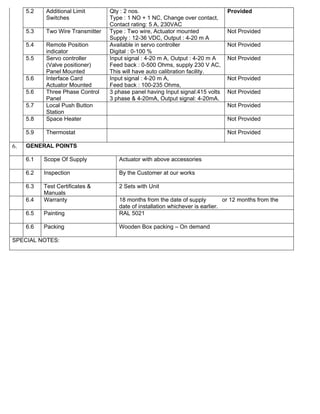

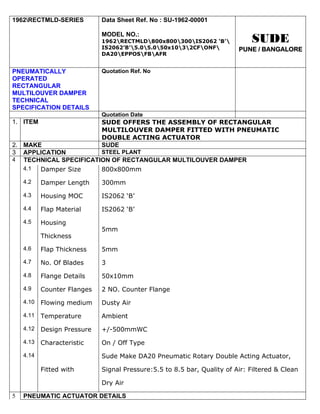

![5.1 Type Double
5.2 Model DA20
5.3 Spring Clip Steel
5.4 Double Acting Cap Aluminium Alloy
5.5 Cap O-Ring N.B.R
5.6 Piston Polyarilamide
5.7 Cylinder Aluminium Alloy
5.8 Washer Polyamide
5.9 Spring Clip Steel
5.10 Position Indicator Polyamide
5.11 Piston Guide Polyacetal
5.12 Guide Ring Polyacetal
5.13 Piston O-Ring N.B.R
5.14 O-Ring N.B.R
5.15 Springs Set DIN-17223-C
5.16 Spring Return Cap Aluminium Alloy
5.17 Shaft AISI-303 Stainless Steel
5.18 Signal Pressure 5.5 to 8.5 Bar
5.19 Quality Of Air Filtered and Clean Dry Air
5.20 Opening and Closing 0.8 [Open] & 0.7 [Close]
Time
5.21 Actuator Weight 3.57 kg.
6 OPTIONAL
ACCESSORIES
6.1 Electro Pneumatic Having Input Supply: 60 PSI & 4- Provided
Positioner 20mA, Output signal: 4-20mA
6.2 Air Filter Of ¼” size BSP Provided
Regulator
7 GENERAL POINTS
7.1 Inspection By Customer at our works
7.2 T. C.& Manuals 2 Sets with unit
7.3 Warranty 18 months from the date of supply or 12 months from the
date of installation which ever is earlier.
7.4 Packing Thermo cool Packing Housed in Corrugated Box
SPECIAL NOTE :](https://image.slidesharecdn.com/rectangulardamper-110714221142-phpapp01/85/Rectangular-damper-8-320.jpg)

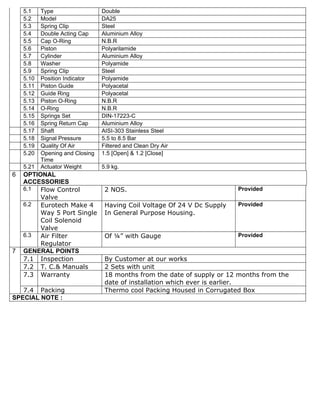

![5.1 Type Double
5.2 Model DA25
5.3 Spring Clip Steel
5.4 Double Acting Cap Aluminium Alloy
5.5 Cap O-Ring N.B.R
5.6 Piston Polyarilamide
5.7 Cylinder Aluminium Alloy
5.8 Washer Polyamide
5.9 Spring Clip Steel
5.10 Position Indicator Polyamide
5.11 Piston Guide Polyacetal
5.12 Guide Ring Polyacetal
5.13 Piston O-Ring N.B.R
5.14 O-Ring N.B.R
5.15 Springs Set DIN-17223-C
5.16 Spring Return Cap Aluminium Alloy
5.17 Shaft AISI-303 Stainless Steel
5.18 Signal Pressure 5.5 to 8.5 Bar
5.19 Quality Of Air Filtered and Clean Dry Air
5.20 Opening and Closing 1.5 [Open] & 1.2 [Close]
Time
5.21 Actuator Weight 5.9 kg.
6 OPTIONAL
ACCESSORIES
6.1 Flow Control 2 NOS. Provided
Valve
6.2 Eurotech Make 4 Having Coil Voltage Of 24 V Dc Supply Provided
Way 5 Port Single In General Purpose Housing.
Coil Solenoid
Valve
6.3 Air Filter Of ¼” with Gauge Provided
Regulator
7 GENERAL POINTS
7.1 Inspection By Customer at our works
7.2 T. C.& Manuals 2 Sets with unit
7.3 Warranty 18 months from the date of supply or 12 months from the
date of installation which ever is earlier.
7.4 Packing Thermo cool Packing Housed in Corrugated Box
SPECIAL NOTE :](https://image.slidesharecdn.com/rectangulardamper-110714221142-phpapp01/85/Rectangular-damper-10-320.jpg)
