This document provides technical specifications for a motorised 3-way circular diverter damper with a 3-phase electrical actuator. It includes details on the damper size and materials, actuator model and torque output, motor specifications, and optional accessories. The system will be used for on/off control of gas flow at temperatures up to 250 degrees C and pressures of 500mmWC.

1. 1952-SERIES Data Sheet Ref. No : SU-1952-00001
MOTORISED 3-WAY CIRCULAR
DIVERTER DAMPER WITH THREE
MODEL NO.:
1952DIV1300x1300x1300SA51
SUDE
PHASE ELECTRICAL ACTUATOR 6SA5166.010.075x10CFLIN PUNE / BANGALORE
TECHNICAL SPECIFICATIONS SD-4000-20-WG135-DPT3PHWCP
Quotation Ref. No
Quotation Date :
1. ITEM Assembly Of 3 Way Diverter Damper Fitted With Sdtork
Make 3 Phase Electrical Actuator.
2. MAKE SUDE
3 APPLICATION
6 TECHNICAL SPECIFICATION OF 3 WAY DIVERTER DAMPER
6.1 Damper Size 1300x1300mm
6.2 Damper Length 1300mm
6.3 Housing MOC SA516
6.4 Flap Material SA516
6.5 Housing Thickness 6mm
6.6 Flap Thickness 10mm
6.7 Flange Details 75x10mm SA516
6.8 Counter Flanges 3 NO. Counter Flange SA516
6.9 Flap End Sealing 1.6 Thk. SS316
6.10 Stopper Bar 20x20 SA516
6.11 Stub End Shaft Dia.80 with Dia.60 Pivot-EN8
6.12 Stuffing Box Extended Type-BQ Pipe
6.13 Gland Packing Glass Rope-Standard
6.14 Gland Plate Spring Loaded Type-M.S
6.15 Bush Bearing Dia 80 od x Dia 60 id x 40 lg.-Gun Metal
6.16 Bush Housing Flange Type-M.S
6.17 Flowing medium Gas
6.18 Temperature 250 Degree C
6.19 Pressure 500mmWC
6.20 Characteristic On/Off Type
6.21 Sdtork Make Three Phase Quarter Turn Electrical
Fitted with Actuator, Supply Voltage: 415 volts 3 Phase AC Supply
Having Limit Switch & Torque Limit Switch.

2. 3.

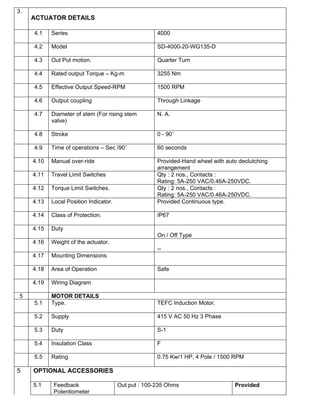

ACTUATOR DETAILS
4.1 Series 4000
4.2 Model SD-4000-20-WG135-D
4.3 Out Put motion. Quarter Turn
4.4 Rated output Torque – Kg-m 3255 Nm
4.5 Effective Output Speed-RPM 1500 RPM
4.6 Output coupling Through Linkage
4.7 Diameter of stem (For rising stem N. A.
valve)
4.8 Stroke 0 - 90˚
4.9 Time of operations – Sec /90˚ 60 seconds
4.10 Manual over-ride Provided-Hand wheel with auto declutching
arrangement
4.11 Travel Limit Switches Qty : 2 nos., Contacts :
Rating: 5A-250 VAC/0.46A-250VDC.
4.12 Torque Limit Switches. Qty : 2 nos., Contacts :
Rating: 5A-250 VAC/0.46A-250VDC.
4.13 Local Position Indicator. Provided Continuous type.
4.14 Class of Protection. IP67
4.15 Duty
Regulating
4.16 Weight of the actuator.
--
4.17 Mounting Dimensions
4.18 Area of Operation Safe
4.19 Wiring Diagram
5 MOTOR DETAILS
5.1 Type. TEFC Induction Motor.
5.2 Supply 415 V AC 50 Hz 3 Phase
5.3 Duty S-1
5.4 Insulation Class F
5.5 Rating 0.75 Kw/1 HP, 4 Pole / 1500 RPM

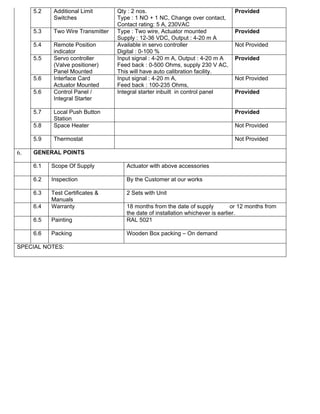

5 OPTIONAL ACCESSORIES
5.1 Feedback Out put : 100-235 Ohms Provided
Potentiometer

3. 5.2 Additional Limit Qty : 2 nos. Provided
Switches Type : 1 NO + 1 NC, Change over contact,
Contact rating: 5 A, 230VAC
5.3 Two Wire Transmitter Type : Two wire, Actuator mounted Provided
Supply : 12-36 VDC, Output : 4-20 m A
5.4 Remote Position Available in servo controller Not Provided
indicator Digital : 0-100 %
5.5 Servo controller Input signal : 4-20 m A, Output : 4-20 m A Provided
(Valve positioner) Feed back : 0-500 Ohms, supply 230 V AC,
Panel Mounted This will have auto calibration facility.
5.6 Interface Card Input signal : 4-20 m A, Not Provided
Actuator Mounted Feed back : 100-235 Ohms,
5.6 Control Panel / Integral starter inbuilt in control panel Provided
Integral Starter
5.7 Local Push Button Provided
Station
5.8 Space Heater Not Provided
5.9 Thermostat Not Provided
6. GENERAL POINTS
6.1 Scope Of Supply Actuator with above accessories
6.2 Inspection By the Customer at our works
6.3 Test Certificates & 2 Sets with Unit
Manuals
6.4 Warranty 18 months from the date of supply or 12 months from
the date of installation whichever is earlier.
6.5 Painting RAL 5021
6.6 Packing Wooden Box packing – On demand
SPECIAL NOTES:

4. 1952-SERIES Data Sheet Ref. No : SU-1952-00001
MOTORISED 3-WAY CIRCULAR
DIVERTER DAMPER WITH THREE
MODEL NO.:
1952DIV1300x1300x1300
SUDE
PHASE ELECTRICAL ACTUATOR SA516SA5166.010.075x10 PUNE / BANGALORE
TECHNICAL SPECIFICATIONS CFONFSD-4000-20-WG135-D
Quotation Ref. No
Quotation Date :
1. ITEM Assembly Of 3 Way Diverter Damper Fitted With Sdtork
Make 3 Phase Electrical Actuator.
2. MAKE SUDE
3 APPLICATION
6 TECHNICAL SPECIFICATION OF 3 WAY DIVERTER DAMPER
6.1 Damper Size 1300x1300mm
6.2 Damper Length 1300mm
6.3 Housing MOC SA516
6.4 Flap Material SA516
6.5 Housing Thickness 6mm
6.6 Flap Thickness 10mm
6.7 Flange Details 75x10mm SA516
6.8 Counter Flanges 3 NO. Counter Flange SA516
6.9 Flap End Sealing 1.6 Thk. SS316
6.10 Stopper Bar 20x20 SA516
6.11 Stub End Shaft Dia.80 with Dia.60 Pivot-EN8
6.12 Stuffing Box Extended Type-BQ Pipe
6.13 Gland Packing Glass Rope-Standard
6.14 Gland Plate Spring Loaded Type-M.S
6.15 Bush Bearing Dia 80 od x Dia 60 id x 40 lg.-Gun Metal
6.16 Bush Housing Flange Type-M.S
6.17 Flowing medium Gas
6.18 Temperature 250 Degree C
6.19 Pressure 500mmWC
6.20 Characteristic On/Off Type
6.21 Sdtork Make Three Phase Quarter Turn Electrical
Fitted with Actuator, Supply Voltage: 415 volts 3 Phase AC Supply
Having Limit Switch & Torque Limit Switch.

5. 3.
ACTUATOR DETAILS
4.1 Series 4000
4.2 Model SD-4000-20-WG135-D
4.3 Out Put motion. Quarter Turn
4.4 Rated output Torque – Kg-m 3255 Nm
4.5 Effective Output Speed-RPM 1500 RPM
4.6 Output coupling Through Linkage
4.7 Diameter of stem (For rising stem N. A.
valve)
4.8 Stroke 0 - 90˚
4.9 Time of operations – Sec /90˚ 60 seconds
4.10 Manual over-ride Provided-Hand wheel with auto declutching
arrangement
4.11 Travel Limit Switches Qty : 2 nos., Contacts :
Rating: 5A-250 VAC/0.46A-250VDC.
4.12 Torque Limit Switches. Qty : 2 nos., Contacts :
Rating: 5A-250 VAC/0.46A-250VDC.
4.13 Local Position Indicator. Provided Continuous type.
4.14 Class of Protection. IP67
4.15 Duty
On / Off Type
4.16 Weight of the actuator.
--
4.17 Mounting Dimensions
4.18 Area of Operation Safe
4.19 Wiring Diagram
5 MOTOR DETAILS
5.1 Type. TEFC Induction Motor.
5.2 Supply 415 V AC 50 Hz 3 Phase
5.3 Duty S-1
5.4 Insulation Class F
5.5 Rating 0.75 Kw/1 HP, 4 Pole / 1500 RPM

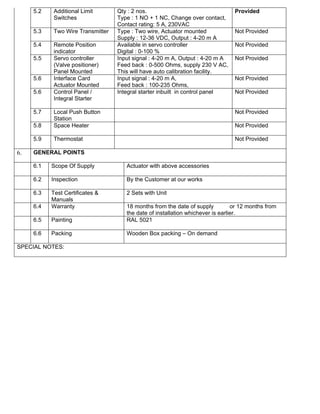

5 OPTIONAL ACCESSORIES
5.1 Feedback Out put : 100-235 Ohms Provided
Potentiometer

6. 5.2 Additional Limit Qty : 2 nos. Provided
Switches Type : 1 NO + 1 NC, Change over contact,
Contact rating: 5 A, 230VAC
5.3 Two Wire Transmitter Type : Two wire, Actuator mounted Not Provided
Supply : 12-36 VDC, Output : 4-20 m A
5.4 Remote Position Available in servo controller Not Provided
indicator Digital : 0-100 %
5.5 Servo controller Input signal : 4-20 m A, Output : 4-20 m A Not Provided
(Valve positioner) Feed back : 0-500 Ohms, supply 230 V AC,
Panel Mounted This will have auto calibration facility.
5.6 Interface Card Input signal : 4-20 m A, Not Provided
Actuator Mounted Feed back : 100-235 Ohms,
5.6 Control Panel / Integral starter inbuilt in control panel Not Provided
Integral Starter
5.7 Local Push Button Not Provided
Station
5.8 Space Heater Not Provided
5.9 Thermostat Not Provided
6. GENERAL POINTS
6.1 Scope Of Supply Actuator with above accessories
6.2 Inspection By the Customer at our works
6.3 Test Certificates & 2 Sets with Unit
Manuals
6.4 Warranty 18 months from the date of supply or 12 months from
the date of installation whichever is earlier.
6.5 Painting RAL 5021
6.6 Packing Wooden Box packing – On demand
SPECIAL NOTES:
