This document provides specifications for two automated ball valves with intelligent electric actuators and control panels for use in paper industries. Both valves are 150mm in size, made of stainless steel, and have PTFE seats and packing. One valve has a wafer connection while the other has a flanged connection. Each valve is fitted with a Kriss intelligent electric actuator capable of linear motion with 200kg force and other standard accessories, along with a microprocessor-based control panel for automated operation.

1. 1550/IMP-SERIES Data Sheet Ref. No : SU-1550-IMP-00001
SUDE
MOTORIZED BASIS 1550IMP150150WAFS6S7PTFECRS640LIN PUNE /
WEIGHT VALVE EAMBWP BANGALORE
Quotation Ref. No
Quotation Date
1. ITEM KRISS MAKE ASSEMBLY OF SWEDEISH SHEAR STREAM BALL
TYPE CONTROL SEGMENTED VALVE FITTED WITH
INTELLIGENT ELECTRIC ACTUATOR AND MICROPROCESSOR
BASED PANEL
2. MAKE KRISS
3 APPLICATION Paper Industries
6 TECHNICAL SPECIFICATION OF ‘V’ NOTCH BALL VALVE
6.1 Pipe Size 150mm
6.2 Valve Size 150mm
6.3 End Connection Wafer
6.4 Body Material SS316
6.5 Ball Material SS317
6.6 Seating Material Virgin PTFE
6.7 Retainer Chrome Plated SS316
Material
6.8 Pipe Schedule 40
6.9 Flowing Medium Pulp
6.10 Flow rate 1700 LPM
6.11 Pressure 7 Mtr. Of WC
6.12 Pressure Drop 10% Of the Inlet
6.13 Temperature Ambient
6.14 Characteristic Linear
6.15 Bonnet Standard
6.16 Packing PTFE
6.17 Calculated Cv 254
6.18 Design Cv 371@75 deg
6.19 Kriss Make intelligent Electrical Actuator, Supply Voltage 230 V
Fitted with
AC
4 ACTUATOR DETAILS (With standard Accessories)
4.1 Type KEA Series
4.2 Model Single phase linear actuator
4.3 Out Put motion. Linear
4.4 Output Force 200 Kgs
Actuating – Kg
4.5 Out put speed – 0.26 mm/sec
mm/Sec
4.6 Stroke Length 60 mm
4.7 Time of operation 307 seconds
4.8 Manual over-ride Provided Hand wheel with clutch.
4.9 Travel Limit Provide: 2 Nos.
Switches Type : 1NO+1NC, change over type contacts
4.9 Torque Limit Not required as motor used is stall duty
Switches

2. 4.10 Local Position Provided Continuous type
Indicator
4.11 Class of IP67
Protection
4.12 Duty Continous
4.13 Weight of the 4.5 Kgs
actuator
4.14 G. A. Drawing
4.15 Area of Operation Safe
5 MOTOR DETAILS
5.1 Type Non blocking A.C. Synchronous motor
5.2 Supply 220 VAC 50 Hz 1 Phase
5.3 Duty Regulating
5.4 Insulation Class B
5.5 Rating 3.14 W
5 OPTIONAL
ACCESSORIES
5.1 Feedback Out put : 100-235 Ohms Provided
Potentiometer
5.2 Additional Limit Qty : 2 nos. Provided
Switches Type : 1 NO + 1 NC, Change over contact, Contact
rating: 5 A, 230VAC
5.3 Two Wire Type : Two wire, Actuator mounted Provided
Transmitter Supply : 12-36 VDC, Out put : 4-20 m A
5.4 Remote Digital : 0-100 % Provided
Position
indicator
5.5 Interface Card Input signal : 4-20 m A, or Pulse Provided
Actuator Feed back : 100-235 Ohms,
Mounted
5.6 Control Panel Microprocessor Based Basis Weight Control Panel, Provided
a].Main OnOff Switch [MCB], b]. Auto Manual
Switch, c]. Current Source, d]. 4-20mA Feed Back
Output, e]. Provision for Run Mode Test Mode
Selection - Under test Mode Valve Will Operate
Through Push Button By Keeping Auto Manual Switch
In Manual Mode Position. Under Run Mode Valve Will
Operate Through Current Source Of The Panel By
Keeping Auto Manual Switch In Manual Mode
Position. Under Run Mode Valve Will Be Operated
Through Programmable Input Signal From DCS OR
QCS In the form of 4-20mA OR 0 to 10 V DC OR Pulse
Input By Keeping Auto Manual Switch In Auto Mode
Position [Valves Actuator Can Be Site Calibrated to
Understand DCS OR QCS Language], f]. Provision For
Fast & Slow Operation Through Toggle Selection.
Under Run Mode [Either Auto OR Manual Selection] If
Fast Operation is Required Than Operate The Toggle
Switch To Fast Mode, For Slow Operation Operate the
Toggle Switch to Slow Mode. g]. Under Fast Mode
Valve Will Travel Quickly to the Nearest Input Signal
Position & Final Position Will be reached slowly through
Intelligent Circuit Operation. Under Slow mode Valve
will reach to the required input signal position slowly &
proportionately through intelligent circuit operation.
g]. Inbuilt Digital Display for valve position indication
in percentage.
6 GENERAL POINTS
6.1 Inspection By Customer at our works

3. 6.2 T. C.& 2 Sets with unit
Manuals
6.3 Warranty 18 months from the date of supply or 12 months from the date of installation which
ever is earlier.
6.4 Packing Thermo cool Packing Housed in corrugated Box
SPECIAL NOTE :

4. 1550/IND-SERIES Data Sheet Ref. No : SU-1550-IND-00001
SUDE
MOTORIZED BASIS 1550IND150150FL15S6S7PTFECRS640LIN PUNE /
WEIGHT VALVE EAMBWP BANGALORE
Quotation Ref. No
Quotation Date
1. ITEM KRISS MAKE ASSEMBLY OF INDIAN SHEAR STREAM BALL
TYPE CONTROL SEGMENTED VALVE FITTED WITH
INTELLIGENT ELECTRIC ACTUATOR AND MICROPROCESSOR
BASED PANEL
2. MAKE KRISS
3 APPLICATION Paper Industries
6 TECHNICAL SPECIFICATION OF ‘V’ NOTCH BALL VALVE
6.1 Pipe Size 150mm
6.2 Valve Size 150mm
6.3 End Connection Flanged to ASA150RF
6.4 Body Material SS316
6.5 Ball Material SS317
6.6 Seating Material Virgin PTFE
6.7 Retainer Chrome Plated SS316
Material
6.8 Pipe Schedule 40
6.9 Flowing Medium Pulp
6.10 Flow rate 1700 LPM
6.11 Pressure 7 Mtr. Of WC
6.12 Pressure Drop 10% Of the Inlet
6.13 Temperature Ambient
6.14 Characteristic Linear
6.15 Bonnet Standard
6.16 Packing PTFE
6.17 Calculated Cv 254
6.18 Design Cv 371@75 deg
6.19 Kriss Make intelligent Electrical Actuator, Supply Voltage 230 V
Fitted with
AC
4 ACTUATOR DETAILS (With standard Accessories)
4.1 Type KEA Series
4.2 Model Single phase linear actuator
4.3 Out Put motion. Linear
4.4 Output Force 200 Kgs
Actuating – Kg
4.5 Out put speed – 0.26 mm/sec
mm/Sec
4.6 Stroke Length 60 mm
4.7 Time of operation 307 seconds
4.8 Manual over-ride Provided Hand wheel with clutch.
4.9 Travel Limit Provide: 2 Nos.
Switches Type : 1NO+1NC, change over type contacts
4.9 Torque Limit Not required as motor used is stall duty
Switches

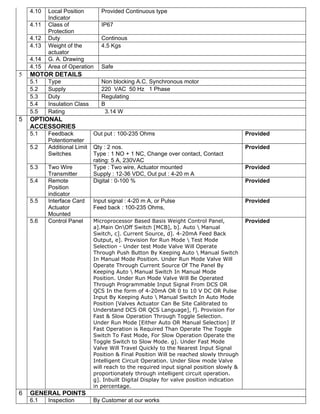

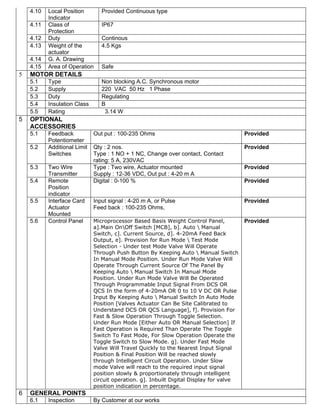

5. 4.10 Local Position Provided Continuous type
Indicator
4.11 Class of IP67
Protection
4.12 Duty Continous
4.13 Weight of the 4.5 Kgs
actuator
4.14 G. A. Drawing
4.15 Area of Operation Safe
5 MOTOR DETAILS
5.1 Type Non blocking A.C. Synchronous motor
5.2 Supply 220 VAC 50 Hz 1 Phase
5.3 Duty Regulating
5.4 Insulation Class B
5.5 Rating 3.14 W
5 OPTIONAL
ACCESSORIES
5.1 Feedback Out put : 100-235 Ohms Provided
Potentiometer
5.2 Additional Limit Qty : 2 nos. Provided
Switches Type : 1 NO + 1 NC, Change over contact, Contact
rating: 5 A, 230VAC
5.3 Two Wire Type : Two wire, Actuator mounted Provided
Transmitter Supply : 12-36 VDC, Out put : 4-20 m A
5.4 Remote Digital : 0-100 % Provided
Position
indicator
5.5 Interface Card Input signal : 4-20 m A, or Pulse Provided
Actuator Feed back : 100-235 Ohms,
Mounted
5.6 Control Panel Microprocessor Based Basis Weight Control Panel, Provided
a].Main OnOff Switch [MCB], b]. Auto Manual
Switch, c]. Current Source, d]. 4-20mA Feed Back
Output, e]. Provision for Run Mode Test Mode
Selection - Under test Mode Valve Will Operate
Through Push Button By Keeping Auto Manual Switch
In Manual Mode Position. Under Run Mode Valve Will
Operate Through Current Source Of The Panel By
Keeping Auto Manual Switch In Manual Mode
Position. Under Run Mode Valve Will Be Operated
Through Programmable Input Signal From DCS OR
QCS In the form of 4-20mA OR 0 to 10 V DC OR Pulse
Input By Keeping Auto Manual Switch In Auto Mode
Position [Valves Actuator Can Be Site Calibrated to
Understand DCS OR QCS Language], f]. Provision For
Fast & Slow Operation Through Toggle Selection.
Under Run Mode [Either Auto OR Manual Selection] If
Fast Operation is Required Than Operate The Toggle
Switch To Fast Mode, For Slow Operation Operate the
Toggle Switch to Slow Mode. g]. Under Fast Mode
Valve Will Travel Quickly to the Nearest Input Signal
Position & Final Position Will be reached slowly
through Intelligent Circuit Operation. Under Slow
mode Valve will reach to the required input signal
position slowly & proportionately through intelligent
circuit operation. g]. Inbuilt Digital Display for valve
position indication in percentage.
6 GENERAL POINTS
6.1 Inspection By Customer at our works

6. 6.2 T. C.& 2 Sets with unit
Manuals
6.3 Warranty 18 months from the date of supply or 12 months from the date of installation which
ever is earlier.
6.4 Packing Thermo cool Packing Housed in corrugated Box
SPECIAL NOTE :
