1. Great Ideas….Simple Solutions
Data Ingestion Platform (DiP)
Neeraj Sabharwal @allaboutbdata

2. About me
Xavient Corporate Overview2
• Head of Cloud, Data & Analytics @Xavient
• Spent couple of years @Hortonworks
• Over a decade in Cloud & Data domain
• Started career as Oracle DBA
Disclosure– More memes coming up…

3. Agenda
Xavient Corporate Overview3
Platform
Data
Access
Hybrid
Cloud

4. Data Ingestion Platform (DiP)4
Before we start …
** Near real time is ok as I am easy going but no more hours or days wait on data

5. Problem
Xavient Corporate Overview5
UI/API Platform
Data
Access
No…near
real-time
access
Cloud

6. Great Ideas….Simple Solutions
Shifting the gear – Let’s get technical

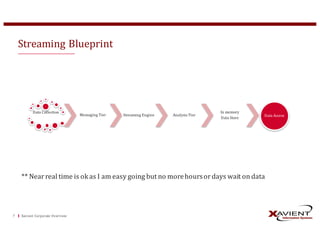

7. Streaming Blueprint
Xavient Corporate Overview7
Data Collection
Messaging Tier Streaming Engine Analysis Tier
In memory
Data Store
Data Access
** Near real time is ok as I am easy going but no more hours or days wait on data

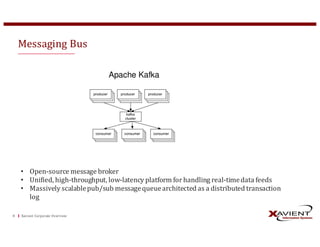

8. Messaging Bus
Xavient Corporate Overview8
• Open-source message broker
• Unified, high-throughput, low-latency platform for handling real-time data feeds
• Massively scalable pub/sub message queue architected as a distributed transaction
log

9. Emotions
Xavient Corporate Overview9

10. Streaming engines
Xavient Corporate Overview10
Storm - Distributed real-time computation system for processing large volumes of high-
velocity data
Flink - Streaming dataflow engine that provides data distribution, communication, and
fault tolerance for distributed computations over data streams
Apex- Enterprise-grade unified stream and batch processing engine
Spark Streaming - Apache Spark's language-integrated API to stream processing, letting
you write streaming jobs the same way you write batch jobs. It supports Java, Scala and
Python

11. CTM
Xavient Corporate Overview11

12. Great Ideas….Simple Solutions
Platform (DiP)

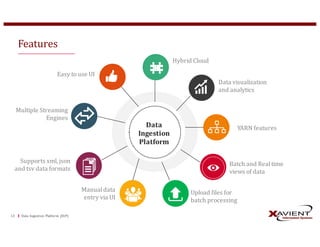

13. Data Ingestion Platform (DiP)13
Features
Easy to use UI
Multiple Streaming
Engines
Supports xml, json
and tsv data formats
Manual data
entry via UI
Upload files for
batch processing
Hybrid Cloud
Batch and Real time
views of data
Data visualization
and analytics
YARN featuresData
Ingestion
Platform

14. Data Ingestion Platform (DiP)14
Use Cases – Any Data
Sentimental Analysis Log Analysis
Click Stream Analysis
Analyze Machine and
Sensor Data
Social Media and
Customer Sentiment

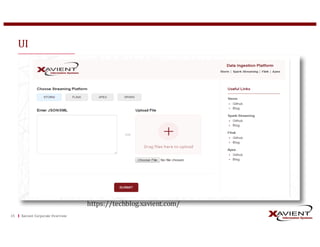

15. UI
Xavient Corporate Overview15
https://techblog.xavient.com/

16. What was in the previous slide? Is that for real?
Xavient Corporate Overview16
No more Memes …Enough now J

17. Data Ingestion Platform (DiP)17
DiP Technology Stack
Messaging System
Target System
Reporting System
Source System
Streaming API’s
Programming
Language
IDE
Build tool
Operating System
Apache Kafka
HDFS, NoSql, Apache Hive
Apache Phoenix, Apache Zeppelin
Web Client
Apache Apex, Apache Flink,
Apache Spark and Apache Storm
Java
Eclipse
Apache Maven
CentOS 7

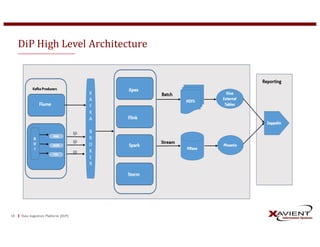

18. Data Ingestion Platform (DiP)18
DiP High Level Architecture

19. Data Ingestion Platform (DiP)19
DiP using Storm
• Multiple processing paradigm - Real-time , Interactive and Batch processes
• Reliable – each unit of data (tuple) will be processed at least once or exactly once.
• ​Fast and scalable - parallel calculations are run across a cluster of machines.
• Fault-tolerant - workers automatically restarts in case they die .
Apache Storm features

20. Data Ingestion Platform (DiP)20
DiP using Spark​ Streaming
• Multiple processing paradigm - Batch and Interactive
• Ease of Use –contains high-level operators written in Java, Scala and Python
• Fault Tolerance - lost work and operator state can be recovered with no extra code
• Code Reusability – same code can be used for batch processing, join streams against historical data, or to run ad-
hoc queries on stream state
Spark Streaming features

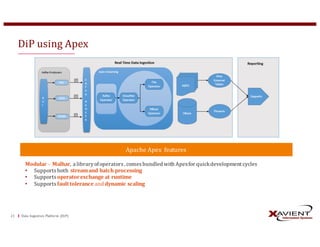

21. Data Ingestion Platform (DiP)21
DiP using Apex​
Modular - Malhar, a library of operators , comes bundled with Apex for quick development cycles
• Supports both stream and batch processing
• Supports operator exchange at runtime
• Supports fault tolerance and dynamic scaling
Apache Apex features

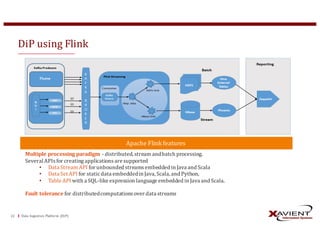

22. Data Ingestion Platform (DiP)22
DiP using Flink
Multiple processing paradigm - distributed, stream and batch processing.
Several APIsfor creating applications are supported
• Data Stream API for unbounded streams embedded in Java and Scala
• Data Set API for static data embedded in Java, Scala, and Python,
• Table API with a SQL-like expression language embedded in Java and Scala.
Fault tolerance for distributed computations over data streams
Apache Flink features

23. Data Ingestion Platform (DiP)23
DiP-Druid Architecture (High Level)
Credit: https://imply.io/docs/latest/
https://techblog.xavient.com/kafka-druid-integration-with-ingestion-dip-real-time-data

24. Data Ingestion Platform (DiP)24
Data Access
Apache Zeppelin/ Custom UI
• Data Stored on HDFS as Hive External
Tables
• Data stored on HBaseas Phoenix View

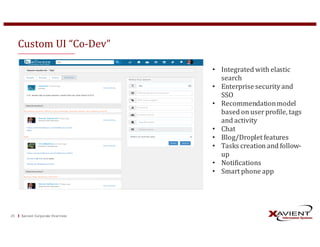

25. Custom UI “Co-Dev”
Xavient Corporate Overview25
• Integrated with elastic
search
• Enterprise security and
SSO
• Recommendation model
based on user profile, tags
and activity
• Chat
• Blog/Droplet features
• Tasks creation and follow-
up
• Notifications
• Smart phone app

26. Data Ingestion Platform (DiP)26
DiP @ Hallwaze.com

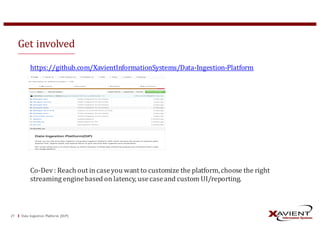

27. Data Ingestion Platform (DiP)27
Get involved
https://github.com/XavientInformationSystems/Data-Ingestion-Platform
Co-Dev : Reach out in case you want to customize the platform, choose the right
streaming engine based on latency, use case and custom UI/reporting.

28. Great Ideas….Simple Solutions
Hybrid Cloud

29. Hadoop and Cloud
Xavient Corporate Overview29

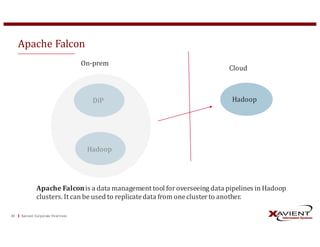

30. Apache Falcon
Xavient Corporate Overview30
DiP Hadoop
On-prem
Cloud
Apache Falconis a data management tool for overseeing data pipelines in Hadoop
clusters. It can be used to replicate data from one cluster to another.
Hadoop

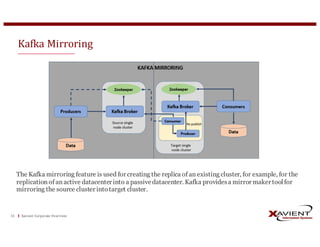

31. Kafka Mirroring
Xavient Corporate Overview31
The Kafka mirroring feature is used for creating the replica of an existing cluster, for example, for the
replication of an active datacenter into a passivedatacenter. Kafka providesa mirror maker tool for
mirroring the source cluster intotarget cluster.

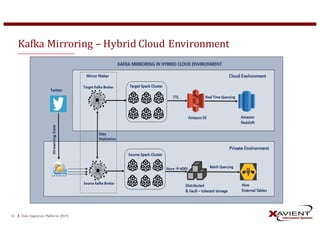

32. Data Ingestion Platform (DiP)32
Kafka Mirroring – Hybrid Cloud Environment

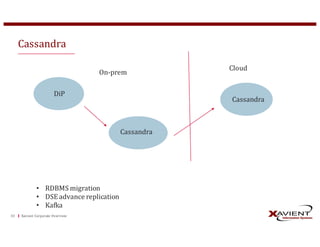

33. Cassandra
Xavient Corporate Overview33
DiP
Cassandra
Cassandra
On-prem
Cloud
• RDBMS migration
• DSE advance replication
• Kafka

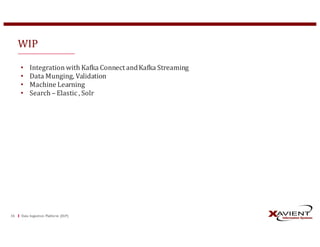

34. Data Ingestion Platform (DiP)34
WIP
• Integration with Kafka Connect and Kafka Streaming
• Data Munging, Validation
• Machine Learning
• Search – Elastic , Solr

35. Thanks!
@allaboutbdata
