5. PROTOTYPE
A prototype is an early sample, model, or
release of a product built to test a concept or
process or to act as a thing to be replicated or
learned from.

6. NEED OF PROTOTYPING
 VISUALIZATION
 MARKETING
 VERIFICATION
 TESTING
 PATENTING

7. PROTOTYPES
TYPES
• FUNCTIONAL
• VISUAL
• USER EXPERIENCE
• WORKING
An example of a
Functional Prototype

8. Visual Prototypes

9. WORKING PROTOTYPE OF HENDO
HOVERBOARD

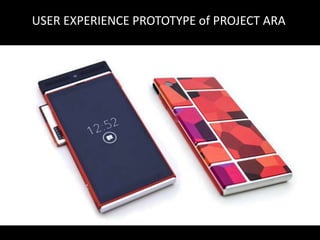

10. USER EXPERIENCE PROTOTYPE of PROJECT ARA

11. RAPID PROTOTYPING

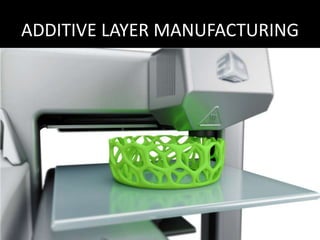

12. ADDITIVE LAYER MANUFACTURING

13. SLICING / GENERATING STL

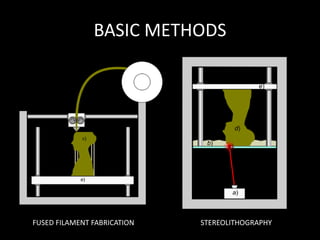

14. BASIC METHODS
FUSED FILAMENT FABRICATION STEREOLITHOGRAPHY

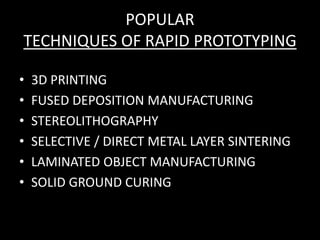

15. POPULAR
TECHNIQUES OF RAPID PROTOTYPING
• 3D PRINTING
• FUSED DEPOSITION MANUFACTURING
• STEREOLITHOGRAPHY
• SELECTIVE / DIRECT METAL LAYER SINTERING
• LAMINATED OBJECT MANUFACTURING
• SOLID GROUND CURING

16. 3D PRINTING

17. STEREOLITHOGRAPHY

18. SELECTIVE LAYER SINTERING
