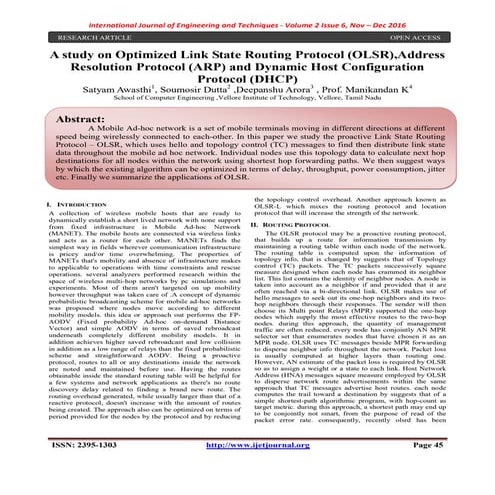

A Mobile Ad-hoc network is a set of mobile terminals moving in different directions at different
speed being wirelessly connected to each-other. In this paper we study the proactive Link State Routing
Protocol – OLSR, which uses hello and topology control (TC) messages to find then distribute link state
data throughout the mobile ad hoc network. Individual nodes use this topology data to calculate next hop
destinations for all nodes within the network using shortest hop forwarding paths. We then suggest ways
by which the existing algorithm can be optimized in terms of delay, throughput, power consumption, jitter
etc. Finally we summarize the applications of OLSR.
A Mobile Ad-hoc network is a set of mobile terminals moving in different directions at different
speed being wirelessly connected to each-other. In this paper we study the proactive Link State Routing
Protocol – OLSR, which uses hello and topology control (TC) messages to find then distribute link state
data throughout the mobile ad hoc network. Individual nodes use this topology data to calculate next hop
destinations for all nodes within the network using shortest hop forwarding paths. We then suggest ways
by which the existing algorithm can be optimized in terms of delay, throughput, power consumption, jitter
etc. Finally we summarize the applications of OLSR.
Optimization of Low-efficiency Traffic in OpenFlowSoftware Defined NetworksJose Saldana
This paper proposes a method for optimizing bandwidth usage in Software Defined Networks (SDNs) based on OpenFlow. Flows of small packets presenting a high overhead, as the ones generated by emerging services, can be identified by the SDN controller, in order to remove header fields that are common to any packet in the flow, only during their way through the SDN. At the same time, several packets can be multiplexed together in the same frame, thus reducing the number of sent frames. Four kinds of small-packet traffic flows are considered (VoIP, UDP and TCP-based online games, and ACKs from TCP flows). Both IPv4 and IPv6 are tested, and significant bandwidth savings (up to 68 % for IPv4 and 78 % for IPv6) can be obtained for the considered kinds of traffic.
International Journal of Computational Engineering Research (IJCER) is dedicated to protecting personal information and will make every reasonable effort to handle collected information appropriately. All information collected, as well as related requests, will be handled as carefully and efficiently as possible in accordance with IJCER standards for integrity and objectivity.
Die monatlichen Anlässe in Zusammenarbeit mit dem Swiss IPv6 Council behandeln verschiedene technische Themenbereiche von IPv6.
Das Referat von Jen Linkova vom 30. November 2015 widmete sich dem Neighbor Discovery Protokoll, einem Schlüsselmechanismus um Verbindungen zwischen IPv6 Knotenpunkten und LANs aufzubauen. Die Referentin fokussierte sich in der Präsentation auf die technischen Details des Designs, der Implementierung sowie Sicherheitsaspekten.
Gerne stellen wir Ihnen die Präsentation zum Anschauen und Herunterladen zur Verfügung. Haben Sie Feedback zum Event? Wir sind gespannt auf Ihre Meinung.

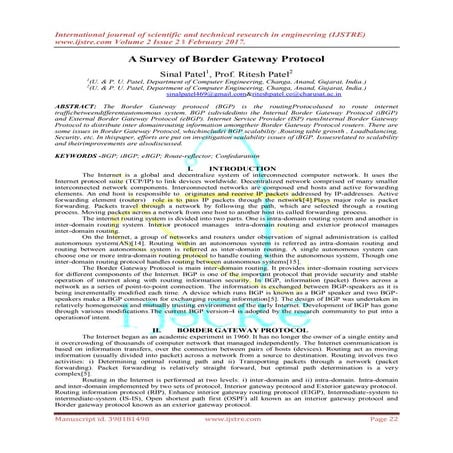

The Border Gateway protocol (BGP) is the routingProtocolused to route internet
trafficbetweendifferentautonomous system. BGP isdividedinto the Internal Border Gateway Protocol (iBGP)
and External Border Gateway Protocol (eBGP). Internet Service Provider (ISP) runsInternal Border Gateway
Protocol to distribute inter domainrouting information amongtheir Border Gateway Protocol routers. There are
some issues in Border Gateway Protocol, whichincludei BGP scalability ,Routing table growth , Loadbalancing,
Security, etc. In thispaper, efforts are put on investigation scalability issues of iBGP. Issuesrelated to scalability
and theirimprovements are alsodiscussed.
Performance Analysis and Simulation of OLSR Routing Protocol in MANET ijcnac
Mobile ad hoc network is a collection of wireless nodes that are communicate other
nodes (router) without using access point, infrastructure . Mobile ad-hoc network is an
autonomous system that means no need for depaentd other nodes it have own capability
to handle and controlling all funcitionlity, to sending and receiving all information form
one device to other device. MANET has power full feature that controlling itself by
dynamic nature, multihop,low power and configuration of the system. In this paper we
analyzing, simulation and implements the TC messages and HELLO Message by MPR of
OLSR routing performance checked at 200 nodes on Qualnet 5.0.2 simulator. In Qualnet
simulator to simulate and implement the performance of OLSR routing protocols takes
various performance metrics like hello message sent (HMS) , hello message received
(HMR), TC message generated (TCMG), TC message replied (TCMR), TC messages
received on Constant Bit Rate (CBR) using random waypoint model. In this paper check
the performance OLSR routing protocol gives effective performance for lage networks.
Optimization of Low-efficiency Traffic in OpenFlowSoftware Defined NetworksJose Saldana
This paper proposes a method for optimizing bandwidth usage in Software Defined Networks (SDNs) based on OpenFlow. Flows of small packets presenting a high overhead, as the ones generated by emerging services, can be identified by the SDN controller, in order to remove header fields that are common to any packet in the flow, only during their way through the SDN. At the same time, several packets can be multiplexed together in the same frame, thus reducing the number of sent frames. Four kinds of small-packet traffic flows are considered (VoIP, UDP and TCP-based online games, and ACKs from TCP flows). Both IPv4 and IPv6 are tested, and significant bandwidth savings (up to 68 % for IPv4 and 78 % for IPv6) can be obtained for the considered kinds of traffic.
International Journal of Computational Engineering Research (IJCER) is dedicated to protecting personal information and will make every reasonable effort to handle collected information appropriately. All information collected, as well as related requests, will be handled as carefully and efficiently as possible in accordance with IJCER standards for integrity and objectivity.
Die monatlichen Anlässe in Zusammenarbeit mit dem Swiss IPv6 Council behandeln verschiedene technische Themenbereiche von IPv6.
Das Referat von Jen Linkova vom 30. November 2015 widmete sich dem Neighbor Discovery Protokoll, einem Schlüsselmechanismus um Verbindungen zwischen IPv6 Knotenpunkten und LANs aufzubauen. Die Referentin fokussierte sich in der Präsentation auf die technischen Details des Designs, der Implementierung sowie Sicherheitsaspekten.
Gerne stellen wir Ihnen die Präsentation zum Anschauen und Herunterladen zur Verfügung. Haben Sie Feedback zum Event? Wir sind gespannt auf Ihre Meinung.
The Border Gateway protocol (BGP) is the routingProtocolused to route internet
trafficbetweendifferentautonomous system. BGP isdividedinto the Internal Border Gateway Protocol (iBGP)
and External Border Gateway Protocol (eBGP). Internet Service Provider (ISP) runsInternal Border Gateway
Protocol to distribute inter domainrouting information amongtheir Border Gateway Protocol routers. There are
some issues in Border Gateway Protocol, whichincludei BGP scalability ,Routing table growth , Loadbalancing,
Security, etc. In thispaper, efforts are put on investigation scalability issues of iBGP. Issuesrelated to scalability
and theirimprovements are alsodiscussed.
Performance Analysis and Simulation of OLSR Routing Protocol in MANET ijcnac
Mobile ad hoc network is a collection of wireless nodes that are communicate other
nodes (router) without using access point, infrastructure . Mobile ad-hoc network is an
autonomous system that means no need for depaentd other nodes it have own capability
to handle and controlling all funcitionlity, to sending and receiving all information form
one device to other device. MANET has power full feature that controlling itself by
dynamic nature, multihop,low power and configuration of the system. In this paper we
analyzing, simulation and implements the TC messages and HELLO Message by MPR of
OLSR routing performance checked at 200 nodes on Qualnet 5.0.2 simulator. In Qualnet
simulator to simulate and implement the performance of OLSR routing protocols takes
various performance metrics like hello message sent (HMS) , hello message received
(HMR), TC message generated (TCMG), TC message replied (TCMR), TC messages
received on Constant Bit Rate (CBR) using random waypoint model. In this paper check
the performance OLSR routing protocol gives effective performance for lage networks.
The basic function of the transport layer is to accept data from above it, split it up into smaller units if need be, pass these to the network layer, and ensure that the pieces all arrive correctly at the other end. Furthermore, all this must be done efficiently and in a way that isolates the upper layers from the inevitable changes in the hardware technology over the course of time.The transport layer also determines what type of service to provide to the session layer, and, ultimately, to the users of the network. The most popular type of transport connection is an error-free point-to-point channel that delivers messages or bytes in the order in which they were sent. However, other possible kinds of transport service exist, such as the transporting of isolated messages with no guarantee about the order of delivery, and the broadcasting of messages to multiple destinations. The type of service is determined when the connection is established. (As an aside, an error-free channel is completely impossible to achieve; what people really mean by this term is that the error rate is low enough to ignore in practice.)The transport layer is a true end-to-end layer; it carries data all the way from the source to the destination. In other words, a program on the source machine carries on a conversation with a similar program on the destination machine, using the message headers and control messages. In the lower layers, each protocols is between a machine and its immediate neighbors, and not between the ultimate source and destination machines, which may be separated by many routers. The difference between layers 1 through 3, which are chained, and layers 4 through 7, which are end-to-end,
This comprehensive program covers essential aspects of performance marketing, growth strategies, and tactics, such as search engine optimization (SEO), pay-per-click (PPC) advertising, content marketing, social media marketing, and more
Resumes, Cover Letters, and Applying OnlineBruce Bennett
This webinar showcases resume styles and the elements that go into building your resume. Every job application requires unique skills, and this session will show you how to improve your resume to match the jobs to which you are applying. Additionally, we will discuss cover letters and learn about ideas to include. Every job application requires unique skills so learn ways to give you the best chance of success when applying for a new position. Learn how to take advantage of all the features when uploading a job application to a company’s applicant tracking system.
NIDM (National Institute Of Digital Marketing) Bangalore Is One Of The Leading & best Digital Marketing Institute In Bangalore, India And We Have Brand Value For The Quality Of Education Which We Provide.
www.nidmindia.com
Want to move your career forward? Looking to build your leadership skills while helping others learn, grow, and improve their skills? Seeking someone who can guide you in achieving these goals?
You can accomplish this through a mentoring partnership. Learn more about the PMISSC Mentoring Program, where you’ll discover the incredible benefits of becoming a mentor or mentee. This program is designed to foster professional growth, enhance skills, and build a strong network within the project management community. Whether you're looking to share your expertise or seeking guidance to advance your career, the PMI Mentoring Program offers valuable opportunities for personal and professional development.
Watch this to learn:
* Overview of the PMISSC Mentoring Program: Mission, vision, and objectives.
* Benefits for Volunteer Mentors: Professional development, networking, personal satisfaction, and recognition.
* Advantages for Mentees: Career advancement, skill development, networking, and confidence building.
* Program Structure and Expectations: Mentor-mentee matching process, program phases, and time commitment.
* Success Stories and Testimonials: Inspiring examples from past participants.
* How to Get Involved: Steps to participate and resources available for support throughout the program.
Learn how you can make a difference in the project management community and take the next step in your professional journey.
About Hector Del Castillo
Hector is VP of Professional Development at the PMI Silver Spring Chapter, and CEO of Bold PM. He's a mid-market growth product executive and changemaker. He works with mid-market product-driven software executives to solve their biggest growth problems. He scales product growth, optimizes ops and builds loyal customers. He has reduced customer churn 33%, and boosted sales 47% for clients. He makes a significant impact by building and launching world-changing AI-powered products. If you're looking for an engaging and inspiring speaker to spark creativity and innovation within your organization, set up an appointment to discuss your specific needs and identify a suitable topic to inspire your audience at your next corporate conference, symposium, executive summit, or planning retreat.
About PMI Silver Spring Chapter
We are a branch of the Project Management Institute. We offer a platform for project management professionals in Silver Spring, MD, and the DC/Baltimore metro area. Monthly meetings facilitate networking, knowledge sharing, and professional development. For event details, visit pmissc.org.
New Explore Careers and College Majors 2024.pdfDr. Mary Askew
Explore Careers and College Majors is a new online, interactive, self-guided career, major and college planning system.
The career system works on all devices!
For more Information, go to https://bit.ly/3SW5w8W

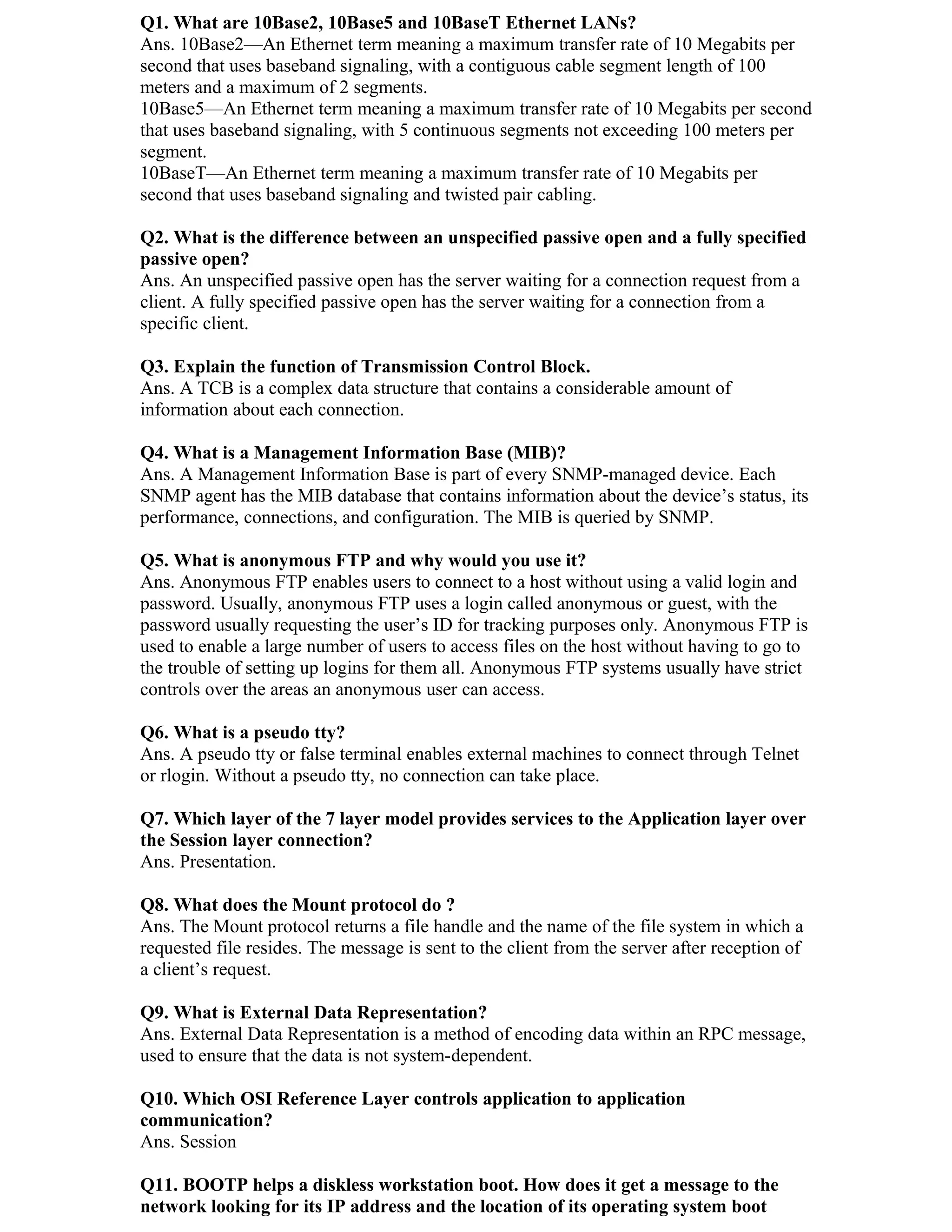

1. Q1. What are 10Base2, 10Base5 and 10BaseT Ethernet LANs?
Ans. 10Base2—An Ethernet term meaning a maximum transfer rate of 10 Megabits per
second that uses baseband signaling, with a contiguous cable segment length of 100
meters and a maximum of 2 segments.
10Base5—An Ethernet term meaning a maximum transfer rate of 10 Megabits per second
that uses baseband signaling, with 5 continuous segments not exceeding 100 meters per
segment.
10BaseT—An Ethernet term meaning a maximum transfer rate of 10 Megabits per
second that uses baseband signaling and twisted pair cabling.
Q2. What is the difference between an unspecified passive open and a fully specified
passive open?
Ans. An unspecified passive open has the server waiting for a connection request from a
client. A fully specified passive open has the server waiting for a connection from a
specific client.
Q3. Explain the function of Transmission Control Block.
Ans. A TCB is a complex data structure that contains a considerable amount of
information about each connection.
Q4. What is a Management Information Base (MIB)?
Ans. A Management Information Base is part of every SNMP-managed device. Each
SNMP agent has the MIB database that contains information about the device’s status, its
performance, connections, and configuration. The MIB is queried by SNMP.
Q5. What is anonymous FTP and why would you use it?
Ans. Anonymous FTP enables users to connect to a host without using a valid login and
password. Usually, anonymous FTP uses a login called anonymous or guest, with the
password usually requesting the user’s ID for tracking purposes only. Anonymous FTP is
used to enable a large number of users to access files on the host without having to go to
the trouble of setting up logins for them all. Anonymous FTP systems usually have strict
controls over the areas an anonymous user can access.
Q6. What is a pseudo tty?
Ans. A pseudo tty or false terminal enables external machines to connect through Telnet
or rlogin. Without a pseudo tty, no connection can take place.
Q7. Which layer of the 7 layer model provides services to the Application layer over
the Session layer connection?
Ans. Presentation.
Q8. What does the Mount protocol do ?
Ans. The Mount protocol returns a file handle and the name of the file system in which a
requested file resides. The message is sent to the client from the server after reception of
a client’s request.
Q9. What is External Data Representation?
Ans. External Data Representation is a method of encoding data within an RPC message,
used to ensure that the data is not system-dependent.
Q10. Which OSI Reference Layer controls application to application
communication?
Ans. Session
Q11. BOOTP helps a diskless workstation boot. How does it get a message to the
network looking for its IP address and the location of its operating system boot

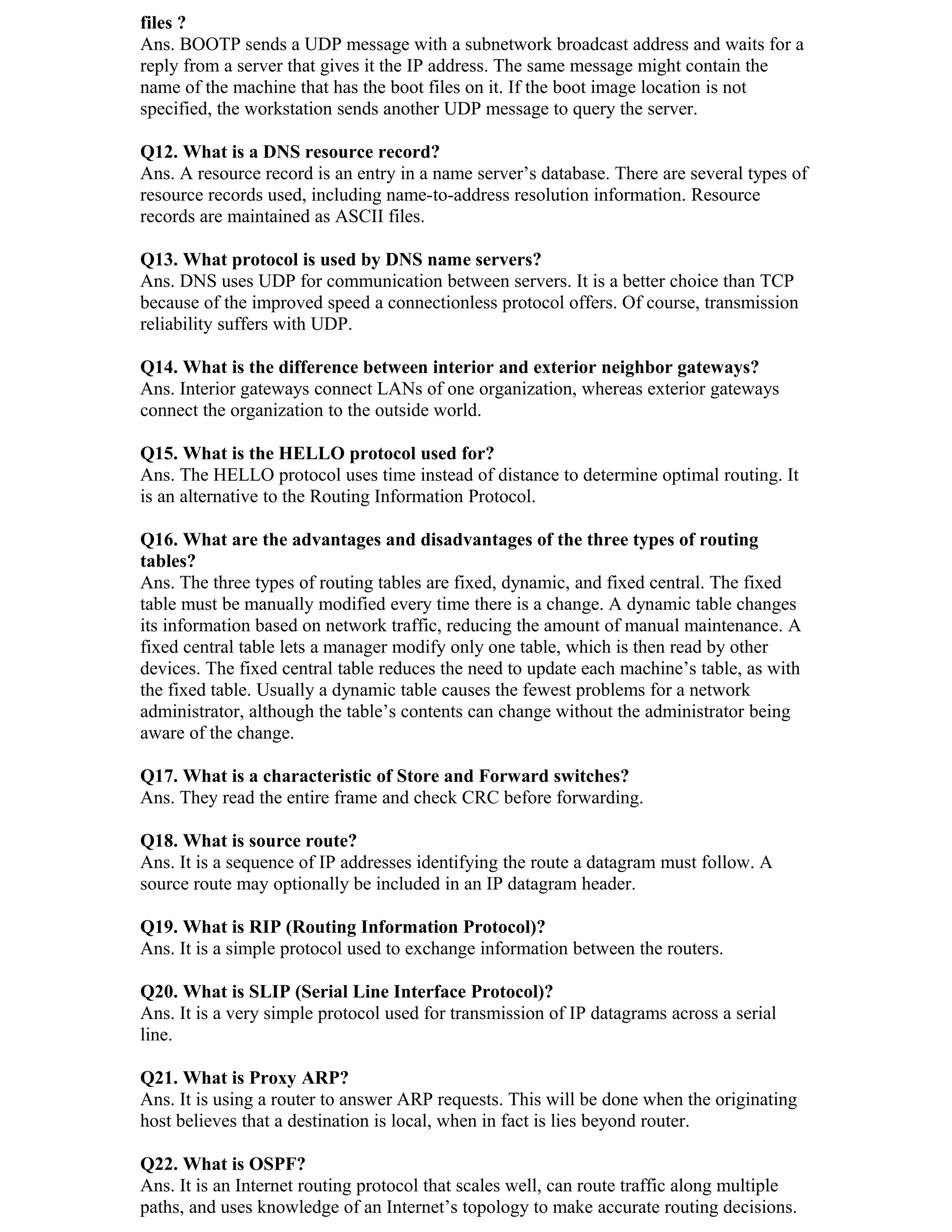

2. files ?
Ans. BOOTP sends a UDP message with a subnetwork broadcast address and waits for a
reply from a server that gives it the IP address. The same message might contain the
name of the machine that has the boot files on it. If the boot image location is not
specified, the workstation sends another UDP message to query the server.
Q12. What is a DNS resource record?
Ans. A resource record is an entry in a name server’s database. There are several types of
resource records used, including name-to-address resolution information. Resource
records are maintained as ASCII files.
Q13. What protocol is used by DNS name servers?
Ans. DNS uses UDP for communication between servers. It is a better choice than TCP
because of the improved speed a connectionless protocol offers. Of course, transmission
reliability suffers with UDP.
Q14. What is the difference between interior and exterior neighbor gateways?
Ans. Interior gateways connect LANs of one organization, whereas exterior gateways
connect the organization to the outside world.
Q15. What is the HELLO protocol used for?
Ans. The HELLO protocol uses time instead of distance to determine optimal routing. It
is an alternative to the Routing Information Protocol.
Q16. What are the advantages and disadvantages of the three types of routing
tables?
Ans. The three types of routing tables are fixed, dynamic, and fixed central. The fixed
table must be manually modified every time there is a change. A dynamic table changes
its information based on network traffic, reducing the amount of manual maintenance. A
fixed central table lets a manager modify only one table, which is then read by other
devices. The fixed central table reduces the need to update each machine’s table, as with
the fixed table. Usually a dynamic table causes the fewest problems for a network
administrator, although the table’s contents can change without the administrator being
aware of the change.
Q17. What is a characteristic of Store and Forward switches?
Ans. They read the entire frame and check CRC before forwarding.
Q18. What is source route?
Ans. It is a sequence of IP addresses identifying the route a datagram must follow. A
source route may optionally be included in an IP datagram header.
Q19. What is RIP (Routing Information Protocol)?
Ans. It is a simple protocol used to exchange information between the routers.
Q20. What is SLIP (Serial Line Interface Protocol)?
Ans. It is a very simple protocol used for transmission of IP datagrams across a serial
line.
Q21. What is Proxy ARP?
Ans. It is using a router to answer ARP requests. This will be done when the originating
host believes that a destination is local, when in fact is lies beyond router.
Q22. What is OSPF?
Ans. It is an Internet routing protocol that scales well, can route traffic along multiple
paths, and uses knowledge of an Internet’s topology to make accurate routing decisions.

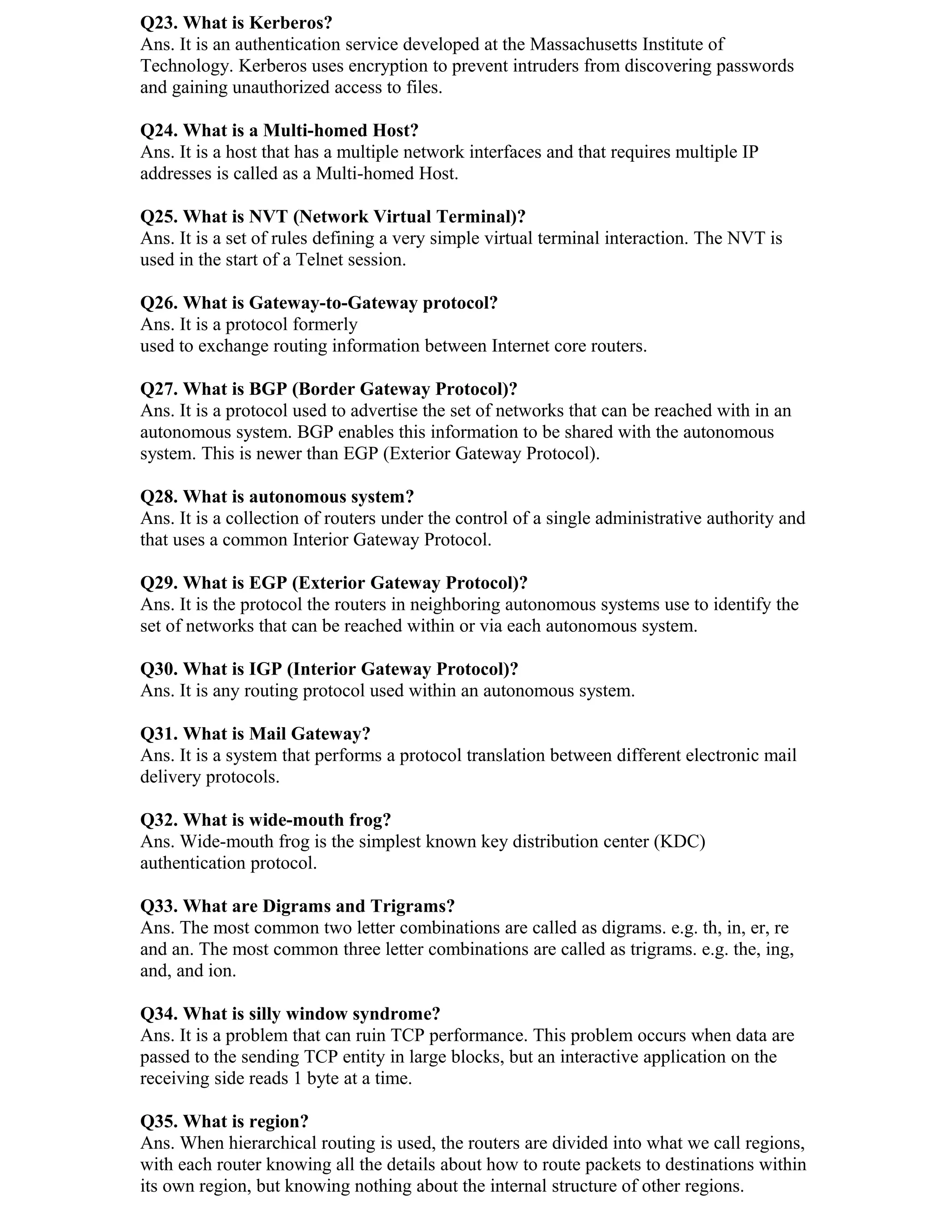

3. Q23. What is Kerberos?
Ans. It is an authentication service developed at the Massachusetts Institute of
Technology. Kerberos uses encryption to prevent intruders from discovering passwords
and gaining unauthorized access to files.
Q24. What is a Multi-homed Host?
Ans. It is a host that has a multiple network interfaces and that requires multiple IP
addresses is called as a Multi-homed Host.
Q25. What is NVT (Network Virtual Terminal)?
Ans. It is a set of rules defining a very simple virtual terminal interaction. The NVT is
used in the start of a Telnet session.
Q26. What is Gateway-to-Gateway protocol?
Ans. It is a protocol formerly
used to exchange routing information between Internet core routers.
Q27. What is BGP (Border Gateway Protocol)?
Ans. It is a protocol used to advertise the set of networks that can be reached with in an
autonomous system. BGP enables this information to be shared with the autonomous
system. This is newer than EGP (Exterior Gateway Protocol).
Q28. What is autonomous system?
Ans. It is a collection of routers under the control of a single administrative authority and
that uses a common Interior Gateway Protocol.
Q29. What is EGP (Exterior Gateway Protocol)?
Ans. It is the protocol the routers in neighboring autonomous systems use to identify the
set of networks that can be reached within or via each autonomous system.
Q30. What is IGP (Interior Gateway Protocol)?
Ans. It is any routing protocol used within an autonomous system.
Q31. What is Mail Gateway?
Ans. It is a system that performs a protocol translation between different electronic mail
delivery protocols.
Q32. What is wide-mouth frog?
Ans. Wide-mouth frog is the simplest known key distribution center (KDC)
authentication protocol.
Q33. What are Digrams and Trigrams?
Ans. The most common two letter combinations are called as digrams. e.g. th, in, er, re
and an. The most common three letter combinations are called as trigrams. e.g. the, ing,
and, and ion.
Q34. What is silly window syndrome?
Ans. It is a problem that can ruin TCP performance. This problem occurs when data are
passed to the sending TCP entity in large blocks, but an interactive application on the
receiving side reads 1 byte at a time.
Q35. What is region?
Ans. When hierarchical routing is used, the routers are divided into what we call regions,
with each router knowing all the details about how to route packets to destinations within
its own region, but knowing nothing about the internal structure of other regions.
4. Q36. What is multicast routing?
Ans. Sending a message to a group is called multicasting, and its routing algorithm is
called multicast routing.
Q37. What is traffic shaping?
Ans. One of the main causes of congestion is that traffic is often busy. If hosts could be
made to transmit at a uniform rate,congestion would be less common. Another open loop
method to help manage congestion is forcing the packet to be transmitted at a more
predictable rate. This is called traffic shaping.
Q38. What is packet filter?
Ans. Packet filter is a standard router equipped with some extra functionality. The extra
functionality allows every incoming or outgoing packet to be inspected. Packets meeting
some criterion are forwarded normally. Those that fail the test are dropped.
Q39. What is virtual path?
Ans. Along any transmission path from a given source to a given destination, a group of
virtual circuits can be grouped together into what is called path.
Q40. What is virtual channel?
Ans. Virtual channel is normally a connection from one source to one destination,
although multicast connections are also permitted. The other name for virtual channel is
virtual circuit.
Q41. What is logical link control?
Ans. One of two sublayers of the data link layer of OSI reference model, as defined by
the IEEE 802 standard. This sublayer is responsible for maintaining the link between
computers when they are sending data across the physical network connection.
Q42. Why should you care about the OSI Reference Model?
Ans. It provides a framework for discussing network operations and design.
Q43. What is the difference between routable and non- routable protocols?
Ans. Routable protocols can work with a router and can be used to build large networks.
Non-Routable protocols are designed to work on small, local networks and cannot be
used with a router.
Q44. What is MAU?
Ans. In token Ring , hub is called Multistation Access Unit(MAU).
Q45. Explain 5-4-3 rule?
Ans. In a Ethernet network, between any two points on the network, there can be no more
than five network segments or four repeaters, and of those five segments only three of
segments can be populated.
Q46. What is the difference between TFTP and FTP application layer protocols?
Ans. The Trivial File Transfer Protocol (TFTP) allows a local host to obtain files from a
remote host but does not provide reliability or security. It uses the fundamental packet
delivery services offered by UDP. The File Transfer Protocol (FTP) is the standard
mechanism provided by TCP / IP for copying a file from one host to another. It uses the
services offered by TCP and so is reliable and secure. It establishes two connections
(virtual circuits) between the hosts, one for data transfer and another for control
information.
Q47. What is the range of addresses in the classes of internet addresses?
Ans. Class A 0.0.0.0 – 127.255.255.255

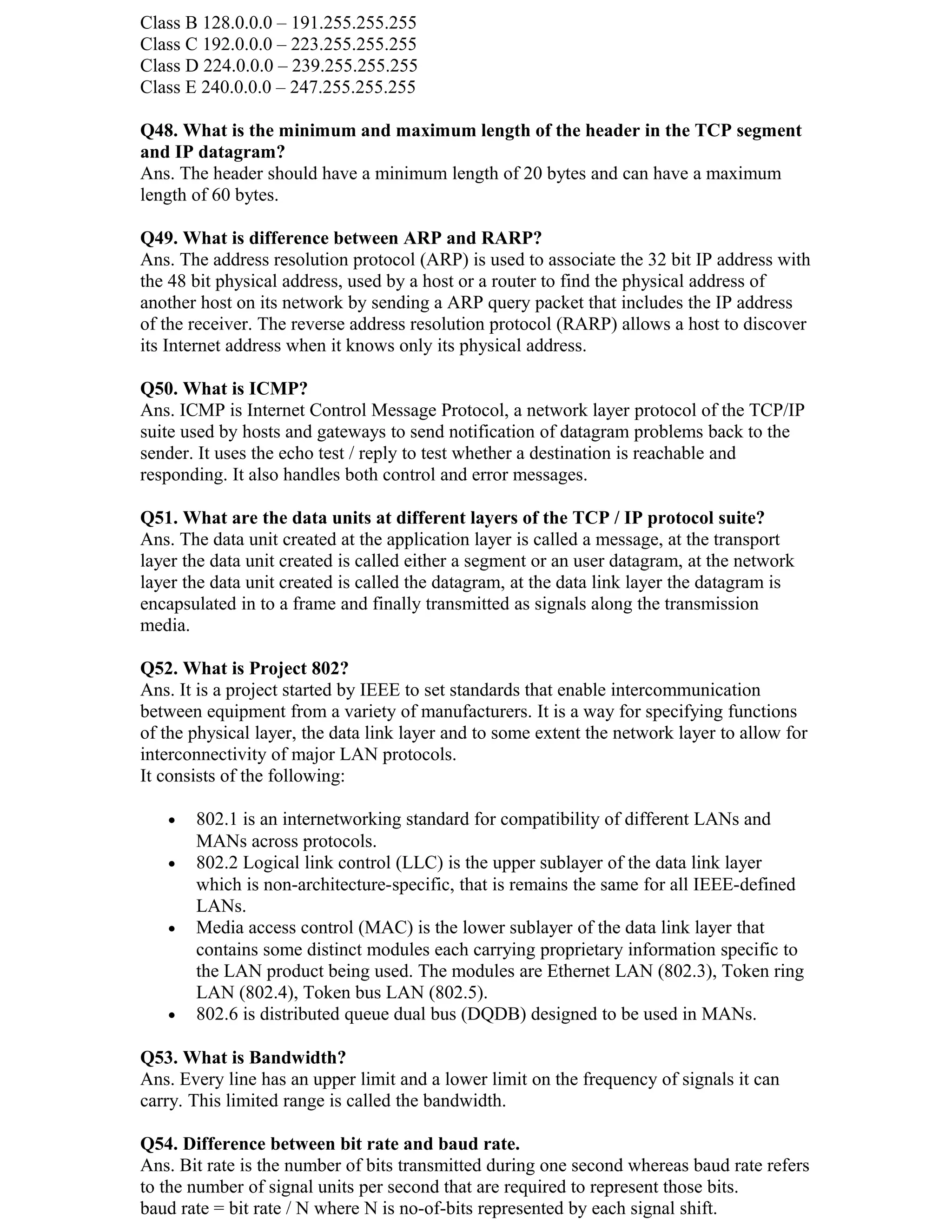

5. Class B 128.0.0.0 – 191.255.255.255
Class C 192.0.0.0 – 223.255.255.255
Class D 224.0.0.0 – 239.255.255.255
Class E 240.0.0.0 – 247.255.255.255
Q48. What is the minimum and maximum length of the header in the TCP segment
and IP datagram?
Ans. The header should have a minimum length of 20 bytes and can have a maximum
length of 60 bytes.
Q49. What is difference between ARP and RARP?
Ans. The address resolution protocol (ARP) is used to associate the 32 bit IP address with
the 48 bit physical address, used by a host or a router to find the physical address of
another host on its network by sending a ARP query packet that includes the IP address
of the receiver. The reverse address resolution protocol (RARP) allows a host to discover
its Internet address when it knows only its physical address.
Q50. What is ICMP?
Ans. ICMP is Internet Control Message Protocol, a network layer protocol of the TCP/IP
suite used by hosts and gateways to send notification of datagram problems back to the
sender. It uses the echo test / reply to test whether a destination is reachable and
responding. It also handles both control and error messages.
Q51. What are the data units at different layers of the TCP / IP protocol suite?
Ans. The data unit created at the application layer is called a message, at the transport
layer the data unit created is called either a segment or an user datagram, at the network
layer the data unit created is called the datagram, at the data link layer the datagram is
encapsulated in to a frame and finally transmitted as signals along the transmission
media.
Q52. What is Project 802?
Ans. It is a project started by IEEE to set standards that enable intercommunication
between equipment from a variety of manufacturers. It is a way for specifying functions
of the physical layer, the data link layer and to some extent the network layer to allow for
interconnectivity of major LAN protocols.
It consists of the following:
• 802.1 is an internetworking standard for compatibility of different LANs and
MANs across protocols.
• 802.2 Logical link control (LLC) is the upper sublayer of the data link layer
which is non-architecture-specific, that is remains the same for all IEEE-defined
LANs.
• Media access control (MAC) is the lower sublayer of the data link layer that
contains some distinct modules each carrying proprietary information specific to
the LAN product being used. The modules are Ethernet LAN (802.3), Token ring
LAN (802.4), Token bus LAN (802.5).
• 802.6 is distributed queue dual bus (DQDB) designed to be used in MANs.
Q53. What is Bandwidth?
Ans. Every line has an upper limit and a lower limit on the frequency of signals it can
carry. This limited range is called the bandwidth.
Q54. Difference between bit rate and baud rate.
Ans. Bit rate is the number of bits transmitted during one second whereas baud rate refers
to the number of signal units per second that are required to represent those bits.
baud rate = bit rate / N where N is no-of-bits represented by each signal shift.

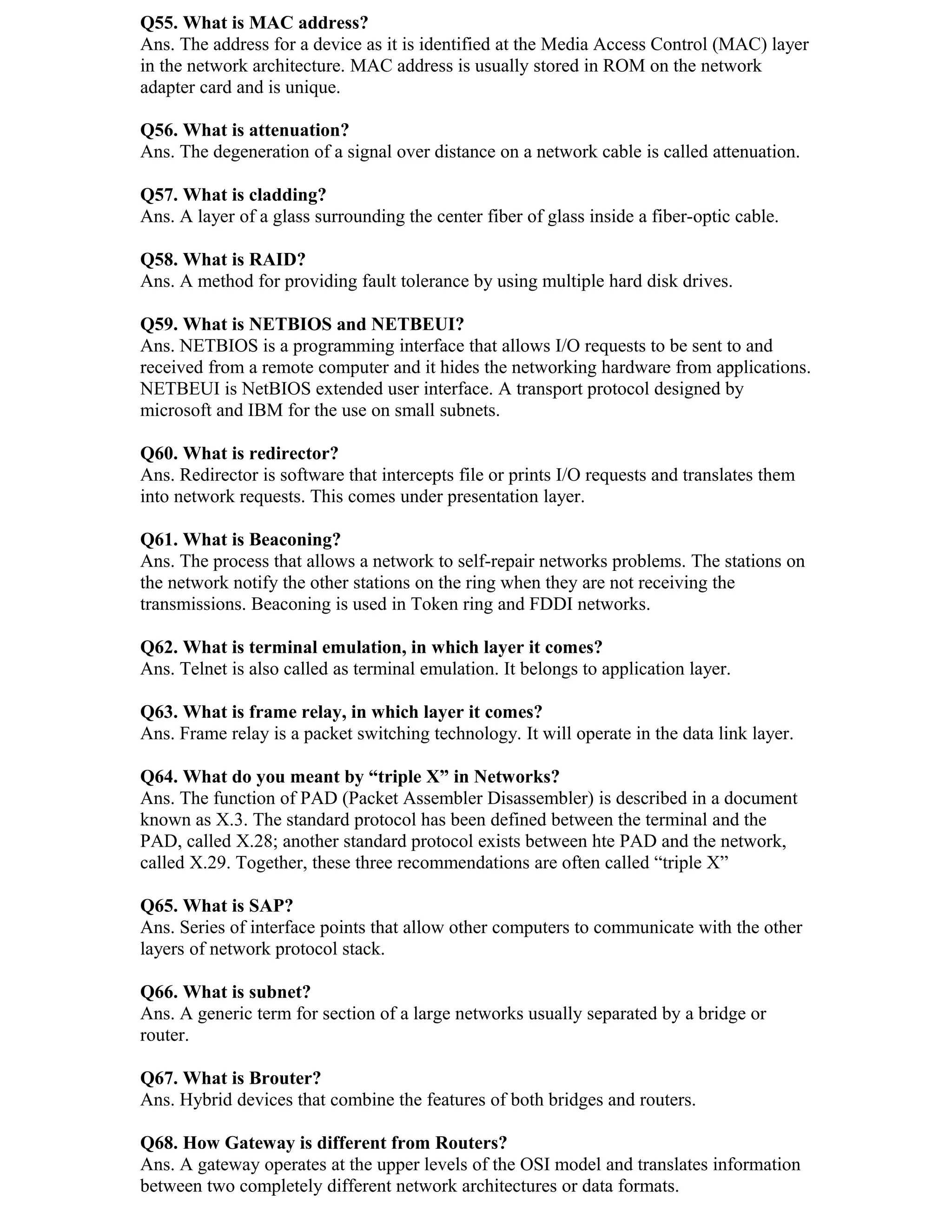

6. Q55. What is MAC address?
Ans. The address for a device as it is identified at the Media Access Control (MAC) layer
in the network architecture. MAC address is usually stored in ROM on the network
adapter card and is unique.
Q56. What is attenuation?
Ans. The degeneration of a signal over distance on a network cable is called attenuation.
Q57. What is cladding?
Ans. A layer of a glass surrounding the center fiber of glass inside a fiber-optic cable.
Q58. What is RAID?
Ans. A method for providing fault tolerance by using multiple hard disk drives.
Q59. What is NETBIOS and NETBEUI?
Ans. NETBIOS is a programming interface that allows I/O requests to be sent to and
received from a remote computer and it hides the networking hardware from applications.
NETBEUI is NetBIOS extended user interface. A transport protocol designed by
microsoft and IBM for the use on small subnets.
Q60. What is redirector?
Ans. Redirector is software that intercepts file or prints I/O requests and translates them
into network requests. This comes under presentation layer.
Q61. What is Beaconing?
Ans. The process that allows a network to self-repair networks problems. The stations on
the network notify the other stations on the ring when they are not receiving the
transmissions. Beaconing is used in Token ring and FDDI networks.
Q62. What is terminal emulation, in which layer it comes?
Ans. Telnet is also called as terminal emulation. It belongs to application layer.
Q63. What is frame relay, in which layer it comes?
Ans. Frame relay is a packet switching technology. It will operate in the data link layer.
Q64. What do you meant by “triple X” in Networks?
Ans. The function of PAD (Packet Assembler Disassembler) is described in a document
known as X.3. The standard protocol has been defined between the terminal and the
PAD, called X.28; another standard protocol exists between hte PAD and the network,
called X.29. Together, these three recommendations are often called “triple X”
Q65. What is SAP?
Ans. Series of interface points that allow other computers to communicate with the other
layers of network protocol stack.
Q66. What is subnet?
Ans. A generic term for section of a large networks usually separated by a bridge or
router.
Q67. What is Brouter?
Ans. Hybrid devices that combine the features of both bridges and routers.
Q68. How Gateway is different from Routers?
Ans. A gateway operates at the upper levels of the OSI model and translates information
between two completely different network architectures or data formats.

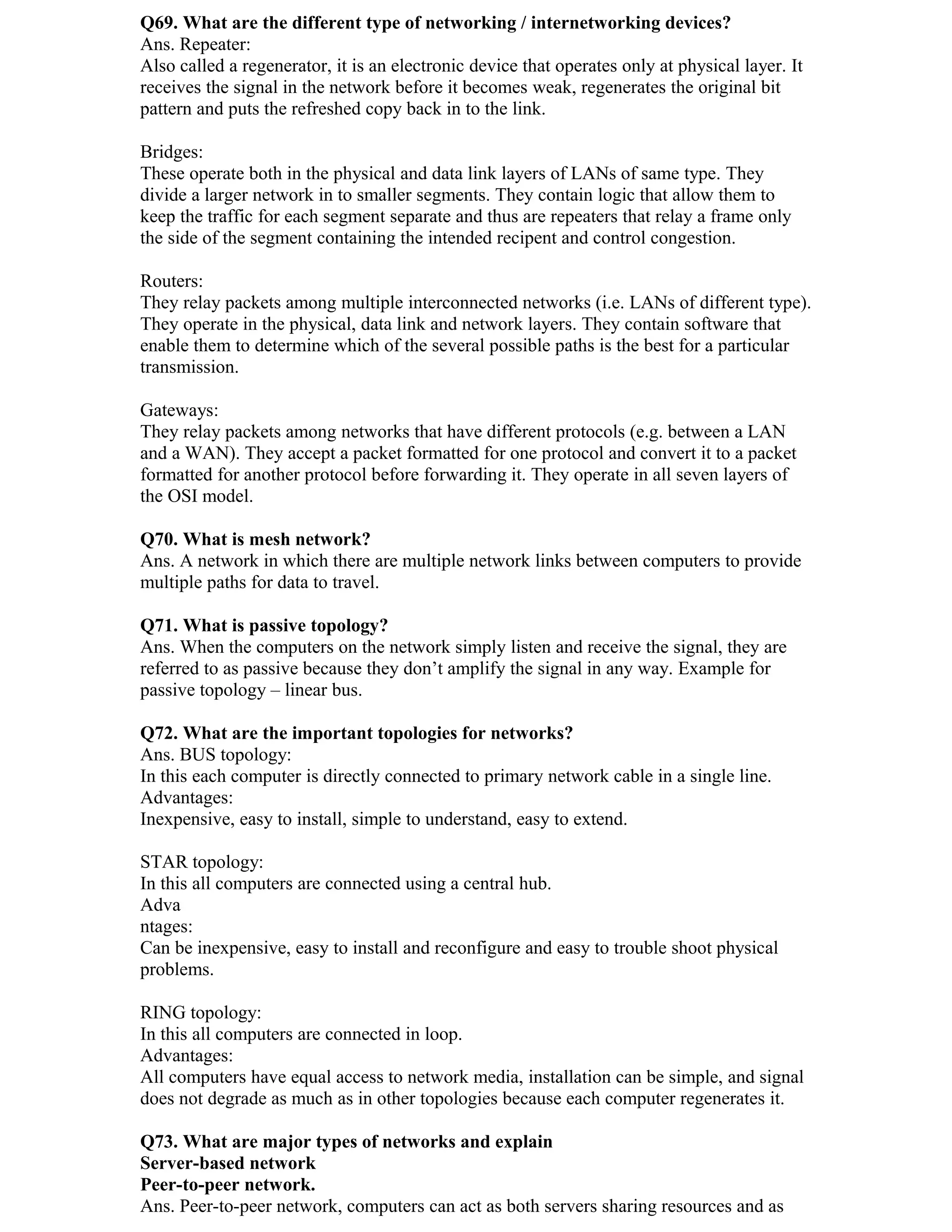

7. Q69. What are the different type of networking / internetworking devices?
Ans. Repeater:
Also called a regenerator, it is an electronic device that operates only at physical layer. It
receives the signal in the network before it becomes weak, regenerates the original bit
pattern and puts the refreshed copy back in to the link.
Bridges:
These operate both in the physical and data link layers of LANs of same type. They
divide a larger network in to smaller segments. They contain logic that allow them to
keep the traffic for each segment separate and thus are repeaters that relay a frame only
the side of the segment containing the intended recipent and control congestion.
Routers:
They relay packets among multiple interconnected networks (i.e. LANs of different type).
They operate in the physical, data link and network layers. They contain software that
enable them to determine which of the several possible paths is the best for a particular
transmission.
Gateways:
They relay packets among networks that have different protocols (e.g. between a LAN
and a WAN). They accept a packet formatted for one protocol and convert it to a packet
formatted for another protocol before forwarding it. They operate in all seven layers of
the OSI model.
Q70. What is mesh network?
Ans. A network in which there are multiple network links between computers to provide
multiple paths for data to travel.
Q71. What is passive topology?
Ans. When the computers on the network simply listen and receive the signal, they are
referred to as passive because they don’t amplify the signal in any way. Example for
passive topology – linear bus.
Q72. What are the important topologies for networks?
Ans. BUS topology:
In this each computer is directly connected to primary network cable in a single line.
Advantages:
Inexpensive, easy to install, simple to understand, easy to extend.
STAR topology:
In this all computers are connected using a central hub.
Adva
ntages:
Can be inexpensive, easy to install and reconfigure and easy to trouble shoot physical
problems.
RING topology:
In this all computers are connected in loop.
Advantages:
All computers have equal access to network media, installation can be simple, and signal
does not degrade as much as in other topologies because each computer regenerates it.
Q73. What are major types of networks and explain
Server-based network
Peer-to-peer network.
Ans. Peer-to-peer network, computers can act as both servers sharing resources and as

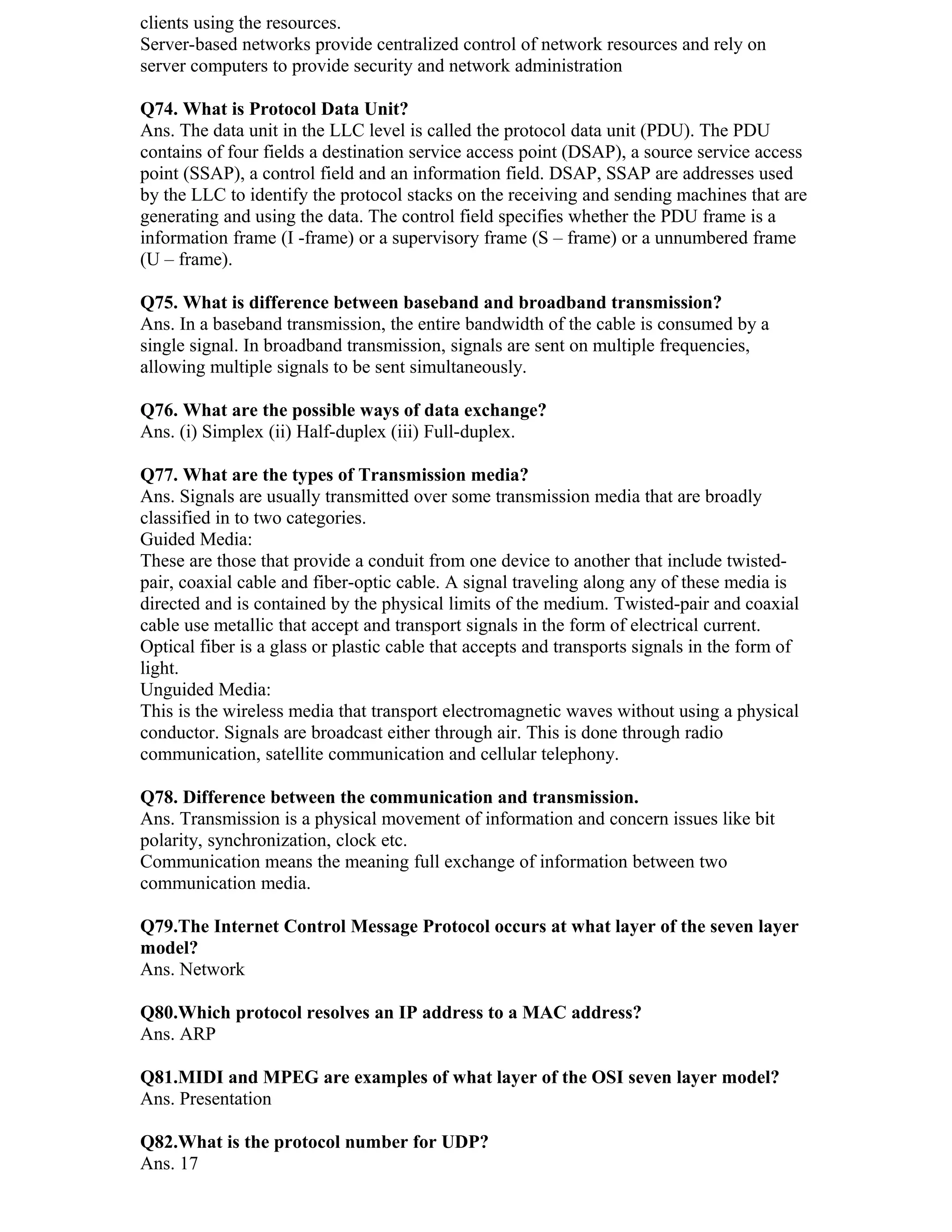

8. clients using the resources.
Server-based networks provide centralized control of network resources and rely on
server computers to provide security and network administration
Q74. What is Protocol Data Unit?
Ans. The data unit in the LLC level is called the protocol data unit (PDU). The PDU
contains of four fields a destination service access point (DSAP), a source service access
point (SSAP), a control field and an information field. DSAP, SSAP are addresses used
by the LLC to identify the protocol stacks on the receiving and sending machines that are
generating and using the data. The control field specifies whether the PDU frame is a
information frame (I -frame) or a supervisory frame (S – frame) or a unnumbered frame
(U – frame).
Q75. What is difference between baseband and broadband transmission?
Ans. In a baseband transmission, the entire bandwidth of the cable is consumed by a
single signal. In broadband transmission, signals are sent on multiple frequencies,
allowing multiple signals to be sent simultaneously.
Q76. What are the possible ways of data exchange?
Ans. (i) Simplex (ii) Half-duplex (iii) Full-duplex.
Q77. What are the types of Transmission media?
Ans. Signals are usually transmitted over some transmission media that are broadly
classified in to two categories.
Guided Media:
These are those that provide a conduit from one device to another that include twisted-
pair, coaxial cable and fiber-optic cable. A signal traveling along any of these media is
directed and is contained by the physical limits of the medium. Twisted-pair and coaxial
cable use metallic that accept and transport signals in the form of electrical current.
Optical fiber is a glass or plastic cable that accepts and transports signals in the form of
light.
Unguided Media:
This is the wireless media that transport electromagnetic waves without using a physical
conductor. Signals are broadcast either through air. This is done through radio
communication, satellite communication and cellular telephony.
Q78. Difference between the communication and transmission.
Ans. Transmission is a physical movement of information and concern issues like bit
polarity, synchronization, clock etc.
Communication means the meaning full exchange of information between two
communication media.
Q79.The Internet Control Message Protocol occurs at what layer of the seven layer
model?
Ans. Network
Q80.Which protocol resolves an IP address to a MAC address?
Ans. ARP
Q81.MIDI and MPEG are examples of what layer of the OSI seven layer model?
Ans. Presentation
Q82.What is the protocol number for UDP?
Ans. 17

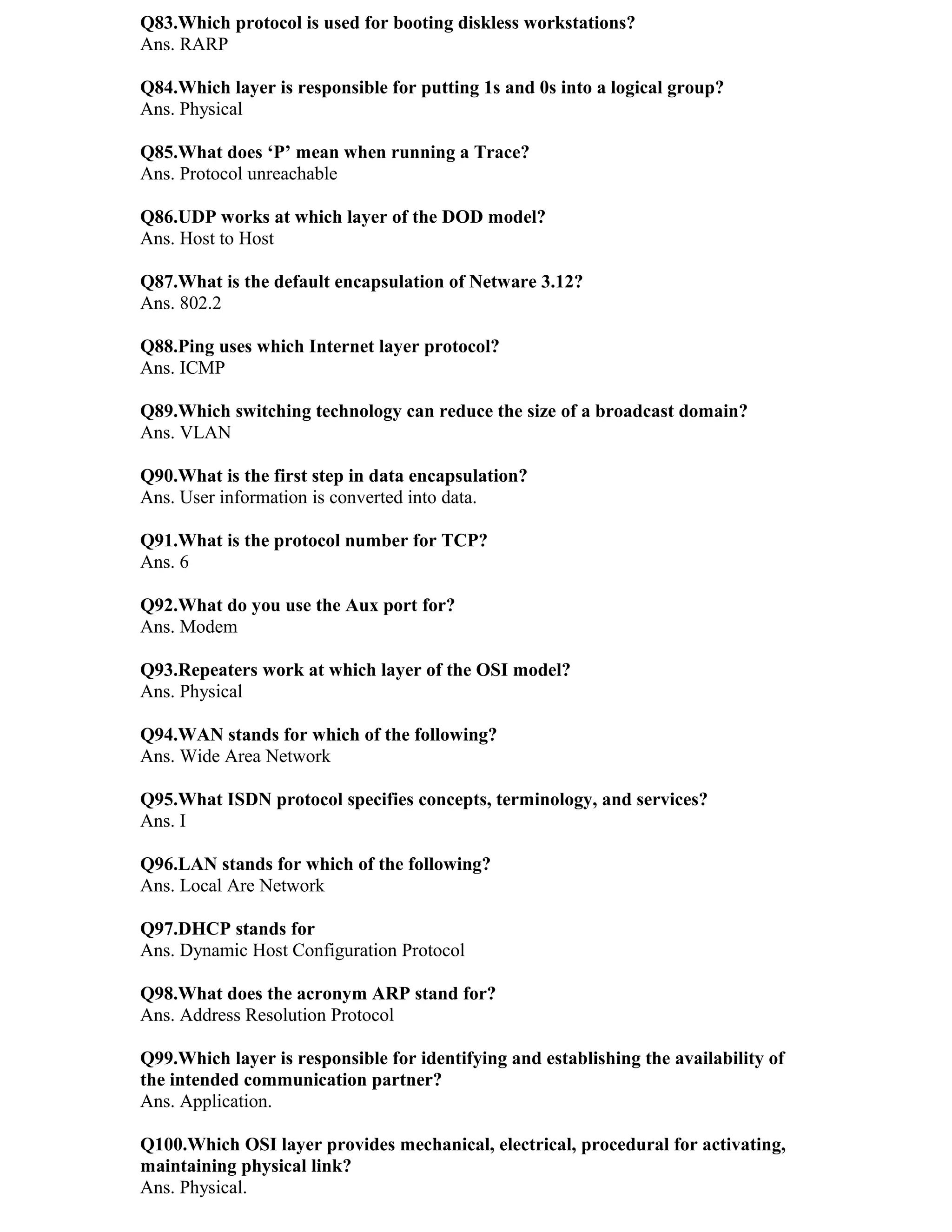

9. Q83.Which protocol is used for booting diskless workstations?
Ans. RARP
Q84.Which layer is responsible for putting 1s and 0s into a logical group?
Ans. Physical
Q85.What does ‘P’ mean when running a Trace?
Ans. Protocol unreachable
Q86.UDP works at which layer of the DOD model?
Ans. Host to Host
Q87.What is the default encapsulation of Netware 3.12?
Ans. 802.2
Q88.Ping uses which Internet layer protocol?
Ans. ICMP
Q89.Which switching technology can reduce the size of a broadcast domain?
Ans. VLAN
Q90.What is the first step in data encapsulation?
Ans. User information is converted into data.
Q91.What is the protocol number for TCP?
Ans. 6
Q92.What do you use the Aux port for?
Ans. Modem
Q93.Repeaters work at which layer of the OSI model?
Ans. Physical
Q94.WAN stands for which of the following?
Ans. Wide Area Network
Q95.What ISDN protocol specifies concepts, terminology, and services?
Ans. I
Q96.LAN stands for which of the following?
Ans. Local Are Network
Q97.DHCP stands for
Ans. Dynamic Host Configuration Protocol
Q98.What does the acronym ARP stand for?
Ans. Address Resolution Protocol
Q99.Which layer is responsible for identifying and establishing the availability of
the intended communication partner?
Ans. Application.
Q100.Which OSI layer provides mechanical, electrical, procedural for activating,
maintaining physical link?
Ans. Physical.
