Quantitative Forecasting Techniques in SCM
- 1. PART B: Quantitative Forecasting Techniques Ruggero Golini golini@mip.polimi.it

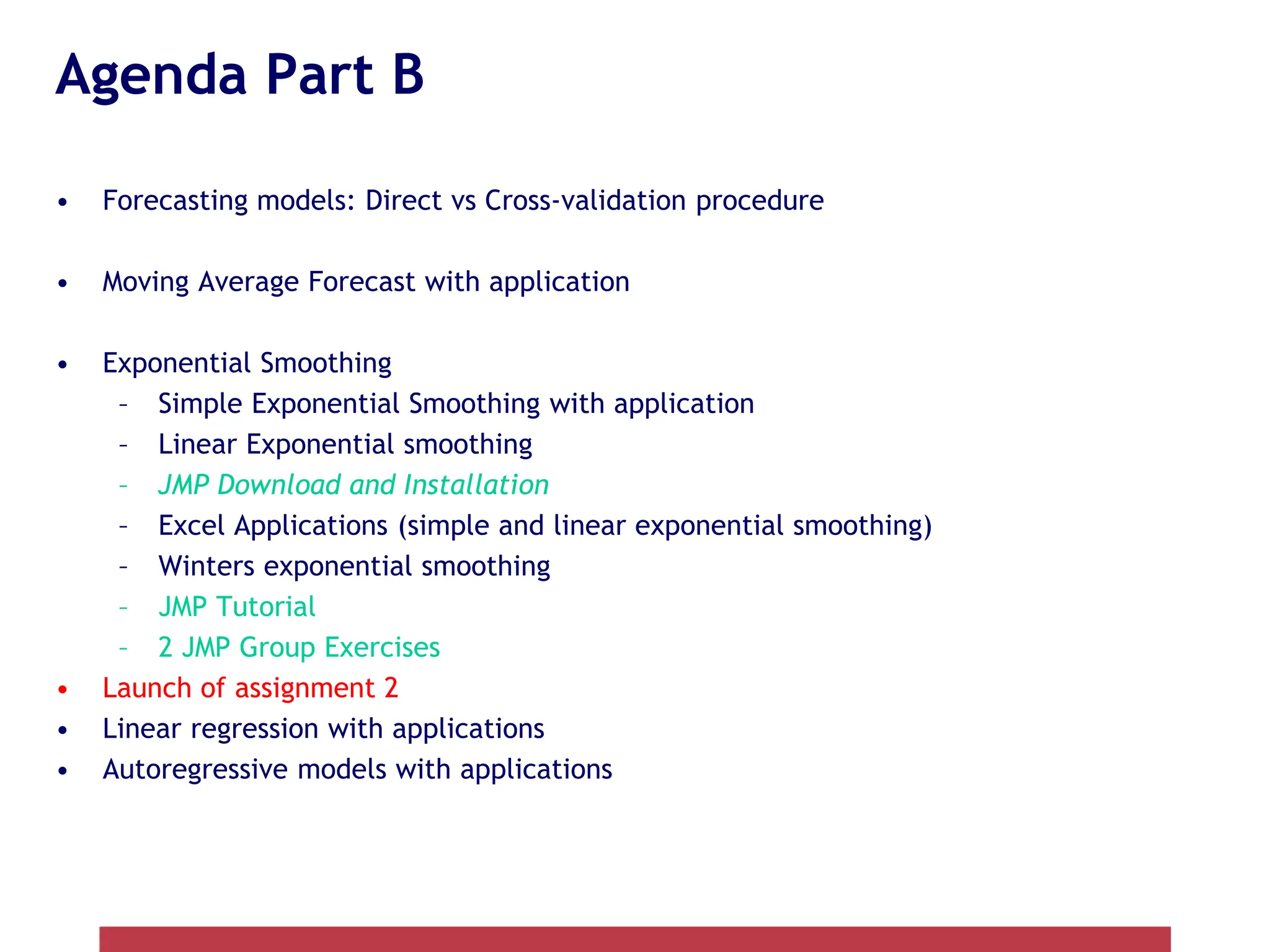

- 2. Agenda Part B • Forecasting models: Direct vs Cross-validation procedure • Moving Average Forecast with application • Exponential Smoothing – Simple Exponential Smoothing with application – Linear Exponential smoothing – JMP Download and Installation – Excel Applications (simple and linear exponential smoothing) – Winters exponential smoothing – JMP Tutorial – 2 JMP Group Exercises • Launch of assignment 2 • Linear regression with applications • Autoregressive models with applications
- 3. Teaching methodology • Using MS Excel is not part of the program • Exercises and applications are usually solved by the teacher, make sure you can follow • Individual exercises are provided (Individual exercises.xlsx) to test your understanding after the class • It is required a basic understanding on how to use MS Excel with the following features: – Basic operations (copy, paste, formatting,…) – Basic formulas (sum, dragging formulas,...) – Matrix formulas • There is a nice tutorial provided by Microsoft on how to use MS Excel, please take a look if you need it!
- 4. Forecasting models • Forecast = f (D, a, b, c,…) – f: function, depends on the type of model – D: previous demand data – a, b, c: parameters used to adapt the model • Building a forecasting model means to: – Identify a model (f) – Select the data to be used (D) – Find the best value of the parameter (a, b, c,...) How do we select a model? How do we evaluate it?
- 5. Direct vs cross-validation procedure • Two procedures to make forecasts applicable to every forecasting model/method 1. The direct procedure is simpler and faster 2. The cross-validation procedure is more complex but allows a better evaluation of the model
- 6. Direct procedure (step 1) Data Set • Build a model based on the data available (Data Set) • Change the parameters until you do not find a good fit (MAD, BIAS, RMSEA, etc.) Time now Model
- 7. Direct procedure (step 1) • Quantitative models can have many parameters to “play” with • DO NOT OVER FIT: your target is to create a model able to interpret reality and produce good forecasts. A model that perfectly fits history is usually not good at forecasting. Data Set Time now Model Forecast Data Set Time now Model Forecast Over fitting
- 8. An example of overfitting Image source: pingax.com
- 9. Direct procedure (step 2) Data Set • Produce the forecast based on the parameters identified Time now Forecast Model
- 10. Forecasting using the moving average • It is possible to make forecasts using the right-centered moving average • The forecast is based on the average of the last k periods k i i t Y k F 1 1 1 Period Demand MM(3) MM(5) MM(6) 1 105 2 125 3 100 4 105 5 104 6 117 7 104 8 127 9 103 10 101 11 109 12 121 13 129
- 11. Forecasting using the moving average: model Period Demand MM(3) MM(5) MM(6) 1 105 2 125 3 100 4 105 110.0 5 104 110.0 6 117 103.0 107.8 7 104 108.7 110.2 109.3 8 127 108.3 106.0 109.2 9 103 116.0 111.4 109.5 10 101 111.3 111.0 110.0 11 109 110.3 110.4 109.3 12 121 104.3 108.8 110.2 13 129 110.3 112.2 110.8
- 12. Forecasting using the moving average: forecast Period Demand MM(3) MM(5) MM(6) 1 105 2 125 3 100 4 105 110.0 5 104 110.0 6 117 103.0 107.8 7 104 108.7 110.2 109.3 8 127 108.3 106.0 109.2 9 103 116.0 111.4 109.5 10 101 111.3 111.0 110.0 11 109 110.3 110.4 109.3 12 121 104.3 108.8 110.2 13 129 110.3 112.2 110.8 14 119.7 112.6 115.0
- 13. Forecasting using the moving average: forecast • Forecast for the periods after the first one is equal to the initial forecast Period Demand MM(3) MM(5) MM(6) 1 105 2 125 3 100 4 105 110.0 5 104 110.0 6 117 103.0 107.8 7 104 108.7 110.2 109.3 8 127 108.3 106.0 109.2 9 103 116.0 111.4 109.5 10 101 111.3 111.0 110.0 11 109 110.3 110.4 109.3 12 121 104.3 108.8 110.2 13 129 110.3 112.2 110.8 14 119.7 112.6 115.0 15 119.7 112.6 115.0 16 119.7 112.6 115.0
- 14. Forecasting using the moving average • How to select the parameter k? • Same consideration you made for the centered moving average: – Low values (you look only to recent values): more reactive, less smoothing – High values (you look to older values): more smoothing, less reactive • If there is seasonality: k = frequency, but if there is no seasonality, you have to define the “best” value of k testing it on your time series • Let’s try…
- 15. Exercise B01 Part 1 • Download the file excel: “01B_MovingAverage.xlsx” • Open the tab: “Direct Procedure” • Which one of the proposed models (MM4, MM8, MM12) does fit best?
- 16. Direct procedure (step 3) Data Set • Once you have the actual data, you can measure the actual errors of your model • If necessary you can adjust the parameters for future forecasts Forecast Time now Actual data
- 17. Direct procedure (step 4) Data Set Re-run the procedure with new data to get a new forecast Forecast Time now
- 18. Direct Procedure: Limitations • The limitation of the direct procedure is that it does not test the validity of the model developed until we get actual data • The cross-validation procedure allows to make this testing through a slightly more complex process
- 19. Cross-validation procedure Data set Let’s start from the available data at timenow: the data set Time now
- 20. Cross-validation procedure (step 1) Training Set Test Set Divide the sample in two: •Training set: to build the model •Test set: to test the model Rule of thumb: test set should be a period (step e.g. one year) and usually no more than one third of the entire dataset. Time now
- 21. Cross-validation procedure (step 2) Training Set • Build your model on the training set. • Change the parameters until you do not find a good fit (MAD, BIAS, RMSEA, etc.) • Remember to not over fit on the training set (as in the direct procedure) Time now Model
- 22. Cross-validation procedure (step 3) • Make a forecast and test it on the test set • Check MAD, BIAS, RMSEA, etc. • Now you have two sets of errors Training Set Time now Model Forecast 1. Errors on the training set Use them to tune the model 2. Errors on the test set Use them to validate the model Test Set
- 23. Cross-validation procedure (step 3) • If you are not satisfied, change the parameters looking at the training set • Do not change parameters to fit the TEST SET, otherwise you will get a test set over fitting Training Set Time now Model Training Set Time now Model Forecast Test set over fitting Forecast
- 24. Cross-validation procedure (step 4) Data Set Go back to the data set and run the model with all the available data keeping the parameters you have identified before. From here on the procedure is identical to the direct procedure. Time now Forecast
- 25. Cross-validation procedure (step 5) Data Set Once you have the actual data, you can measure the real errors of your model. If necessary you can adjust the parameters. Forecast Time now Actual data
- 26. Cross-validation procedure (step 6) Data Set Re-run the procedure to get a new forecast Forecast Time now
- 27. Exercise 01B Part 2 • Open the file “01B MovingAverage.xlsx” • Open tab “Cross Validation” • Compare the MAD and BIAS between the training and the test set and check whether MM8 provides a reliable forecast • Make the final forecast
- 29. Conclusions Forecast Test Set Training Set Final forecast Dataset Run Model Tune Model Cross-validation Procedure Same Parameters
- 30. Exponential smoothing • Limitations: – The moving-average gives the same weight to all the observations (1/k) – The number of observations considered by the weighted moving average is constant and finite • What we would like to have: – Higher weights for newer observations higher reactivity to new trends – At the same time, be able to consider the history entire (less recent observations) if it can provide useful information • Exponential smoothing overcomes the issues of: – It is a weighted moving average where weights decrease exponentially – All the observations are considered but newer observations have higher weights
- 31. Simple exponential smoothing • The basic idea: – Higher weights to more recent observations – Exponentially decreasing weight for the other observations Weight given to the most recent observation a
- 32. Simple exponential smoothing • Building the model is very simple: just decide the weight form 0 to 1 for the weight of the most recent observation and the model computes all the other weights automatically 0 0,2 0,4 0,6 0,8 1 t-1 t-2 t-3 t-4 t-5 t-6 0 0,2 0,4 0,6 0,8 1 t-1 t-2 t-3 t-4 t-5 t-6 0 0,2 0,4 0,6 0,8 1 t-1 t-2 t-3 t-4 t-5 t-6 a 0.2 a 0.5 a 0.8 The higher a the higher the importance of the last observation compared to the others the model has little memory for data in the past
- 33. Simple exponential smoothing t t t F Y F ) 1 ( 1 a a • The implementation of the model is very simple and based on a recursive formula • The forecast is based on the last demand data weighted by alpha e the forecast made for the previous period weighted by (1-alpha) • Remember: alpha is a weight bounded within a 0 to 1 range – Close to “1”: means to give importance only to the last demand data (model very reactive on current demand) – Close to “0”: means to give importance only to the previous demand data (model little reactive, very history-based) Last demand data Previous Forecast = Previous demand data = history
- 34. Simple exponential smoothing • Before producing the final forecast, forecasts for all the previous periods have to be generated recursively using the same formula • There is always a first forecast to calculate without a previous forecast • Usually the first forecast is set equal to the first observation (naive method) – F1 = Y1 – After some periods, the first observation will lose its significance
- 35. Example • We have a time series • For simplicity sake, we use the direct procedure Period Demand 1 105 2 125 3 100 4 105 5 104 6 117 7 104 8 127 9 103 10 101 11 109 12 121 13 129 14 15 16
- 36. Example 1. Define alpha = 0.5 Period Demand Simple Exp. Smoothing 1 105 2 125 3 100 4 105 5 104 6 117 7 104 8 127 9 103 10 101 11 109 12 121 13 129 14 15 16
- 37. Example 2. Initialize the model Period Demand Simple Exp. Smoothing 1 105 105 2 125 3 100 4 105 5 104 6 117 7 104 8 127 9 103 10 101 11 109 12 121 13 129 14 15 16
- 38. Example 3. Calculate the model for the second period t t t F Y F ) 1 ( 1 a a = 0.5 * 105 + (1-0.5)*105 = 105 Period Demand Simple Exp. Smoothing 1 105 105 2 125 105.00 3 100 4 105 5 104 6 117 7 104 8 127 9 103 10 101 11 109 12 121 13 129 14 15 16
- 39. Example 4. Drag down the formula to calculate the other values Period Demand Simple Exp. Smoothing 1 105 105 2 125 105.00 3 100 115.00 4 105 107.50 5 104 106.25 6 117 105.13 7 104 111.06 8 127 107.53 9 103 117.27 10 101 110.13 11 109 105.57 12 121 107.28 13 129 114.14 14 15 16
- 40. Example 5. Check the fit and errors Period Demand Simple Exp. Smoothing 1 105 105 2 125 105.00 3 100 115.00 4 105 107.50 5 104 106.25 6 117 105.13 7 104 111.06 8 127 107.53 9 103 117.27 10 101 110.13 11 109 105.57 12 121 107.28 13 129 114.14 14 15 16
- 41. Example 6. Change alpha if needed (but do not overfit). Always use both visual analysis of the data and error calculation Alpha = 0.2 Alpha = 0.9 Which one looks better?
- 42. Example Alpha = 0.2 Alpha = 0.9 MAD = 9.82 MAD = 12.37 6. Change alpha if needed (but do not overfit). Always use both visual analysis of the data and error calculation
- 43. Example 7. We select alpha = 0.2 and to make the forecast just drag down the formula one more time Period Demand Simple Exp. Smoothing 1 105 105 2 125 105.00 3 100 109.00 4 105 107.20 5 104 106.76 6 117 106.21 7 104 108.37 8 127 107.49 9 103 111.39 10 101 109.72 11 109 107.97 12 121 108.18 13 129 110.74 14 114.39 15 16
- 44. Use of the model • The simple exponential smoothing is used to forecast only one period ahead (if you need more periods you can use the same value) Period Demand Simple Exp. Smoothing 1 105 105 2 125 105.00 3 100 109.00 4 105 107.20 5 104 106.76 6 117 106.21 7 104 108.37 8 127 107.49 9 103 111.39 10 101 109.72 11 109 107.97 12 121 108.18 13 129 110.74 14 114.39 15 114.39 16 114.39
- 45. Use of the model • Stationary demand • Purpose: identify the level (that is, local mean) • Use of alpha: – If high variability lower alpha (0.1-0.3) – If there are “jumps” in the series higher alpha (0.6-0.8) The simple exponential smoothing is not able to recognize trends and seasonality Low alpha High alpha
- 46. Reference table of weights given to previous demand data (previous demand = 100%) Lag/Alpha 0.90 0.80 0.70 0.60 0.50 0.40 0.30 0.20 0.10 0.05 Long term 24 0% 0% 0% 0% 0% 0% 0% 1% 9% 31% 23 0% 0% 0% 0% 0% 0% 0% 1% 10% 32% 22 0% 0% 0% 0% 0% 0% 0% 1% 11% 34% 21 0% 0% 0% 0% 0% 0% 0% 1% 12% 36% 20 0% 0% 0% 0% 0% 0% 0% 1% 14% 38% 19 0% 0% 0% 0% 0% 0% 0% 2% 15% 40% 18 0% 0% 0% 0% 0% 0% 0% 2% 17% 42% 17 0% 0% 0% 0% 0% 0% 0% 3% 19% 44% 16 0% 0% 0% 0% 0% 0% 0% 4% 21% 46% 15 0% 0% 0% 0% 0% 0% 1% 4% 23% 49% 14 0% 0% 0% 0% 0% 0% 1% 5% 25% 51% 13 0% 0% 0% 0% 0% 0% 1% 7% 28% 54% Medium Term 12 0% 0% 0% 0% 0% 0% 2% 9% 31% 57% 11 0% 0% 0% 0% 0% 1% 3% 11% 35% 60% 10 0% 0% 0% 0% 0% 1% 4% 13% 39% 63% 9 0% 0% 0% 0% 0% 2% 6% 17% 43% 66% 8 0% 0% 0% 0% 1% 3% 8% 21% 48% 70% 7 0% 0% 0% 0% 2% 5% 12% 26% 53% 74% 6 0% 0% 0% 1% 3% 8% 17% 33% 59% 77% Short Term 5 0% 0% 1% 3% 6% 13% 24% 41% 66% 81% 4 0% 1% 3% 6% 13% 22% 34% 51% 73% 86% 3 1% 4% 9% 16% 25% 36% 49% 64% 81% 90% 2 10% 20% 30% 40% 50% 60% 70% 80% 90% 95% 1 100% 100% 100% 100% 100% 100% 100% 100% 100% 100%
- 47. Exercise B02 • Forecast the demand for a double-knit fabric for the next 12 months • Use MS Excel • Use a simple exponential smoothing model • Use: 1. Direct procedure (first Excel sheet) 2. Cross validation procedure (test set = 12 months) (second Excel sheet)
- 48. Simple Exponential Smoothing Game • Divide in groups of 3: 1 computer per group • Open the file “Exp Smoothing Game Class.xlsx” • For each period and for each of the 3 products: 1. Write the actual demand provided by the teacher 2. Check the error and the charts (Deck sheet) 3. Select the most appropriate value of alpha 4. Make your forecast for the next period (using direct procedure) • Two rules – You can not change past decisions – You can vary the value of alpha of maximum +/- 0.1 (otherwise becomes red)
- 49. Adaptive Exponential Smoothig • Used to dynamically change the value of alpha • If MAD is increasing reduce alpha • If BIAS is increasing increase alpha MAD increasing (variability) Decrease alpha BIAS increasing (trend or jumps) Increase Alpha
- 50. Adaptive exponential smoothing • Improvement of the simple exponential smoothing • The model becomes more or less reactive according to the evolution of the demand • The alpha parameter is dynamically changed according to the error • A beta parameter sets how fast the alpha parameter will vary • Initialization: – β = 0.2 – F2 = Y1 – A1 = M1 = 0 • Robust algorithm, useful in automated systems • Alpha is variable, but beta is fixed and it can affect the performance of the overall model t t t t t t t t t t t t t t t Y F E M E M A E A M A F Y F 1 1 1 1 1 1 a a a 50
- 52. Linear exponential smoothing (Holt) • Evolution of the simple exponential smoothing to consider the trend (Holt, 1957) – Lt is the level of the series – bt is the slope of the series – Alpha: sets the reactiveness of the level (as in the simple smoothing) – Beta: sets the reactivennes of the underlying trend m b L F b L L b b L Y L t t m t t t t t t t t t 1 1 1 1 1 1 a a
- 53. Linear exponential smoothing (Holt) • The model can adapt to changes in the trend according to beta: higher beta higher reactivity to the recent trend • The factor m is used to project the trend – It is always 1 until there are demand data than it increases by 1 (2, 3, 4,…) for the forecasting periods • Limitations: the trend is hypothesized to be linear
- 54. Building the model • Initial level value – L1 = Y1 (level equal to the demand) • Initial trend value (different approaches) – b1 = Y2-Y1 (ok if values are not too much different) – b1 = (Y4 – Y1)/3 (data every four months) – b1 = (Y13 – Y1)/12 (data per month) • Alpha and beta have to be set through the visual analysis of the series and iteration (remember to not overfit) to get the optimal model
- 55. Building the model • The procedure is similar to the one followed for the simple exponential smoothing (see example next slide)
- 56. Example (alpa = beta = 0.1) Yt Ft Lt bt m 105 - 105.00 2.00 - 107 107.00 107.00 2.00 1 110 109.00 109.10 2.01 1 111 111.11 111.10 2.01 1 112 113.11 113.00 2.00 1 114 114.99 114.90 1.99 1 113 116.88 116.49 1.95 1 114 118.44 118.00 1.90 1 116 119.90 119.51 1.87 1 118 121.38 121.04 1.83 1 121 122.87 122.69 1.81 1 124 124.50 124.45 1.81 1 126.26 1 128.07 2 129.87 3 Forecast = 124.45 + 1.81 * 1 = 124.45 + 1.81 * 2 = 124.45 + 1.81 * 3 1. Initialization 5. Calculate the forecast using the last data available for L and b 3. Drag down 2. Create the first row using formulas (in order: L, b, F) 4. Check errors and set alpha and beta m b L F b L L b b L Y L t t m t t t t t t t t t 1 1 1 1 1 1 a a
- 57. Example (alpa = beta = 0.1)
- 58. Use of the model • Use it for series with no seasonality • The use of alpha is the same as in the simple exponential smoothing (variability vs jumps) • Use of beta: – If long term trend: low beta (0.1-0.3) – If short term trend: high beta (0.6-0.8) be careful that with high beta the model could mistake random oscillations for trends! Low beta High beta
- 59. Exercise B03 • Provide a forecast for the following 12 months for the flight traffic • Use MS Excel • Use a linear exponential smoothing 1. Direct procedure (first Excel sheet) 2. Cross validation procedure (test set = 12 months) (second Excel sheet) Group exercise
- 60. Download and install SAS JMP 10 • http://www.jmp.com/landing/jmp_trial.shtml?ref=hp_visual • Register to the website and download the 30 days trial
- 61. Winters exponential smoothing • Evolution of the Holt model (Winters 1960) that considers also seasonality – Lt is the level of the series – bt is the slope of the series – St is the seasonality of the series – Alpha: sets the reactivity of the level (as in the simple smoothing) – Beta: sets the reactivity of the underlying trend (as in the linear exponential smoothing) – Gamma: sets reactivity of the seasonality m s t t t m t s t t t t t t t t t t s t t t S m b L F S L Y S b L L b b L S Y L a a 1 1 1 1 1 1 1
- 62. Characteristics of the model • “s” is the seasonality period and it is hypothesized to be known and constant (e.g. 12 months) • Limited time horizon (trend and seasonality are supposed to be constant in the future) • Trend is hypothesized linear but the model can follow changes in the trend (as in the linear exponential smoothing) • Seasonality is multiplicative – One coefficient for each period – The coefficient can change over time
- 63. Building the model • Initialization: three initial values (L1, b1, S1) • Two full seasons are needed to calculate coefficients • The optimal model has to be found changing alpha, beta and gamma s s s s s s s s s s s s s L Y S L Y S L Y S s Y Y s Y Y s Y Y s b Y Y Y s L ;...; ; ... 1 ... 1 2 2 1 1 2 2 1 1 2 1
- 64. Use of the model • The use of alpha is the same as in the simple exponential smoohting (variability vs jumps) • Use of beta is the same as in the linear exponential smoohting (long term trend vs short term trend) • Use of gamma – If constant long term seasonality: low gamma (0.1-0.3) – If varying seasonality from year to year: high gamma (0.6-0.8) Low gamma High gamma
- 65. In conclusion Data characteristics Simple Linear Winters Stationary (no seasonality) V Trend V Trend + Seasonality V Do not use a more complicated model if it is not the case, otherwise you will be likely to over fit Do not use a simple model if it is not the case, otherwise you will have a poor fit
- 66. An example Quarterly data Which model would you use? How would you set the parameters?
- 67. An example Quarterly data Alpha: low to high Beta: low Gamma: medium to high
- 68. Quantitative forecasting techniques Ruggero Golini ruggero.golini@polimi.it Applications
- 69. SAS JMP • Repeat Exercise B02 using SAS JMP • Using the direct procedure, perform simple, linear and Winters exponential smoothing and make a forecast for the next year • Finally, use the cross-validation procedure for the Winters model Guided exercise
- 70. Exercise B04 • Monthly Australian sales of red wine: thousands of liters Jan 1980 - Jul 1995 • Forecast: 12 months • Make the best forecast you can! • Use SAS JMP Group exercise
- 71. Exercise B05 • World crude oil production • Make the best forecast you can! • Use SAS JMP Group exercise
- 72. Assignment 2 • File: Assignment 2.xls • 3 real time series – Number of research in Goolge of a keyword (normalized at 100) – Global production of an agriculture product – Retail sales of a specific good category in a specific country • Objective: produce the best forecasts you can for the required periods (see excel file > ‘Forecast’ sheet) • Your forecast will be compared to real data to find who got the best forecast in terms of MAD and BIAS
- 73. Assignment 2 • Try different models (moving average or one of the exponential smoothing) and decide which is best • Use the cross-validation technique to set the parameters and evaluate your forecast • Remember to avoid over-fit • You can use Excel or JMP • Send an email to golini@mip.polimi.it and to sciacovelli@mip.polimi.it assignment: – 3 slides (1 slide per series) for the presentation of your solution. For each series report the model that you used, the value of the parameters and the motivation – Excel file with main calculations and forecasts (fill the provided excel file > ‘Forecast’ sheet) – Report has to be submitted by email to golini@mip.polimi.it and to sciacovelli@mip.polimi.it by May 18th
- 75. Introduction • Time-based models (e.g. demand decomposition, moving average, exponential smoothing) are based on the following hypothesis: t Past demand Future demand explains What are the assumptions?
- 76. Assumptions of time-based models • There are past data might not be the case for new products • There are regular patterns (trend, seasonality) not always the case (e.g., stock prices) • The demand is quite disconnected form the environment might not be the case for many products subject to shocks (e.g., events, promotions,…) The Great Gatsby Google Search
- 77. Explanatory models • When the assumptions are not met, we can try to introduce external variables (drivers) to explain future demand (explanatory models) • Examples: Driver Predicted outcome Price Sales Early sales Total Sales Gross Domestic Product of a country Total demand Promotion Temporary increase of the sales … … Issue: we need information about the drivers!
- 78. Regression analysis • The regression analysis is a type of explanatory model • The idea is to determine coefficients (a1, a2, a3,..) associated to drivers (X1, X2, X2,…) able to explain the future demand (Y) • We will hypothesize linear relationships between the drivers and demand linear regression Drivers (X) Demand (Y) X1 X2 X3 Y a1 a3 a2
- 79. Simple vs Multiple Linear Regression Drivers (X) Demand (Y) X1 X2 X3 Y a1 a3 a2 Drivers (X) Demand (Y) X1 Y a1 Simple Linear Regression: 1 Driver Multiple Linear Regression: >1 Drivers
- 80. Example 80 Year CM of rain Umbrella sales 1990 58 59044 1991 58 62060 1992 80 85600 1993 70 65450 1994 83 77107 1995 91 90909 1996 69 66033 1997 63 65268 1998 63 64638 1999 56 55216 2000 86 85140 2001 86 83334 2002 92 84548 2003 58 52490 2004 91 85813 2005 78 78624 2006 93 83700 2007 61 55876 Drivers (X) Demand (Y) Cm of rain Umbrella sale a1 only 1 driver SIMPLE LINEAR REGRESSION
- 81. Example 81 Year CM of rain Umbrella sales 1990 58 59044 1991 58 62060 1992 80 85600 1993 70 65450 1994 83 77107 1995 91 90909 1996 69 66033 1997 63 65268 1998 63 64638 1999 56 55216 2000 86 85140 2001 86 83334 2002 92 84548 2003 58 52490 2004 91 85813 2005 78 78624 2006 93 83700 2007 61 55876 4000 14000 24000 34000 44000 54000 64000 74000 84000 94000 104000 50 60 70 80 90 100 Key tool: dispersion diagram
- 83. An example 83 Year CM of rain Umbrella sales 1990 58 59044 1991 58 62060 1992 80 85600 1993 70 65450 1994 83 77107 1995 91 90909 1996 69 66033 1997 63 65268 1998 63 64638 1999 56 55216 2000 86 85140 2001 86 83334 2002 92 84548 2003 58 52490 2004 91 85813 2005 78 78624 2006 93 83700 2007 61 55876 y = 883,89x + 6665,5 4000 14000 24000 34000 44000 54000 64000 74000 84000 94000 104000 50 60 70 80 90 100 Simple Linear Regression Y = a1 * X1 + b Interpretation: if the cm of rain were 0, we would sell 6665 umbrellas, for each cm of rain more we sell 883 umbrella more
- 84. Simple Linear Regression • A linear relationship between Y (dependent variable) and only one driver (independent variable) • The output is the equation of a straight line: Y = a1 * X1 + b – a1 is the coefficient associated to X1 for a unit increase of X1 the demand increases by a1 (example: for each cm of rain we sell 883 umbrella more) – b is the intercept with the Y axis the baseline demand in case X1 is 0 (example: even if it does not rain, we sell 6665 umbrellas) 84
- 85. Regression is the attempt to explain the variation in a dependent variable using the variation in independent variables. Regression is thus an explanation of causation. If the independent variable(s) sufficiently explain the variation in the dependent variable, the model can be used for prediction. Drivers (x) Dependent variable (y) Simple Linear Regression
- 86. Independent variable (x) Dependent variable The function will make a prediction for each observed data point. The observation is denoted by y and the prediction is denoted by ŷ The difference between y and ŷ is the prediction error Zero Prediction: ŷ Observation: y Simple Linear Regression ERROR
- 87. Independent variable (x) Dependent variable A least squares regression selects the line with the lowest total sum of squared prediction errors. This value is called the Sum of Squares of Error, or SSE. Simple Linear Regression
- 88. Simple linear regression 88 The coefficient a1 can also be negative Week Sales Price 1 10 € 1.30 2 6 € 2.00 3 5 € 1.70 4 12 € 1.50 5 10 € 1.60 6 15 € 1.20 7 5 € 1.60 8 12 € 1.40 9 17 € 1.00 10 20 € 1.10 Average 11.2 € 1.44 y = -14,539x + 32,136 0 5 10 15 20 25 € 0,00 € 0,50 € 1,00 € 1,50 € 2,00 € 2,50 Interpretation: if the price was 0, we would sell 32 products, but for every euro more we sell 14.5 products less
- 89. Question: Why the coefficient b should not be negative?
- 90. R2 indicator • A regression line can have a good or a bad fit • To evaluate this fit the R2 indicator is used – R2 is the percentage of variability predicted by the model – R2 near 100%: good fit – R2 near 0%: poor fit (data are not related each other) R2 = 45% POOR FIT R2 = 99% GOOD FIT!
- 91. Use the linear regression to make forecasts 91 Year CM of rain Umbrella sales 1990 58 59044 1991 58 62060 1992 80 85600 1993 70 65450 1994 83 77107 1995 91 90909 1996 69 66033 1997 63 65268 1998 63 64638 1999 56 55216 2000 86 85140 2001 86 83334 2002 92 84548 2003 58 52490 2004 91 85813 2005 78 78624 2006 93 83700 2007 61 55876 y = 883,89x + 6665,5 4000 14000 24000 34000 44000 54000 64000 74000 84000 94000 104000 50 60 70 80 90 100 Back to the umbrella example. We want to open a new branch in India where there are 110 cm of rain per year. What is the predicted demand?
- 92. We just apply the formula: Y = a1*X1 + b where X1 is the cm of rain in India Use the linear regression to make forecasts 92 y = 883,89x + 6665,5 4000 24000 44000 64000 84000 104000 124000 50 60 70 80 90 100 110 120 130 Solution: 883,89 * 110 + 6665,5 = 103893,4
- 93. Use the linear regression to make forecasts 93 Week Sales Price 1 10 € 1.30 2 6 € 2.00 3 5 € 1.70 4 12 € 1.50 5 10 € 1.60 6 15 € 1.20 7 5 € 1.60 8 12 € 1.40 9 17 € 1.00 10 20 € 1.10 Average 11.2 € 1.44 y = -14,539x + 32,136 0 5 10 15 20 25 € 0,00 € 0,50 € 1,00 € 1,50 € 2,00 € 2,50 How much we expect to sell with a price of 1.30?
- 94. Use the linear regression to make forecasts 94 Week Sales Price 1 10 € 1.30 2 6 € 2.00 3 5 € 1.70 4 12 € 1.50 5 10 € 1.60 6 15 € 1.20 7 5 € 1.60 8 12 € 1.40 9 17 € 1.00 10 20 € 1.10 Average 11.2 € 1.44 y = -14,539x + 32,136 0 5 10 15 20 25 € 0,00 € 0,50 € 1,00 € 1,50 € 2,00 € 2,50 How much we expect to sell with a price of 1.30? Solution: -14.539 * 1.30 + 32.136 = 13.23
- 95. Use the simple regression as a forecasting tool 1. Set-up the model – Decide which is your dependent Y variable (sales, demand, etc.) – Decide which is your X1 driver (price, market drivers, etc.) 2. Calculate coefficients (a1 and b) using a software and check R2 (if not good change the driver) 3. Identify the future value of the selected driver (may require a forecast!) 4. Perform the forecast
- 96. Simple Regression in Excel • Display data in a scatter-diagram • Right-click on the series add trend line
- 97. Recommendations for simple linear regression • Simple linear regression can be used even if you do not have deep statistical competences • The counterpart is that you need to choose one driver • It always best to use the driver that is more theoretically correlated to the demand (cm of rain umbrella) • But the driver should be also independent from the demand (do not use cm of rain to predict days of rain) • If you are undecided among different drivers, you can run several models and pick the one with the highest R2 • Be careful: regression is sensitive to outliers, always inspect your data and remove outliers!
- 98. Exercise B06 • Open the file: “06B Regression Exercise 1.xlsx” • How many cranes we expect to sell in 2001 when it is expected a GDP growth of 7.5%? • What other model could you have used? What would have been the outcome?
- 99. Exercise B07 (early sales) • Fashion companies can not rely on historical data because their products change every season • At the beginning of the season there is high uncertainty and the risk to overproduce if the product is a flop or underproduce if the product will have success • One option is to look at the early sales (sales at the beginning of the season) to forecast the total sales
- 100. Exercise B07 (early sales) • Every six months (season) a fast-fashion company launches ten types of new t-shirts while the old ones are removed from the market • For each t-shirt two data are registered: – Total sales at the end of the season – Early sales after 2 months • The company is trying to understand if it is possible to forecast the total sales given a certain amount of early sales Season Product Total Sales Early Sales 1 T-shirt - 39662 21 7 1 T-shirt - 73131 21 7 1 T-shirt - 97299 49 49 1 T-shirt - 81181 57 57 1 T-shirt - 63623 77 25 1 T-shirt - 14358 84 84 …… … …
- 101. Exercise B07 (early sales) • Consider the file “07B Exercise Early Sales.xls” • Using the software perform a simple regression to evaluate the relationship between early sales and total sales • How much will be the sales for a product that had 1,230 early sales? • Is there any difference between Fashionable and Non Fashionable products?
- 102. Exercise B08 • Regression analysis can also be used to predict the effect of a promotion • Simply indicate with “1” when a promotion took place or “0” if in that period there was no promotion • Perform a simple regression between the total sales and the new 0/1 variable • The “b” coefficient will be the average increase of sales due to the promotion • The “a” coefficient will be the average level of sales excluding the promotions • Reversing the formula (subtract from the sales the value of “b” when a promotion takes place) you can then your data from the effect of the promotion
- 103. Exercise B08 • Open File “Regression Exercise 3.xlsx” • Set up the 0/1 promotion variable • Calculate the average effect of a promotion • Clean your data • Perform a forecast of 3 periods ahead using simple exponential smoothing
- 104. Multiple linear regression • Simple: a relationship between Y (dependent variable) and X (independent variable) Y = a1 * X1 + b • Multiple: a relationship between Y (dependent variable) and several Xi (independent variables) Y = a1 * X1 + a2 * X2 + … + b 104
- 105. Multiple linear regression 105 Sales of cars (units GDP per capita (€) Marketing actions (€) 1293 16201 15348 1891 27287 22579 1958 22811 26120 1989 25559 28841 1507 17436 18084 1306 17866 19172 1307 14834 18376 1917 27662 24499 1866 19332 20937 1926 25885 26868 1139 16834 13247 1833 21318 18697 1254 17105 17368 1791 21008 19665 1919 19823 20610 1128 12070 13965
- 106. Multiple linear regression Both drivers seem to have a relation with sales The results of the linear regression are: Y = 0.034 * GPD + 0.033 * Marketing + 276.72 0 500 1000 1500 2000 2500 10000 15000 20000 25000 30000 Sales of cars GDP Per capita 0 500 1000 1500 2000 2500 10000 15000 20000 25000 30000 Sales of cars Marketing Actions Attention! The coefficient are not the result of two separate regressions, but it is a simultaneous result
- 107. Use the linear regression to make forecasts • Back to the car sales example based on GDP and Marketing effort • The regression equation was: • How many cars would we sale if the GDP next year will be 30.000 per capita and we plan to invest 25.000 € in marketing? • Solution 0.034 * 30000 + 0.033 * 25000 + 276.72= 2121.72 Y = 0.034 * GPD + 0.033 * Marketing + 276.72
- 108. Recommendations for multiple linear regression • Multiple linear regression allows you to use several drivers simultaneously • However, there some statistical traps, so it is suggested to ask the help of an expert • Some suggestions: • Start with few, theoretically and statistically uncorrelated drivers (for instance: do not put days of rain AND days of sun to predict umbrella sales, but days of rain AND people income) • Check if R2 is significant • You can add other drivers, one at a time, but always check that they are not correlated to the previous drivers • Check if R2 has significantly increased, if not, drop the new driver (it is better to have fewer drivers in the model)
- 109. Multiple Regression in Excel • Select a range • Function LINEST • Inputs: – Y as a vector; – X as a matrix; – True (otherwise b = 0); – True (to have statistics) • Ctrl+Shift+Enter to enter the function in each cell of the result array • Outputs in matrix form an … a1 b st.err n … …st.err 1 st.err b R2 St.erry F Df SSreg SSresid
- 110. Exercise B09 • Open the file “09B Exercise Multiple Regression.xlsx” • The dataset represents number of cold organic fruit juices sold • The product is still quite new for the market to the sales have high fluctuations • Also the price made by the company can change significantly according to the cost of the raw materials (fruits) • Customers can order in larger or smaller batches • Provide a forecast for the number of orders and products sold considering that for the next week these values are expected Price 9 Promotions (1 =Yes) 1 Holidays during the week(1=Yes) 0 Full working week (1=Yes) 1 External Temperature (Celsius degrees) 10 Economic outlook (10=very good; 1=very bad) 7
- 112. FORECAST HORIZON : m FORECAST estimated at period t for period t+m : Ft+m t t+m t+1 m periods Ft+1 Ft+2 Ft+m Time t-1 t+2 Yt Yt-1 DEMAND for period t : Yt Notation
- 113. The idea behind AR Models • Simple regression model Yt = b0 + b1X1 + et • Multivariate regression model Yt = b0 + b1X1 + b2X2 + … + bkXk + et • Multivariate regression based on previous observations Yt = b0 + b1Yt-1 + b2Yt-2 + … + bkYt-k + et
- 114. The idea behind AR • We will focus on its application to stationary series and non- seasonal, but this limitation can be easily removed • Context of use: mean reverting time series • Example: drunk man trying to walk on a straight line Signal (Mean) Demand: signal + disturbance
- 115. Which one is a mean reverting time series?
- 116. What is the difference in these two series? Mean reverting (AR model) White noise (random number in a range +200 ; +100)
- 117. Mean reverting time series • It can be difficult to asses graphically • It’s more likely that the next period will be closer to the mean than the period before • But the path that brings back to the mean can be complex • We can assess this through the autocorrelogram (see Part A slides) and partial-autocorrelogram
- 118. Autocorrelation function (ACF) • Provides a synthetic view of autocorrelations • Useful tool to identify non stationariety factors 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Lag 1,0000 0,8166 0,7181 0,6395 0,5479 0,4301 0,2512 0,0793 -0,0383 -0,1487 -0,2118 -0,3170 -0,3793 -0,3957 -0,3464 AutoCorr -.8 -.6 -.4 -.2 0 .2 .4 .6 .8
- 119. Partial Autocorrelation (PACF) • If we have a regression relationship between Y and X1 and X2, it may be interesting to evaluate how much X1 explains of what X2 cannot explain Yt = b0 + b1X1 + b2X2 + et • Partial autocorrelation evaluates the correlation between Yt e Yt-k when the effect of lags 1, 2, 3, …, k-1 has been eliminated: how much does Yt-k contribute to explain Yt Yt Yt-1 Yt-2 …
- 120. Partial Autocorrelation (PACF) • Evaluated by means of regression Yt = b0 + b1Yt-1 + b2Yt-2 + … + bkYt-k 0 1 2 3 4 5 6 7 8 9 10 11 12 13 Lag 1,0000 0,1059 0,0946 -0,0682 -0,0403 -0,2243 0,1095 0,2653 -0,1011 -0,0892 -0,2980 -0,1635 -0,4105 0,3200 Partial -.8 -.6 -.4 -.2 0 .2 .4 .6 .8 Partial AutoCorrelation Function (PACF)
- 121. Time series 1 (Mean reverting)
- 122. Time series 2 (White noise)
- 123. Revert-to-mean models • A first order AR(1) model can be described as: • Ŷt = μ + ϕ1Yt-1 • With |ϕ1|< 1 • If ϕ1 is positive the series tends to have periods above and periods below the average • If ϕ1 is negative up and downs from the average demand will be below the mean next period if it is above the mean this period
- 124. Time series 1 (Mean reverting) • We can therefore apply an AR(1) model, for instance in JMP • We obatain a forecast (green line) that converges to the mean 250 270 290 310 330 350 370 390 1 4 7 10 13 16 19 22 25 28 31 34 37 40 43 46 49 52 55 58 61 64 67 70 73 76 79 82 85 88 91 94 97 Ŷt = 332.506 + 0.646 * Yt-1
- 125. AR(1) Models with negative ϕ1
- 126. AR(1) Models with negative ϕ1 • We can still apply an AR(1) model Ŷt = 58.76 - 0.69 * Yt-1
- 127. AR(2) Model
- 128. Revert-to-mean models • A first order AR(2) model can be described as: • Ŷt = μ + ϕ1Yt-1 + ϕ2Yt-2
- 129. AR(2) Model Ŷt = 200.85 + 0.281 * Yt-1 + 0.316 * Yt-2
- 130. How to detect AR(x) models • 2 conditions: 1. The ACF decreases exponentially (or oscillating) 2. The PACF is significant until “x” lag In the example we have an AR(3) model, as the PACF is significant until lag 3 (above the blue line) values
- 131. Exercise 10B • Use JMP • Open the file “10B Autoregressive.xlsx”, identify the model and perform the forecast
- 132. Differentiation • First and second order differentiation removes the trend component • First and second seasonal differentiation remove the seasonality
- 133. Gain stationariety • A possible way is to differentiate • The 1st difference series evaluates the change between two subsequent observations in the original series 1 ' t t t Y Y Y
- 134. Now the series is stationary Before differentiation
- 136. Differentiation • Allows to get rid of unstationary elements • We can have 2nd level differentiation • We can also have seasonal differentiation 2 1 2 1 1 1 2 ) ( ) ( ' ' ' ' t t t t t t t t t t Y Y Y Y Y Y Y Y Y Y
- 137. Seasonal Differentiation • Defined as: s t t t Y Y Y ' 7000 8000 9000 10000 11000 12000 13000 14000 15000 16000 1980 1985 1990 1995 Electricity production In Australia
- 139. -1000 -500 0 500 1000 1500 1981 1986 1991 s t t t Y Y Y ' Seasonal Differentiation Electricity production In Australia
- 141. -1500 -1000 -500 0 500 1000 1500 1981 1986 1991 1 ' t t t Y Y Y Electricity production In Australia 1° order differentiation
- 143. Conclusive remarks • AR models should be used only when the conditions shown by ACF and PACF are verified • AR models can be applied to series with trend by applying a first or second order differentiation – For instance: AR(1) with first order differentiation: ARI(1,1) • AR models can be applied to series with seasonality by applying a seasonal differentiation – For instance: AR(1,0)(0,1)12 (in case of seasonality every 12 periods) • Both differentiations can be combined: – ARI(1,1)(0,1)12 (in case of seasonality every 12 periods)
- 144. An example – number of users of an internet service 0 50 100 150 200 250 1 21 41 61 81
- 145. An example – number of users of an internet service • Non stationariety • 1st autocorrelation is dominant • No seasonality • Let’s differentiate 80 100 120 140 160 180 200 220 240 Column 1 0 10 20 30 40 50 60 70 80 90 100 110 Row Mean Std N 137,08 39,798915 100 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 Lag 1,0000 0,9602 0,9011 0,8287 0,7460 0,6572 0,5647 0,4686 0,3709 0,2742 0,1809 0,0905 0,0021 -0,0852 -0,1671 -0,2389 -0,2990 -0,3498 -0,3927 -0,4248 AutoCorr -.8-.6 -.4-.2 0 .2 .4 .6 .8 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 Lag 1,0000 0,9602 -0,8466 0,2667 -0,4256 -0,0624 -0,0651 -0,0296 0,0708 -0,2389 -0,2455 -0,1294 -0,2181 0,0340 0,1009 -0,0054 -0,0327 -0,1917 0,0576 0,0389 Partial -.8-.6 -.4-.2 0 .2 .4 .6 .8
- 146. -15 -10 -5 0 5 10 15 1 21 41 61 81 An example – number of users of an internet service
- 147. An example – number of users of an internet service • ACF: exponential decrease and sinusoidal • At least 3 partial autocorrelations are significant • AR(3) -15 -10 -5 0 5 10 15 Column 2 0 10 20 30 40 50 60 70 80 90 100 110 Row Mean Std N 1,28 5,6410637 100 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 Lag 1,0000 0,7904 0,5243 0,4084 0,3712 0,3194 0,2182 0,1023 0,0441 0,0695 0,1081 0,1121 0,0374 -0,0795 -0,1611 -0,1917 -0,1838 -0,2194 -0,3171 -0,3832 AutoCorr -.8-.6 -.4-.2 0 .2 .4 .6 .8 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 Lag 1,0000 0,8045 -0,3031 0,3400 -0,0568 -0,0319 -0,0808 -0,1515 0,1193 0,0744 -0,0274 0,0349 -0,2312 -0,2467 -0,1163 -0,0894 0,0785 -0,1760 -0,1709 -0,1705 Partial -.8-.6 -.4-.2 0 .2 .4 .6 .8
- 148. AR1 AR2 AR3 Intercept Term 1 2 3 0 Lag 1,14599656 -0,6592887 0,33460154 0,97991731 Estimate 0,0953656 0,1351023 0,0947145 1,6480961 Std Error 12,02 -4,88 3,53 0,59 t Ratio <.0001 <.0001 0,0006 0,5535 Prob>|t| Constant Estimate 0,17510197 Parameter Estimates -10 -5 0 5 Residual Value 0 10 20 30 40 50 60 70 80 90 100 110 Row 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Lag 1,0000 -0,0126 0,0210 0,0293 0,0322 -0,0085 0,0216 -0,0621 -0,1535 0,0521 0,0313 0,1237 0,0536 -0,0604 -0,0287 AutoCorr -.8-.6 -.4-.2 0 .2 .4 .6 .8 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Lag 1,0000 -0,0129 0,0220 0,0319 0,0353 -0,0105 0,0216 -0,0766 -0,1849 0,0803 0,0439 0,1818 0,0734 -0,1278 -0,0563 Partial -.8-.6 -.4-.2 0 .2 .4 .6 .8 Residuals ARIMA(3,1,0) model An example – number of users of an internet service
- 149. Exercise 11B • Use JMP • Identify if differentiation is needed (first order or seasonal) • Detect and apply the correct AR model
- 151. Regression and “Moving Average” • Similarly we can consider: • Pay attention: this is the moving average of the error not of the original series t p t p t t t e e b e b e b b Y ... 2 2 1 1 0 MA
- 152. Moving average models • Do not produce regular patterns as AR models ACF usually significant only at Lag 1 • The series theoretically always starts from the constant b0 (and not from the previous values) and varies according to the previous variations that is why we need to rely on the PACF
- 153. Moving average models • A first order MA(1) model can be described as: – Ŷt = b0 + b1et-1 – b0 and b1 > 0 • The demand is supposed to be b0 but if in the previous period was higher (et-1) then also in this period is going to be higher – If b1 is positive the series tends to move in couples (high high; lowlow) – If b1 is negative the series moves in opposite couples (high low; low high)
- 154. MA(1,1) = Simple exponential smoothing • Ŷt = b0 + b1et-1 with et-1= Yt - Ŷt-1 • So we can re-write as: • Ŷt = b0 + b1 (Yt - Ŷt-1) • In words: the forecast (Ŷt ) is dependent on the previous demand (Yt ) and the previous forecast (Ŷt-1) • It’s the same principle of the simple exponential smoothing • In particular, a MA(1,1) with no constant (b0) is equivalent to the simple exponential smoothing • For the demonstration: https://onlinecourses.science.psu.edu/stat510/?q=node/70 • In conclusion: MA models are a broader class of smoothing models!
- 155. Example 1 0 1 2 3 4 5 6 7 1 6 11 16 21 26 31 36 41 46 51 56 61 66 71 76 81 86 91 96 -1 -0,8 -0,6 -0,4 -0,2 0 0,2 0,4 0,6 0,8 1 Y-1 Y-2 Y-3 Y-4 Y-5 Y-6 Y-7 Y-8 Y-9 Y-10 Y-11 Y-12 Y-13 Y-14 Y-15 -1 -0,8 -0,6 -0,4 -0,2 0 0,2 0,4 0,6 0,8 1 Y-1 Y-2 Y-3 Y-4 Y-5 Y-6 Y-7 Y-8 Y-9 Y-10 Y-11 Y-12 Y-13 Y-14 ACF PACF
- 156. Example 2 -2 -1 0 1 2 3 4 5 6 1 6 11 16 21 26 31 36 41 46 51 56 61 66 71 76 81 86 91 96 -1 -0,8 -0,6 -0,4 -0,2 0 0,2 0,4 0,6 0,8 1 Y-1 Y-2 Y-3 Y-4 Y-5 Y-6 Y-7 Y-8 Y-9 Y-10 Y-11 Y-12 Y-13 Y-14 Y-15 -1 -0,8 -0,6 -0,4 -0,2 0 0,2 0,4 0,6 0,8 1 Y-1 Y-2 Y-3 Y-4 Y-5 Y-6 Y-7 Y-8 Y-9 Y-10 Y-11 Y-12 Y-13 Y-14 ACF PACF
- 157. ARIMA Models
- 158. AutoRegression and Moving Average • By joining the two models • The model is good for stationary series • It can be adapted for non-stationary series by adding differentiation AR MA + = ARMA I AR I + = ARIMA MA +
- 159. Notation • AR: p = order of the autoregressive component • I: d = order of the differentiation • MA: q = order of the moving average component • The value of p, d, q can be also be higher than one in case of additional autoregressive or moving average components, however better to be conservative and do not set more than one parameter higher than 2 • Examples: – Autoregressive: ARIMA (1,0,0) – Moving average: ARIMA (0,0,1) – Autoregressive with trend: ARIMA (1,1,0)
- 160. Model identification ARIMA model identification is highly complex, however as a general guideline: 1. Check if the series is stationary if not, differentiate until it is stationary 2. Check if the series has seasonality if not, differentiate (lag=period of the seasonality) until it is stationary 3. Check if ACF has significant patterns if yes, add an AR component 4. Check if PACF has a significant patterns if yes, add a MA component 5. Repeat steps 3 and 4 until ACF and PACF do not show significant significant patterns
- 161. Quality evaluation • Few suggestions for model design – For the sake of simplicity start with an AR or an MA model, then apply an ARMA model and analyse differences – Test different methods: pay attention • Usually estimation is done by min(MSE) • You can easily reduce MSE by complicating the model (i.e., overfit) • Useful to consider measures that account for the complexity of the model – Residual analysis
- 162. Quality measures • Mean Square Error • Error variance • R2 • Likelihood – Akaike’s Information Criterion (AIC) • m = p + q + P + Q • L: Likelihood function • AIC = -2logL + 2m • The lower the better – Schwarz Bayesian Information Criterion (BIC)
