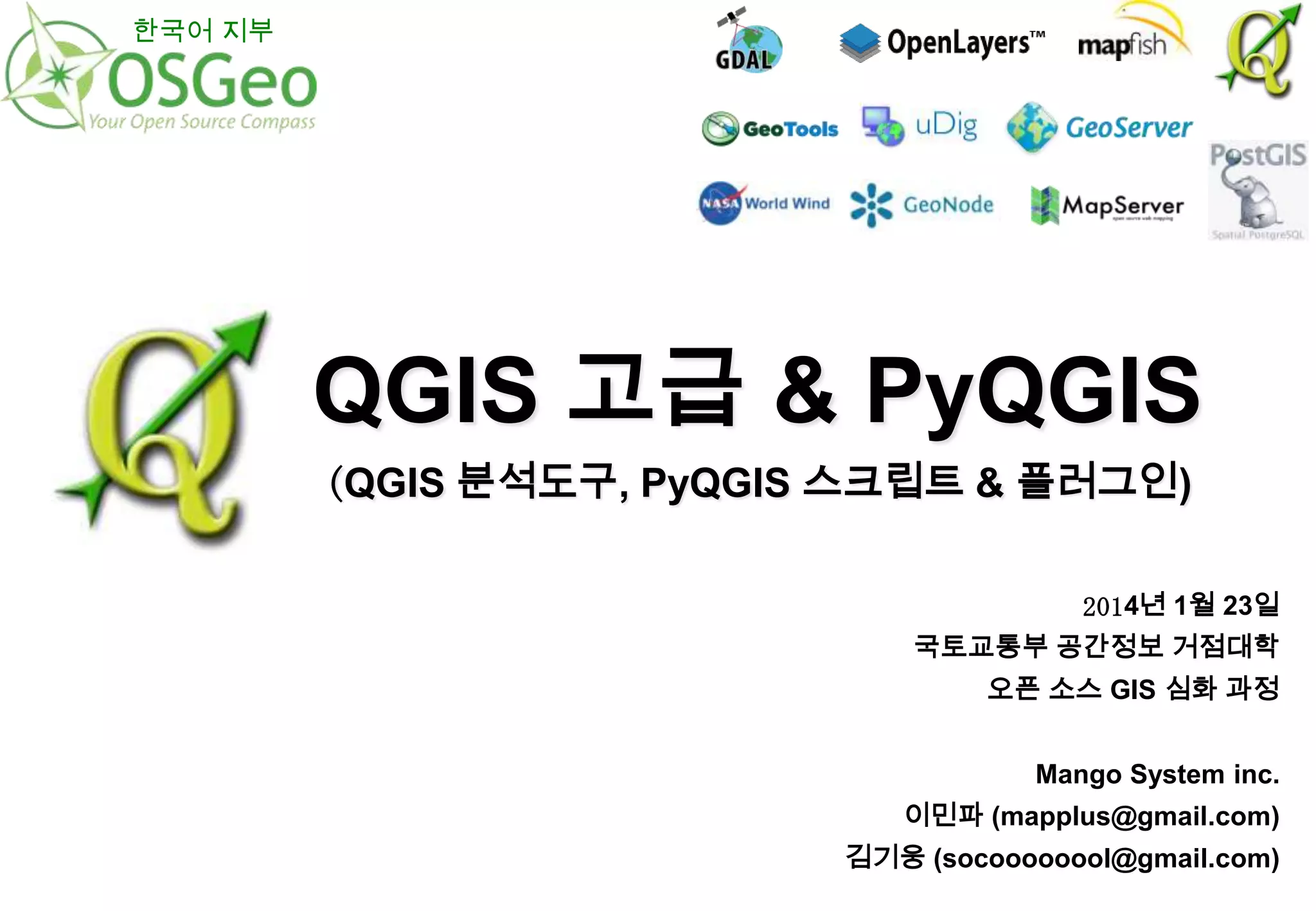

1. 한국어 지부
QGIS 고급 & PyQGIS
(QGIS 분석도구, PyQGIS 스크립트 & 플러그인)
2014년 1월 23일
국토교통부 공간정보 거점대학
오픈 소스 GIS 심화 과정
Mango System inc.
이민파 (mapplus@gmail.com)
김기웅 (socoooooool@gmail.com)

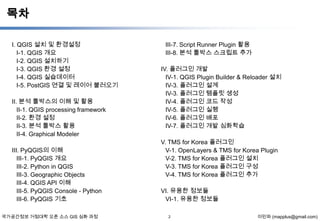

2. 목차
I. QGIS 설치 및 환경설정
I-1. QGIS 개요
I-2. QGIS 설치하기
I-3. QGIS 환경 설정
I-4. QGIS 실습데이터
I-5. PostGIS 연결 및 레이어 불러오기
II. 분석 툴박스의 이해 및 활용
II-1. QGIS processing framework
II-2. 환경 설정
II-3. 분석 툴박스 활용

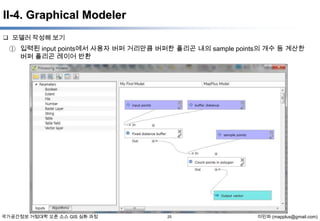

II-4. Graphical Modeler
III. PyQGIS의 이해

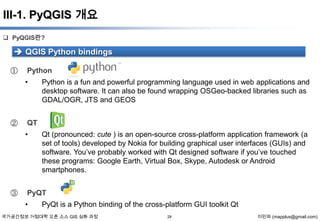

III-1. PyQGIS 개요

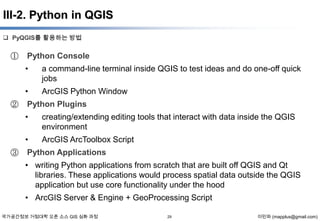

III-2. Python in QGIS

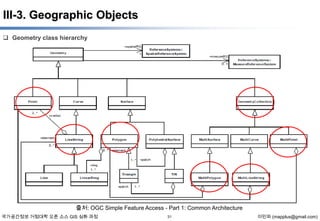

III-3. Geographic Objects

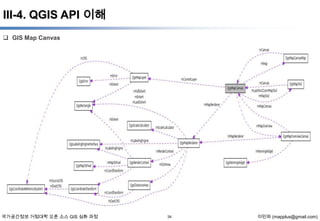

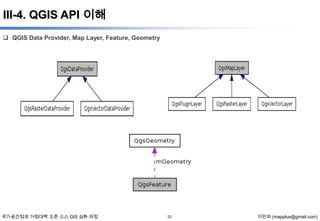

III-4. QGIS API 이해

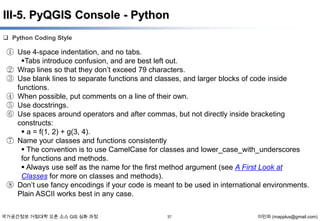

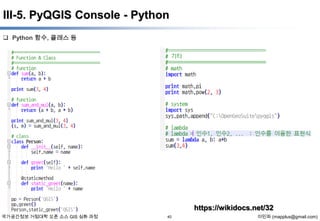

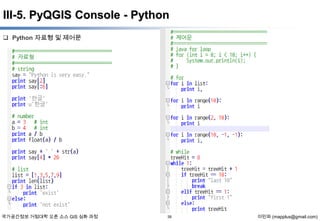

III-5. PyQGIS Console - Python

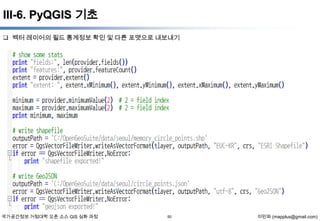

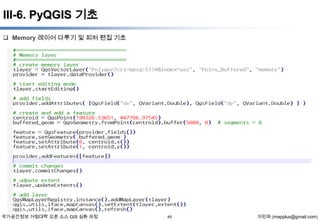

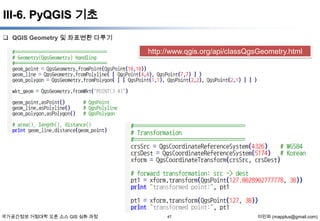

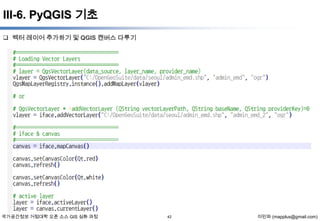

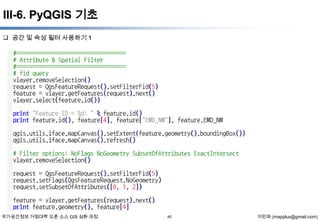

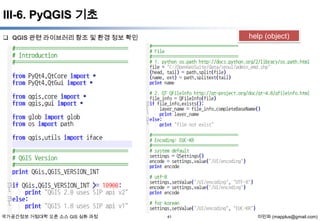

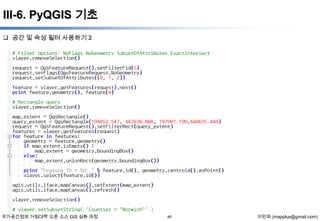

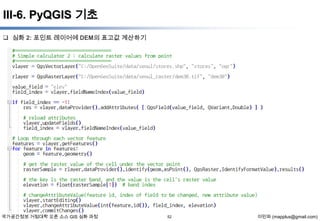

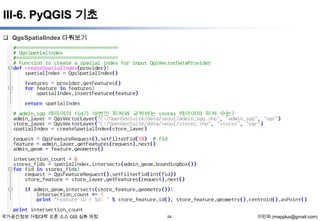

III-6. PyQGIS 기초
국가공간정보 거점대학 오픈 소스 GIS 심화 과정

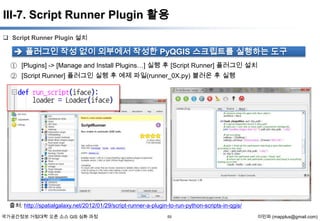

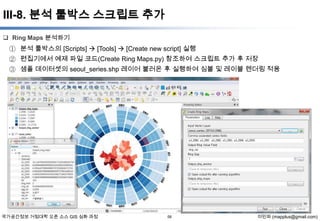

III-7. Script Runner Plugin 활용
III-8. 분석 툴박스 스크립트 추가
IV. 플러그인 개발

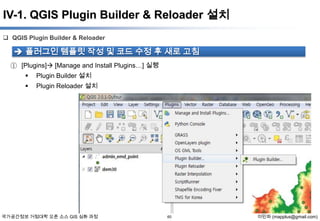

IV-1. QGIS Plugin Builder & Reloader 설치

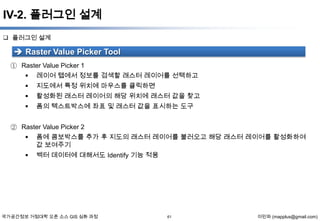

IV-3. 플러그인 설계

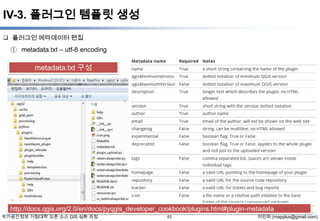

IV-3. 플러그인 템플릿 생성
IV-4. 플러그인 코드 작성
IV-5. 플러그인 실행
IV-6. 플러그인 배포
IV-7. 플러그인 개발 심화학습

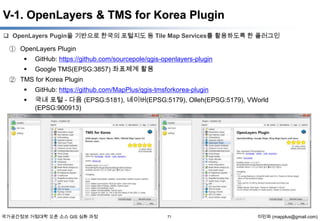

V. TMS for Korea 플러그인
V-1. OpenLayers & TMS for Korea Plugin
V-2. TMS for Korea 플러그인 설치

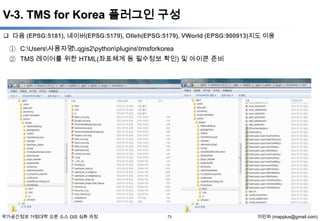

V-3. TMS for Korea 플러그인 구성
V-4. TMS for Korea 플러그인 추가

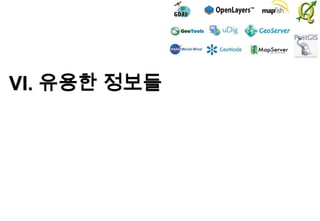

VI. 유용한 정보들

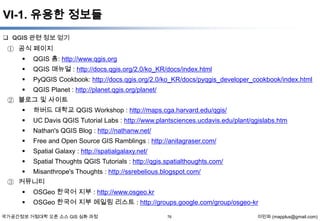

VI-1. 유용한 정보들
2
이민파 (mapplus@gmail.com)
3. I. QGIS 설치 및 환경설정
- 일러두기 • 본 자료는 모두 Creative Commons License CC-BY-NC을 따릅니다.
• 본 교재에서는 교육의 편의상 Windows 32비트 기반의 QGIS 위주로 설명합니다.
• 본 교재에서 사용하는 이미지의 QGIS 버전은 최신 버전과 다를 수 있으나, 기능상 차이는 없습니다.
• 본 교재에서 사용하는 샘플 데이터 셋은 실제 정보와 다르므로 교육용 이외에는 사용할 수 없습니다.

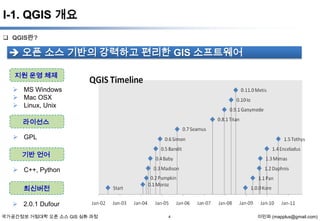

4. I-1. QGIS 개요
QGIS란?
오픈 소스 기반의 강력하고 편리한 GIS 소프트웨어
지원 운영 체제
MS Windows
Mac OSX
Linux, Unix
라이선스
GPL
기반 언어
C++, Python
최신버전
2.0.1 Dufour
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
4
이민파 (mapplus@gmail.com)
5. I-1. QGIS 개요

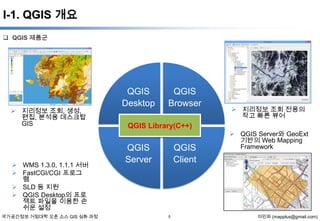

QGIS 제품군
지리정보 조회, 생성,
편집, 분석용 데스크탑
GIS
WMS 1.3.0, 1.1.1 서버
FastCGI/CGI 프로그
램
SLD 등 지원
QGIS Desktop의 프로
젝트 파일을 이용한 손
쉬운 설정
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
QGIS
Desktop
QGIS
Browser
지리정보 조회 전용의
작고 빠른 뷰어
QGIS Libraries
QGIS
Server
QGIS
Client
5
QGIS Server와 GeoExt
기반의 Web Mapping
Framework
이민파 (mapplus@gmail.com)
6. I-2. QGIS 설치하기

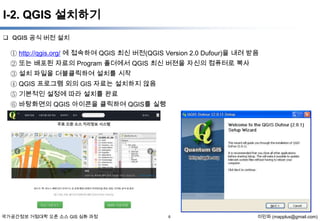

QGIS 공식 버전 설치
① http://qgis.org/ 에 접속하여 QGIS 최신 버전(QGIS Version 2.0 Dufour)을 내려 받음
② 또는 배포된 자료의 Program 폴더에서 QGIS 최신 버젼을 자신의 컴퓨터로 복사
③ 설치 파일을 더블클릭하여 설치를 시작
④ QGIS 프로그램 외의 GIS 자료는 설치하지 않음
⑤ 기본적인 설정에 따라 설치를 완료
⑥ 바탕화면의 QGIS 아이콘을 클릭하여 QGIS를 실행
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
6
이민파 (mapplus@gmail.com)
7. I-3. QGIS 환경 설정

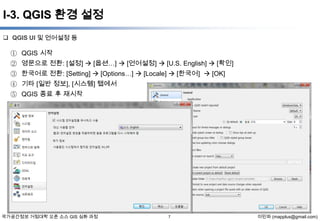

QGIS UI 및 언어설정 등
① QGIS 시작
② 영문으로 전환: [설정] [옵션…] [언어설정] [U.S. English] [확인]
③ 한국어로 전환: [Setting] [Options…] [Locale] [한국어] [OK]
④ 기타 [일반 정보], [시스템] 탭에서
⑤ QGIS 종료 후 재시작
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
7
이민파 (mapplus@gmail.com)
8. I-3. QGIS 환경 설정

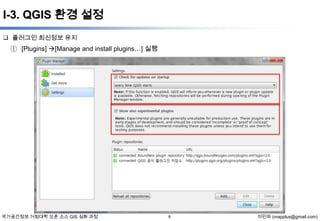

플러그인 최신정보 유지
① [Plugins] [Manage and install plugins…] 실행
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
8
이민파 (mapplus@gmail.com)

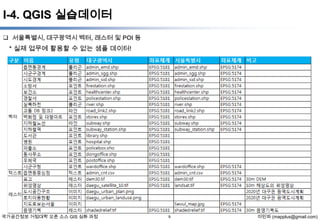

9. I-4. QGIS 실습데이터
서울특별시, 대구광역시 벡터, 래스터 및 POI 등
* 실제 업무에 활용할 수 없는 샘플 데이터!
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
9
이민파 (mapplus@gmail.com)

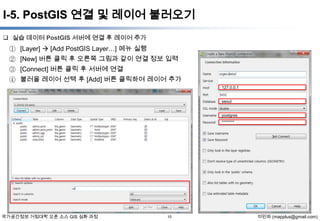

10. I-5. PostGIS 연결 및 레이어 불러오기
실습 데이터 PostGIS 서버에 연결 후 레이어 추가
① [Layer] [Add PostGIS Layer…] 메뉴 실행
② [New] 버튼 클릭 후 오른쪽 그림과 같이 연결 정보 입력
③ [Connect] 버튼 클릭 후 서버에 연결
④ 불러올 레이어 선택 후 [Add] 버튼 클릭하여 레이어 추가
127.0.0.1
seoul
postgres
********
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
10
이민파 (mapplus@gmail.com)
11. II. 분석 툴박스의 이해 및 활용
- 일러두기 • 본 자료는 모두 Creative Commons License CC-BY-NC을 따릅니다.
• 본 교재에서는 교육의 편의상 Windows 32비트 기반의 QGIS 위주로 설명합니다.
• 본 교재에서 사용하는 이미지의 QGIS 버전은 최신 버전과 다를 수 있으나, 기능상 차이는 없습니다.

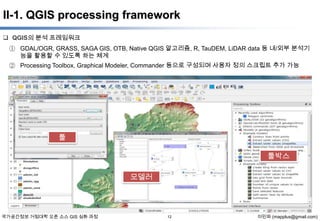

12. II-1. QGIS processing framework
QGIS의 분석 프레임워크
① GDAL/OGR, GRASS, SAGA GIS, OTB, Native QGIS 알고리즘, R, TauDEM, LiDAR data 등 내/외부 분석기
능을 활용할 수 있도록 하는 체계
② Processing Toolbox, Graphical Modeler, Commander 등으로 구성되며 사용자 정의 스크립트 추가 가능
툴
툴박스
모델러
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
12
이민파 (mapplus@gmail.com)

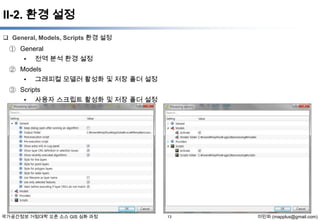

13. II-2. 환경 설정
General, Models, Scripts 환경 설정
① General
• 전역 분석 환경 설정
② Models
• 그래피컬 모델러 활성화 및 저장 폴더 설정
③ Scripts
• 사용자 스크립트 활성화 및 저장 폴더 설정
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
13
이민파 (mapplus@gmail.com)

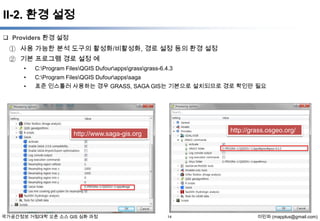

14. II-2. 환경 설정
Providers 환경 설정
① 사용 가능한 분석 도구의 활성화/비활성화, 경로 설정 등의 환경 설정
② 기본 프로그램 경로 설정 예
•
C:Program FilesQGIS Dufourappsgrassgrass-6.4.3
•
C:Program FilesQGIS Dufourappssaga
•
표준 인스톨러 사용하는 경우 GRASS, SAGA GIS는 기본으로 설치되므로 경로 확인만 필요
http://grass.osgeo.org/
http://www.saga-gis.org
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
14
이민파 (mapplus@gmail.com)
15. II-2. 환경 설정

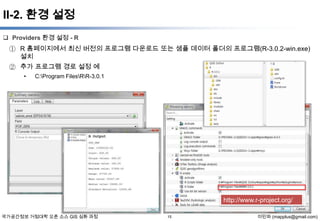

Providers 환경 설정 - R
① R 홈페이지에서 최신 버전의 프로그램 다운로드 또는 샘플 데이터 폴더의 프로그램(R-3.0.2-win.exe)
설치
② 추가 프로그램 경로 설정 예
•
C:Program FilesRR-3.0.1
http://www.r-project.org/
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
15
이민파 (mapplus@gmail.com)
16. II-2. 환경 설정
Providers 환경 설정 - R

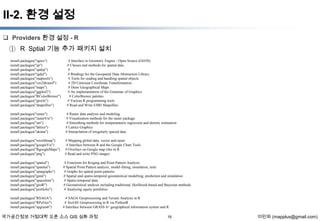

① R Sptial 기능 추가 패키지 설치
install.packages("rgeos")
install.packages("sp")
install.packages("spdep")
install.packages("rgdal")
install.packages("maptools")
install.packages("vec2dtransf")
install.packages("maps")
install.packages("ggplot2")
install.packages("RColorBrewer")
install.packages("gtools")
install.packages("shapefiles")
# Interface to Geometry Engine - Open Source (GEOS)
# Classes and methods for spatial data
#
# Bindings for the Geospatial Data Abstraction Library
# Tools for reading and handling spatial objects
# 2D Cartesian Coordinate Transformation
# Draw Geographical Maps
# An implementation of the Grammar of Graphics
# ColorBrewer palettes
# Various R programming tools
# Read and Write ESRI Shapefiles
install.packages("raster")
install.packages("rasterVis")
install.packages("sm")
install.packages("lattice")
install.packages("akima")
# Raster data analysis and modeling
# Visualization methods for the raster package
# Smoothing methods for nonparametric regression and density estimation
# Lattice Graphics
# Interpolation of irregularly spaced data
install.packages("rworldmap")
install.packages("googleVis")
install.packages("RgoogleMaps")
install.packages("png")
# Mapping global data, vector and raster
# Interface between R and the Google Chart Tools
# Overlays on Google map tiles in R
# Read and write PNG images
install.packages("spatial")
install.packages("spatstat")
install.packages("spatgraphs")
install.packages("gstat")
install.packages("spacetime")
install.packages("geoR")
install.packages("portfolio")
# Functions for Kriging and Point Pattern Analysis
# Spatial Point Pattern analysis, model-fitting, simulation, tests
# Graphs for spatial point patterns
# Spatial and spatio-temporal geostatistical modelling, prediction and simulation
# Spatio-temporal data
# Geostatistical analysis including traditional, likelihood-based and Bayesian methods.
# Analysing equity portfolios
install.packages("RSAGA")
install.packages("RPyGeo")
install.packages("spgrass6")
# SAGA Geoprocessing and Terrain Analysis in R
# ArcGIS Geoprocessing in R via PythonR
# Interface between GRASS 6+ geographical information system and R
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
16
이민파 (mapplus@gmail.com)
17. II-2. 환경 설정
http://orfeo-toolbox.org/otb/

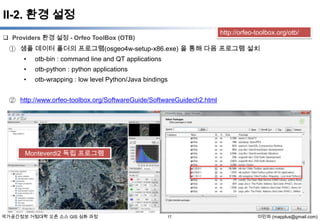

Providers 환경 설정 - Orfeo ToolBox (OTB)
① 샘플 데이터 폴더의 프로그램(osgeo4w-setup-x86.exe) 을 통해 다음 프로그램 설치
•
otb-bin : command line and QT applications
•
otb-python : python applications
•
otb-wrapping : low level Python/Java bindings
② http://www.orfeo-toolbox.org/SoftwareGuide/SoftwareGuidech2.html
Monteverdi2 독립 프로그램
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
17
이민파 (mapplus@gmail.com)
18. II-2. 환경 설정

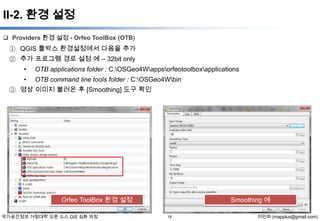

Providers 환경 설정 - Orfeo ToolBox (OTB)
① QGIS 툴박스 환경설정에서 다음을 추가
② 추가 프로그램 경로 설정 예 – 32bit only
•
OTB applications folder : C:OSGeo4Wappsorfeotoolboxapplications
•
OTB command line tools folder : C:OSGeo4Wbin
③ 영상 이미지 불러온 후 [Smoothing] 도구 확인
Orfeo ToolBox 환경 설정
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
Smoothing 예
18
이민파 (mapplus@gmail.com)
19. II-2. 환경 설정
Providers 환경 설정 - TauDEM (Terrain Analysis Using Digital Elevation Models)
① OTB 홈페이지에서 최신 버전의 프로그램 다운로드 또는 샘플 데이터 폴더의 프로그램
(TauDEM511.zip) 압축 해제 후 순서대로 설치
mpi_x86.msi vcredist_x86_2010.exe TaudemSetup_x86.msi
② 추가 프로그램 경로 설정 예
•
C:Program FilesMicrosoft HPC Pack 2012Bin
•
C:Program FilesTauDEMTauDEM5Exe
③ DEM 불러온 후 실행 확인
http://hydrology.usu.edu/taudem/taudem5/index.html
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
19
이민파 (mapplus@gmail.com)
20. II-2. 환경 설정

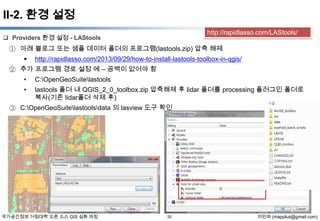

http://rapidlasso.com/LAStools/
Providers 환경 설정 - LAStools
① 아래 블로그 또는 샘플 데이터 폴더의 프로그램(lastools.zip) 압축 해제
http://rapidlasso.com/2013/09/29/how-to-install-lastools-toolbox-in-qgis/
② 추가 프로그램 경로 설정 예 – 공백이 없어야 함
•
C:OpenGeoSuitelastools
•
lastools 폴더 내 QGIS_2_0_toolbox.zip 압축해제 후 lidar 폴더를 processing 플러그인 폴더로
복사(기존 lidar폴더 삭제 후)
③ C:OpenGeoSuitelastoolsdata 의 lasview 도구 확인
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
20
이민파 (mapplus@gmail.com)
21. II-3. 분석 툴박스 활용

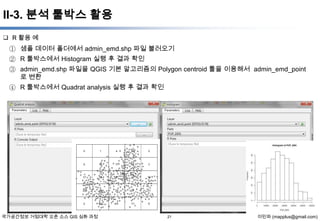

R 활용 예
① 샘플 데이터 폴더에서 admin_emd.shp 파일 불러오기
② R 툴박스에서 Histogram 실행 후 결과 확인
③ admin_emd.shp 파일을 QGIS 기본 알고리즘의 Polygon centroid 툴을 이용해서 admin_emd_point
로 변환
④ R 툴박스에서 Quadrat analysis 실행 후 결과 확인
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
21
이민파 (mapplus@gmail.com)
22. II-3. 분석 툴박스 활용

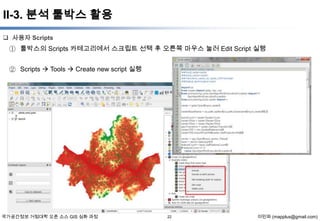

사용자 Scripts
① 툴박스의 Scripts 카테고리에서 스크립트 선택 후 오른쪽 마우스 눌러 Edit Script 실행
② Scripts Tools Create new script 실행
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
22
이민파 (mapplus@gmail.com)
23. II-3. 분석 툴박스 활용

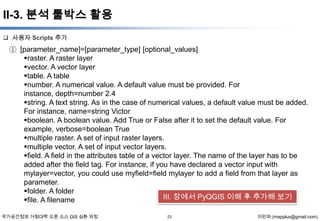

사용자 Scripts 추가
① [parameter_name]=[parameter_type] [optional_values]
raster. A raster layer
vector. A vector layer
table. A table
number. A numerical value. A default value must be provided. For instance,
depth=number 2.4
string. A text string. As in the case of numerical values, a default value must be added.
For instance, name=string Victor
boolean. A boolean value. Add True or False after it to set the default value. For
example, verbose=boolean True
multiple raster. A set of input raster layers.
multiple vector. A set of input vector layers.
field. A field in the attributes table of a vector layer. The name of the layer has to be
added after the field tag. For instance, if you have declared a vector input with
mylayer=vector, you could use myfield=field mylayer to add a field from that layer as
parameter.
folder. A folder
III. 장에서 PyQGIS 이해 후 추가해 보기
file. A filename
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
23
이민파 (mapplus@gmail.com)
24. II-4. Graphical Modeler

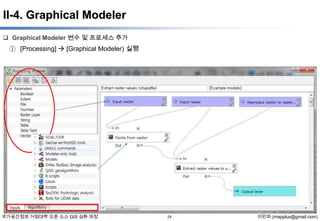

Graphical Modeler 변수 및 프로세스 추가
① [Processing] [Graphical Modeler) 실행
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
24
이민파 (mapplus@gmail.com)
25. II-4. Graphical Modeler
모델러 작성해 보기
① 입력된 input points에서 사용자 버퍼 거리만큼 버퍼한 폴리곤 내의 sample points의 개수 등 계산한
버퍼 폴리곤 레이어 반환
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
25
이민파 (mapplus@gmail.com)
26. II-4. Graphical Modeler
모델러 작성해 보기

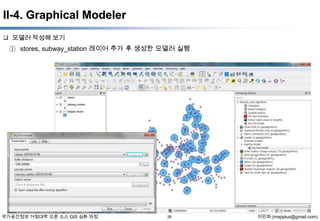

① stores, subway_station 레이어 추가 후 생성한 모델러 실행
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
26
이민파 (mapplus@gmail.com)
27. III. PyQGIS의 이해
-일러두기 –
- 본 자료는 모두 Creative Commons License CC-BY-NC을 따릅니다.
- 본 교재는 다음의 내용을 토대로 제작되었습니다.
• PyQGIS Developer Cookbook : http://qgis.org/en/docs/pyqgis_developer_cookbook/index.html
• QGIS API Documentation : http://qgis.org/api/
• QGIS Workshop: http://www.qgisworkshop.org/html/workshop/index.html
• The Python Tutorial: http://docs.python.org/2/tutorial/index.html
28. III-1. PyQGIS 개요
PyQGIS란?
QGIS Python bindings
①
Python
•
②
QT
•
③
Python is a fun and powerful programming language used in web applications and
desktop software. It can also be found wrapping OSGeo-backed libraries such as
GDAL/OGR, JTS and GEOS
Qt (pronounced: cute ) is an open-source cross-platform application framework (a
set of tools) developed by Nokia for building graphical user interfaces (GUIs) and
software. You’ve probably worked with Qt designed software if you’ve touched
these programs: Google Earth, Virtual Box, Skype, Autodesk or Android
smartphones.
PyQT
•
PyQt is a Python binding of the cross-platform GUI toolkit Qt
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
28
이민파 (mapplus@gmail.com)
29. III-2. Python in QGIS
PyQGIS를 활용하는 방법
①
Python Console
•
•
②
a command-line terminal inside QGIS to test ideas and do one-off quick
jobs
ArcGIS Python Window
Python Plugins
•
•
③
creating/extending editing tools that interact with data inside the QGIS
environment
ArcGIS ArcToolbox Script
Python Applications
• writing Python applications from scratch that are built off QGIS and Qt
libraries. These applications would process spatial data outside the QGIS
application but use core functionality under the hood
• ArcGIS Server & Engine + GeoProcessing Script
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
29
이민파 (mapplus@gmail.com)
30. III-3. Geographic Objects

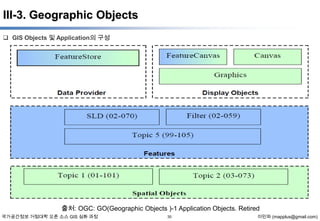

GIS Objects 및 Application의 구성
출처: OGC: GO(Geographic Objects )-1 Application Objects. Retired
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
30
이민파 (mapplus@gmail.com)
31. III-3. Geographic Objects
Geometry class hierarchy
출처: OGC Simple Feature Access - Part 1: Common Architecture
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
31
이민파 (mapplus@gmail.com)

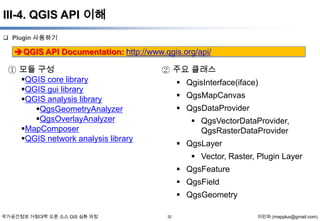

32. III-4. QGIS API 이해
Plugin 사용하기
QGIS API Documentation: http://www.qgis.org/api/
① 모듈 구성
QGIS core library
QGIS gui library
QGIS analysis library
QgsGeometryAnalyzer
QgsOverlayAnalyzer
MapComposer
QGIS network analysis library
② 주요 클래스
QgisInterface(iface)
QgsMapCanvas
QgsDataProvider
QgsVectorDataProvider,
QgsRasterDataProvider
QgsLayer
Vector, Raster, Plugin Layer
QgsFeature
QgsField
QgsGeometry
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
32
이민파 (mapplus@gmail.com)
33. III-4. QGIS API 이해
QGIS Data Provider, Map Layer, Feature, Geometry
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
33
이민파 (mapplus@gmail.com)
34. III-4. QGIS API 이해
GIS Map Canvas
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
34
이민파 (mapplus@gmail.com)
35. III-4. QGIS API 이해

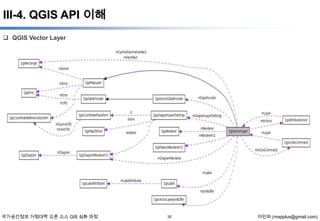

QGIS Vector Layer
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
35
이민파 (mapplus@gmail.com)
36. III-4. QGIS API 이해
QGIS Raster Layer
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
36
이민파 (mapplus@gmail.com)
37. III-5. PyQGIS Console - Python
Python Coding Style
① Use 4-space indentation, and no tabs.
Tabs introduce confusion, and are best left out.
② Wrap lines so that they don’t exceed 79 characters.
③ Use blank lines to separate functions and classes, and larger blocks of code inside
functions.
④ When possible, put comments on a line of their own.
⑤ Use docstrings.
⑥ Use spaces around operators and after commas, but not directly inside bracketing
constructs:
a = f(1, 2) + g(3, 4).
⑦ Name your classes and functions consistently
The convention is to use CamelCase for classes and lower_case_with_underscores
for functions and methods.
Always use self as the name for the first method argument (see A First Look at
Classes for more on classes and methods).
⑧ Don’t use fancy encodings if your code is meant to be used in international environments.
Plain ASCII works best in any case.
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
37
이민파 (mapplus@gmail.com)

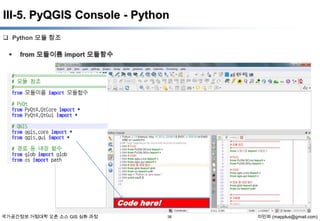

38. III-5. PyQGIS Console - Python
Python 모듈 참조
from 모듈이름 import 모듈함수
Code here!
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
38
이민파 (mapplus@gmail.com)
39. III-5. PyQGIS Console - Python
Python 자료형 및 제어문
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
39
이민파 (mapplus@gmail.com)
40. III-5. PyQGIS Console - Python
Python 함수, 클래스 등
https://wikidocs.net/32
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
40
이민파 (mapplus@gmail.com)
41. III-6. PyQGIS 기초
help (object)
QGIS 관련 라이브러리 참조 및 환경 정보 확인
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
41
이민파 (mapplus@gmail.com)
42. III-6. PyQGIS 기초
벡터 레이어 추가하기 및 QGIS 캔버스 다루기
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
42
이민파 (mapplus@gmail.com)

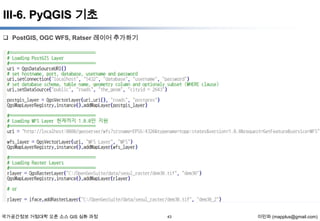

43. III-6. PyQGIS 기초
PostGIS, OGC WFS, Ratser 레이어 추가하기
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
43
이민파 (mapplus@gmail.com)

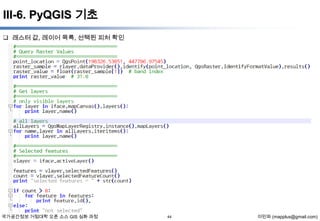

44. III-6. PyQGIS 기초
래스터 값, 레이어 목록, 선택된 피처 확인
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
44
이민파 (mapplus@gmail.com)
45. III-6. PyQGIS 기초
공간 및 속성 필터 사용하기 1
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
45
이민파 (mapplus@gmail.com)
46. III-6. PyQGIS 기초
공간 및 속성 필터 사용하기 2
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
46
이민파 (mapplus@gmail.com)
47. III-6. PyQGIS 기초
QGIS Geometry 및 좌표변환 다루기
http://www.qgis.org/api/classQgsGeometry.html
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
47
이민파 (mapplus@gmail.com)

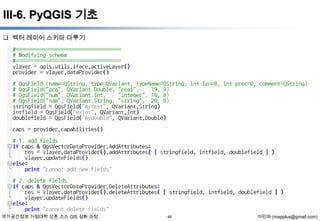

48. III-6. PyQGIS 기초
벡터 레이어 스키마 다루기
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
48
이민파 (mapplus@gmail.com)
49. III-6. PyQGIS 기초
Memory 레이어 다루기 및 피처 편집 기초
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
49
이민파 (mapplus@gmail.com)
50. III-6. PyQGIS 기초
벡터 레이어의 필드 통계정보 확인 및 다른 포맷으로 내보내기
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
50
이민파 (mapplus@gmail.com)

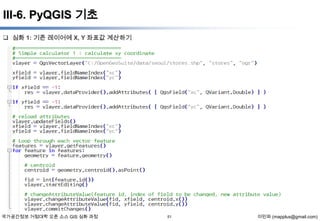

51. III-6. PyQGIS 기초
심화 1: 기존 레이어에 X, Y 좌표값 계산하기
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
51
이민파 (mapplus@gmail.com)
52. III-6. PyQGIS 기초
심화 2: 포인트 레이어에 DEM의 표고값 계산하기
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
52
이민파 (mapplus@gmail.com)

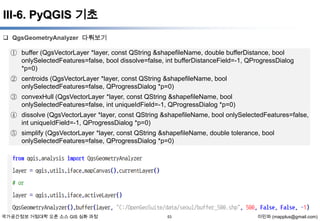

53. III-6. PyQGIS 기초
QgsGeometryAnalyzer 다뤄보기
① buffer (QgsVectorLayer *layer, const QString &shapefileName, double bufferDistance, bool
onlySelectedFeatures=false, bool dissolve=false, int bufferDistanceField=-1, QProgressDialog
*p=0)
② centroids (QgsVectorLayer *layer, const QString &shapefileName, bool
onlySelectedFeatures=false, QProgressDialog *p=0)
③ convexHull (QgsVectorLayer *layer, const QString &shapefileName, bool
onlySelectedFeatures=false, int uniqueIdField=-1, QProgressDialog *p=0)
④ dissolve (QgsVectorLayer *layer, const QString &shapefileName, bool onlySelectedFeatures=false,
int uniqueIdField=-1, QProgressDialog *p=0)
⑤ simplify (QgsVectorLayer *layer, const QString &shapefileName, double tolerance, bool
onlySelectedFeatures=false, QProgressDialog *p=0)
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
53
이민파 (mapplus@gmail.com)
54. III-6. PyQGIS 기초
QgsSpatialIndex 다뤄보기
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
54
이민파 (mapplus@gmail.com)
55. III-7. Script Runner Plugin 활용
Script Runner Plugin 설치
플러그인 작성 없이 외부에서 작성한 PyQGIS 스크립트를 실행하는 도구
① [Plugins] -> [Manage and Install Plugins…] 실행 후 [Script Runner] 플러그인 설치
② [Script Runner] 플러그인 실행 후 예제 파일(runner_0X.py) 불러온 후 실행
출처: http://spatialgalaxy.net/2012/01/29/script-runner-a-plugin-to-run-python-scripts-in-qgis/
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
55
이민파 (mapplus@gmail.com)

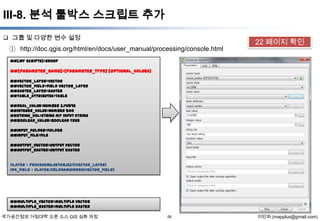

56. III-8. 분석 툴박스 스크립트 추가
그룹 및 다양한 변수 설정
① http://doc.qgis.org/html/en/docs/user_manual/processing/console.html
22 페이지 확인
##[My Scripts]=group
##[parameter_name]=[parameter_type] [optional_values]
##vector_layer=vector
##vector_field=field vector_layer
##raster_layer=raster
##table_attributes=table
##real_value=number 3.141592
##integer_value=number 500
##string_val=string my input string
##boolean_value=boolean True
##input_folder=folder
##input_file=file
##output_vector=output vector
##output_raster=output raster
vlayer = processing.getObject(vector_layer)
Idx_field = vlayer.fieldNameIndex(vector_field)
##multiple_vector=multiple vector
##multiple_raster=multiple raster
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
56
이민파 (mapplus@gmail.com)

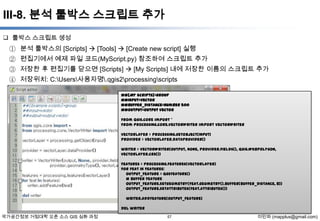

57. III-8. 분석 툴박스 스크립트 추가
툴박스 스크립트 생성
① 분석 툴박스의 [Scripts] [Tools] [Create new script] 실행
② 편집기에서 예제 파일 코드(MyScript.py) 참조하여 스크립트 추가
③ 저장한 후 편집기를 닫으면 [Scripts] [My Scripts] 내에 저장한 이름의 스크립트 추가
④ 저장위치: C:Users사용자명.qgis2processingscripts
##[My Scripts]=group
##input=vector
##buffer_distance=number 500
##output=output vector
from qgis.core import *
from processing.core.VectorWriter import VectorWriter
vectorLayer = processing.getObject(input)
provider = vectorLayer.dataProvider()
writer = VectorWriter(output, None, provider.fields(), QGis.WKBPolygon,
vectorLayer.crs())
features = processing.features(vectorLayer)
for feat in features:
output_feature = QgsFeature()
# buffer feature
output_feature.setGeometry(feat.geometry().buffer(buffer_distance, 8))
output_feature.setAttributes(feat.attributes())
writer.addFeature(output_feature)
del writer
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
57
이민파 (mapplus@gmail.com)
58. III-8. 분석 툴박스 스크립트 추가
Ring Maps 분석하기
① 분석 툴박스의 [Scripts] [Tools] [Create new script] 실행
② 편집기에서 예제 파일 코드(Create Ring Maps.py) 참조하여 스크립트 추가 후 저장
③ 샘플 데이터셋의 seoul_series.shp 레이어 불러온 후 실행하여 심볼 및 레이블 렌더링 적용
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
58
이민파 (mapplus@gmail.com)
59. IV. 플러그인 개발
- 일러두기 • 본 자료는 모두 Creative Commons License CC-BY-NC을 따릅니다.
• 본 교재에서는 교육의 편의상 Windows 32비트 기반의 QGIS 위주로 설명합니다.
• 본 교재에서 사용하는 이미지의 QGIS 버전은 최신 버전과 다를 수 있으나, 기능상 차이는 없습니다.
• 참고
• http://www.qgisworkshop.org/html/workshop/index.html
60. IV-1. QGIS Plugin Builder & Reloader 설치
QGIS Plugin Builder & Reloader
플러그인 템플릿 작성 및 코드 수정 후 새로 고침
① [Plugins] [Manage and Install Plugins…] 실행
Plugin Builder 설치
Plugin Reloader 설치
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
60
이민파 (mapplus@gmail.com)
61. IV-2. 플러그인 설계
플러그인 설계
Raster Value Picker Tool
① Raster Value Picker 1
레이어 탭에서 정보를 검색할 래스터 레이어를 선택하고
지도에서 특정 위치에 마우스를 클릭하면
활성화된 래스터 레이어의 해당 위치에 래스터 값을 찾고
폼의 텍스트박스에 좌표 및 래스터 값을 표시하는 도구
② Raster Value Picker 2
폼에 콤보박스를 추가 후 지도의 래스터 레이어를 불러오고 해당 래스터 레이어를 활성화하여
값 보여주기
벡터 데이터에 대해서도 Identify 기능 적용
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
61
이민파 (mapplus@gmail.com)
62. IV-3. 플러그인 템플릿 생성
내 플러그인 생성
기본 구조의 플러그인 템플릿 생성
① [Plugins] [Plugin Builder…] [Plugin Builder…] 실행
② 정보 입력 후 저장 (저장위치: C:Users사용자명.qgis2pythonplugins)
RasterValuePicker - metadata.txt
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
http://www.dimitrisk.gr/qgis/creator/
62
이민파 (mapplus@gmail.com)

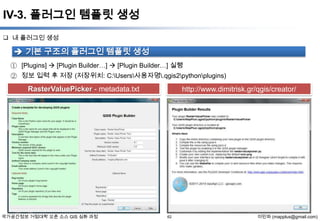

63. IV-3. 플러그인 템플릿 생성
플러그인 메타데이터 편집
① metadata.txt – utf-8 encoding
metadata.txt 구성
http://docs.qgis.org/2.0/en/docs/pyqgis_developer_cookbook/plugins.html#plugin-metadata
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
63
이민파 (mapplus@gmail.com)

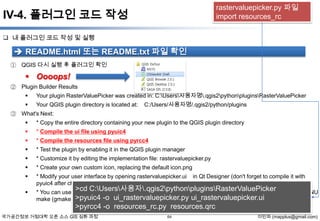

64. rastervaluepicker.py 파일
import resources_rc
IV-4. 플러그인 코드 작성
내 플러그인 코드 작성 및 실행
README.html 또는 README.txt 파일 확인
① QGIS 다시 실행 후 플러그인 확인
Oooops!
② Plugin Builder Results
Your plugin RasterValuePicker was created in: C:Users사용자명.qgis2pythonpluginsRasterValuePicker
Your QGIS plugin directory is located at:
C:/Users/사용자명/.qgis2/python/plugins
③ What's Next:
* Copy the entire directory containing your new plugin to the QGIS plugin directory
* Compile the ui file using pyuic4
* Compile the resources file using pyrcc4
* Test the plugin by enabling it in the QGIS plugin manager
* Customize it by editing the implementation file: rastervaluepicker.py
* Create your own custom icon, replacing the default icon.png
* Modify your user interface by opening rastervaluepicker.ui
pyuic4 after changing it)
* You can use the Makefile to compile your Ui and resource files when you make changes. This requires GNU
make (gmake) >pyuic4 -o ui_rastervaluepicker.py ui_rastervaluepicker.ui
in Qt Designer (don't forget to compile it with
>cd C:Users사용자.qgis2pythonpluginsRasterValuePicker
>pyrcc4 -o resources_rc.py resources.qrc
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
64
이민파 (mapplus@gmail.com)

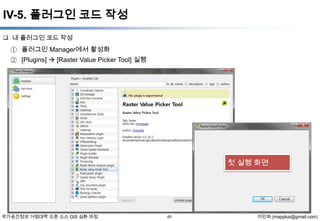

65. IV-5. 플러그인 코드 작성
내 플러그인 코드 작성
① 플러그인 Manager에서 활성화
② [Plugins] [Raster Value Picker Tool] 실행
첫 실행 화면
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
65
이민파 (mapplus@gmail.com)

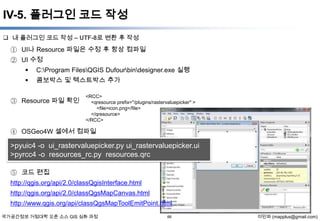

66. IV-5. 플러그인 코드 작성
내 플러그인 코드 작성 – UTF-8로 변환 후 작성
① UI나 Resource 파일은 수정 후 항상 컴파일
② UI 수정
C:Program FilesQGIS Dufourbindesigner.exe 실행
콤보박스 및 텍스트박스 추가
③ Resource 파일 확인
<RCC>
<qresource prefix="/plugins/rastervaluepicker" >
<file>icon.png</file>
</qresource>
</RCC>
④ OSGeo4W 셀에서 컴파일
>pyuic4 -o ui_rastervaluepicker.py ui_rastervaluepicker.ui
>pyrcc4 -o resources_rc.py resources.qrc
⑤ 코드 편집
http://qgis.org/api/2.0/classQgisInterface.html
http://qgis.org/api/2.0/classQgsMapCanvas.html
http://www.qgis.org/api/classQgsMapToolEmitPoint.html
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
66
이민파 (mapplus@gmail.com)

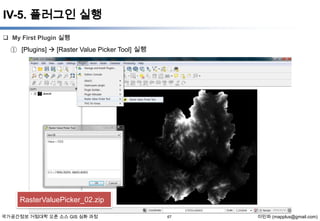

67. IV-5. 플러그인 실행
My First Plugin 실행
① [Plugins] [Raster Value Picker Tool] 실행
RasterValuePicker_02.zip
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
67
이민파 (mapplus@gmail.com)

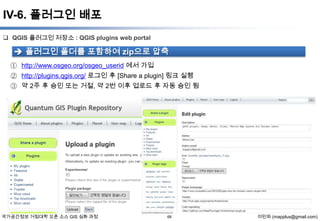

68. IV-6. 플러그인 배포
QGIS 플러그인 저장소 : QGIS plugins web portal
플러그인 폴더를 포함하여 zip으로 압축
① http://www.osgeo.org/osgeo_userid 에서 가입
② http://plugins.qgis.org/ 로그인 후 [Share a plugin] 링크 실행
③ 약 2주 후 승인 또는 거절, 약 2번 이후 업로드 후 자동 승인 됨
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
68
이민파 (mapplus@gmail.com)

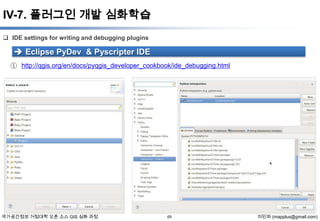

69. IV-7. 플러그인 개발 심화학습
IDE settings for writing and debugging plugins
Eclipse PyDev & Pyscripter IDE
① http://qgis.org/en/docs/pyqgis_developer_cookbook/ide_debugging.html
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
69
이민파 (mapplus@gmail.com)

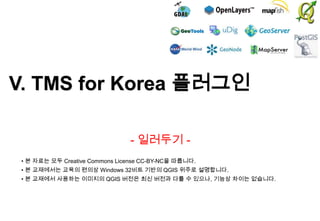

70. V. TMS for Korea 플러그인
- 일러두기 • 본 자료는 모두 Creative Commons License CC-BY-NC을 따릅니다.
• 본 교재에서는 교육의 편의상 Windows 32비트 기반의 QGIS 위주로 설명합니다.
• 본 교재에서 사용하는 이미지의 QGIS 버전은 최신 버전과 다를 수 있으나, 기능상 차이는 없습니다.
71. V-1. OpenLayers & TMS for Korea Plugin
OpenLayers Pugin을 기반으로 한국의 포털지도 등 Tile Map Services를 활용하도록 한 플러그인
① OpenLayers Plugin
GitHub: https://github.com/sourcepole/qgis-openlayers-plugin
Google TMS(EPSG:3857) 좌표체계 활용
② TMS for Korea Plugin
GitHub: https://github.com/MapPlus/qgis-tmsforkorea-plugin
국내 포털 - 다음 (EPSG:5181), 네이버(EPSG:5179), Olleh(EPSG:5179), VWorld
(EPSG:900913)
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
71
이민파 (mapplus@gmail.com)

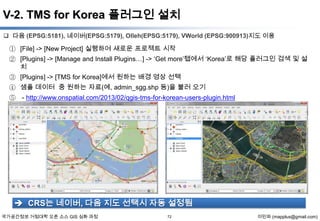

72. V-2. TMS for Korea 플러그인 설치
다음 (EPSG:5181), 네이버(EPSG:5179), Olleh(EPSG:5179), VWorld (EPSG:900913)지도 이용
① [File] -> [New Project] 실행하여 새로운 프로젝트 시작
② [Plugins] -> [Manage and Install Plugins…] -> ‘Get more’탭에서 ‘Korea’로 해당 플러그인 검색 및 설
치
③ [Plugins] -> [TMS for Korea]에서 원하는 배경 영상 선택
④ 샘플 데이터 중 원하는 자료(예, admin_sgg.shp 등)을 불러 오기
⑤ - http://www.onspatial.com/2013/02/qgis-tms-for-korean-users-plugin.html
CRS는 네이버, 다음 지도 선택시 자동 설정됨
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
72
이민파 (mapplus@gmail.com)
73. V-3. TMS for Korea 플러그인 구성
다음 (EPSG:5181), 네이버(EPSG:5179), Olleh(EPSG:5179), VWorld (EPSG:900913)지도 이용
① C:Users사용자명.qgis2pythonpluginstmsforkorea
② TMS 레이어를 위한 HTML(좌표체계 등 필수정보 확인) 및 아이콘 준비
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
73
이민파 (mapplus@gmail.com)

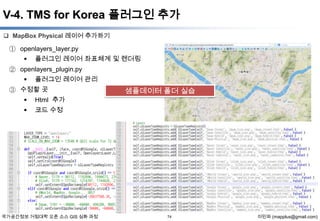

74. V-4. TMS for Korea 플러그인 추가
MapBox Physical 레이어 추가하기
① openlayers_layer.py
플러그인 레이어 좌표체계 및 렌더링
② openlayers_plugin.py
플러그인 레이어 관리
③ 수정할 곳
Html 추가
샘플데이터 폴더 실습
코드 수정
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
74
이민파 (mapplus@gmail.com)
76. VI-1. 유용한 정보들
QGIS 관련 정보 얻기
① 공식 페이지
QGIS 홈: http://www.qgis.org
QGIS 매뉴얼 : http://docs.qgis.org/2.0/ko_KR/docs/index.html
PyQGIS Cookbook: http://docs.qgis.org/2.0/ko_KR/docs/pyqgis_developer_cookbook/index.html
QGIS Planet : http://planet.qgis.org/planet/
② 블로그 및 사이트
하버드 대학교 QGIS Workshop : http://maps.cga.harvard.edu/qgis/
UC Davis QGIS Tutorial Labs : http://www.plantsciences.ucdavis.edu/plant/qgislabs.htm
Nathan's QGIS Blog : http://nathanw.net/
Free and Open Source GIS Ramblings : http://anitagraser.com/
Spatial Galaxy : http://spatialgalaxy.net/
Spatial Thoughts QGIS Tutorials : http://qgis.spatialthoughts.com/
Misanthrope's Thoughts : http://ssrebelious.blogspot.com/
③ 커뮤니티
OSGeo 한국어 지부 : http://www.osgeo.kr
OSGeo 한국어 지부 메일링 리스트 : http://groups.google.com/group/osgeo-kr
국가공간정보 거점대학 오픈 소스 GIS 심화 과정
76
이민파 (mapplus@gmail.com)
