1. MAHATMA JYOTIBA PHULE ROHILKHAND UNIVERSITY,
BAREILLY
SUBMITTED TO :
Ms. Ayushi Sharma Ma'am
Department of Microbiology
SUBMITTED BY :
Vishek Kumar
M.Sc. 1st semester

2. TABLE
OF
CONTENT
• INTRODUCTION
• PURE CULTIURE TECHNIQE
• ISOLATION PROCESS
• STREAK PLATE METHOD
• POUR PLATE METHOD
• SPREAD PLATE METHOD
• IDENTIFICATION PROCESS
• BIOCHEMICAL TEST
• MOLECULAR METHOD
• SEOGICAL TECHNIQUE
• CONCLUSION 2

3. Introduction
3
Background: Microbiologists often work with microorganisms such as bacteria, fungi,
and viruses to study their characteristics, behaviors, and potential applications. One
fundamental aspect of microbiological research is the isolation and maintenance of pure
cultures.
Definition of Pure Culture: A pure culture refers to a population of microbial cells
derived from a single cell or a group of identical cells. Maintaining pure cultures is
crucial for conducting accurate experiments, as it allows researchers to study the
characteristics of a specific microorganism without interference from other organisms.
Importance of Pure Culture Technique: The pure culture technique is indispensable in
microbiology for several reasons:
Identification and Classification: Enables precise identification and classification of
microorganisms based on their morphological, biochemical, and genetic traits.
Study of Microbial Physiology: Facilitates the study of microbial physiology and
metabolism in controlled conditions.
Biotechnological Applications: Essential for various biotechnological applications,
including the production of antibiotics, enzymes, and other valuable compounds.

4. PURE CULTURE TECHNIQUE
• The pure culture technique is a fundamental method in microbiology used to isolate and cultivate a single species of microorganism, free from
contamination by other organisms. This method is crucial for studying the characteristics, behavior, and properties of a specific microbe
without interference from unrelated organisms. Here's an overview of the pure culture technique:
• Objective: The primary goal of the pure culture technique is to obtain a population of microorganisms derived from a single cell or a group of
identical cells of the same species.
Steps in the Pure Culture Technique:
• Inoculation:
• A small sample containing the microorganism of interest, often obtained from a mixed culture or an environmental source, is introduced
into a sterile growth medium. The growth medium provides the necessary nutrients for the microorganism to thrive.
• Incubation:
• The inoculated culture is placed in a controlled environment, typically an incubator, where temperature, humidity, and other conditions
are optimized for the specific microorganism's growth. During incubation, the microorganisms multiply and form visible colonies.
• Isolation:
• Single colonies are obtained by transferring a small amount of the cultured material onto a fresh medium. Techniques such as streaking
or spread plating are commonly used to separate individual cells, ensuring that each colony originates from a single organism.
• Sub-culturing:
• To maintain the purity of the culture and prevent overgrowth, sub-culturing involves transferring a small portion of the isolated colony
to a new, sterile medium. This process is repeated as needed to sustain the culture.
4

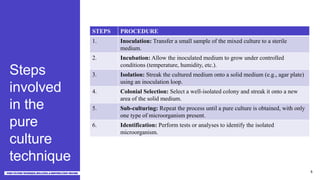

5. Steps
involved
in the
pure
culture
technique
STEPS PROCEDURE
1. Inoculation: Transfer a small sample of the mixed culture to a sterile
medium.
2. Incubation: Allow the inoculated medium to grow under controlled
conditions (temperature, humidity, etc.).
3. Isolation: Streak the cultured medium onto a solid medium (e.g., agar plate)
using an inoculation loop.
4. Colonial Selection: Select a well-isolated colony and streak it onto a new
area of the solid medium.
5. Sub-culturing: Repeat the process until a pure culture is obtained, with only
one type of microorganism present.
6. Identification: Perform tests or analyses to identify the isolated
microorganism.
5

6. ISOLATION PROCESS
Step Action Description
1. Prepare Agar Plates Sterilize Petri dishes containing a suitable growth medium.
2. Inoculation Transfer a small amount of the mixed culture onto the agar plate using aseptic
techniques.
3. Streaking Use a streaking technique to separate and dilute microbial cells across the agar
surface. Sterilize the loop between streaks.
4. Dilution and Isolation Continue streaking to dilute the microbial population, leading to individual
colonies.
5. Sterilize Loop Between
Streaks
After each streak, sterilize the loop to prevent contamination between streaks.
6. Incubation Incubate the agar plate in a controlled environment to encourage colony
formation.
7. Colonial Morphology
Examination
Observe and note characteristics of colonies, including size, shape, color, and
texture.
9. Sub-culturing Transfer a portion of an individual colony to a new agar plate to further purify the
culture. Repeat as needed until a pure culture is obtained.
10. Confirmation and
Documentation
Use microscopy to confirm purity. Document characteristics, including colony
morphology and any relevant tests.
11. Storage Store the pure culture in appropriate conditions for long-term preservation.
6
Isolation in pure culture technique is
a critical step in microbiology that
involves separating individual
microbial species from a mixed
population to obtain a culture
containing only one type of
microorganism. The process often
employs agar plates and is commonly
known as streak plating. Here's a
detailed guide on the isolation
process in pure culture technique

7. STREAK PLATE METHOD
Step Procedure
1. Prepare the Agar
Plate
Sterilize agar, pour into a Petri dish, and
allow it to solidify.
2. Inoculate the Loop Sterilize an inoculation loop and collect a
small sample of the bacterial culture.
3. Obtain the
Bacterial Sample
Collect a small amount of the mixed
bacterial culture using the sterilized loop.
4. Streaking the Plate a. Lift the Petri dish lid slightly. b. Streak
the bacterial sample in a zigzag pattern in
one section.
5. Incubation Close the Petri dish, incubate it upside down
at the appropriate temperature for bacterial
growth.
6. Colonial Isolation Individual colonies should appear in the last
streaked section after incubation, indicating
isolation.
7

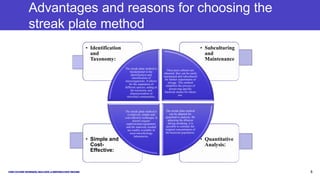

8. Advantages and reasons for choosing the
streak plate method
• Quantitative
Analysis:
• Simple and
Cost-
Effective:
• Subculturing
and
Maintenance
• Identification
and
Taxonomy:
The streak plate method is
fundamental in the
identification and
classification of
microorganisms. It allows
for the separation of
different species, aiding in
the taxonomy and
characterization of
microbial communities.
Once pure cultures are
obtained, they can be easily
maintained and subcultured
for further experiments or
storage. This method
simplifies the process of
preserving specific
bacterial strains for future
use.
The streak plate method
can be adapted for
quantitative analysis. By
adjusting the dilution
during streaking, it is
possible to estimate the
original concentration of
the bacterial population.
The streak plate method is
a relatively simple and
cost-effective technique. It
doesn't require
sophisticated equipment,
and the materials needed
are readily available in
most microbiology
laboratories.
Presentation title 8

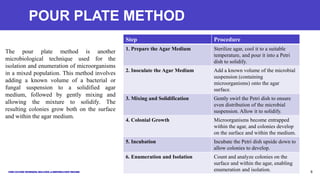

9. POUR PLATE METHOD
Step Procedure
1. Prepare the Agar Medium Sterilize agar, cool it to a suitable
temperature, and pour it into a Petri
dish to solidify.
2. Inoculate the Agar Medium Add a known volume of the microbial
suspension (containing
microorganisms) onto the agar
surface.
3. Mixing and Solidification Gently swirl the Petri dish to ensure
even distribution of the microbial
suspension. Allow it to solidify.
4. Colonial Growth Microorganisms become entrapped
within the agar, and colonies develop
on the surface and within the medium.
5. Incubation Incubate the Petri dish upside down to
allow colonies to develop.
6. Enumeration and Isolation Count and analyze colonies on the
surface and within the agar, enabling
enumeration and isolation. 9
The pour plate method is another
microbiological technique used for the
isolation and enumeration of microorganisms
in a mixed population. This method involves
adding a known volume of a bacterial or
fungal suspension to a solidified agar
medium, followed by gently mixing and
allowing the mixture to solidify. The
resulting colonies grow both on the surface
and within the agar medium.

10. Figure showing pour plating
method:
10

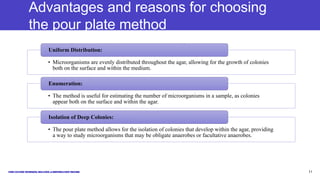

11. Advantages and reasons for choosing
the pour plate method
• Microorganisms are evenly distributed throughout the agar, allowing for the growth of colonies
both on the surface and within the medium.
Uniform Distribution:
• The method is useful for estimating the number of microorganisms in a sample, as colonies
appear both on the surface and within the agar.
Enumeration:
• The pour plate method allows for the isolation of colonies that develop within the agar, providing
a way to study microorganisms that may be obligate anaerobes or facultative anaerobes.
Isolation of Deep Colonies:
11

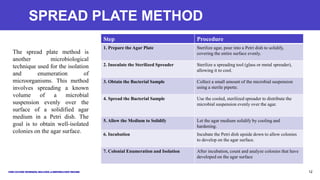

12. SPREAD PLATE METHOD
Step Procedure
1. Prepare the Agar Plate Sterilize agar, pour into a Petri dish to solidify,
covering the entire surface evenly.
2. Inoculate the Sterilized Spreader Sterilize a spreading tool (glass or metal spreader),
allowing it to cool.
3. Obtain the Bacterial Sample Collect a small amount of the microbial suspension
using a sterile pipette.
4. Spread the Bacterial Sample Use the cooled, sterilized spreader to distribute the
microbial suspension evenly over the agar.
5. Allow the Medium to Solidify Let the agar medium solidify by cooling and
hardening.
6. Incubation Incubate the Petri dish upside down to allow colonies
to develop on the agar surface.
7. Colonial Enumeration and Isolation After incubation, count and analyze colonies that have
developed on the agar surface
12
The spread plate method is
another microbiological
technique used for the isolation
and enumeration of
microorganisms. This method
involves spreading a known
volume of a microbial
suspension evenly over the
surface of a solidified agar
medium in a Petri dish. The
goal is to obtain well-isolated
colonies on the agar surface.

13. Figure showing spread plating
method
13

14. Advantages and reasons for choosing
the spread plate method
• It is suitable for quantitative analysis as the colonies are well-distributed, making it
easier to count and estimate the microbial population.
Quantitative Analysis:
• Unlike the pour plate method, the spread plate method focuses on colonies that develop
on the surface of the agar.
Surface Colonies:
• The spread plate method is relatively simple and efficient, requiring minimal equipment.
Simple and Efficient:
14

15. SERIAL DILUTION METHOD
15
The serial dilution method is a
technique used in microbiology and
other fields to reduce the
concentration of a solution
systematically. This method
involves a series of sequential
dilutions, resulting in a range of
concentrations. It is commonly
employed in microbiology for the
enumeration of microorganisms,
especially when dealing with high
concentrations where direct
counting may be impractical.

16. IDENTIFICATION PROCESS
The identification of microorganisms in pure culture involves a series of steps and techniques to
characterize and classify the isolated organism. Here is a general outline of the identification process:
1. Macroscopic Observation:
• Examine the colony morphology on agar plates. Characteristics such as size, shape, color, texture, and elevation can
provide initial clues about the microorganism.
2. Microscopic Observation:
• Perform Gram staining to determine the Gram reaction (Gram-positive or Gram-negative) and cell morphology (rod, cocci,
etc.).
• Examine under a microscope for other characteristic features like spore formation, motility, and cell arrangement.
16
Bacterial culture growth on Blood agar media
(Staphylococcus aureus) contains small light
grains.
Staphylococcus aureu microscopic image

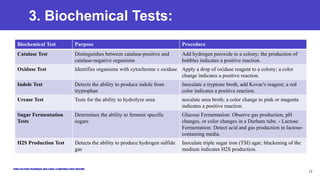

17. 3. Biochemical Tests:
Biochemical Test Purpose Procedure
Catalase Test Distinguishes between catalase-positive and
catalase-negative organisms
Add hydrogen peroxide to a colony; the production of
bubbles indicates a positive reaction.
Oxidase Test Identifies organisms with cytochrome c oxidase Apply a drop of oxidase reagent to a colony; a color
change indicates a positive reaction.
Indole Test Detects the ability to produce indole from
tryptophan
Inoculate a tryptone broth, add Kovac's reagent; a red
color indicates a positive reaction.
Urease Test Tests for the ability to hydrolyze urea noculate urea broth; a color change to pink or magenta
indicates a positive reaction.
Sugar Fermentation
Tests
Determines the ability to ferment specific
sugars
Glucose Fermentation: Observe gas production, pH
changes, or color changes in a Durham tube. - Lactose
Fermentation: Detect acid and gas production in lactose-
containing media.
H2S Production Test Detects the ability to produce hydrogen sulfide
gas
Inoculate triple sugar iron (TSI) agar; blackening of the
medium indicates H2S production.
17

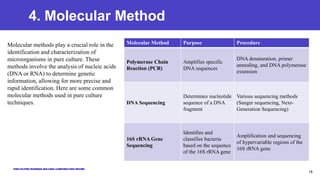

18. 4. Molecular Method
Molecular Method Purpose Procedure
Polymerase Chain
Reaction (PCR)
Amplifies specific
DNA sequences
DNA denaturation, primer
annealing, and DNA polymerase
extension
DNA Sequencing
Determines nucleotide
sequence of a DNA
fragment
Various sequencing methods
(Sanger sequencing, Next-
Generation Sequencing)
16S rRNA Gene
Sequencing
Identifies and
classifies bacteria
based on the sequence
of the 16S rRNA gene
Amplification and sequencing
of hypervariable regions of the
16S rRNA gene
18
Molecular methods play a crucial role in the
identification and characterization of
microorganisms in pure culture. These
methods involve the analysis of nucleic acids
(DNA or RNA) to determine genetic
information, allowing for more precise and
rapid identification. Here are some common
molecular methods used in pure culture
techniques.

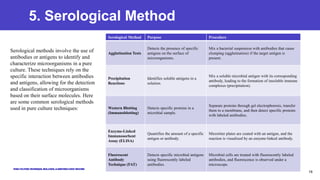

19. 5. Serological Method
Serological Method Purpose Procedure
Agglutination Tests
Detects the presence of specific
antigens on the surface of
microorganisms.
Mix a bacterial suspension with antibodies that cause
clumping (agglutination) if the target antigen is
present.
Precipitation
Reactions
Identifies soluble antigens in a
solution.
Mix a soluble microbial antigen with its corresponding
antibody, leading to the formation of insoluble immune
complexes (precipitation).
Western Blotting
(Immunoblotting)
Detects specific proteins in a
microbial sample.
Separate proteins through gel electrophoresis, transfer
them to a membrane, and then detect specific proteins
with labeled antibodies.
Enzyme-Linked
Immunosorbent
Assay (ELISA)
Quantifies the amount of a specific
antigen or antibody.
Microtiter plates are coated with an antigen, and the
reaction is visualized by an enzyme-linked antibody.
Fluorescent
Antibody
Technique (FAT)
Detects specific microbial antigens
using fluorescently labeled
antibodies.
Microbial cells are treated with fluorescently labeled
antibodies, and fluorescence is observed under a
microscope.
19
Serological methods involve the use of
antibodies or antigens to identify and
characterize microorganisms in a pure
culture. These techniques rely on the
specific interaction between antibodies
and antigens, allowing for the detection
and classification of microorganisms
based on their surface molecules. Here
are some common serological methods
used in pure culture techniques:

20. Conclusion
In conclusion, pure culture techniques represent a cornerstone in the field of
microbiology, offering indispensable tools for researchers and scientists. The
ability to isolate and cultivate individual microorganisms provides a crucial
foundation for understanding their characteristics, behaviors, and interactions.
From the meticulous process of streaking plates to the advanced applications of
molecular and serological methods, pure culture techniques contribute
significantly to microbial identification, classification, and exploration. These
techniques not only serve as the basis for unraveling the intricacies of microbial
life but also find wide-ranging applications in research, diagnostics, and industries.
As we continue to explore the vast microbial world, pure culture techniques
remain essential for unlocking the potential of microorganisms and leveraging
their benefits in fields such as medicine, agriculture, and biotechnology.
20

21. Thank you
Vishek
Kumar
vishek7037k@gmail.com
21
