The document describes a proposed public library design for South Jakarta that aims to address the lack of reading facilities, attract people to read, and make reading more interesting. The conceptual design would be located on a 10,200 square meter site and consist of a 3,000 square meter, 7-floor building not exceeding the maximum allowed size of 4,080 square meters. The building form would have different shapes for the ground level and underground areas compared to the upper floors and roof top.

1. PUBLIC LIBRARY OF
SOUTH JAKARTA
SITI YAUMILIA SALSA
13.036
DESIGN STUDIO 4
ARCHITECTURE

2. •THE LACK FACILITY IN SOUTH JAKARTA
•ATRACT PEOPLE TO READ
•MAKE THE PEOPLE INTRESTED TO READING
•REDUCE URBAN HEAT ISLAND
BACKGROUND

3. CONCEPT

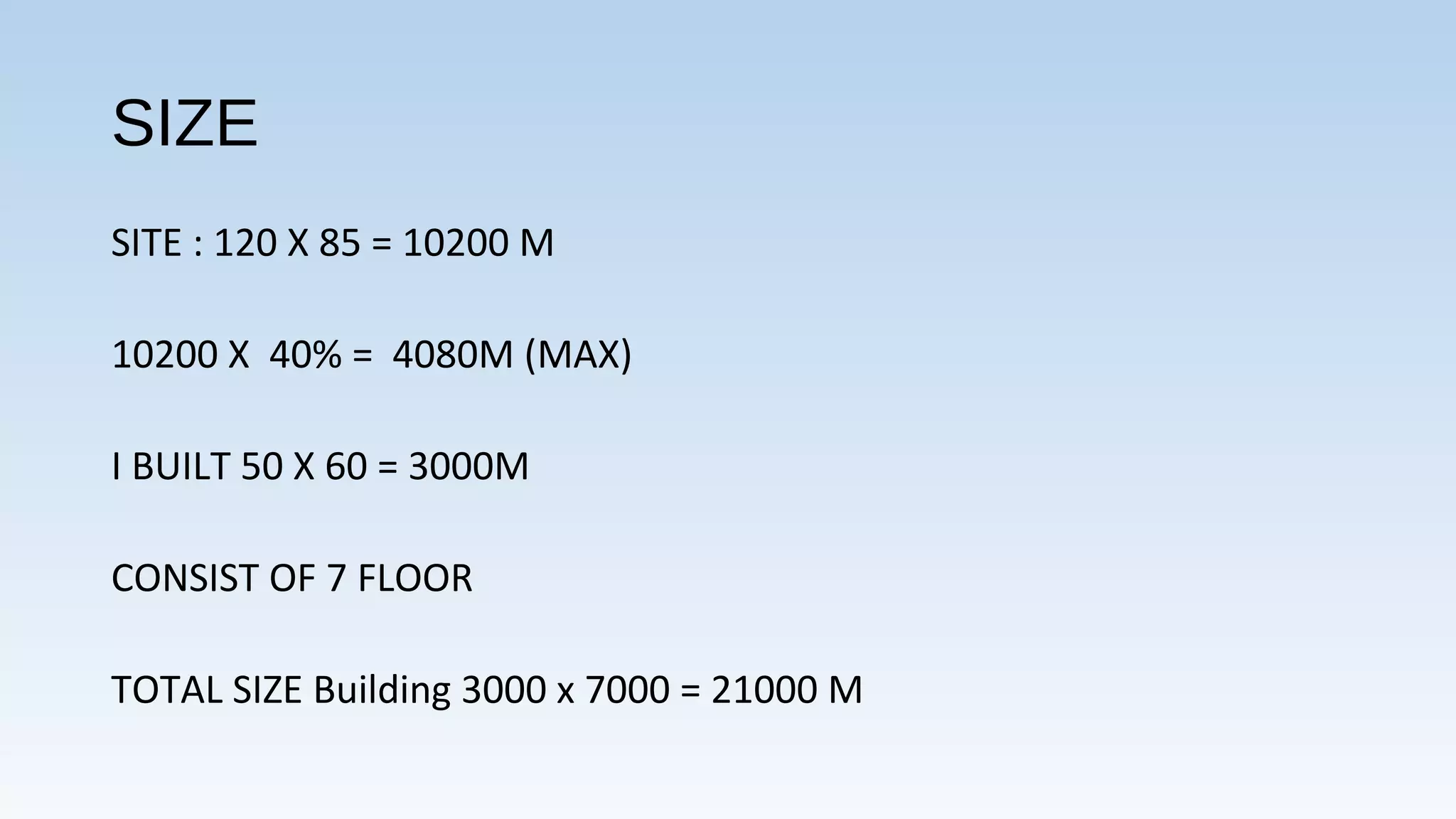

4. SIZE
SITE : 120 X 85 = 10200 M
10200 X 40% = 4080M (MAX)
I BUILT 50 X 60 = 3000M
CONSIST OF 7 FLOOR
TOTAL SIZE Building 3000 x 7000 = 21000 M

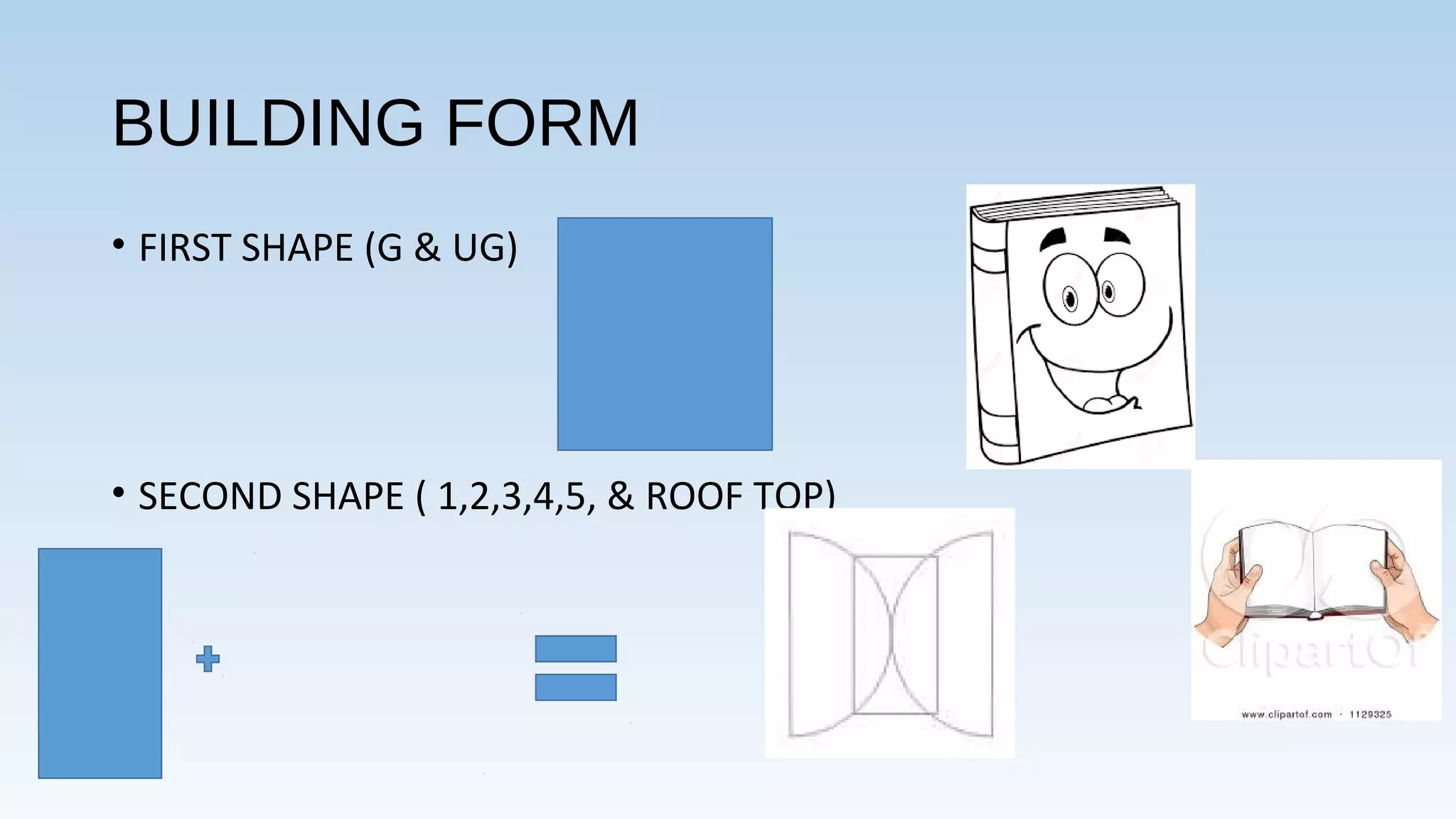

5. BUILDING FORM
• FIRST SHAPE (G & UG)
• SECOND SHAPE ( 1,2,3,4,5, & ROOF TOP)

6. SHAPE

7. LOCATION

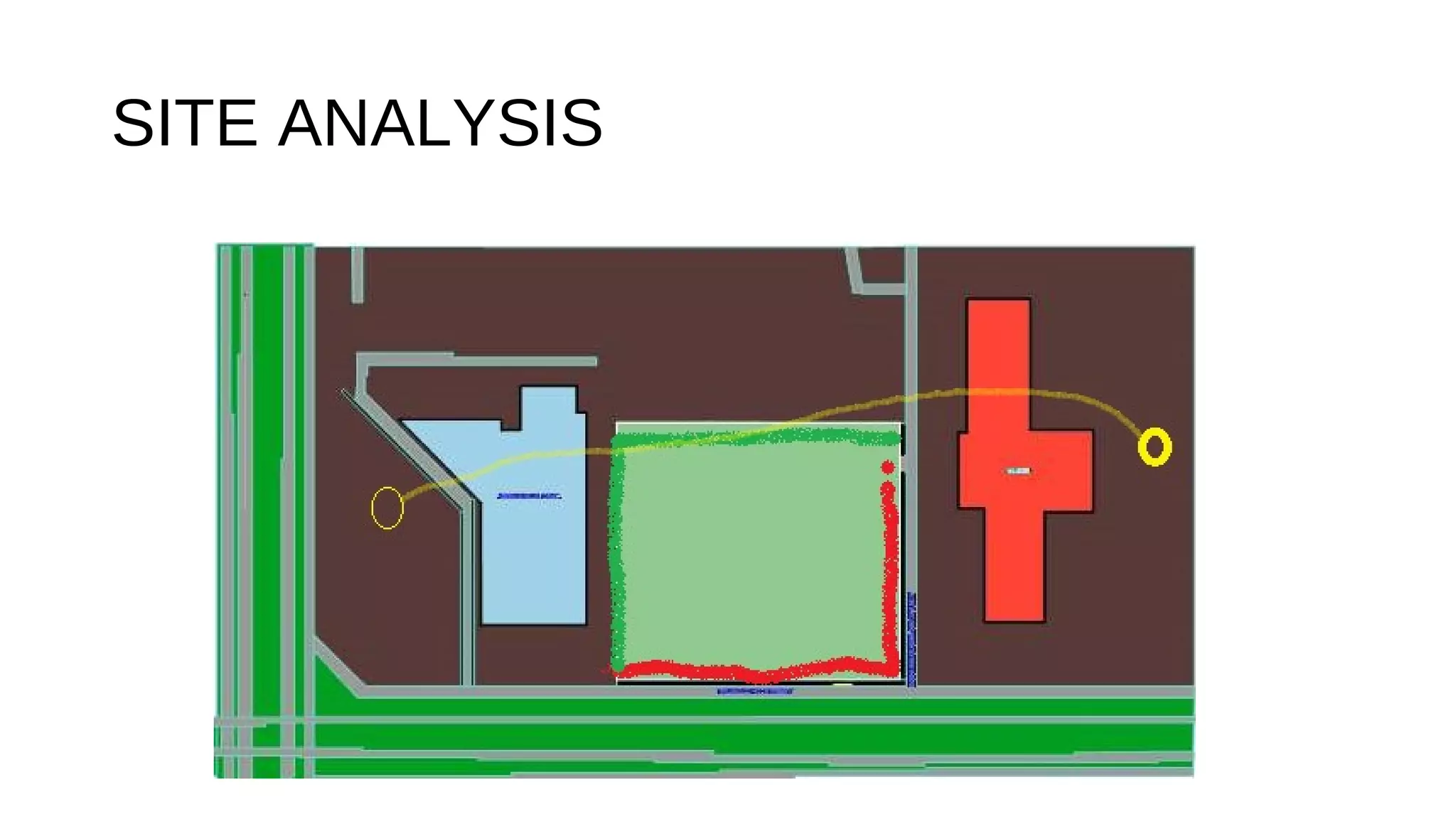

8. SITE ANALYSIS

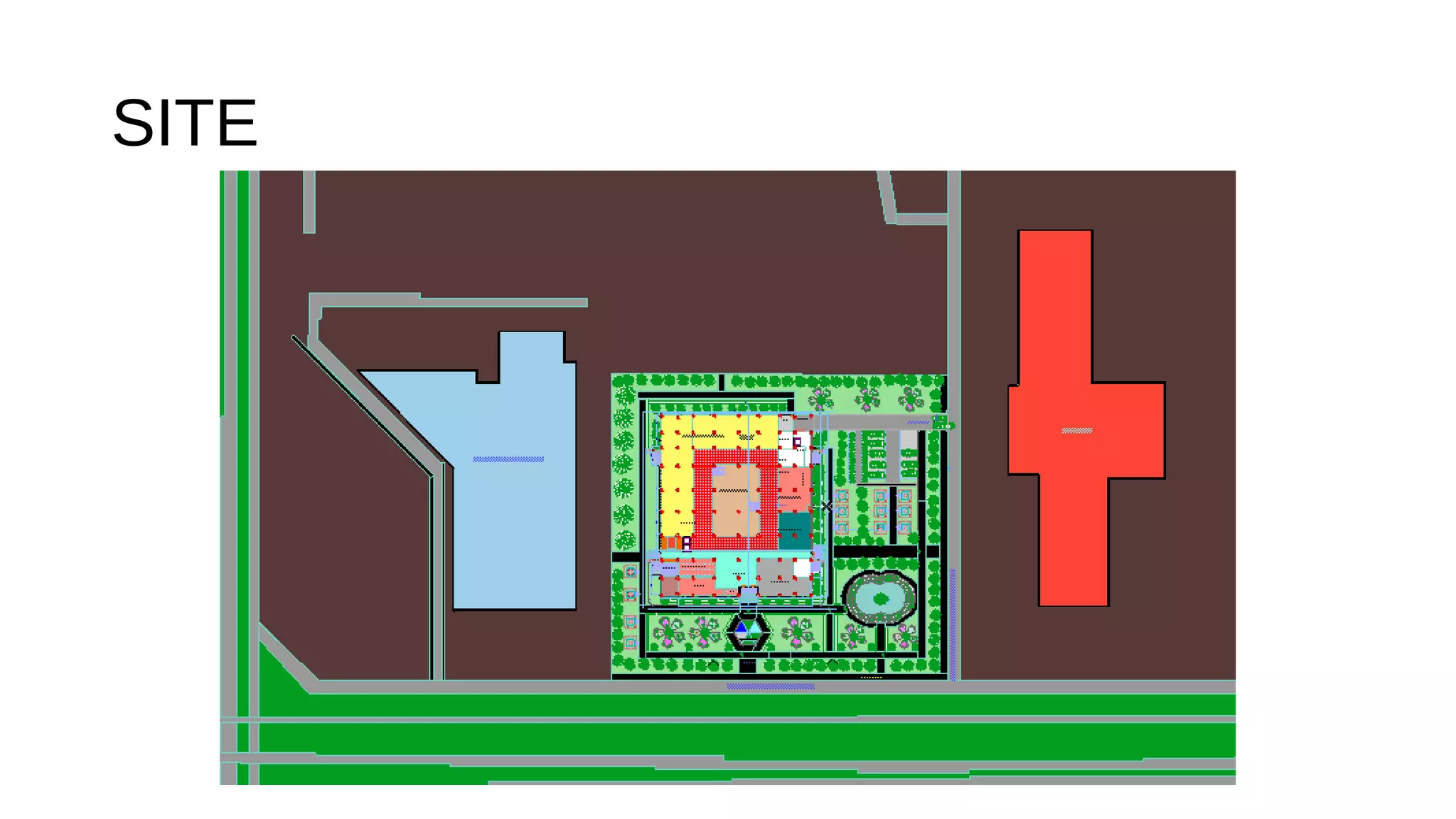

9. SITE

10. GROUND PLAN

11. GROUND FLOOR PLAN
