Projecto Clean Sky
1) The document discusses ACARE (Advisory Council for Aeronautics Research in Europe) and its Clean Sky initiative, a public-private partnership between the European Commission and industry aimed at developing more environmentally friendly air transportation technologies. 2) Through integrated technology demonstrators, Clean Sky aims to significantly reduce aircraft emissions, noise, and fuel consumption by 2020 compared to 2000 levels. Targets include 50% reduction in CO2, 80% reduction in NOx, and 50% reduction in noise. 3) Expected results from Clean Sky include technologies for reduced fuel consumption such as efficient engines, lightweight structures, and improved aerodynamics. It also focuses on reducing external noise through engine and airframe design
Projecto Clean Sky

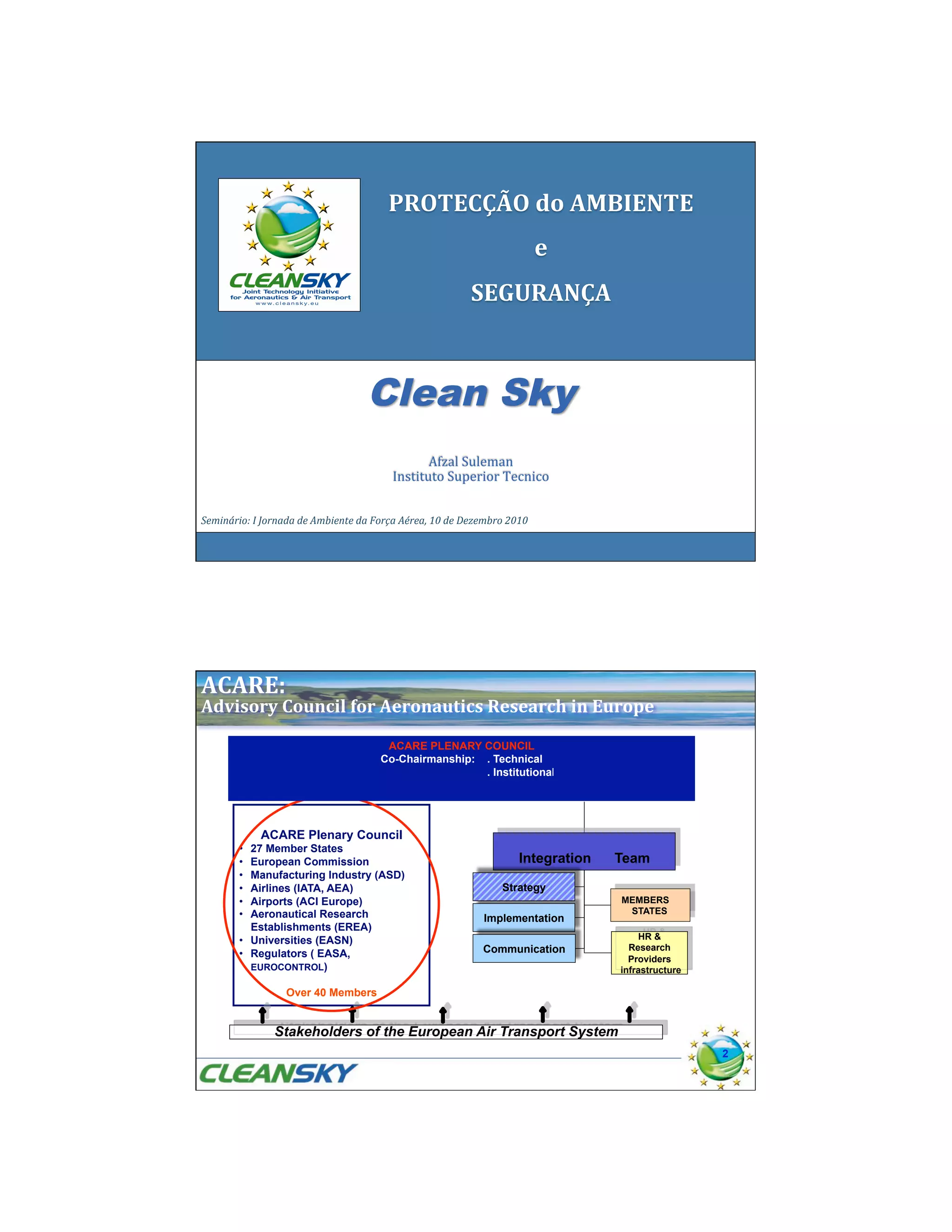

- 1. PROTECÇÃO do AMBIENTE e SEGURANÇA Seminário: I Jornada de Ambiente da Força Aérea, 10 de Dezembro 2010 ACARE: Advisory Council for Aeronautics Research in Europe ACARE PLENARY COUNCIL Co-Chairmanship: . Technical . Institutional ACARE Plenary Council • 27 Member States • European Commission Integration Team • Manufacturing Industry (ASD) • Airlines (IATA, AEA) Strategy • Airports (ACI Europe) MEMBERS Member • Aeronautical Research STATES States Implementation Establishments (EREA) • Universities (EASN) HR & Communication Research • Regulators ( EASA, Providers EUROCONTROL) infrastructure Over 40 Members Stakeholders of the European Air Transport System 2

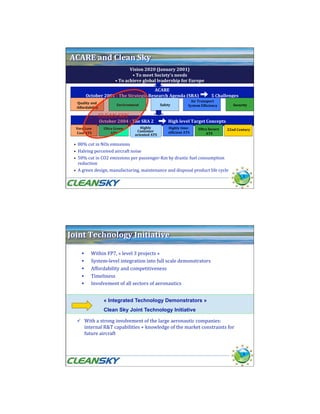

- 2. ACARE and Clean Sky Vision 2020 (January 2001) • To meet Society’s needs • To achieve global leadership for Europe ACARE October 2002 : The Strategic Research Agenda (SRA) 5 Challenges Air Transport Quality and Environment Safety System EfNiciency Security Affordability CLEAN SKY October 2004 : The SRA 2 High level Target Concepts Very Low Ultra Green Highly Highly time Ultra Secure Customer 22nd Century Cost ATS ATS efNicient ATS ATS oriented ATS • 80% cut in NOx emissions • Halving perceived aircraft noise • 50% cut in CO2 emissions per passenger‐Km by drastic fuel consumption reduction • A green design, manufacturing, maintenance and disposal product life cycle 3 Joint Technology Initiative Within FP7, « level 3 projects » System‐level integration into full scale demonstrators Affordability and competitiveness Timeliness Involvement of all sectors of aeronautics « Integrated Technology Demonstrators » Clean Sky Joint Technology Initiative With a strong involvement of the large aeronautic companies: internal R&T capabilities + knowledge of the market constraints for future aircraft 4
- 3. Benefits of investingin aeronautics technologies Environment Greener products into service sooner Less noise, lower emissions Reduced fuel consumption Greener design, production and maintenance Faster introduction of innovative technologies Application across all commercial aircraft Socio-economic impact Integrating European industry Open access to SMEs and New Member States Expected multiplier effect via complementary National Programmes A competitive European industry leading the introduction of more environmentally friendly products and sustaining the creation of highly qualified jobs Major contribution to sustainable growth in Europe 5 Aerospace Technology 2010, Stockholm, Technology Readiness Level 6

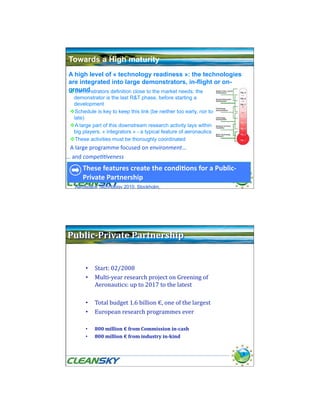

- 4. Towards a Highmaturity A high level of « technology readiness »: the technologies are integrated into large demonstrators, in-flight or on- ground Demonstrators definition close to the market needs: the demonstrator is the last R&T phase, before starting a development Schedule is key to keep this link (be neither too early, nor too late) A large part of this downstream research activity lays within big players, « integrators » - a typical feature of aeronautics These activities must be thoroughly coordinated A large programme focused on environment… … and compe++veness These features create the condi0ons for a Public‐ Private Partnership 7 Aerospace Technology 2010, Stockholm, PublicPrivate Partnership • Start: 02/2008 • Multi‐year research project on Greening of Aeronautics: up to 2017 to the latest • Total budget 1.6 billion €, one of the largest • European research programmes ever • 800 million € from Commission incash • 800 million € from industry inkind 8

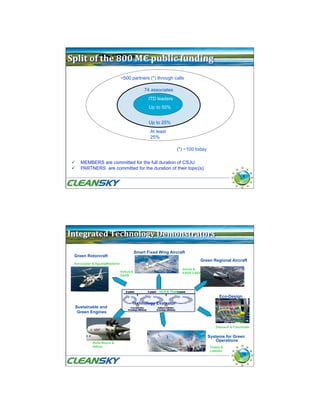

- 5. Split of the 800 M€ public funding ~500 partners (*) through calls 74 associates ITD leaders Up to 50% Up to 25% At least 25% (*) ~100 today MEMBERS are committed for the full duration of CSJU PARTNERS are committed for the duration of their topic(s) 9 Integrated Technology Demonstrators Smart Fixed Wing Aircraft Green Rotorcraft Green Regional Aircraft Eurocopter & AgustaWestland Alenia & Airbus & EADS-CASA SAAB DLR & Thales Eco-Design Technology Evaluator Sustainable and Green Engines Dassault & Fraunhofer Systems for Green Operations Rolls-Royce & Safran Thales & Liebherr 10

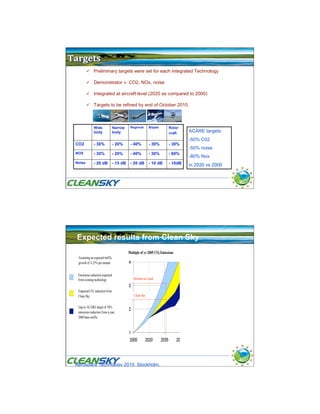

- 6. Targets Preliminary targets were set for each Integrated Technology Demonstrator »: CO2, NOx, noise Integrated at aircraft level (2020 as compared to 2000) Targets to be refined by end of October 2010 Wide Narrow Regional Bizjets Rotor body body craft ACARE targets: - 50% C02 CO2 - 30% - 20% - 40% - 30% - 30% - 50% noise NOX - 30% - 20% - 40% - 30% - 60% - 80% Nox Noise - 20 dB - 15 dB - 20 dB - 10 dB - 10dB in 2020 vs 2000 11 Expected results from Clean Sky 12 Aerospace Technology 2010, Stockholm,
- 7. 50%CO2 80% NOx 50% noise Green design.. 13 • Engines • Loads & Flow Control Reduced fuel consumption • New Aircraft ConNigurations Reduction of CO2 and NOX • Low weight • Aircraft Energy Management • Mission & Trajectory Management • Engines External noise reduction • Mission & Trajectory Management • ConNigurations • Rotorcraft Noise Reduction “Ecolonomic” life cycle Aircraft Life Cycle 14

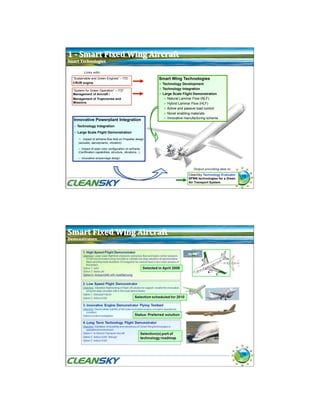

- 8. Links with: “Sustainable andGreen Engines” – ITD Smart Wing Technologies CROR engine Technology Development “System for Green Operation” – ITD” Technology Integration Management of Aircraft / Large Scale Flight Demonstration Management of Trajectories and Natural Laminar Flow (NLF) Missions Hybrid Laminar Flow (HLF) Active and passive load control Novel enabling materials Innovative manufacturing scheme Innovative Powerplant Integration Technology Integration Large Scale Flight Demonstration Impact of airframe flow field on Propeller design (acoustic, aerodynamic, vibration) Impact of open rotor configuration on airframe (Certification capabilities, structure, vibrations...) Innovative empennage design Output providing data to: CleanSky Technology Evaluator 15 SFWA technologies for a Green Air Transport System 16

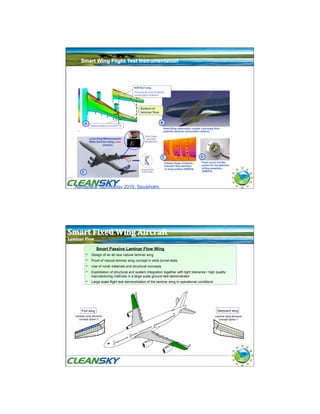

- 9. 17 Aerospace Technology 2010,Stockholm, Smart Passive Laminar Flow Wing Design of an all new natural laminar wing Proof of natural laminar wing concept in wind tunnel tests Use of novel materials and structural concepts Exploitation of structural and system integration together with tight tolerance / high quality manufacturing methods in a large scale ground test demonstrator Large scale flight test demonstration of the laminar wing in operational conditions Port wing Starboard wing Laminar wing structure Laminar wing structure concept option 2 concept option 1 18

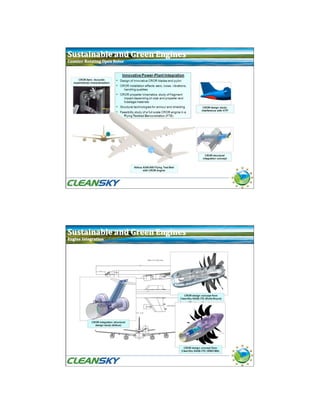

- 10. Reduced fuel • Engines consumption (CO2 & • Loads & Nlow control NOx reduction • New Aircraft ConNigurations CO up to 20% • Low weight • Aircraft Energy Management NOx up to 60% • Mission & Trajectory Management External noise • Engines reduction • Mission & Trajectory Management • ConNiguration Noise up to 20 dB • Rotorcraft noise reduction « Ecolonomic » life cycle • Aircraft Life Cycle 19 To develop and validate technologies Contributing to the environmental targets On 5 complementary demonstrator engines for regional, narrow body, wide body & rotorcraft applications Raising the Technology Readiness Levels to TRL 6 Contra-rotating open rotor (CROR) propulsion Advanced engine externals & installations including novel systems, demonstrating noise attenuation Feasibility of both geared & direct drive power transmission Ability to control contra-rotating propeller blade pitch For advanced geared fan engine concepts Ability to control system noise levels equal to or better High efficiency LP spool technology than current engines High speed LP turbine design Aggressive mid turbine interduct Lightweight Low Pressure (LP) systems for turbofans, including For next generation rotorcraft engine Composite fan blades & fancase High efficiency & lightweight compressor Lightweight structures High efficiency & lightweight turbine High efficiency low pressure turbine Low emission combustion chamber 20
- 11.

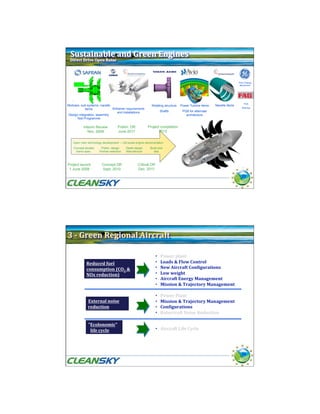

- 12. Pitch Change Mechanism PGB Modules, sub-systems, nacelle Rotating structure Power Turbine items Nacelle items Bearings items Airframer requirements and installations Shafts PGB for alternate Design integration, assembly architecture Test Programme Interim Review Prelim. DR Project completion Nov. 2009 June 2011 2013 Open rotor technology development → full-scale engine demonstration Concept studies Prelim. design Detail design Build and Demo spec. Partner selection Manufacture test Project launch Concept DR Critical DR 1 June 2008 Sept. 2010 Dec. 2011 23 • Power plant Reduced fuel • Loads & Flow Control consumption (CO2 & • New Aircraft ConNigurations NOx reduction) • Low weight • Aircraft Energy Management • Mission & Trajectory Management • Power Plant External noise • Mission & Trajectory Management reduction • ConNigurations • Rotorcraft Noise Reduction "Ecolonomic" life cycle • Aircraft Life Cycle 24
- 13. Power plant Reduced fuel Loads & Flow Control consumption (CO2 & New Aircraft ConNigurations NOx reduction) Low weight Aircraft Energy Management Mission & Trajectory Management Power Plant External noise Mission & Trajectory Management reduction Con`igurations Rotorcraft Noise Reduction "Ecolonomic" life cycle Aircraft Life Cycle 25 1. Innovative Rotor Blades • Active blade devices • Blade stall alleviation, pro`ile drag reduction (tayloring of blade design) 2. Drag reduction, required power reduction Passive and active `low controls for helicopter and tiltorotor components Integration of MR pylon, hub, aft body, tail, turboshaft engine installation 3. More electrical Helicopter Elimination of noxious hydraulic `luid; optimised on‐board energy ; weight reduction 4. Lean powerplant installation of a Diesel engine on a light single HC for low CO2 emission 5. EnvironmentFriendly Flight Path Noise abatement with optimized `light procedures in VFR & IFR including ATM constraints Fuel consumption and pollutant emissions reduction through a mission pro`ile optimization 6. EcoDesign Participation to generic studies +demo on speci`ic rotorcraft technologies & components 7. Technical Evaluator Interfacing to the assessment of actual impact of selected technologies for rotorcraft 26

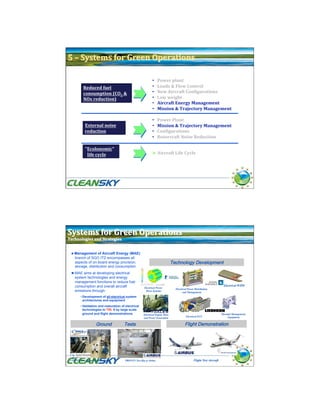

- 14. • Power plant Reduced fuel • Loads & Flow Control consumption (CO2 & • New Aircraft ConNigurations NOx reduction) • Low weight • Aircraft Energy Management • Mission & Trajectory Management • Power Plant External noise • Mission & Trajectory Management reduction • ConNigurations • Rotorcraft Noise Reduction "Ecolonomic" life cycle Aircraft Life Cycle 27 ►Management of Aircraft Energy (MAE) branch of SGO ITD encompasses all aspects of on-board energy provision, Technology Development storage, distribution and consumption ►MAE aims at developing electrical system technologies and energy management functions to reduce fuel consumption and overall aircraft Electrical WIPS Electrical Power Electrical Power Distribution emissions through: Drive Systems and Management • Development of all-electrical system architectures and equipment • Validation and maturation of electrical technologies to TRL 6 by large scale ground and flight demonstrations. Electrical Engine Start Thermal Management Electrical ECS Equipment and Power Generation Ground Tests Flight Demonstration 28 COPPER Test Rig at Hispano -Suiza PROVEN Test Rig at Airbus Flight Test Aircraft

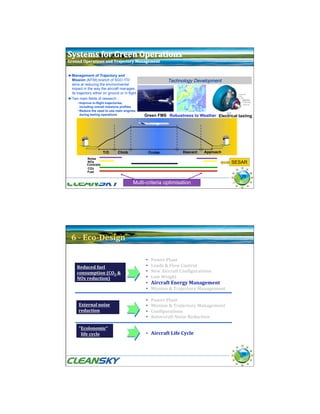

- 15. ►Management of Trajectoryand Mission (MTM) branch of SGO ITD Technology Development aims at reducing the environmental impact in the way the aircraft manages its trajectory either on ground or in flight ►Two main fields of research : • Improve in-flight trajectories, including overall missions profiles • Reduce the need to use main engines during taxiing operations Green FMS Robustness to Weather Electrical taxiing T/O Climb Cruise Descent Approach Noise NOx Contrails SESAR CO2 Fuel 29 Multi-criteria optimisation 6 EcoDesign • Power Plant Reduced fuel • Loads & Flow Control consumption (CO2 & • New Aircraft ConNigurations NOx reduction) • Low Weight • Aircraft Energy Management • Mission & Trajectory Management • Power Plant External noise • Mission & Trajectory Management reduction • ConNigurations • Rotorcraft Noise Reduction "Ecolonomic" life cycle • Aircraft Life Cycle 30

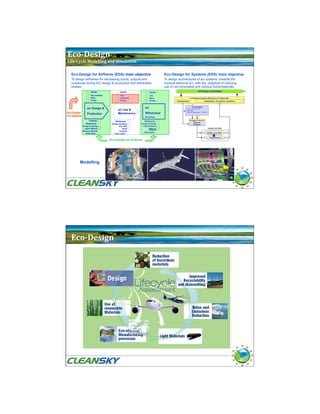

- 16. EcoDesign LifeCycle Modelling and Simulation Eco-Design forAirframe (EDA) main objective Eco-Design for Systems (EDS) main objective To design airframes for decreasing inputs, outputs and To design architectures of a/c systems, towards the nuisances during A/C design & production and withdrawal more/all electrical a/c, with the objective of reducing phases use of non-renewable and noxious fluids/materials Modelling 31 EcoDesign 32

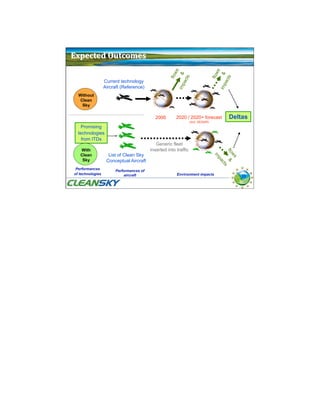

- 17. ws ws & & flo flo cts cts Current technology pa pa Aircraft (Reference) im im Without Clean Sky 2000 2020 / 2020+ forecast Deltas (incl. SESAR) Promising technologies from ITDs Generic fleet With inserted into traffic Clean List of Clean Sky Sky Conceptual Aircraft Performances Performances of of technologies aircraft Environment impacts 33
