Progscon 2017: Serverless Architectures - Rafal Gancarz
- 1.

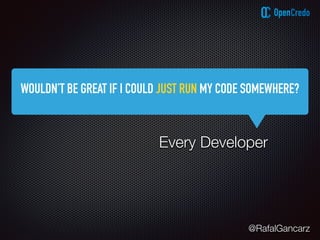

- 2. @RafalGancarz Every Developer WOULDN’T BEGREAT IF I COULD JUST RUN MY CODE SOMEWHERE?
- 3. Rafal Gancarz Lead Consultant@ OpenCredo @RafalGancarz
- 4. (CC) Ray Sadler BUILDINGBLOCKS

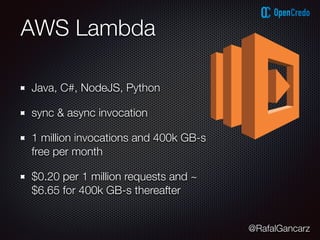

- 5. @RafalGancarz AWS Lambda Java, C#,NodeJS, Python sync & async invocation 1 million invocations and 400k GB-s free per month $0.20 per 1 million requests and ~ $6.65 for 400k GB-s thereafter

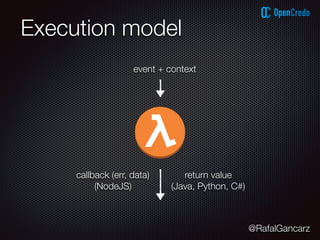

- 6. @RafalGancarz Execution model event +context callback (err, data) (NodeJS) return value (Java, Python, C#)

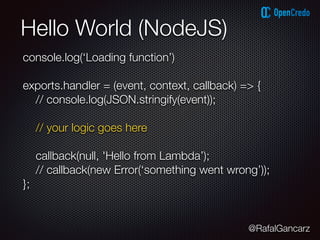

- 7. @RafalGancarz Hello World (NodeJS) console.log(‘Loadingfunction’) exports.handler = (event, context, callback) => { // console.log(JSON.stringify(event)); // your logic goes here callback(null, 'Hello from Lambda’); // callback(new Error(‘something went wrong’)); };

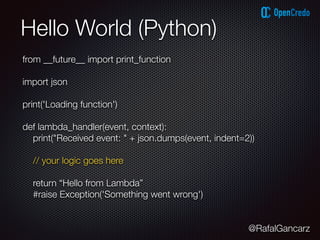

- 8. @RafalGancarz Hello World (Python) from__future__ import print_function import json print('Loading function') def lambda_handler(event, context): print("Received event: " + json.dumps(event, indent=2)) // your logic goes here return “Hello from Lambda” #raise Exception('Something went wrong')

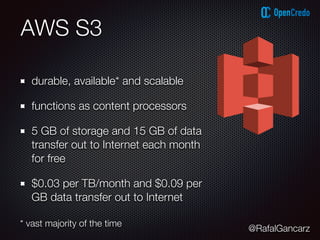

- 9. @RafalGancarz AWS S3 durable, available*and scalable functions as content processors 5 GB of storage and 15 GB of data transfer out to Internet each month for free $0.03 per TB/month and $0.09 per GB data transfer out to Internet * vast majority of the time

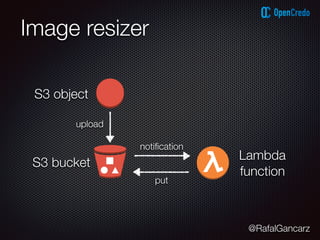

- 10. @RafalGancarz Image resizer S3 object S3bucket Lambda function upload notification put

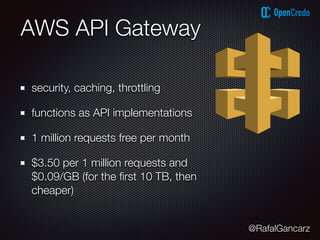

- 11. @RafalGancarz AWS API Gateway security,caching, throttling functions as API implementations 1 million requests free per month $3.50 per 1 million requests and $0.09/GB (for the first 10 TB, then cheaper)
- 12.

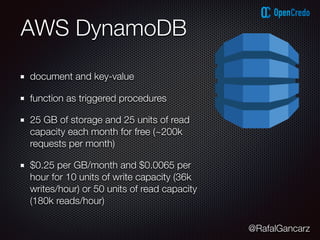

- 13. @RafalGancarz AWS DynamoDB document andkey-value function as triggered procedures 25 GB of storage and 25 units of read capacity each month for free (~200k requests per month) $0.25 per GB/month and $0.0065 per hour for 10 units of write capacity (36k writes/hour) or 50 units of read capacity (180k reads/hour)
- 14.

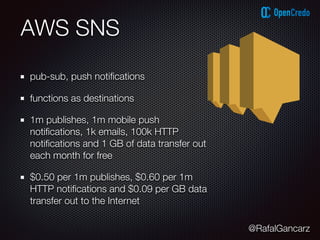

- 15. @RafalGancarz AWS SNS pub-sub, pushnotifications functions as destinations 1m publishes, 1m mobile push notifications, 1k emails, 100k HTTP notifications and 1 GB of data transfer out each month for free $0.50 per 1m publishes, $0.60 per 1m HTTP notifications and $0.09 per GB data transfer out to the Internet
- 16.

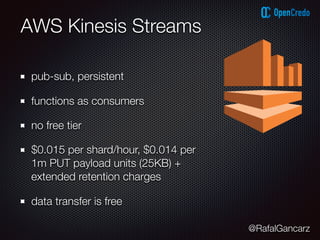

- 17. @RafalGancarz AWS Kinesis Streams pub-sub,persistent functions as consumers no free tier $0.015 per shard/hour, $0.014 per 1m PUT payload units (25KB) + extended retention charges data transfer is free

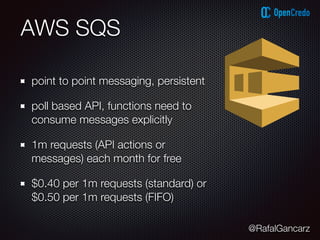

- 18. @RafalGancarz AWS SQS point topoint messaging, persistent poll based API, functions need to consume messages explicitly 1m requests (API actions or messages) each month for free $0.40 per 1m requests (standard) or $0.50 per 1m requests (FIFO)
- 19.

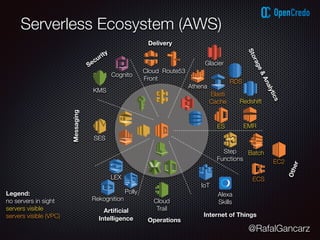

- 20. @RafalGancarz Serverless Ecosystem (AWS) SES LEX Cloud Front Route53 KMS Cognito Step Functions Security Delivery Messaging Glacier RDS Redshift Elasti Cache Athena EMRES Storage&Analytics Artificial Intelligence Polly Rekognition Operations IoT Alexa Skills Internetof Things Other Cloud Trail Batch ECS EC2 Legend: no servers in sight servers visible servers visible (VPC)
- 21.

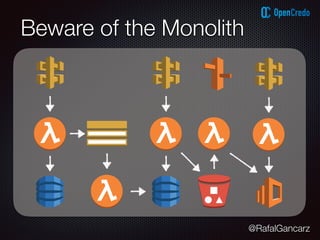

- 22. @RafalGancarz Beware of theMonolith
- 23.

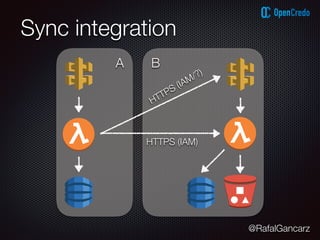

- 24. @RafalGancarz Sync integration A B HTTPS(IAM/?) HTTPS (IAM)
- 25.
- 26.
- 27.
- 28.

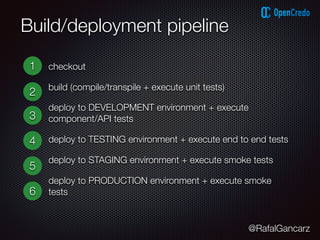

- 29. @RafalGancarz Build/deployment pipeline 1 checkout build(compile/transpile + execute unit tests) deploy to DEVELOPMENT environment + execute component/API tests deploy to TESTING environment + execute end to end tests deploy to STAGING environment + execute smoke tests deploy to PRODUCTION environment + execute smoke tests 2 3 4 5 6
- 30.

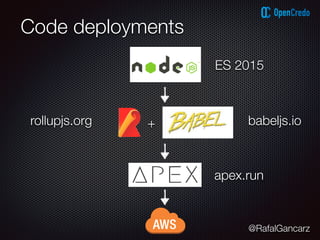

- 31. @RafalGancarz Code deployments ES 2015 +rollupjs.orgbabeljs.io apex.run

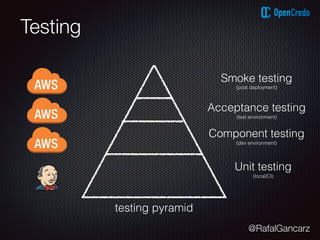

- 32. @RafalGancarz Testing Unit testing (local/CI) Acceptance testing (testenvironment) Smoke testing (post deployment) testing pyramid Component testing (dev environment)

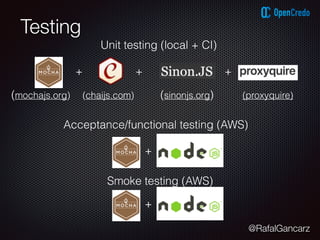

- 33. @RafalGancarz Testing + + Unit testing(local + CI) + Acceptance/functional testing (AWS) + Smoke testing (AWS) + (mochajs.org) (chaijs.com) (sinonjs.org) (proxyquire)
- 34.

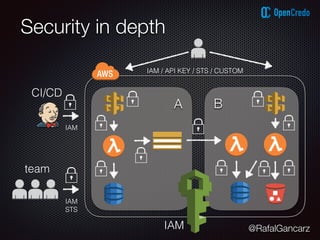

- 35. @RafalGancarz Security in depth AB team CI/CD IAM IAM STS IAM IAM / API KEY / STS / CUSTOM
- 36.
- 37.

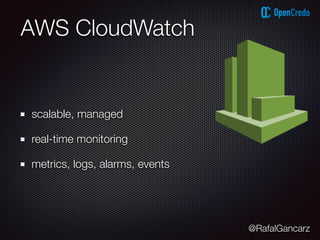

- 38. @RafalGancarz AWS CloudWatch scalable, managed real-timemonitoring metrics, logs, alarms, events
- 39.

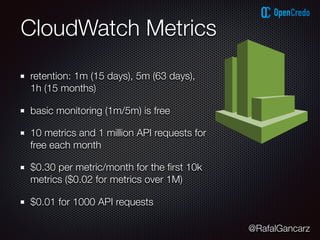

- 40. @RafalGancarz CloudWatch Metrics retention: 1m(15 days), 5m (63 days), 1h (15 months) basic monitoring (1m/5m) is free 10 metrics and 1 million API requests for free each month $0.30 per metric/month for the first 10k metrics ($0.02 for metrics over 1M) $0.01 for 1000 API requests
- 41.

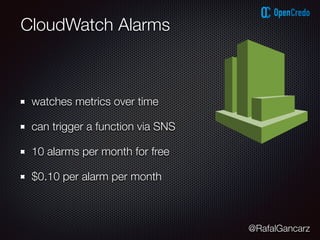

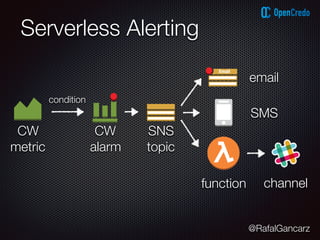

- 42. @RafalGancarz CloudWatch Alarms watches metricsover time can trigger a function via SNS 10 alarms per month for free $0.10 per alarm per month
- 43.
- 44.

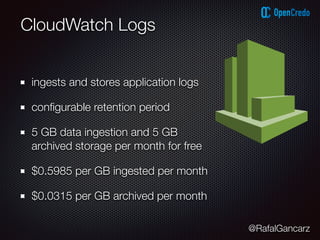

- 45. @RafalGancarz CloudWatch Logs ingests andstores application logs configurable retention period 5 GB data ingestion and 5 GB archived storage per month for free $0.5985 per GB ingested per month $0.0315 per GB archived per month
- 46.
- 47.
- 48. @RafalGancarz Log Browsing log groupElastic Search function JSON Kibana Bunyan
- 49.

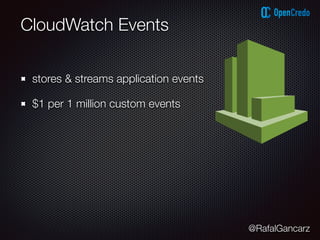

- 50. @RafalGancarz CloudWatch Events stores &streams application events $1 per 1 million custom events
- 51.
- 52. HEALTH CHECKS (CC) RosmarieVoegtli

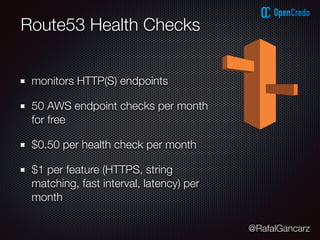

- 53. @RafalGancarz Route53 Health Checks monitorsHTTP(S) endpoints 50 AWS endpoint checks per month for free $0.50 per health check per month $1 per feature (HTTPS, string matching, fast interval, latency) per month
- 54.
- 55.

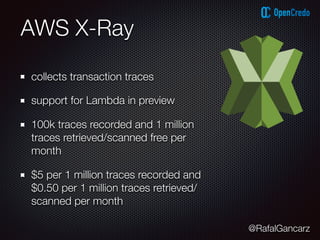

- 56. @RafalGancarz AWS X-Ray collects transactiontraces support for Lambda in preview 100k traces recorded and 1 million traces retrieved/scanned free per month $5 per 1 million traces recorded and $0.50 per 1 million traces retrieved/ scanned per month
- 57.

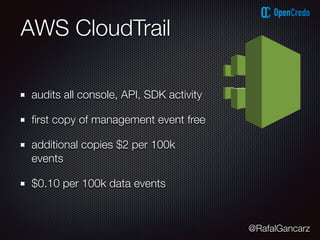

- 58. @RafalGancarz AWS CloudTrail audits allconsole, API, SDK activity first copy of management event free additional copies $2 per 100k events $0.10 per 100k data events
- 59.
- 60.
- 61.
- 62. @RafalGancarz Platform as aService (PaaS)
- 63.
- 64.

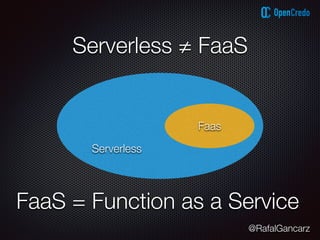

- 65. @RafalGancarz Serverless ≠ FaaS Faas Serverless FaaS= Function as a Service
- 66.
- 67.
- 68.
- 69.
- 70.
- 71.
- 72.
- 73.
- 74.
- 75.
- 76.
- 77.
- 78.
- 79.
- 80.
- 81.
- 82. THE FUTURE (CC) mattnortham
- 83.
- 84.
- 85.
- 86.
- 87. (CC) Alan Turkus THANKYOU! QUESTIONS? @RafalGancarz
