1. I get by with a little help
from my friends
Ido Shilon | 7/22/2013

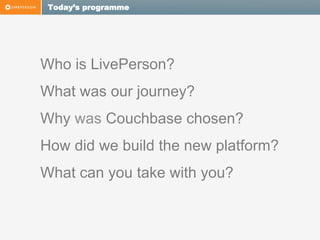

2. Today’s programme
Who is LivePerson?
What was our journey?
Why was Couchbase chosen?
How did we build the new platform?
What can you take with you?

3. @idoshilon
{
name: "Ido Shilon",
age: 37,
kids: [
"illy"
],
wife: "Oshrat",
Title: "Group Manager @ LivePerson (Heading the
platform group)",
Lived_Worked_At: [
"Silicon Wadi (Israel)",
"Silicon Alley (NYC)",
"Silicon Valley (Bay Area)"
]
}

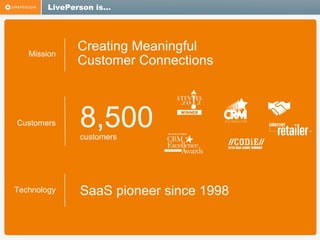

4. LivePerson is…
Mission
Customers
Creating Meaningful
Customer Connections
8,500
customers
Technology
SaaS pioneer since 1998

5. Optimize Customer Acquisition & Reduce Bounce Rate
Live engagement for
Rich multimedia to
lingering customer
drive sales closure
Recommended use case

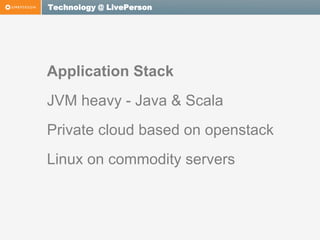

6. Technology @ LivePerson
Application Stack
JVM heavy - Java & Scala
Private cloud based on openstack
Linux on commodity servers

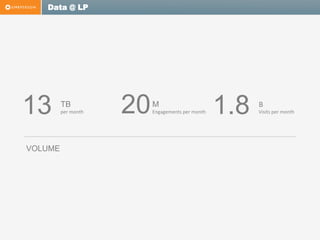

7. Data @ LP
13
VOLUME
TB
per
month
20
M
Engagements
per
month
1.8
B
Visits
per
month

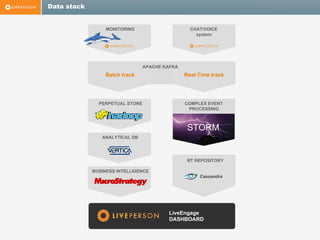

8. Data stack
MONITORING
CHAT/VOICE
system
APACHE KAFKA
Batch track
Real-Time track
PERPETUAL STORE
COMPLEX EVENT
PROCESSING
STORM
ANALYTICAL DB
RT REPOSITORY
BUSINESS INTELLIGENCE
Cassandra
LiveEngage
DASHBOARD

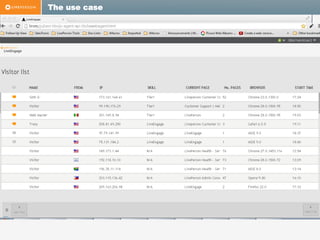

9. The use case
Web agent console
Enables your agents to interact with
website visitors
Improve agent efficiency
Reduce chat time

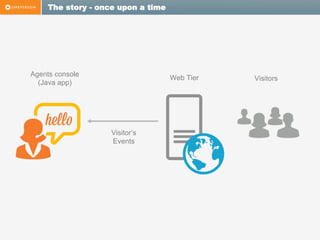

10. The story - once upon a time
Agents console
(Java app)
Web Tier
Visitor’s
Events
Visitors

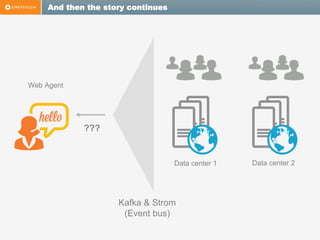

11. And then the story continues
Web Agent
???
Data center 1
Kafka & Strom
(Event bus)
Data center 2

12. Possible solutions we considered

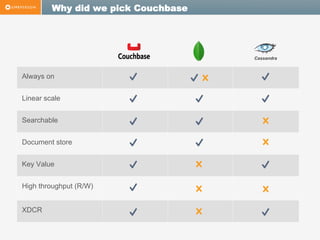

13. Why did we pick Couchbase
Cassandra
Always on
Linear scale
Searchable
Document store
Key Value
High throughput (R/W)
XDCR

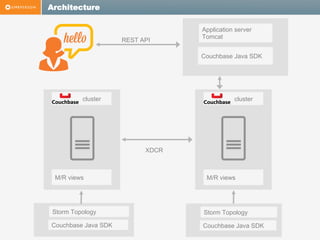

14. Architecture
REST API
Application server
Tomcat
Couchbase Java SDK
cluster
cluster
XDCR
M/R views
M/R views
Storm Topology
Storm Topology
Couchbase Java SDK
Couchbase Java SDK

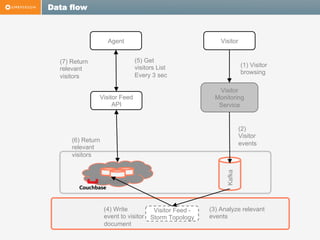

15. Data flow
Agent
Visitor
(5) Get
visitors List
Every 3 sec
(7) Return
relevant
visitors
(1) Visitor
browsing
Visitor
Monitoring
Service
Visitor Feed
API
(2)
Visitor
events
Kafka
(6) Return
relevant
visitors
Couchbase
(4) Write
event to visitor
document
Visitor Feed Storm Topology
(3) Analyze relevant
events

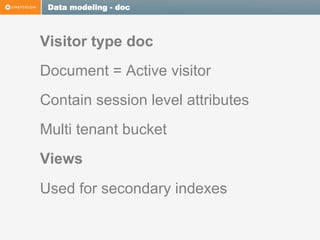

16. Data modeling - doc
Visitor type doc
Document = Active visitor
Contain session level attributes
Multi tenant bucket
Views
Used for secondary indexes

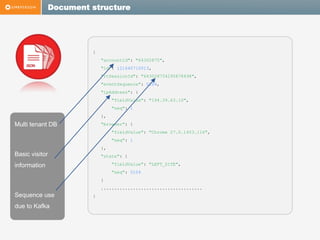

17. Document structure
{
"accountId": "64302875",
"id": 121640710013,
"rtSessionId": "643028754295878498",
"eventSequence": 5104,
"ipAddress": {
"fieldValue": "194.39.63.10",
"seq": 1
},
Multi tenant DB
"browser": {
"fieldValue": "Chrome 27.0.1453.116",
"seq": 1
},
Basic visitor
"state": {
information
"fieldValue": "LEFT_SITE",
"seq": 5104
}
......................................
Sequence use
due to Kafka
}

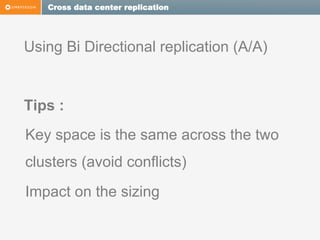

18. Cross data center replication
Using Bi Directional replication (A/A)
Tips :
Key space is the same across the two
clusters (avoid conflicts)
Impact on the sizing

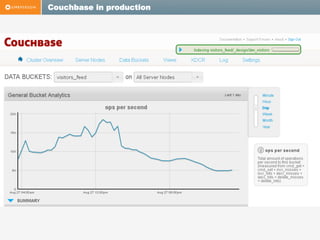

19. Couchbase in production

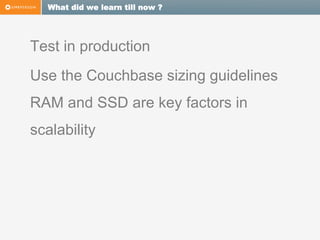

20. What did we learn till now ?
Test in production
Use the Couchbase sizing guidelines
RAM and SSD are key factors in
scalability

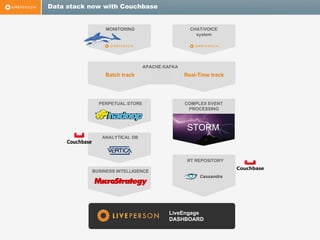

21. Data stack now with Couchbase
MONITORING
CHAT/VOICE
system
APACHE KAFKA
Batch track
Real-Time track
PERPETUAL STORE
COMPLEX EVENT
PROCESSING
STORM
ANALYTICAL DB
RT REPOSITORY
BUSINESS INTELLIGENCE
Cassandra
LiveEngage
DASHBOARD

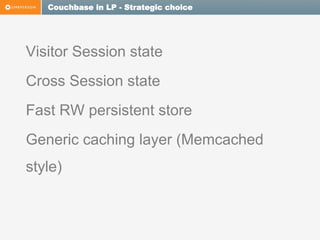

22. Couchbase in LP - Strategic choice
Visitor Session state
Cross Session state
Fast RW persistent store
Generic caching layer (Memcached
style)

23. Summary
Who we are
Our journey
The problem we have encountered
We are not alone - Couchbase helped us

24. Thank You
