This document provides an introduction to AWS Lambda and the Serverless Framework. It defines serverless computing and discusses key differences between Platform as a Service (PaaS) and serverless models. AWS Lambda is introduced as Amazon's serverless compute platform, and other serverless platform providers are listed. The Serverless Framework is described as a development toolkit for building, managing and deploying serverless applications. Sample code and a serverless.yml configuration file are shown.

1. An introduction to AWS Lambda and the Serverless Framework
© Rowell Belen 1

2. About Me
Rowell Belen / Senior Platform Engineer @ Algorithmia
» LinkedIn: https://linkedin.com/in/rowellbelen
» Blog: https://www.rowellbelen.com
» GitHub: https://github.com/bytekast
» Twitter: @bytekast
» Email: rowell.belen@bytekast.com
© Rowell Belen 2

3. What is Serverless Computing?
Serverless Computing is a cloud computing model that allows
you to build and run applications and services without thinking
about servers. The platform takes care of everything required to
run and scale your code with high availability.
© Rowell Belen 3

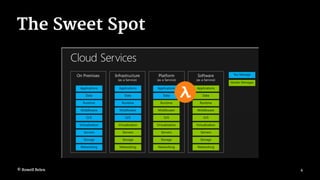

4. The Sweet Spot
© Rowell Belen 4

5. But... but... aren't PaaS and Serverless the same?
© Rowell Belen 5

6. What is the key
difference between
PaaS and Serverless?
© Rowell Belen 6

7. ORCHESTRATION
&
MANAGEMENT
© Rowell Belen 7

8. and...
SCALING!!
© Rowell Belen 8

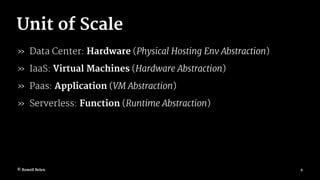

9. Unit of Scale
» Data Center: Hardware (Physical Hosting Env Abstraction)
» IaaS: Virtual Machines (Hardware Abstraction)
» Paas: Application (VM Abstraction)
» Serverless: Function (Runtime Abstraction)
© Rowell Belen 9

10. Wait.. wait... What about containers?
© Rowell Belen 10

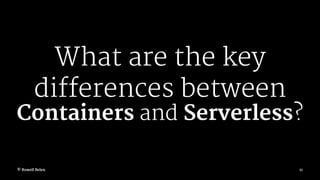

11. What are the key
differences between
Containers and Serverless?
© Rowell Belen 11

12. ORCHESTRATION
&
MANAGEMENT
© Rowell Belen 12

13. and...
SCALING!!
© Rowell Belen 13

14. What is AWS Lambda?
Amazon's Serverless compute platform for stateless code
execution in response to events
© Rowell Belen 14

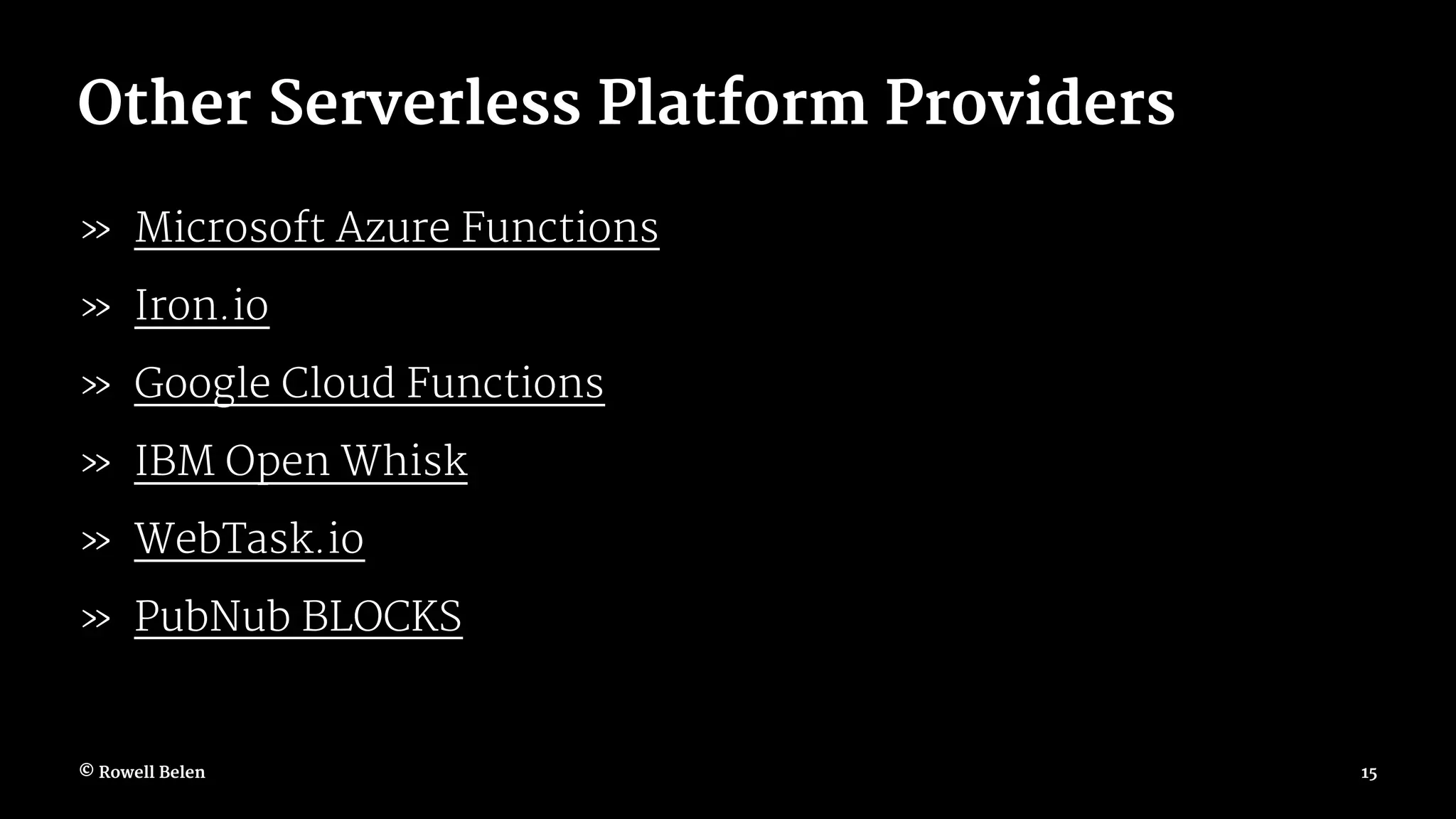

15. Other Serverless Platform Providers
» Microsoft Azure Functions
» Iron.io
» Google Cloud Functions
» IBM Open Whisk
» WebTask.io
» PubNub BLOCKS
© Rowell Belen 15

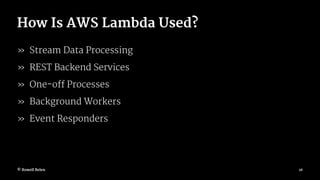

16. How Is AWS Lambda Used?
» Stream Data Processing
» REST Backend Services
» One-off Processes
» Background Workers
» Event Responders
© Rowell Belen 16

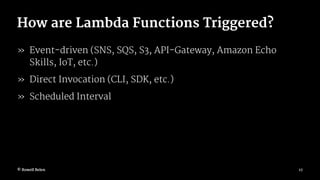

17. How are Lambda Functions Triggered?
» Event-driven (SNS, SQS, S3, API-Gateway, Amazon Echo
Skills, IoT, etc.)
» Direct Invocation (CLI, SDK, etc.)
» Scheduled Interval
© Rowell Belen 17

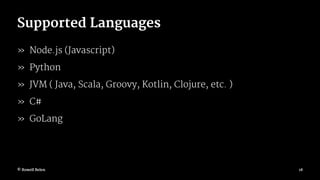

18. Supported Languages
» Node.js (Javascript)
» Python
» JVM ( Java, Scala, Groovy, Kotlin, Clojure, etc. )
» C#
» GoLang
© Rowell Belen 18

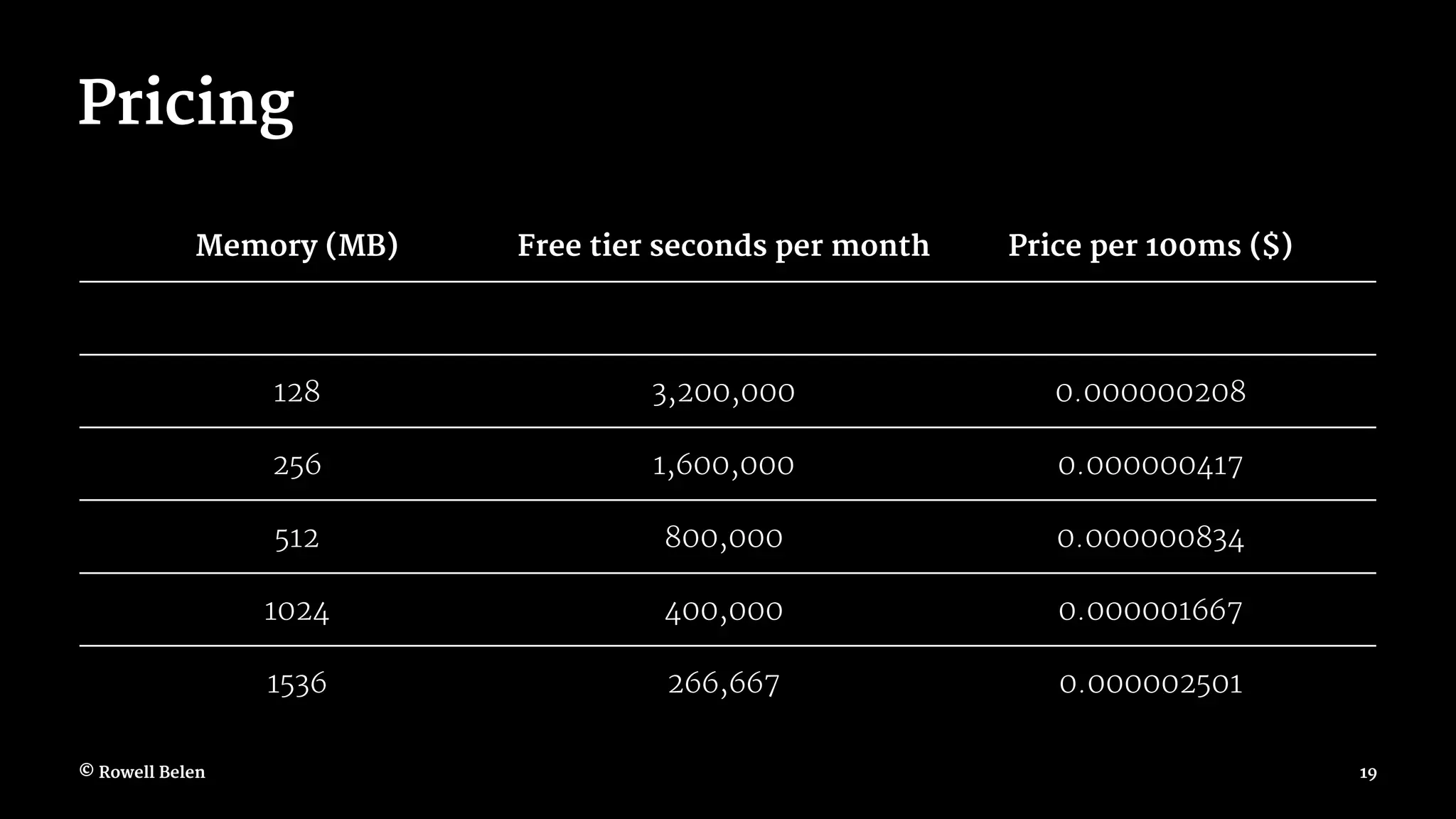

19. Pricing
Memory (MB) Free tier seconds per month Price per 100ms ($)
128 3,200,000 0.000000208
256 1,600,000 0.000000417
512 800,000 0.000000834
1024 400,000 0.000001667
1536 266,667 0.000002501
© Rowell Belen 19

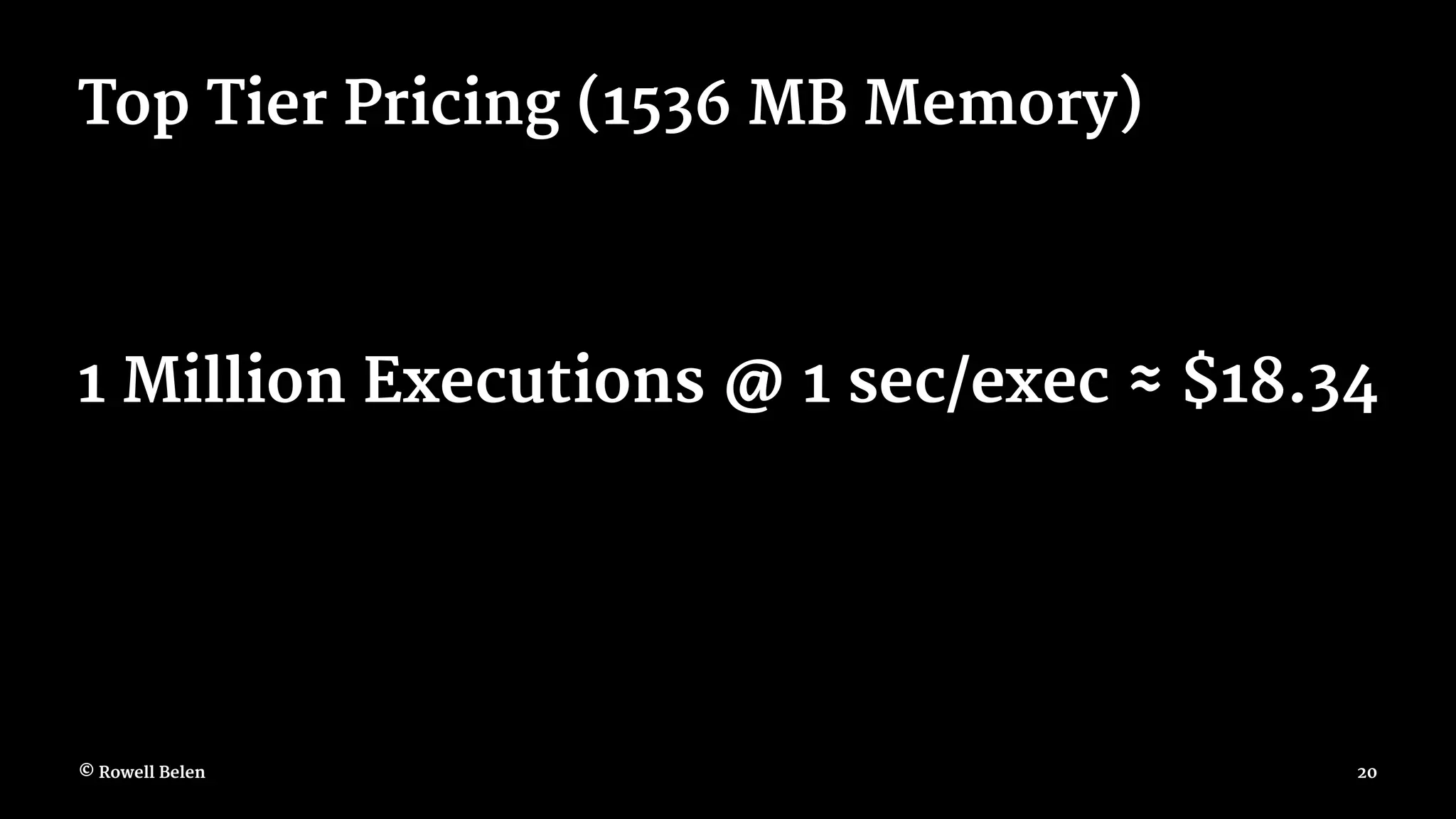

20. Top Tier Pricing (1536 MB Memory)
1 Million Executions @ 1 sec/exec ≈ $18.34
© Rowell Belen 20

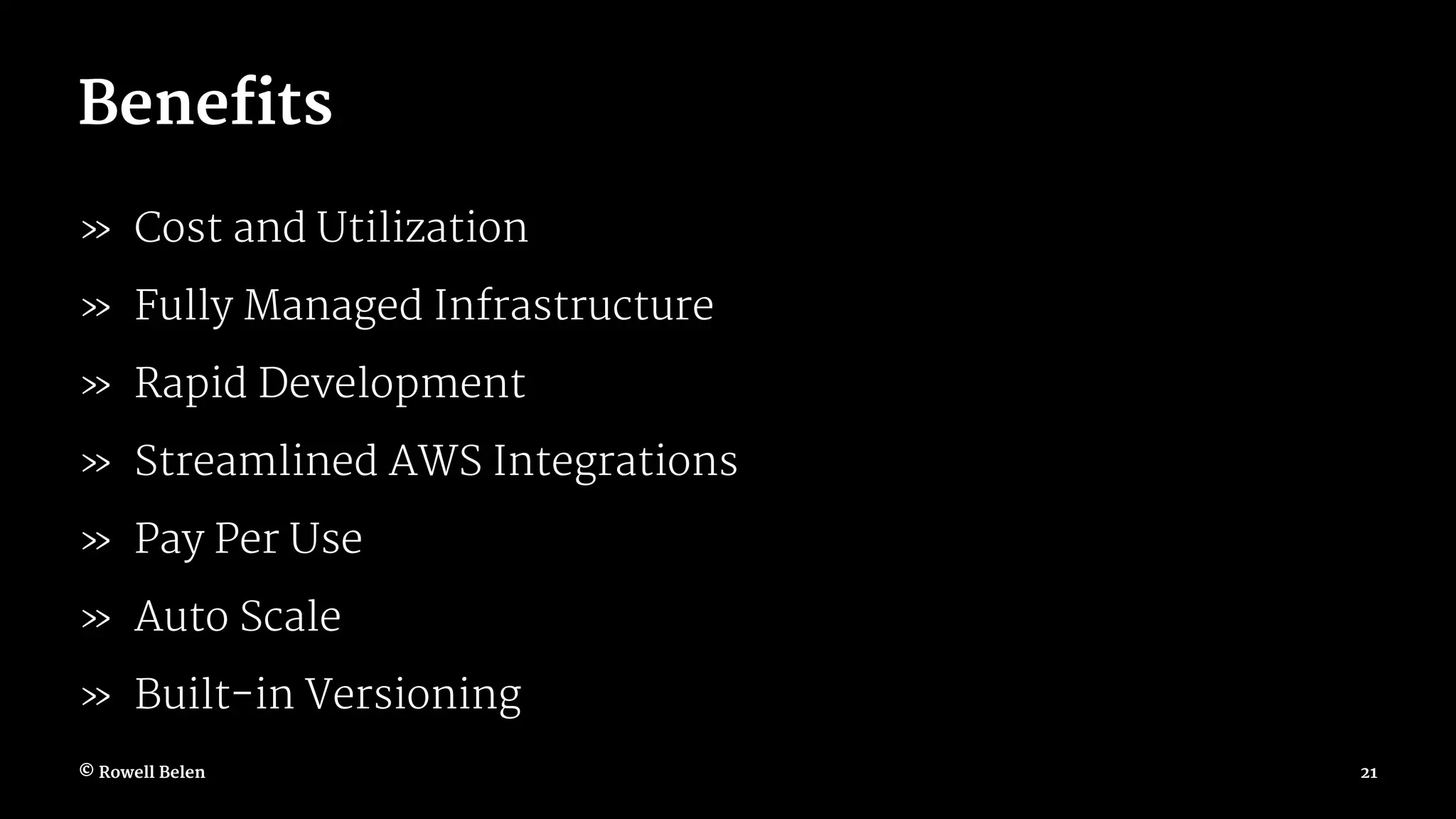

21. Benefits
» Cost and Utilization
» Fully Managed Infrastructure
» Rapid Development
» Streamlined AWS Integrations
» Pay Per Use
» Auto Scale
» Built-in Versioning
© Rowell Belen 21

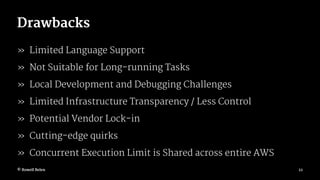

22. Drawbacks
» Limited Language Support
» Not Suitable for Long-running Tasks
» Local Development and Debugging Challenges
» Limited Infrastructure Transparency / Less Control
» Potential Vendor Lock-in
» Cutting-edge quirks
» Concurrent Execution Limit is Shared across entire AWS
© Rowell Belen 22

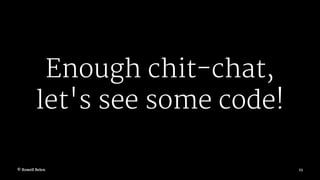

23. Enough chit-chat,
let's see some code!
© Rowell Belen 23

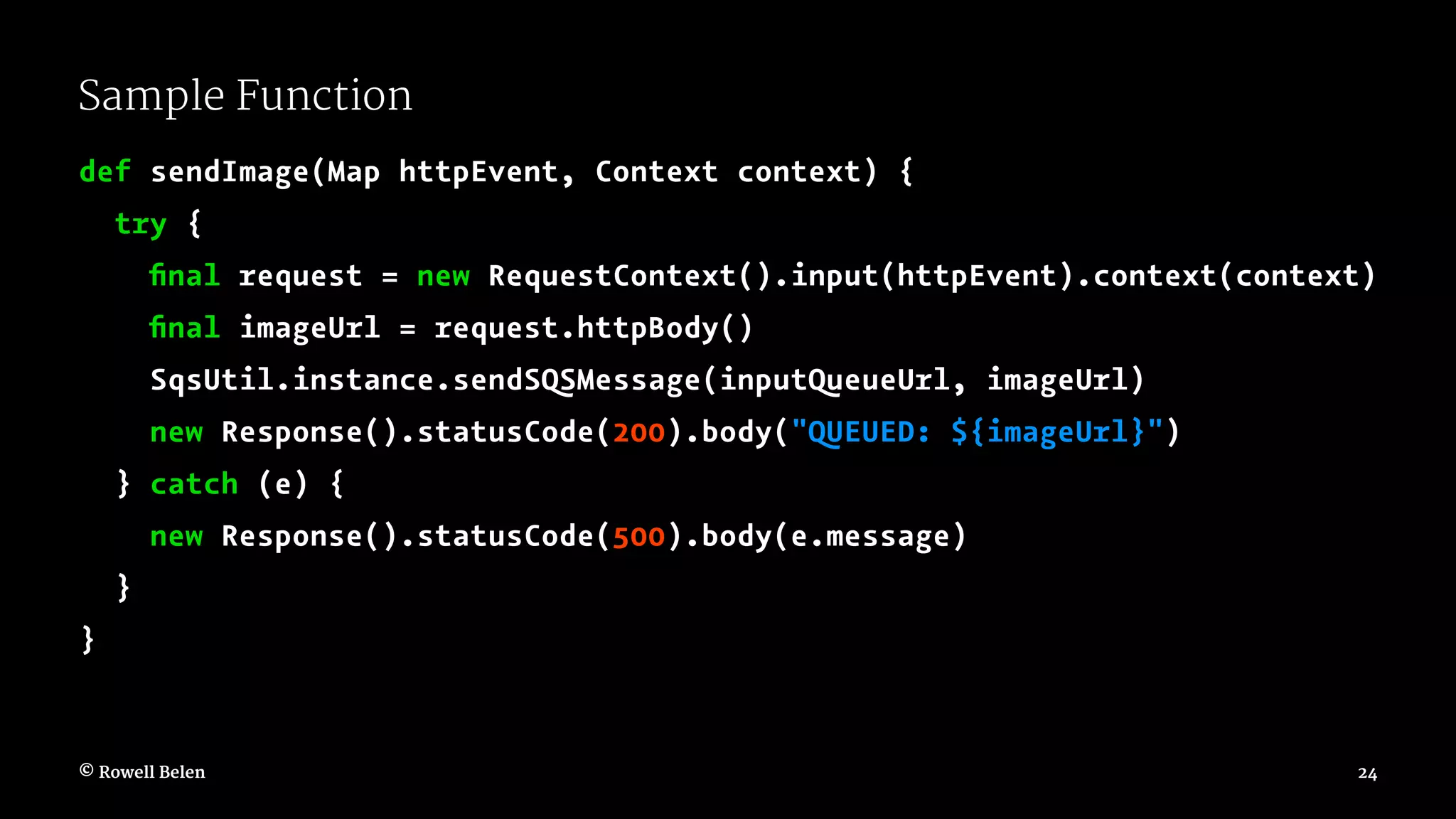

24. Sample Function
def sendImage(Map httpEvent, Context context) {
try {
final request = new RequestContext().input(httpEvent).context(context)
final imageUrl = request.httpBody()
SqsUtil.instance.sendSQSMessage(inputQueueUrl, imageUrl)
new Response().statusCode(200).body("QUEUED: ${imageUrl}")
} catch (e) {
new Response().statusCode(500).body(e.message)
}
}
© Rowell Belen 24

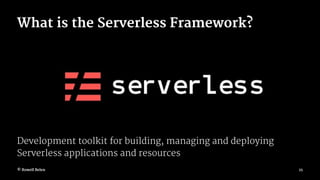

25. What is the Serverless Framework?
Development toolkit for building, managing and deploying
Serverless applications and resources
© Rowell Belen 25

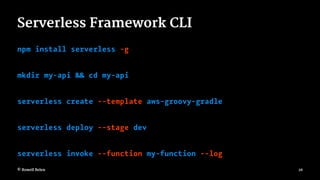

26. Serverless Framework CLI
npm install serverless -g
mkdir my-api && cd my-api
serverless create --template aws-groovy-gradle
serverless deploy --stage dev
serverless invoke --function my-function --log
© Rowell Belen 26

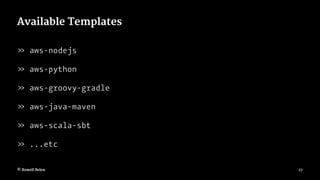

27. Available Templates
» aws-nodejs
» aws-python
» aws-groovy-gradle
» aws-java-maven
» aws-scala-sbt
» ...etc
© Rowell Belen 27

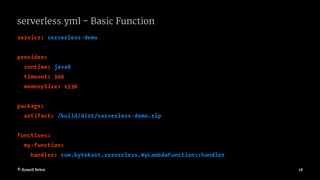

28. serverless.yml - Basic Function
service: serverless-demo
provider:
runtime: java8
timeout: 300
memorySize: 1536
package:
artifact: /build/dist/serverless-demo.zip
functions:
my-function:
handler: com.bytekast.serverless.MyLambdaFunction::handler
© Rowell Belen 28

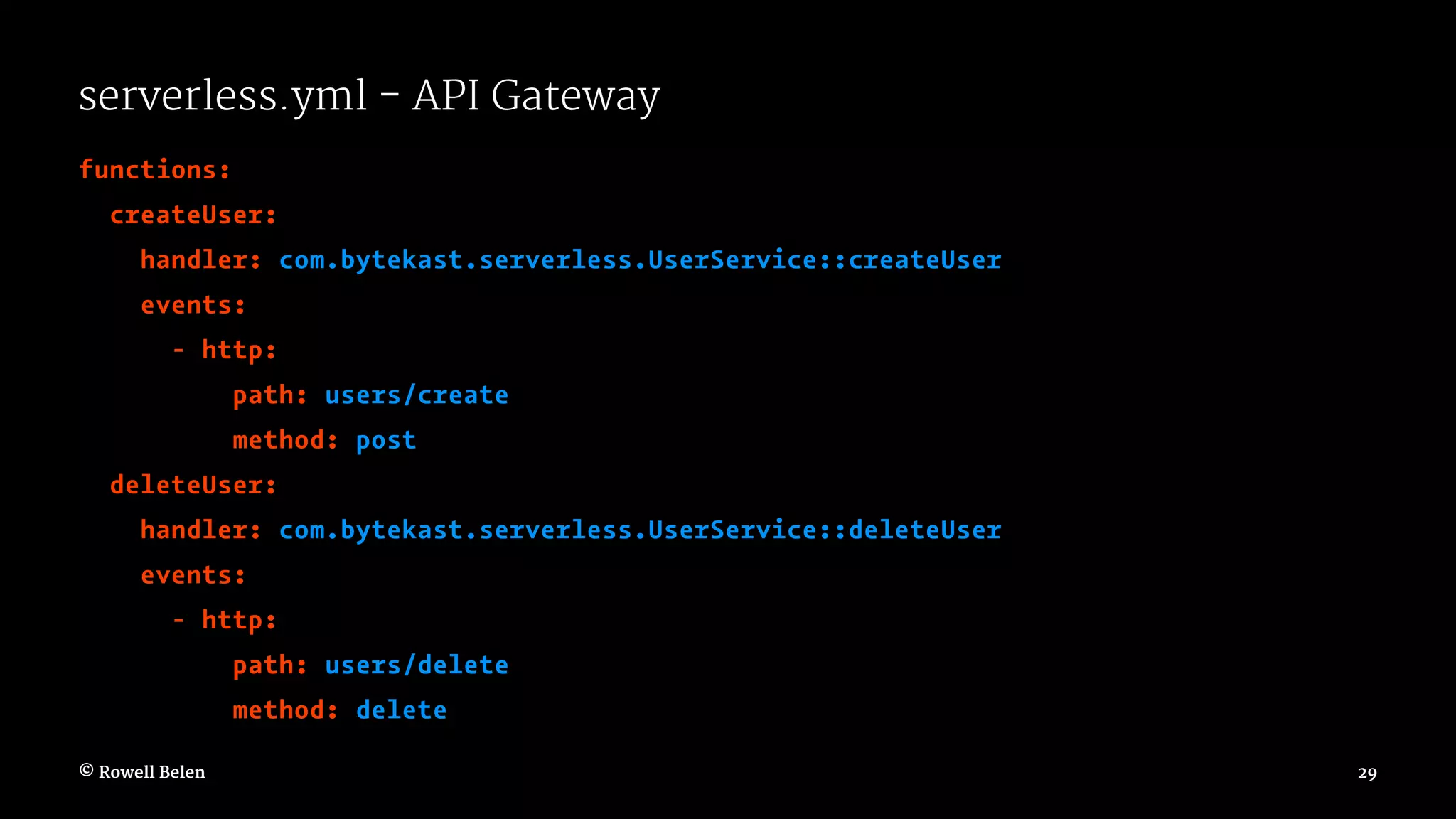

29. serverless.yml - API Gateway
functions:
createUser:
handler: com.bytekast.serverless.UserService::createUser
events:
- http:
path: users/create
method: post
deleteUser:
handler: com.bytekast.serverless.UserService::deleteUser
events:
- http:
path: users/delete
method: delete
© Rowell Belen 29

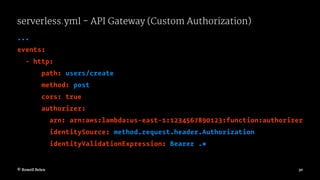

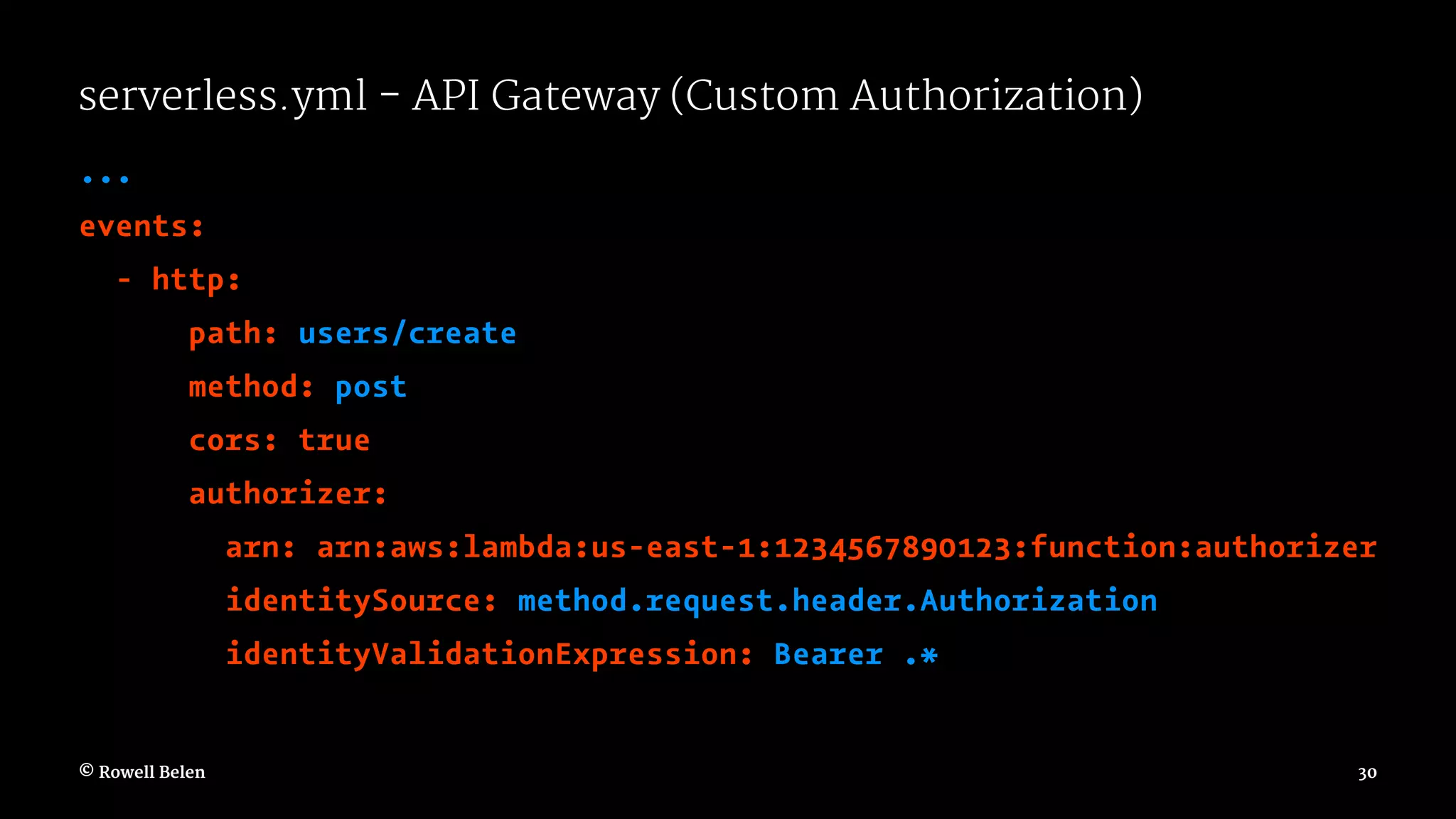

30. serverless.yml - API Gateway (Custom Authorization)
...
events:
- http:
path: users/create
method: post
cors: true
authorizer:
arn: arn:aws:lambda:us-east-1:1234567890123:function:authorizer
identitySource: method.request.header.Authorization
identityValidationExpression: Bearer .*
© Rowell Belen 30

31. serverless.yml - SNS Topic Subscription
functions:
audit:
handler: com.bytekast.serverless.AuditService::audit
events:
- sns: dev-audit-topic
© Rowell Belen 31

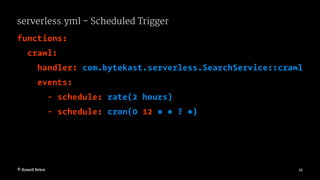

32. serverless.yml - Scheduled Trigger
functions:
crawl:
handler: com.bytekast.serverless.SearchService::crawl
events:
- schedule: rate(2 hours)
- schedule: cron(0 12 * * ? *)
© Rowell Belen 32

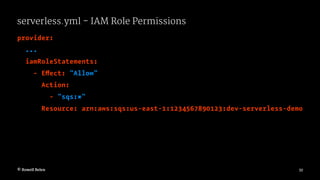

33. serverless.yml - IAM Role Permissions
provider:
...
iamRoleStatements:
- Effect: "Allow"
Action:
- "sqs:*"
Resource: arn:aws:sqs:us-east-1:1234567890123:dev-serverless-demo
© Rowell Belen 33

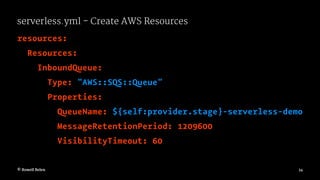

34. serverless.yml - Create AWS Resources
resources:
Resources:
InboundQueue:
Type: "AWS::SQS::Queue"
Properties:
QueueName: ${self:provider.stage}-serverless-demo
MessageRetentionPeriod: 1209600
VisibilityTimeout: 60
© Rowell Belen 34

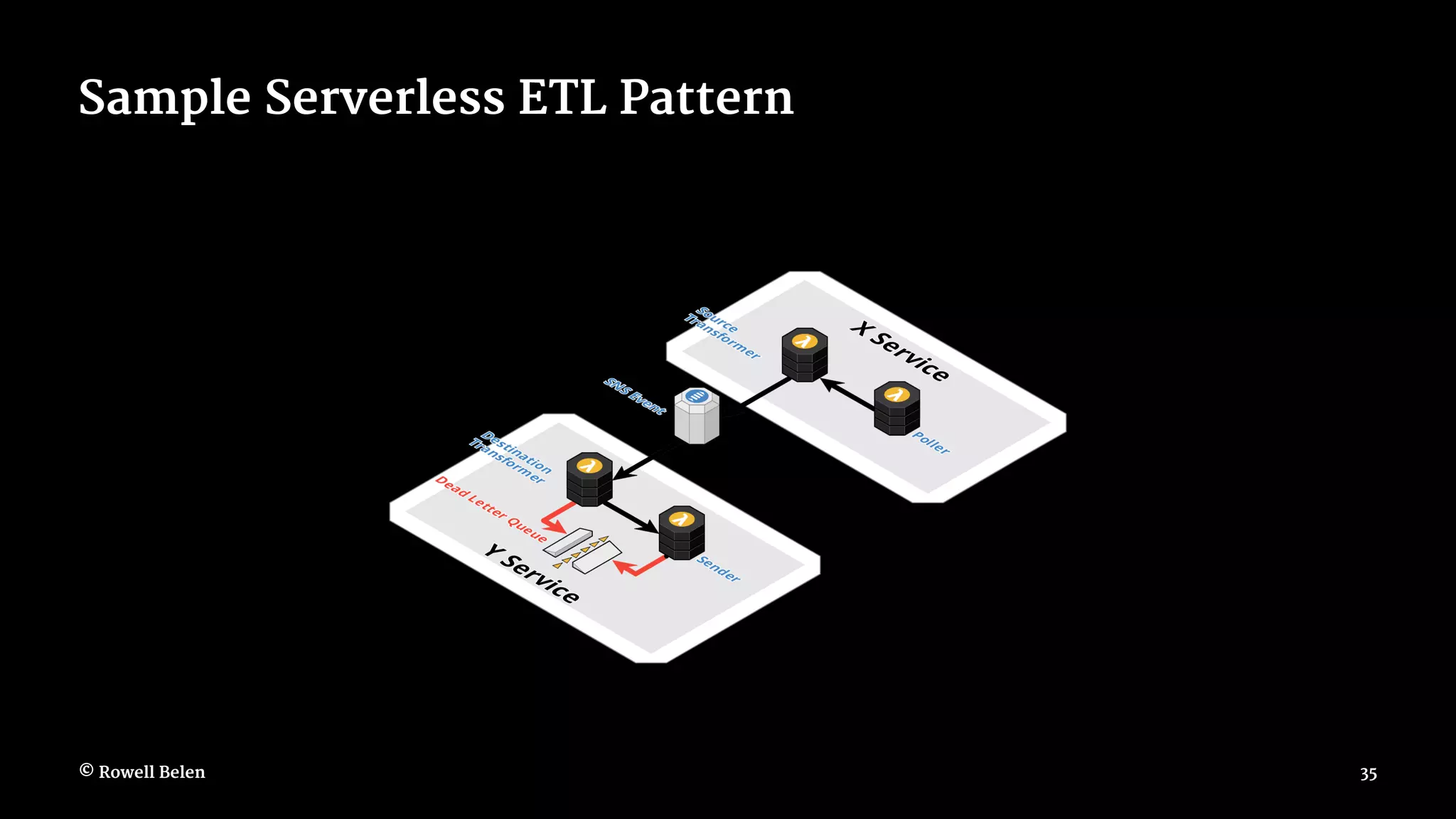

35. Sample Serverless ETL Pattern
© Rowell Belen 35

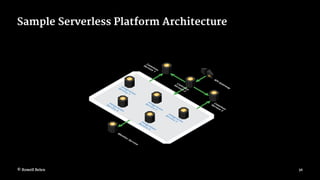

36. Sample Serverless Platform Architecture
© Rowell Belen 36

37. DEMO
Build Car Image Recognition Service using
Serverless Framework + API Gateway + AWS Lambda
Sample Project
© Rowell Belen 37

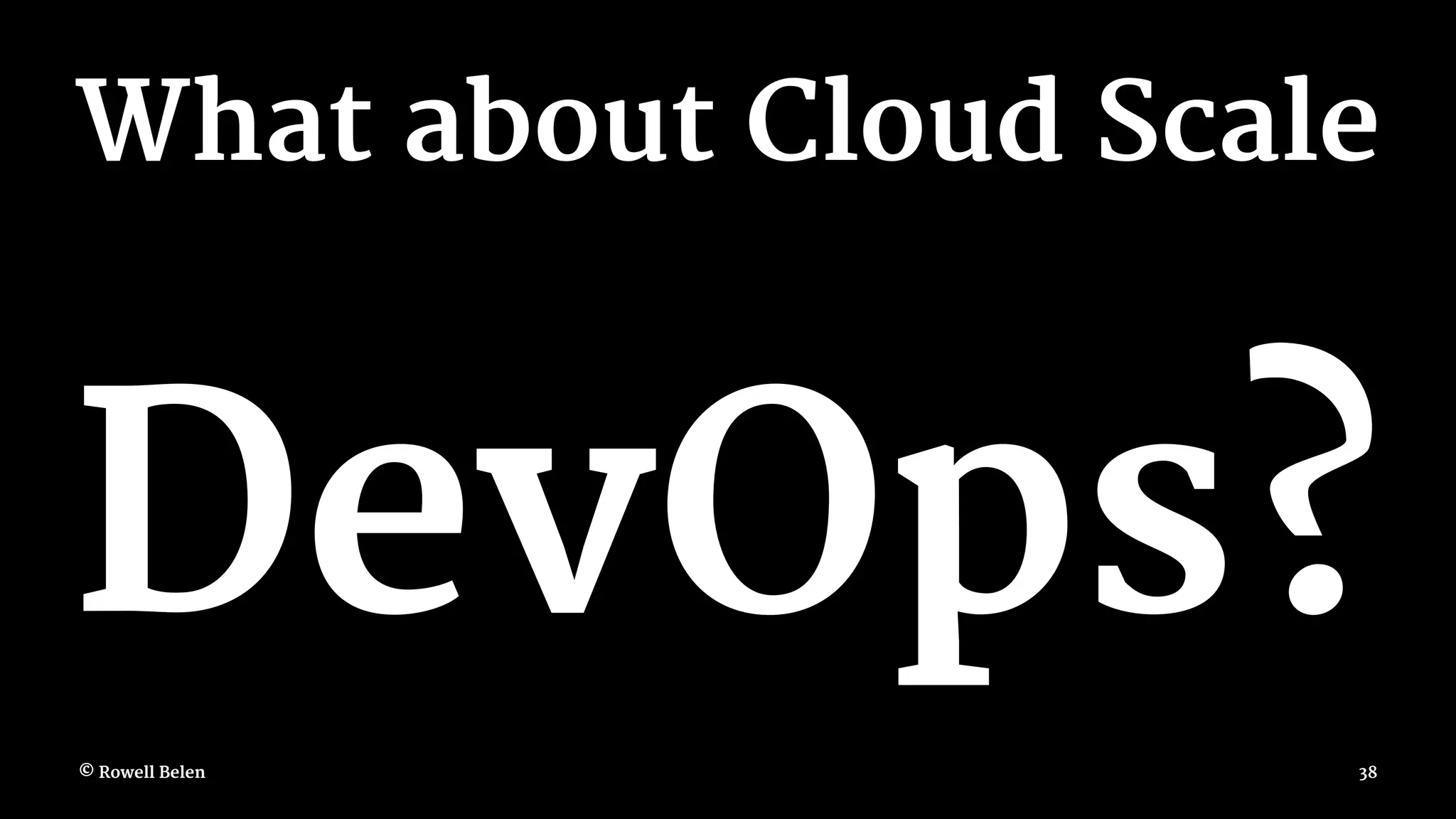

38. What about Cloud Scale
DevOps?
© Rowell Belen 38

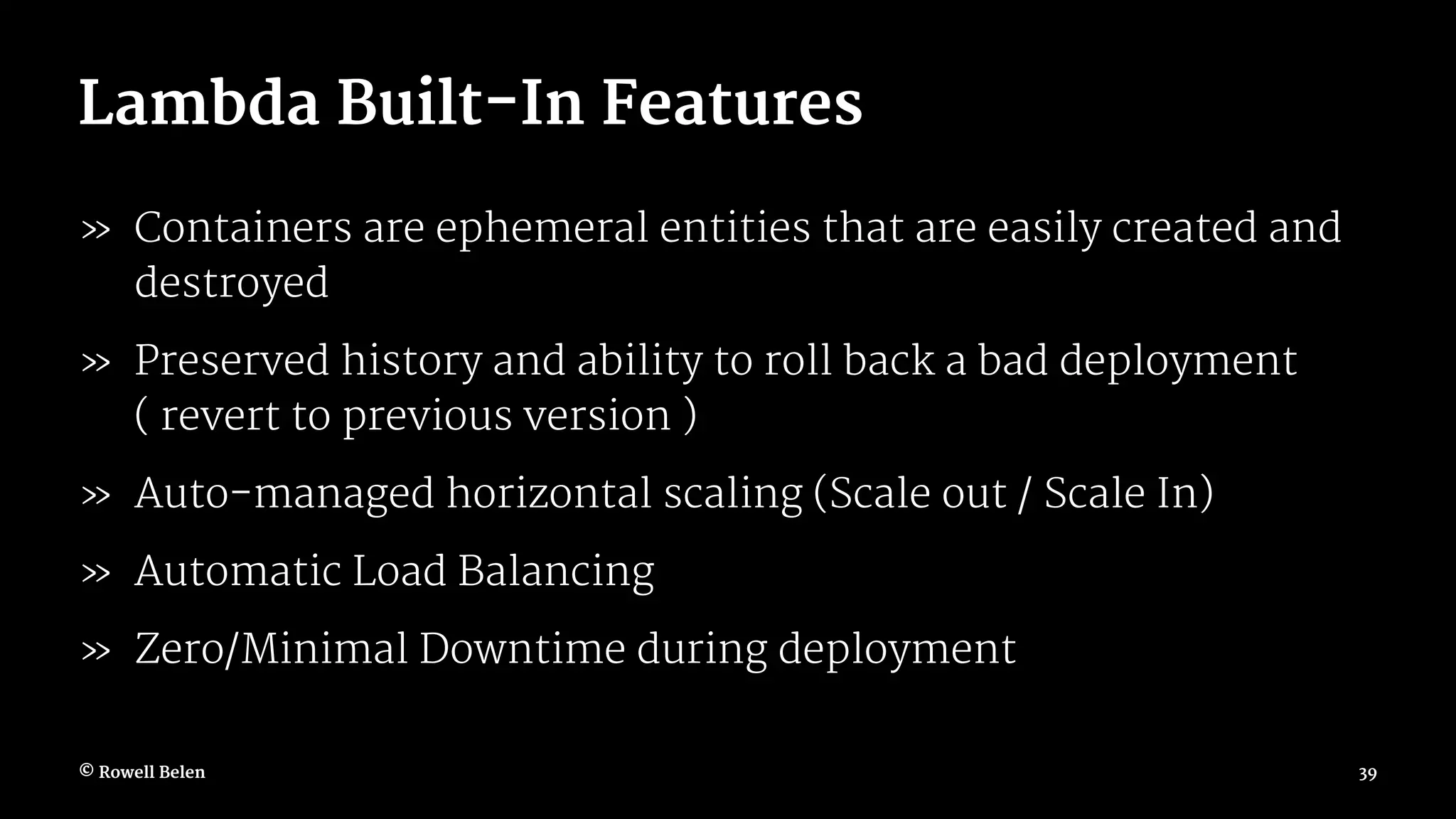

39. Lambda Built-In Features
» Containers are ephemeral entities that are easily created and
destroyed
» Preserved history and ability to roll back a bad deployment
( revert to previous version )
» Auto-managed horizontal scaling (Scale out / Scale In)
» Automatic Load Balancing
» Zero/Minimal Downtime during deployment
© Rowell Belen 39

40. Environments should not be connected
or otherwise intercommunicate
© Rowell Belen 40

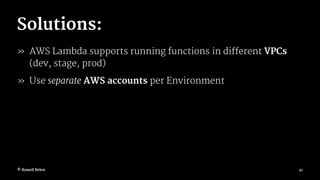

41. Solutions:
» AWS Lambda supports running functions in different VPCs
(dev, stage, prod)
» Use separate AWS accounts per Environment
© Rowell Belen 41

42. Promote immutable application
artifacts from the lowest environment
to the highest ( Deployment )
© Rowell Belen 42

43. Solutions:
» Publish Versioned Build Artifacts to Repository
» Continuous Integration
» Continuous Delivery
© Rowell Belen 43

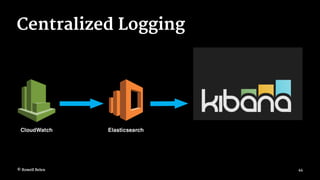

44. Centralized Logging
© Rowell Belen 44

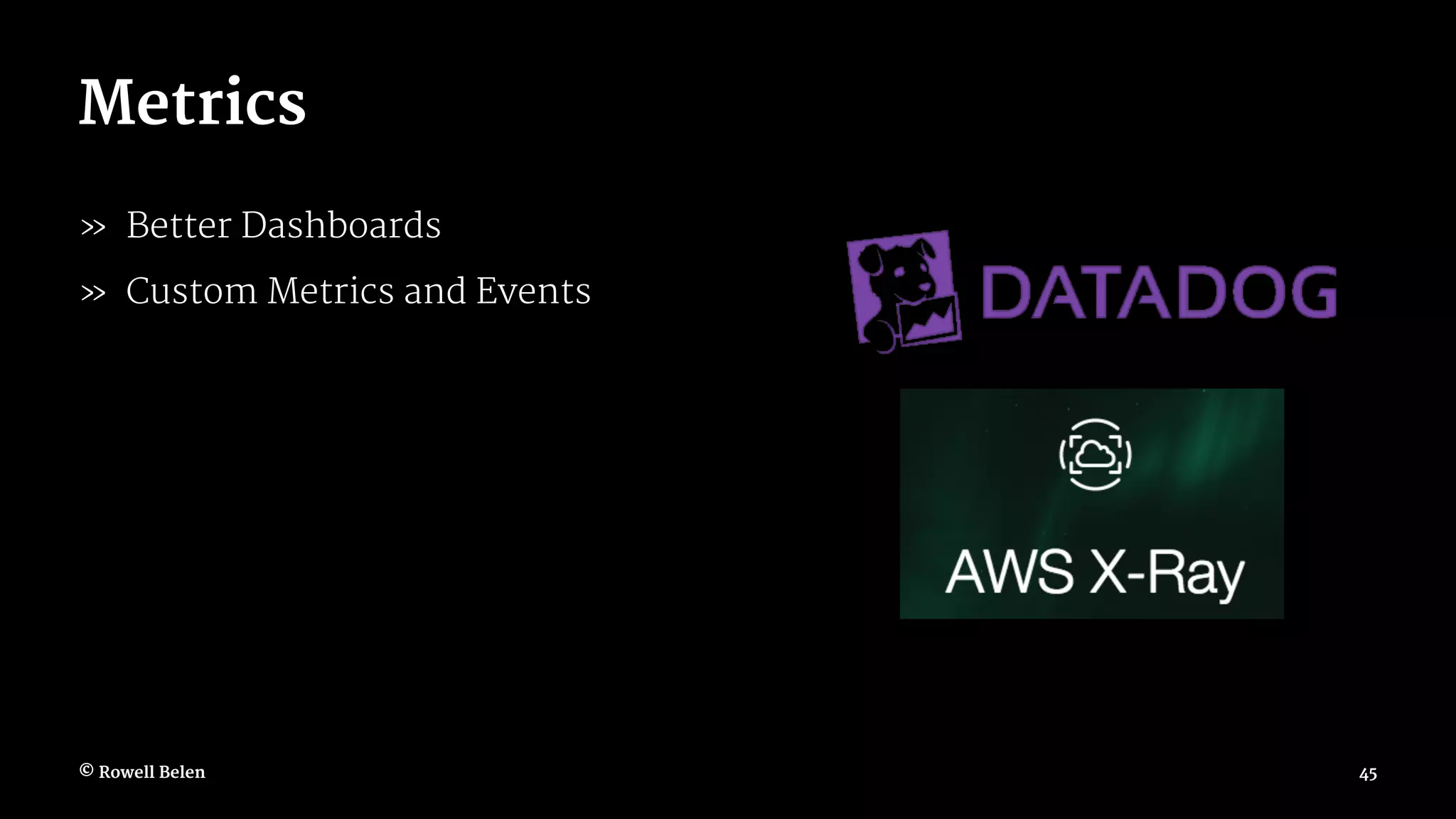

45. Metrics
» Better Dashboards
» Custom Metrics and Events
© Rowell Belen 45

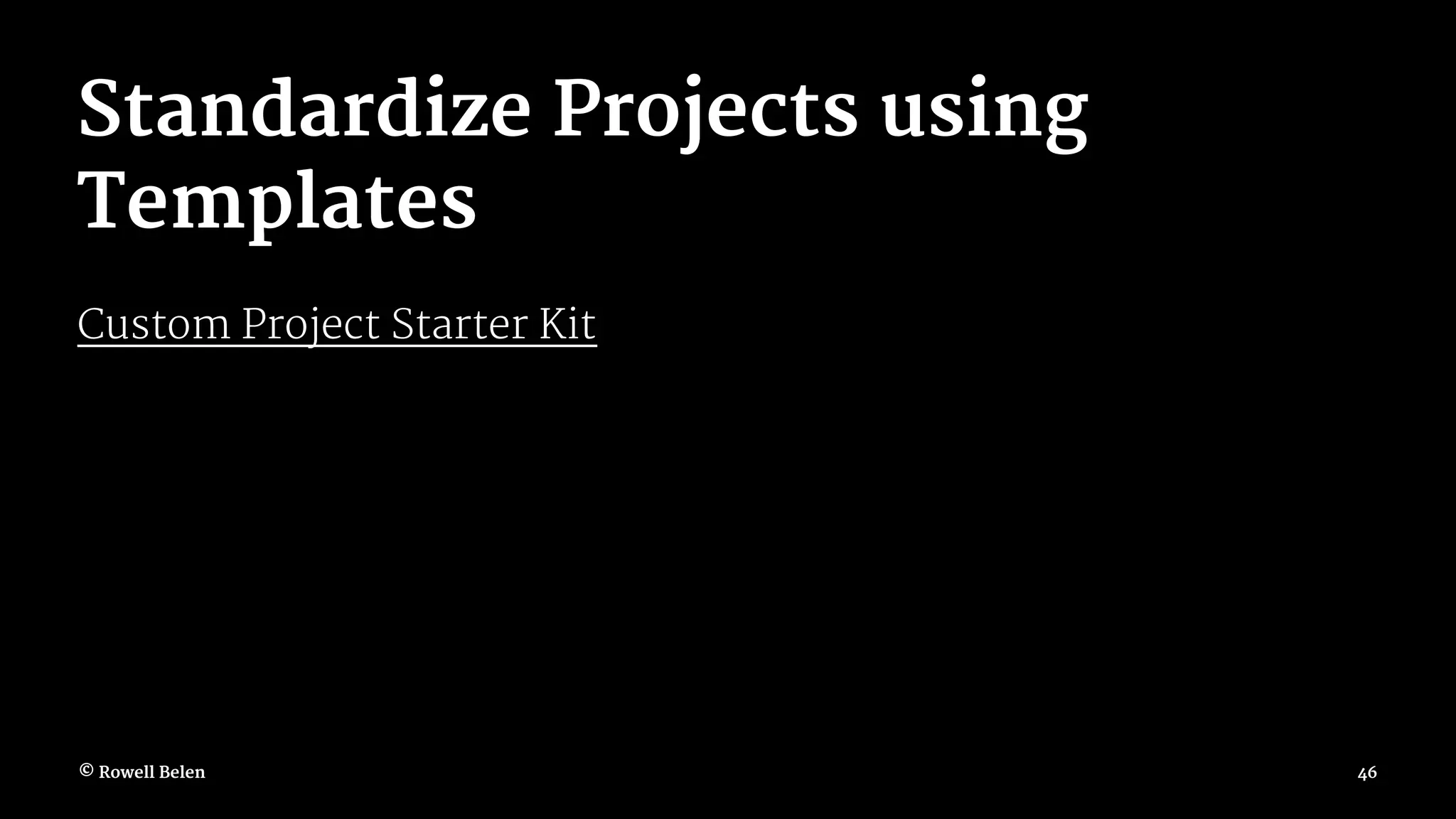

46. Standardize Projects using
Templates
Custom Project Starter Kit
© Rowell Belen 46

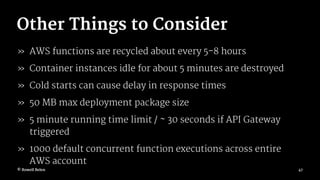

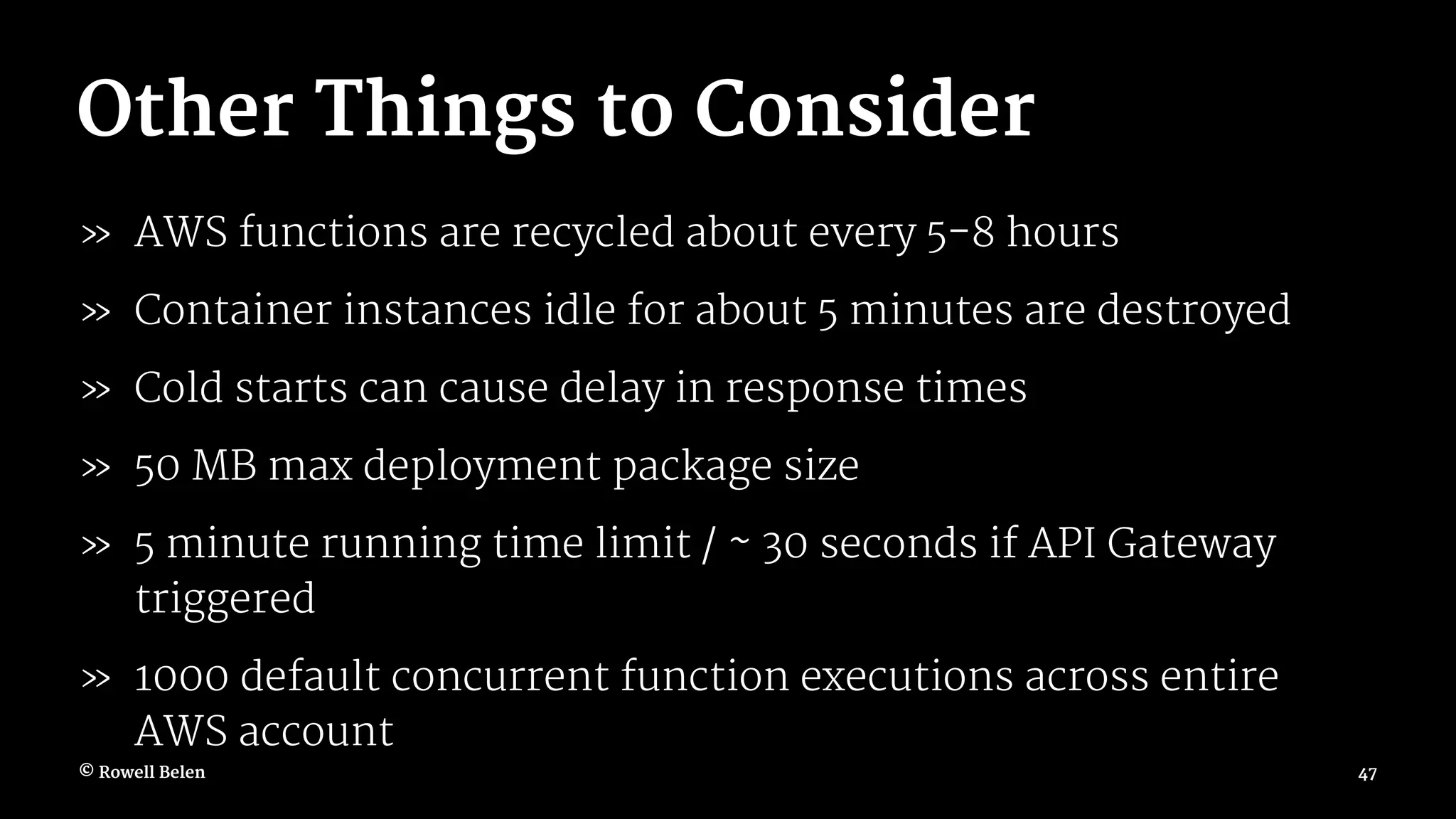

47. Other Things to Consider
» AWS functions are recycled about every 5-8 hours
» Container instances idle for about 5 minutes are destroyed
» Cold starts can cause delay in response times
» 50 MB max deployment package size
» 5 minute running time limit / ~ 30 seconds if API Gateway
triggered
» 1000 default concurrent function executions across entire
AWS account
© Rowell Belen 47

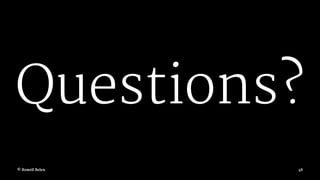

48. Questions?
© Rowell Belen 48
