This document outlines a project to design, manage, and maintain a college website and alumni network using a network infrastructure. The project will involve creating websites for the college and alumni using ASP.NET and C# on an IIS web server. A SQL Server database will store website information. A Windows Server 2008 R2 network will be configured with DHCP, DNS, FTP, and other servers to provide network services and access to resources. The project aims to provide easy online access and maintenance of student and faculty information through a user-friendly interface.

1. 1

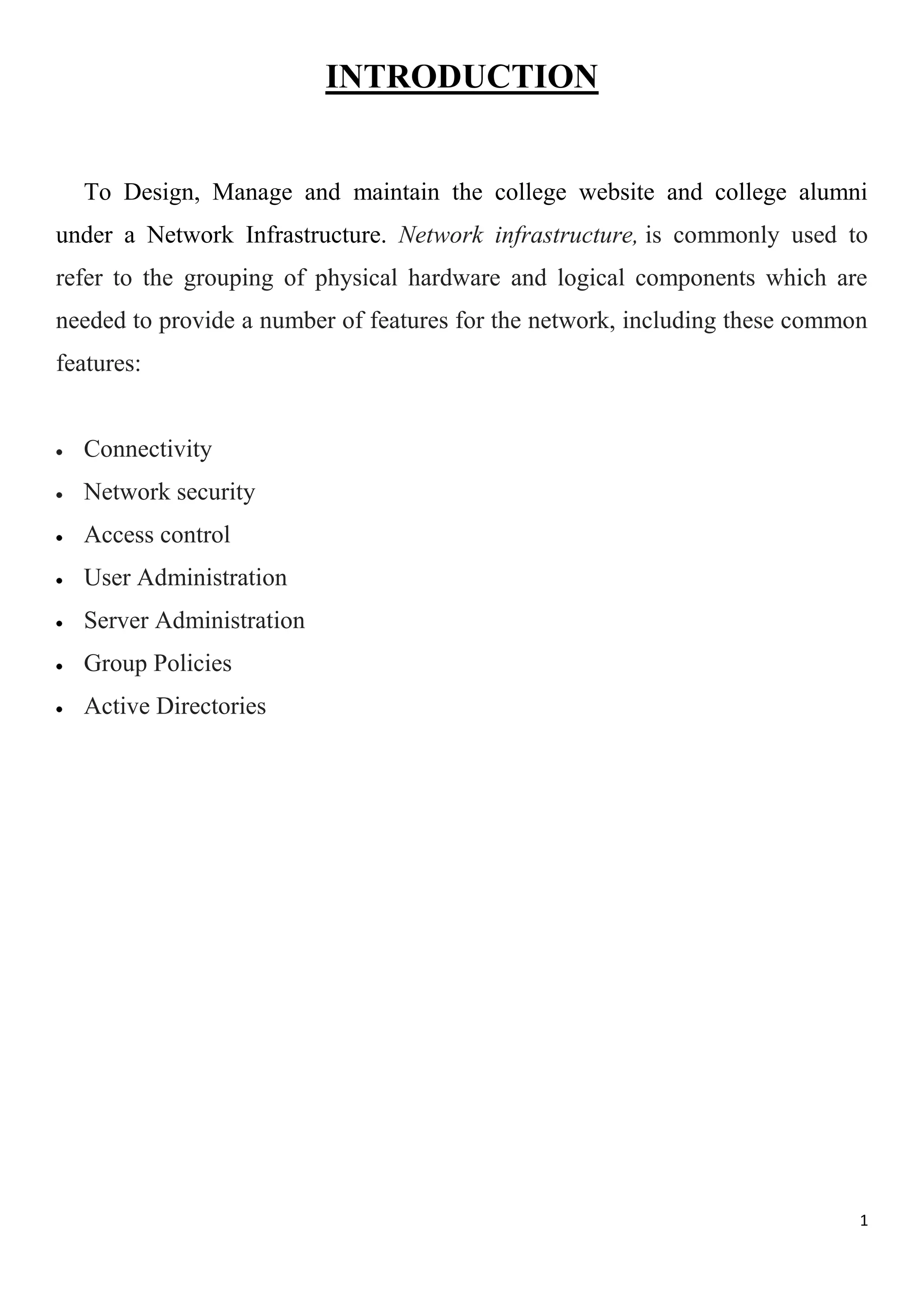

INTRODUCTION
To Design, Manage and maintain the college website and college alumni
under a Network Infrastructure. Network infrastructure, is commonly used to
refer to the grouping of physical hardware and logical components which are
needed to provide a number of features for the network, including these common
features:
Connectivity
Network security
Access control
User Administration
Server Administration
Group Policies
Active Directories

2. 2

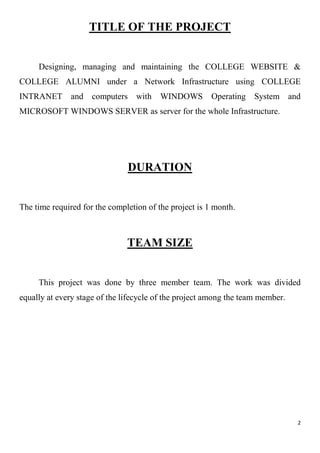

TITLE OF THE PROJECT
Designing, managing and maintaining the COLLEGE WEBSITE &
COLLEGE ALUMNI under a Network Infrastructure using COLLEGE
INTRANET and computers with WINDOWS Operating System and
MICROSOFT WINDOWS SERVER as server for the whole Infrastructure.
DURATION
The time required for the completion of the project is 1 month.
TEAM SIZE
This project was done by three member team. The work was divided
equally at every stage of the lifecycle of the project among the team member.

3. 3

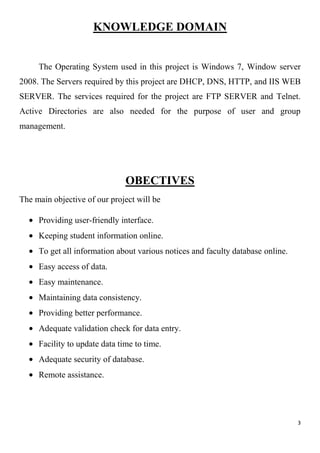

KNOWLEDGE DOMAIN
The Operating System used in this project is Windows 7, Window server
2008. The Servers required by this project are DHCP, DNS, HTTP, and IIS WEB
SERVER. The services required for the project are FTP SERVER and Telnet.
Active Directories are also needed for the purpose of user and group
management.
OBECTIVES
The main objective of our project will be
Providing user-friendly interface.
Keeping student information online.
To get all information about various notices and faculty database online.
Easy access of data.
Easy maintenance.
Maintaining data consistency.
Providing better performance.
Adequate validation check for data entry.
Facility to update data time to time.
Adequate security of database.
Remote assistance.

4. 4

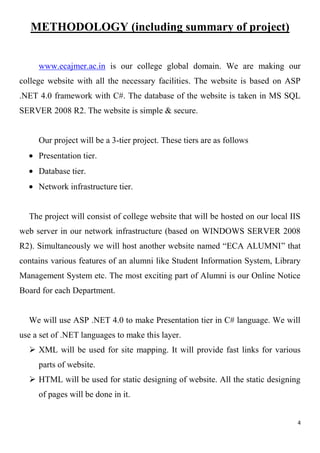

METHODOLOGY (including summary of project)
www.ecajmer.ac.in is our college global domain. We are making our
college website with all the necessary facilities. The website is based on ASP
.NET 4.0 framework with C#. The database of the website is taken in MS SQL
SERVER 2008 R2. The website is simple & secure.
Our project will be a 3-tier project. These tiers are as follows
Presentation tier.
Database tier.
Network infrastructure tier.
The project will consist of college website that will be hosted on our local IIS
web server in our network infrastructure (based on WINDOWS SERVER 2008
R2). Simultaneously we will host another website named “ECA ALUMNI” that
contains various features of an alumni like Student Information System, Library
Management System etc. The most exciting part of Alumni is our Online Notice
Board for each Department.
We will use ASP .NET 4.0 to make Presentation tier in C# language. We will
use a set of .NET languages to make this layer.
 XML will be used for site mapping. It will provide fast links for various
parts of website.
 HTML will be used for static designing of website. All the static designing
of pages will be done in it.

5. 5

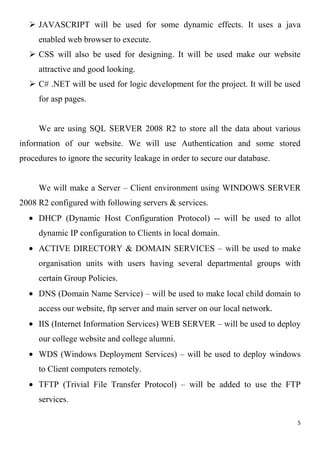

 JAVASCRIPT will be used for some dynamic effects. It uses a java
enabled web browser to execute.
 CSS will also be used for designing. It will be used make our website
attractive and good looking.
 C# .NET will be used for logic development for the project. It will be used
for asp pages.
We are using SQL SERVER 2008 R2 to store all the data about various
information of our website. We will use Authentication and some stored
procedures to ignore the security leakage in order to secure our database.
We will make a Server – Client environment using WINDOWS SERVER
2008 R2 configured with following servers & services.
DHCP (Dynamic Host Configuration Protocol) -- will be used to allot
dynamic IP configuration to Clients in local domain.
ACTIVE DIRECTORY & DOMAIN SERVICES – will be used to make
organisation units with users having several departmental groups with
certain Group Policies.
DNS (Domain Name Service) – will be used to make local child domain to
access our website, ftp server and main server on our local network.
IIS (Internet Information Services) WEB SERVER – will be used to deploy
our college website and college alumni.
WDS (Windows Deployment Services) – will be used to deploy windows
to Client computers remotely.
TFTP (Trivial File Transfer Protocol) – will be added to use the FTP
services.

6. 6
FACILITIES REQUIRED FOR THE PROJECT
In this step we may analyze the processing capabilities of the system on which
the proposed system will be developed and the specification may be divided into
two categories namely:
1. Hardware requirements
 PROCESSOR
o Minimum 1000 MHZ Pentium processor
o Recommended 2GHZ core 2 duo processor
 RAM
o Minimum 1Gigabyte
o Recommended 4 Gigabytes
 HARD DISK
o 15 Gigabytes for installation drive for Windows Server 2008
o 5 Gigabyte for system drive
 DISPLAY
o Minimum 800 X 600 , 256 color
o Recommended 1024 X 768, 32-bit High color
2. Technologies to be used
 For college website development & Alumni website development
o ASP .NET 4.0 will be used for developing web pages.
o C# .NET will be used for logic development for project.

7. 7

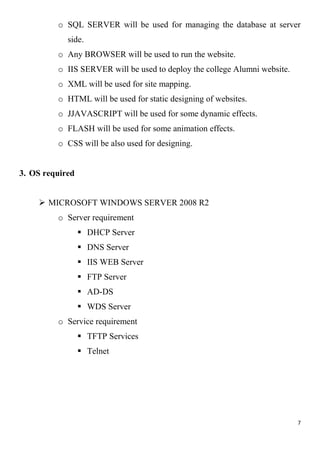

o SQL SERVER will be used for managing the database at server
side.
o Any BROWSER will be used to run the website.
o IIS SERVER will be used to deploy the college Alumni website.
o XML will be used for site mapping.
o HTML will be used for static designing of websites.
o JJAVASCRIPT will be used for some dynamic effects.
o FLASH will be used for some animation effects.
o CSS will be also used for designing.
3. OS required
 MICROSOFT WINDOWS SERVER 2008 R2
o Server requirement
 DHCP Server
 DNS Server
 IIS WEB Server
 FTP Server
 AD-DS
 WDS Server
o Service requirement
 TFTP Services
 Telnet

8. 8
CONTRIBUTION MAKE BY PROJECT
This project will make a lot of contribution to solve problems associated
with traditional methods of managing college information and network
infrastructure.
In traditional system, students are provided their information in a very
traditional manner. Moreover, most of the work involved in the process has to be
done manually, which is very time consuming and cumbersome and also, it
reduces the efficiency, accuracy and speed of retrieval of data.
Now, if we use our designed College Alumni, students will be easily able to
get their desired information. Administrator, who will manage this project, will
easily able to configure it according to requirement. The IP configurations and
server address, which are previously configured manually, now can be
configured automatically to each and every Client connected to local network.
Thus it will make a lot of contribution to overcome the limitation of
managing information in traditional method.
