Pressurized Water System, Safe Agua Chile

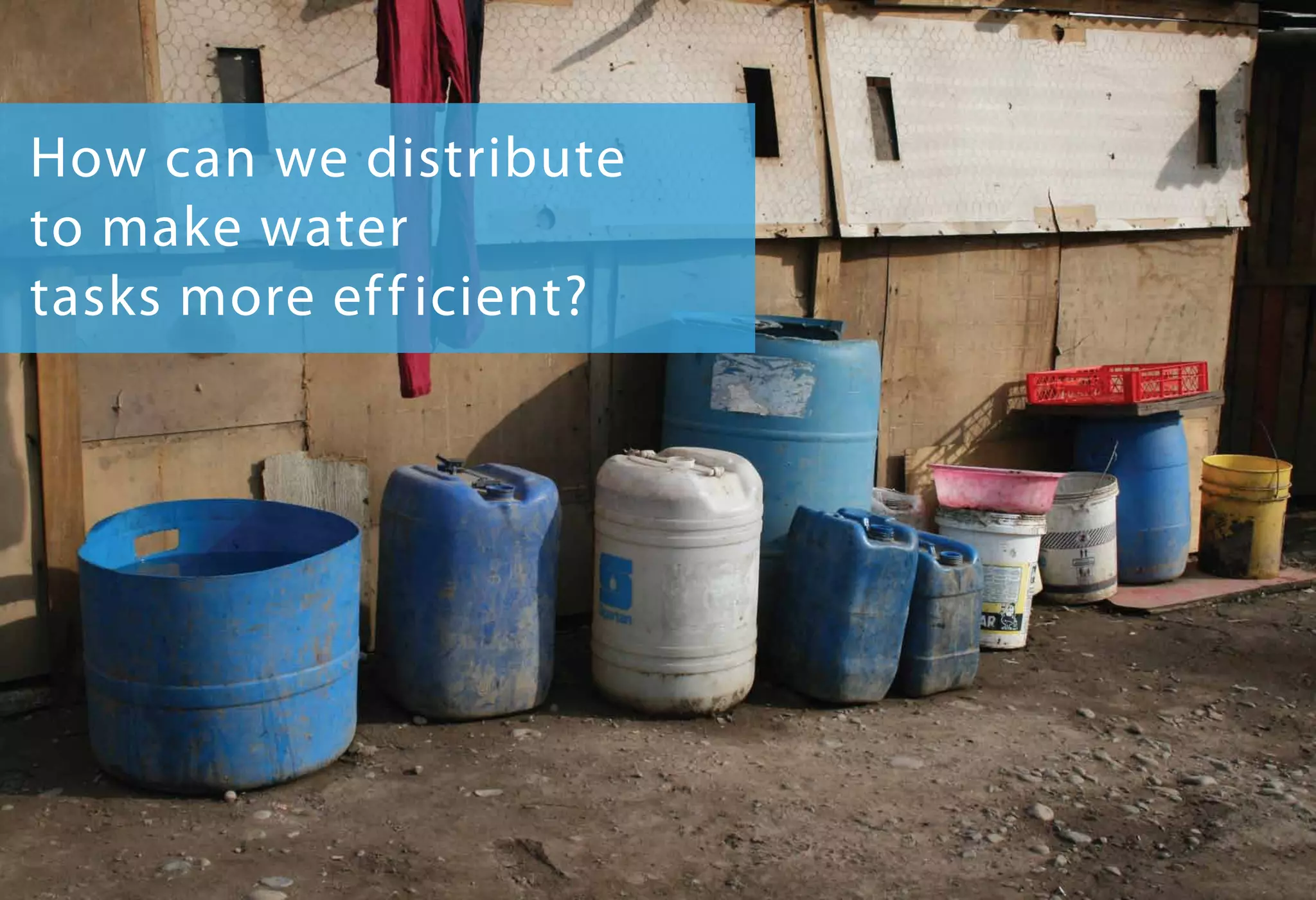

- 1. How can wedistribute to make water tasks more ef f icient?
- 2. “If I hadthe money I will buy a tap to simulate running water” “I am tired...it is laundry day and I just started”
- 3. speci c problem Scoopingand moving large quantites of water requires a lot of e ort and time, impacting people’s health and general well being. 8L 8L 8L 8L 8L 8L 8L 1L 2L 1L
- 4. water locations Laundry area Centralized storage locations with unconsolidated tasks Water storage Cooking Washing dishes Bathroom shower DELIVERY OF WATER Laundry Cooking Dining Uncentralized storage with consolidated tasks water storage Washing Dishes Bathroom water Shower storage DELIVERY OF WATER

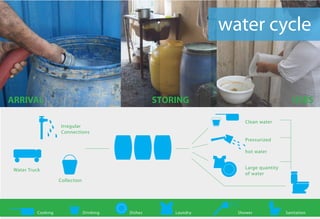

- 5. water cycle ARRIVAL STORING USES Clean water Irregular Connections Pressurized hot water Water Truck Large quantity of water Collection Cooking Drinking Dishes Laundry Shower Sanitation

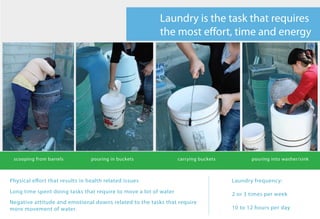

- 6. Laundry is thetask that requires the most e ort, time and energy scooping from barrels pouring in buckets carrying buckets pouring into washer/sink Physical e ort that results in health related issues Laundry frequency: Long time spent doing tasks that require to move a lot of water 2 or 3 times per week Negative attitude and emotional downs related to the tasks that require more movement of water. 10 to 12 hours per day

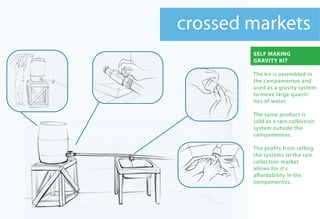

- 7. crossed markets SELF MAKING GRAVITY KIT The kit is assembled in the campamentos and used as a gravity system to move large quanti- ites of water. The same product is sold as a rain collection system outside the campamentos. The pro ts from selling the systems to the rain collection market allows for it's a ordability in the campamentos.
- 8. A kit thatcan be used by the rain collection market and the campamentos business model Kit assembly will provide jobs at campamentos Buyers of the rain collection system will support a good cause making a ordable the product in the campamentos instrucciónes Plastic barrel 55 gallons PVC Faucet PVC Hoses or PVC plumbing Wood stand Brackets

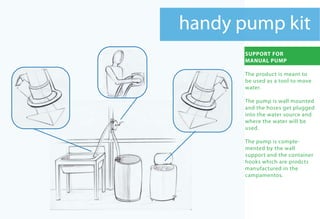

- 9. handy pump kit SUPPORT FOR MANUAL PUMP The product is meant to be used as a tool to move water. The pump is wall mounted and the hoses get plugged into the water source and where the water will be used. The pump is comple- mented by the wall support and the container hooks which are prodcts manufactured in the campamentos.

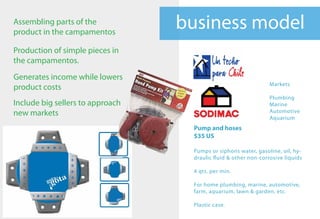

- 10. Assembling parts ofthe product in the campamentos business model Production of simple pieces in the campamentos. Generates income while lowers Markets product costs Plumbing Include big sellers to approach Marine new markets Automotive Aquarium Pump and hoses $35 US Pumps or siphons water, gasoline, oil, hy- draulic uid & other non-corrosive liquids 4 qts. per min. For home plumbing, marine, automotive, farm, aquarium, lawn & garden, etc. Plastic case.
- 11. fast ow USING ADRILL TO PUMP WATER This pump is mounted in the wall next to where large quantity of water is employed. Both ends of the pump connect, one to the water source and the other to the destination The drill is used to turn the pump on and makes the work very e cient.

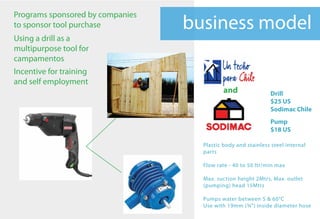

- 12. Programs sponsored bycompanies to sponsor tool purchase business model Using a drill as a multipurpose tool for campamentos Incentive for training and self employment and Drill $25 US Sodimac Chile Pump $18 US Plastic body and stainless steel internal parts Flow rate - 40 to 50 ltr/min max Max. suction height 2Mtrs, Max. outlet (pumping) head 15Mtrs Pumps water between 5 & 60°C Use with 19mm (¾") inside diameter hose
