2. preservationguide.co.uk 2Richard Wright

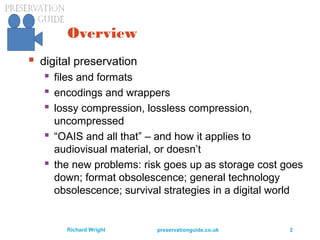

Overview
digital preservation
files and formats
encodings and wrappers
lossy compression, lossless compression,
uncompressed

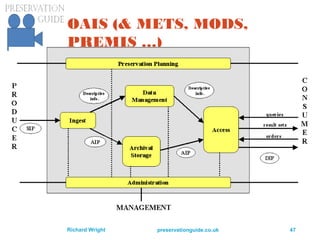

“OAIS and all that” – and how it applies to
audiovisual material, or doesn’t

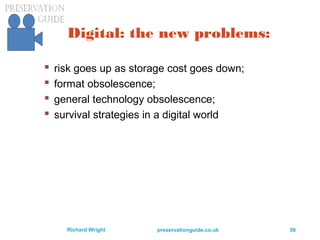

the new problems: risk goes up as storage cost goes
down; format obsolescence; general technology

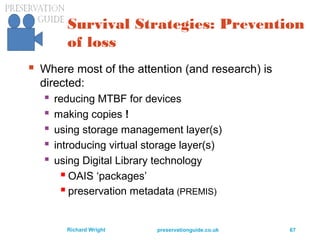

obsolescence; survival strategies in a digital world

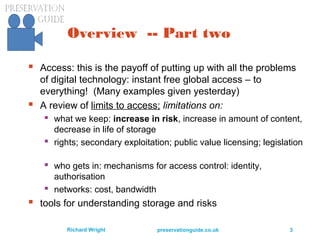

3. preservationguide.co.uk 3Richard Wright
Overview -- Part two
Access: this is the payoff of putting up with all the problems
of digital technology: instant free global access – to
everything! (Many examples given yesterday)

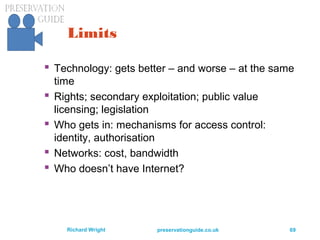

A review of limits to access; limitations on:
what we keep: increase in risk, increase in amount of content,
decrease in life of storage

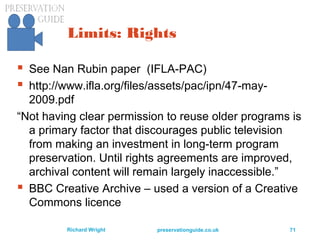

rights; secondary exploitation; public value licensing; legislation

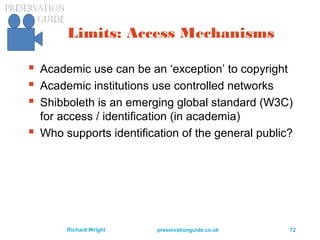

who gets in: mechanisms for access control: identity,
authorisation
networks: cost, bandwidth

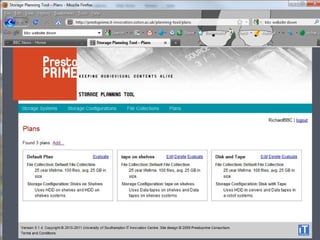

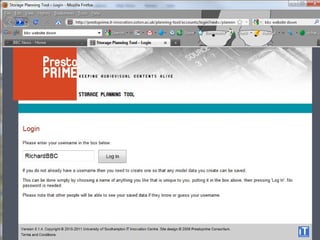

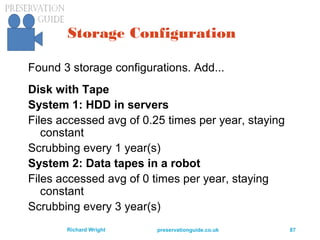

tools for understanding storage and risks
4. preservationguide.co.uk 4Richard Wright

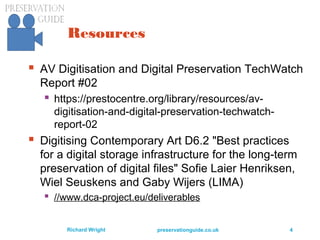

Resources
AV Digitisation and Digital Preservation TechWatch
Report #02
https://prestocentre.org/library/resources/av-
digitisation-and-digital-preservation-techwatch-
report-02
Digitising Contemporary Art D6.2 "Best practices
for a digital storage infrastructure for the long-term
preservation of digital files" Sofie Laier Henriksen,
Wiel Seuskens and Gaby Wijers (LIMA)
//www.dca-project.eu/deliverables

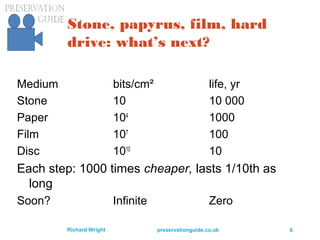

6. preservationguide.co.uk 6Richard Wright

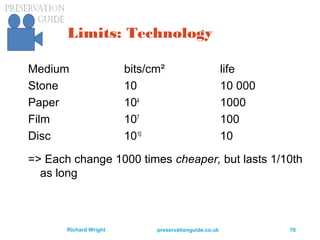

Stone, papyrus, film, hard
drive: what’s next?
Medium bits/cm² life, yr
Stone 10 10 000
Paper 104
1000
Film 107
100
Disc 1010
10
Each step: 1000 times cheaper, lasts 1/10th as
long
Soon? Infinite Zero

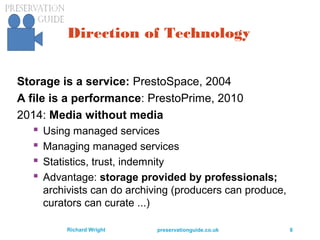

8. preservationguide.co.uk 8Richard Wright
Direction of Technology
Storage is a service: PrestoSpace, 2004
A file is a performance: PrestoPrime, 2010
2014: Media without media
Using managed services
Managing managed services
Statistics, trust, indemnity
Advantage: storage provided by professionals;
archivists can do archiving (producers can produce,
curators can curate ...)

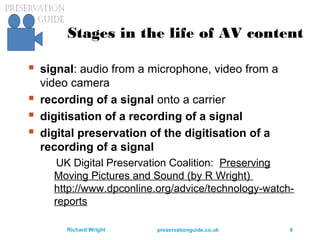

9. preservationguide.co.uk 9Richard Wright
Stages in the life of AV content
signal: audio from a microphone, video from a
video camera
recording of a signal onto a carrier
digitisation of a recording of a signal
digital preservation of the digitisation of a
recording of a signal
UK Digital Preservation Coalition: Preserving
Moving Pictures and Sound (by R Wright)
http://www.dpconline.org/advice/technology-watch-
reports

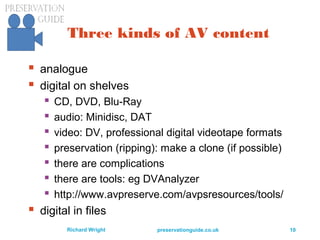

10. preservationguide.co.uk 10Richard Wright
Three kinds of AV content
analogue
digital on shelves
CD, DVD, Blu-Ray
audio: Minidisc, DAT
video: DV, professional digital videotape formats
preservation (ripping): make a clone (if possible)
there are complications
there are tools: eg DVAnalyzer
http://www.avpreserve.com/avpsresources/tools/
digital in files
11. preservationguide.co.uk 11Richard Wright
Audiovisual Content is
Special
Technically demanding
Context: use in “scholarly
communication”
Interoperability
A Matter of Time
Wikimedia Common CC licence; author STEINDY

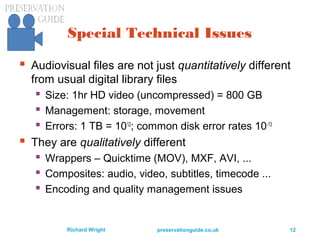

12. preservationguide.co.uk 12Richard Wright
Special Technical Issues
Audiovisual files are not just quantitatively different
from usual digital library files
Size: 1hr HD video (uncompressed) = 800 GB
Management: storage, movement
Errors: 1 TB = 1012
; common disk error rates 10-13
They are qualitatively different
Wrappers – Quicktime (MOV), MXF, AVI, ...
Composites: audio, video, subtitles, timecode ...
Encoding and quality management issues

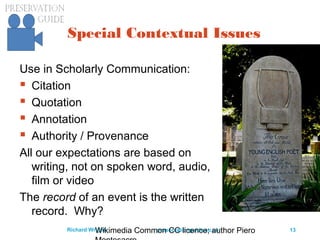

13. preservationguide.co.uk 13Richard Wright
Special Contextual Issues
Use in Scholarly Communication:
Citation
Quotation
Annotation
Authority / Provenance
All our expectations are based on
writing, not on spoken word, audio,
film or video
The record of an event is the written
record. Why?
Wikimedia Common CC licence; author Piero

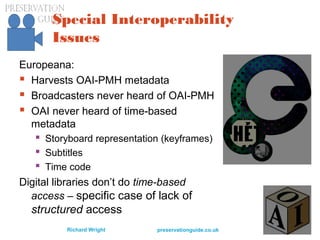

14. preservationguide.co.uk 14Richard Wright
Special Interoperability
Issues
Europeana:
Harvests OAI-PMH metadata
Broadcasters never heard of OAI-PMH
OAI never heard of time-based
metadata

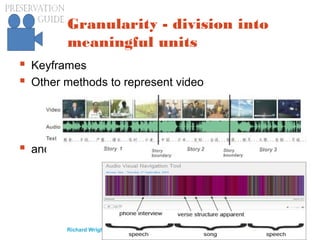

Storyboard representation (keyframes)
Subtitles
Time code
Digital libraries don’t do time-based
access – specific case of lack of
structured access
15. preservationguide.co.uk 15Richard Wright

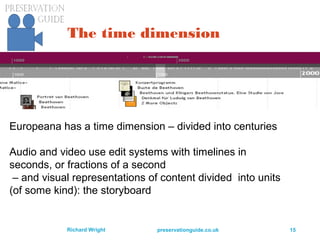

The time dimension
Europeana has a time dimension – divided into centuries

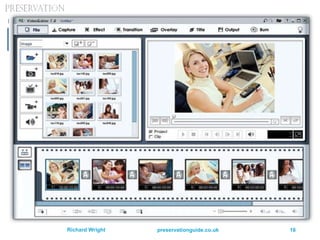

Audio and video use edit systems with timelines in
seconds, or fractions of a second
– and visual representations of content divided into units
(of some kind): the storyboard

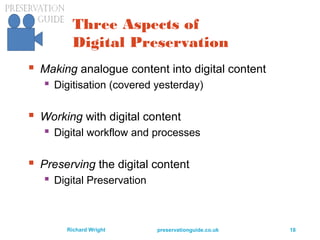

18. preservationguide.co.uk 18Richard Wright
Three Aspects of
Digital Preservation
Making analogue content into digital content
Digitisation (covered yesterday)
Working with digital content
Digital workflow and processes
Preserving the digital content
Digital Preservation

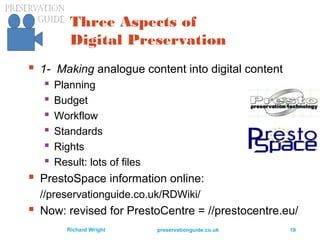

19. preservationguide.co.uk 19Richard Wright
Three Aspects of
Digital Preservation
1- Making analogue content into digital content
Planning
Budget
Workflow
Standards
Rights
Result: lots of files
PrestoSpace information online:
//preservationguide.co.uk/RDWiki/
Now: revised for PrestoCentre = //prestocentre.eu/
20. preservationguide.co.uk 20Richard Wright

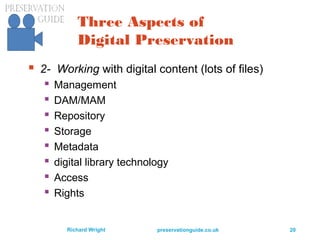

Three Aspects of
Digital Preservation
2- Working with digital content (lots of files)
Management
DAM/MAM
Repository
Storage
Metadata
digital library technology
Access
Rights
21. preservationguide.co.uk 21Richard Wright

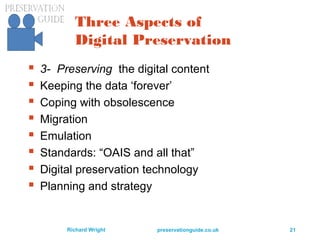

Three Aspects of
Digital Preservation
3- Preserving the digital content
Keeping the data ‘forever’
Coping with obsolescence
Migration
Emulation
Standards: “OAIS and all that”
Digital preservation technology
Planning and strategy

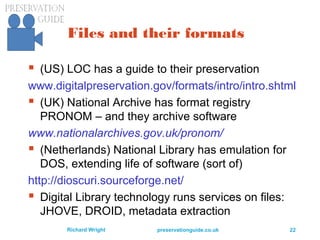

22. preservationguide.co.uk 22Richard Wright
Files and their formats
(US) LOC has a guide to their preservation
www.digitalpreservation.gov/formats/intro/intro.shtml

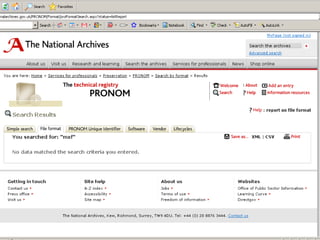

(UK) National Archive has format registry
PRONOM – and they archive software
www.nationalarchives.gov.uk/pronom/
(Netherlands) National Library has emulation for
DOS, extending life of software (sort of)
http://dioscuri.sourceforge.net/
Digital Library technology runs services on files:
JHOVE, DROID, metadata extraction
23. preservationguide.co.uk 23Richard Wright

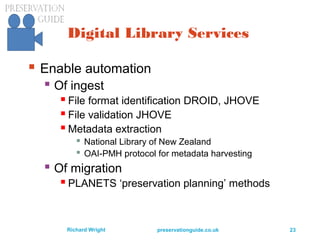

Digital Library Services
Enable automation
Of ingest
File format identification DROID, JHOVE
File validation JHOVE
Metadata extraction
National Library of New Zealand
OAI-PMH protocol for metadata harvesting
Of migration
PLANETS ‘preservation planning’ methods

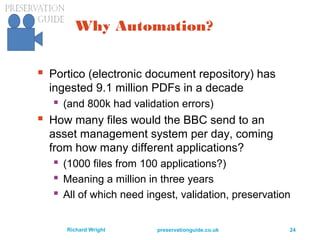

24. preservationguide.co.uk 24Richard Wright
Why Automation?
Portico (electronic document repository) has
ingested 9.1 million PDFs in a decade
(and 800k had validation errors)
How many files would the BBC send to an
asset management system per day, coming
from how many different applications?
(1000 files from 100 applications?)
Meaning a million in three years
All of which need ingest, validation, preservation
25. preservationguide.co.uk 25Richard Wright

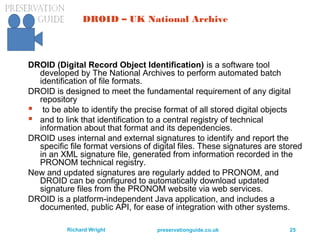

DROID – UK National Archive
DROID (Digital Record Object Identification) is a software tool
developed by The National Archives to perform automated batch
identification of file formats.
DROID is designed to meet the fundamental requirement of any digital
repository
to be able to identify the precise format of all stored digital objects
and to link that identification to a central registry of technical
information about that format and its dependencies.
DROID uses internal and external signatures to identify and report the
specific file format versions of digital files. These signatures are stored
in an XML signature file, generated from information recorded in the
PRONOM technical registry.
New and updated signatures are regularly added to PRONOM, and
DROID can be configured to automatically download updated
signature files from the PRONOM website via web services.
DROID is a platform-independent Java application, and includes a
documented, public API, for ease of integration with other systems.

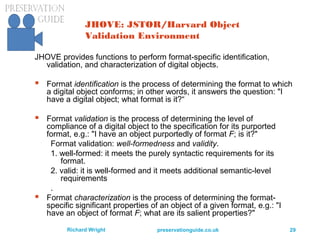

29. preservationguide.co.uk 29Richard Wright
JHOVE: JSTOR/Harvard Object
Validation Environment
JHOVE provides functions to perform format-specific identification,
validation, and characterization of digital objects.
Format identification is the process of determining the format to which
a digital object conforms; in other words, it answers the question: "I
have a digital object; what format is it?“
Format validation is the process of determining the level of
compliance of a digital object to the specification for its purported
format, e.g.: "I have an object purportedly of format F; is it?"
Format validation: well-formedness and validity.
1. well-formed: it meets the purely syntactic requirements for its
format.
2. valid: it is well-formed and it meets additional semantic-level
requirements
.
Format characterization is the process of determining the format-
specific significant properties of an object of a given format, e.g.: "I
have an object of format F; what are its salient properties?"

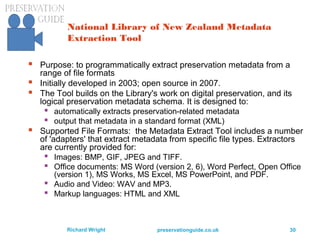

30. preservationguide.co.uk 30Richard Wright
National Library of New Zealand Metadata
Extraction Tool
Purpose: to programmatically extract preservation metadata from a
range of file formats
Initially developed in 2003; open source in 2007.
The Tool builds on the Library's work on digital preservation, and its
logical preservation metadata schema. It is designed to:
automatically extracts preservation-related metadata
output that metadata in a standard format (XML)
Supported File Formats: the Metadata Extract Tool includes a number
of 'adapters' that extract metadata from specific file types. Extractors
are currently provided for:
Images: BMP, GIF, JPEG and TIFF.
Office documents: MS Word (version 2, 6), Word Perfect, Open Office
(version 1), MS Works, MS Excel, MS PowerPoint, and PDF.
Audio and Video: WAV and MP3.
Markup languages: HTML and XML
31. preservationguide.co.uk 31Richard Wright

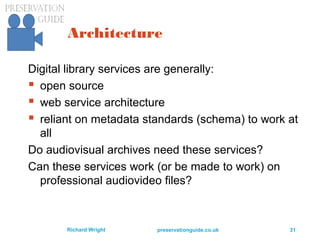

Architecture
Digital library services are generally:
open source
web service architecture
reliant on metadata standards (schema) to work at
all
Do audiovisual archives need these services?
Can these services work (or be made to work) on
professional audiovideo files?

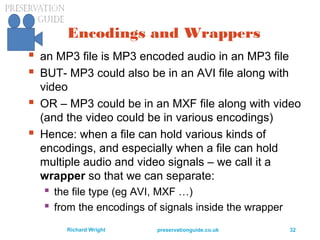

32. preservationguide.co.uk 32Richard Wright
Encodings and Wrappers
an MP3 file is MP3 encoded audio in an MP3 file
BUT- MP3 could also be in an AVI file along with
video
OR – MP3 could be in an MXF file along with video
(and the video could be in various encodings)
Hence: when a file can hold various kinds of
encodings, and especially when a file can hold
multiple audio and video signals – we call it a
wrapper so that we can separate:
the file type (eg AVI, MXF …)
from the encodings of signals inside the wrapper
33. preservationguide.co.uk 33Richard Wright
Lossy compression, lossless
compression, uncompressed
Lossy data reduction should not be created by the
archive
but if you’re given a lossy file, that’s your ‘artefact’
Uncompress and save ‘whole’ when obsolescent
DO NOT recode from one lossy format to another;
that becomes a ‘generation loss’
Saving SD video ‘whole’ is cheaper than digibeta!
Saving HD video ‘whole’ may be completely
unfeasible for several more years; shame

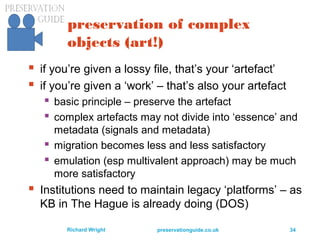

34. preservationguide.co.uk 34Richard Wright
preservation of complex
objects (art!)
if you’re given a lossy file, that’s your ‘artefact’
if you’re given a ‘work’ – that’s also your artefact
basic principle – preserve the artefact
complex artefacts may not divide into ‘essence’ and
metadata (signals and metadata)
migration becomes less and less satisfactory
emulation (esp multivalent approach) may be much
more satisfactory
Institutions need to maintain legacy ‘platforms’ – as
KB in The Hague is already doing (DOS)
35. preservationguide.co.uk 35Richard Wright

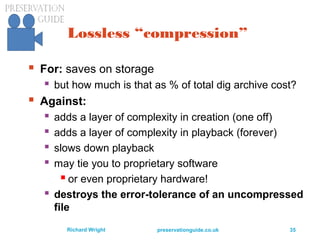

Lossless “compression”
For: saves on storage
but how much is that as % of total dig archive cost?
Against:
adds a layer of complexity in creation (one off)
adds a layer of complexity in playback (forever)
slows down playback
may tie you to proprietary software
or even proprietary hardware!
destroys the error-tolerance of an uncompressed
file
37. preservationguide.co.uk 37Richard Wright

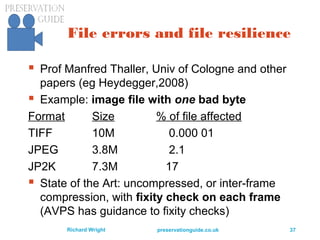

File errors and file resilience
Prof Manfred Thaller, Univ of Cologne and other
papers (eg Heydegger,2008)
Example: image file with one bad byte
Format Size % of file affected
TIFF 10M 0.000 01
JPEG 3.8M 2.1
JP2K 7.3M 17
State of the Art: uncompressed, or inter-frame
compression, with fixity check on each frame
(AVPS has guidance to fixity checks)
38. preservationguide.co.uk 38Richard Wright

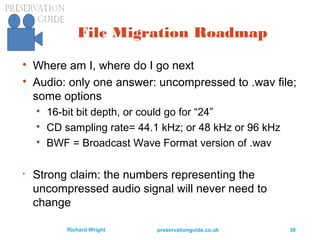

File Migration Roadmap
Where am I, where do I go next
Audio: only one answer: uncompressed to .wav file;
some options
16-bit bit depth, or could go for “24”
CD sampling rate= 44.1 kHz; or 48 kHz or 96 kHz
BWF = Broadcast Wave Format version of .wav
Strong claim: the numbers representing the
uncompressed audio signal will never need to
change
39. preservationguide.co.uk 39Richard Wright

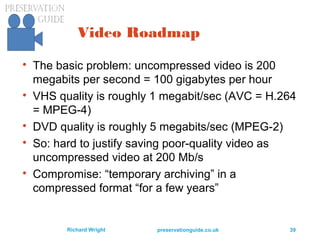

Video Roadmap
The basic problem: uncompressed video is 200
megabits per second = 100 gigabytes per hour
VHS quality is roughly 1 megabit/sec (AVC = H.264
= MPEG-4)
DVD quality is roughly 5 megabits/sec (MPEG-2)
So: hard to justify saving poor-quality video as
uncompressed video at 200 Mb/s
Compromise: “temporary archiving” in a
compressed format “for a few years”
40. preservationguide.co.uk 40Richard Wright

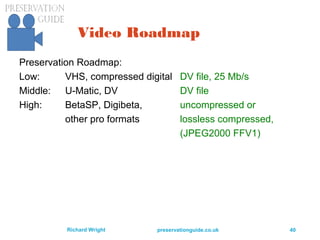

Video Roadmap
Preservation Roadmap:
Low: VHS, compressed digital DV file, 25 Mb/s
Middle: U-Matic, DV DV file
High: BetaSP, Digibeta, uncompressed or
other pro formats lossless compressed,
(JPEG2000 FFV1)
41. preservationguide.co.uk 41Richard Wright

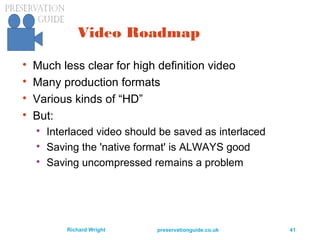

Video Roadmap
Much less clear for high definition video
Many production formats
Various kinds of “HD”
But:
Interlaced video should be saved as interlaced
Saving the 'native format' is ALWAYS good
Saving uncompressed remains a problem
43. preservationguide.co.uk 43Richard Wright

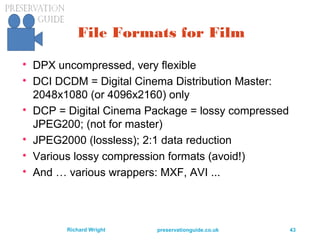

File Formats for Film
DPX uncompressed, very flexible
DCI DCDM = Digital Cinema Distribution Master:
2048x1080 (or 4096x2160) only
DCP = Digital Cinema Package = lossy compressed
JPEG200; (not for master)
JPEG2000 (lossless); 2:1 data reduction
Various lossy compression formats (avoid!)
And … various wrappers: MXF, AVI ...
44. preservationguide.co.uk 44Richard Wright

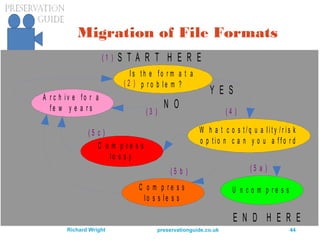

Migration of File Formats
I s t h e f o r m a t a
p r o b l e m ?
S T A R T H E R E
A r c h i v e f o r a
f e w y e a r s
W h a t c o s t / q u a l i t y / r i s k
o p t i o n c a n y o u a f f o r d
C o m p r e s s
l o s s y
Y E S
N O
U n c o m p r e s sC o m p r e s s
l o s s l e s s
E N D H E R E
( 1 )
( 2 )
( 3 ) ( 4 )
( 5 a )( 5 b )
( 5 c )
45. preservationguide.co.uk 45Richard Wright
Preservation Strategy
Keep what you have as long as it works
Migrate to a new format when the old format has a
problem (usually, obsolete)
Examples: Real Audio, MPEG-1 Video
OR – maybe you can emulate the software needed
to use the file, even after standard software no
longer works
One emulator: Univ of Liverpool Multivalent Browser
46. preservationguide.co.uk 46Richard Wright

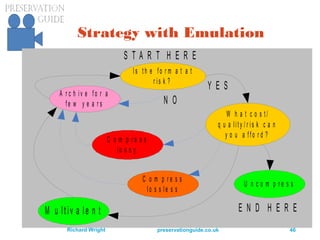

Strategy with Emulation
I s t h e f o r m a t a t
r is k ?
S T A R T H E R E
A r c h i v e f o r a
f e w y e a r s
W h a t c o s t /
q u a lit y / r is k c a n
y o u a f f o r d ?
C o m p r e s s
lo s s y
Y E S
N O
U n c o m p r e s s
C o m p r e s s
lo s s le s s
E N D H E R EM u lt iv a le n t
48. preservationguide.co.uk 48Richard Wright

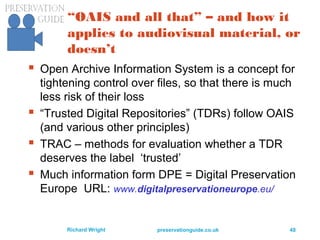

“OAIS and all that” – and how it
applies to audiovisual material, or
doesn’t
Open Archive Information System is a concept for
tightening control over files, so that there is much
less risk of their loss
“Trusted Digital Repositories” (TDRs) follow OAIS
(and various other principles)
TRAC – methods for evaluation whether a TDR
deserves the label ‘trusted’
Much information form DPE = Digital Preservation
Europe URL: www.digitalpreservationeurope.eu/
49. preservationguide.co.uk 49Richard Wright

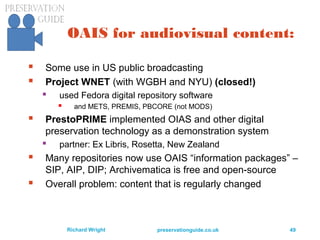

OAIS for audiovisual content:
Some use in US public broadcasting
Project WNET (with WGBH and NYU) (closed!)
used Fedora digital repository software
and METS, PREMIS, PBCORE (not MODS)
PrestoPRIME implemented OIAS and other digital
preservation technology as a demonstration system
partner: Ex Libris, Rosetta, New Zealand
Many repositories now use OAIS “information packages” –
SIP, AIP, DIP; Archivematica is free and open-source
Overall problem: content that is regularly changed

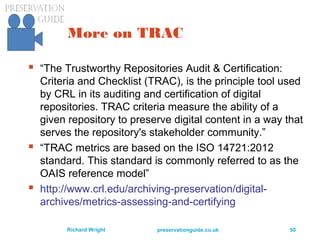

50. preservationguide.co.uk 50Richard Wright
More on TRAC
“The Trustworthy Repositories Audit & Certification:
Criteria and Checklist (TRAC), is the principle tool used
by CRL in its auditing and certification of digital
repositories. TRAC criteria measure the ability of a
given repository to preserve digital content in a way that
serves the repository's stakeholder community.”
“TRAC metrics are based on the ISO 14721:2012
standard. This standard is commonly referred to as the
OAIS reference model”
http://www.crl.edu/archiving-preservation/digital-
archives/metrics-assessing-and-certifying
51. preservationguide.co.uk 51Richard Wright
More on TRAC
The social, political and economic environment of a
Trusted Digital Repository
TRAC Criteria Documents
A1.2 Contingency plans, succession plans, escrow arrangements
(as appropriate)
A3.1 Definition of designated community(ies), and policy relating to
service levels
A3.3 Policies relating to legal permissions
A3.5 Policies and procedures relating to feedback
A4.3 Financial procedures
A5.5 Policies/procedures relating to challenges to rights
52. preservationguide.co.uk 52Richard Wright

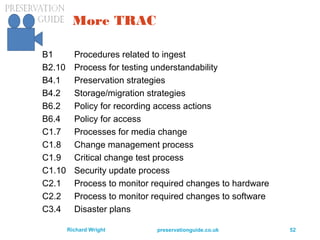

More TRAC
B1 Procedures related to ingest
B2.10 Process for testing understandability
B4.1 Preservation strategies
B4.2 Storage/migration strategies
B6.2 Policy for recording access actions
B6.4 Policy for access
C1.7 Processes for media change
C1.8 Change management process
C1.9 Critical change test process
C1.10 Security update process
C2.1 Process to monitor required changes to hardware
C2.2 Process to monitor required changes to software
C3.4 Disaster plans
53. preservationguide.co.uk 53Richard Wright

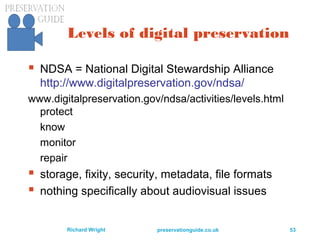

Levels of digital preservation
NDSA = National Digital Stewardship Alliance
http://www.digitalpreservation.gov/ndsa/
www.digitalpreservation.gov/ndsa/activities/levels.html
protect
know
monitor
repair
storage, fixity, security, metadata, file formats
nothing specifically about audiovisual issues
55. preservationguide.co.uk 56Richard Wright
Digital: the new problems:
risk goes up as storage cost goes down;
format obsolescence;
general technology obsolescence;
survival strategies in a digital world
58. preservationguide.co.uk 59Richard Wright
Moore’s Law
Originally – complexity of
integrated circuits
doubling every 18 month
But – memory in general
(RAM, disc, tape) has
followed the same ‘law’
Fred G Moore
62. preservationguide.co.uk 63Richard Wright

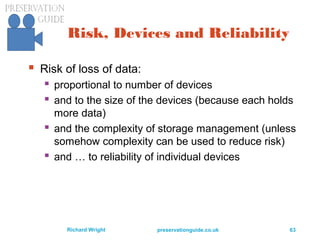

Risk, Devices and Reliability
Risk of loss of data:
proportional to number of devices
and to the size of the devices (because each holds
more data)
and the complexity of storage management (unless
somehow complexity can be used to reduce risk)
and … to reliability of individual devices
63. preservationguide.co.uk 64Richard Wright

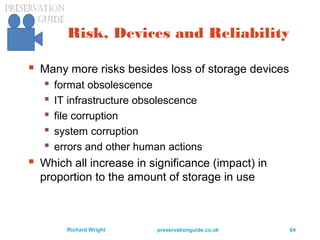

Risk, Devices and Reliability
Many more risks besides loss of storage devices
format obsolescence
IT infrastructure obsolescence
file corruption
system corruption
errors and other human actions
Which all increase in significance (impact) in
proportion to the amount of storage in use

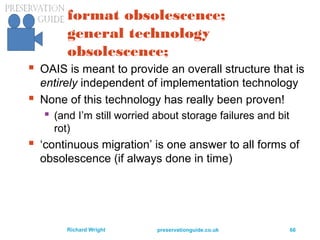

65. preservationguide.co.uk 66Richard Wright
format obsolescence;
general technology
obsolescence;
OAIS is meant to provide an overall structure that is
entirely independent of implementation technology
None of this technology has really been proven!
(and I’m still worried about storage failures and bit
rot)
‘continuous migration’ is one answer to all forms of
obsolescence (if always done in time)
66. preservationguide.co.uk 67Richard Wright
Survival Strategies: Prevention
of loss
Where most of the attention (and research) is
directed:
reducing MTBF for devices
making copies !
using storage management layer(s)
introducing virtual storage layer(s)
using Digital Library technology
OAIS ‘packages’
preservation metadata (PREMIS)
67. preservationguide.co.uk 69Richard Wright
Limits
Technology: gets better – and worse – at the same
time
Rights; secondary exploitation; public value
licensing; legislation
Who gets in: mechanisms for access control:
identity, authorisation
Networks: cost, bandwidth

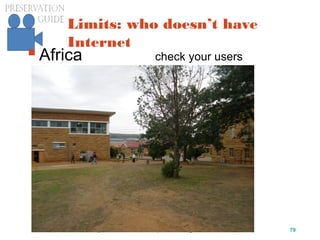

Who doesn’t have Internet?
68. preservationguide.co.uk 70Richard Wright
Limits: Technology
Medium bits/cm² life
Stone 10 10 000
Paper 104
1000
Film 107
100
Disc 1010
10
=> Each change 1000 times cheaper, but lasts 1/10th
as long
69. preservationguide.co.uk 71Richard Wright
Limits: Rights
See Nan Rubin paper (IFLA-PAC)
http://www.ifla.org/files/assets/pac/ipn/47-may-
2009.pdf
“Not having clear permission to reuse older programs is
a primary factor that discourages public television
from making an investment in long-term program
preservation. Until rights agreements are improved,
archival content will remain largely inaccessible.”
BBC Creative Archive – used a version of a Creative
Commons licence
70. preservationguide.co.uk 72Richard Wright
Limits: Access Mechanisms
Academic use can be an ‘exception’ to copyright
Academic institutions use controlled networks
Shibboleth is an emerging global standard (W3C)
for access / identification (in academia)
Who supports identification of the general public?
75. preservationguide.co.uk 77Richard Wright

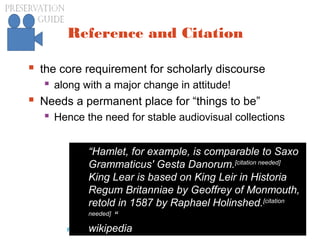

Reference and Citation
the core requirement for scholarly discourse
along with a major change in attitude!
Needs a permanent place for “things to be”
Hence the need for stable audiovisual collections
“Hamlet, for example, is comparable to Saxo
Grammaticus' Gesta Danorum.[citation needed]
King Lear is based on King Leir in Historia
Regum Britanniae by Geoffrey of Monmouth,
retold in 1587 by Raphael Holinshed.[citation
needed]
“
wikipedia
79. preservationguide.co.uk 81Richard Wright

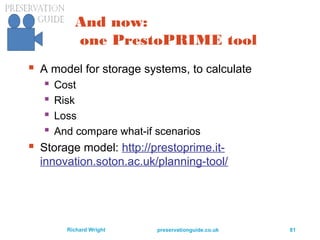

And now:
one PrestoPRIME tool
A model for storage systems, to calculate
Cost
Risk
Loss
And compare what-if scenarios
Storage model: http://prestoprime.it-
innovation.soton.ac.uk/planning-tool/
82. preservationguide.co.uk 84Richard Wright

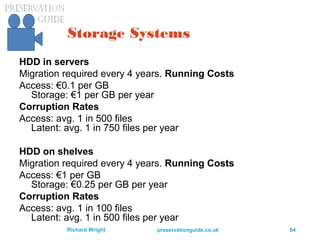

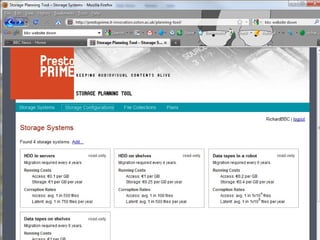

Storage Systems
HDD in servers
Migration required every 4 years. Running Costs
Access: €0.1 per GB
Storage: €1 per GB per year
Corruption Rates
Access: avg. 1 in 500 files
Latent: avg. 1 in 750 files per year
HDD on shelves
Migration required every 4 years. Running Costs
Access: €1 per GB
Storage: €0.25 per GB per year
Corruption Rates
Access: avg. 1 in 100 files
Latent: avg. 1 in 500 files per year
83. preservationguide.co.uk 85Richard Wright

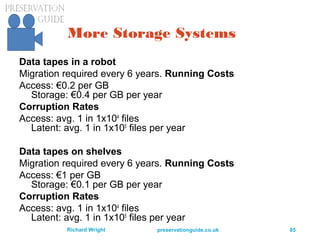

More Storage Systems
Data tapes in a robot
Migration required every 6 years. Running Costs
Access: €0.2 per GB
Storage: €0.4 per GB per year
Corruption Rates
Access: avg. 1 in 1x104
files
Latent: avg. 1 in 1x105
files per year
Data tapes on shelves
Migration required every 6 years. Running Costs
Access: €1 per GB
Storage: €0.1 per GB per year
Corruption Rates
Access: avg. 1 in 1x104
files
Latent: avg. 1 in 1x105
files per year
85. preservationguide.co.uk 87Richard Wright

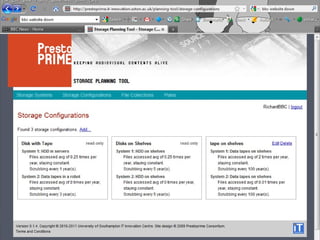

Storage Configuration
Found 3 storage configurations. Add...
Disk with Tape
System 1: HDD in servers
Files accessed avg of 0.25 times per year, staying
constant
Scrubbing every 1 year(s)
System 2: Data tapes in a robot
Files accessed avg of 0 times per year, staying
constant
Scrubbing every 3 year(s)
89. preservationguide.co.uk 91Richard Wright

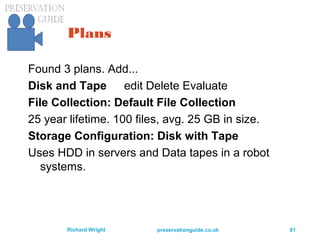

Plans
Found 3 plans. Add...
Disk and Tape edit Delete Evaluate

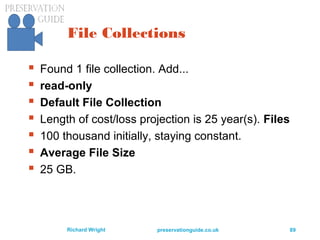

File Collection: Default File Collection
25 year lifetime. 100 files, avg. 25 GB in size.
Storage Configuration: Disk with Tape
Uses HDD in servers and Data tapes in a robot
systems.
92. preservationguide.co.uk 94Richard Wright

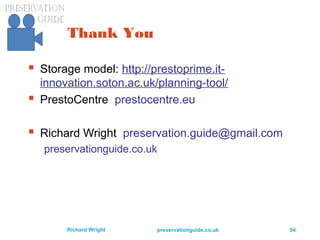

Thank You
Storage model: http://prestoprime.it-
innovation.soton.ac.uk/planning-tool/
PrestoCentre prestocentre.eu
Richard Wright preservation.guide@gmail.com
preservationguide.co.uk
Editor's Notes
Have talked about liberating the content from the carrier; can also liberate the curator from the storage service
http://en.wikipedia.org/wiki/H.264/MPEG-4_AVC
BBC Dirac as new SMPTE VC-2 standard codec:
http://www.bbc.co.uk/rd/pubs/whp/whp159.shtml
More on HD:
http://www.microsoft.com/windows/windowsmedia/
howto/articles/understandinghdformats.aspx
EBU: HD image formats
http://tech.ebu.ch/docs/techreview/trev_299-ive.pdf
