How to Integrate Hyperconverged Systems with Existing SANs

Copyright © 2018 DataCore Software Corp. – All Rights Reserved.
WEBINAR
How to Integrate Hyper-converged
Systems with Existing SANs
Augie Gonzalez
Director of Product Marketing
DataCore Software

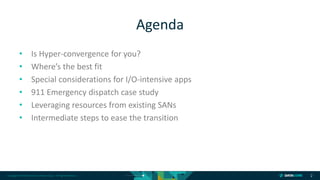

• Is Hyper-convergence for you?
• Where’s the best fit
• Special considerations for I/O-intensive apps
• 911 Emergency dispatch case study
• Leveraging resources from existing SANs
• Intermediate steps to ease the transition
2
Agenda

Copyright © 2018 DataCore Software Corp. – All Rights Reserved. 3
Shared Storage
Centralized vs. Distributed
Servers
External storage
Hyper-converged
Servers with Internal storage
- Storage software
APP APP APP APPAPP APP APP APP
“Virtual Storage Pool
a.k.a Virtual SAN”

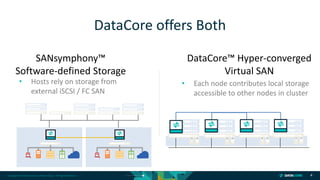

DataCore offers Both
4
DataCore™ Hyper-converged
Virtual SAN
• Each node contributes local storage
accessible to other nodes in cluster
SANsymphony™
Software-defined Storage
• Hosts rely on storage from
external iSCSI / FC SAN

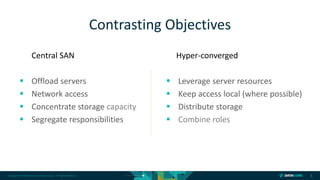

Central SAN
 Offload servers
 Network access
 Concentrate storage capacity
 Segregate responsibilities
Hyper-converged
 Leverage server resources
 Keep access local (where possible)
 Distribute storage
 Combine roles
Contrasting Objectives

6

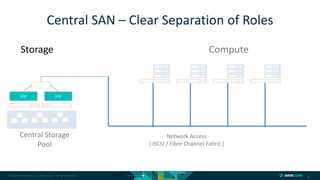

Central SAN – Clear Separation of Roles
Central Storage
Pool
ComputeStorage
Network Access
[ iSCSI / Fibre Channel Fabric ]
S/W S/W

7

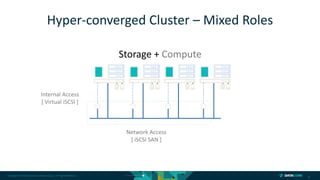

Hyper-converged Cluster – Mixed Roles
Network Access
[ iSCSI SAN ]
Storage + Compute
Internal Access
[ Virtual iSCSI ]

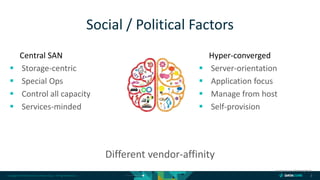

Central SAN
 Storage-centric
 Special Ops
 Control all capacity
 Services-minded
Hyper-converged
 Server-orientation
 Application focus
 Manage from host
 Self-provision
Social / Political Factors
Different vendor-affinity
Image source: MarketingProfs

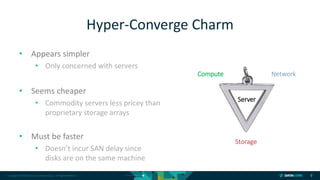

• Appears simpler
• Only concerned with servers
• Seems cheaper
• Commodity servers less pricey than
proprietary storage arrays
• Must be faster
• Doesn’t incur SAN delay since
disks are on the same machine
9
Hyper-Converge Charm
Compute Network
Storage
Server

• General purpose environments
• Light loads
• Apps where users can be easily split
across different servers (web scale)
• Keeping hands off
• Datacenter in a box
10
Many Hyper-Converged Products are
Designed for Small Scenarios …
… Yet marketed to large enterprises
Image source: the free dictionary

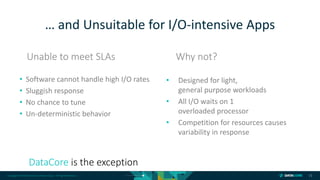

Unable to meet SLAs
• Software cannot handle high I/O rates
• Sluggish response
• No chance to tune
• Un-deterministic behavior
Why not?
• Designed for light,
general purpose workloads
• All I/O waits on 1
overloaded processor
• Competition for resources causes
variability in response
… and Unsuitable for I/O-intensive Apps
DataCore is the exception

12

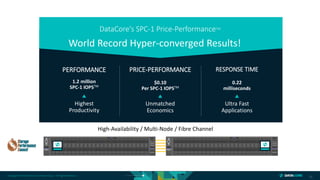

DataCore's SPC-1 Price-PerformanceTM
World Record Hyper-converged Results!
PERFORMANCE
1.2 million
SPC-1 IOPSTM
Highest
Productivity
PRICE-PERFORMANCE
$0.10
Per SPC-1 IOPSTM
Unmatched
Economics
RESPONSE TIME
0.22
milliseconds
Ultra Fast
Applications
High-Availability / Multi-Node / Fibre Channel

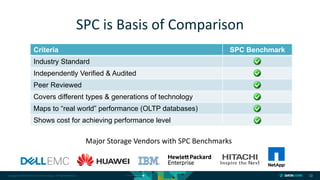

Criteria SPC Benchmark
Industry Standard
Independently Verified & Audited
Peer Reviewed
Covers different types & generations of technology
Maps to “real world” performance (OLTP databases)
Shows cost for achieving performance level
13
SPC is Basis of Comparison
Major Storage Vendors with SPC Benchmarks

Parallel I/O Breakthrough
TIME SAVINGS COST SAVINGS
Do more in
less time
2 machines can do
the work of many

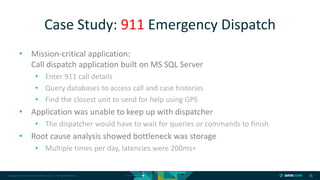

• Mission-critical application:
Call dispatch application built on MS SQL Server
• Enter 911 call details
• Query databases to access call and case histories
• Find the closest unit to send for help using GPS
• Application was unable to keep up with dispatcher
• The dispatcher would have to wait for queries or commands to finish
• Root cause analysis showed bottleneck was storage
• Multiple times per day, latencies were 200ms+
15
Case Study: 911 Emergency Dispatch

Better Availability
• RPO goal of 0 (no data loss)
• Wanted synchronous replication
to DR site
• RTO goal of 30 mins
• Still long time for emergency
communications to be down
• Wanted vMotion to DR site when
needed
• Able to test failover and failback
Lower Costs
• Continue using existing NetApp
storage (only a year and half old)
• Needed new hosts with
additional compute and memory
• Wanted a single pane of glass for
management
Other Challenges
(aside from storage latency)

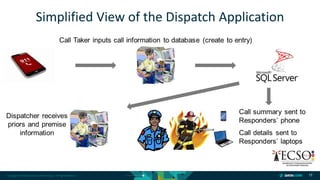

Simplified View of the Dispatch Application
17

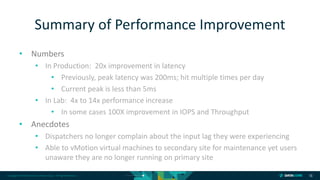

• Numbers
• In Production: 20x improvement in latency
• Previously, peak latency was 200ms; hit multiple times per day
• Current peak is less than 5ms
• In Lab: 4x to 14x performance increase
• In some cases 100X improvement in IOPS and Throughput
• Anecdotes
• Dispatchers no longer complain about the input lag they were experiencing
• Able to vMotion virtual machines to secondary site for maintenance yet users
unaware they are no longer running on primary site
18
Summary of Performance Improvement

• 60%+ less infrastructure
• Reduced hosts from 8 to 3 and eliminated external storage for production data
• Saved on administration time and PCSE
• Saved ~$100K on SQL Server licenses
• Change to per core licensing was going to cost ~$120K with physical hosts
• Each physical host was single processor with 12 cores (5 servers x 12 cores)
• By virtualizing SQL Server, able to control number of cores
• 1 VM with 8 vCPUs – Cores and 2 VMs with 4 vCPUs – Cores (total of 16 vCPUs – Cores)
• Better performance enabled consolidation of instances
• Went from 5 physical servers to 3 VMs
• ~$25K in license costs afterwards
19
Cost Benefits
https://www.brighttalk.com/webcast/11531/259931/a-case-study-on-improving-
sql-server-performance-20x-with-hyperconverged

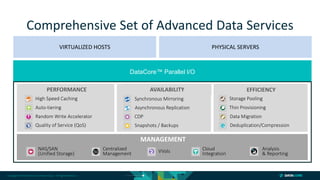

Comprehensive Set of Advanced Data Services
VIRTUALIZED HOSTS PHYSICAL SERVERS
EFFICIENCYAVAILABILITY
Synchronous Mirroring
Snapshots / Backups
CDP
Asynchronous Replication
PERFORMANCE
High Speed Caching
Random Write Accelerator
Auto-tiering
Quality of Service (QoS)
Thin Provisioning
Storage Pooling
Data Migration
Deduplication/Compression
NAS/SAN
(Unified Storage)
Centralized
Management
Analysis
& Reporting
Cloud
Integration
MANAGEMENT
VVols
Adaptive Parallel I/ODataCore™ Parallel I/O

• Scale linearly
• Use whichever server models & manufacturers at your disposal
• Some nodes can be storage heavy, others compute only
21
Web-scale when Appropriate
Easily Expands to 64 Nodes
1 2 3 4 5 64

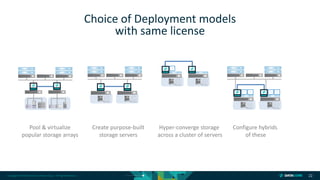

Choice of Deployment models
with same license
Pool & virtualize
popular storage arrays
Create purpose-built
storage servers
Hyper-converge storage
across a cluster of servers
Configure hybrids
of these
V
V V V V

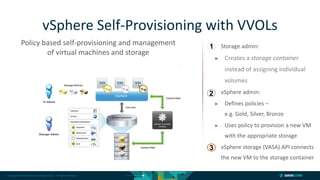

vSphere Self-Provisioning with VVOLs
Policy based self-provisioning and management
of virtual machines and storage
1. Storage admin:
► Creates a storage container
instead of assigning individual
volumes
2. vSphere admin:
► Defines policies –
e.g. Gold, Silver, Bronze
► Uses policy to provision a new VM
with the appropriate storage
3. vSphere storage (VASA) API connects
the new VM to the storage container
1
2
3

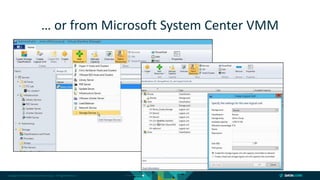

… or from Microsoft System Center VMM

Cloud

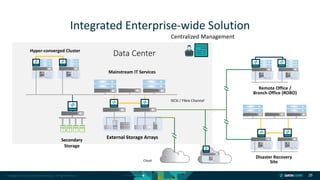

Integrated Enterprise-wide Solution
25
Data Center
External Storage Arrays
Mainstream IT Services
iSCSI / Fibre Channel
Disaster Recovery
Site
Hyper-converged Cluster
Remote Office /
Branch Office (ROBO)
Centralized Management
Secondary
Storage

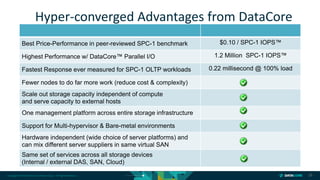

Hyper-converged Advantages from DataCore
26
Best Price-Performance in peer-reviewed SPC-1 benchmark $0.10 / SPC-1 IOPS™
Highest Performance w/ DataCore™ Parallel I/O 1.2 Million SPC-1 IOPS™
Fastest Response ever measured for SPC-1 OLTP workloads 0.22 millisecond @ 100% load
Fewer nodes to do far more work (reduce cost & complexity)
Scale out storage capacity independent of compute
and serve capacity to external hosts
One management platform across entire storage infrastructure
Support for Multi-hypervisor & Bare-metal environments
Hardware independent (wide choice of server platforms) and
can mix different server suppliers in same virtual SAN
Same set of services across all storage devices
(Internal / external DAS, SAN, Cloud)

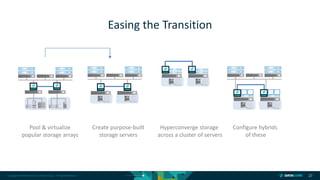

Easing the Transition
Pool & virtualize
popular storage arrays
Create purpose-built
storage servers
Hyperconverge storage
across a cluster of servers
Configure hybrids
of these
V V V V

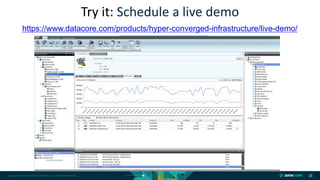

Try it: Schedule a live demo
https://www.datacore.com/products/hyper-converged-infrastructure/live-demo/

Questions?
info@datacore.com
www.datacore.com
