1. 1

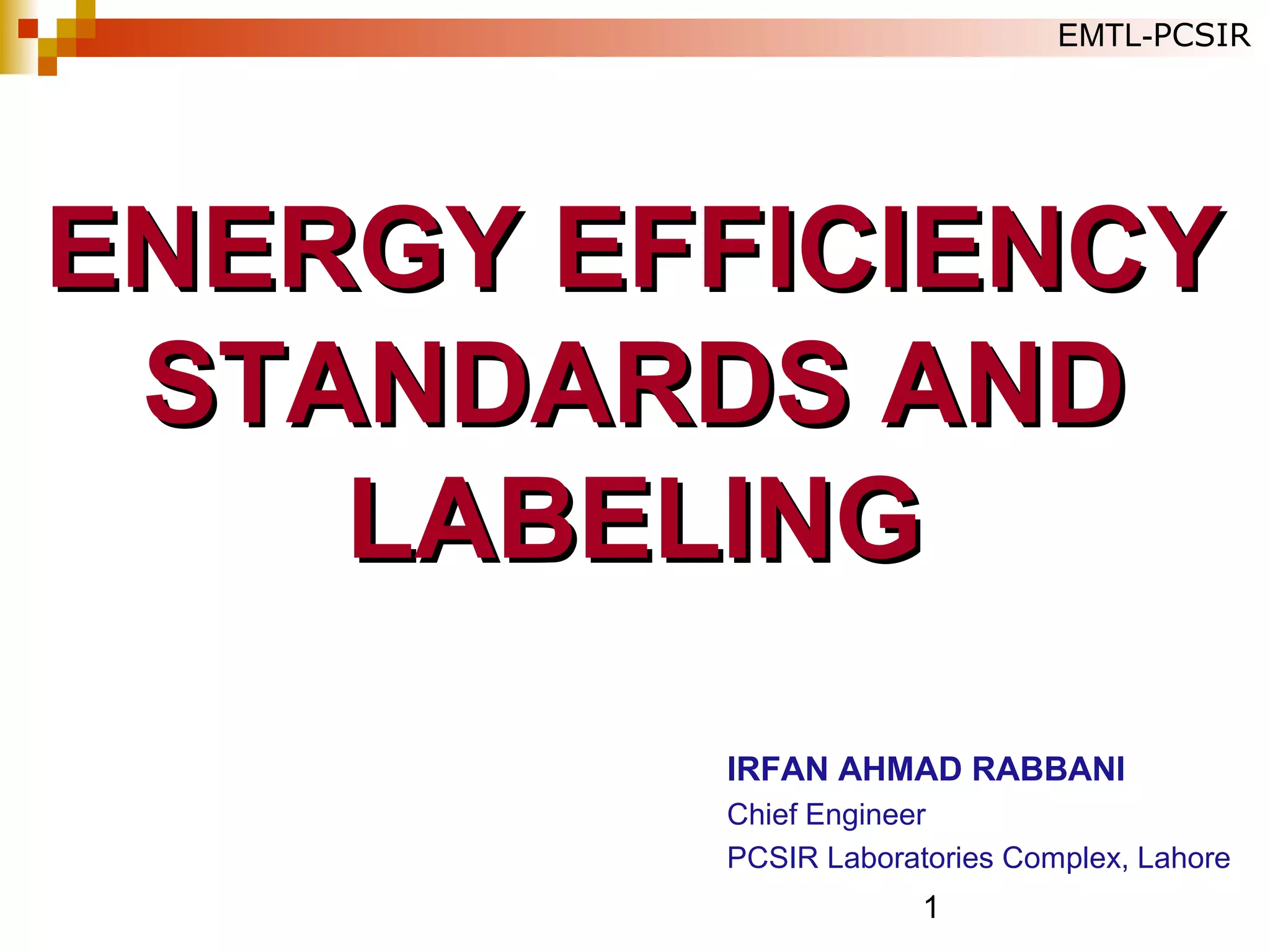

ENERGY EFFICIENCYENERGY EFFICIENCY
STANDARDS ANDSTANDARDS AND
LABELINGLABELING
IRFAN AHMAD RABBANI
Chief Engineer
PCSIR Laboratories Complex, Lahore
EMTL-PCSIR

2. 2
 Performance Standards.
 Safety Standards.
 Electromagnetic Compatibility (EMC).
 Energy Efficiency Requirements (MEPS)
 Compliance with RoHS Regulations.
TECHNICAL REQUIREMENTS FOR
HOUSEHOLD ELECTRICAL APPLIANCES
EMTL-PCSIR

3. 3
• Grading of an Appliance based on:
 Power Consumption.
 Energy Consumption.
 Any other Performance Indicator.
eg. Service Value, Efficacy,
etc.
ENERGY LABELS
MEPS
Specific Minimum Energy Efficiency Levels
EMTL-PCSIR

4. 4

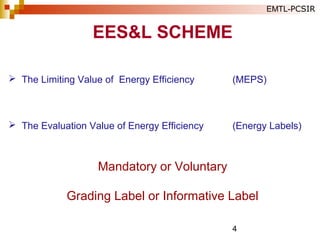

 The Limiting Value of Energy Efficiency (MEPS)
 The Evaluation Value of Energy Efficiency (Energy Labels)
Mandatory or Voluntary
Grading Label or Informative Label
EES&L SCHEME
EMTL-PCSIR

5. 5

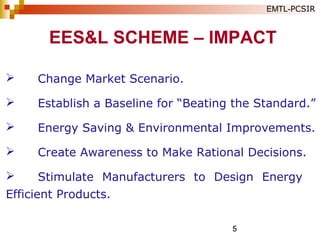

 Change Market Scenario.
 Establish a Baseline for “Beating the Standard.”
 Energy Saving & Environmental Improvements.
 Create Awareness to Make Rational Decisions.
 Stimulate Manufacturers to Design Energy
Efficient Products.
EES&L SCHEME – IMPACT
EMTL-PCSIR

6. 6

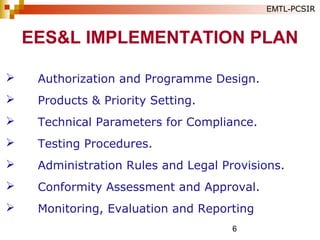

 Authorization and Programme Design.
 Products & Priority Setting.
 Technical Parameters for Compliance.
 Testing Procedures.
 Administration Rules and Legal Provisions.
 Conformity Assessment and Approval.
 Monitoring, Evaluation and Reporting
EES&L IMPLEMENTATION PLAN
EMTL-PCSIR

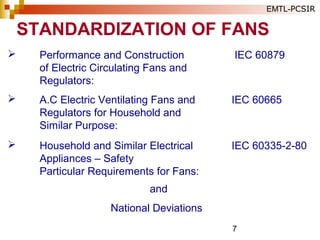

7. 7
 Performance and Construction IEC 60879
of Electric Circulating Fans and
Regulators:
 A.C Electric Ventilating Fans and IEC 60665
Regulators for Household and
Similar Purpose:
 Household and Similar Electrical IEC 60335-2-80
Appliances – Safety
Particular Requirements for Fans:
and
National Deviations
STANDARDIZATION OF FANS
EMTL-PCSIR

8. 8
PERFORMANCE REQUIREMENTS
(IEC 60879)
EMTL-PCSIR
 Marking & instructions.
 Size, number of speed and types.
 Design and general construction.
 Speed regulators.
 Interchangeability.
 Test for air performance (Air delivery test).
 Measurement of speed of the fan.
 Measurement of power factor & power input.
 Service value.

9. 9

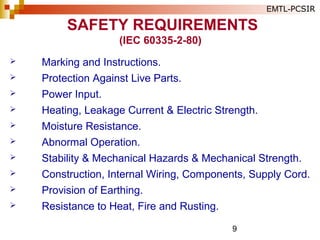

SAFETY REQUIREMENTS
(IEC 60335-2-80)
 Marking and Instructions.
 Protection Against Live Parts.
 Power Input.
 Heating, Leakage Current & Electric Strength.
 Moisture Resistance.
 Abnormal Operation.
 Stability & Mechanical Hazards & Mechanical Strength.
 Construction, Internal Wiring, Components, Supply Cord.
 Provision of Earthing.
 Resistance to Heat, Fire and Rusting.
EMTL-PCSIR

10. 10

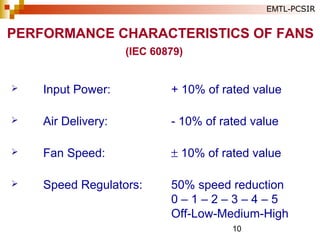

 Input Power: + 10% of rated value
 Air Delivery: - 10% of rated value
 Fan Speed: ± 10% of rated value
 Speed Regulators: 50% speed reduction
0 – 1 – 2 – 3 – 4 – 5
Off-Low-Medium-High
(IEC 60879)
PERFORMANCE CHARACTERISTICS OF FANS
EMTL-PCSIR

11. 11

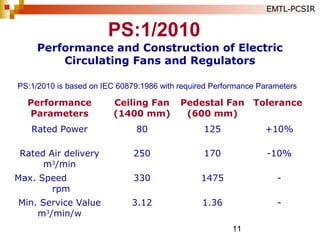

Performance and Construction of Electric
Circulating Fans and Regulators
Performance
Parameters
Ceiling Fan
(1400 mm)
Pedestal Fan
(600 mm)
Tolerance
Rated Power 80 125 +10%
Rated Air delivery
m3
/min
250 170 -10%
Max. Speed
rpm
330 1475 -
Min. Service Value
m3
/min/w
3.12 1.36 -
PS:1/2010 is based on IEC 60879:1986 with required Performance Parameters
PS:1/2010
EMTL-PCSIR

12. 12

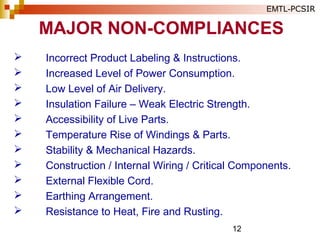

 Incorrect Product Labeling & Instructions.
 Increased Level of Power Consumption.
 Low Level of Air Delivery.
 Insulation Failure – Weak Electric Strength.
 Accessibility of Live Parts.
 Temperature Rise of Windings & Parts.
 Stability & Mechanical Hazards.
 Construction / Internal Wiring / Critical Components.
 External Flexible Cord.
 Earthing Arrangement.
 Resistance to Heat, Fire and Rusting.
MAJOR NON-COMPLIANCES
EMTL-PCSIR

13. 13

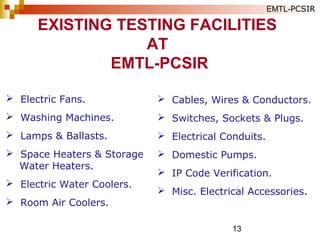

 Electric Fans.
 Washing Machines.
 Lamps & Ballasts.
 Space Heaters & Storage
Water Heaters.
 Electric Water Coolers.
 Room Air Coolers.
EXISTING TESTING FACILITIES
AT
EMTL-PCSIR
EMTL-PCSIR
 Cables, Wires & Conductors.
 Switches, Sockets & Plugs.
 Electrical Conduits.
 Domestic Pumps.
 IP Code Verification.
 Misc. Electrical Accessories.

14. 14

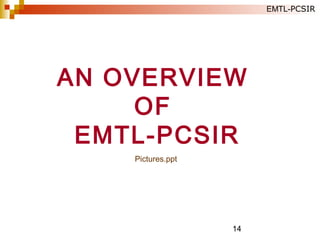

AN OVERVIEW
OF
EMTL-PCSIR
Pictures.ppt
EMTL-PCSIR

15. 15
1. Performance & Safety Testing of fans during product
design and development stages, as well as for full
compliance assessment.
2. Advisory Services to the manufacturers & exporters in
establishing technical compliance to the most stringent
quality standards as globally recognized.
3. Human Resource Development through short technical
training courses.
EMTL-PCSIR SERVICES
FOR
FAN INDUSTRY
EMTL-PCSIR

16. 16

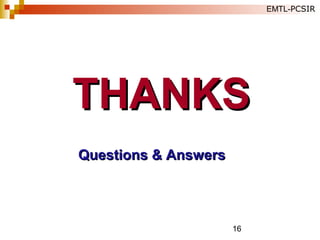

THANKSTHANKS
